DAILY REFERENCE
GUIDE
EN
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.
In order to receive a more complete assistance, please register your appliance on: www.whirlpool.eu/register
You can download the Safety Instructions and the User Manual, by visiting our website docs.whirlpool.eu and following the Instructions on the back of this booklet.
Before using the appliance carefully read Safety Instructions guide.

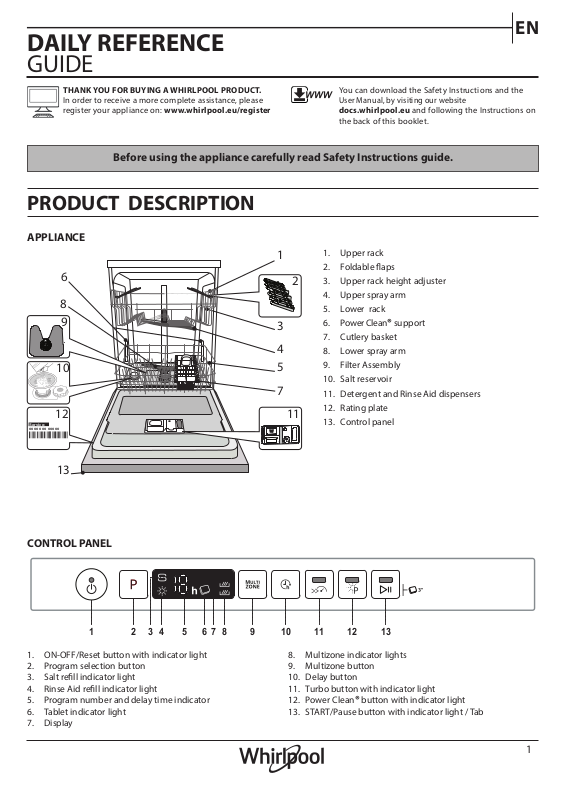

PRODUCT DESCRIPTION
APPLIANCE
|
1 |
1. |
Upper rack |
|
6 |
|
2. |
Foldable flaps |
|
2 |
3. |
Upper rack height adjuster |
||
|
||||
8 |
|
4. |
Upper spray arm |
|
|
5. |
Lower rack |
||
9 |
|
|||
3 |
6. |
Power Clean® support |
||
|
7. |
Cutlery basket |
||
|
4 |
|||
|
8. |
Lower spray arm |
||
|
5 |
9. |
Filter Assembly |
|
|
7 |
10. |
Salt reservoir |
|
|
11. |
Detergent and Rinse Aid dispensers |
||
12 |
11 |
12. |
Rating plate |
|
13. |
Control panel |
|||
Service: |
|
|||
0000 000 00000 |
|
|
|
|
13 |
|
|
|
CONTROL PANEL
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
11 |
12 |
13 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
1 |
2 |
3 |
|
4 |
|
|
|
|
5 |
|
6 7 |
8 |
|
9 |
10 |
|
|
||||||||||
1. |
ON-OFF/Reset button with indicator light |
|
|
|
|
|
8. |
Multizone indicator lights |
||||||||||||||||||||
2. |
Program selection button |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9. |
Multizone button |
|
|
|
|||
3. |
Salt refill indicator light |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10. |
Delay button |
|
|
|
|||
4. |
Rinse Aid refill indicator light |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
11. |
Turbo button with indicator light |
||||||||
5. |
Program number and delay time indicator |
|
|
|
|
|
12. |
Power Clean® button with indicator light |
||||||||||||||||||||
6. |
Tablet indicator light |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13. |
START/Pause button with indicator light / Tab |
|||||
7.Display
1
FIRST TIME USE
SALT, RINSE AID AND DETERGENT
ADVICE REGARDING THE FIRST TIME USE
After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.
FILLING THE SALT RESERVOIR
The use of salt prevents the formation of LIMESCALE on the dishes and on the machine’s functional components.
•It is mandatory that THE SALT RESERVOIR NEVER BE EMPTY.
•It is important to set the water hardness.
The salt reservoir is located in the lower part of the dishwasher
(see PRODUCT DESCRIPTION) and must be filled when the SALT REFILL indicator light
in the control panel is lit.
1. Remove the lower rack and unscrew the
reservoir cap (anticlockwise).
2. Only the first time you do this: fill the salt
reservoir with water.
3. Position the funnel (see figure) and fill the salt
reservoir right up to its edge (approximately
1 kg); it is not unusual for a little water to leak out.
4.Remove the funnel and wipe any salt residue away from the opening.
Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).
Whenever you need to add salt, it is mandatory to complete the procedure before the beginning of the washing cycle to avoid corrosion.
SETTING THE WATER HARDNESS
To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier.
The factory sets the default value for the water hardness.
•Switch on the appliance by pressing the ON/OFF button.
•Switch off the appliance by pressing the ON/OFF button.
•Hold down button P for 5 seconds, until you hear a beep.
•Switch on the appliance by pressing the ON/OFF button.
•The current selection level number and the salt indicator light both flash.
•Press button P to select the desired hardness level (see WATER HARDNESS TABLE).
Water Hardness Table
|
Level |
°dH |
°fH |
°Clark |
||
|
German degrees |
French degrees |
English degrees |
|||
|
|
|||||
1 |
Soft |
0 |
- 6 |
0 - 10 |
0 |
- 7 |
|
|
|
|
|
||
2 |
Medium |
7 - 11 |
11 - 20 |
8 - 14 |
||
|
|
|
|
|
|
|
3 |
Average |
12 |
- 16 |
21 - 29 |
15 |
- 20 |
|
|
|
|
|
|
|
4 |
Hard |
17 |
- 34 |
30 - 60 |
21 |
- 42 |
|
|
|
|
|
|
|
5 |
Very hard |
35 |
- 50 |
61 - 90 |
43 |
- 62 |
|
|
|
|
|
|
|
• Switch off the appliance by pressing the ON/OFF button. Setting is complete!
As soon as this procedure is complete, run a program without loading.
Only use salt that has been specifically designed for dishwashers.
After the salt has been poured into the machine, the SALT REFILL indicator light switches off.
If the salt container is not filled, the water softener and the heating element may be damaged as a result of limescale accumulation.
Using of Salt is recommended with any type of dishwasher detergent.
FILLING THE RINSE AID DISPENSER
Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL indicator light in the control panel is lit.
A
B
1.Open the dispenser B by pressing and pulling up the tab on the lid.
2.Pour in the rinse aid (max.110 ml), making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3.Press the lid down until you hear a click to close it.
NEVER pour the rinse aid directly into the appliance tub.
ADJUSTING THE DOSAGE OF RINSE AID
If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used.
•Switch the dishwasher on using the ON/OFF button.
•Switch it off using the ON/OFF button.
•Press button P three times - a beep will be heard.
•Switch it on using the ON/OFF button.
•The current selection level number and rinse aid indicator light flash.
•Press button P to select the level of rinse aid quantity to be supplied.
•Switch it off using the ON/OFF button
Setting is complete!
If the rinse aid level is set to ZERO (ECO), no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid.
A maximum of 5 levels can be set according to the dishwasher model. The factory setting is specific to the model, please follow instruction above to check this for your machine.
•If you see bluish streaks on the dishes, set a low number (1-2).
•If there are drops of water or limescale marks on the dishes, set a mid-range number (3-4).
FILLING THE DETERGENT DISPENSER
To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.
|
1. |
When measuring out the detergent |
|
|
refer to the mentioned earlier infor- |
|
|
mation to add the proper quantity. |
D |
|
Inside the dispenser D there are indi- |
|
cations to help the detergent dosing. |
|
|
|
|
C |
2. |
Remove detergent residues from |
|
the edges of the dispenser and clo- |
|
|
|
|
|
|
se the cover until it clicks. |
|
3. |
Close the lid of the detergent |
|
|
dispenser by pulling it up until the |
|
|
closing device is secured in place. |
The detergent dispenser automatically opens up at the right time according to the program.
If all-in-one detergents are used, we recommend using the TABLET button, because it adjusts the program so that the best washing and drying results are always achieved.
Usage of detergent not designed for dishwashers may cause malfunction or damage to the appliance.
2
EN
PROGRAMS TABLE
Program
1. Eco
2. 6th Sense®
3. Intensive
4. Fast Wash&Dry
5. Crystals
6. Rapid 30’
7. Silent
8. Prewash
Drying phase |
NaturalDry |
50°
50-60°
65°
50°
45°
50° - -
50°
- - -
Available |
Duration of |
Water |
Energy |
||
wash program |
consumption |
consumption |
|||
options *) |
|||||
(h:min)**) |
(litres/cycle) |
(kWh/cycle) |
|||
|
|
||||
|
|
3:10 |
9.5 |
0.93 |
|
|
|
1:25 - 3:00 |
7.0 - 14.0 |
0.90 - 1.40 |
|
|
|
||||
|
|
||||
|
|
2:50 |
14.0 |
1.50 |
|
|
|
||||
|
|
||||
|
|
1:25 |
11.5 |
1.10 |
|
|
|
||||
|
|
||||
|
|
1:40 |
11.5 |
1.20 |
|
|
|
||||
|
|
||||
|
|
0:30 |
9.0 |
0.50 |
|
|
|
||||
|
|
||||
|
|
3:30 |
15.0 |
1.15 |
|
|
|
0:12 |
4.5 |
0.01 |
|
|
|
||||
|
|
||||
|
|
|
|
|
|
ECO program data is measured under laboratory conditions according to European Standard EN 60436:2019.
Note for Test Laboratories:
For information on comparative EN testing conditions, please send an email to the following address: dw_test_support@whirlpool.com Pre-treatment of the dishes is not needed before any of the programs.
*) Not all options can be used simultaneously.
**) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.
PROGRAMS DESCRIPTION
Instructions on wash cycle selection.
1 ECO
Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.
2 6th SENSE ®
For normally soiled dishes with dried food residues. Senses the level of soiling on the dishes and adjusts the program accordingly. When the sensor is detecting the soil level an animation appears in the display and the cycle duration is updated.
3 INTENSIVE
Program recommended for heavily soiled crockery, especially suitable for pans and saucepans (not to be used for delicate items).
4 FASTWASH&DRY
Normally soiled crockery. Everyday cycle, that ensures optimal cleaning and drying performance in shorter time.
5 CRYSTALS
Program for delicate items, which are more sensitive to high temperatures, for example glasses and cups.
6 RAPID 30’
Program to be used for half load of lightly-soiled dishes with no dried food residues. Does not include drying phase.
7 SILENT
Suitable for night-time operation of the appliance. Ensures optimal cleaning and drying performance with the lowest noise emission.
8 PREWASH
Use to refresh crockery planned to be washed later. No detergent to be used with this program.
Notes:
Please note that cycle Rapid 30’ is dedicated for lightly soiled dishes.
