ViewSonic VG191 User Manual

0 (0)

User Guide

Guide de l’utilisateur

Bedienungsanleitung

Guida dell’utente

Guía del usuario

Guia do Usuário

Användarhandbok

Käyttöopas

PodrĊcznik uĪytkownika

With Plug & Play

✘

Full 19.0" Diagonal Viewable Screen

Pivot, Rotate, Tilt, & Swivel

VG191/

VG191b

ViewPanel

Contents

ViewSonic VG191/VG191b 1

Product Registration.............................................................. 2

For Your Records ..................................................................2

Getting Started

Package Contents .................................................................3

Precautions ........................................................................... 3

Quick Installation ...................................................................4

Landscape/Portrait Modes .................................................... 5

To Raise and Lower the display ............................................5

Installation of Wall Mount (Optional) .....................................6

Using the ViewPanel

Setting the Timing Mode ....................................................... 7

OSD and Power Button Lock Modes.....................................7

Adjusting the Screen Image ..................................................8

Other Information

Specifications ...................................................................... 15

Troubleshooting...................................................................16

Customer Support ...............................................................17

Cleaning the ViewPanel ...................................................... 18

Limited Warranty .................................................................19

Appendix

Safety Guidelines ................................................................20

Compliance Information ...................................................... 21

CE Conformity ..................................................................... 21

2 ViewSonic VG191/VG191b

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft

Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of

ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC

are trademarks of VESA.

NERGY

TAR

is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an E

NERGY

TAR

partner, ViewSonic Corporation has determined that this product meets the

NERGY

TAR

guidelines for energy efficiency.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions

contained herein; nor for incidental or consequential damages resulting from furnishing this material,

or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change

product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose

without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes

available, please register your product on the Internet at: www.viewsonic.com. The ViewSonic

Wizard CD-ROM also provides an opportunity for you to print the registration form, which you may

mail or fax to ViewSonic. NOTE: The Serial Number may be displayed from an on-screen menu.

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of this product

properly at the end of its useful life. Your local waste disposal company may provide information

about proper disposal.

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

ViewSonic VG191/VG191b

VLCDS23433-1

VG191/VG191b-1_UG_423

______________

ViewSonic VG191/VG191b 3

Getting Started

Congratulations on your purchase of a VG191/VG191b color ViewPanel

Important! Save the original box and all packing material for future shipping needs.

NOTE:

The word “Windows” refers to Microsoft Windows 95, NT, 98, 2000 and

Me (Millennium).

Package Contents

Yo ur VG191/VG191b package includes:

• VG191/VG191b ViewPanel

• Quick Start Guide

• U.S. power cord

• Schuko power cord

• Standard (15 pin) VGA video cable

• DVI video cable (to be used with computers with DVI video cards)

• AC/DC Adapter

• ViewSonic Wizard CD-ROM (includes user guide PDF and INF/ICM display

optimization files)

Precautions

• Sit at least 18" from your ViewPanel.

• Avoid touching the screen. Skin oils are

difficult to remove.

• Never remove the rear cover. Your

ViewPanel contains high-voltage parts. You

may be seriously injured if you touch them.

• Avoid exposing your ViewPanel to direct

sunlight or another heat source. Orient your

ViewPanel away from direct sunlight to

reduce glare.

• Always handle your ViewPanel with care

when moving it.

• Place your ViewPanel in a well-ventilated

area. Do not place anything on your

ViewPanel that prevents heat dissipation.

• Ensure the area around the ViewPanel is clean

and free of moisture.

• Do not place heavy objects on the ViewPanel,

video cable, or power cord.

• If smoke, abnormal noise, or strange odor is

present, immediately switch the ViewPanel

off and call your dealer or ViewSonic. It is

dangerous to continue using the ViewPanel.

4 ViewSonic VG191/VG191b

Quick Installation

1 Connect power cord and AC/DC

adapter

Connect the power cord and AC/DC adapter

from the ViewPanel to a properly grounded

AC outlet.

2 Connect video cable

Make sure both the ViewPanel

and

computer are turned OFF.

• Remove the lower back cover and lift up the

upper back cover.

• Connect the video cable to the computer then

to the ViewPanel. Both analog and digital

ports are available on the back of the

ViewPanel for your convenience.

Macintosh users: Models older than G3

require a Macintosh adapter. Attach the

adapter to the computer and plug the video

cable into the adapter.

To order a ViewSonic

Macintosh adapter,

contact ViewSonic Customer Support.

3 Turn ON ViewPanel and

computer

• Turn ON the ViewPanel, then turn ON the

computer. This sequence (ViewPanel

before computer) is important.

NOTE: Windows 95, 98 or 2000 users may

receive a message asking them to install the

INF file. This is on the CD.

4 Insert the ViewSonic Wizard CD

into the computer’s CD drive.

(1) Insert the ViewSonic Wizard CD-ROM

into your computer’s CD-ROM drive.

If your computer does not have a CD-ROM

drive, see “Customer Support.”

(2) Wait for the CD-ROM to auto-start.

NOTE: If the CD-ROM does not auto-start:

double-click on the CD-ROM icon in the

Windows Explorer, then double-click on

viewsonic.exe.

(3) Follow the on-screen instructions.

5 Windows users: Set the timing

mode (resolution and refresh

rate)

Example: 1280 X 1024 @ 60 Hz.

For instructions on changing the resolution

and refresh rate, see the graphic card’s user

guide.

Installation is complete. Enjoy your new

ViewSonic ViewPanel.

To be best prepared for any future customer

service needs: print this user guide and write

the serial number in "For Your Records” on

page 2. (See back of ViewPanel.)

You can register your product online at the

website for your region. See the Customer

Support table in this guide.

The ViewSonic Wizard CD-ROM also

provides an opportunity for you to print the

registration form which you may mail or fax

to ViewSonic.

DVI Input

Video Cable

DC IN Port

AC/DC Adapter

with power cord

AC outlet

(wall socket)

Analog Input Port

ViewSonic VG191/VG191b 5

Landscape/Portrait Modes

The VG191/VG191b ViewPanel can operate in either Landscape or Portrait

mode. Follow the instructions that accompany the Perfect Portrait software.

To switch from Landscape (default) to Portrait mode, do the following:

From the front, gently raise the ViewPanel to allow more clearance.

Pull the bottom of the ViewPanel outward and away from the base.

Manually rotate the VG191/VG191b clockwise 90 degrees as shown above.

To Raise and Lower the display

You can easily raise and lower the display panel (the head) manually. As you

face the front of the display, take hold of each side of the head and pull up or

down. The panel should move easily.

Note: Before using the portrait

display mode, first install the Perfect

Portrait

software included with

your VG191/VG191b ViewPanel.

Perfect Portrait software is

compatible with most PCI and AGP

graphics (video) cards.

For information about compatible

graphics cards and approved

hardware configurations, go to the

ViewSonic website, http://

www.viewsonic.com

Landscape

Portrait

6 ViewSonic VG191/VG191b

Installation of Wall Mount (Optional)

To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to

the instructions that come with the base mounting kit. To convert your

ViewPanel from a desk-mounted to a wall-mounted display, do the following:

Disconnect Power.

Lay the ViewPanel face down on

a towel or blanket.

Pull the back plate away from the

head of the ViewPanel. Let the

plate hang on the neck of the

ViewPanel as shown on the left.

Notice the four screws.

Remove the four screws from the

back plate.

Attach the mounting bracket

from the VESA compatible wall-

mounting kit (100 mm x 100 mm

distance).

Attach the ViewPanel to the wall,

following the instructions in the

wall-mounting kit.

Remove

four

screws

ViewSonic VG191/VG191b 7

Using the ViewPanel

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the screen

image and minimizing eye strain. The timing mode consists of the resolution

(example 1280 x 1024) and refresh rate (or vertical frequency--example 60

Hz). After setting the timing mode, use the OnView

controls to adjust the

screen image.

For the best picture quality set your ViewPanel:

VESA

1280 x 1024 @ 60 Hz

To set the Timing Mode:

Set the resolution: Right-click on the Windows

desktop > Properties >

Settings > set the resolution.

Set the refresh rate: See your graphic card's user guide for instructions.

WARNING:

Do not set the graphics card in your computer to exceed the

maximum refresh rate of 75Hz; doing so may result in permanent damage to

your ViewPanel.

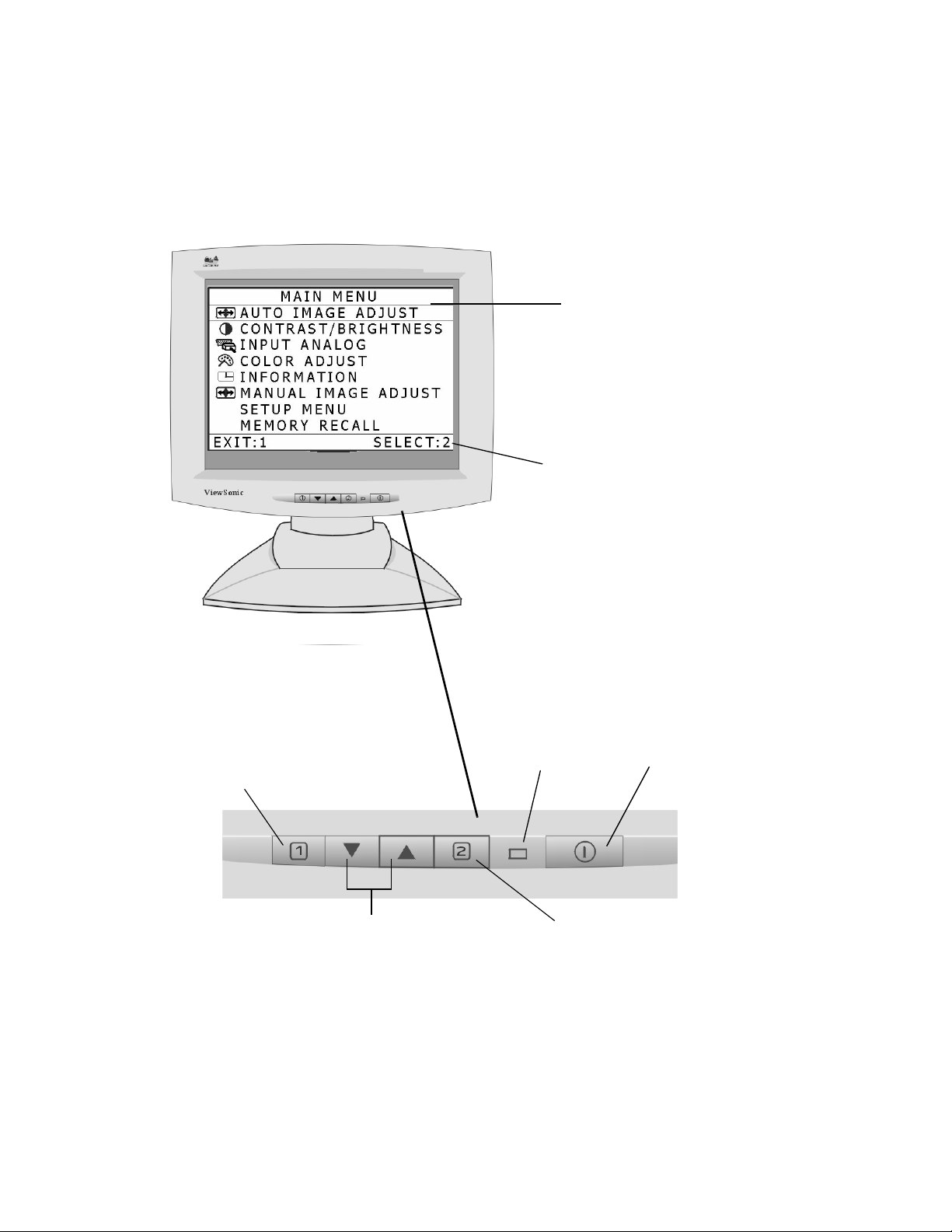

OSD and Power Button Lock Modes

OSD Lock This mode locks all current control settings and prevents access to

the control menus until this mode is unlocked.

• To lock all OSD menus, press and hold both the [1] button and the

▲

(up-

arrow) button for 10 seconds. While in this mode, when any button is pushed,

OSD Locked will display for a few seconds.

• To unlock the OSD menus, press and hold both the [1] button and the

▲

(up-

arrow) button for 10 seconds.

Power Button Lock This mode locks the power of the ViewPanel in the ON

position.

• To lock the power of the ViewPanel ON, press and hold both the [1] button

and the

▼

(down-arrow) button for 10 seconds. While in this mode, when the

power button is pushed, Power Button Locked will display for a few seconds.

• NOTE: After a power failure, whether or not the Power Button Lock mode

was active, your ViewPanel’s power will automatically turn on when power is

restored.

• To unlock this mode, press and hold both the [1] button and the

▼

(down

arrow) again for 10 seconds.
