Important instructions – retain for future use.
Contents
Sunbeam’s Safety Precautions for your |
|
Cafè Series™ Blender |
4 |
Features of your Cafè Series™ Blender |
6 |
Speed dial and Pulse function |
8 |
Lid assembly |
8 |
Operating your Cafè Series™ Blender |
9 |
Blade assembly |
10 |
Processing Baton |
11 |
Care and Cleaning |
12 |
Helpful blending hints |
13 |

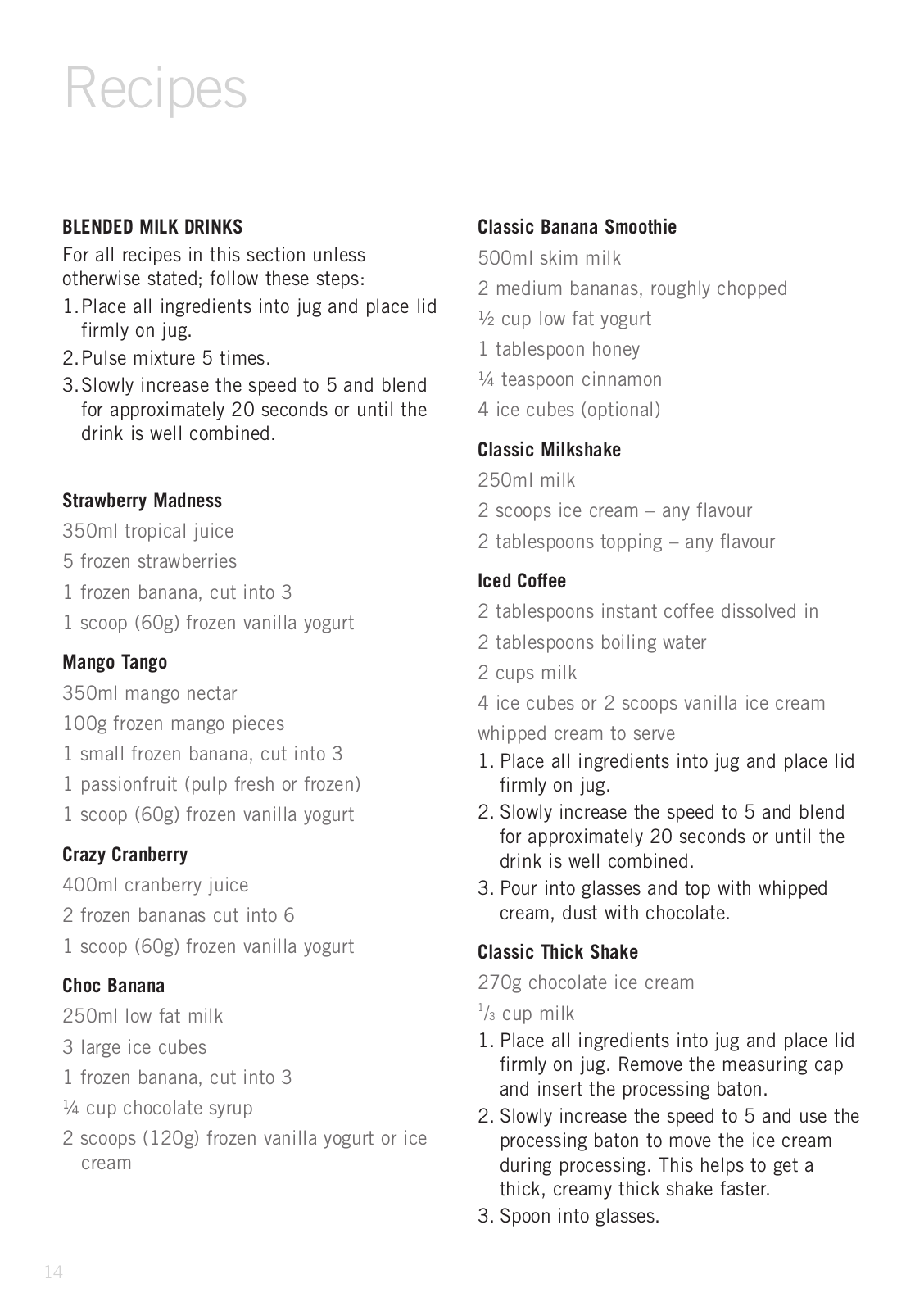

Recipes |
|
Blended milk drinks |
14 |
Non dairy blended drinks |
16 |
Cocktails |
17 |
Desserts |
18 |
Soups |
20 |
Dips |
22 |
Salad dressings and marinades |
24 |
Sauces and pastes |
26 |
Baby food |
28 |
3
Sunbeam’s Safety Precautions
SAFETY PRECAUTIONS FOR YOUR SUNBEAM CAFÈ SERIES BLENDER.
•Ensure fingers are kept well away from the blades when in use. The processing baton may be used while the motor is running with the main part of the lid in place.
•Always operate on a flat level surface.
•Ensure the control dial is in the “OFF” position and the jug is in place before plugging into the power outlet.
•Do not operate on low speed for more than 30 seconds at a time when blending heavy loads.
•Always remove the plug from the power outlet when the blender is not in use, before disassembling, putting on or taking off parts, and before cleaning other than washing the jug.
•Blade is sharp, handle carefully.
•Always operate the blender with the lid in place.
•Do not place the blade assembly onto the motor base without it being correctly fitted to the jug.
•The maximum load capacity of the jug is 2 litres, and substantially less with thick mixtures.
•When making peanut butter (or other nut butters, or oil based foods) do not process for more than one minute after mixture starts circulating. Over-processing will cause the mixture in the jug to overheat.
•Jug should not be more than 2/3 full when the processing baton is left in place while blending. Do not exceed 30 seconds of continuous blending with processing baton in place.
•The blender is fitted with a safety switch to prevent the motor operating unless the jug is in place.
•Do not blend boiling ingredients, allow to cool before placing in jug.
4
Sunbeam’s Safety Precautions
Sunbeam are very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:
•Read carefully and save all the instructions provided with an appliance.
•Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug - do not pull on the cord.
•Turn the power off and remove the plug when the appliance is not in use and before cleaning.
•Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person.
•Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.
•Close supervision is necessary when your appliance is being used near children or infirm persons.
•Young children should be supervised to ensure that they do not play with the appliance.
•Never leave an appliance unattended while in use.
•Do not use an appliance for any purpose other than its intended use.
•Do not place an appliance on or near a hot gas flame, electric element or on a heated oven. Do not place on top of any other appliance.
•Do not let the power cord of an appliance hang over the edge of a table or bench top or touch any hot surface.
•Do not operate any electrical appliance with a damaged cord or after the appliance has been damaged in any manner. If damage is suspected, return the appliance to the nearest Sunbeam Appointed Service Centre
for examination, repair or adjustment.
•For additional protection, Sunbeam recommend the use of a residual current device (RCD) with a tripping current not exceeding 30mA in the electrical circuit supplying power to your appliances.
•Do not immerse the appliance in water or any other liquid unless recommended.
If you have any concerns regarding the performance and use of your appliance, please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line.
Ensure the above safety precautions are understood.
5
Features of your Sunbeam Cafè Series™ Blender
Ingredient cap
Handy 60ml ingredient cap.
Jug lid with removable ingredient cap
To provide the necessary safety, the lid seals tightly to the jug and features a pouring hole, that allows you to add ingredients during the processing.
2 litre square jug
Inherent with superior blending performance the square jug design has a large 2 litre capacity and is
constructed from clear engineering grade polycarbonate for its lightweight and impact resistant properties.
Stainless steel blade assembly
Configured to optimise all processing tasks and provide the ultimate performance, the precision cut and sharpened stainless steel blade assembly is mounted on a sealed bearing for faster speed and longer life.
Processing baton
Specially designed to assist during demanding processing tasks, the baton allows you to safely push food into the blades while the blender is operating.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6
� �
� � �
Removable blade assembly
Blade assembly is removable for thorough cleaning.
Dampener
The rubber dampener locates and keeps the jug stable in 4 positions during processing, wipes clean and also protects the long life metal-to- metal driver.
Variable speed control and pulse
The variable speed control and pulse function provide maximum versatility for a wide range of food processing tasks rather than purely blending of liquids.
Heavy-duty 1000 watt motor
Enables blade speeds to reach up to 22,000 revolutions per minute (RPM) delivering the power to uniformly chop small or large quantities of ingredients regardless of the load. Its high performance and reliability are backed by a 5 year motor guarantee.
Non-slip feet
Heavy-duty non-slip feet ensure the blender remains stable and prevents slipping on the bench top during use.
Cord wrap
Cord wraps away to keep bench top clean.
7
Speed dial and Pulse function
Variable speed dial
Turn the speed control dial in a clockwise direction and the blender automatically starts. The variable speed dial allows you to select continuously variable motor speeds ranging from 7,000 to 22,000 revolutions per minute (free load).
Pulse button
The Pulse feature provides short bursts of power, to activate depress the Pulse button and hold down as long as needed. Ideal for crushing ice, preparing breadcrumbs,
grinding chocolate, nuts and biscuits and for refreshing ingredients in the jug.
�
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
||
|
|
|
|
Lid assembly
The lid is easy to position on or remove, and to clean for quick operation, see figure 1.
1.Simply push lid down firmly to seal.
2.To secure the measuring cap, slide it into the top of the rubber lid and rotate to lock.
3.The measuring cap can be removed when using the processing baton or when adding ingredients.
Note: As there is no locking design we advise that you place your hand on the lid as you initially start processing.
Figure 1
8
Operating your Cafè Series™ Blender
1.Place the jug on the motor base by locating it over the nodules on the rubber dampening pad. The jug can be placed on the motor base in 4 different positions.
2.Place ingredients into the jug.
Note: Do not operate the blender when the jug is empty.
3.Place the lid firmly into position on the jug. Always ensure the measuring cap is in place when processing except when the processing baton is inserted through the opening in the lid.
Note: Always have the lid in position during processing.
4.Using the variable speed dial, select the desired processing speed from 1 – 5 and this will provide continuous processing until the dial is turned anti-clockwise to the OFF position.
Due to the high processing speed of the Café Series™ Blender, processing times are significantly reduced over those of standard blenders. Therefore we advise that until you are familiar with the speed of the Café Series™ Blender that you keep a close watch on ingredients being processed.
Tip: Once processing has commenced, further ingredients can be added by removing the measuring cap and pouring ingredients through the hole in the lid.
Note: Wait until blade comes to a complete stop before removing the lid or jug.
9
Blade assembly
Important: Always ensure the blender is unplugged from the power outlet before fitting or removing the blade assembly. Always handle the blade assembly with caution, as the blades are extremely sharp.
To assemble the blade assembly follow these steps and refer to figure 2;
1.Position blade assembly into position in jug.
2.Whilst carefully holding the blade assembly in position place the locking nut on the underside of the jug and tighten.
3.Using the spanner tighten and lock the blade assembly onto jug.
Figure 2
10
