SAMSUNG UE19F4000AW, UE28F4000AW User Manual

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country	Customer Care Centre	Web Site
AUSTRIA	0810 - SAMSUNG (7267864, € 0.07/min)	www.samsung.com
BELGIUM	02-201-24-18	www.samsung.com/be (Dutch)
		www.samsung.com/be_fr (French)
BOSNIA	051 133 1999	www.samsung.com
BULGARIA	07001 33 11 , share cost tariff	www.samsung.com/bg
CROATIA	062 SAMSUNG (062 726 786)	www.samsung.com/hr
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com
	Samsung Electronics Czech and Slovak, s.r.o. V Parku 2343/24, 148 00 - Praha 4
DENMARK	70 70 19 70	www.samsung.com
FINLAND	030-6227 515	www.samsung.com
FRANCE	01 48 63 00 00	www.samsung.com/fr
GERMANY	0180 6 SAMSUNG bzw.	www.samsung.com
	0180 6 7267864*
	(*0,20 €/Anruf aus dem dt. Festnetz, aus dem Mobilfunk
	max. 0,60 €/Anruf)
CYPRUS	8009 4000 only from landline	www.samsung.com/gr
GREECE	80111-SAMSUNG (80111 726 7864) only from land line	www.samsung.com/gr
	([phone] from mobile and land line
HUNGARY	06-80-SAMSUNG (726-7864)	http://www.samsung.com/hu
ITALIA	800-SAMSUNG (726-7864)	www.samsung.com
LUXEMBURG	261 03 710	www.samsung.com
MONTENEGRO	020 405 888	www.samsung.com
NETHERLANDS	0900-SAMSUNG (0900-7267864) (€ 0,10/Min)	www.samsung.com
NORWAY	815 56480	www.samsung.com
POLAND	0 801-172-678* lub [phone] **	www.samsung.com/pl
	*(całkowity koszt połączenia jak za 1 impuls według taryfy operatora)
	** (koszt połączenia według taryfy operatora)
PORTUGAL	808 20-SAMSUNG (808 20 7267)	www.samsung.com
ROMANIA	08008 SAMSUNG (08008 726 7864)	www.samsung.com/ro
	TOLL FREE No.
SERBIA	011 321 6899	www.samsung.com/rs
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com
SPAIN	902172678	www.samsung.com
SWEDEN	0771 726 7864 (SAMSUNG)	www.samsung.com
SWITZERLAND	0848 - SAMSUNG(7267864, CHF 0.08/min)	www.samsung.com/ch (German)
		www.samsung.com/ch_fr (French)
U.K	0330 SAMSUNG (7267864)	www.samsung.com
EIRE	0818 717100	www.samsung.com
LITHUANIA	8-800-77777	www.samsung.com/lt
LATVIA	8000-7267	www.samsung.com/lv
ESTONIA	800-7267	www.samsung.com/ee
TURKEY	444 77 11	www.samsung.com

© 2013 Samsung Electronics Co., Ltd. All rights reserved.	BN68-04904B-01

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 1

LED TV

user manual

E-MANUAL

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model______________ Serial No.______________

2013-07-29 3:58:19

Warning! Important Safety Instructions

(Please read the safety instructions below before installing and using the product.)

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

This symbol indicates that important literature concerning operation and maintenance has been included with this product.

•The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus, and to protect it from overheating, these slots and openings must never be blocked or covered.

-Do not cover the slots and openings with a cloth or other materials.

-Do not block the slots and openings by placing this apparatus on a bed, sofa, rug or other similar surface.

-Do not place this apparatus in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation is provided.

•Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.

•Do not place a vessel containing water (vases etc.) on this apparatus, as this can result in a risk of fire or electric shock.

•Do not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool etc.). If this appratus accidentally gets wet, unplug it and contact an authorized dealer immediately.

•Make sure to pull out the power cord from the outlet before cleaning.

•This apparatus use batteries. In your community, there might be regulations that require you to dispose of these batteries properly to protect the environment. Please contact your local authorities for disposal or recycling information.

•Do not overload wall outlets, extension cords, or adaptors beyond their capacity, since this can result in fire or electric shock.

•Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at the plug end, where connected to adaptors, and at the point where they exit from the apparatus.

•To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.

•Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local electrical supply. (depending on the model)

•Never insert anything metallic into the open parts of this apparatus. Doing so may create a danger of electric shock.

•To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.

•Make sure to plug the power cord in until it is firmly inserted. Pull on the plug, not the cord, when removing the power cord from the outlet. Do not touch the power cord with wet hands.

•If this appratus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorized dealer or service center.

•Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the house for an extended period of time (especially when children, elderly or disabled people will be left alone in the house).

-Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cord to generate sparks and heat, or cause the insulation to deteriorate.

•Be sure to contact an authorized service center, when installing your set in a location with heavy dust, high or low temperatures, high humidity, chemical substances or where it will operate for 24 hours a day such as in an airport, a train station, etc. Failure to do so may cause serious damage to your set.

•Use only a properly grounded plug and receptacle.

-An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

•To turn off the apparatus completely, you must pull the power plug out of the wall socket. Consequently, the power plug should be readily accessible at all times.

•Do not allow children to hang onto the product.

•Store the accessories (batteries, etc.) in a location safely out of the reach of children.

•Do not install the product in an unstable location such as a shaky self, a slanted floor, or a location exposed to vibration.

•Do not drop or impart a shock to the product. If the product is damaged, disconnect the power cord and contact a service center.

•To clean the product, unplug the power cord from the power outlet and wipe the product using a soft cloth dipped in a small amount of water. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent. This may damage the appearance or erase the printing on the product.

•Do not expose the apparatus to dripping or splashing.

•Do not dispose of batteries in a fire.

•Do not short circuit, disassemble, or overheat the batteries.

•not short circuit, disassemble, or overheat the batteries.

•There is a danger of explosion if you replace the batteries with the wrong type of battery. Replace only with the same or equivalent type.

•WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

English - 2

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 2			2013-07-29 3:58:19

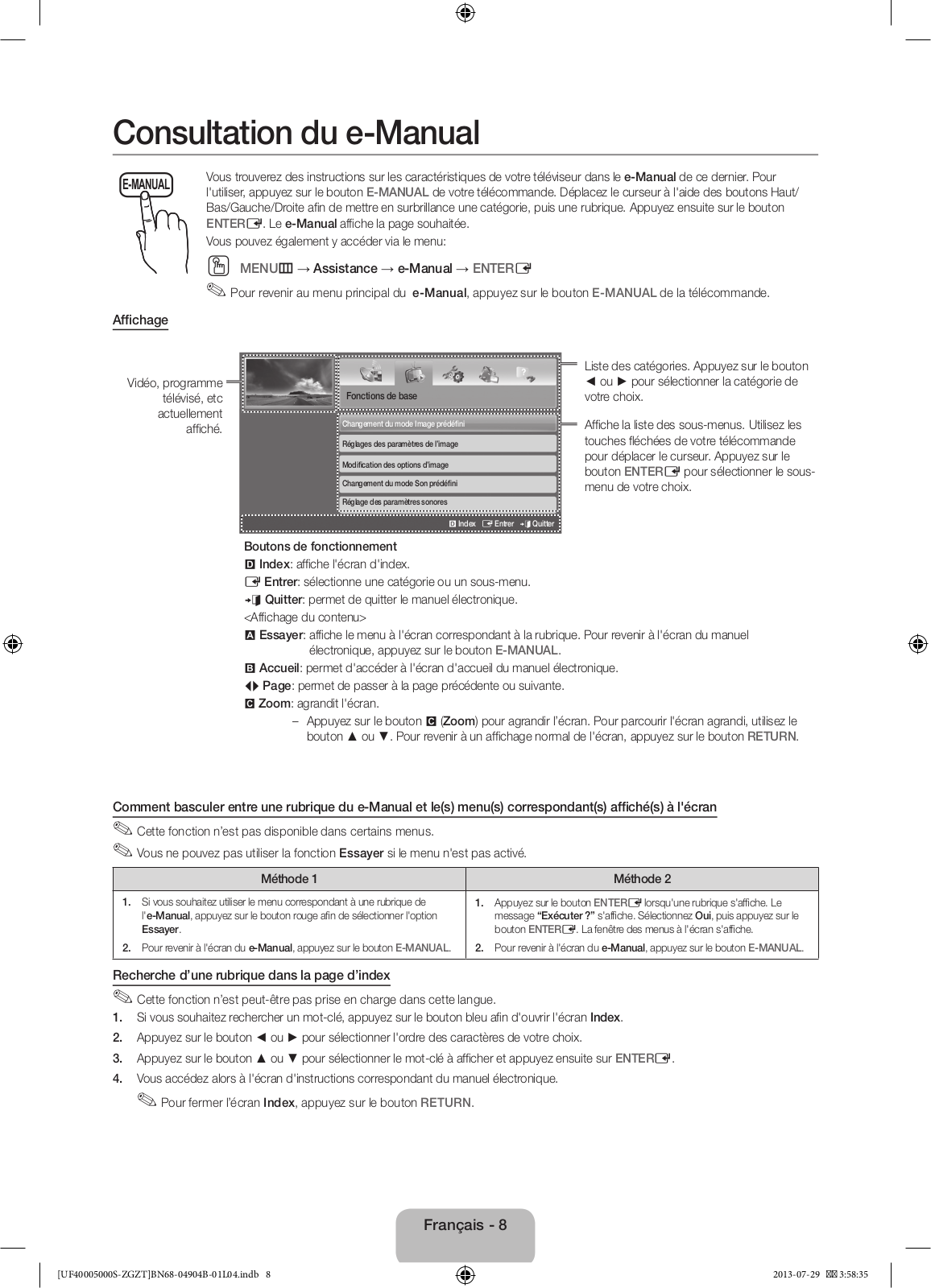

For more information on how to use e-Manual (P. 8)

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

Important Warranty Information Regarding Television Format Viewing

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.

2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this specification. So, they cannot be workable at this moment.

3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.

4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may be required to agree to terms and conditions of their business.

5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers. 6. For more information, please contact your local Samsung customer care centre.

The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or not.

Still image warning

Avoid displaying still images (like jpeg picture files) or still image element (like TV programme logo, panorama or 4:3 image format, stock or news bar at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:

•Avoid displaying the same TV channel for long periods.

•Always try to display any image on the whole screen, use the picture size menu for the best possible option to achieve this.

•Reduce brightness and contrast to minimum values required to achieve desired picture quality, excessively high values will increase the possibility of screen burnout.

•Frequently use all the TV’s features designed to reduce image retention and screen burnout, please refer to the relevant section of the user manual for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.When using a stand or wall-mount, use parts provided by Samsung Electronics only.

• If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.The appearance may differ depending on the product.

Be careful when you contact the TV because some parts can be somewhat hot.

Installation with a stand.

Installation with a wall-mount.

	10 cm		10 cm
10 cm	10 cm	10 cm	10 cm
			10 cm

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote

material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

CIS languages (Russian, Ukrainian, Kazakhs) are not available for this product, since this is manufactured for customers in EU region.

English

English - 3

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 3			2013-07-29 3:58:19

List of Features

Media Play

•Allows you to play music files, pictures, and movies saved on a USB device.

e-Manual

•Allows you to read on screen full manual. (p. 8)

Accessories

Please make sure the following items are included with your TV. If any items are missing, contact your dealer.The items’ colours and shapes may vary depending on the models.

Cables not included in the package contents can be purchased separately.

•	Remote Control & Batteries (AAA x 2)	•	Power Cord
•	Warranty Card / Regulatory Guide	•	AC/DC Adapter (for 19", 22" models)

•Owner’s Instructions

An administration fee may be charged if either

(a)an engineer is called out at your request and there is no defect in the product (i.e. where you have failed to read this user manual)

(b)you bring the unit to a repair centre and there is no defect in the product

(i.e. where you have failed to read this user manual)

The amount of such administration charge will be advised to you before any work or home visit is carried out.

Using the TV’s Controller (Panel Key)

The TV's Controller, a small joy stick like button on the rear right side of the TV, lets you control the TV without the remote control.

Some functions which require a PIN code may not be available.

The product colour and shape may vary depending on the model.

Exits the menu when pressing the controller more than 1 second.

When using the controller in the up/down/left/ right directions, make sure you do not push the controller in first. If you push the controller in first it will not move in the up/down/left right directions.

Standby mode

Selecting the Media Play

Selecting the Menu Selecting a Source

Return

Power off

Function menu

Remote control sensor

TV Controller

The image is drawn by facing the front side of the TV.

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

English - 4

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 4			2013-07-29 3:58:20

Viewing the Remote Control

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel, and Volume buttons.

Turns the TV on and off.

Alternately select Teletext ON, Double, Mix or OFF.

Adjusts the volume.

Displays the main on-screen menu.

Displays Media Play.

Quickly select frequently used functions.

Selects the on-screen menu items and changes the values seen on the menu.

Returns to the previous menu.

E-MANUAL: Displays the e-Manual guide. (p. 8) P.SIZE: Selects the picture size.

AD/SUBT.: Audio Description selection. (Not available in some locations) / Displays digital subtitles.

				Displays and selects the available video sources.
				Press to directly access to channels.
				Returns to the previous channel.
				Cuts off the sound temporarily.
				Changes channels.
				Displays channel lists on the screen.
MEDIA.P				Displays the EPG (Electronic Programme Guide).
				Displays information on the TV screen.
				Exits the menu.
A	B	C	D	Use these buttons according to the direction on
				screen.
E-MANUAL	P.SIZE	AD/SUBT.
				Use these buttons in a specific feature.
				For details, refer to the e-Manual.

Installing batteries (Battery size: AAA)

English - 5

English

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 5			2013-07-29 3:58:20

TV Rear Panel

Connections

	HDMI connection	AV connection	Component connection
	Set top Box / BD Player / PC	BD Player		BD Player
HDMI OUT	DVI OUT	AUDIO OUT VIDEO OUT	AUDIO OUT COMPONENT OUT
		R-AUDIO-L	R-AUDIO-L	PR PB Y

OPTICAL

Audio

connection

R W Y R W R B G

R	W	Y	R	W	R B	G It supports both
						Component and AV
						connection in one port.

	TV Side Panel
USB	USB
	(5V 0.5A)
	HDMI IN 1
	(STB)

HDMI IN 2		Headphone
		connection
(DVI)	DIGITAL
	AUDIO OUT
	(OPTICAL)
	AUDIO	VIDEO

	COMMON INTERFACE	COMPONENT
		/ AV IN

		DC 14V
	EXT	AIR/CABLE
		ANT IN
	(RGB)
		Power Input

(UE19F4000 / UE22F5000)

VHF/UHF Antenna

Power Input

(UE28F4000)

or

The position of port may differ depending on the model.

EXT

Cable

VCR or DVD

SCART connection

NOTE

•PC(D-Sub) and PC/DVI AUDIO IN input are not supported.

•Connecting through the HDMI cable may not be supported depending on the PC.

•If a DVI to HDMI cable is connected to HDMI IN 2(DVI) port, there will be no audio.

•For set-top box connection using HDMI cable, we highly recommend you to connect the HDMI IN 1(STB) port.

•The headphone jack supports only the 3 conductor tip-ring-sleeve (TRS) type.

•The HDD (Hard Disk Drive) connected to USB is not supported.

English - 6

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 6			2013-07-29 3:58:21

Connecting to a COMMON INTERFACE slot (Your TV viewing Card Slot)

To watch paid channels, the “CI or CI+ CARD” must be inserted.

• If you do not insert the “CI or CI+ CARD”, some channels will display

the message “Scrambled Signal”.

• The pairing information containing a telephone number, the “CI or CI+ CARD” ID the Host ID and other information will be displayed in

about 2~3 minutes. If an error message is displayed, please contact your service provider.

• When the configuration of channel information has finished, the

message “Updating Completed” is displayed, indicating the channel • The image may differ depending on the model. list is updated.

NOTE

•You must obtain a “CI or CI+ CARD” from a local cable service provider.

•When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+ CARD” may cause damage to it.

•Insert the “CI or CI+ CARD” in the direction marked on the card.

•The location of the COMMON INTERFACE slot may be different depending on the model.

•“CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.

•If you have any problems, please contact a service provider.

•Insert the “CI or CI+ CARD” that supports the current aerial settings. The screen will be distorted or will not be seen.

Initial Setup

When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the POWERP button. Setup is available only when the source is set to TV.

If you connect any device to HDMI IN 1(STB) before starting the installation, Channel Source will be changed to Set-top box automatically. If you do not want to select Set-top box, please select Aerial.

If You Want to Reset This Feature...

You should do Setup (MENU → System) again at home although you did in shop.

Select System - Setup (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0” (except Italy). If you want to change the PIN number, use the Change PIN function.

If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode, which resets the PIN to “0-0-0-0” (Italy: “1-1-1-1”): POWER (off) → MUTE → 8 → 2 → 4 → POWER (on).

Changing the Input Source

Source

TV / Ext. / HDMI1 / HDMI2/DVI / AV / Component

Use to select TV or other external input sources such as DVD / Blu-ray players / cable box / STB satellite receiver connected to the TV.Press the SOURCE button. In the displayed Source list, connected inputs will be highlighted.

PC(D-Sub) input is not supported. If you want to connect PC to the TV, you can connect the HDMI to DVI cable with the HDMI IN 2(DVI) port on the TV.

Ext. always stays activated.Press the TOOLS button.

•Edit Name

You can set an external input source name you want.

––When connecting a PC to the HDMI IN 2(DVI) port with HDMI cable, you should set the TV to PC mode under Edit Name.

––When connecting a PC to the HDMI IN 2(DVI) port with HDMI to DVI cable, you should set the TV to DVI PC mode under

Edit Name.

––When connecting an AV devices to the HDMI IN 2(DVI) port with HDMI to DVI cable, you should set the TV to DVI Devices mode under Edit Name.

•Information

You can see detailed information about the connected external device.

English

English - 7

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 7			2013-07-29 3:58:21

How to use the e-Manual

E-MANUAL

Screen Display

You can find instructions about your TV’s features in the e-Manual in your TV. To use, press the E-MANUAL button on your remote. Move the cursor using the up/down/right/left buttons to highlight a category, then a topic, and then press the ENTEREbutton. The e-Manual displays the page you want to see.

You can also access it through the menu:

OO MENUm→ Support → e-Manual → ENTERE

To return to the e-Manual main menu, press the E-MANUAL button on the remote.

Currently displayed		Basic Features
video, TV
Programme, etc.

Changing the Preset Picture Mode

Adjusting Picture Settings

Changing the Picture Options

Changing the Preset Sound Mode

Adjusting Sound Settings

}Index EEnter eExit

The category list. Press ◄ or ► button to select the category you want.

Displays the sub-menu list. Use the arrow buttons on your remote to move the cursor. Press ENTEREbutton to select the submenu you want.

Operation Buttons

}Index: Displays the index screen.

EEnter: Selects a category or sub-menu. eExit: Exit the e-Manual.

<Viewing the Contents>

aTry now: Displays the OSD menu that corresponds to the topic. To return to the e-Manual screen, press the

E-MANUAL button.

bHome: Moves to the e-Manual home screen. LPage: Moves to previous or next page.

{Zoom: Magnifies a screen.

––Press the {(Zoom) button to magnify the screen. You can scroll through the magnified screen by using the ▲ or ▼ buttons. To return to the screen to normal size, press the RETURN button.

How to toggle between an e-Manual topic and the corresponding OSD menu(s).

This function is not enabled in some menus.

You cannot use the Try now function if the menu is not activated.

	Method 1		Method 2
1.	If you want to use the menu that corresponds to an e-Manual topic,	1.	Press the ENTEREbutton when a topic is displayed. “Are you sure?”
	press the red button to select Try now.		appears. Select Yes, and then press the ENTEREbutton. The OSD
2.	To return to the e-Manual screen, press the E-MANUAL button.		window appears.
		2.	To return to the e-Manual screen, press the E-MANUAL button.

How to search for a topic on the index page

This function may not be supported depending on the language.

1.If you want to search a keyword, press the blue button to select Index.

2.Press the ◄ or ► button to select a character order you want.

3.Press the ▲ or ▼ button to select a keyword you want to see, and then press the ENTEREbutton.

4.You can view the corresponding e-Manual instruction screen.To close the Index screen, press the RETURN button.

English - 8

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 8			2013-07-29 3:58:21

Teletext Feature

The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

You can change Teletext pages by pressing the numeric buttons on the remote control.

												1	0	(mode): Selects the Teletext mode (LIST/FLOF). If pressed during LIST mode,
		1											switches the mode to List save mode. In List save mode, you can save a Teletext page
													into a list using the 8(store) button.
												2	/(Teletext on/mix/off): Activates the Teletext mode for the current channel. Press
													the button twice to overlap the Teletext mode with the current broadcasting screen.
													Press it one more time to exit teletext.
												3	1	(sub-page): Displays the available sub-page.
												4	8	(store): Stores the Teletext pages.
												5	6	(index): Displays the index (contents) page at any time while you are viewing Teletext.
2												6	4	(size): Displays the teletext on the upper half of the screen in double-size. To move
				3
													the text to the lower half of the screen, press it again. For normal display, press it once

again.

8

9 4

MEDIA.P5

60

7!

A B C D @

E-MANUAL P.SIZE AD/SUBT.

79(hold): Holds the display at the current page, in the case that there are several secondary pages that follow automatically. To undo, press it again.

82(page up): Displays the next Teletext page.

93(page down): Displays the previous Teletext page.

05(reveal): Displays the hidden text (answers to quiz games, for example). To display the normal screen, press it again.

!7(cancel): Shrinks the Teletext display to overlap with the current broadcast.

@Colour buttons (red, green, yellow, blue): If the FASTEXT system is used by the broadcasting company, the different topics on a Teletext page are colour-coded and can be selected by pressing the coloured buttons. Press the colour corresponding to the topic of your choice. A new colour coded page is displayed. Items can be selected in the same way. To display the previous or next page, press the corresponding coloured button.

The Teletext pages are organized according to six categories

Part

Contents

ASelected page number.

BBroadcasting channel identity.

CCurrent page number or search indications.

DDate and time.

EText.

FStatus information. FASTEXT information.

A	B	C	D

E

F

English - 9

English

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 9			2013-07-29 3:58:22

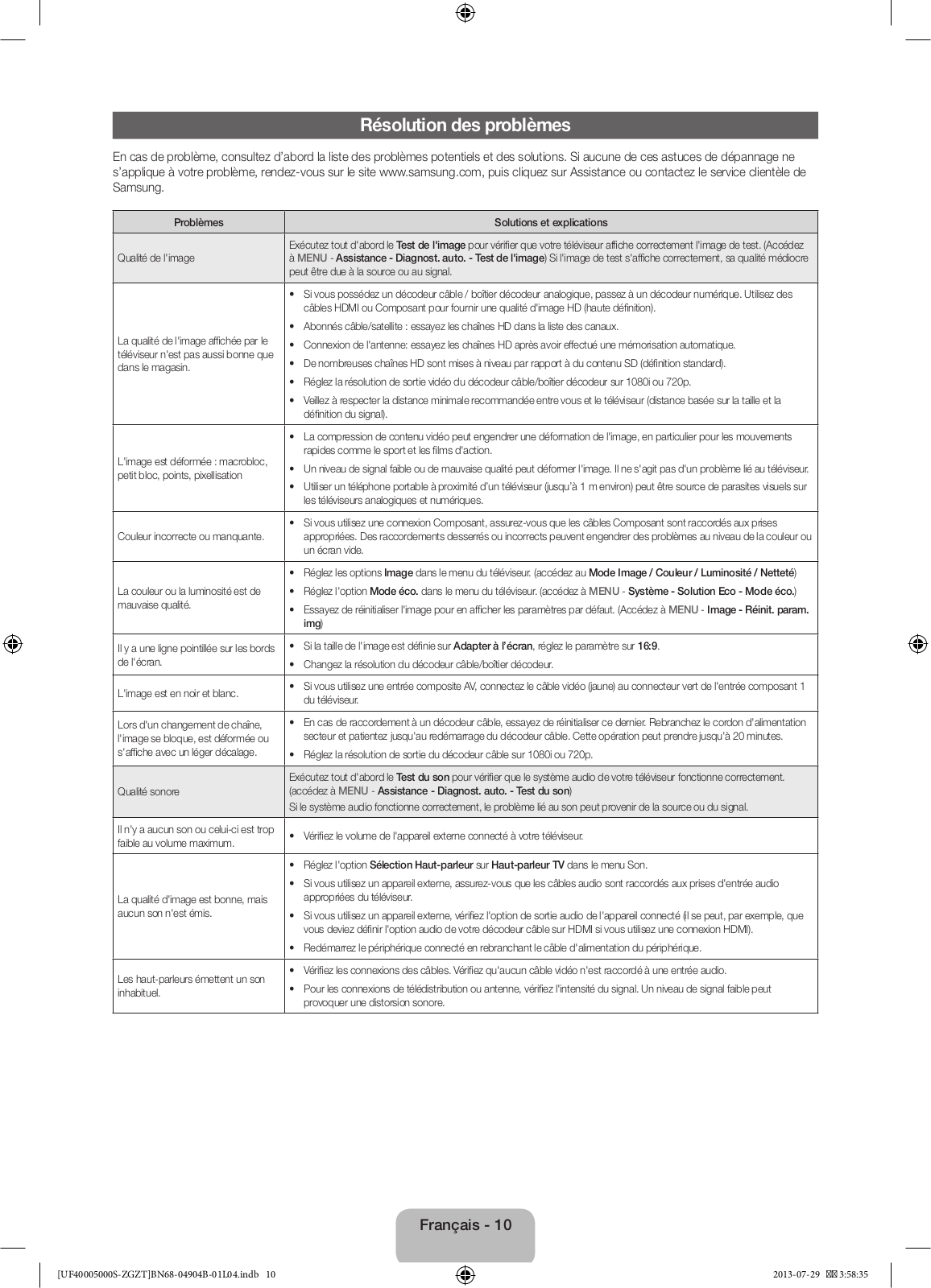

Troubleshooting

If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, visit “www.samsung.com”, then click on Support, or call Samsung customer service centre.

	Issues	Solutions and Explanations
		First of all, please perform the Picture Test and confirm that your TV is properly displaying test image. (go to MENU -
	Picture Quality	Support - Self Diagnosis - Picture Test) If the test image is properly displayed, the poor picture may caused by the
		source or signal.
		• If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI or Component cables to deliver
		HD (high definition) picture quality.
		• Cable/Satellite subscribers: Try HD stations from the channel line up.
	The TV image does not look as good	• Aerial connection: Try HD stations after performing Auto tuning.
	as it did in the store.	• Many HD channels are up scaled from SD (Standard Definition) contents.
		• Adjust the Cable/Set top box video output resolution to 1080i or 720p.
		• Make sure you are watching the TV at the minimum recommended distance based on the size and definition of the
		signal.
		• Compression of video contents may cause picture distortion especially in fast moving pictures such as sports and
	The picture is distorted: macroblock	action movies.
	error, small block, dots, pixelization	• Low signal level or bad quality can cause picture distortion. This is not a TV issue.
		• Mobile phones used close to the TV (cca up to 1m) may cause noise in picture on analogue and digital TV.
	Colour is wrong or missing.	• If you’re using a component connection, make sure the component cables are connected to the correct jacks. Incorrect
		or loose connections may cause colour problems or a blank screen.
		• Adjust the Picture options in the TV menu. (go to Picture Mode / Colour / Brightness / Sharpness)
	There is poor colour or brightness.	• Adjust Energy Saving option in the TV menu. (go to MENU - System - Eco Solution - Energy Saving)
		• Try resetting the picture to view the default picture settings. (go to MENU - Picture - Reset Picture)
	There is a dotted line on the edge of	• If the picture size is set to Screen Fit, change it to 16:9.
	the screen.	• Change cable/satellite box resolution.
	The picture is black and white.	• If you are using an AV composite input, connect the video cable (yellow) to the Green jack of component input 1 on the
		TV.
	When changing channels, the picture	• If connected with a cable box, please try to reset the cable box. Reconnect the AC cord and wait until the cable box
	freezes or is distorted or delayed.	reboots. It may take up to 20 minutes.
		• Set the output resolution of the cable box to 1080i or 720p.
		First of all, please perform the Sound Test to confirm that your TV audio is properly operating. (go to MENU - Support -
	Sound Quality	Self Diagnosis - Sound Test)
		If the audio is ok, the sound problem may be caused by the source or signal.
	There is no sound or the sound is too	• Please check the volume of the device (Cable/Sat Box, DVD, Blu-ray etc) connected to your TV.
	low at maximum volume.
		• Set the Speaker Select option to TV Speaker in the sound menu.
		• If you are using an external device, make sure the audio cables are connected to the correct audio input jacks on the
	The picture is good but there is no	TV.
	sound.	• If you are using an external device, check the device’s audio output option (ex. you may need to change your cable
		box’s audio option to HDMI when you have a HDMI connected to your TV).
		• Reboot the connected device by reconnecting the device’s power cable.
	The speakers are making an	• Check the cable connections. Make sure a video cable is not connected to an audio input.
	inappropriate noise.	• For aerial or cable connections, check the signal strength. Low signal level may cause sound distortion.

English - 10

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 10			2013-07-29 3:58:22

	Issues	Solutions and Explanations
	No Picture, No Video
		• Make sure the AC power cord is securely plugged in to the wall outlet and the TV.
	The TV will not turn on.	• Make sure the wall outlet is working.
		• Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “The
		remote control does not work” below.
		• Ensure the Sleep Timer is set to Off in the Time menu.
	The TV turns off automatically.	• If your PC is connected to the TV, check your PC power settings.
		• Make sure the AC power cord is plugged in securely to the wall outlet and the TV.
		• When watching TV from an aerial or cable connection, the TV will turn off after 10 ~ 15 minutes if there is no signal.
		• Check cable connections (remove and reconnect all cables connected to the TV and external devices).
		• Set your external device’s (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the connections to the TV
	There is no picture/video.	input. For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV.
		• Make sure your connected devices are powered on.
		• Be sure to select the TV’s correct source by pressing the SOURCE button on the remote control.
		• Reboot the connected device by reconnecting the device’s power cable.
	Aerial (Air/Cable) Connection
		• Make sure the Aerial cable is connected securely.
	The TV is not receiving all channels.	• Please try Setup (Initial setup) to add available channels to the channel list. Go to MENU - System - Setup (Initial
		setup) and wait for all available channels to be stored.
		• Verify the Aerial is positioned correctly.
	The picture is distorted: macro block	• Compression of video contents may cause picture distortion, especially on fast moving pictures such as sports and
	error small block, dots, pixelization	action movies.
		• A low signal can cause picture distortion. This is not a TV issue.
	Others
	The picture will not display in full	• HD channels will have black bars on either side of the screen when displaying up scaled SD (4:3) contents.
		• Black bars on the top and bottom will appear during movies that have aspect ratios different from your TV.
	screen.
		• Adjust the picture size options on your external device or TV to full screen.
		• Replace the remote control batteries with the poles (+/–) in the right direction.
	The remote control does not work.	• Clean the sensor’s transmission window on the remote.
		• Try pointing the remote directly at the TV from 5~6 feet away.
	The cable/set top box remote control	• Programme the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set top box user manual for
	doesn’t turn the TV on or off, or	the SAMSUNG TV code.
	adjust the volume.
	A “Mode Not Supported” message	• Check the supported resolution of the TV, and adjust the external device’s output resolution accordingly.
	appears.
	There is a plastic smell from the TV.	• This smell is normal and will dissipate over time.
	The TV Signal Information is
	unavailable in the Self Diagnosis	• This function is only available with digital channels from an Aerial / RF / Coax connection.
	Test menu.
	TV is tilted to the right or left side.	• Remove the stand base from the TV and reassemble it.
	There are difficulties assembling the	• Make sure the TV is placed on a flat surface. If you can not remove the screws from the TV, please use a magnetized
	stand base.	screw driver.
	The Broadcasting menu is grey out	• The Broadcasting menu is only available when the TV source is selected.
	(unavailable).

English

English - 11

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 11			2013-07-29 3:58:22

	Issues	Solutions and Explanations
	Your settings are lost after 30 minutes	• If the TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. If you want to change
	or every time the TV is turned off.	the settings from Store Demo mode to Home Use, press the SOURCE button to select TV mode, and go to MENU
		- Support - Use Mode.
	You have intermittent loss of audio	• Check the cable connections and reconnect them.
		• Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are flexible enough for
	or video.
		long term use. If mounting the TV to the wall, we recommend using cables with 90 degree connectors.
	You see small particles when you
	look closely at the edge of the frame	• This is part of the product’s design and is not a defect.
	of the TV.
	The PIP menu is not available.	• PIP functionality is only available when you are using a HDMI or components source.
	You turned the TV off 45 minutes	• It is normal. The TV operates the OTA (Over The Aerial) function itself to upgrade firmware downloaded whilst your
	ago, and it turned on again.	watching TV.
	The message “Scrambled Signal” or	• If you are using a CAM CARD (CI/CI+), check that it is installed into the common interface slot.
	“Weak or No Signal” appears.	• If there is still a problem, pull the CAM CARD out of the TV and insert it into the slot again.
	There are recurrent picture/sound	• Check and change the signal/source.
	issues.
	A reaction may occur between the
	rubber cushion pads on the base	• To prevent this, use felt pads on any surface of the TV that comes in direct contact with furniture.
	stand and the top finish of some
	furniture.
	The message “This file may not be	• This may appear because of high bit rate of content. Content generally will play but could experience some playability
	playable properly.” appears.	issue.

You can keep your TV in optimum operating condition by upgrading to the latest firmware (www.samsung.com → Support) by USB.

This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

English - 12

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 12			2013-07-29 3:58:22

Installing the Wall Mount

The wall mount kit (sold separately) allows you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for assistance when installing the wall mount bracket. We do not advice you to do it yourself.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you select to install the TV on your own.

Wall Mount Kit Specifications (VESA)

Wall mount kit is not supplied but sold separately.

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

NOTE

•Standard dimensions for wall mount kits are shown in the table below.

•When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

•Do not use screws that do not comply with the VESA standard screw specifications.

•Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set.

•For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on their specifications.

•Do not fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.

•Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.

•Do not exceed 15 degrees tilt when mounting this TV.

inches	VESA Spec. (A * B)	Standard Screw			Quantity
19~22	75 X 75		M4
26~28	100 X 100				4
32~42	200 X 200		M8
46~60	400 X 400

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, resulting in serious injuries or death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows.

To avoid the TV from falling

Wall

The product colour and shape may vary depending on the model.

1.Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly installed onto the wall.

You may need additional material such as an anchor depending on the type of wall.

Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

2.Remove the screws from the centre back of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.

3.Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong string and then tie the string tightly.

NOTE

•Install the TV near to the wall so that it does not fall backwards.

•It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV.

•Untie the string before moving the TV.

4.Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have

any doubt about the security of your connections, contact a professional installer.

English

English - 13

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 13			2013-07-29 3:58:23

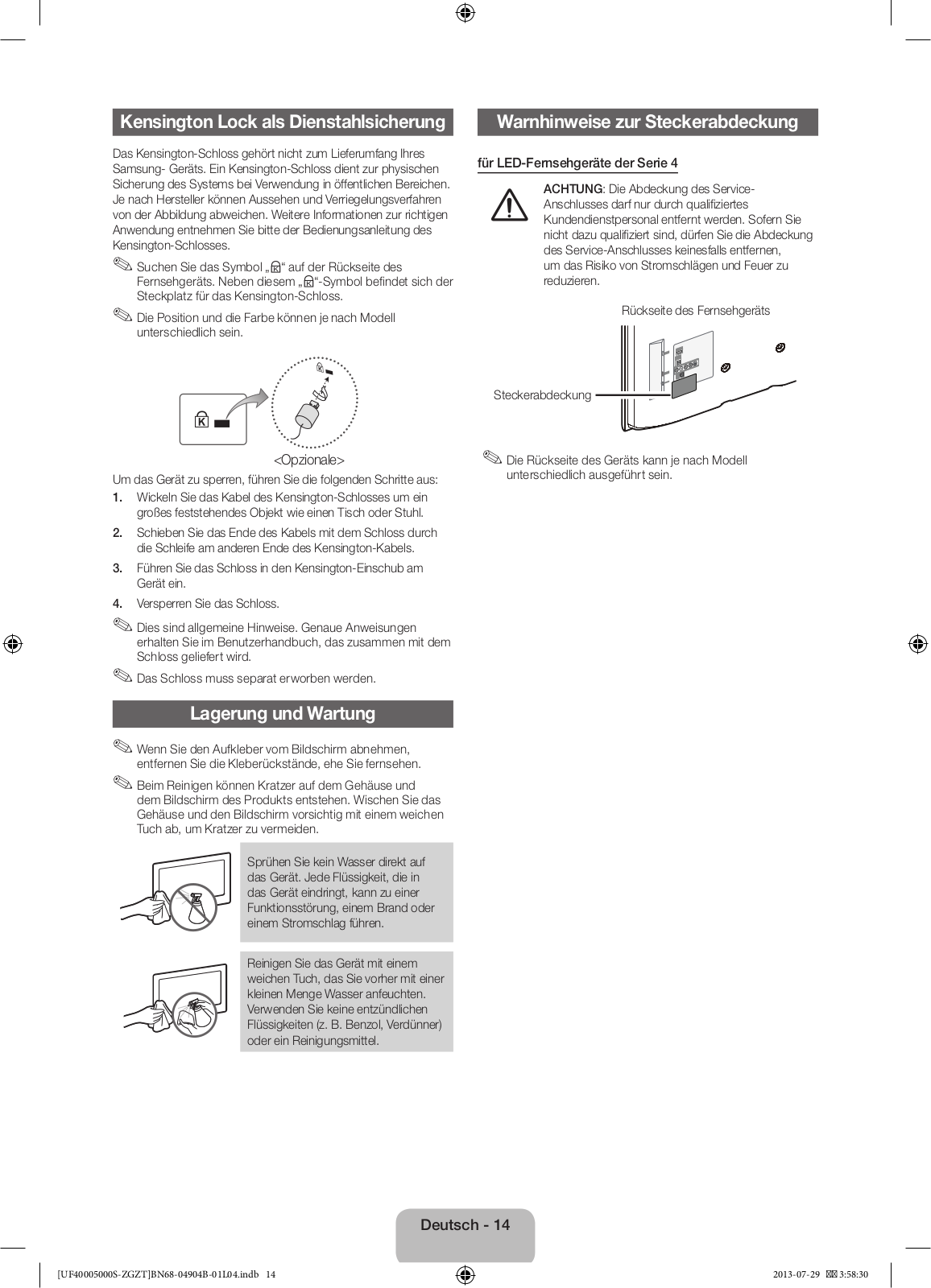

Anti-theft Kensington Lock

The Kensington Lock is not supplied by Samsung. It is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for additional information on proper use.

Please find a “K” icon on the rear of the TV. A kensington slot is beside the “K” icon.

The position and colour			on the model.

<Optional>

To lock the product, follow these steps:

1.Wrap the Kensington lock cable around a large, stationary object such as desk or chair.

2.Slide the end of the cable with the lock attached through the looped end of the Kensington lock cable.

3.Insert the locking device into the Kensington slot on the product.

4.Lock the lock.

These are general instructions. For exact instructions, see the User manual supplied with the locking device.

The locking device has to be purchased separately.

Storage and Maintenance

If you remove the attached sticker on the TV screen, clean the residues and then watch TV.

The exterior and screen of the product can get scratched during cleaning. Be sure to wipe the exterior and screen

cloth to prevent scratches.

Do not spray water directly onto the product. Any liquid that goes into the product may cause a failure, fire, or electric shock.

Clean the product with a soft cloth dapped in a small amount of water. Do not use a flammable liquid (e.g. benzene, thinners) or a cleaning agent.

Caution of the cover-jack

for LED 4 series

CAUTION: The cover-jack is for use by qualified service personnel only. To reduce the risk of electric shock or fire hazard, do not use the cover jack, unless you are qualified to do so.

TV Rear Panel

Cover-jack

The rear panel may differ depending on the model.

English - 14

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 14			2013-07-29 3:58:23

Specifications

					English
Environmental Considerations
Operating Temperature	10°C to 40°C (50°F to 104°F)
Operating Humidity	10% to 80%, non-condensing
Storage Temperature	-20°C to 45°C (-4°F		to 113°F)
Storage Humidity	5% to 95%, non-condensing
Model Name	UE19F4000			UE28F4000
Screen Size	19 inches			28 inches
Sound (Output)	3W X 2			5W X 2
Display Resolution	1366 X 768
Dimensions (W x H x D)
Body	453.7 x 285.8 x 49.5 (mm)			645.0 x 389.4 x 49.5 (mm)
With stand	453.7 x 314.2 x 151.4 (mm)			645.0 x 435.6 x 252.6 (mm)
Weight
Without Stand	2.5 kg			4.2 kg
With Stand	2.6 kg			4.6 kg
Model Name	UE22F5000
Screen Size	22 inches
Sound (Output)	3W X 2
Display Resolution	1920 X 1080
Dimensions (W x H x D)
Body	513.1 x 321.5 x 43.8 (mm)
With stand	513.1 x 366.5 x 169.6 (mm)
Weight
Without Stand	2.6 kg
With Stand	2.9 kg

Design and specifications are subject to change without prior notice.

For information about power supply, and more about power consumption, refer to the label attached to the product.Typical power consumption is measured according to IEC 62087 Ed.2

English - 15

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 15			2013-07-29 3:58:24

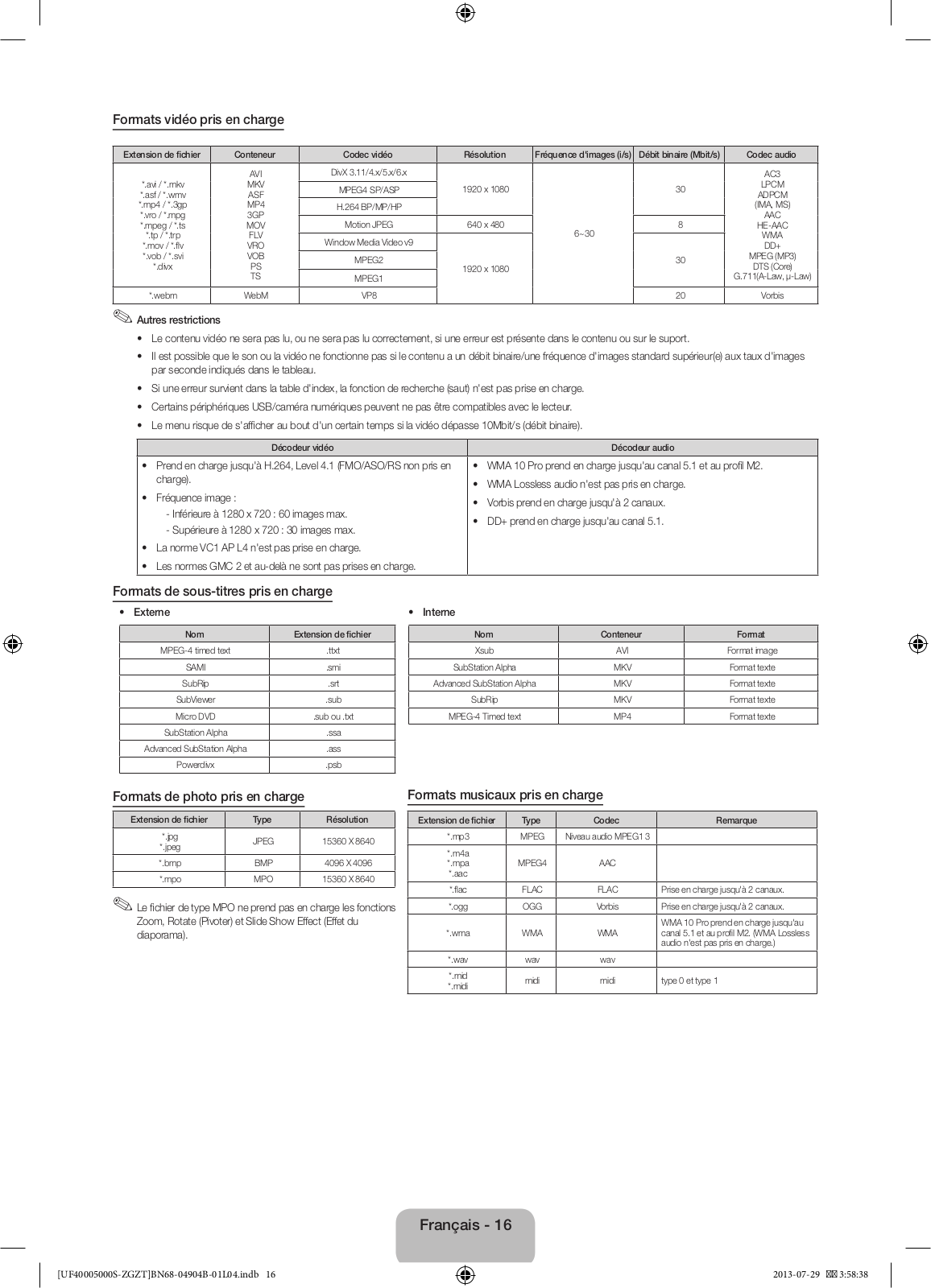

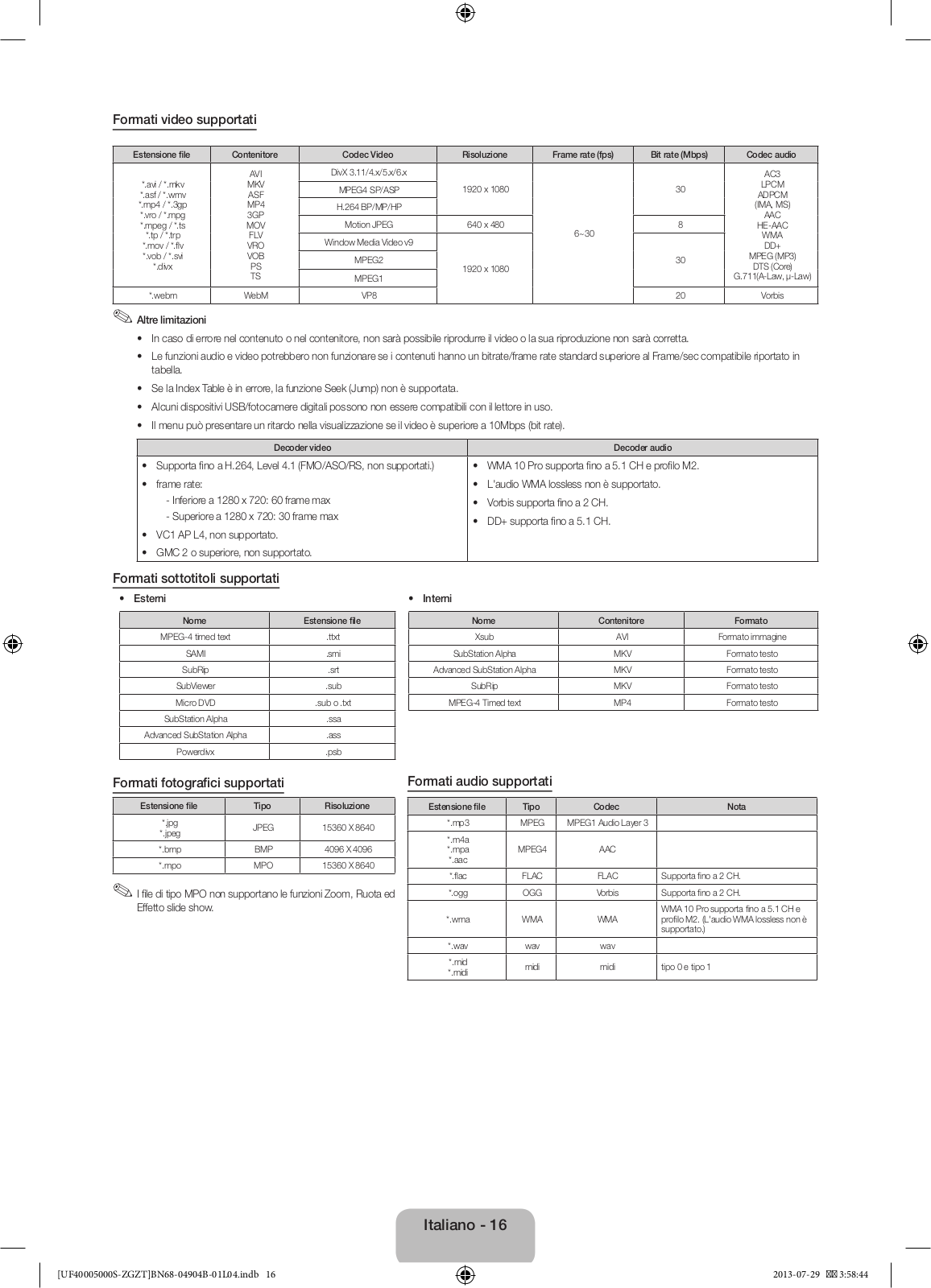

Supported Video Formats

File Extention	Container	Video Codec	Resolution	Frame rate (fps)	Bit rate (Mbps)	Audio Codec
*.avi / *.mkv	AVI	DivX 3.11/4.x/5.x/6.x				AC3
	MKV		1920 x 1080		30	LPCM
		MPEG4 SP/ASP
*.asf / *.wmv	ASF					ADPCM
*.mp4 / *.3gp	MP4	H.264 BP/MP/HP				(IMA, MS)
*.vro / *.mpg	3GP					AAC
		Motion JPEG	640 x 480		8
*.mpeg / *.ts	MOV			6~30		HE-AAC
*.tp / *.trp	FLV					WMA
		Window Media Video v9
*.mov / *.flv	VRO					DD+
*.vob / *.svi	VOB	MPEG2			30	MPEG (MP3)
*.divx	PS		1920 x 1080			DTS (Core)
	TS	MPEG1				G.711(A-Law, μ-Law)
*.webm	WebM	VP8			20	Vorbis

Other Restrictions

•Video content will not play, or not play correctly, if there is an error in the content or the container.

•Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table.

•If the Index Table is in error, the Seek (Jump) function is not supported.

•Some USB/digital camera devices may not be compatible with the player.

•The menu can be displayed late if the video is over 10Mbps(bit rate).

Video decoder	Audio decoder
• Supports up to H.264, Level 4.1 (FMO/ASO/RS are not supported.)	• WMA 10 Pro supports up to 5.1 channel and M2 profile.
• frame rate :	• WMA lossless audio is not supported.
- Below 1280 x 720: 60 frame max	• Vorbis supports up to 2ch.
- Above 1280 x 720: 30 frame max	• DD+ supports up to 5.1 channel.
• VC1 AP L4 is not supported.
• GMC 2 or higher is not supported.

Supported Subtitle Formats

• External

Name	File extension
MPEG-4 timed text	.ttxt
SAMI	.smi
SubRip	.srt
SubViewer	.sub
Micro DVD	.sub or .txt
SubStation Alpha	.ssa
Advanced SubStation Alpha	.ass
Powerdivx	.psb

• Internal

Name	Container	Format
Xsub	AVI	Picture Format
SubStation Alpha	MKV	Text Format
Advanced SubStation Alpha	MKV	Text Format
SubRip	MKV	Text Format
MPEG-4 Timed text	MP4	Text Format

Supported Photo Formats

	File Extension	Type	Resolution
	*.jpg	JPEG	15360 X 8640
	*.bmp	BMP	4096 X 4096
	*.mpo	MPO	15360 X 8640

The MPO type file does not support Zoom, Rotate and Slide Show Effect functions.

Supported Music Formats

	File Extension	Type	Codec	Remark
	*.mp3	MPEG	MPEG1 Audio Layer 3
	*.m4a
	*.mpa	MPEG4	AAC
	*.aac
	*.flac	FLAC	FLAC	Supports up to 2ch.
	*.ogg	OGG	Vorbis	Supports up to 2ch.
				WMA 10 Pro supports up to 5.1 channel
	*.wma	WMA	WMA	and M2 profile. (WMA lossless audio is
				not supported.)
	*.wav	wav	wav
	*.mid	midi	midi	type 0 and type 1
	*.midi

English - 16

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 16			2013-07-29 3:58:24

Full available resolution

Optimal resolution is 4 series:1366 x 768@60Hz / 5 series: 1920 x 1080@60Hz. See specification page for full available resolution.

	Mode	Resolution	Horizontal Frequency	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H / V)	1366 x 768	1920 X 1080
			(KHz)
	IBM	720 x 400	31.469	70.087	28.322	-/+	c	c
		640 x 480	35.000	66.667	30.240	-/-	c	c
	MAC	832 x 624	49.726	74.551	57.284	-/-	c	c
		1152 x 870	68.681	75.062	100.000	-/-		c
		640 x 480	31.469	59.940	25.175	-/-	c	c
		640 x 480	37.861	72.809	31.500	-/-	c	c
		640 x 480	37.500	75.000	31.500	-/-	c	c
		800 x 600	37.879	60.317	40.000	+/+	c	c
		800 x 600	48.077	72.188	50.000	+/+	c	c
		800 x 600	46.875	75.000	49.500	+/+	c	c
		1024 x 768	48.363	60.004	65.000	-/-	c	c
		1024 x 768	56.476	70.069	75.000	-/-	c	c
		1024 x 768	60.023	75.029	78.750	+/+	c	c
	VESA DMT	1152 x 864	67.500	75.000	108.000	+/+		c
		1280 x 720	45.000	60.000	74.250	+/+	c	c
		1280 x 800	49.702	59.810	83.500	-/+		c
		1280 x 1024	63.981	60.020	108.000	+/+		c
		1280 x 1024	79.976	75.025	135.000	+/+		c
		1366 x 768	47.712	59.790	85.500	+/+	c	c
		1440 x 900	55.935	59.887	106.500	-/+		c
		1600 x 900RB	60.000	60.000	108.000	+/+		c
		1680 x 1050	65.290	59.954	146.250	-/+		c
		1920 x 1080	67.500	60.000	148.500	+/+		c

NOTE

•The interlace mode is not supported.

•The set might operate abnormally if a non-standard video format is selected.

Licence

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under a license from U.S. Patent No’s: 5,956,674, 5,974,380, 5,978,762, 6,487,535, 6,226,616, 7,212,872, 7,003,467, 7,272,567, 7,668,723, 7,392,195, 7,930,184, 7,333,929 and 7,548,853. DTS, the Symbol, and DTS and the Symbol together are registered trademarks & DTS Premium Sound | 5.1 is a trademark of DTS, Inc. ©2012 DTS, Inc. All Rights Reserved.

Manufactured under a license from U.S. Patent No’s: 6,285,767, 8,027,477, 5,319,713, 5,333,201, 5,638,452, 5,771,295, 5,970,152, 5,912,976, 7,200,236, 7,492,907, 8,050,434, 7,720,240, 7,031,474, 7,907,736 and 7,764,802. DTS, the Symbol, and DTS and the Symbol together are registered trademarks & DTS Studio Sound is a trademark of DTS, Inc. ©2012 DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274

DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

Open source licence notice

In the case of using open source software, Open Source Licences are available on the product menu.

Open Source Licence Notice is written only English.

English - 17

English

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 17			2013-07-29 3:58:25

Achtung! Wichtige Sicherheitshinweise

(Bitte lesen Sie den Ihrem Samsung Gerät entsprechenden Abschnitt, bevor Sie dieses installieren.)

VORSICHT

GEFAHR EINES ELEKTRISCHEN SCHLAGES! NICHT ÖFFNEN!

VORSICHT: UM DIE GEFAHR EINES ELEKTRISCHEN SCHLAGES ZU VERRINGERN, ENTFERNEN SIE NICHT DIEABDECKUNG (ODER RÜCKSEITE). IM GERÄTEINNEREN BEFINDEN SICH KEINE VOM BENUTZER ZU WARTENDEN TEILE. LASSEN SIE REPARATUREN NUR VON QUALIFIZIERTEM KUNDENDIENSTPERSONAL DURCHFÜHREN.

Dieses Symbol weist auf eine hohe Spannung im Inneren des Geräts hin. Das Berühren von Teilen im Geräteinneren ist gefährlich.

Dieses Symbol weist darauf hin, dass diesem Gerät wichtige Anweisungen zu Betrieb und Wartung beigefügt sind.

•Die Schlitze und Öffnungen im Gehäuse und in der Rückwand oder im Boden sind für die Belüftung erforderlich. Um den zuverlässigen Betrieb des Geräts zu gewährleisten und es vor Überhitzung zu schützen, dürfen diese Öffnungen keinesfalls blockiert oder bedeckt werden.

-Bedecken Sie die Schlitze und Öffnungen nicht mit einem Tuch oder anderen Materialien.

-Schlitze und Öffnungen dürfen keinesfalls blockiert werden, indem das Gerät auf ein Bett, Sofa, einen Teppich oder eine ähnliche Oberfläche gestellt wird.

-Stellen Sie das Gerät nicht in abgeschlossene Räume wie z. B. in ein Bücherregal oder einen Einbauschrank. Dieser Einbau ist nur dann zulässig, wenn für ausreichende Belüftung gesorgt wird.

•Außerdem darf das Gerät keinesfalls in der Nähe oder über einem Radiator oder Heizkörper aufgestellt werden, oder an Orten, an denen es direkter Sonneneinstrahlung ausgesetzt ist.

•Stellen Sie keine mit Flüssigkeit gefüllten Behälter (Vasen usw.) auf das Gerät, da dies zu einem Brand oder Stromschlag führen kann.

•Setzen Sie das Gerät keinesfalls Regen aus und stellen Sie es nicht in der Nähe von Wasser auf (Badewanne, Küchenspüle, feuchter Keller, Schwimmbecken usw.). Falls das Gerät dennoch Nässe ausgesetzt wurde, trennen Sie es von der Stromversorgung und wenden Sie sich umgehend an Ihren örtlichen Vertreter. Ziehen Sie vor dem Reinigen des Geräts den Netzstecker aus der Steckdose.

•Für dieses Gerät benötigen Sie Batterien. Entsorgen Sie die Batterien gemäß den regionalen Umweltschutzbestimmungen. Bitte wenden Sie sich bei Fragen zur ordnungsgemäßen Entsorgung an Ihre örtlichen Behörden.

•Überlasten Sie Steckdosen, Verlängerungskabel und Netzteile keinesfalls, da dies zu einem Brand oder Stromschlag führen kann.

•Netzkabel müssen so verlegt werden, dass niemand auf das Kabel treten kann oder es durch Gegenstände gequetscht wird, die auf dem Kabel stehen oder gegen das Kabel drücken. Besondere Aufmerksamkeit muss den Bereichen um Stecker, Steckdosen und dem Punkt zukommen, an dem das Netzkabel aus dem Gerät herausgeführt wird.

•Zum Schutz des Geräts bei einem Gewitter oder längerem Nichtbetrieb trennen Sie das Gerät vom Netz. Trennen Sie darüber hinaus das Antennenkabel vom Gerät. Auf diese Weise werden Schäden durch Blitzschlag oder Spannungsstöße vermieden.

•Stellen Sie sicher, dass die Nennspannung des Gleichstromnetzteils für die örtliche Stromversorgung geeignet ist, bevor Sie das Netzkabel an die Stromversorgung anschließen.

•Führen Sie niemals Metallgegenstände in die Öffnungen dieses Geräts ein. Dies kann zu Stromschlägen führen.

•Berühren Sie keinesfalls Bauteile im Geräteinneren, um Stromschläge zu vermeiden. Das Gerät darf nur von einem qualifizierten Techniker geöffnet werden.

•Stellen Sie sicher, dass das Netzkabel fest in die Steckdose eingestöpselt wird. Fassen Sie das Netzkabel am Stecker an, wenn Sie es aus der Wandsteckdose ziehen. Berühren Sie das Netzkabel niemals mit feuchten Händen.

•Wenn das Gerät nicht einwandfrei funktioniert, insbesondere beim Auftreten ungewöhnlicher Geräusche oder Gerüche aus dem Inneren, trennen Sie es unverzüglich von der Stromversorgung und wenden Sie sich umgehend an Ihren örtlichen Vertreter.

•Ziehen Sie auf jeden Fall den Netzstecker aus der Steckdose, wenn das Fernsehgerät längere Zeit nicht verwendet werden soll, weil Sie beispielsweise längere Zeit abwesend sind (besonders wenn Kinder und ältere Personen allein im Haus bleiben).

-Staubansammlungen können Stromschläge, Kurzschlüsse oder Brände verursachen, da am Netzkabel Funken auftreten oder die Hitze zu einer Beschädigung der Isolierung führt.

•Wenden Sie sich an den autorisierten Kundendienst, wenn das Gerät an einem Ort mit hoher Konzentration an Staubpartikeln, außergewöhnlich hoher oder geringer Raumtemperatur, extrem hoher Luftfeuchtigkeit, in unmittelbarer Nähe zu chemischen Lösungsmitteln oder für den Dauerbetrieb, z.B. auf Bahnoder Flughäfen, aufgestellt werden soll.

•Eine nicht fachgerechte Aufstellung kann zu schweren Schäden am Gerät führen.

•Verwenden Sie nur ordnungsgemäß geerdete Stecker und Steckdosen.

-Eine fehlerhafte Erdung kann zu einem elektrischen Schlag oder Schäden an den Geräten führen. (Nur Geräte der Klasse I.)

•Wenn Sie das Gerät vom Stromnetz trennen möchten, müssen Sie den Netzstecker aus der Dose ziehen. Deshalb muss der Netzstecker jederzeit leicht erreichbar sein.

•Achten Sie darauf, dass sich Kinder nicht an das Gerät hängen.

•Lagern Sie die Zubehörteile (Akku usw.) an einem sicheren Ort außerhalb der Reichweite von Kindern.

•Bringen Sie das Gerät nicht an einem instabilen Ort wie z. B. einem wackligen Regal, einem abschüssigen Boden oder einem Ort, der Vibrationen ausgesetzt ist, an.

•Lassen Sie das Gerät nicht fallen, und vermeiden Sie Erschütterungen. Wenn das Gerät beschädigt ist, trennen Sie es vom Stromnetz, und wenden Sie sich an ein Kundendienstzentrum.

•Ziehen Sie zum Reinigen des Geräts das Netzkabel aus der Steckdose, und reiben Sie das Gerät mit einem weichen, angefeuchteten Tuch ab. Verwenden Sie keine Chemikalien wie Wachs, Benzol, Alkohol, Verdünner, Insektizide, Luftverbesserer, Schmiermittel oder Reinigungsmittel. Hierdurch kann das Aussehen des Geräts beschädigt oder der Aufdruck gelöscht werden.

•Es dürfen keinesfalls Flüssigkeitstropfen oder -spritzer in das Gerät eindringen.

•Entsorgen Sie Batterien niemals in einem Feuer.

•Schließen Sie die Batterie nicht kurz, zerlegen und überhitzen Sie sie nicht.

•Explosionsgefahr bei unsachgemäßem Ersetzen von Batterien. Setzen Sie nur Batterien des gleichen oder eines gleichwertigen Typs ein.

•ACHTUNG: UM DIE AUSBREITUNG VON FEUER ZU VERHINDERN, SORGEN SIE JEDERZEIT DAFÜR, DASS DAS GERÄT NICHT MIT KERZEN ODER OFFENEM FEUER IN BERÜHRUNG KOMMT.

Deutsch - 2

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 2			2013-07-29 3:58:26

Ordnungsgemäße Entsorgung dieses Geräts (Elektround Elektronik-Altgeräte)

(Anwendbar in der Europäischen Union und anderen europäischen Staaten mit Systemen zur getrennten Sammlung von Wertstoffen)

Diese Kennzeichnung auf dem Gerät, dem Zubehör oder der Dokumentation bedeutet, dass das Gerät sowie das elektronische Zubehör (z. B. Ladegerät, Headset, USB-Kabel) am Ende ihrer Lebensdauer nicht im normalen Hausmüll entsorgt werden dürfen. Entsorgen Sie diese Geräte bitte getrennt von anderen Abfällen, um der

Umwelt bzw. der menschlichen Gesundheit nicht durch unkontrollierte Müllbeseitigung zu schaden. Recyceln Sie das Gerät, um die nachhaltige Wiederverwertung von stofflichen Ressourcen zu fördern. Private Nutzer sollten den Händler, bei dem das Produkt gekauft wurde, oder die zuständigen Behörden kontaktieren, um in Erfahrung zu bringen, wie sie das Gerät auf umweltfreundliche Weise recyceln können. Gewerbliche Benutzer wenden sich an ihren Lieferanten und überprüfen die Konditionen Ihres Kaufvertrags. Dieses Gerät und seine elektronischen Zubehörteile dürfen nicht zusammen mit anderem Gewerbemüll entsorgt werden.

Ordnungsgemäße Entsorgung der Batterien dieses Produkts

(Anzuwenden in den Ländern der Europäischen Union und anderen europäischen Ländern mit einem separaten Sammelsystem für Batterien)

Diese Kennzeichnung auf der Batterie, dem Handbuch oder der Verpackung bedeutet, dass die Batterie am Ende ihrer Lebensdauer nicht im normalen Hausmüll entsorgt werden darf. Die Kennzeichnung mit den chemischen Symbolen für Hg, Cd oder Pb bedeutet, dass die Batterie Quecksilber, Cadmium oder Blei in Mengen enthält, die die Grenzwerte der EU-Direktive 2006/66 übersteigen. Wenn Batterien nicht ordnungsgemäß entsorgt werden, können diese Substanzen die Gesundheit

von Menschen oder die Umwelt gefährden. Zum Schutz der natürlichen Ressourcen und zur Förderung der Wiederverwertung von Materialien trennen Sie die Batterien von anderem Müll und führen Sie sie Ihrem örtlichen Recyclingsystem zu.

Einige GUS-Sprachen (Russisch, Ukrainisch, Kasachisch) stehen für dieses Produkt nicht zur Verfügung, da das Gerät für Kunden in der EU hergestellt wurde.

Deutsch - 3

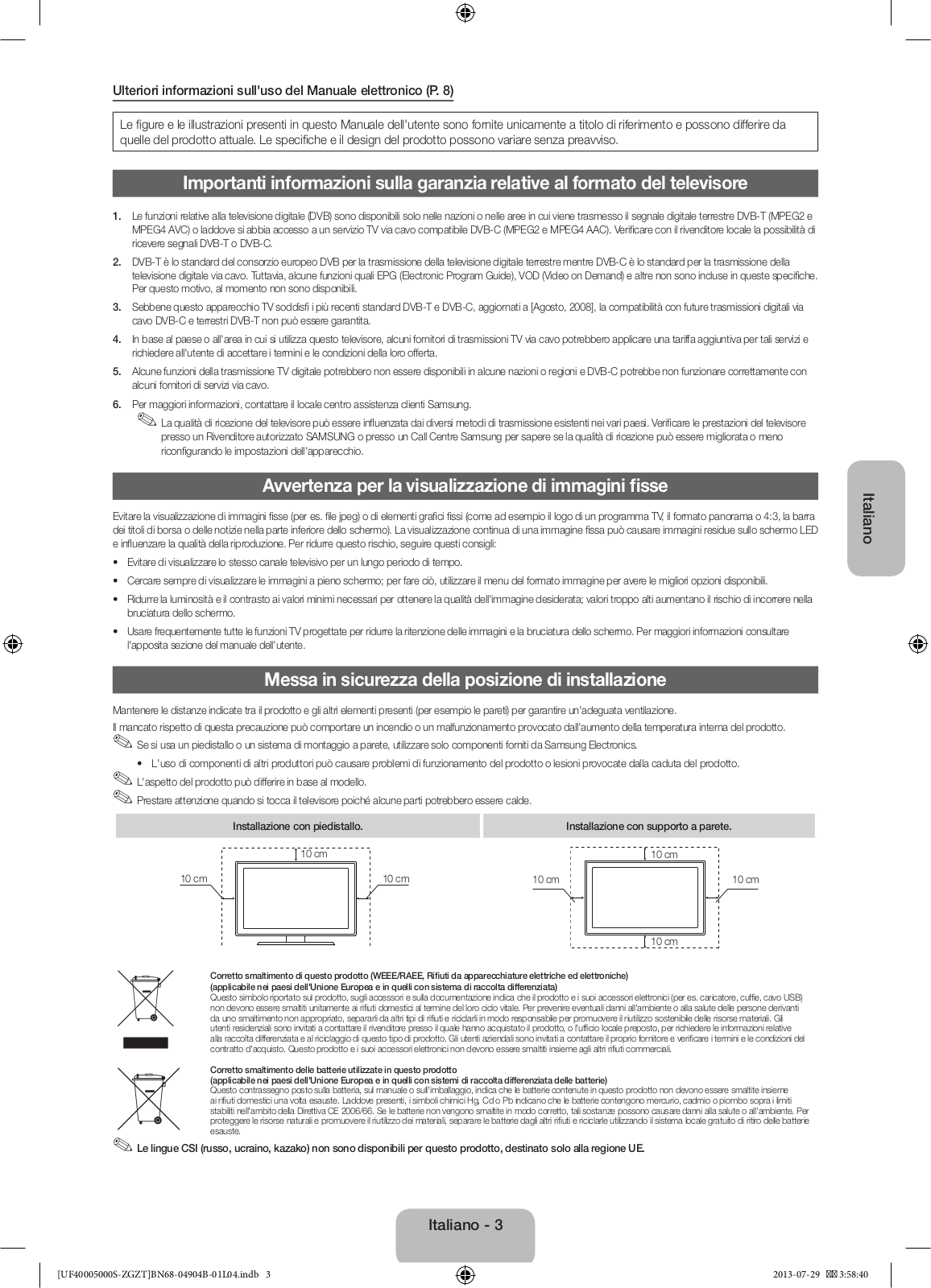

Weitere Informationen zur Verwendung des e-Manuals (S. 8)

Die Abbildungen und Illustrationen in diesem Handbuch dienen nur zur Information und können vom tatsächlichen Aussehen des Geräts abweichen. Änderungen an Ausführung und technischen Daten vorbehalten.

Wichtige Garantieinformationen zum Bildschirmformat des Fernsehers

1. Die Funktionalitäten für Digitalfernsehen (DVB) stehen nur in Ländern/Regionen zur Verfügung, in denen digitale terrestrische DVB-T-Signale (MPEG2 und MPEG4 AVC) gesendet werden oder in denen Sie Zugang zu einem kompatiblen Kabelfernsehdienst mit DVB-C (MPEG2 und MPEG4 AAC) haben können. Fragen Sie Ihren örtlichen Händler, wenn Sie Informationen über die Verfügbarkeit von DVB-T oder DVB-C in Ihrer Gegend benötigen.

2. DVB-T ist der Standard des europäischen DVB-Konsortiums für die terrestrische Versorgung mit digitalem terrestrischem Fernsehen, und DVB-C ist das Konsortium für die Versorgung mit digitalem Kabelfernsehen. Allerdings werden manche Unterscheidungsmerkmale wie EPG (elektrische Programmzeitschrift), VOD (Video on Demand) usw. in dieser Spezifikation nicht berücksichtigt. Deshalb können sie zum jetzigen Zeitpunkt noch nicht eingesetzt werden.

3. Zwar hält dieses Fernsehgerät die aktuellen Standards der DVB-T- und DVB-C-Spezifikationen [Version August 2008] ein, aber es kann nicht garantiert werden, dass die Kompatibilität mit zukünftigen digitalen terrestrischen DVB-T und DBV-C-Signalen gewahrt bleibt.

4. In Abhängigkeit von den Ländern/Regionen, in denen dieses Fernsehgerät eingesetzt wird, verlangen manche Kabelfernsehanbieter zusätzliche Gebühren für solch einen Dienst, und möglicherweise wird verlangt, dass Sie den Vertragsbedingungen des Unternehmens zustimmen.

5. Manche Digitalfernsehfunktionen sind in einigen Ländern oder Regionen möglicherweise nicht verfügbar, und DVB-C-Signale kann das Gerät bei manchen Kabelfernsehanbietern möglicherweise nicht fehlerfrei verarbeiten.

6. Für weitere Informationen setzen Sie sich bitte mit dem Samsung-Kundendienstzentrum in Verbindung.

Die Empfangsqualität des Fernsehgeräts kann durch Unterschiede bei den Sendeverfahren in verschiedenen Ländern beeinträchtigt werden. Kontrollieren Sie die Leistung des Fernsehgeräts bei Ihrem örtlichen SAMSUNG-Händler oder wenden Sie sich an das Samsung-Callcenter um festzustellen, ob sich die Empfangsqualität durch Ändern der Fernseheinstellungen verbessern lässt.

Warnung bei Standbildern

Vermeiden Sie die Anzeige von Standbildern (wie z. B. JPEG-Bilddateien) oder Standbildelementen (wie z. B. Senderlogos, Panoramaoder 4:3-Bilder, Aktienoder Laufschriften mit Nachrichten am unteren Bildschirmrand usw.) auf dem Bildschirm. Durch die Anzeige von Standbildern über einen längeren Zeitraum kann es zu Schattenbildern auf dem LED-Bildschirm kommen, wodurch die Bildqualität beeinträchtigt wird. Um die Gefahr dieses Effekts zu vermindern, befolgen Sie bitte die nachfolgenden Empfehlungen:

•Vermeiden Sie es, für lange Zeit denselben Fernsehsender anzuzeigen.

•Versuchen Sie stets, die Bilder als Vollbild anzuzeigen. Verwenden Sie das Bildformatmenü, um dafür die geeignetste Option zu finden.

•Reduzieren Sie die Helligkeitsund Kontrastwerte soweit wie möglich, um immer noch die gewünschte Bildqualität zu erreichen. Zu hohe Werte können das Einbrennen von Bildern beschleunigen.

•Verwenden Sie regelmäßig alle Funktionen Ihres Fernsehgeräts, die dazu dienen, Bildkonservierung bzw. das Einbrennen von Bildern zu reduzieren. Weitere Informationen hierzu finden Sie im entsprechenden Abschnitt des Benutzerhandbuchs.

Absichern des Aufstellbereichs

Halten Sie die erforderlichen Abstände zwischen dem Gerät und anderen Objekten (z.B. Wänden) ein, um eine ausreichende Lüftung sicherzustellen.

Wenn Sie dies nicht tun, besteht die Gefahr, dass aufgrund eines Anstiegs der Temperatur im Innern des Geräts ein Brand ausbricht oder andere Probleme mit dem Gerät auftreten.

Wenn Sie einen Standfuß oder eine Wandhalterung einsetzen, verwenden Sie ausschließlich Teile von Samsung Electronics.

• Wenn Sie Teile eines anderen Herstellers verwenden, kann es zu Problemen mit dem Gerät oder zu Verletzungen kommen, weil das Gerät herunterfällt.Das Aussehen kann sich je nach Gerät unterscheiden.

Gehen Sie beim Anschließen des Fernsehgeräts vorsichtig vor, da einige Teile warm werden können.

Aufstellen des Geräts mit dem Standfuß

Installation des Geräts mit der Wandhalterung

	10 cm		10 cm
10 cm	10 cm	10 cm	10 cm
			10 cm

Deutsch

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 3					2013-07-29 3:58:26

Liste der Funktionen

Media Play

•Hiermit können Sie Musikdateien, Bilder und Filme abspielen, die auf einem USB-Gerät gespeichert sind.

e-Manual

•Lesen des ganzen Handbuch auf dem Bildschirm. (S. 8)

Zubehör

Vergewissern Sie sich, dass im Lieferumfang des Fernsehgeräts folgende Komponenten enthalten sind. Falls irgendwelche Teile fehlen sollten, setzen Sie sich bitte mit Ihrem Händler in Verbindung.

Die Farbe und die Form der Teile können sich je nach Modell unterscheiden.Kabel, die nicht zum Paketinhalt gehören, können gesondert erworben werden.

•Fernbedienung und 2 Batterien (Typ AAA)

•Garantiekarte / Vorschriftenhandbuch

•Bedienungsanleitung

•Netzkabel

•Netzteil (für Modelle mit 19 und 22 Zoll)

Verwaltungskosten werden abgerechnet, wenn:

(a)auf Ihren Wunsch ein Techniker gerufen wird und kein Defekt des Geräts vorliegt (d.h. wenn Sie dieses Benutzerhandbuch nicht gelesen haben).

(b)Sie das Gerät in eine Reparaturwerkstatt bringen und kein Defekt des Geräts vorliegt (d.h. wenn Sie dieses Benutzerhandbuch nicht gelesen haben).

Der abgerechnete Betrag wird Ihnen mitgeteilt, ehe irgendwelche Arbeiten oder Kundenbesuche ausgeführt werden.

Verwenden des Bedienfelds für den Fernseher (Bedienfeldtasten)

Mit Hilfe des TV-Controllers, einer kleinen Joystickähnlichen Taste rechts auf der Rückseite des Fernsehgeräts, können Sie den Fernseher ohne Fernbedienung bedienen.

Manche Funktionen, für die Sie eine PIN eingeben müssen, stehen möglicherweise nicht zur Verfügung.

Form und Farbe des Geräts können sich je nach Modell unterscheiden.

Wenn Sie den Steuerknopf länger als 1 Sekunde gedrückt halten, wird das Menü geschlossen.

Achten Sie beim Bewegen des Controllers nach oben/unten/links/rechts darauf, nicht auf diesen zu drücken. Wenn Sie auf den Controller drücken, können Sie ihn nicht mehr nach oben/unten/links/rechts bewegen.

Standby-Modus

	Öffnen von Media Play
	Öffnen von Menü	Öffnen des Menüs
		Quelle
	Zurück
	Ausschalten
	Funktionsmenü
		TV-Steuerknopf
	Fernbedienungssensor	Die Abbildung zeigt die Vorderseite
		des Fernsehgeräts.

Der Standby-Modus ist nicht für längere Phasen der Abwesenheit gedacht (z. B. wenn Sie verreist sind). Eine kleine Menge Strom wird auch dann noch verbraucht, wenn das Gerät mit dem Netzschalter ausgeschaltet wurde. Es ist am besten, das Netzkabel aus der Steckdose zu ziehen.

Deutsch - 4

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 4			2013-07-29 3:58:26

Fernbedienung

Dies ist eine spezielle Fernbedienung für Personen mit eingeschränktem Sehvermögen. Die Netztaste sowie die Tasten zum Einstellen des Senders und der Lautstärke sind in Braille beschriftet.

Einund Ausschalten des Fernsehgeräts.

Alternativ wählen Sie „Videotext ein“, „Doppel“, „Mix“ oder „Aus“.

Einstellen der Lautstärke.

Anzeigen des Bildschirmmenüs.

Hiermit zeigen Sie das Menü der Funktion Media Play an.

Hiermit können Sie häufig verwendete Funktionen schnell auswählen.

Auswählen von Optionen im Bildschirmmenü und Ändern von Menüwerten.

Zurück zum vorherigen Menü.

E-MANUAL: Anzeigen des e-Manuals. (S. 8) P.SIZE: Hiermit wählen Sie das Bildformat.

AD/SUBT.: Auswahl von Audio für Sehgeschädigte. (nicht überall verfügbar). / Digitale Untertitel anzeigen

Anzeigen und Auswählen der verfügbaren

Videosignalquellen.

Hiermit wechseln Sie direkt zu einem Kanal.

	Zurück zum vorherigen Sender.
	Drücken Sie diese Taste, um den Ton vorübergehend
	auszuschalten.
	Wechseln des Senders.
	Anzeigen der Senderlisten auf dem Bildschirm.
MEDIA.P	Anzeigen des elektronischen Programmführers.

Anzeigen von Informationen auf dem Bildschirm.

				Schließen des Menüs.
A	B	C	D	Verwenden Sie diese Tasten entsprechend den
				Anweisungen auf dem Bildschirm.
E-MANUAL	P.SIZE	AD/SUBT.
				Verwenden Sie diese Tasten innerhalb einer
				bestimmten Funktion.
				Einzelheiten entnehmen Sie dem e-Manual.

Deutsch

Einlegen von Batterien (Batteriegröße: AAA)

Batterien und Akkus gehören nicht in den Hausmüll. Als Verbraucher sind Sie verpflichtet, alte Batterien und Akkus zur umweltschonenden Entsorgung zurückzugeben. Sie können alte Batterien und Akkus bei den öffentlichen Sammelstellen in Ihrer Gemeinde oder überall dort abgeben, wo Batterien und Akkus der betreffenden Art verkauft werden.

Deutsch - 5

[UF40005000S-ZGZT]BN68-04904B-01L04.indb 5			2013-07-29 3:58:27
