15-303 User’s Guide
Satellite/Cable Universal Remote Control
Thank you for purchasing your Satellite/Cable
Universal Remote Control from RadioShack . read this user’s guide before installing, setting up,
and using your new remote control.
Contents |
|
Package contents ............................................................................................................. |
3 |
Features............................................................................................................................ |
3 |
Install Batteries.................................................................................................................. |
3 |
Setup................................................................................................................................. |
5 |
Brand Code Setup........................................................................................................................... |
6 |
Auto Code Search........................................................................................................................... |
7 |
Manual Code Search....................................................................................................................... |
8 |
Operation.......................................................................................................................... |
9 |
Check Current Brand Code............................................................................................................. |
9 |
Lock Device................................................................................................................................... |
10 |
Lock Volume and Mute.................................................................................................................. |
11 |
Copying Device Codes.................................................................................................................. |
11 |
Reset Your Universal Remote........................................................................................................ |
12 |
Additional Information.................................................................................................... |
13 |

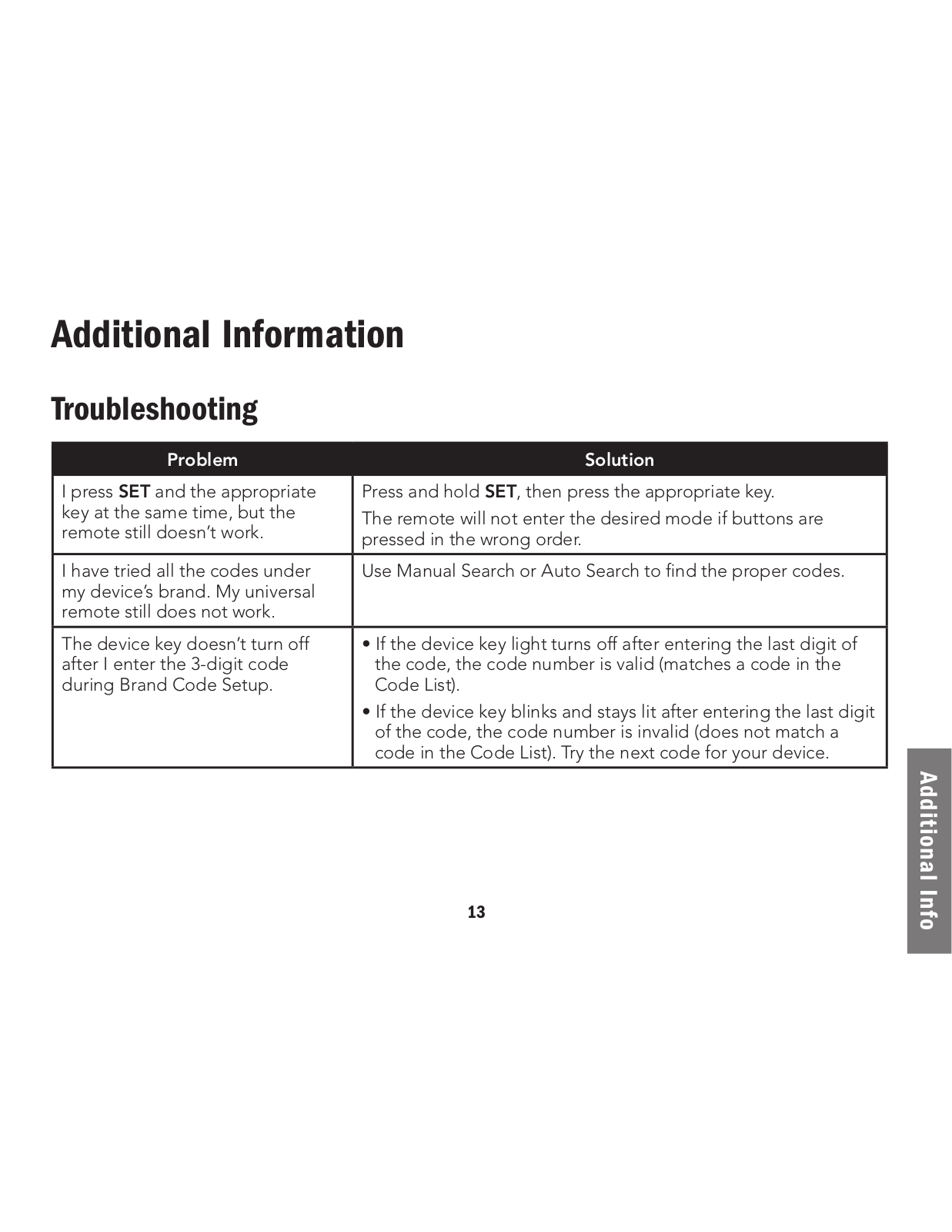

Troubleshooting............................................................................................................................. |
13 |
Specifications................................................................................................................................. |
15 |
FCC Information............................................................................................................................ |
15 |
Limited Warranty........................................................................................................................... |
16 |
2
Package contents
• Remote Control |
• User’s Guide |
• Code List |
Features
•Operates up to four devices
•Controls TV volume regardless of mode
1 Install the batteries
Remove the battery cover and insert two AAA batteries (not included), matching the polarity symbols (+ /–) marked inside. Replace the battery cover.
b Battery Notes:
•Disposeofoldbatteriespromptlyandproperly.Donotburnorburythem.
• Use only fresh batteries of the required size and recommended type. |
AAA |
|
• Do not mix old and new batteries, different types of batteries (alkaline
or rechargeable), or rechargeable batteries of different capacities.
•If you do not plan to use your remote for more than a week, remove the batteries. Batteries can leak chemicals that can damage electronic parts.
3
Setup
Setup
Device Keys Select a device to control: TV; VCR/DVD; satellite/cable (SAT/CBL); or AUX.
MUTE Press to mute the sound. CC Closed captioning.
INFO View the current channel and program information.
VOL+/– Adjust volume.
INPUT Select the video inputs.
ASPECT Select aspect ratio.
SET Activate setup mode.
MENU Display the menu for the selected device.
OK Confirm a setting in the Menu.
Move the cursor
through the program guide and
menu screens.
0–9 Channel numbers.
– Access subchannels on a TV or receiver.
G Turn on /off a selected device.
GUIDE Display the program guide for the selected device.
SLEEP Set the sleep timer for your selected device. Only works on devices with sleep function.
Control your VCR or DVD player. These functions are the same as those on the device’s original remote.
CH+/– Select the next or previous channel. Select the next or previous chapter on some DVD players.
EXIT Exit the selected device’s menu, guide or program.
PIP Switch the Picture-in-Picture feature on/off (if available on your TV).
SWAP Swaps the Picture-in-Picture window and the main picture.
FREEZE Freezes your Picture-in- Picture window.
LAST Recall the last viewed channel.
Confirm a selection.
4
2 Setup
Your universal remote can operate a TV, cable or satellite, VCR, DVD player, and external audio (AUX) device.
Set up your universal remote in one of three ways:
•Brand Code Setup: Directly enter the device code from the Code List. Try each code until you find one that works for your device.
•Auto Code Search: Your universal remote automatically goes through all the device codes. (This method can take up to 60 minutes to search all the codes for the 4 devices.)
•Manual Code Search: Manually goes through each code for your device one by
one at the touch of the |
G button. |
nNote Keep: your remote pointed at the device that you want to program throughout setup.
Brand Code Setup
1. Power on the device that you want to control.
2. Find the code (or codes) for your device in the included Code List |
. If your device’s |
||
brand is not listed, use the |
Auto Code Search |
or |
Manual Code Search |
Setup
5
Setup
3. On your universal remote, press and hold SET , and then press a device key (
VCR/DVD , SAT/CBL , AUX ). The device key lights up and stays lit, indicating the remote is in setup mode. Release both buttons.
nNote: Do not hold down the keys for longer than 3 seconds or the remote enters auto search mode.
4.Enter the first 3-digit code for your device and brand. Pause briefly between each digit to make sure the remote receives all inputs. The device key flashes when input
is received, then turns off if you entered the right code. If the device key stays lit,
enter the next code for your device and brand. Repeat for all possib the device light turns off.
5.Verify the setup by testing the remote control’s buttons and functions. If some of your device’s functions do not respond to the remote, repeat step 4 with another code.
nNotes :
•To use a different type of device than what is labeled on the device key, follow the
“ Copying Device Codes” steps on page 11.
•If you want to quit during device setup, press the device key or wait 10 seconds for the remote to exit setup automatically.
•If you are uncertain about your 3-digit code entry, follow “Check Current Brand Code on page 9 to confirm your code.
6
