Laser Rangefinder / Télémètre laser
Telémetro láser / Telêmetros a Laser
RifleHunter 1000 |
Archer's Choice MAX |
Instruction manual/Manuel d’utilisation/ Manual de instrucciones/Manual de instruções
En Fr Es Pt
Fr
Es
Pt
English |
|
CONTENTS |
|
Cautions before use .............................. |
5-7 |
Key features .............................................. |
8-9 |
Nomenclature/Composition ................ |
10 |
Changing batteries .................................. |
11 |
Internal display.................................... |
12-13 |

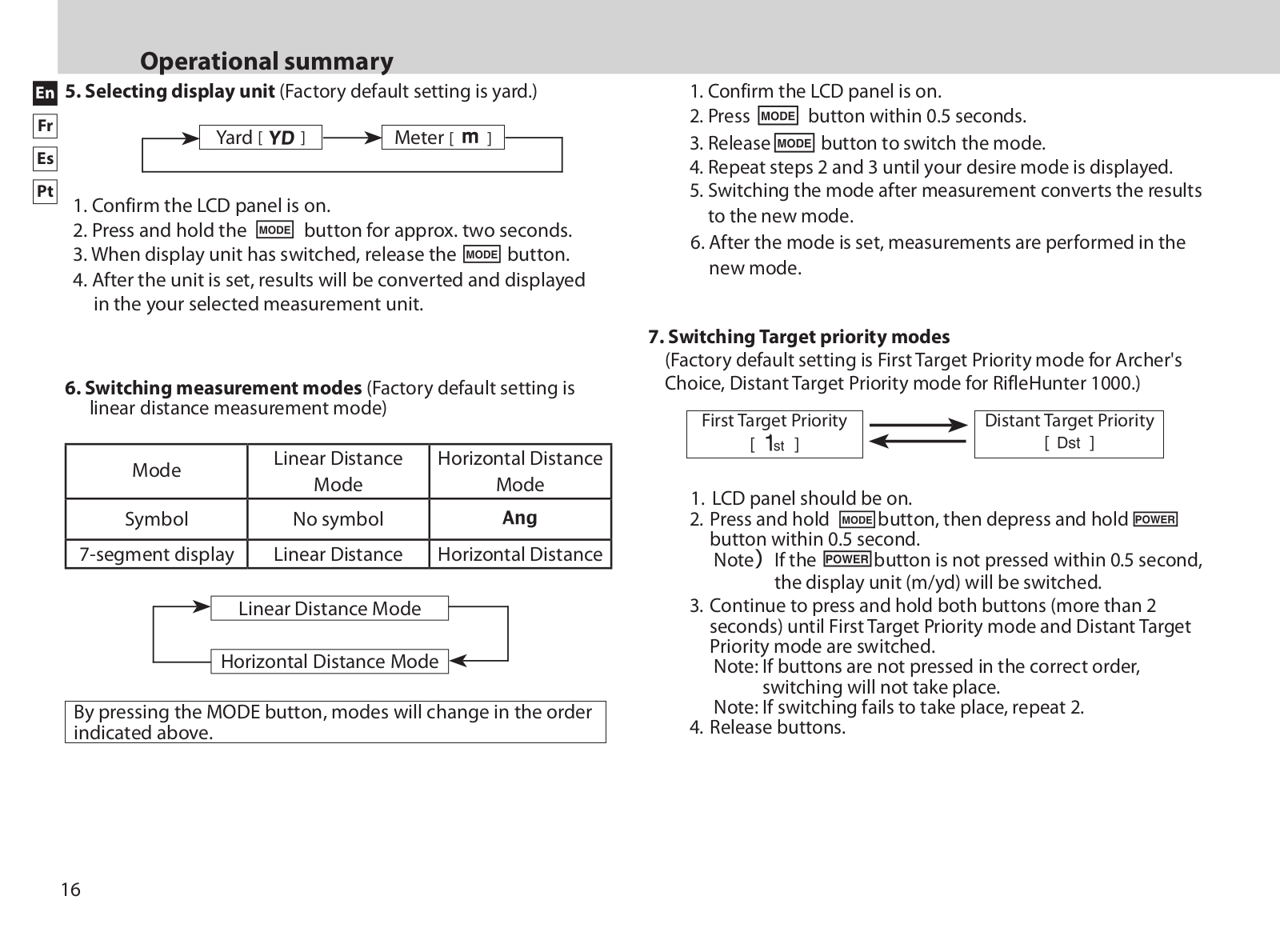

Operational summary....................... |
13-17 |
Specifications....................................... |
18-19 |
Others............................................................ |
20 |
Troubleshooting/Repair................... |
21-22 |
4
Cautions before use
Thank you for purchasing the Nikon RifleHunter 1000/Archer's Choice MAX.
This high-spec laser rangefinder features an angle compensation function in addition to the existing linear distance measurement function for enhanced enjoyment of sports and other outdoor applications. (The Nikon RifleHunter 1000/ Archer's Choice MAX is also able to measure the horizontal distance to a target.)
Please observe the following guidelines strictly so you can use the equipment properly and avoid potentially hazardous problems. Before using this product, read thoroughly the “SAFETY PRECAUTIONS” and instructions on correct usage accompanying the product.
Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
Keep this manual within reach for easy reference.
•Specifications and design are subject to change without notice.
•No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON VISION CO., LTD.
Fr
Es
Pt
5
Cautions before use
Please observe the following
Fr guidelines strictly so you can use
the equipment properly and avoid Es potentially hazardous problems. Pt Before using this product, read
thoroughly the “SAFETY AND OPERATION PRECAUTIONS” and instructions on correct usage accompanying the product. Keep this manual within reach for easy reference.
WARNING
This indication alerts you to the fact that any improper use ignoring the contents described herein can result in potential death or serious injury.
CAUTION
This indication alerts you to the fact that any improper use ignoring the contents described herein can result in potential injury or material loss.
SAFETY AND OPERATION
PRECAUTIONS
Warning
•Never look directly at the laser beam or directly at the sun when using the Nikon RifleHunter 1000/Archer's Choice MAX.
•Do not depress the POWER button while looking into the optics from the
objective side.
•Do not aim at the eye.
•Do not operate the unit with other additional optical elements, such as lenses or binoculars. Using an optical instrument together with the Nikon RifleHunter 1000/Archer's Choice MAX increases the danger of damaging the eyes.
•Do not disassemble the Nikon
RifleHunter 1000/Archer's Choice MAX. The emitting laser may be harmful to your health. A product that has been disassembled is not guaranteed by the manufacturer.
•If the Nikon RifleHunter 1000/Archer's
Choice MAX’s body cover is damaged, or if it emits a strange sound due to dropping or for some other cause, immediately remove the battery and stop using.
Cautions
•When not using the Nikon RifleHunter
1000/Archer's Choice MAX, do not push the POWER button.
•Do not leave the Nikon RifleHunter
1000/Archer's Choice MAX within the reach of small children.
•Rain, water, sand and mud should be removed from the rangefinder body surface as soon as possible, using a soft, clean, dry cloth.
•Although the Nikon RifleHunter 1000/
Archer's Choice MAX is waterproof, it is not designed for use underwater.
•Do not swing the Nikon RifleHunter
1000/Archer's Choice MAX by its strap. It may hit someone and cause injury.
•Do not leave the Nikon RifleHunter
1000/Archer's Choice MAX in an unstable place, as it may fall and cause injury, or damage the equipment.
•Do not look through the Nikon
RifleHunter 1000/Archer's Choice MAX while walking. You may walk into something and get hurt.
•Do not leave the Nikon RifleHunter
1000/Archer's Choice MAX in a car on a hot or sunny day, or near heatgenerating equipment. This may damage or negatively affect it.
•Do not leave the Nikon RifleHunter
1000/Archer's Choice MAX in direct sunlight. Ultraviolet rays and excessive heat may negatively affect or even damage the unit.
•When the Nikon RifleHunter 1000/
Archer's Choice MAX is exposed to sudden changes in temperature, water condensation may occur on lens surfaces. Do not use the product until the condensation has evaporated.
•Do not use alcohol for cleaning the main body.
•Do not leave the polyethylene bag used for packaging within the reach of small children.
6
•Be careful that small children do not inadvertently swallow the eyecup. If it does happen, consult a doctor immediately.
•If you use the rubber eyecup for a long period of time, you may suffer skin inflammation. If you develop any symptoms, consult a doctor immediately.
•When carrying the Nikon RifleHunter
1000/Archer's Choice MAX, store it in the soft case.
•If your Nikon RifleHunter 1000/
Archer's Choice MAX should fail to operate correctly, discontinue use immediately and consult the Troubleshooting Table. If you are unable to fix the problem, contact
your local dealer for instructions on where to send it for repair.
CARE AND MAINTENANCE
Lenses
•When removing dust on the lens surface, use a soft oil-free brush.
•When removing stains or smudges like fingerprints from the lens surface, wipe the lenses very gently with a soft clean cotton cloth or quality oil-free lens tissue.
Use a small quantity of pure alcohol (not denatured) to wipe stubborn smudges. Do not use velvet cloth or ordinary tissue, as it may scratch the lens surface. Once the cloth has been used for cleaning the body, it should not be used again for the lens surface.
Main body
•Clean the body surface with a soft, clean cloth and a dry cloth. Do not use benzene, thinner, or other organic agents because they may cause discoloration or rubber degeneration.
Storage
•Water condensation or mold may occur on the lens surface because of high humidity. Therefore, store the Nikon RifleHunter 1000/Archer's Choice MAX in a cool, dry place. After use on a rainy day or at night, thoroughly dry it at room temperature, then store in a cool, dry place.
NOTES ON LITHIUM BATTERY
If handled incorrectly, batteries may rupture and leak, corroding equipment and staining clothing. Be sure to observe the following:
•Install batteries with the + and – poles positioned correctly.
•Batteries should be removed when exhausted or during extended periods of non-use.
•Always use the same type of battery.
•If battery fluid contacts eyes or skin, rinse well with water. If swallowed, consult a doctor immediately.
•Do not short-circuit battery chamber terminals.
•Do not carry batteries together with keys or coins in a pocket or bag. This may overheat and short-circuit batteries.
•Do not put batteries in fire or water.
Never disassemble batteries.
•Do not charge batteries.
•Do not subject stored batteries to extremes in temperature.
•Do not subject batteries to strong vibrations or shock.
Fr
Es
Pt
7
Fr
Es
Pt
Key Features
• Linear distance measurement range:
10-915 meter/11-1,000 yards (RifleHunter 1000) 4.5-183 meter/5-200 yards (Archer's Choice MAX)
• Distance measurement display steps:
(Linear Distance) 0.1 meter/yard
(measurement distance is less than 999.9 meters/yards) 1.0 meter/yard
(measurement distance is 1,000 meters/yards or further) (Horizontal Distance)
0.1 meter/yard
(calculated distance is less than 999.9 meters/yards) 1.0 meter/yard
(calculated distance is 1,000 meters/yards or further)
•Easy-to-aim 6x optical observation system
•Quantifies the horizontal distance to the target in relation to the rangefinder's level by measuring linear distance and angle.
•The results are displayed on an internal LCD panel.
•Active Brightness Control Viewfinder detects light conditions of the ground area mainly in the view field and, when necessary, automatically turns on the orange LED illumination.
The brightness of the orange illumination is adjusted automatically according to the light conditions.
•Target Priority Switch System allows you to easily match the measuring situation.
•Waterproof design (NOT designed for underwater usage)
•Invisible/Eyesafe EN/IEC Class 1M Laser
•8-second results display
•Compact, lightweight, ergonomic design
•Automatic shut-off (after approx. 8 sec. unattended)
•Default to“Last Use”settings
•Approx. 5-second continuous measuring function
The Nikon RifleHunter 1000/Archer's Choice MAX emits invisible, eyesafe, infrared energy pulses that reflect off the selected target back to its optical receiver. Sophisticated precision charge circuitry is used to instantaneously calculate distances, by measuring the time it takes for each pulse to travel from the rangefinder to the target and back. Laser reflectivity and measurement results may vary according to climatic and environmental conditions, the colour, surface finish, size, shape and other characteristics of the target.
