Operating instructions

for washing machines

To avoid the risk of accidents or damage to the machine, it is essential to read these instructions before it is installed and used for the first time.

en-GB

M.-Nr. 11 360 130

Contents
Caring for the environment ..............................................................................		6
Warning and Safety instructions .....................................................................		7
Operating the washing machine ......................................................................		14
Control panel.......................................................................................................		14
Display.................................................................................................................		16
Examples on how to operate the machine..........................................................		16
Before using for the first time ..........................................................................		17
Miele@home ........................................................................................................		18
1.	Set the language .............................................................................................	19
2.	Setting up Miele@home ..................................................................................	19
3.	Remove the transit bars ..................................................................................	20
4.	Commissioning TwinDos .................................................................................	20
5.	Starting the calibration programme.................................................................	23
Washing environmentally and economically ..................................................		24
1.	Prepare the laundry.......................................................................................	25
2.	Select a programme......................................................................................	26
3.	Load the washing machine...........................................................................	28
4.	Select programme settings ..........................................................................	29
Selecting a temperature/spin speed ...................................................................		29
Selecting an extra option.....................................................................................		29

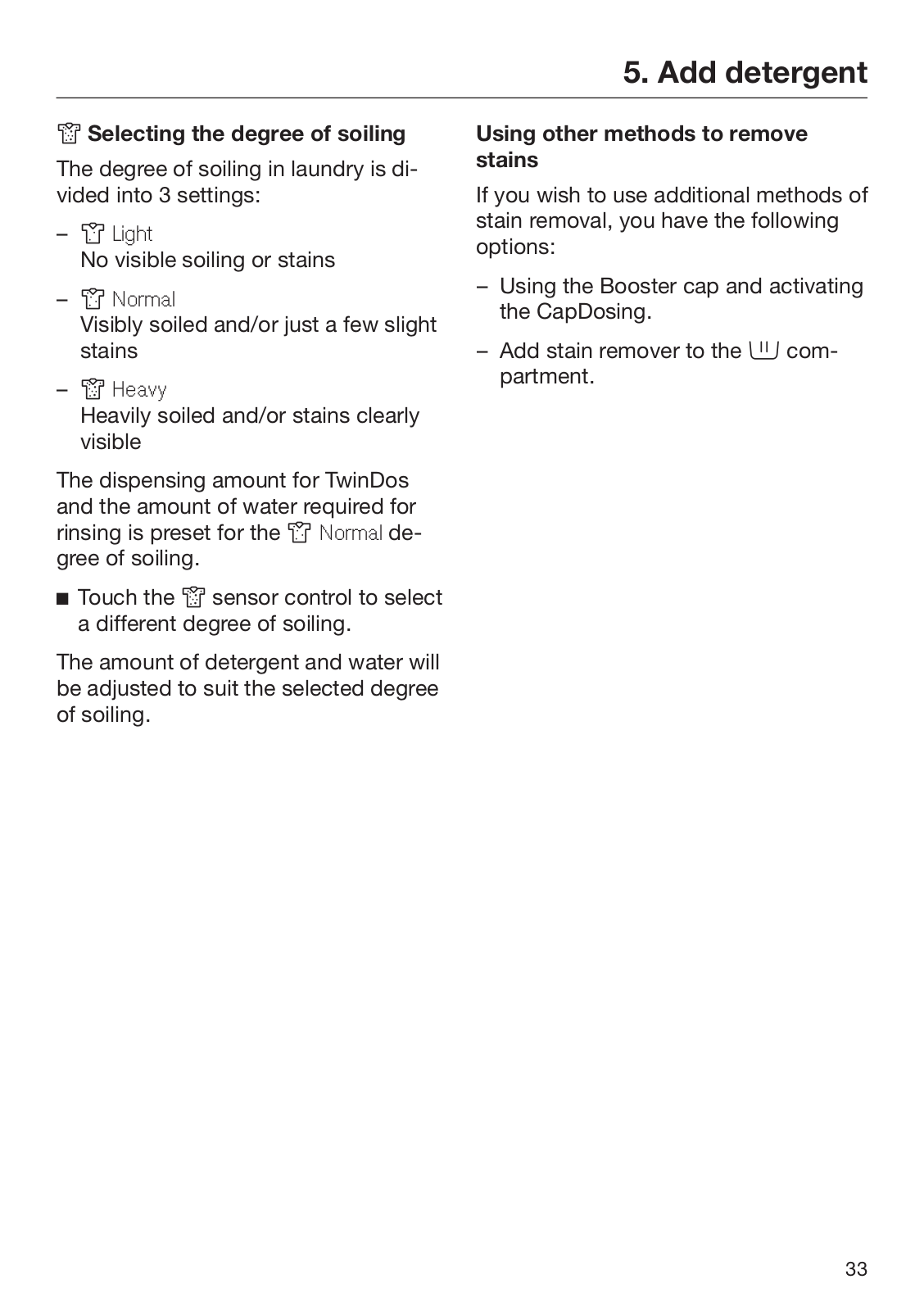

Level of soiling................................................................................................		29

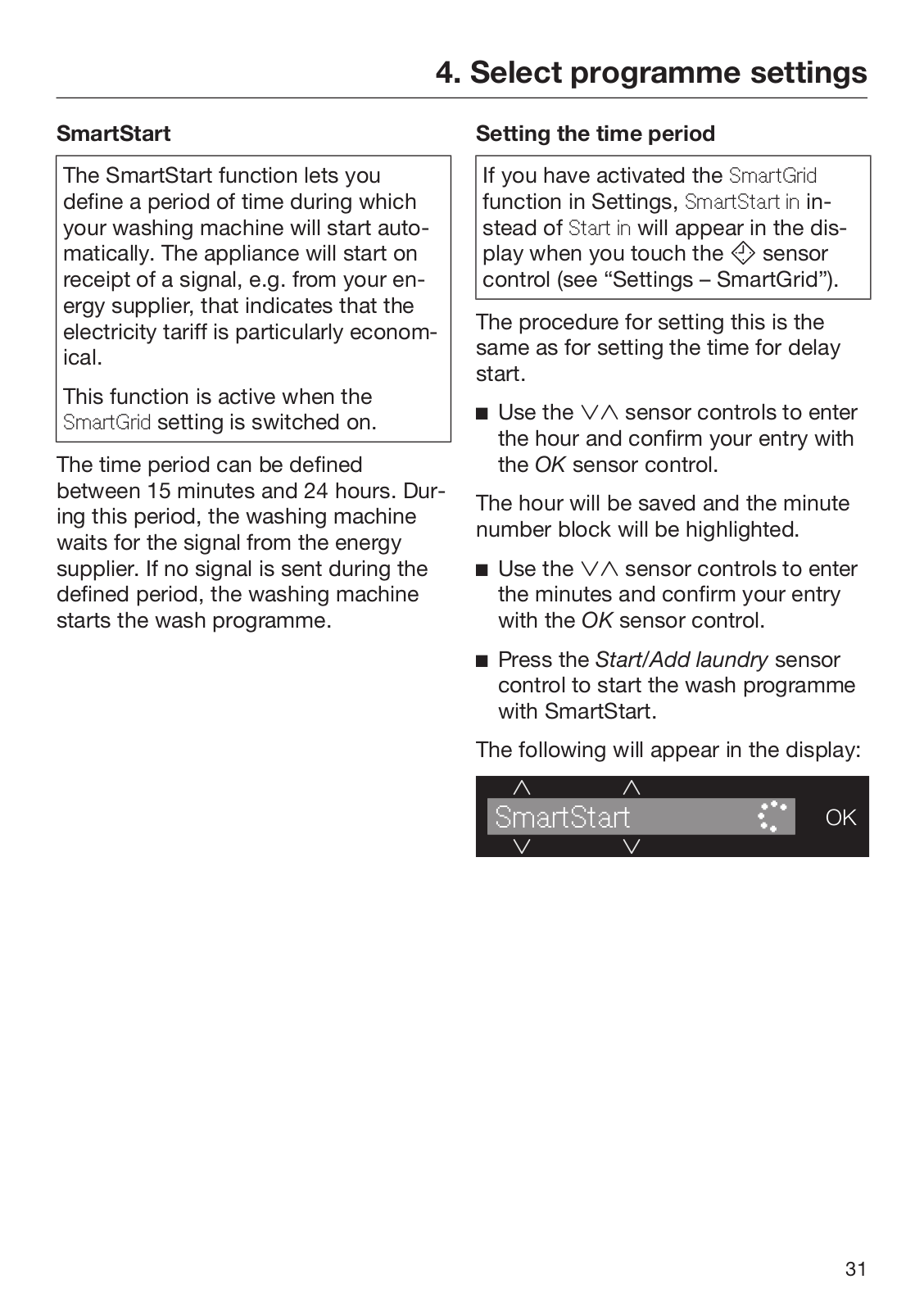

Delay start/SmartStart ...................................................................................		30

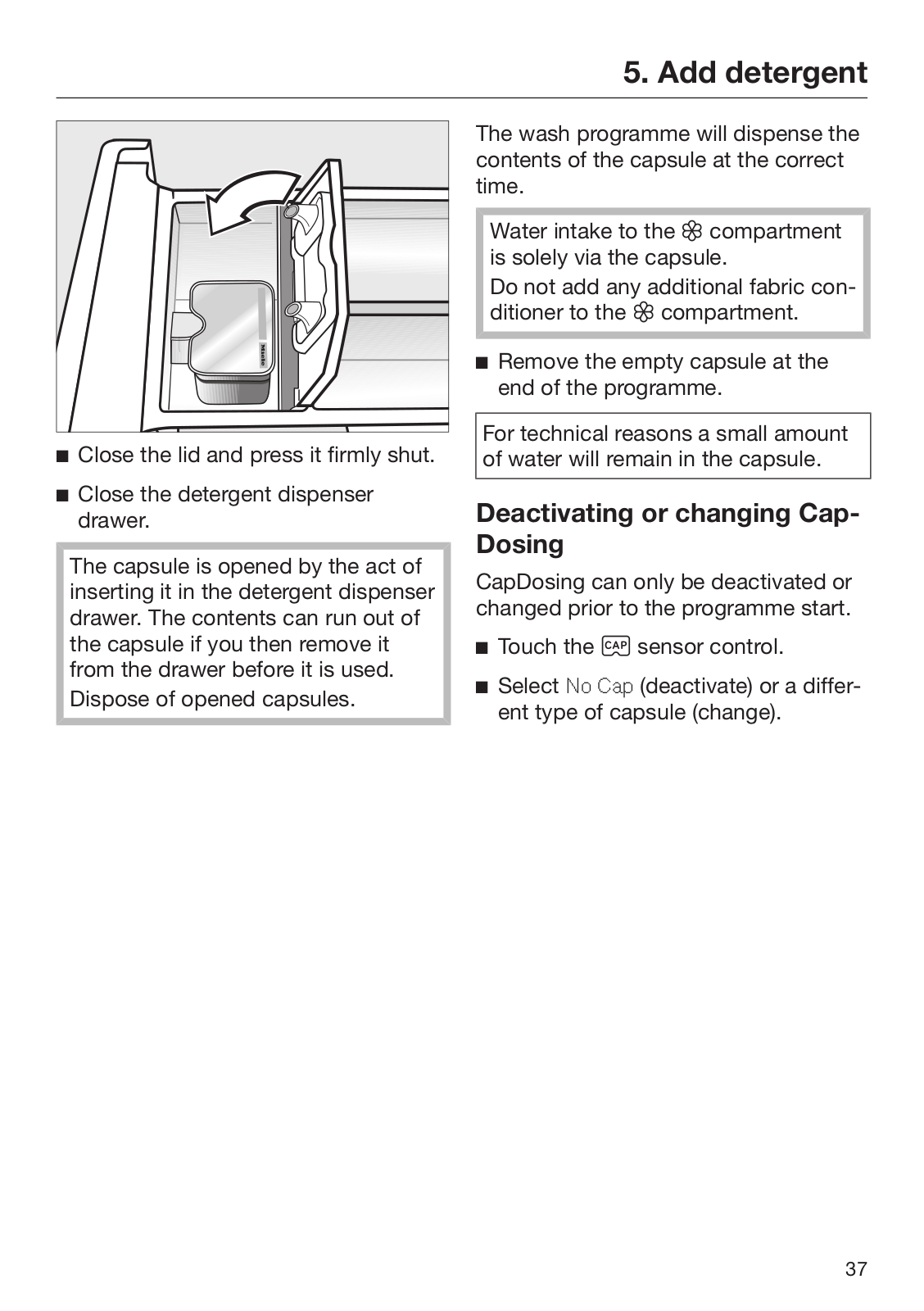

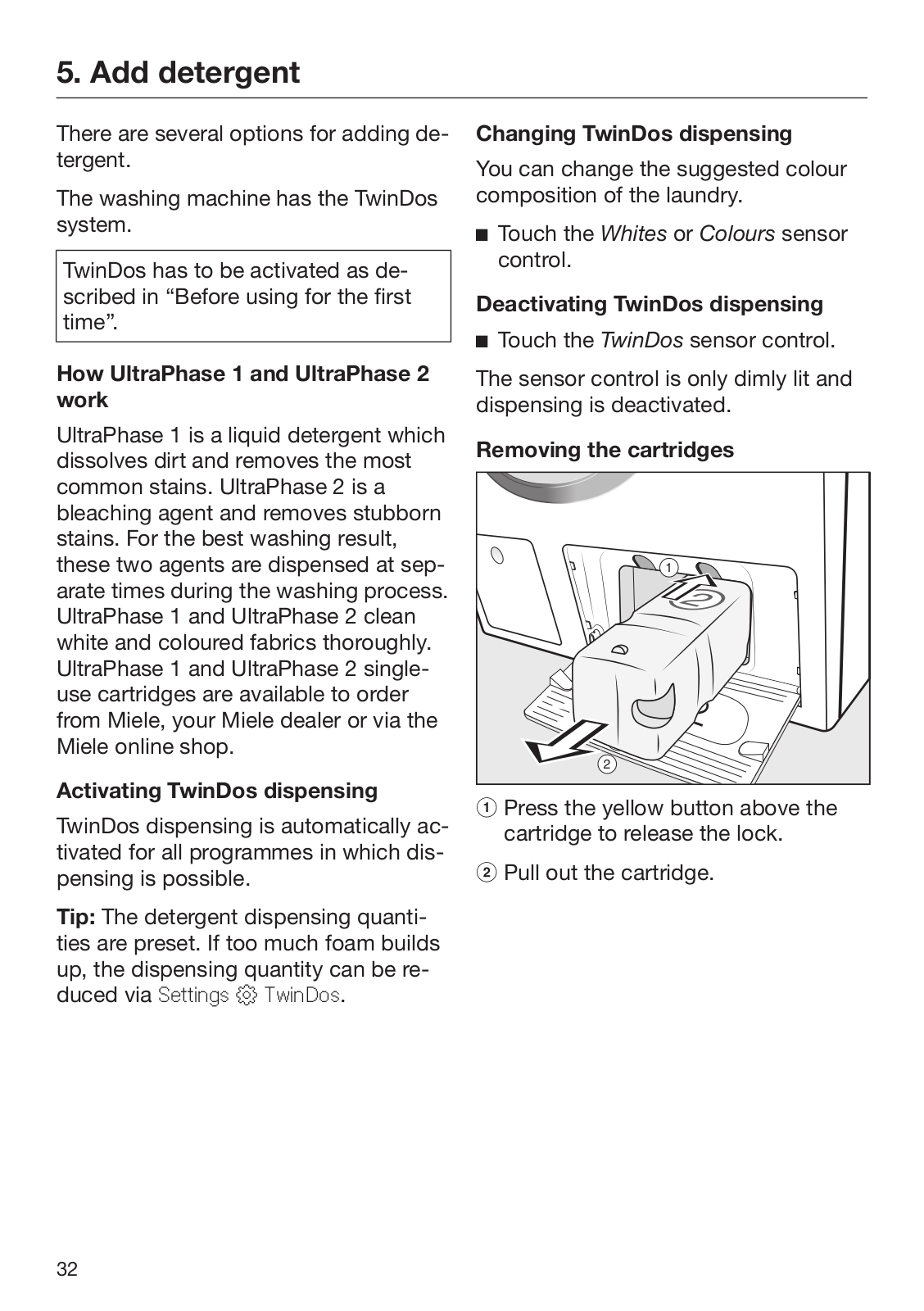

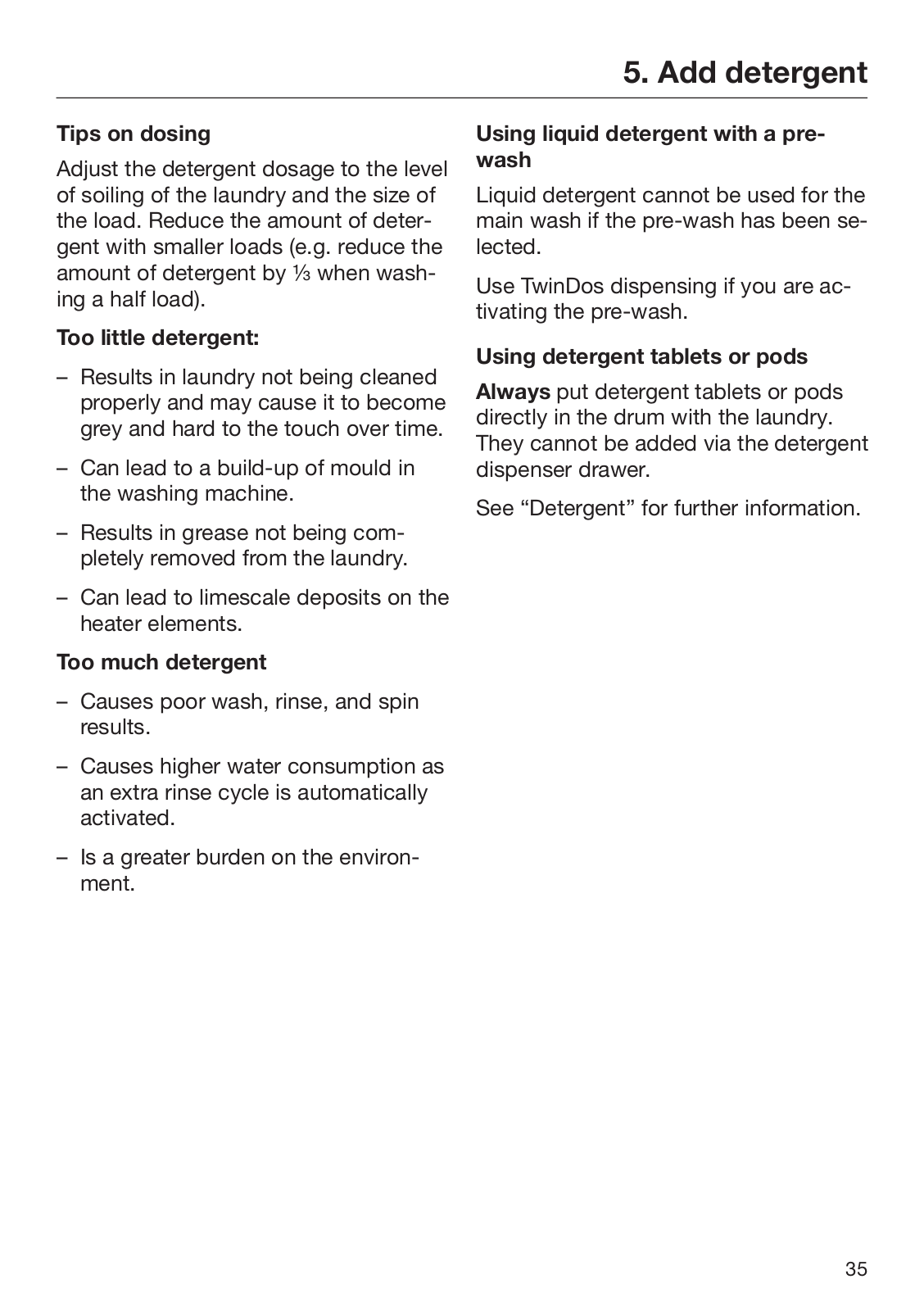

5.	Add detergent ................................................................................................	32

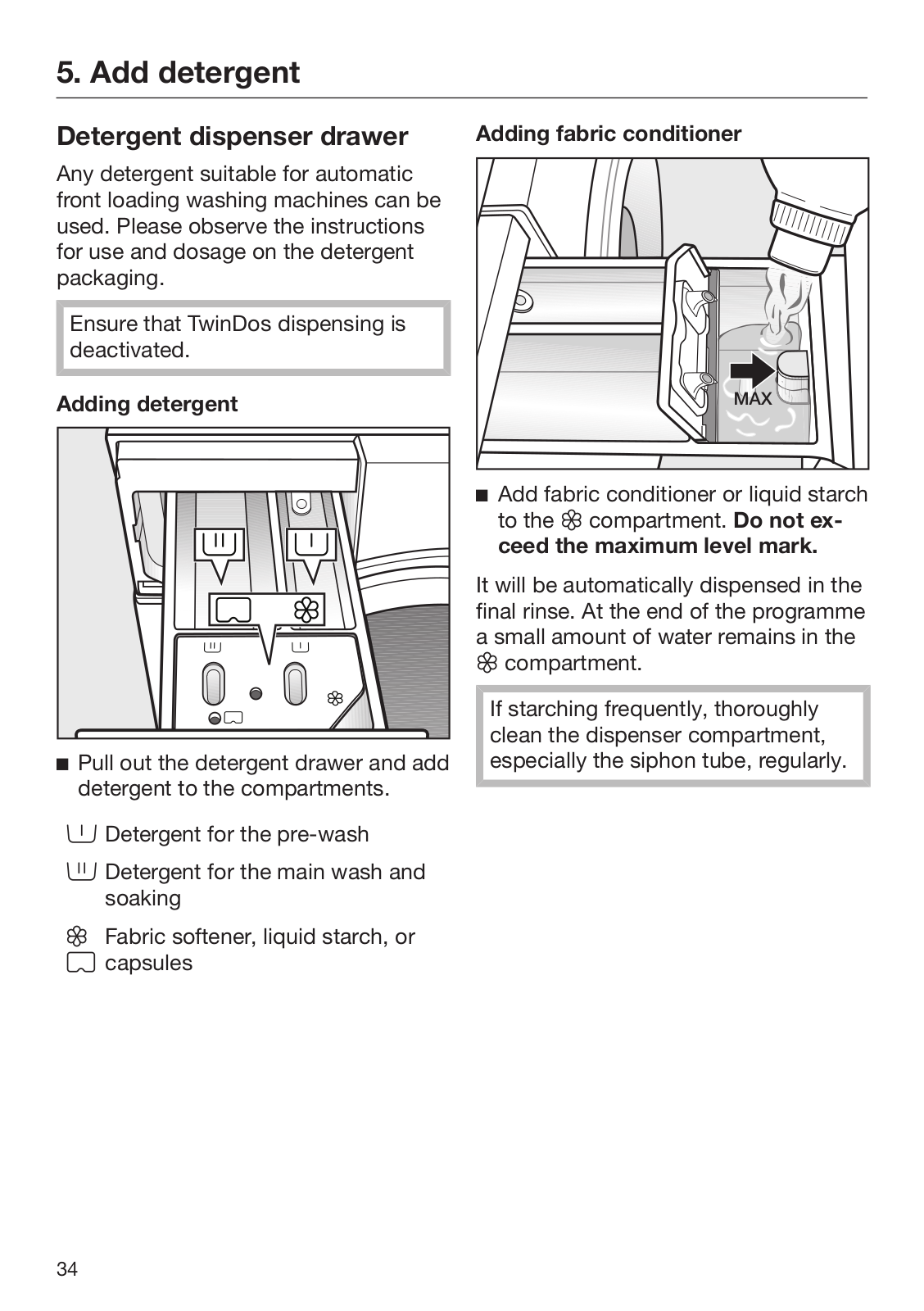

Detergent dispenser drawer ................................................................................		34

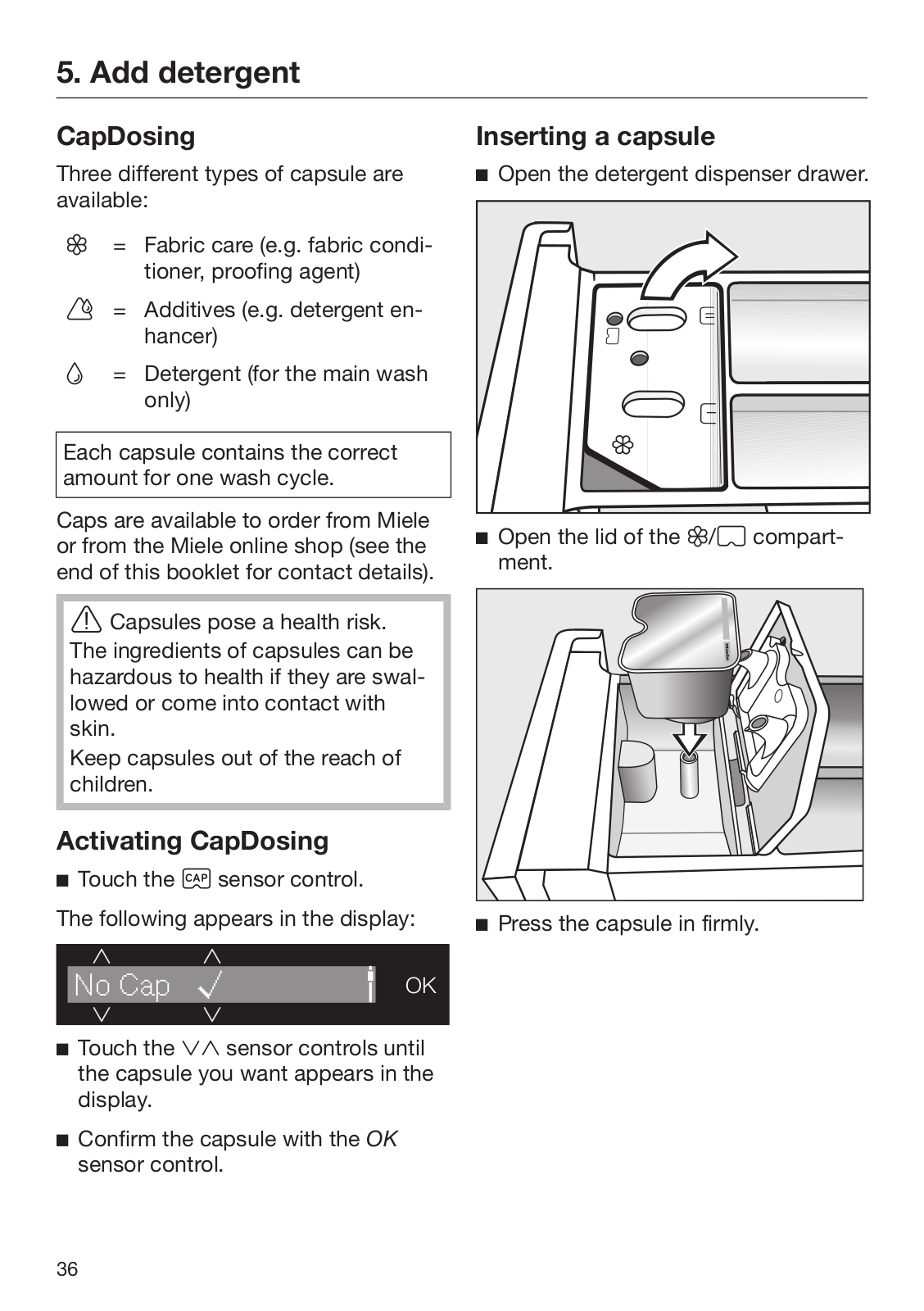

CapDosing...........................................................................................................		36

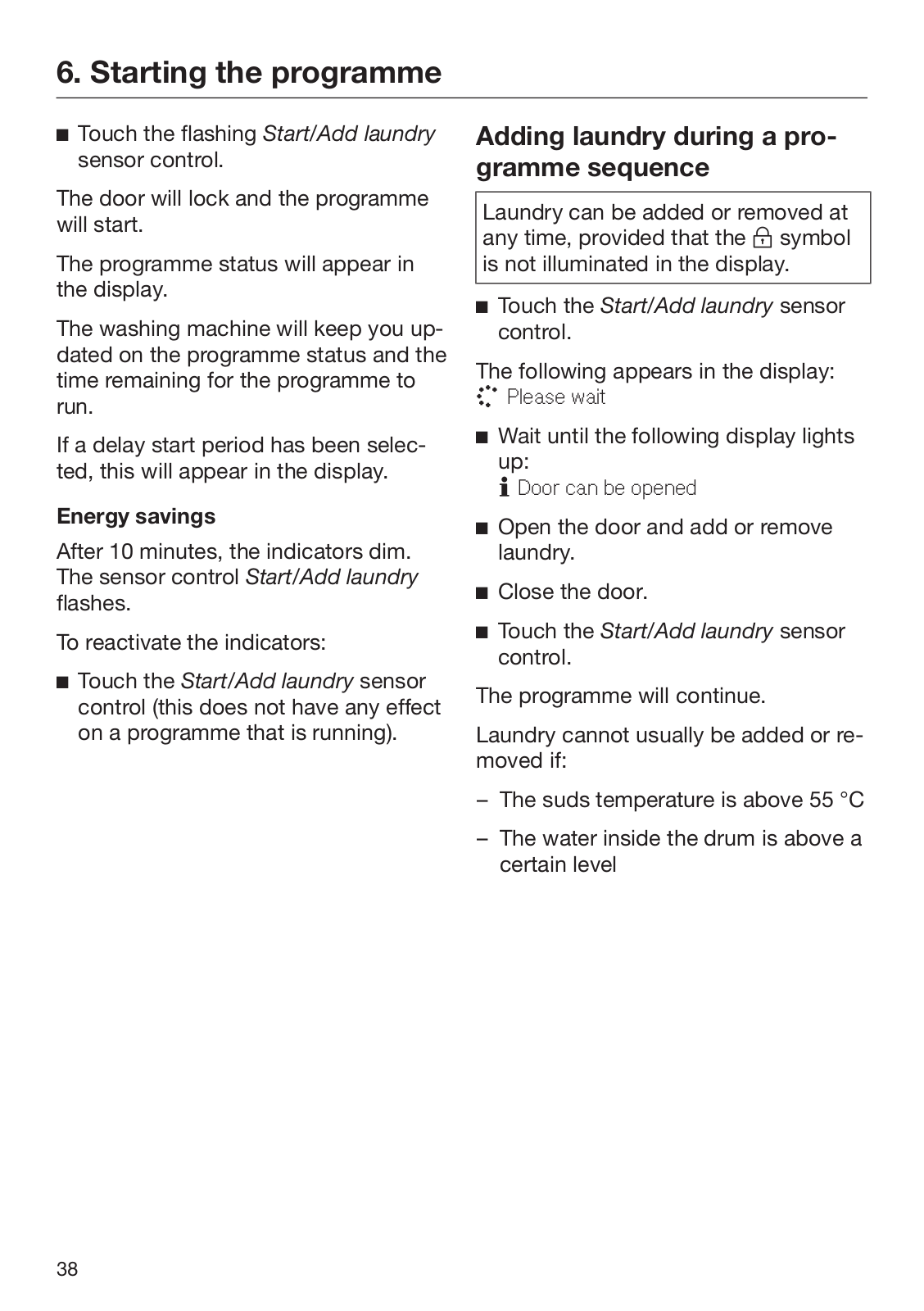

6.	Starting the programme ...............................................................................	38
Adding laundry during a programme sequence..................................................		38

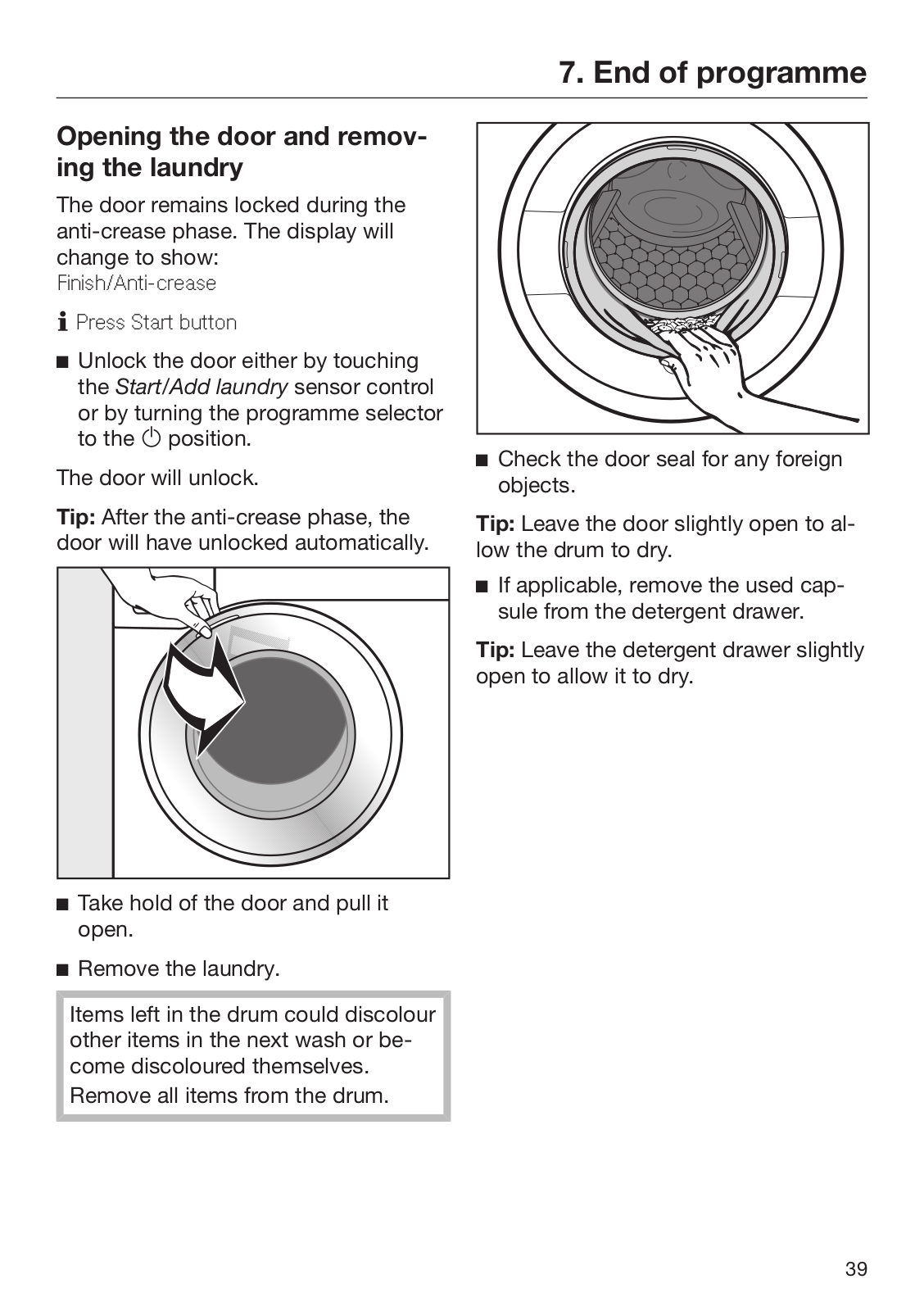

7. End of programme ........................................................................................		39

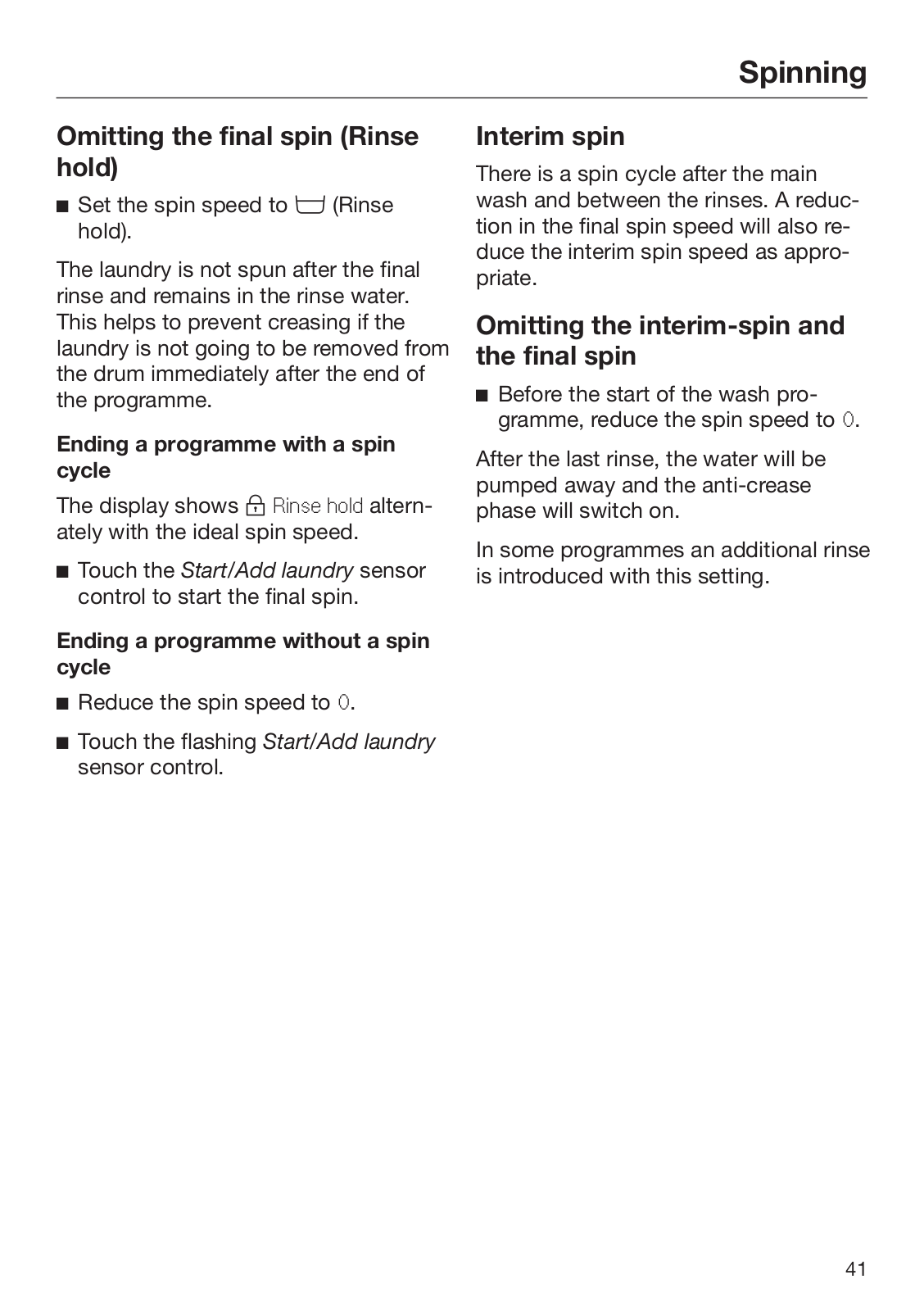

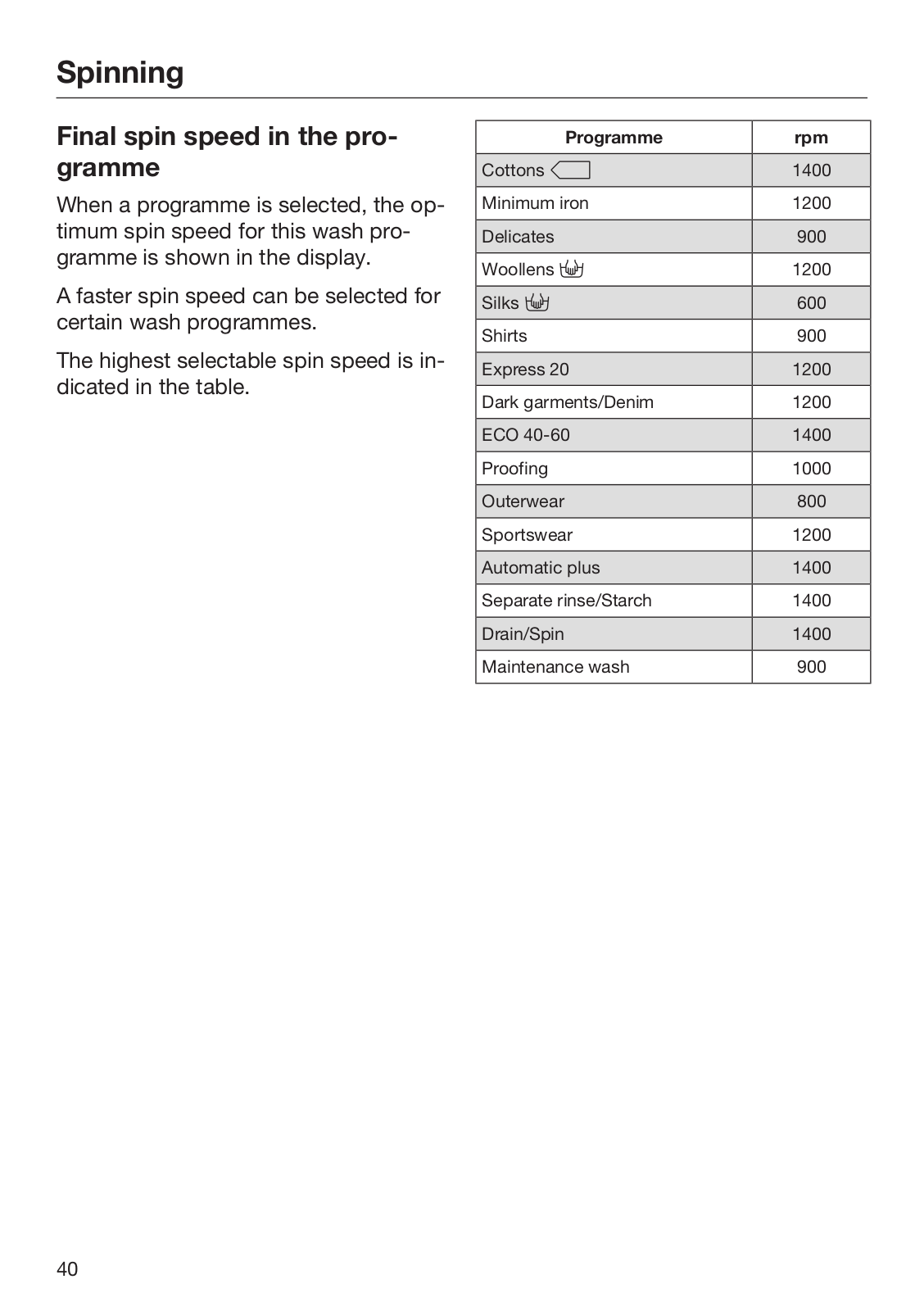

Spinning..............................................................................................................		40

Contents

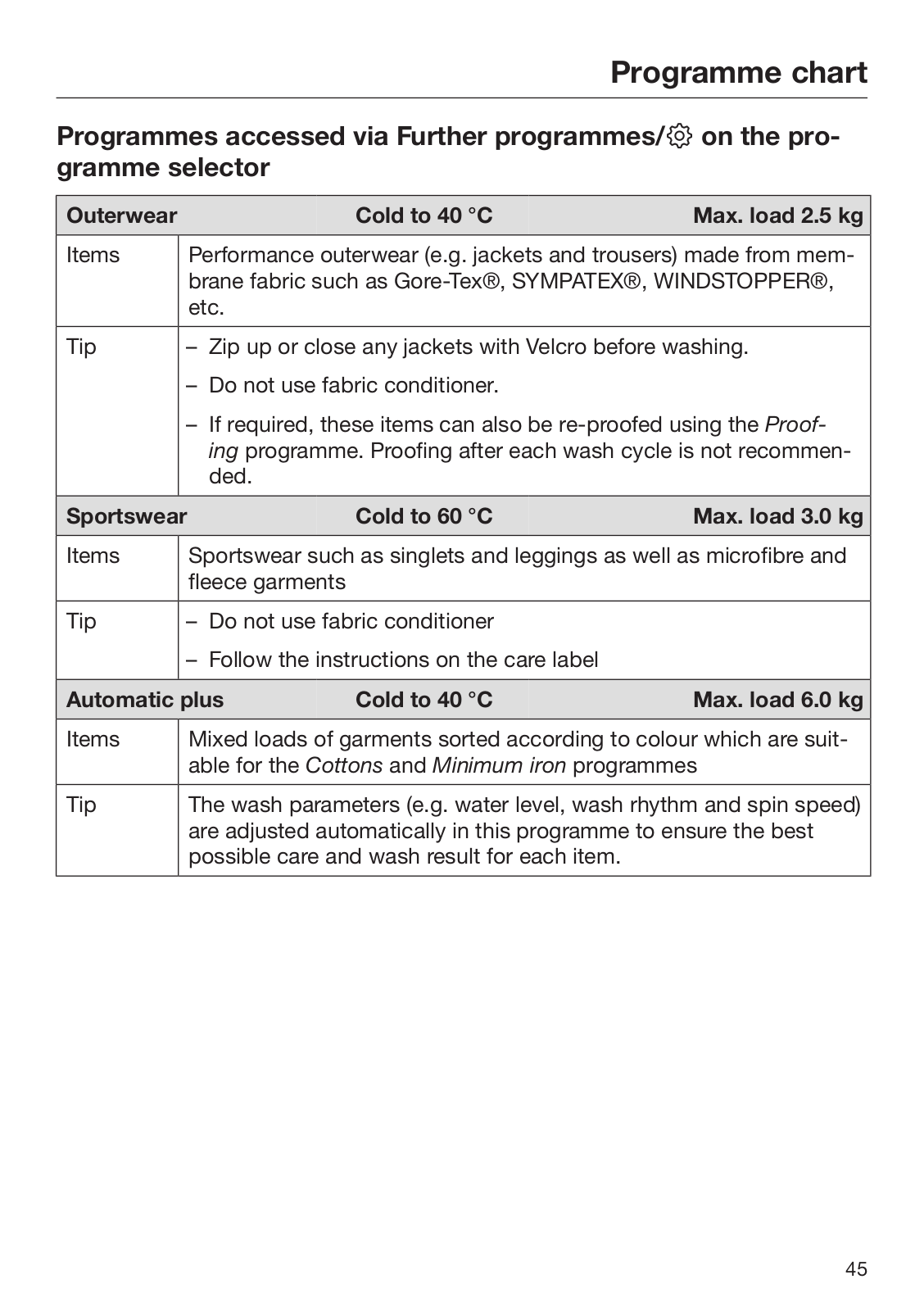

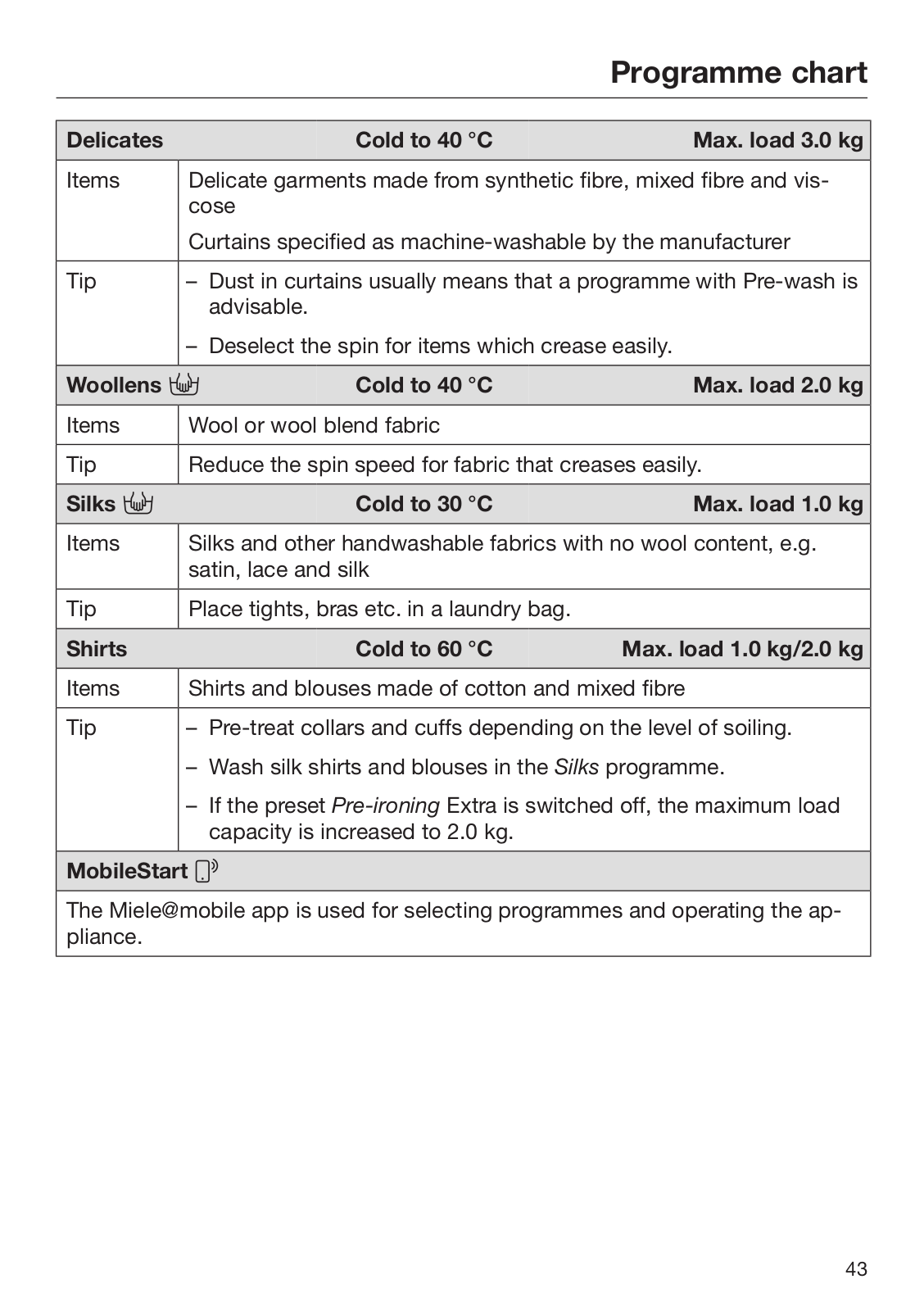

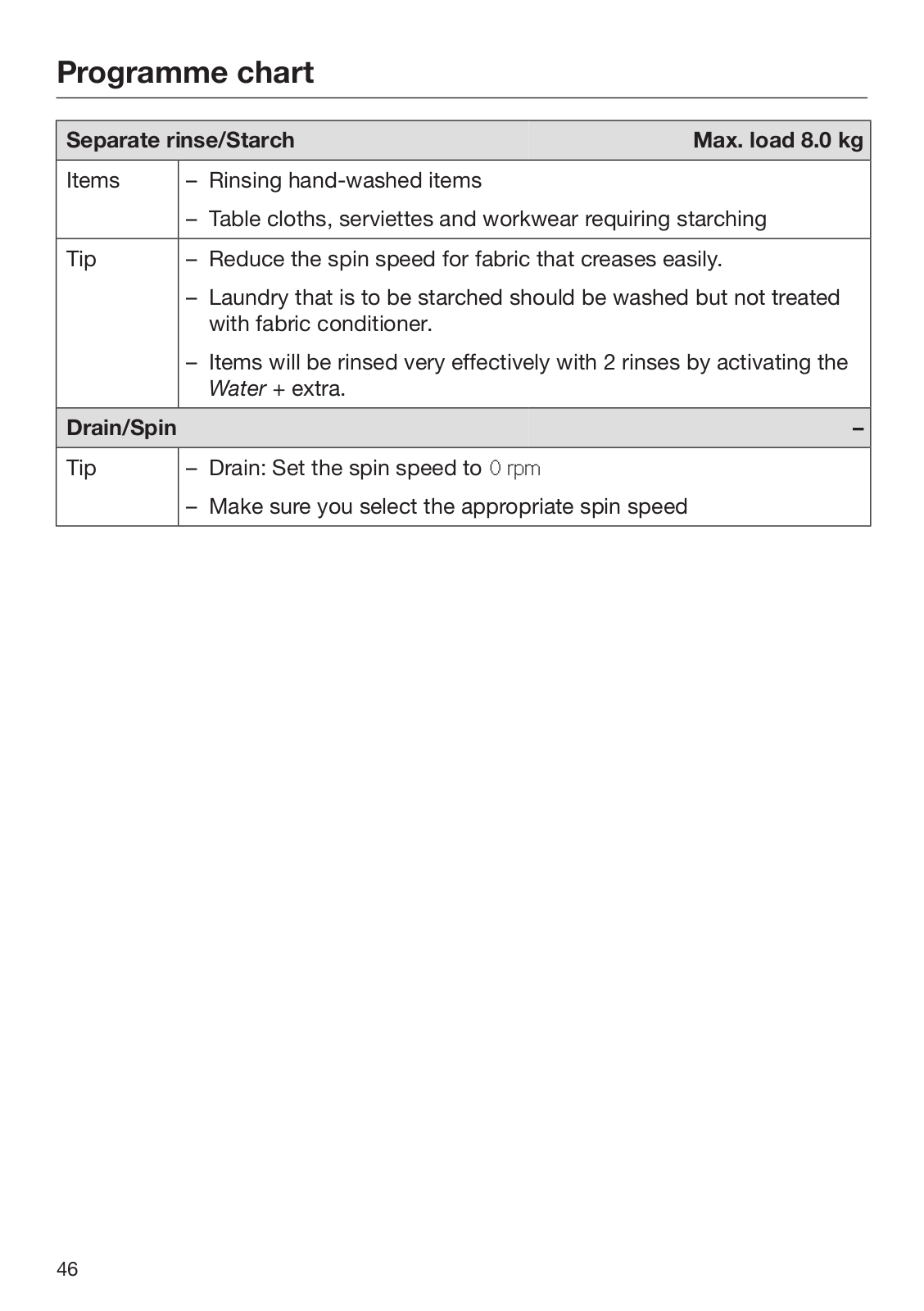

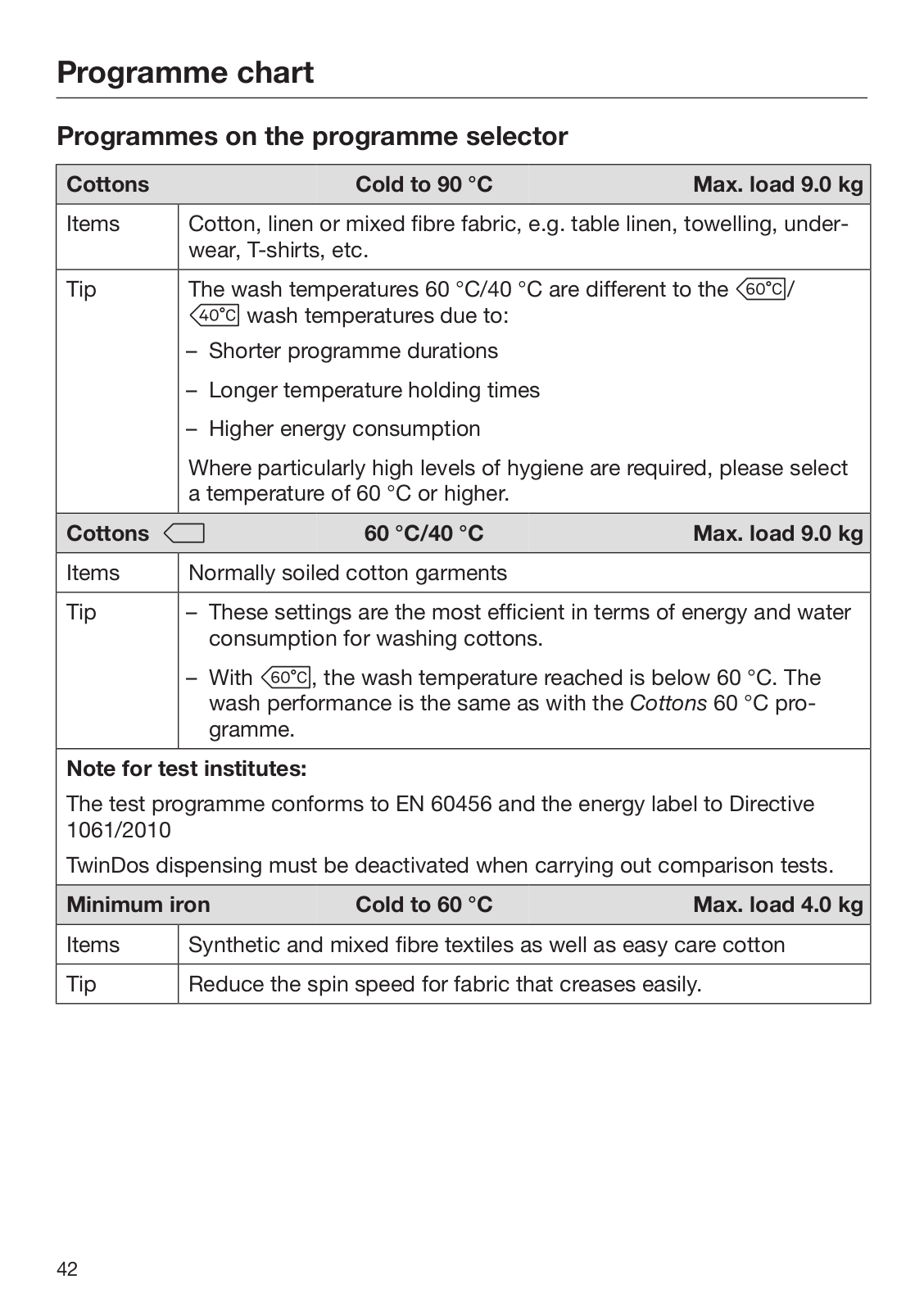

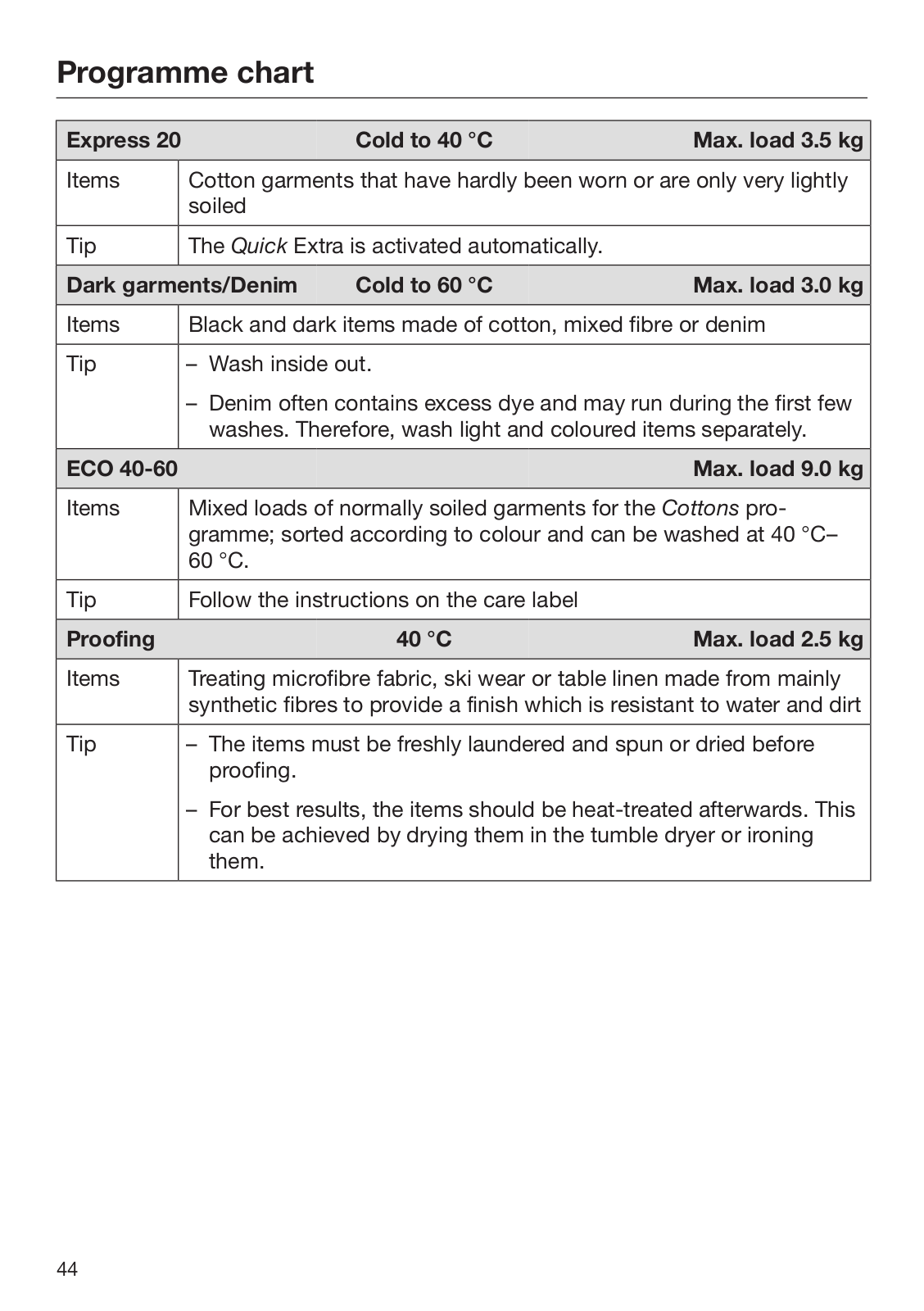

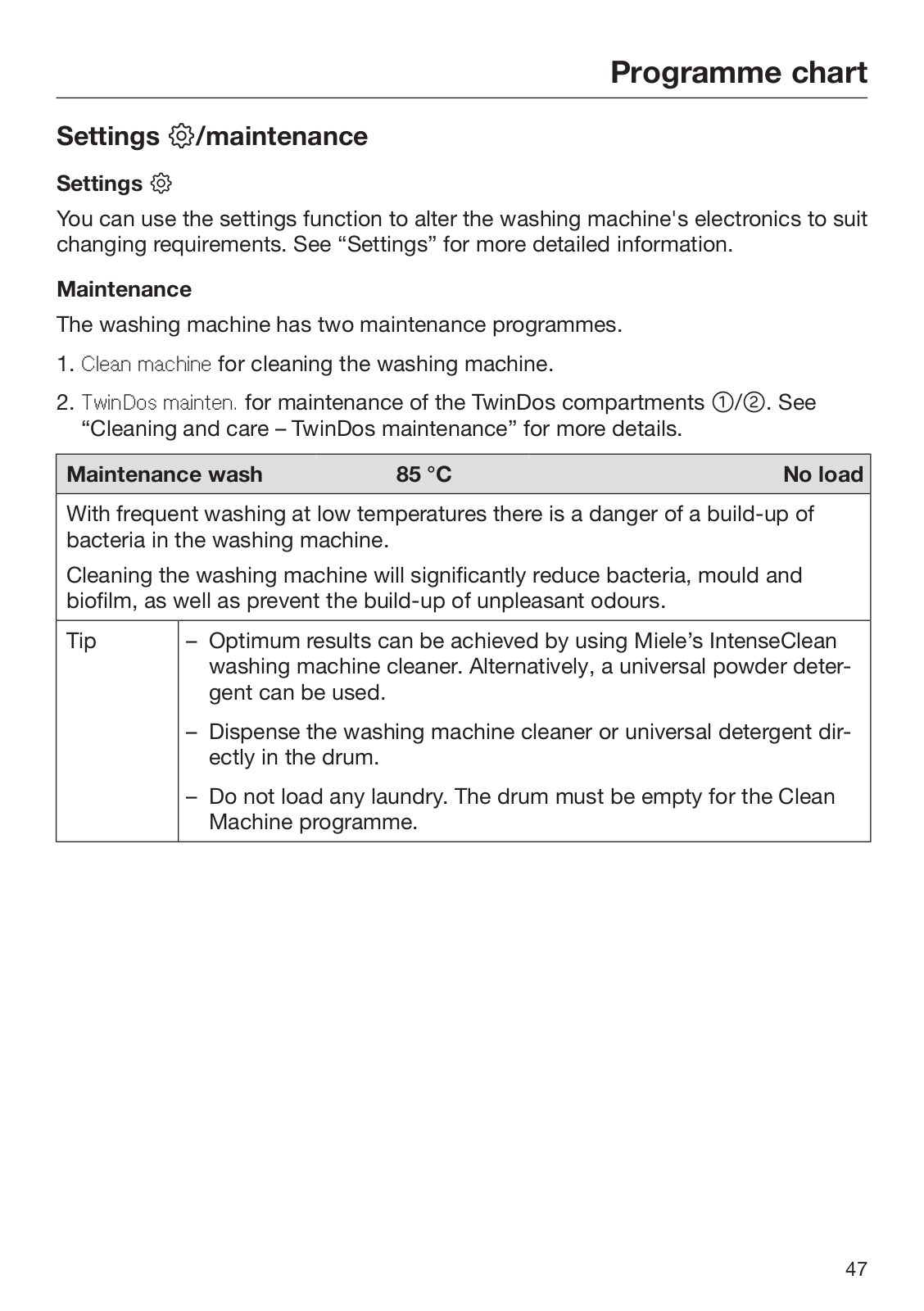

Programme chart ..............................................................................................	42

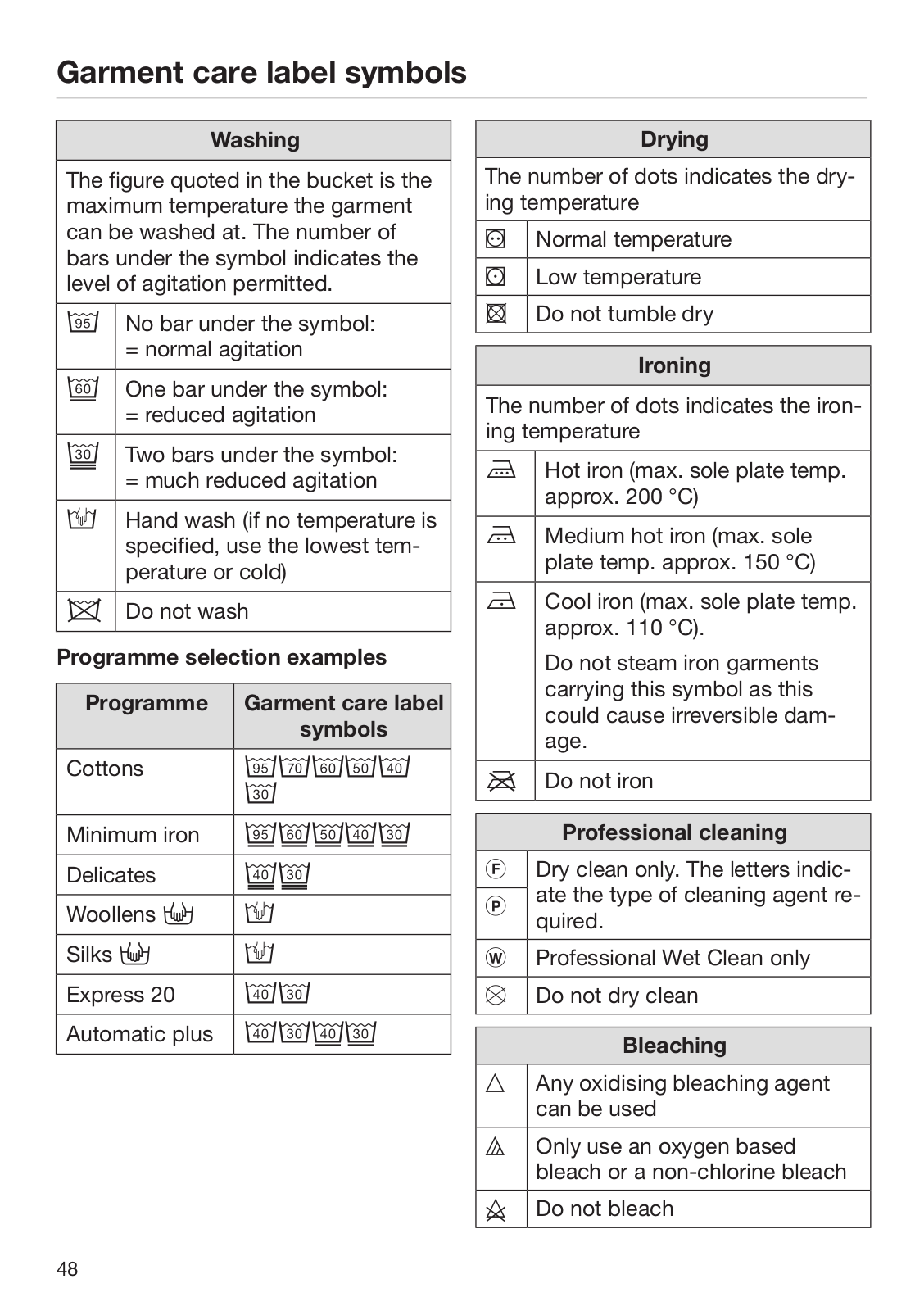

Garment care label symbols.............................................................................	48

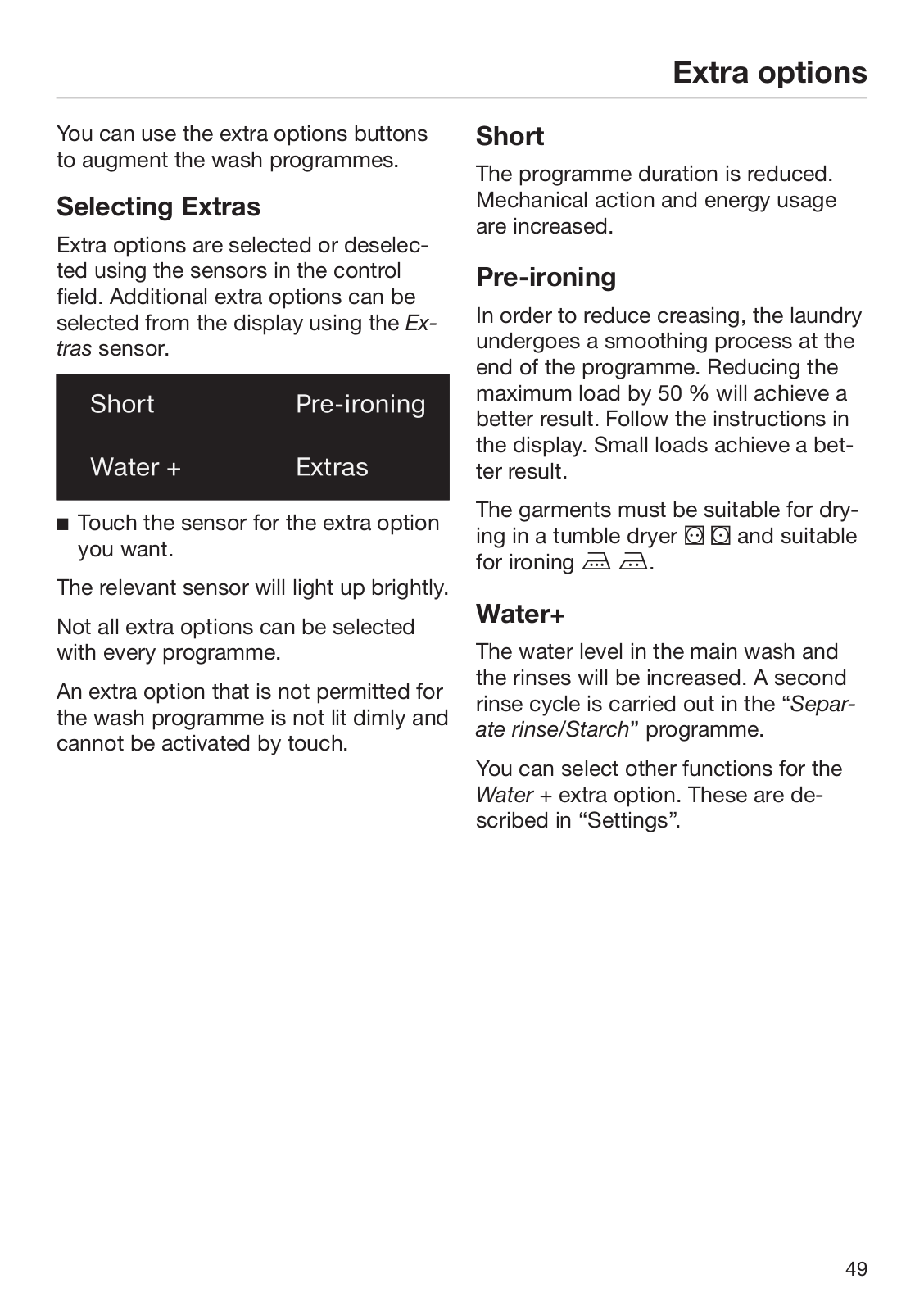

Extra options......................................................................................................	49
Short....................................................................................................................	49
Water+.................................................................................................................	49

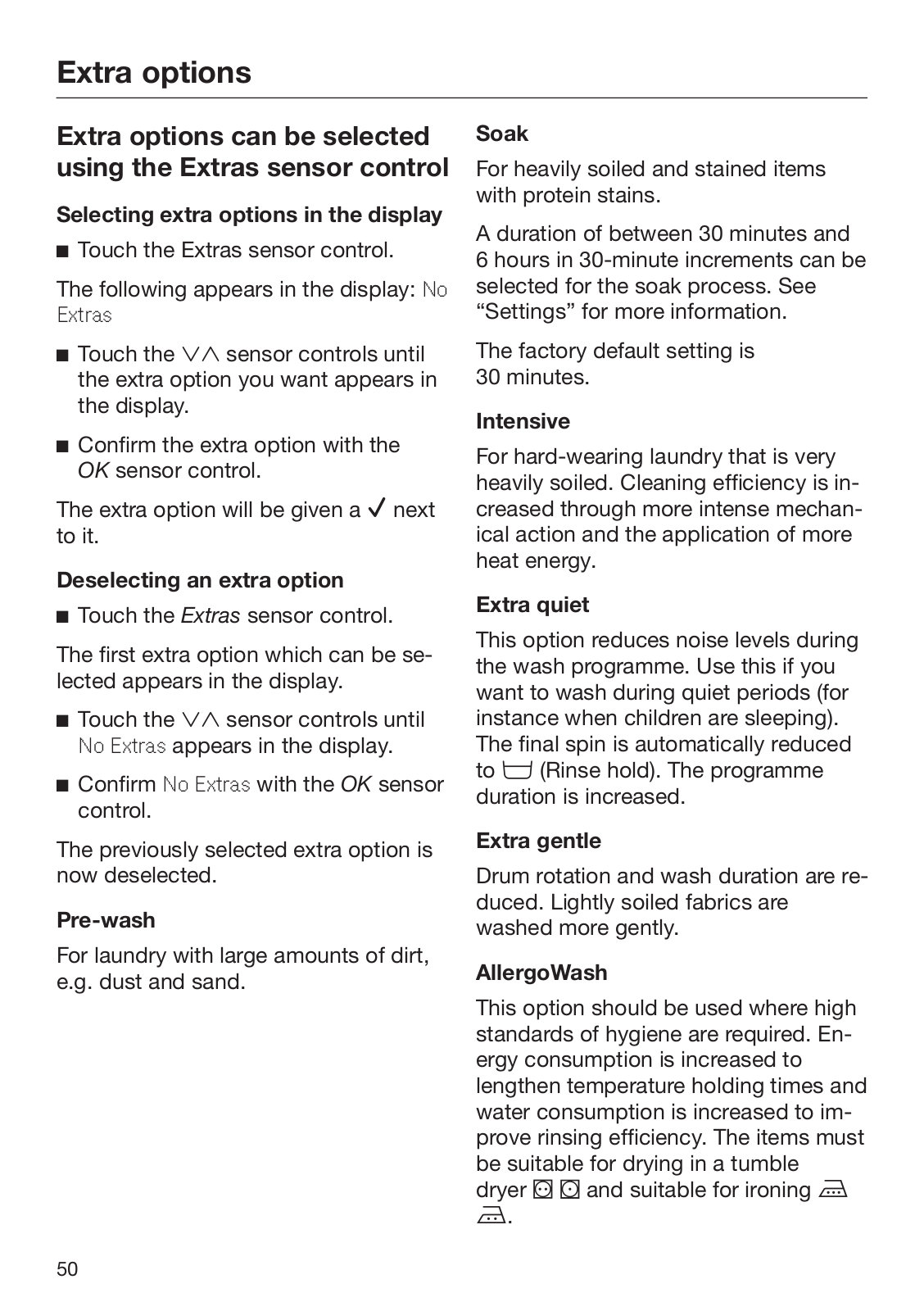

Extra options can be selected using the Extras sensor control ..........................	50
Pre-wash ........................................................................................................	50
Soak ...............................................................................................................	50
Intensive .........................................................................................................	50
Extra quiet ......................................................................................................	50
Extra gentle ....................................................................................................	50
AllergoWash ...................................................................................................	50

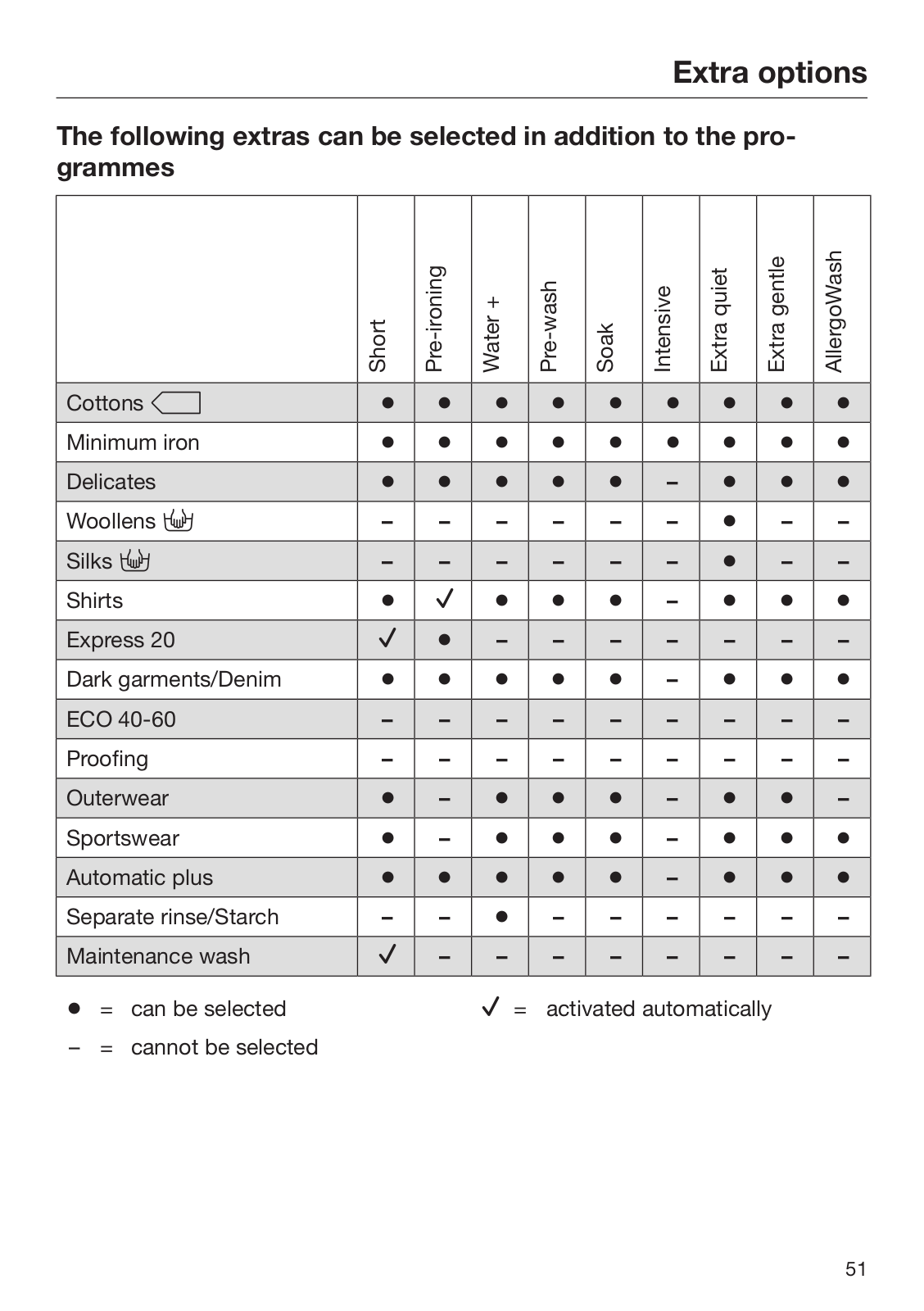

The following extras can be selected in addition to the programmes.................	51

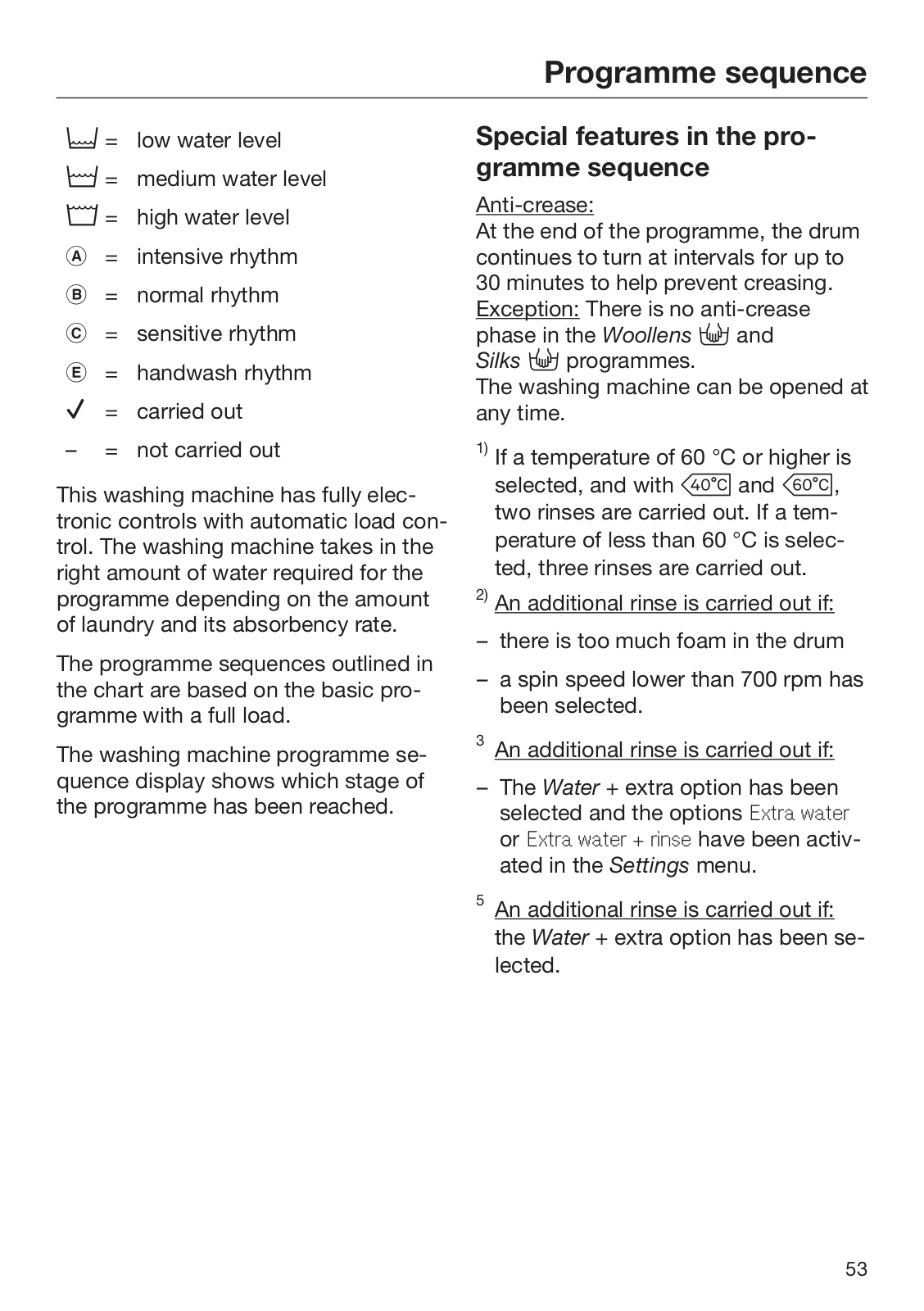

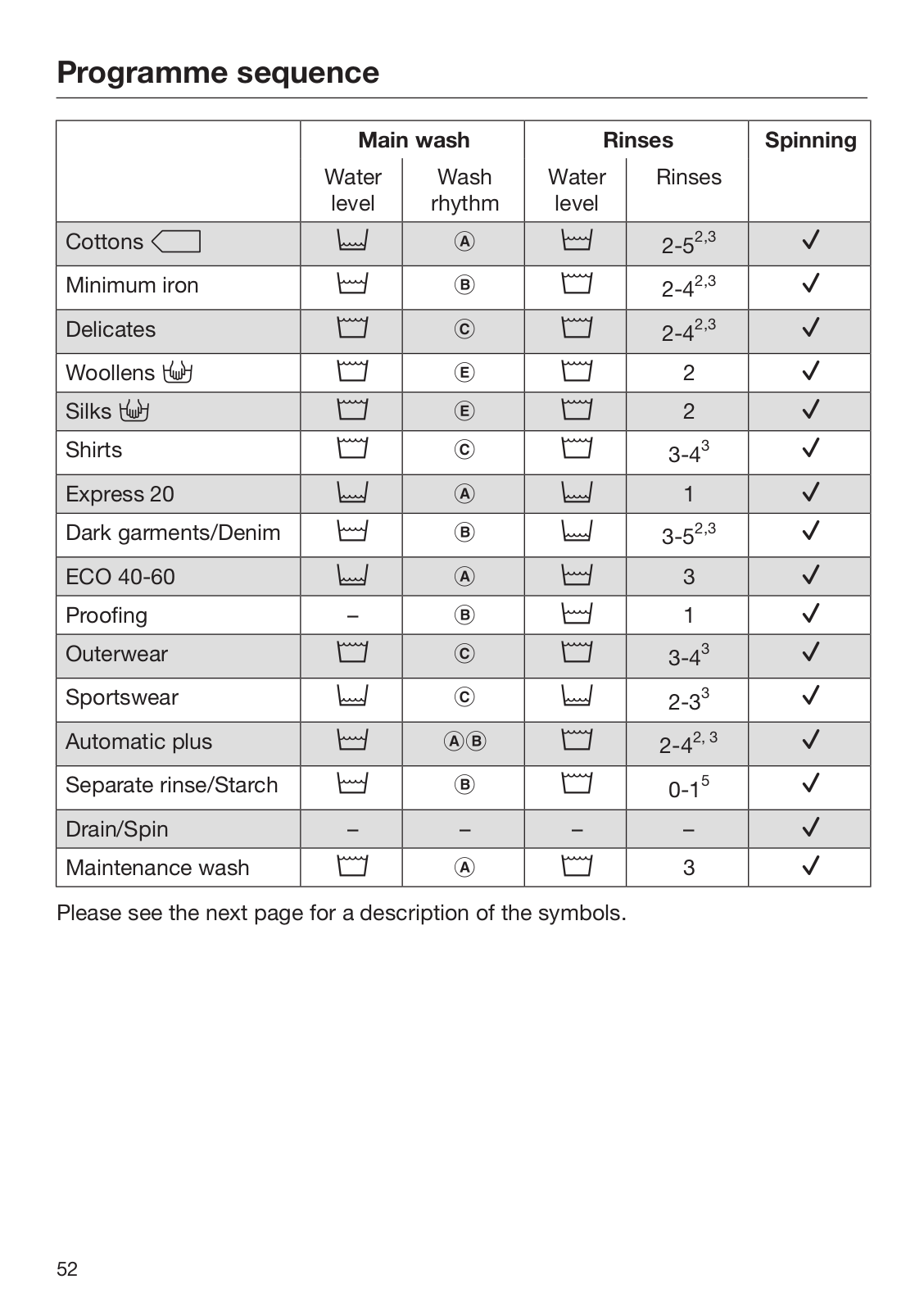

Programme sequence.......................................................................................	52

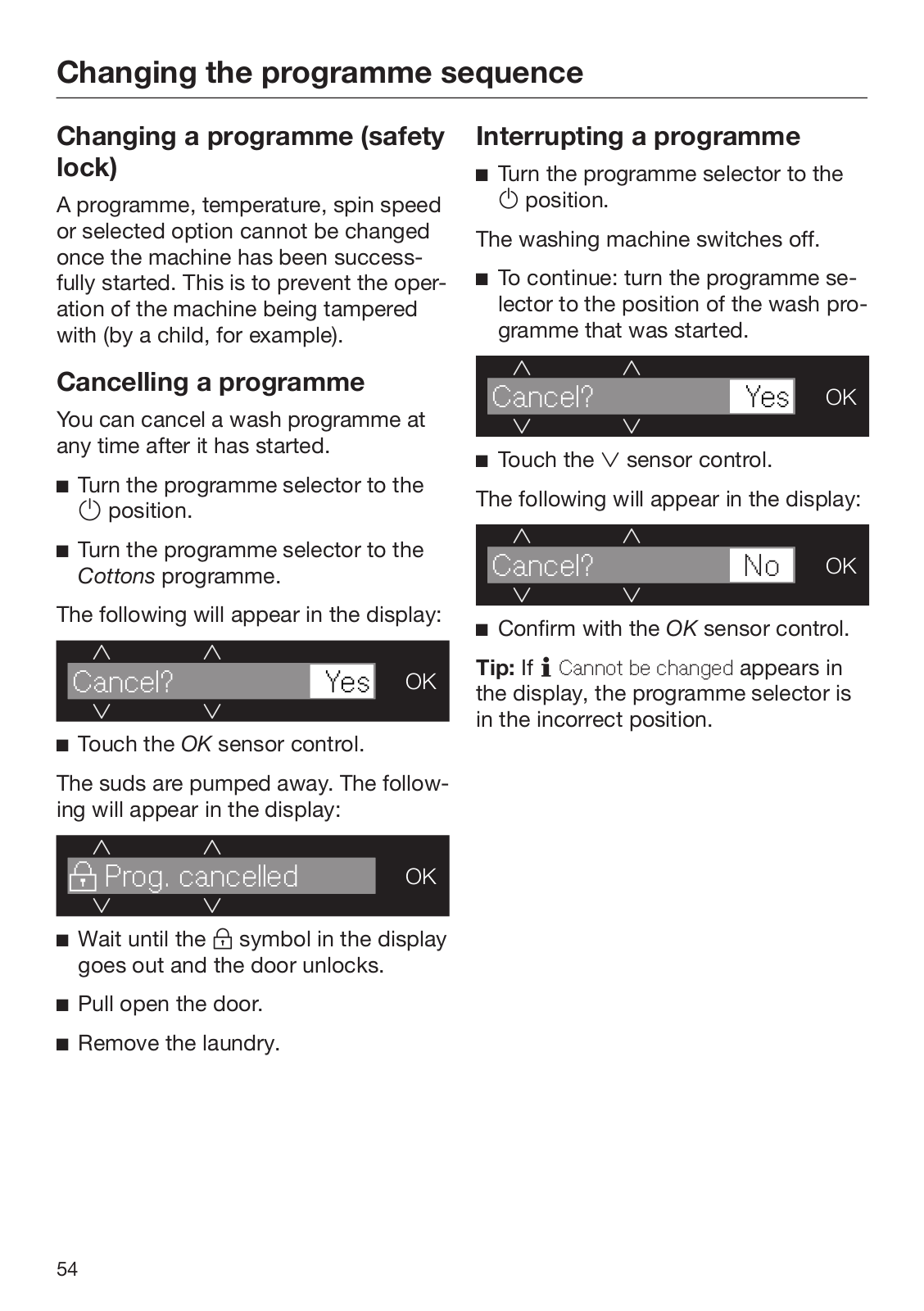

Changing the programme sequence ..............................................................	54
Changing a programme (safety lock) ..................................................................	54
Cancelling a programme .....................................................................................	54
Interrupting a programme....................................................................................	54

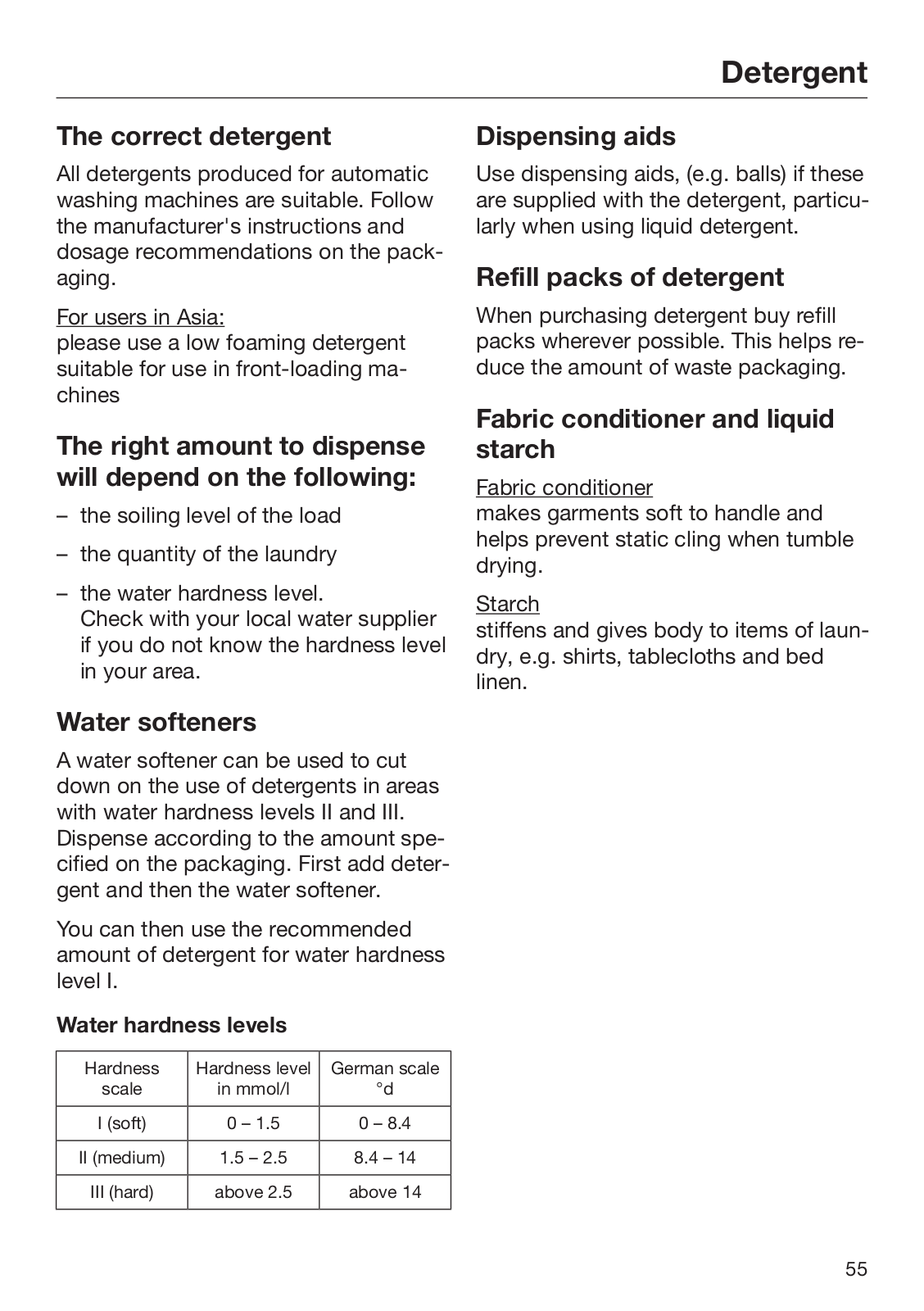

Detergent ...........................................................................................................	55
The correct detergent..........................................................................................	55
Water softeners ...................................................................................................	55
Dispensing aids ...................................................................................................	55

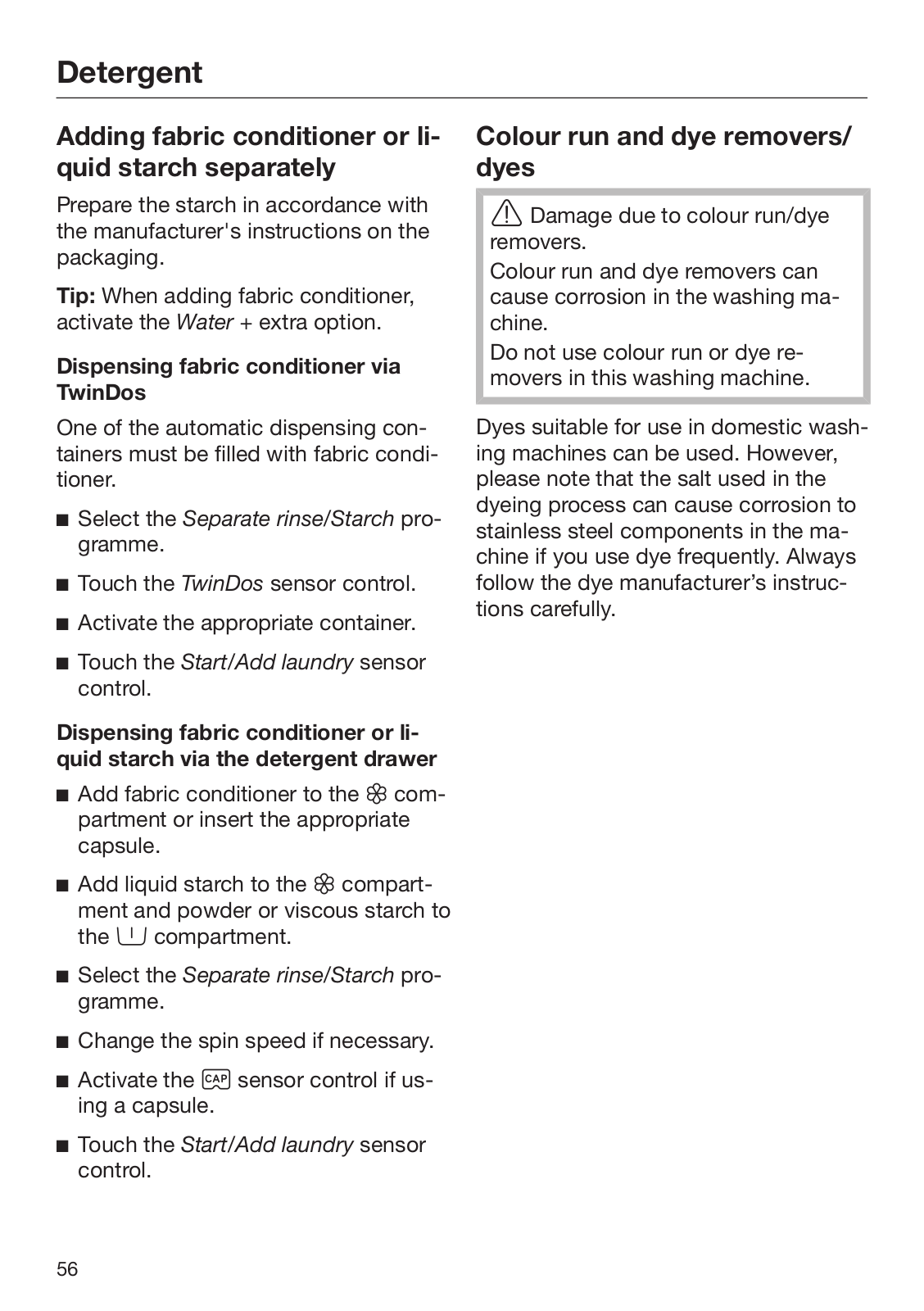

Fabric conditioner and liquid starch....................................................................	55

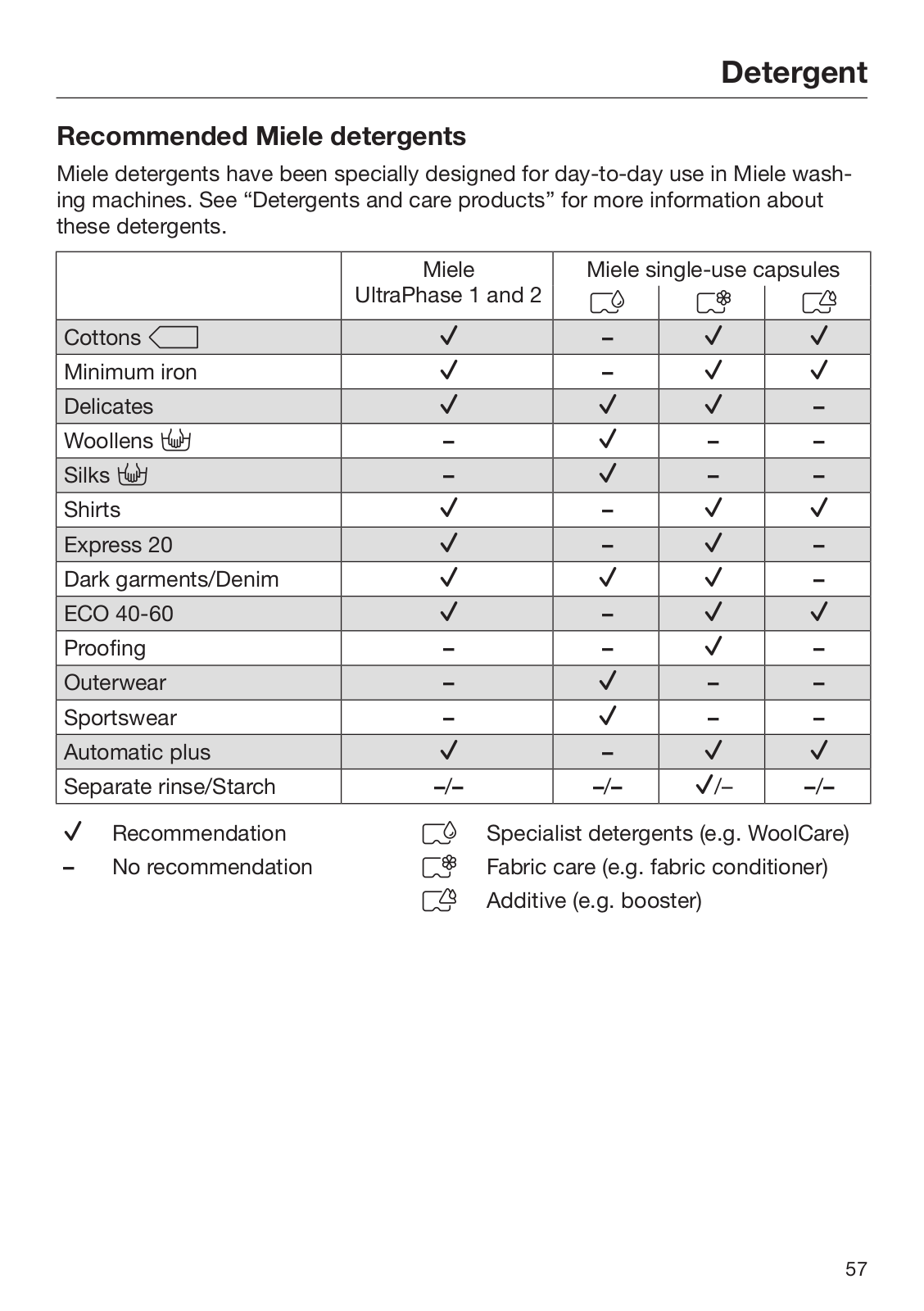

Recommended Miele detergents ........................................................................	57

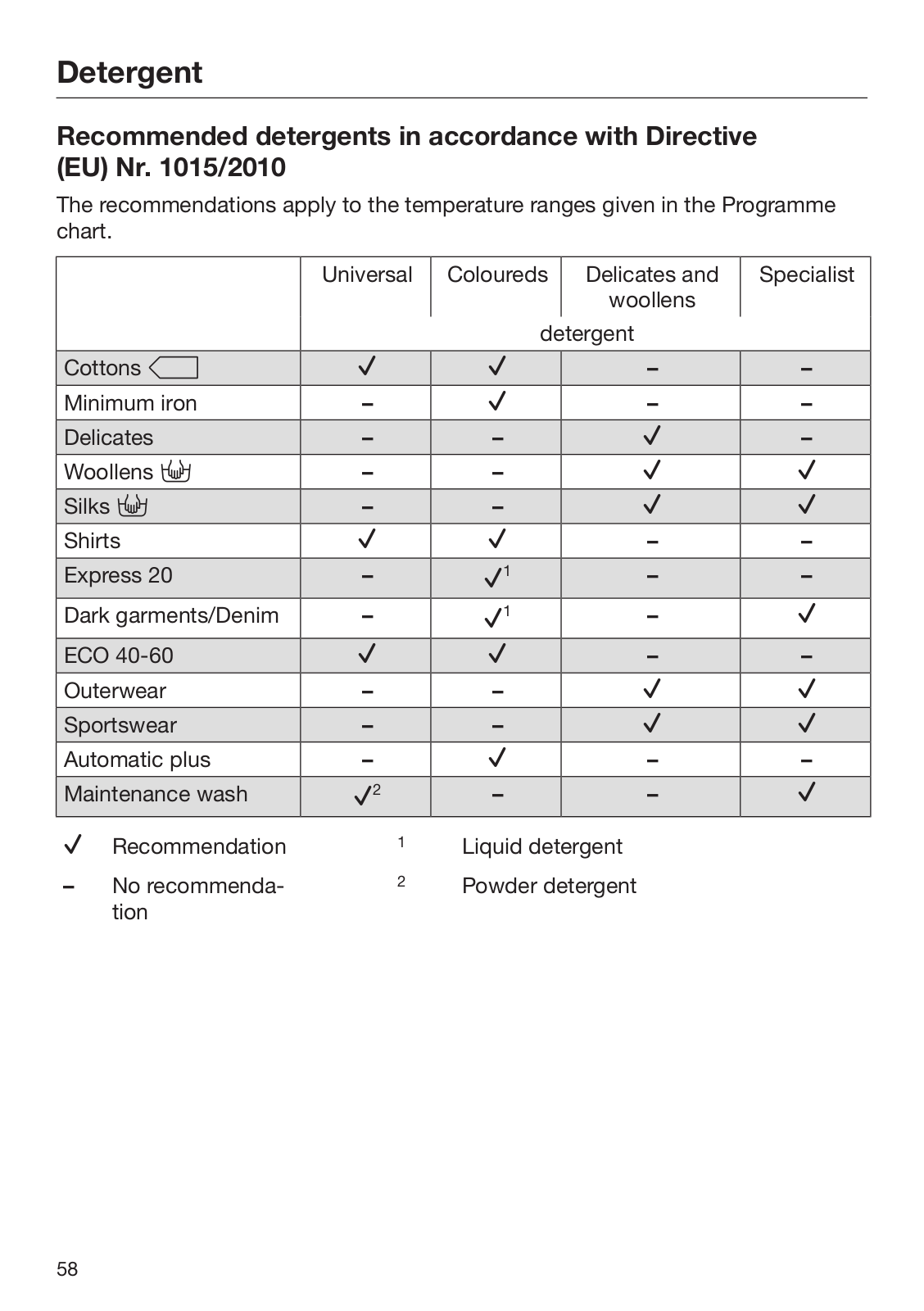

Recommended detergents in accordance with Directive (EU) Nr. 1015/2010....	58
Cleaning and care .............................................................................................	59

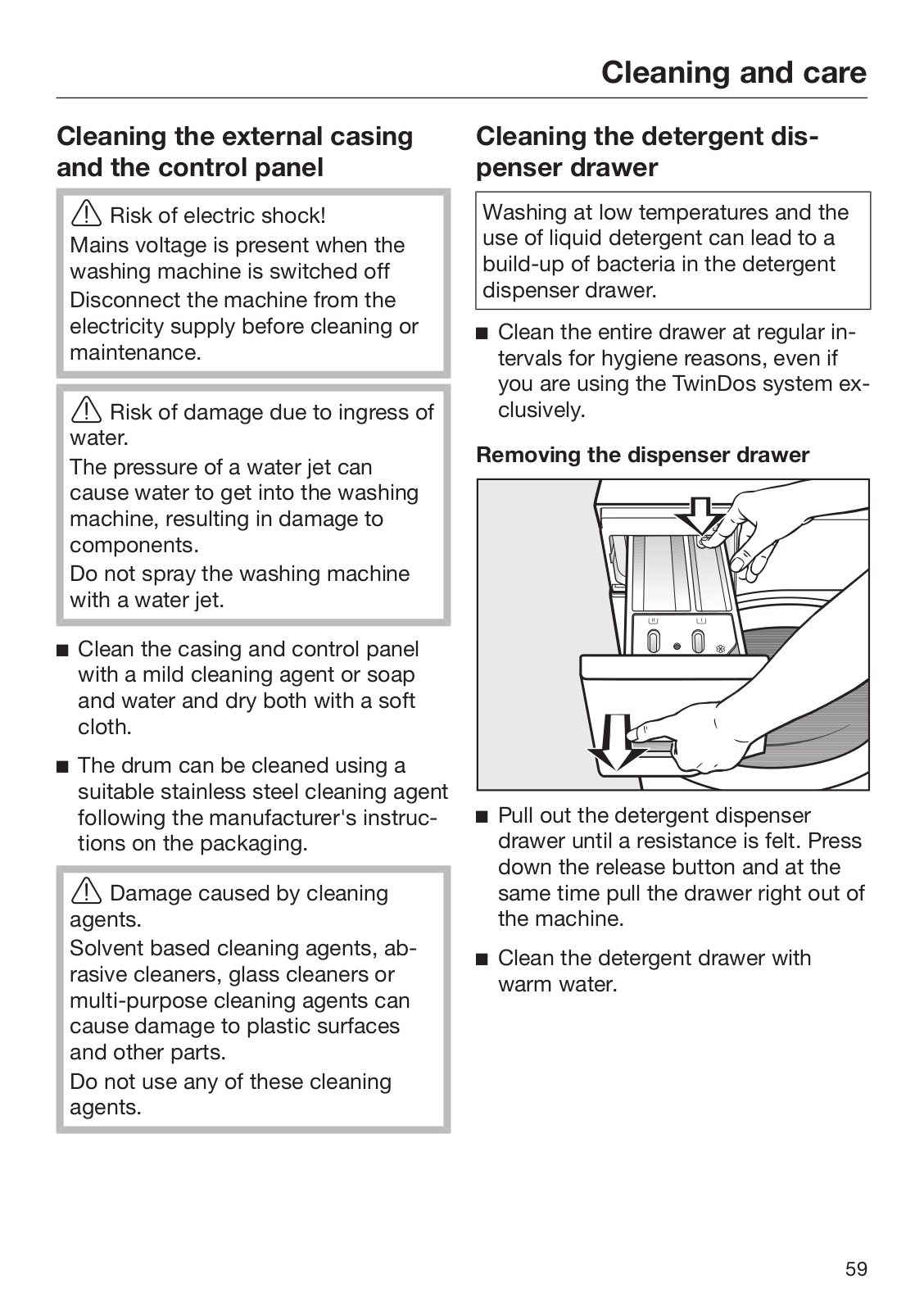

Cleaning the external casing and the control panel ............................................	59

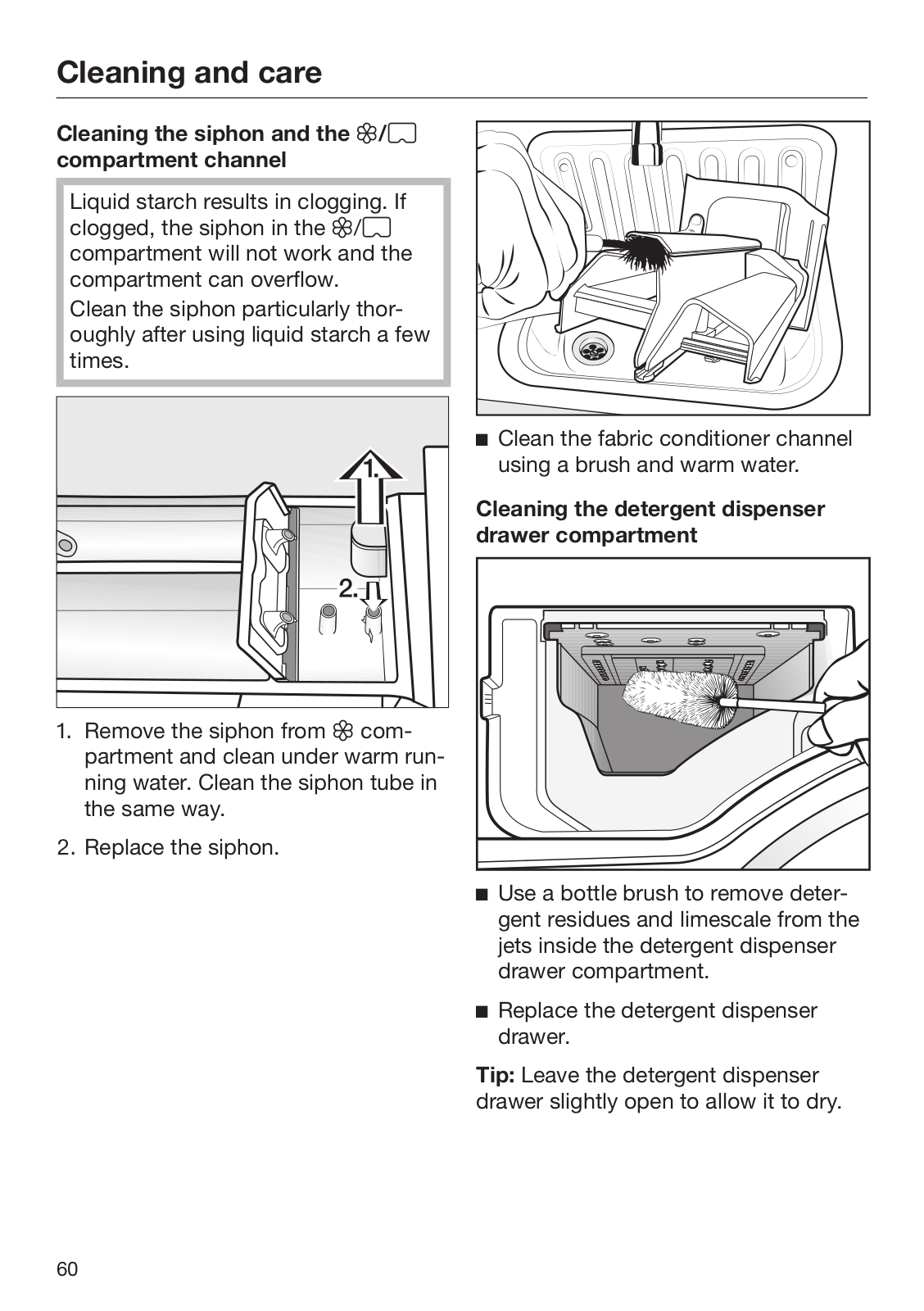

Cleaning the detergent dispenser drawer ...........................................................	59

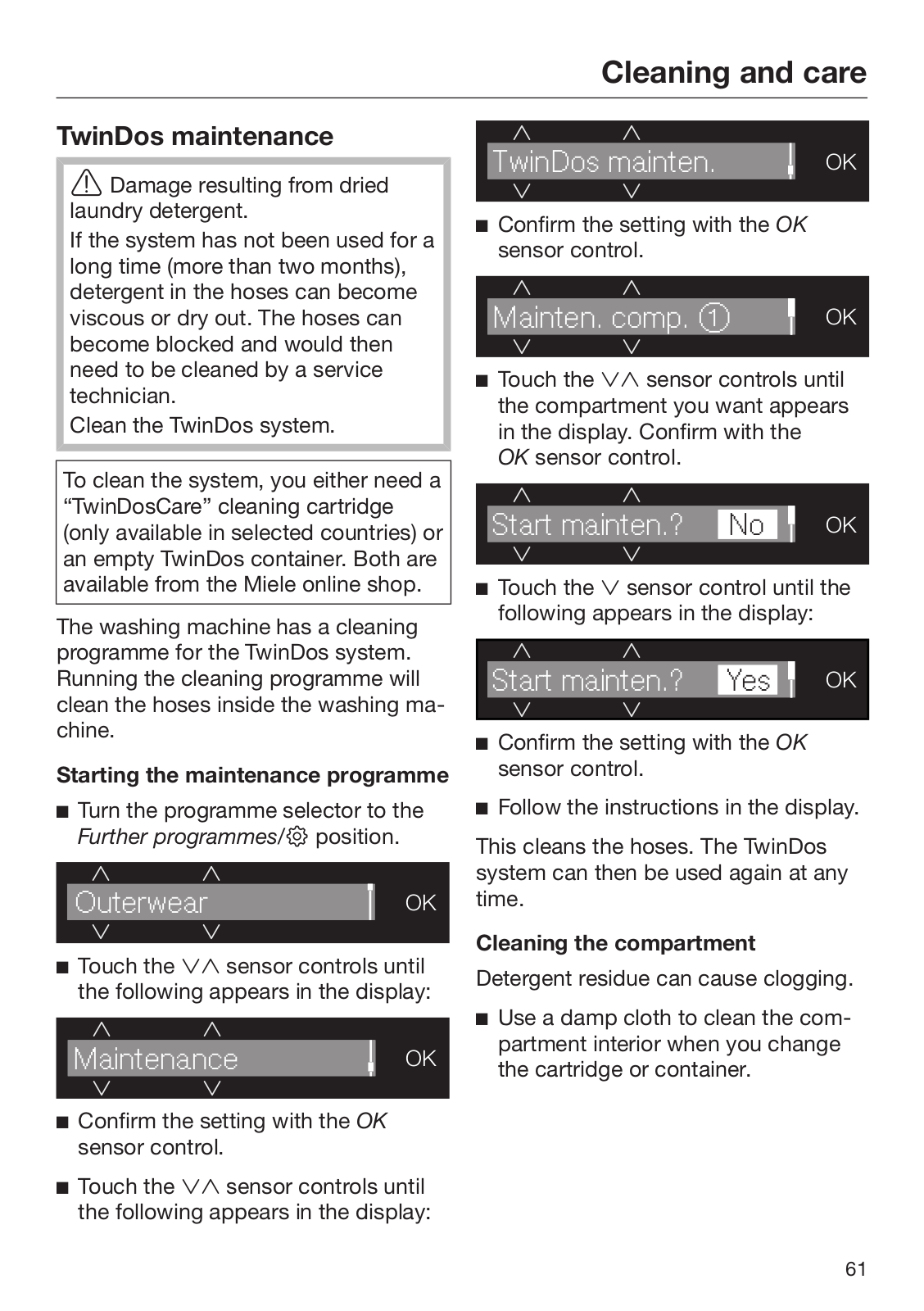

TwinDos maintenance .........................................................................................	61

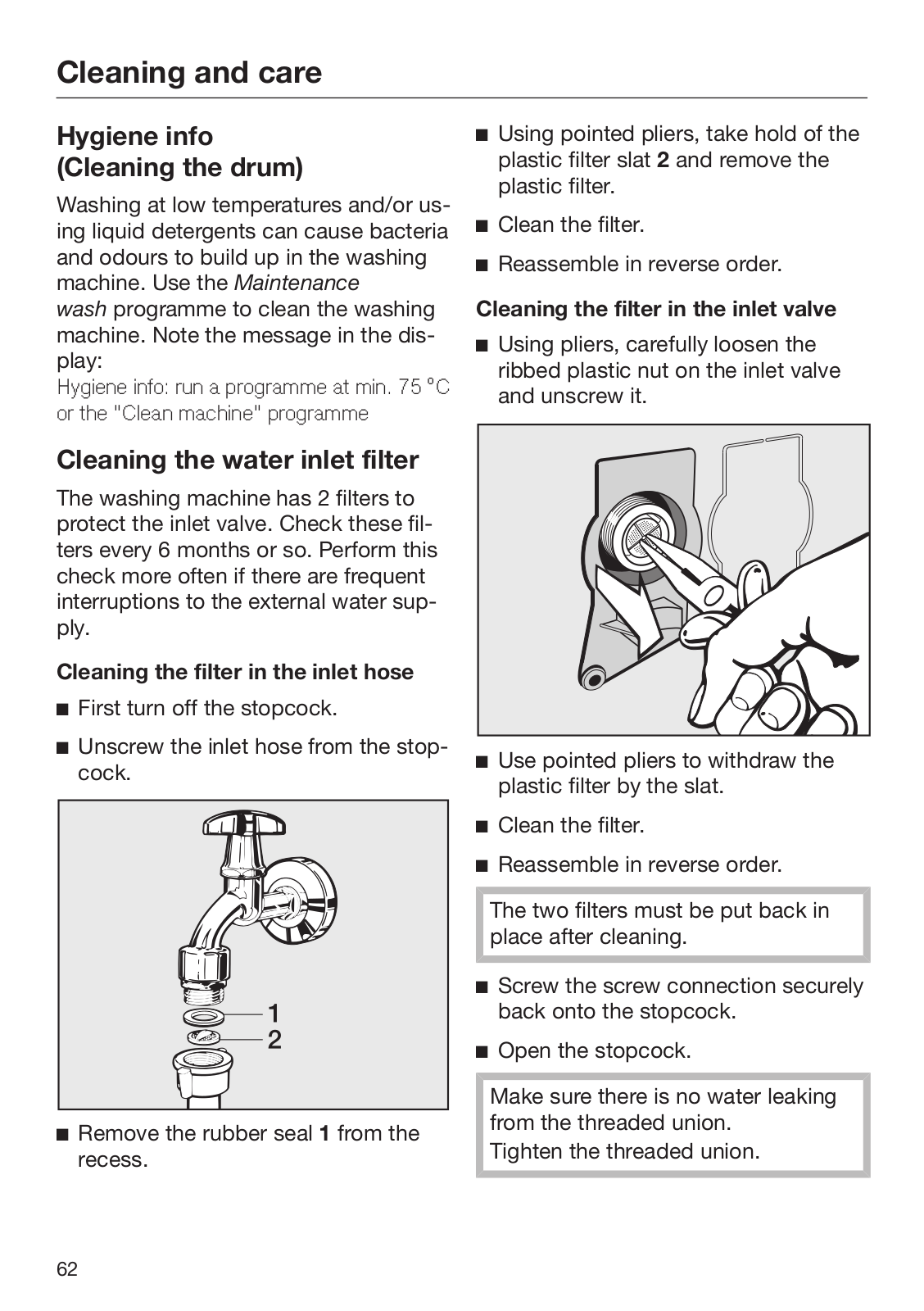

Hygiene info(Cleaning the drum) .........................................................................	62
Cleaning the water inlet filter...............................................................................	62

Contents

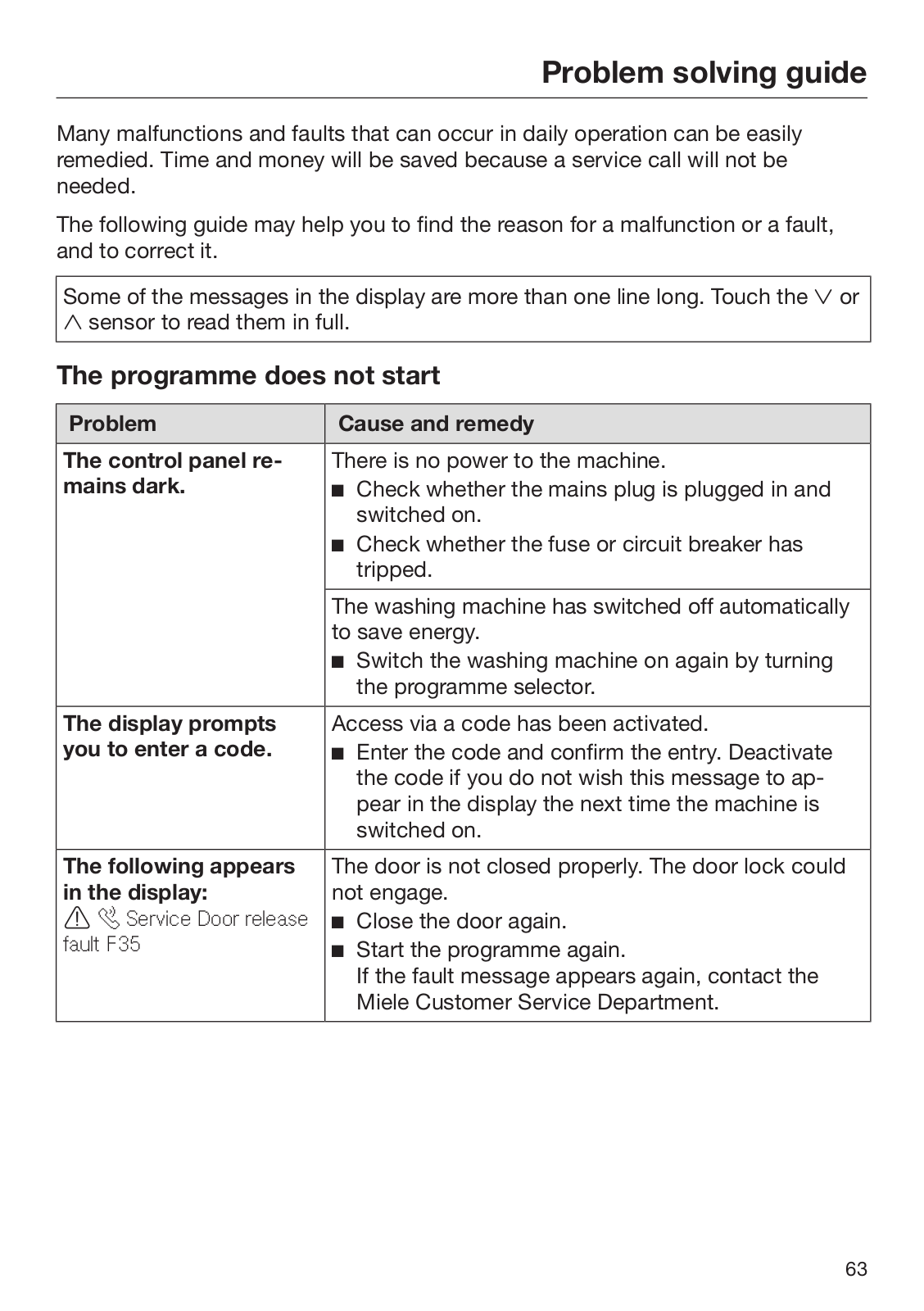

Problem solving guide ......................................................................................	63
The programme does not start............................................................................	63

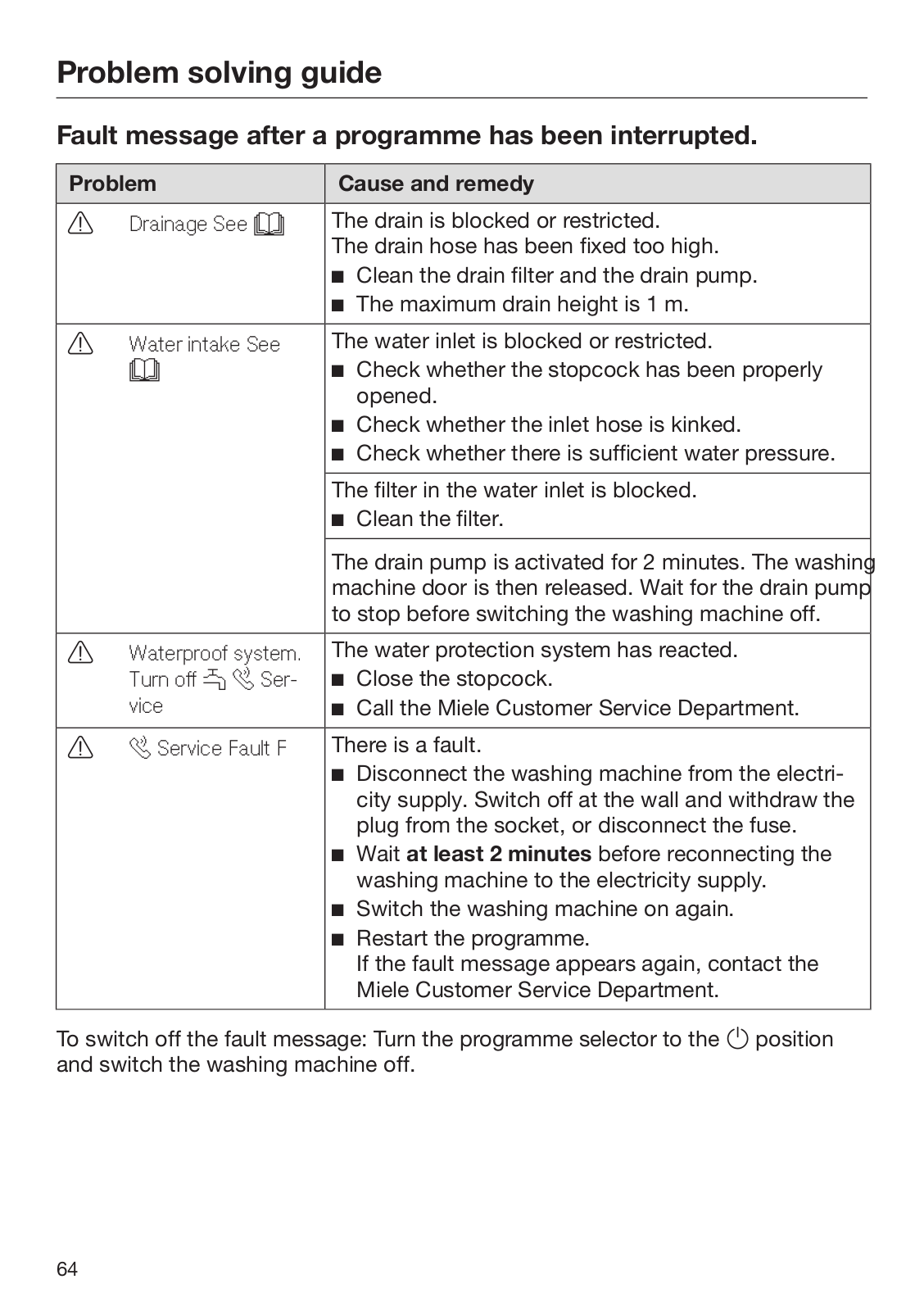

Fault message after a programme has been interrupted. ...................................	64

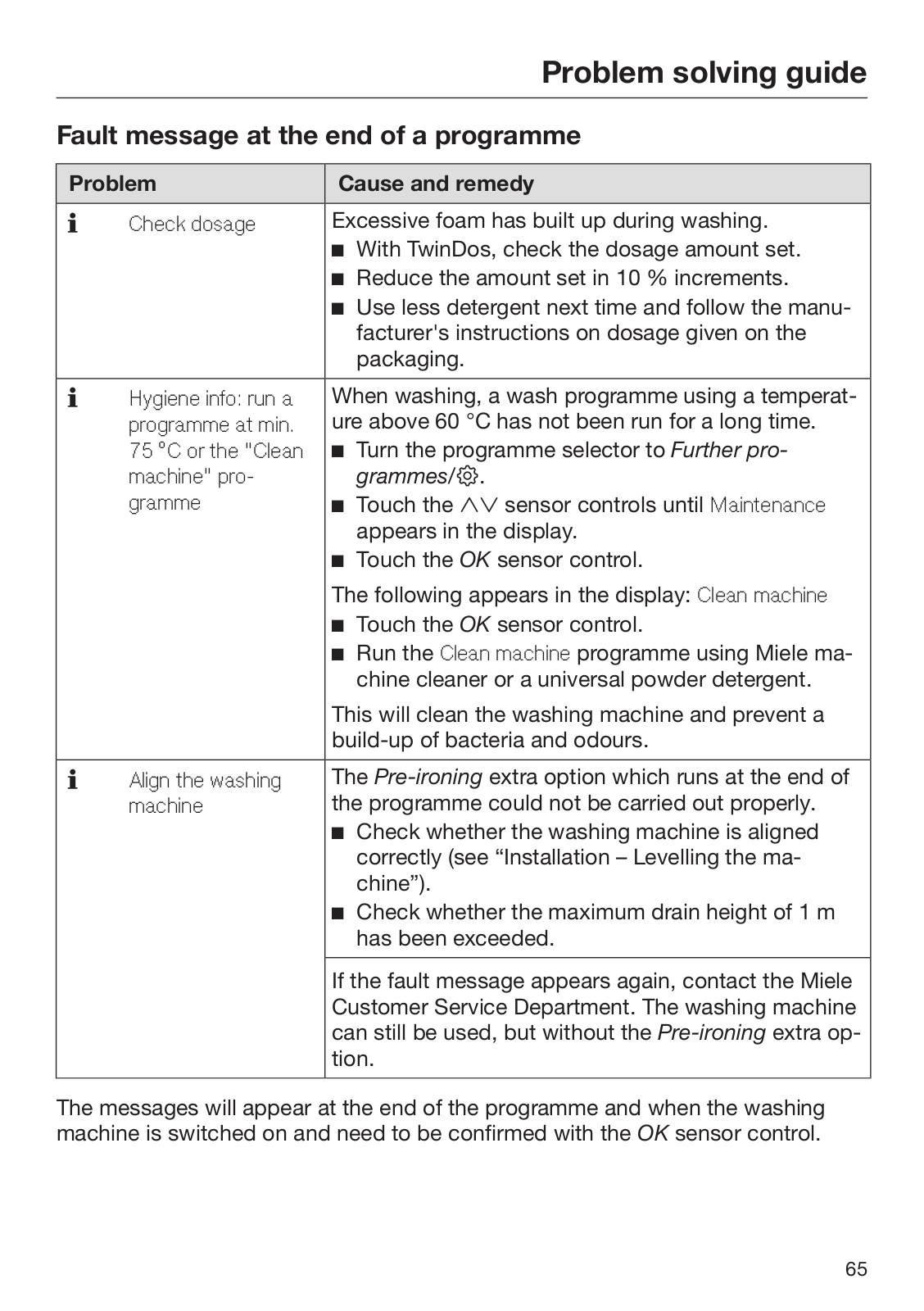

Fault message at the end of a programme .........................................................	65

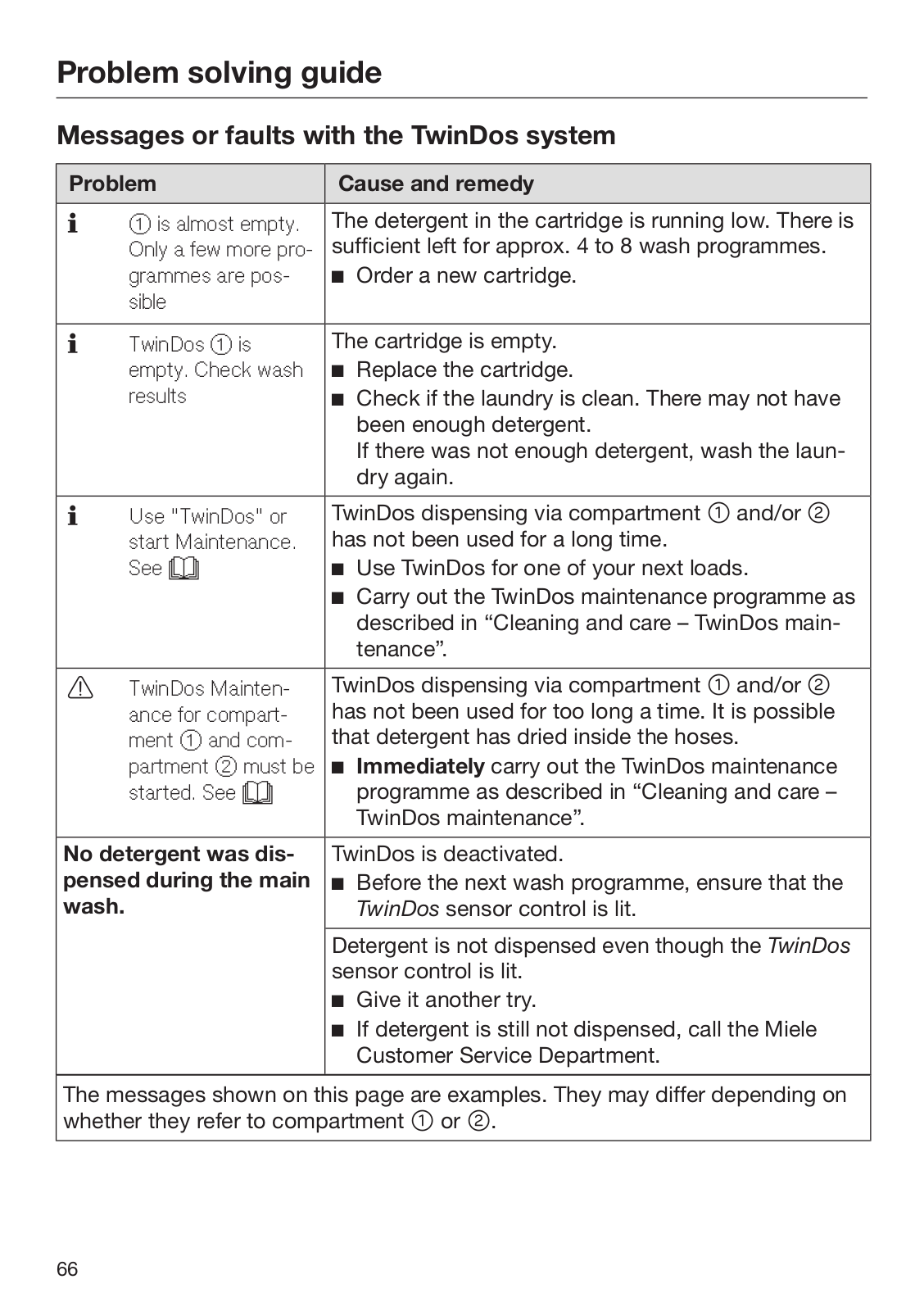

Messages or faults with the TwinDos system .....................................................	66

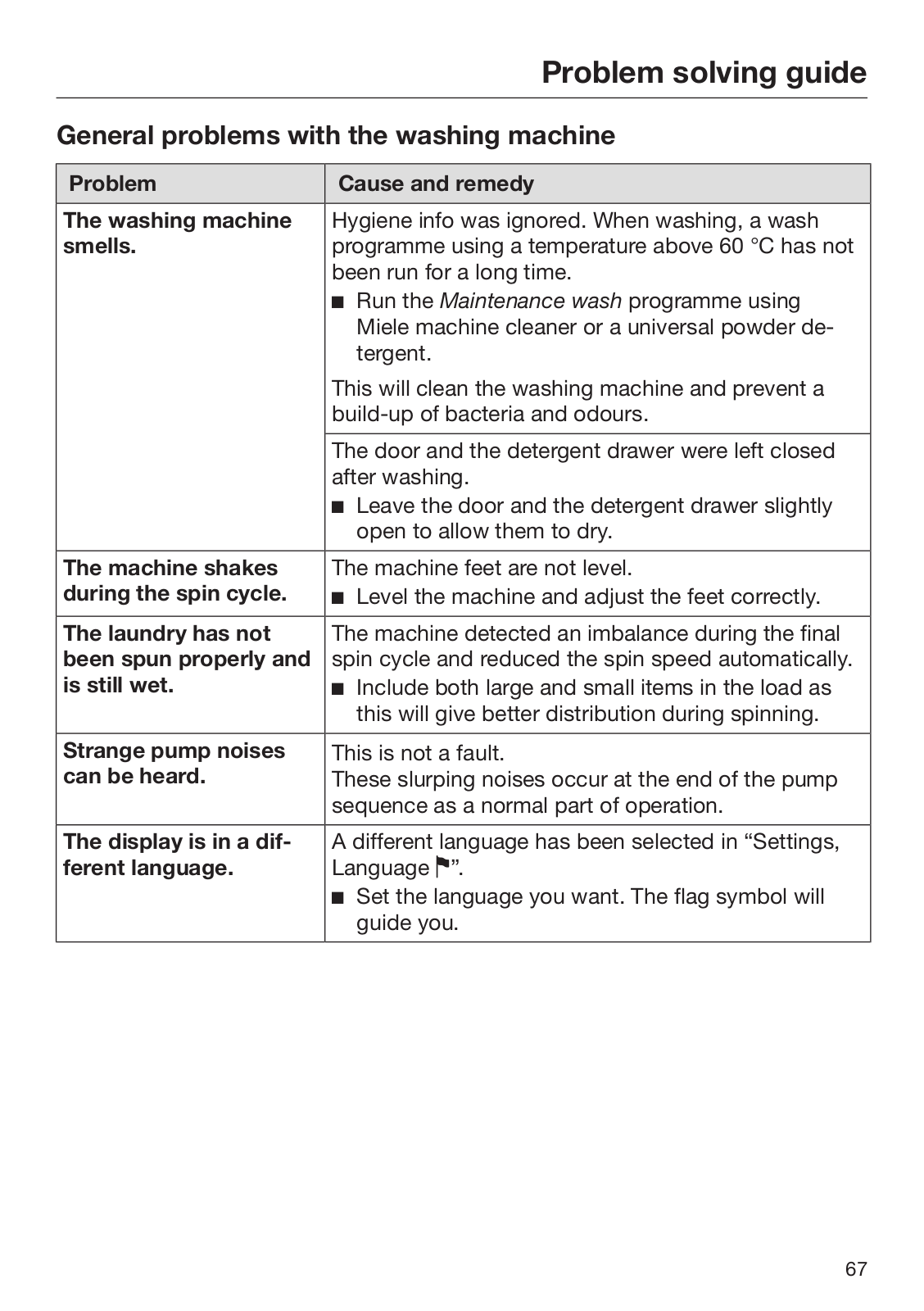

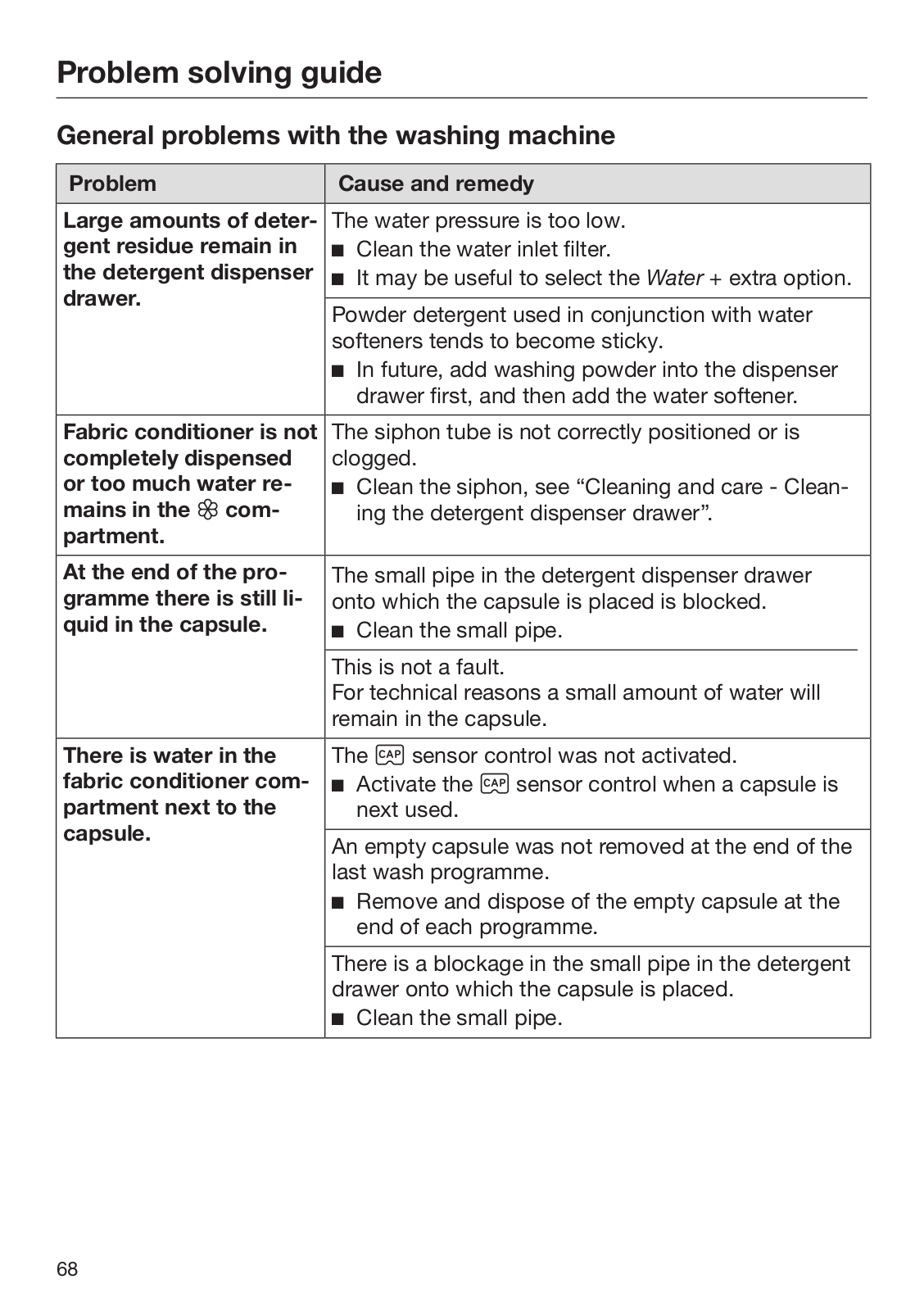

General problems with the washing machine .....................................................	67

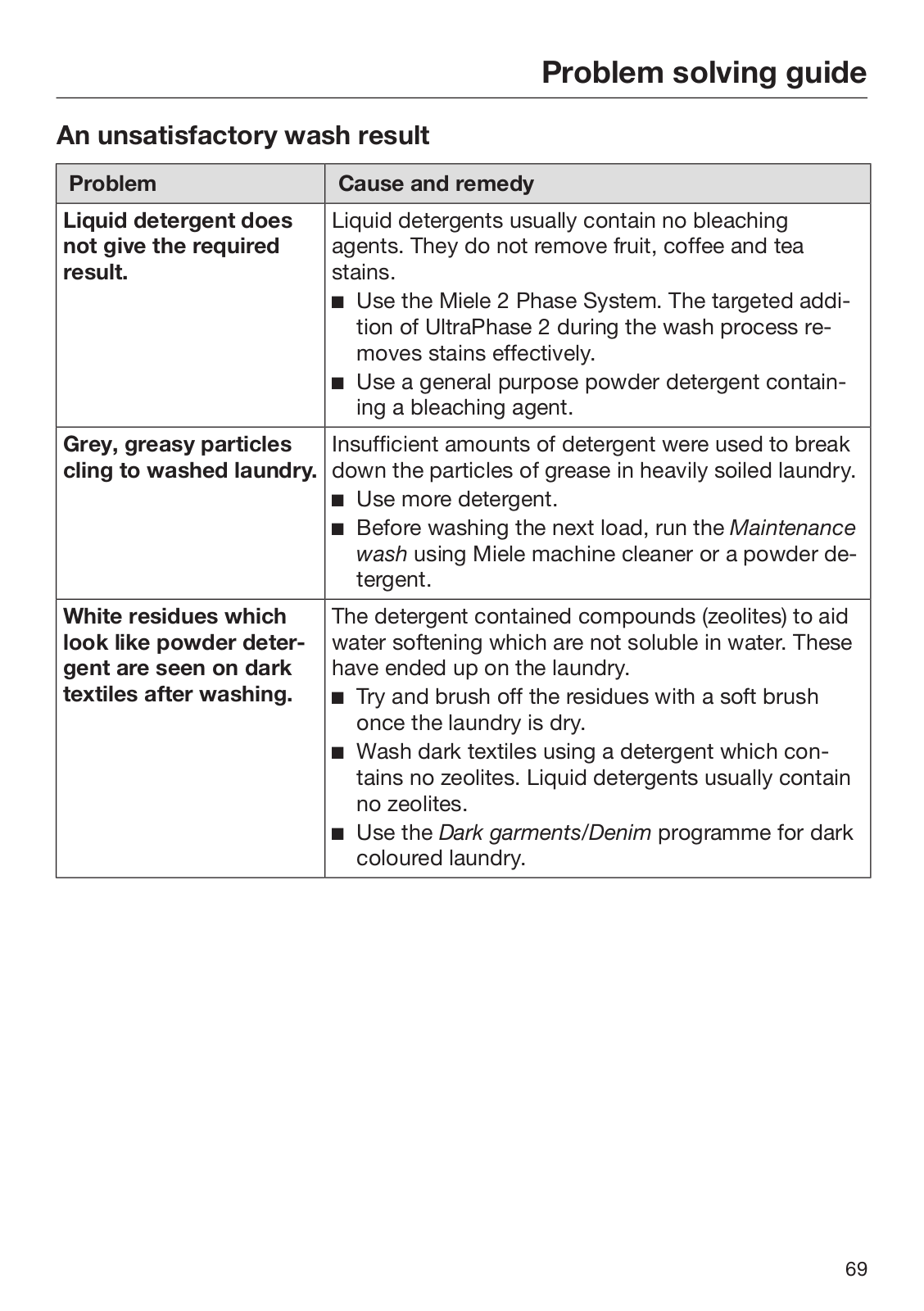

An unsatisfactory wash result .............................................................................	69

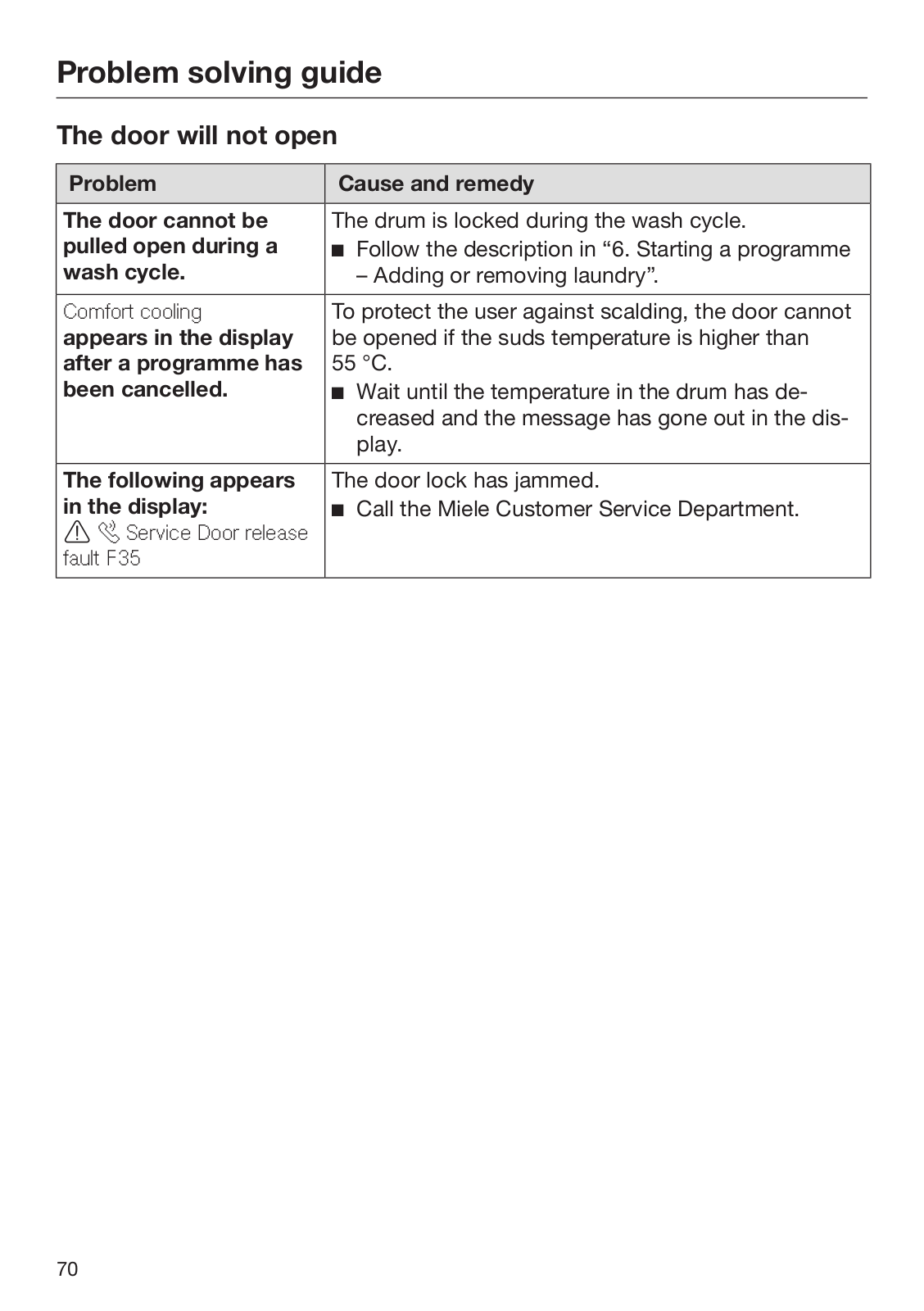

The door will not open.........................................................................................	70

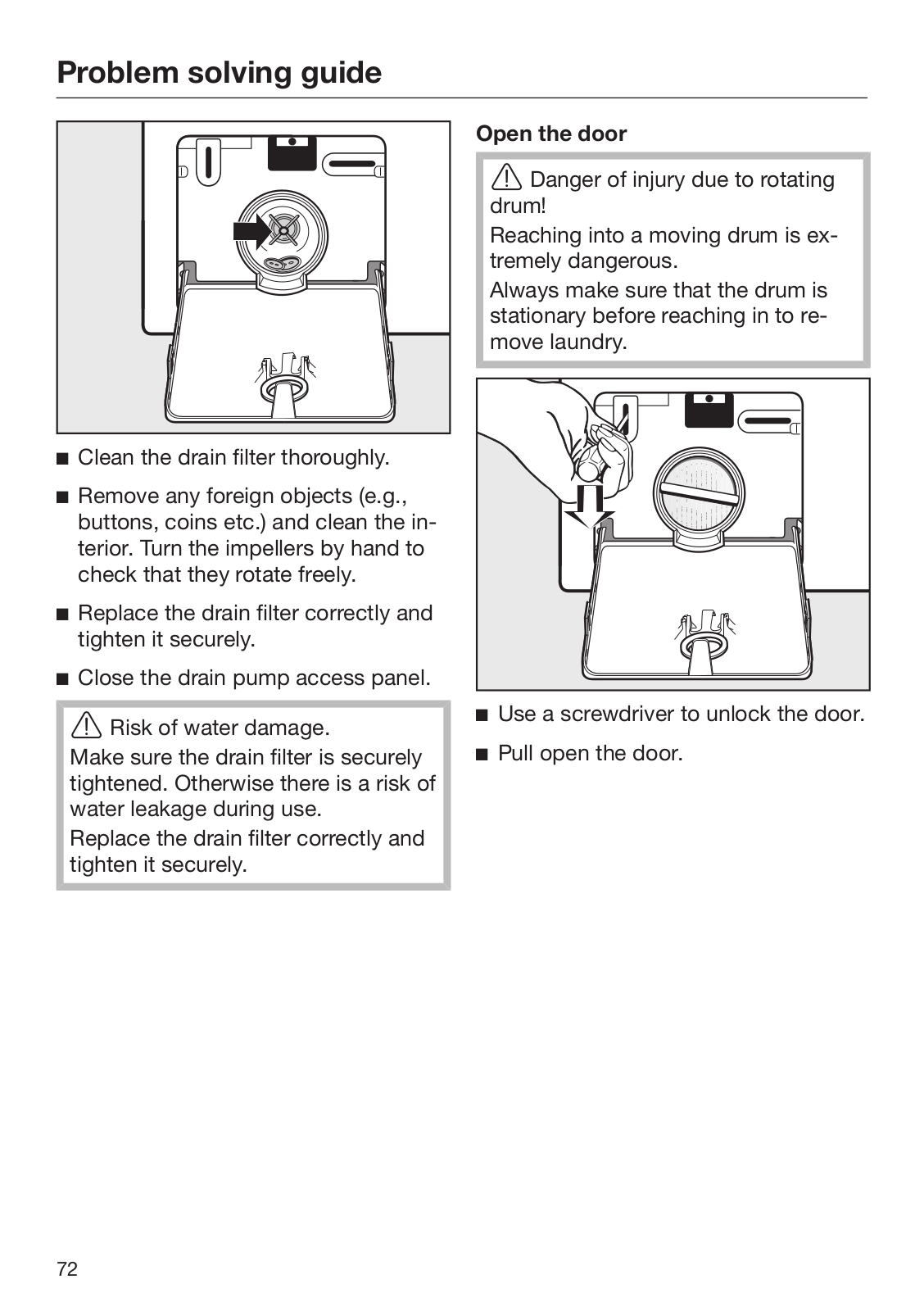

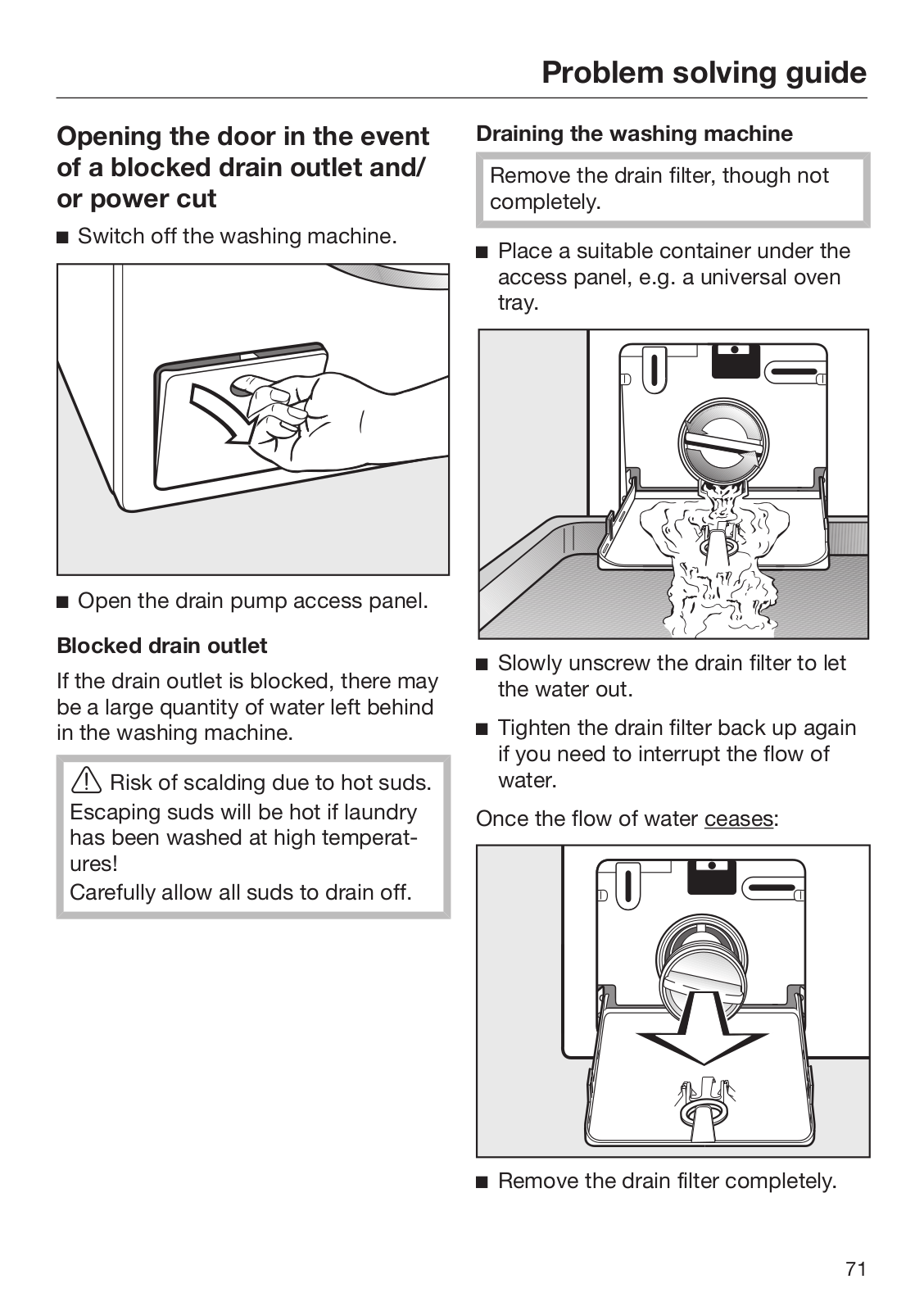

Opening the door in the event of a blocked drain outlet and/or power cut ........	71
Service................................................................................................................	73

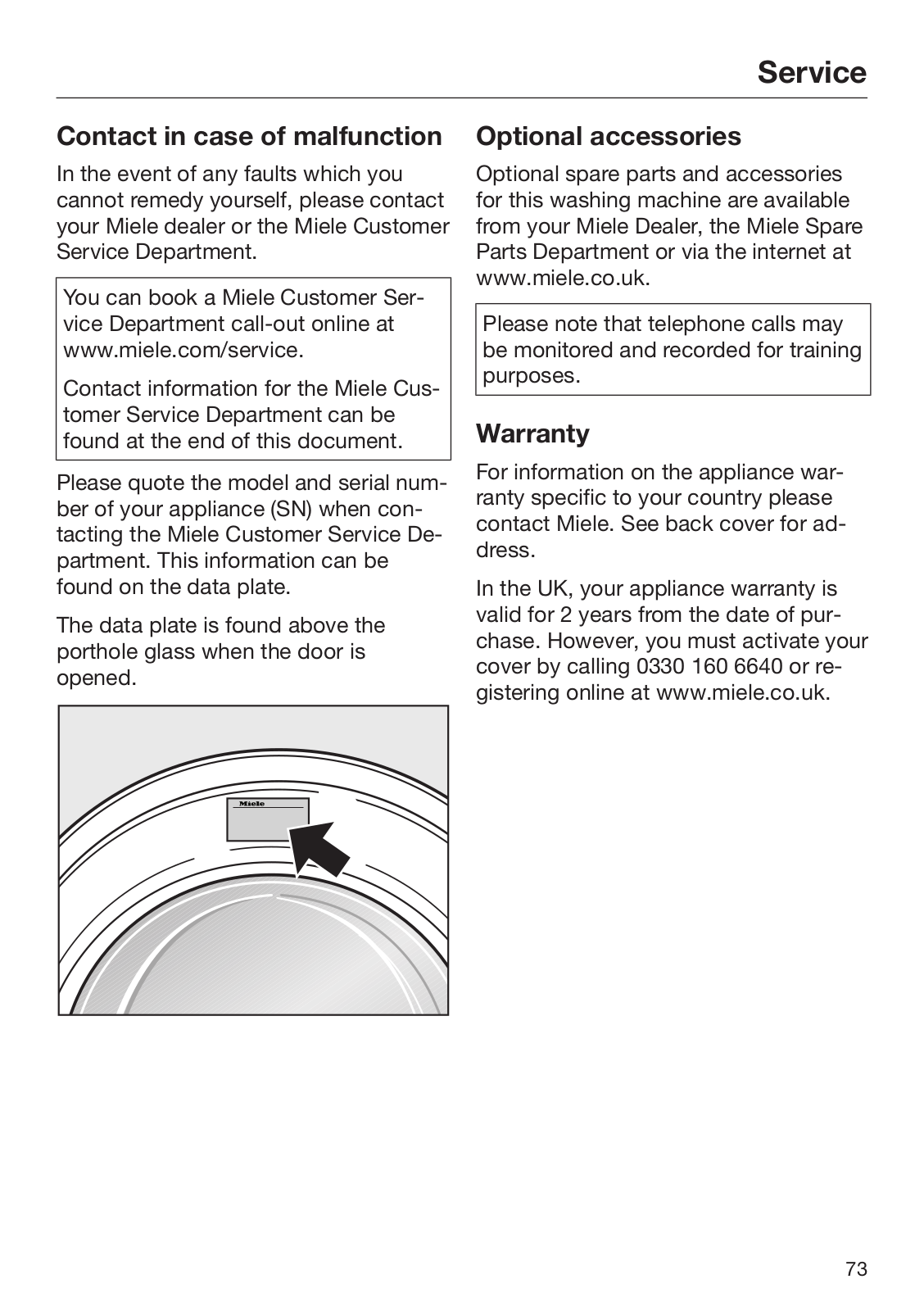

Contact in case of malfunction ...........................................................................	73
Optional accessories...........................................................................................	73
Warranty ..............................................................................................................	73
Installation..........................................................................................................	74

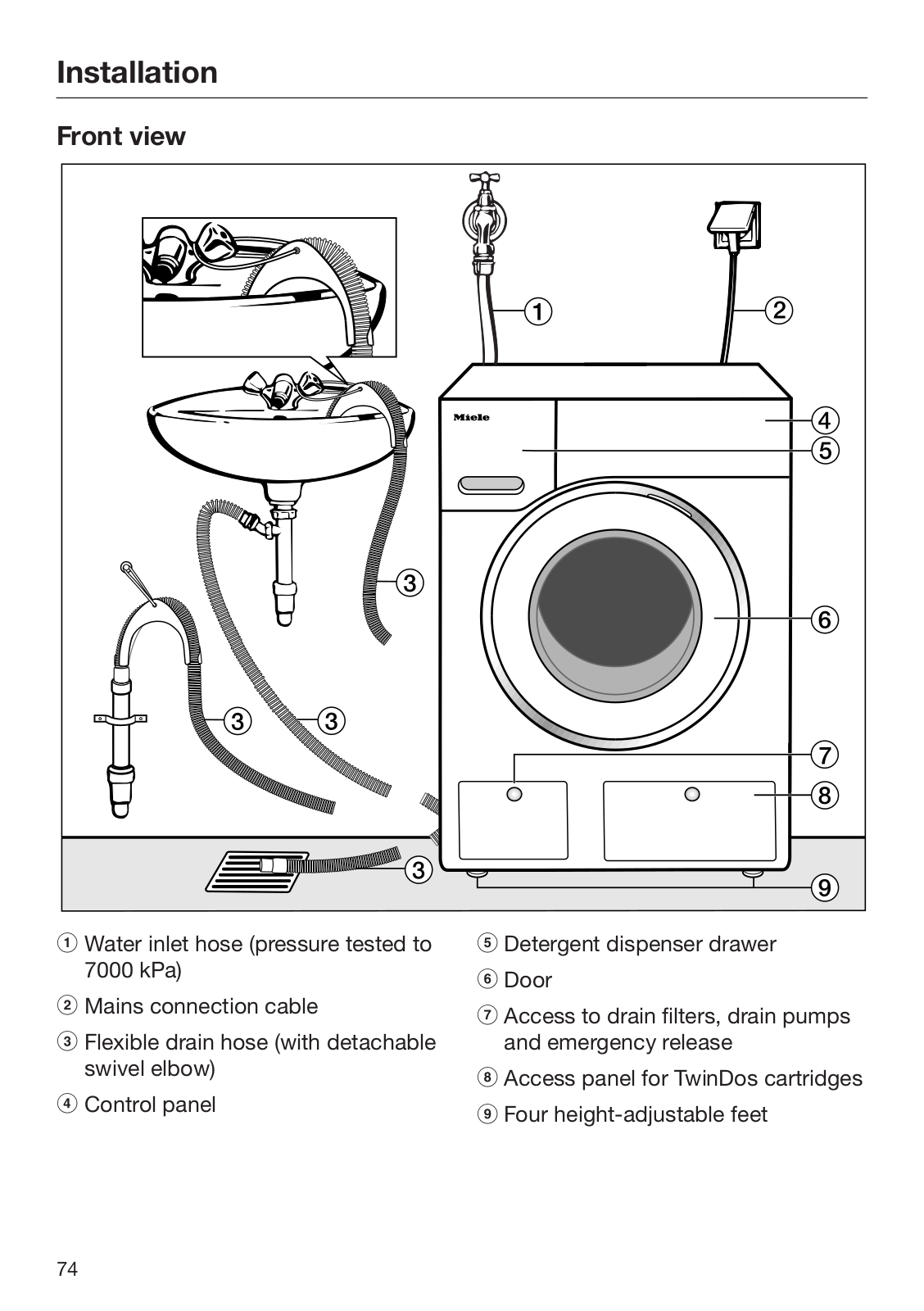

Front view ............................................................................................................	74

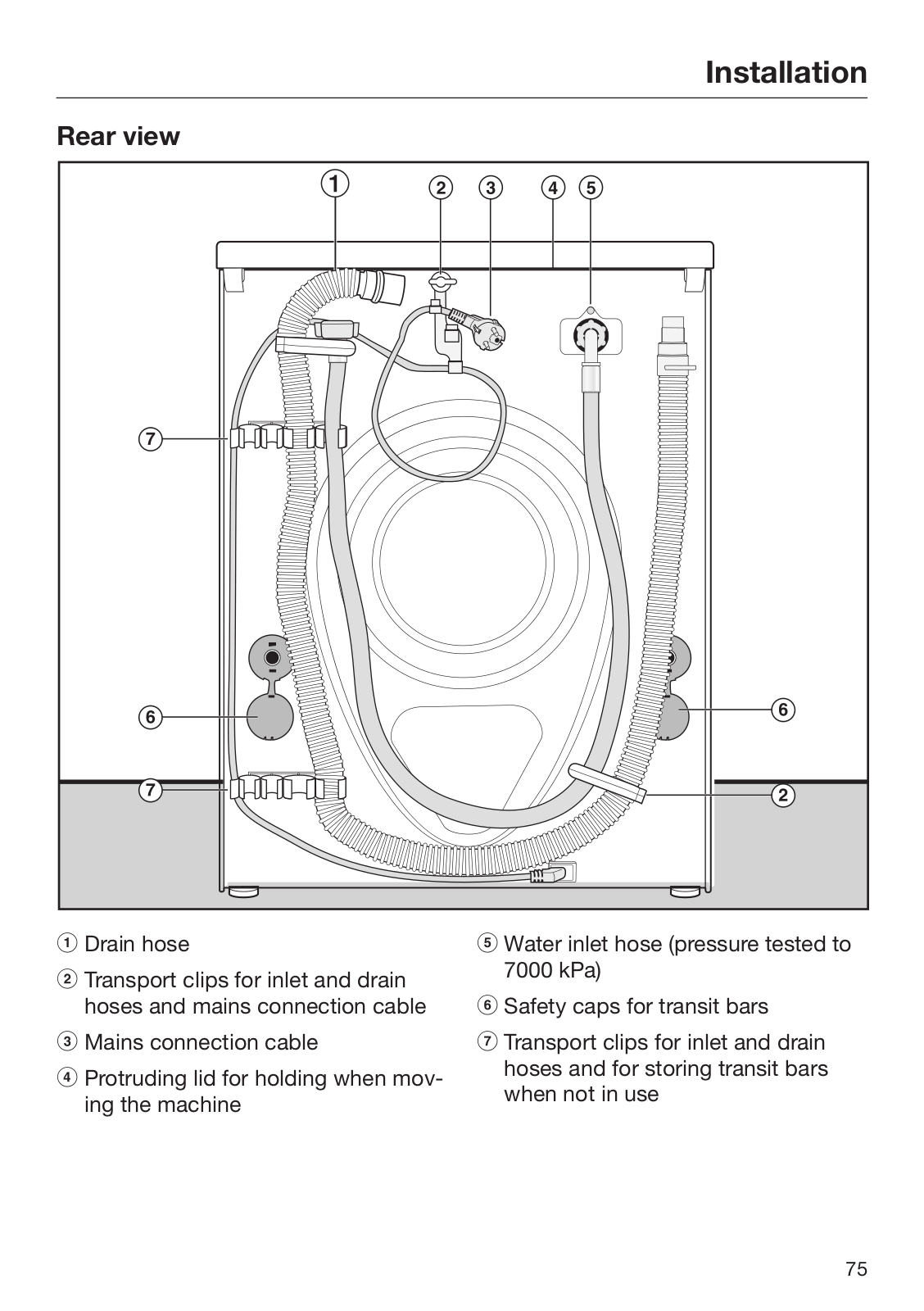

Rear view.............................................................................................................	75

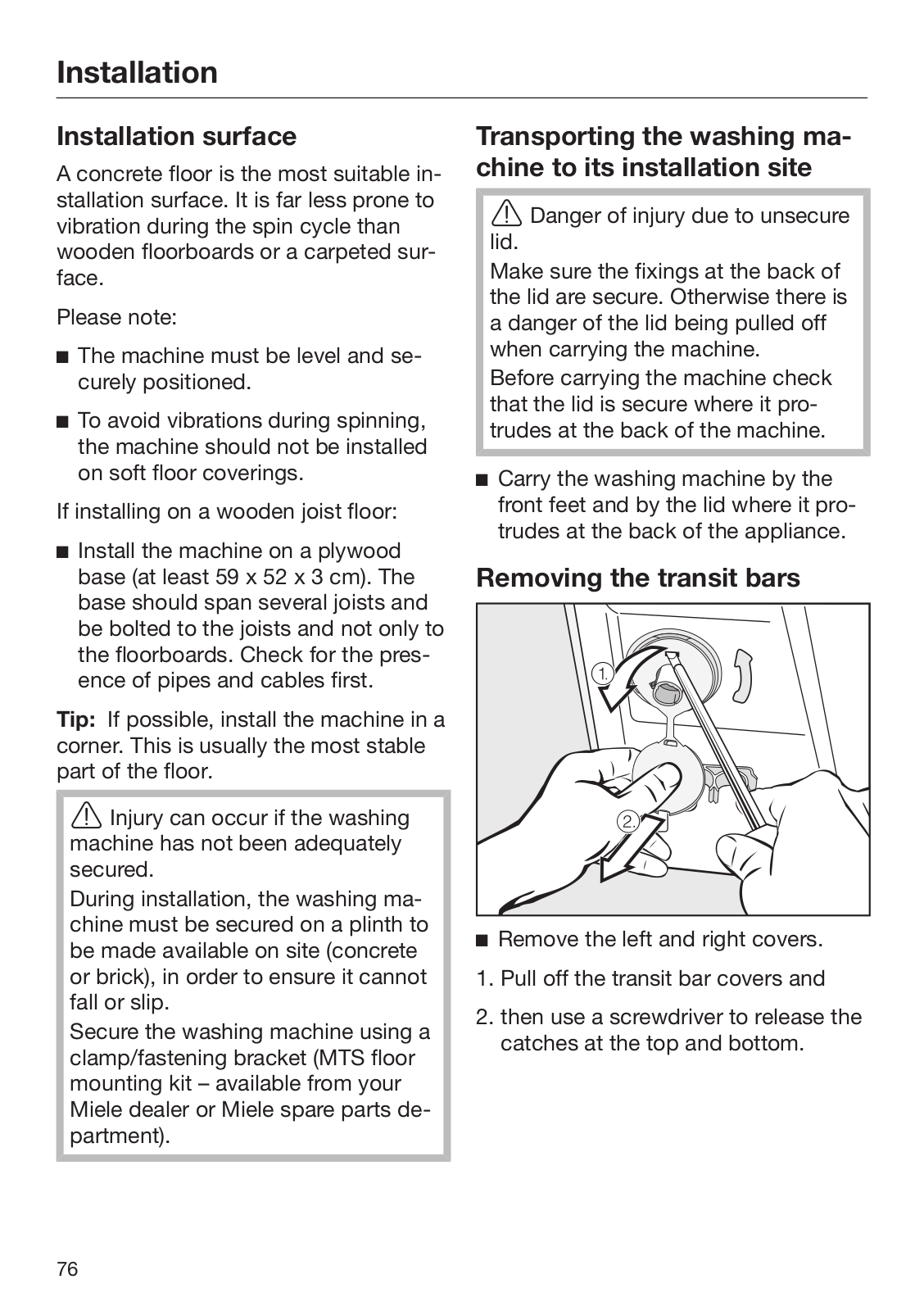

Installation surface ..............................................................................................	76
Transporting the washing machine to its installation site....................................	76

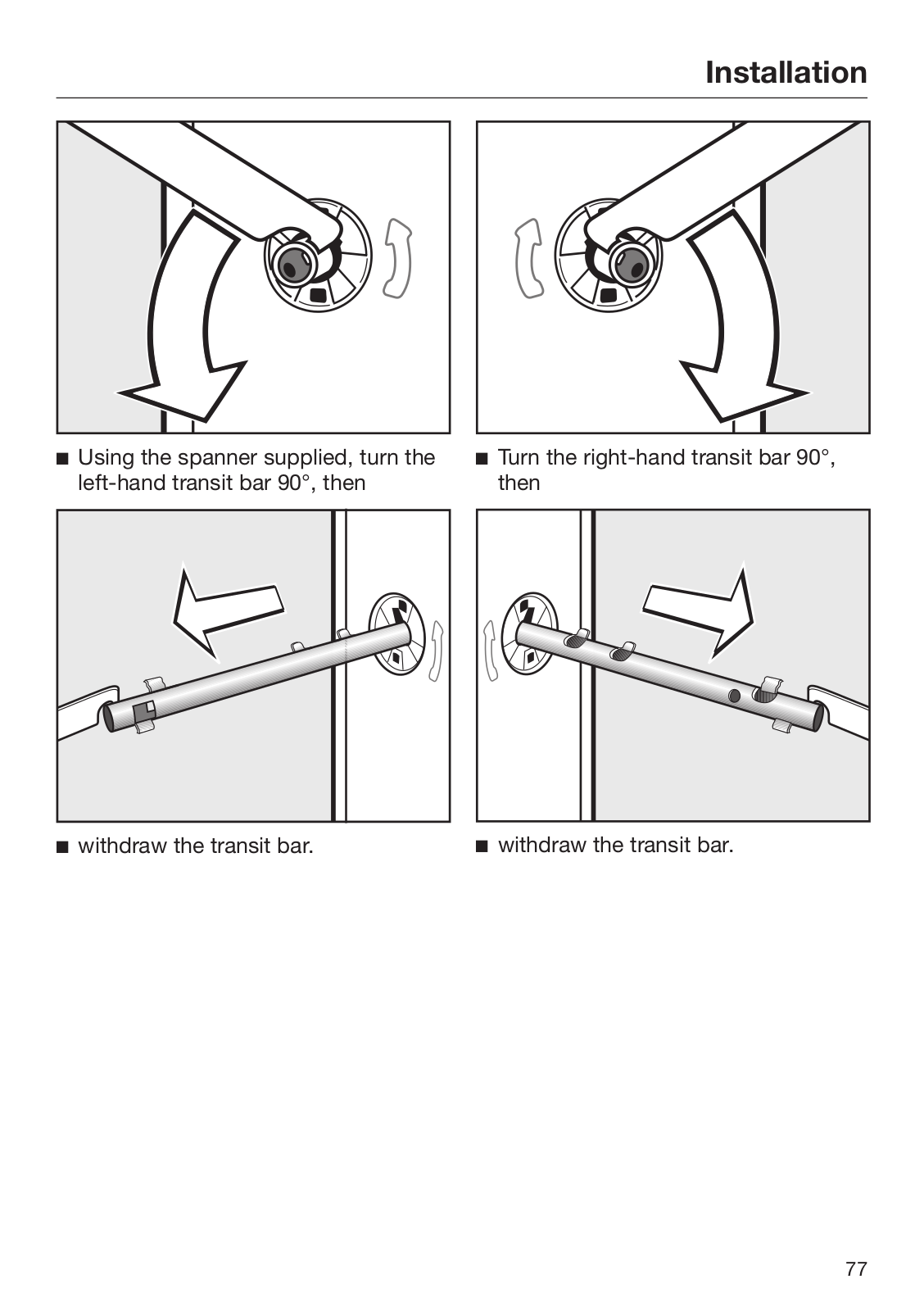

Removing the transit bars ...................................................................................	76

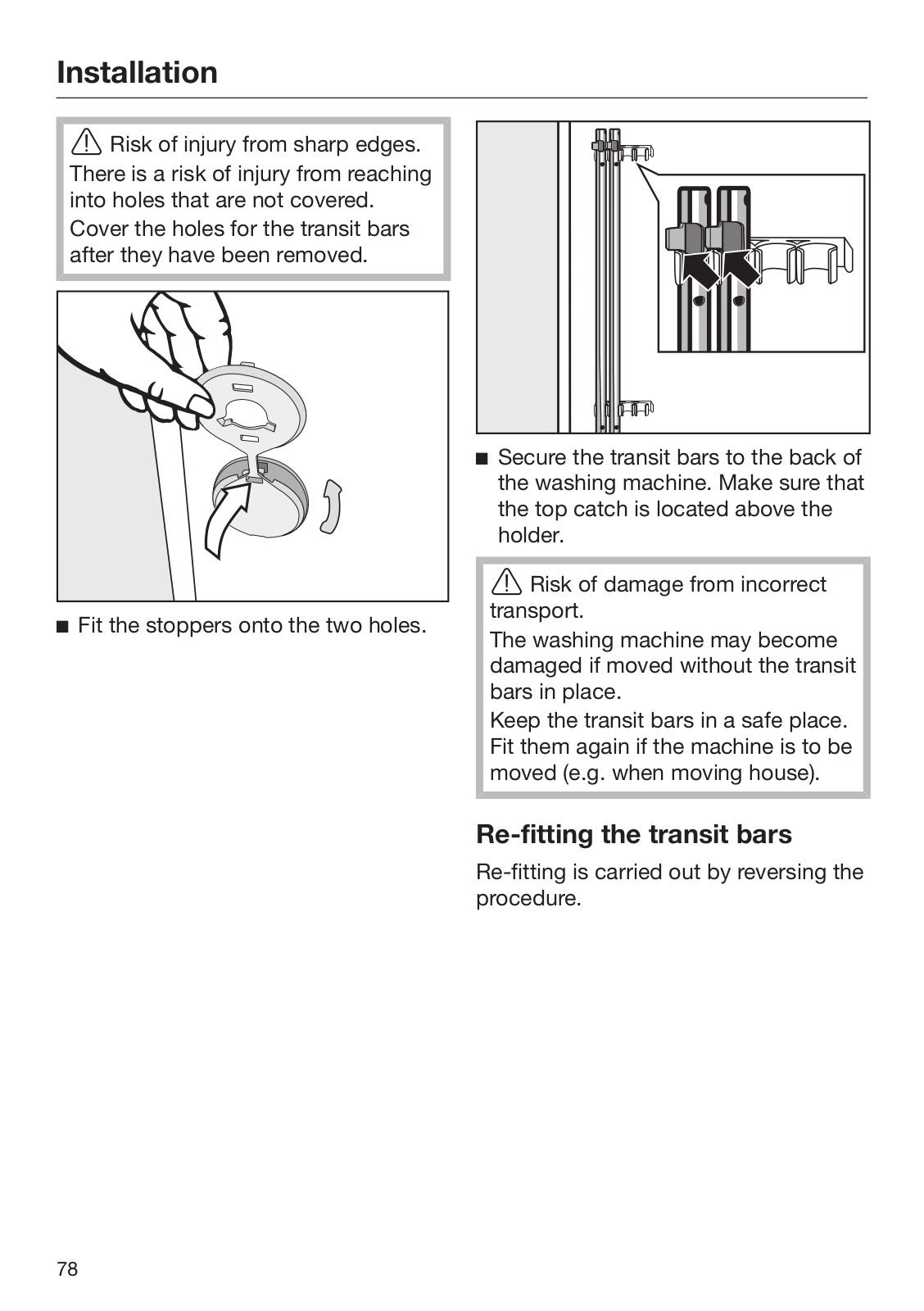

Re-fitting the transit bars.....................................................................................	78

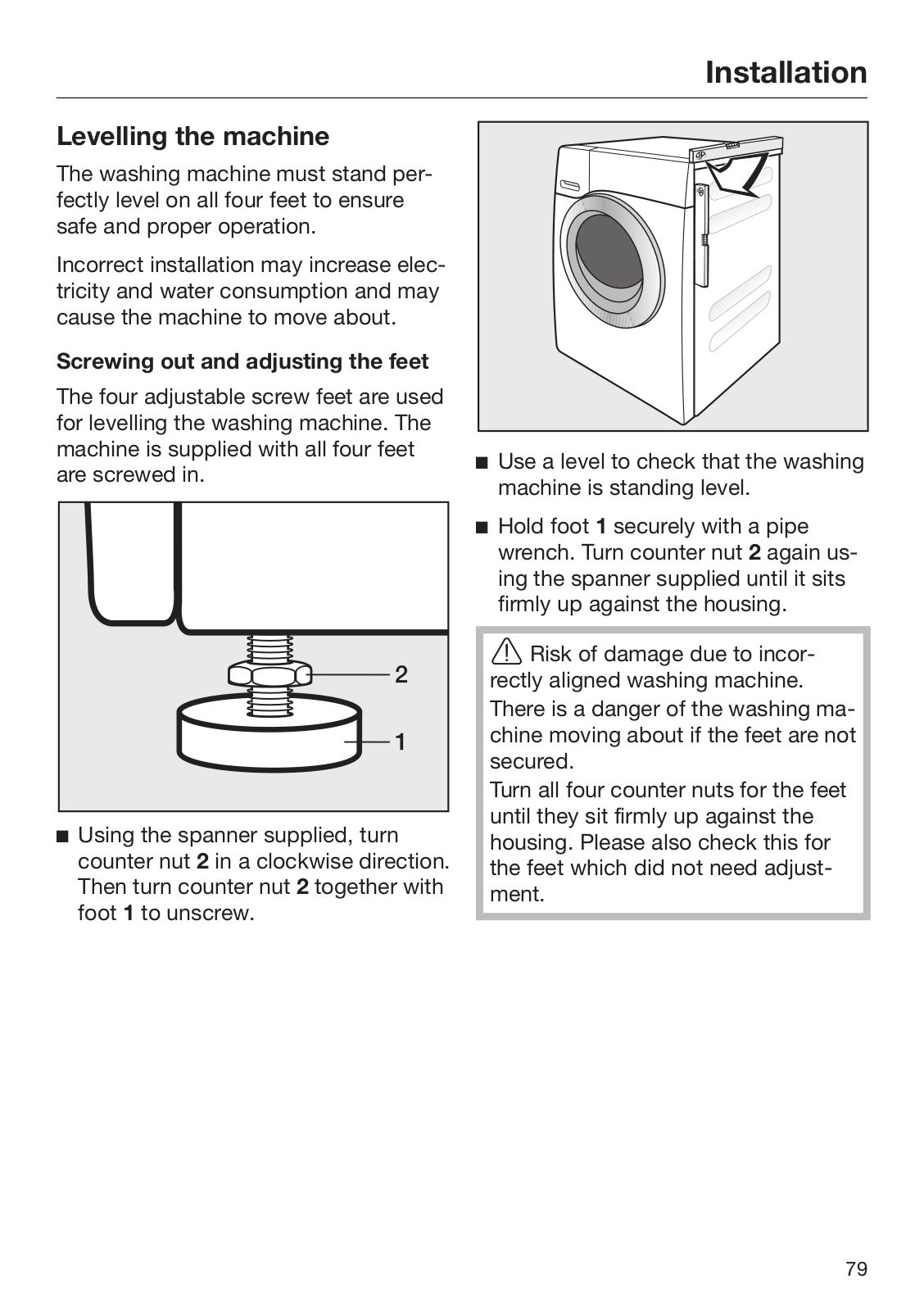

Levelling the machine..........................................................................................	79
Screwing out and adjusting the feet...............................................................	79

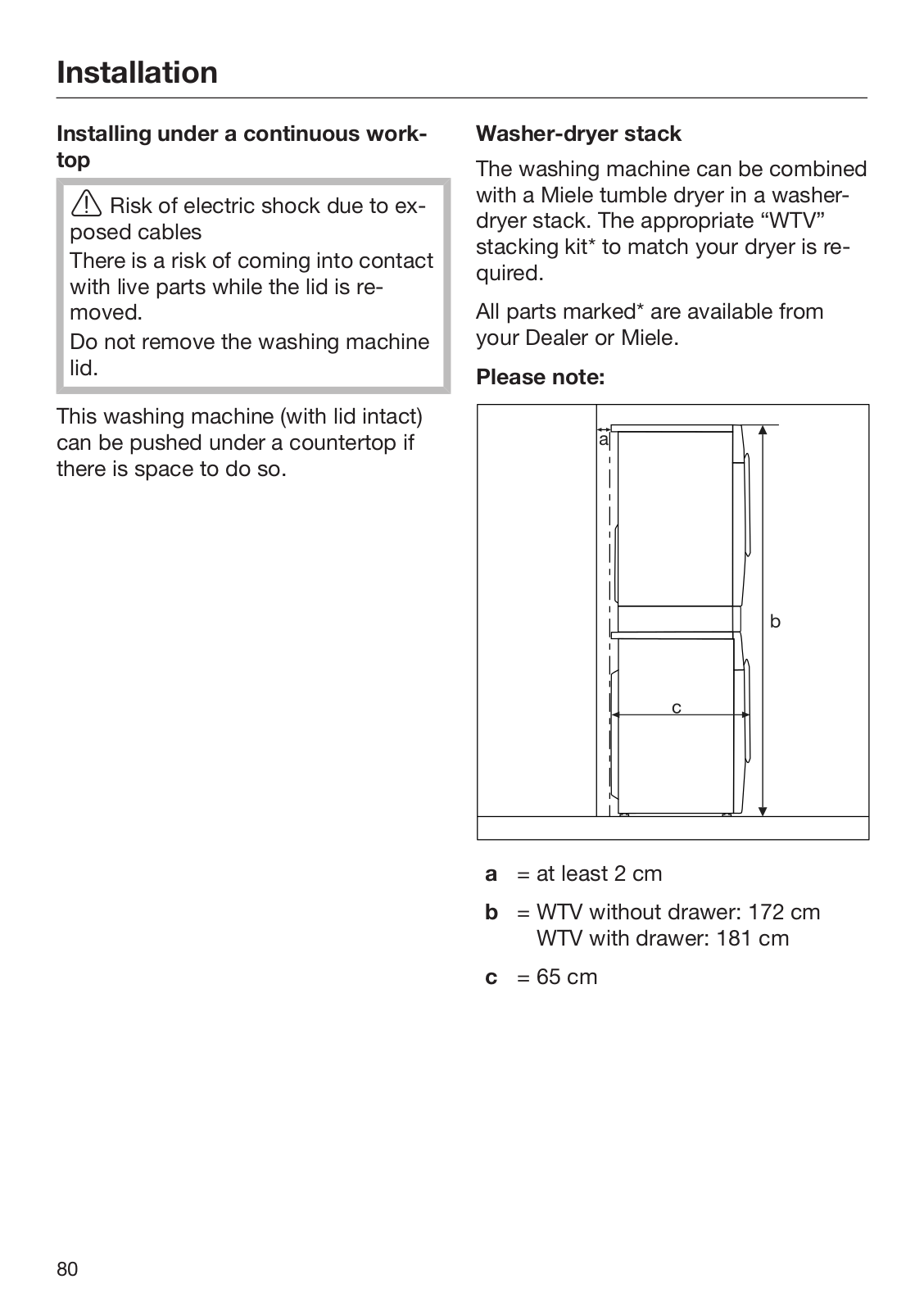

Installing under a continuous worktop ...........................................................	80
Washer-dryer stack ........................................................................................	80

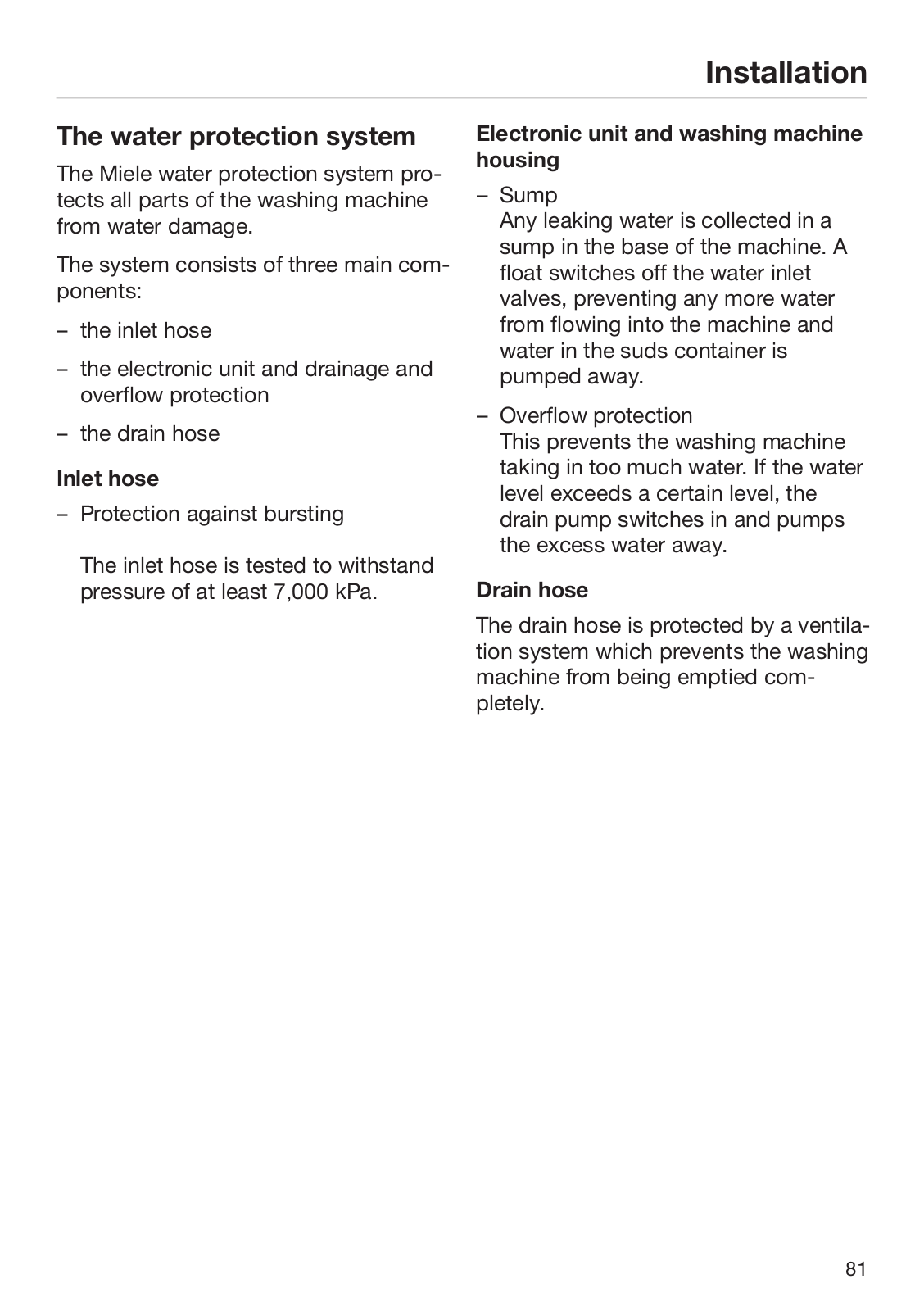

The water protection system...............................................................................	81

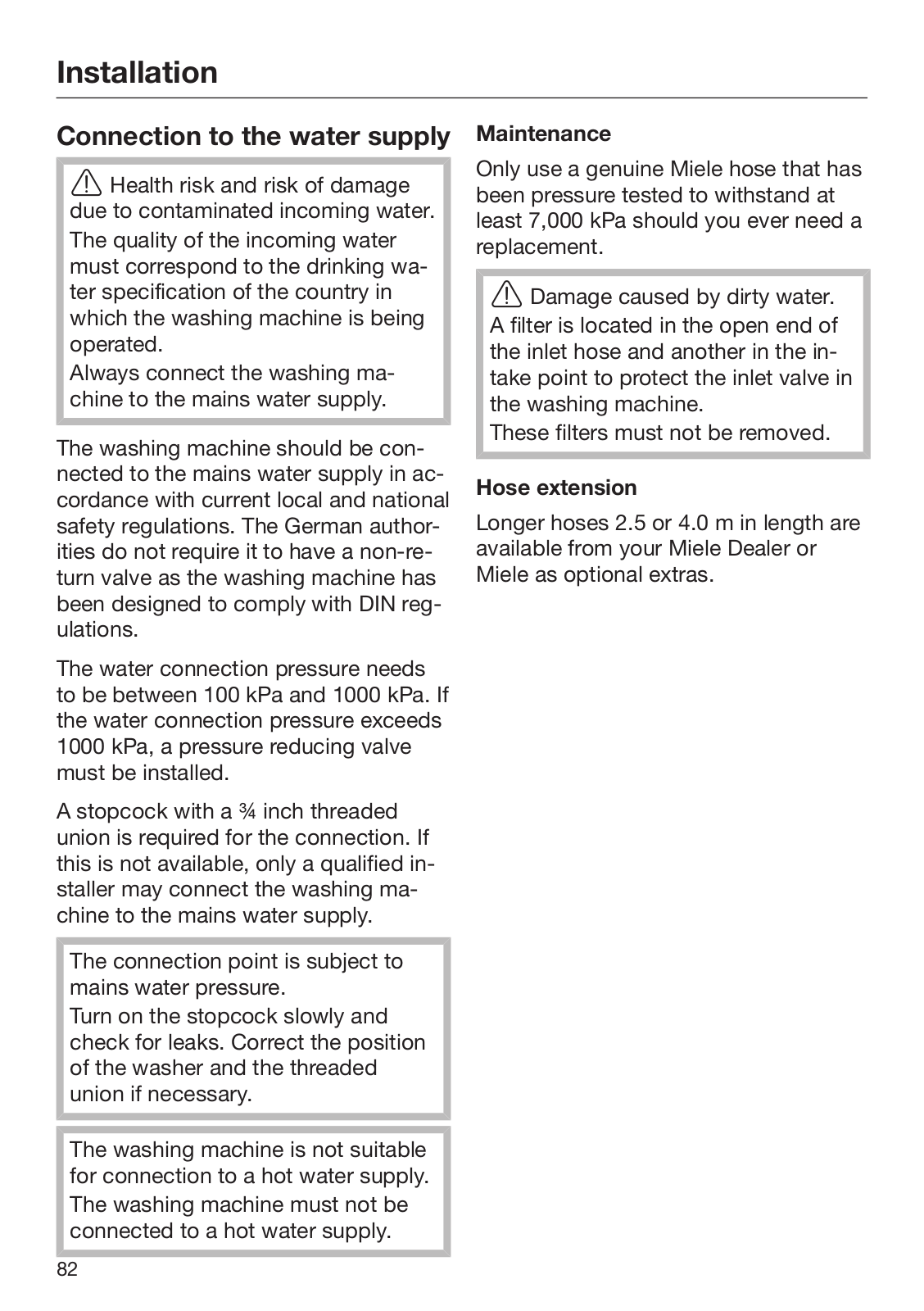

Connection to the water supply ..........................................................................	82

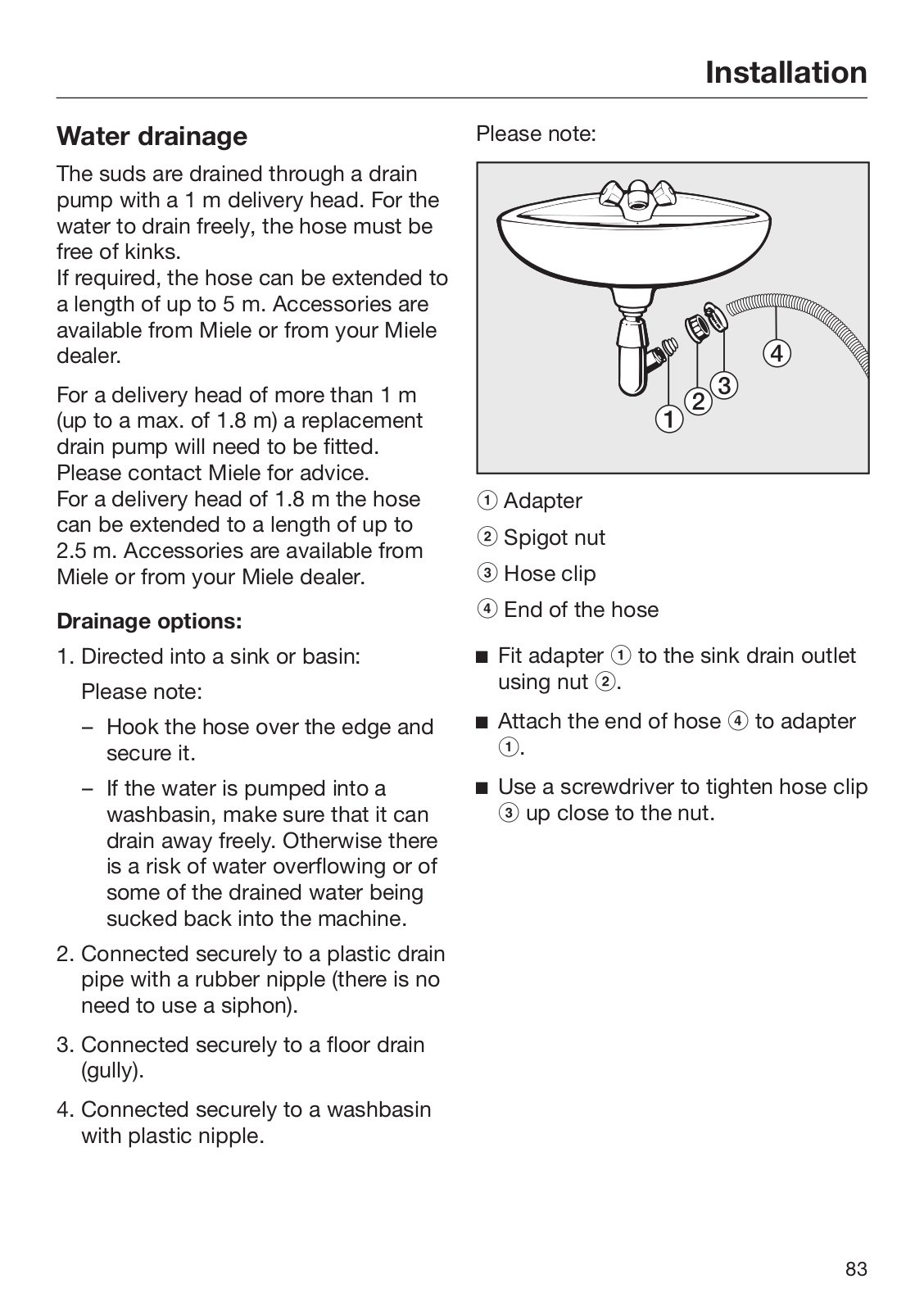

Water drainage ....................................................................................................	83

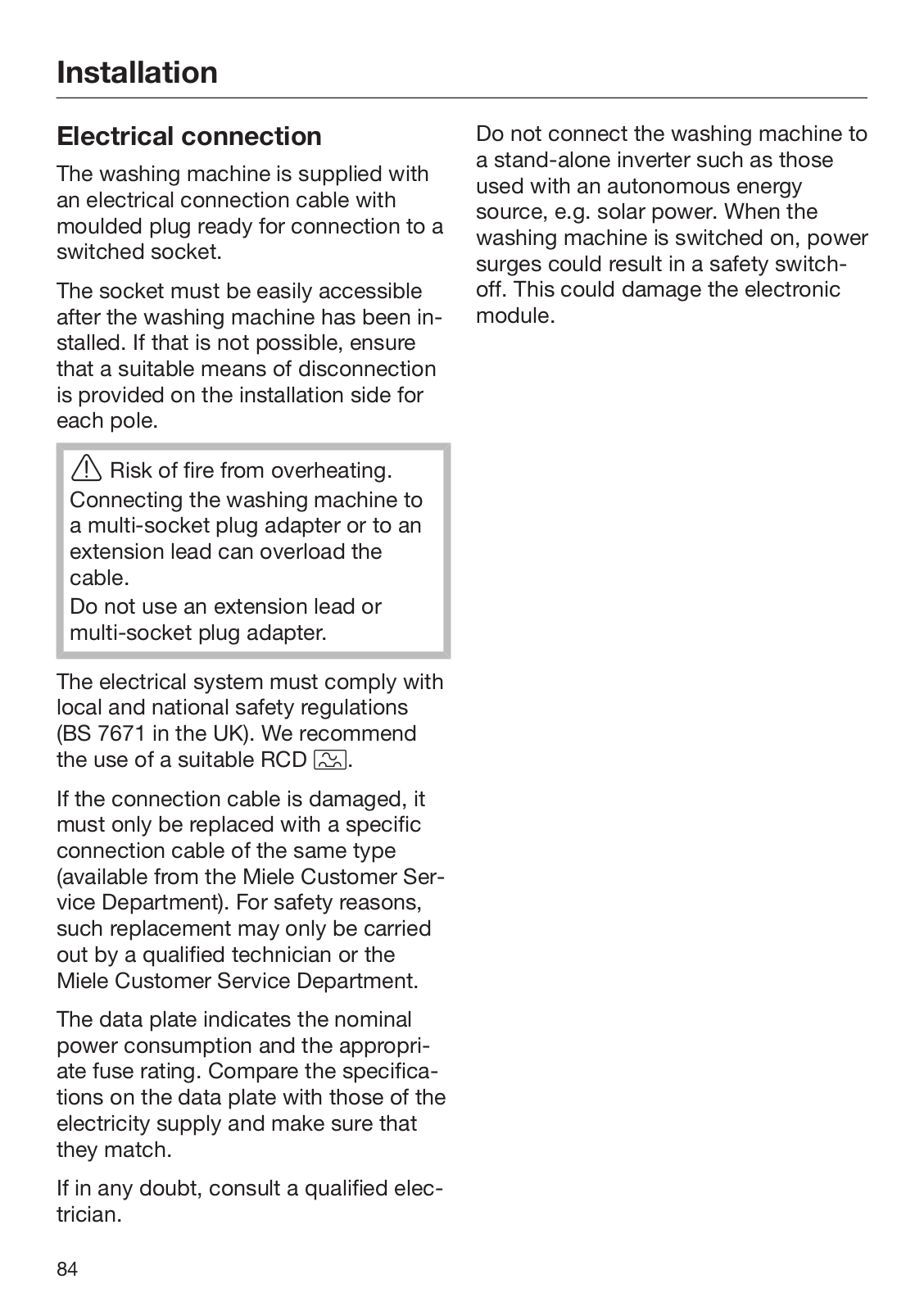

Electrical connection ..........................................................................................	84

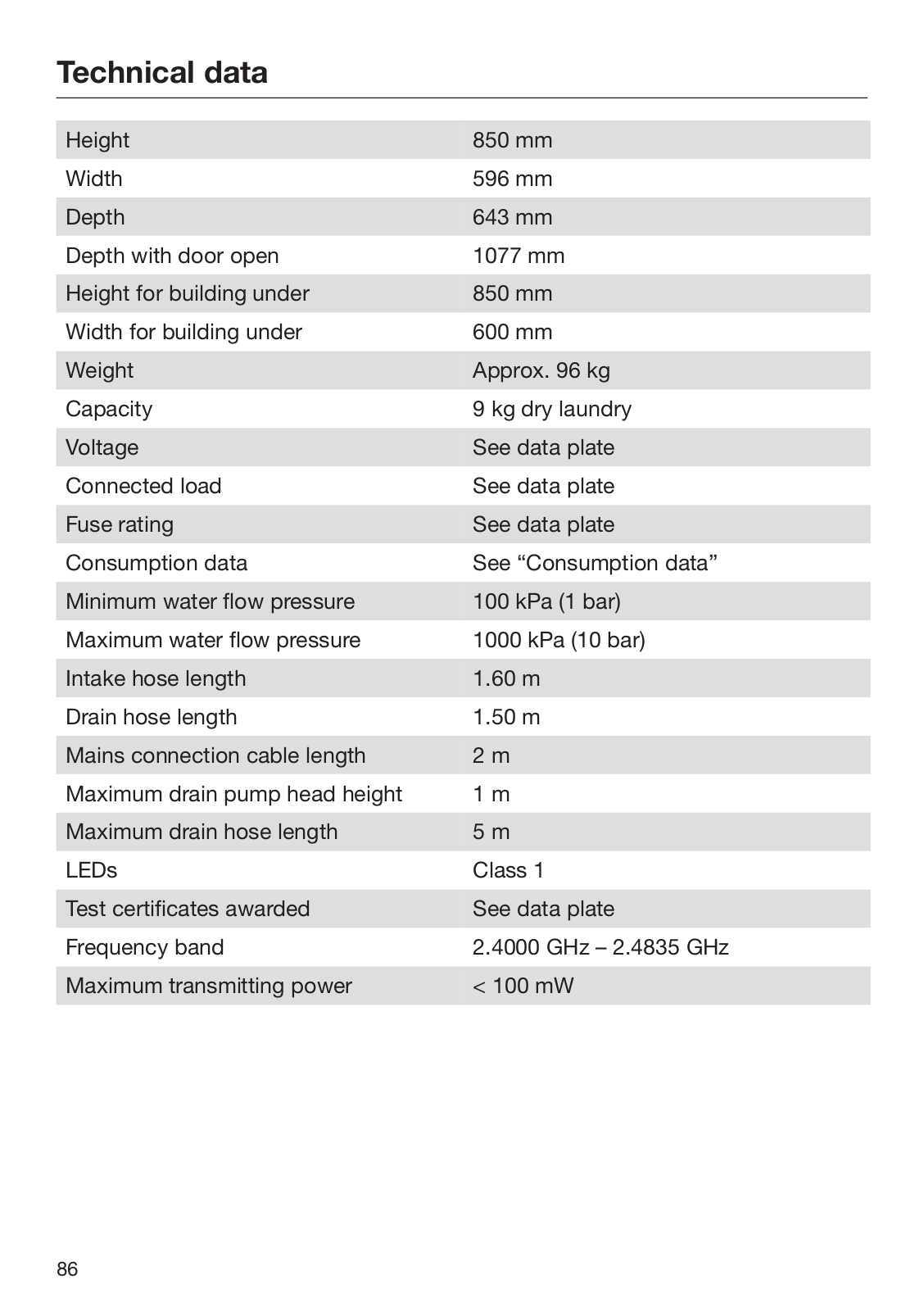

Technical data....................................................................................................	86

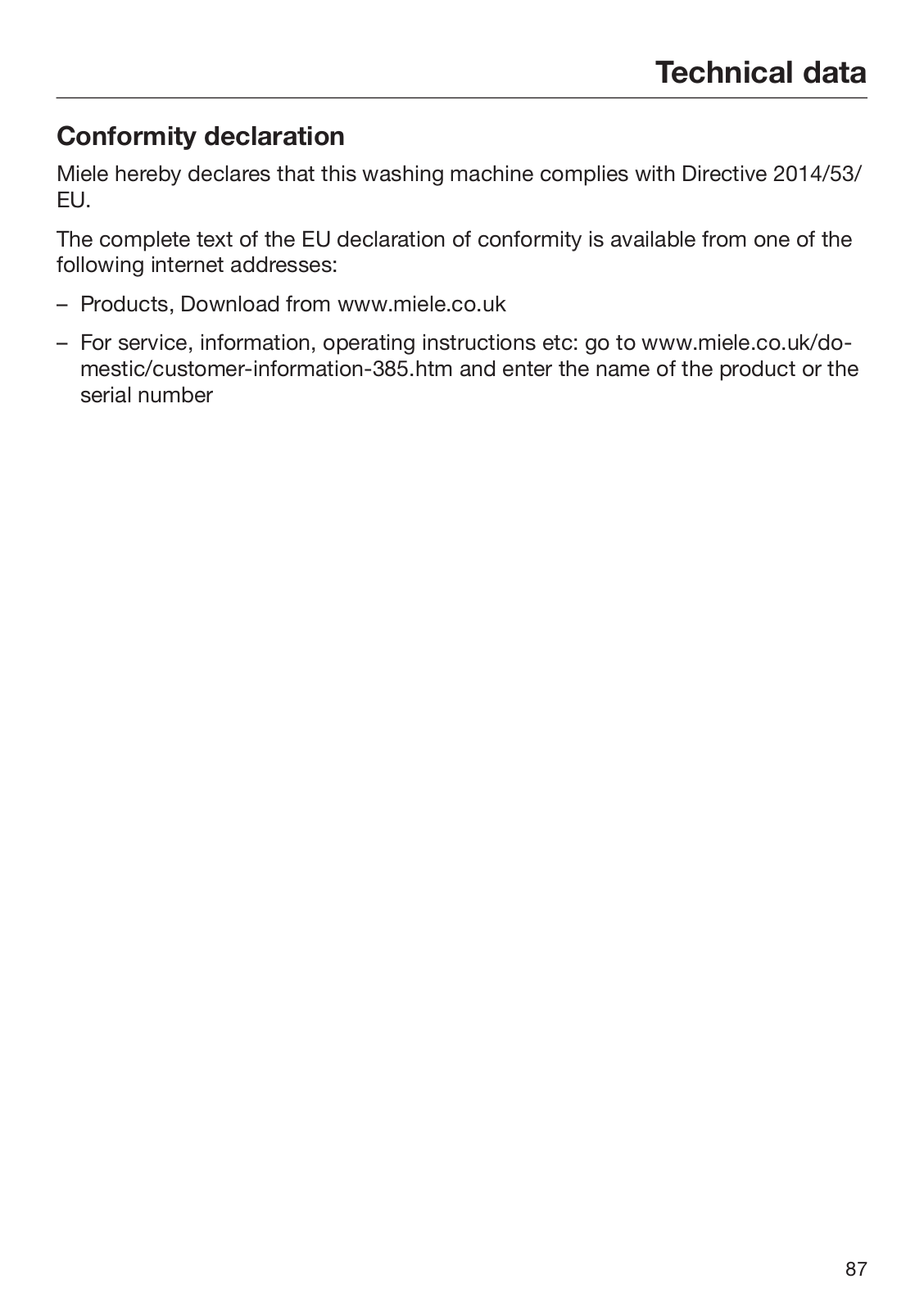

Conformity declaration ........................................................................................	87

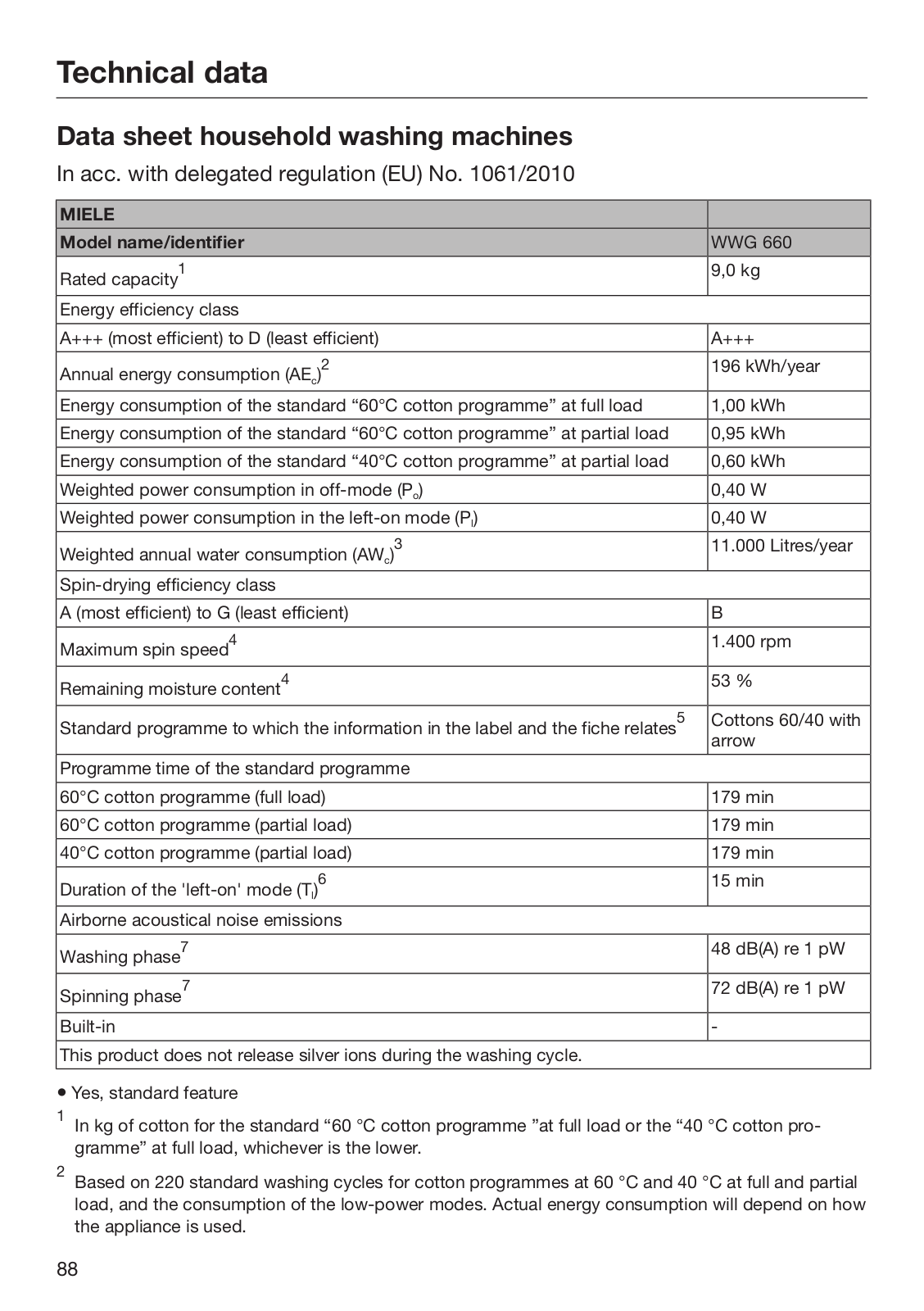

Data sheet household washing machines...........................................................	88

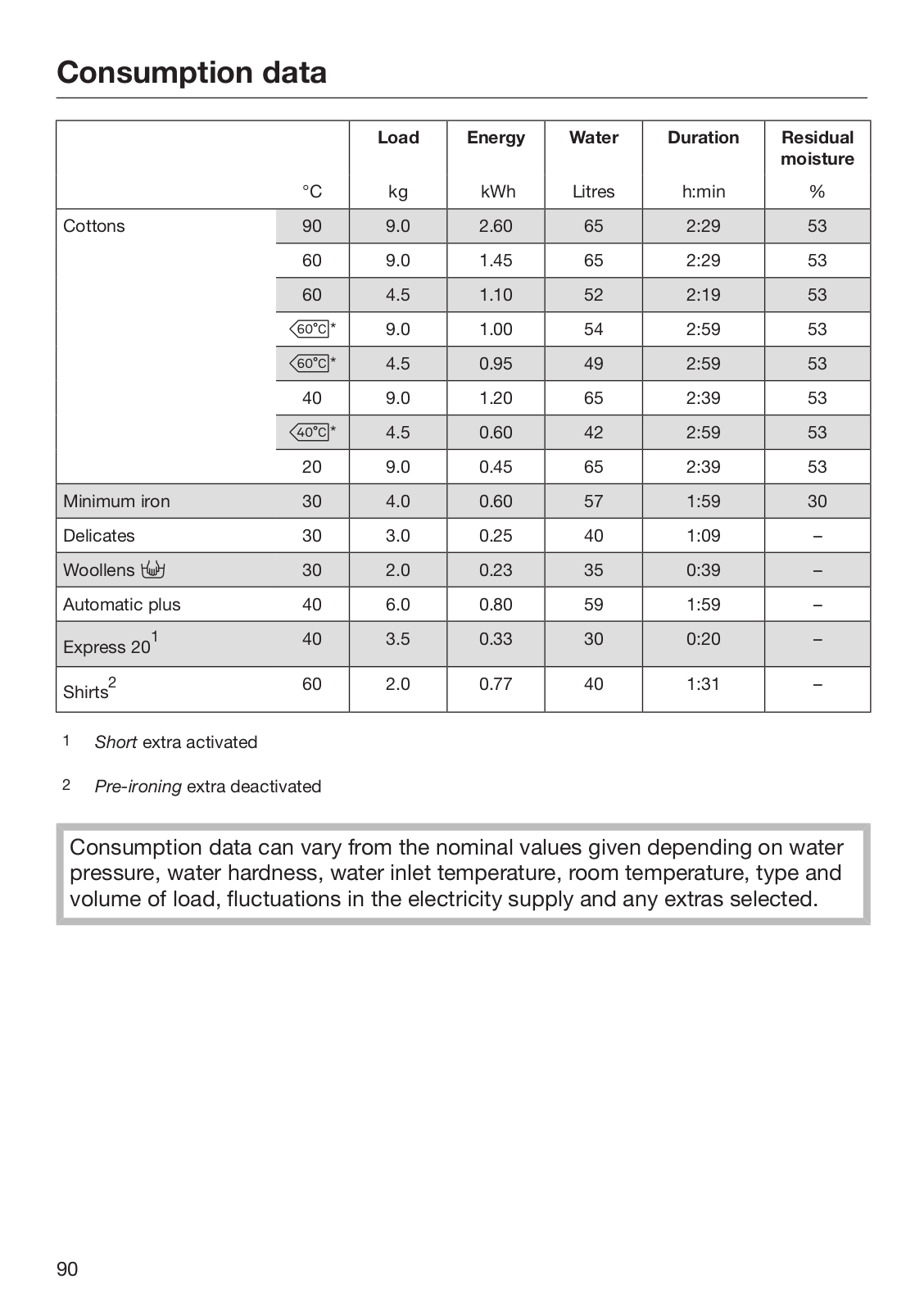

Consumption data.............................................................................................	90

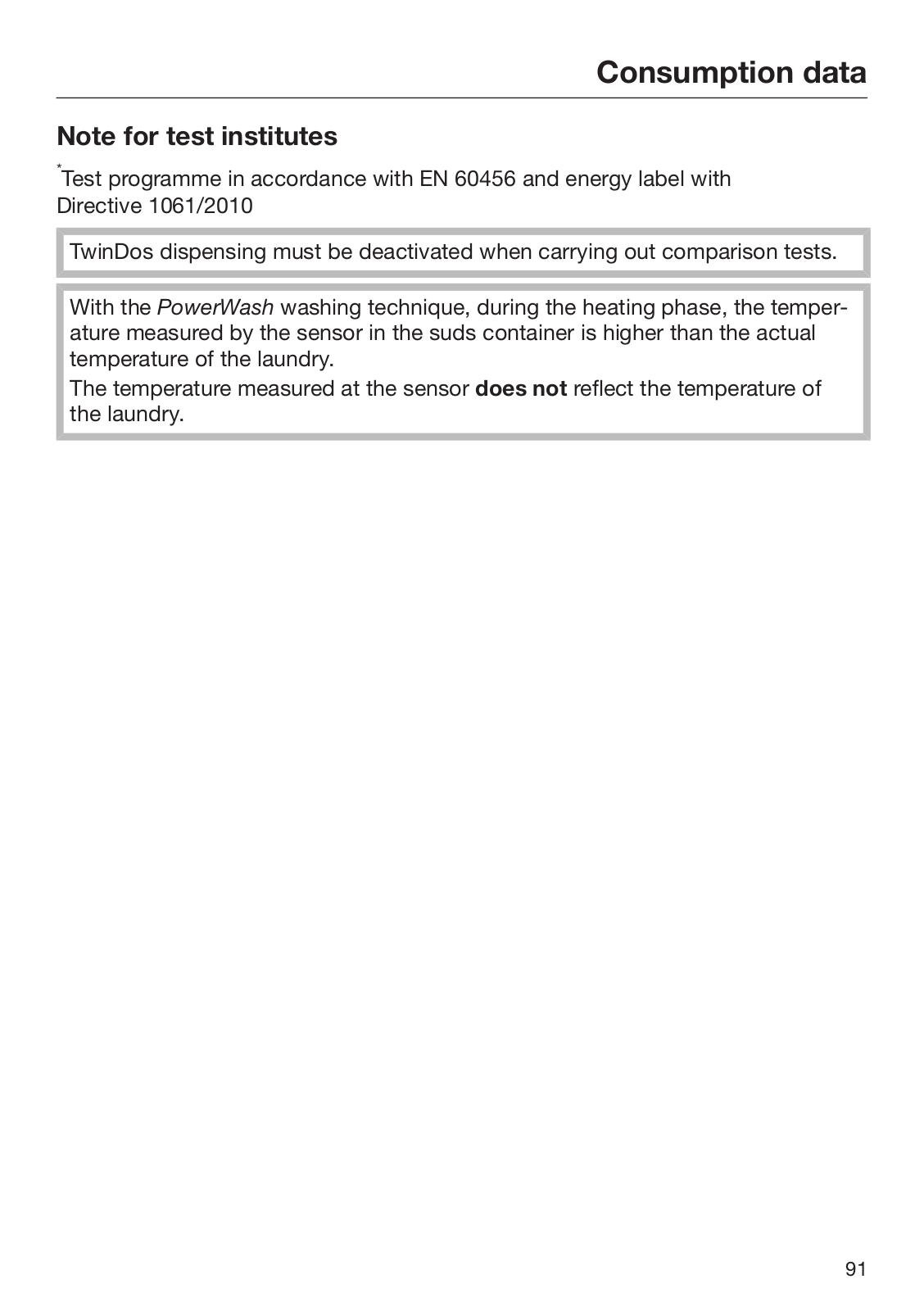

Note for test institutes .........................................................................................	91

	Contents
Settings ..............................................................................................................	92

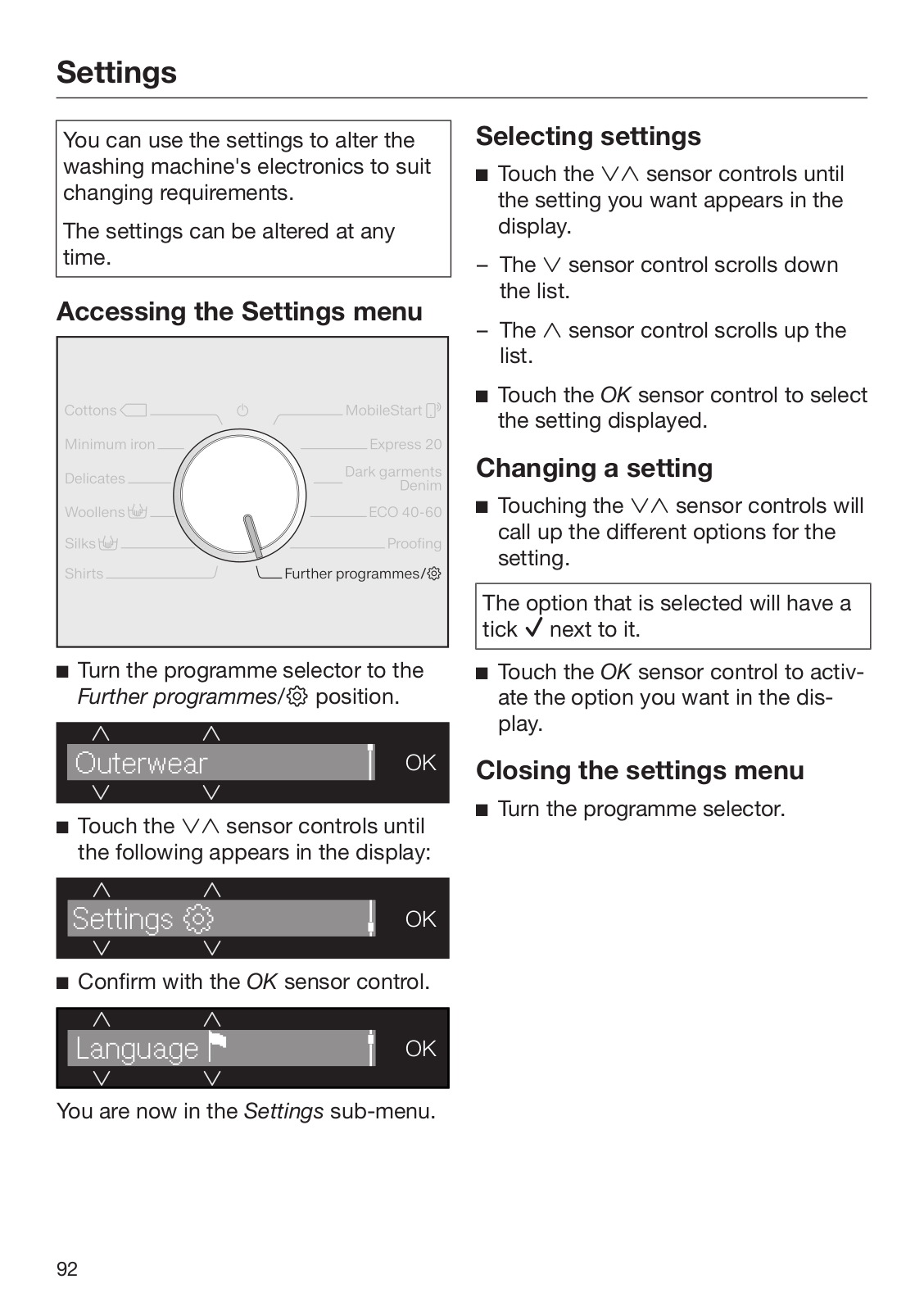

Accessing the Settings menu..............................................................................	92
Selecting settings................................................................................................	92
Changing a setting ..............................................................................................	92
Closing the settings menu...................................................................................	92

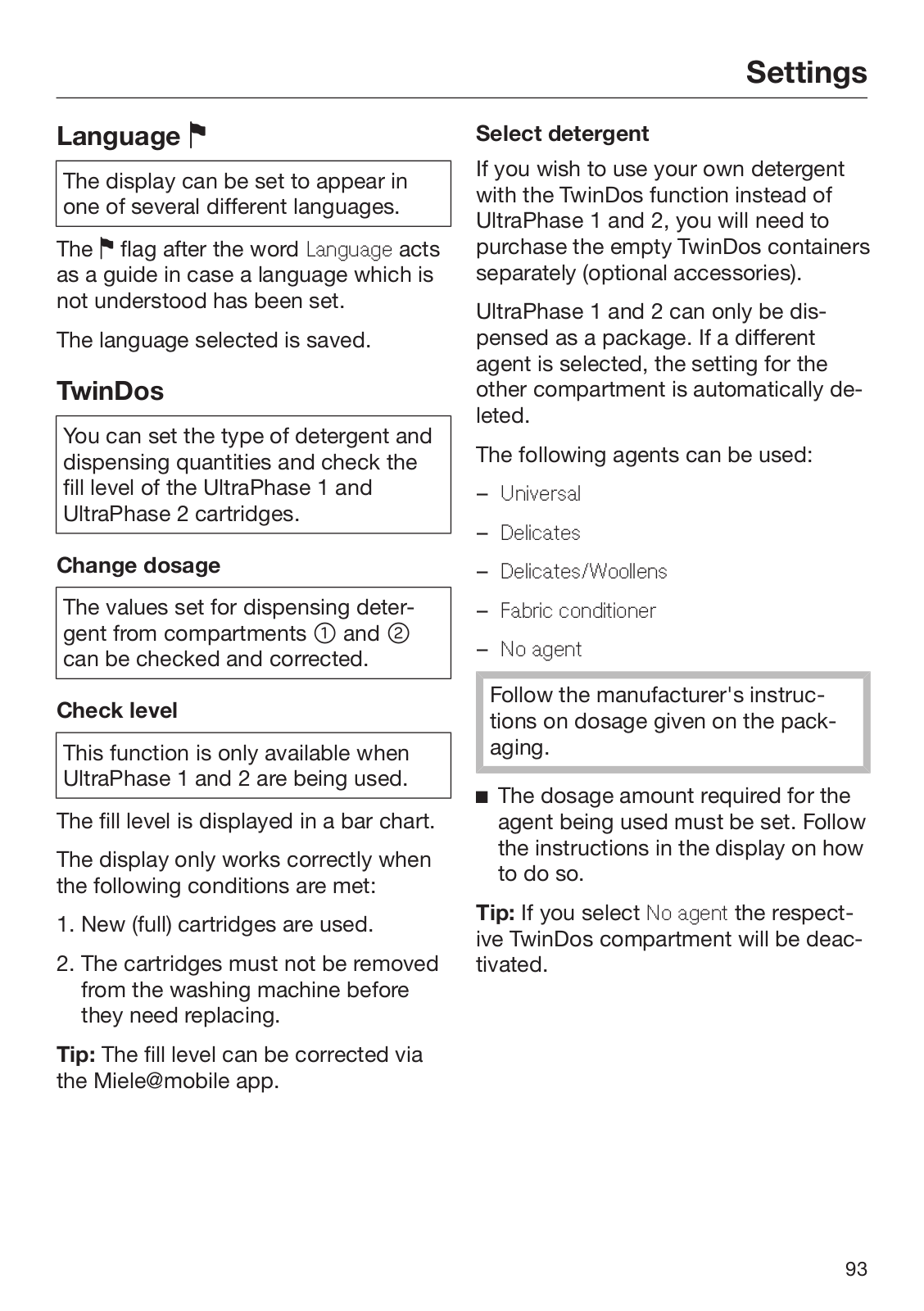

Language .........................................................................................................	93
TwinDos...............................................................................................................	93

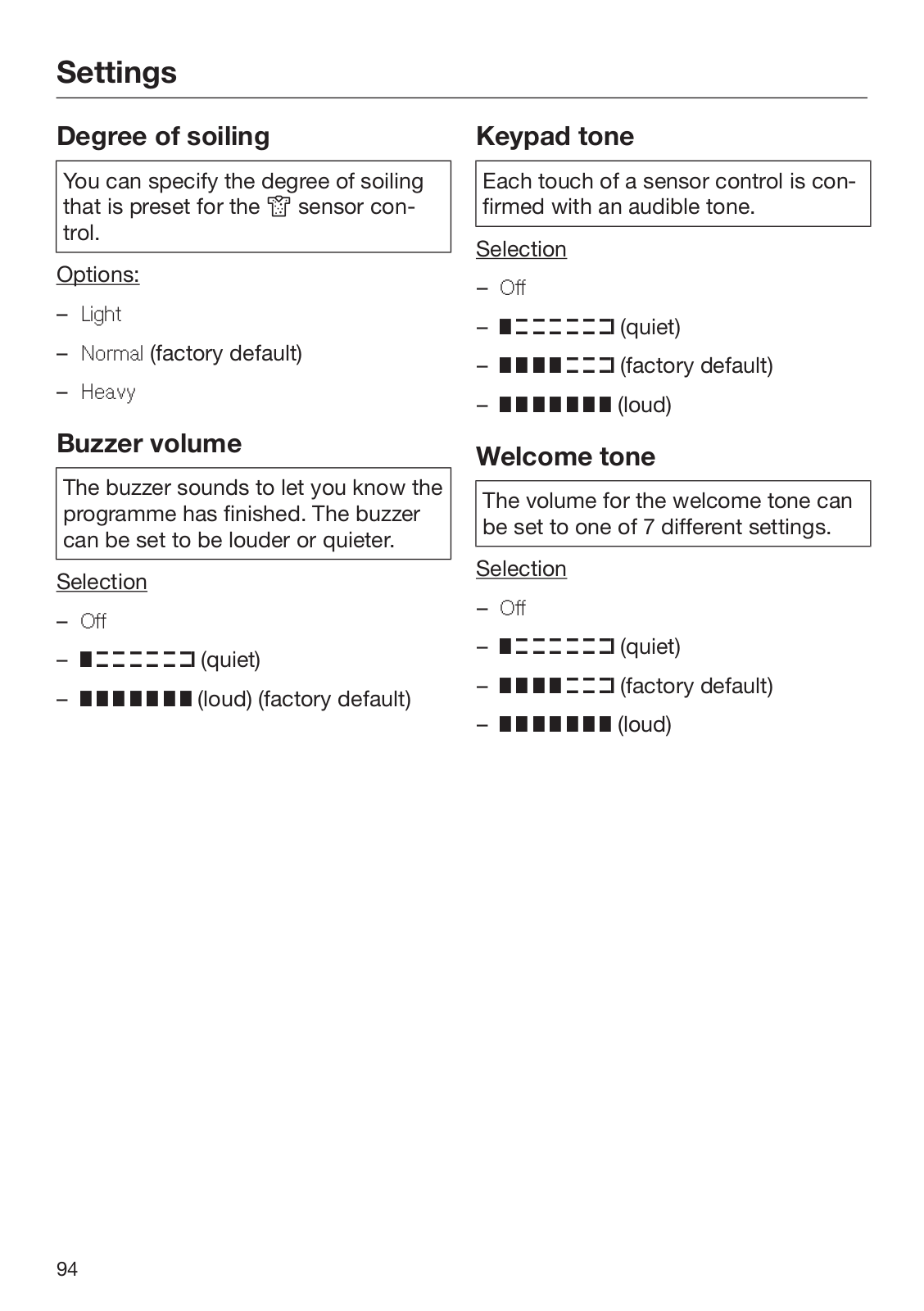

Degree of soiling..................................................................................................	94
Buzzer volume.....................................................................................................	94
Keypad tone ........................................................................................................	94
Welcome tone .....................................................................................................	94

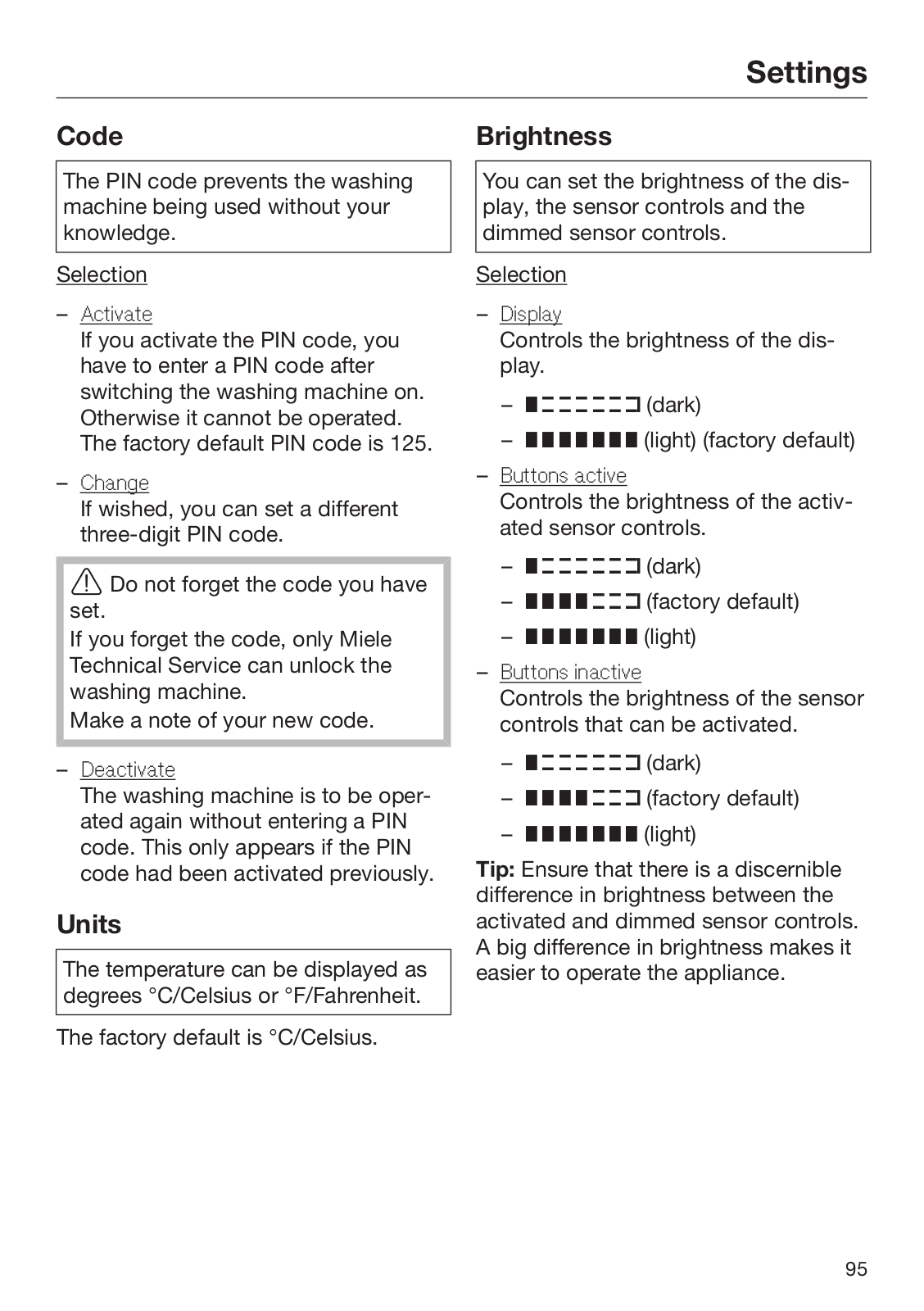

Code....................................................................................................................	95
Units ....................................................................................................................	95
Brightness ...........................................................................................................	95

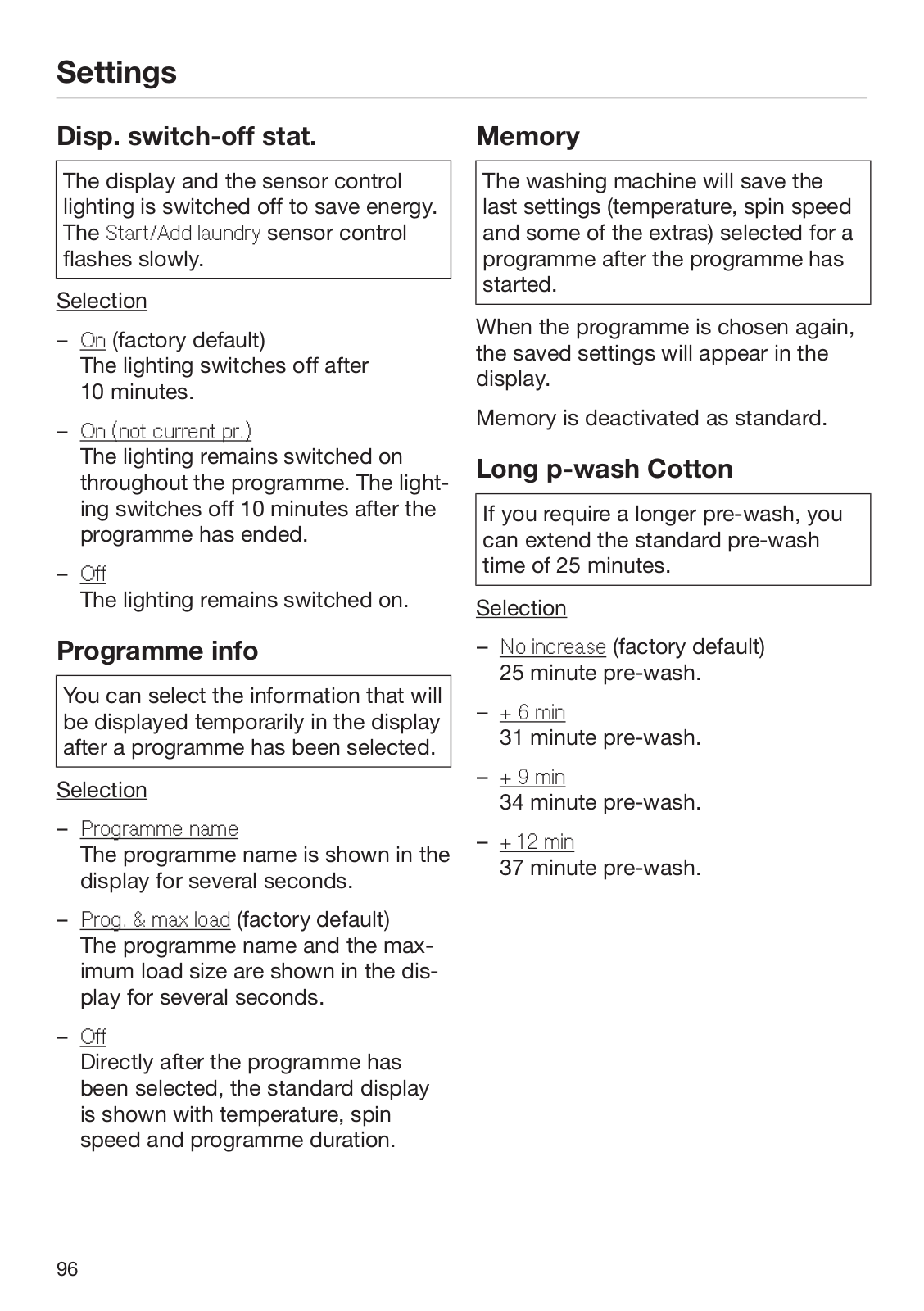

Disp. switch-off stat. ...........................................................................................	96
Programme info ...................................................................................................	96
Memory ...............................................................................................................	96
Long p-wash Cotton ...........................................................................................	96

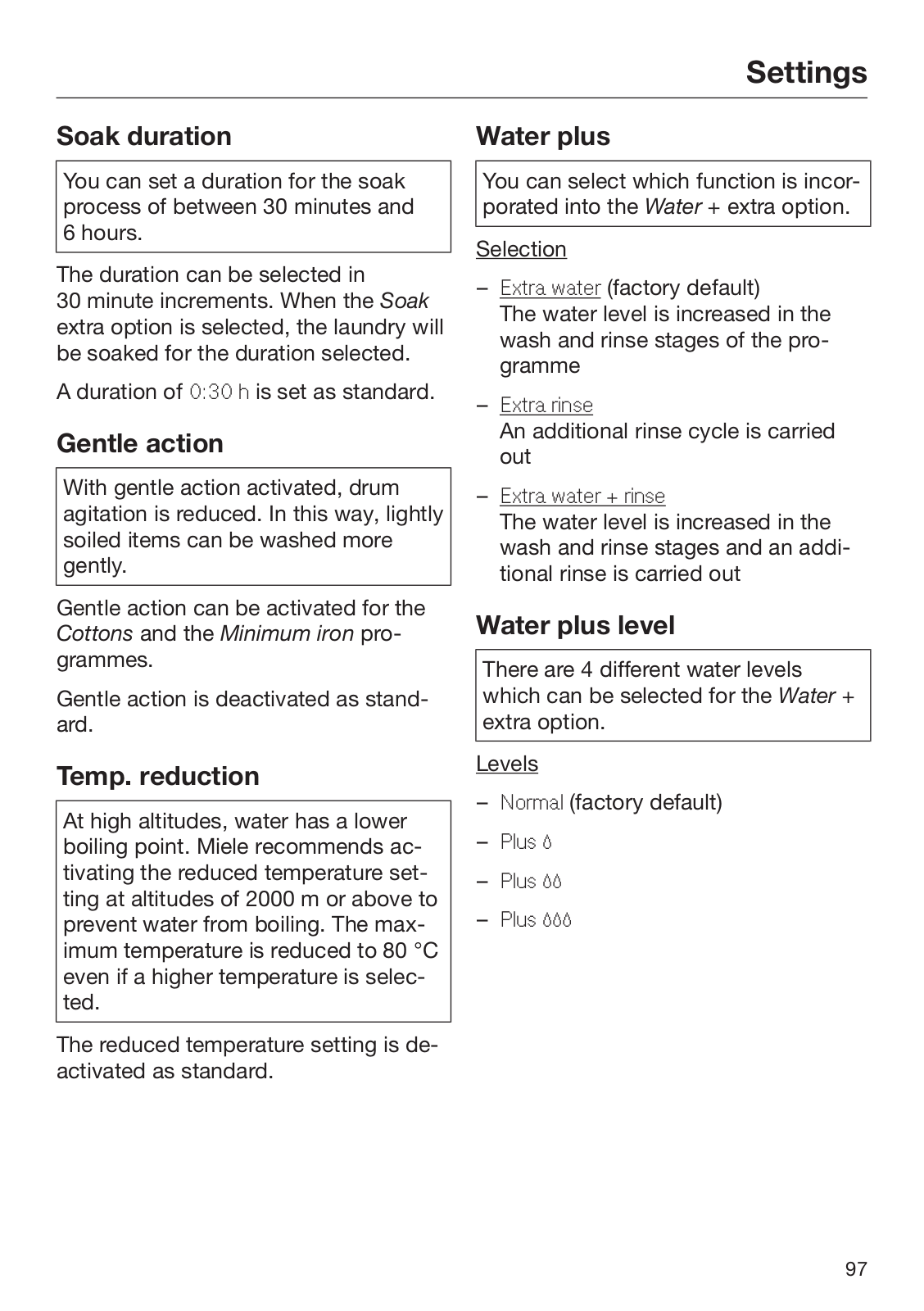

Soak duration ......................................................................................................	97
Gentle action .......................................................................................................	97
Temp. reduction...................................................................................................	97
Water plus ...........................................................................................................	97
Water plus level ...................................................................................................	97

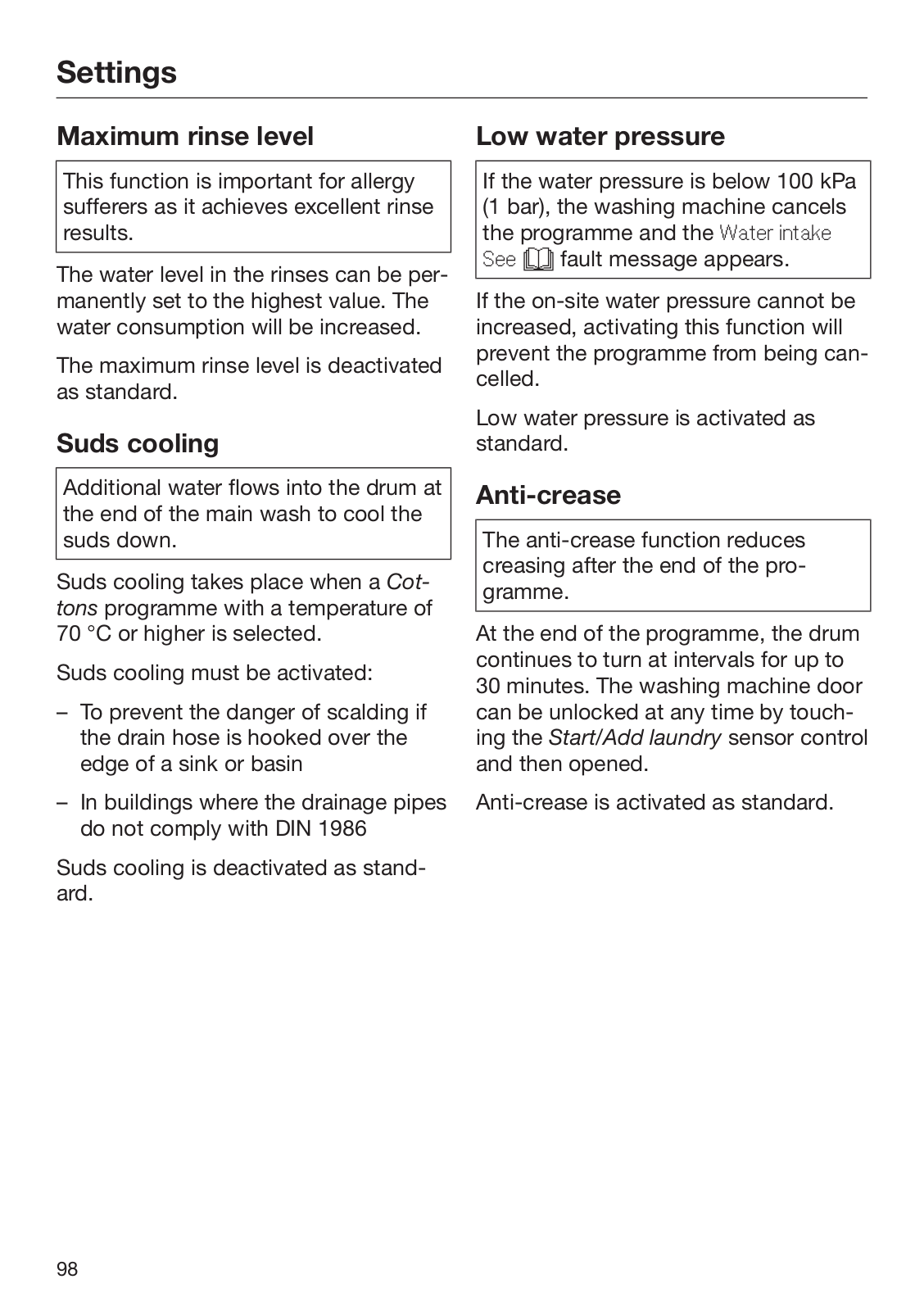

Maximum rinse level............................................................................................	98
Suds cooling........................................................................................................	98
Low water pressure .............................................................................................	98
Anti-crease ..........................................................................................................	98

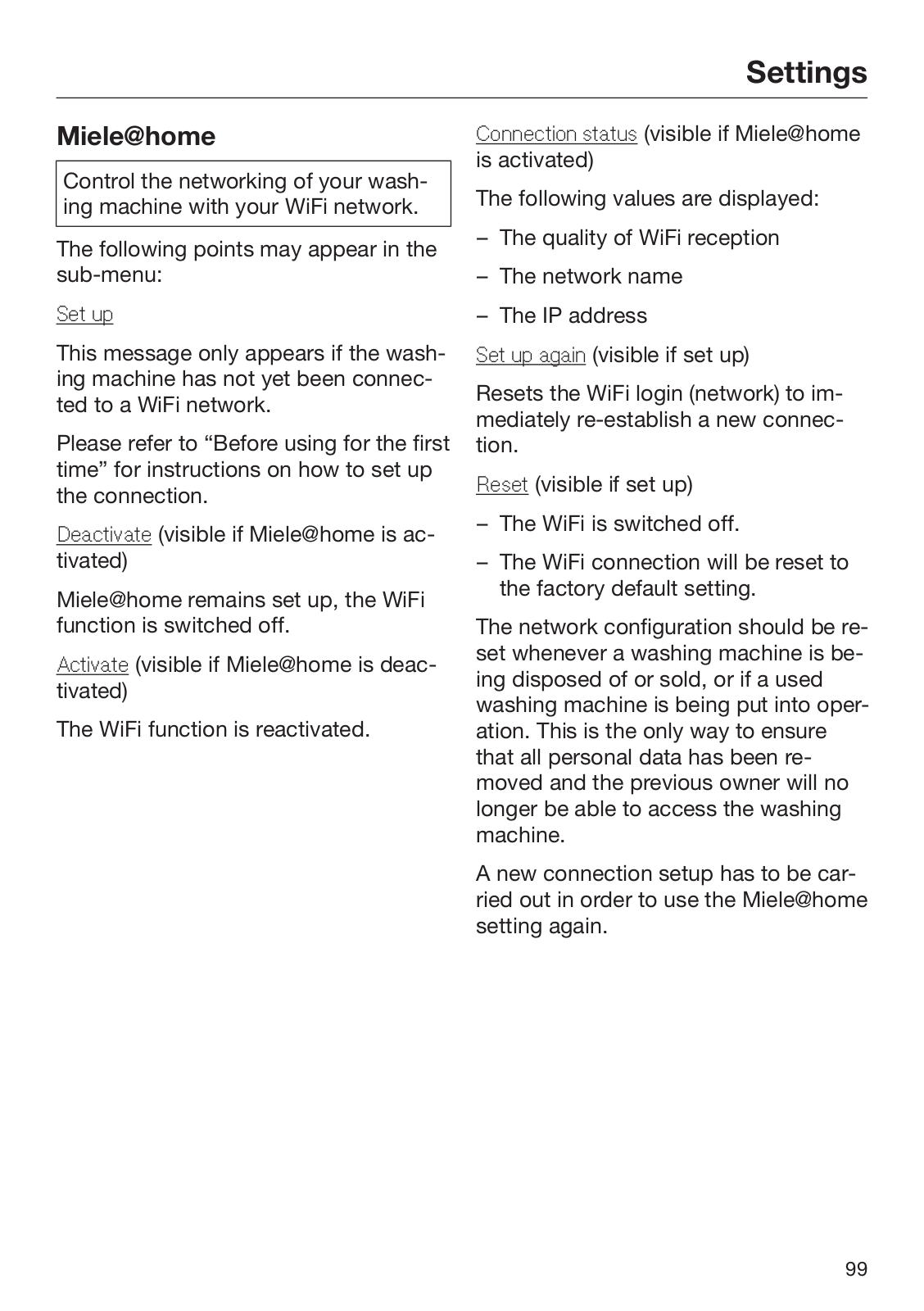

Miele@home ........................................................................................................	99

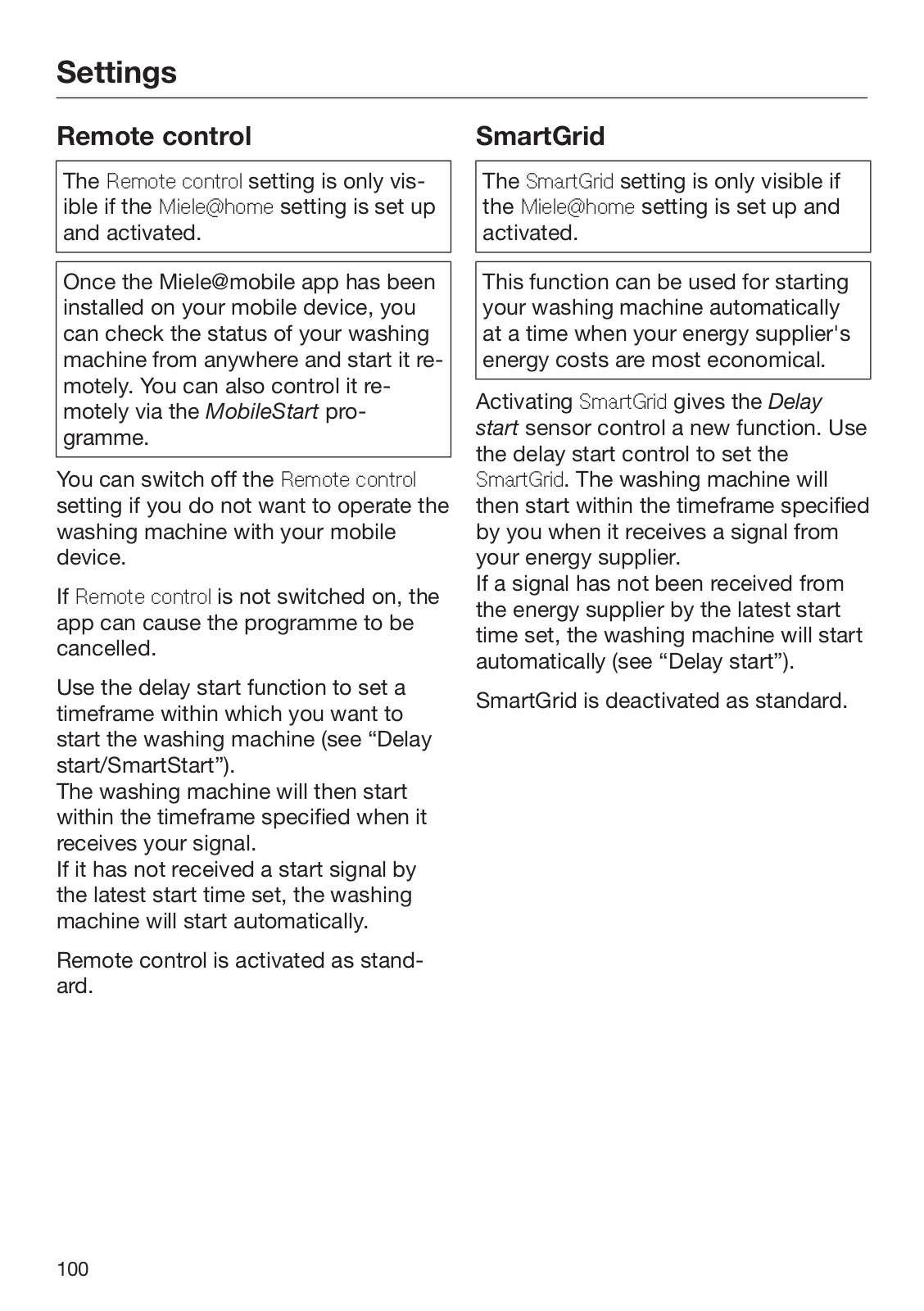

Remote control....................................................................................................	100
SmartGrid ............................................................................................................	100
RemoteUpdate ....................................................................................................	101
Detergents and care products .........................................................................	102
Detergent.............................................................................................................	102
Specialist detergents ....................................................................................	103
Fabric care ....................................................................................................	104
Additives .......................................................................................................	104
Machine care.......................................................................................................	104

Caring for the environment

Disposal of the packing mater-

ial

The packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.

Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites.

Disposing of your old appli-

ance

Electrical and electronic appliances often contain valuable materials. They also contain specific materials, compounds and components, which were essential for their correct function and safety. These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste.

Please dispose of it at your local community waste collection / recycling centre for electrical and electronic appliances, or contact your dealer or Miele for advice. You are also responsible for deleting any personal data that may be stored on the appliance being disposed of. Please ensure that your old appliance poses no risk to children while being stored prior to disposal.

Warning and Safety instructions

This washing machine complies with all current local and national safety requirements. However, inappropriate use can lead to personal injury and damage to property.

Read the operating instructions carefully before using the washing machine. They contain important information on safety, installation, use and maintenance. This prevents both personal injury and damage to the washing machine.

In accordance with standard IEC 60335-1, Miele expressly and strongly advises that you read and follow the instructions in the chapter on installing the washing machine as well as the safety instructions and warnings.

Miele cannot be held liable for damage caused by non-compliance with these instructions.

Keep these operating instructions in a safe place and pass them on to any future owner.

Correct application

This washing machine is intended for use in domestic households and similar working and residential environments.

The washing machine is not intended for outdoor use.

It must be used only as a domestic appliance to wash items which are specified by the manufacturer as being washable on the wash care label. Miele cannot be held liable for damage resulting from incorrect or improper use or operation.

Warning and Safety instructions

The washing machine can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it or have been shown how to use it safely and recognise and understand the consequences of incorrect operation.

Safety with children

Children under 8 years of age must be kept away from the washing machine unless they are constantly supervised.

Children 8 years and older may only use the washing machine unsupervised if they have been shown how to use it safely and recognise and understand the consequences of incorrect operation.

Children must not be allowed to clean or maintain the washing machine unsupervised.

Please supervise children in the vicinity of the washing machine and do not let them play with it.

Technical safety

Please observe the instructions in “Installation” and “Technical data”.

Before setting up the washing machine, check it for any externally visible damage. Do not install or use a damaged machine.

Warning and Safety instructions

Before connecting the washing machine, ensure that the connection data on the data plate (fuse rating, voltage and frequency) match the mains electricity supply. If in any doubt, consult a qualified electrician.

Reliable and safe operation of this washing machine can only be assured if it has been connected to the mains electricity supply.

The electrical safety of this washing machine can only be guaranteed when correctly earthed.

It is essential that this standard safety requirement is met. If in any doubt, please have the wiring system of the building tested by a qualified electrician.

Miele cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).

Do not connect the washing machine to the mains electricity supply by a multi-socket adapter, extension lead or similar. These do not guarantee the required safety of the machine (fire hazard due to the risk of overheating).

Faulty components must only be replaced by genuine Miele original spare parts. Only when these parts are fitted can Miele guarantee the safety standards of the machine.

The electrical socket must be easily accessible after installation so that the machine can be disconnected from the electricity supply if necessary.

Unauthorised repairs could result in unforeseen dangers for the user, for which the manufacturer cannot accept liability. Repairs should only be undertaken by a Miele authorised service technician, otherwise any subsequent damage will not be covered by the warranty.

Warning and Safety instructions

If the electrical connection cable is faulty it must only be replaced by a Miele authorised service technician to protect the user from danger.

The machine must be isolated from the electricity supply when cleaning and maintaining the machine and in the event of a fault.

The machine must only be connected to the on-site water supply using a new hose kit. Old hose kits must not be re-used. Check the condition of the hoses regularly so that you can replace them in good time and avoid the risk of any water damage.

The water flow pressure must be at least 100 kPa and should not exceed 1000 kPa.

In areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the machine and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the warranty.

The machine must not be used in a non-stationary location (e.g. on a ship).

Do not make any alterations to the machine, unless authorised to do so by Miele.

Warning and Safety instructions

Correct use

Do not install the washing machine in a room where there is a risk of frost. Frozen hoses may burst or split. The reliability of the electronic control unit may be impaired at temperatures below freezing point.

Before using the machine for the first time, check that the transit bars at the rear of the machine have been removed (see “Installation - Removing the transit bars”). During spinning, a transit bar which is still in place may result in damage to both the machine and adjacent furniture or appliances.

Turn off the stopcock if the machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain (gully) in the immediate vicinity.

Flooding danger.

If hooking the drain hose into a wash basin, check that the water can drain off quickly enough to prevent the sink from overflowing. Make sure the drain hose is secure, so that the force of the water flowing out of the hose does not dislodge it.

Take care to ensure that foreign objects (e.g. nails, pins, coins, paper clips) do not find their way into the machine with the laundry. These may damage components of the machine (e.g. suds container, drum), which in turn can result in damage to the laundry.

Warning and Safety instructions

Take care when opening the drum door after using the steam function. Danger of burning due to escaping steam and the high temperature of the surface of the drum as well as the porthole glass. Stand back away from the machine and wait until the steam has dissipated.

The maximum load for this washing machine is 9 kg (dry weight). See the “Programme chart” for the maximum recommended loads for individual programmes.

If the correct amount of detergent is dispensed, the machine should not need to be descaled. If, however, you do wish to descale it, only use a proprietary natural citric acid based descaling agent. Miele recommends using Miele descaling agent which is available to order online at www.miele.co.uk or from Miele. Strictly observe the instructions on the packaging.

Textiles which have been pre-treated in solvent based cleaning agents must be thoroughly rinsed in clean water before being washed in the machine.

Do not use solvent based cleaning agents, e.g. those containing benzine, in this machine, as this may result in damage to component parts and create toxic fumes. Such agents also pose a fire and explosion hazard.

Do not use solvent based cleaning agents, e.g. those containing benzine, to clean the surfaces of the machine. They can cause damage to plastic surfaces.

Only use dyes specified by the manufacturer as being suitable for use in a domestic washing machine. Always observe the manufacturer's instructions carefully.

Warning and Safety instructions

Colour run and dye removers contain sulphur compounds which can cause damage such as corrosion. Do not use these products in this machine.

If detergent comes into contact with the eyes, rinse them thoroughly with lukewarm water immediately. If swallowed, seek medical assistance immediately and retain the packaging or label for reference. Those with skin problems or sensitive skin should avoid their skin coming into contact with detergent.

Accessories

Accessory parts may only be fitted when expressly approved by Miele. If other parts are used, warranty, performance and product liability claims will be invalidated.

A Miele tumble dryer can be stacked on top of a Miele washing machine using the appropriate stacking kit (available as an optional accessory). Please make sure you order the correct one for the Miele washing machine and Miele tumble dryer.

If installing the machine on a Miele plinth, (available as an optional accessory, depending on country), please make sure you order the correct one for this washing machine.

Miele cannot be held liable for damage caused by non-compliance

with these Warning and Safety instructions.

Operating the washing machine

Control panel

a Control field

The control field consists of a display and various sensor controls. The individual sensors are explained in the following sections.

bDisplay

The following values are shown on the display and/or selected from it:

1.The temperature, spin speed, and time left for the selected wash programme.

2.The individual values for selected extras and settings.

csensors

Values shown in the display can be changed with the sensors. The

sensor increases the value or moves up the list; the sensor decreases the value or moves down the list.

d OK sensor control

The OK sensor control is used for confirming selected values.

e TwinDos sensor control with the additional Whites and Colours sensor controls

The TwinDos sensor control is used for deactivating and activating automatic detergent dispensing. Depending on the colour mix of your load, you can control the detergent combination by selecting the Whites or Colours sensor control.

Further information can be found in “TwinDos”.

Operating the washing machine

f Optical interface

This is used by the Service department as a transmission point.

g Sensors for extra options

You can supplement wash programmes with extra options.

If a wash programme has been selected, the sensor controls for the possible Extras light up dimly.

h sensor

This sensor is used for activating Cap dispensing.

i sensor

The sensor starts the delay start function. With Delay start you can delay the start of the programme. The start of the programme can be delayed from 15 minutes up to a maximum of 24 hours. This allows you to make use of night-time economy electricity rates, for example. Please see “Delay start” for more information.

j sensor

You can specify the level of soiling of the load in three settings. This sensor is only active with the TwinDos option activated.

k Start/Add laundry sensor control

The programme can be started as soon as the sensor control is flashing on and off. Touching the Start/Add laundry sensor control starts the selected programme. The sensor control lights up constantly.

Once the programme has been started, the Start/Add laundry sensor control allows you to add laundry.

l Programme selector

for selecting programmes and for switching off the appliance. The washing machine is switched on when you select a programme, and switched off by turning the programme selector to the position.

Operating the washing machine

Display

The standard display shows the follow-

ing from left to right:


1400	2:59	OK

–The selected wash temperature

–The selected spin speed

–Programme duration

Examples on how to operate

the machine

Scrolling through a list

The scroll bar in the display indicates that a list of choices is available.

Language		OK

Scroll down the list with the sensor control. Scroll up the list with the

sensor control. The OK sensor control is used to activate the option shown in the display.

Identifying the selected option


	Cap			OK

An activated option in a list will have a

tick next to it.

Setting numerical values

Start in

:00 h

The numerical value is highlighted in white. Touching the sensor control decreases the value. Touching the

sensor control increases the value. The OK sensor control is used to activate the value shown in the display.

Exiting a sub-menu

Select Back to exit a sub-menu.

Before using for the first time

Damage resulting from incorrect installation and connection.

Installing and connecting the washing machine incorrectly will cause serious property damage.

See “Installation”.

Protective foil and stickers re-

moval

Remove:

–The protective foil from the door

–Any stickers from the front and the lid

Please do not remove any labels (e.g. the data plate) which are visible when you open the door.

This washing machine has undergone a complete functional test at the factory and there will be some residual water in the drum from this process.

Remove the detergent cart-

ridges and the drain hose el-

bow from the drum

Two detergent cartridges for automatic detergent dispensing and an elbow piece for the drain hose are stored in the drum.

Pull open the door.

Take the two cartridges and the elbow piece out of the drum.

Shut the door with a gentle swing.

Before using for the first time

Miele@home

Your washing machine is equipped with an integrated WiFi module.

In order to use it you need:

–a WiFi network

–the Miele@mobile App

–a Miele user account. The user account can be created via the Miele@mobile App.

The Miele@mobile App will guide you as you connect your washing machine to your home WiFi network.

Once your washing machine is connected to your WiFi network you can use the App, for example, to carry the following activities:

–Operate your washing machine remotely

–Access information about the operating status of your washing machine

–Access information about a programme sequence on your washing machine

Connecting your washing machine to your WiFi network will increase energy consumption, even when the washing machine is switched off.

Before installing the washing machine in its final location, ensure the signal strength is sufficient for your WiFi network.

Availability of the WiFi connection

The WiFi connection shares a frequency range with other appliances (including microwave ovens and remote control toys). This can give rise to sporadic or even complete connection failures. Therefore, the availability of featured functions cannot be guaranteed.

Miele@home availability

The ability to use the Miele@mobile app depends on the availability of the Miele@home service in your country.

The Miele@home service is not available in every country.

For information about availability, please visit www.miele.com.

Miele@mobile App

The Miele@mobile App is available to download free of charge from the Apple App Store® or from the Google Play Store™.

Before using for the first time

Switching on the washing ma-

chine

Turn the programme selector to the

Cottons programme.

The welcome tone will sound and the welcome screen will light up.

The display will guide you through the

5 steps of the initial commissioning process.

1. Set the language

You will be prompted to set the display language. It is possible to change the language at any time by setting the programme selector to Further programmes in the Settings sub-menu.

english (GB)		OK

Touch the sensor controls until the language you want appears in the display.

Confirm your choice of language by touching the OK sensor control.

2. Setting up Miele@home

The following message appears in the display:

Miele@home

Confirm with OK.

The following message appears in the display:

Set up now

To set up Miele@home now: touch the OK sensor control.

To postpone setup until later: touch the sensor control until the following appears in the display: Set up later and press OK to confirm.

The following selection options appear in the display:

1.Connect via WPS

2.Connect via App

Select the required connection type.

You will then be guided by the display and the Miele@mobile app.

Before using for the first time

3.Remove the transit bars

Damage resulting from failure to remove the transit bars.

Failure to remove the transit bars can result in damage to the washing machine and to adjacent cabinetry or appliances.

Remove the transit bars as described in “Installation and connection”.

The following message appears in the display:

Remove transit bars

Confirm with the OK sensor control.

4. Commissioning TwinDos

The UltraPhase 1 and UltraPhase 2 values are preset in the standard settings and only need to be confirmed.

The following message appears in the display:

TwinDos

Confirm with the OK sensor control.

The following message appears in the display:

Set now

To set up TwinDos now, touch the OK sensor control.

To postpone setup until later: touch the sensor control until the following appears in the display: Set later and press OK to confirm.

Settings for compartment

The UltraPhase 1 values are preset in the standard settings.


	Agent for		OK

Confirm with the OK sensor control.

Miele UltraPhase 1			OK

Confirm with the OK sensor control.

The following appears in the display:

Set the dosage. Observe water hardness

levels

Confirm with the OK sensor control.

The dispensing quantity for

UltraPhase 1 is preset for (hardness level II).

Per load

Confirm the preset value with the OK sensor control. If you want to change this value, use the

sensor controls and confirm with the OK sensor control.

UltraPhase 1

Hardness level I	46 ml
Hardness level II	58 ml
Hardness level III	70 ml

Before using for the first time

The following appears in the display:

Insert

Remove the foil from the detergent cartridge.

Push the UltraPhase 1 detergent

cartridge into compartment 1 until it

locks into position.

Open the access panel for TwinDos.

Before using for the first time

Settings for compartment

The UltraPhase 2 values are preset in the standard settings.

After the cartridge has been pushed in, the display message switches to:


	Agent for		OK

Confirm with the OK sensor control.


	Miele UltraPhase 2		OK

Confirm with the OK sensor control.

The dispensing quantity for

UltraPhase 2 is preset for (hardness level II).

Per load

Confirm the preset value with the OK sensor control. If you want to change this value, use the

sensor controls and confirm with the OK sensor control.

UltraPhase 2

Hardness level I	36 ml
Hardness level II	45 ml
Hardness level III	54 ml

The following will appear in the display:

Insert

Remove the film from the detergent cartridge.

Push the UltraPhase 2 detergent cartridge into compartment 2 until it locks into position.

When the cartridge is pushed in, the display message switches to:

"TwinDos" is set. Can be changed in "Set-

tings".

Confirm with the OK sensor.

Close the TwinDos access panel.

Before using for the first time

5. Starting the calibration pro-

gramme

For optimum water and energy consumption and excellent wash results, it is important to calibrate the washing machine.

To do this, the Cottons programme must be run without laundry and without detergent.

No other programmes can be started until calibration has been carried out.

The following message appears in the display:

Open and run "Cottons" 90°C without

laundry.

Touch the sensor control until the

OK sensor control lights up and confirm with OK.


90°	1400	1:55	OK

Open the stopcock.

Touch the Start/Add laundry sensor control.

The calibration programme then starts. It will take approximately 2 hours.

At the end of the programme, the following message will appear in the display:

Set up complete

Take hold of the door and pull it open.

Tip: Leave the door slightly open to allow the drum to dry.

Turn the programme selector to the

position.

Washing environmentally and economically

Energy and water consumption

–To get the most out of your machine, load the maximum dry load size for the programme you are using.

The energy and water consumption will be the lowest in relation to the size of the load.

–When smaller amounts of laundry are washed, the automatic load control system will reduce the amount of water and energy used.

–Use the Express 20 programme for small, lightly soiled loads.

–Modern detergents make it possible to wash at lower temperatures (e.g.

20 °C). Using lower temperature settings will save energy.

–Washing at low temperatures and/or using liquid detergents can cause bacteria and odours to build up in the washing machine. Miele therefore recommends cleaning the washing machine once every month.

The washing machine reminds you to do so with the following message in

the display: Hygiene info: run a pro-

gramme at min. 75 °C or the "Clean ma-

chine" programme.

Detergent

–For precise dispensing use automatic detergent dispensing.

–Adjust the dosage to the degree of soiling of the laundry.

–Do not exceed the amounts of detergent recommended by the manufacturer on the packaging.

When drying with a tumble dryer

Selecting the highest possible spin speed for the wash programme will save energy when drying in a tumble dryer afterwards.

1. Prepare the laundry

Empty all pockets.

Damage due to foreign objects.

Nails, coins, paper clips, and so on can cause damage to garments and components in the machine.

Check the laundry before washing and remove any foreign objects.

Sort the laundry

Sort the laundry by colour and by care label. Most garments have a textile care label in the collar or side seam.

Tip: Dark textiles often contain excess dye and should be washed separately several times before being included in a mixed load. Always wash whites and coloureds separately.

Pre-treating stains

Badly soiled areas and stains should be cleaned as soon as possible, preferably whilst still fresh. Spillages should be carefully dabbed off using a soft, colourfast cloth. Do not rub.

Tip: Stains (e.g. blood, egg, coffee, tea) can be pre-treated using some handy tricks which can be found in the Miele guide to laundry care.

Damage due to solvent-based cleaning agents

Cleaning agents containing benzine, stain remover, etc., can damage plastic parts.

When pre-treating textiles, make sure that any plastic parts (e.g. buttons) do not come into contact with cleaning agent.

Risk of explosion due to solventbased cleaning agents.

When using solvent-based cleaning agents, an explosive mixture may develop.

Never use solvent-based cleaning agents in the washing machine.

General tips

–Curtains: Remove lead weights first or place in a laundry bag.

–Underwiring and collar stiffeners: Any loose wiring in bras, shirt collar stiffeners, etc. should be removed or sewn in.

–Close any zips, attach velcro fasteners, fasten hooks and eyes etc. before washing.

–Fasten duvet covers, pillow cases etc. to prevent small items from being rolled up inside them.

Do not wash any items in this washing machine which are specified by the manufacturer as not washable on the care label ( symbol).

2. Select a programme

Switching on the washing ma-

chine

Turn the programme selector to a programme.

Programme selection

There are three possible ways to select a programme:

1. Select standard programmes with the programme selector dial

Turn the programme selector to the required programme.

The selected programme will be shown in the display. The standard display will then appear.

2. Selecting additional programmes by setting the programme selector to “Further programmes/ ” and using the display:

Turn the programme selector to the

Further programmes/ position.

The following appears in the display:

Outerwear OK

Touch the sensor controls until the programme you want appears in the display.

Confirm the programme with the

OK sensor control.

Preset programme parameters will be displayed, depending on the programme selected.

2. Select a programme

3. Selecting programmes via the MobileStart programme selector position and the Miele@mobile app

Tip: In order to use MobileStart , the washing machine must be logged on to the WiFi network and Remote control must be switched on.

Turn the programme selector to the

MobileStart position.

The following appears in the display:

Load laundry, close the door and press

"Start". Appliance can be remotely con-

trolled

Follow the instructions in the display and start the programme.

The following appears in the display:

MobileStart

The washing machine can now be operated with the Miele@mobile app.

3. Load the washing machine

Open the door

Close the door

Take hold of the door and pull it open.

Check the drum for pets or foreign objects before loading it with laundry.

The most efficient use of energy and water is achieved when a full load is washed. However, do not overload as this reduces cleaning efficiency and causes creases.

Unfold the laundry and load loosely into the drum.

Mixing both large and small items gives better wash results and also helps distribute the load evenly during spinning.

Tip: Please note the maximum load for the different wash programmes. The relevant programme load is always shown in the display when you select a programme.

Make sure that no items are caught between the door and the seal.

Shut the door with a gentle swing.

4. Select programme settings

Selecting a temperature/spin

speed

You can alter the preset temperature/ spin speed of a wash programme if this option is permitted for that programme.

The temperatures reached inside the washing machine might not be the same as the temperatures selected. Perfect wash results are achieved through a combination of energy use and wash duration.


1400	2:59	OK

Touch the sensor controls above or below the temperature or spin speed value in the display until the temperature/spin speed you want appears in the display.

Selecting an extra option

Touch the sensor for the extra you want. It then lights up brightly.

Tip: You can select multiple Extras for a wash programme.

Not all extra options can be selected with every programme. If an extra option is not dimly lit, this option is not permitted for the wash programme (see “Extra options”).

Extras sensor control

You can select additional extras using the Extras sensor control.

Touch the Extras sensor control.

The following appears in the display:


	No Extras			OK

Touch the sensor controls until the extra option you want appears in the display.

Confirm the extra option with the OK sensor control.

Level of soiling

The sensor is only active with the TwinDos option activated. See “5. Add detergent, TwinDos” for more information.

4. Select programme settings

Delay start/SmartStart

Delay start

With the delay start function, you can delay the start of the programme.

This function is active when the setting SmartGrid is switched off.

The hours can be set from 00 to 24. The minutes can be set in 15 minute increments from 00 to 45.

Setting the delay start time

Touch the sensor control.

The following will appear in the display:

Start in

:00 h

Set the hours with the sensor controls. Confirm with the OK sensor control.

The display will change:

Start in

06:

Set the minutes with the sensor controls. Confirm with the OK sensor control.

Tip: The values will count upwards and downwards automatically if you keep your finger on the sensor control.

Cancelling delay start

The selected delay start period can be cancelled before the programme starts.

Touch the sensor control.

The selected delay start period will appear in the display.

Set a time value of 00:00 h with the sensor controls. Confirm with the OK sensor control.

The selected delay start time has been cancelled.

After the programme has started, the selected delay start period can only be changed or cancelled by interrupting the programme.

Altering delay start

The selected delay start time period can be changed before the programme start.

Touch the sensor control.

Change the specified time and confirm with the OK sensor control.

+ 78 hidden pages
