Miele F1913VI, K1813VI, F1813VI, F1903VI, F1473VI User Manual

MasterCool Refrigeration
Side-by-Side Merging Combinations
For Vi Models

KSK 1003

Specification Sheets TRS07252017

8mieleusa.com

Side-by-Side Merging Kit
KSK 1003

SPECIFICATIONS

KSK 1003 — Item 10562720

Electrical

Power Cord Direct connection to left-standing appliance

Support

Call Miele [phone]

Miele Website

20/20 Link

This merging kit should be used for side-by-side installation of the following
models:

- K 18x1 Vi, K 19x1 Vi, K 18x3 Vi, K 19x3 Vi

- F 14x1 Vi, F 18x1 Vi, F 19x1 Vi, F 14x3 Vi, F 18x3 Vi, F 19x3 Vi

- KF 18x1 Vi, KF 19x1 Vi, KF 18x3 Vi, KF 19x3 Vi

- KWT 16x1 Vi, KWT 16x3 Vi

8www.mieleusa.com

82020technologies.com

Specification Sheets TRS07252017

Page 2 of 12

Side-by-Side Merging Kit

...withpartition

The minimumthicknessofthe partition
is

5

/8"(16 mm).

If thereisapartition withathickness

from

5

/8"(16 mm)to65/16" (160 mm)

betweenthe adjacentappliances, then
each appliance should be individually
installed within itsown niche using the
mountingaccessories included.

en

...withpartition

The minimumthicknessofthe partition
is

5

/8"(16 mm).

KSK 1003

Side-by-side

...without partition

If the appliances are installed directly
next to each other (without a partition),
they need to be attached together. A
heating mat must also be installed. This
will help avoid condensation and
prevent damages.

HEATING MAT TRANSFORMER
PLUG DETAILS FOR KSK 1003

...withpartition

If thereisapartition withathickness

5

less than 6 5/16” (160 mm)

from

/8"(16 mm)to65/16" (160 mm)

betweenthe adjacentappliances, then
each appliance should be individually
installed within itsown niche using the
mountingaccessories included.

In this case, you will only need the heating
mat from the “Merging kit” to avoid
condenstaion and prevent damages.

•

KSK 1003- Heating mat connects directly to left-stand­ing appliance

•

Merging kit must be used when combining units

•

All Installations must be done in accordance with local codes

Specification Sheets TRS07252017

Page 3 of 12

Product and Cut-out Dimensions

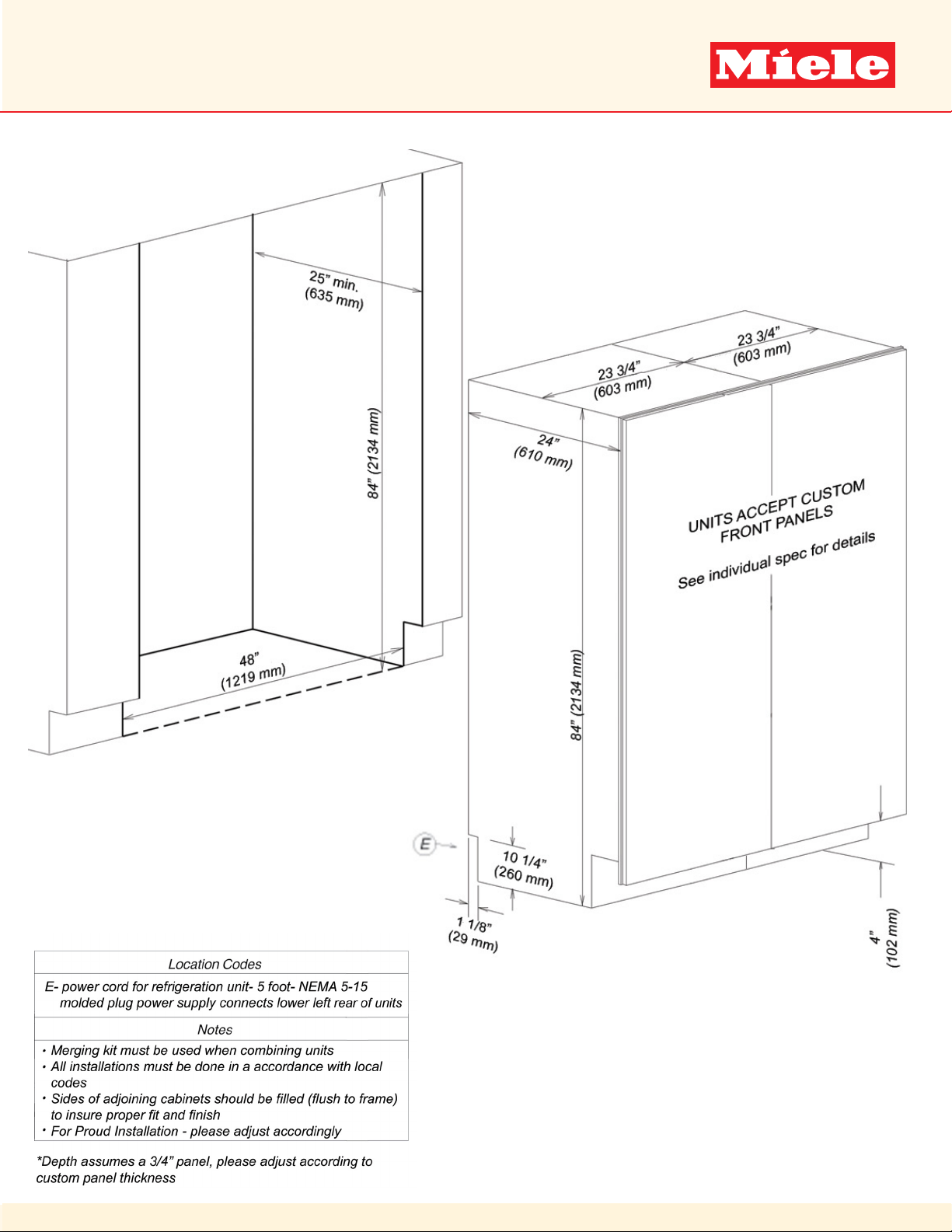

42” Side-by-Side Combination

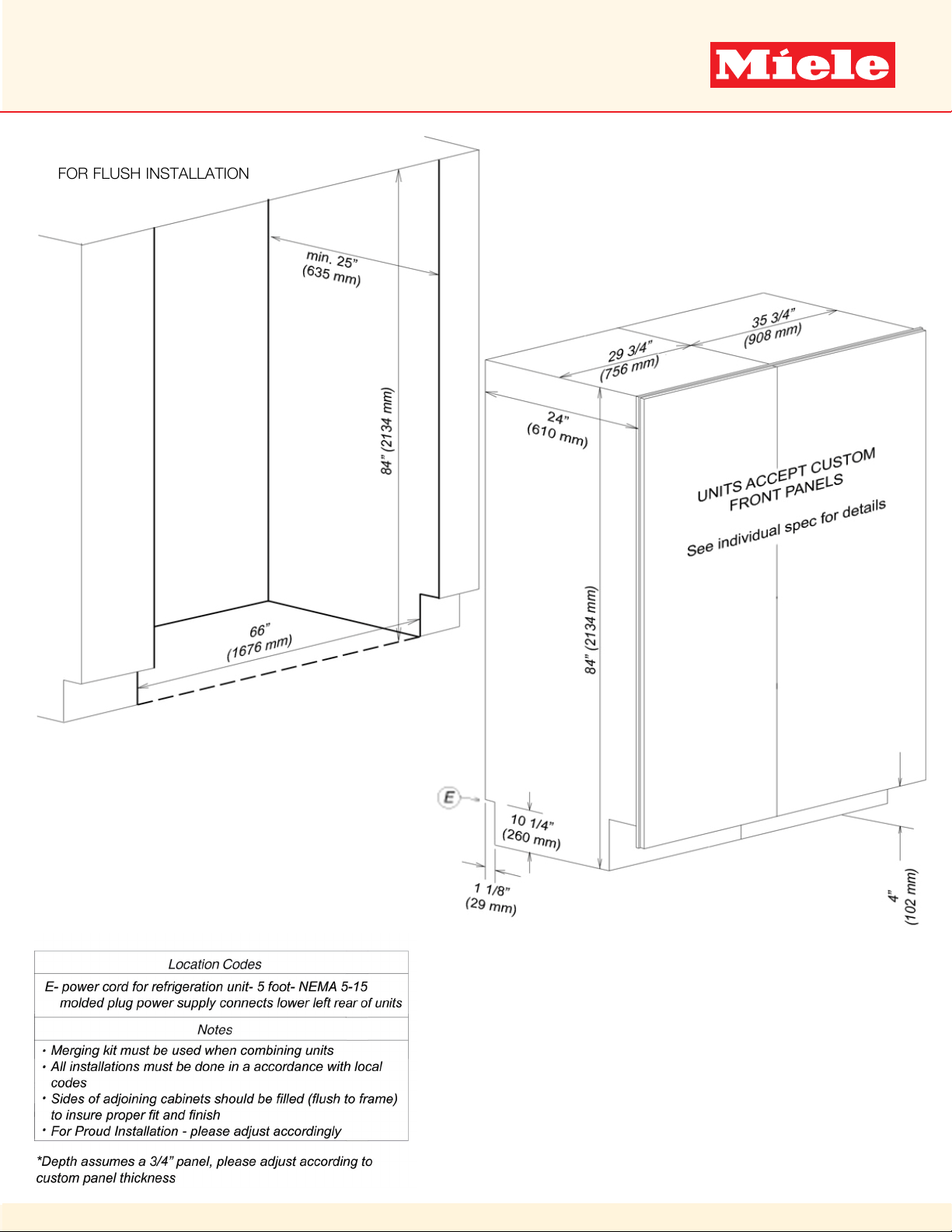

FOR FLUSH INSTALLATION

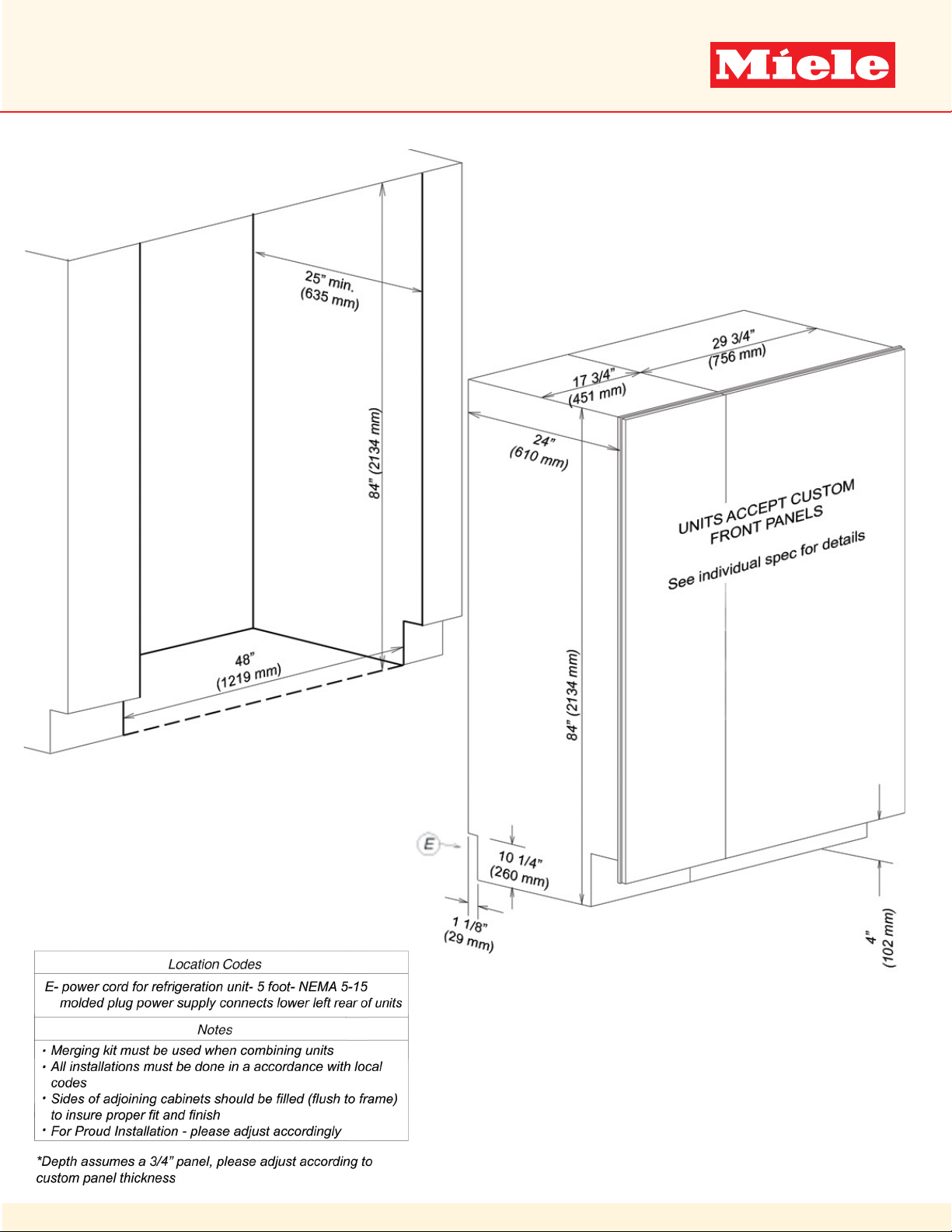

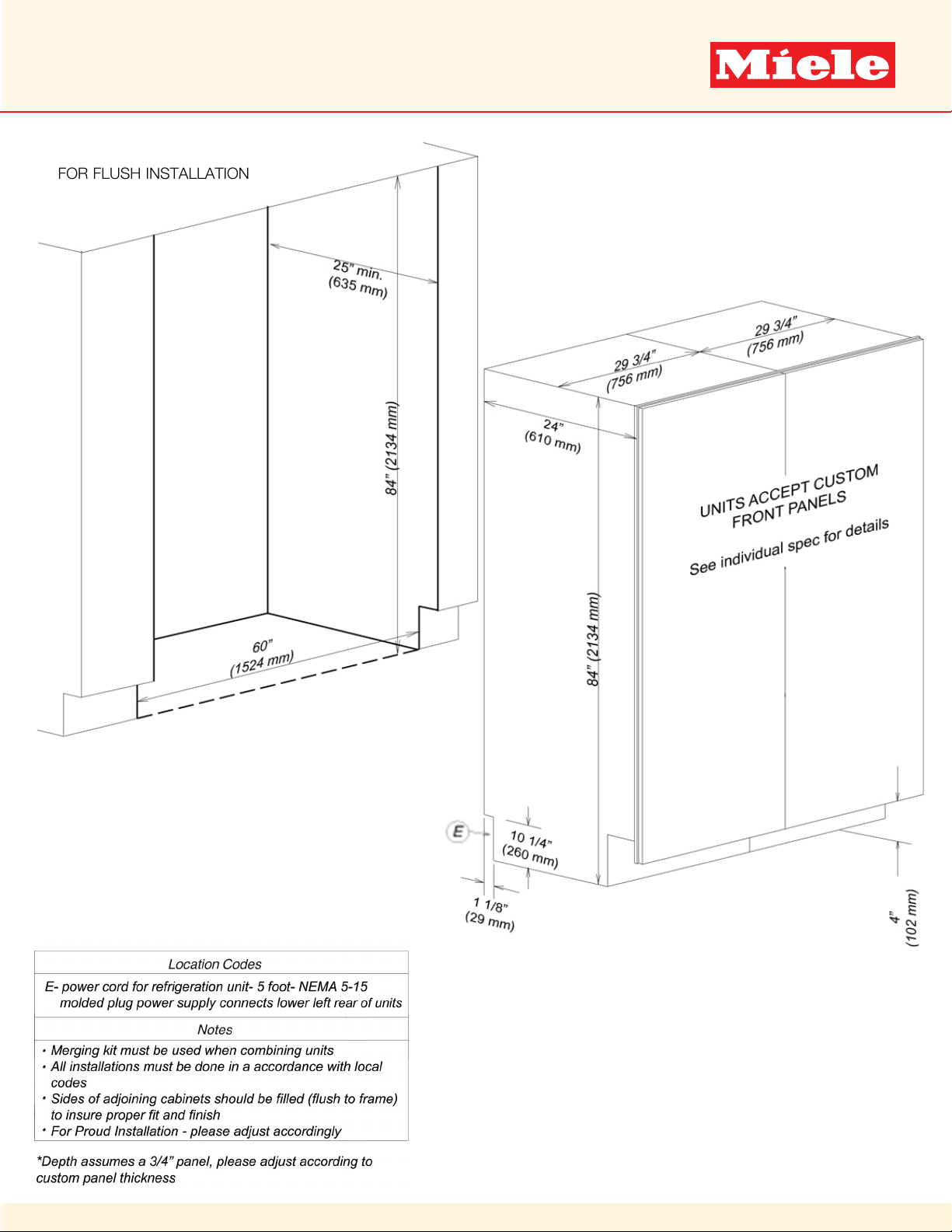

FOR FLUSH INSTALLATION
