11-400132-28 MAC 3225 01/92 to 04/93 IPL 211234 Page 1 of 14
www.ktoutdoor.com

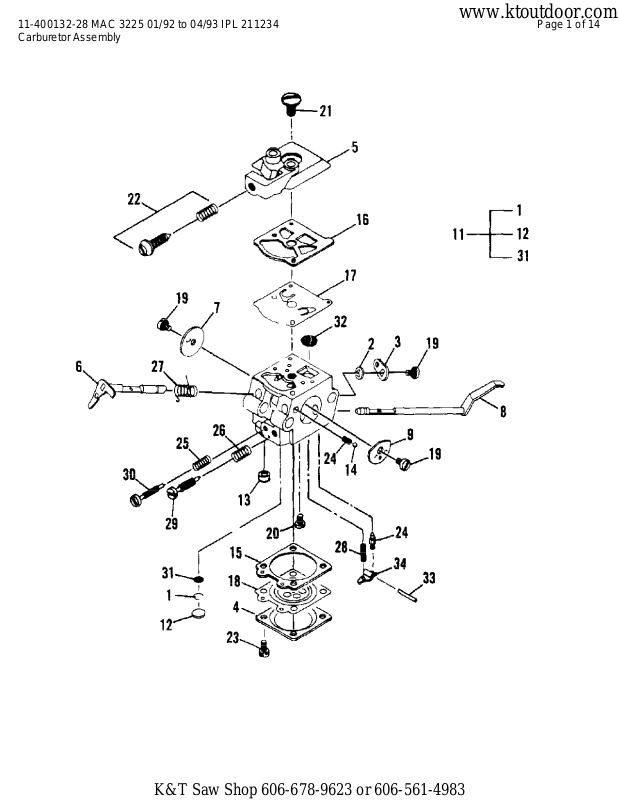

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
11-400132-28 MAC 3225 01/92 to 04/93 IPL 211234 Page 2 of 14
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
224033-02 Carb w/Choke, Walbro WT-231A
1 Ring, Screen Retainer1
2 Ring, Shaft Retainer1
3 Lever, Throttle1
4 Cover, Metering Lever1
5 Cover, Fuel Pump1
6 Shaft Assembly, Throttle1
7 Valve, Throttle1
8 Shaft Assembly, Choke1
9 Valve, Choke1
10 Valve, Inlet Needle1
11 Seat Assembly, Check Valve1
12 Plug, Cup 5mm1
13 Plug, Welch 5/161
14 Ball, Choke Friction1
15 Gasket, Metering Diaphragm1
16 Gasket, Fuel Pump1
17 Diaphragm, Fuel Pump1
18 Diaphragm Assembly, Metering1
19 Screw, Valve3
20 Screw, Metering Lever Pin1
21 Screw, Pump Cover1
22 Screw, Idle Adjust Kit1
23 Screw, Metering Cover4
24 Spring, Choke Friction1
25 Spring, Idle Needle1
26 Spring, High Speed Needle1
27 Spring, Throttle Return1
28 Spring, Metering Lever1
29 Needle, High Speed1
30 Needle, Idle1
31 Screen, Check Valve1
32 Screen, Fuel Inlet1
33 Pin, Metering Lever1
34 Lever, Metering1
300457 Kit, Carburetor Repair
224460 Kit, Gasket/Diaphragm
K&T Saw Shop 606-678-9623 or 606-561-4983
11-400132-28 MAC 3225 01/92 to 04/93 IPL 211234 Page 3 of 14
www.ktoutdoor.com

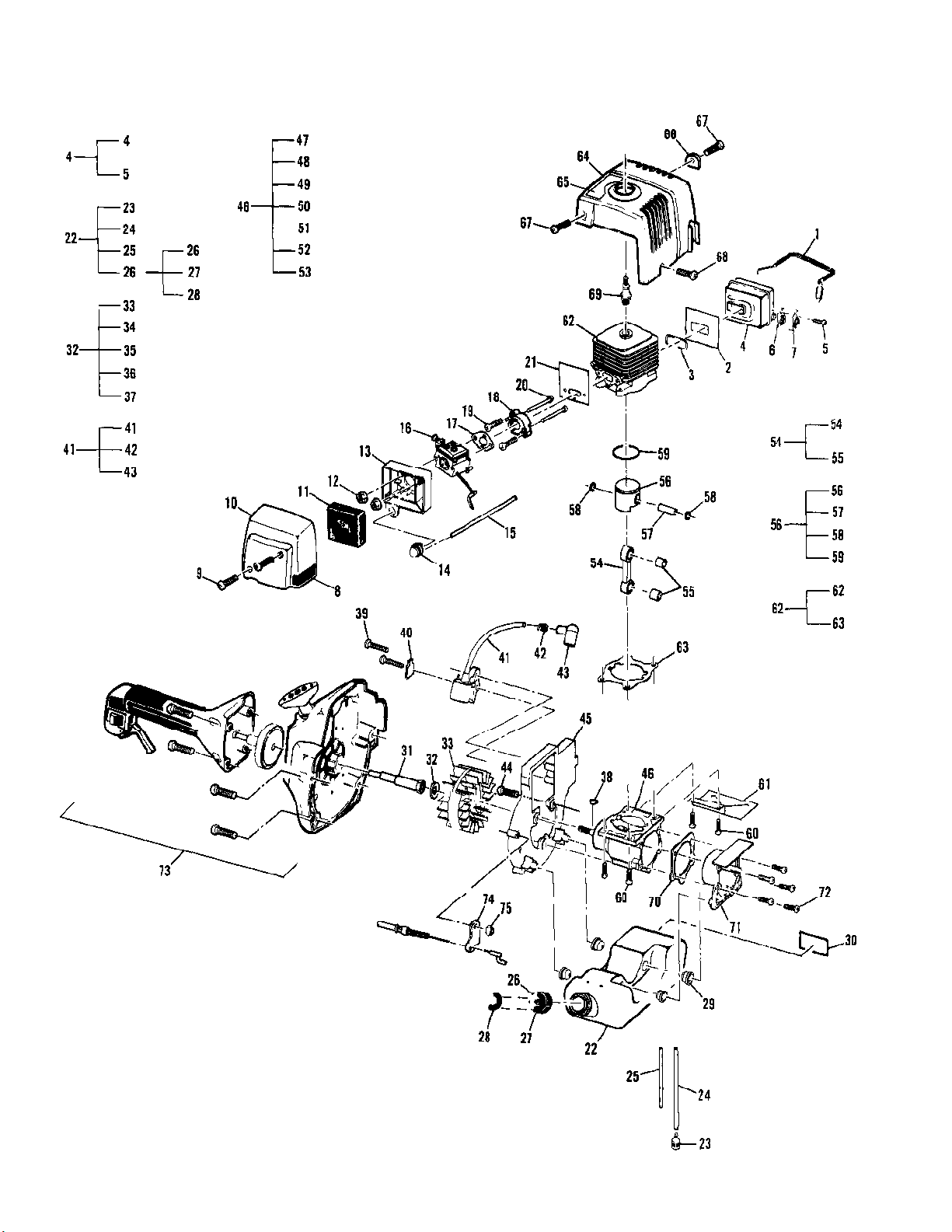

Clutch/Starter Housing Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
11-400132-28 MAC 3225 01/92 to 04/93 IPL 211234 Page 4 of 14
www.ktoutdoor.com
Clutch/Starter Housing Assembly
Ref # Part Number DescriptionQty
1 224204 Wire Assembly, Switch1
2 300064 Cover Assembly, Switch1
3 111069 Screw, 8-16 x .3751
4 105497 Washer,1
5 224246 Contact, Switch1
6 224245 Button, Stop Switch1
7 322081 Label, ON-OFF Switch1
8 224205 Trigger Housing Assembly1
9 111061 Screw, 6-19 x .622
10 300361 Trigger, Throttle1
11 300372 Throttle Cable Assembly1
12 111074 Nut, Speed .188 ID1
13 322234 Sleeve, Protecting1
14 224249 Housing, Clutch 1" (Yel)1
300015 Housing, Clutch 1" (Grey)1
15 224919 Screw, 10-14 x 1.04
16 322140 Grip1
17 224920 Plug, Handle1
18 111070 Screw, 12-11 x .50 Torx (top)1
19 223200 Screw, 10-16 x .50 Torx (side)1
20 224045 Drum Assembly, Clutch1
21 300459 Kit, Clutch1
22 111060 Screw, 10-24 x 1.38 TR HD. TAP1
23 223357 Screw, 8-161
24 224916 Starter Housing Assembly (Yel)1
25 300616 Housing / Guide, Rope1
300013 Starter Housing Assembly (Grey)1
300618 Housing / Guide, Rope1
26 Guide, Rope Not available separately.1
27 300369 Wire Assembly1
28 300475 Package, Spring/Starter Rewind1
29 219496 Pulley, Starter1
30 222869 Rope, Starter (46")1
31 218941 Washer, Nylon1
32 216792 Handle, Starter1
33 224927 Plate, Baffle1
34 215533 Grommet, H/T Lead1
35 223357 Screw,8-162
36 111054 Screw, 10-24 x .6254
37 300415 Rope, Bulk1
K&T Saw Shop 606-678-9623 or 606-561-4983
11-400132-28 MAC 3225 01/92 to 04/93 IPL 211234 Page 5 of 14
www.ktoutdoor.com
Shaft/Shield/Handle And Cutter Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
