Page 1
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 1 of 18
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 2 of 18
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
91090 Bar-16" Sprocket Nose
86979N Chain Asy-16" PM370
89502 Bar-16" MAC 10
89521N Chain Asy-16" PM350
69210 Piston Asy-.020 in. oversize
62813 Ring Set-Piston .020 in. oversize
69211 Piston Asy-.030 in. oversize
62812 Ring Set-Piston .030 in. oversize
86419 Guide - Timing
69191 Kit-Pressure Test Adapter
84453 Kit-Piston tool
86330 Kit-Spike
102388 Screw-Hx hd 10-24 x 5/8
101191 Nut-Hx 10-24
63746 Wrench
85933 Kit-Spark Arrester Screen
89431 Kit-Spark Arrester Screen
63097 Spark Plug (Standard)
63432 Spark Plug (Cooler)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 3 of 18
www.ktoutdoor.com

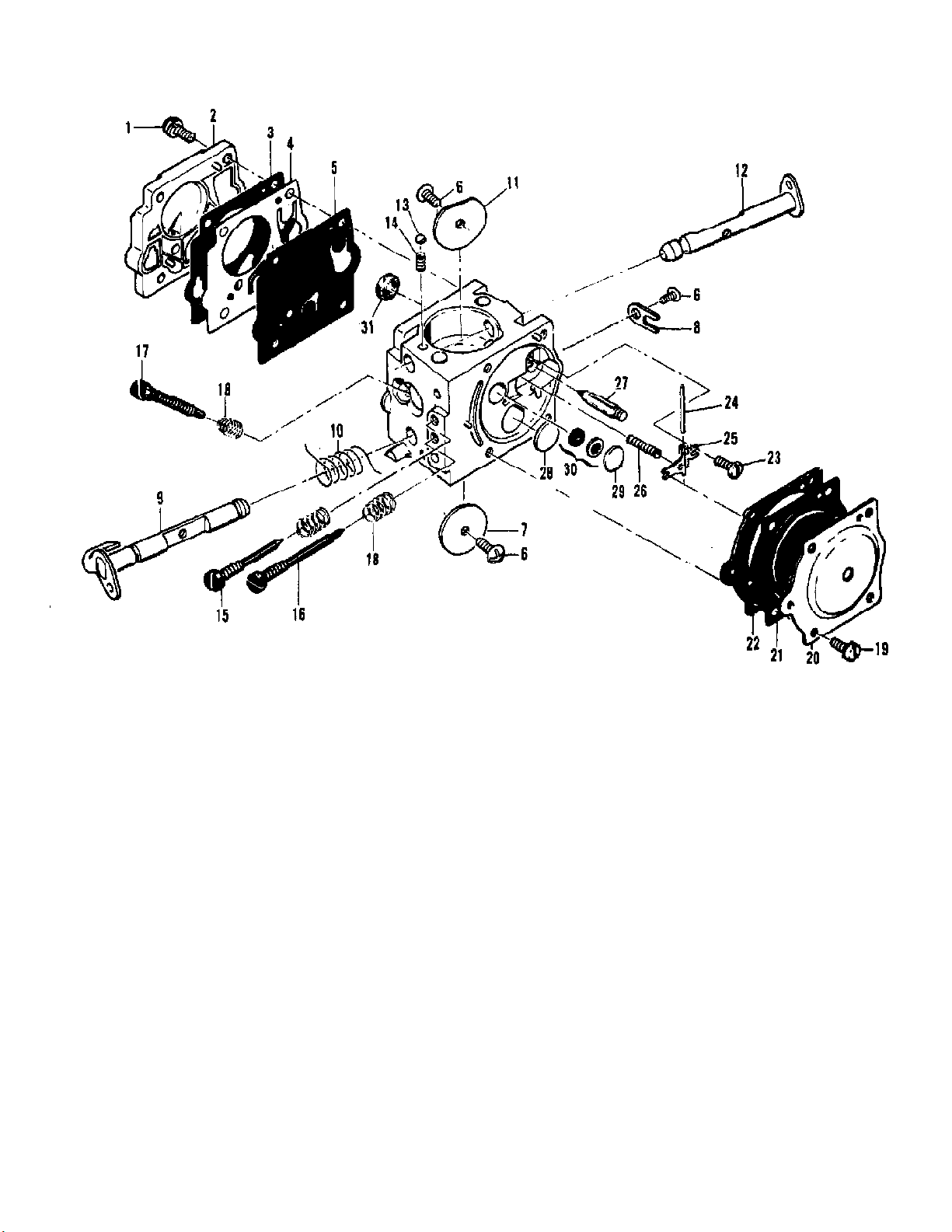

Carburetor Assembly (Part 1)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 4 of 18
www.ktoutdoor.com
Carburetor Assembly (Part 1)
Ref # Part Number DescriptionQty
85720 Carburetor Assembly1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Asy - Throttle1
10 85981 Spring - Throttle shaft1
11 67490 Plate - Choke1
12 67488 Shaft Asy - Choke1
13 100302 Ball - Choke Friction1
14 67504 Spring - Choke friction1
15 68104 Needle - High speed1
16 68105 Needle - Idle1
17 68106 Screw - Idle speed1
18 67502 Spring - Needle3
19 70798 Screw - Diaphragm Cover4
20 83761 Cover - Diaphragm1
21 67499 Diaphragm - Metering1
22 67496 Gasket - Diaphragm1
23 67500 Screw - Lever pin1
24 67508 Pin - Lever1
25 67509 Lever - Metering1
26 67503 Spring - Lever1
27 67491 Valve - Needle1
28 71690 Plug - 3/81
29 69506 Plug - 5/161
30 83758 Kit - Valve & Seat Asy1
31 67507 Screen - Fuel1
67482 Gasket Set
83764 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 5 of 18
www.ktoutdoor.com

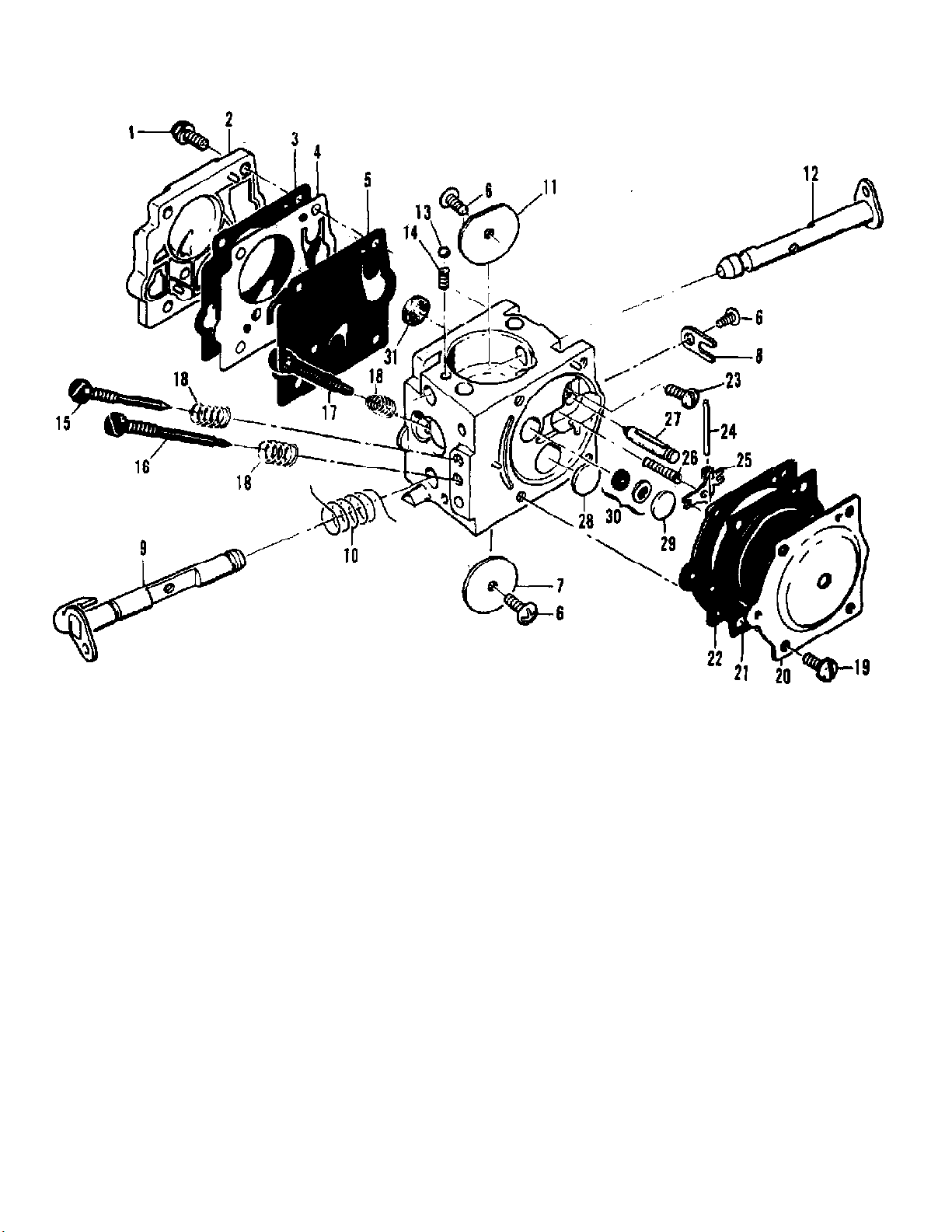

Carburetor Assembly (Part 2)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 6 of 18
www.ktoutdoor.com
Carburetor Assembly (Part 2)
Ref # Part Number DescriptionQty
92654 Carburetor Asy1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check Valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Asy - Throttle1
10 85981 Spring - Throttle shaft1
11 67490 Plate - Choke1
12 67488 Shaft Asy - Choke1
13 100302 Ball - Choke friction1
14 67504 Spring - Choke friction1
15 92937 Needle - High speed1
16 92924 Needle - Idle1
17 68106 Screw - Idle speed1
18 67502 Spring - Needle3
19 70798 Screw - Diaphragm Cover4
20 83761 Cover - Diaphragm1
21 67499 Diaphragm - Metering1
22 67496 Gasket - Diaphragm1
23 67500 Screw - Lever pin1
24 67508 Pin - Lever1
25 67509 Lever - Metering1
26 67503 Spring - Lever1
27 67491 Valve - Needle1
28 71690 Plug - 3/81
29 69506 Plug - 5/161
30 83758 Kit - Valve & Seat Asy1
31 67507 Screen - Fuel1
67482 Gasket Set
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 7 of 18
www.ktoutdoor.com

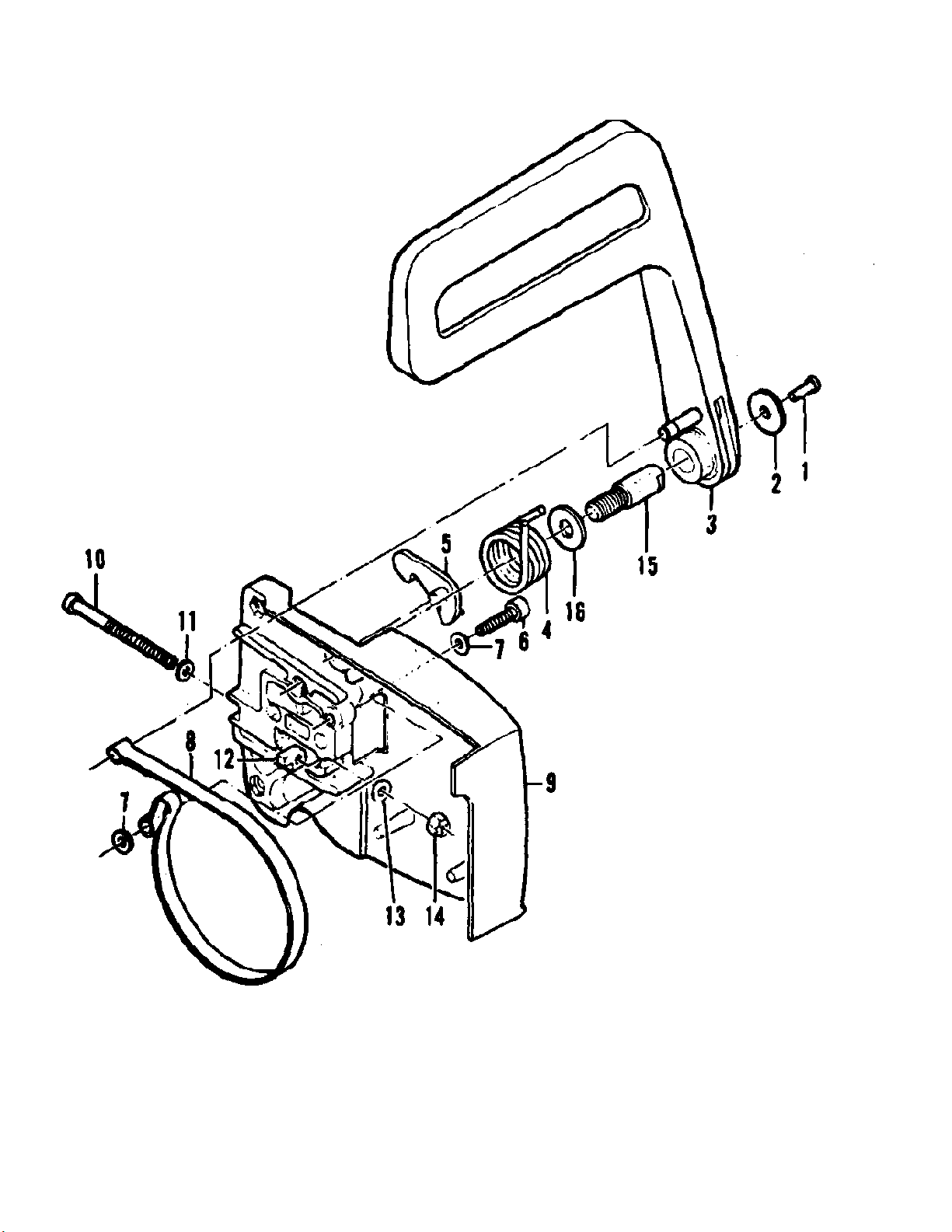

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 8 of 18
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
91278 CHAIN BRAKE Assembly1
1 102500 Screw - Pan hd 10-24 x 1/21
2 91273 Washer - Special1
3 91251 Lever Assembly1
4 91239 Spring1
5 91235A Latch Assembly1
6 105738 Screw - Skt hd 1/4-20 x 7/81
7 91274 Washer - Special2
8 91238 Band1
9 91249 Housing Assembly1
10 110527 Screw - Fil hd 10-24 x 2-3/41
11 110264 Washer - #101
12 61705 Nut - Bar adjusting1
13 100002 Washer - #101
14 102067 Nut - Hx 10-241
15 91246 Pin - Lever pivot1
16 91245 Washer - Thrust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 9 of 18
www.ktoutdoor.com

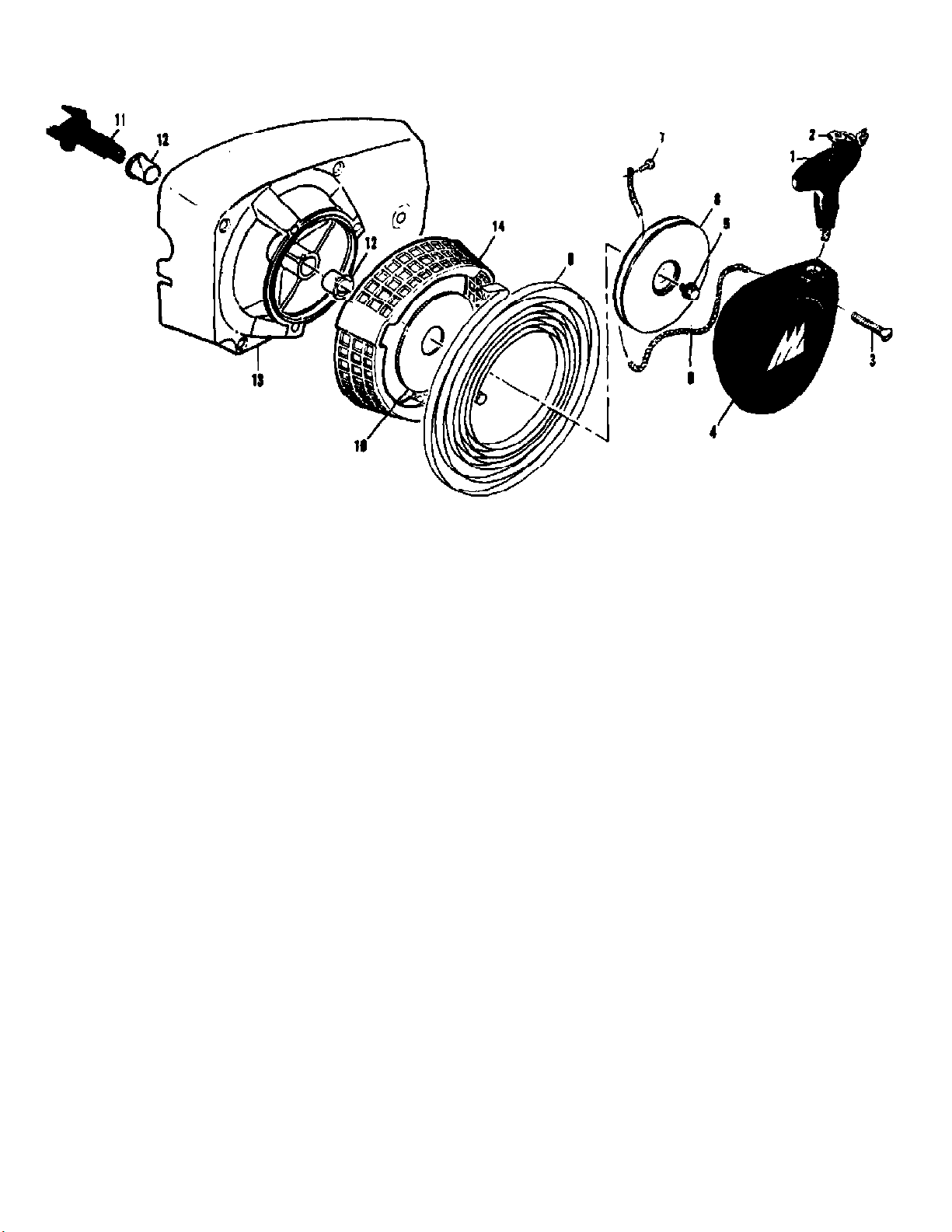

Fan Housing & Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 10 of 18
www.ktoutdoor.com
Fan Housing & Starter Assembly
Ref # Part Number DescriptionQty
1 91255 Kit - Starter handle1
2 105490 Washer - Starter handle1
87667 Fan housing & Starter Asy1
3 110646 Screw - Oval hd 8-32 x 1-1/83
4 87672 Cover - Starter1
5 110341 Screw - Hx hd 10-24 x 1/21
6 68162 Rope-Starter1
7 110470 Rivet-Rope1
8 85122 Drum-Starter1
9 87680 Spring-Rewind1
10 86053 Shield-Spring1
11 83748 Shaft-Starter1
12 57535 Bushing - Starter2
13 87693 Kit-Fan Housing1
14 87674 Guard-Sawdust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 11 of 18
www.ktoutdoor.com

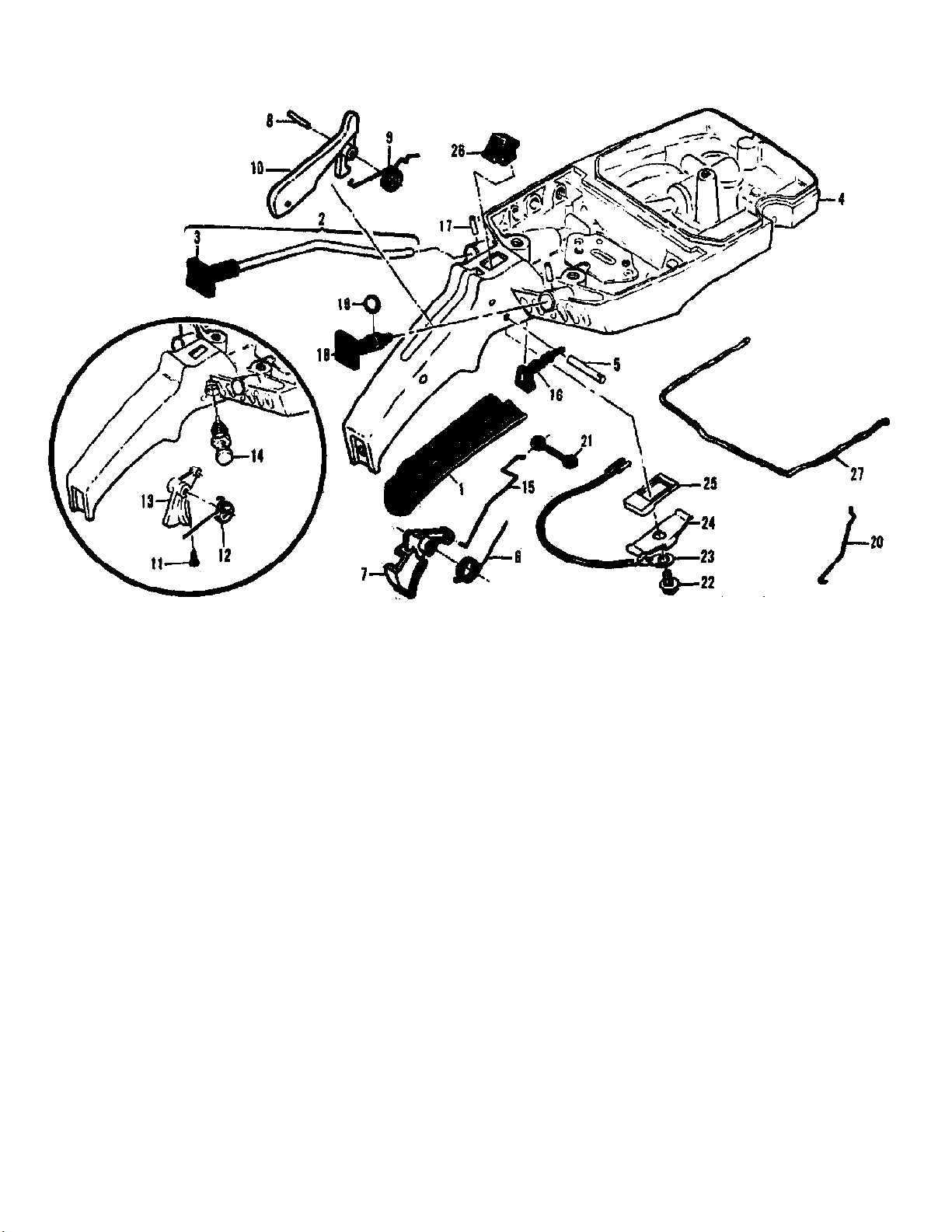

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 12 of 18
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 89320 Insert - Handle grip1
2 64871 Button & Rod Assembly1
3 63044 Button - Oiler1
4 84183A Kit - Fuel tank/control1
5 110378 Pin - Roll 3/16 x 15/161
6 92152 Spring - Trigger1
7 92151 Trigger - Throttle1
8 105654 Pin - Roll 1/8 x 7/81
9 92154 Spring - Trigger release1
10 92153 Release - Trigger1
11 110668 Screw - Fil hd 8-36 x 5/81
12 87178 Spring - Throttle return1
13 88796 Trigger1
14 85451 Latch Assembly - Throttle1
15 85107 Rod - Throttle1
16 68522A Seal - Throttle rod1
17 105673 Pin - Roll 3/32 x 9/162
18 69041 Button - Choke1
19 105614 "O" Ring1
20 69042 Rod - Choke1
21 69043 Snubber - Rod1
22 110706 Screw - Fil hd 8-18 x 1/21
23 62973A Wire Asy - Stop switch1
24 62451 Control - Switch1
25 62950A Base - Switch1
26 68846 Button - Switch1
27 69564 Seal - Airbox1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 13 of 18
www.ktoutdoor.com

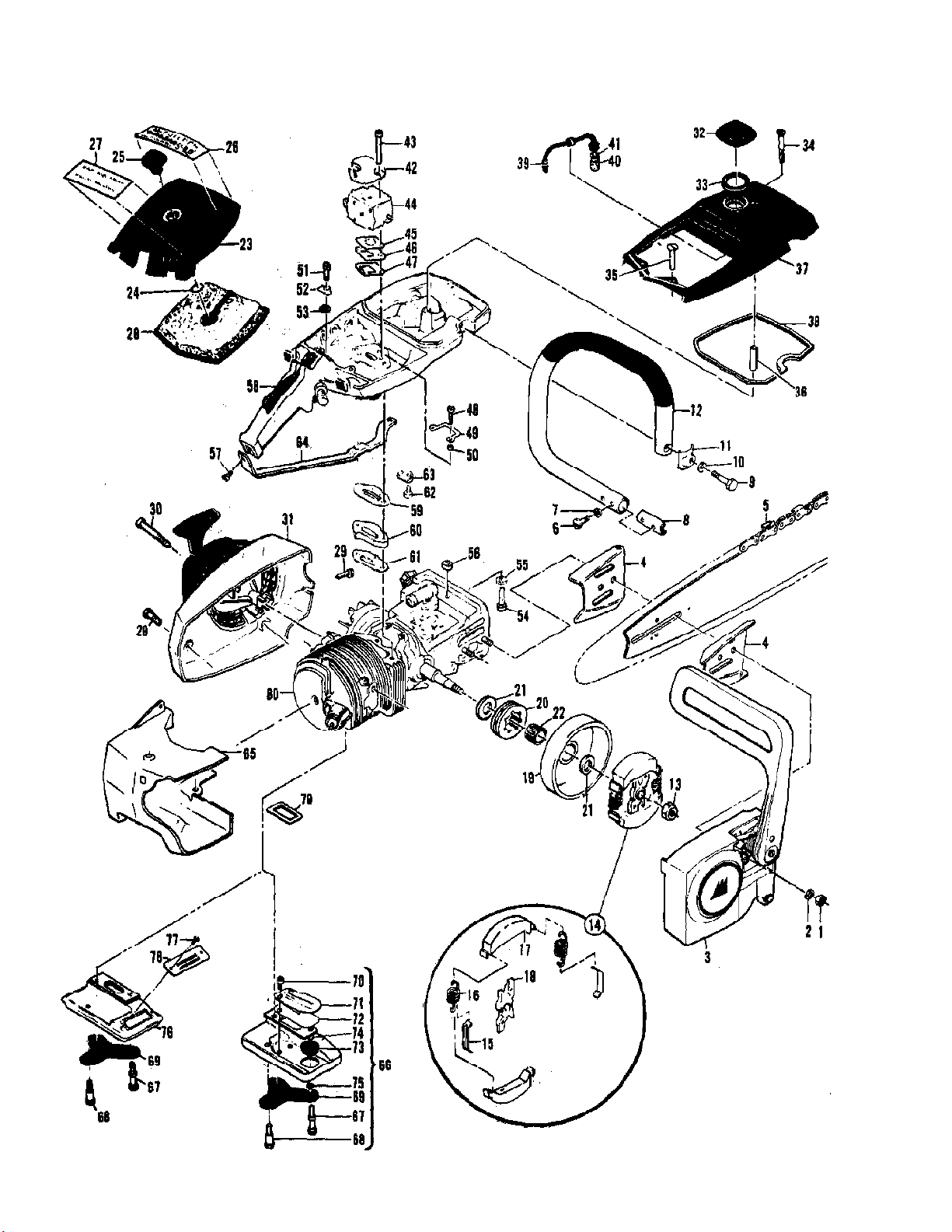

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 14 of 18
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 110454 Nut-Hx 5/16-242
2 100440 Washer-5/162
3 CHAIN BRAKE Asy See "Chain Brake Assembly"
illustration and parts list.
4 64330 Set-Bar Plates1
5 Bar & Chain (Accessories)
6 110865 Screw-Hx hd 10-24 x 7/82
7 100352 Washer-#102
8 89727 Retainer-Frame1
9 102130 Screw-Hx hd 1/4-20 x 1-1/21
10 100153 Washer-Lock 1/41
11 63484 Clamp-Frame1
12 87686A Frame & Grip Asy1
13 86113 Nut-Hx 3/8-24 (L.H.)1
14 87675 Clutch Asy1
15 64583 Retainer-Spring2
16 83223 Spring-Clutch2
17 67233 Shoe-Clutch2
18 89438 Rotor-Asy1
19 86945 Drum/Spkt Asy-VT .354P1
20 86950 Kit-Sprocket 7T .354P1
21 86958 Washer-Shim2
19 86946 Drum/Spkt Asy-7T .375P1
20 86951 Kit-Sprocket 7T .375P1
21 86958 Washer-Shim2
19 65370 Drum/Spkt Asy-VT .354P1
21 61692 Washer-Shim2
22 110330 Bearing-Sprocket1
23 68530A Cover Asy-Air cleaner1
24 110565 Ring-Retainer1
25 68529 Knob-Cover1
26 91560 Plate-Name1
27 91548 Plate-Instruction1
28 69922 Filter-Air1
29 110741 Screw-Pan hd 10-24 x 1/22
30 87871 Screw-Special3
31 Fan Housing & Starter Asys See "Fan Housing &
Starter Assembly" illustration and parts list.
32 89322 Cap Asy-Fuel1
33 69767 Gasket1
34 110402 Screw-Oval hd 12-24 x 2-3/81
35 103579 Screw-Fil hd 10-24 x 12
36 87840 Spacer1
37 69679 Cover-Fuel tank1
38 69345 Gasket-Cover1
39 64848 Hose Asy-Fuel1
40 63982 Filter-Fuel1
41 100440 Washer1
42 83204 Kit-Air cleaner bracket1
43 103357 Bolt-Hx hd 10-24 x 2-1/42
44 Carburetor Asy See "Carburetor Assembly"
illustrations and parts list.
45 86189 Gasket-Carburetor1
46 84078 Spacer-Carburetor1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 15 of 18
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
47 84081 Gasket-Spacer1
48 110570 Screw-Hx hd 12-24 x 1-3/82
49 68582 Plate-Lock1
50 102115 Washer-#122
51 110568 Screw-Hx hd 12-24 x 1-1/81
52 69516 Plate-Lock1
53 64856 Washer-Special1
54 110713 Screw-Skt hd 10-24 x 7/81
55 100003 Washer-#101
56 69772 Spacer-Fuel tank1
57 110910 Screw-Hx hd 10-24 x 1-3/81
58 Fuel Tank Asy See "Fuel Tank Assembly" illustrations
and parts list.
59 84082 Gasket-Fuel tank1
60 84079 Insulator-Fuel tank1
61 84082 Gasket-Insulator1
62 110566 Screw-Hx hd 10-24 x 5/81
63 68508 Plate-Lock1
64 85007 Brace-Handle1
65 85731A Shroud1
66 68863 Kit-Muffler1
67 67838 Screw-Muffler long2
68 67837 Screw-Short1
69 83993 Plate-Lock1
70 110563 Screw-Skt hd 8-32 x 1/42
71 84780 Stop-Reed1
72 84779 Reed1
73 85933 Kit-Spark Arrester1
74 101987 Screw-Rd hd 6-32 x 1/41
75 100796 Nut-Hx 6-321
76 95318 Muffler Asy1
77 110662 Screw-Pan hd 6-32 x 3/82
78 95320 Cover-Screen1
79 84007 Gasket-Muffler1
80 Powerhead Asy See "Powerhead Assembly"
illustrations and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 16 of 18
www.ktoutdoor.com

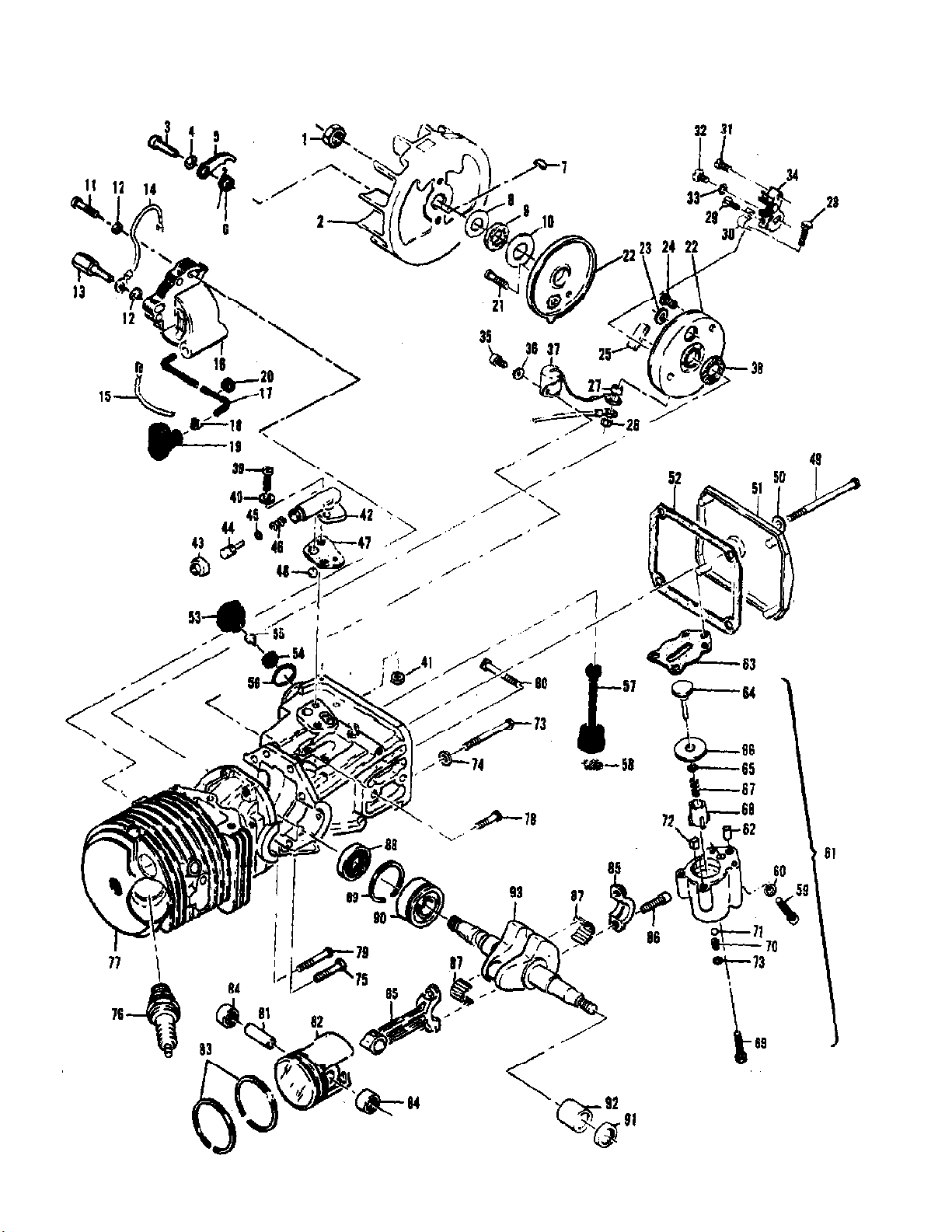

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 17 of 18
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 110703 Nut-Hx 3/8-241
2 86068 Flywheel1
3 88804 Screw-Pawl pivot2
4 83241 Washer-Special2
5 67546 Pawl-Starter2
6 67545 Spring-Pawl2
7 100106 Key-Woodruff1
8 67057 Washer - Thrust1
9 67056 Seal-Breaker box cover1
10 67054 Washer - Thrust1
11 110127 Screw-Hx hd 10-24 x 7/8 (SEMS)1
12 100002 Washer-#102
13 83512 Stud-Special1
14 84686 Wire Asy-Ground1
15 69344 Wire Asy-Primary1
16 87246A Coil & Lamination Asy1
17 50120 Wire Asy-Spark plug1
18 55061 Connector1
19 85758 Boot1
20 100268 Grommet1
21 110584 Screw-Pan hd 8-32 x 3/41
22 91852 Kit-Breaker Box & Cover1
23 91838 Washer1
24 110489 Screw-Pan hd 6-32 x 7/161
25 54184 Wiper-Cam1
26 100298 Nut-Hx 6-321
27 62365 Spacer-Breaker1
28 110346 Screw-Hx hd 6-32 x 3/41
29 110706 Screw-Pan hd 8-18 x 1/21
30 83126 Strap-Conduction1
31 110811 Screw-Pan hd 8-32 x 3/81
32 110969 Screw-Hx hd 8-32 x 1/21
33 105976 Washer-#81
34 88808 Breaker Asy1
35 110623 Screw-Fil hd 8-32 x 1/21
36 100080 Washer-#81
37 85358 Condenser1
38 67051 Seal-Breaker box1
39 110338 Screw-Fil hd 8-32 x 1/22
40 110613 Washer-#82
41 100955 Nut-Hx 8-321
42 84156 Housing-Pump1
43 62262 Cap-Housing1
44 62266 Plunger-Pump1
45 105614 "O" Ring1
46 66687 Spring-Pump1
47 91669 Gasket-Pump1
48 91668 Valve-Pump1
49 110291 Screw-Pan hd 10-24 x 2-5/81
50 110921 Washer-Sealing1
51 86304 Cover-Oil tank1
52 86306 Gasket-Cover1
53 87270 Cap-Oil tank1
54 87269 Retainer-Valve1
55 86402 Valve-Check1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-600013K PRO 10-10 04/75 to 04/77 IPL 92379A-R1 Page 18 of 18
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
56 101148 "O" Ring1
57 91672 Hose Asy-Oil1
58 51506 Screen-Hose1
59 110865 Screw-Hx hd 10-24 x 7/81
60 100003 Washer-#101
61 89115B Pump Asy-Pulse1
62 91774 Sleeve1
63 92818 Seal-Pulse pump1
64 60260A Piston Asy-Pump1
65 105603 "O" Ring1
66 86182 Ring-Piston1
67 60259 Spring-Piston1
68 62227 Sleeve-Adjustment1
69 110386 Screw-Hx hd 8-32 x 11
70 106104 "O" Ring1
71 92844 Spring-Outlet valve1
72 102809 Ball1
73 91259 Pad-Pump1
74 62105 Screw Asy-Sealing4
75 62842 Washer-Sealing4
76 110288 Screw-Hx hd 8-32 x 3/41
77 63097 Spark Plug Used on models 600013A, 600013B,
1
600013K, 600013U, with serial number prefix 11-, 12-,
13-.
77 93018 Spark Plug Used on models 600013E, with serial
number prefix 12-, 13-.
78 84113A Cyl/C'Case Asy
79 110288 Screw-Hx hd 8-32 x 3/42
80 110618 Screw-Hx hd 8-32 x 1-3/81
81 62065 Bolt-Bar mounting2
82 61649 Pin-Piston1
83 69212 Piston Asy1
84 62814 Ring Set-Piston1
85 103085 Bearing-Needle2
86 65401 Connecting Rod Asy1
87 61627A Screw-Skt hd Special2
88 63225 Roller-Needle (Set of 20)1
89 67906 Seal-Oil1
90 63464 Ring-Snap1
91 67905 Bearing-Ball1
92 110260 Seal-Oil1
93 104357 Bearing-Needle1
94 87699 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
