11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 1 of 19
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 2 of 19
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
63541 Bar - 16" Mac 10
62556N Chain Asy - 16" PM 358
86780N Chain Asy - 16" PM 378
87143N Chain Asy - 16" SM 378
89909N Chain Asy - 16" SPR 378G
89502 Bar - 16" Mac 10
89521N Chain Asy - 16" PM 350
91090A Bar - 16" Sprocket Nose
87301N Chain Asy - 16" SM 370
88167N Chain Asy - 16" PM 370G
69210 Piston Asy - .020 in. oversize
62813 Ring Set - Piston .020 in. oversize
69211 Piston Asy - .030 in. oversize
62812 Ring Set - Piston .030 in. oversize
84453 Kit - Piston Tool
86330 Kit - Spike
102388 Screw - Hx hd 10-24 x 5/8
101191 Nut - Hx 10-24
90258 Kit - Tune Up
86419 Guide - Timing
69191 Kit - Pressure Test Adapter
91226 Wrench - Flywheel
63746 Wrench/Screwdriver
68863 Kit - Pancake Reed Muffler
89431 Kit - Spark Arrester Screen
85933 Kit - Spark Arrester Screen
63097 Spark Plug (Standard)
63432 Spark Plug (Cooler)
92896 Guard - Bar 16"
93284 Case - Carrying
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 3 of 19
www.ktoutdoor.com
Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 4 of 19
www.ktoutdoor.com

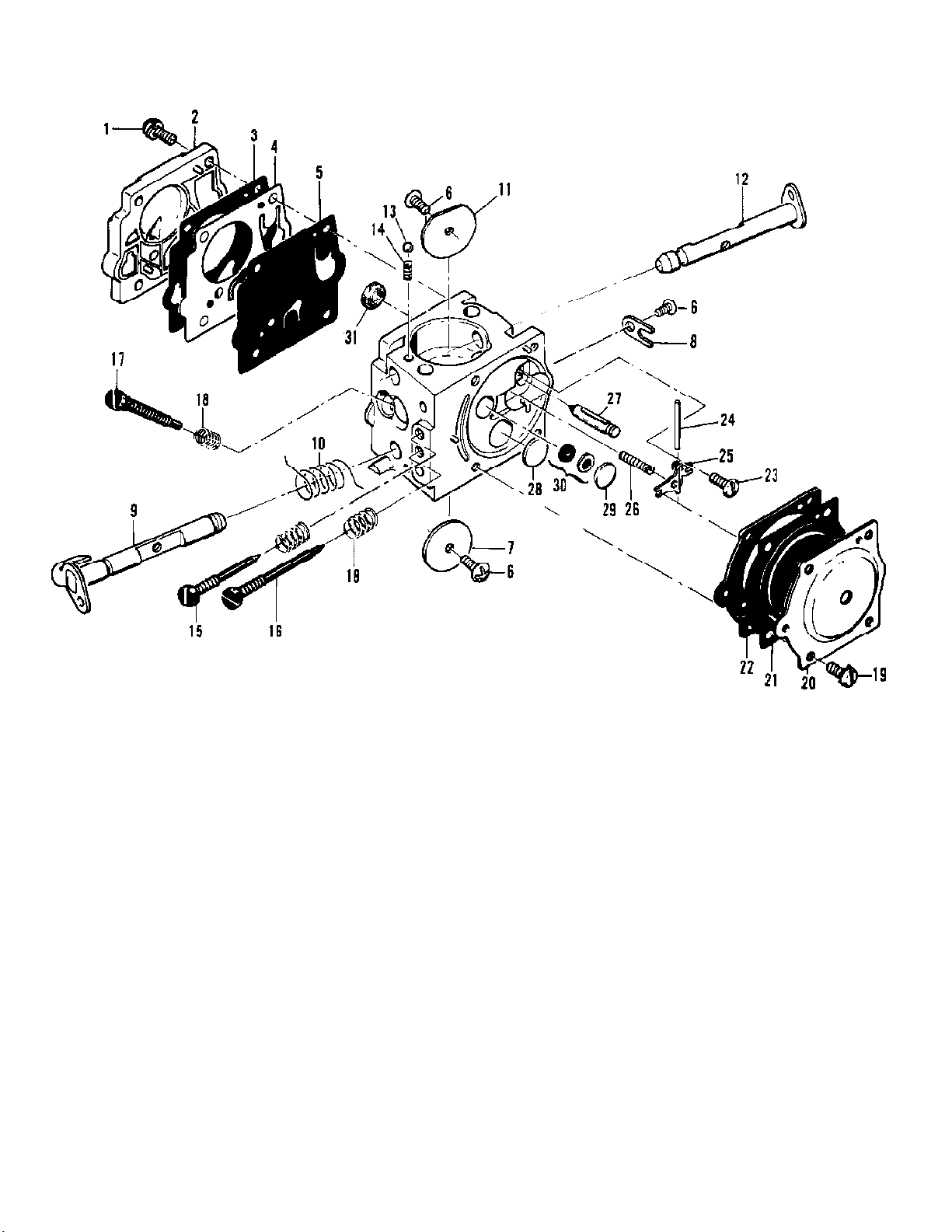

Carburetor Assembly
Ref # Part Number DescriptionQty
85720 Carburetor Assy1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Assy - Throttle1
10 85981 Spring - Throttle shaft1
11 67490 Plate - Choke1
12 67488 Shaft Assy - Choke1
13 100302 Ball - Choke friction1
14 67504 Spring - Choke friction1
15 68104 Needle - High speed1
16 68105 Needle - Idle1
17 68106 Screw - Idle speed1
18 67502 Spring - Needle1
19 70798 Screw - Diaphragm cover4
20 83761 Cover - Diaphragm1
21 67499 Diaphragm - Metering1
22 67496 Gasket - Diaphragm1
23 67500 Screw - Lever pin1
24 67508 Pin - Lever1
25 67509 Lever - Metering1
26 67503 Spring - Lever1
27 67491 Valve - Needle1
28 71690 Plug - 3/81
29 69506 Plug - 5/161
30 83758 Kit - Valve & Seat Assy1
31 67507 Screen - Fuel1
67482 Gasket Set
83764 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 5 of 19
www.ktoutdoor.com
Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 6 of 19
www.ktoutdoor.com

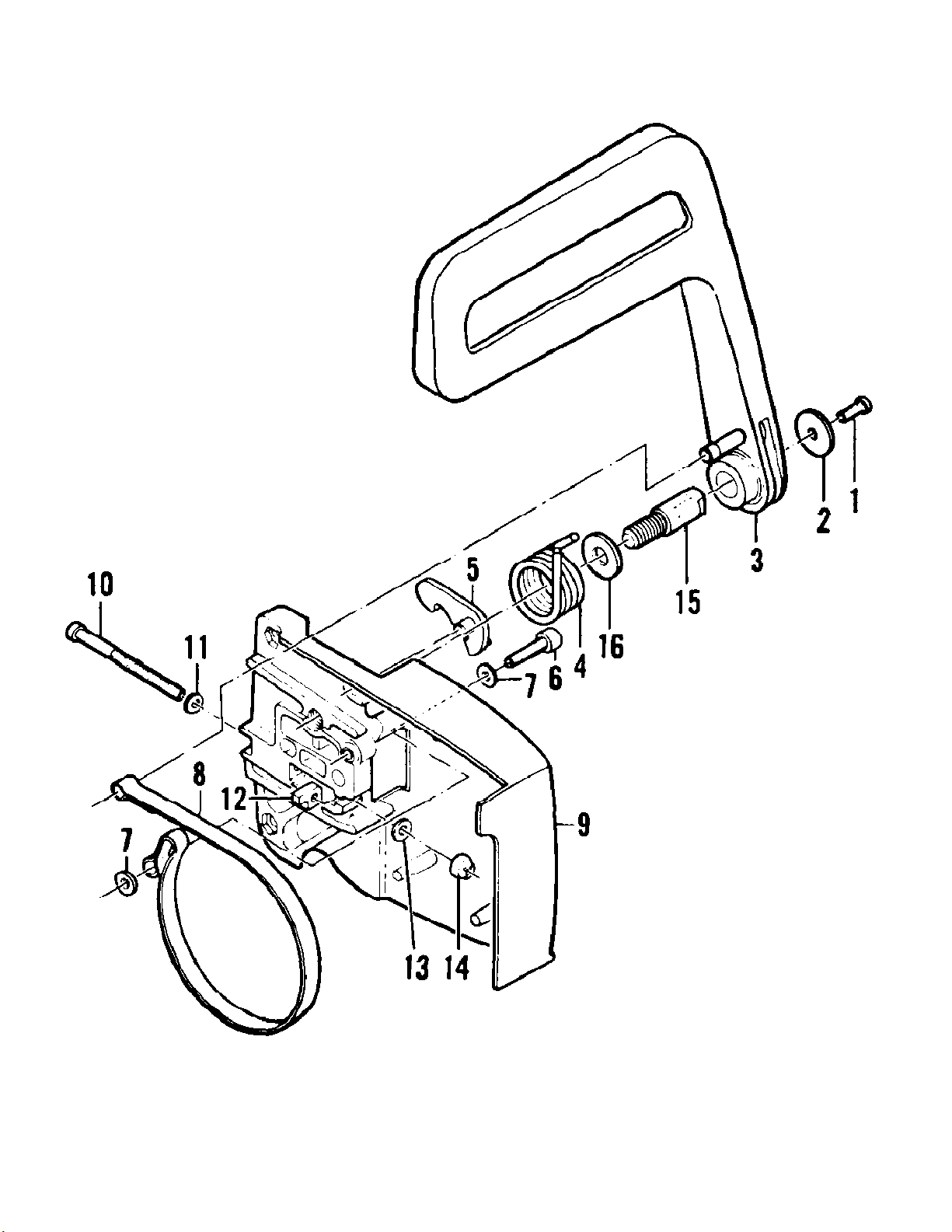

Chain Brake Assembly
Ref # Part Number DescriptionQty
91278 CHAIN BRAKE Assembly1
1 102500 Screw - Pan hd 10-24 x 1/21
2 91273 Washer - Special1
3 91251A Lever Assembly1
4 91239 Spring1
5 91235A Latch Assembly1
6 105738 Screw - Skt hd 1/4-20 x 7/81
7 91274 Washer - Special2
8 91238A Band1
9 91249 Housing Assembly1
10 110527 Screw - Fil hd 10-24 x 2-3/41
11 110264 Washer - #101
12 61705 Nut - Bar adjusting1
13 100002 Washer - #101
14 102067 Nut - Hx 10-241
15 91246 Pin - Lever pivot1
16 91245 Washer - Thrust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 7 of 19
www.ktoutdoor.com
Clutch Guard Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 8 of 19
www.ktoutdoor.com

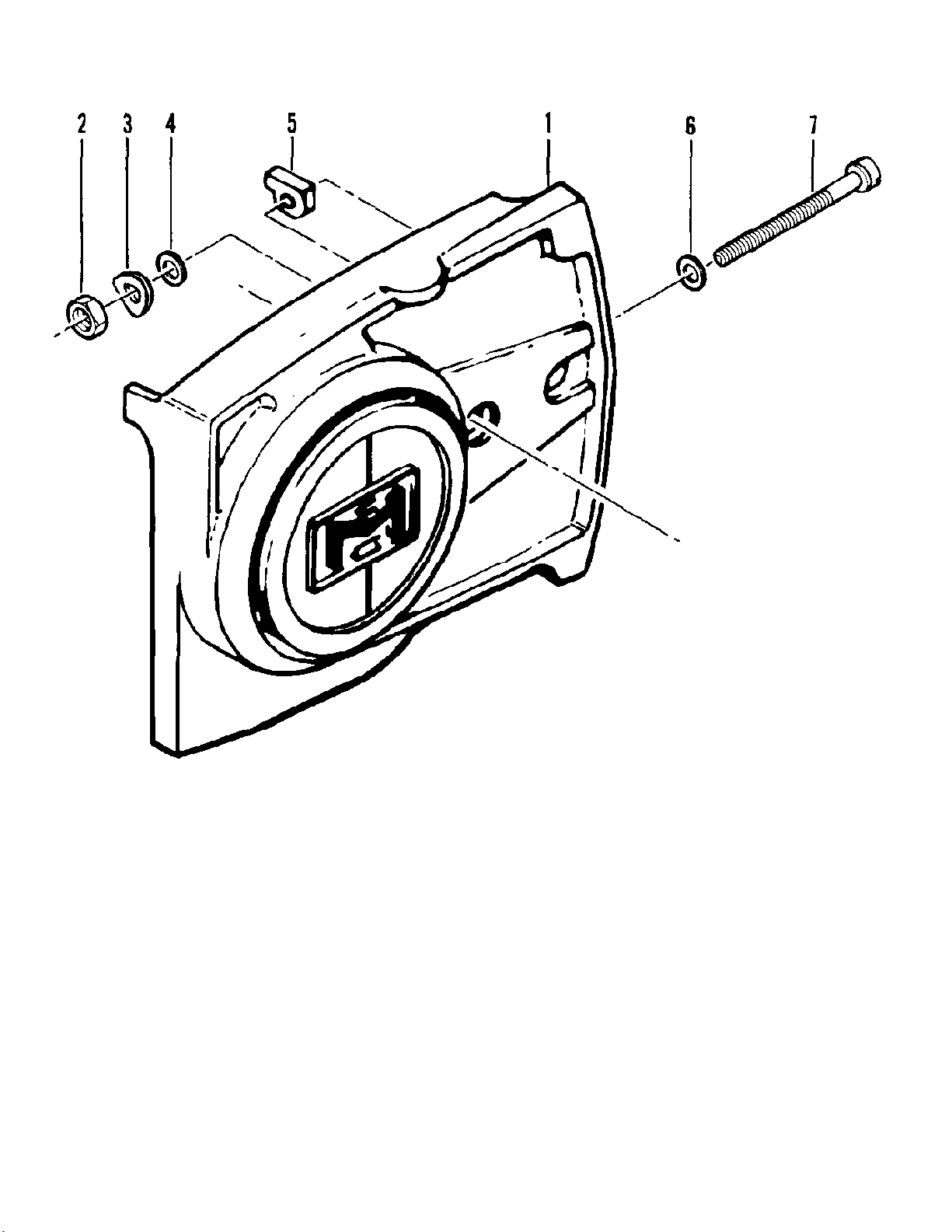

Clutch Guard Assembly
Ref # Part Number DescriptionQty
1 84530 Clutch Guard Asy1
2 102067 Nut - Hx 10-241
3 110387 Washer - Wavey1
4 100002 Washer #101
5 61705 Nut - Bar adjustment1
6 110264 Washer - #101
7 102144 Screw - Bar adjustment1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 9 of 19
www.ktoutdoor.com
Fan Housing & Starter Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 10 of 19
www.ktoutdoor.com

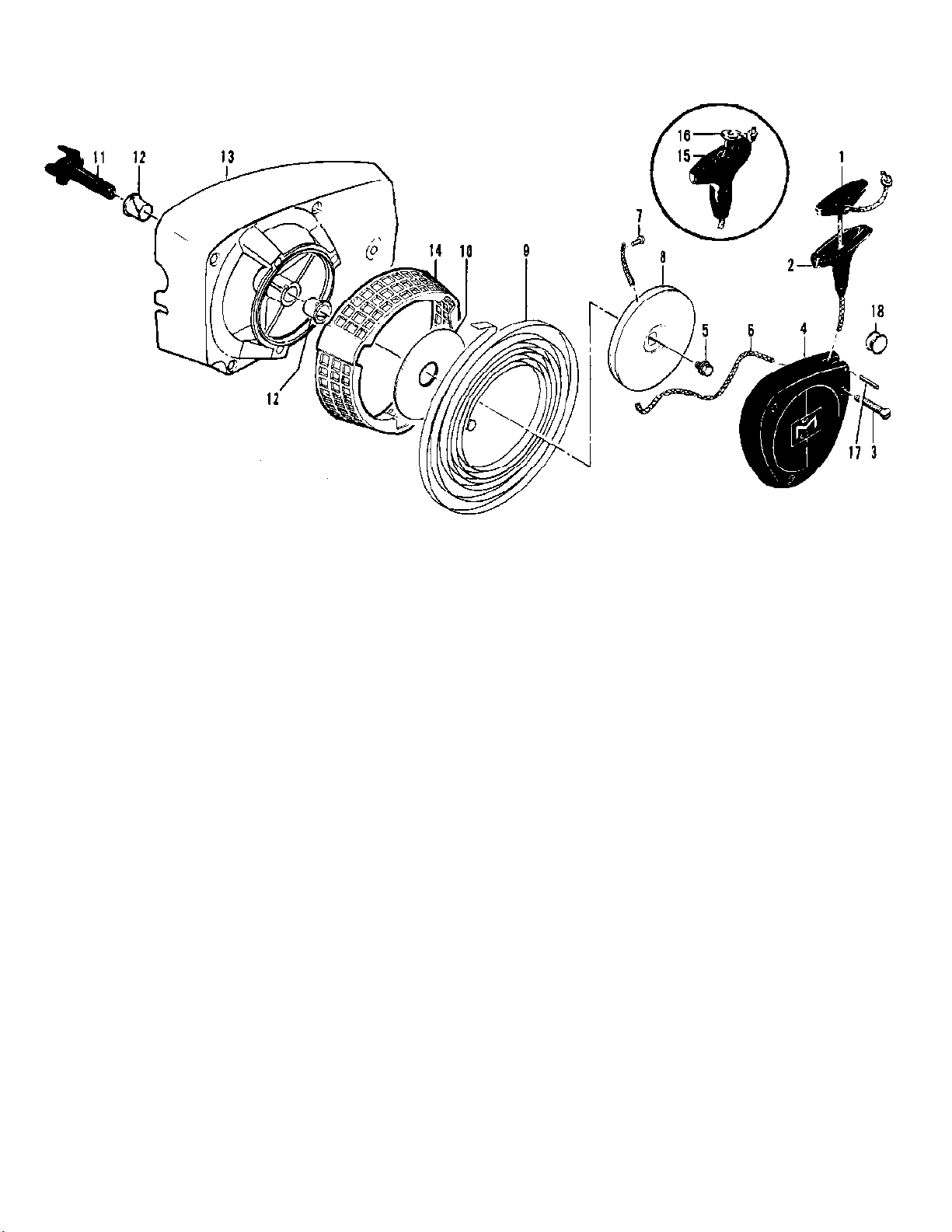

Fan Housing & Starter Assemblies
Ref # Part Number DescriptionQty
87667 Fan Housing & Starter Asy1
1 62191A Insert - Handle1
2 93137 Handle - Starter1
3 110646 Screw - Oval hd 8-32 x 1-1/83
4 87672 Cover - Starter1
5 110341 Screw - Hx hd 10-24 x 1/21
6 68162 Rope - Starter1
7 110470 Rivet - Rope1
8 85122 Drum - Starter1
9 87680 Spring - Rewind1
10 86053 Shield - Spring1
11 83748 Shaft - Starter1
12 57535 Bushing - Starter2
13 87693 Kit - Fan Housing1
14 87674 Guard - Sawdust1
15 91255 Kit - Starter Handle1
16 105490 Washer1
17 110657 Pin - Roll1
18 84051 Pulley - Rope1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 11 of 19
www.ktoutdoor.com
Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 12 of 19
www.ktoutdoor.com

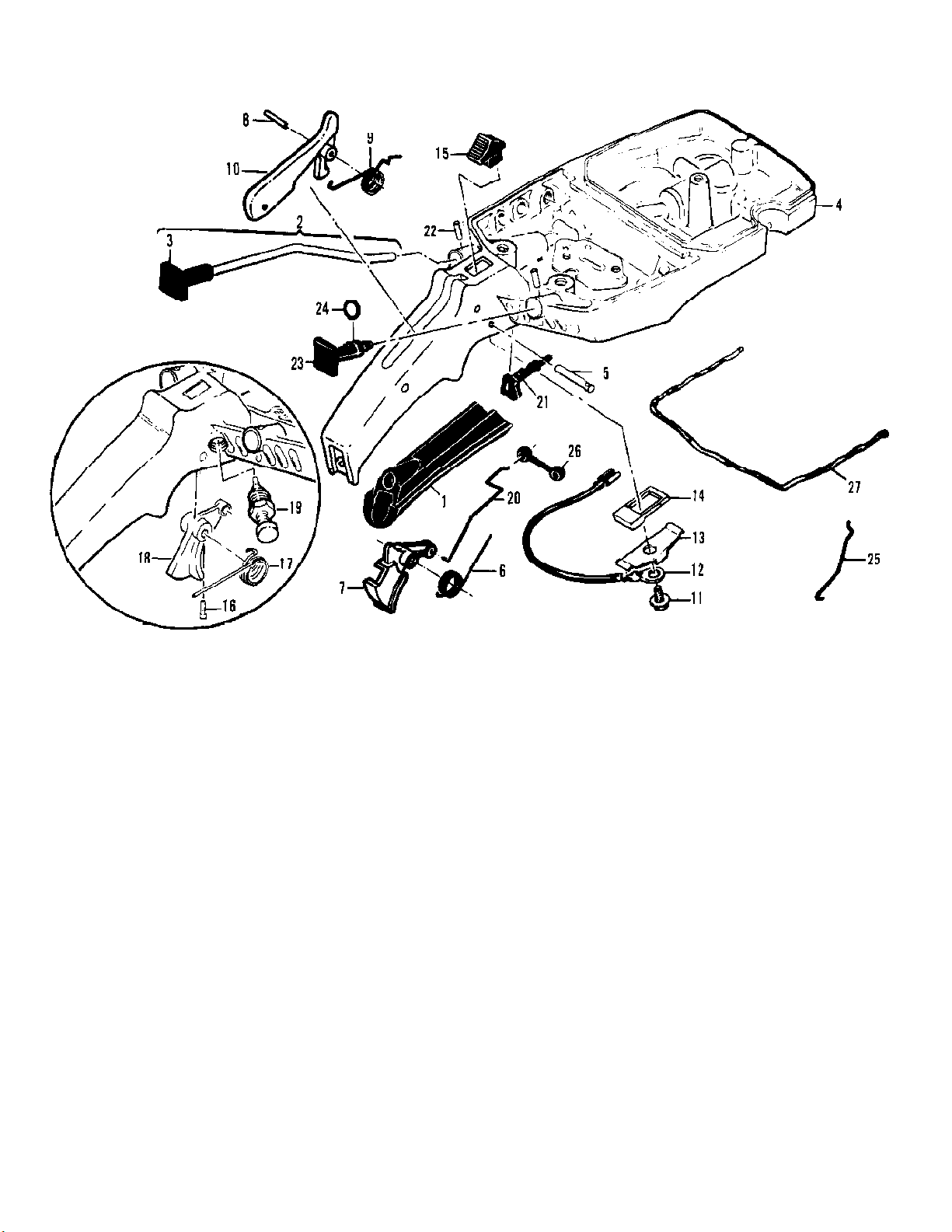

Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 89320 Insert - Handle grip1
2 64871 Button & Rod Assembly1
3 63044 Button - Oiler1
4 84183A Kit - Fuel tank/control1
5 110378 Pin - Roll 3/16 x 15/161
6 92152 Spring - Trigger1
7 92151A Trigger - Throttle1
8 105654 Pin - Roll 1/8 x 7/81
9 92154 Spring - Trigger release1
10 92153A Release - Trigger1
11 110706 Screw - Fil hd 8-18 x 1/21
12 62973A Wire Asy - Stop switch1
13 62451 Control - Switch1
14 62950A Base - Switch1
15 68846 Button - Switch1
16 110668 Screw - Fil hd 8-36 x 5/81
17 87178 Spring - Throttle return1
18 88796 Trigger1
19 85451 Latch Assembly - Throttle1
20 85107 Rod - Throttle1
21 68522A Seal - Throttle rod1
22 105673 Pin - Roll 3/32 x 9/162
23 69041 Button - Choke1
24 105614 "O" Ring1
25 69042 Rod - Choke1
26 69043 Snubber - Rod1
27 69564 Seal - Airbox1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 13 of 19
www.ktoutdoor.com
General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 14 of 19
www.ktoutdoor.com

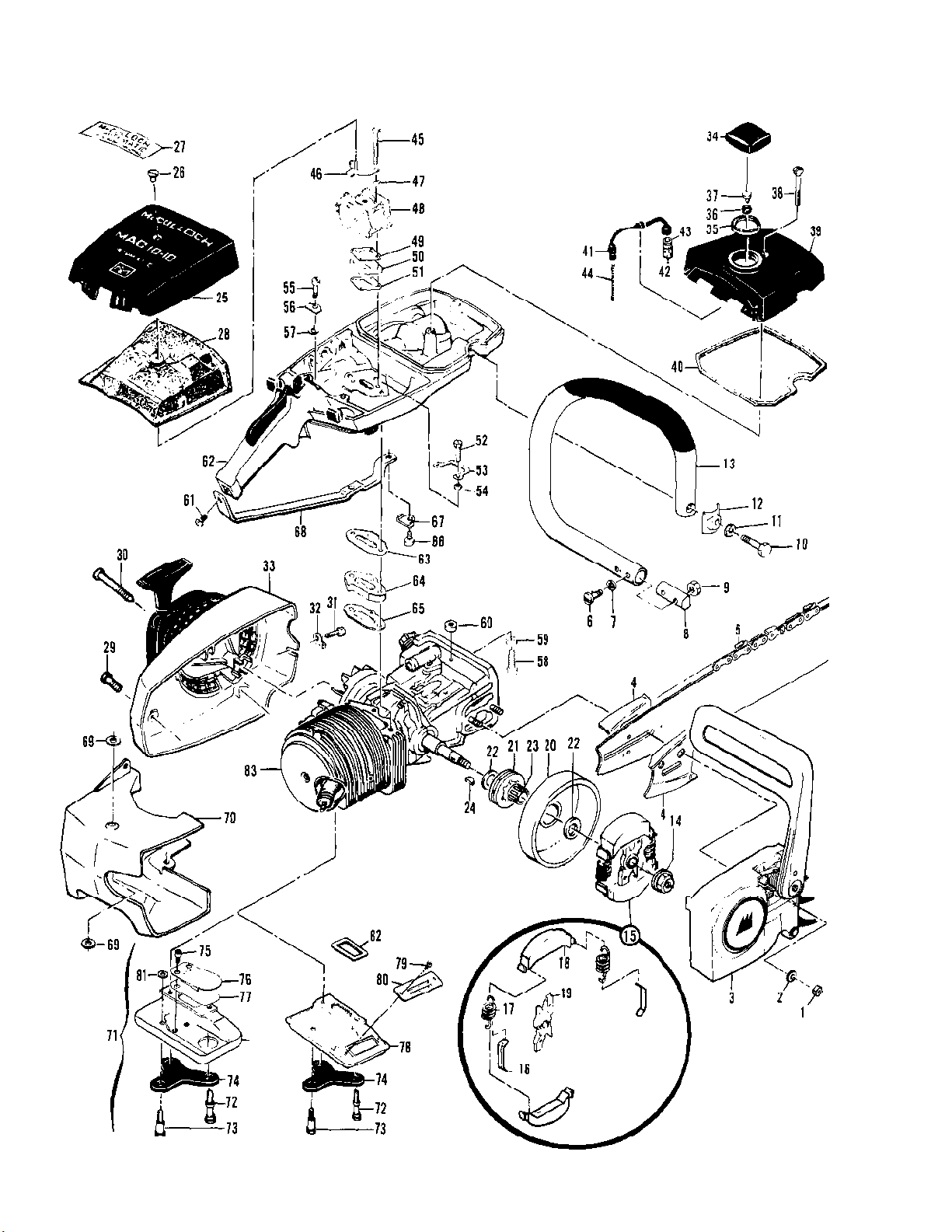

General
Ref # Part Number DescriptionQty
1 110961 Nut - Hx 5/16-242
2 100440 Washer - 5/162
3 Clutch Guard Asy See "Clutch Guard Assembly"
illustration and parts list.
3 CHAIN BRAKE ASY See "Chain Brake Assembly"
illustration and parts list.
4 64330 Set - Bar Plates1
5 Bar & Chain (Accessories)
6 110865 Screw - Hx hd 10-24 x 7/82
7 100352 Washer - #102
8 89727 Retainer - Frame1
9 101326 Nut - Hx 10-242
10 102130 Screw - Hx hd 1/4-20 x 1-1/21
11 100153 Washer - Lock 1/41
12 63484 Clamp - Frame1
13 87686A Frame & Grip Asy1
14 110703 Nut - Hx 3/8-24 R.H.1
14 86113 Nut - Hx 3/8-24 L.H.1
15 87675 Clutch Asy1
16 64583 Retainer - Spring2
17 83223 Spring - Clutch2
18 67233 Shoe - Clutch2
19 89438 Rotor Asy1
20 65370 Drum/Spkt Asy - 7T .354P1
21 Sprocket - Fixed rim1
22 61692 Washer - Shim2
20 86946 Drum/Spkt Asy-VT .375P1
21 86951 Sprocket - 7T .375P1
22 86958 Washer - Shim1
23 110971 Bearing - Sprocket1
24 100106 Key - Woodruff1
25 69033 Cover Asy - Air cleaner1
26 65813 Nut - Cover1
27 68177 Plate - Instruction1
28 89458 Filter - Air1
28 86397 Filter - Air1
29 110741 Screw - Pan hd 10-24 x 1/21
30 87871 Screw - Fan housing3
31 102762 Screw - Hx hd 10-24 x 1/21
31 110741 Screw - Pn hd 10-24 x 1/21
32 69890 Plate - Lock1
33 Fan Housing & Starter Asys See "Fan Housing &
Starter Assemblies" illustration and parts list.
34 89322 Cap Asy - Fuel1
35 69767 Gasket1
36 86453 Plug1
37 53766A Valve1
38 110334 Screw - Oval hd 12-24 x 1-3/41
39 69684 Cover - Fuel tank1
40 69345 Gasket - Cover1
41 64848 Hose Asy - Fuel1
42 63932 Filter - Fuel1
43 100440 Washer1
44 67944 Spring - Hose1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 15 of 19
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
45 103357 Screw - Hx hd 10-24 x 2-1/42
46 68807 Bracket Asy1
47 24236 Washer - Special2
48 Carburetor Asy See "Carburetor Assembly"
illustration and parts list.
49 86189 Gasket - Carburetor1
50 84078 Spacer - Carburetor1
51 84081 Gasket - Spacer1
52 110570 Screw - Hx hd 12-24 x 1-3/82
53 68582 Plate - Lock1
54 102115 Washer - #122
55 110568 Screw - Hx hd 12-24 x 1-1/81
56 69516 Plate - Lock
57 64856 Washer - Special1
58 110713 Screw - Skt hd 10-24 x 7/81
59 100003 Washer - #101
60 69772 Spacer - Fuel tank1
61 106078 Screw - Pn hd 10-24 x 7/161
61 110910 Screw - Hx hd 10-24 x 1-3/81
62 Fuel Tank Asy See "Fuel Tank Assembly" illustration
and parts list.
63 84082 Gasket - Fuel tank1
64 84079 Insulator - Fuel tank1
65 84082 Gasket - Insulator1
66 110566 Screw - Hx hd 12-24 x 5/81
67 68508 Plate - Lock1
68 85007 Brace - Handle1
69 68581 Insulator - Shroud2
70 85731A Shroud1
71 68863 Kit - Muffler1
72 67838 Screw - Muffler long2
73 67837 Screw - Muffler short1
74 83993 Plate - Lock1
75 110563 Screw - Skt hd 8-32 x 1/41
76 84780 Stop - Reed1
77 84779 Reed1
78 89428A Muffler Asy1
79 110662 Screw - Pan hd 6-32 x 3/82
80 89432A Cover - Screen1
81 63993 Gasket - Muffler screw1
82 84007 Gasket - Muffler1
83 Powerhead Asy See "Powerhead Assembly"
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 16 of 19
www.ktoutdoor.com
Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 17 of 19
www.ktoutdoor.com

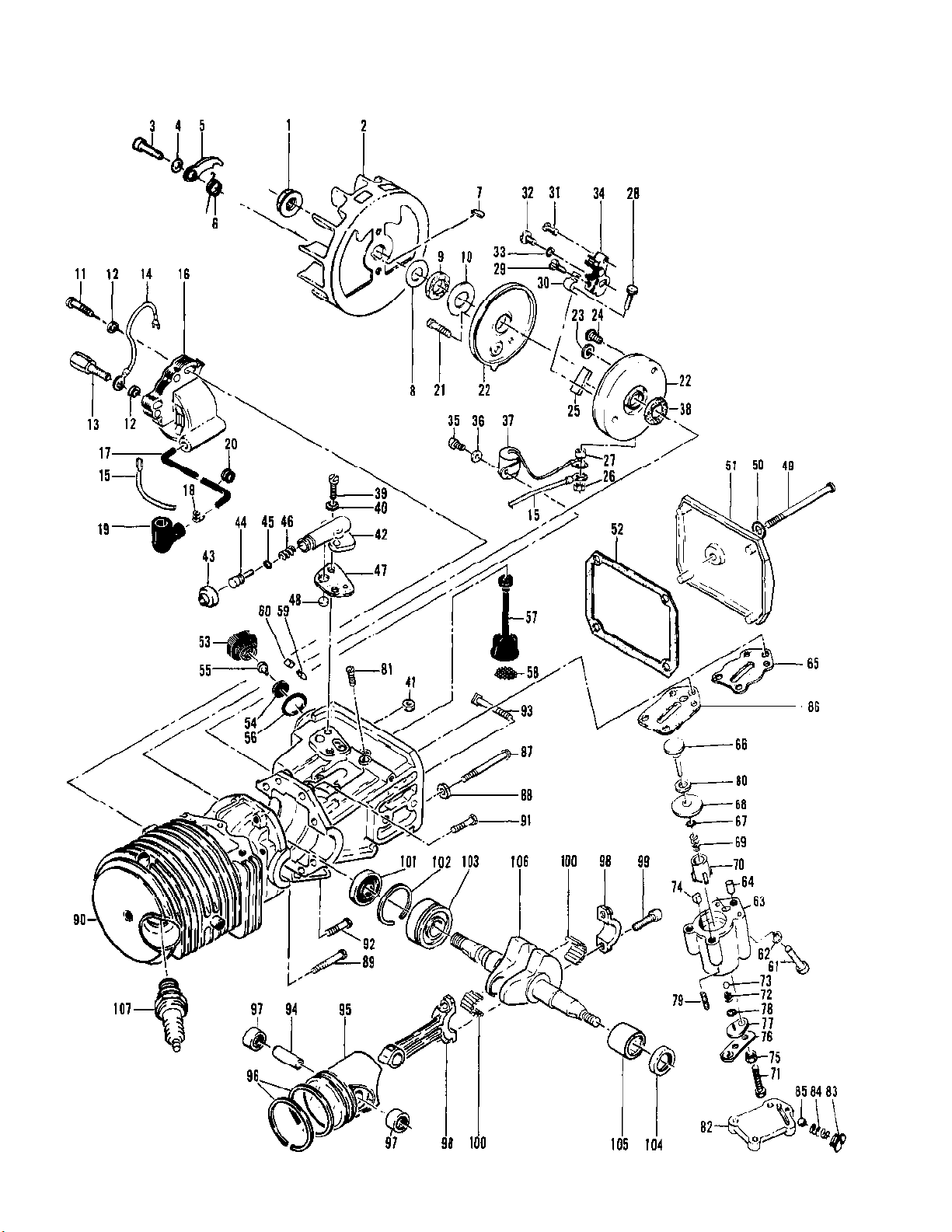

Powerhead Assembly
Ref # Part Number DescriptionQty
1 110703 Nut - Hx 3/8-241
2 86068 Flywheel1
3 88804 Screw - Pawl pivot2
4 83241 Washer - Special2
5 67546 Pawl - Starter2
6 67545 Spring - Pawl2
7 100106 Key - Woodruff1
8 67057 Washer - Thrust1
9 67056 Seal - Breaker box cover1
10 67054 Washer - Thrust1
11 110127 Screw - Hx hd 10-24 x 7/81
12 100002 Washer - #102
13 83512 Stud - Special1
14 84686 Wire Asy - Ground1
15 69344 Wire Asy - Primary1
16 87246A Coil & Lamination Asy1
17 50120 Wire Asy - Spark plug1
18 55061 Connector1
19 85758 Boot1
20 100268 Grommet1
21 110584 Screw - Pan hd 8-32 x 3/41
22 91852 Kit - Breaker Box & Cover1
23 91838 Washer1
24 110489 Screw - Pan hd 6-32 x 7/161
25 54184 Wiper - Cam1
26 100298 Nut - Hx 6-321
27 62365 Spacer - Breaker1
28 110346 Screw - Hx hd 6-32 x 3/41
29 110706 Screw - Pan hd 8-18 x 1/21
30 83126 Strap - Conduction1
31 110811 Screw - Pan hd 8-32 x 3/81
32 110969 Screw - Hx hd 8-32 x 1/21
33 105976 Washer - #81
34 88808 Breaker Asy1
35 110338 Screw - Fil hd 8-32 x 1/21
36 100080 Washer - #81
37 85358 Condenser1
38 67051 Seal - Breaker box1
39 110338 Screw - Fil hd 8-32 x 1/22
40 110613 Washer - #82
41 100955 Nut - Hx 8-321
42 84156 Housing - Pump1
43 62262 Cap - Housing1
44 62266 Plunger - Pump1
45 105614 "O" Ring1
46 66687 Spring - Pump1
47 91669 Gasket - Pump1
47 62230 Gasket - Pump1
48 91668 Valve - Pump1
48 62909 Valve - Pump1
49 110291 Screw - Pan hd 10-24 x 2-5/81
50 110921 Washer - Sealing1
51 86304 Cover - Oil tank1
52 86306 Gasket - Cover1
53 87270 Cap - Oil tank1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 18 of 19
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
54 87269 Retainer - Valve1
55 86402 Valve - Check1
56 101148 "O" Ring1
57 91672 Hose Asy - Oil1
57 62123B Hose Asy - Oil1
58 51506 Screen - Hose1
59 110737 Clip - Oil cap plug1
60 84953 Plug - Oil cap1
61 110865 Screw - Hx hd 10-24 x 7/81
62 100003 Washer - #101
63 89115B Pump Asy - Pulse1
64 91774 Sleeve1
65 92818 Seal - Pulse pump1
66 60260B Piston Asy - Pump1
67 105603 "O" Ring1
68 86182 Ring - Piston1
69 60259 Spring - Piston1
70 62227 Sleeve - Adjustment1
71 110386 Screw - Hx hd 8-32 x 11
72 92844 Spring - Outlet valve1
73 102809 Ball1
74 91259 Pad - Pump1
75 100251 Nut - Hx 8-321
76 89114 Clamp - Pump1
77 62407 Cover - Outlet valve1
78 106104 "O" Ring1
79 110643 Screw - Set1
80 60937 Washer - Teflon1
81 110333 Screw - Oval hd 8-32 x 1/23
82 68711 Body Asy - Check valve1
83 68714 Screw - Special1
84 63034 Spring - Check valve1
85 100071 Ball1
86 62274 Gasket - Pump1
87 62105 Screw Asy - Sealing4
88 62842 Washer - Sealing4
89 110288 Screw - Hx hd 8-32 x 3/41
90 84113A Cyl/C'Case Asy1
90 69993 Cyl/C'Case Asy1
91 110288 Screw - Hx hd 8-32 x 3/42
92 110618 Screw - Hx hd 8-32 x 1-3/81
93 62065 Bolt - Bar mounting2
94 61649 Pin - Piston1
95 69212 Piston Asy1
96 62814 Ring Set - Piston1
97 103085 Bearing - Needle2
98 65401 Connecting Rod Asy1
99 61627A Screw - Skt hd Special2
100 63225 Roller - Needle (Set of 20)1
101 67906 Seal - Oil1
102 63464 Ring - Snap1
103 67905 Bearing - Ball1
104 110260 Seal - Oil1
105 104357 Bearing - Needle1
106 87699 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-600001H MAC 10-10 12/70 to 05/72 IPL 92374 Page 19 of 19
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
107 63097 Spark Plug (not A or E)1
107 65408 Spark Plug (A)1
107 93018 Spark Plug (E)1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
