Page 1
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 1 of 34
www.ktoutdoor.com

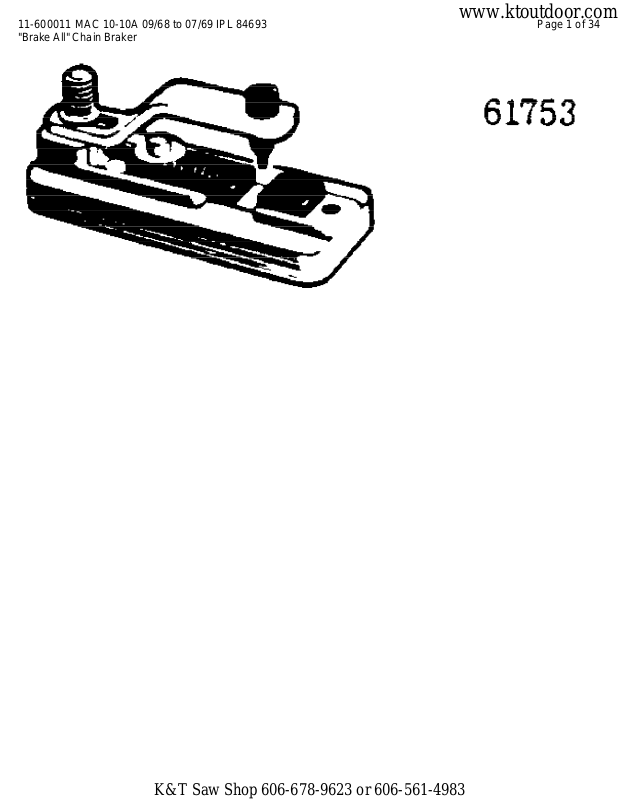

"Brake All" Chain Braker
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 2 of 34
www.ktoutdoor.com

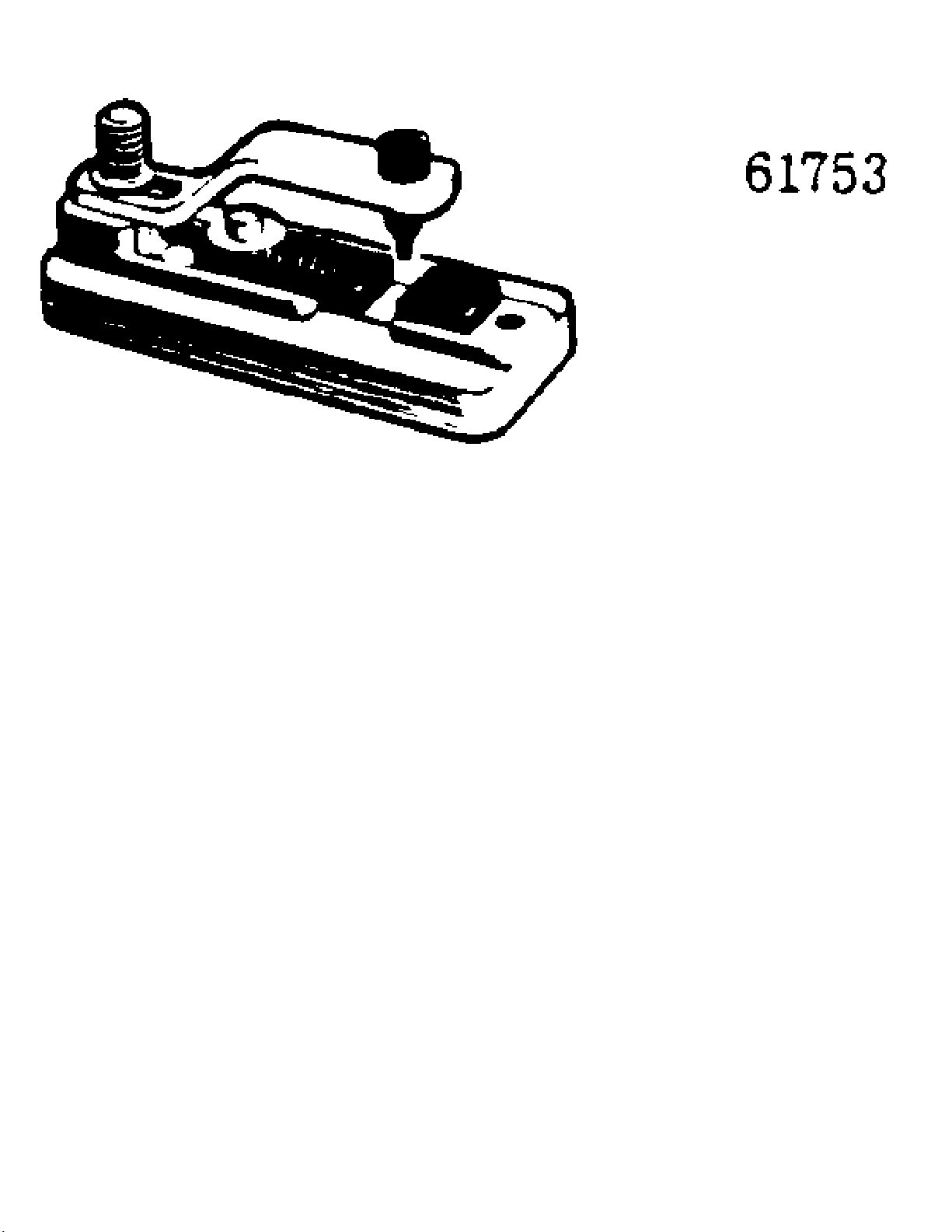

"Brake All" Chain Braker
Ref # Part Number DescriptionQty
61753 61753 Brake All" Chain Breaker Required when repairing
chain.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 3 of 34
www.ktoutdoor.com
40:1 Two-Cycle Motor Oil
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 4 of 34
www.ktoutdoor.com

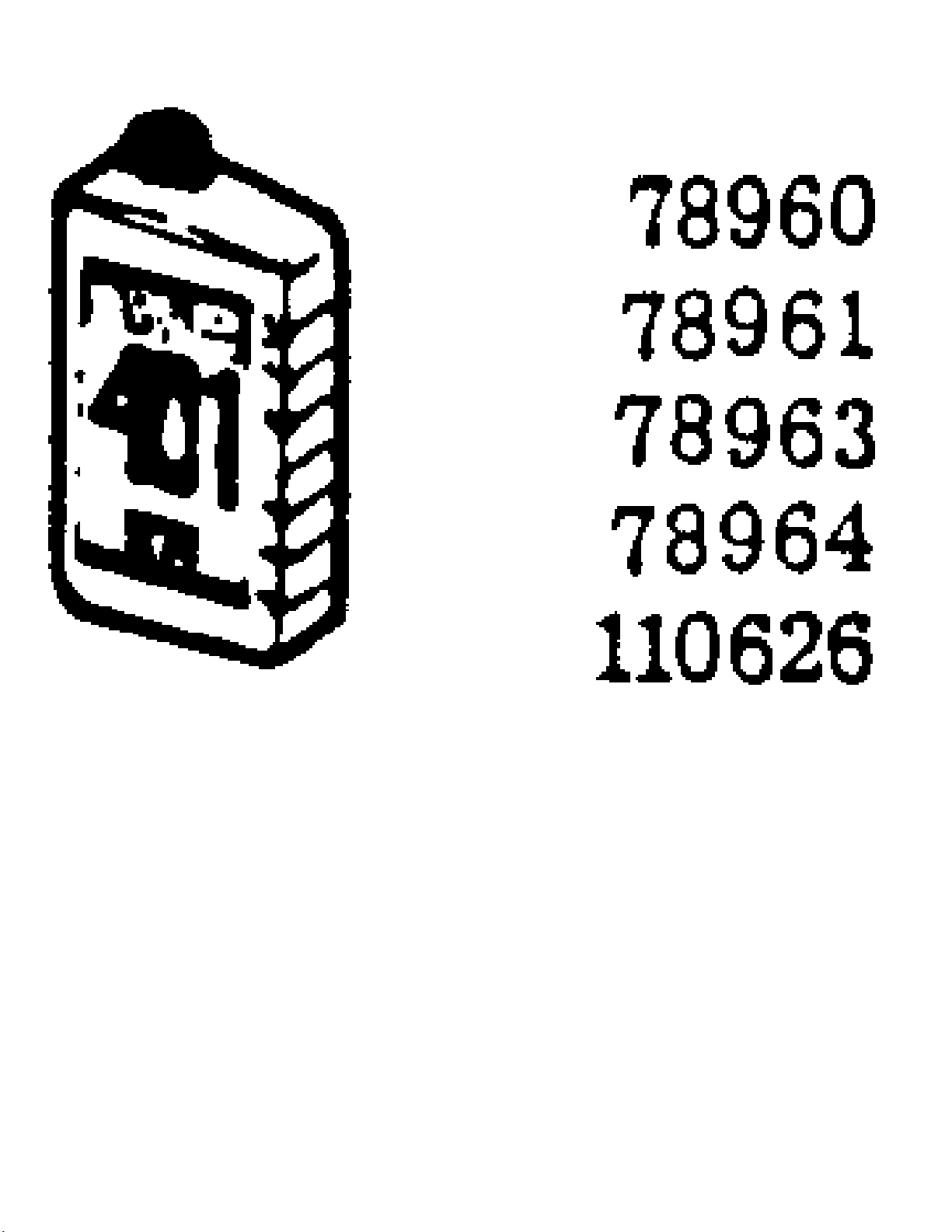

40:1 Two-Cycle Motor Oil
Ref # Part Number DescriptionQty
78960 78960 40:1 Two-Cycle Motor Oil 6 oz. can
78961 78961 40:1 Two-Cycle Motor Oil 6-pack
78963 78963 40:1 Two-Cycle Motor Oil 16oz. can
78964 78964 40:1 Two-Cycle Motor Oil 6-pack
110626 110626 40:1 Two-Cycle Motor Oil 1qt. bottle
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 5 of 34
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 6 of 34
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
69210 Piston Assy - 0.020 in. oversize
62813 Ring Set - Piston 0.020 in. oversize
103085 Bearing - Needle2
69211 Piston Assy - 0.030 in. oversize
62812 Ring Set - Piston 0.030 in. oversize
103085 Bearing - Needle2
63432 Spark Plug - AC CS 42T
65778 Spark Plug - AC CS 41T
65712 Guide - Timing
64330 Bar Plate Set
69058 Kit - Wrap-around frame
63341A Kit - Spike
63746 Scrench
62827 Wrench - Screwdriver
69191 Kit - Pressure adaptor
83434 Manual - Owner's
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 7 of 34
www.ktoutdoor.com
Chain, Bar and Sprocket Oil
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 8 of 34
www.ktoutdoor.com

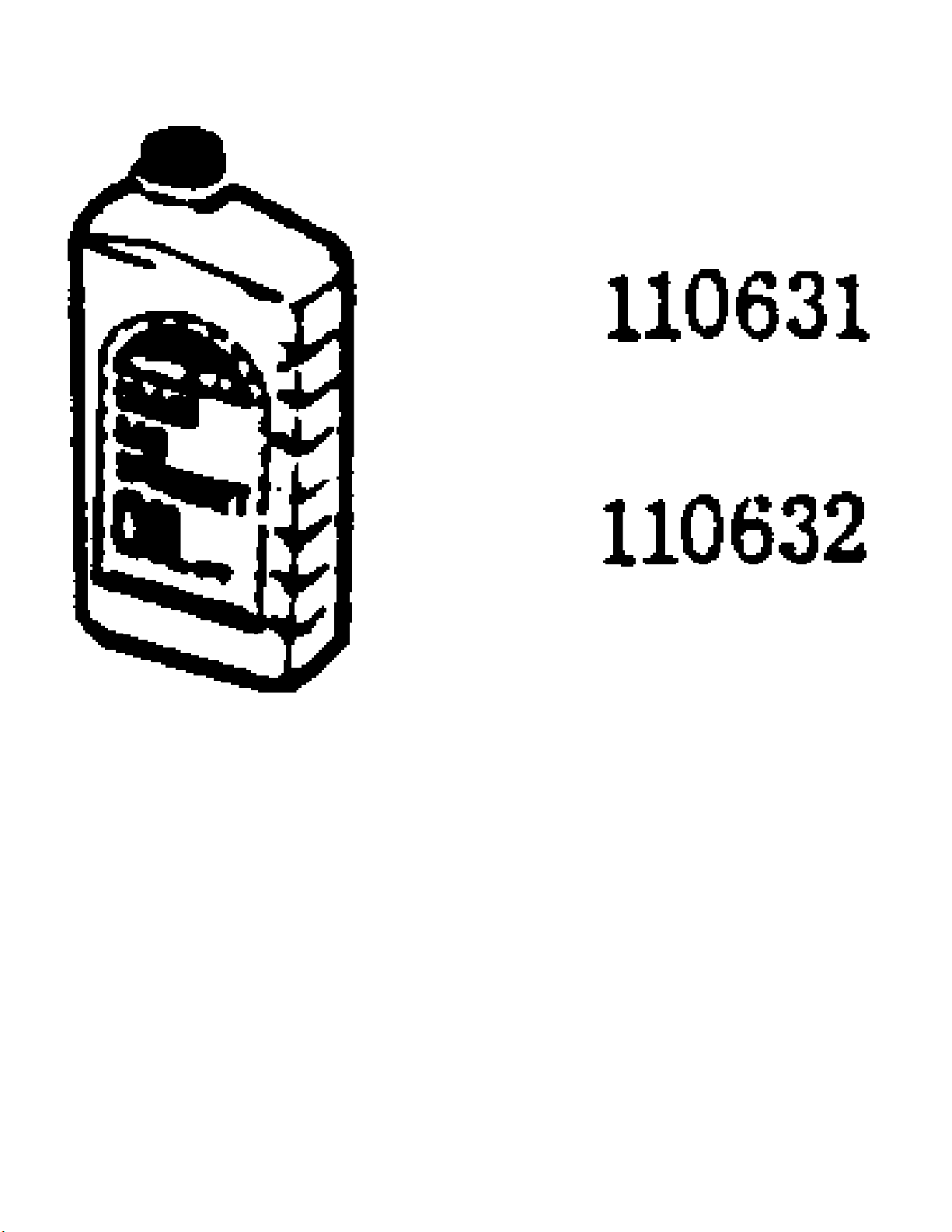

Chain, Bar and Sprocket Oil
Ref # Part Number DescriptionQty
110631 110631 Chain, Bar and Sprocket Oil, 1qt. bottle
110632 110632 Chain, Bar and Sprocket Oil, Case of 24
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 9 of 34
www.ktoutdoor.com
Bar Guard
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 10 of 34
www.ktoutdoor.com

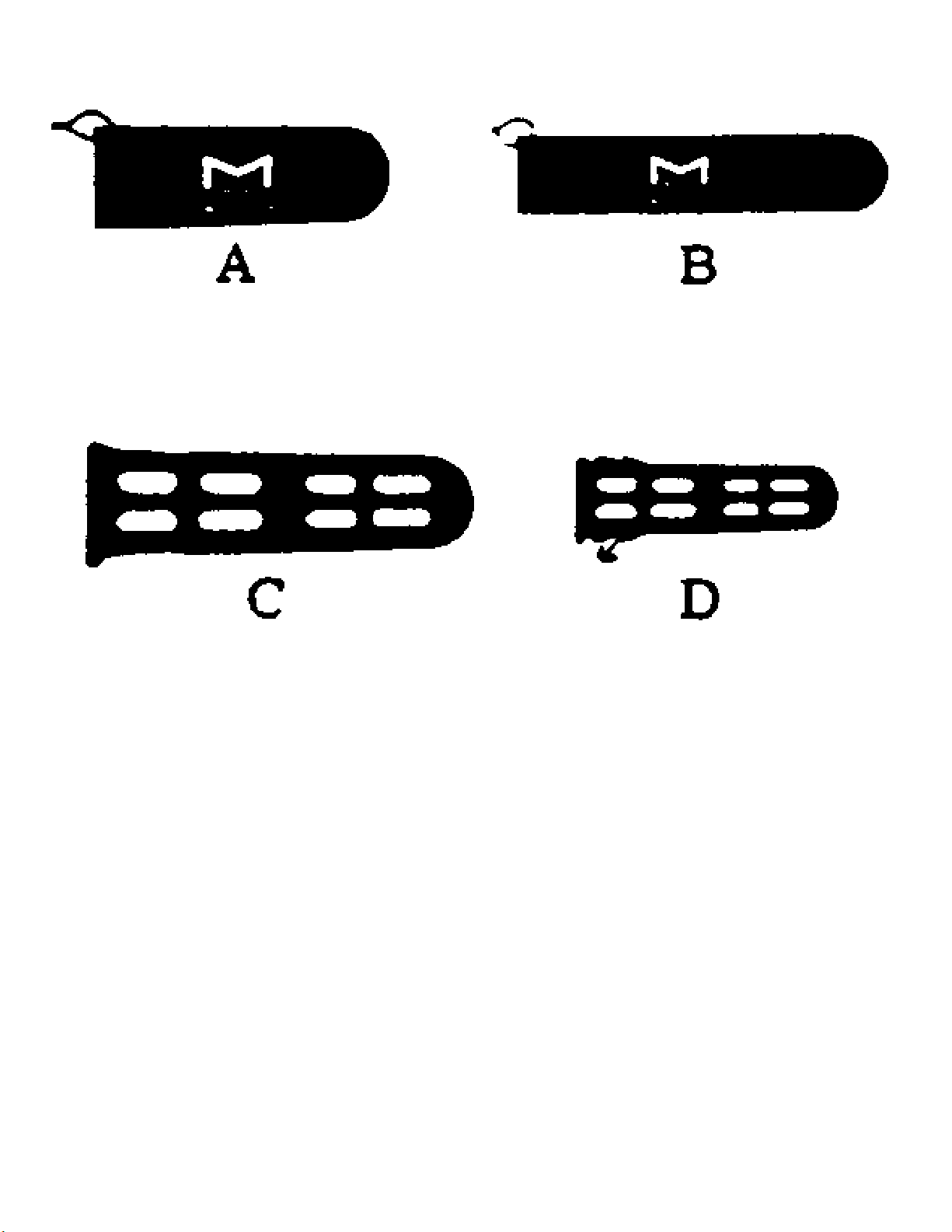

Bar Guard
Ref # Part Number DescriptionQty
A 56927 Bar Guard - For wide bars Black Polyvinylchloride
B 64930 Bar Guard - Narrow bars Black Polyvinylchloride
C 66544 Bar Guard - MAC 10-16, 20" Rigid Yellow Plastic
D 83124 Bar Guard - PM6-12, 16" Rigid Yellow Plastic
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 11 of 34
www.ktoutdoor.com
Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 12 of 34
www.ktoutdoor.com

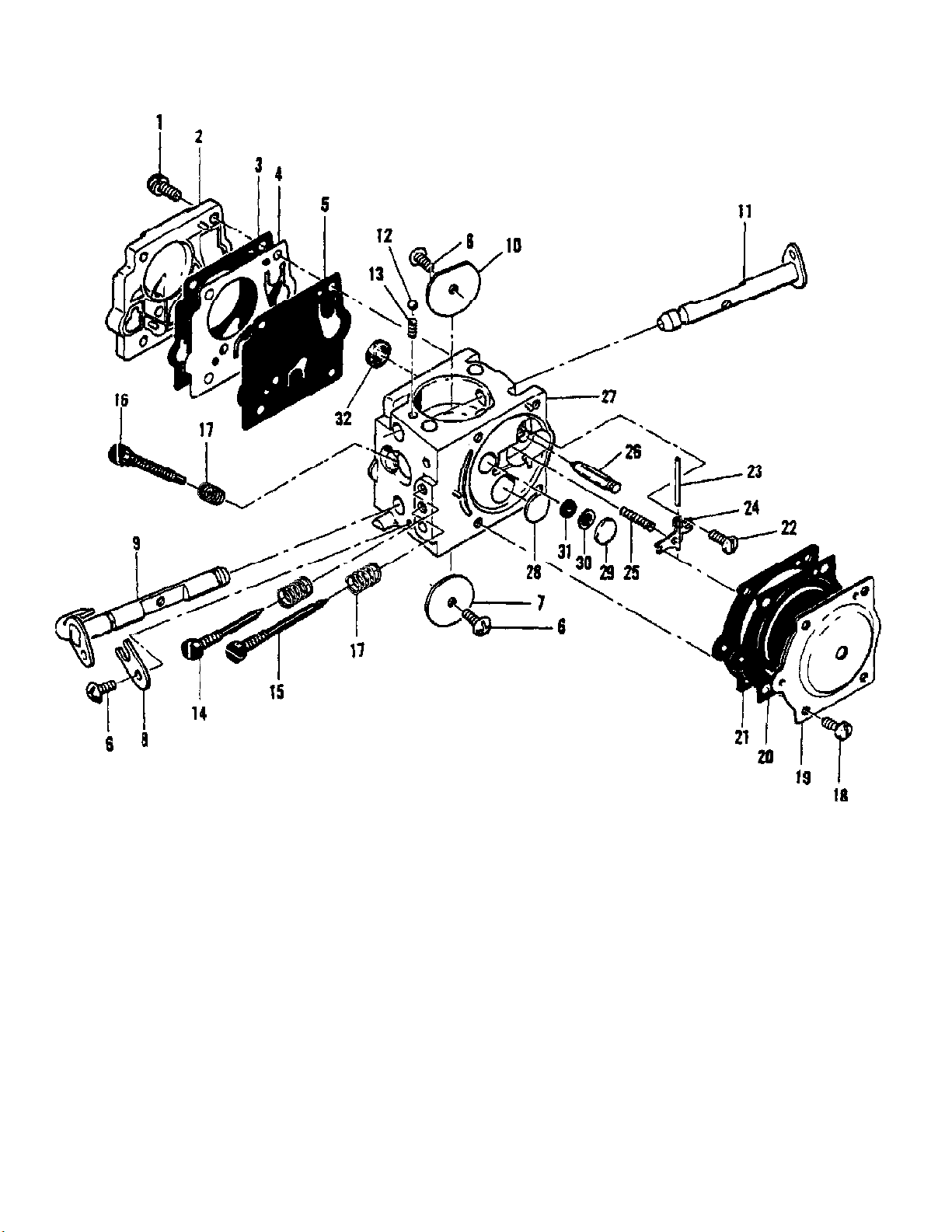

Carburetor Assembly
Ref # Part Number DescriptionQty
67876 Carburetor Assy1
1 67501 Screw - Pump cover4
2 67484 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 67487 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Assy - Throttle1
10 67490 Plate - Choke1
11 67488 Shaft Assy - Choke1
12 100302 Ball - Choke friction1
13 67504 Spring - Choke friction1
14 68104 Needle - High speed1
15 68105 Needle - Idle1
16 68106 Screw - Idle speed1
17 67502 Spring - Needle3
18 70798 Screw - Diaphragm cover4
19 67485 Cover - Diaphragm1
20 67499 Diaphragm - Metering1
21 67496 Gasket - Diaphragm1
22 67500 Screw - Lever pin1
23 67508 Pin - Lever1
24 67509 Lever - Inlet1
25 67503 Spring - Lever1
26 67491 Valve - Needle1
27 68103 Body Assy - Carburetor1
28 71690 Plug 3/81
29 69506 Plug - 5/161
30 69203 Seat Assy1
31 69204 Valve1
32 67507 Screen - Fuel1
67482 Gasket Set
68107 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 13 of 34
www.ktoutdoor.com
Chain Sharpening Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 14 of 34
www.ktoutdoor.com

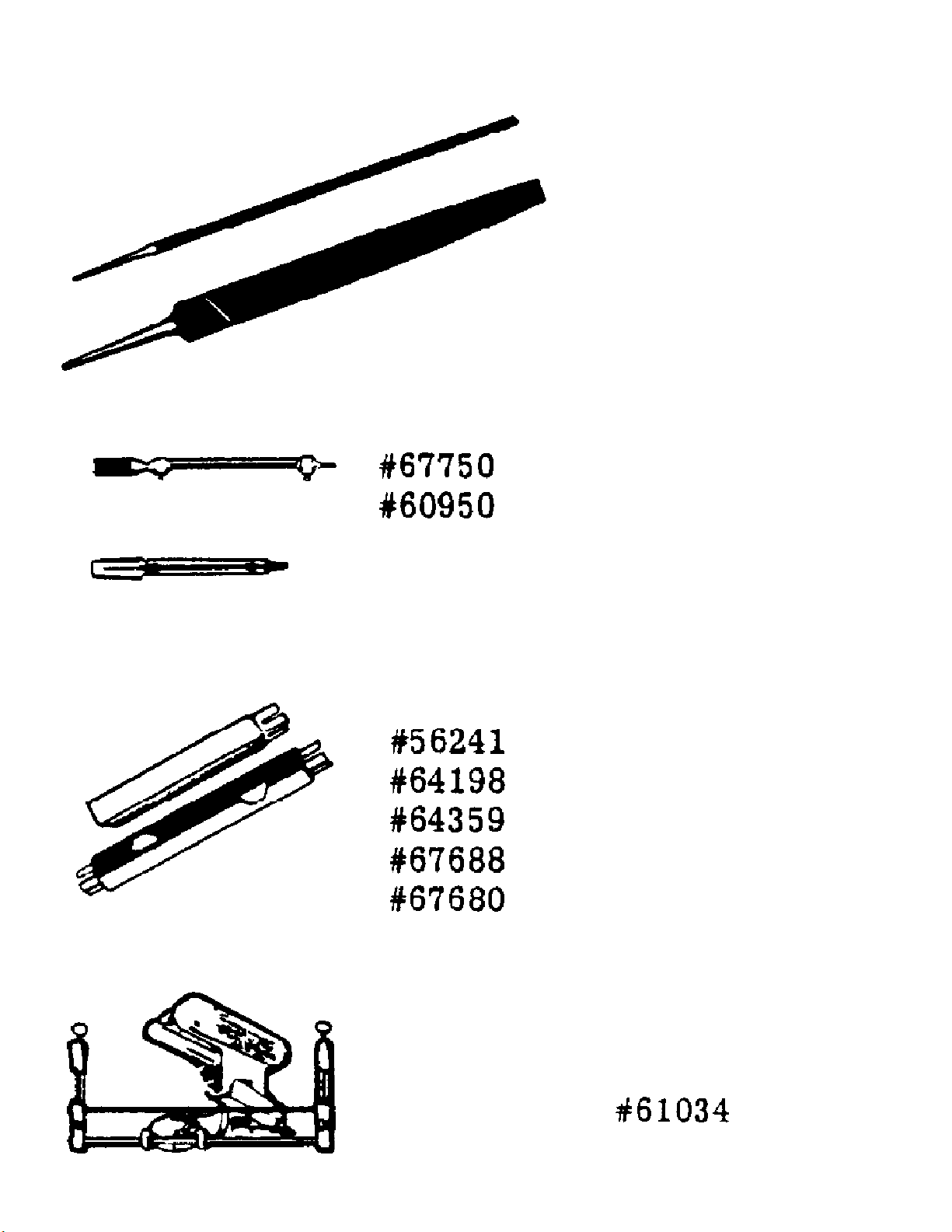

Chain Sharpening Tools
Ref # Part Number DescriptionQty
File 1/8" round
File 5/32" round
File 3/16" round
File 7/32" round
File 1/4" round
File 9/32" round
File 8" flat
File 6" flat safety
67750 67750 File Guide and File (1/8" round)
60950 60950 File Guide and File (7/32" round)
56241 56241 Depth Guage Tool .045-.060"
64198 64198 Depth Guage Tool .035-.060"
64359 64359 Depth Guage Tool .045-.050"
67688 67688 Depth Guage Tool .015-.020"
67680 67680 Depth Guage Tool .025-.030"
61034 61034 File-N-Joint
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 15 of 34
www.ktoutdoor.com
Clutch Guard And Clutch Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 16 of 34
www.ktoutdoor.com

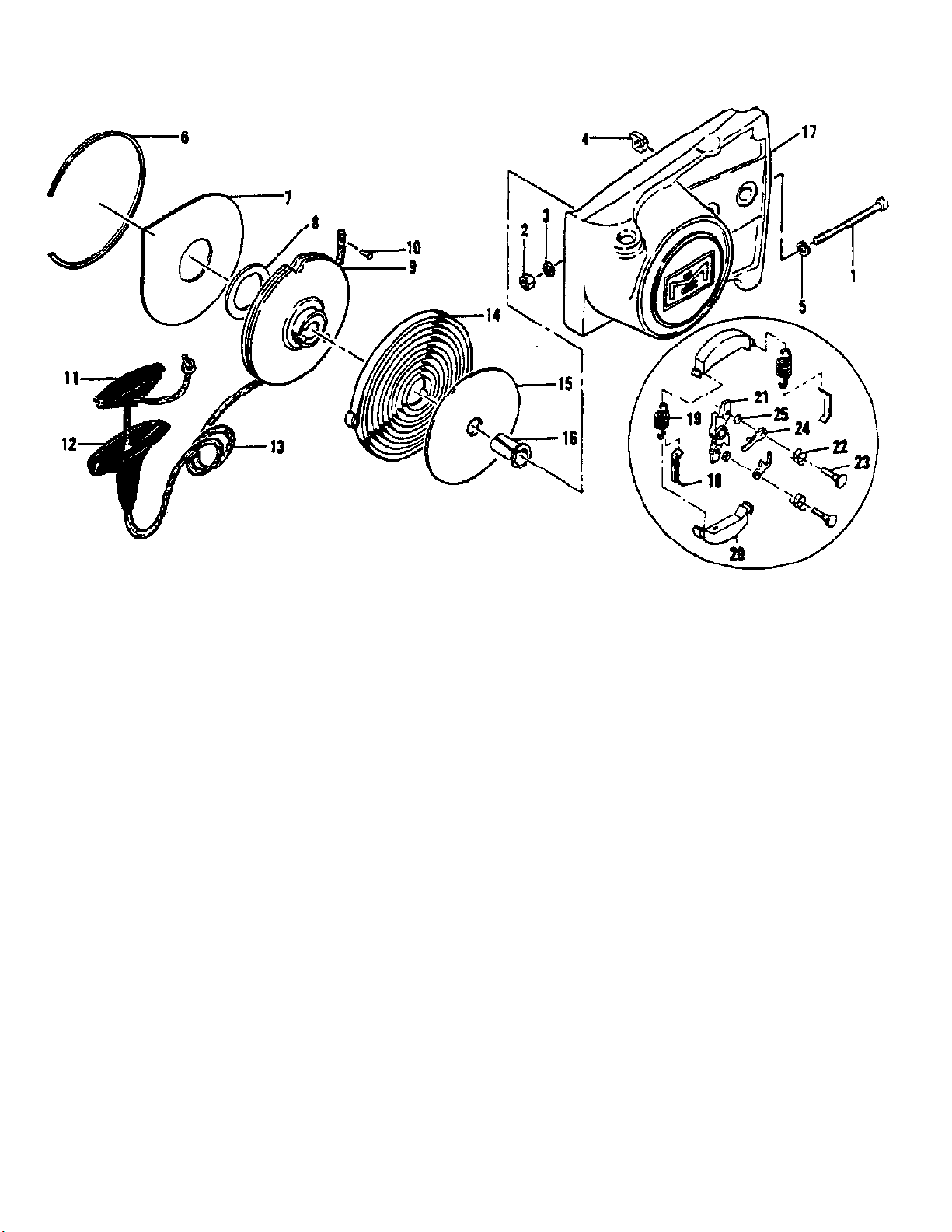

Clutch Guard And Clutch Assemblies
Ref # Part Number DescriptionQty
83850 Clutch Guard Assy1
1 102144 Screw - Bar adjusting1
2 102067 Nut - Hex 10-241
3 110387 Washer - Wave1
4 61705 Nut - Bar adjusting1
5 101174 Washer - #101
110264 Washer - #101
6 67205 Retainer - Shield1
7 63985 Shield - Dust1
8 63986 Washer - Thrust
9 83651 Drum - Starter1
10 110470 Rivet - Starter rope1
11 62191A Insert - Handle1
12 62190A Handle - Starter1
13 69964 Rope - Starter1
14 68626 Spring - Rewind1
83334 Spring - Rewind1
15 63987 Shield - Spring1
16 61635A Bushing - Nyliner1
17 83569 Guard - Clutch1
83224 Clutch Assy
18 64583 Retainer - Spring2
19 83223 Spring - Clutch2
20 67233 Shoe - Clutch2
21 67149 Rotor Assy - Clutch1
22 68837 Spring - Pawl2
23 67112 Rivet - Pawl2
24 64857 Pawl - Starter2
25 65473 Washer - Special2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 17 of 34
www.ktoutdoor.com
Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 18 of 34
www.ktoutdoor.com

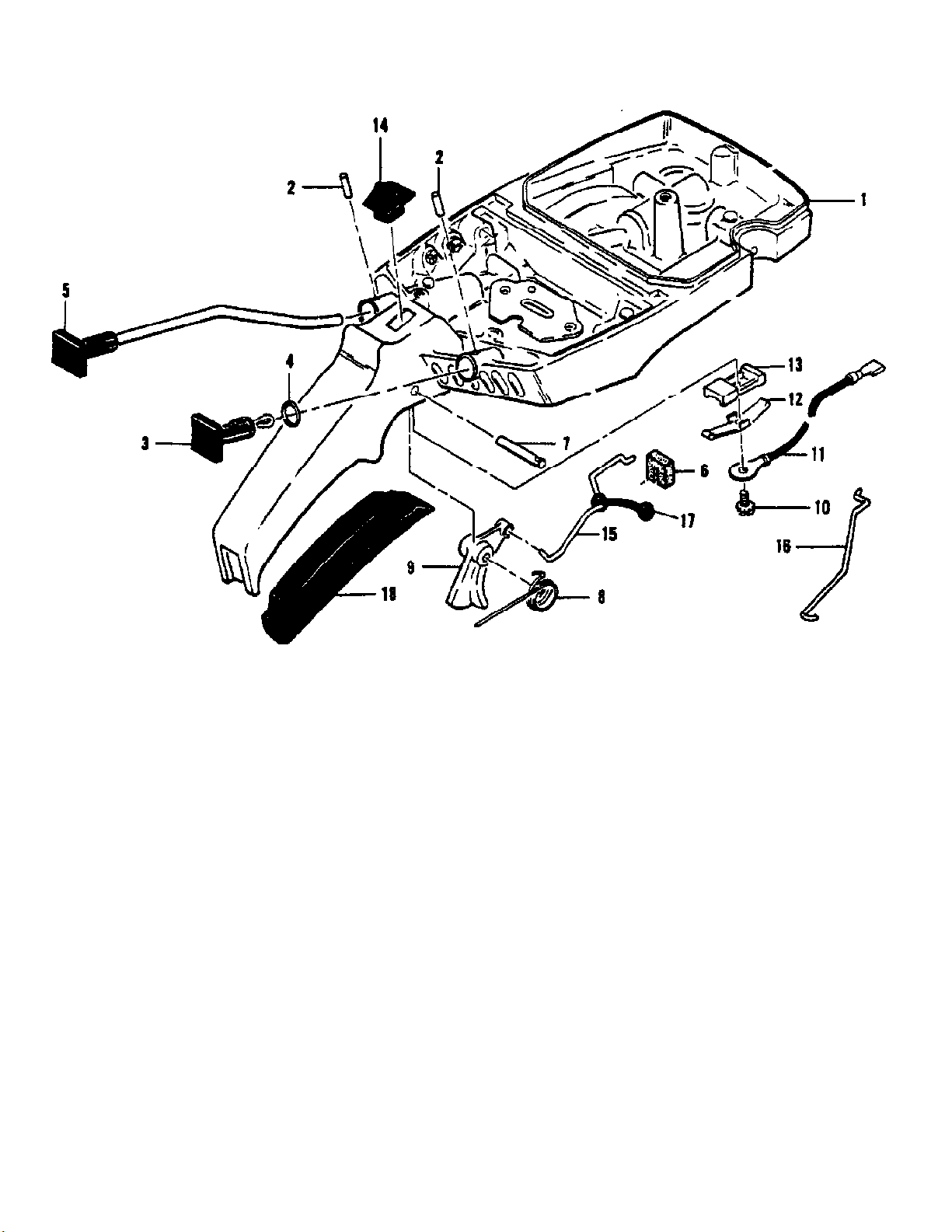

Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 84183 Fuel Tank Assy1
2 105673 Pin - Roll 3/32 x 9/162
3 68517 Button - Choke1
69041 Button - Choke1
4 101056 "O" Ring1
5 64871 Button & Rod Assy1
6 67989 Seal - Throttle rod1
68522 Seal - Throttle rod1
7 110378 Pin - Roll 3/16 x 15/161
8 65734 Spring - Throttle return1
9 67224 Trigger1
10 103672 Screw - Fil hd 8-32 x 1/2 (SEMS)1
11 62973A Wire Assy - Stop switch1
12 62451 Contact - Switch1
13 62950A Base - Switch1
14 62951 Button - Switch1
15 68170 Rod - Throttle1
16 67355 Rod - Choke1
69042 Rod - Choke1
17 69043 Snubber - Rod1
18 64872 Grip - Handle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 19 of 34
www.ktoutdoor.com
General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 20
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 20 of 34
www.ktoutdoor.com

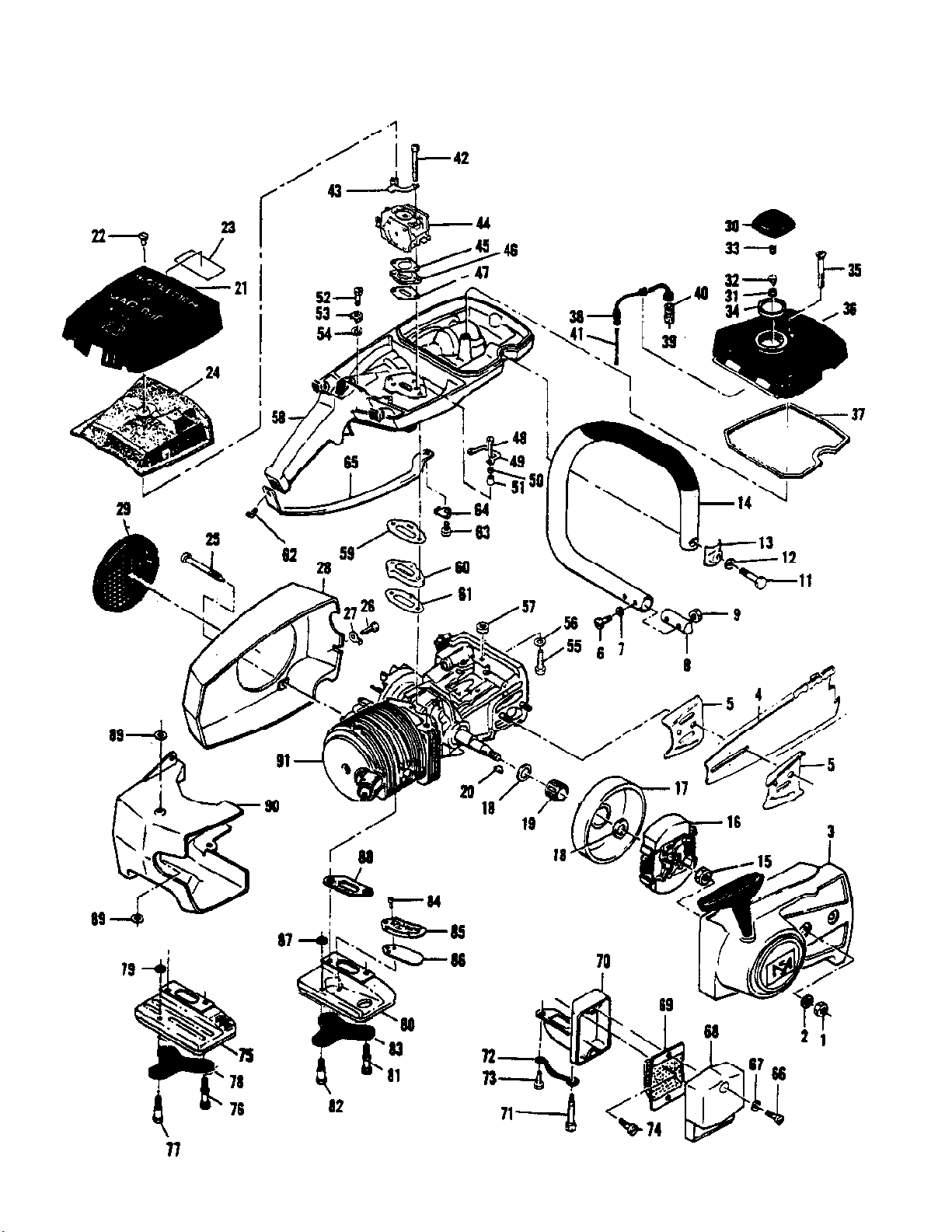

General
Ref # Part Number DescriptionQty
1 110454 Nut - Hex 5/16-242
2 100440 Washer - 5/162
3 Clutch Guard Assy See "Clutch Guard Assembly"
illustration and parts list; Used on all Models and Serial
Numbers.
4 Bar and Chain Assys1
5 64325 Plate - Bar protector2
6 102761 Screw - Hex hd 10-24 x 7/82
7 100352 Washer - #102
8 61678 Plug - Nut retainer1
9 101326 Nut - Hex 10-242
11 102130 Screw - Hex hd 1/4-20 x 1-1/21
12 100153 Lockwasher - 1/41
13 63484 Clamp - Frame1
14 69054 Frame & Grip Assy1
68410 Frame & Grip Assy1
15 103746 Nut - Hex 3/8-241
110594 Nut - Hex 3/8-241
16 Clutch Assy See "Clutch Assembly" illustration and
parts list; Used on all Models and Serial Numbers.
17 65370 Kit - Sprocket & Drum Assy1
18 61692 Shim - Sprocket2
19 110330 Bearing - Sprocket1
20 103879 Key - Woodruff1
21 68166 Cover Assy - Air cleaner1
68445 Cover Assy - Air cleaner1
69033 Cover Assy - Air cleaner1
22 65813 Nut - Cover1
23 68177 Plate - Instruction1
24 66774 Filter - Air1
25 62978 Screw - Special3
26 102762 Screw - Hex hd 10-24 x 1/21
27 69890 Lockplate1
28 83521 Kit - Fan housing1
29 55615 Guard - Flywheel1
30 68531 Cap Assy - Fuel1
31 68533 Plug1
32 63041 Valve1
33 63040 Spring1
34 69767 Gasket1
35 110334 Screw - Oval hd, 12-24 x 1-3/41
36 69684 Cover - Fuel tank1
37 69345 Gasket - Cover1
38 64848 Hose Assy - Fuel1
39 63932 Filter - Fuel1
40 100440 Washer1
41 67944 Spring - Hose stiffener1
42 110551 Screw - Hex hd 10-24 x 2-1/82
43 66681 Bracket Assy1
68807 Bracket Assy1
44 Carburetor Assy See "Carburetor Assembly"
1
illustration and parts list; Used on all Models and Serial
Numbers.
45 68132 Gasket - Carburetor1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 21
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 21 of 34
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
83059 Gasket - Carburetor1
46 66678 Spacer - Carburetor1
84078 Spacer - Carburetor1
47 68131 Gasket - Spacer1
84081 Gasket - Spacer1
48 110553 Screw - Hex hd 10-24 x 1-3/81
110570 Screw - Hex hd 12-24 x 1-3/81
49 68582 Lockplate1
50 100003 Washer - #102
102115 Washer - #122
51 66189 Sleeve2
52 110516 Screw - Hex hd 10-24 x 1-1/81
110568 Screw - Hex hd 12-24 x 1-1/81
53 63475 Lockplate1
69516 Lockplate1
54 64856 Washer - Special1
55 102660 Screw - Skt hd 10-24 x 7/81
56 100003 Washer - #101
57 69772 Spacer - Fuel tank1
58 Fuel Tank Assy See "Fuel Tank Assembly" illustration
and parts list; Used on all Models and Serial Numbers.
59 68130 Gasket - Fuel tank1
84082 Gasket - Fuel tank1
60 67907 Insulator - Fuel tank1
66659 Insulator - Fuel tank1
84079 Insulator - Fuel tank1
61 68130 Gasket - Insulator1
84082 Gasket - Insulator1
62 110353 Screw - Oval hd 10-24 x 3/81
106078 Screw - Pan hd 10-24 x 7/16 (SEMS)1
63 102289 Screw - Hex hd 10-24 x 3/41
110566 Screw - Hex hd 10-24 x 5/81
64 69890 Lockplate1
68508 Lockplate1
65 69838 Brace - Handle1
68194 Kit - Spark arrester1
66 102290 Screw - Hex hd 10-24 x 1-1/82
67 110264 Washer - #102
68 62380 Cover1
69 62379B Baffle1
70 83105 Body & Duct Assy1
71 68187 Screw - Special1
72 67922 Lockplate1
73 110506 Screw - Hex hd 10-24 x 5/81
74 110529 Screw - Hex hd 10-24 x 1/21
75 68512 Kit - Muffler1
76 67838 Screw - Muffler long2
77 67837 Screw - Muffler short1
78 83993 Lockplate1
79 63993 Gasket - Muffler screw1
80 68863 Kit - Muffler1
81 67838 Screw - Muffler long2
82 67837 Screw - Muffler short1
83 83993 Lockplate1
84 110563 Screw - Skt hd 8-32 x 1/42
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 22
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 22 of 34
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
85 83069 Stop - Reed1
86 64785 Reed1
87 63993 Gasket - Muffler screw1
88 68149 Gasket - Muffler1
84007 Gasket - Muffler1
89 62085A Insulator - Shroud2
68581 Insulator - Shroud2
90 67910 Shroud1
91 Powerhead Assy See "Powerhead Assembly"
illustration and parts list; Used on all Models and Serial
Numbers.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 23
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 23 of 34
www.ktoutdoor.com
Locquic And Loctite
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 24
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 24 of 34
www.ktoutdoor.com

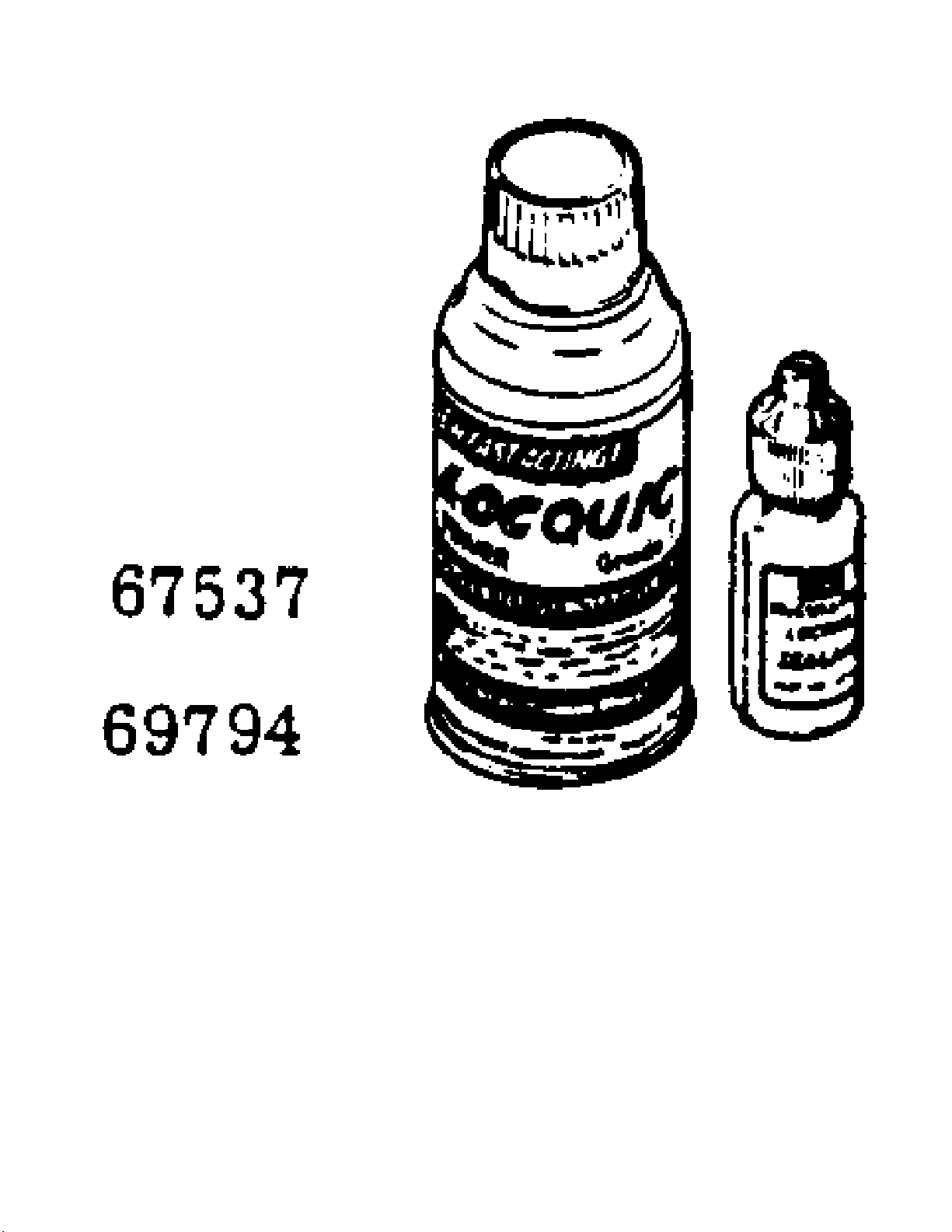

Locquic And Loctite
Ref # Part Number DescriptionQty
67537 67537 Loctite - 10cc plastic bottle.
69794 69794 Locquic - 7-1/2 oz. spray can.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 25
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 25 of 34
www.ktoutdoor.com

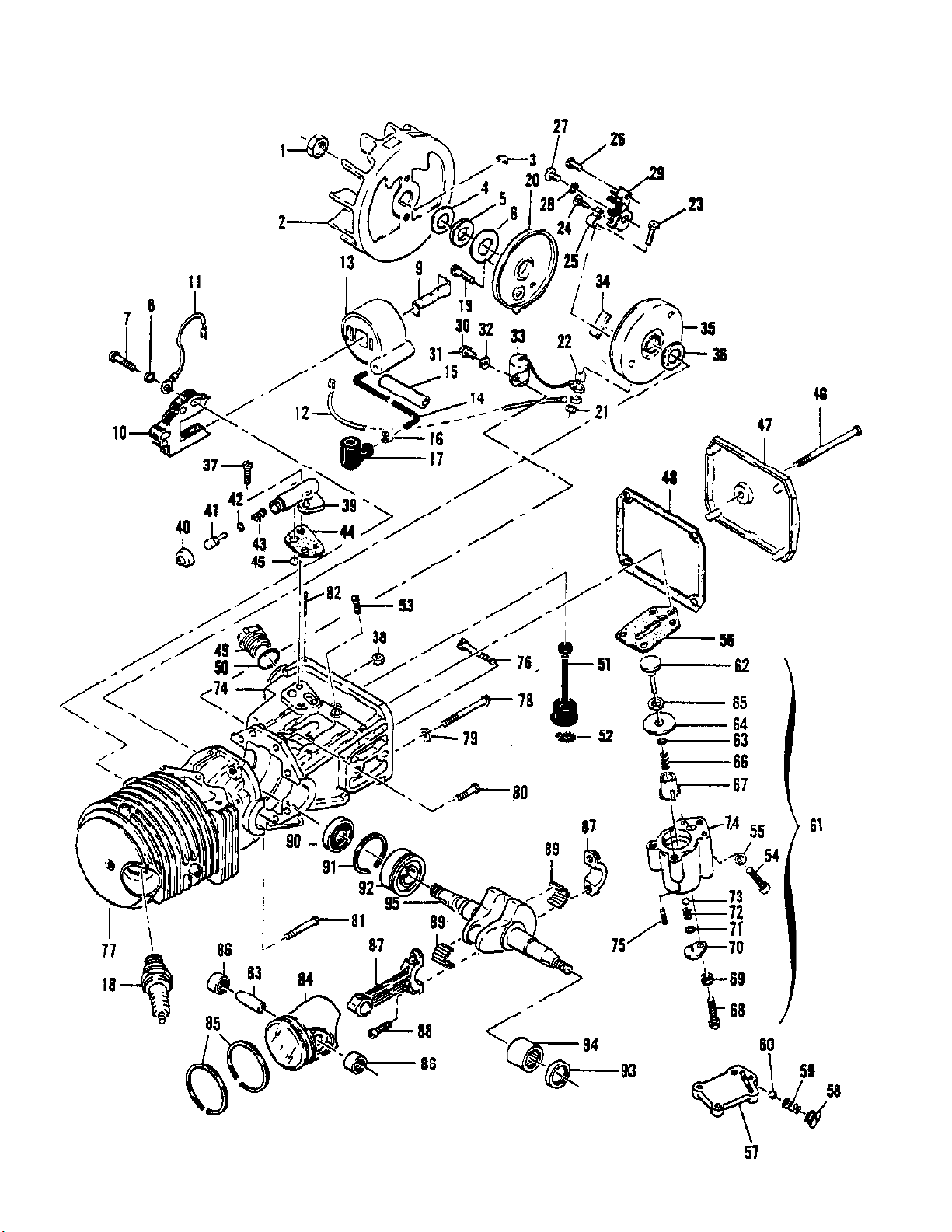

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 26
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 26 of 34
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 101391 Nut - Hex 3/8-241
110594 Nut - Hex 3/8-241
2 61737A Flywheel Assy1
3 103879 Key - Woodruff1
4 67057 Washer - Thrust1
5 67056 Seal1
6 67054 Washer - Thrust1
7 101965 Screw - Fil hd 10-24 x 7/8 (SEMS)2
110127 Screw - Hex hd 10-24 x 7/8 (SEMS)2
8 100003 Washer - #102
9 51253 Retainer - Coil1
10 68164 Lamination Assy1
11 62819 Wire Assy - Ground1
12 69344 Wire Assy - Primary1
13 69798 Kit - Coil & Terminal Assy1
14 69966 Wire & Sleeve Assy - Spark plug1
15 67127 Sleeve1
16 62932 Connector1
17 62926 Boot1
18 63097 Spark Plug AC CS 45T1
19 110349 Screw - Rd hd 8-32 x 3/41
20 62362 Cover - Breaker box1
21 100298 Nut - Hex 6-321
22 62365 Spacer - Breaker screw1
23 110346 Screw - Hex hd 6-32 x 3/41
24 110489 Screw - Pan hd 6-32 x 7/16 s/t1
25 83126 Strap - Conduction1
26 100934 Screw - Rd hd 8-32 x 3/81
27 100934 Screw - Rd hd 8-32 x 3/81
110445 Screw - Truss hd 8-32 x 3/81
28 105976 Washer - #81
29 62363 Breaker Assy1
66231 Breaker Assy1
30 105249 Screw - Rd hd 8-32 x 3/8 (SEMS)1
110623 Screw - Fil hd 8-32 x 1/21
103672 Screw - Fil hd 8-32 x 1/21
31 100252 Lockwasher - #81
32 100080 Washer - #81
33 61650 Condenser1
34 54184 Wiper - Cam1
35 62361 Box - Breaker1
83125 Box - Breaker1
36 67051 Seal1
37 110623 Screw - Fil hd 8-32 x 1/22
38 100955 Nut - Hex 8-321
39 62261A Housing - Pump1
40 62262 Cap - Housing1
41 62266 Plunger - Pump1
42 101056 "O" Ring1
43 66687 Spring - Plunger1
44 62230 Gasket - Pump1
45 62909 Valve - Pump1
46 110291 Screw - Pan hd 10-24 x 2-5/81
47 63072 Cover - Oil tank1
48 62116 Gasket - Cover1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 27
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 27 of 34
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
49 57129A Cap - Oil tank1
68809 Cap - Oil tank1
50 101148 "O" Ring1
51 62123B Hose Assy - Oil1
52 51506 Screen - Hose1
53 110333 Screw - Oval hd 8-32 x 1/23
54 102660 Screw - Skt hd 10-24 x 7/81
55 24236 Washer - Special1
56 62274 Gasket - Pump1
83790 Gasket - Pump1
57 68711 Body Assy - Check valve1
58 68714 Screw - Special1
59 63034 Spring - Check valve1
60 100071 Ball - 5/32 in dia1
61 83134 Pump Assy - Pulse1
83786 Pump Assy - Pulse1
62 60260A Piston Assy - Pump1
63 104001 "O" Ring1
64 60263 Ring - Piston1
65 60937 Washer - Teflon1
66 60259 Spring - Piston oiler1
67 62227 Sleeve - Adjustment1
68 110386 Screw - Hex hd 8-32 x 11
69 100251 Nut - Hex 8-321
70 63858 Cover - Outlet valve1
62407 Cover - Outlet valve1
71 106104 "O" Ring1
72 62885A Spring - Outlet valve1
73 102809 Ball - Valve1
74 83128 Body Assy - Pump1
83787 Body Assy - Pump1
75 110643 Screw - Set1
76 62065 Bolt - Bar mounting2
77 67908 Crankcase Assy1
69993 Crankcase Assy1
84113 Crankcase Assy1
78 62105 Screw Assy - Sealing4
79 62842 Washer - Sealing4
80 110288 Screw Assy - Hex 8-32 x 3/43
81 110618 Screw Assy - Hex 8-32 x 1-3/81
82 100010 Pin - Cotter1
83 61649 Pin - Piston1
84 69212 Piston Assy1
85 62814 Ring Set - Piston1
86 103512 Bearing - Needle2
103085 Bearing - Needle2
87 65401 Connecting Rod Assy1
88 61627A Screw - Skt hd special2
89 63225 Roller - Needle (set of 20)1
90 67906 Seal - Oil1
91 63464 Ring - Snap1
92 67905 Bearing - Ball1
93 65747 Seal Oil1
110260 Seal - Oil1
94 104357 Bearing - Needle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 28
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 28 of 34
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
95 63336 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 29
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 29 of 34
www.ktoutdoor.com
Pressure Test Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 30
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 30 of 34
www.ktoutdoor.com

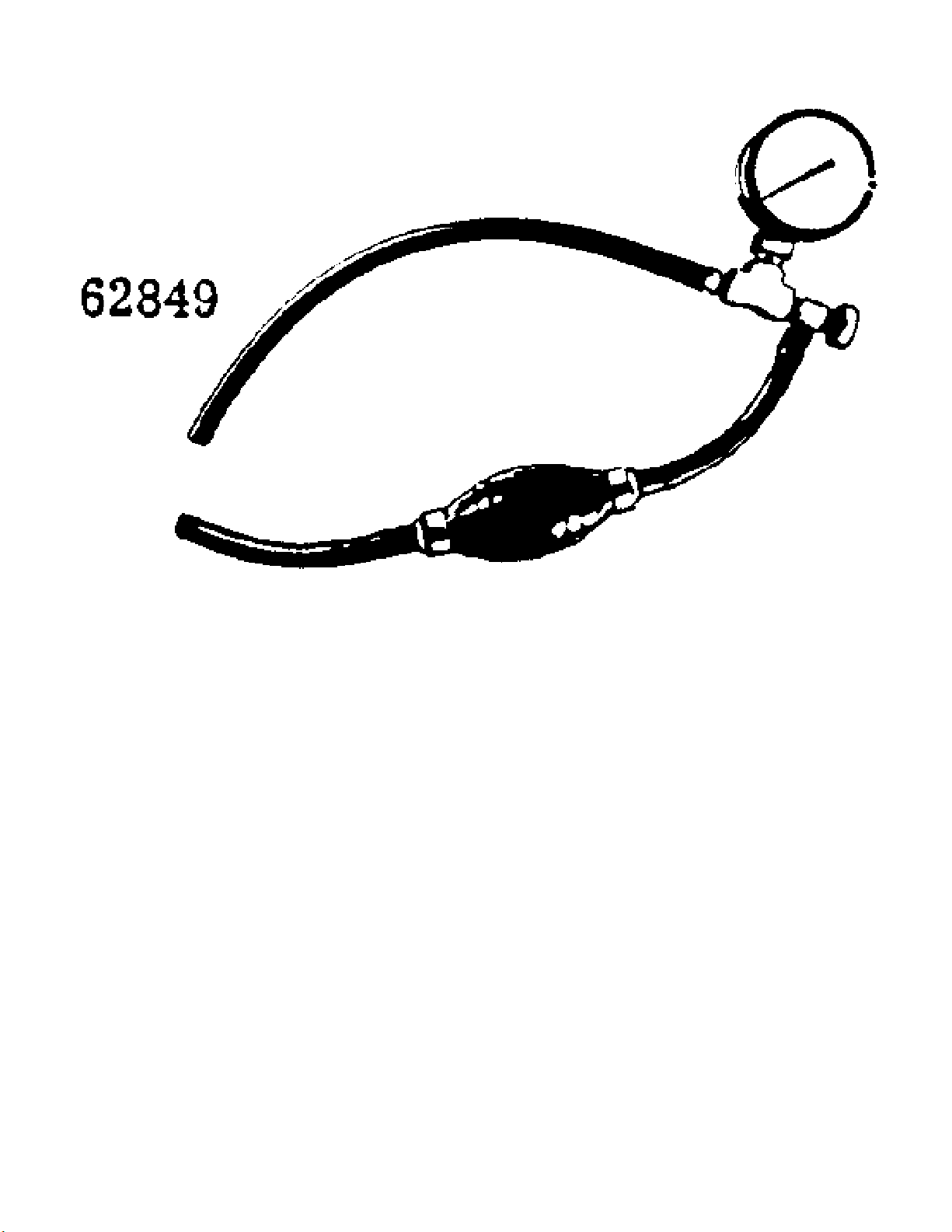

Pressure Test Tools
Ref # Part Number DescriptionQty
62849 62849 Pressure Test Tools - Basic unit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 31
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 31 of 34
www.ktoutdoor.com
Spray Paint
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 32
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 32 of 34
www.ktoutdoor.com

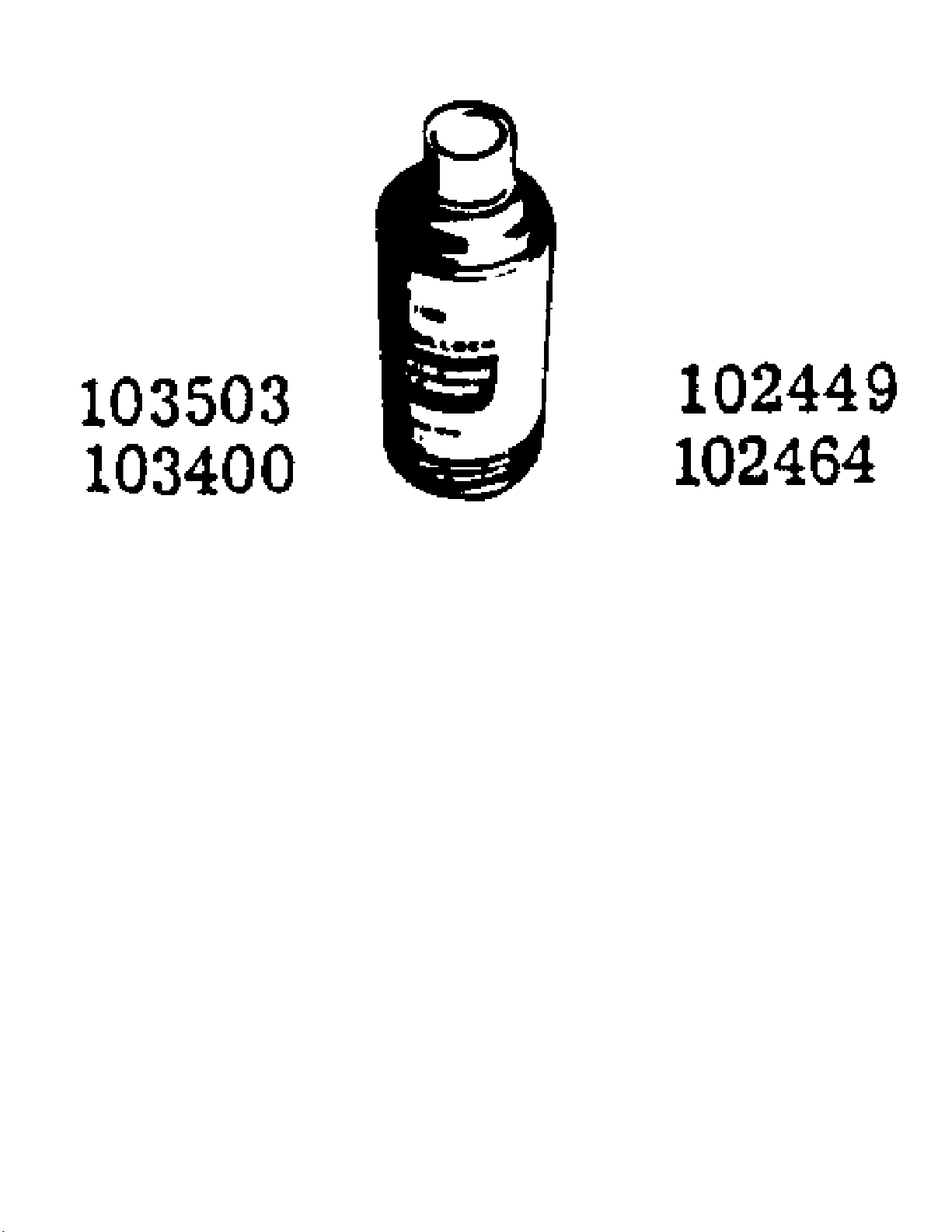

Spray Paint
Ref # Part Number DescriptionQty
103503 103503 12 oz. can - Black
103400 103400 Case of 12 (12 oz. can) - Black
102449 102449 12 oz. can Yellow
102464 102464 Case of 12 (12 oz. can) - Yellow
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 33
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 33 of 34
www.ktoutdoor.com
Starter Spool
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 34
11-600011 MAC 10-10A 09/68 to 07/69 IPL 84693 Page 34 of 34
www.ktoutdoor.com

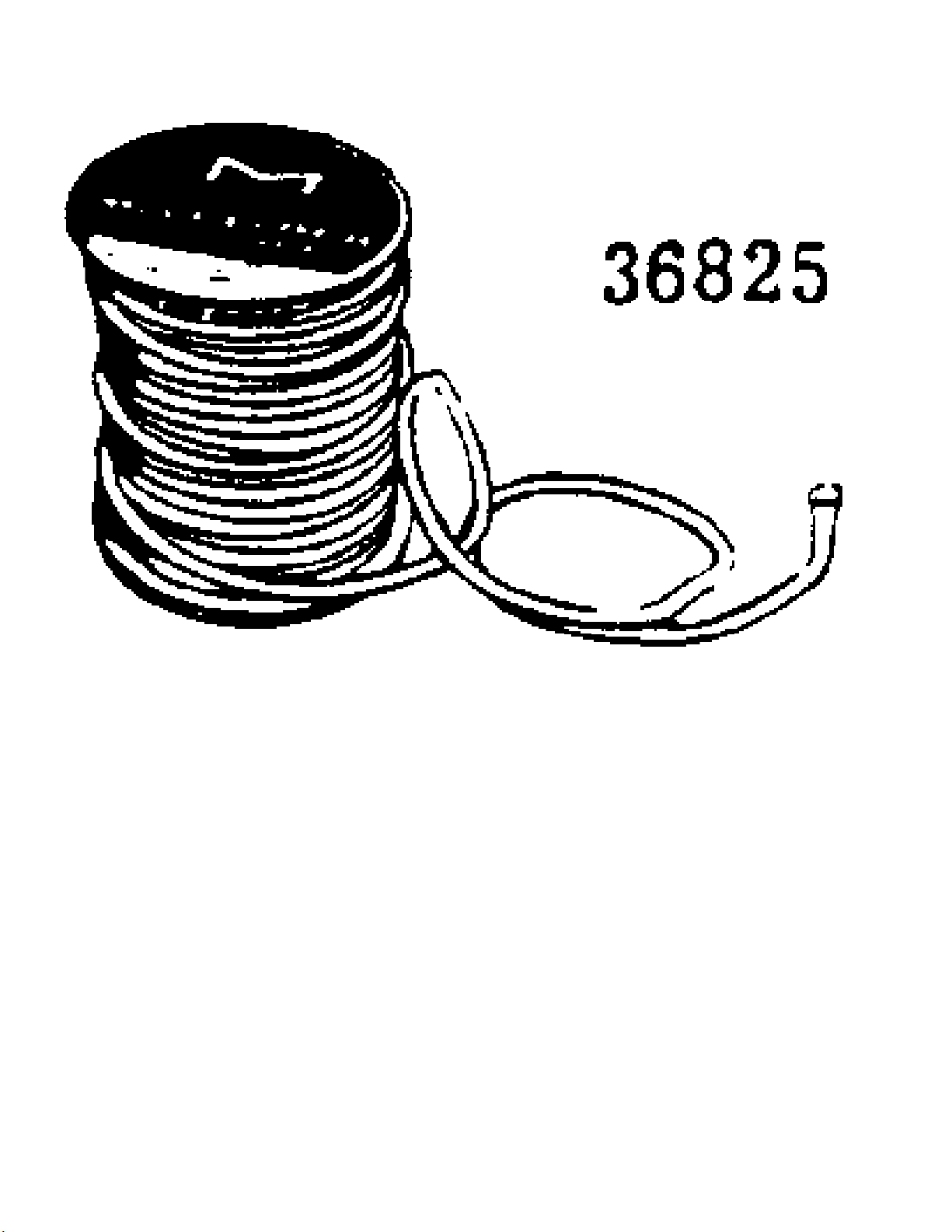

Starter Spool
Ref # Part Number DescriptionQty
36825 36825 100' Spool
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
