Page 1
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 1 of 17
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 2 of 17
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
83434 Manual - Owner's
63084 Manual - Shop
62827 Wrench
63341A Kit - Spike
66316 Kit - Wrap-around frame
63746 Kit - Wrench
65325 Baffle - Spark arrester
64330 Plate Set - Bar protector2
67098 Charger Assy - Battery
63432 Spark Plug - AC CS42T
69191 Kit - Pressure adapter
65778 Spark Plug - AC CS41T
69210 Piston Assy 0.020 m. oversize
62813 Ring Set - Piston 0.020 in. oversize
103512 Bearing - Needle2
69211 Piston Assy - 0.030 m. oversize
62812 Ring Set - Piston 0.030 in. oversize
103512 Bearing - Needle2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 3 of 17
www.ktoutdoor.com

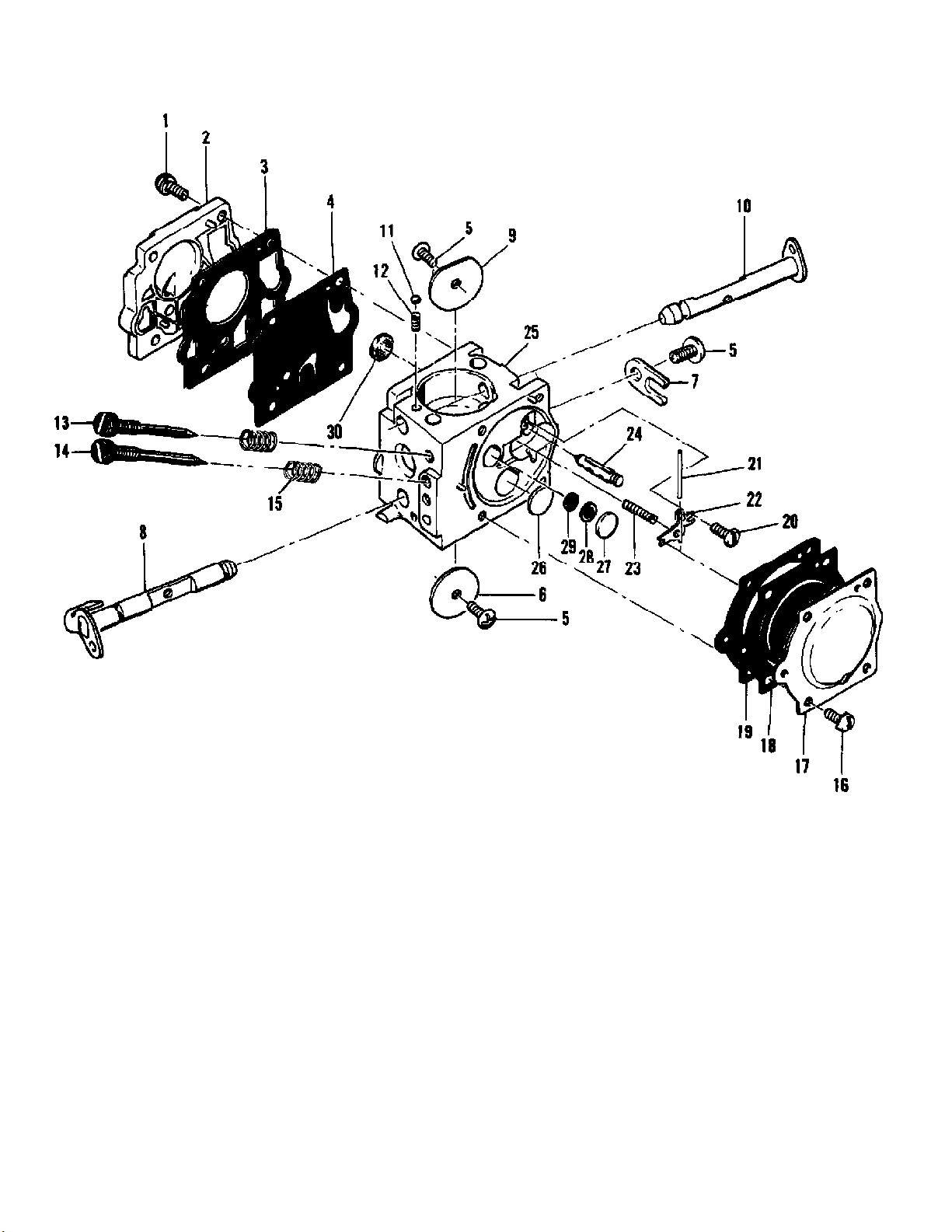

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 4 of 17
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
83249 Carburetor Assy
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 83114 Diaphragm - Fuel pump1
5 47690 Screw - Plate3
6 67487 Plate - Throttle1
7 67489 Clip - Shaft1
8 67486 Shaft Assy - Throttle1
9 67490 Plate - Choke1
10 67488 Shaft - Choke1
11 100302 Ball - Choke friction1
12 67504 Spring - Choke1
13 83770 Needle - High speed1
14 83771 Needle - Idle1
15 67502 Spring - Needle2
16 70798 Screw - Diaphragm cover4
17 83761 Cover - Diaphragm1
18 61499 Diaphragm - Metering1
19 67496 Gasket - Diaphragm1
20 67500 Screw - Lever pin1
21 67508 Pin - Lever1
22 67509 Lever - Metering1
23 67503 Spring - Lever1
24 67491 Valve - Needle1
25 83769 Body Assy - Carburetor1
26 71690 Plug - 3/81
27 69506 Plug - 5/161
28 69203 Seat Assy1
29 69204 Valve1
30 67507 Screen - Fuel1
67482 Gasket Set
83772 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 5 of 17
www.ktoutdoor.com

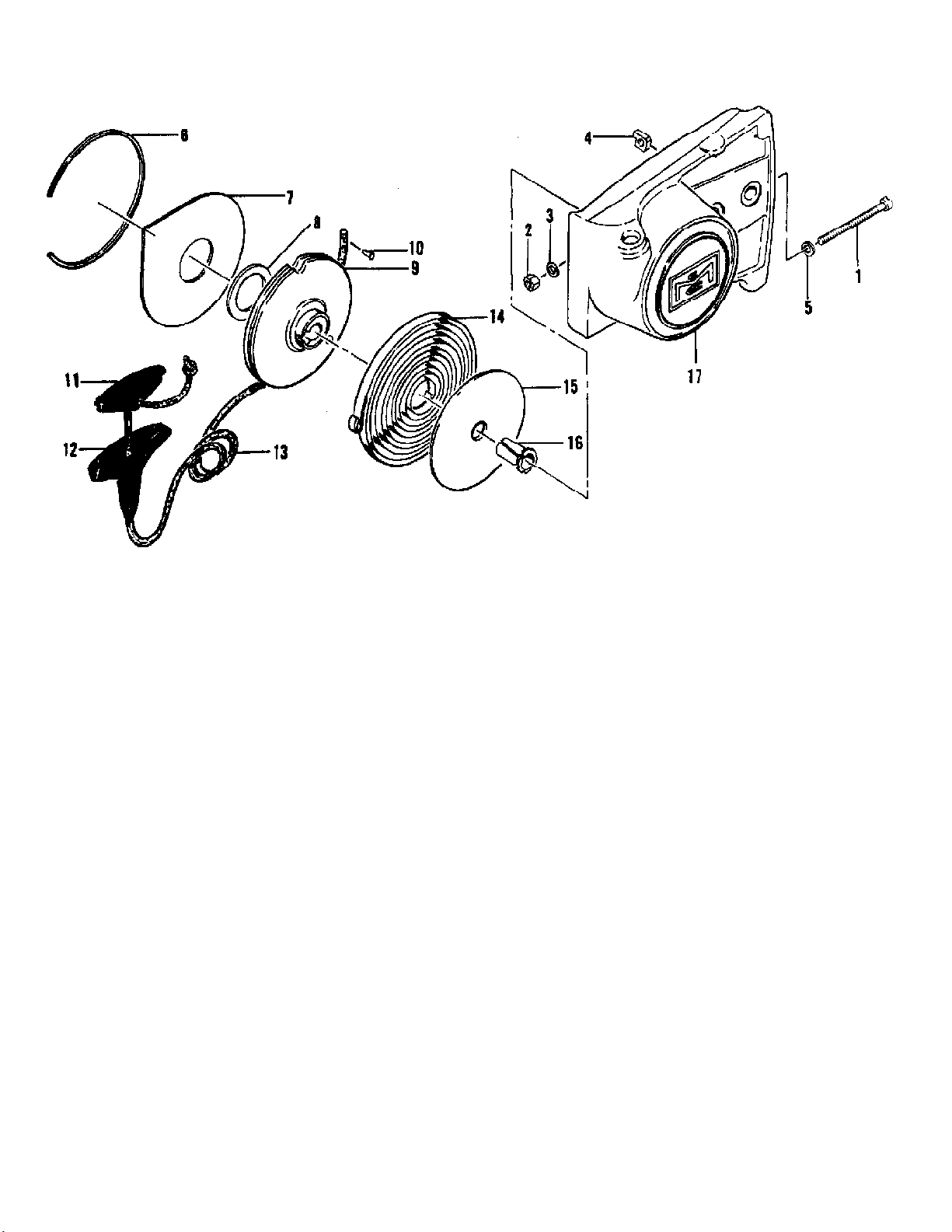

Clutch Guard And Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 6 of 17
www.ktoutdoor.com
Clutch Guard And Starter Assembly
Ref # Part Number DescriptionQty
67206 Clutch Guard Assy1
1 102144 Screw - Bar adjusting1
2 102067 Nut - Hex 10-241
3 110387 Washer - Wave1
4 61705 Nut - Bar adjusting1
5 110264 Washer - #101
6 67205 Retainer - Shield1
7 63985 Shield - Dust1
8 63986 Washer - Thrust1
9 68695 Drum - Starter1
10 110470 Rivet - Starter rope1
11 62191A Insert - Handle1
12 62190A Handle - Starter1
13 69964 Rope - Starter1
14 68626 Spring - Rewind1
15 63987 Shield - Spring1
16 61635A Bushing - Nyliner1
17 67207 Guard - Clutch1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 7 of 17
www.ktoutdoor.com

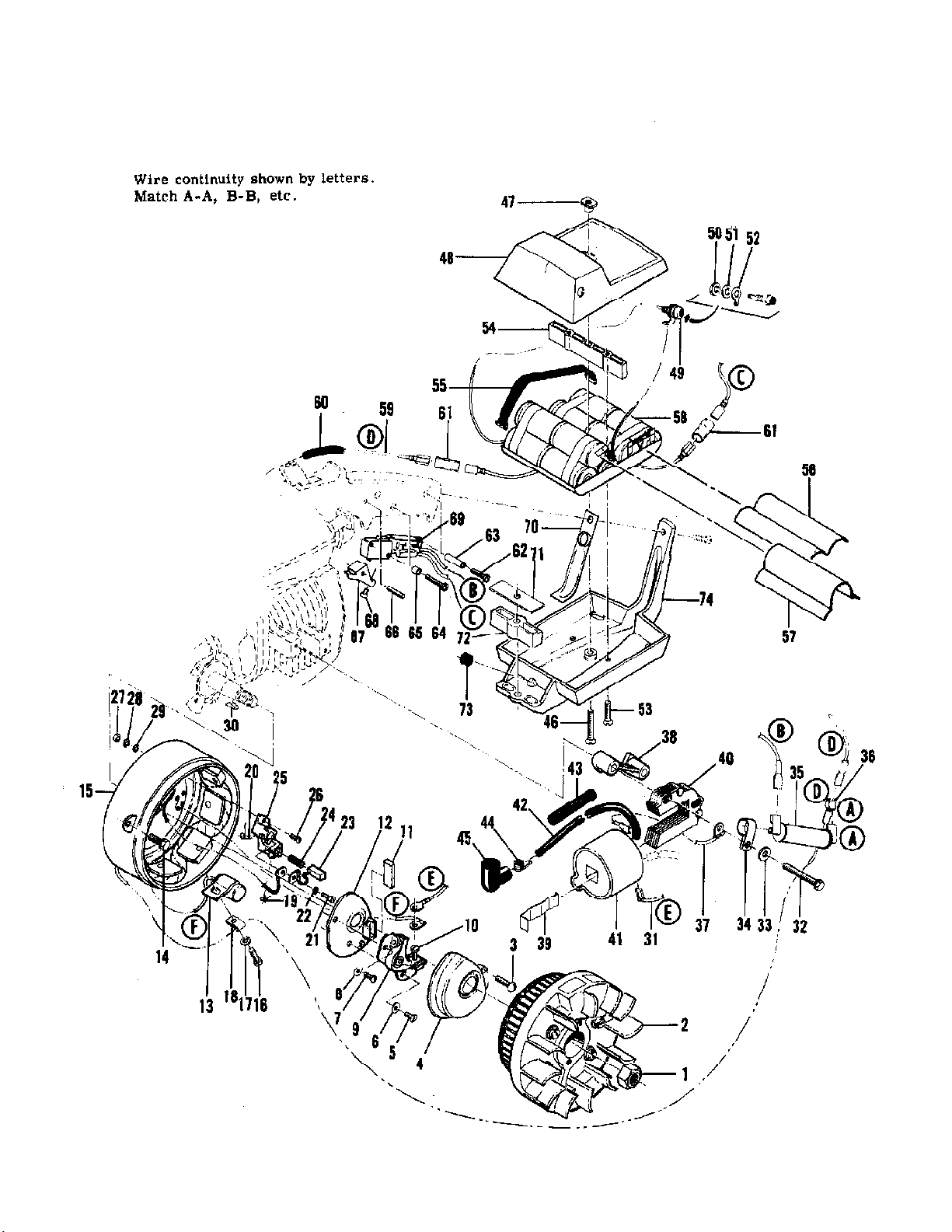

Electrical Components
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 8 of 17
www.ktoutdoor.com
Electrical Components
Ref # Part Number DescriptionQty
1 110594 Nut - Hex 3/8-241
2 65995 Armature & Flywheel Assy1
3 110560 Screw - Rd hd 8-32 x 5/81
4 65415 Top - Breaker box1
5 110559 Screw - Tr hd 8-32 x 1/21
6 105976 Washer - #81
7 100690 Screw - Rd hd 8-32 x 1/21
8 100080 Washer #81
9 66231 Breaker Assy1
10 110489 Screw - Pan hd 6-32 x 7/161
11 54184 Wiper1
12 65414 Base - Breaker points1
13 64624 Condenser1
14 110446 Screw - Hex hd 10-24 x 3/42
15 65996 Housing Assy - Field coil1
16 66005 Screw - Fil hd 8-32 x 5/161
17 105464 Lockwasher - #81
18 66004 Clamp1
19 66777 Spring - Brush clip1
20 66776 Spring - Brush clip1
21 65997 Screw - Fil hd 5-40 x 1/42
22 65998 Lockwasher - #52
23 65999 Brush2
24 66003 Spring - Brush2
25 66778 Kit - Brush holder1
26 66007 Screw2
27 66009 Nut2
28 66008 Lockwasher2
29 66162 Washer2
30 103879 Key - Woodruff1
31 64609 Wire Assy - Primary1
32 110450 Screw - Hex hd 10-24 x 1-5/82
33 100003 Washer - #102
34 65517 Clamp - Mounting2
35 65518 Resistor1
36 110478 Terminal - Wire1
37 62819 Wire Assy - Ground1
38 64653 Spacer - Coil1
39 51253 Retainer - Coil1
40 68164 Lamination Assy1
41 69798 Coil & Terminal Assy1
42 69966 Wire Assy - Spark plug1
43 67127 Sleeve - Wire Assy1
44 62932 Connector1
45 62926 Boot - Spark plug1
46 110480 Screw - Fl hd 8-32 x 1-3/81
47 65319 Insert - Cover1
48 65470 Cover - Battery box1
49 65567 Phono Jack1
50 65876 Nut1
51 65875 Washer1
52 65877 Terminal1
53 100403 Screw - Fl hd 8-32 x 12
54 66234 Spacer - Battery1
55 65501 Strap Assy - Battery2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 9 of 17
www.ktoutdoor.com
Electrical Components
Ref # Part Number DescriptionQty
56 69916 Support - Battery1
57 69917 Support - Battery1
58 66161 Battery Assy1
59 65541 Wire Assy - Battery to resistor1
60 80975 Sleeve - Wire Assy1
61 65306 Sleeve - Wire terminal2
62 110462 Screw - Pan hd 4-40 x 11/161
63 64874 Spacer - Long1
64 110463 Screw - Pan hd 4-40 x 13/162
65 64873 Spacer - Short2
66 110451 Pin - Roll1
67 64681 Actuator1
68 110477 Screw - Actuator pan hd 6-32 x 3/161
69 68145 Switch - Regulator Assy1
70 64727 Strip - Handle brace1
71 65512 Insulator - Shroud1
72 66206 Spacer - Handle1
73 101230 Grommet - Handle brace1
74 69920 Brace - Handle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 10 of 17
www.ktoutdoor.com

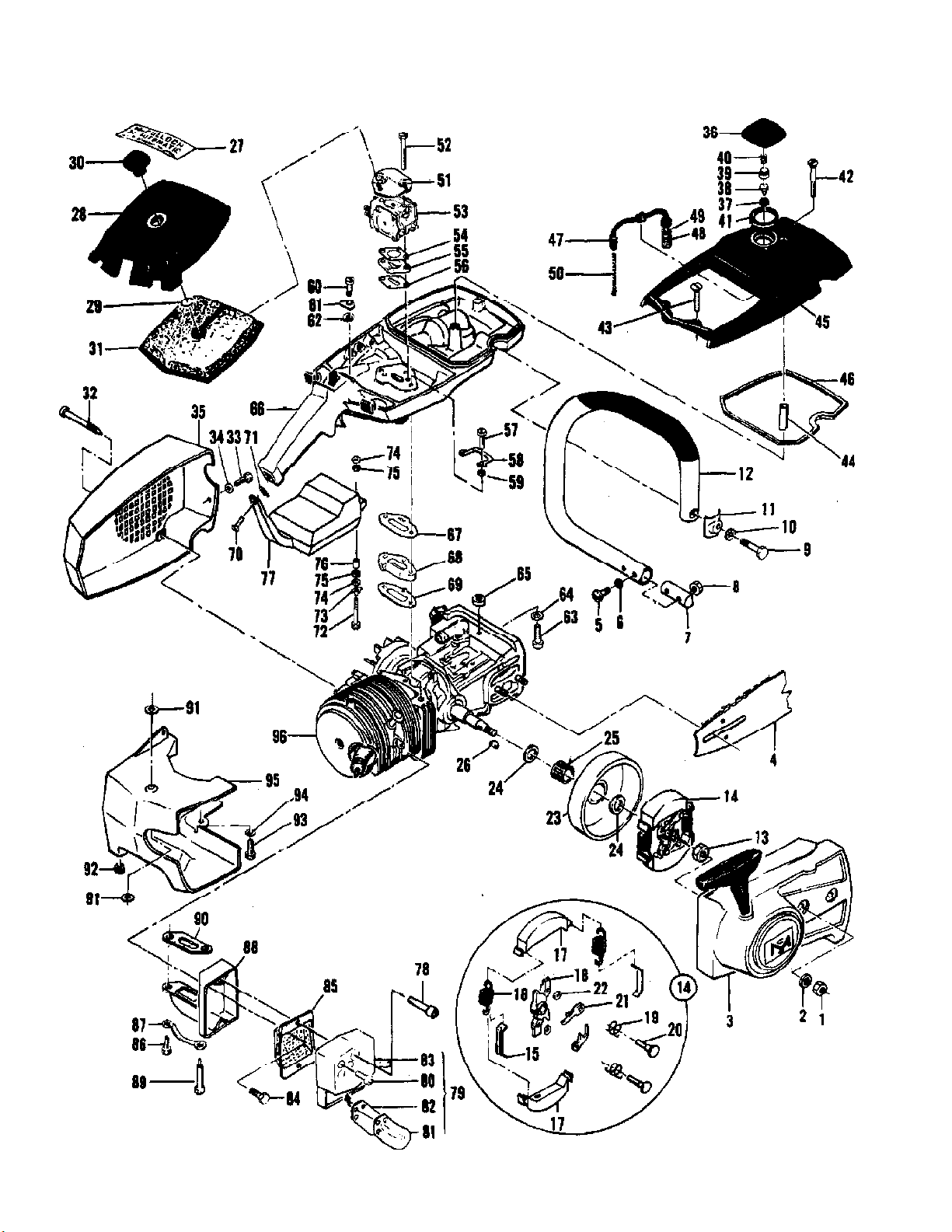

Engine
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 11 of 17
www.ktoutdoor.com
Engine
Ref # Part Number DescriptionQty
1 110454 Nut - Hex 5/16-242
2 100440 Washer - 5/162
3 Clutch Guard & Starter Assy See "Clutch Guard And
Starter Assembly" illustration and parts list.
4 Bar & Chain See "Powerhead Assembly" illustration
and parts list.
5 102761 Screw - Hex hd 10-24 x 7/82
6 100352 Washer - #102
7 61678 Plug - Nut retainer1
8 101326 Nut - Hex 10-242
9 102130 Screw - Hex 1/4-20 x 1-1/21
10 100153 Lockwasher - 1/41
11 63484 Clamp - Frame1
12 66315 Frame & Grip Assy1
13 110594 Nut - Hex 3/8-241
14 83224 Clutch Assy1
15 64583 Retainer2
16 83223 Spring - Clutch2
17 67233 Shoe - Clutch2
18 67149 Rotor Assy1
19 68837 Spring - Pawl2
20 67112 Rivet2
21 64857 Pawl2
22 65473 Washer - Special2
23 65370 Kit - Sprocket & Drum Assy1
24 61692 Shim2
25 110330 Bearing1
26 103879 Key - Woodruff1
27 69912 Nameplate1
28 68530 Cover Assy - Air cleaner1
29 110565 Ring - Retaining1
30 68529 Knob1
31 69922 Filter - Air1
32 64626 Screw - Special3
33 105348 Screw - 10-24 x 1/2 (SEMS)1
34 110264 Washer - #101
35 67297 Housing - Fan1
36 68531 Cap Assy - Fuel1
37 68533 Plug1
38 63041 Valve1
39 62316 Guide1
40 63040 Spring1
41 69767 Gasket1
42 110402 Screw - Oval hd 12-24 x 2-3/81
43 103579 Screw - Fl hd 10-24 x 12
44 69686 Spacer1
45 69679 Cover - Fuel tank1
46 69345 Gasket - Cover1
47 64848 Hose Assy - Fuel1
48 63932 Filter - Fuel1
49 100440 Washer1
50 67944 Spring - Hose stiffener1
51 83204 Bracket Assy
52 103357 Screw - Hex hd 10-24 x 2-1/42
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 12 of 17
www.ktoutdoor.com
Engine
Ref # Part Number DescriptionQty
53 Carburetor Assy See "Carburetor Assembly"
illustration and parts list.
54 68132 Gasket - Carburetor1
55 66678 Spacer - Carburetor1
56 68131 Gasket - Spacer1
57 110570 Screw - Hex hd 12-24 x 1-3/82
58 68582 Lockplate1
59 102115 Washer - #122
60 110568 Screw - Hex hd 12-24 x 1-1/81
61 69516 Lockplate1
62 64856 Washer - #101
63 102660 Screw - Skt hd 10-24 x 1/81
64 100003 Washer - #101
65 69772 Spacer - Fuel tank1
66 Fuel Tank Assy See "Fuel Tank Assembly" illustration
and parts list.
67 68580 Gasket - Fuel tank1
68 68614 Insulator - Fuel tank1
69 68580 Gasket - Insulator1
70 110223 Screw - Oval hd 10-24 x 5/81
71 66672 Cushion - Handle brace1
72 102765 Screw - Hex hd 10-24 x 1-3/41
73 66673 Lockplate1
74 105831 Washer - Steel2
75 71017 Washer - Rubber2
76 66674 Sleeve - Handle brace1
77 Handle Brace & Battery Assy See "Electrical
Components" illustration and parts list.
78 110473 Screw - Skt hd 10-24 x 1-5/82
79 65532 Cover and Valve Assy1
80 110472 Screw - Skt hd 8-32 x 5/163
81 83069 Stop - Reed valve1
82 64785 Valve - Reed1
83 65419 Cover Assy - Spark arrester1
84 110529 Screw - Hex hd 10-24 x 1/21
85 62379B Baffle1
86 110506 Screw - Hex hd 10-24 x 5/81
87 67922 Lockplate1
88 83106 Body and Duct Assy1
89 68187 Screw - Hex hd 10-24 x 1-3/81
90 68149 Gasket - Spark arrester1
91 68581 Insulator - Shroud2
92 101230 Grommet1
93 105025 Screw - Hex hd 12-24 x 9/161
94 102523 Washer - 1/41
95 67377 Shroud1
96 Powerhead Assy See "Powerhead Assembly"
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 13 of 17
www.ktoutdoor.com

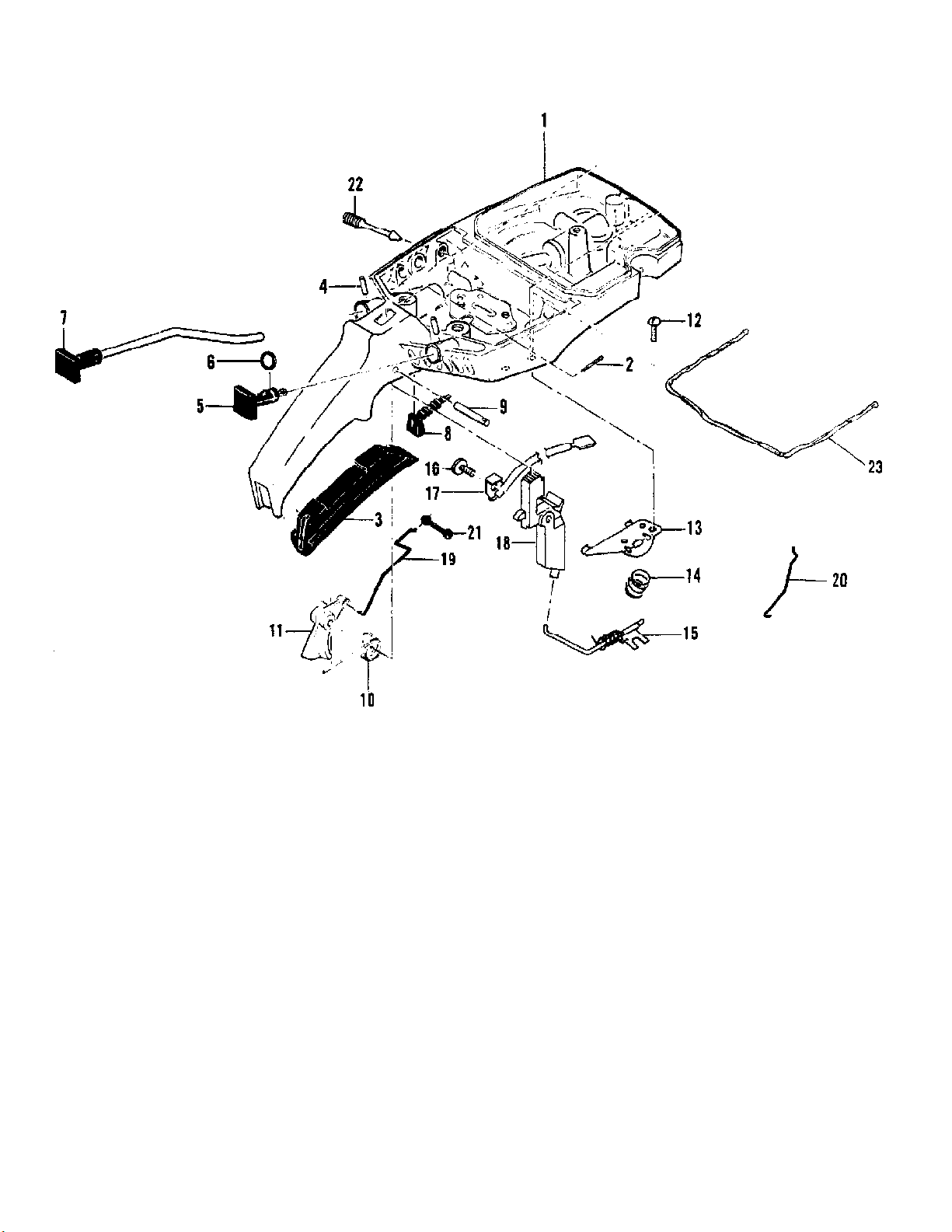

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 14 of 17
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 68683 Fuel Tank Assy1
2 100010 Pin - Cotter1
3 64872 Grip - Handle1
4 105673 Pin - Roll 3/32 x 9/162
5 69041 Button - Choke1
6 101056 "O" Ring1
7 64871 Button & Rod Assy1
8 68522 Seal - Throttle Rod1
9 110378 Pin - Roll 3/16 x 15/161
10 65734 Spring - Throttle return1
11 67224 Trigger1
12 105249 Screw - Rd hd 8-32 x 3/82
13 64721 Bracket - Lever Assy1
14 69687 Spring - Valve1
15 69811 Lever Assy - Compression release1
16 110385 Screw - Pan hd 8-32 x 3/81
17 65873 Wire Assy - Stop switch1
18 67210 Button - Control1
19 68170 Rod - Throttle1
20 69042 Rod - Choke1
21 69043 Snubber - Control rod1
22 67271 Screw - Idle speed1
23 69564 Sealant - AirboxAR
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 15 of 17
www.ktoutdoor.com

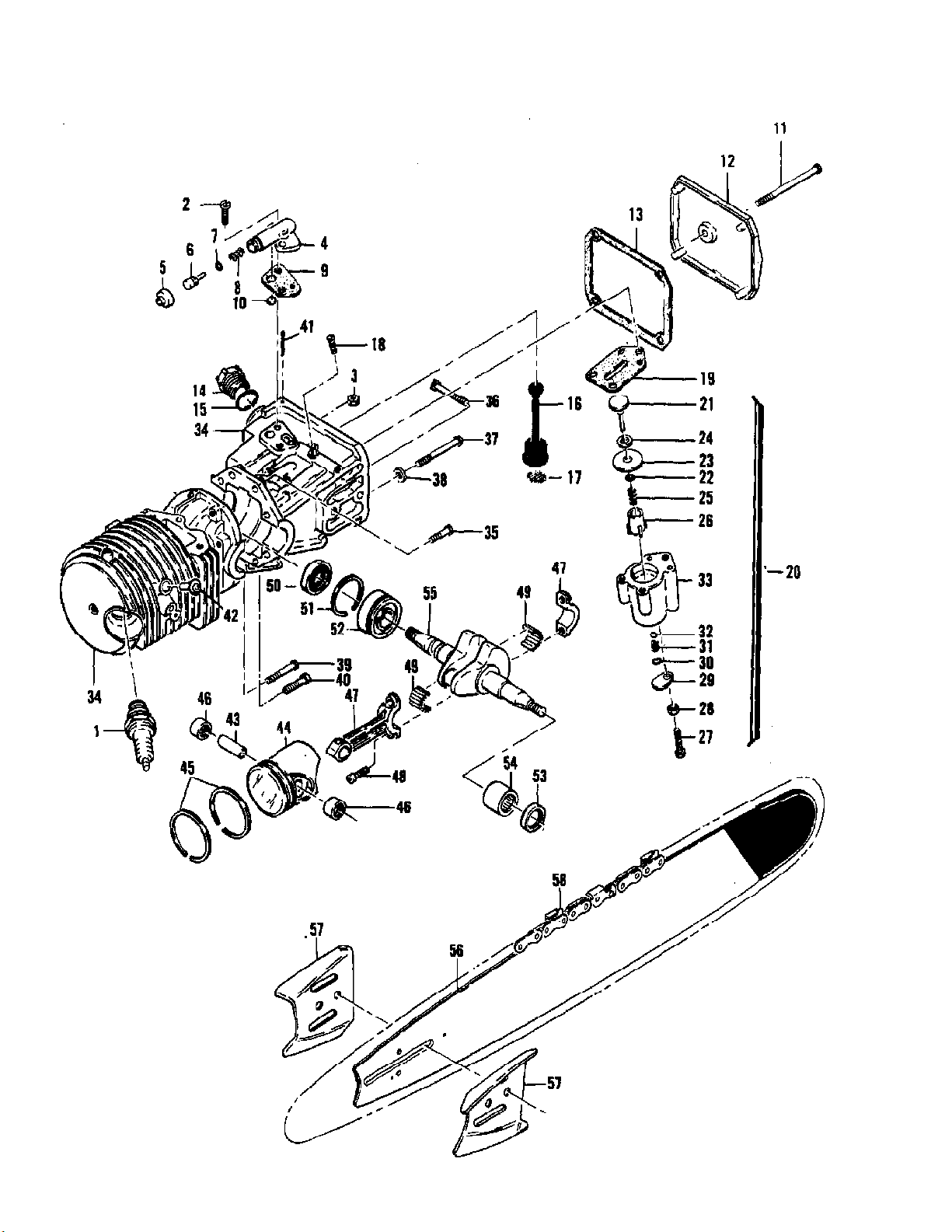

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 16 of 17
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 63097 Spark Plug - AC CS45T1
2 110623 Screw - Fil hd 8-32 x 1/22
3 100955 Nut - Hex 8-321
4 62261A Housing - Pump1
5 62262 Cap - Housing1
6 62266 Plunger - Pump1
7 101056 "O" Ring - Plunger1
8 66687 Spring - Plunger1
9 62230 Gasket - Pump1
10 62909 Valve - Pump1
11 110291 Screw - Pan hd 10-24 x 3/41
12 63072 Cover - Oil tank1
13 62116 Gasket - Cover1
14 57129A Cap - Oil tank1
15 101148 "O" Ring - Cap1
16 62123B Hose Assy - Oil1
17 51506 Screen - Hose1
18 110333 Screw - Oval hd 8-32 x 1/23
19 62274 Gasket1
20 83134 Pump Assy - Pulse1
21 60260A Piston Assy - Pump1
22 104001 "O" Ring1
23 60263 Ring - Piston1
24 60937 Washer - Teflon1
25 60259 Spring - Piston oiler1
26 62227 Sleeve - Oiler adjustment1
27 110386 Screw - Hex hd 8-32 x 11
28 100251 Nut - Hex 8-321
29 62407 Cover - Outlet valve1
30 106104 "O" Ring1
31 62885A Spring - Outlet valve1
32 102809 Ball1
33 83128 Body Assy - Pump1
34 83585 Crankcase Assy1
35 110288 Screw Assy 8-32 x 3/42
36 62065 Bolt - Bar2
37 62105 Screw Assy - Sealing4
38 62842 Washer - Sealing4
39 110618 Screw Assy - 8-32 x 1-3/81
40 110288 Screw Assy - 8-32 x 3/41
41 100010 Pin - Cotter1
42 83166 Valve - Compression release1
43 61649 Pin - Piston1
44 69212 Piston Assy1
45 62814 Ring Set - Piston1
46 103512 Bearing2
47 65401 Connecting Rod Assy1
48 61627A Screw - Skt hd 8-36 x 1/22
49 63225 Roller - Needle (set of 20)1
50 65746 Oil Seal1
51 63464 Ring - Snap1
52 63429B Bearing - Ball1
53 65747 Oil Seal1
54 104357 Bearing - Needle1
55 63336 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600012 SUPER 10-10E CHAIN SAW 08/69 to 10/70 IPL 69914 Page 17 of 17
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
56 63541 Bar1
57 64325 Plate - Bar Protector2
58 62556M Chain Assy1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
