Instructions for use

WASHING MACHINE

GB CIS

English,1 РУССКИЙ, 13

Contents

GB

Installation, 2-3

Unpacking and levelling

Connecting the electricity and water supplies The first wash cycle

Technical data

ARTXD 109

Description of the washing machine, 4-5

Control panel Display

How to open and shut the drum

Running a wash cycle, 6

Load balancing system

Wash cycles and functions, 7

Table of wash cycles Wash functions

Detergents and laundry, 8

Detergent dispenser drawer

Preparing the laundry

Special wash cycles

Precautions and tips, 9

General safety Disposal

Saving energy and respecting the environment

Care and maintenance, 10

Cutting off the water or electricity supply Cleaning your appliance

Caring for your appliance door and drum Cleaning the pump

Checking the water inlet hose

How to clean the detergent dispenser

Troubleshooting, 11

Service, 12

1

Installation

! Keep this instruction manual in a safe place for GB future reference. Should the appliance be sold, transferred or moved, make sure the instruction

manual accompanies the washing machine to inform the new owner as to its operation and features.

! Read these instructions carefully: they contain vital information on installation, use and safety.

Unpacking and levelling

Unpacking

1. Unpack the washing machine.

2. Check whether the

washing machine has

been damaged during

transport. If this is the

case, do not install it

and contact your

retailer.

3. Remove the four protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4.Seal the gaps using the plastic plugs provided.

5.Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

Warning: should the screws be re-used, make sure you fasten the shorter ones at the top.

! Packaging materials are not children's toys.

Levelling

Your machine may make a considerable amount of noise if the two front feet have not been adjusted correctly.

1. Install the washing machine on a flat sturdy floor, without

resting it up against

walls, furniture cabinets

or other.

2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening

the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°.

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

Putting your appliance in place and moving it.

If your washing machine is equipped with a special set of retractable wheels you can easy move it. To lower the wheels and thus move the

appliance effortlessly,

just pull the lever, situated on the left-

hand side beneath the base. Once the

appliance is in the required position, put the lever back in place. The washing machine is now firmly in

place (see figure).

Electric and water connections

Connecting the water inlet hose

1. Connect the supply pipe by screwing it to a cold water tab using a 3/4 gas threaded connection

(see figure).

Before performing the connection, allow the water to run freely until it is perfectly clear.

2. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

3. Make sure there are no kinks or bends in the hose.

!The water pressure at the tap must be within the values indicated in the Technical details table

(on the next page).

!If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.

2

Connecting the drain hose

65 - 100 cm

Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100 cm from the floor;

alternatively, rest it on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

•the socket is earthed and complies with all applicable laws;

•the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);

•the power supply voltage falls within the values indicated in the Technical data table (see opposite);

•the socket is compatible with the plug of the washing machine. If this is not the case, replace the socket or the plug.

!The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

!When the washing machine has been installed, the electricity socket must be within easy reach.

! Do not use extension cords or multiple sockets.

GB

!The cable should not be bent or compressed.

!The power supply cable must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle .

Technical data

Model	ARTXD 109
	width 40 cm
Dimensions	height 85 cm
	depth 60 cm
Capacity	from 1 to 6 kg
Electrical	please refer to the technical data
connections	plate fixed to the machine
	maximum pressure 1 MPa (10 bar)
Water connections	minimum pressure 0.05 MPa (0.5 bar)
	drum capacity 42 litres
Spin speed	up to 1000 rotations per minute
Test Programmes	programme	(90°C); temperature
according to	60°C and 40°C (By pressing the
1061/2010	TEMPERATURE button).

This appliance conforms to the following EC Directives:

- 2004/108/CE (Electromagnetic Compatibility)

- 2002/96/EC

- 2006/95/EC (Low Voltage)

3

Description of the washing machine

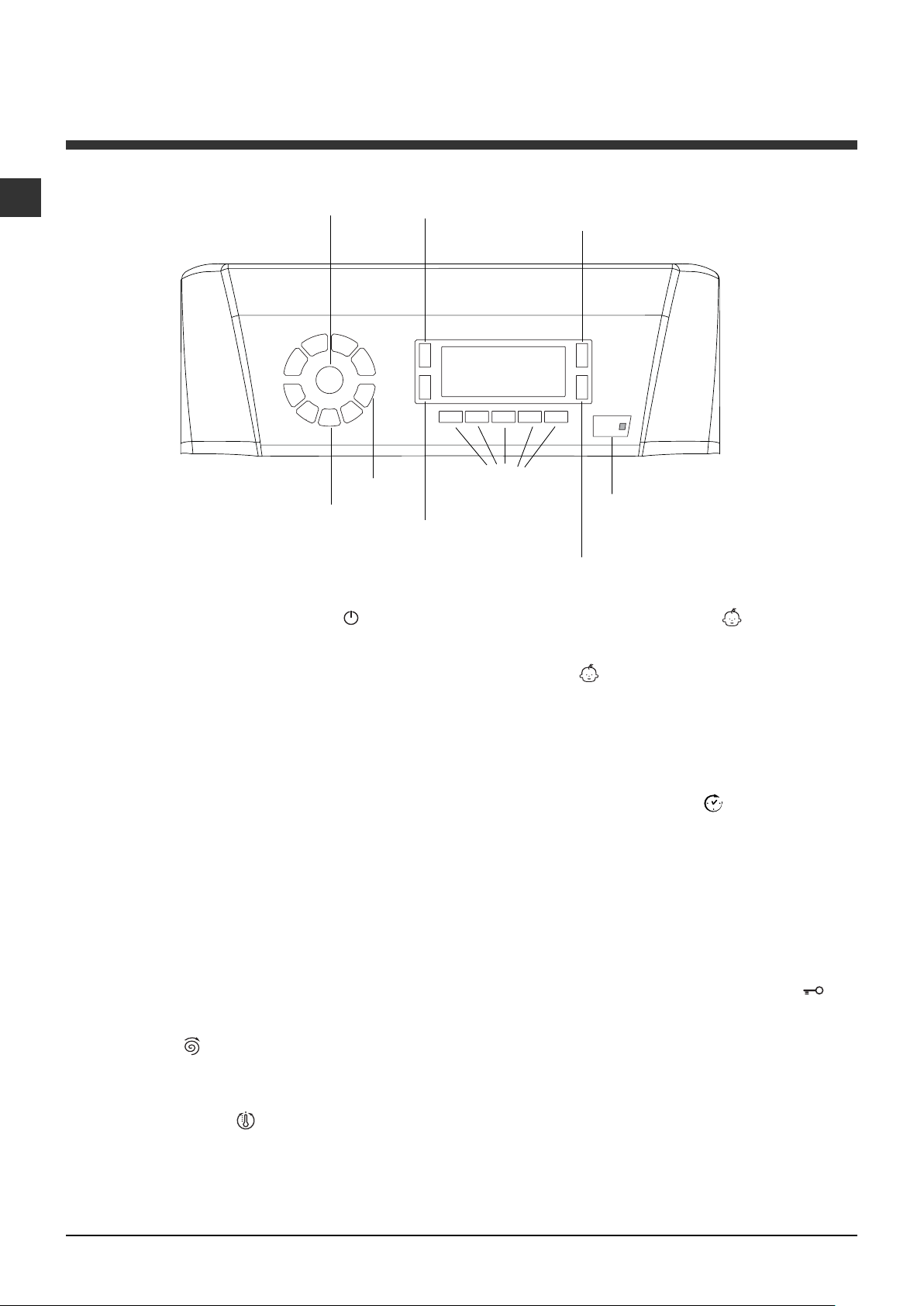

Control panel

GB

ON/OFF		CONTROL	SPIN SPEED
		PANEL
button		LOCK Button	Button

DISPLAY

WASH				START/PAUSE
CYCLE	MEMORY			button with indicator light
SELECTOR	Button		FUNCTION
Buttons				TEMPERATURE
	DELAYED		buttons
				Button
	START Button

ON/OFF button : press this briefly to switch the machine on or off. The START/PAUSE indicator light, which flashes slowly in a green colour shows that the machine is switched on. To switch off the washing machine during the wash cycle, press and hold the button for approximately 2 seconds; if the button is pressed briefly or accidentally the machine will not switch off. If the machine is switched off during a wash cycle, this wash cycle will be cancelled.

WASH CYCLE SELECTOR buttons: used to set the desired wash cycle (see "Table of wash cycles").

MEMORY button: press and hold the button to store a cycle with your own set of preferences in the memory of the machine. To recall a previously stored cycle, press the MEMO button.

FUNCTION buttons: press the button to select the desired function. The corresponding indicator light on the display will switch on.

SPIN button : press to reduce or completely exclude the spin cycle - the value is indicated on the display.

TEMPERATURE button : press to decrease the temperature: the value will be shown on the display.

CONTROL PANEL LOCK button : to activate the control panel lock, press and hold the button for approximately 2 seconds. When the symbol is illuminated, the control panel is locked. This means it is possible to prevent wash cycles from being modified accidentally, especially where there are children in the home. To deactivate the control panel lock, press and hold the button for approximately 2 seconds.

DELAYED START button : press to set a delayed start time for the selected wash cycle. The delay time will be shown on the display.

START/PAUSE button with indicator light: when the green indicator light flashes slowly, press the button to start a wash cycle. Once the cycle has begun the indicator light will remain lit in a fixed manner. To pause the wash cycle, press the button again; the indicator light will flash in an orange colour. If the symbol is not illuminated, the door may be opened. To start the wash cycle from the point at which it was interrupted, press the button again.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

4

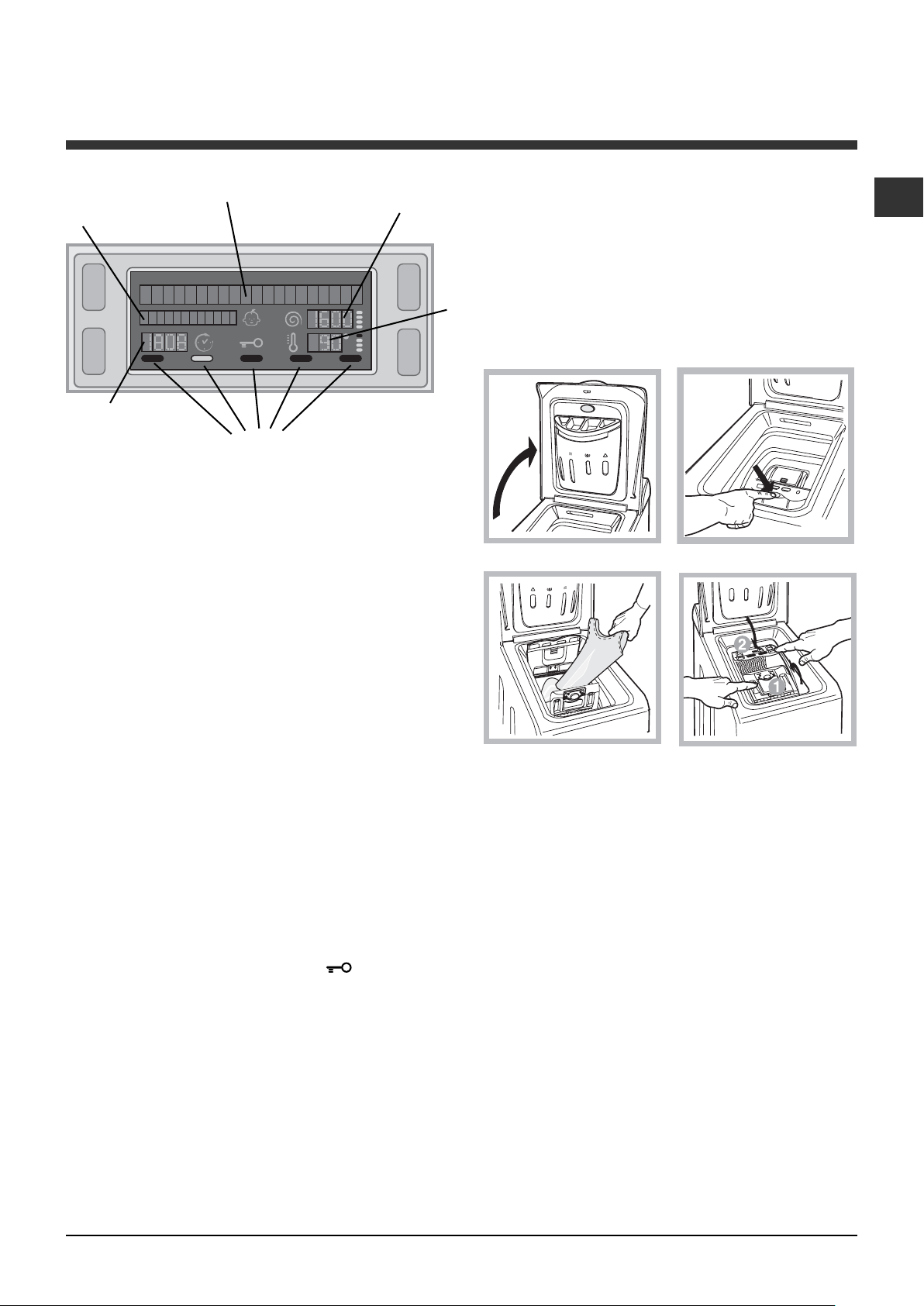

Display

A

To select the desired language press the TEMPERATURE

GB

D

and SPIN buttons; to confirm the selection press the

B

CONTROL PANEL LOCK button.

If you wish to select another language switch off the

machine, then press and hold the CONTROL PANEL

LOCK + TEMPERATURE + SPIN buttons simultaneously

E

for 5 seconds, then repeat the steps listed above.

How to open and to close the drum

C

F

The display is useful when programming the machine and provides a great deal of information.

The two upper strings A and B provide details of the wash cycle selected, the wash cycle phase in progress and all information relating to the progress status of the wash cycle.

String C shows the time remaining until the end of the wash cycle in progress and, if a DELAYED START has been set, the time remaining until the start of the selected wash cycle.

String D shows the maximum spin speed value (this depends on the selected wash cycle); if the wash cycle does not include a spin cycle, the string remains unused.

String E shows the maximum temperature value which may be selected (this depends on the wash cycle used); if the temperature of the wash cycle cannot be modified, the string remains unused.

Indicator lights F correspond to the functions and light up when the selected function is compatible with the set wash cycle.

Door locked symbol

If the symbol is lit, this indicates that the washing machine door is blocked to prevent it from being opened accidentally. To prevent any damage from occurring, wait for the symbol to switch itself off before opening the appliance door (it will take about three minutes).

N.B.: if the DELAYED START function has been activated, the door cannot be opened; pauses the machine by pressing the START/PAUSE button if you wish to open it.

! The first time the machine is switched on, you will be asked to select the language and the display will automatically show the language selection menu.

Fig. 1			Fig. 2

Fig. 3

Fig. 4

A)Opening (Fig. 1):

Lift the external lid and open it completely.

B)Opening the drum (Soft opening):

With one finger, push the button indicated in fig. 2 and the drum will open delicately.

C)Loading the washing machine (Fig. 3).

D)Shutting (Fig. 4):

-close the drum fully by first shutting the front door followed by the rear one;

-then ensure the hooks on the front door are perfectly housed within the seat of the rear door;

-after the hooks have clicked into position, press both doors lightly downwards to make sure they do not come loose;

-finally shut the external lid.

E) Drum End Stop (Fig. 2):

Once the wash cycle has been completed, the drum will position itself with doors facing upward for ease pf opening.

5

Running a wash cycle

1. SWITCH THE MACHINE ON. Press the

GB button; the text WELCOME will appear on the display and the START/PAUSE indicator light will flash slowly in a green colour.

2.LOAD THE LAUNDRY. Open the porthole door. Load the laundry, making sure you do not exceed the maximum load value indicated in the table of programmes on the following page.

3.MEASURE OUT THE DETERGENT. Pour the detergent into the relevant compartments as described in "Detergents and laundry".

4.CLOSE THE DOOR.

5.SELECT THE WASH CYCLE. Press one of the WASH CYCLE SELECTOR buttons to select the required wash cycle; the name of the wash cycle will appear on the display. A temperature and spin speed is set for each wash cycle; these may be adjusted. The duration of the cycle will appear on the display.

6.CUSTOMISE THE WASH CYCLE. Use the relevant buttons:

Modifying the temperature and/or spin speed. The machine automatically displays the maximum temperature and spin speed values set for the selected cycle, or the most recently-used settings if they are compatible with the selected

cycle. The temperature can be decreased by pressing the button, until the cold wash "OFF"

setting is reached. The spin speed may be progressively reduced by pressing the button, until it is completely excluded (the "OFF" setting). If these buttons are pressed again, the maximum values are restored.

Setting a delayed start.

To set a delayed start for the selected programme, press the corresponding button repeatedly until the required delay period has been reached. When this option is enabled, the symbol lights up on the display. To remove the delayed start function press the button until the text "OFF" appears on the display.

Modifying the cycle settings.

•Press the button to enable the function; the indicator light corresponding to the button will switch on.

•Press the button again to disable the function; the indicator light will switch off.

!If the selected function is not compatible with the programmed wash cycle, the indicator light will flash and the function will not be activated.

!If the selected function is not compatible with another function which has been selected previously, the indicator light corresponding to the first function selected will flash and only the second function will be activated; the indicator light corresponding to the enabled function will remain lit.

!The functions may affect the recommended load value and/or the duration of the cycle.

7.START THE PROGRAMME. Press the START/ PAUSE button. The corresponding indicator light will become green, remaining lit in a fixed manner, and

the door will be locked (the DOOR LOCKED symbol will be on). During the wash cycle, the name of the phase in progress will appear on the display. To change a wash cycle while it is in progress, pause the washing machine using the START/PAUSE button (the START/PAUSE indicator light will flash slowly in an orange colour); then select the desired cycle and press the START/ PAUSE button again.

To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED

symbol is switched off the door may be opened. Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.

8.THE END OF THE WASH CYCLE. This will be indicated by the text "END OF CYCLE" on the

display; when the DOOR LOCKED symbol switches off the door may be opened. Open the door, unload the laundry and switch off the machine.

! If you wish to cancel a cycle which has already begun, press and hold the button. The cycle will be stopped and the machine will switch off.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

6

Wash cycles and functions

Table of wash cycles

	cycles	Description of the wash cycle
	Wash
		Everyday wash cycles (Daily)
		Cotton (1-2) : extremely soiled whites.
		Cotton: heavily soiled whites and resistant colours.
		Cotton (3) : heavily soiled whites and delicate colours.
		Synthetics (1st press of the button): heavily soiled resistant colours.
		Synthetics (4) (1st press of the button): heavily soiled resistant colours.
		Synthetics (2nd press of the button): lightly soiled resistant colours.
		Mix 30' (1st press of the button): to refresh lightly soiled garments quickly (not
		suitable for wool, silk and clothes which require washing by hand).
		Mix 15' (2nd press of the button) : to refresh lightly soiled garments quickly (not
		suitable for wool, silk and clothes which require washing by hand).
		Special cycles / Memory
		Baby cycle: heavily soiled delicate colours.
	M	Memory: allows for any wash cycle to be stored.
		Silk/Curtains: for garments in silk and viscose, lingerie.
		Wool: for wool, cashmere, etc.
		Partial wash cycles
		Fast Spin (1st press of the button)
		Slow spin (2nd press of the button)
		Rinse cottons (1st press of the button)
		Pump out (2nd press of the button)

Max.	Max.			Detergents						Max.
temp.	speed									load
								Fabric
(°C)	(rpm)	Prewash		Bleach		Wash				(kg)
								softener
90°		z		z		z		z		6
	1000
60°	1000	z		z		z		z		6
40°	1000	z		z		z		z		6
60°	800	z		z		z		z		2,5
40°	800	z		z		z		z		2,5
40°	800	z		z		z		z		2,5
30°	800	-		-		z		z		3
30°	800	-		-		z		z		1,5
40°		-		z		z		z		2
	800
30°		-		-		z		z		1
	0
40°	800	-		-		z		z		1
-		-		-		-		-		6
	1000
-	800	-		-		-		-		2,5
-	1000	-		z		-		z		6
-	0	-		-		-		-		6

GB

Cycle duration

checked be can cycles wash the of duration The .display the on

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

For all Test Institutes:

1)Testwashcycleincompliancewithaccording 1061/2010:setwashcycle(90°C)withatemperatureof60°Cand40°C (BypressingtheTEMPERATUREbutton).

2)Long wash cycle for cottons: set wash cycle(90°C) with a temperature of 40°C (By pressing the TEMPERATURE button).

3)Short wash cycle for cottons: set wash cycle(40°C).

4)Long wash cycle for synthetics: set wash cycle(60°C) (1st press of the button); with a temperature of 40°C (By pressing the TEMPERATURE button).

Wash functions

Stain removal

This function is particularly useful for the removal of stubborn stains.

To run the bleach cycle on its own, pour the bleach

into compartment 4, set the "Rinse" programme

and activate the "Stain removal" programme. To bleach during a wash cycle, pour in the detergent and any fabric softener you wish to use, set the desired wash cycle and enable the "Stain removal" function.

! It cannot be used with the , , , and “Pump out” programmes.

Prewash

If this function is selected, the pre-wash cycle will run; this is useful for removing stubborn stains.

N.B.: put the detergent in the relevant compartment.

! It cannot be used with the , , , , ,

programmes.

Extra rinse

By selecting this option, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin.

! It cannot be used in conjunction with the , and “Pump out” programmes.

Easy iron

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. The wash cycles ends with the laundry being left to soak in the machine; the EASY IRON and START/PAUSE indicator lights will flash (orange) and the text "STOP WITH WATER" will appear on the display. To drain the water so that the laundry may be removed, press the START/PAUSE button or the EASY IRON button.

! It may not be used with the , , , and “Pump out” programmes.

Fast wash

Reduces the duration of the wash cycle, while making it possible to save water and electricity.

! It cannot be used with the , , , , ,

programmes.

7

Detergents and laundry

GB

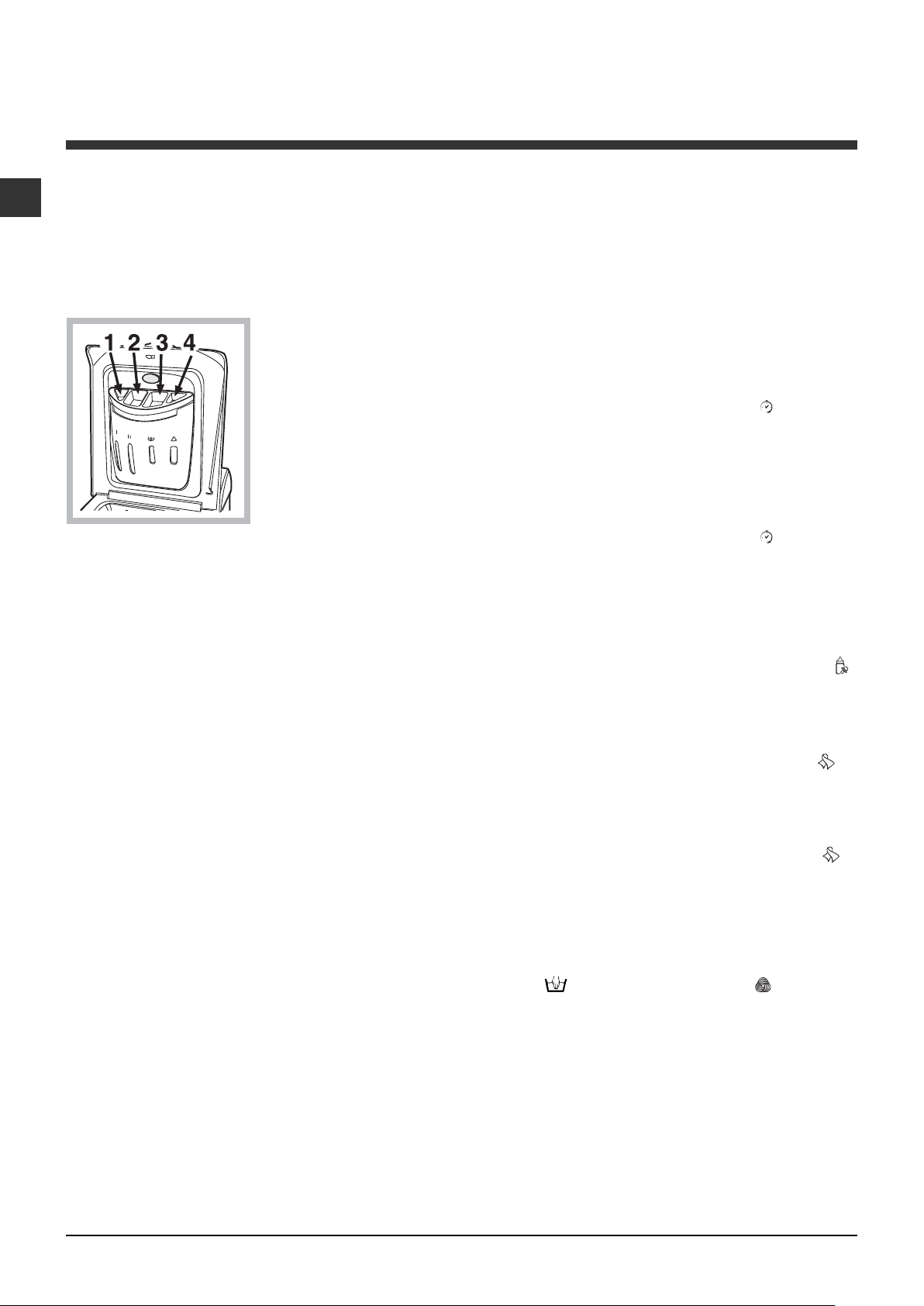

Detergent dispenser drawer

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

compartment 1: Detergent for pre-wash

compartment 2: Detergent for the wash cycle (powder or liquid)

It is recommended that you place liquid detergent directly into the compartment using the appropriate dosing cup.

compartment 3: Additives (softener, etc.)

When pouring the softener in compartment 3, avoid exceeding the "max" level indicated.

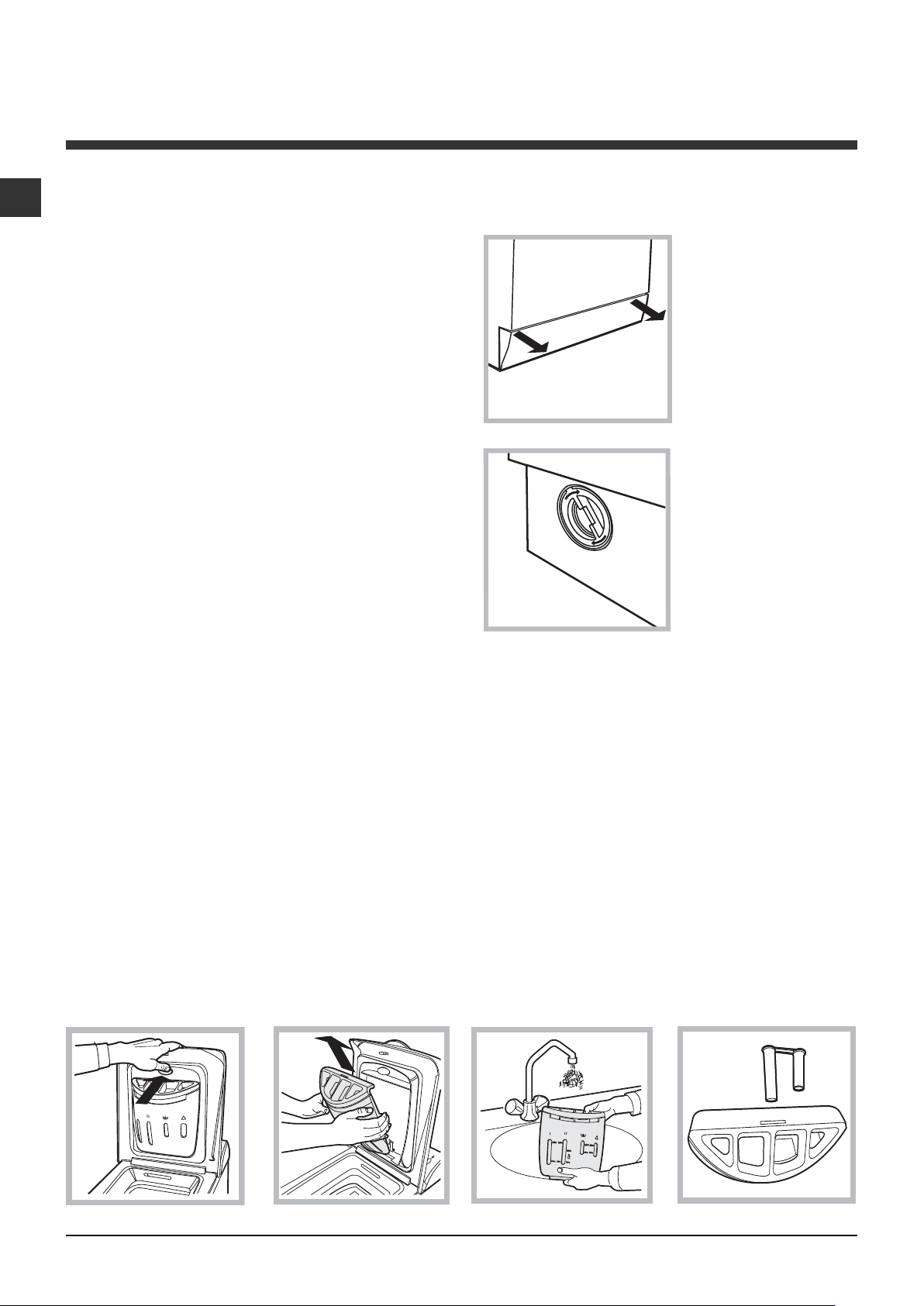

The softener is added automatically into the machine during the last wash. At the end of the wash programme, some water will be left in compartment 3. This is used for the inlet of denser fabric softeners into the machine, i.e. to dilute the more concentrated softeners. Should more than a normal amount of water remain in compartment 3, this means the emptying device is blocked. For cleaning instructions, see “Care and maintenance”.

compartment 4: Bleach

Preparing the laundry

•Divide the laundry according to:

-the type of fabric/the symbol on the label

-the colours: separate coloured garments from whites.

•Empty all garment pockets and check the buttons.

•Do not exceed the listed values, which refer to the weight of the laundry when dry:

Durable fabrics: max. 6 kg Synthetic fabrics: max. 2,5 kg Delicate fabrics: max. 2 kg Wool: max. 1 kg

Silk: max. 1 kg

How much does your laundry weigh?

1 sheet 400-500 g

1 pillow case 150-200 g

1 tablecloth 400-500 g

1 bathrobe 900-1200 g

1 towel 150-250 g

Special wash cycles

Mix 30’: this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 30 minutes and therefore saves both energy and time. By selecting this wash cycle ( at 30°C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 3 kg.

Mix 15’: this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 15 minutes and therefore saves both energy and time. By selecting this wash cycle ( at 30°C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 1.5 kg.

Baby cycle: this wash cycle can be used to remove the soiling typically caused by babies, while ensuring that all detergent is removed from nappies in order to prevent the delicate skin of babies from suffering allergies. The cycle has been designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfecting additives added to the detergent.

Silk: use special wash cycle to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes.

Curtains: fold curtains and place them in a pillow case or mesh bag. Use wash cycle .

Wool: is the only washing machine manufacturer to have been awarded the prestigious Woolmark Platinum Care endorsement (M.0508) by the Woolmark Company, which means that all woollen garments may be washed in the washing machine,

even those which	state “hand wash only”	on the
label. Wash cycle	therefore offers complete peace

of mind when washing woollen garments in the washing machine (max. load 1 kg) and guarantees optimal performance.

8
