Instructions for use

WASHING MACHINE

GB		CIS		PL
English,1				Polski,25

Contents	GB

Installation, 2-3

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

I F

Italiano,37 Français,49

Description of the washing machine and starting a wash cycle, 4-5

Control panel Indicator lights

How to open and shut the drum Starting a wash cycle

ARTXF 149

Wash cycles, 6

Table of wash cycles

Personalisation, 7

Setting the temperature

Setting the spin speed

Functions

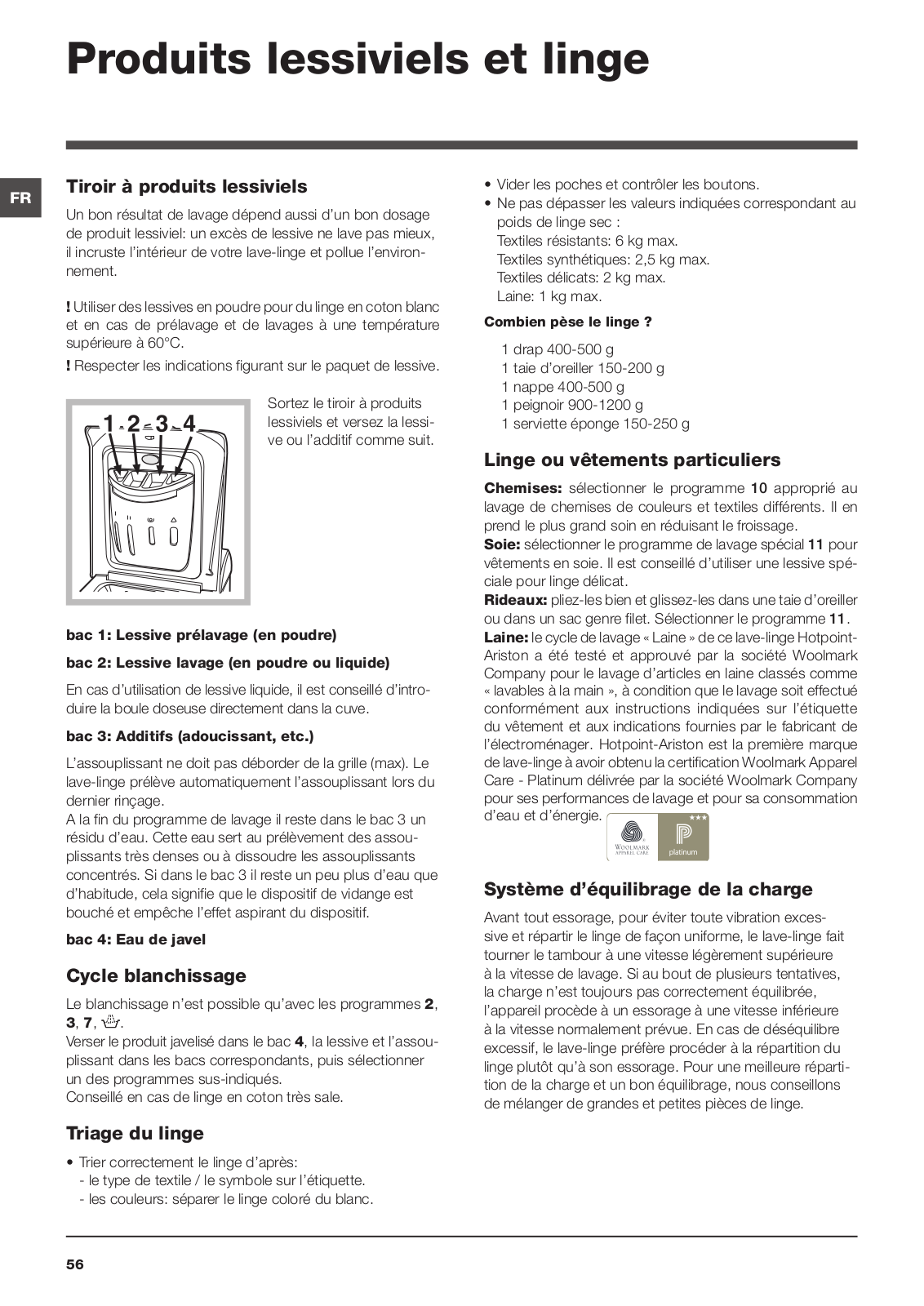

Detergents and laundry, 8

Detergent dispenser drawer Bleach cycle

Preparing the laundry Garments requiring special care Load balancing system

Precautions and tips, 9

General safety Disposal

Saving energy and respecting the environment

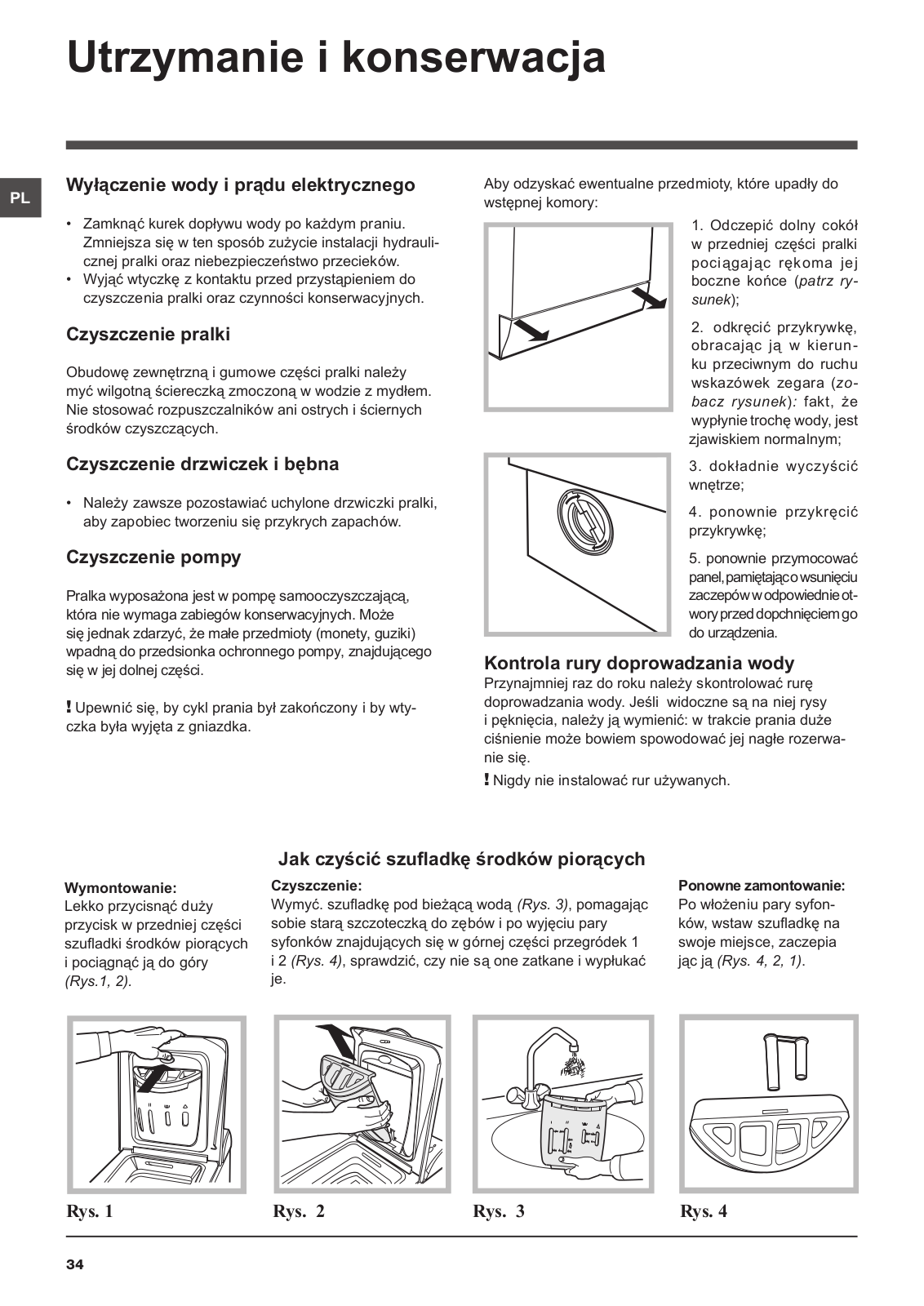

Care and maintenance, 10

Cutting off the water or electricity supply Cleaning the washing machine

Caring for your appliance door and drum Cleaning the pump

Checking the water inlet hose

How to clean the detergent dispenser

Troubleshooting, 11

Service, 12

1

Installation

GB	! Keep this instruction manual in a safe place for future refe-
	rence. Should the appliance be sold, transferred or moved,
	make sure the instruction manual accompanies the washing
	machine to inform the new owner as to its operation and
	features.
	! Read these instructions carefully: they contain vital infor-
	mation on installation, use and safety.
	Unpacking and levelling
	Unpacking
	1. Unpack the washing
	machine.
	2. Check whether the wa-
	shing machine has been
	damaged during transport.
	If this is the case, do not
	install it and contact your
	retailer.
	3. Remove the four protec-
	tive screws and the rubber
	washer with the respective
	spacer, situated on the
	rear of the appliance (see
	figure).
	4. Seal the gaps using the
	plastic plugs provided.
	5. Keep all the parts: you will need them again if the washing
	machine needs to be moved to another location.
	Warning: should the screws be re-used, make sure you fasten
	the shorter ones at the top.
	! Packaging materials are not children’s toys.
	Levelling
	Your machine may make a considerable amount of noise if
	the two front feet have not been adjusted correctly.
	1. Install the washing ma-
	chine on a flat sturdy floor,
	without resting it up against
	walls, furniture cabinets or
	other.
	2. If the floor is not perfectly
	level, compensate for any
	unevenness by tightening or
	loosening the adjustable front
	feet (see figure); the angle of
	inclination, measured accor-
	ding to the worktop, must not exceed 2°.
	Levelling your appliance correctly will provide it with stability
	and avoid any vibrations, noise and shifting during operation.
	If it is placed on a fitted or loose carpet, adjust the feet in
	such a way as to allow enough room for ventilation beneath
	the washing machine.

Putting your appliance in place and moving it.

If your washing machine is equipped with a special set of retractable wheels you can easy move it. To lower the wheels and thus move the appliance effortlessly, just pull the

lever, situated on the left-

hand side beneath the

base. Once the appliance

is in the required position, put the lever back in place. The washing machine is

now firmly in place (see figure).

Electric and water connections

Connecting the water inlet hose

1. Connect the supply pipe by screwing it to a cold water tab using a ¾ gas threaded connection (see figure).

Before performing the connection, allow the water to run freely until it is perfectly clear.

2. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance’s cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

3. Make sure there are no kinks or bends in the hose.

!The water pressure at the tap must be within the values indicated in the Technical details table

(on the next page).

!If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.

2

Connecting the drain hose

65 - 100 cm

Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100 cm from the floor;

alternatively, rest it on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

•the socket is earthed and complies with all applicable laws;

•the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table

(see opposite);

•the power supply voltage falls within the values indicated in the Technical data table (see opposite);

•the socket is compatible with the plug of the washing machine. If this is not the case, replace the socket or the plug.

!The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

!When the washing machine has been installed, the electricity socket must be within easy reach.

! Do not use extension cords or multiple sockets.	GB

!The cable should not be bent or compressed.

!The power supply cable must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle 2.

Technical details

	Model	ARTXF 149
		40 cm wide
	Dimensions	85 cm high
		60 cm deep
	Capacity	from 1 to 6 kg
	Electric	Please refer to the technical data plate
	connections	fixed to the machine.
	Water	maximum pressure 1 MPa (10 bar)
		minimum pressure 0.05 MPa (0.5 bar)
	connections
		drum capacity 42 litres
	Spin speed	up to 1400 rpm

Test wash cycles in

accordance programme 7; temperature 60°C and with directives 40°C.

1061/2010 and 1015/2010

This appliance is compliant with the following European Community Directives:

-2004/108/CE (Electromagnetic Compatibility)

-2006/95/CE (Low Voltage)

- 2002/96/CE

3

Description of the washing machine and starting a wash cycle

Control panel

WASH CYCLE

GB

PROGRESS

ON/OFF

TEMPERATURE

DISPLAY

LID LOCKED

button with indicator light

button

indicator light

WASH CYCLE	SPIN				START/PAUSE
	SPEED				button with indicator light
knob
	button			FUNCTION buttons with
				indicator lights
	CONTROL PANEL LOCK
	button with indicator light

ON/OFF button with indicator light: switches the machine on and off. If the indicator light is illuminated, this indicates that the machine is switched on.

WASH CYCLE knob: programmes the wash cycles. During the wash cycle, the knob does not move.

SPIN SPEED button: sets the spin speed or exclude the spin cycle completely (see “Personalisation”).

TEMPERATURE button: sets the temperature or the cold wash cycle (see “Personalisation”).

DISPLAY: indicates the time remaining for the selected wash cycle and, if a delayed start has been programmed, the time remaining until the start of the wash cycle.

CONTROL PANEL LOCK button with indicator light: activates or deactivates the control panel lock.

FUNCTION buttons with indicator light: used to select the available functions. The indicator light corresponding to the selected function will remain lit.

WASH CYCLE PROGRESS indicator lights: used to monitor the progress of the wash cycle. The illuminated indicator light shows which phase is in progress.

DOOR LOCKED indicator light: indicates whether the door may be opened or not (see next page).

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.interrupted, press this button again.

Consumption in off-mode: 1 W Consumption in Left-on: 1 W

Indicator lights

The indicator lights provide important information. This is what they can tell you:

Wash cycle phase indicator lights

AstheWASHCYCLEknobisrotated,theindicatorlightsilluminate, indicatingthestageswhichwillbeperformedbythemachineinaccordancewiththeselectedwashcycle.Oncethedesiredwashcycle hasbeenselectedandhasbegun,theindicatorlightsswitchonone byonetoindicatewhichphaseofthecycleiscurrentlyinprogress.

Wash

Rinse

Spin

Drain

START/PAUSE button with indicator light: starts or temporarily interrupts the wash cycles.

N.B. To pause the wash cycle in progress, press this button; the corresponding indicator light will flash orange, while the indicator light for the current wash cycle phase will remain lit in a fixed manner. If the DOOR LOCKED indicator light is switched off, the door may be opened. To start the wash cycle from the point at which it was

End of wash cycle

Function buttons and corresponding indicator lights

When a function is selected, the corresponding indicator light will illuminate. If the selected function is not compatible with the programmedwashcycle,thecorrespondingindicatorlightwillflash,a sound signal will be emitted and the function will not be activated. If a function which is incompatible with another function selected previously, only the most recent selection will remain active.

4

Temperature indicator light

When a temperature value is selected, the cor- responding indicator light will illuminate.

Spin indicator light

When a spin value is selected, the corresponding indicator light will illuminate.

Control panel lock indicator light

To activate the control panel lock, press and hold the button for approximately 2 seconds. When the indicator light is illuminated, the control panel is locked. This means it is possible to prevent wash cycles from being modified accidentally, especially where there are children in the home. To deactivate the control panel lock, press and hold the button for approximately 2 seconds.

Lid locked indicator light

Ifthisindicatorlightison,theappliancedoorislockedtopreventit frombeingopenedaccidentally;toavoidanydamage,waitforthe indicator light to switch off (it will take about three minutes) before you open the appliance door.

N.B. If the DELAY TIMER function is activated, the door cannot be opened; pause the machine by pressing the START/ PAUSE button if you wish to open it.

! If the START/PAUSE indicator light (orange) flashes rapidly at the same time as the function indicator light, this indicates a problem has occurred (see “Troubleshooting”).

How to open and to close the drum

Fig. 1			Fig. 2

Fig. 3

Fig. 4

	A) Opening (Fig. 1):
		GB
	Lift the external lid and open it completely.
	B) Opening the drum (Soft opening):
	With one finger, push the button indicated in fig. 2
	and the drum will open delicately.

C)Loading the washing machine (Fig. 3).

D)Shutting (Fig. 4):

-close the drum fully by first shutting the front door followed by the rear one;

-then ensure the hooks on the front door are perfectly housed within the seat of the rear door;

-after the hooks have clicked into position, press both doors lightly downwards to make sure they do not come loose;

-finally shut the external lid.

E)Drum End Stop (Fig. 2):

Once the wash cycle has been completed, the drum will position itself with doors facing upward for ease pf opening.

Starting a wash cycle

1. Turn the washing machine on by pressing the ON/OFF button. All the indicator lights will turn on for a few seconds, then only the indicator lights relative to the

selected programme settings will remain lit and the START/ PAUSE indicator light will flash.

2.Load the laundry, close the door and the lid.

3.Set the WASH CYCLE knob to the desired programme.

4.Set the washing temperature (see “Personalisation”).

5.Set the spin speed (see “Personalisation”).

6.Measure out the detergent and washing additives (see “Detergents and laundry”).

7.Select the desired functions.

8.Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed manner, in green.

To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.

9.At the end of the wash cycle the indicator light will switch on. The LID LOCKED indicator light will switch off, indicating that the door may be opened. Take out your laundry and leave the appliance door ajar to make sure the drum dries completely.

Switch the washing machine off by pressing the ON/OFF button.

5

Wash cycles

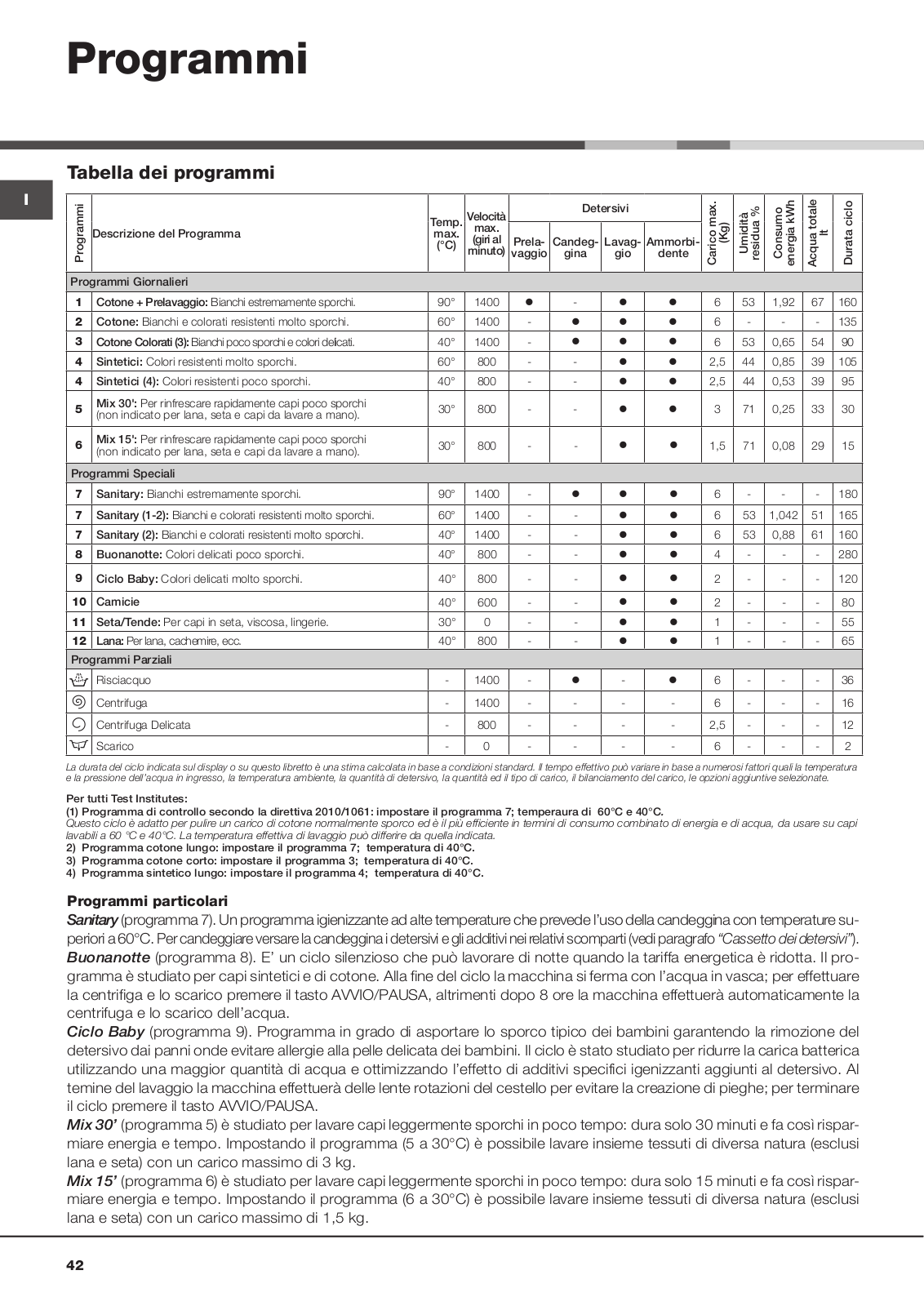

	Table of wash cycles
GB
		cycles				Max.		Max.				Detergents
		Wash		Description of the wash cycle		temp.		speed		Pre-						Fabric
						(°C)		(rpm)		wash		Bleach		Wash		softener
				Everyday wash cycles (Daily)
		1		Cotton + Prewash 90°: Extremely soiled whites.												
						90°		1400				-
		2		Cotton: Heavily soiled whites and resistant colours.		60°		1400		-						
		3		Coloured Cottons (3): Lightly soiled whites and delicate colours.		40°		1400		-						
		4		Synthetics resistents: Heavily soiled resistant colours.		60°		800		-		-				
		4		Synthetics delicates (4): Lightly soiled resistant colours.		40°		800		-		-				
		5		Mix 30': To refresh lightly soiled garments quickly (not suitable for		30°		800		-		-				
				wool, silk and clothes which require washing by hand).
		6		Mix 15': To refresh lightly soiled garments quickly (not suitable for		30°		800		-		-				
				wool, silk and clothes which require washing by hand).
				Special cycles
		7		Sanitizing cycle 90°: Extremely soiled whites.												
						90°		1400		-
		7		Sanitizingcycle90°(1-2):Heavily soiled whites and resistant colours.		60°		1400		-		-				
		7		Sanitizing cycle 90° (2): Heavily soiled whites and resistant colours.		40°		1400		-		-				
		8		Goodnigt cycle: Lightly soiled delicate colours.		40°		800		-		-				
		9		Baby cycle: Heavily soiled delicate colours.		40°		800		-		-				
		10		Shirts		40°		600		-		-				
		11		Silk/Curtains: For garments in silk and viscose, lingerie.		30°		0		-		-				
		12		Wool: For wool, cashmere, etc.		40°		800		-		-				
				Partials wash cycles
				Rinse												
						-		1400		-				-
				Spin		-		1400		-		-		-		-
				Light spin		-		800		-		-		-		-
				Drain no spin		-		0		-		-		-		-

Max. load(kg)	Residual dampness %	Energy consumption kWh	Total water lt	Cycleduration
6
	53	1,92	67	160
6	-	-	-	135
6	53	0,65	54	90
2,5	44	0,85	39	105
2,5	44	0,53	39	95
3	71	0,25	33	30
1,5	71	0,08	29	15
6
	-	-	-	180
6	53	1,042	51	165
6	53	0,88	61	160
4	-	-	-	280
2	-	-	-	120
2	-	-	-	80
1	-	-	-	55
1	-	-	-	65
6
	-	-	-	36
6	-	-	-	16
2,5	-	-	-	12
6	-	-	-	2

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

For all Test Institutes:

1) Test wash cycle in compliance with regulation 1061/2010: set wash cycle 7 with a temperature of 60°C and 40°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60°C and 40°C. The actual washing temperature may differ from the indicated value.

2)Long wash cycle for cottons: set wash cycle 7 with a temperature of 40°C.

3)Short wash cycle for cottons: set wash cycle 3 with a temperature of 40°C.

4)Long wash cycle for synthetics: set wash cycle 4; with a temperature of 40°C.

Specials wash cycles

Sanitizing cycle (wash cycle 7). A high-temperature hygienic wash cycle (over 60°C) which requires the use of bleach. Pour the bleach, the detergent and the additives into the relevant compartments (see paragraph entitled “Detergent dispenser drawer”). Goodnigt cycle (wash cycle 8). This is a silent cycle which can be run at night, when the electricity prices are lower. The wash cycle is designed for cottons and synthetics. At the end of the cycle the machine stops while there is still water in the drum; to spin and drain the laundry press the START/PAUSE button; alternatively the machine will perform the spin cycle and drain the water automatically after 8 hours.

Baby cycle (wash cycle 9). This wash cycle can be used to remove the soiling typically caused by babies, while ensuring that all detergent is removed from nappies in order to prevent the delicate skin of babies from suffering allergies. The cycle has been designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfecting additives added to the detergent. At the end of the wash cycle, the machine will slowly rotate the drum to prevent the formation of creases; to end the cycle press the START/PAUSE button.

Mix 30’ (wash cycle 5) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 30 minutes and therefore saves both energy and time. By selecting this wash cycle (5 at 30°C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 3 kg.

Mix 15’(wash cycle 6) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 15 minutes and therefore saves both energy and time. By selecting this wash cycle (6 at 30°C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 1.5 kg.

6

Personalisation

Setting the temperature
			GB
By pressing the TEMPERATURE button to set the wash temperature (see Table of wash cycles).
The temperature may be lowered, or even set to a cold wash ( ).
The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value
set for each wash cycle.
Setting the spin speed
By pressing the SPIN SPEED button to set the spin speed for the selected wash cycle.
The maximum spin speeds available for each wash cycle are as follows:
Wash cycles	Maximum spin speed
Cottons	1400 rpm
Synthetics	800 rpm
Wool	800 rpm
Silk	drain only

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol .

The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed set for each wash cycle.

Functions

The various wash functions available with this washing machine will help to achieve the desired results, every time. To activate the functions:

1.Press the button corresponding to the desired function;

2.the function is enabled when the corresponding indicator light is illuminated.

Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in conjunction with the selected wash cycle.

Delay timer

To set a delayed start for the selected wash cycle, press the button repeatedly until the desired delay time is displayed (this may be between 1 hour and 24 hours).

To disable the function press the button until the textis displayed.

N.B. Once you have pressed the START/PAUSE button, the delay time may only be decreased if you wish to modify it. ! This option is enabled with all programmes.

Super Wash

Because a greater quantity of water is used in the initial phase of the cycle, and because of the increased cycle duration, this function offers a high-performance wash.

! This function may not be used in conjunction with wash cycles 5, 6, 7, 11, 12, , , , .

Extra rinse

By selecting this function, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin.

! This function may not be used in conjunction with wash cycles 5, 6, , , .

Easy iron

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine will perform slow rotations of the drum.

For the 11 wash cycle, the machine will end the cycle while the laundry is soaking, the EASY IRON and START/PAUSE indicator lights will flash (orange) and the RINSE phase will remain lit in a fixed manner. To drain the water so that the laundry may be removed, press the START/PAUSE button or the EASY IRON button.

! This function may not be used in conjunction with wash cycles 5, 6, 7, 8, 9, 12, , , .

7

Detergents and laundry

Detergent dispenser drawer

GB

Good washing results also depend on the correct dose of detergent: adding too much detergent won’t necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

!Use powder detergent for white cotton garments, for prewashing, and for washing at temperatures over 60°C.

!Follow the instructions given on the detergent packaging.

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

compartment 1: Detergent for pre-wash

compartment 2: Detergent for the wash cycle (powder or liquid)

It is recommended that you place liquid detergent directly into the compartment using the appropriate dosing cup.

compartment 3: Additives (softener, etc.)

When pouring the softener in compartment 3, avoid exceeding the “max” level indicated.

The softener is added automatically into the machine during the last wash. At the end of the wash programme, some water will be left in compartment 3. This is used for the inlet of denser fabric softeners into the machine, i.e. to dilute the more concentrated softeners. Should more than a normal amount of water remain in compartment 3, this means the emptying device is blocked. For cleaning instructions, see “Care and maintenance”.

compartment 4: Bleach

Bleach cycle

Bleaching may only be performed in conjunction with wash cycles 2, 3, 7, .

Pour the bleach into compartment 4; pour the detergent and softener into the corresponding compartments, then select one of the abovementioned wash cycles.

This option is recommended only for very soiled cotton garments.

Preparing the laundry

•Divide the laundry according to:

-the type of fabric/the symbol on the label

-the colours: separate coloured garments from whites.

•Empty all garment pockets and check the buttons.

•Do not exceed the listed values, which refer to the weight of the laundry when dry:

Durable fabrics: max. 6 kg Synthetic fabrics: max. 2,5 kg Delicate fabrics: max. 2 kg Wool: max. 1 kg

How much does your laundry weigh?

1 sheet 400-500 g

1 pillow case 150-200 g

1 tablecloth 400-500 g

1 bathrobe 900-1200 g

1 towel 150-250 g

Garments requiring special care

Shirts: use special wash cycle 10 to wash shirts in various fabrics and colours.

It guarantees maximum care is taken of the garments and minimises the formation of creases.

Silk: use special wash cycle 11 to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes.

Curtains: fold curtains and place them in a pillow case or mesh bag. Use wash cycle 11.

Wool: The wool wash cycle on this Hotpoint-Ariston machine has been tested and approved by The Woolmark Company for washing wool garments labelled as hand washable provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. Hotpoint-Ariston is the first washing machine brand to be approved by The Woolmark Company for Apparel CarePlatinum for its washing performance and consumption of energy and water.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

8

Precautions and tips

! This washing machine was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

•This appliance was designed for domestic use only.

•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

•Do not touch the machine when barefoot or with wet or damp hands or feet.

•Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.

•Do not touch the drained water as it may reach extremely high temperatures.

•Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening.

•If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself.

•Always keep children well away from the appliance while it is operating.

•If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

•Before loading laundry into the washing machine, make sure the drum is empty.

Disposal

•Disposing of the packaging materials: observe local regulations so that the packaging may be re-used.

•The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Saving energy and respecting the envi-	GB
ronment

Saving on detergent, water, energy and time

•To avoid wasting resources, the washing machine should be used with a full load. A full load instead

of two half loads allows you to save up to 50% on energy.

•The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.

•Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy.

•Use the correct quantity of detergent depending on the water hardness, how soiled the garments

are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain

ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.

•If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board’s peak load.

The “Delay Timer” option helps to organise your wash cycles accordingly.

•If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

9

Care and maintenance

Cutting off the water or electricity sup- GB ply

•Turn off the water tap after every wash. This will limit the wear of your appliance’s water system and also prevent leaks.

•Unplug your appliance when cleaning it and during all maintenance operations.

Cleaning your appliance

The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Caring for your appliance door and drum

•Always leave the appliance door ajar to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the prechamber that protects the pump, situated in the lower part of the same.

! Make sure the wash cycle has ended and unplug the appliance.

To recover any objects that have fallen into the pre-chamber:

1. remove the plinth at the bottom on the front side of the washing machine by pulling from the side with your hands (see figure);

2. unscrew the lid rotating it anticlock-wise (see figure): a little water may trickle out. This is perfectly normal;

3. clean the interior thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are securely in place befo-

re you push it onto the appliance.

Checking the water inlet hose

Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use hoses that have already been used.

					How to clean the detergent dispenser
Disassembly:				Cleaning:
Press lightly on the large				Then clean the dispenser under a tap (fig. 3) using an old
button on the front of the				toothbrush and, once the pair of siphons inserted in the top
detergent dispenser and pull				of compartments 1 and 2 (fig. 4) have been pulled out, check
it upwards (fig. 1, 2).				whether the same are not clogged and then rinse them.

Reassembly:

Do not forget to reinsert the pair of siphons into the special housings and then to replace the dispenser into its seat, clicking it into place (fig. 4, 2 and 1).

Fig. 1	Fig. 2	Fig. 3	Fig. 4

10

Troubleshooting

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure
			GB
that the problem cannot be not solved easily using the following list.
Problem:	Possible causes / Solutions:

The washing machine does not switch on.

The wash cycle does not start.

•The appliance is not plugged into the socket fully, or is not making contact.

•There is no power in the house.

•The appliance Lid is not shut properly.

•The ON/OFF button has not been pressed.

•The START/PAUSE button has not been pressed.

•The water tap has not been opened.

•A delayed start has been set (see “Personalisation”).

The washing machine does not	• The water inlet hose is not connected to the tap.
take in water (the indicator light for	• The hose is bent.
the first wash cycle stage flashes	• The water tap has not been opened.
rapidly).	• There is no water supply in the house.
	• The pressure is too low.
	• The START/PAUSE button has not been pressed.

The washing machine continuously takes in and drains water.

•The drain hose is not fitted at a height between 65 and 100 cm from the floor (see “Installation”).

•The free end of the hose is under water (see “Installation”).

•The wall drainage system is not fitted with a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.

The washing machine does not drain or spin.

•The wash cycle does not include draining: some wash cycles require the drain phase to be started manually.

•The EASY IRON function has been activated: To complete the wash cycle, press the START/PAUSE button (“Personalisation”).

•The drain hose is bent (see “Installation”).

•The drainage duct is clogged.

The washing machine vibrates a lot during the spin cycle.

The washing machine leaks.

•The drum was not unlocked correctly during installation (see “Installation”).

•The washing machine is not level (see “Installation”).

•The washing machine is trapped between cabinets and walls (see “Installation”).

•The water inlet hose is not screwed on properly (see “Installation”).

•The detergent dispenser drawer is blocked (for cleaning instructions, see “Care and maintenance”).

•The drain hose is not fixed properly (see “Installation”).

The START/PAUSE indicator light (orange) and the function indicator lights flash rapidly.

There is too much foam.

•Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again.

If the problem persists, contact the Technical Assistance Service.

•The detergent is not suitable for machine washing (it should display the text “for washing machines” or “hand and machine wash”, or the like).

•Too much detergent was used.

11

Service

			Before calling for Assistance:
	GB
			• Check whether you can solve the problem alone (see “Troubleshooting”);
			• Restart the programme to check whether the problem has been solved;
			• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the
			guarantee certificate.
			! Always request the assistance of authorised technicians.

Have the following information to hand:

•the type of problem;

•the appliance model (Mod.);

•the serial number (S/N).

This information can be found on the data plate situated on the rear of the washing machine.

12



ARTXF 149



 



13

		!
		!
		­

!









! 

14

	65 - 100 cm	­
	!







 

 

 

 

­



15







16



!











.









17

	1					-		
					-			
	3	3			-			
					-	-		
					-	-		
		3			­	­		
		1			­	­		
					­			
		1			­	­		
					­	­		
					­	­		
					­	­		
	1				­	­		
	11				­	­		
	1				­	­		
			­		­		­	
			­		­	­	­	­
			­		­	­	­	­
			­		­	­	­	­

По завершении стирки машина продолжит медленно вращать барабан во избежание сминания белья. Для остановки цикла нажмите кнопку ПУСК/ПАУЗА.

18
