Installation Instructions 818626-00

Level Electrode
NRG 16-12, NRG 17-12, NRG 19-12

1

2

Contents

Page

Important Notes

Usage for the intended purpose ..............................................................................................................4

Safety note .............................................................................................................................................4

Danger ...................................................................................................................................................4

ATEX (Atmosphère Explosible) .................................................................................................................4

Explanatory Notes

Scope of supply .................................................................................................................................. 4-5

Description .............................................................................................................................................5

Function .................................................................................................................................................5

System components ...............................................................................................................................5

Design ....................................................................................................................................................6

Technical Data

NRG 16-12, NRG 17-12, NRG 19-12 .......................................................................................................

Corrosion resistance ...............................................................................................................................7

Sizing .....................................................................................................................................................7

Name plate / marking .............................................................................................................................7

Dimensions .............................................................................................................................................8

Design

NRG 1...-12 ............................................................................................................................................9

Key ....................................................................................................................................................... 11

Functional Elements

NRG 1...-12 ..........................................................................................................................................10

Key ....................................................................................................................................................... 11

Installation

NRG 1...-12, step 1 ............................................................................................................................... 12

NRG 1...-12, step 2 ............................................................................................................................... 12

Attention ............................................................................................................................................... 12

Important notes ....................................................................................................................................13

Tools .....................................................................................................................................................13

Examples of installation ........................................................................................................................14

Key ....................................................................................................................................................... 15

6

Contents – continued –

Page

Wiring

NRG 1...-12 ..........................................................................................................................................15

Wiring diagram .....................................................................................................................................16

Voltage table .........................................................................................................................................17

Note .....................................................................................................................................................17

Tools .....................................................................................................................................................17

Commissioning

Check wiring ........................................................................................................................................17

Apply mains voltage..............................................................................................................................17

Operation

High-level alarm ...................................................................................................................................18

Note .....................................................................................................................................................18

Operational Malfunctions

Fault-finding list for troubleshooting ......................................................................................................18

Decommissioning

Danger .................................................................................................................................................19

Disposal................................................................................................................................................19

3

4

Important Notes

Usage for the intended purpose

Use level electrodes NRG 16-12, NRG 17-12 and NRG 19-12 only in conjunction with level switch NRS
1-8 for water-level limiting (high level alarm).

Safety note

The equipment must only be installed and commissioned by qualified and competent staff.
Retrofitting and maintenance work must only be performed by qualified staff – who through adequate
training – have achieved a recognised level of competence.

Danger

When loosening the electrode steam or hot water might escape.
This presents the danger of severe scalds to the whole body.
It is essential not to mount or dismantle the electrode unless the boiler pressure is
verified to be 0 bar. The electrode becomes hot during operation. Touching the hot
equipment presents the risk of severe burns to hands and arms. All installation and
maintenance work must only be performed when the equipment is cold.

ATEX (Atmosphère Explosible)

The equipment constitutes a simple item of electrical equipment as defined in DIN EN 50020 section

5.4. According to the European Directive ATEX 94/9/EC the equipment may only be used in potentially
explosive atmospheres if it is provided with approved Zener barriers.
Applicable in Ex zones 1, 2 (1999/92/EC). The equipment does not bear an Ex marking. The suitability
of the Zener barriers is certified in a separate document.

Explanatory Notes

Scope of supply

NRG 16-12

1 Level electrode NRG 16-12, PN 40
1 Joint ring 27 x 32, form D, DIN 7603, 1.4301, bright-annealed
1 Disk with set screw (measuring surface extension) – optional
1 Retaining ring – optional
1 Installation manual

NRG 17-12

1 Level electrode NRG 17-12, PN 63
1 Joint ring 27 x 32, form D, DIN 7603, 1.4301, bright-annealed
1 Disk with set screw (measuring surface extension) – optional
1 Retaining ring – optional
1 Installation manual

Explanatory Notes – continued –

Scope of supply – continued –

NRG 19-12

1 Level electrode NRG 19-12, PN 160
1 Joint ring 27 x 32, form D, DIN 7603, 1.4301, bright-annealed
1 Disk with set screw (measuring surface extension) – optional
1 Retaining ring – optional
1 Installation manual

Description

The level electrode NRG 1...-12 detects the max. liquid level (high level alarm) in a steam boiler.
The operation of the electrode is based on the conductivity measuring principle using the electrical
conductivity of water for signaling one liquid level:

■ High level alarm

The NRG 1...-12 is designed for use in conjunction with level switch NRS 1-8 as a self-monitoring low
level limiter with periodic self-checking (SMART) feature.

Application in steam and pressurised hot-water plants in accordance with TRD 604, sheet 1 and
sheet 2 (24 h/72 h operation) as well as EN 12952 and EN 12953.

The electrical equipment meets the requirements of the Regulations on Protection Circuits
DIN VDE 0116.

Function

The water level limiter comprises a level electrode type NRG 1...-12 and a level switch type NRS 1-8.
The level electrode NRG 1...-12 consists of a pressure-tight measuring electrode. The electrode is
insulated with a plastic sleeve.

The high level limiter is based on the conductive measuring principle using the electrical conductivity of
water for signaling water level. During normal, trouble-free operation the level electrode tip is not
immersed in boiler water and no high level alarm is given. A high level alarm will only be raised if the
electrode tip is submerged for more than 3 seconds. A high level alarm will also be activated if the
insulating seals placed between the electrodes and the body are no longer pressure tight, allowing
water to penetrate into the body. However in this instance the alarm is caused by a malfunction of the
electrode, and confirmation should always be done by checking the water level in the gauge glass.
The equipment combination NRG 1...-12 and NRS 1-8 provides fail safe protection against a first fault in
accordance with TRD 604.

System components

NRS 1-8

Level switch NRS 1-8. Two channel level limiter (redundancy) with periodic self-checking routine to
DIN VDE 0116.

5

6

Explanatory Notes – continued –

Design

NRS 1...-12

Screwed ¾" BSP, ISO 228-1,

Fig. 3, Fig. 4, Fig. 5.

Technical Data

NRG 16-12, NRG 17-12, NRG 19-12

Type approval

TÜV· 01-02-0112

Service pressure

NRG 16-12: 32 bar at 238°C
NRG 17-12: 60 bar at 275°C
NRG 19-12: 100 bar at 311°C

Connection

¾" BSP, ISO 228-1

Materials

Stem: 1.4571 X6CrNiMoTi17-12-2
Measuring electrode: 1.4401, X5CrNiMo17-12-2
Electrode insulation: PEEK
Terminal box: Polyamide (PA)

Lengths available

500 mm 1000 mm
1500 mm

Cell constant C

-1

0.13 cm

with measuring surface extension

0.3 cm-1 without measuring surface extension

Response sensitivity

10

µS/cm at 25 °C, cell constant 0.3 cm

0.5 µS/cm at 25 °C, cell constant 0.13 cm

Terminal box

Four-pin connector, cable gland M 16 (PG 9)

Protection

IP 65 to EN 60529

Max. admissible ambient temperature

70 °C

Weight

Approx. 1.1 kg

-1

-1

Technical Data – continued –

Corrosion resistance

Provided that the equipment is used for its intended purpose, its safety is not impaired by
corrosion.

Sizing

The body must not be subjected to sharp increases in pressure. Welds and flanges of the electrode are
designed to withstand dynamic loading (bending and alternating stress). The dimensional allowances
for corrosion reflect the latest state of technology.

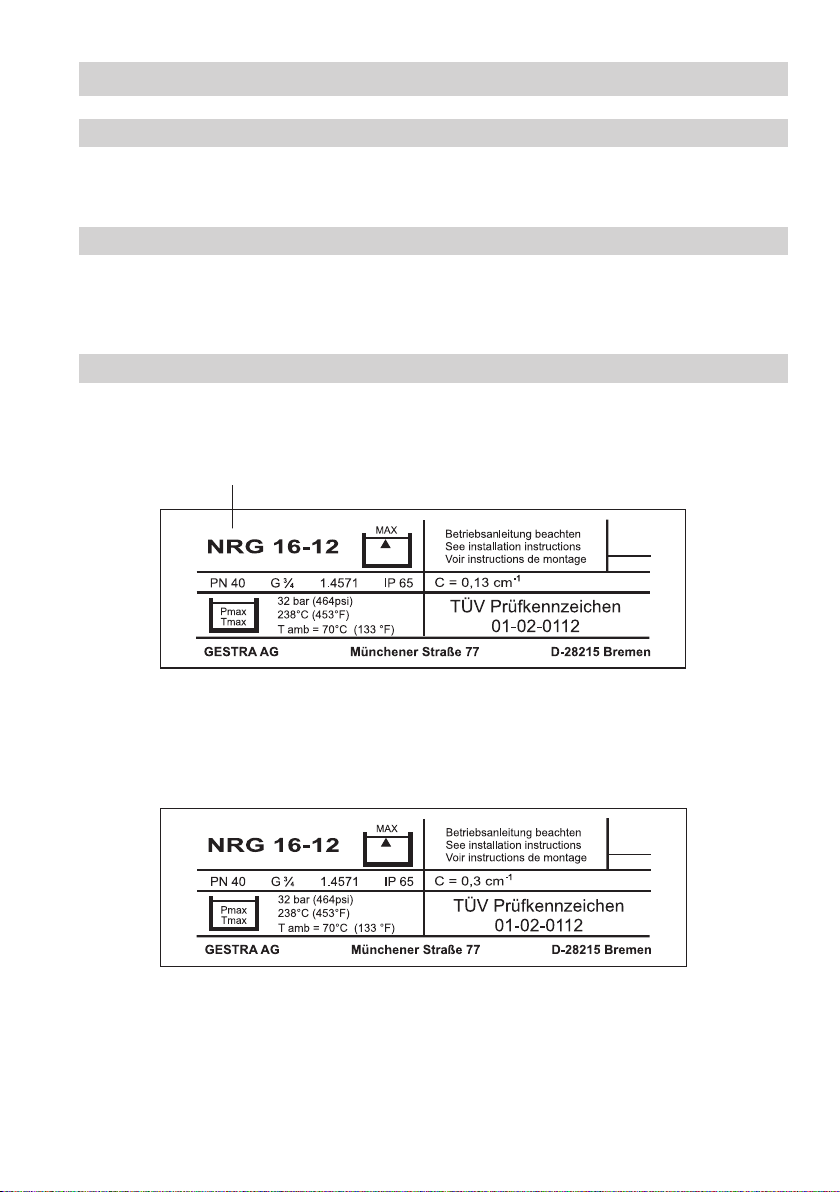

Name plate / marking

Equipment designation

Fig. 1

Fig. 2

7

8

Technical Data – continued –

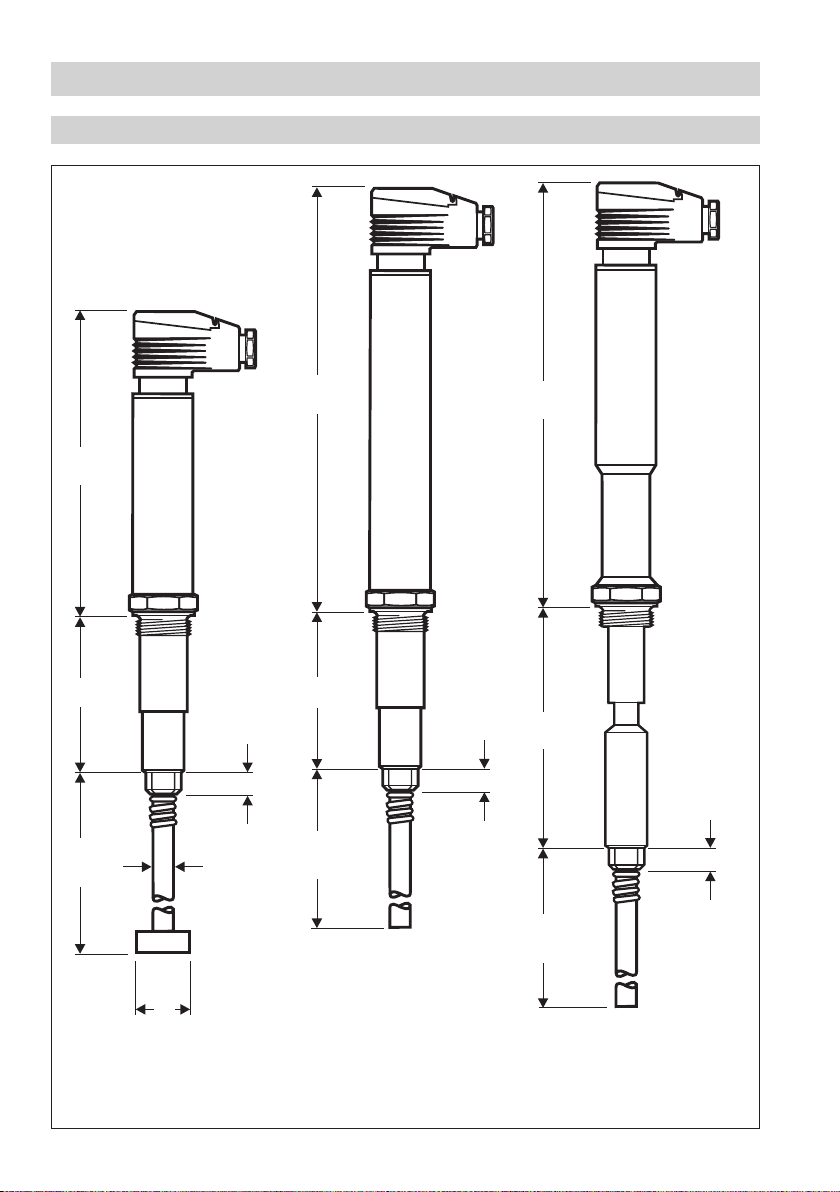

Dimensions

16585

≤ 1500

272

85

30

8

≤ 1500

30

283120

30

≤ 1500

23

Fig. 3

NRG 16-12 with

measuring surface extension

Fig. 4

NRG 17-12 without

measuring surface extension

Fig. 5

NRG 19-12 without

measuring surface extension

Design NRG 1...-12

S

A

I

B

C
D

G

Fig. 6 Fig. 7

F

E

H

J

∅ 33

Fig. 8 Fig. 9

¾" BSP, ISO 228-1

N 8

N 10

0.5

9

10

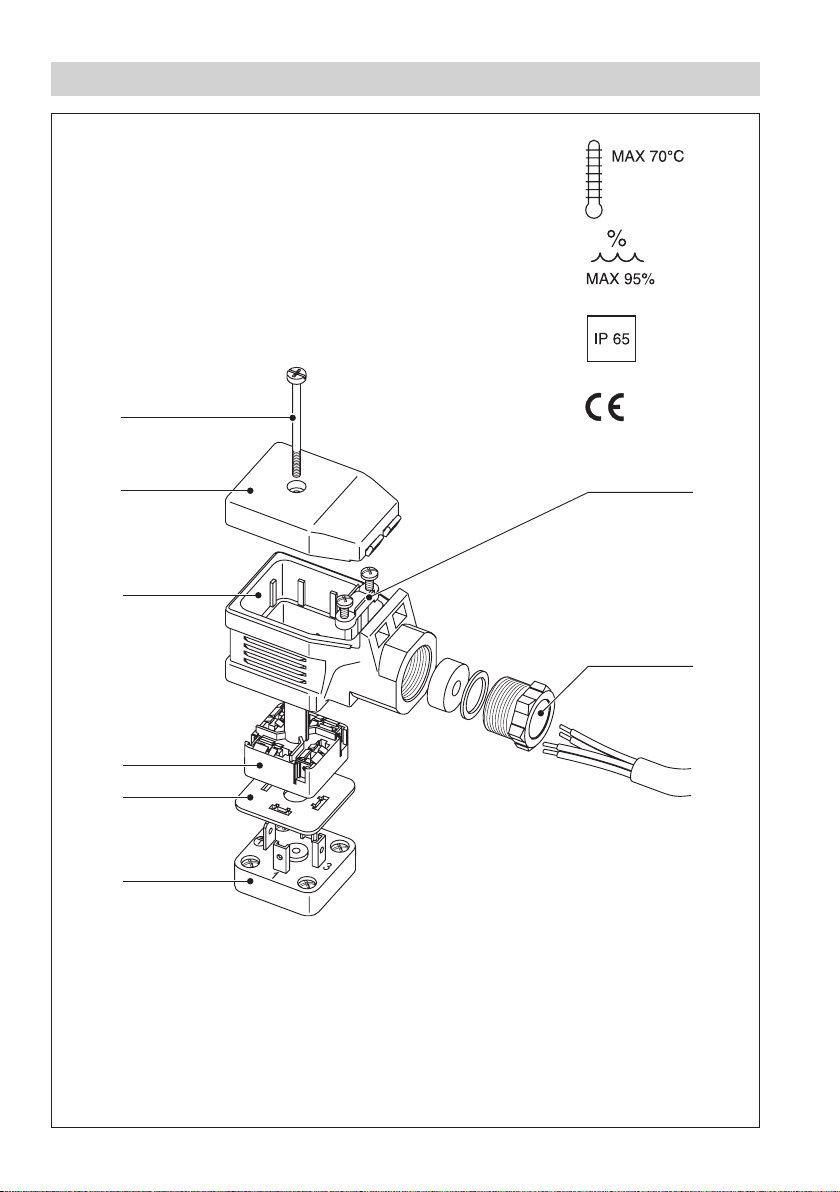

Functional Elements NRG 1...-12

K

L

M

N
O

P

Fig. 10

R

Q

Key

A Measuring electrode

B Bore

C Spring

D Electrode tip

E Disk (measuring surface extension)

F Star-lock washer

G Set screw

H Joint ring 27 x 32, form D, DIN 7603, 1.4301, bright-annealed

I Seating surface

J Electrode thread

K Screw M4

L Lid

M Upper part of terminal box

N Connecting plate

O Sealing element

P Contact plate for level electrode

Q Cable gland M 16 (PG 9)

R Cable clamp

S Thermal insulation, provided on site, d = 20 mm

(outside of thermal insulation of steam generating unit)

11

12

Installation

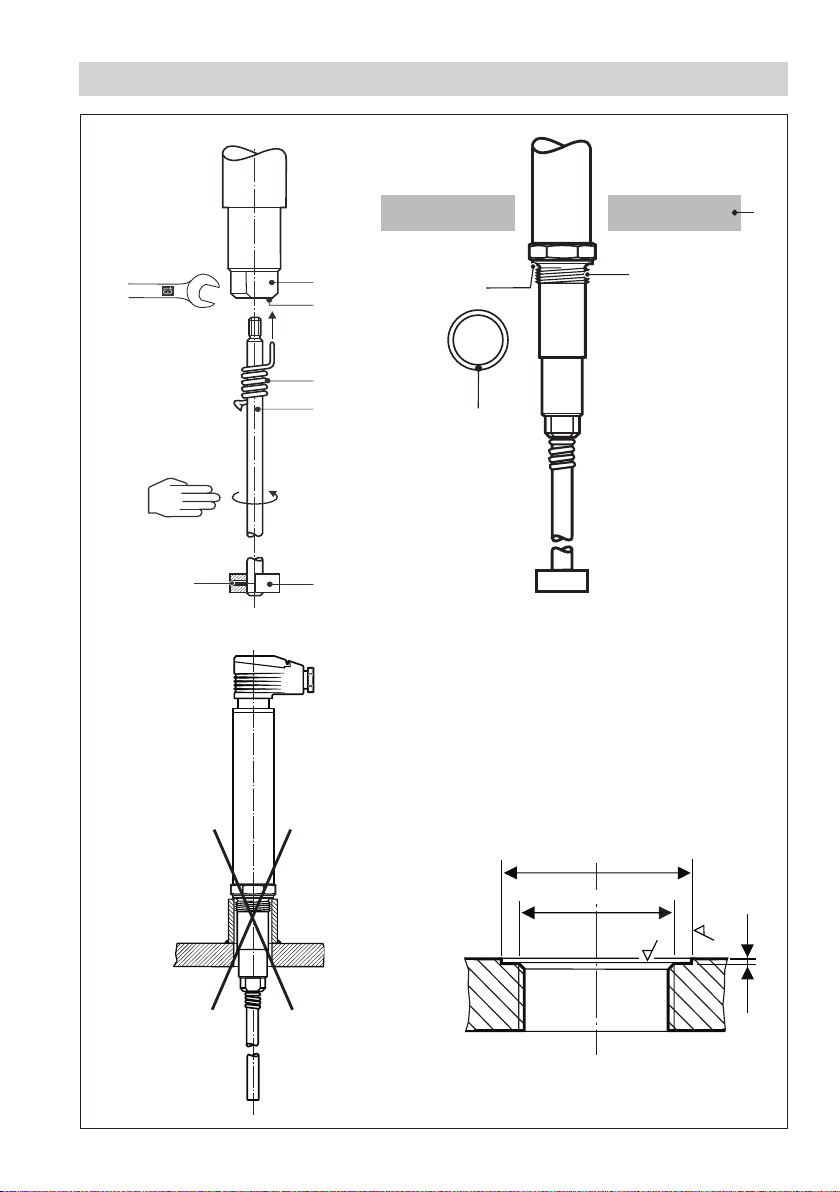

NRG 1...-12, step 1

1. Screw electrode tip

D into measuring electrode A, Fig. 6

2. Carefully determine required measuring length, taking minimum length into account.

3. Mark length of electrode tip

4. Unscrew electrode tip

5. Screw electrode tip

D.

D from measuring electrode A and cut tip.

D into measuring electrode A and tighten. Slide spring C along electrode tip

D, so that its bent end completely enters into small bore B.

6. If a measuring surface extension is required slip disk
electrode tip protrudes 2 mm from the bottom of the disk. Fasten disk with set screw G.
Push star-lock washer F over electrode tip against disk.

NRG 1...-12, step 2

1. Check seating surfaces,

Fig. 9

2. Place joint ring H onto seating surface I of electrode, Fig. 7

3. Apply a light smear of silicone grease (e. g. Molykote® 111) to electrode thread J.

4. Screw level electrode into threads of flange provided on vessel and tighten with a 36 mm ring
spanner. The torque required is 160 Nm when cold.

Attention

■ The seating surfaces and threads on the vessel and mounting flange must be accurately

machined, Fig. 9

■ Use GESTRA PN 160 hat flange when applying the equipment in a high-pressure steam

boiler.

■ Do not bend the electrode tip when cutting.

■ Use only the supplied ring joint 27 x 32, form D, DIN 7603, 1.4301, bright-annealed.

■ Do not lag the electrode body.

■ Do not insulate the threads with hemp or PTFE tape.

■ Do not apply conductive paste or grease to the electrode thread.

■ Provide a min. spacing of 14 mm between electrode and earth (flange, boiler wall),

Fig. 11, Fig. 12, Fig. 13, Fig. 14

■ Observe the minimum distances for the installation of the electrode, Fig 14

E onto electrode tip D ensuring that the

Molykote® 111 is a registered trademark of DOW Corning Corp., Midland Michigan, USA

Installation – continued –

Important notes

■ For the approval of the boiler standpipe the relevant regulations must be observed.

■ For typical installation examples refer to page 14.

■ When mounting the electrode laterally make sure that the inclination angle does not

exceed 45° and that the length of the electrode rod is limited to 1000 mm.

■ If the electrode is installed outdoor, it must be provided with a weather-proof cover

supplied by GESTRA.

Tools

■ Open-end spanner A. F. 13

■ Open-end spanner A. F. 36

■ Scriber

■ Hacksaw

■ Flat file, cut 2

Fig. 12

13

14

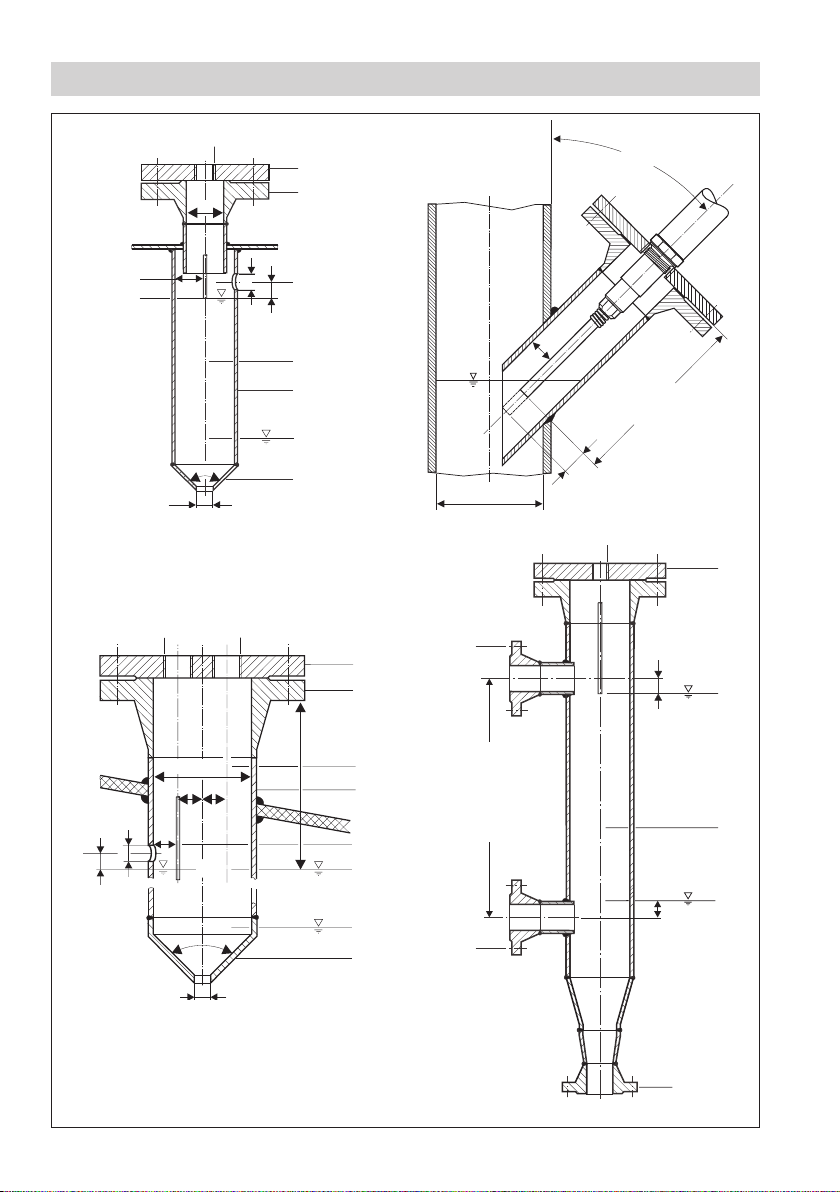

Examples of Installation

Fig. 11

8
4

≤ 90°

∅ 20

¾" BSP

¾" BSP

DN 50

¾" BSP

1

45°

2

∅ 20

3

20

≥

14

5
6

max. 1000

9

20

0

Fig. 12

¾" BSP

1

DN 20

≤ 20

1
2

4

3

Fig. 13

20

∅ 20

≤ 90°

∅ 20

DN 100

24.5 24.5

4

≤ 3000

5
7

8
4

9
!

DN 20

Fig. 14

Centre distance

5

9

DN 20

Key

1 Flange PN 40, PN 63, PN 160, DN 50, DIN 2501-1

Flange PN 40, PN 63, PN 160, DN 100, DIN 2501-1

2 For the approval of the boiler standpipe the relevant regulations must be considered.
3 Vent hole Provide bore as close as possible to the boiler wall!
4 High water HW
5 Electrode rod d = 8 mm
6 Protection tube DN 80
7 Protection tube DN 100
8 Electrode distance ≥ 14 mm
9 Low water LW
0 Reducer DIN 2616-2, K-88.9 x 3.2 – 42.4 x 2.6 W

Wiring

NRG 1...-12

Note that screened four-core cable, e. g. I-Y(St)Y 2 x 2 x 0.8 or LIYCY 4 x 0.5 mm² is required for wiring
the electrode.
Max. length 100 m with conductivites from 10
Max. length 30 m with conductivites from 0.5 µS/cm.
Max. length 15 m with conductivites from 0.5
(24 V DC).

1. Unscrew screw

2. Take the terminal box off the level electrode, leaving the sealing element
plate P.

3. Remove lid

4. Press connecting plate

The upper part of the terminal box can be turned in steps of 90°.

5. Detach cable gland

6. Run cable through cable gland
connecting plate N according to the wiring diagram.

7. Press connecting plate

8. Hold cable with cable clamp

9. Mount lid

10. Put upper part of the terminal box onto the level electrode and fix it firmly with screw

K, Fig. 10

L.

N out of the upper part of the terminal box M.

Q and cable clamp R from the upper part of the terminal box M.

Q and upper terminal box M and connect the terminals of the

N into the upper part of the terminal box and align the cable.

R and cable gland Q in position.

L and insert screw K.

µS/cm.

µS/cm and application of the ancillary unit URN 1

O on the contact

K.

15

16

Wiring – continued –

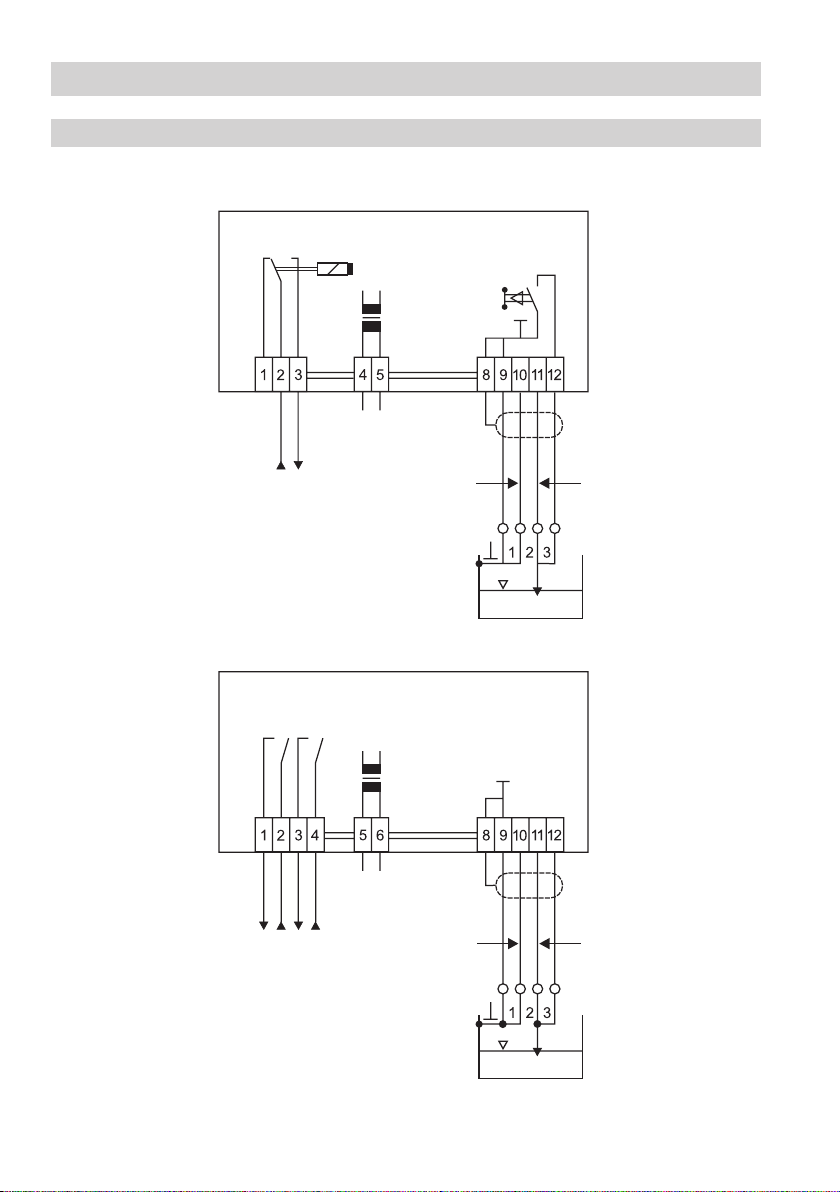

Wiring diagram

Fig. 15

NRS 1-8

U

1-2

Fig. 16

This wiring diagram is only valid for France.

NRS 1-8

U

1-2

Wiring – continued –

Voltage table

Use this voltage table as a reference when checking whether the level electrode is submerged or if
there is a malfunction. Please take the wiring diagram of the electrode NRS 1-8 into account.

Fig. 15, Fig. 16

U

1-2

10 µS/cm

2 V

eff

C=0.3 cm

-1

U

1-2

0.5 µS/cm

10 V

eff

C=0.13 cm

-1

Note

■

The self-checking routine of the amplifier NRS 1-8 reduces U

every 40 seconds to

1-2

0 volt!

Tools

■ Screwdriver for cross-recess head screws, size 1

■ Screwdriver for slotted screws, size 2.5, completely insulated according to DIN VDE 0680-1

■ Open-end spanner A. F. 18 (19)

Commissioning

Check wiring

Check whether the NRG 1…-12 and the associated controller NRS 1-8 are wired in accordance with
the wiring diagram. Fig. 15, Fig. 16

Apply mains voltage

Apply mains voltage to level switch NRS 1-8.

17

18

Operation

High-level alarm

Operation in combination with controller NRS 1-8 in steam and pressurised hot water plants to
TRD 401, TRD 602, TRD 604, EN 12952, EN 12953 or other national regulations.

Note

■

Should malfunctions occur during the commissioning procedure refer to chapter

“Operational Malfunctions” on page 18 in order to analyse and correct them.

Operational Malfunctions

Fault-finding list for troubleshooting

Level electrode exposed – high-level alarm

Fault: Mains voltage is not applied to level switch.
Remedy: Apply mains voltage. Wire electrode according to wiring diagram.

Fault: The electrode rods have earth contact.
Remedy: Check and change position of installation.

Fault: The internal insulation of the electrode rod is damaged.
Remedy: Replace level electrode.

High level reached – no function

Fault: The electrode housing does not have earth connection to the boiler.
Remedy: Clean seating surfaces and insert metal joint ring (of stainless steel 1.4301) 27 x 32,

form D, DIN 7603, bright-annealed.
Do not insulate level electrode with hemp of PTFE tape.

Fault: The vent hole in the protection tube does not exist, is obstructed or flooded.
Remedy: Check protection tube and, if necessary, provide vent hole.

Fault: The isolating valves of the external measuring pot (optional extra) are closed.
Remedy: Open isolating valves.

If faults occur that are not listed above or cannot be corrected, please contact our Technical
Service or authorized agency in your country.

Decommissioning

Danger

Risk of severe burns and scalds to the whole body!
Before removing the level electrode make sure that the vessel or measuring pot are
depressurised (0 bar) and cooled down to room temperature (20 °C).

Disposal

Remove the level electrode and separate the waste materials in accordance with the material
specification.
Electronic components (boards) must be disposed of separately.
For the disposal of the level electrode observe the pertinent legal regulations concerning waste
disposal.

19

Agencies all over the world:

www.gestra.de

GESTRA

España

GESTRA ESPAÑOLA S.A.

Luis Cabrera, 86-88
E-28002 Madrid
Tel. 00 34 91 / 5 15 20 32
Fax 00 34 91 / 4 13 67 47; 5 15 20 36
E-mail: aromero@flowserve.com

Great Britain

Flowserve Flow Control (UK) Ltd.

Burrel Road, Haywards Heath
West Sussex RH 16 1TL
Tel. [phone] / 31 44 00
Fax [phone] / 31 45 57
E-mail: gestraukinfo@flowserve.com

Italia

Flowserve S.p.A.

Flow Control Division
Via Prealpi, 30
l-20032 Cormano (MI)
Tel. 00 39 02 / 66 32 51
Fax 00 39 02 / 66 32 55 60
E-mail: infoitaly@flowserve.com

Polska

GESTRA POLONIA Spolka z.o.o.

Ul. Schuberta 104
PL - 80-172 Gdansk
Tel. 00 48 58 / 3 06 10 -02 od 10
Fax 00 48 58 / 3 06 33 00
E-mail: [e-mail]

Portugal

Flowserve Portuguesa, Lda.

Av. Dr. Antunes Guimarães, 1159
Porto 4100-082
Tel. [phone]
Fax [phone]
E-mail: jtavares@flowserve.com

USA

Flowserve GESTRA U.S.

2341 Ampere Drive
Louisville, KY 40299
Tel.: 00 15 02 / 4 95 01 54, 4 95 17 88
Fax: 00 15 02 / 4 95 16 08
E-mail: dgoodwin@flowserve.com

GESTRA AG

P. O. Box 10 54 60, D-28054 Bremen
Münchener Str. 77, D-28215 Bremen
Tel. [phone]
Fax [phone]
E-Mail gestra.ag@flowserve.com
Internet www.gestra.de

818626-00/306cm · © 2003 GESTRA AG · Bremen · Printed in Germany

20
