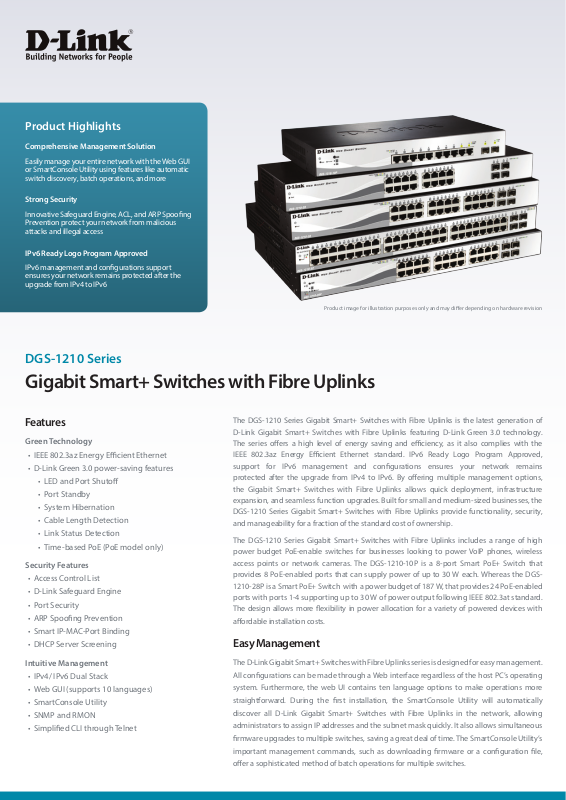

Product Highlights
Comprehensive Management Solution
Easily manage your entire network with the Web GUI
or SmartConsole Utility using features like automatic
switch discovery, batch operations, and more
Strong Security
Innovative Safeguard Engine, ACL, and ARP Spoong
Prevention protect your network from malicious
attacks and illegal access
IPv6 Ready Logo Program Approved
IPv6 management and congurations support
ensures your network remains protected after the
upgrade from IPv4 to IPv6
Product image for illustration purposes only and may dier depending on hardware revision
DGS-1210 Series
Gigabit Smart+ Switches with Fibre Uplinks
Features
Green Technology
• IEEE 802.3az Energy Ecient Ethernet
• D-Link Green 3.0 power-saving features
• LED and Port Shuto
• Port Standby
• System Hibernation
• Cable Length Detection
• Link Status Detection
• Time-based PoE (PoE model only)
Security Features
• Access Control List
• D-Link Safeguard Engine
• Port Security
• ARP Spoong Prevention
• Smart IP-MAC-Port Binding
• DHCP Server Screening
Intuitive Management
• IPv4/ IPv6 Dual Stack
• Web GUI (supports 10 languages)
• SmartConsole Utility
• SNMP and RMON
• Simplied CLI through Telnet
The DGS-1210 Series Gigabit Smart+ Switches with Fibre Uplinks is the latest generation of
D-Link Gigabit Smart+ Switches with Fibre Uplinks featuring D-Link Green 3.0 technology.
The series oers a high level of energy saving and eciency, as it also complies with the
IEEE 802.3az Energy Ecient Ethernet standard. IPv6 Ready Logo Program Approved,
support for IPv6 management and congurations ensures your network remains
protected after the upgrade from IPv4 to IPv6. By oering multiple management options,
the Gigabit Smart+ Switches with Fibre Uplinks allows quick deployment, infrastructure
expansion, and seamless function upgrades. Built for small and medium-sized businesses, the
DGS-1210 Series Gigabit Smart+ Switches with Fibre Uplinks provide functionality, security,
and manageability for a fraction of the standard cost of ownership.
The DGS-1210 Series Gigabit Smart+ Switches with Fibre Uplinks includes a range of high
power budget PoE-enable switches for businesses looking to power VoIP phones, wireless
access points or network cameras. The DGS-1210-10P is a 8-port Smart PoE+ Switch that
provides 8 PoE-enabled ports that can supply power of up to 30 W each. Whereas the DGS1210-28P is a Smart PoE+ Switch with a power budget of 187 W, that provides 24 PoE-enabled
ports with ports 1-4 supporting up to 30 W of power output following IEEE 802.3at standard.
The design allows more exibility in power allocation for a variety of powered devices with
aordable installation costs.
Easy Management
The D-Link Gigabit Smart+ Switches with Fibre Uplinks series is designed for easy management.
All congurations can be made through a Web interface regardless of the host PC’s operating
system. Furthermore, the web UI contains ten language options to make operations more
straightforward. During the rst installation, the SmartConsole Utility will automatically
discover all D-Link Gigabit Smart+ Switches with Fibre Uplinks in the network, allowing
administrators to assign IP addresses and the subnet mask quickly. It also allows simultaneous
rmware upgrades to multiple switches, saving a great deal of time. The SmartConsole Utility’s
important management commands, such as downloading rmware or a conguration le,
oer a sophisticated method of batch operations for multiple switches.
DGS-1210 Series Gigabit Smart+ Switches with Fibre Uplinks
Energy Saving
DGS-1210 Series Gigabit Smart+ Switches with Fibre Uplinks are capable of
conserving power without sacricing operational performance or functionality
by using D-Link Green 3.0 technology. Using the Energy Ecient Ethernet
standard, the network will automatically decrease the power usage when trac is
low with no setup required. For environments not fully supporting the standard,
DGS-1210 Series Gigabit Smart+ Switches with Fibre Uplinks oer advanced
power-saving settings including port shuto and standby, LED shuto, and
system hibernation based on custom scheduling proles. The proles can also
be applied to the PoE switch so that there is no unnecessary power consumption
during o hours. The DGS-1210 Series switches can also detect the length
of connected cables to automatically reduce power usage on shorter cable
connections.
Auto Surveillance VLAN and Voice VLAN
The process of setting up IP surveillance and VoIP on a network is automated with
the D-Link Smart+ Switches. Auto Surveillance VLAN (ASV) consolidates data and
surveillance video transmission through the network, sparing businesses the
expense of maintaining dedicated facilities. ASV also protects the quality of real-
time video by grouping IP surveillance devices on a single high priority VLAN. This
ensures that surveillance video streams will not be aected when ordinary data
trac is at their highest levels. Similarly, the Auto Voice VLAN guarantees clear
audio quality and ecient transmission for all voice communication.
Exclusive Layer 2 Features
If the worst should happen to your network you need the very best
support and fast. Downtime costs your business money. D-Link
Assist maximises your uptime by solving technical problems
quickly and eectively. Our highly trained technicians are on
standby around the clock, ensuring that award-winning support
is only a phone call away.
With a choice of three aordable service oerings covering all
D-Link business products, you can select the package that suits
you best:
D-Link Assist Gold - for comprehensive 24-hour support
D-Link Assist Gold is perfect for mission-critical environments
where maximum uptime is a high priority. It guarantees four hour
around-the-clock response. Cover applies 24/7 for every day of the
year including holidays.
D-Link Assist Silver - for prompt same-day assistance
D-Link Assist Silver is designed for ‘high availability’ businesses that
require rapid response within regular working hours. It provides a
four hour response service Monday to Friday from 8am to 5pm,
excluding holidays.
Equipped with a complete lineup of L2 features, the DGS-1210 Series switches
include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation
Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers
to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps
Full Duplex, the Gigabit ports provide high-speed data pipes to servers with
minimum data transfer loss. Network maintenance features include Loopback
Detection and Cable Diagnostics. Loopback Detection is used to detect loops
created by a specic port and automatically shut down the aected port. The
Cable Diagnostic feature is designed primarily for administrators and customer
service representatives, and can rapidly discover the type of error and determine
the cable quality.
Secure your Network
D-Link’s innovative Safeguard Engine protects the switches against trac
ooding caused by virus attacks. The switches also support 802.1X port-based
authentication, allowing the network clients to be authenticated through external
RADIUS servers. In addition, the Access Control List (ACL) feature enhances
network security and protects the network by screening trac from illegal MAC
or IP addresses. ARP Spoong Prevention prevents malicious intruders from
sending massive fake ARP messages through a manipulated source. This protects
important data from being stolen by Man-in-the-Middle attacks, and prevents
wasting CPU cycles on these packets. For added security, the DHCP Server
Screening feature blocks rogue DHCP server packets from user ports to prevent
unauthorized IP assignment.
D-Link Assist Bronze - for guaranteed response on the
next business day
D-Link Assist Bronze is a highly cost-eective support solution for
less critical environments. Response is guaranteed within eight
business hours Monday to Friday from 8am to 5pm, excluding
holidays.
D-Link Assist can be purchased together with any D-Link business
product. So whether you’re buying switching, wireless, storage,
security or IP Surveillance equipment from D-Link, your peace
of mind is guaranteed. D-Link Assist also oers installation and
conguration services to get your new hardware working quickly
and correctly.
