1. Introduction

also indicate system messages or prompts appearing on screen.

. Bold font is also used to represent

filename, program names and commands. For example: use the

Indicates a window name. Names of keys on the keyboard have

Menu Name > Menu

This manual’s command descriptions are based on the software release 2.00. The commands listed
here are the subset of commands that are supported by the DGS-1100MP/MPP Series switch.

Audience

This reference manual is intended for network administrators and other IT networking professionals
responsible for managing the switch by using the Web User Interface (Web UI). The Web UI is the
secondary management interface to the DGS-1100MP/MPP Series switch, which will be generally
be referred to simply as ‘the switch’ within this manual. This manual is written in a way that assumes
that you already have the experience and knowledge of Ethernet and modern networking principles
for Local Area Networks.

Standard Mode and Surveillance Mode

The DGS-1100 MP/MPP Series switches support Standard Mode and Surveillance Mode Web UI
types. Standard Mode is used to manage the network and system elements of the switch.
Surveillance Mode is a dedicated user interface designed for monitoring and managing the
surveillance and IP security devices on your network.

D-Link DGS-1100 MP/MPP Series Switch User Manual

There are two methods to switch between the interface types. These are as follows:

• Re-run the Smart Wizard that is presented when you access the web interface of the device and
choose Surveillance Mode option. See the Smart Wizard section of this manual for more
information.

• Click the Standard Mode button in the toolbar. See the section of this manual for more
information.

For more information, please refer to the Web UI Interface Guide for the appropriate Web UI mode.

Other Documentation

The documents below are a further source of information in regards to configuring and
troubleshooting the switch. All the documents are available either from the CD, bundled with this
switch, or from the D-Link website. Other documents related to this switch are:

• D-Link DGS-1100 MP/MPP Series Standard Mode Web UI Reference Guide

• D-Link DGS-1100 MP/MPP Series Surveillance Mode Web UI Reference Guide

Conventions

Convention Description

Boldface Font

Indicates a button, a toolbar icon, menu, or menu item. For example:
Open the File menu and choose Cancel. Used for emphasis. May

For example: You have mail

copy command.

Initial capital letter

initial capitals. For example: Press Enter.

Indicates the menu structure. Device > Port > Port Properties

Option

means the Port Properties menu option under the Port menu
option that is located under the Device menu.

1

D-Link DGS-1100 MP/MPP Series Switch User Manual

Blue Courier Font

This convention is used to represent an example of a screen

of CLI command input

console display including example entries
with the corresponding output.

Notes, Notices, and Cautions

Below are examples of the three types of indicators used in this manual. When administering your
switch using the information in this document, you should pay special attention to these indicators.
Each example below provides an explanatory remark regarding each type of indicator.

NOTE: A note indicates important information that helps you make better use of
your device.

NOTICE: A notice indicates either potential damage to hardware or loss of data
and tells you how to avoid the problem.

CAUTION: A caution indicates a potential for property damage, personal injury,
or death.

2

2. Product Introduction

The DGS-1100 MP/MPP series Smart Switch is the world’s first PoE switch with ONVIF support.
This allows it to recognize ONVIF devices and integrate seamlessly with your surveillance network.
Various power budgets, support for high powered PoE standards (MPP series) make the DGS-1100
MP/MPP series a critical part of your surveillance infrastructure.

The DGS-1100 MP/MPP series switches can change modes between ‘Smart Switch’ and
‘Surveillance Switch’ modes, making them suitable for a variety of applications. A new generation of
web user interface design make surveillance options more accessible than ever and the standard
web interface ensures that advanced technology is made available in an easy-to-use interface.

The switches are designed to be energy efficient with support for IEEE 802.3az Energy Efficient
Ethernet (EEE) and D-Link Green Technologies. They include multiple features, such as cable
length detection, port status detection and the ability to hibernate under low utilization. If the switch
detects no activity on any of the switch ports, it can be hibernated to conserve power.

The DGS-1100 MPP series provides multiple PoE ports that support IEEE 802.3bt, allowing the
latest PTZ (Pan, Tilt, and Zoom) cameras to be used with the switch. Automatic identification of IP
surveillance devices, video traffic optimization and health diagnostic features makes the DGS-1100
MP/MPP series ideal for IP surveillance applications.

D-Link DGS-1100 MP/MPP Series Switch User Manual

3

D-Link DGS-1100 MP/MPP Series Switch User Manual

DGS-1100-10MP

8-Port 10/100/1000Mbps + 2-Port SFP 1000Mbps PoE switch

Front Panel

Figure 2-1 DGS-1100-10MP Front Panel

Power LED: The Power LED lights up when the switch is connected to a power source.

Link/Act/Speed LED (Ports 1-8):

Solid Green: When there is a secure 1000Mbps connection at the port.

Blinking Green or Amber: Indicates that the switch is either sending or receiving data to the
port.

Solid Amber: Indicates that the port is running at 10/100Mbps.

Light off: No link.

PoE Mode (Ports 1- 8):

Green: Indicates that PoE Mode is active.

Amber: Indicates that there is an issue with the PoE mode activating properly.

Light off: Indicates that PoE mode is not active.

Link/Act/Speed LED (Ports 9-10):

Solid Green: There is a secure 1000Mbps connection at the port.

Blinking Green: There is reception or transmission occurring at the port.

Light off: No link.

LED Mode Button:

By pressing the Mode button over 2 seconds, the Port LED will switch between Link/PoE
modes.

Reset: By pressing the Reset button until the power LED turns amber, the switch will change back to
the default configuration and all changes will be lost.

Rear Panel

Figure 2-2 DGS-1100-10MP Rear Panel

4

Power: Connect the supplied AC power cable to this port.

CAUTION: The SFP ports should use UL listed Optical Transceiver product,

Rated Laser Class I. 3.3Vdc.

CAUTION: This equipment is to be connected only to PoE networks without
routing to the outside plant.

D-Link DGS-1100 MP/MPP Series Switch User Manual

5

D-Link DGS-1100 MP/MPP Series Switch User Manual

DGS-1100-10MPP

8-Port 10/100/1000Mbps + 2-Port SFP 1000Mbps PoE switch

Front Panel

Figure 2-3 DGS-1100-10MPP Front Panel

Power LED: The Power LED lights up when the switch is connected to a power source.

Link/Act/Speed LED (Ports 1- 8):

Solid Green: When there is a secure 1000Mbps connection at the port.

Blinking Green or Amber: Indicates that the switch is either sending or receiving data to the
port.

Solid Amber: Indicates that the port is running at 10/100Mbps.

Light off: No link.

PoE Mode (Ports 1- 8):

Solid Green: Indicates that PoE Mode is active.

Blinking Green: When power feeding IEEE 802.3bt PD devices (90W per port), only apply to
port 7 and 8.

Solid Amber: Indicates that there is an issue with the PoE mode activating properly.

Light off: Indicates that PoE mode is not active.

Link/Act/Speed LED (Ports 9-10):

Solid Green: There is a secure 1000Mbps connection at the port.

Blinking Green: There is reception or transmission occurring at the port.

Light off: No link.

LED Mode Button:

By pressing the Mode button over 2 seconds, the Port LED will switch between Link/PoE
modes.

Reset: By pressing the Reset button until the power LED turns amber, the switch will change back to
the default configuration and all changes will be lost.

6

D-Link DGS-1100 MP/MPP Series Switch User Manual

Rear Panel

Figure 2-4 DGS-1100-10MPP Rear Panel

Power: Connect the supplied AC power cable to this port.

CAUTION: The SFP ports should use UL listed Optical Transceiver product,

Rated Laser Class I. 3.3Vdc.

CAUTION: This equipment is to be connected only to PoE networks without
routing to the outside plant.

7

D-Link DGS-1100 MP/MPP Series Switch User Manual

DGS-1100-26MP

24-Port 10/100/1000Mbps + 2-Port Combo 1000BASE-T/SFP PoE switch

Front Panel

Figure 2-5 DGS-1100-26MP Front Panel

Power LED: The Power LED lights up when the switch is connected to a power source.

Link/Act/Speed LED (Ports 1-24):

Solid Green: When there is a secure 1000Mbps connection at the port.

Blinking Green or Amber: Indicates that the switch is either sending or receiving data to the
port.

Solid Amber: Indicates that the port is running at 10/100Mbps.

Light off: No link.

PoE Mode (Ports 1- 24):

Green: Indicates that PoE Mode is active.

Amber: Indicates that there is an issue with the PoE mode activating properly.

Light off: Indicates that PoE mode is not active.

Link/Act/Speed LED (Ports 25-26):

Solid Green: There is a secure 1000Mbps connection at the port.

Blinking Green: There is reception or transmission occurring at the port.

Solid Amber: Indicates that the port is running at 10/100Mbps.

Light off: No link.

LED Mode Button:

By pressing the Mode button over 2 seconds, the Port LED will switch between Link/PoE
modes.

Reset: By pressing the Reset button until the power LED turns amber, the switch will change back to
the default configuration and all changes will be lost.

Rear Panel

Figure 2-6 DGS-1100-26MP Rear Panel

8

Power: Connect the supplied AC power cable to this port.

CAUTION: The SFP ports should use UL listed Optical Transceiver product,

Rated Laser Class I. 3.3Vdc.

CAUTION: This equipment is to be connected only to PoE networks without
routing to the outside plant.

D-Link DGS-1100 MP/MPP Series Switch User Manual

9

D-Link DGS-1100 MP/MPP Series Switch User Manual

DGS-1100-26MPP

24-Port 10/100/1000 Mbps + 2-Port Combo 1000BASE-T/SFP PoE switch

Front Panel

Figure 2-7 DGS-1100-26MPP Front Panel

Power LED: The Power LED lights up when the switch is connected to a power source.

Link/Act/Speed LED (Ports 1- 24):

Solid Green: when there is a secure 1000Mbps connection at the port.

Blinking Green or Amber: Indicates that the switch is either sending or receiving data to the
port.

Solid Amber: Indicates that the port is running at 10/100Mbps.

Light off: No link.

PoE Mode (Ports 1- 24):

Solid Green: Indicates that PoE Mode is active.

Blinking Green: When power feeding IEEE 802.3bt PD devices (90W per port), only apply to
port 21, 22, 23 and 24.

Solid Amber: Indicates that there is an issue with the PoE mode activating properly.

Light off: Indicates that PoE mode is not active.

Link/Act/Speed LED (Ports 25-26):

Solid Green: There is a secure 1000Mbps connection at the port.

Blinking Green: There is reception or transmission occurring at the port.

Solid Amber: Indicates that the port is running at 10/100Mbps.

Light off: No link.

LED Mode Button:

By pressing the Mode button over 2 seconds, the Port LED will switch between Link/PoE
modes.

Reset: By pressing the Reset button until the power LED turns amber, the switch will change back to
the default configuration and all changes will be lost.

Rear Panel

10

D-Link DGS-1100 MP/MPP Series Switch User Manual

Figure 2-8 DGS-1100-26MPP Rear Panel

Power: Connect the supplied AC power cable to this port.

CAUTION: The SFP ports should use UL listed Optical Transceiver product,

Rated Laser Class I. 3.3Vdc.

CAUTION: This equipment is to be connected only to PoE networks without
routing to the outside plant.

11

D-Link DGS-1100 MP/MPP Series Switch User Manual

3. Hardware Installation

This chapter provides unpacking and installation information for the D-Links witch.

Step1: Unpacking

Open the shipping carton and carefully unpack its contents. Please consult the packing list located
below to make sure all items are present and undamaged. If any item is missing or damaged, please
contact your local D-Link reseller for a replacement.

Packing Contents

• One D-Link DGS-1100 MP/MPP Series switch

• One AC power cord

• Four rubber feet

• Screws and two mounting brackets

• One accessory kit for a ground screw

• One Multi-lingual Getting Started Guide

• One CD with User Manual

Step2: Switch Installation

For safe switch installation and operation, it is recommended that you:

• Visually inspect the power cord to see that it is secured fully to the AC power connector.

• Make sure that there is proper heat dissipation and adequate ventilation around the switch.

• Do not place heavy objects on the switch.

Desktop or Shelf Installation

When installing the switch on a desktop or shelf, the rubber feet included with the device must be
attached on the bottom at each corner of the device’s base. Allow enough ventilation space between
the device and the objects around it.

Figure 3-1 Attach the adhesive rubber pads to the bottom

Rack Installation

The switch can be mounted in an EIA standard size 19-inch rack, which can be placed in a wiring
closet with other equipment.

CAUTION: Ensure the power cable is disconnected before installing the switch.

12

D-Link DGS-1100 MP/MPP Series Switch User Manual

To install, attach the mounting brackets to the switch’s side panels (one on each side) and secure
them with the screws provided.

Figure 3-2 Attach the mounting brackets to the switch

Then, use the screws provided with the equipment rack to mount the switch in the rack.

Figure 3-3 Mount the switch in the rack or chassis

Please be aware of following safety Instructions when installing:

A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating
ambient temperature of the rack environment may be greater than room ambient. Therefore,
consideration should be given to installing the equipment in an environment compatible with the
maximum ambient temperature specified by the manufacturer.

B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air
flow required for safe operation of the equipment is not compromised.

C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous
condition is not achieved due to uneven mechanical loading.

D) Circuit Overloading - Consideration should be given to the connection of the equipment to the
supply circuit and the effect that overloading of the circuits might have on over current protection and
supply wiring. Appropriate consideration of equipment nameplate ratings should be used when
addressing this concern.

E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connections to the branch circuit
(e.g. use of power strips)."

13

D-Link DGS-1100 MP/MPP Series Switch User Manual

Step 3: Plugging in the AC Power Cord

Users may now connect the AC power cord into the rear of the switch and to an electrical outlet
(preferably one that is grounded and surge protected).

Figure 3-4 Plugging the switch into an outlet

Power Failure

As a precaution, the switch should be unplugged in case of power failure. When power is resumed,
the switch should be plugged back in.

Grounding the Switch

This section describes how to connect the DGS-1100 MP/MPP Series switch to ground. You must
complete this procedure before powering your switch.

Required Tools and Equipment

• Ground screws (included in the accessory kit): One M4 x 8 mm (metric) pan-head screw

• Ground cable (not included in the accessory kit): The grounding cable should be sized

according to local and national installation requirements. Depending on the power supply
and system, a 12 to 6 AWG copper conductor is required for U.S installation. Commercially
available 6 AWG wire is recommended. The length of the cable depends on the proximity of
the switch to proper grounding facilities.

• A screwdriver (not included in the accessory kit)

Follow these steps to ground the switch:

Step 1: Verify that the switch is not connected to a power supply.

Step 2: Use the ground cable to place the #8 terminal lug ring on top of the ground-screw opening,
as seen in the figure below.

Step 3: Insert the ground screw into the ground-screw opening.

Step 4: Using a screwdriver, tighten the ground screw to secure the ground cable to the switch.

Step 5: Attach the terminal lug ring at the other end of the grounding cable to an appropriate
grounding stud or bolt on rack where the switch is installed.

Step 6: Verify if the connections at the ground connector on the switch and the rack are securely
attached.

14

D-Link DGS-1100 MP/MPP Series Switch User Manual

Figure 3-5 Ground cable, screw and #8 terminal lug rings

CAUTION: This equipment is to be connected only to PoE networks without

routing to the outside plant.

15

D-Link DGS-1100 MP/MPP Series Switch User Manual

4. Web-based Switch Configuration

Management Options
Connecting using the Web User Interface
Logging onto the Web User Interface
Smart Wizard
Web User Interface

Management Options

The switch provides multiple access platforms that can be used to configure, manage and monitor
networking features available on the switch. Currently there are three management platforms
available and they are described below.

Web-based Management Interface

After successfully installing the switch, the user can configure the switch, monitor the LED panel, and
display statistics graphically using a Web browser, such as Microsoft® Internet Explorer, Opera
Firefox, Safari, or Google Chrome.

SNMP-based Management

The switch can be managed with an SNMP-compatible console program. The switch supports
SNMP version 1.0, and version 2c. The SNMP agent decodes the incoming SNMP messages and
responds to requests with MIB objects stored in the database. The SNMP agent updates the MIB
objects to generate statistics and counters.

D-Link Network Assistant

DNA (D-Link Network Assistant) included on the installation CD is a program for discovering DGS­1100 MP/MPP Series switches with the same L2 network segment connected to your PC. This tool
can support windows 2000, XP, Vista, and Windows 7.

Connecting using the Web User Interface

Most software functions of the DGS-1100 MP/MPP Series switches can be managed, configured
and monitored via the embedded web-based (HTML) interface. Manage the switch from remote
stations anywhere on the network through a standard web browser. The web browser acts as a
universal access tool and can communicate directly with the switch using the HTTP or HTTPS
protocol.

You need the following equipment to begin the web configuration of your device:

• A PC with a RJ-45 Ethernet connection

• A standard Ethernet cable

Figure 4-1 Connecting to a DGS-1100 MP/MPP Series switch

16

D-Link DGS-1100 MP/MPP Series Switch User Manual

Connect the Ethernet cable to any of the ports on the front panel of the switch and to the Ethernet
port on the PC.

Logging onto the Web User Interface

To access the Web UI, simply open a web browser and enter the switch’s default IP address into the
address bar. Make sure that the IP address of the management PC is in the same subnet as the IP
address of the switch you are trying to connect to.

NOTE: The default IP address of the switch is 10.90.90.90, with a subnet mask
of 255.0.0.0.

NOTE: The default username is ‘admin’ and password is ‘admin’.

After successfully connecting to the Web UI, the Smart Wizard will be launched.

17

D-Link DGS-1100 MP/MPP Series Switch User Manual

option to continue the Smart

Smart Wizard

The Smart Wizard is a configuration utility that is launched the first time the Web UI is accessed. It
allows users to configure basic settings such as the switch mode, management IP and password. It
can also be used to switch between Standard Mode and Surveillance Mode Web UI types.

Step 1 – Web Mode

The initial page allows the user to choose between Standard Mode and Surveillance Mode on the
switch. This can be changed at any time by returning to the Smart Wizard.

For more information on the Standard Mode features of the switch, please refer to the Standard
Mode Web UI Reference Guide.

Figure 4-2 Web Mode window

The fields that can be configured are described below:

Parameter Description

Web Mode Select the Surveillance Mode

Wizard in Surveillance Mode.

Please refer to the Standard Mode Web UI Reference Guide for
more information on Standard Mode.

Tick the Ignore the wizard next time option to skip the Smart Wizard on the next login.

18

D-Link DGS-1100 MP/MPP Series Switch User Manual

Click the Exit button to discard the changes made, exit the Smart Wizard, and continue to the
Standard Mode Web UI.

Click the Next button to accept the changes made and continue to the next step.

Step 2 – System IP Information

In this window, the user can configure the IP address assignment method, the static IP address, net
mask and gateway address.

NOTE: The switch will probe IP-Cameras every 30 seconds. If an IP-Camera is
not in the same subnet as the switch, the IP-Camera will not be automatically
discovered. Place the switch management IP in the same subnet as the IP­Cameras for the cameras to be automatically added to the Surveillance Mode
Web UI.

Figure 4-3 System IP Information window

19

D-Link DGS-1100 MP/MPP Series Switch User Manual

Select this option to manually configure and use IP address

The fields that can be configured are described below:

Parameter Description

Static

settings on this switch.

DHCP

Select this option to obtain IP address settings from a DHCP
server.

IP Address

Net mask

Gateway

Enter the IP address of the switch here.

Select the net mask option here.

Enter the default gateway IP address here.

Tick the Ignore the wizard next time option to skip the Smart Wizard on the next login.

Click the Exit button to discard the changes made, exit the Smart Wizard, and continue to the
Standard Mode Web UI.

Click the Next button to accept the changes made and continue to the next step.

Step 3 – Admin Password

In this window, the user can set the password used with the admin account.

Figure 4-4 Admin Password window

Tick the Ignore the wizard next time option to skip the Smart Wizard on the next login.

Click the Exit button to discard the changes made, exit the Smart Wizard, and continue to the
Standard Mode Web UI.

20

Click the Apply& Save button to accept the changes made, and then continue to the Web UI.

Standard Mode and Surveillance Mode Web UIs share the same

Settings are saved between interface types. It is possible to switch

NOTE:

configuration files. Any features enabled in one interface will be made available
in the other interface, for example: PoE scheduling, SNMP settings and the
surveillance VLAN in use.

NOTE:

interface types and re-run the Smart Wizard without losing settings saved in one
version of the interface.

D-Link DGS-1100 MP/MPP Series Switch User Manual

21

D-Link DGS-1100 MP/MPP Series Switch User Manual

Web User Interface

When you complete the Surveillance Mode Smart Wizard you will be presented with the following
screen:

Scroll to the bottom of the page and click the OK button to continue to the Web UI.

Figure 4-5 Congratulations window

22

D-Link DGS-1100 MP/MPP Series Switch User Manual

Areas of the User Interface

The figure below shows the user interface. Two distinct areas divide the user interface, as described
in the table.

Area Number Description

AREA 1

AREA 2

The navigation menu is displayed in this area. Click on the links and navigate
the folder structure to display information on the main page.

This is the main page for displaying information and configuration options for the
switch. The page displayed here is based on the selection in AREA 1.

Figure 4-6 Main Web UI Window

23

D-Link DGS-1100 MP/MPP Series Switch User Manual

5. Surveillance Overview

This loads automatically when you log-in to the switch and contains two tabs; Surveillance
Topology and Device Information. To return to the Surveillance Overview page after viewing other
pages, click the model number of the switch at the top of the navigation menu.

Figure 5-1 Switch Model Number

Surveillance Topology

This is the default tab on the Surveillance Overview page. It contains a diagram of the surveillance
topology, including an overview of the devices connected to the switch.

To view the following window, click on the model number of the switch at the top of the navigation
menu:

Figure 5-2 Surveillance Topology Window

There is a device count at the top of the page, listing the number of connected IP-Cameras,
Network Video Recorders (NVRs) and unrecognized devices. It also lists the number of warnings
on the system.

The icon descriptions are as follows:

24

D-Link DGS-1100 MP/MPP Series Switch User Manual

but not support ONVIF

Icon Description

The total number of IP-Cameras detected.

D-LINK IPC Discovered by Surveillance VLAN
protocol.

The total number of NVRs detected.

The number of warnings on the system. Consult the Surveillance Log and
Health Diagnostic pages for more information.

The number of ports that have an unknown device connected that does not
support ONVIF.

The Surveillance Topology gives you more information about what is connected to each port.
Hover over each device icon to get more information about the recognized devices, such as: the
number of devices, device type, IP address, power consumption, link speed and errors. Click on
the ‘more’ link to get more information about the devices connected to a port. Each port can also
be powered-on and off using PoE by clicking the power symbol on each port.

CAUTION: Before connecting the Powered Device (PD) and enabling 60/90 W
PoE, make sure it supports IEEE802.3bt, as otherwise it will become damaged.

See below for more information on enabling and disabling PoE.

A breakdown of each device icon is below:

Icon Description

One ONVIF IP-Camera discovered on this port.

The link is up but no ONVIF IP-Camera or NVR has been discovered on this
port.

Multiple ONVIF IP-Cameras discovered on this port.

One NVR discovered on this port. Any device fetching surveillance stream
from IP-Camera will be recognized as NVR.

Multiple NVRs discovered on this port.

One ONVIF IP-Camera and one NVR discovered on this port.

25

D-Link DGS-1100 MP/MPP Series Switch User Manual

If the switch does not detect any network activity from surveillance

inactive surveillance devices from the Surveillance

Multiple ONVIF IP-Cameras and one NVR discovered on this port.

One ONVIF IP-Camera and multiple NVRs discovered on this port.

This port is set as uplink port and it is link up.

This port is set as uplink port and it is link down.

NOTE: A breakdown of the device icons can be found by clicking the Help menu
at the top of the page.

NOTE: The switch uses ONVIF traffic to monitor the surveillance device status,
but some third party devices do not fully comply with the ONVIF standard. If you
are having problems with surveillance devices not being detected, please check
the ONVIF compatibility with the original surveillance device manufacturer.

NOTE: The system probes for new IP-Cameras every 30 seconds.

NOTE:

devices, it will remove
Topology every 5 minutes.

The icon border indicates the PoE status for the port:

Icon Border Description

The device is operational but not powered by PoE.

The device is operational and is powered by PoE.

The device has malfunctioned and there is a problem with the port or
device.

26

D-Link DGS-1100 MP/MPP Series Switch User Manual

The device is operational and is powered by PoE and it is activated by
PD Alive

The port status indicators dictate the speed and status of the link:

Port Status Description

The link is down.

The port is connected at 1 Gbps.

The port is connected at 10/100 Mbps.

The PoE status is indicated by the power icon on each port:

Port Status Description

PoE is enabled on the port.

PoE is disabled on the port.

Enabling and Disabling PoE

CAUTION: Before connecting the Powered Device (PD) and enabling 60/90 W
PoE, make sure it supports IEEE802.3bt, as otherwise it will become damaged.

The power status of each port can be changed by clicking the power icon on each port. The default
setting for PoE is on. To change the PoE type, first disable PoE and then re-enable it using the
type of PoE required.

The following dialogue box will be displayed when enabling PoE on a port:

Figure 5-3 PoE Configuration

Choose the type of PoE required. This can be either 15/30 W, 60 W or 90W.

Click the Apply button to accept the changes made.

27

D-Link DGS-1100 MP/MPP Series Switch User Manual

Device Information

This is the second tab on the Surveillance Overview page and is divided into 7 areas; a device
information section, PoE utilization section, bandwidth utilization section, CPU utilization section,
Memory utilization section, Temperature section and Rotating speed section.

To view the following window, click on the model number of the switch at the top of the navigation
menu and the click the Device Information tab:

28

D-Link DGS-1100 MP/MPP Series Switch User Manual

Figure 5-4 Device Information Window

The device information section is sub-divided into 3 sections; switch information, web information
and system information. It contains information such as the device type, system name, serial number,
IP address settings, MAC address settings, firmware versions and system uptime.

29

D-Link DGS-1100 MP/MPP Series Switch User Manual

The PoE utilization area contains PoE utilization statistics for the switch. On the left is the total PoE
utilization, with the total power budget and overall utilization shown. On the right is a per-port usage
graph, showing the PoE utilization for each individual port.

The bandwidth usage section contains bandwidth utilization for the switch. On the left the total
bandwidth shows the total inbound traffic on all ports. There is also a per-port bandwidth utilization
graph on the right, showing the inbound traffic for each individual port. The scale of the graph can be
changed by pressing the 1000 Mbps and 50 Mbps buttons above the graph.

The CPU utilization section contains CPU utilization statistics for the switch. On the left is the current
CPU utilization. On the right is CPU usage percentage recorded every 15 seconds.

The memory utilization section shows the memory utilization graph of the switch. On the left is the
current memory usage. On the right side shows memory usage records every 15 seconds.

The temperature section shows the switch temperature records. On the left is the current
temperature of the switch. On the right is the switch temperature records in every 15 seconds.

The fan speed section shows the fan speed status. The current fan speed is displayed on the left.
When the switch temperature is lower than 45 degrees, smart fan control speed at 5000 rpm, and
when switch temperature is higher than 45 degrees, the fan run fast to 10,000 rpm. On the right is
fan speed records in every 15 seconds.

30

6. Port Information

The number of ports that have an unknown device connected that does not

The Port Information section provides an overview of the port status for each port. This includes the
throughput, PoE status, Loopback Detection Status, cable length, power consumption and the
devices connected to each port.

To view the following window, click on the Port Information link in the navigation menu:

D-Link DGS-1100 MP/MPP Series Switch User Manual

A breakdown of the devices connected, the number of ports in use and the total throughput is listed
at the top of the page. The icon descriptions are as follows:

Icon Description

The total amount of ports that are currently active.

The total inbound throughput for all ports on the switch.

The total number of ONVIF IP-Cameras detected.

The total number of NVRs detected.

support ONVIF.

Figure 6-1 Port Information Window

31

D-Link DGS-1100 MP/MPP Series Switch User Manual

Hover-over each field to get more information about each value. A breakdown of each field is below:

Icon Description

The port number of the port.

The total inbound throughput for the port on the switch (measured in Mbps).

The cable length (in meters), taken from the Health Diagnostics page.

The PoE status for the port (PoE on or off).

The PoE consumption of the port. This is listed as one negative integer and one
positive integer. A negative value for PoE means that power is being consumed by
the port. The positive integer is the PoE budget for PoE standard in use.

The Loopback Detection status. If a loop is detected, the icon will change to include
a link to the Health Diagnostics page.

The Group Details page. If an ONVIF device is detected as being connected to the
port, the icon changes to include a link to the Group Details page. If a device is
connected that is not ONVIF compatible, a drop-down menu will be available to
define the type of device connected.

32

D-Link DGS-1100 MP/MPP Series Switch User Manual

having Group Number 1. If an NVR is removed, the Group Numbers will be

Group Details

The Group Details page lists the devices connected to a specific port. Only devices that have been
recognized as supporting ONVIF or NVRs will be displayed.

To view the following window, click on the Port Information link in the navigation menu and then
click on the Group Details link for a port that has recognized devices connected to it:

Figure 6-2 Group Details Window

The port number that the Group Details apply to is listed at the top of the page. The icon descriptions
are as follows:

Icon Description

The port number that the Group Details apply to.

Click to go back to the Port Information page.

Hover-over each field to get more information about each value. A breakdown of each field is below:

Icon Description

The Group Number that the device belongs to. All devices managed by an NVR
belong to the same Group Number. These are assigned sequentially, with NVR1

updated accordingly (if NVR1 is removed then Group Number 2 will become Group
Number 1).

The device type. This can be an IP-Camera or NVR.

The Model name of the IP-Camera. Nothing is displayed in this field if an NVR is
connected.

The IP address of the IP-Camera or NVR.

33

The device description. This can be edited on the IP-Camera Information page or
NVR Information page.

D-Link DGS-1100 MP/MPP Series Switch User Manual

34

D-Link DGS-1100 MP/MPP Series Switch User Manual

Select to enable or disable the PD Alive function on the specified

l interval here. This is the interval between ping

e sent (at each interval) when PDs are not responding. The

Enter the waiting time here. This is how long the system will wait

Select the action that will be taken here. Options to choose from are

7. PD Alive Configuration

This window is used to configure the PD Alive function for PDs connected to the PoE ports. The
ping function is used to check if PDs, connected to the PoE ports, are active or not. When PDs
appear to be inactive, the specified action (Reboot, Notify, or Both) will be taken.

To view the following window, click on the PD Alive Configuration enters the navigation menu:

Figure 7-1 PD-Alive Window

The fields that can be configured are described below:

Parameter Description

From Port / To Port

PD Alive State

PD IP Address

Pool interval(10-300)

Retry Count(1-5)

Wait Time(30-300)

Select the appropriate port range used for the configuration here.

port(s).

Enter the IP address of the PD here.

Enter the poo
messages from the system to PDs connected to the PoE port(s). The
range is from 10 to 300 seconds.

Enter the retry count here. This is the amount of ping messages that
will b
range is from 1 to 5.

before sending ping messages to the PD connected to the PoE port
after a 'Reset' action was taken. The range is from 30 to 300 seconds.

Reboot, Notify, and Both.

Action

Reboot - Specifies to reset the PoE port state (turn PoE off and on).
Notify - Specifies to send logs and traps to notify the administrator.

Both - Specifies to send logs and traps to notify the administrator and

to reset the PoE port state (turn PoE off and on).

35

D-Link DGS-1100 MP/MPP Series Switch User Manual

Click the Apply button to accept the changes made.

36

D-Link DGS-1100 MP/MPP Series Switch User Manual

8. IP-Camera Information

The IP-Camera Information section provides information on each camera connected to the switch.
It features the port number, device type, throughput, IP address and other information such as port
description, power consumption and location.

To view the following window, click on the IP-Camera Information link in the navigation menu:

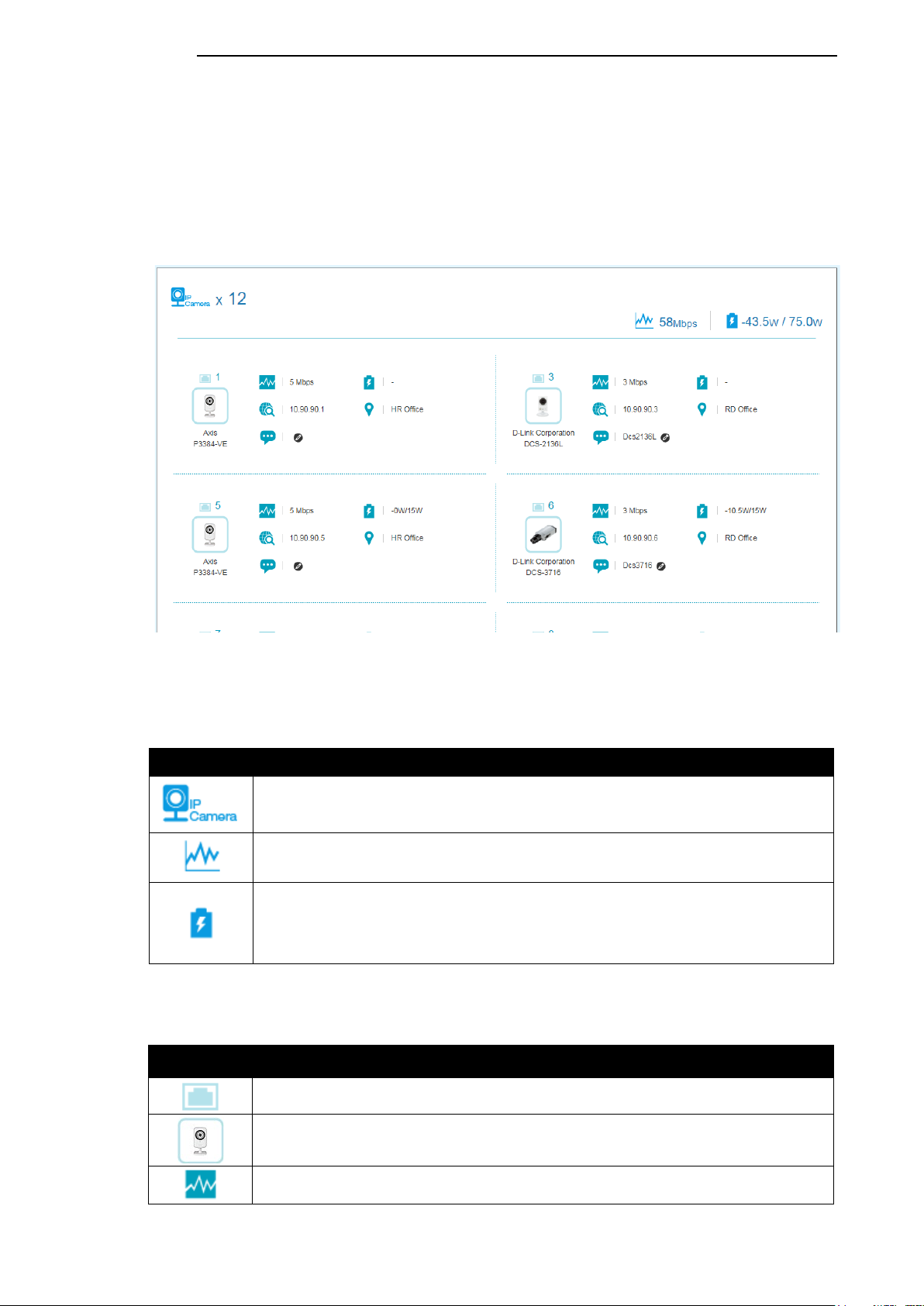

Figure 8-1 IP-Camera Information Window

The total device count, throughput and power consumption is listed at the top of the page. The icon
descriptions are as follows:

Icon Description

The total number of ONVIF IP-Cameras detected.

The total inbound throughput for all ports on the switch.

The PoE consumption of the switch. This is listed as one negative integer and one
positive integer. The negative integer is the power being consumed by the PoE
devices connected to the switch. The positive integer is the total PoE budget for
the ports currently using PoE, based on the type of PoE in use.

Hover-over each field to get more information about each value. A breakdown of each field is

below:

Icon Description

The port number of the port.

The device icon or photo. A generic photo will displayed for a non-D-Link ONVIF
camera. A D-Link-specific photo will be displayed for a D-Link ONVIF camera.

The total inbound throughput for the port on the switch (measured in Mbps).

37

The PoE consumption of the port. This is listed as one negative integer and one
positive integer. A negative value for PoE means that power is being consumed
by the port. The positive integer is the PoE budget for PoE standard in use.

The IP address of the IP-Camera.

The location of the IP-Camera.

The description of the IP-Camera. This can be edited by clicking the black pencil

icon next to the field ( ) and then the green pencil icon when the description

has been entered ( ).

D-Link DGS-1100 MP/MPP Series Switch User Manual

38

9. NVR Information

belong to the same Group Number. These are assigned sequentially, with NVR1

The NVR Information section provides information on each NVR connected to the switch. It
features the port number, throughput, IP address and information relating to the cameras
connected to the NVR, such as the group name, total number of cameras and the port and IP
address of each camera. Hover-over each field to get more information about each value.

To view the following window, click on the NVR Information link in the navigation menu:

D-Link DGS-1100 MP/MPP Series Switch User Manual

Figure 9-1 NVR Information Window

The total number of NVRs and the total throughput is listed at the top of the page. The icon
descriptions are as follows:

Icon Description

The total number of NVRs detected.

The total inbound throughput for all ports on the switch.

Hover-over each field to get more information about each value. A breakdown of each field is

below:

Icon Description

The port number of the port.

The device icon or photo. A generic photo is displayed for all NVR types.

The total inbound throughput for the port on the switch (measured in Mbps).

The IP address of the NVR.

The Description of the NVR. This can be edited by clicking the black pencil icon

next to the field ( ) and then the green pencil icon when the description has

been entered ( ).

The Group Number that a device belongs to. All devices managed by an NVR

39

having Group Number 1. If an NVR is removed, the Group Numbers will be

updated accordingly (if NVR1 is removed then Group Number 2 will become
Group Number 1).

The number of ONVIF IP-Cameras managed by this NVR.

Information relating to an IP-Camera in the group, such as port number and IP
address.

D-Link DGS-1100 MP/MPP Series Switch User Manual

40

10. PoE Information

The PoE Information section provides information on the PoE usage of each port. The port number,
PoE status, health status, PoE budget and power consumption is listed for each port. It is possible
to click on the health status to be re-directed to the Health Diagnostic page. Hover-over each field
to get more information about each value.

To view the following window, click on the PoE Information link in the navigation menu:

D-Link DGS-1100 MP/MPP Series Switch User Manual

Figure 10-1 PoE Information Window

The total power budget, power consumption, power budget consumption and the types of PoE in
use are listed at the top of the page. The icon descriptions are as follows:

Icon Description

The total PoE power budget.

The PoE consumption of the switch. This is listed as one negative integer and
one positive integer. The negative integer is the power being consumed by the
PoE devices connected to the switch. The positive integer is the total PoE budget
for the ports currently using PoE, based on the type of PoE in use.

The current utilization of PoE power budget.

The number of 15 W PoE devices discovered.

The number of 30 W PoE devices discovered.

The number of 60/90 W PoE devices discovered.

Hover-over each field to get more information about each value. A breakdown of each field is

below:

41

Icon Description

The maximum PoE power budget for this port. This can be 30 W, or

The port number of the port.

The PoE status for the port (PoE on or off).

30W/60W/90W if this port supports 4-pair PoE.

The PoE state. If any fault is detected the icon changes to include a description of
the problem and a link to the Health Diagnostic page.

The PoE consumption of the port. This is listed as one negative integer and one
positive integer. A negative value for PoE means that power is being consumed
by the port. The positive integer is the PoE budget for PoE standard in use.

D-Link DGS-1100 MP/MPP Series Switch User Manual

42

11. PoE Scheduling

PoE Scheduling is a feature which allows you to specify the amount of time that power is delivered
to a PoE port. This can be used to save power when devices are not in use, or as a security
feature to prevent wireless access from being available outside of business hours, for example. It is
possible to set a schedule name, a start time, an end time and which ports the PoE schedule
applies to.

To view the following window, click on the PoE Scheduling link in the navigation menu:

D-Link DGS-1100 MP/MPP Series Switch User Manual

Figure 11-1 PoE Scheduling Window

The fields that can be configured for the Time Profile are described below:

Parameter Description

Range Name

Daily

From Time (Day/Hour) The start day and time for the PoE schedule. Click the calendar icon

To Time (Day/Hour) The end day and time for the PoE schedule. Click the calendar icon

Click the Apply button to accept the changes made.

The fields that can be configured for the PoE Configuration are described below:

Parameter Description

Enter a descriptive name for the PoE schedule.

Check this tick-box to enable the schedule daily and gray-out the day­of-week fields in the From Time/To Time sections.

to pick this using a graphic calendar tool.

to pick this using a graphic calendar tool.

From Port The start port in the range that the PoE schedule will apply to.

To Port The end port in the range that the PoE schedule will apply to.

43

D-Link DGS-1100 MP/MPP Series Switch User Manual

Time Profile

Click the Apply button to accept the changes made.

The Time Profile created above.

44

12. Time

Clock Settings
SNTP Settings

Clock Settings

This sub-menu is used to configure the time on the switch.

To view the following window, go to: Time > Clock Settings in the navigation menu:

D-Link DGS-1100 MP/MPP Series Switch User Manual

Figure 12-1 Clock Settings Window

The fields that can be configured for the Clock Settings are described below:

Parameter Description

System Time
(HH:MM:SS)

Date (DD / MM / YYYY)

Click the Apply button to accept the changes made.

Use this to set the system time in the format (HH:MM:SS).

Use this to set the date, in the format (DD / MM / YYYY).

SNTP Settings

This sub-menu is used to configure an external time source on the switch. Simple Network Time
Protocol (SNTP) is a lightweight version of the NTP protocol and can be used to keep the system
clock in-sync by using a network-based time source.

To view the following window, go to: Time > SNTP Settings in the navigation menu:

Figure 12-2 SNTP Settings Window

45

D-Link DGS-1100 MP/MPP Series Switch User Manual

Set the synchronization interval for SNTP. The default is 720

Enter the IP address of the SNTP server you would like to

The fields that can be configured for the SNTP Global Settings are described below:

Parameter Description

Current Time Source

SNTP State Set the SNTP state. Options are Enabled or Disabled.

Pool Interval (30-99999)

Click the Apply button to accept the changes made.

The fields that can be configured for the SNTP Server Settings are described below:

Parameter Description

IPv4 Address

Click the Apply button to accept the changes made.

Displays the current time source for the switch.

seconds and the range is 30 – 99999 seconds.

synchronize with.

46

D-Link DGS-1100 MP/MPP Series Switch User Manual

13. Surveillance Settings

The Surveillance Settings page is used to configure the settings for the Surveillance VLAN. This is
a VLAN dedicated for IP-Camera and surveillance traffic and can be used to manage surveillance
devices on the network.

To view the following window, click on the Surveillance Settings link in the navigation menu:

Figure 13-1 Surveillance Settings Window

The fields that can be configured for the Surveillance VLAN Settings are described below:

Parameter Description

VLAN ID (2-4094)

Click the Apply button to accept the changes made.

The fields that can be configured for the IP Settings are described below:

Parameter Description

Get IP From

IP Address

Mask

Enter a VLAN number for the surveillance VLAN in the range (2-

4094).

Choose how the management IP for this VLAN is assigned to the
switch. Options are: DHCP, Static or BOOTP. If Static is chosen,
the following fields become available:

Enter the IP address for the surveillance VLAN management IP.

Enter the net mask for the surveillance VLAN management IP.

Gateway

Enter the gateway for the surveillance VLAN.

47

D-Link DGS-1100 MP/MPP Series Switch User Manual

Enter the IP address of the SNMP Network Management Server

device via the Web UI. Password length is a maximum of 20

Confirm the password that will be used to restrict access to the
device via the Web UI. Password length is a maximum of 20

NOTE: It is highly recommended that only uplink ports are connected to other

Click the Apply button to accept the changes made.

The fields that can be configured for the SNMP Host Settings are described below:

Parameter Description

Host IPv4 Address

(NMS) which will receive SNMP Traps from this device.

Click the Apply button to accept the changes made.

The fields that can be configured for the Log Server are described below:

Parameter Description

Host IPv4 Address

Enter the IP address of the Sys log NMS which will receive Sys log
messages from this device.

Click the Apply button to accept the changes made.

The fields that can be configured for the Password Settings are described below:

Parameter Description

Password

Configure the password that will be used to restrict access to the

characters.

Confirm Password

characters.

Click the Apply button to accept the changes made.

The fields that can be configured for the Uplink Port Settings are described below:

Parameter Description

From Port Enter the start port in the range for Uplink Ports. These are used for

connecting the surveillance VLAN with other switches.

To Port Enter the end port in the range for Uplink Ports. These are used for

connecting the surveillance VLAN with other switches.

Click the Apply button to accept the changes made.

Click the Delete button to delete any entries in the list of uplink ports.

switches, as the IP-Camera discovery process is disabled on these ports. Use the
Uplink Port Settings section of the interface to define which ports connect to other
switches.

NOTE: The default uplink ports of the DGS-1100-10MP/10MPP are port 9 and port

48

D-Link DGS-1100 MP/MPP Series Switch User Manual

10. The default uplink ports of DGS-1100-26MP/26MPP are port 25 and port 26.

49

14. Surveillance Log

The Surveillance Log consists of a list of Sys log messages that have been generated by the
switch. Depending on whether a Sys log server has been defined in the Surveillance Settings
section, these may be local to the switch or copied to an external logging server. The messages
are ordered in date order with the latest message at the top of the list. Please consult an external
source for more information on Sys log logging levels.

To view the following window, click on the Surveillance Log link in the navigation menu:

D-Link DGS-1100 MP/MPP Series Switch User Manual

Refresh: This will refresh the page.

Backup: This will allow you to save a local copy of the Sys log messages as a text file.

Enter a page number and click the Go button to navigate to a specific page when multiple pages
exist.

Figure 14-1 Surveillance Log Window

50

15. Health Diagnostic

The Health Diagnostic page is linked-to by the Port Information and PoE Information pages and
displays an overview of the port status. It contains the port number, Loopback Detection status,
Cable Link status, PoE Status, Tx/Rx Error Counter, number of Discovered Surveillance Devices
on the port (which links to the Group Details page) and the detected cable length. The page
automatically refreshes every 30 seconds.

To view the following window, click on the Health Diagnostic link in the navigation menu:

D-Link DGS-1100 MP/MPP Series Switch User Manual

Figure 15-1 Health Diagnostic Window

Detect: Detect the cable length of the listed port.

Detect All: Detect the cable length of all ports.

51

16. Save and Tools

Firmware Information
Firmware Upgrade & Backup
Configuration Restore & Backup
Reset
Reboot System

Save

Click the save button to save the current configuration to flash.

Click apply to maintain configuration.

D-Link DGS-1100 MP/MPP Series Switch User Manual

Figure 16-1 Save Configuration window

Firmware Information

This window is used to show firmware information.

To view the following window, click Tools>Firmware Information, as shown below:

Figure 16-2 Firmware Information window

Boot Up: Clicking the Boot Up button will set that firmware image as the active image to use upon

the next system start up.

NOTE: Changing the firmware only happens after the switch has been manually
rebooted. In order to boot with the newly selected firmware, make sure that the
switch is rebooted.

Firmware Upgrade & Backup

NOTE: When upgrading the firmware on the DGS-1100 MP/MPP Series switch, only
the image not currently active can be upgraded. All DGS-1100 MP/MPP Series
switches come with two images, however only one can be active at any time. (e.g. If
image 1 is currently in use, only image 2 can be upgraded, and vice versa.)

NOTE: If the switch is in HTTPS mode, the firmware or configuration cannot be

52

D-Link DGS-1100 MP/MPP Series Switch User Manual

Enter the source filename and path of the firmware file

upgraded using regular HTTP.

Firmware Upgrade from HTTP

This window is used to initiate a firmware upgrade from a local PC using HTTP.

To view the following window, click Tools > Firmware Upgrade & Backup > Firmware Upgrade

from HTTP, as shown below:

Figure 16-3 Firmware Upgrade from HTTP window

The fields that can be configured are described below:

Parameter Description

Source File

located on the local PC. Alternatively click the Browse
button to navigate to the location of the firmware file located
on the local PC.

Click the Apply button to initiate the firmware upgrade.

Firmware Backup to HTTP

This window is used to initiate a firmware backup to a local PC using HTTP.

To view the following window, click Tools > Firmware Upgrade & Backup > Firmware Backup to

HTTP, as shown below:

Figure 16-4 Firmware Backup to HTTP window

The fields that can be configured are described below:

Parameter Description

Source

Click the Apply button to initiate the firmware backup.

Select the source image to use for the firmware backup.

53

D-Link DGS-1100 MP/MPP Series Switch User Manual

Enter the source filename and path of the configuration file

Configuration Restore & Backup

Configuration Restore from HTTP

This window is used to initiate a configuration restore from a local PC using HTTP.

NOTE: If the switch is in HTTPS mode, the firmware or configuration cannot be upgraded using
regular HTTP.

To view the following window, click Tools > Configuration Restore & Backup > Configuration

Restore from HTTP, as shown below:

Figure 16-5 Configuration Restore from HTTP window

The fields that can be configured are described below:

Parameter Description

Source File

located on the local PC. Alternatively click the Browse button to
navigate to the location of the configuration file located on the
local PC.

Click the Apply button to initiate the configuration restore.

Click Effective immediately (running-config) to have the uploaded configuration loaded
immediately.

Click Take effect after the next boot (startup-config) to load the configuration after the switch has
been rebooted.

Configuration Backup to HTTP

This window is used to initiate a configuration file backup to a local PC using HTTP.

To view the following window, click Tools > Configuration Restore & Backup > Configuration

Backup to HTTP, as shown below:

Figure 16-6Configuration Backup to HTTP window

Select Include username password to save the switch user accounts and passwords to the backup
file.

Select Exclude username password to save the switch user accounts and passwords to the
backup file.

Click the Apply button to initiate the configuration file backup.

54

D-Link DGS-1100 MP/MPP Series Switch User Manual

Reset

This window is used to reset the switch’s configuration to the factory default settings.

To view the following window, click Tools >Reset, as shown below:

Figure 16-7 Reset window

Select The Switch will be reset to its factory defaults including IP address and stacking
information, and the will save, reboot option to reset the switch’s configuration to its factory

default settings.

Select The Switch will be reset to its factory default except IP address, and then will save,
reboot option to reset the switch’s configuration to its factory default settings. This option will
exclude the IP address from being changed.

Select The Switch will be reset to its factory defaults including IP address option to reset the
switch’s configuration to its factory default settings.

Click the Apply button to initiate the factory default reset and reboot the switch.

NOTE: Performing a factory reset in one version of the interface (Standard Mode
or Surveillance Mode) will cause settings to be reset in the other version of the
interface.

Reboot System

This window is used to reboot the switch and alternatively save the configuration before doing so. To
view the following window, click Tools >Reboot System, as shown below:

Figure 16-8 Reboot System window

When rebooting the switch, any configuration changes that was made during this session, will be lost
unless the Yes option is selected when asked to save the settings.

Click the Reboot button to alternatively save the settings and reboot the switch.

55

D-Link DGS-1100 MP/MPP Series Switch User Manual

Figure 16-9 Reboot System – Rebooting window

56

17. Help

Click the Help button on the page for Help information.

D-Link DGS-1100 MP/MPP Series Switch User Manual

Figure 17-1 Help Window

57

D-Link DGS-1100 MP/MPP Series Switch User Manual

18. Appendix A - Ethernet Technology

This chapter will describe the features of the D-Link DGS-1100 MP/MPP Series switch and provide
some background information about Ethernet/Fast Ethernet/Gigabit Ethernet switching technology.

Gigabit Ethernet Technology

Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the same packet structure, format,
and support for CSMA/CD protocol, full duplex, and management objects, but with a tenfold increase
in theoretical throughput of over 100-Mbps Fast Ethernet and a hundredfold increase over 10-Mbps
Ethernet. Since it is compatible with all 10-Mbps and 100-Mbps Ethernet environments, Gigabit
Ethernet provides a straightforward upgrade without wasting existing investments in hardware,
software, or trained personnel.

The increased speed and extra bandwidth offered by Gigabit Ethernet is essential to help solving
network bottlenecks that frequently develop as more advanced computer users and newer
applications continue to demand greater network resources. Upgrading key components, such as
backbone connections and servers to Gigabit Ethernet technology can greatly improve network
response times as well as significantly speed up the traffic between subnets.

Gigabit Ethernet enables fast optical fiber connections to support video conferencing, complex
imaging, and similar data-intensive applications. Likewise, since data transfers occur 10 times faster
than Fast Ethernet, servers outfitted with Gigabit Ethernet NIC’s are able to perform 10 times the
number of operations in the same amount of time.

In addition, the phenomenal bandwidth delivered by Gigabit Ethernet is the most cost-effective
method to take advantage of today and tomorrow’s rapidly improving switching and routing internet
working technologies. And with expected advances in the coming years in silicon technology and
digital signal processing that will enable Gigabit Ethernet to eventually operate over unshielded
twisted-pair (UTP) cabling, outfitting your network with a powerful 1000-Mbps-capable
backbone/server connection which will create a flexible foundation for the next generation of network
technology products.

Fast Ethernet Technology

The growing importance of LANs and the increasing complexity of desktop computing applications
are fueling the need for high performance networks. A number of high-speed LAN technologies have
been proposed to provide greater bandwidth and improve client/server response times. Among
them, 100BASE-T (Fast Ethernet) provides a non-disruptive, smooth evolution from the current
10BASE-T technology. The non-disruptive and smooth evolution nature, and the dominating
potential market base, virtually guarantees cost-effective and high performance Fast Ethernet
solutions.

100Mbps Fast Ethernet is a standard specified by the IEEE 802.3 LAN committee. It is an extension
of the 10Mbps Ethernet standard with the ability to transmit and receive data at 100Mbps, while
maintaining the CSMA/CD Ethernet protocol. Since the 100Mbps Fast Ethernet is compatible with all
other 10Mbps Ethernet environments, it provides a straightforward upgrade and utilizes existing
investments in hardware, software, and personnel training.

Switching Technology

Another approach to push beyond the limits of Ethernet technology is the development of switching
technology. A switch bridges Ethernet packets at the MAC address level of the Ethernet protocol
transmitting among connected Ethernet or Fast Ethernet LAN segments.

Switching is a cost-effective way of increasing the total network capacity available to users on a local
area network. A switch increases capacity and decreases network loading by dividing a local area

58

D-Link DGS-1100 MP/MPP Series Switch User Manual

network into different segments which won’t compete with each other for network transmission
capacity.

The switch acts as a high-speed selective bridge between the individual segments. The switch,
without interfering with any other segments, automatically forwards traffic that needs to go from one
segment to another. By doing this the total network capacity is multiplied, while still maintaining the
same network cabling and adapter cards.

59

D-Link DGS-1100 MP/MPP Series Switch User Manual

19. Appendix B - Technical Specifications

Hardware Specifications

Key Components / Performance

Switching Capacity:

-DGS-1100-10MP: 20Gbps

- DGS-1100-10MPP: 20Gbps

- DGS-1100-26MP: 52Gbps

- DGS-1100-26MPP: 52Gbps

Max. Forwarding Rate:

-DGS-1100-10MP: 14.88Mpps

- DGS-1100-10MPP: 14.88Mpps

- DGS-1100-26MP: 38.69Gbps

- DGS-1100-26MPP: 38.69Gbps

Forwarding Mode: Store and Forward
Packet Buffer memory:

- DGS-1100-10MP: 4.1Mbits

- DGS-1100-10MPP: 4.1Mbits

- DGS-1100-26MP: 4.1Mbits

- DGS-1100-26MPP: 4.1Mbits

Flash Memory: 32M Byte

Port Functions

10/100/1000BaseTX ports compliant with

the following standards:

- IEEE 802.3

- IEEE 802.3u

- IEEE 802.3ab

- IEEE802.3at

- IEEE 802.3af

-IEEE 802.3bt (DGS-1100 MPP Series only)

-Supports Full/half-Duplex operations at

10/100Mbps

- Supports Full-Duplex operation at

1000Mbps

- Supports IEEE 802.3x Flow Control

- Support Auto-Negotiation

- Compliant to IEEE 802.3az Energy

Efficiency Ethernet.

SFP ports compliant with the following

standards:

- IEEE 802.3u compliance

- IEEE 802.3z compliance

Physical & Environment

Maximum Power Consumption

- DGS-1100-10MP:

10.79W (POE OFF) 154.00W (POE ON)

- DGS-1100-10MPP:

11.68W (POE OFF) 285.50W (POE ON)

- DGS-1100-26MP:

23.58W (POE OFF) 434.40W (POE ON)

- DGS-1100-26MPP:

24.67W (POE OFF) 616.90W (POE ON)

Standby Power Consumption

- DGS-1100-10MP: 4.25W

- DGS-1100-10MPP: 5.95W

- DGS-1100-26MP: 12.6W

- DGS-1100-26MPP: 13.89W
Power input:100~240 VAC, 50/60Hz,

internal universal power supply

Acoustic Value:

- DGS-1100-10MP: 51.9dB

- DGS-1100-10MPP: 51.9dB

- DGS-1100-26MP: 53.7dB

- DGS-1100-26MPP: 53.7dB
Operation Temperature: -10~55°C
Storage Temperature: -20~70°C
Operation Humidity: 0%~95% RH
Storage Humidity: 0%~95% RH

Emission (EMI) Certifications

FCC class A
CE Class A
VCCI Class A
BSMI
CCC

Safety Certifications

CUL, LVD, CB, CCC, BSMI

Features

L2 Features

8K MAC address
Loopback Detection

60

D-Link DGS-1100 MP/MPP Series Switch User Manual

Port Mirroring
Link Aggregation
Cable Diagnostics
Spanning Tree
Ethernet Ring Protection Switching

(ERPS)

L2 Multicasting

IGMP Snooping

VLAN

802.1Q VLAN standard
Port-Based VLAN
Surveillance VLAN
Voice VLAN:

Asymmetric VLAN

Quality of Service (QoS)

802.1p priority
4 queues
Bandwidth Control

Surge Protection

All PoE ports support 2 KV surge

protection

Security

Storm Control
DoS Attack Prevention
SSL
D-Link Safeguard

Management

Web-based GUI or D-Link Network

Assistant
