Operation Manual
SpeedDigester
K 439
11593351 en
Table of contents
Table of contents
1 |
About this manual . . . . . . . . . . . . . . . . . . . . . . . . |
. . . |
. . . . . . |
. . . |
. . |
. 5 |
|
2 |
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . |
. . . . . . |
. . . |
. . |
. 6 |
|
|
2.1 |
User qualification . . . . . . . . . . . . . . |
. . |
. . . . |
. . |
. . |
6 |
|
2.2 |
Proper use . . . . . . . . . . . . . . . . |
. . |
. . . . |
. . |
. . |
6 |
|
2.3 |
Improper use . . . . . . . . . . . . . . . . |
. . |
. . . . |
. . |
. |
6 |
|
2.4 |
Safety warnings and safety signs used in this manual . . |
. . |
. . . . |
. . |
. . |
7 |
|
2.5 |
Product safety |
|
|
|
|
9 |
|
2.5.1 |
General hazards |
|
|
|
|
9 |
|
2.5.2 |
Warning labels on housing and assemblies . . . . . . |
. . |
. . . . |
. . |
. |
11 |
|
2.5.3 |
Personal protective equipment . . . . . . . . . . |
. . |
. . . . |
. . |
. |
11 |
|
2.5.4 |
Built-in safety elements and measures . . . . . . . |
. . |
. . . . |
. . |
. |
12 |
|
2.6 |
General safety rules . . . . . . . . . . . . . . |
. . |
. . . . |
. . |
. |
12 |
3 |
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . |
. . . . . . |
. . . |
. . |
13 |
|
|
3.1 |
Scope of application and delivery . . . . . . . . . |
. . |
. . . . |
. . |
. |
13 |
|
3.1.1 |
Available system configurations . . . . . . . . . . |
. . |
. . . . |
. . |
. |
13 |
3.1.2Accessories for 300 ml sample tubes (for standard applications) . . . . . . . . 14
3.1.3Accessories for 500 ml sample tubes (for large sample volumes / at low nitrogen level) 14
|
3.1.4 |
Accessories for 3rd party production, 250 ml sample tubes . . . . . . . . . |
|
. 15 |
|
3.2 |
Technical data |
|
16 |
|
3.3 |
Materials used |
|
17 |
4 |
Description of function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. |
18 |
|
|
4.1 |
Functional principle . . . . . . . . . . . . . . . . . . . . . . |
. |
18 |
5 |
Putting into operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. |
19 |
|
|
5.1 |
Installation site |
|
19 |
|
5.2 |
System fixation . . . . . . . . . . . . . . . . . . . . . . . . |
|
20 |
|
5.3 |
Electrical connections |
|
21 |
|
5.3.1 |
SpeedDigester connection . . . . . . . . . . . . . . . . . . . . |
|
21 |
|
5.3.2 |
Scrubber/water jet pump connection . . . . . . . . . . . . . . . . |
. |
21 |
6 |
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. |
22 |
6.1Operating controls and housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.1.1 |
SpeedDigester K-439 — front side . . |
. . |
. . |
. . . . |
. . |
. . . . |
. |
. 22 |
6.1.2 |
System rear side . . . . . . . . |
. . |
. . |
. . . . |
. . |
. . . . |
. |
. 23 |
6.2 |
User interface . . . . . . . . . |
. . |
. . |
. . . . |
. . |
. . . . |
. |
. 24 |
6.3 |
Program structure overview . . . . |
. . |
. . |
. . . . |
. . |
. . . . |
. . |
25 |
6.4 |
Software buttons . . . . . . . . |
. . |
. . |
. . . . |
. . |
. . . . |
. |
. 26 |
6.5 |
Software icons . . . . . . . . |
. . |
. . |
. . . . |
. . |
. . . . |
. . |
27 |
6.5.1General icons (used in automatic and manual mode) . . . . . . . . . . . . 27
6.5.2 |
Icons in automatic mode . . . . . . . . . . . . . . |
. . |
. . |
. . |
. |
27 |
6.5.3 |
Icons in manual mode |
|
|
|
|
27 |
6.6 |
How to prepare the software for routine digestion |
|
|
|
|
28 |
6.6.1 |
Standard instrument settings . . . . . . . . . . . . |
. . |
. . |
. . |
. |
. 28 |
6.6.2 |
Digestion in Manual Mode |
|
|
|
|
29 |
6.6.3 |
Methods menu . . . . . . . . . . . . . . . . . |
. . |
. . |
. . |
. |
30 |
6.6.4 |
Digestion in Automatic Mode . . . . . . . . . . . . |
. . |
. . |
. . |
. |
. 35 |
6.6.5 |
History menu . . . . . . . . . . . . . . . . . . |
. . |
. . |
. . |
. |
36 |
6.7 |
Preparing of SpeedDigester, suction module(s) and sample tubes |
|
|
|
|
36 |
3 |
K-439 Operation Manual, Version A |
Table of contents
|
6.7.1 Kjeldahl digestion —preparing sample tubes |
|
|
|
|
37 |
|
|
6.7.2 |
Peroxide digestion —preparing sample tubes . . . . . |
. . |
. . . . |
. . |
. |
38 |
|
6.7.3 |
Installing a suction module and sample tubes (300 ml) |
|
|
|
|
39 |
|
6.7.4 |
Installing 500 ml sample tubes |
|
|
|
|
41 |
|
6.7.5 |
Starting up the SpeedDigester . . . . . . . . . . |
. . |
. . . . |
. . |
. |
43 |
|
6.8 |
Performing a Kjeldahl digestion process |
|
|
|
|
43 |
|
6.8.1 |
Preparational steps . . . . . . . . . . . . . . |
. . |
. . . . |
. . |
. |
43 |
|
6.8.2 |
Starting a digestion process |
|
|
|
|
43 |
|
6.9 |
Performing a peroxide digestion process . . . . . . |
. . |
. . . . |
. . |
. |
. 44 |
|
6.9.1 |
Preparational steps . . . . . . . . . . . . . . |
. . |
. . . . |
. . |
. |
44 |
|
6.9.2 |
Starting a digestion process |
|
|
|
|
44 |
|
6.10 |
Finishing a digestion process . . . . . . . . . . |
. . |
. . . . |
. . |
. |
. 46 |
|
6.11 Optional 'Stand with drip tray' |
|
|
|
|
49 |
|
7 |
Maintenance and repairs . . . . . . . . . . . . . . . . . . . . |
. . . |
. . . . . . |
. . . |
. . |
50 |
|
|
7.1 |
Customer service . . . . . . . . . . . . . . |
. . |
. . . . |
. . |
. |
. 51 |
|
7.2 |
General condition and cleaning instructions . . . . . . |
. . |
. . . . |
. . |
. |
51 |
|
7.2.1 |
Breakage of glassware inside a housing chamber |
|
|
|
|
52 |
|
7.2.2 |
Liquid ingress into the instrument . . . . . . . . . |
. . |
. . . . |
. . |
. |
52 |
|
7.3 |
Glass component conditions . . . . . . . . . . |
. . |
. . . . |
. . |
. |
. 53 |
|
7.3.1 |
Sample tubes . . . . . . . . . . . . . . . . |
. . |
. . . . |
. . |
. |
53 |
|
7.4 |
Sealing system . . . . . . . . . . . . . . . |
. . |
. . . . |
. . |
. |
53 |
|
7.5 |
Rack system . . . . . . . . . . . . . . . . |
. . |
. . . . |
. . |
. |
54 |
|
7.5.1 |
300 ml sample tube support spring . . . . . . . . |
. . |
. . . . |
. . |
. |
. 54 |
|
7.5.2 |
500 ml sample tube support spring . . . . . . . . |
. . |
. . . . |
. . |
. |
. 55 |
|
7.6 |
Display cover . . . . . . . . . . . . . . . . |
. . |
. . . . |
. . |
. |
55 |
8 |
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . |
. . . . . . |
. . . . . |
56 |
||
|
8.1 |
Malfunctions and their remedy |
|
|
|
|
56 |
|
8.2 |
Diagnostics . . . . . . . . . . . . . . . . |
. . |
. . . . |
. . |
. |
. 57 |
|
8.2.1 |
Actors |
|
|
|
|
57 |
|
8.2.2 |
Sensors |
|
|
|
|
58 |
|
8.2.3 |
Operating Hours |
|
|
|
|
58 |
|
8.2.4 Unit Information . . . . . . . . . . . . . . . |
. . |
. . . . |
. . |
. |
58 |
|
|
8.2.5 Service Test . . . . . . . . . . . . . . . . |
. . |
. . . . |
. . |
. |
. 58 |
|
|
8.3 |
Device fuses |
|
|
|
|
59 |
9 |
Shutdown, storage, transport and disposal . . . . . . . . . . |
. . . |
. . . . . . |
. . . . . |
60 |
||
|
9.1 |
Storage and transport |
|
|
|
|
60 |
|
9.2 |
Disposal |
|
|
|
|
61 |
10 |
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . |
. . . . . . |
. . . |
. . |
63 |
|
|
10.1 |
Spare parts, optional accessories and consumables . . |
. . |
. . . . |
. . |
. |
. 63 |
11 Declarations and requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. |
66 |
||
11.1 |
FCC requirements (for USA and Canada) . . . . . . . . . . . . . . |
. |
|
. 66 |
11.2 |
Declaration of conformity . . . . . . . . . . . . . . . . . . . . |
|
. |
67 |
4 |
K-439 Operation Manual, Version A |
1 About this manual
1 About this manual
This manual describes the SpeedDigester K-439 and provides all information required for its safe operation and to maintain it in good working order.
It is addressed to laboratory personnel and operators in particular.
Read this manual carefully before installing and running your system and note the safety precautions in chapter 2 in particular. Store the manual in the immediate vicinity of the instrument, so that it can be consulted at any time.
No technical modifications may be made to the instrument without the prior written agreement of Buchi. Unauthorized modifications may affect the system safety or result in accidents. Technical data are subject to change without notice.
NOTE
The symbols pertaining to safety (WARNINGS and ATTENTIONS) are explained in chapter 2.
This manual is copyright. Information from it may not be reproduced, distributed or used for competitive purposes, nor made available to third parties. The manufacture of any component with the aid of this manual without prior written agreement is also prohibited.
The English manual is the original language version and serves as basis for all translations into other languages. If you need another language version of this manual, you can download available versions at www.buchi.com.
5 |
K-439 Operation Manual, Version A |
2 Safety
2 Safety
This chapter introduces the safety concept of the instrument and contains general rules of behavior and warnings from direct and indirect hazards concerning the use of the product.
For the users safety, all safety instructions and safety messages in the individual chapters shall be strictly observed and followed. Therefore, the manual must always be available to all persons performing any tasks described herein.
2..1 User qualification
The instrument may only be used by laboratory personnel and other persons who on account of training and professional experience know the potential dangers that can develop when operating the instrument.
Untrained personnel, or persons who are currently being trained, require careful supervision by a qualified person. Operation Manual serves as a basis for training.
2..2 Proper use
The SpeedDigester K-439 has been designed and built for laboratory use only. Its intended use is to allow digestion of samples with concentrated acids or peroxides by heating up the probe.
A suction unit (e.g. Scrubber or water jet pump) has to be connected to the suction module to safely withdraw fumes which will emerge during digestion. In any case, all exhausts and fumes leaving the system or assemblies such as Scrubber or water jet pump have to be removed instantly inside a fume hood. This is mandatory to remove all possibly hazardous substances (e.g. acid fumes) from the working area. The ventilation system of the fume hood has to be equipped with safety measures such as outlet filters to avoid contamination of the environment.
When the SpeedDigester K-439 is used in combination with other instruments (e.g. Scrubber and fume hood) all related manuals are to be fully observed.
2..3 Improper use
Applications not mentioned in section 2.2 are considered to be improper. Applications which do not comply with the technical data (see section 3 of this manual) are also considered to be improper.
The operator bears the sole risk for any damages or hazards caused by improper use!
The following uses are expressly forbidden:
•Digestion operations outside an active fume hood.
•Digestion of samples (e.g. food and feed) in nitrosulfuric acids which can produce explosive nitro compounds.
•Digestion of sample material of unknown composition in nitrosulfuric acids.
•Use of samples which can explode or ignite due to shocks, friction, heat or sparks.
•Installation or use of the instrument in rooms, which require ex-protected instruments.
•Use of glassware which is not specified in section 2.5.4.
6 |
K-439 Operation Manual, Version A |
2 Safety
2..4 Safety warnings and safety signs used in this manual
DANGER, WARNING, CAUTION and NOTICE are standardized signal words for identifying levels of hazard seriousness of risks related to personal injury and property damage. All signal words, which are related to personal injury are accompanied by the general safety sign.
For your safety it is important to read and fully understand the table below with the different signal words and their definitions!
Sign |
Signal word |
Definition |
Risk level |
|
|
|
|
|
|
|
DANGER |
Indicates a hazardous situation which, if not avoided, will result in |
|
|
|
death or serious injury. |
|||
|
|
|
||
|
|
|
|
|
|
WARNING |
Indicates a hazardous situation which, if not avoided, could result |
|
|
|
in death or serious injury. |
|||
|
|
|
||
|
|
|
|
|
|
CAUTION |
Indicates a hazardous situation which, if not avoided, may result |
|
|
|
in minor or moderate injury. |
|||
|
|
|
||
|
|
|
|
|
no |
NOTICE |
Indicates possible property damage, but no |
|
|
|
||||
practices related to personal injury. |
(property damage only) |
|||
|
|
|||
|
|
|
||
|
|
|
|
Supplementary safety information symbols may be placed in a rectangular panel on the left to the signal word and the supplementary text (see below example).
Space for |
! |
SIGNAL WORD |
|
|
|
||
Supplementary text, describing the kind and level of hazard / risk seriousness. |
|||
supplementary |
|||
safety |
• List of measures to avoid the herein described, hazard or hazardous situation. |
||
information |
• ... |
|
|
symbols. |
• ... |
|
|
|
|
|
Table of supplementary safety information symbols
The reference list below incorporates all safety information symbols used in this manual and their meaning.
Symbol Meaning
General warning
Electrical hazard
Heavy weight, avoid overexertion
7 |
K-439 Operation Manual, Version A |
2 Safety
Symbol Meaning
Explosive gases, explosive environment
Explosive material
Fire hazard
Harmful to life-forms
Hot item, hot surface
Device damage
Inhalation of substances
Chemical burns by corrosives
Fragile components
Wear laboratory coat
Wear protective goggles
8 |
K-439 Operation Manual, Version A |
2 Safety
Symbol Meaning
Wear protective gloves
Heavy weight, lifting requires more than one person
Additional user information
Paragraphs starting with Note transport helpful information for working with the device / software or its supplementaries. Notes are not related to any kind of hazard or damage (see following example).
Note
Useful tips for the easy operation of the instrument / software.
2..5 Product safety
The SpeedDigester K-439 has been designed and built in accordance with current state-of-the-art technology. Safety warnings in this manual (as described in section 2.4) serve to make the user alert to and avoid hazardous situations emanating from residual dangers by giving appropriate counter measures.
However, risks to users, property and the environment can arise when the instrument is damaged, used carelessly or improperly.
2..5..1 General hazards
The following safety messages show hazards of general kind which may occur when handling the instrument. The user shall observe all listed counter measures in order to achieve and maintain the lowest possible level of hazard.
Additional warning messages can be found whenever actions and situations described in this manual are related to situational hazards.
!DANGER
Death or serious injuries by use in explosive environments.
•Do not store or operate the instrument in explosive environments
•Do not store chemicals in the vicinity of the device
•Operate the device in a fume hood with sufficient ventilation to directly withdraw fumes
9 |
K-439 Operation Manual, Version A |
2 Safety
!WARNING
Death or serious burns by flammable vapors.
•Remove all sources of flammable vapors
•Do not store flammable chemicals in the vicinity of the device
!WARNING
Risk of death or serious chemical burns by hot acid or peroxide fumes.
•Do not operate the system with faulty parts
•Check instrument setup for proper sealing before use
•Do not inhale process fumes
•Operate the instrument inside an active fume hood
•Do not move the instrument or parts of it during digestion
!CAUTION
Risk of minor or moderate cuts by sharp edges.
•Do not touch defective or broken glassware with bare hands
•Do not touch thin metal edges
!CAUTION
Risk of burns by hot machine parts and glassware.
•Do not touch hot parts or surfaces
•Let the system and inserted glassware cool down safely
•Do not move the instrument or parts of it when hot
NOTICE
Risk of instrument damage by liquids or mechanical shocks.
•Do not spill liquids over the instrument or its components
•Do not move the instrument when it is loaded with sample liquid
•Do not drop the instrument or its components
•Keep external vibrations away from the instrument
•Safely attach the instrument to the bench in earthquake prone regions
•Do not operate the instrument without the display cover installed
10 |
K-439 Operation Manual, Version A |
2 Safety
2..5..2 Warning labels on housing and assemblies
The following warning sticker(s) can be found on the housing or assemblies of the SpeedDigester:
Symbol |
Meaning |
Location |
|
Hot item, hot surface |
Sticker / label, located on top of the housing and |
|
at the racks |
|
|
|
Do NOT put rack into side cooling position |
Label on 500 ml racks |
2..5..3 Personal protective equipment
Always wear personal protective equipment such as protective eye goggles, protective clothing and gloves. The personal protective equipment must meet all requirements of the supplementary data sheets for the chemicals used.
!WARNING
Serious chemical burns by corrosives.
•Observe supplementary data sheets of all used chemicals.
•Handle corrosives in well ventilated environments only.
•Always wear protective goggles.
•Always wear protective gloves.
•Always wear protective clothes.
•Do not use damaged glassware.
|
|
|
|
|
11 |
|
|
|
K-439 Operation Manual, Version A |
2 Safety
2..5..4 Built-in safety elements and measures
Buchi glassware design
•All original Buchi digestion glassparts are made of high temperature and chemical resistant borosilicate glass.
•Acid fumes generated during digestion accumulate in the suction module
•The fumes must be safely withdrawn from the suction module via one or more hoses to a Scrubber (e.g. Scrubber B-414) or via water jet pump into a sink or sufficient suction flow.
3rd party glassware
The quality of the material is an essential part of the safety concept of the SpeedDigester K-439. For the special rack (order no. 11055440), the following qualified vendors offer sample tubes of sufficient quality grade to withstand the temperatures and the aggressive chemical digestion agents:
|
Qualified vendor |
|
|
Tested sample tube(s) |
|
|
Gerhardt |
|
250 ml / 6100 |
||
|
|
|
|
|
|
|
Velp |
|
ø 42×300 mm / A00000144 |
||
|
Foss |
|
250 ml / 10014278 |
||
|
|
|
|
|
|
Heater
Each heating chamber is equipped with a safety overtemperature switch. In case of an emergency the switch cuts off the power of the corresponding chamber.
2..6 General safety rules
Responsibility of the operator
The head of the laboratory is responsible for training his/her personnel.
The operator shall inform the manufacturer without delay of any safety-related incidents which might occur during operation of the instrument or its accessories. Legal regulations, such as local, state and federal laws applying to the instrument or its accessories must be strictly followed.
Duty of maintenance and care
The operator is responsible for the proper condition of instrument. This includes maintenance, service and repair jobs that are performed on schedule by authorized personnel only.
Spare parts to be used
Use only genuine consumables and spare parts for maintenance to assure good system performance, reliability and safety. Any modifications of spare parts or assemblies are only allowed with the prior written permission of the manufacturer.
Modifications
Modifications to the instrument are only permitted after prior consultation and with the written approval of the manufacturer. Modifications and upgrades shall only be carried out by an authorized Buchi technical engineer. The manufacturer will decline any claim resulting from unauthorized modifications.
12 |
K-439 Operation Manual, Version A |
3 Technical data
3 Technical data
This chapter introduces the reader to the SpeedDigester K-439 and its specifications. It contains the scope of delivery, technical data, requirements and performance data.
3..1 Scope of application and delivery
All system configurations come with a limited set of accessories as a starter kit. Within a system family, additionally available accessories (see section 3.1.2 and the following) can be used to easily reconfigure your system to every configuration listed in section 3.1.1.
Parts that are required to change a system configuration:
•Rack
•Suction module
•Insulation plate (fireclay insert)
•Sample tubes
The scope of delivery depends on the ordered system configuration and can be checked according to the individual delivery note and the listed order numbers.
Note
For additional information about the listed products, see www.buchi.com or contact your local dealer.
3..1..1 Available system configurations
Configuration |
Sample |
Sample tube sizes |
|
Suction modules |
|
|||||
order number |
positions |
|
|
|||||||
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
Condensate |
|
|
Module for |
|
|
|
|
|
|
|
|
|
||
220 – 240 V |
5 |
6 |
250 ml |
300 ml |
500 ml |
Standard |
H O |
|
3rd party |
|
|
|
|
|
|
|
|
trap |
2 |
2 |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
tubes |
|
|
|
|
|
|
|
|
|
|
|
1154392500 |
• |
|
|
|
• |
|
• |
|
|
|
1154392100 |
|
• |
|
• |
|
• |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1154392200 |
|
• |
|
• |
|
|
• |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1154392300 |
|
• |
|
• |
|
|
|
• |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1154392400 |
|
• |
•* |
|
|
|
|
|
|
•* |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*Third party sample tubes require special accessories such as the BUCHI “Module for 3rd party tubes” and the matching rack / insulation plate. Tubes are not included in the set!
13 |
K-439 Operation Manual, Version A |
3 Technical data
3..1..2 Accessories for 300 ml sample tubes (for standard applications)
Item |
Additional info |
Order number |
Recommended quantity to |
|
order |
||||
|
|
|
||
Set of sample tubes |
300 ml, 4 tubes |
037377 |
3x |
|
|
|
|
|
|
Suction module standard |
6 place |
11055849 |
2x |
|
|
|
|
|
|
Suction module condensate trap |
6 place |
11055865 |
2x |
|
|
|
|
|
|
Suction module H2O2 |
6 place, cpl. |
11055853 |
2x |
|
Connectors to suction module |
Adapter and plug |
11055367 |
2x |
|
|
|
|
|
|
EPDM hose set |
Hoses and t-piece |
11056219 |
1x |
|
|
|
|
|
|
Insulation plate (fireclay) |
Insertion, for 300 ml tubes |
11055142 |
2x |
|
|
|
|
|
|
Rack |
6 place, for 300 ml tubes |
11055248 |
2x |
|
|
|
|
|
|
Glass caps (set of 4) |
OPTIONAL |
040049 |
— |
|
|
|
|
|
|
Insulation cap |
OPTIONAL |
11056024 |
— |
|
|
|
|
|
|
Sealing FKM (set of 6) |
Spare part |
038122 |
— |
|
|
|
|
|
|
Sealing PTFE (1 pcs) |
OPTIONAL |
022442 |
— |
|
|
|
|
|
|
Rubber GUKOs for H2O2 suc. mod. |
Spare part set of 6 |
044495 |
— |
|
|
|
|
|
|
Filter funnel for H2O2 suc. mod. |
Spare part set of 6 |
044494 |
|
|
|
|
|
|
|
Set circular spring and holder |
Spare part set of 6 |
11055984 |
— |
|
|
|
|
|
|
Bed-plate for 300ml racks |
OPTIONAL |
11055943 |
— |
|
|
|
|
|
3..1..3 Accessories for 500 ml sample tubes (for large sample volumes / at low nitrogen level)
Standard items |
Additional info |
Order number |
Recommended quantity |
|
to order |
||||
|
|
|
||
|
|
|
|
|
Sample tubes |
500 ml, single tube |
026128 |
10x |
|
|
|
|
|
|
Set of sample tubes |
500 ml, 4 tubes |
043982 |
3x |
|
|
|
|
|
|
Suction module condensate trap |
5 place |
11055851 |
2x |
|
|
|
|
|
|
Connectors to suction module |
Adapter and plug |
11055367 |
2x |
|
|
|
|
|
|
EPDM hose set |
Hoses and t-piece |
11056219 |
1x |
|
|
|
|
|
|
Insulation plate (fireclay) |
Insertion, for 500 ml tubes |
11055143 |
2x |
|
|
|
|
|
|
Rack |
5 place, for 500 ml tubes |
11055327 |
2x |
|
|
|
|
|
|
Base for rack |
For 500 ml tubes rack |
11055612 |
1x |
|
|
|
|
|
|
Glass caps (set of 4) |
OPTIONAL |
040049 |
— |
|
|
|
|
|
|
Insulation cap |
OPTIONAL |
11056024 |
— |
|
|
|
|
|
|
Sealing FKM (set of 6) |
Spare part |
038122 |
— |
|
|
|
|
|
|
Sealing PTFE (1 pcs) |
OPTIONAL |
022442 |
— |
|
|
|
|
|
|
Interlock spring for 500 ml rack |
Spare part |
11055385 |
— |
|
|
|
|
|
14 |
K-439 Operation Manual, Version A |
3 Technical data
3..1..4 Accessories for 3rd party production, 250 ml sample tubes
Item |
Additional info |
Order number |
Recommended quantity |
|
to order |
||||
|
|
|
||
|
|
|
|
|
3rd party sample tubes |
250 ml |
n.a. |
12x |
|
|
|
|
|
|
Suction module for 3rd party tubes |
6 place |
11055850 |
2x |
|
|
|
|
|
|
Connectors to suction module |
Adapter and plug |
11055367 |
2x |
|
|
|
|
|
|
EPDM hose set |
Hoses and t-piece |
11056219 |
1x |
|
|
|
|
|
|
Insulation plate (fireclay) |
Insertion, for 250 ml tubes |
11055877 |
2x |
|
|
|
|
|
|
Rack |
6 place, for 250 ml tubes |
11055440 |
2x |
|
|
|
|
|
|
Sealing FKM (set of 6) |
Spare part |
038125 |
— |
|
|
|
|
|
|
Set circular spring and holder 6× |
OPTIONAL |
11055985 |
— |
|
|
|
|
|
Note
Tested 3rd party sample tubes (listed in section 2.5.4) are not available at Buchi. Please contact your local OEM vendor for these type of tubes.
15 |
K-439 Operation Manual, Version A |
3 Technical data
3..2 Technical data
The table below lists all main design parameters of the SpeedDigester K-439.
Technical data
Power consumption |
max. 2000 W |
|
|
|
|
Temperature control range |
50 – 580°C |
|
|
|
|
Temperature accuracy |
± 5 K at 200 °C / ± 10 K at 550 °C |
|
|
|
|
Connection voltage |
220 – 240 VAC |
|
|
|
|
Frequency |
50 / 60 Hz |
|
|
|
|
Input fuse |
T 10A L 250 V |
|
|
|
|
Scrubber output |
max. 0,7 A |
|
|
|
|
Display |
QVGA 240×320 pixels |
|
|
|
|
IP degree of protection (two digits) |
IP 20 |
|
|
|
Explanation of protection level: |
|
|
2 Protection provided by the enclosure against access |
|
|
to hazardous parts (e.g., electrical conductors, |
|
|
moving parts) and the ingress of solid foreign objects |
|
|
with a diameter of > 12,5 mm. |
|
|
0 No protection of the equipment inside the enclosure |
|
|
against harmful ingress of water. |
|
|
|
Insulation category |
II |
|
|
|
|
Environmental conditions: |
|
|
|
Pollution degree |
2 (for indoor use only) |
|
|
|
|
Temperature |
5 – 40 °C |
|
|
|
|
Altitude (above sea level) |
up to 2000 m |
|
|
|
|
Humidity (curve parameter) |
Maximum relative humidity 80% up to 31 °C, then |
|
|
decreasing linearly to 50% relative humidity at 40 °C |
|
|
|
Dimensions in mm (W × D × H) |
310 × 620 × 540 |
|
|
|
|
Net weight |
15,5 kg |
|
|
|
|
Rack |
2,5 kg (per rack) |
|
|
|
|
Note
The SpeedDigester K-439 is suited to work with an input power range of 220 V to 240 V mains voltage. Check your local voltage requirements prior to installation!
16 |
K-439 Operation Manual, Version A |
3 Technical data
3..3 |
Materials used |
|
|
|
|
|
|
|
|
|
|
Materials used |
|
|
|
|
Component |
Material designation |
Material code |
|
|
|
|
|
|
|
Stainless steel |
Housing |
|
|
|
|
|
|
|
|
|
Heating chamber |
|
|
|
|
|
|
|
|
|
Heating element |
|
|
|
|
|
|
|
|
|
Rack |
|
|
|
|
|
|
|
|
|
Hose clamp |
|
|
|
|
|
|
|
|
Silicic acid |
Heating chamber |
SiO2, SiC |
|
|
Ceramic fiber felt |
Heating chamber |
|
|
|
|
|
|
|
|
Calcium silicate |
Insulation plate |
|
|
|
|
|
|
|
|
Phlogopite mica |
Preheat cover |
|
|
|
|
|
|
|
|
Plastic |
Front hood |
PBT |
|
|
|
|
|
|
|
|
Front panel under keypad |
PP |
|
|
|
|
|
|
|
|
Display cover |
PVC |
|
|
|
|
|
|
|
|
Suction hoses |
EPDM |
|
|
|
|
|
|
|
|
Drip tray |
PP |
|
|
|
|
|
|
|
|
Rack |
PPS |
|
|
|
|
|
|
|
|
Sealings suction tube |
FKM/PFE |
|
|
|
|
|
|
|
|
Hose coupling |
PP |
|
|
|
|
|
|
|
Borosilicate glass 3.3 |
Protective glass display |
|
|
|
|
|
|
|
|
|
Digestion tubes |
|
|
|
|
|
|
|
|
|
Suction tube |
|
|
|
|
|
|
|
|
Aluminium |
Front bottom |
|
|
|
|
|
|
|
|
|
Heat sink front |
|
|
|
|
|
|
17 |
K-439 Operation Manual, Version A |
4 Description of function
4 Description of function
This chapter explains the basic working principle of the SpeedDigester K-439. It also shows how the instrument is structured and provides a general functional description of its assemblies.
4..1 Functional principle
The SpeedDigester K-439 is a special heating device to digest samples. It can generate max. temperatures of 580 °C. This allows e.g. acid digestion of organic sample components in a concentrated sulfuric acid / catalyst mixture, known as 'Kjeldahl digestion'. During the processing the sample material can reach peak temperatures of up to 370 °C at the bottom area of the sample tubes. The maximum temperature of the sample highly depends on its composition i.e. the ratio of catalyst to acid and can change during the digestion process.
Digestion process overview |
|
|
|
|
|
Acid vapor |
|
|
|
outlet to |
|
|
dangerous vapors are drawn away |
suction unit |
|
Environmental |
(e.g. Scrubber) |
||
|
|||
air inlet |
|
4 |
|
|
|
(≈ 5 cm) |
Safety |
|
zone |
|
|
|
|
|
|
|
Insulation plate |
Condensation |
(fireclay insertion) |
|
zone |
3 |
|
Boiling / digesting |
|
|
sample |
2 |
Infrared heating |
1
Processing steps:
•The infrared heating 1 generates high temperatures in the sample.
•Inside the sample tubes the digestion process takes place 2 while the acid is constantly boiling.
•Hot acid fumes rise into the condensing zone 3. After reflux, the acid flows back down to the sample material, establishing a constant cycle.
•Residual fumes which escapes the condensation zone is highly corrosive (!) and hazardous to life forms. It must be withdrawn by a suction unit that deliveres sufficient flow (i.e. with a Scrubber B-414 or a water jet pump) 4.
Note
The condensation should not take place inside the safety zone in order to prevent digestion of the sealing rings. In case the condensation is too close to the suction module (e.g. due to very high temperature settings) the digestion fumes may escape and the sample can dry out!
18 |
K-439 Operation Manual, Version A |
5 Putting into operation
5 Putting into operation
This chapter describes how the instrument has to be installed. It also gives instructions for the initial startup.
Note
Inspect the instrument for damage during unpacking. If necessary, prepare a status report immediately to inform your Buchi representative. In some countries it is necessary to additionally inform the postal company, railway company or transportation company. Keep the original packaging for future transportation.
5..1 Installation site
Put the instrument into a fume hood onto a clean, stable and horizontal surface. Consider the maximum product dimensions and weight. Obtain the environmental conditions as described in section 3.2, technical data.
Installation prerequisites and installation steps:
•The fume hood must be equipped with a heatand acid-resistant lining.
•Do not place any objects on top or below the instrument.
•The instrument must be installed with a safety clearance of not less than 5 cm to any other objects or walls to allow sufficient cooling.
•Do not place containers, chemicals or other items behind the instrument.
•When using a Scrubber B-414 it must be placed on the left side of the SpeedDigester.
Note
•To cut the power in case of an emergency by unplugging, the instruments or any other items must not block the mains plug!
•Any cooling of the SpeedDigester can disturb the digestion process. When switched 'On', the Scrubber B-414 cooling fan emits from the left side of the housing. Hence the Scrubber B-414 should not be installed on the right side of the SpeedDigester.
!DANGER
Death or serious injuries by use in explosive environments.
•Do not store or operate the instrument in explosive environments
•Do not store chemicals in the vicinity of the device
•Operate the device in a fume hood with sufficient ventilation to directly withdraw fumes
19 |
K-439 Operation Manual, Version A |
5 Putting into operation
!WARNING
Risk of death or burns by electric current.
•Check for proper grounding before use
•Exchange defective cabling instantly
!CAUTION
Risk of minor or moderate injury by heavy weight of the instrument.
•Lift the instrument carefully and avoid over exertion
•Do not drop the instrument or its transport box
•Place the instrument on a stable, even and vibration-free surface
• Keep limbs out of crushing zone
5..2 System fixation
In earthquake prone regions the instrument must be fixed to the fume hood bench. The penetration depth of the stainless steel fixation screw must not be more than 10 mm.
|
Notice |
Risk of instrument damage by earthquakes |
|
• |
Safely attach the instrument to the bench in earthquake prone regions |
• |
Use acid resistant stainless steel screws |
System fixation point |
2× |
|
(insert nut) |
||
|
||
|
M4×10 |
20 |
K-439 Operation Manual, Version A |
5 Putting into operation
5..3 Electrical connections
5..3..1 SpeedDigester connection
After the installation procedure has been completed successfully, the power plug of the SpeedDigester must be connected to the mains for the digestion process.
Notice
Risk of instrument damage by wrong mains supply.
•External mains supply must meet the voltage given on the type plate
•Check for proper grounding
The used mains circuit has to:
•provide the voltage that is given on the type plate of the instrument.
•be able to handle the load of the connected instruments.
•be equipped with adequat fusage and electrical safety measures, in particular proper earthing.
See also technical data of all components regarding the different minimum system requirements!
Note
Additional electrical safety measures such as residual current breakers may be necessary to meet local laws and regulations! External connections and extension lines must be provided with an earthed conductor lead (3-pole couplings, cord or plug equipment). All used power cords shall be equipped with moulded plugs only to avoid risks due to unobservant defective wiring.
5..3..2 Scrubber/water jet pump connection
To start the Scrubber B-414 automatically when the digestion process starts, directly connect it to the SpeedDigester K-439 with the optional connection cable (Art. No. 14738).
Make sure that the voltage of the Scrubber B-414 corresponds to the voltage of the K-439.
1
2

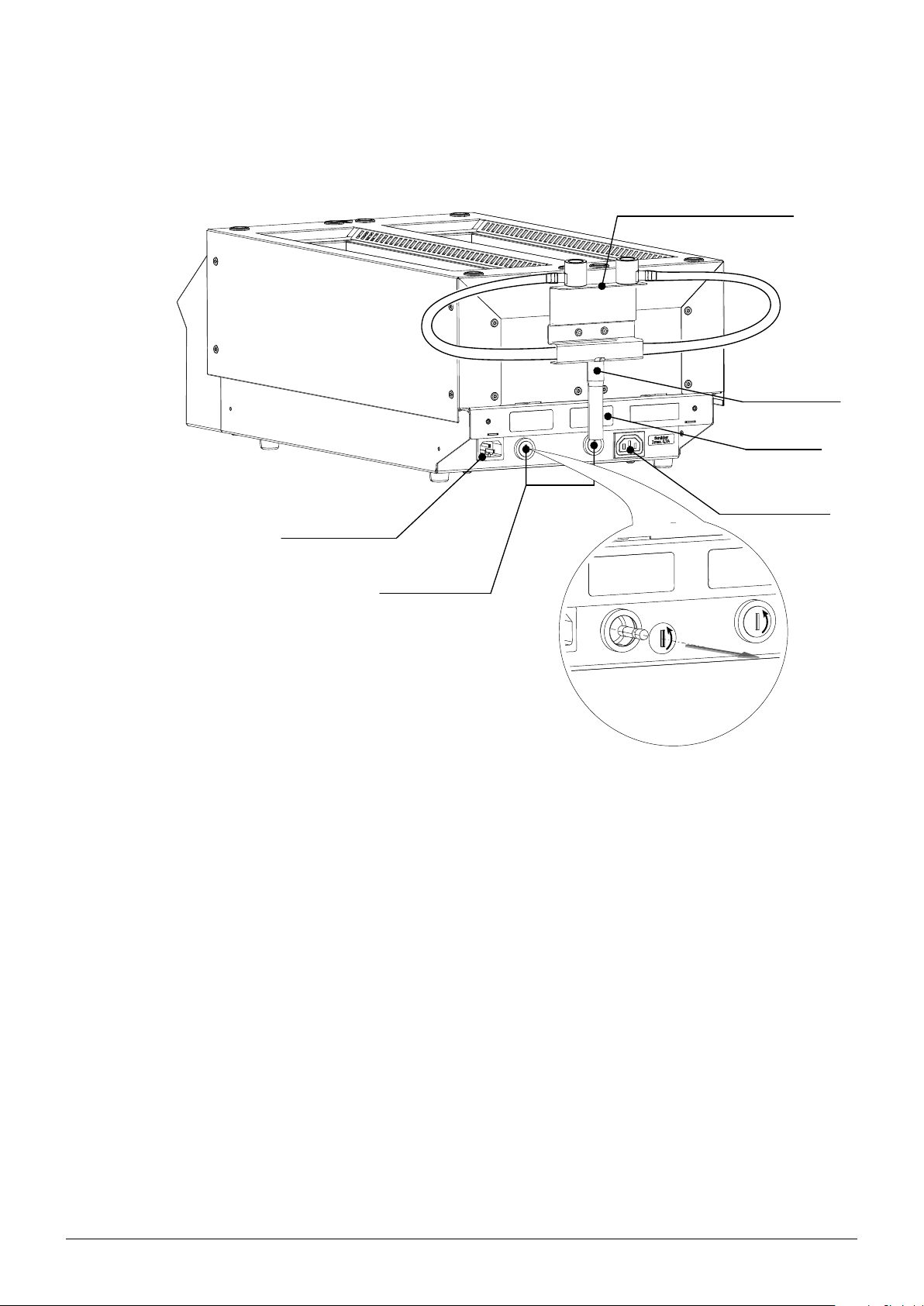

Mains socket for
Scrubber connection

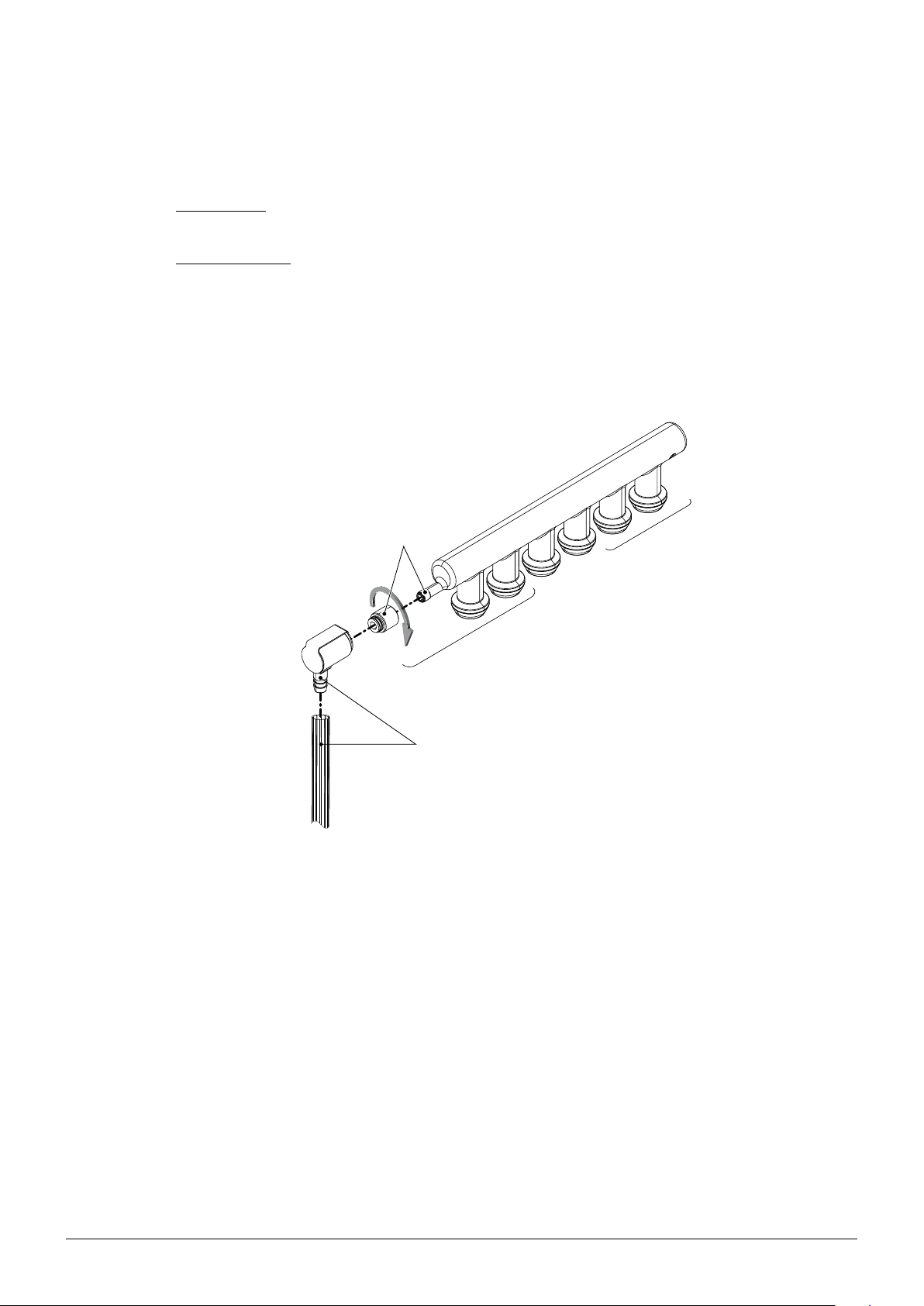

To connect a Scrubber/water jet pump the plastic adapter piece must be installed to the suction module and the hose connector must be mounted at the EPDM hose of the suction module 1 (see section 6.7.3).
Now connect the EPDM hose coming from the T-piece 2 to the Scrubber B-414 or the water jet pump to exhaust the digestion fumes (for a more detailed description see the corresponding instruction manuals of these devices). Make sure that the hose connection is as short as possible.
21 |
K-439 Operation Manual, Version A |
