Operation Manual
Extraction System
B 811
096675 en |
Table of contents
Table of contents
1 |
About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. |
. 5 |
|
|
1.1 |
Reference documents |
|
5 |
|
1.2 |
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . |
. |
5 |
2 |
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. |
. 6 |
|
|
2.1 |
User qualification . . . . . . . . . . . . . . . . . . . . . . . |
. |
6 |
|
2.2 |
Proper use . . . . . . . . . . . . . . . . . . . . . . . . . |
. |
6 |
|
2.3 |
Improper use . . . . . . . . . . . . . . . . . . . . . . . . |
. |
6 |
|
2.4 |
Warning notices used in this manual . . . . . . . . . . . . . . . . |
. |
7 |
|
2.5 |
Product safety |
|
7 |
|
2.5.1 |
Instrument-related hazards . . . . . . . . . . . . . . . . . . . . |
|
. 7 |
|
2.5.2 |
Other hazards |
|
8 |
|
2.5.3 |
Safety measures . . . . . . . . . . . . . . . . . . . . . . . |
. |
8 |
|
2.5.4 |
Safety elements |
|
8 |
|
2.6 |
General safety rules . . . . . . . . . . . . . . . . . . . . . . |
. |
9 |
3 |
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. |
10 |
|
|
3.1 |
Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . |
. 10 |
|
|
3.1.1 |
Standard instrument |
|
10 |
|
3.1.2 |
Standard accessories . . . . . . . . . . . . . . . . . . . . . . |
|
11 |
|
3.1.3 |
Optional accessories . . . . . . . . . . . . . . . . . . . . . . |
|
14 |
|
3.2 |
Technical data overview |
|
16 |
|
3.3 |
Materials used |
|
17 |
4 |
Description of function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. |
18 |
|
|
4.1 |
Instrument function . . . . . . . . . . . . . . . . . . . . . . |
. |
18 |
|
4.2 |
Overview of the instrument . . . . . . . . . . . . . . . . . . . . |
|
19 |
|
4.3 |
The three steps in general |
|
20 |
|
4.3.1 |
Extraction . . . . . . . . . . . . . . . . . . . . . . . . . . |
|
20 |
|
4.3.2 |
Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . |
. |
20 |
|
4.3.3 |
Drying |
|
21 |
|
4.4 |
The three steps in detail |
|
21 |
|
4.4.1 |

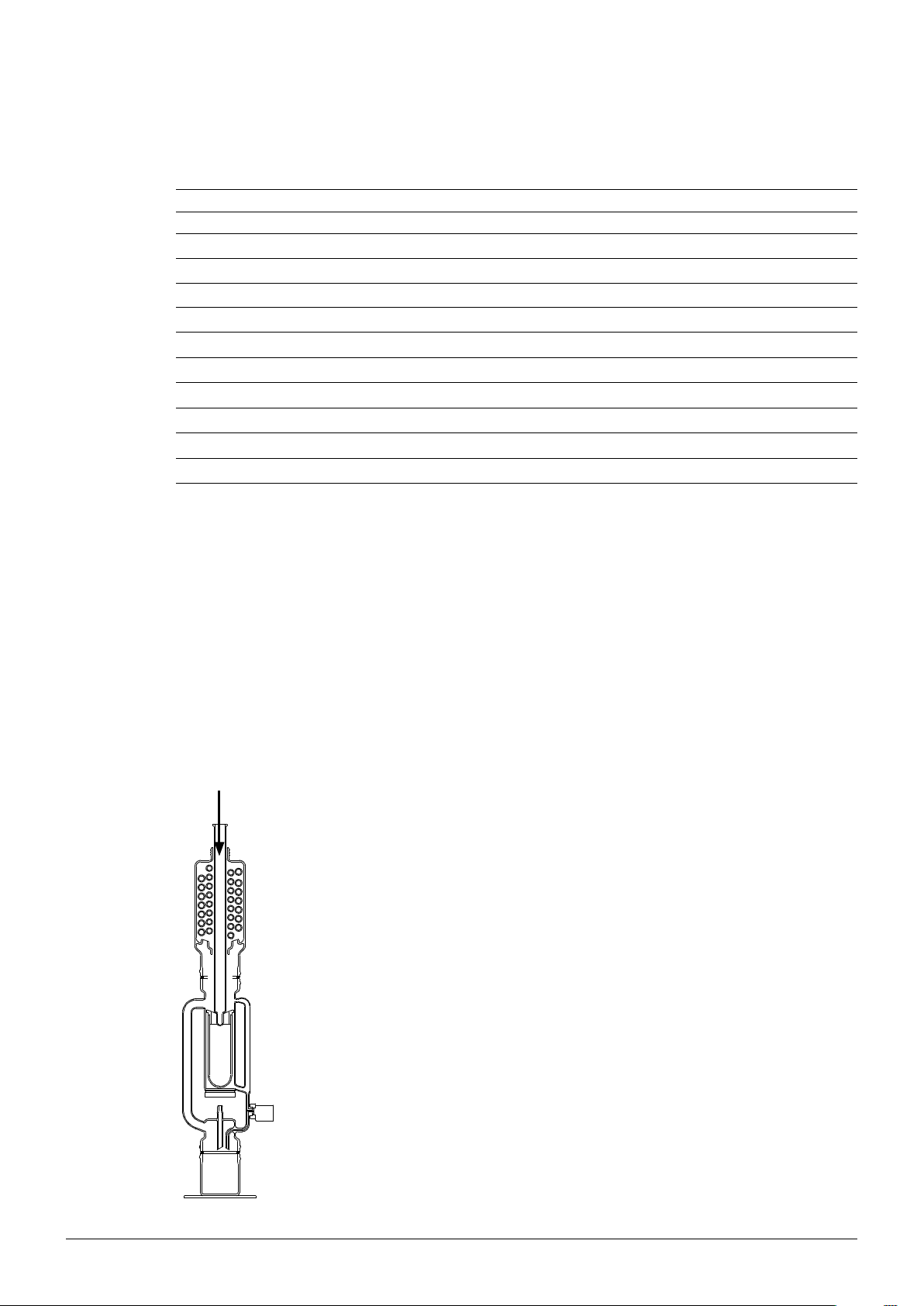

Extraction - Step 1 . . . . . . . . . . . . . . . . . . . . . . |
. |
21 |
|
4.4.2 |
Rinsing - Step 2 |
|
24 |
|
4.4.3 |
Drying - Step 3 (to 9) . . . . . . . . . . . . . . . . . . . . . . |
|
25 |
|
4.5 |
Programming . . . . . . . . . . . . . . . . . . . . . . . . |
. |
25 |
|
4.5.1 |
Extractions without rinsing and without drying |
|
25 |
|
4.5.2 |
Extractions with rinsing and without drying . . . . . . . . . . . . . . |
. |
26 |
|
4.5.3 |
Extractions without rinsing and with drying . . . . . . . . . . . . . . |
. |
26 |
|
4.5.4 |
Extractions with rinsing and with drying . . . . . . . . . . . . . . . . |
|
27 |
|
4.6 |

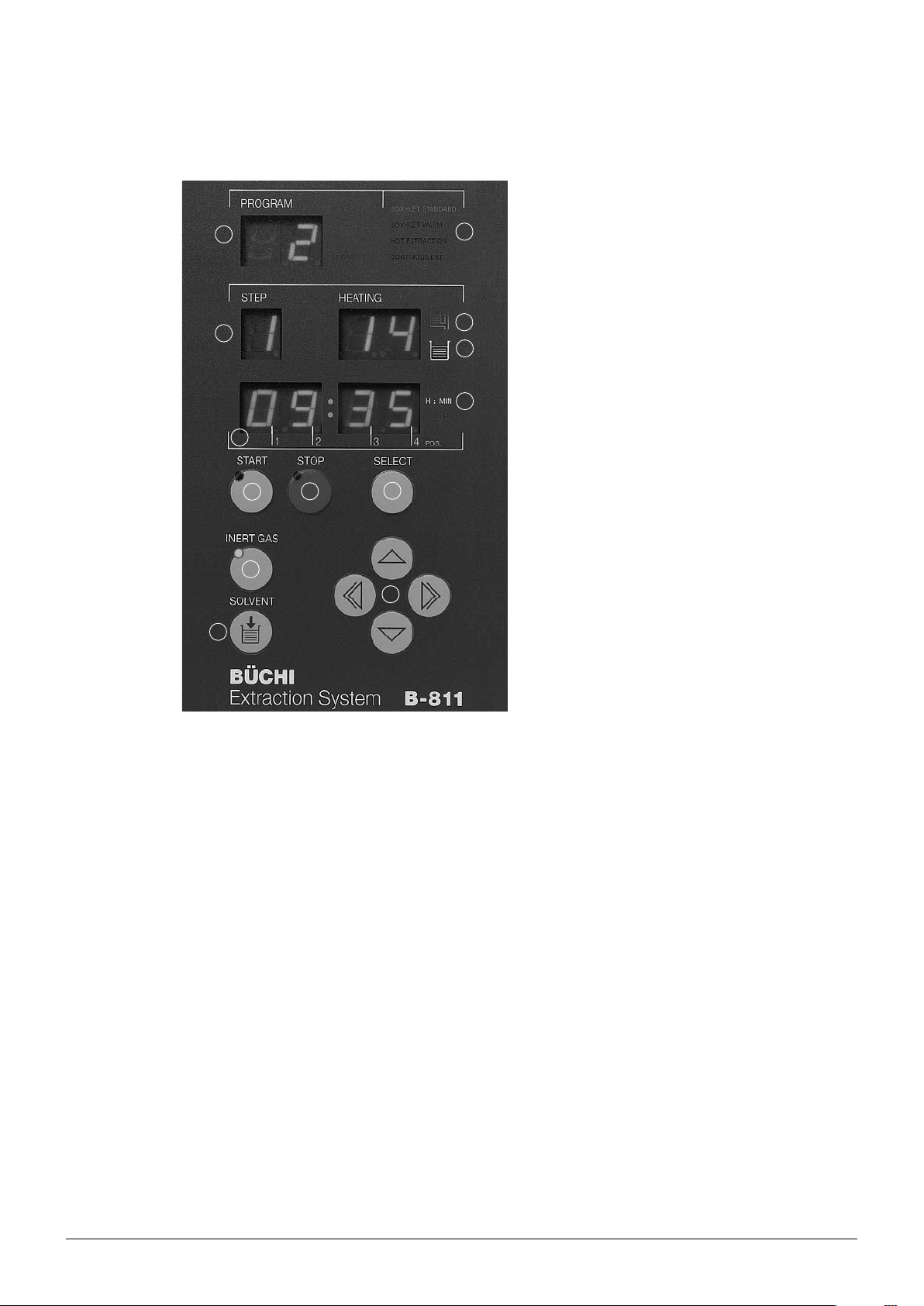

Control panel of the Extraction System B-811 |
|
28 |
3 |
B-811 Operation Manual, Version G |
Table of contents
5 |
Putting into operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. |
29 |
|
|
5.1 |
Installation site |
|
29 |
|
5.2 |
Electrical connections |
|
29 |
|
5.3 |
Mounting the glass parts . . . . . . . . . . . . . . . . . . . . |
. |
30 |
|
5.4 |
Fastening the optical sensor |
|
30 |
|
5.5 |
Connecting to tap water |
|
31 |
|
5.6 |
Inert gas connections . . . . . . . . . . . . . . . . . . . . . . |
|
31 |
|
5.7 |
Connecting to a recirculating chiller . . . . . . . . . . . . . . . . . |
|
. 32 |
5.7.1When is it recommended to work with a recirculating chiller? . . . . . . . . . 32
|
5.7.2 Connection to the cooling water sensor |
|
33 |
|
|
5.7.3 |
Rear connections . . . . . . . . . . . . . . . . . . . . . . |
. |
. 33 |
|
5.7.4 |
Connection to the condensers . . . . . . . . . . . . . . . . . . |
. |
34 |
6 |
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . |
35 |
6.1Description of the function keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
|
6.2 |
Preparing for an extraction . . . . . . . . . . . . . . . . . . . . |
|
36 |
|
6.3 |
Soxhlet Standard Mode - programming example . . . . . . . . . . . . |
. |
36 |
|
6.4 |
Soxhlet Warm Mode - programming example |
|
37 |
|
6.5 |
Hot Extraction Mode - programming example |
|
38 |
|
6.6 |
Continuous Mode - programming example . . . . . . . . . . . . . . |
. |
39 |
|
6.7 |
Storing / deleting a program |
|
40 |
|
6.8 |

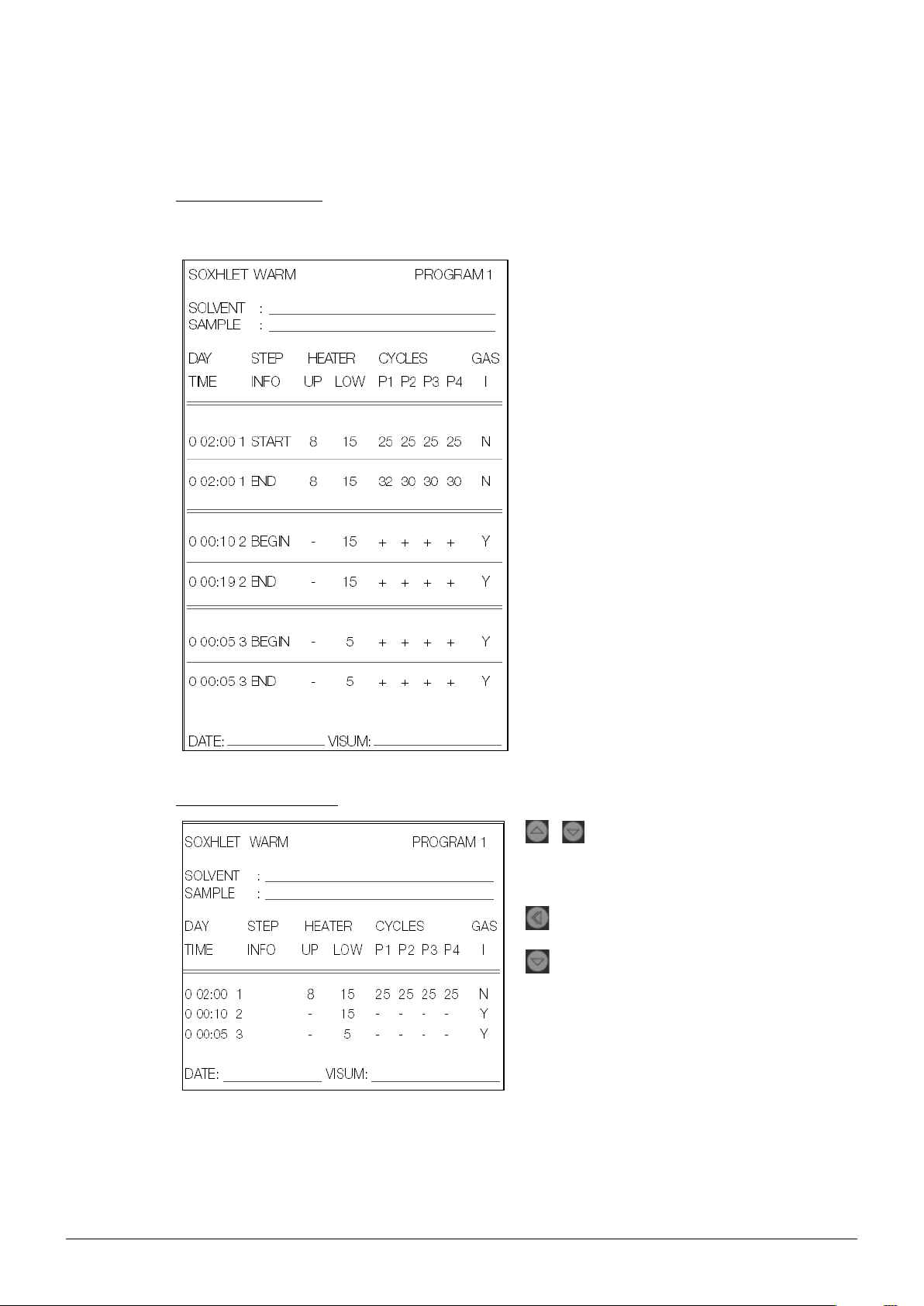

Printing . . . . . . . . . . . . . . . . . . . . . . . . . . |
. |
41 |
|
6.9 |
Optical sensor |
|
42 |
|
6.10 Handling the sample/sample holder |
|
42 |
|
|
6.11 |
Choosing the heating parameters . . . . . . . . . . . . . . . . . . |
|
43 |
|
6.12 Solvent addition during extraction |
|
43 |
|
7 |
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. |
44 |
|
|
7.1 |
Housing |
|
44 |
|
7.2 |
Hoses and hose connections . . . . . . . . . . . . . . . . . . . |
|
. 44 |
|
7.3 |
Glass parts . . . . . . . . . . . . . . . . . . . . . . . . . |
|
. 44 |
|
7.4 |
Magnetic glass valve . . . . . . . . . . . . . . . . . . . . . . |
|
45 |
|
7.5 |
Membrane assembly . . . . . . . . . . . . . . . . . . . . . . |
|
45 |
|
7.6 |
Heating elements . . . . . . . . . . . . . . . . . . . . . . . |
|
. 45 |
|
7.7 |
Holder ring with seal |
|
46 |
|
7.8 |
Glass sample tubes . . . . . . . . . . . . . . . . . . . . . . |
. |
46 |
|
7.9 |
Solvent beakers |
|
46 |
|
7.10 |
Emergency release mechanism . . . . . . . . . . . . . . . . . . |
. |
46 |
|
7.11 |
Customer service . . . . . . . . . . . . . . . . . . . . . . . |
|
. 47 |
8 |
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. |
48 |
|
|
8.1 |
Malfunctions and their remedy |
|
48 |
9 |
Shutdown, storage, transport and disposal . . . . . . . . . . . . . . . . . . . . . . . |
. |
49 |
|
|
9.1 |
Preparing the instrument for storage and transport . . . . . . . . . . . . |
|
49 |
|
9.2 |
Storage and transport |
|
49 |
|
9.3 |
Disposal |
|
49 |
10 |
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. |
50 |
11 Declarations and requirements . . . . . . . . . . . . |
. . . . . |
. . . . . . . . . |
. . . |
. . |
51 |
||
11.1 |
FCC requirements (for USA and Canada) . . |
. |
. . . |
. . . . . . |
. . |
. |
. 51 |
11.2 |
Declaration of conformity . . . . . . . . |
|
. . . . |
. . . . . . |
. . |
. |
52 |
4 |
B-811 Operation Manual, Version G |
1 About this manual
1 About this manual
This manual describes the Extraction System B-811 and provides all information required for its safe operation and to maintain it in good working order.
It is addressed to laboratory personnel in particular.
Read this manual carefully before installing and running your system and note the safety precautions in section 2 in particular. Store the manual in the immediate vicinity of the instrument, so that it can be consulted at any time.
No technical modifications may be made to the instrument without the prior written agreement of Buchi. Unauthorized modifications may affect the system safety or result in accidents. Technical data are subject to change without notice.
NOTE
The symbols pertaining to safety (WARNINGS and ATTENTIONS) are explained in section 2.
This manual is copyright. Information from it may not be reproduced, distributed or used for competitive purposes, nor made available to third parties. The manufacture of any component with the aid of this manual without prior written agreement is also prohibited.
The English manual is the original language version and serves as basis for all translations into other languages. If you need another language version of this manual, you can download available versions at www.buchi.com.
1..1 Reference documents
For information on the Hydrolysis Unit B-411/E-416, the Recirculating Chiller B-740 and the Mixer B-400, please refer to the corresponding manuals available in English, German, French, Italian and Spanish
•Hydrolysis Unit B-411/E-416, Operation Manual numbers 96684 - 96688
•Recirculating Chiller B-740, Operation Manual numbers 96690 - 96694
•Mixer B-400, Operation Manual numbers 96540 - 96544
1..2 Abbreviations
LSV: Large sample volumes
PTFE: Polytetrafluoroethylene
5 |
B-811 Operation Manual, Version G |
2 Safety
2 Safety
This chapter points out the safety concept of the instrument and contains general rules of behavior and warnings from hazards concerning the use of the product.
The safety of users and personnel can only be ensured if these safety instructions and the safetyrelated warnings in the individual chapters are strictly observed and followed. Therefore, the manual must always be available to all persons performing the tasks described herein.
2..1 User qualification
The instrument may only be used by laboratory personnel and other persons who on account of training or professional experience have an overview of the dangers which can develop when operating the instrument.
Personnel without this training or persons who are currently being trained require careful instruction. The present Operation Manual serves as the basis for this.
2..2 Proper use
The instrument has been designed and built for laboratories. It serves for the extraction (solid-liquid extraction) of samples with known solvents or solvent mixtures and the reduction or drying of the extract. Solvents with boiling points between 30 °C and 150 °C as well as inert gas may be used.
It is used for:
•Soxhlet Standard
•Soxhlet Warm
•Hot Extraction
•Continuous
2..3 Improper use
Applications not mentioned above are improper. Also, applications, which do not comply with the technical data, are considered improper. The operator bears the sole risk for any damages caused by such improper use.
The following uses are expressly forbidden:
•Use of the instrument in rooms which require ex-protected instruments.
•Determination of samples, which can explode or inflame (example: explosives, etc.) due to shock, friction, heat or spark formation.
•Use with samples that react with solvent.
•Use in conjunction with solvents containing peroxides.
•Use in overpressure situations.
•Use with other glassware than the original from Buchi.
6 |
B-811 Operation Manual, Version G |
2 Safety
2..4 Warning notices used in this manual
WARNING
Generally, the triangular warning symbol indicates the possibility of personal injury or even loss of life if the instructions are not followed.
WARNING
Hot surface.
WARNING
Electrical hazard.
ATTENTION
With the general “Read this” symbol, ATTENTIONs indicate the possibility of equipment damage, malfunctions or incorrect process results, if instructions are not followed.
NOTE
Useful tips for the easy operation of the instrument.
2..5 Product safety
The Extraction System B-811 is designed and built in accordance with state-of-the-art technology. Nevertheless, risks to users, property, and the environment can arise when the instrument is used carelessly or improperly.
The manufacturer has determined residual dangers emanating from the instrument
•if the instrument is operated by insufficiently trained personnel.
•if the instrument is not operated according to its proper use.
Appropriate warnings in this manual serve to make the user alert to these residual dangers.
2..5..1 Instrument-related hazards
Pay attention to the following safety notices:
WARNING
Potentially hot surfaces during operation, especially at the heating elements (up to 250 °C).
• Always be aware of the risk of being burned.
WARNING
Potentially lethal voltage inside the instrument.
•Do not remove covers and other parts protecting from electricity.
•Always keep the areas of electric parts, such as power supply plug, mains switch, etc. dry.
WARNING
Potential explosion risk if solvent vapors accumulate within the instrument housing.
•Always use the instrument in a well ventilated area.
•Beware of damaged or cracked glass parts.
•Beware of damaged seals.
•Beware of incorrect installed or damaged glass valve.
•Beware of the fire hazard.
7 |
B-811 Operation Manual, Version G |
2 Safety
2..5..2 Other hazards
WARNING
Certain solvents in or in the vicinity of the Extraction System B-811 can form peroxides and/or are highly inflammable.
•Always be aware of the explosion risk when working with hazardous substances or with substances of unknown composition.
•Always provide a good ventilation within or in the vicinity of the system.
2..5..3 Safety measures
In case a safe operation of the instrument no longer appears possible, the instrument must be shut down and secured against unintentional operation.
It must be assumed that safe operation is no longer possible:
•if there is visible instrument damage,
•following a long period of storage under unfavorable conditions,
•following transport under difficult conditions.
Always wear personal protective equipment such as protective eye goggles, protective clothing and gloves when working with the instrument.
2..5..4 Safety elements
Electrics:
The main power switch automatically turns to the zero position (off) if the power supply is overloaded or a short circuit occurs.
Electronics
•The heating elements are equipped with an electronic over-temperature protection.
•If no cooling water is detected at the cooling water output (for example, due to a leak in the condenser), the electronic will stop all processes.
•The protective shield protects operators from broken glass in case of an accident or explosion.
•An extraction position is only activated if a beaker is in contact with the lower heating element. In order to start a program, at least one extraction position must have been activated. If one of the glass beakers break, the program closes the glass valves and terminates the processing of all activated heating elements.
•If one of the solvent beakers gets dry (e.g. due to a defective seal or an open cooling unit), the software turns off the corresponding heating element.
•It is possible to release solvent and/or open the gas valve at any time during operation (only applicable for activated extraction positions).
•Only high quality borosilicate 3.3 glass is used. In order to prevent glass breakage, the cooling supply connections are threaded and can therefore be screwed on and off.
8 |
B-811 Operation Manual, Version G |
2 Safety
2..6 General safety rules
Responsibility of the operator
The head of laboratory is responsible for training his personnel.
The operator shall inform the manufacturer without delay of any safety-related incidents which might occur during operation of the instrument. Legal regulations, such as local, state and federal laws applying to the instrument must be strictly followed.
Duty of maintenance and care
The operator is responsible for ensuring that the instrument is operated in proper condition only, and that maintenance, service, and repair jobs are performed with care and on schedule, and by authorized personnel only.
Spare parts to be used
Use only genuine consumables and genuine spare parts for maintenance to assure good system performance and reliability. Any modifications to the spare parts used are only allowed with the prior written permission of the manufacturer.
Modifications
Modifications to the instrument are only permitted after prior consultation with and with the written approval of the manufacturer. Modifications and upgrades shall only be carried out by an authorized Buchi technical engineer. The manufacturer will decline any claim resulting from unauthorized modifications.
9 |
B-811 Operation Manual, Version G |
3 Technical data
3 Technical data
This chapter introduces the reader to the instrument specifications. It contains the scope of delivery, technical data, requirements and performance data.
3..1 Scope of delivery
Check the scope of delivery according to the order number.
NOTE
For detailed information on the listed products, see www.buchi.com or contact your local dealer.
3..1..1 Standard instrument
Table 3-1: Standard instrument
Product |
Order number |
|
|
Extraction System B-811, 230 V |
36680 |
|
|
Extraction System B-811, 115 V |
36681 |
|
|
Extraction System B-811, 100 V |
40550 |
|
|
Table 3-2: LSV instrument
Product |
Order number |
|
|
Extraction System B-811 LSV, 230 V |
37900 |
|
|
Extraction System B-811 LSV, 115 V |
37901 |
|
|
Extraction System B-811 LSV, 100 V |
40549 |
|
|
Table 3-3: Mixed instrument
Product |
Order number |
|
|
Extraction System B-811 Standard/LSV |
11056621 |
(two positions of each), 230 V |
|
|
|
10 |
B-811 Operation Manual, Version G |
3 Technical data
3..1..2 Standard accessories
Table 3-4: Standard/LSV accessories
Product |
Order number |
Order number |
|
|
|
B-811 Standard |
B-811 LSV |
|
|
|
|
4 |
Extraction chambers |
36710 |
37902 |
|
|
|
|
4 |
Condensation tubes |
37482 |
37903 |
|
|
|
|
|
|
|
|
4 |
Sample holders |
36559 |
37904 |
|
|
|
|
|
|
|
|
1 |
Set of solvent beakers (4 pieces) |
37276 |
38597 |
|
|
|
|
1 Set of glass sample tubes |
37281 |
37563 |
(4 pieces) |
|
|
|
|
|
|
|
|
Pack of paper thimbles 33 x 94 mm |
41883 |
|
(6 pieces) |
|
|
|
|
|
Pack of paper thimbles 43 x 123 mm |
|
41884 |
(6 pieces) |
|
|
|
|
|
|
|
|
Set thimble holders 33 x 94 mm |
37279 |
- |
(4 pieces) |
|
|
|
|
|
8 Holder rings (black ring already |
36709 |
mounted to the extraction chambers with the seals)
2 Sets of seals for extraction chambers |
37388 |
(4 pieces per set, already mounted to the extraction chambers with the holder rings)
11 |
B-811 Operation Manual, Version G |
3 Technical data
Table 3-4: Standard/LSV accessories (cont.)
Product |
Order number |
Order number |
|
B-811 Standard |
B-811 LSV |
|
|
|
4 Condensers |
36711 |
|
|
|
|
1 Set of blank plugs (4 pieces) |
37368 |
|
|
4 Magnetic valves complete |
36687 |
|
|
Membrane with anchor for valve unit |
37534 |
(included in magnetic valve complete |
|
(36687)) |
|
|
|
|
|
1 Inert gas supply |
37496 |
|
|
1 |
Cooling water hose, Nyflex |
04113 |
|
|
|
1 Water connection complete |
37780 |
|
|
|
|
2 |
Hose clamps |
22352 |
|
|
|
1 |
Silicon hose water drain |
04134 |
|
|
|
4 |
Conducts (already mounted to the |
36530 |
condenser) |
|
|
|
|
|
PTFE band |
08607 |
|
|
|
|
1 |
Silicon hose for condenser, 250 mm, |
04133 |
premounted
12 |
B-811 Operation Manual, Version G |
3 Technical data
Table 3-5: Mixed instrument accessories
Product |
Order number |
|
|
|
|
4 |
Condensers |
36711 |
|
|
|
2 |
Extraction chambers |
36710 |
|
|
|
2 |
Extraction chambers LSV |
37902 |
|
|
|
2 |
Condensation tubes |
37482 |
|
|
|
2 |
Condensation tubes LSV |
37903 |
|
|
|
2 |
Sample holders |
36559 |
|
|
|
2 |
Sample holders LSV |
37904 |
|
|
|
1 |
Set of solvent beakers, 4 pieces |
37276 |
|
|
|
1 |
Set of solvent beakers LSV, 4 pieces |
38597 |
|
|
|
1 |
Set of glass sample tubes |
37281 |
|
|
|
1 |
Set of glass sample tubes LSV |
37563 |
|
|
|
2 Thimble holders 33 x 94 mm (part of |
- |
|
set thimble holders 37279) |
|
|
|
|
|
2 |
Holder baskets for thimbles |
37905 |
43 x 123 mm |
|
|
|
|
|
1 |
Pack of paper thimbles 33 x 94 mm, |
41883 |
6 pieces |
|
|
|
|
|
1 |
Pack of paper thimbles |
41884 |
43 x 123 mm, 6 pieces |
|
|
|
|
|
8 |
Holder rings |
36709 |
|
|
|
2 |
Sets of seals |
37388 |
|
|
|
1 |
Set of blank plugs, 4 pieces |
37368 |
|
|
|
4 |
Magnetic valves complete |
36687 |
|
|
|
1 |
Inert gas supply |
37496 |
|
|
|
Cooling water hose |
04113 |
|
|
|
|
Water connection complete |
37780 |
|
|
|
|
2 |
Hose clamps |
22352 |
|
|
|
1 |
Silicon hose water drain |
04134 |
|
|
|
4 |
Conducts |
36530 |
|
|
|
PTFE band |
08607 |
|
|
|
|
1 |
Silicon hose for condenser, 250 mm |
04133 |
|
|
|
13 |
B-811 Operation Manual, Version G |
|
|
|
3 Technical data |
|
|
|
|
||
|
|
Table 3-6: Standard/LSV/mixed instrument accessories |
||
|
|
Product |
Order number |
|
|
|
|
|
|
|
|
1 Power cable |
|
|
|
|
|
|
|
|
|
Type CH |
10010 |
|
|
|
|
|
|
|
|
Type Schuko |
10016 |
|
|
|
|
|
|
|
|
Type GB |
17835 |
|
|
|
|
|
|
|
|
Type USA |
10020 |
|
|
|
|
|
|
|
|
Type AUS |
17836 |
|
|
|
|
|
|
|
|
1 Operation Manual B-811 |
|
|
|
|
|
|
|
|
|
English |
96675 |
|
|
|
|
|
|
|
|
German |
96674 |
|
|
|
|
|
|
|
|
French |
96676 |
|
|
|
|
|
|
|
|
Italian |
96677 |
|
|
|
|
|
|
|
|
Spanish |
96678 |
|
|
|
|
|
|
3..1..3 |
Optional accessories |
|
|
|
|
|
|
|
|
|
|
Table 3-7: Optional accessories |
|
|
|
|
|
|
|
|
|
Product |
Order number |
Order number |
|
|
|
B-811 Standard |
B-811 LSV |
|
|
|
|
|
|
|
Set of solvent beakers (4 pieces) |
37276 |
38597 |
|
|
|
|
|
|
|
|
|
|
|
|
Set of glass sample tubes |
37281 |
37563 |
|
|
(4 pieces) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Holder basket for thimbles; to be used |
- |
37905 |
|
|
with holder, order no. 37904, LSV |
|
|
|
|
(1 piece) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Holder for glass sample tubes, PTFE, |
51903 |
- |
|
|
microwavable (6 pos.) |
|
|
|
|
|
|
|
14 |
B-811 Operation Manual, Version G |
3 Technical data
Table 3-7: Optional accessories (cont.)
Product |
Order number |
Order number |
|
B-811 Standard |
B-811 LSV |
|
|
|
Holder for glass sample tubes |
37462 |
- |
|
|
|
Set thimble holders 43 x 123 mm |
37280 |
- |
(4 pieces) |
|
|
|
|
|
Set thimble holders 33 x 94 mm |
37279 |
- |
(4 pieces) |
|
|
|
|
|
Set thimble holders 22 x 80 mm |
37278 |
- |
(4 pieces) |
|
|
|
|
|
Set thimble holders 25 x 100 mm |
37277 |
- |
(4 pieces) |
|
|
|
|
|
Pack of paper thimbles 33 x 94 mm |
41883 |
- |
(6 pieces) |
|
|
|
|
|
Pack of paper thimbles 43 x 123 mm |
41884 |
|
(6 pieces) |
|
|
|
|
|
Pack of paper thimbles 25 x 100 mm |
41882 |
- |
(6 pieces) |
|
|
|
|
|
Pack of paper thimbles 22 x 80 mm |
41881 |
- |
(6 pieces) |
|
|
|
|
|
Star printer 512 serial, complete |
48258 |
|
|
|
|
|
|
|
Printer cable IDP-460 |
28468 |
|
|
|
|
|
|
|
Adapter for printer cable IDP-460 |
31411 |
|
|
|
|
|
|
|
Ink ribbon for printer IDP-460 |
38683 |
|
|
|
|
|
|
|
Ink ribbon for Star printer 512 |
44306 |
|
|
|
|
15 |
B-811 Operation Manual, Version G |
3 Technical data
Table 3-7: Optional accessories (cont.)
Product |
Order number |
Order number |
|
B-811 Standard |
B-811 LSV |
|
|
|
Paper roll for Star printer 512 |
38684 |
|
|
|
|
|
|
|
Set of fluororubber seals (4 pieces) |
42654 |
|
|
|
|
Quartz sand (0.3 - 0.9 mm), 2.5 kg |
37689 |
|
|
Paper thimbles 25 x 100 mm |
|
18105 |
(25 pieces) |
|
|
|
|
|
Paper thimbles 43 x 123 mm |
|
18106 |
(25 pieces) |
|
|
|
|
|
Silicone tubes 6/9 |
|
04133 |
|
|
|
Silicone tube 12/14, 2 cm |
|
04134 |
|
|
|
Angle |
|
01992 |
|
|
|
LSV upgrade kit (Standard to LSV) |
37910 |
- |
|
|
|
3..2 Technical data overview
Table 3-8: Technical data
Extraction System B-811 |
Extraction System B-811 LSV variant |
Dimensions (L x H x D) |
600 x 980 x 290 mm |
|
with extended condenser holder |
|
600 x 700 x 290 mm during opera- |
|
tion |
600 x 980 x 290 mm
with extended condenser holder 600 x 700 x 290 mm during operation
Connection voltage |
100 - 120 VAC / 200 - 240 VAC |
100 - 120 VAC / 200 - 240 VAC |
|
± 10%, 50/60 Hz |
± 10%, 50/60 Hz |
|
|
|
Power consumption |
max. 1250 W |
max. 1250 W |
|
|
|
Weight |
32 kg |
32.5 kg |
|
|
|
Overvoltage category |
II |
II |
|
|
|
Pollution degree |
2 |
2 |
|
|
|
Environmental conditions |
for indoor use only |
for indoor use only |
Temperature |
5 – 40 °C |
5 – 40 °C |
Altitude |
up to 2000 m above sea level |
up to 2000 m above sea level |
Humidity |
maximum relative humidity 80% for |
maximum relative humidity 80% for |
|
temperatures up to 31 °C, and then |
temperatures up to 31 °C, and then |
|
linearly decreasing to 50% at 40 °C |
linearly decreasing to 50% at 40 °C |
|
|
|
16 |
B-811 Operation Manual, Version G |
3 Technical data
Table 3-8: Technical data (cont.)
|
|
|
Extraction System B-811 |
Extraction System B-811 LSV variant |
|
|
|
|
|
|
|
Cooling water consumption |
60 l / h |
60 l / h |
|
|
|
|
|
|
|
Max. water pressure |
6 bar |
6 bar |
|
|
|
|
|
|
|
Interface |
RS 232 |
RS 232 |
|
|
|
|
|
3..3 |
Materials used |
|
|
|
|
|
Table 3-9: Materials used |
|
|
|
|
Component |
Material designation |
Material code |
|
|
|
|
|
|
|
Housing |
Coated tin, stainless steel |
|
|
|
|
|
|
|
|
Remote controller |
Acrylonitrile-butadiene-styrol |
ABS |
|
|
|
|
|
|
|
Hoses |
Polytetrafluorethylene, Silicone |
PTFE, Si |
|
|
|
|
|
|
|
Protective shield |
Polycarbonate |
PC |
|
|
|
|
|
|
|
Cable |
Polyurethane |
PUR |
|
|
|
|
|
|
|
Valve body |
Aluminium |
Al |
|
|
|
|
|
|
|
Valve threads |
Polyoxymethylene |
POM |
|
|
|
|
|
|
|
Valve membrane |
Fluorez |
|
|
|
|
|
|
|
|
Seals |
Polytetrafluorethylene, |
PTFE |
|
|
|
glass fiber reinforced polyether- |
PEEK 30 GF |
|
|
|
etherketon, fluororubber |
|
|
|
|
|
|
|
|
|
|
|
|
|
Seal holders |
Polyethylenterephtalate |
PETP 30 GF |
|
|
|
|
|
|
|
Holder ring for extraction chamber |
Glass fiber reinforced polyamid 6.6 |
PA 66 GF |
|
|
|
|
|
|
|
Materials in contact with media |
Borosilicate glass 3.3, PTFE |
|
|
|
|
|
|
|
|
Sample, condenser holders and |
PTFE, Glass fiber reinforced |
UP-GFK |
|
|
extraction chamber holder |
synthetics |
|
|
|
|
|
|
17 |
B-811 Operation Manual, Version G |
