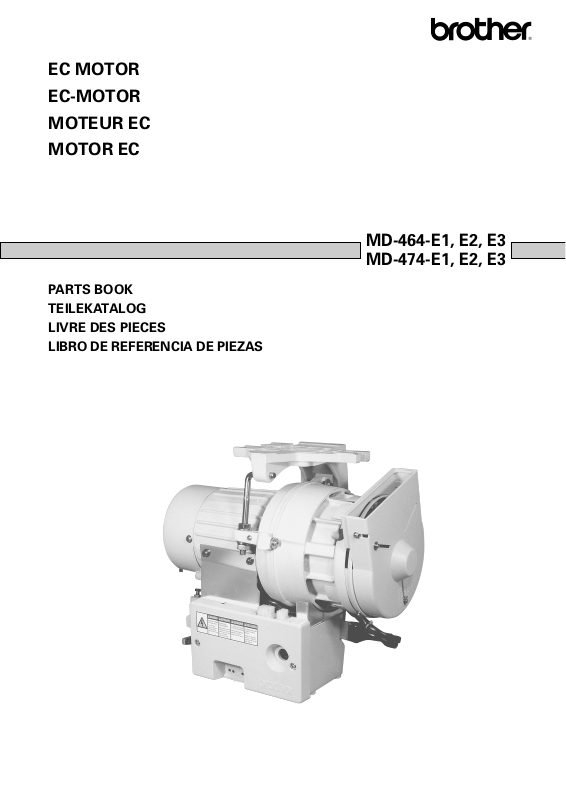

Brother MD-464-E1, MD-474-E1, MD-464-E2, MD-464-E3, MD-474-E2 Parts List
...
EC MOTOR
EC-MOTOR
MOTEUR EC
MOTOR EC
MD-464-E1, E2, E3
MD-474-E1, E2, E3
PARTS BOOK
TEILEKATALOG
LIVRE DES PIECES
LIBRO DE REFERENCIA DE PIEZAS
Notes for using this parts book |
Hinweise zur Verwendung dieser |
|
Teileliste |
1. |
If the symbol |
* |
|
|
is found in the “Parts No.” |
||
|
|
|
|
||||
|
column of the “Assembly No.” column, refer to |
||||||
|
the different parts list on page 4. |
||||||
2. |
The symbol |
|
|
|
|
in the “Parts No.” column |
|
|
|
|
|
||||
|
|
|
|
||||
indicates that the parts is not available for supply. If, however, there is a number in the “Assembly No.” column, the parts can be ordered as an assembly. Please, therefore, order by using the assembly number.
3.This book was prepared based on information available in July 2001.
4.Parts are subject to changes in design without prior notice.
1. Dieses Zeichen |
* |
in der Spalte “Parts No. |
|
(Teilnummer)” oder “Assembly No. (Gerätesatznummer)” verweist auf die Gesonderte Stückliste aur Seite 4.
2.Dieses Zeichen
in der Spalte “Teilnummer” bedeutet, daß dieser Teil nicht liefeibar ist. Wenn jedoch in der Spalte “Gerätesatznummer” eine Nummer steht, kann dieser Teil als ein Geräteteilsatz bestellt werden. Bestellen Sie daher bitte mit dieser Gerätesatznummer.
3.Dieses Buch basiert auf den Informationen vom Juli 2001.
4.Modelländerungen sind vorbehalten.
CONTENTS |
|
|
INHALTSVERZEICHNIS |
|
A. Motor mechanism (1) ...................................... |
1 |
A. Motors (1) ........................................................ |
1 |
|
A. Motor mechanism (2) ...................................... |
2 |
A. Motors (2) ........................................................ |
2 |
|
B. Control box ...................................................... |
3 |
B. Schaltkasten ..................................................... |
3 |
|
DIFFERENT PARTS LIST ............................. |
4 |
|
ZUBEHÖRLISTE ........................................... |
4 |
C. Switch box mechanism .................................... |
5 |
C. Schaltkasten ..................................................... |
5 |
|
D. Synchronizer .................................................... |
6 |
D. Synchronisator ................................................. |
6 |
|

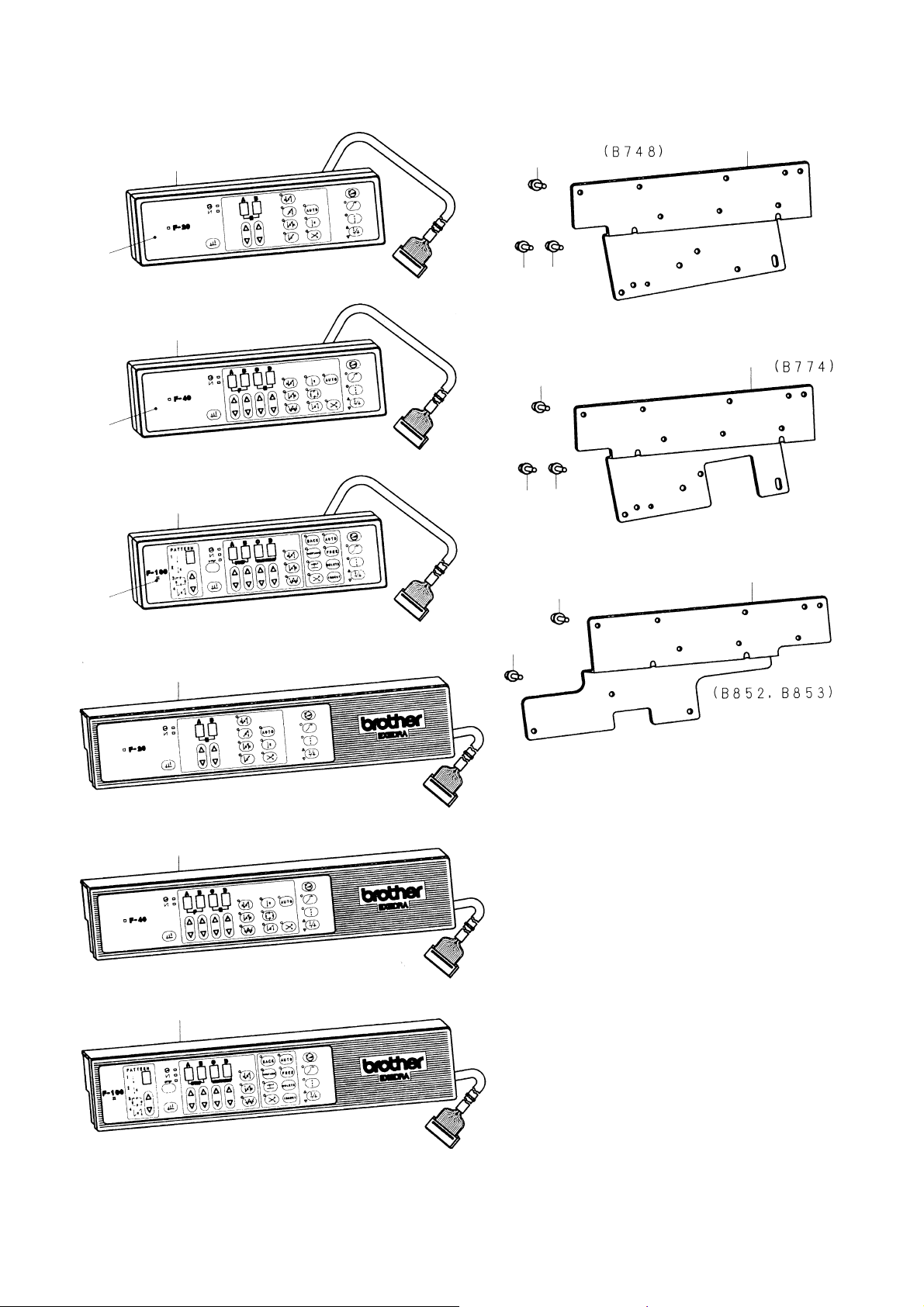

E. Operation panel ............................................... |
7 |
E. |
Bedienungstafel ............................................... |
7 |
F. Pedal for standing operation ............................ |
9 |
F. |
Fusstritt für stehenden Arbeitsplatz ................. |
9 |
INDEX ................................................................. |
11 |
VERZEICHNIS ................................................... |
11 |
|
Notes sur l’utilisation de ce manuel de pièces détachées
1. Si le symbole |
* |
se trouve dans la colonne |
“Parts No. (No de pièce)” ou dans la colonne “Assembly No. (No jeu de pièces)”, veuillez vous référer à la liste de pièces annexe page 4.
2.Le symbole
dans la colonné “No de pièce” signifie que la pièce ne peut être fournie. Si, dans la colonne “No jeu de piéces”, il y a un numéro de nomenclature, la pièce peut être commandée comme faisant partie d’un jeu de pièces. Donc, pour toute commande, veuillez spécifier le no du jeu de pièces.
3.Ce manuel a été fait d’après les renseignements valables au mois de Juillet 2001.
4.Les pièces peuvent être sujettes à des modifications sans préavis.
Notas para usar este Libro de
Piezas
1. De haber un símbolo |
* |
junto al “Parts No. |
|
(Número de Pieza)” o en la columna del “Assembly No. (Número de juego)”, habrá que mirar la lista de piezas separada de la página 4.
2.El símbolo
, que se encuentra en la columna del “Número de Pieza”, quiere decir que no se dispone de dicha pieza sola. Cuando, empero, hay un número en la columna del “Número de Juego”, se podrá ordenar la pieza con todo el juego. Por lo tanto, será mejor hacer el pedido recurriendo al número del juego respectivo.
3.Este libro ha sido compilado basándose en los datos de que se disponía en julio 2001.
4.Las piezas quedan sujetas a cambios de diseño sin aviso previo.
|
TABLE DES MATIERES |
|
|
INDICA |
|
A. Mécanisme du moteur (1)................................ |
1 |
A. Mecanismo del motors (1) ............................... |
1 |
||
A. Mécanisme du moteur (2)................................ |
2 |
A. Mecanismo del motors (2) ............................... |
2 |
||
B. Boîtier de commande....................................... |
3 |
B. Caja de controles ............................................. |
3 |
||
|
LISTE DES PIECES ACCESSOIRES ............ |
4 |
|
LISTA DE PIEZAS ACCESORIAS ................ |
4 |
C. |
Boîtier d’interrupteurs ..................................... |
5 |
C. |
Caja de interruptores ....................................... |
5 |
D. |
Synchroniseur .................................................. |
6 |
D. |
Sincronizador................................................... |
6 |
E. |
Panneau de commande .................................... |
7 |
E. |
Panel de control ............................................... |
7 |
F. |
Pédale pour opération en station debo ............. |
9 |
F. |
Pedal para operar de pie .................................. |
9 |
INDEX ................................................................. |
11 |
INDICE ................................................................ |
11 |
||
A.Motor mechanism (1) / Motors (1)
Mécanisme du moteur (1) / Mecanismo del motors (1)
32-5
|
|
|
|
|
|
24 |
|
|
|
32-1 |
|
|
|
|
|
|
|
|
|
32-6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
21 |
|
|
20 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
32-2 |
|
|
|
|
30 |
28 |
5 |
|
|
|
32-3 |
|
|
|
|
29 |
7 |
26 |
|
32-4 |
||
23 |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
8 |
|
1-7 |
27 |
|
|
|
|
|
|
|
|
|
|||
22 |
|
|
|
|
|
|
9 |
|
||
2 |
|
|
|
1 |
|
|
|
25 |
||
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-9 |
3 |
|
12 |
|
10 |
|
|
|
|
1-10 |
|
33 |
|
|
|
|
|
|
||||
-1 |
11 |
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
18 |
30 |
|
|
|
|
|
|
|
|
|
17 |
|
|
31 |
|
|
|
|
33 |
|
|
|
|
|
|
|
1-5 |
|
|
|
|
|
|
|
|
29 |
16 |
||
|
|
|
|
19 |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
14
1-3 15
13
1-4
1-2
1-1 |
1-2 |
|
1-8 |
1-11
1-12 1-13
REF. |
|
|
|
No. |
CODE |
Q’TY |
NAME OF PARTS |
1 |
* |
1 |
ROTOR & STATOR ASSY |
1-1 |
--- |
1 |
ROTOR |
1-2 |
076203-601 |
2 |
BEALING 6203VV |
1-3 |
210940-000 |
1 |
KEY 5X5X16 |
1-4 |
206156-001 |
1 |
WAVE WASHER |
1-5 |
--- |
1 |
STATOR |
1-6 |
--- |
1 |
FRAME |
1-7 |
011500-612 |
1 |
SCREW 5X6 |
1-8 |
J80551-001 |
1 |
CENTER BRACKET |
1-9 |
J02263-001 |
3 |
WASHER 3X5X16 |
1-10 |
0A3501-605 |
3 |
SCREW 5X16D |
1-11 |
--- |
1 |
DRUM ASSY |
1-12 |
388404-001 |
1 |
WASHER |
1-13 |
388403-001 |
1 |
NUT 14 |
2 |
* |
1 |
REAR COVER |
3 |
J80553-001 |
1 |
9P SOCKET |
5 |
J80554-001 |
1 |
CODE BUSHING |
6 |
J00179-001 |
2 |
SCREW 5X12DA |
7 |
062401-063 |
1 |
SCREW 4X10DA |
8 |
028040-245 |
1 |
SPRING WASHER 2-4 |
9 |
025040-173 |
1 |
WASHER 4 |
10 |
* |
1 |
CAPACITOR |
11 |
J80557-001 |
1 |
CAPACITOR BAND |
12 |
J00179-001 |
1 |
SCREW 5X12DA |
13 |
219582-001 |
1 |
6P PLAG PM-N |
14 |
J80558-001 |
1 |
TUBE 0.5X8X500 |
REF. |
|
|
|
No. |
CODE |
Q’TY |
NAME OF PARTS |
15 |
216373-001 |
2 |
PLUG PIN 1381 |
16 |
217133-001 |
2 |
PLUG PIN 1380 |
17 |
J80559-001 |
1 |
CODE HOLDER |
18 |
211528-001 |
1 |
SCREW 5X12D |
19 |
J02367-001 |
1 |
CABLU COVER |
20 |
J03506-001 |
1 |
HOLE PLUG 12.7 |
21 |
J00193-001 |
1 |
BUSH 12.7 |
22 |
J80560-001 |
1 |
TERMINAL BLOCK |
23 |
0A4401-605 |
2 |
SCREW 4X16DA |
24 |
J02396-001 |
1 |
MD464 BASE#2 |
25 |
J80561-001 |
1 |
PIN |
26 |
014500-832 |
2 |
SCREW 5X8 |
27 |
017501-005 |
1 |
BOLT 5X10 |
28 |
J80562-001 |
1 |
L-BLUT 10X120 |
29 |
021100-206 |
2 |
NUT 10 |
30 |
025100-236 |
2 |
WASHER 10 |
31 |
028100-246 |
1 |
SPRING WASHER 2-10 |
32 |
236918-001 |
1 |
BOLT 8X70 ASSY |
32-1 |
222372-001 |
3 |
BOLT 8X70 |
32-2 |
025080-336 |
3 |
WASHER 8 |
32-3 |
028080-246 |
3 |
SPRING WASHEW 2-8 |
32-4 |
021080-206 |
3 |
NUT 8 |
32-5 |
200190-001 |
5 |
STEPLE |
32-6 |
S03816-001 |
2 |
SCREW 4.5X16 |
33 |
J01370-001 |
1 |
LAMP FUSE ASSY (OPTION) |
33-1 |
215822-000 |
1 |
FUSE (5A) |
– 1 –
A.Motor mechanism (2) / Motors (2)
Mécanisme du moteur (2) / Mecanismo del motors (2)
50
51
|
49 |
|
|
|
50 |
|
555657 |
53 |
|
58 |
|
|
|
|
|
49-1 |
|
|
52 |
|
54 |
49-4 |
|
49-2 |
49-3 52-1 |
|
|
|
|
42 |
|
48 |
|
43 |
|
|
63 |
|
|
|
47 |
|
|
|
|
|
|
|
46 |
|
|
|
45 |
|
|
|
44 |
41 |
|
|
|
|
|
|
|
64 |
|
|
61 |
68 |
|
|
|
|
|
|
|
65 66 |
|
|
62 |
|
|
|
|
69 |
40 |
|
|
70 |
|
|
|
|
|
|
|
69 |
52-3
52-2
60
45
71
67
72
REF. |
|
No. |
CODE Q’TY NAME OF PARTS |
40J80910-001 1 EC AMATURE SHAFT ASSY
41J02368-001 1 CLUTCH SHAFT
42 |
J02267-001 |
1 |
KEY 5X5X14 |
43 |
J03341-001 |
1 |
KEY 5X5X20 |
44210938-001 1 RUBBER WASHEW
45076203-601 2 BEALING 6203VV
46 |
J80563-001 |
1 |
POLE |
47 |
388403-001 |
1 |
WASHER |
48 |
388404-001 |
1 |
NUT 14 |
49 |
J02364-001 |
1 |
EC BRACKET ASSY |
49-1 J80567-001 |
1 |
TUBE 0.5X5X150 |
|
49-2 J03399-001 |
1 |
PLUG COVER |
|
49-3 J80566-001 |
1 |
4P PLUG |
|
49-4 |
216373-001 |
2 |
PLUG PIN 1381 |
50J02263-001 6 WASHER 3X5X16
510A3501-605 3 SCREW 5X16D
52J02262-001 1 EC BRAKE STATOR
52-1 |
J80567-001 |
1 |
TUBE 0.5X5X150 |
52-2 |
217133-001 |
2 |
PLUG PIN 1380 |
52-3 |
J03303-001 |
1 |
CORK PLATE 3.5X73X115 |
REF. |
|
No. |
CODE Q’TY NAME OF PARTS |
530A3501-005 3 SCREW 5X10D
54228475-000 1 TYING BAND 1.9X80
55J02335-001 1 WASHER 1.6X17X28
56J02264-001 2 WASHER 0.3X17X30
57J02265-001 2 WASHER 0.15X17X30
58J02266-001 3 WASHER 0.1X17X30
59J02290-001 1 FRONT COVER
60215080-001 3 SCREW 4X10D
61J02268-001 1 EC BRAKE AMATURE ASSY
62 |
014061-232 |
2 |
SCREW 6X12 |
63 |
216205-000 |
1 |
WODRUFF KEY 4X13 |
64 |
* |
1 |
PULLY |
65 |
028100-246 |
1 |
SPRING WASHER 2-10 |
66 |
J02289-001 |
1 |
NUT M10-P1 |
67 |
J02291-001 |
1 |
BELT COVER |
68J02292-001 1 SUB BELT COVER
69215081-001 4 SCREW 4X10DB
70J02294-001 1 BELT DROPPING PROTECTOR
71J02293-001 1 FINGER GUARD
72224508-001 2 SCREW 4X10DC
– 2 –
