We have designed these accessories to help you easily perform most sewing tasks.
Note
●The included accessories vary depending on the machine model.
Optional accessories
The following are available as optional accessories to be purchased separately. Depending on the model you
purchased, the following accessory may be included with your machine.
1.2.3.4.5.
6.7.8.9.
No.Part Name
Part Code
AmericasOthers
1
Zigzag foot “J”
(on machine)
XC4901-021
2Buttonhole foot “A”XD1792-031
3Zipper foot “I”XE9369-001
4Darning PlateXC6063-021
5Button sewing foot “M”XE2137-001
6
Bobbin
(One is on machine)
SA156
SFB:
XA5539-151
7
Needle set
(90/14 needle)
3-piece set: XE5328-001
2-piece set: XE7064-001
8Oval screwdriverXE5241-001
9Foot controllerSee page5
No.Part Name
Part Code
AmericasOthers
1.2.3.4.5.
6.7.8.
No.Part Name
Part Code
AmericasOthers
1Extra spool pinXE2241-001
2
Twin needle
(2.0/75 needle)
X57521-021
3Walking FootSA107
F034N:
XC2165-002
4Quilting FootSA129
F005N:
XC1948-002
51/4-inch Quilting FootSA125
F001N:
XC1944-052
6Narrow Hemmer FootSA127
F003N:
XC1945-002
7Blind Stitch FootSA134
F018N:
XC1976-052
8Quilting guideSA132
F016N:
XC2215-002
No.Part Name
Part Code
AmericasOthers
KNOWING YOUR SEWING MACHINE ————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
—
————————————————————————————————————————————————
—————
5
THE MAIN PARTS
1Bobbin winder (Page13)
This winds the thread onto the bobbin for use as the
lower thread.
2Stitch length dial (Page12)
Rotate the dial to control the stitch length.
3Spool pin (Page14, 17)
This holds the spool of thread.
4Stitch width dial (Page12)
Rotate the dial to control the stitch width.
5Upper tension-control dial (Page27)
This controls the tension of the upper thread.
6Thread guide (Page14, 17)
This is used when winding the thread onto the
bobbin and then threading the machine.
7Thread take-up lever (Page18)
8Thread cutter (Page24)
Pass the threads through the thread cutter to cut
them.
9Needle threader (Page19)
(This is only available on certain models.)
0Quick-set bobbin (Page16, 21)
(This is only available on certain models.)
AFlat bed attachment with accessory compartment
(Page5)
BPresser foot (Page8)
CReverse sewing lever (Page13)
Push this lever to stitch in the reverse direction.
DPattern selection dial (Page9)
Rotate the dial in either direction to choose the
stitch you want.
EHandwheel
Used to manually raise and lower the needle.
FButtonhole fine-adjustment screw (Page36)
GMain power and sewing light switch (Page7)
You can turn the main power and sewing light
switch on and off.
HFoot controller jack / socket (Page6)
Plug in the foot controller plug and connect the
machine to the power supply.
IPresser foot lever (Page18)
Used to raise and lower the presser foot.
J
Buttonhole lever (1-Step automatic buttonhole)
(
Page34
)
Lower the buttonhole lever when sewing
buttonholes.
KFoot controller (Page7)
You can use this to control the sewing speed, and to
start and stop sewing.
Foot Controller:Model KD-1902 for 110/120V area
Model KD-2902 for 220/240V area
The foot controller part code differs depending on the
country or region. Contact your dealer or the nearest
authorized service center.
Flat bed attachment
The accessories can be stored in a compartment inside
●Use only regular household electricity for the power source. Using other power sources may
result in fire, electric shock, or damage to the machine.
●Make sure that the plugs on the power cord are firmly inserted into the electrical outlet and
the power supply jack on the machine.
●Do not insert the plug on the power cord into an electrical outlet that is in poor condition.
●Turn off the main power and remove the plug in the following circumstances:
•When you are away from the machine
•After using the machine
•When the power fails during use
•When the machine does not operate correctly due to a bad connection or a disconnection
•During electrical storms
●Use only the power cord included with this machine.
●Do not use extension cords or multi-plug adapters with many other appliances plugged in to
them. Fire or electric shock may result.
●Do not touch the plug with wet hands. Electric shock may result.
●When unplugging the machine, always turn off the main power first. Always grasp the plug to
remove it from the outlet. Pulling on the cord may damage the cord, or lead to fire or electric
shock.
●Do not allow the power cord to be cut, damaged, modified, forcefully bent, pulled, twisted,
or bundled. Do not place heavy objects on the cord. Do not subject the cord to heat. These
things may damage the cord and cause fire or electric shock. If the cord or plug is damaged,
take the machine to your authorized dealer for repairs before continuing use.
●Unplug the power cord if the machine is not to be used for a long period of time. Otherwise
a fire may result.
2
1
KNOWING YOUR SEWING MACHINE ————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
—
————————————————————————————————————————————————
—————
7
Main power and sewing
light switch
This switch turns the main power and sewing light on or
off.
1Turn on (toward the ‘I’ mark)
2Turn off (toward the ‘O’ mark)
Foot controller
When you press the foot controller down lightly, the
machine will run at a low speed. When you press
harder, the machine’s speed will increase. When you
take your foot off the foot controller, the machine will
stop.
1Slower
2Faster
You should make sure that nothing is placed on the foot
controller when the machine is not in use.
CAUTION
Note
(For U.S.A. only)
●Foot Controller: Model KD-1902
This foot controller can be used on the
machine with product code 885-X08.
The product code is mentioned on the
machine rating plate.
Checking the needle
The sewing needle must always be straight and sharp
for smooth sewing.
■Checking the needle correctly
Put the flat side of the needle on a flat surface.
You will have to change the presser foot depending on
what you want to sew and how.
1
Turn off the machine.
Raise the presser foot lever.
2
Raise the needle by turning the
handwheel toward you
(counterclockwise) so that the mark on
the wheel points up.
3
Press the black button at the back of the
presser foot holder to release the presser
foot.
4
Put a different presser foot on the needle
plate so that the bar on the presser foot is
in line with the slot on the shank.
●Before replacing the needle, place fabric
or paper under the presser foot to
prevent the needle from falling into the
hole in the needle plate.
1Use an oval
screwdriver
2Needle stopper
3Needle
21
2
3
1
●Make sure you insert the needle until it
touches the stopper, and securely tighten
the needle clamp screw with an oval
screwdriver, otherwise the needle may
break or the machine may be damaged.
●Always turn off the machine before you
change the presser foot. If you leave the
power on and step on the controller, the
machine will start and you may be
injured.
●Always use the correct presser foot for
the stitch pattern you have chosen. If
you use the wrong presser foot, the
needle may strike the presser foot and
bend or break, and may cause injury.
●Only use presser feet that have been
designed to be used with this machine.
Using any other presser foot may cause
accident or injury.
1Black button
2Presser foot holder
3Presser foot
1
2
3
KNOWING YOUR SEWING MACHINE ————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
—
————————————————————————————————————————————————
—————
9
5
Lower the presser foot lever and fix the
presser foot onto the shank. If the presser
foot is in the correct place, the bar should
snap in.
1Shank
2Bar
■Presser foot installation orientation
CAUTION
THE CONTROLS
Pattern selection dial
CAUTION
To choose a stitch, simply turn the pattern selection dial
in either direction. The next section shows
recommended stitch lengths and widths.
1Pattern selection dial
2Chosen pattern number
Stretch stitching
Raise the needle by turning the handwheel toward you
(counterclockwise) so that the mark on the wheel points
KNOWING YOUR SEWING MACHINE ————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
The numbers marked on the stitch length dial represent
the stitch length in millimeters (mm) (1/25inch).
THE HIGHER THE NUMBER, THE LONGER THE
STITCH. With the “0” setting, material is not fed. This is
used when sewing a button.
The “F”-“1” range is for making a satin stitch (closed
zigzag stitch), which is used for making buttonholes
and decorative stitches. The position needed for making
the satin stitch varies according to the material and
thread being used. To determine the exact dial position,
first test the stitch and length settings on a scrap piece of
fabric to observe the feeding of the material.
1Stitch length dial
2Shorter
3Longer
CAUTION
Stitch width dial
Raise the needle by turning the handwheel toward you
(counterclockwise) so that the mark on the wheel points
up. The numbers marked on the dial represent the stitch
width.
1Stitch width dial
When the Straight or Triple Stretch Stitch is selected, the
needle position can be changed from left to right by
adjusting the stitch width dial.
DECORATIVE STITCH
5
(3/16)
Fixed
2.5 (3/32)
33
—DECORATIVE STITCH
5
(3/16)
Fixed
2.5 (3/32)
33
—DECORATIVE STITCH
5
(3/16)
Fixed
2.5 (3/32)
33
—LINK STITCH
5
(3/16)
Fixed
2.5 (3/32)
33
—DECORATIVE STITCH
3-5
(1/8-3/16)
Fixed
2.5 (3/32)
33
—DECORATIVE STITCH
5
(3/16)
Fixed
2.5 (3/32)
33
Pattern
Stitch Name
Recommended
Width
(mm (inch))
Recommended
Length
(mm (inch))
Reference Page
37 Stitches27 Stitches
32
27
33
34
35
36
37
1
2
3
1
●If the stitches are bunched together,
lengthen the stitch length and continue
sewing. Do not continue sewing without
lengthening the stitch length, otherwise
the needle may break and cause injury.
1
KNOWING YOUR SEWING MACHINE ————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
—
————————————————————————————————————————————————
—————
13
CAUTION
Reverse sewing lever
You can use reverse sewing for back tacking and
reinforcing seams.
To sew in reverse, push the reverse sewing lever in as
far as possible and hold it in that position while you
lightly push the foot controller. To sew forward, release
the reverse sewing lever. The machine will then sew
forward.
1Reverse sewing lever
THREADING THE MACHINE
Winding the bobbin
CAUTION
●After adjusting the stitch width, slowly
turn the handwheel toward you
(counterclockwise) and check that the
needle does not touch the presser foot. If
the needle hits the presser foot, the
needle may bend or break.
●If the stitches are bunched together,
increase the stitch length. Continuing to
sew with the stitches bunched together
may result in the needle bending or
breaking.
1

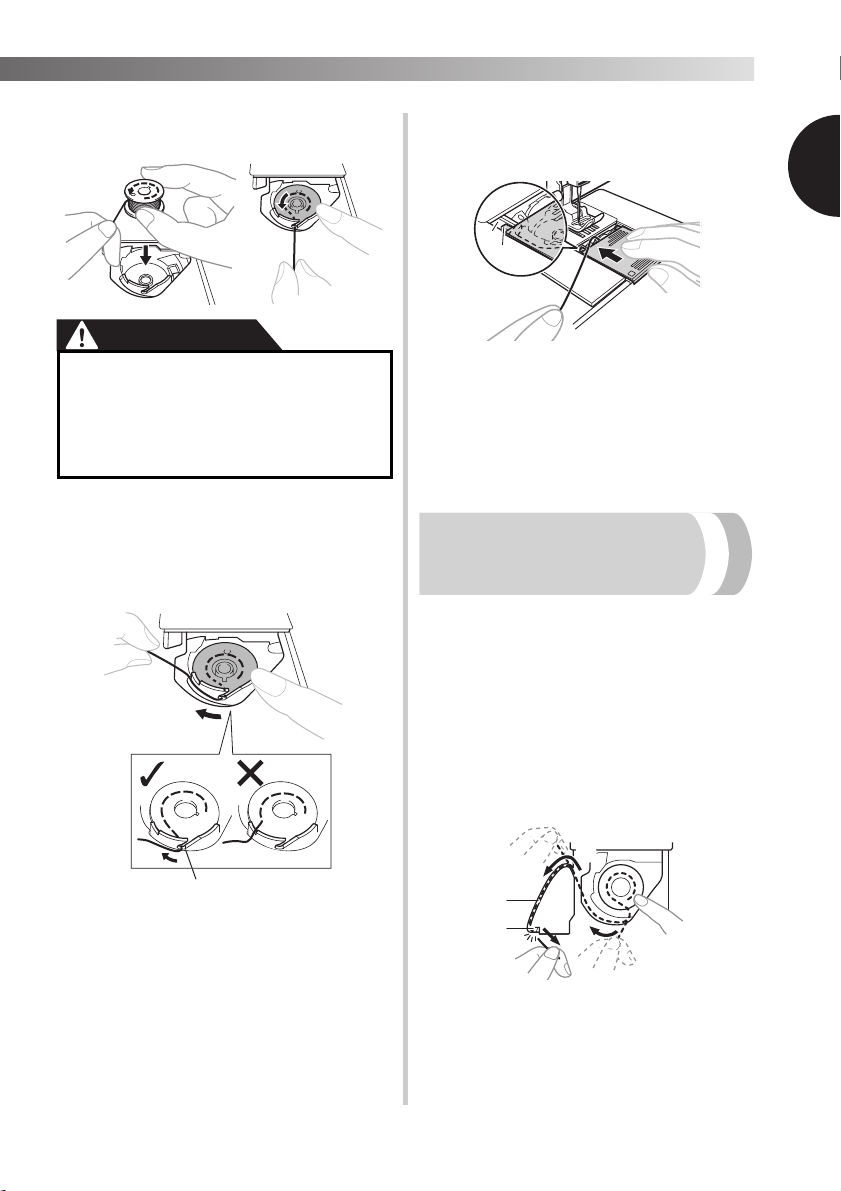

●We designed the bobbin that comes with this machine. If you use bobbins from other models,
the machine will not work properly. Only use the bobbin that comes with this machine or
bobbins of the same type (part code: SA156, SFB: XA5539-151). Using other bobbins may
