PowerBook G4 (1GHz/867MHz)
Keyboard
Replacement Instructions
Follow the instructions in this sheet carefully. Failure to follow these instructions could
damage your equipment and void its warranty.
Note:
Written and video instructions covering customer-installable parts are available at
http://www.info.apple.com/installparts/.
Warning: During this procedure, keep small parts away from children.
Tools Required
The only tool required for this procedure is a jeweler’s flat-blade screwdriver
(if keyboard is locked).
Removing the Installed Keyboard
Warning: Always shut down your computer before opening it to avoid damaging its
internal components or causing injury. After you shut down the computer, the
internal components can be very hot. Let the computer cool down before
continuing.
1. Place your computer on a clean, flat surface.
2. Shut down your computer and wait thirty minutes before continuing.
3. Disconnect the power cord and any other cables connected to the computer.
4. Close the computer and turn it over.
5. Slide the battery latch
(Figure 1A)
to the right to remove the battery
(Figure 1B)
Removing the battery will prevent you from accidentally turning on the computer.
Warning: Removing the battery before shutting down your computer may
result in data loss.
Figure 1
A
B
6. Turn over the computer.
7. Raise the display so you can access the keyboard.
.
8. Make sure the keyboard locking screw, located in the small plastic tab to the left of the
Num Lock key
(Figure 2)
, is not in the locked position. Your PowerBook comes with
the keyboard unlocked, so unless you or someone else locked the keyboard, you can
skip this step.
To unlock the keyboard, turn the screw 1/2 turn.
Figure 2
PowerBook G4 (1GHz/867MHz) Keyboard -
2
9. Release the keyboard by pulling down on the keyboard release tabs (located to the left
of the F1 and F12 keys)
(Figure 3)
, then lift the top portion of the keyboard up slightly,
and toward the display.
Figure 3
®
10. Flip the keyboard over and lay it on the palm rests and trackpad.
Figure 4
(Figure 4)
PowerBook G4 (1GHz/867MHz) Keyboard -
3
11. Touch the computer’s inside framework (a dull gray conductive composite material) to
discharge any static electricity, as shown
(Figure 5)
.
Important:
touching the computer’s framework before you touch any parts or install any
components inside the computer. To avoid static electricity building back up in your
body, do not walk around the room until you have completed your installation and
closed the computer.
Figure 5
To avoid electrostatic discharge damage, always ground yourself by
12. Locate the keyboard cable connector.
Figure 6
13. Pull up on the connector, from side to side if needed, to disconnect it from the computer.
14. Set the keyboard aside.
(Figure 6)
PowerBook G4 (1GHz/867MHz) Keyboard -
4
Installing the Replacement Keyboard
1. Lay the replacement keyboard in the correct orientation over the keyboard opening,
then flip it toward you and lay it face down on the palm rests and trackpad to expose its
connector cable.
Figure 7
(Figure 7)
2. Firmly insert the keyboard cable connector into its connector on the computer.
3. Flip the keyboard back toward the keyboard opening in the case.
4. Hold the keyboard at an angle and insert the tabs on the bottom edge of the keyboard
into the slots below the edge of the keyboard opening.
Important:
against the edge of the opening.
Figure 8
Make sure that all the tabs are seated and that the keyboard rests flush
(Figure 8)
PowerBook G4 (1GHz/867MHz) Keyboard -
5
5. Lay the keyboard flat into the keyboard opening.
6. Pull down on the keyboard release tabs while pressing down on the top portion of the
keyboard
(Figure 9).
Release the tabs to secure the keyboard in place.
Figure 9
®
7. Close the display and turn the PowerBook over.
8. Replace the battery.
Important:
Make sure that the battery locks securely into place and that the battery
(Figure 10)
latch is slid all the way into the locked position.
Figure 10
9. Reconnect the power cord and any other cables that were connected, and restart your
computer.
Warning: Never turn on your computer unless all of its internal and external
parts are in place and it is closed. Operating the computer when it is open or
missing parts can damage your computer or cause injury.
PowerBook G4 (1GHz/867MHz) Keyboard -
6
Apple Computer, Inc.
© 2002 Apple Computer, Inc. All rights reserved.
This document is protected under U.S. Copyright Law and International Treaties, and no
part of this document may be reproduced in any form without written permission from
Apple.
Apple is not responsible for typographical, printing, or inadvertent errors.
Apple Computer, Inc.
1 Infinite Loop
Cupertino, CA 95014-2084
USA
+ 1 408 996 1010
http://www.apple.com
Apple, the Apple logo, and PowerBook are trademarks of Apple Computer, Inc., registered
in the U.S. and other countries.
PowerBook G4 (1GHz/867MHz) Keyboard -
7
PowerBook G4 (1GHz/867MHz)
Memory Card
Replacement Instructions
Follow the instructions in this sheet carefully. Failure to follow these instructions could
damage your equipment and void its warranty.
Note:
Written and video instructions covering customer-installable parts are available at
http://www.info.apple.com/installparts/.
Warning: During this procedure, keep small parts away from children.
Tools Required
The only tool required for this procedure is a jeweler’s flat-blade screwdriver
(if keyboard is locked).
Opening the Computer
Warning: Always shut down your computer before opening it to avoid damaging its
internal components or causing injury. After you shut down the computer, the
internal components can be very hot. Let the computer cool down before
continuing.
1. Place your computer on a clean, flat surface.
2. Shut down your computer and wait thirty minutes before continuing.
3. Disconnect the power cord and any other cables connected to the computer.
4. Close the computer and turn it over.
5. Slide the battery latch
(Figure 1A)
to the right to remove the battery
(Figure 1B)
Removing the battery will prevent you from accidentally turning on the computer.
Warning: Removing the battery before shutting down your computer may
result in data loss.
Figure 1
A
B
6. Turn over the computer.
7. Raise the display so you can access the keyboard.
.
8. Make sure the keyboard locking screw, located in the small plastic tab to the left of the
Num Lock key
(Figure 2)
, is not in the locked position. Your PowerBook comes with
the keyboard unlocked, so unless you or someone else locked the keyboard, you can
skip this step.
To unlock the keyboard, turn the screw 1/2 turn.
Figure 2
PowerBook G4 (1GHz/867MHz) Memory -
2
9. Release the keyboard by pulling down on the keyboard release tabs (located to the left
of the F1 and F12 keys)
(Figure 3)
, then lift the top portion of the keyboard up slightly,
and toward the display.
Figure 3
®
10. Flip the keyboard over and lay it on the palm rests and trackpad.
Figure 4
(Figure 4)
PowerBook G4 (1GHz/867MHz) Memory -
3
11. Touch the computer’s inside framework (a dull gray conductive composite material) to
discharge any static electricity, as shown
(Figure 5)
.
Important:
touching the computer’s framework before you touch any parts or install any
components inside the computer. To avoid static electricity building back up in your
body, do not walk around the room until you have completed your installation and
closed the computer.
Figure 5
To avoid electrostatic discharge damage, always ground yourself by
Removing the Installed Memory Card
1. To remove a memory card, locate the brackets that secure the card on both sides
(Figure 6)
Pull the card up and out.
Note:
removed before removing a card in the lower slot
Figure 6
. Carefully spread the brackets apart until the card releases on each side.
If there is a memory card in the upper memory slot
(Figure 6B)
B
(Figure 6A)
.
A
, it must be
PowerBook G4 (1GHz/867MHz) Memory -
4
Installing the Replacement Memory Card
Warning: When handling a memory card, do not touch its gold connectors. Handle
the card only by the edges.
1. To install the memory card, line up the notch in the card with the small tab in the
memory slot. Hold the card at a 30-degree angle
into the slot until it is firmly seated.
Note:
You may feel some resistance. If you are having trouble inserting the card, try
pushing one side at a time.
Figure 7
(Figure 7A)
A
, and then push the card
2. Gently push the card down until the two brackets on either side of the card lock into
place
(Figure 8)
Figure 8
.
PowerBook G4 (1GHz/867MHz) Memory -
5
Closing the Computer
1. Flip the keyboard back toward the keyboard opening in the case.
2. Hold the keyboard at an angle and insert the tabs on the bottom edge of the keyboard
into the slots below the edge of the keyboard opening.
(Figure 9)
Important:
Make sure that all the tabs are seated and that the keyboard rests flush
against the edge of the opening.
Figure 9
3. Lay the keyboard flat into the keyboard opening.
4. Pull down on the keyboard release tabs while pressing down on the top portion of the
keyboard
(Figure 10).
Release the tabs to secure the keyboard in place.
Figure 10
®
5. Close the display and turn the PowerBook over.
PowerBook G4 (1GHz/867MHz) Memory -
6
6. Replace the battery.
(Figure 11)
Important:
Make sure that the battery locks securely into place and that the battery
latch is slid all the way into the locked position.
Figure 11
7. Reconnect the power cord and any other cables that were connected, and restart your
computer.
Warning: Never turn on your computer unless all of its internal and external
parts are in place and it is closed. Operating the computer when it is open or
missing parts can damage your computer or cause injury.
Apple Computer, Inc.
© 2002 Apple Computer, Inc. All rights reserved.
This document is protected under U.S. Copyright Law and International Treaties, and no
part of this document may be reproduced in any form without written permission from
Apple.
Apple is not responsible for typographical, printing, or inadvertent errors.
Apple Computer, Inc.
1 Infinite Loop
Cupertino, CA 95014-2084
USA
+ 1 408 996 1010
http://www.apple.com
Apple, the Apple logo, and PowerBook are trademarks of Apple Computer, Inc., registered
in the U.S. and other countries.
PowerBook G4 (1GHz/867MHz) Memory -
7
PowerBook G4 (1GHz/867MHz)
Bottom Case
Replacement Instructions
Follow the instructions in this sheet carefully. Failure to follow these instructions could
damage your equipment and void its warranty.
Note: Written and video instructions covering customer-installable parts are available at
http://www.info.apple.com/installparts/.
Warning: Sharp edges can exist inside your computer and on any parts being
removed or installed. Use caution to avoid injury.
During this procedure, keep small parts away from children.
Tools Required
• Soft towel or cloth, larger than the PowerBook
• Torx T8 screwdriver
Removing the Bottom Case
Warning: Always shut down your computer before opening it to avoid damaging its
internal components or causing injury. After you shut down the computer, the
internal components can be very hot. Let the computer cool down before
continuing.
1. Place your computer on a clean, flat surface.
2. Shut down your computer and wait thirty minutes before continuing.
3. Disconnect the power cord and any other cables connected to the computer.

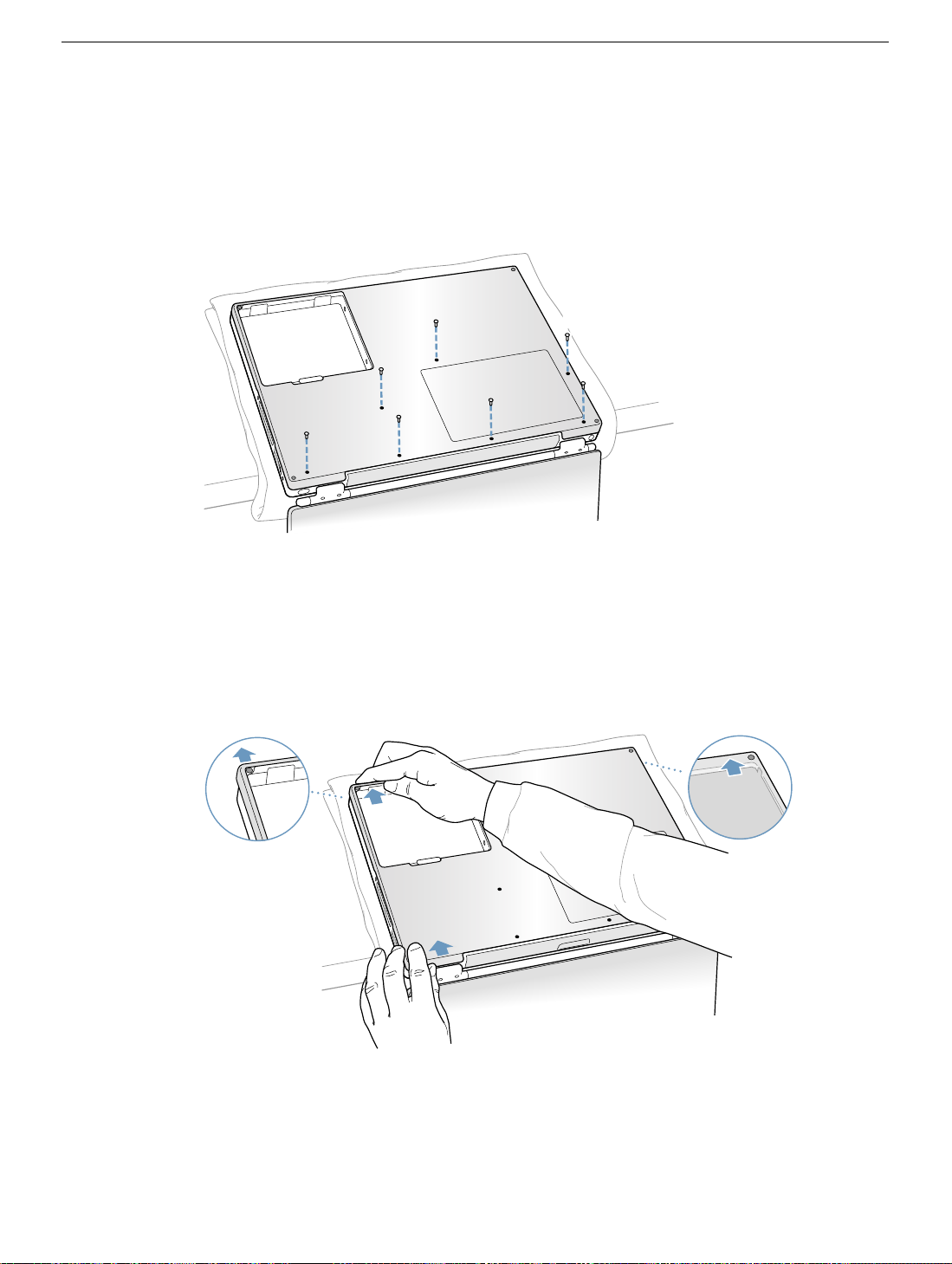

4. Place a towel or soft cloth on a table in front of you. (Figure 1A)
The towel or cloth will protect the keyboard and display area of the PowerBook when
you flip it over to remove the battery and bottom case. Make sure it covers an area
large enough for your PowerBook and that it hangs over the edge of the table.
5. With the display open at an angle greater than 90 degrees, carefully flip the
PowerBook over and lay it flat, fully on the table. Make sure the display hangs over the
edge of the table and rests lightly on your lap. (Figure 1B)
Important: Do not open the display farther than the angle shown.
Figure 1
A
B
6. Remove the battery by sliding the battery latch to the left. Make sure to return the latch
fully to the right. (Figure 2)
Removing the battery will prevent you from accidentally turning on the computer.
Warning: Removing the battery before shutting down your computer may
result in data loss.
Figure 2
PowerBook G4 (1GHz/867MHz) Bottom Case - 2
7. Use a Torx T8 screwdriver to remove the seven bottom case screws in the order
shown. (Figure 3)
Important: To avoid damaging the case, be careful that the screwdriver tip does not
slip out of the screw head during removal.
Figure 3
1
2
7
6
5
3
4
Note: In the following two steps you will disengage the left and right sides of the bottom
case and then pivot it forward to remove.
8. Carefully slide the bottom case away from you. (Figure 4)
Important: Do not push on the rubber feet of the bottom case.
Figure 4
PowerBook G4 (1GHz/867MHz) Bottom Case - 3
9. Pivot the bottom case up as shown. (Figure 5)
Figure 5
Installing the Replacement Bottom Case
1. To attach the new bottom case, align the notches on the right and left sides of the
case, then press down slightly to secure the case. Check the alignment of the seven
screw holes to make sure the bottom case is properly positioned.
Important: Make sure that the seams between the bottom case and the frame are
closed. Check the outside edges and around the battery well. Verify that the
alignment tab on the underside of the bottom case (Figure 6A) has seated, and the
case lies flat.
2. Replace the seven screws in the order shown. (Figure 6)
Note: The screws must go in straight and easily; if they do not, readjust the bottom
case for proper alignment. Do not overtighten the screws or damage could result.
Important: To avoid damaging the case, be careful that the screwdriver tip does not
slip out of the screw head during tightening.
Figure 6
7
A
3
6
2
1
5
4
PowerBook G4 (1GHz/867MHz) Bottom Case - 4
3. Replace the battery. (Figure 7)
Important: Make sure that the battery locks securely into place and that the battery
latch is slid all the way into the locked position.
Figure 7
4. Turn the computer over. Look at the optical drive slot to make sure that the case is
properly secured. If a gap exists below the slot, gently pull the bottom of the optical
drive slot toward you until it clicks into place and the gap is removed. (Figure 8)
Figure 8
®
5. Reconnect the power cord and any other cables that were connected, and restart your
computer.
Warning: Never turn on your computer unless all of its internal and external
parts are in place and it is closed. Operating the computer when it is open or
missing parts can damage your computer or cause injury.
PowerBook G4 (1GHz/867MHz) Bottom Case - 5
Apple Computer, Inc.
© 2002 Apple Computer, Inc. All rights reserved.
This document is protected under U.S. Copyright Law and International Treaties, and no
part of this document may be reproduced in any form without written permission from
Apple.
Apple is not responsible for typographical, printing, or inadvertent errors.
Apple Computer, Inc.
1 Infinite Loop
Cupertino, CA 95014-2084
USA
+ 1 408 996 1010
http://www.apple.com
Apple, the Apple logo, and PowerBook are trademarks of Apple Computer, Inc., registered
in the U.S. and other countries.
PowerBook G4 (1GHz/867MHz) Bottom Case - 6
PowerBook G4 (1GHz/867MHz)
AirPort Card
Replacement Instructions
Follow the instructions in this sheet carefully. Failure to follow these instructions could
damage your equipment and void its warranty.
Note: Written and video instructions covering customer-installable parts are available at
http://www.info.apple.com/installparts/.
Warning: Sharp edges can exist inside your computer and on any parts being
removed or installed. Use caution to avoid injury.
During this procedure, keep small parts away from children.
Tools Required
• Soft towel or cloth, larger than the PowerBook
• Torx T8 screwdriver
Opening the Computer
Warning: Always shut down your computer before opening it to avoid damaging its
internal components or causing injury. After you shut down the computer, the
internal components can be very hot. Let the computer cool down before
continuing.
To access the AirPort Card, you must first remove the battery and bottom case.
1. Place your computer on a clean, flat surface.
2. Shut down your computer and wait thirty minutes before continuing.
3. Disconnect the power cord and any other cables connected to the computer.
4. Place a towel or soft cloth on a table in front of you. (Figure 1A)
The towel or cloth will protect the keyboard and display area of the PowerBook when
you flip it over to remove the battery and bottom case. Make sure it covers an area
large enough for your PowerBook and that it hangs over the edge of the table.
5. With the display open at an angle greater than 90 degrees, carefully flip the
PowerBook over and lay it flat, fully on the table. Make sure the display hangs over the
edge of the table and rests lightly on your lap. (Figure 1B)
Important: Do not open the display farther than the angle shown.
Figure 1
A
B
6. Remove the battery by sliding the battery latch to the left. Make sure to return the latch
fully to the right. (Figure 2)
Removing the battery will prevent you from accidentally turning on the computer.
Warning: Removing the battery before shutting down your computer may
result in data loss.
Figure 2
PowerBook G4 (1GHz/867MHz) AirPort Card- 2
7. Use a Torx T8 screwdriver to remove the seven bottom case screws in the order
shown. (Figure 3)
Important: To avoid damaging the case, be careful that the screwdriver tip does not
slip out of the screw head during removal.
Figure 3
1
2
7
6
5
3
4
Note: In the following two steps you will disengage the left and right sides of the bottom
case and then pivot it forward to remove.
8. Carefully slide the bottom case away from you. (Figure 4)
Important: Do not push on the rubber feet of the bottom case.
Figure 4
PowerBook G4 (1GHz/867MHz) AirPort Card- 3
9. Pivot the bottom case up as shown. (Figure 5)
Figure 5
10. Touch the computer’s inside framework (a dull gray conductive composite material) to
discharge any static electricity, as shown. (Figure 6)
Important: To avoid electrostatic discharge damage, always ground yourself by
touching the computer’s framework before you touch any parts or install any
components inside the computer. To avoid static electricity building back up in your
body, do not walk around the room until you have completed your installation and
closed the computer.
Figure 6
PowerBook G4 (1GHz/867MHz) AirPort Card- 4
Removing the Installed AirPort Card
1. Pull back on the antenna clip (Figure 7A) to release the antenna cable connector
(Figure 7B) and allow the card to rise up slightly.
2. Pull the card from the AirPort connector (Figure 7D).
3. If there is tape securing the antenna cable to the AirPort Card, carefully remove it and
store it in the battery compartment for reuse later. When installing the replacement
AirPort Card, use the tape to secure the cable in the same manner.
4. To disconnect the antenna cable connector, hold the AirPort Card with one hand and
grasp the antenna cable connector with the other. While being careful not to strain the
antenna cable (Figure 7C), firmly pull the connector straight out of the AirPort Card.
Figure 7
D
C
A
B
Important: If reassembling the computer without an AirPort Card, replace the
antenna cable connector into its holder (Figure 9B) and pull the loop of the antenna
cable up slightly and away from the edge of the computer case. This prevents the
cable from interfering with the PC card slot, below, or getting pinched during
reassembly.
Also, if the AirPort Card connector (Figure 7D) is rotated up, push it down into the
level position. This allows the bottom case to install properly.
PowerBook G4 (1GHz/867MHz) AirPort Card- 5
Installing the Replacement AirPort Card
1. If the replacement AirPort Card came with the AirPort adapter (Figure 8A), remove
the metal clip (Figure 8B) and pull the AirPort Card (Figure 8C) from the adapter.
(The adapter and metal clip are not used with your PowerBook.)
Figure 8
A
C
B
2. If necessary, pull the AirPort antenna cable connector (Figure 9A) from its holder
(Figure 9B).
Figure 9
B
A
3. Position the AirPort Card (Figure 10B) with the AirPort ID numbers and bar code
facing up. Pull up the insertion end of the AirPort Card connector (Figure 10A) slightly
and slide the card all the way into the connector until it is securely attached.
Figure 10
B
A
PowerBook G4 (1GHz/867MHz) AirPort Card- 6
4. Plug the antenna cable connector (Figure 11A) into the port on the AirPort Card,
located just below the plastic tab (Figure 11B). Make sure the connector is straight
before inserting it into the port.
Note: If tape was removed earlier, use it to secure the antenna cable to the card.
5. Push the AirPort Card down until the antenna cable connector is secured by the small
antenna clip (Figure 11C).
Important: Route the antenna cable (Figure 11D) between the edge of the computer
and the AirPort Card. Verify that the cable is away from the edge of the computer so
that it will not be pinched during reassembly and that it does not sag down into the
PC card slot area (below the AirPort Card). Take up any extra cable by tucking it in
where shown (Figure 11E).
6. Fold the plastic tab (Figure 11B) on the AirPort Card over the top of the card.
Note: The plastic tab must be folded over the card during the installation of the
bottom case; otherwise you will not be able to securely attach the bottom case to the
computer.
Figure 11
E
B
D
C
A
PowerBook G4 (1GHz/867MHz) AirPort Card- 7
Closing the Computer
1. To attach the bottom case, align the notches on the right and left sides of the case,
then press down slightly to secure the case. Check the alignment of the seven screw
holes to make sure the bottom case is properly positioned.
Important: Make sure that the seams between the bottom case and the frame are
closed. Check the outside edges and around the battery well. Verify that the
alignment tab on the underside of the bottom case (Figure 12A) has seated, and the
case lies flat.
2. Replace the seven screws in the order shown. (Figure 12)
Note: The screws must go in straight and easily; if they do not, readjust the bottom
case for proper alignment. Do not overtighten the screws or damage could result.
Important: To avoid damaging the case, be careful that the screwdriver tip does not
slip out of the screw head during tightening.
Figure 12
7
A
3
6
2
1
5
4
PowerBook G4 (1GHz/867MHz) AirPort Card- 8
3. Replace the battery. (Figure 13)
Important: Make sure that the battery locks securely into place and that the battery
latch is slid all the way into the locked position.
Figure 13
4. Turn the computer over. Look at the optical drive slot to make sure that the case is
properly secured. If a gap exists below the slot, gently pull the bottom of the optical
drive slot toward you until it clicks into place and the gap is removed. (Figure 14)
Figure 14
®
5. Reconnect the power cord and any other cables that were connected, and restart your
computer.
Warning: Never turn on your computer unless all of its internal and external
parts are in place and it is closed. Operating the computer when it is open or
missing parts can damage your computer or cause injury.
PowerBook G4 (1GHz/867MHz) AirPort Card- 9
Apple Computer, Inc.
© 2002 Apple Computer, Inc. All rights reserved.
This document is protected under U.S. Copyright Law and International Treaties, and no
part of this document may be reproduced in any form without written permission from
Apple.
Apple is not responsible for typographical, printing, or inadvertent errors.
Apple Computer, Inc.
1 Infinite Loop
Cupertino, CA 95014-2084
USA
+ 1 408 996 1010
http://www.apple.com
Apple, the Apple logo, and PowerBook are trademarks of Apple Computer, Inc., registered
in the U.S. and other countries.
PowerBook G4 (1GHz/867MHz) AirPort Card- 10
PowerBook G4 (1GHz/867MHz)
Hard Drive
Replacement Instructions
Follow the instructions in this sheet carefully. Failure to follow these instructions could
damage your equipment and void its warranty.
Note: Written and video instructions covering customer-installable parts are available at
http://www.info.apple.com/installparts/.
Warning: Sharp edges can exist inside your computer and on any parts being
removed or installed. Use caution to avoid injury.
During this procedure, keep small parts away from children.
Tools Required
• Soft towel or cloth, larger than the PowerBook
• Torx T8 screwdriver (provided with hard drive)
Backing Up Your Data
Warning: Before replacing your hard drive, make sure you back up all data on the
drive.
Opening the Computer
Warning: Always shut down your computer before opening it to avoid damaging its
internal components or causing injury. After you shut down the computer, the
internal components can be very hot. Let the computer cool down before
continuing.
To access the hard drive, you must first remove the battery and bottom case.
1. Place your computer on a clean, flat surface.
2. Shut down your computer and wait thirty minutes before continuing.
3. Disconnect the power cord and any other cables connected to the computer.
4. Place a towel or soft cloth on a table in front of you. (Figure 1A)
The towel or cloth will protect the keyboard and display area of the PowerBook when
you flip it over to remove the battery and bottom case. Make sure it covers an area
large enough for your PowerBook and that it hangs over the edge of the table.
5. With the display open at an angle greater than 90 degrees, carefully flip the
PowerBook over and lay it flat, fully on the table. Make sure the display hangs over the
edge of the table and rests lightly on your lap. (Figure 1B)
Important: Do not open the display farther than the angle shown.
Figure 1
A
B
6. Remove the battery by sliding the battery latch to the left. Make sure to return the latch
fully to the right. (Figure 2)
Removing the battery will prevent you from accidentally turning on the computer.
Warning: Removing the battery before shutting down your computer may
result in data loss.
Figure 2
PowerBook G4 (1GHz/867MHz) Hard Drive - 2
7. Use a Torx T8 screwdriver to remove the seven bottom case screws in the order
shown. (Figure 3)
Important: To avoid damaging the case, be careful that the screwdriver tip does not
slip out of the screw head during removal.
Figure 3
1
2
7
6
5
3
4
Note: In the following two steps you will disengage the left and right sides of the bottom
case and then pivot it forward to remove.
8. Carefully slide the bottom case away from you. (Figure 4)
Important: Do not push on the rubber feet of the bottom case.
Figure 4
PowerBook G4 (1GHz/867MHz) Hard Drive - 3
9. Pivot the bottom case up as shown. (Figure 5)
Figure 5
10. Touch the computer’s inside framework (a dull gray conductive composite material) to
discharge any static electricity, as shown. (Figure 6)
Important: To avoid electrostatic discharge damage, always ground yourself by
touching the computer’s framework before you touch any parts or install any
components inside the computer. To avoid static electricity building back up in your
body, do not walk around the room until you have completed your installation and
closed the computer.
Figure 6
PowerBook G4 (1GHz/867MHz) Hard Drive - 4
Removing the Installed Hard Drive
1. With your fingers, carefully pry up the hard drive cable connector (Figure 7A) at its
sides to disconnect it from the logic board. You may need to pry one side, then the
other, in a rocking motion.
Figure 7
A
2. With a Torx T8 screwdriver, remove the two screws that secure the hard drive
mounting bracket, and remove the bracket. (Figure 8)
Figure 8
PowerBook G4 (1GHz/867MHz) Hard Drive - 5
3. Pull up on the right side of the hard drive to remove it. (Figure 9)
Important: The hard drive connector cable can be carefully used to help remove the
hard drive if it lifts easily. Do not pull hard on the connector cable.
Figure 9
Note: There are four rubber stoppers on the hard drive that fit over screws (two on
each side). Remove any that may have fallen off or that remain in the holes in the
mounting bracket inside the computer.
4. If not included with the replacement drive, remove the Mylar sheath and the flex cable
to transfer to the replacement drive.
Important: The connector pins on the hard drive are fragile and bend easily. Use
care to keep the pins straight when removing or installing the flex cable.
PowerBook G4 (1GHz/867MHz) Hard Drive - 6
Installing the Replacement Hard Drive
Warning: To avoid potential injury or damage, avoid touching the thin strip of metal
that extends up from the rib frame at the battery well.
Important: Avoid touching the optical drive as you perform this procedure.
1. Make sure that the screws (Figure 10A) and rubber stoppers (Figure 10B) are in
place on the sides of the replacement drive.
2. Install the Mylar sheath (Figure 10C) so that it covers the bottom and left and right
sides of the drive. The sheath is directional and must be installed in the direction that
does not extend beyond the front of the drive.
3. Carefully install the hard drive cable, if needed, (Figure 10D). The cable connector is
keyed to fit only one way.
Figure 10
B
C
D
A
4. Insert the left side of the drive first, then the right. Use a screwdriver through the frame
holes on the left side to help align the stoppers, as necessary. (Figure 11)
Figure 11
PowerBook G4 (1GHz/867MHz) Hard Drive - 7
5. Replace the hard drive mounting bracket and secure with the screws. (Figure 12)
Important: Check that the rubber stoppers and Mylar sheath are not pinched by the
bracket.
Figure 12
6. Connect the hard drive cable connector (Figure 13) to the logic board.
Figure 13
PowerBook G4 (1GHz/867MHz) Hard Drive - 8
Closing the Computer
1. To attach the bottom case, align the notches on the right and left sides of the case,
then press down slightly to secure the case. Check the alignment of the seven screw
holes to make sure the bottom case is properly positioned.
Important: Make sure that the seams between the bottom case and the frame are
closed. Check the outside edges and around the battery well. Verify that the
alignment tab on the underside of the bottom case (Figure 14A) has seated, and the
case lies flat.
2. Replace the seven screws in the order shown. (Figure 14)
Note: The screws must go in straight and easily; if they do not, readjust the bottom
case for proper alignment. Do not overtighten the screws or damage could result.
Important: To avoid damaging the case, be careful that the screwdriver tip does not
slip out of the screw head during tightening.
Figure 14
7
A
3
6
2
1
5
4
PowerBook G4 (1GHz/867MHz) Hard Drive - 9
3. Replace the battery. (Figure 15)
Important: Make sure that the battery locks securely into place and that the battery
latch is slid all the way into the locked position.
Figure 15
4. Turn the computer over. Look at the optical drive slot to make sure that the case is
properly secured. If a gap exists below the slot, gently pull the bottom of the optical
drive slot toward you until it clicks into place and the gap is removed. (Figure 16)
Figure 16
®
PowerBook G4 (1GHz/867MHz) Hard Drive - 10
5. Reconnect the power cord and any other cables that were connected, and restart your
computer.
Warning: Never turn on your computer unless all of its internal and external
parts are in place and it is closed. Operating the computer when it is open or
missing parts can damage your computer or cause injury.
6. Restore the data from your backup to the new drive.
7. Check the operation of the optical drive. If the hard drive is installed incorrectly, the
optical drive mechanism might not spin correctly and will result in mechanical noise
when playing a disc.
Apple Computer, Inc.
© 2002 Apple Computer, Inc. All rights reserved.
This document is protected under U.S. Copyright Law and International Treaties, and no
part of this document may be reproduced in any form without written permission from
Apple.
Apple is not responsible for typographical, printing, or inadvertent errors.
Apple Computer, Inc.
1 Infinite Loop
Cupertino, CA 95014-2084
USA
+ 1 408 996 1010
http://www.apple.com
Apple, the Apple logo, and PowerBook are trademarks of Apple Computer, Inc., registered
in the U.S. and other countries.
PowerBook G4 (1GHz/867MHz) Hard Drive - 11
PowerBook G4 (1GHz/867MHz)
Modem Filter Board
Replacement Instructions
The following instructions explain how to replace the modem EMI filter board in the
PowerBook G4 (1GHz/867MHz) computer.
Tools
• Black stick (nylon probe tool 922-5065) or other ESD-safe, non-marring tool
• Torx T8 screwdriver
Preliminary Steps
Before you begin, remove the following:
• Battery
• Keyboard
© 2002 Apple Computer, Inc. All rights reserved.
Procedure
1. Disconnect the RJ-11 and the modem wire connectors from the modem filter board.
2. Remove the Torx T8 screw.
3. Guide the modem filter board out of the case.
PowerBook G4 (1GHz/867MHz) Modem Filter Board - 2
PowerBook G4 (1GHz/867MHz)
DC-In Board
Replacement Instructions
The following instructions explain how to replace the DC-in board in the PowerBook G4
(1GHz/867MHz) computer.
Tools
• Black stick (nylon probe tool 922-5065) or other ESD-safe, non-marring tool
• Torx T6 screwdriver
Preliminary Steps
Before you begin, remove the following:
• Battery
• Bottom case
© 2002 Apple Computer, Inc. All rights reserved.
Procedure
1. Disconnect the DC-in board cable connector from the logic board.
2. Remove the two Torx T6 screws.
Note: The screw holding the fan securing tab may be longer than the other.
3. Guide the DC-in board out of the case.
PowerBook G4 (1GHz/867MHz) DC-In Board - 2
Replacement Note: If you performed a procedure that also removed the logic board,
ensure that the power button cable routes up and left, toward the center of the top case,
under the DC-in board.
Replacement Notes:
• Install the 1 mm plastic screw shim to the replacement DC-In board.
PowerBook G4 (1GHz/867MHz) DC-In Board - 3
• When replacing the DC-in board, ensure that the secondary fan is seated properly
over the pin on the rib frame, and with its securing-tab resting on top of the DC-In
board. If one screw was longer, replace it through the fan’s securing-tab.
• Make sure that the DC connector is straight and centered in the port opening. With the
power adapter unplugged, the adapter connector may be inserted onto the DC
connector to ensure that the connector is centered and straight before securing the
DC-in board.
• Bend the DC-In board cable wires around the edge of the secondary fan, as shown, so
they do not interfere with the fan or air flow.
PowerBook G4 (1GHz/867MHz) DC-In Board - 4
PowerBook G4 (1GHz/867MHz)
Inverter Board
Replacement Instructions
The following instructions explain how to replace the inverter board in the PowerBook G4
(1GHz/867MHz) computer.
Tools
• Black stick (nylon probe tool 922-5065) or other ESD-safe, non-marring tool
• Torx T6 screwdriver
Preliminary Steps
Before you begin, remove the following:
• Battery
• Bottom case
© 2002 Apple Computer, Inc. All rights reserved.
Procedure
Important: With the bottom case removed, be careful if turning over the computer. Some
components could become loose and fall out.
1. Disconnect the inverter board flex cable from both the inverter board and logic board.
2. Disconnect the bulb wire cable from the inverter board.
3. Remove the two T6 screws that secure the inverter board and remove the board.
Replacement Note: When reinstalling the replacement optical drive, ensure that the bulb
wire cable is safely within the case edge so that it will not get pinched by the bottom case.
PowerBook G4 (1GHz/867MHz) Inverter Board - 2
4. Install the replacement inverter board onto the optical drive.
5. Reassemble and test the computer.
Important: Make sure the bottom case is installed correctly. If the slot-load area is
slightly bowed, carefully pull the bottom edge of the slot until it clicks into place and
becomes flush with the bottom case.
Important: Check the operation of the optical drive. If the drive is installed
incorrectly, the optical drive mechanism might not spin correctly and will result in
mechanical noise when playing a disc.
PowerBook G4 (1GHz/867MHz) Inverter Board - 3
PowerBook G4 (1GHz/867MHz)
Modem
Replacement Instructions
The following instructions explain how to replace the modem in the PowerBook G4 (1GHz/
867MHz) computer.
Tools
• Black stick (nylon probe tool 922-5065) or other ESD-safe, non-marring tool
• Torx T6 screwdriver
• Torx T8 screwdriver
Preliminary Steps
Before you begin, remove the following:
• Battery
• Keyboard
• Bottom case (remove in step 2)
© 2002 Apple Computer, Inc. All rights reserved.
Procedure
1. With the display open and the keyboard removed, locate and remove the EMI clip that
secures the optical drive’s flex cable to the rib frame. Side until reassembling the
computer.
Replacement Note: When reassembling the computer, ensure that the EMI clip
captures the tab on the flex cable and holds it against the rib frame.
2. Remove the bottom case.
Important: With the bottom case removed, be careful if turning over the computer.
Some components could become loose and fall out.
3. Remove the two T8 screws that secure the hard drive mounting bracket and remove
the bracket.
PowerBook G4 (1GHz/867MHz) Modem - 2
4. Disconnect the inverter board flex cable from the inverter board and logic board.
5. Disconnect the optical drive and modem flex cables from the logic board.
6. Remove the two T6 screws that secure the modem.
7. Lift up the end of the modem slightly and disconnect the 2-pin cable connector.
PowerBook G4 (1GHz/867MHz) Modem - 3
8. Use a thin tool to lift the optical drive slightly, then deroute the modem flex cable.
9. If the modem flex cable is not damaged, remove it and transfer it to the replacement
modem.
10. Install the replacement modem. Avoid putting pressure on or stressing the modem
board during installation.
11. To replace the optical drive, carefully guide the rubber stoppers on the outer side of
the drive past the edge of the computer case.
Warning: To prevent damage to the optical drive, handle the drive only by the
corners. Do not press on the body of the drive.
Important: When the rubber stoppers are inserted, push down on all four corners of
the drive to verify that the drive is level and secure.
PowerBook G4 (1GHz/867MHz) Modem - 4
12. Reassemble and test the computer.
Replacement Note: When reinstalling the optical drive, ensure that the bulb wire
cable is safely within the case edge so that it will not get pinched by the bottom case.
Important: Make sure the bottom case is installed correctly. If the slot-load area is
slightly bowed, carefully pull the bottom edge of the slot until it clicks into place and
becomes flush with the bottom case.
Important: Check the operation of the optical drive. If the drive is installed
incorrectly, the optical drive mechanism might not spin correctly and will result in
mechanical noise when playing a disc.
PowerBook G4 (1GHz/867MHz) Modem - 5
PowerBook G4 (1GHz/867MHz)
DVD-ROM/CD-RW (Combo), DVD-R/CD-RW (Apple SuperDrive) Optical Drive
Replacement Instructions
The following instructions explain how to replace the combination DVD-ROM/CD-RW
optical drive in the PowerBook G4 (1GHz/867MHz) computer.
Tools
• Black stick (nylon probe tool 922-5065) or other ESD-safe, non-marring tool
• Torx T6 screwdriver
• Torx T8 screwdriver
Preliminary Steps
Before you begin, remove the following:
• Battery
• Keyboard
• Bottom case (remove in step 2)
© 2002 Apple Computer, Inc. All rights reserved.
Procedure
1. With the display open and the keyboard removed, locate and remove the EMI clip that
secures the optical drive’s flex cable to the rib frame. Set it aside for installation of the
replacement drive.
Replacement Note: When installing the replacement drive, ensure that the EMI clip
captures the tab on the flex cable and holds it against the rib frame.
2. Remove the bottom case.
Important: With the bottom case removed, be careful if turning over the computer.
Some components could become loose and fall out.
PowerBook G4 (1GHz/867MHz) DVD-R/CD-RW & DVD-ROM/CD-RW Optical Drive - 2
3. Remove the two T8 screws that secure the hard drive mounting bracket and remove
the bracket.
4. Disconnect the inverter board flex cable from the inverter board and logic board.
5. Disconnect the optical drive and modem flex cables from the logic board.
PowerBook G4 (1GHz/867MHz) DVD-R/CD-RW & DVD-ROM/CD-RW Optical Drive - 3
6. Disconnect the bulb wire cable from the inverter board.

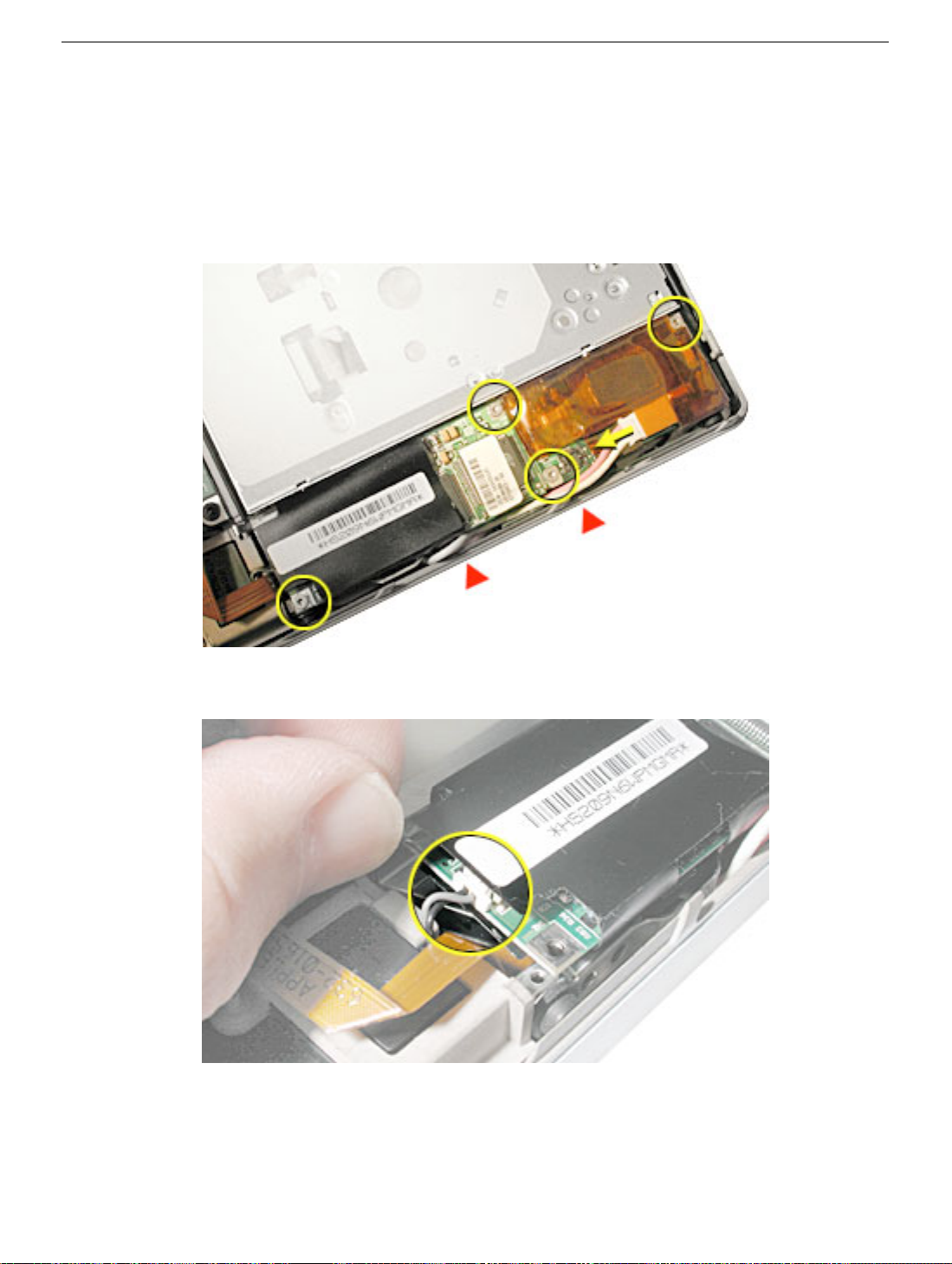

7. Remove the four T6 screws that secure the modem and the inverter board and remove
the inverter board.
Replacement Note: When reinstalling the replacement optical drive, ensure that the bulb
wire cable is safely within the case edge so that it will not get pinched by the bottom case.
8. Lift up the end of the modem slightly and disconnect the 2-pin cable connector.
PowerBook G4 (1GHz/867MHz) DVD-R/CD-RW & DVD-ROM/CD-RW Optical Drive - 4
9. Use a thin tool to lift the optical drive slightly, then deroute the modem flex cable.
10. Warning: To prevent damage to the optical drive, handle the drive only by the
corners. Do not press on the body of the drive.
To remove the optical drive, pull the drive to the right, away from the hard drive, to
release the long rubber stopper from the rib frame.
11. Important: If you notice that the felt strip for the slot-load area is torn or damaged,
replace the felt strip with a new one before replacing the optical drive. Follow the
instructions below to replace the felt strip:
Locate the felt strip that came with the replacement drive. Before you remove the old
felt strip, note the alignment of the felt strip over the slot-load area in the inner top
case.
PowerBook G4 (1GHz/867MHz) DVD-R/CD-RW & DVD-ROM/CD-RW Optical Drive - 5
Peel off the felt strip from the inner top case. If there is any residual adhesive on the
top case, rub it away.
Apply the new felt strip to the slot-load area. Make sure the new felt strip lies flat. Use
a black stick to run the length of the slot to make sure that the felt strip does not block
any of the slot.
12. Install the modem and inverter board onto the replacement optical drive. Again,
handle the optical drive only by the corners. Do not press on the body of the drive.
13. To install the replacement optical drive, first insert the longer stopper on the inner side
of the drive into the opening on the rib frame. Ensure that the other inner stopper rests
securely in its space on the frame. Then while holding the inner side of the drive in
place, carefully guide the rubber stoppers on the outer side of the drive past the edge
of the computer case.
Important: When the rubber stoppers are inserted, push down on all four corners of
the drive to verify that the drive is level and secure.
PowerBook G4 (1GHz/867MHz) DVD-R/CD-RW & DVD-ROM/CD-RW Optical Drive - 6
14. Reassemble and test the computer.
Important: Make sure the bottom case is installed correctly. If the slot-load area is
slightly bowed, carefully pull the bottom edge of the slot until it clicks into place and
becomes flush with the bottom case.
Important: Check the operation of the optical drive. If the drive is installed
incorrectly, the optical drive mechanism might not spin correctly and will result in
mechanical noise when playing a disc.
PowerBook G4 (1GHz/867MHz) DVD-R/CD-RW & DVD-ROM/CD-RW Optical Drive - 7
PowerBook G4 (1GHz/867MHz)
Backup Battery
Replacement Instructions
The following instructions explain how to replace the backup battery in the PowerBook G4
(1GHz/867MHz) computer.
Tools
• Black stick (nylon probe tool 922-5065) or other ESD-safe, non-marring tool
Preliminary Steps
Before you begin, remove the following:
• Battery
• Optical drive
© 2002 Apple Computer, Inc. All rights reserved.
Procedure
1. Disconnect the backup battery cable from the backup battery.
Note: If the cable connector gets caught on the ridged area of the top case, use a
black stick to raise up the backup battery and then disconnect the cable.

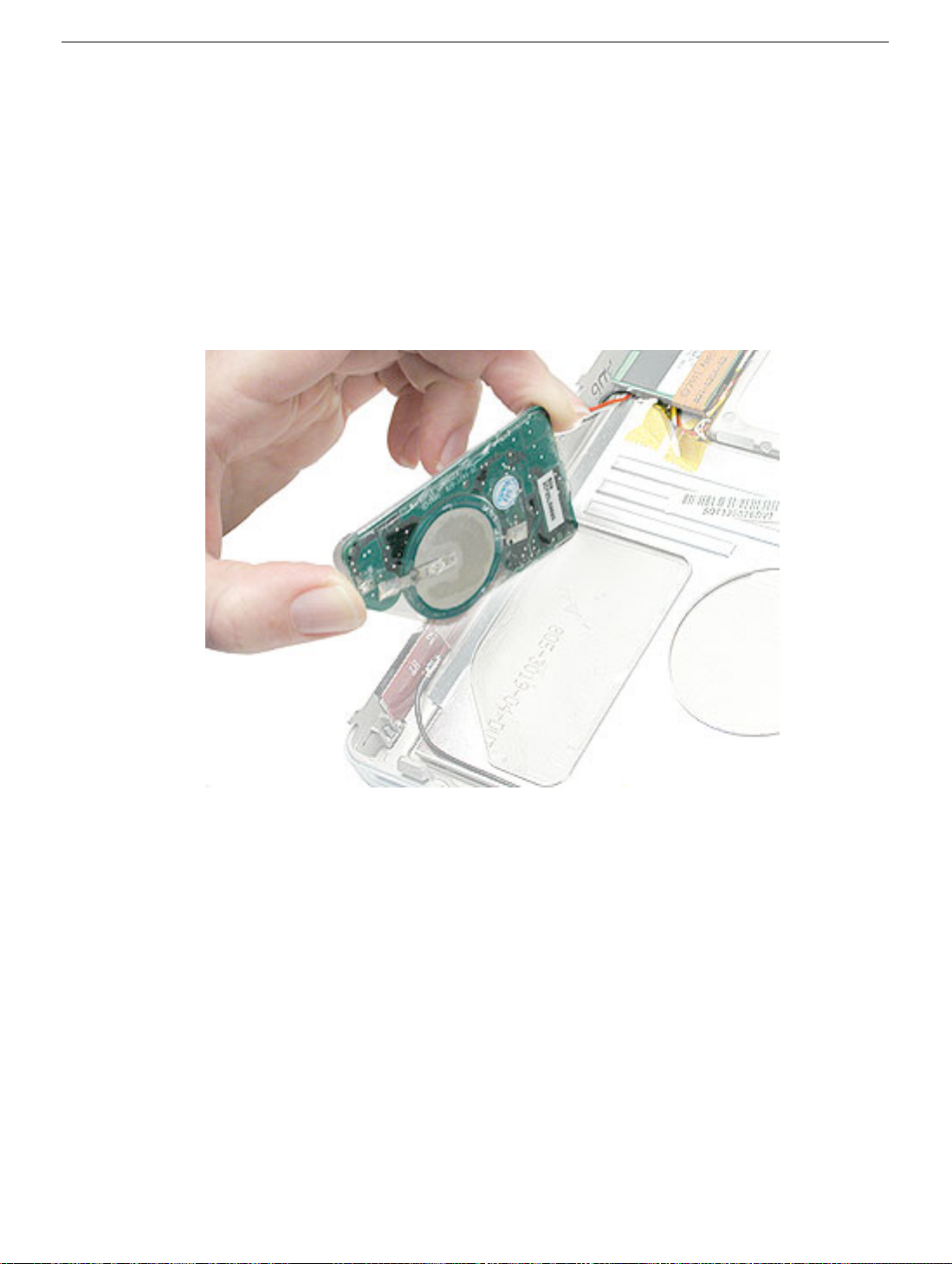

2. Note: The backup battery is compressed between two thin plastic sheets. The battery
is held in place with adhesive on the lower plastic sheet.
Slide a black stick under and along the edge of the backup battery. Pry up the
backup battery so that the entire battery—including the lower plastic sheet—is
removed from the inner top case.
Warning: The ridged area of the top case is sharp.
PowerBook G4 (1GHz/867MHz) Backup Battery - 2
3. If there is any adhesive left on the surface of the inner top case, use a black stick to
rub it away. Do not use solvents.
Note: When installing the replacement backup battery, make sure the inner top case
is clean and free of debris.
4. Peel off the cover sheet from the bottom surface of the replacement backup battery to
expose the adhesive.
5. When positioning the replacement backup battery on the inner top case, make sure
the battery fits within the ridged battery area of the inner top case.
6. Install the replacement backup battery, and reassemble and test the computer.
PowerBook G4 (1GHz/867MHz) Backup Battery - 3
PowerBook G4 (1GHz/867MHz)
Logic Board
Replacement Instructions
The following instructions explain how to replace the logic board in the PowerBook G4
(1GHz/867MHz) computer.
Tools
• Torx T8 screwdriver
• Black stick (nylon probe tool 922-5065) or other ESD-safe, non-marring tool
• Razor blade
• Needle nose pliers (optional)
• Medium tip permanent black ink marker
Note: To organize the screws you remove from the computer, use a tray with divided
compartments (such as a plastic ice cube tray).
Preliminary Steps
Before you begin, remove the following:
• Battery
• Keyboard
Remove the following in step 4:
• Bottom case
• AirPort Card (if installed)
© 2002 Apple Computer, Inc. All rights reserved.
Procedure

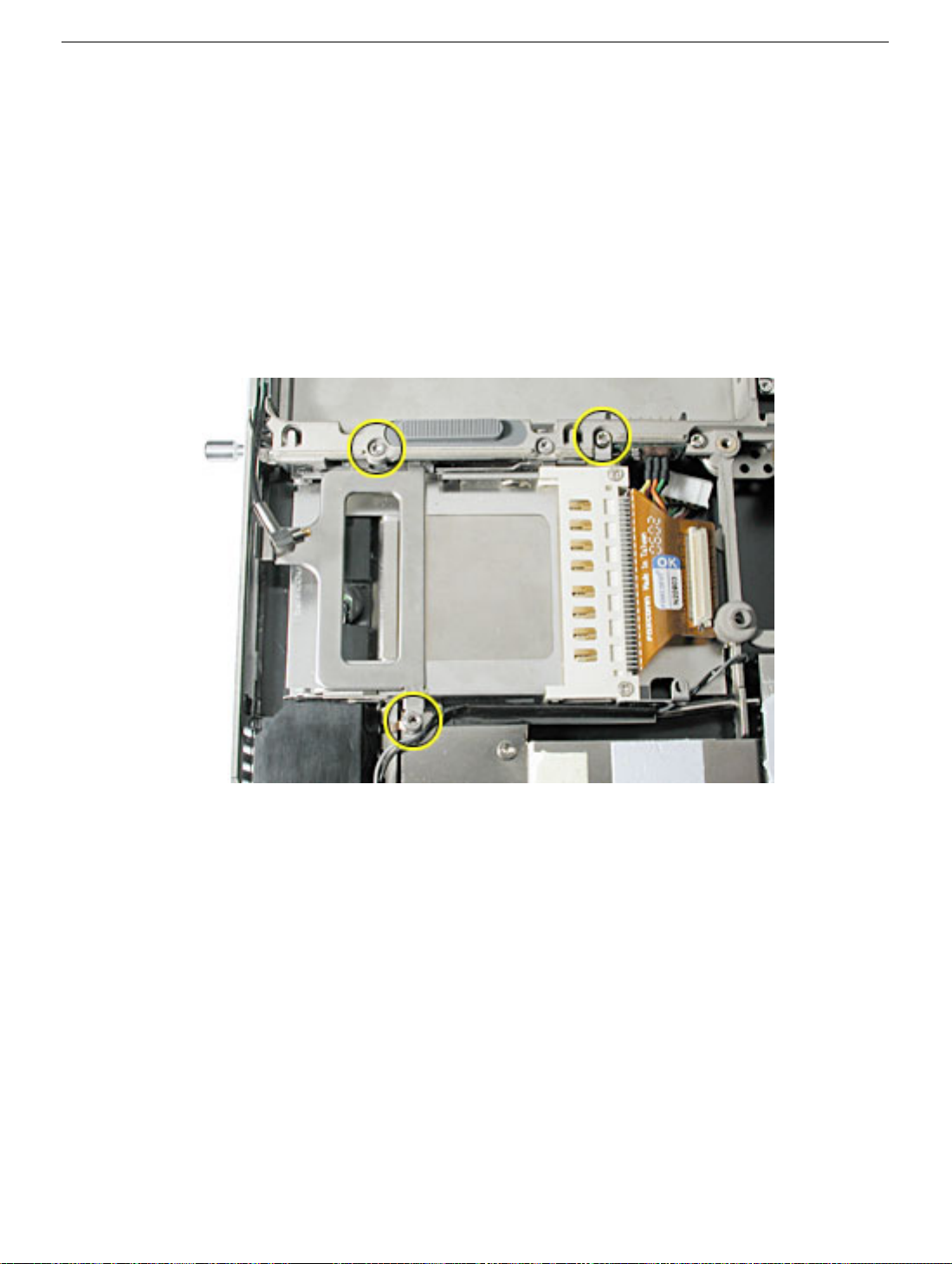

1. With the display open and the keyboard removed, remove the T8 screw near the heat
pipe.
2. Disconnect the PC card flex cable connector and the keyed battery connector.
Important: If the battery connector has not been disconnected before, the keyed
connector may be tight. If necessary, use a black stick or needle nose pliers to
loosen one side of the connector and then the other side. Then insert the black stick
under the cables to pry up and disconnect the connector.
Replacement Note: When reassembling the computer, tuck down the battery cables
so they do not get in the way when the keyboard is installed.
PowerBook G4 (1GHz/867MHz) Logic Board - 2
3. Disconnect the 3-pin backup battery connector from the logic board.
4. Remove the items listed in Preliminary Steps, to be removed in step 4.
Important: With the bottom case removed, be careful when turning over the
computer. Some components could become loose and fall out.
PowerBook G4 (1GHz/867MHz) Logic Board - 3
5. Warning: The thin cables connected to the LVDS (low voltage data signal)
connector are extremely delicate. Do not pull or pinch the LVDS cables. Be
especially careful when working near cables that attach to the display. If any of
these cables are damaged, the entire display module must be replaced.
At the left side of the logic board, disconnect the 2-pin sleep LED cable connector,
the LVDS connector, and the 6-pin audio connector.
PowerBook G4 (1GHz/867MHz) Logic Board - 4
6. At the right side of the logic board, disconnect the 2-pin power button cable connector,
the DC-in board cable connector, and the inverter board and modem flex cable
connectors.
7. Disconnect the trackpad, hard drive and optical drive flex cable connectors.
Note: If tape is covering the trackpad connector, reserve the tape for installation of
the replacement logic board.
PowerBook G4 (1GHz/867MHz) Logic Board - 5
8. Remove the T8 screw on the edge of the logic board near the battery well.
Important: Install this screw first when installing the replacement logic board. This
screw helps the logic board align properly to the rib frame.

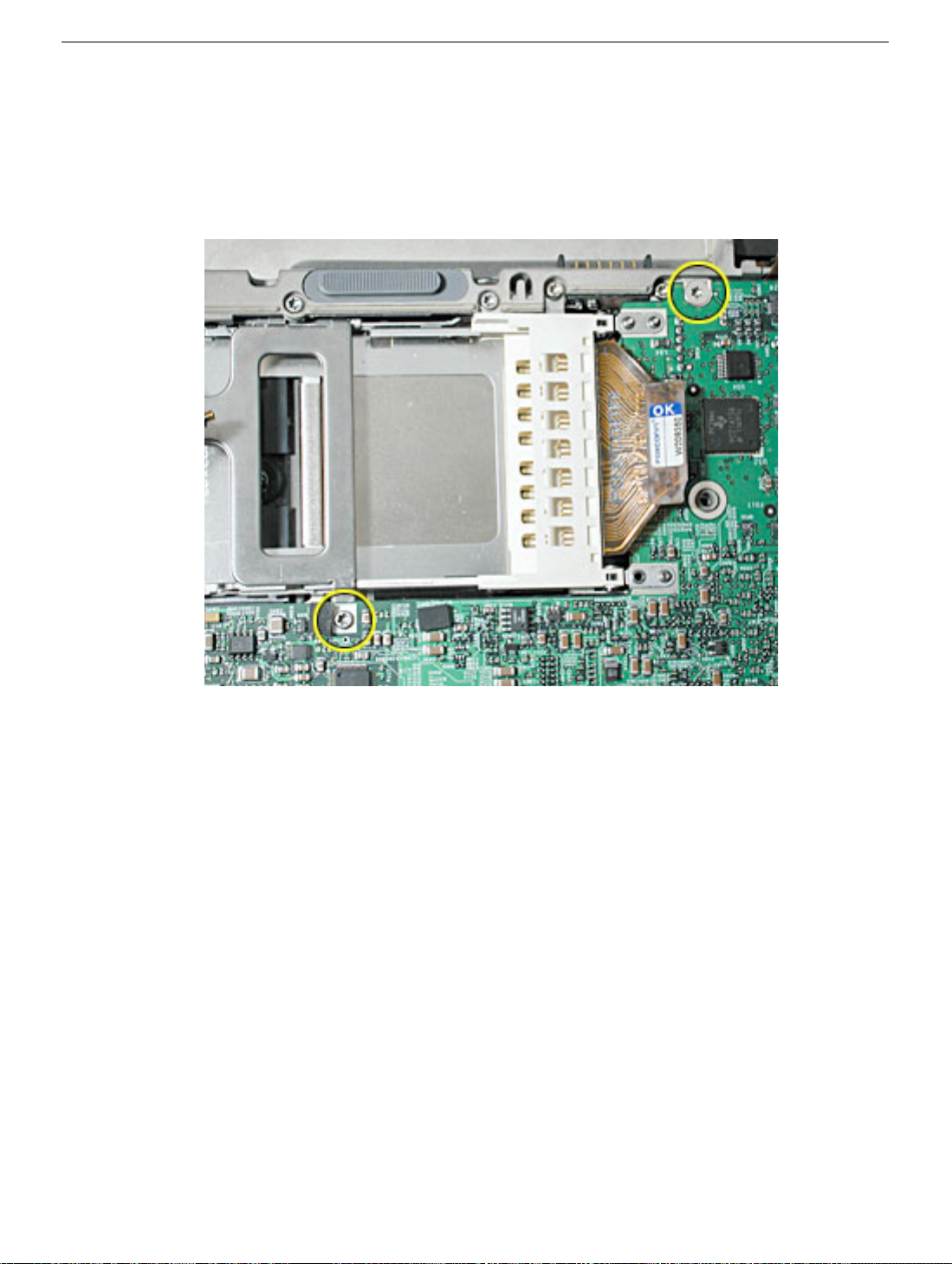

9. Remove the T8 screw securing the PC card cage.
PowerBook G4 (1GHz/867MHz) Logic Board - 6
10. Remove the five identical (bronze colored) T8 screws.
Note: When reassembling the computer, do not overtighten the screws.
PowerBook G4 (1GHz/867MHz) Logic Board - 7
11. Grasp the logic board near the AirPort Card carrier and gently lift the board up, as
shown below, being careful where it catches on ports, back panel mesh liner, and
disconnected cables.
If necessary, open the panel door and press on the ports to free the logic board from
the back panel.
Important: Lift the board just enough to access and disconnect the secondary fan’s
connector on the logic board before removing the board.
Replacement Note: When reassembling the computer, make sure the replacement
logic board ports align completely with the openings in the back panel.
Replacement Note: When positioning the replacement logic board into the
computer, check that cables and connectors do not get caught under the board. Tilt
the logic board toward the back panel, and place the following cables into the
notches in the board:
• Power switch cable (reapply tape over the cable, if applicable)
• Sleep LED cable
• LVDS cable
• Audio cable
PowerBook G4 (1GHz/867MHz) Logic Board - 8
12. Remove existing memory cards from the logic board for installation on the
replacement logic board. Carefully spread the end brackets to allow the card to raise
up, then pull out.
PowerBook G4 (1GHz/867MHz) Logic Board - 9
13. Transfer the following from the old logic board to the replacement logic board:
• AirPort card carrier
• RJ-11 port
• U-shaped EMI clip between the FireWire and Ethernet ports
PowerBook G4 (1GHz/867MHz) Logic Board - 10
14. Install the following onto the replacement logic board:
• Primary fan
• EMI gaskets to the USB ports, FireWire port, DVI-I port, and headphone port, (use
an I/O EMI gasket kit)
PowerBook G4 (1GHz/867MHz) Logic Board - 11
• Rectangular plastic standoffs around the chips on the underside of the replacement
logic board.
Note: If openings are present in the standoffs, position them where shown by circles,
below.
Important: If transfering from the old board, use a razor knife to remove and be very
careful not to damage board components.
PowerBook G4 (1GHz/867MHz) Logic Board - 12
• Plastic 1 mm and 1.5 mm washers around the screw holes, shown. Center and
press into place.
PowerBook G4 (1GHz/867MHz) Logic Board - 13
15. Check that the heat exchanger has three rectangular thermal interface pads in place.
If the pads are missing or damaged, replace the heat exchanger.
16. Use a razor blade or black stick to gently scrape away any residual thermal transfer
material on the heat exchanger on the surface that mates with the microprocessor.
PowerBook G4 (1GHz/867MHz) Logic Board - 14
17. Important: If you have removed the logic board to access another part, and you will
be placing the original logic board back in the computer, use a black stick to gently
scrape away any residual thermal transfer material from the microprocessor chip on
the logic board.
Warning: When scraping away the thermal transfer material from the
microprocessor chip, be careful not to nick the microprocessor chip.

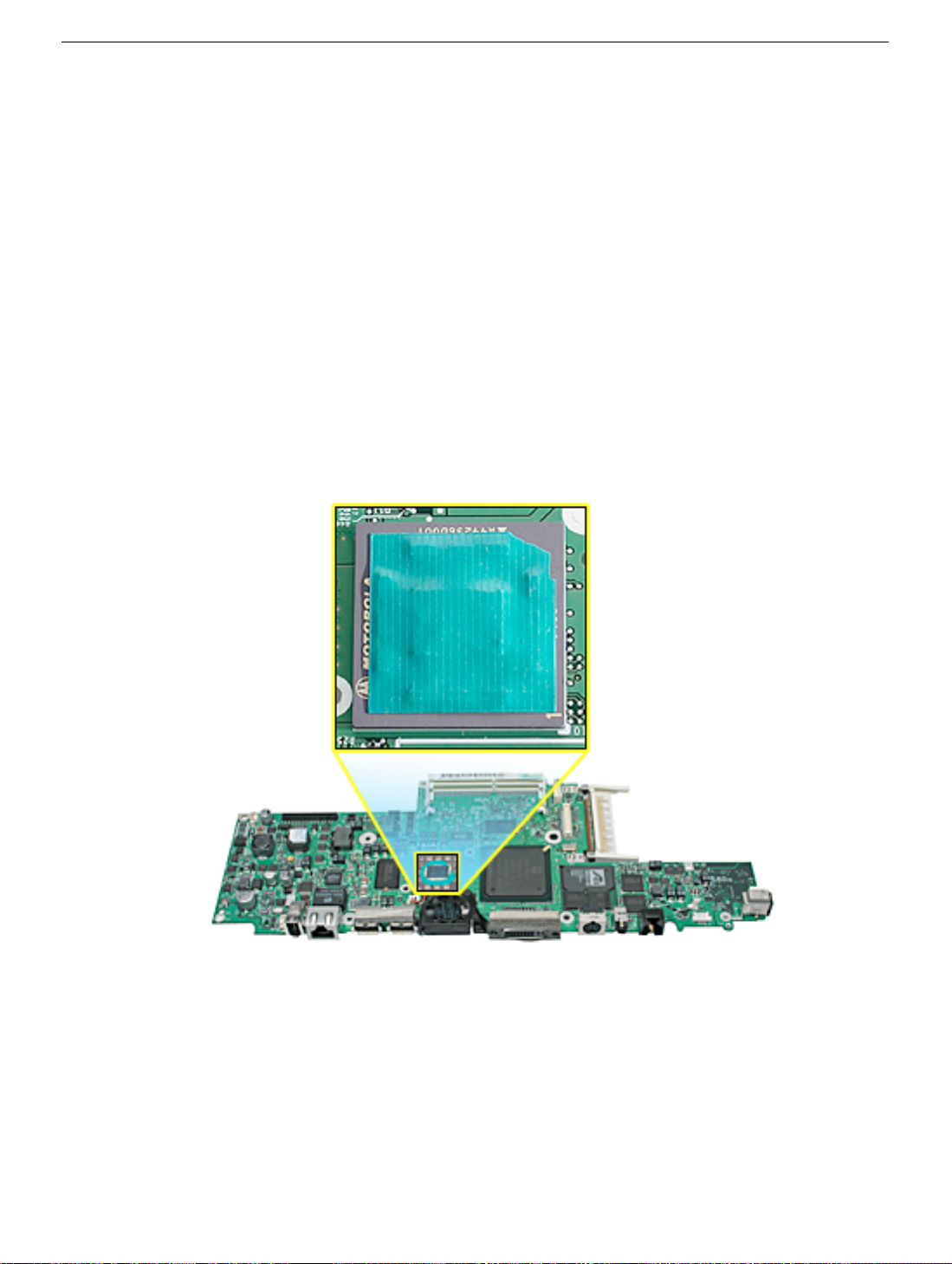

18. On the replacement logic board, center new thermal transfer material over the epoxy
cap on the microprocessor chip. Press it into place.
Note: The thermal material pads break easily. Use care when removing the pad from
its packaging and when handling, to avoid damage.
Important: If you are replacing the heat exchanger, verify that it has thermal material
already installed on the mating surface to the microprocessor chip. If so, do not install
thermal material to the chip on the logic board.
PowerBook G4 (1GHz/867MHz) Logic Board - 15
19. Remove the new Ethernet label from the area inside the memory card brackets, peel
off the adhesive protector and attach the label, right side up, over the Ethernet ID and
bar code on the ID plate inside the battery well.
PowerBook G4 (1GHz/867MHz) Logic Board - 16
20. Install the replacement logic board, and reassemble the computer.
Replacement Note: When replacing the logic board, the RJ-11 cable and backup
battery wire connectors must be routed, as shown below, so that they do not interfere
with the logic board replacement and can later be accessed through the keyboard
opening.
Ensure that optical drive’s flex cable has not been pulled out of the EMI clip, and that
the clip still secures the tab on the flex cable to the rib frame.
21. Use appropriate diagnostics to test all ports, components and functions of the
computer.
PowerBook G4 (1GHz/867MHz) Logic Board - 17
PowerBook G4 (1GHz/867MHz)
Primary Fan
Replacement Instructions
The following instructions explain how to replace the primary fan in the PowerBook G4
(1GHz/867MHz) computer.
Tools
• Black stick (nylon probe tool 922-5065) or other ESD-safe, non-marring tool
• Razor blade
• Needle nose pliers
Preliminary Steps
Before you begin, remove the following:
• Battery
• Logic Board
© 2002 Apple Computer, Inc. All rights reserved.
Procedure
1. With the logic board removed from the computer, disconnect the fan connector from
the logic board.
2. Turn over the logic board, and locate the cone-shaped pin at the right corner of the
fan. Pull the rubber pin tight. Use a razor blade to cut through the rubber pin.
PowerBook G4 (1GHz/867MHz) Primary Fan - 2
3. Turn over the logic board, then tilt up the fan to remove it completely from the logic
board.
Note: The fan is secured to the logic board by adhesive. Rub off any remaining
adhesive from the logic board. Do not use solvents.
Replacement Procedure
1. When installing the replacement fan, if the rubber pin is not installed in the fan, insert
the long end of the pin into the hole at the top of the fan and pull the middle cone
through and out so that the flat end remains on the top of the fan. Use needle nose
pliers to pull the pin through if necessary.
2. Make sure that there are no protective covers over the adhesive on the bottom of the
fan, then align the fan over its place on the logic board and insert the long end of the
rubber pin into the hole (below it) in the logic board and pull the middle cone through
the hole.
3. Make sure that the fan cable is not in the way, then line up the snap pins on the bottom
of the fan with the holes in the logic board and press the fan into place.
Important: Do not press on the center hub of the fan. Press only on the outside
edges of the fan housing.
4. Cut off the tail of the rubber pin at the tip of the cone.
5. Connect the fan connector to the logic board.
6. Reassemble and test the computer.
PowerBook G4 (1GHz/867MHz) Primary Fan - 3
PowerBook G4 (1GHz/867MHz)
Secondary Fan
Replacement Instructions
The following instructions explain how to replace the secondary fan in the PowerBook G4
(1GHz/867MHz) computer.
Tools
• Black stick (nylon probe tool 922-5065) or other ESD-safe, non-marring tool
• Torx T6 screwdriver
Preliminary Steps
Before you begin, remove the following:
• Battery
• Logic Board (disconnect the fan’s connector from the logic board while removing the
logic board)
© 2002 Apple Computer, Inc. All rights reserved.
Procedure
1. Remove the T6 screw from the fan bracket.
2. Disconnect the fan’s connector from the logic board while removing the logic board.
Lift out the fan assembly.
PowerBook G4 (1GHz/867MHz) Secondary Fan - 2
PowerBook G4 (1GHz/867MHz)
PC Card Cage
Replacement Instructions
The following instructions explain how to replace the PC card cage in the PowerBook G4
(1GHz/867MHz) computer.
Tools
• Torx T8 screwdriver
• 4 mm Hex socket or wrench
• 5 mm Hex socket or wrench
Preliminary Steps
Before you begin, remove the following:
• Battery
• Keyboard
• Logic board
© 2002 Apple Computer, Inc. All rights reserved.
Procedure
1. Remove the two screws that attach the PC card cage to the rib frame. (The longer
screw is next to the battery connector.)
2. To remove the 4 mm hex nut that secures the PC card cage to the heat exchanger,
you may want to use a finger to support the 5 mm (magnetic) hex screw underneath
the nut to prevent the screw from falling out of the screw hole.
Loosen and remove the hex nut. Remove the PC card cage, being careful where it
can catch on the PC card eject button. Then, reattach the hex nut temporarily to the
hex screw.
PowerBook G4 (1GHz/867MHz) PC Card Cage - 2
3. Check that the replacement PC card cage includes a clear plastic shim on the outer
frame near the PC card eject button. If the shim is not there, transfer the shim from the
old PC card cage to the replacement PC card cage.
4. When installing the replacement PC card cage, ensure that the metal flange that is
closest to the PC card eject button goes underneath the rib frame and metal liner at
the battery latch.
5. Install the replacement PC card cage, and reassemble and test the computer.
PowerBook G4 (1GHz/867MHz) PC Card Cage - 3
PowerBook G4 (1GHz/867MHz)
Rib Frame and Heat Exchanger
Replacement Instructions
The following instructions explain how to replace the rib frame and the heat exchanger in
the PowerBook G4 (1GHz/867MHz) computer.
Warning: Make sure you carefully follow these instructions, especially when
working near cables that attach to the display module. If any of the cables are
damaged, the entire display module must be replaced.
Tools
• Black stick (nylon probe tool 922-5065) or other ESD-safe, non-marring tool
• Torx T8 screwdriver
• Torx T6 screwdriver
Preliminary Steps
Before you begin, remove the following:
• Battery
• Keyboard
Remove the following in step 2:
• Bottom case
• Hard drive
• Optical drive
• Logic board
• PC card cage
• Secondary fan
© 2002 Apple Computer, Inc. All rights reserved.
Procedure
1. With the display open and the keyboard removed, remove the five identical T8 screws
from the top case.
2. Remove the items listed in Preliminary Steps, to be removed in step 2.
Important: With the bottom case removed, be careful when turning over the
computer. Some components could become loose and fall out.
3. Open the I/O door, and remove the four identical T6 screws.
4. Lift out the two back panel mounts from the notches in the rib frame.
PowerBook G4 (1GHz/867MHz) Rib Frame and Heat Exchanger - 2
5. Close the computer to an approximate 45-degree angle, and stand it on a soft cloth
with the clutch covers facing up.
6. Remove the four identical T8 screws from the clutch covers (two screws on each
clutch cover).
7. Use a black stick to pry off the two clutch covers.
Note: Opening the display slightly may help to remove the covers.
PowerBook G4 (1GHz/867MHz) Rib Frame and Heat Exchanger - 3
8. Open the computer so that the display rests in your lap and is protected by a soft
cloth.
9. Warning: Be especially careful when working near cables that attach to the
display. If any of these cables are damaged, the entire display module must be
replaced.
Warning: At the left clutch, the wrapped cable connected to the LVDS (low
voltage data signal) connector is extremely delicate. Do not pull or pinch the
LVDS cable. Do not allow the screwdriver to touch the LVDS cable.
Locate the two large silver-colored screws. Gently move aside the LVDS cable so
you can access the screws.
Remove the two silver-colored T8 screws from the left clutch. Notice that the screw
closest to the LVDS cable has a sloped screw head. (Do not remove the smaller
screws.)
Important: When installing the replacement display, make sure the screw closest to
the LVDS cable is the screw with the sloped head.
PowerBook G4 (1GHz/867MHz) Rib Frame and Heat Exchanger - 4
10. At the right clutch, note the routing of the inverter cable. Without straining the inverter
cable, gently move it aside so you can access the two large silver-colored screws.
11. Support the display as you remove the two identical, large, silver-colored T8 screws
from the right clutch. (Do not remove the smaller screws.)
12. Important: With the display hinge disconnected, support the display as you place it
face-down on a soft cloth in front of the computer chassis.
Warning: Do not separate the display cables from the computer chassis. Do
not strain the cables.
PowerBook G4 (1GHz/867MHz) Rib Frame and Heat Exchanger - 5
13. Remove the four rib frame screws. Three are identical black T8 screws, the forth is a
longer chrome T8 and also secures the heat exchanger alignment bracket to the end
of the heat exchanger. (You might need to move aside the AirPort antenna cable to
reach one of the screws.)
Replacement Note: Make sure to replace the longer chrome screw through the alignment
bracket so that it secures the small alignment nub on the end of the heat exchanger. Look
from the side through the air vents of the top case to verify that the ribs on the heat
exchanger do not block the vents.
14. Lift the rib frame off of the heat exchanger. If the heat exchanger sticks to the rib
frame, press gently on the heat exchanger near the two connection points shown.
.
PowerBook G4 (1GHz/867MHz) Rib Frame and Heat Exchanger - 6
15. Disconnect the audio cable at each end of the heat exchanger.
PowerBook G4 (1GHz/867MHz) Rib Frame and Heat Exchanger - 7
16. Pivot the heat exchanger out of the top case assembly. Be careful where it might catch
at the LVDS cable.
Warning: At the left clutch, the wrapped cable connected to the LVDS
connector is extremely delicate. Do not pull or pinch the LVDS cable.
Warning: Do not bend the heat pipe.
PowerBook G4 (1GHz/867MHz) Rib Frame and Heat Exchanger - 8
Loading...
