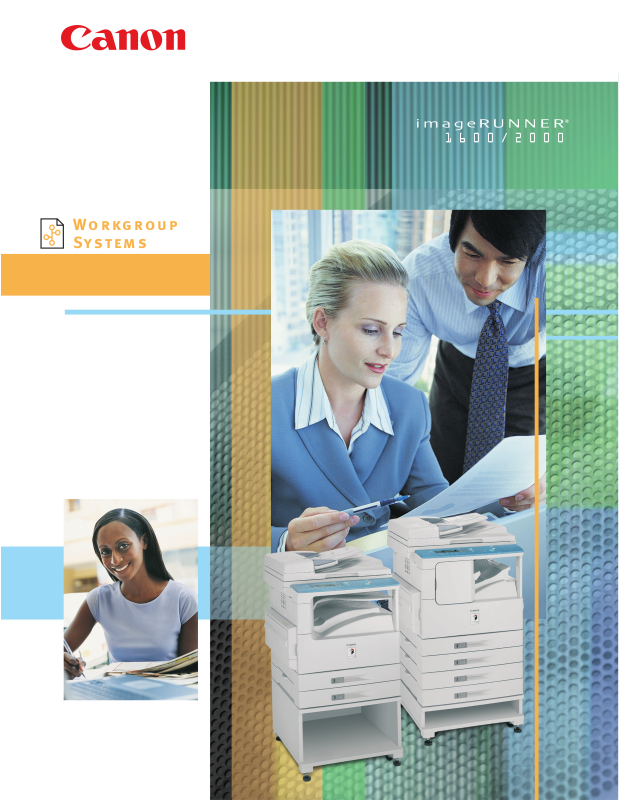

W o r kg ro u p Sy s t e m s

WORKGROUP SYSTEMS

DIGITAL MULTIFUNCTIONAL







SOLUTIONS FOR WORKGROUPS







AND SMALL BUSINESSES.

Set New Standards For Office Productivity Without





Setting Back Your Budget

Presenting the imageRUNNER® 1600

Canon designed the compact imageRUNNER 1600 and

imageRUNNER 2000 digital copiers to deliver high quality

and imageRUNNER 2000 from Canon,

and productivity for the needs of small businesses and

two powerful systems designed to

busy workgroups alike. You may select the entry-level

imageRUNNER 1600 for smaller workgroups or, for higher-

address the ever-increasingdemands

volume output, you may choose the more powerful

of workgroups and small businesses.

imageRUNNER 2000. No matter which model you select,

the flexible, modular design allows a seamless configura-



tion to suit your exact needs. And with the ability to add



network printing if and when you dictate, you can protect



your investment as your business grows.















































Automatic Document Feeder



Internal Finisher



Paper Cassettes































Canon Digital Technology Advantages

Unlike conventional analog copiers, digital technology streamlines the entire document imaging process. With Scan-Once-Print-Manytechnology, original images are converted into digital signals. Then they are reproduced from memory with unsurpassed image quality, regardless of whether you’re printing or copying text, graphics, or photographs. The imageRUNNER 1600 and imageRUNNER 2000 devices capture every detail, with support up to 1200 x 600 dpi resolution for copy jobs, and an astounding 2400 x 600 dpi interpolated resolution for network printing. Best of all, you’ll enjoy a new level of productivity.

Flexibility of Input, Throughput, and Output

For optimum document-feedingproductivity, there’s an optional50-sheetAutomatic Document Feeder that makes quick work of handling multipage originals. To minimize paper reloading chores, you may boost the maximum paper capacity of the imageRUNNER to 1,100 sheets with up to four250-sheetpaper cassettes, plus a100-sheetStack Bypass tray. Innovative,space-savingfinishing options include abuilt-infinisher that offers full sorting and stapling functions for a more professional look, or an inner tray system that separates copies and prints for fast distribution.

Exceptional Ease-of-use

An intuitively designed control panel at the device provides effortless operation in walk-upenvironments. When connected to your network,Canon-supplieddevice drivers and utilities allowend-usersto leverage full system capabilities right from their desktops. The imageRUNNER 1600 and imageRUNNER 2000 systems serve as excellent primary or secondary network printers within the workgroup, making it easy to print on page sizes up to 11" x 17" paper with fulldocument-finishingsupport. Designed

for maximum output quality and throughput speed, they print razor-sharp,letter-sizedpages at 16 pages

(imageRUNNER 1600) and 20 pages (imageRUNNER 2000) per minute. Parallel and USB ports are also available for printing from non-networkedcomputers.

The Image of a Leader

As a leading producer of network-connectedmultifunction devices in the industry, Canon continues to set new standards for quality, performance, and reliability. That’s why you can trust Canon to provide you with the solutions you need to make any workgroup more productive, and any business more competitive.

Remote UITM



Print Driver Page Setup Tab



Control Panel















































Platen Cover





Main Unit*

Feeder (ADF-J1)





Inner 2-WayTray-B1



Finisher-L1

Small Cabinet

Cassette Feeding

Cassette Feeding

Cassette Feeding

Large Cabinet

Module-F1**

Module-G1

Module-H1**











































imageRUNNER 1600/2000 Specifications

Type:

Digital, Multifunction Imaging System

Imaging System:

Laser Dry Electrostatic Transfer

Developing System:

Dry Monocomponent Toner Projection

Fixing System:

Heat Roller Fusing

Image Server:

Standard 16MB (Approx. 120 Pages)



Up to 48MB Max.

First-copyTime:

8.2 Seconds



(Platen Glass, Letter, Direct, Paper Drawer 1)

Warm-upTime:

30 Seconds or Less



(Main Power Switch On)



10 Seconds or Less



(Operation Panel Switch On)

Output Speed:

1600: 16 ppm (Letter)



2000: 20 ppm (Letter)

Max. Copy Reservation:

No limit (Up to Memory Capacity)

Scanning Resolution:

600 dpi x 600 dpi

Engine Resolution:

600 dpi x 600 dpi

Interpolated Resolution:

1200 dpi x 600 dpi (Copy)



2400 dpi x 600 dpi (Print)

Halftone:

256 Gradations of Gray

Duplexing:

Not Supported

Magnification:

50% to 200% (in 1% Increments)

Preset Reduction:

50%, 64%, 73%, 78%

Preset Enlargement:

121%, 129%, 200%

Paper Supply



Standard:

1600: 1 x 250-sheetPaper Cassette



2000: 2 x 250-sheetPaper Cassette



100-sheetStack Bypass

Optional:

1600: 1 x 250-sheetPaper Cassette



3 x 250-sheetPaper Cassette



2000: 2 x 250-sheetPaper Cassette

Exposure Control:

Automatic or Manual (9 Levels)

Multiple Copies:

1 to 99

Max. Original Size:

11" x 17" (Ledger)

Acceptable Paper Weights



Paper Drawer:

17 lb. to 24 lb. Bond (64 - 90 g/m2)

Stack Bypass:

17 lb. to 32 lb. Bond (64 - 128 g/m2)

Power Source:

120V, 60Hz, 10A

Drum:

OPC—EstimatedYield: 21,000 Impressions

Max. Duty Cycle:

50,000 Impressions Per Month

Toner:

Estimated Yield: 7,850 Images



(at 6% Coverage)

Dimensions (H x W x D):

1600: 22" x 24-1/4"x24-3/4"



(560mm x 615mm x 631mm)



2000: 25-3/8"x24-1/4"x24-3/4"



(645mm x 615mm x 631mm)

Weight:

1600: 84 lb./38kg



2000: 96 lb./43.4kg

Accessories

Automatic Document Feeder-J1(Optional)

Acceptable Original Size:

Statement to Ledger

Paper Capacity:

50 Sheets (20 lb. Bond/Letter)

Acceptable Paper Weight:

14 lb. to 28 lb. Bond (Letter)

Cassette Feeding Module-F1(Optional)

Paper Capacity:

1 x 250-sheetPaper Cassette

Paper Size:

Statement to Ledger

Acceptable Paper Weight:

17 lb. to 24 lb. Bond

Connectable Device:

imageRUNNER 1600

Cassette Feeding Module-G1(Optional)

Paper Capacity:

2 x 250-sheetPaper Cassettes

Paper Size:

Statement to Ledger

Acceptable Paper Weight:

17 lb. to 24 lb. Bond

Connectable Device:

imageRUNNER 2000

Cassette Feeding Module-H1(Optional)

Paper Capacity:

3 x 250-sheetPaper Cassette

Paper Size:

Statement to Ledger

Acceptable Paper Weight:

17 lb. to 24 lb. Bond

Connectable Device:

imageRUNNER 1600

Inner 2-WayTray-B1(Optional)

Number of Trays:

Two (with Main Tray)

Capacity Per Tray:

Top Tray: 100 Sheets (Letter)



Main Tray: 250 Sheets (Letter)

Paper Size:

Statement to Ledger

Staple Position:

None

Finisher-L1(Optional)



Acceptable Paper Weight:

17 lb. to 32 lb. Bond

Number of Trays:

One Tray

Tray Capacity:

Non-collate/CollateMode



300 Sheets (Letter)



Staple Mode



30 Sets (Letter)

Staple Position/Capacity:

Top Corner/15 Sheets

Printer Board-N1(Optional)



Type:

Embedded Print/Network Controller

Processor:

Power PC405 200MHz RISC Processor

Memory:

Standard 8MB (72MB Max.)

Storage:

Optional 10GB HDD

PDL Support:

PCL 5e, PCL 6, PostScript® 3TM (PS-ModuleB1)

Internal Fonts:

PCL 5e/6: 80 Roman Fonts, 32 Bar-codeFonts

Interface Connections:

Parallel (IEEE 1284)



USB



Optional RJ-45(10/100Base-T)



(Compatibility: Nibble, Byte, and ECP mode)

Other Features:

Access to Full Finishing Features



Remote UI Supported



NetSpot® Supported



Spooling Supported

Ethernet Network Interface Adaptor iN-E5

CPU:

ETRAX 100LX (32-bitRISC CPU 100MHz)

Memory (RAM):

4MB

Storage (ROM):

2MB (Flash)

SDRAM:

128 Kbps

Network I/F:

10Base-T,100Base-TX(RJ-45)

Printer I/F:

EPS10 v. 1.00

Network OS:

Novell® NetWare® v.3.2, 4.1, 4.2, 4.11, 5.0, 5.1



(IPX/SPXTM)



Windows® 95/98/Me (TCP/IP)



Windows NT® 4.0, 2000, Windows XP (TCP/IP)



Mac OS 7.5 or Later (DDP)



SolarisTM 1.1.x, 2.5 or Later (TCP/IP)

Protocol Stacks:

IPX/SPX: 802.2, 802.3,



Ethernet II, 802.2 SNAP,



Canon NDPS Gateway,

TCP/IP, SMB,

AppleTalk:® 802.2 SNAP and

AppleTalk Phase II Only

Other Accessories

PS Module-B1

32MB Expansion Memory for Main Unit

32MB Expansion Memory for Printer Board-N1

64MB Expansion Memory for Printer Board-N1

10GB Hard Disk HD-65for PrinterBoard-N1

FlashTM ROMModule-FR-65

FL Cassette-W1

Large Cabinet

Small Cabinet

Card Reader-E1

Basic Card Set***

Copy Card Set 1

Copy Card Set 2

Copy Card Set 3

Braille Label Kit-A1

Supplies/Consumables

Staple-K1(forFinisher-L1)

Transparency Type E

Black Toner

Drum Unit

*Standard configuration of imageRUNNER 2000 shown;

the imageRUNNER 1600 ships standard with one paper cassette.

**Optional on the imageRUNNER 1600

***Copy Card Set 1 is included in Basic Card Set

Optional on the imageRUNNER 2000

As an ENERGY STAR® Partner, Canon U.S.A., Inc. has determined that these products meet the ENERGY STAR® guidelines for energy efficiency. ENERGY STAR and the ENERGY STAR certification mark are registered U.S. marks. PostScript is a registered trademark of Adobe Systems Incorporated in the United States and/or other countries. Novell and NetWare are registered trademarks of Novell, Inc. in the United States and other countries. IPX/SPX is a trademark of Novell, Inc. Windows and Windows NT are registered trademarks of Microsoft Corporation in the United States and/or other countries. Solaris is a trademark of Sun Microsystems, Inc. in the United States and other countries. AppleTalk is a registered trademark of Apple Computer, Inc. Flash is a trademark of Macromedia, Inc. in the United States and/or other countries. Canon, Canon Know How, and NetSpot are registered trademarks, and the GENUINE logo is a trademark of Canon Inc. IMAGERUNNER is a registered trademark of Canon Inc. in the U.S. and Canada. Remote UI is a trademark and IMAGEANYWARE is a service mark of Canon U.S.A., Inc. All other terms and product names may be trademarks or registered trademarks of their respective owners and are hereby acknowledged.

Specifications subject to change without notice.

0043W985

0404-iR1600/2000-10M

Eprinted on recycled paper in the u.s.a.

®

1-800-OK-CANONwww.usa.canon.com

Canon U.S.A., Inc.

One Canon Plaza

Lake Success, NY 11042

Money Isn’t All You’re Saving
