Welltech SIP PHONE LP101, SIP PHONE LP201 User Manual

SII

S

P--

P

P

P

hoo

h

nee

n

Usseerr

U

Maa

M

n

uaall

n

u

Chapter 1 Overview of the SIP-Phone................................................................................. 4

1. Hardware Overview .................................................................................................. 5

1.Front View and Keypad function......................................................................... 5

2.Back View........................................................................................................... 9

3.Specification of connector................................................................................... 9

2. Software Features and Specification ...................................................................... 11

3. Physical specification & Environment ..................................................................... 13

Chapter 2 Configuring the SIP-Phone through LCD Phone menus................................. 14

1. Initialize SIP-Phone ................................................................................................ 14

2. LCD Menu Configuration ........................................................................................ 16

Chapter 3 Configuring the SIP-Phone through Web Pages............................................... 22

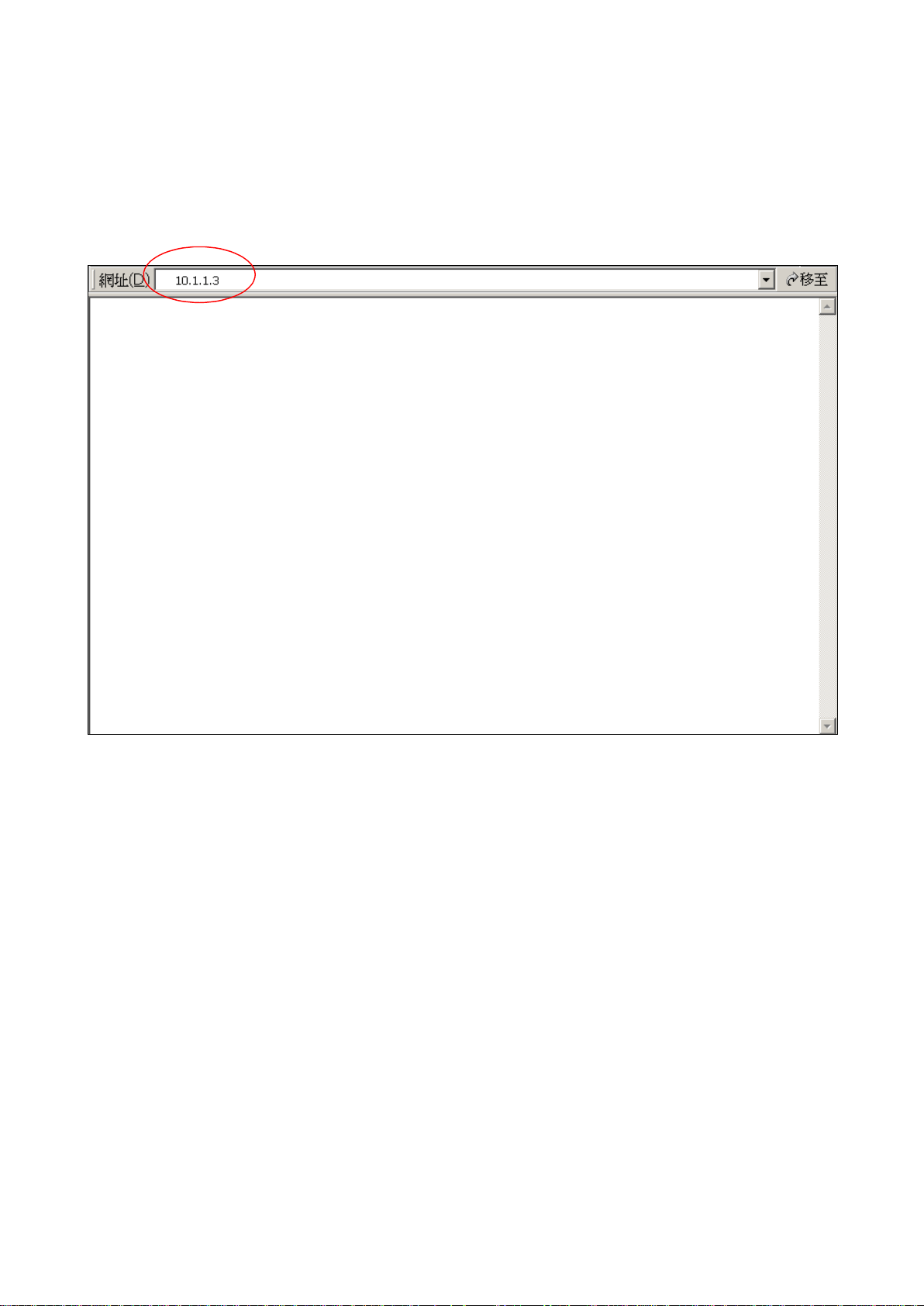

Step 1. Browse the IP Address predefined via Keypad............................................... 23

Step 2. Input the login name and password................................................................ 24

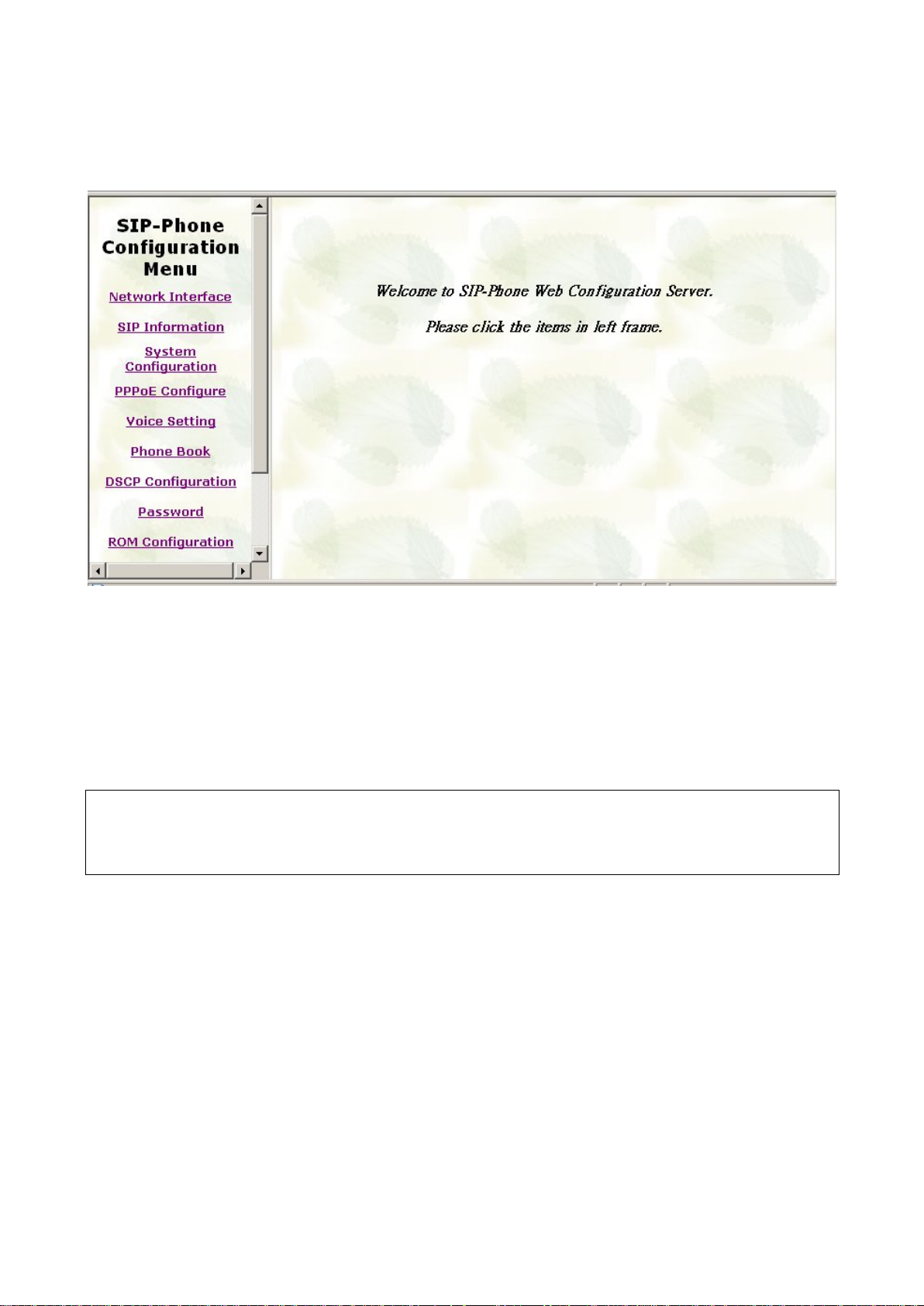

Step 3. Enter the web interface main screen .............................................................. 25

Step 4. Start to configure ............................................................................................ 25

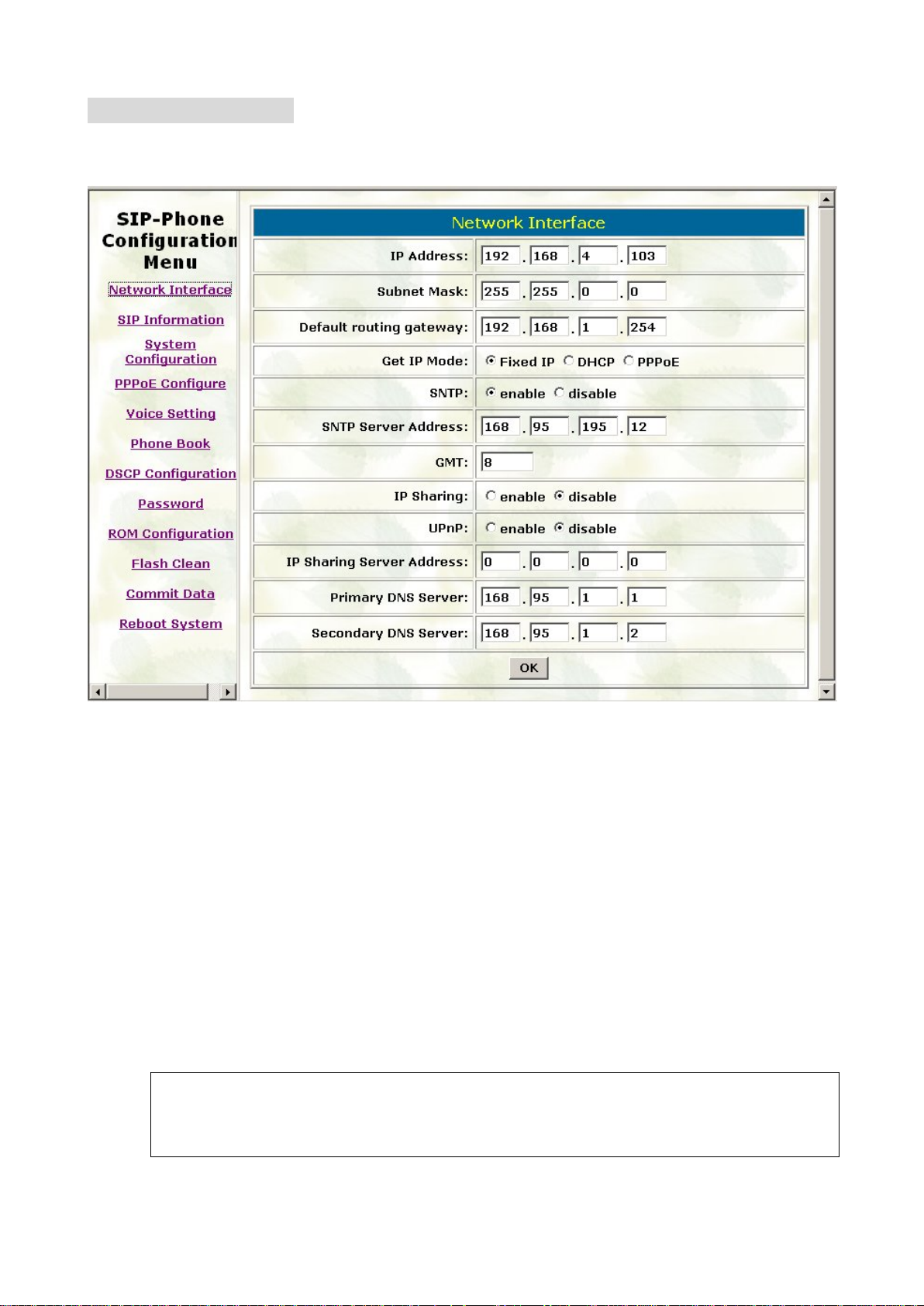

1. Network Interface ............................................................................................ 26

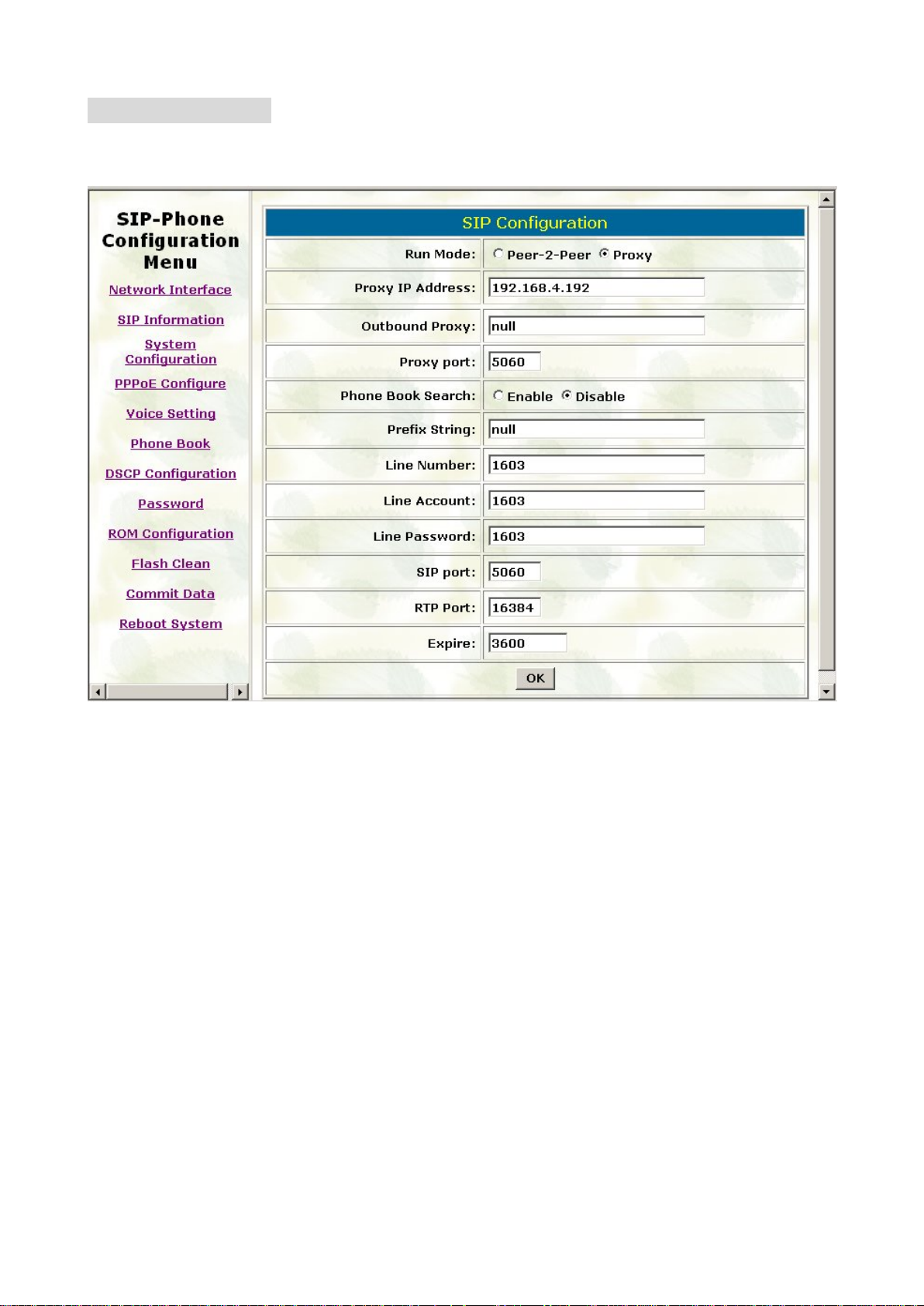

2. SIP Information................................................................................................ 29

3. System Configuration ...................................................................................... 31

4. PPPoE Configure ............................................................................................ 32

5. Voice Setting.................................................................................................... 33

6. Phone Book..................................................................................................... 34

7. DSCP Configure .............................................................................................. 35

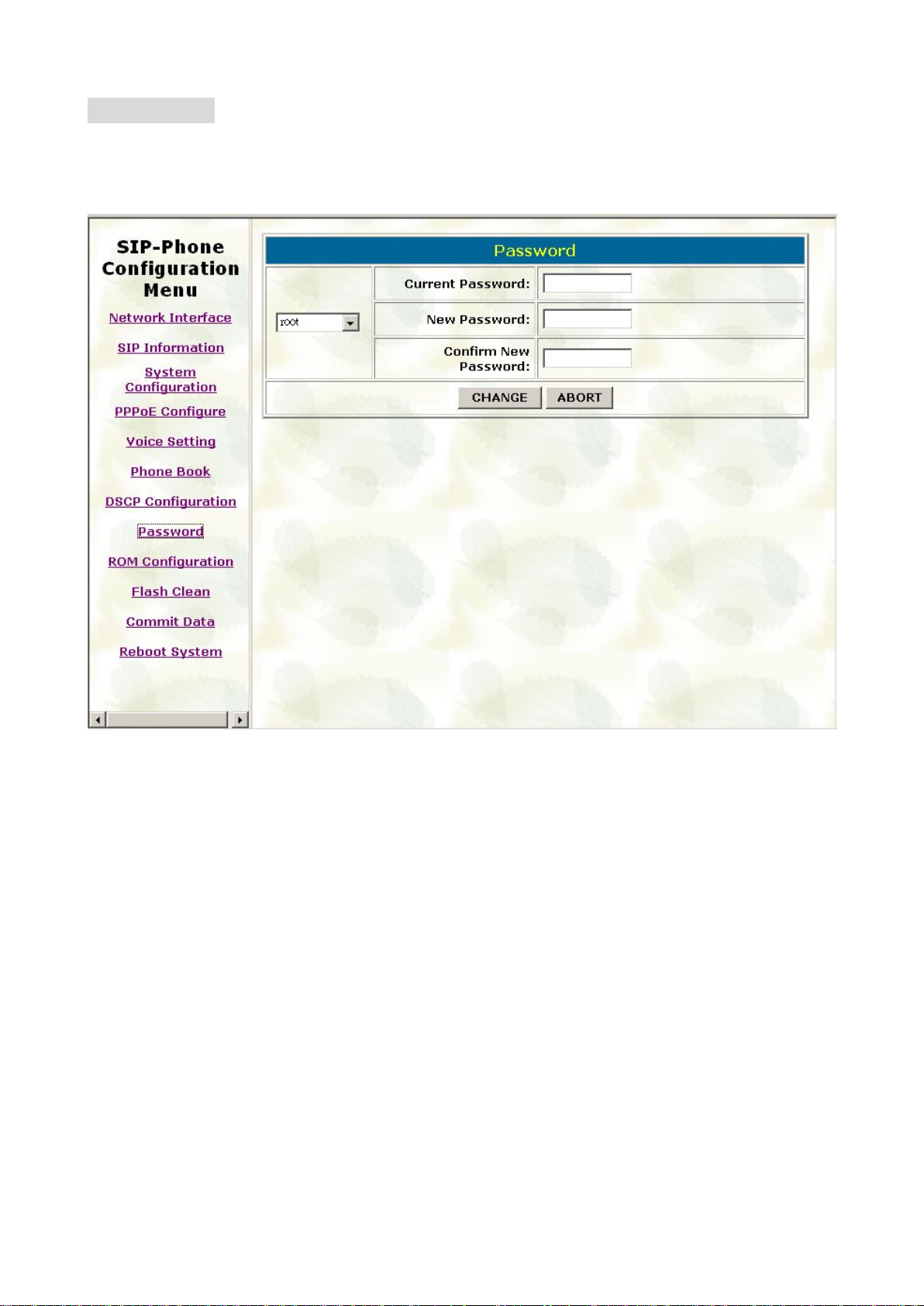

8. Password......................................................................................................... 37

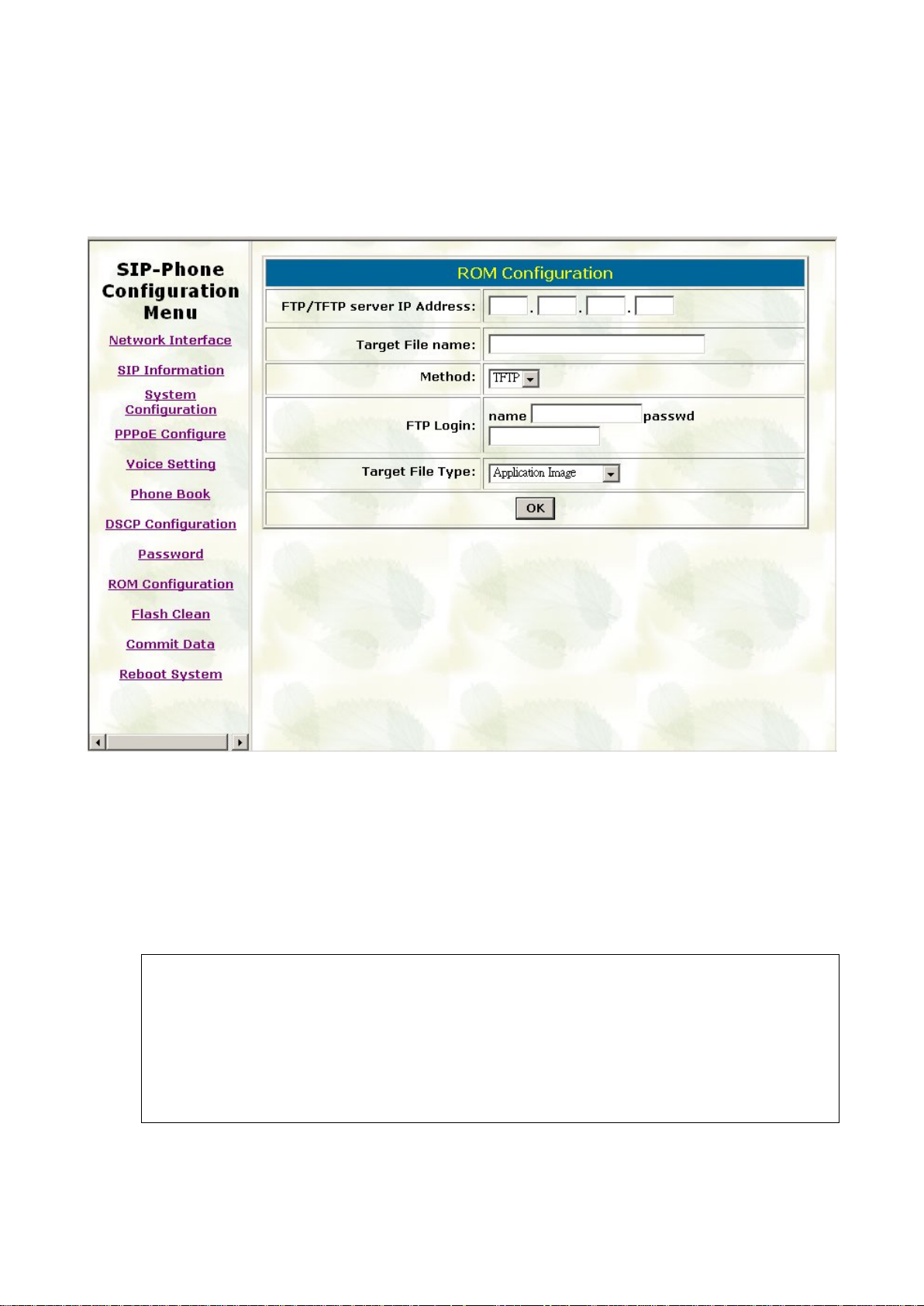

9. Rom Configuration........................................................................................... 38

10. Flash Clean ................................................................................................... 39

11. Reboot System .............................................................................................. 40

Chapter 4 Configuring the SIP-Phone through Telnet command lines............................... 41

1. [help] command ...................................................................................................... 41

2. [quit] command ....................................................................................................... 42

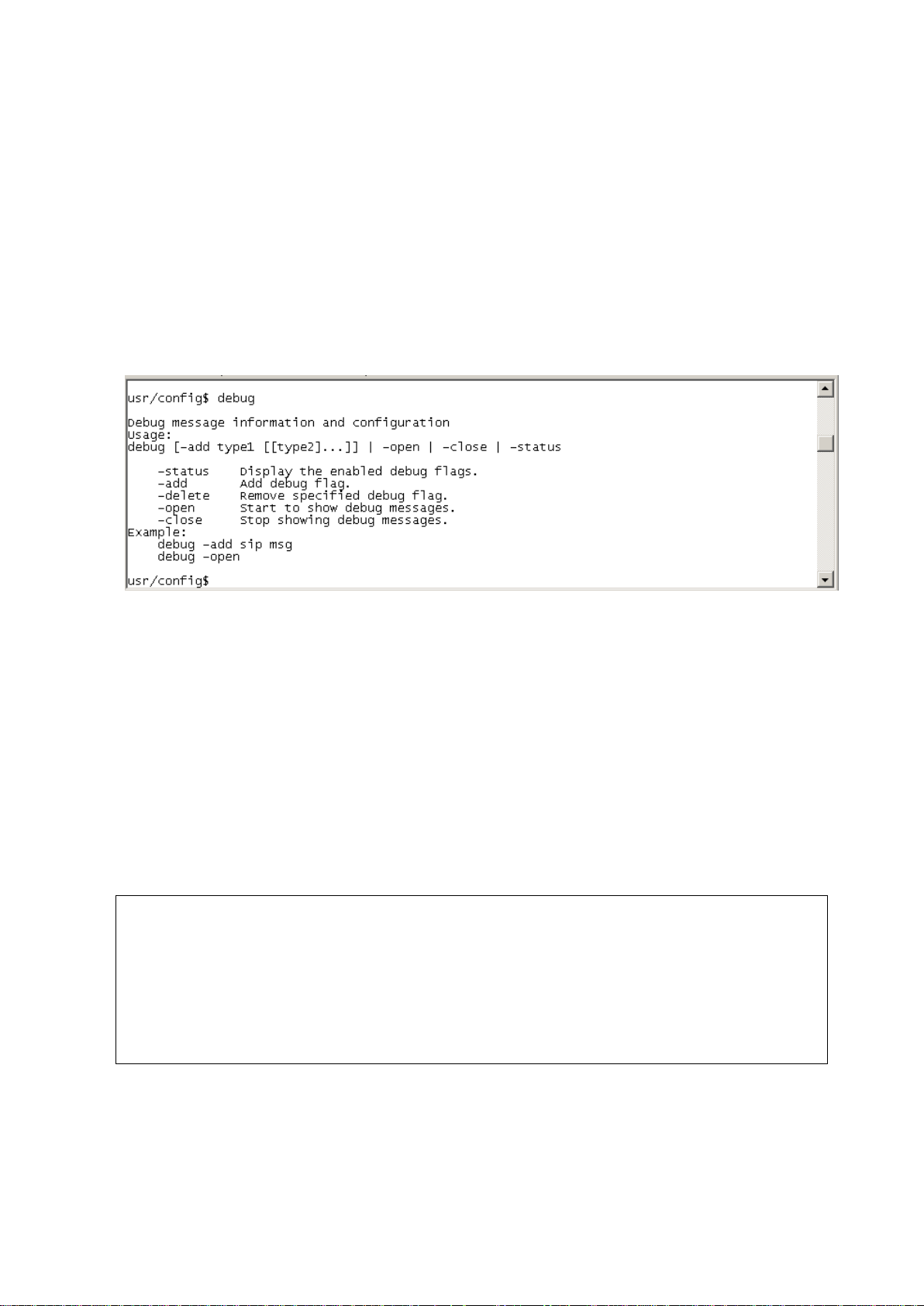

3. [debug] command................................................................................................... 42

4. [reboot] command................................................................................................... 42

5. [flash] command ..................................................................................................... 42

6. [commit] command ................................................................................................. 43

7. [ifaddr] command.................................................................................................... 43

8. [time] command ...................................................................................................... 44

9. [ping] command ...................................................................................................... 44

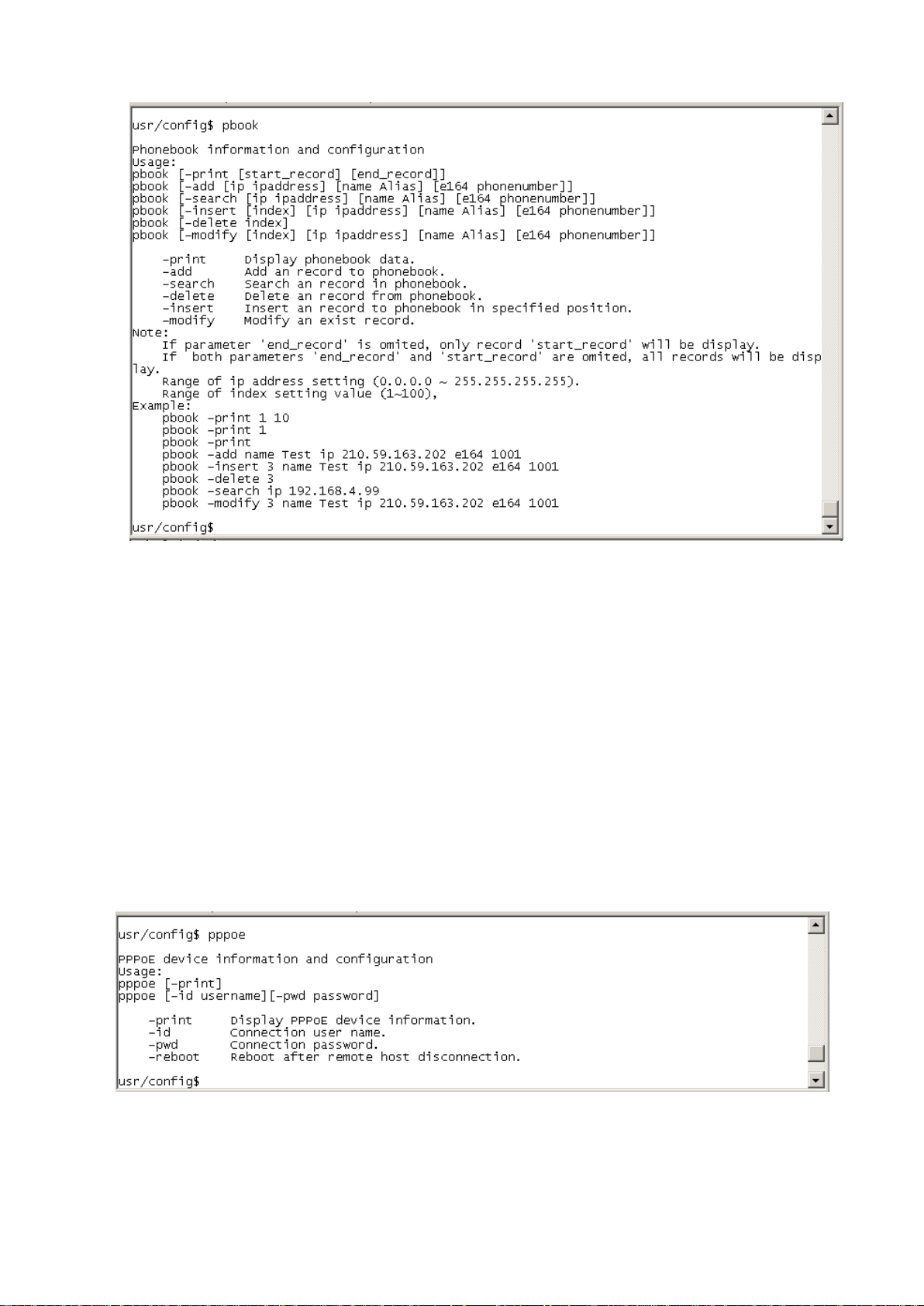

10. [pbook] command ................................................................................................. 45

11. [pppoe] command ................................................................................................. 46

1

SIP SIP-Phone Administration Guide

12. [sysconf] command............................................................................................... 47

13. [sip] command ...................................................................................................... 47

14. [security] command............................................................................................... 49

15. [voice] command................................................................................................... 49

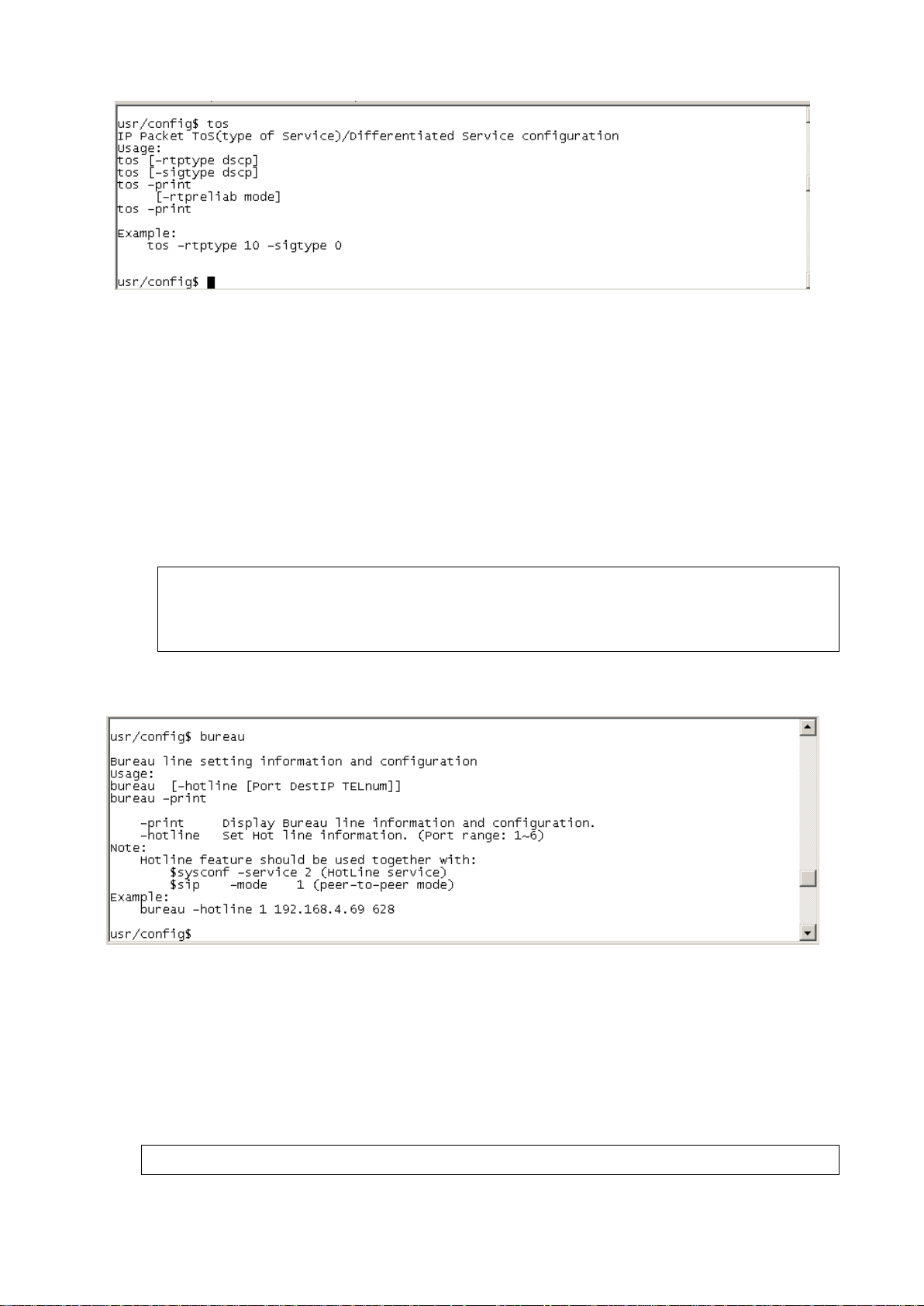

16. [tos] command ...................................................................................................... 50

17. [bureau] command................................................................................................ 52

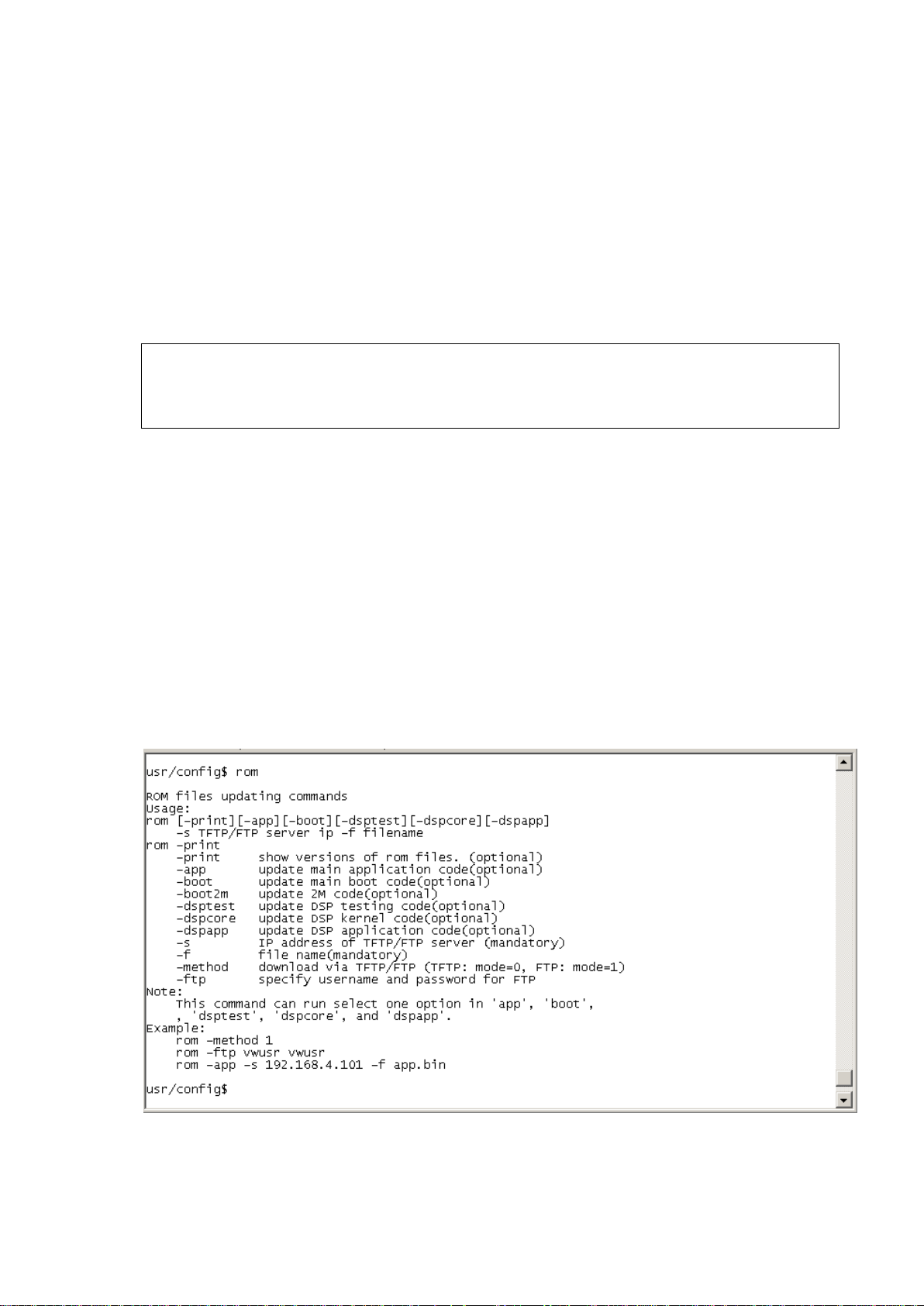

18. [rom] command..................................................................................................... 52

19. [passwd] command............................................................................................... 54

Chapter 5 Upgrading Software on the SIP-Phone ............................................................. 55

1.From LCD Phone Menu........................................................................................... 55

2. Web Management .................................................................................................. 56

3. Remote Control: Telnet ........................................................................................... 57

2

SIP SIP-Phone Administration Guide

First released for software

For first formal released

Revision History

Version Date Author Software Version Note

LP_SIP_100 2004/03 Sabrina For test version

only.

LP_SIP_100a 2004/04/07 Sabrina lp101/201sip.100

test version.

software.

SIP SIP-Phone Administration Guide

3

Chapter 1 Overview of the SIP-Phone

SIP-Phone is a full-featured IP-based telephone set via Ethernet base communication.
Over the office LAN connection, it provides IP-PBX solution such as station-to-station call,
IP call and local PSTN/PBX Extension call via PSTN Gateway.

SIP-Phone provides two 10/100BaseT switch/hub RJ-45 ports allow connecting to office
LAN and PC simultaneously. It is compatible with ADSL or Cable Modem provided by ITSP,
ISP or Carrier Company to provide VoIP services to residential and SOHO application.
SIP-Phone is also an integrated Analog Phone provides IP call or PSTN call selection.
When external power is down, it can be a Plain Old Telephone set (POTs).

It provides internal high-quality speakerphone, programmable keys and feature buttons.
SIP-Phone also embedded with a dot matrix of two lines 24 characters LCD, which can
display date and time, calling party name, calling party number, and digits dialed and etc.

4

SIP SIP-Phone Administration Guide

Note:

(**): May be not available right now, please contact with your distributor.

1. Hardware Overview

1.Front View and Keypad function

 LCD: 2 lines, 24 character Dot Matrix display.
 C: Jump out current LCD menu.

  : Move to previous selection or clear previous data.
  : Move to right or next selection.

 OK: Press OK to confirm the modification.
 Direct Line (DL) Button 1 – 10: User press DL button after off-hook to do speed dial

5

SIP SIP-Phone Administration Guide

according to phone book data from 1-10 (please refer to LCD configuration-3.Phone
Book; Advanced Configurations via Telnet- 10.[pbook] command, or Web

Configuration-Phone Book chapter.

 Number 1 –10, * and #: The function is the same as the general phone set.

Corresponding list of keypad and symbol:

(1) Character mode:

1 “1”
2 “A” ; “ B” ; “C” ; “2”
3 “D” ; “E” ; “F” ; “3”
4 “G” ; “H” ; “I” ; “4”
5 “J” ; “K” ; “L” ; “5”
6 “M” ; “N” ; “O” ; “6”
7 “P” ; “Q” ; “R” ; “S” ; “7”
8 “T” ; “U” ; “V” ; “8”
9 “W” ; “X” ; “Y” ; “Z” ; “9”

* “.” ; “@” ; “_” ; ”-“ ; “,” ; “!” ; “?” ; “*” ; “’” ; “+” ; “$” ; “*”
0 “Space” ; “0”
# “#”

(2) Digit mode:

1 “1”
2 “2”
3 “3”
4 “4”
5 “5”
6 “6”
7 “7”
8 “8”
9 “9”

* “.”
0 “0”
#

 MUTE: Mute the voice of MIC and let others can’t hear from user in communication.
 PSTN: Press PSTN to switch SIP-Phone as PSTN or IP Phone Mode. In PSTN mode,

“PSTN” characters will be displayed on LCD left bottom side, then users can dial out as

6

SIP SIP-Phone Administration Guide

Phone has both IP and

If in communication with IP side, user can press HOLD to hold IP side, then press PSTN

If in communication with PSTN side, user must hang up PSTN side before pick up IP

If A press TRANSFER and number, press TRANSFER again can cancel

if standard telephone set in PSTN; in IP Phone mode, “PROXY ” characters will be
displayed on LCD left bottom side.

Note:

1. When SIP-Phone is in PSTN mode, only PSTN and SPEAKER function key can work.

2. On LCD will display ”…Incoming Call... ” to inform user when SIP­PSTN side incoming calls.

3.
to pick up PSTN side, after that can press HOLD again to retrieve IP side.

4.
side.

 HOLD: To hold a call, after press HOLD button, both sides will hear hold tone.
 SPEED:

1. Press SPEED and number (Phone book index) after off-hook can do speed dial
according to phone book data (please refer to 3.LCD configuration-6. Phone Book
or Advanced Configurations via 4.Telnet- 10.[pbook] command).

2. Switch input mode between character mode or digit mode, e.g., when user wants to
input phone number can press SPEED to switch input mode as digit mode; when
user wants to input name can also press SPEED to switch input mode as character

mode.

 FORWARD: Forward an incoming call to another IP device. (Please refer to LCD

configuration-Forward Type) (**)

 MESSAGE and its indicated LED light: When having missed incoming calls, the

MESSAGE LED will be flashing. User can check the information of missed calls by
pressing the MESSAGE button. (**)

 TRANSFER:

1. Transfer a call to the third site. When A and B are in communication, A wants to

transfer this call to C, A can press TRANSFER button, now B will hear hold tone,

and A will hear dial tone, then A can press phone number of C, after C picks up, A
can talk with C, after A hangs up, B and C can be connected.

Note:

1. A cannot press phone number of C before hearing dial tone.

2.
transferring and retrieve call with B.

7

SIP SIP-Phone Administration Guide

If A press TRANSFER and number of C, C is ringing, press TRANSFER

3.
again C will return to standby mode and A can retrieve call with B.

4. Before C picks up, A cannot hangs up the phone.

2. Change characters to be capital or lowercase: when pressing TRANSFER before

press letters can switch input type of letters.

 REDIAL: Redial the last outgoing call.
 + And -: Adjust the voice volume heard of communication.
 SPEAKER: Hand free mode. User can talk without picking up handset.

Note:

All function keys mentioned above (except dialing keypad) are effective only in IP
Phone mode. (**)

8

SIP SIP-Phone Administration Guide

2.Back View

 DC 9V: DC 9V power input outlet
 LAN: RJ-45 connector, connected directly to the Hub through the straight CAT-5

cable.

 PC: RJ-45 connector, connected directly to the PC through the straight CAT-5 cable
 Line: RJ-11 connector, connected directly to the PSTN analog line.

Note:

There are two LED indicated lights: LINK/ACT and 10/100 for LAN port and PC port.
When network status is regular, LED of LINK/ACT will light on; when SIP-Phone is
transmitting or receiving data, LED will be flashing; when transmit rate is in 10 mbps or
100mbps, LED of 10/100 will light off or light on.

3.Specification of connector

1、 Ethernet Port：

Ethernet port is for connecting SIP-Phone to network, transmit rate supports 10/100
Base-T.

9

SIP SIP-Phone Administration Guide

Ethernet connector（LAN）

2、 RJ-11connector：

RJ-11 connector is for connecting SIP-Phone with PSTN.

RJ11connector

10

SIP SIP-Phone Administration Guide

2. Software Features and Specification

Application:

 ISP/ITSP (Internet Telephony Service Provider)
 IP-PBX with office telephony services
 Multi-nation enterprise communication
 SOHO Telephony

Calling Features

 Call Hold
 Call Transfer
 Call Forward (**)
 10 sets last number Redial
 Ten configurable speed dials

Network Supported

 Fixed IP
 Dynamic Host Configuration Protocol (DHCP)
 PPPoE connection (When PPPoE disconnect, SIP-Phone can automatically

re-connect)

 Behind NAT IP Sharing Device
 Support QOS by setting DSCP (Differentiated Service Code Point) parameters of VoIP

packet

 Support 802.1p1q (VLAN) (**)

Audio Features

 G.711 a/μ-Law, G.723.1, G.729, G.729a
 VAD, CNG
 G.165/G.168 compliant echo cancellation
 Programmable Dynamic Jitter Buffer
 Bad Frame Interpolation
 Gain/Attenuation Settings

11

SIP SIP-Phone Administration Guide

Provisioning and Configuration

 SIP (RFC3261) compliance
 LCD configuration password protection
 Provide Proxy Mode or Peer-to-Peer Mode (Non Proxy Server needed) selection
 Ring tone, Speaker and Handset volume adjustable
 Dial path selection (PSTN or IP mode)
 Support DNS server inquiry

Management Features:

 Software Upgrade: TFTP/FTP download
 Three easy ways for system configuration

- LCD Front Panel

- Web Browser

- TELNET

Certification

 CE, 3C

12

SIP SIP-Phone Administration Guide

3. Physical specification & Environment

Dimension:

 215mm(W) x 71mm(H) x 198mm(D)

Weight:

 834 grams (unit)

Power Supply:

 DC 9V output adaptor, AC 120Vac input

Operation Environment:

 Humidity: 10 to 90 % (Non-condensing)
 Operational Temperature: 0 to +40 C

Storage Environment:

 Humidity: 10 to 90 % (Non-condensing)
 Storage Temperature: -10 to +50 C

Analog Specification:

 2 wires (RJ-11) *1 (Voltage: -48V)

 AC Impedance 600Ω

13

SIP SIP-Phone Administration Guide

in the

2.3.4.5 first, then go to

Chapter 2 Configuring the SIP-Phone through LCD Phone
menus

Note:

1. After any configuration is made for the SIP-Phone , user has to do Reboot

selection 7 “Reboot”.

2. We suggest user to set IP address via LCD menu 5→

chapter 3 to do other detail configurations via web browser.

1. Initialize SIP-Phone

1. When power on the SIP-Phone , the LCD screen shows as below. Now SIP-Phone is
running Boot sector program.

IP-Phone

Board Start Booting

2. When SIP-Phone finishes boot program initialization. User can see flashing greeting
as below:

System Initializing…………..

3. Then SIP-Phone get into standby mode:

SIP-Phone

Proxy 10:10:10 AM

The main LCD screen would be shown as similar as above. “Proxy” means the
SIP-Phone is in Proxy Mode, and when SIP-Phone is connected to SNTP server, on
LCD will show current time captured from SNTP server.

4. When SIP-Phone is under peer-to-peer mode, on LCD will show “P2P” instead of
“Proxy”.

SIP SIP-Phone Administration Guide

SIP-Phone

P2P 10:10:10 AM

14

5. After pressing the PSTN button, the “Proxy” or “P2P” will be replaced by “PSTN”.

Please notice that user must plug PSTN line in RJ-11 port when SIP-Phone is in
PSTN mode. (**)

IP-Phone

PSTN 10:10:10 AM

6. Press  or  to enter configuration mode then press OK button to enter sub menus;

press C can jump out current menu to previous level.

1. Call List (**)

2. Forward Type

3. Phone Book

4. Ringer Settings

5. Network

6. Advanced Settings (protected by password)

7. Reboot

15

SIP SIP-Phone Administration Guide

2. LCD Menu Configuration

User can set the following configurations by LCD keypad.

Note:

1. Press TRANSFER before input data can switch characters to be capital or

lowercase.

2. Press SPEED before input data can switch input mode as character mode or
digit mode; for example, user wants to enter IP address, after pressing SPEED

can enter digits directly.

3. When user is inputting data, press C will jump out to menu list, press  will

clear previous input data.

1. Call List (**)

If there is an unanswered IP call, it will be kept in message box. MESSAGE LED will

be flashing until user press

MESSAGE to check miss call and re-press MESSAGE

to return to main screen.

(1) Missed Calls：to see all missed calls in message box.

(2) Received Calls：to see all received calls in message box.
(3) Dialed calls: to see all dialed calls in message box.

2. Forward Type (**)

There are 3 selections in Forward type, user must select under which condition to
forward calls.

(1) Busy

When SIP-Phone is in busy status, the incoming call will be
forwarded to the assigned phone number.

A. Activate

Enter a forwarded phone number to activate busy forward function.

B. Deactivate

Deactivate Busy Forward function.

(2) No Response

When SIP-Phone hasn’t been picked up for around 10 seconds, the
incoming call will be forwarded to the assigned phone number.

A. Activate

16

SIP SIP-Phone Administration Guide

Enter a forwarded phone number to activate no response forward
function.

B. Deactivate

Deactivate No Response Forward function.

(3) Unconditional

It is included the above two types. Whether the SIP-Phone is in
which status, calls will be automatically forwarded to the assigned
phone number.

A. Activate

Enter a forwarded phone number to activate Unconditional Forward
function.

B. Deactivate

Deactivate Unconditional Forward function.

3. Phone Book

1. List

List all records of name, telephone number, and IP address in the phone
address book.

2. Edit/Delete

Edit or delete a record of name, telephone number, and IP address of the
phone address book.

3. New

Add a new record of name, telephone number, and IP address of the phone
address book.

4. Ringer Settings

1. Volume

User can adjust ring volume by press  or  on the keypad to decrease or
increase ringer volume.

2. Style

There are three tone styles for SIP-Phone. Move the “>” symbol by press 

or  on the keypad to select the tone style preferred, then press OK to

confirm it.

17

SIP SIP-Phone Administration Guide
