Welltech LP-201 User Manual

SII

P--

hoo

nee

Usseerr

Maa

uaall

Chapter 1 Overview of the SIP-Phone________________________________________________ 4

1. Hardware Overview ________________________________________________________ 5

1.Front View and Keypad function __________________________________________ 5

2.Back View ____________________________________________________________ 9

3.Specification of connector _______________________________________________ 9

2. Software Features and Specification __________________________________________ 11

3. Physical specification & Environment_________________________________________ 13

Chapter 2 Configuring the SIP-Phone through LCD Phone menus_________________________ 14

1. Initialize SIP-Phone _______________________________________________________ 14

2. LCD Menu Configuration __________________________________________________ 16

Chapter 3 Configuring the SIP-Phone through Web Pages _______________________________ 22

Step 1. Browse the IP Address predefined via Keypad ______________________________ 23

Step 2. Input the login name and password _______________________________________ 24

Step 3. Enter the web interface main screen ______________________________________ 25

Step 4. Start to configure _____________________________________________________ 25

1. Network Interface ____________________________________________________ 26

2. SIP Information ______________________________________________________ 29

3. System Configuration _________________________________________________ 31

4. PPPoE Configure _____________________________________________________ 32

6. Phone Book _________________________________________________________ 34

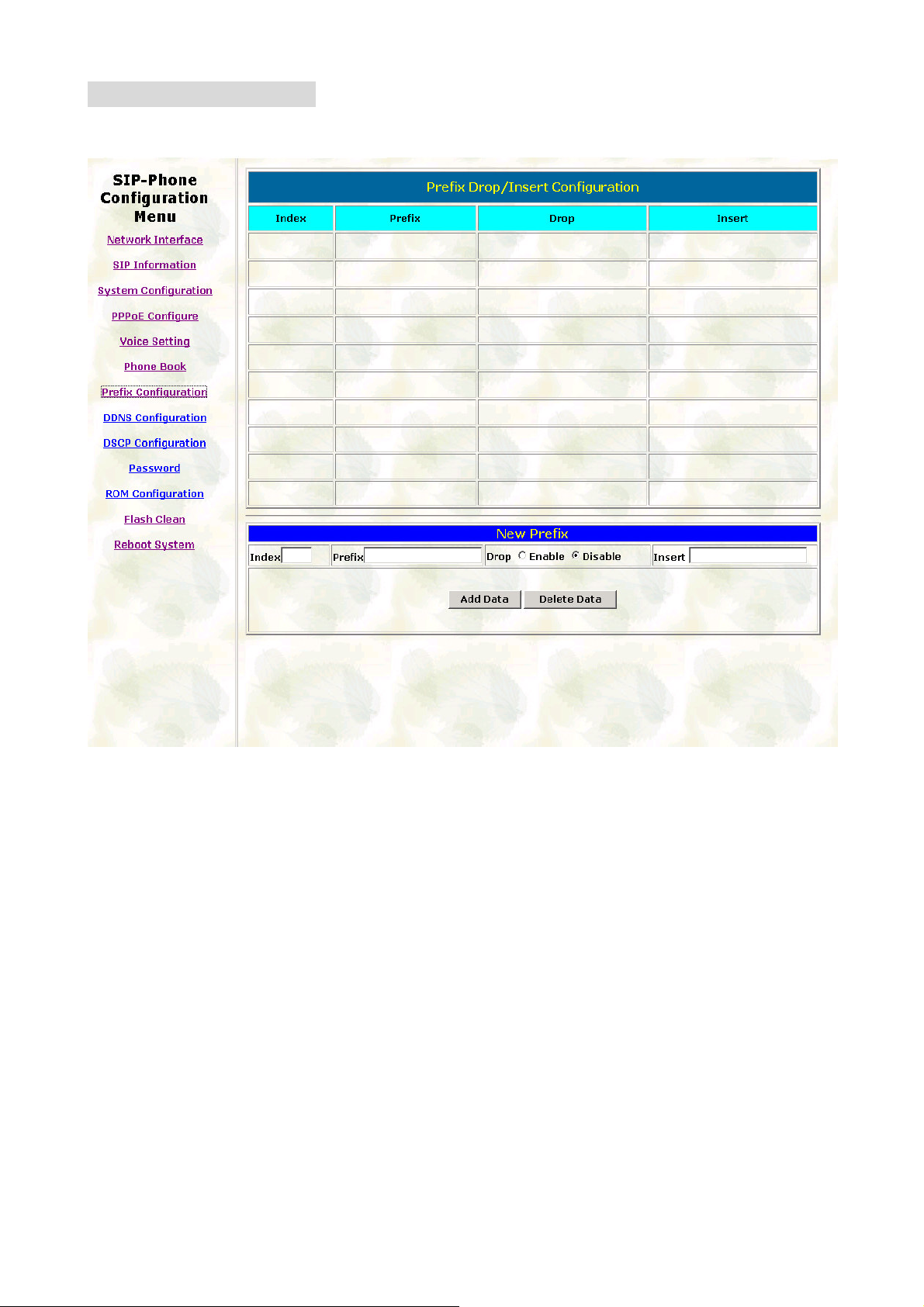

7.Prefix Configuration ___________________________________________________ 35

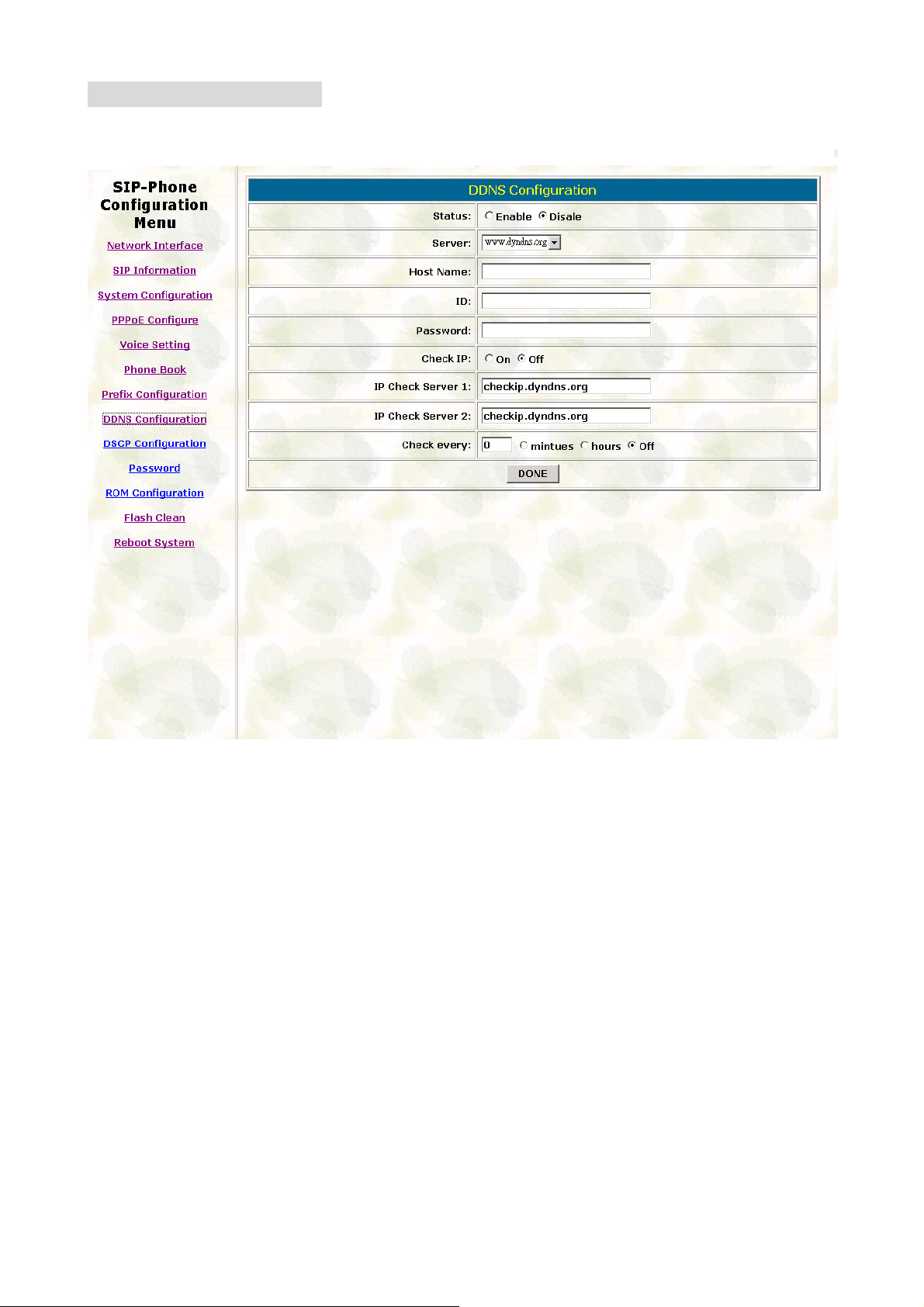

8. DDNS Configuration __________________________________________________ 36

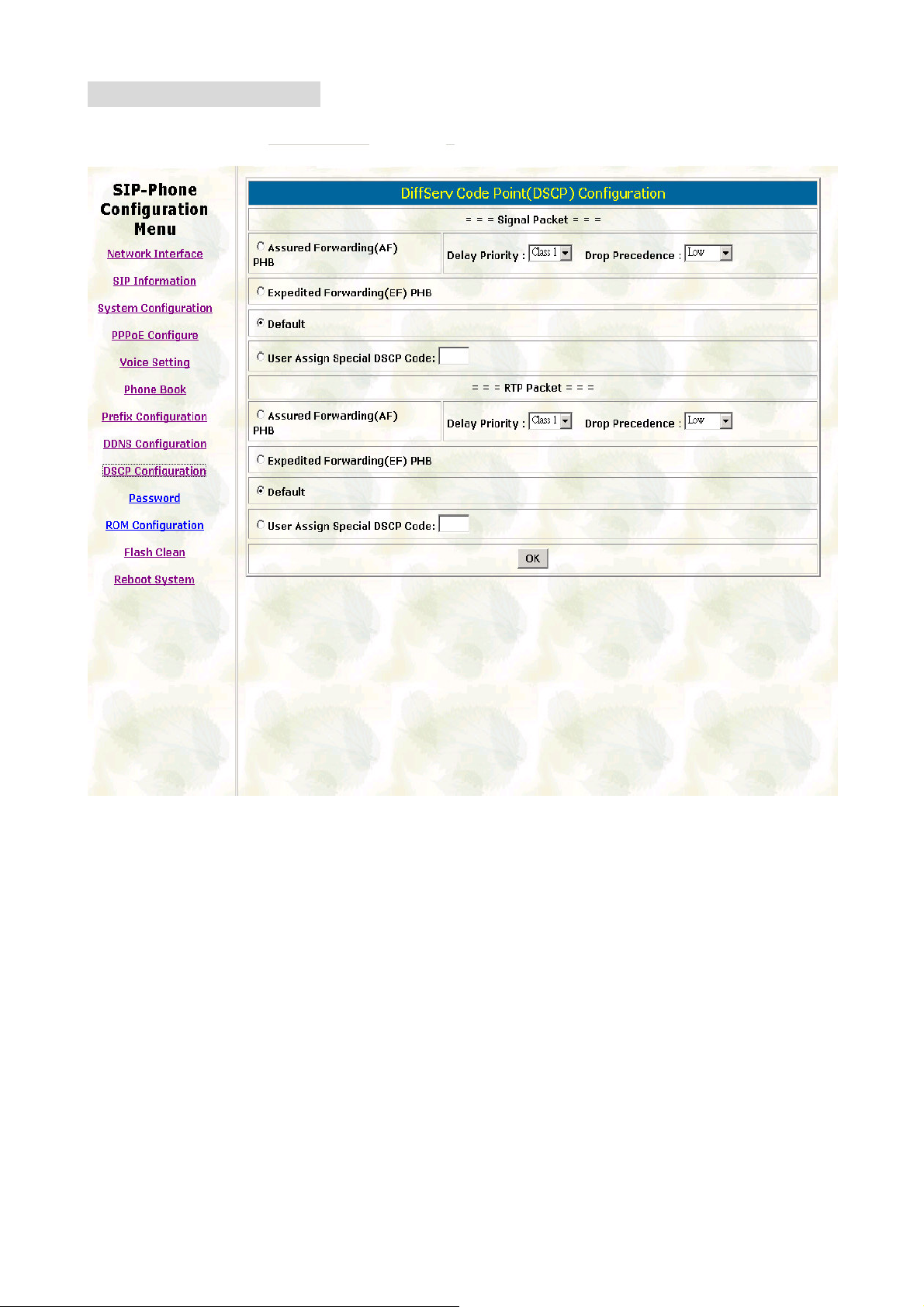

9. DSCP Configuration __________________________________________________ 37

10. Password __________________________________________________________ 39

11. Rom Configuration___________________________________________________ 40

12. Flash Clean_________________________________________________________ 41

13. Reboot System ______________________________________________________ 42

Chapter 4 Configuring the SIP-Phone through Telnet command lines ______________________ 43

1. [help] command __________________________________________________________ 43

2. [quit] command __________________________________________________________ 44

3. [debug] command ________________________________________________________ 44

4. [reboot] command ________________________________________________________ 44

5. [pbook] command ________________________________________________________ 44

6. [commit] command _______________________________________________________ 45

7. [ping] command __________________________________________________________ 46

8. [time] command __________________________________________________________ 46

9. [ifaddr] command_________________________________________________________ 46

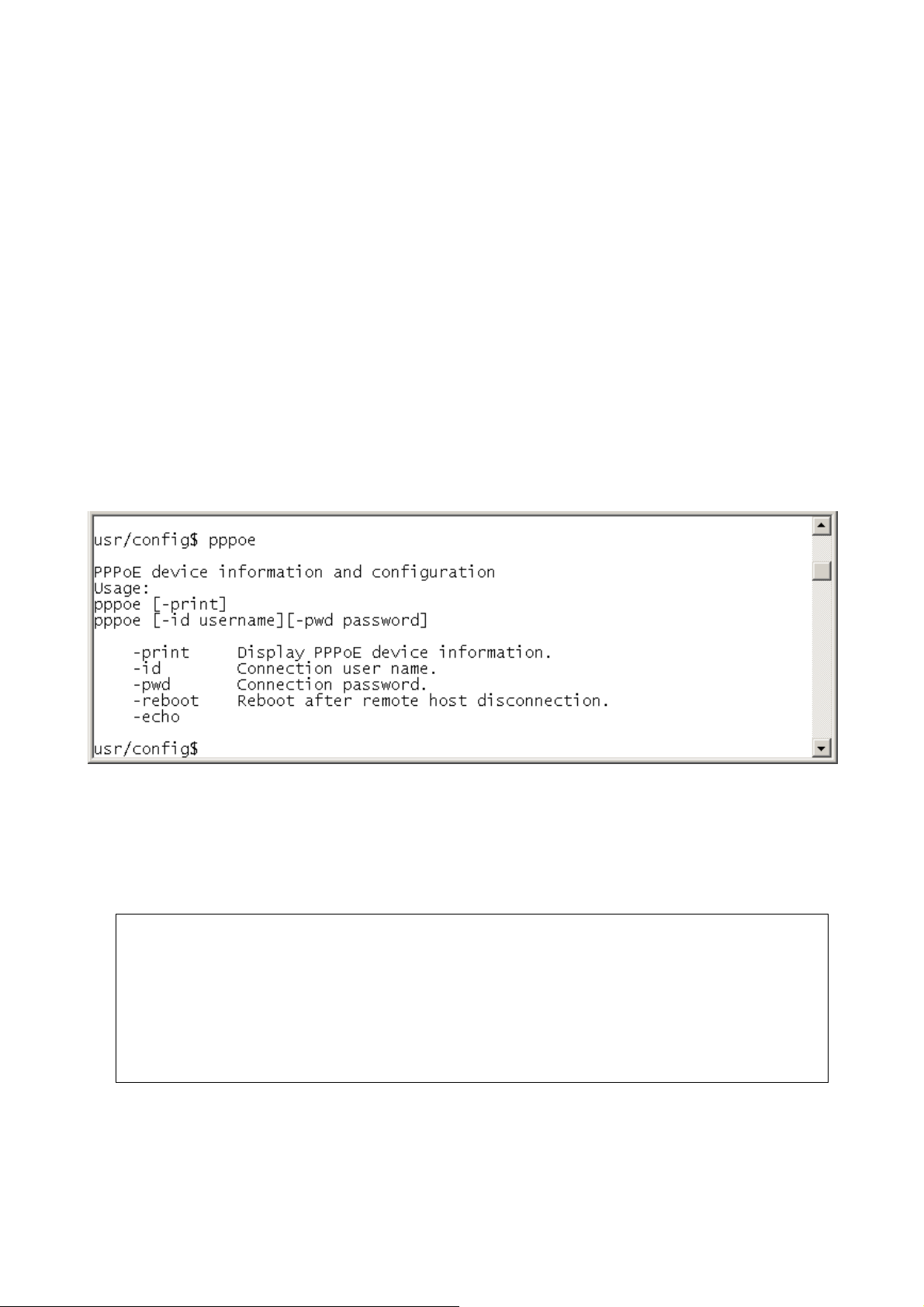

10. [pppoe] command _______________________________________________________ 48

SIP SIP-Phone Administration Guide

11. [flash] command_________________________________________________________ 48

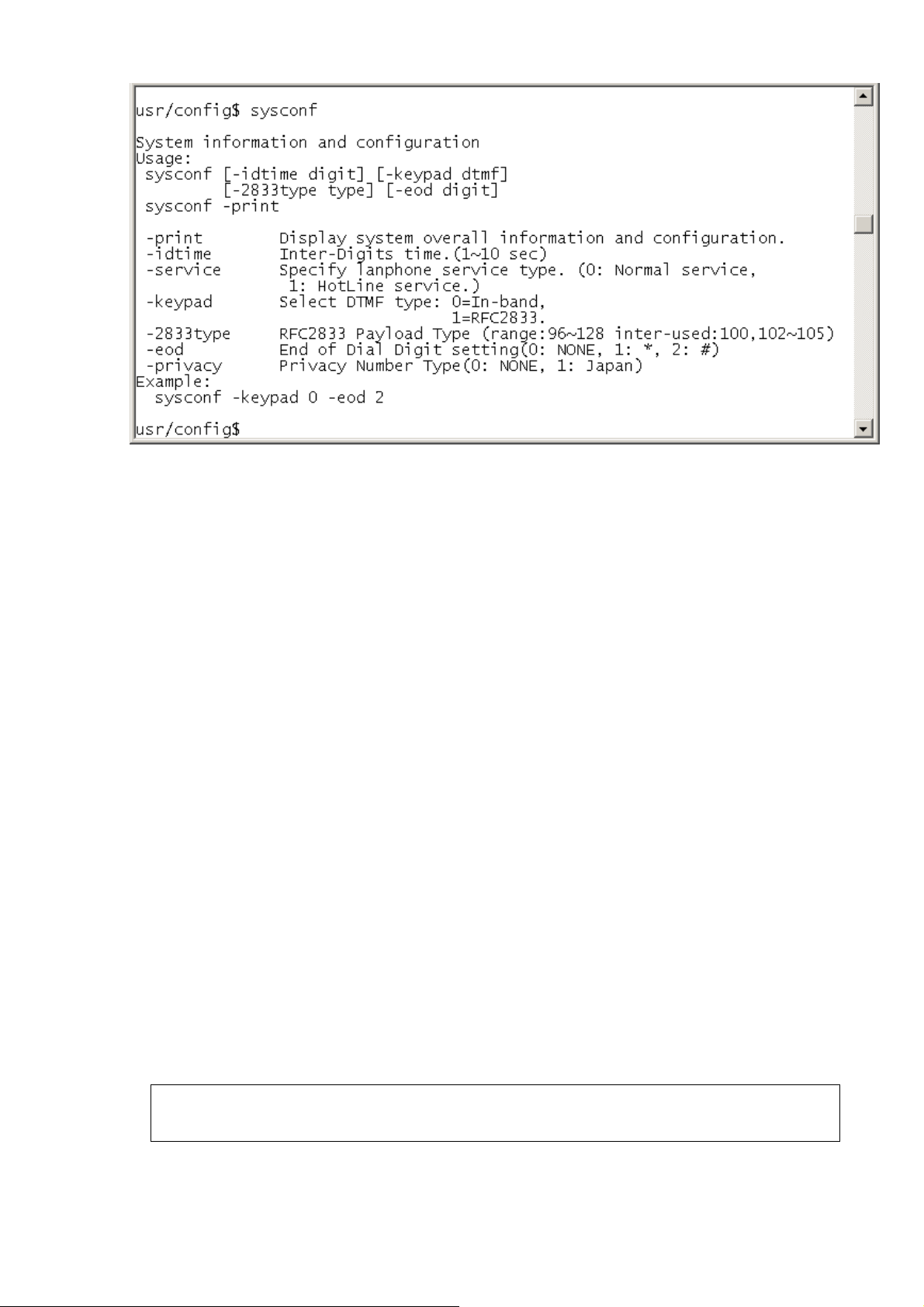

12. [sysconf] command ______________________________________________________ 49

13. [sip] command __________________________________________________________ 50

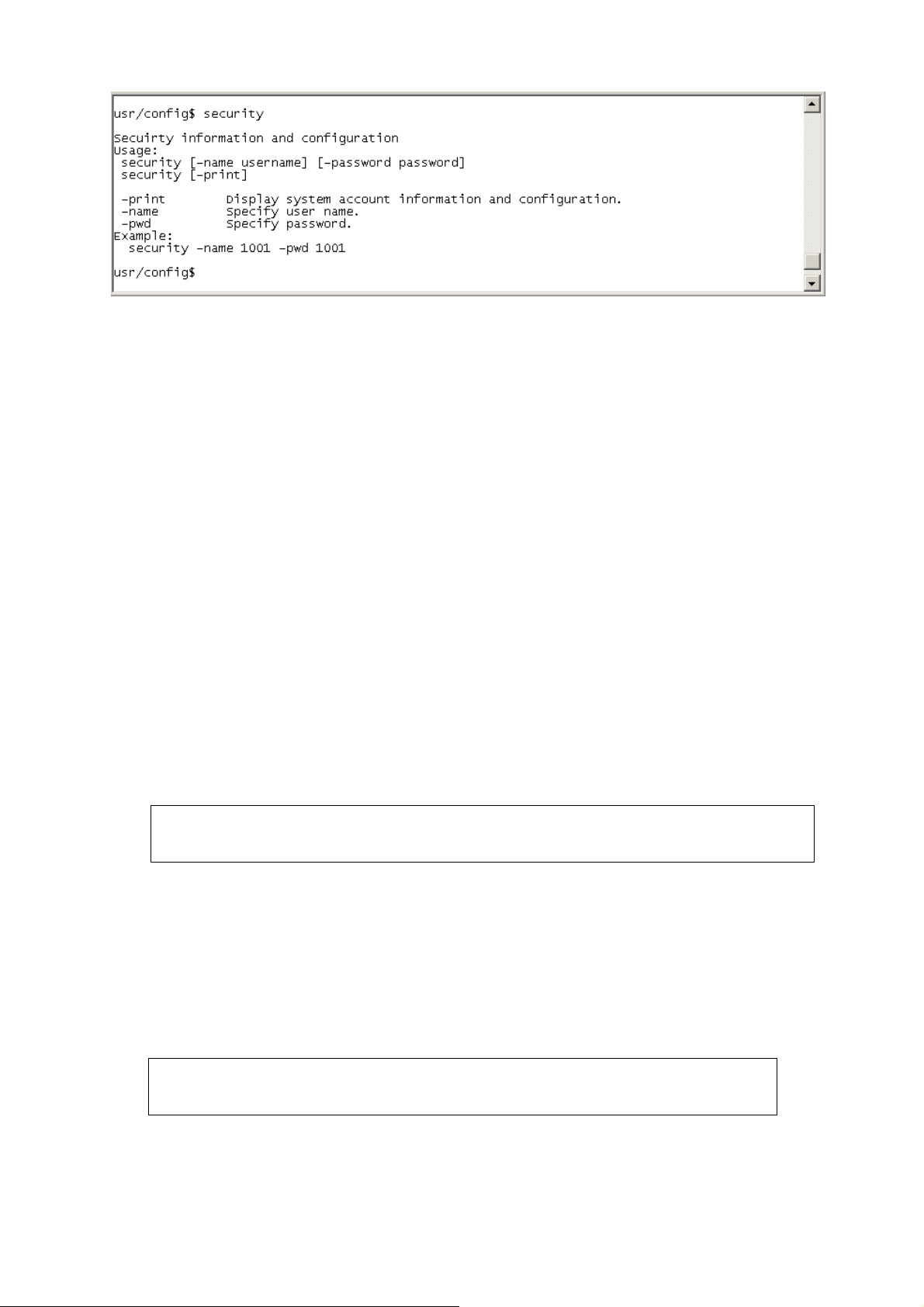

14. [security] command ______________________________________________________ 51

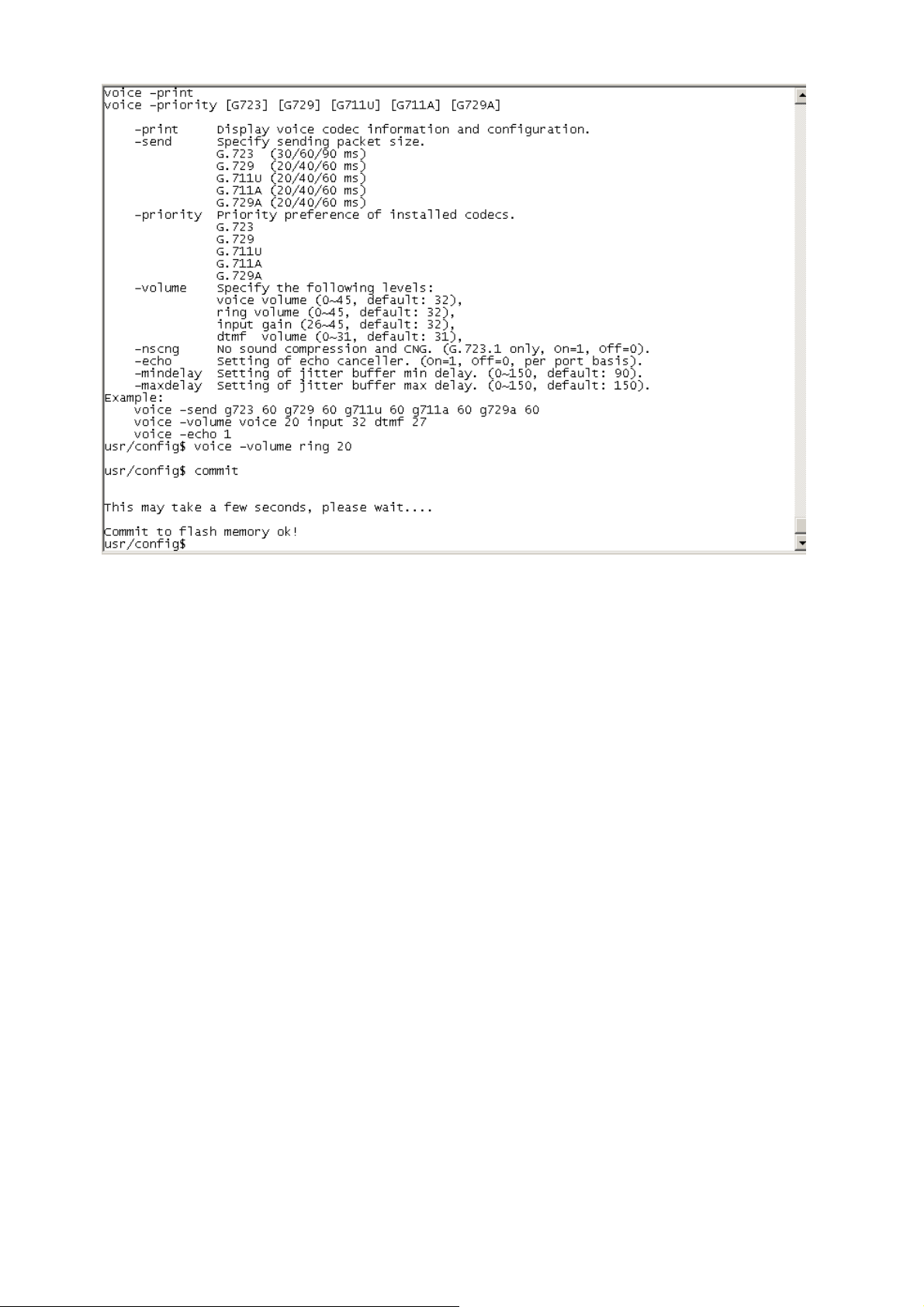

15. [voice] command ________________________________________________________ 52

16. [tos] command __________________________________________________________ 53

17. [ddns] command_________________________________________________________ 55

18. [vlan] command _________________________________________________________ 56

19. [bureau] command _______________________________________________________ 57

20. [prefix] command________________________________________________________ 58

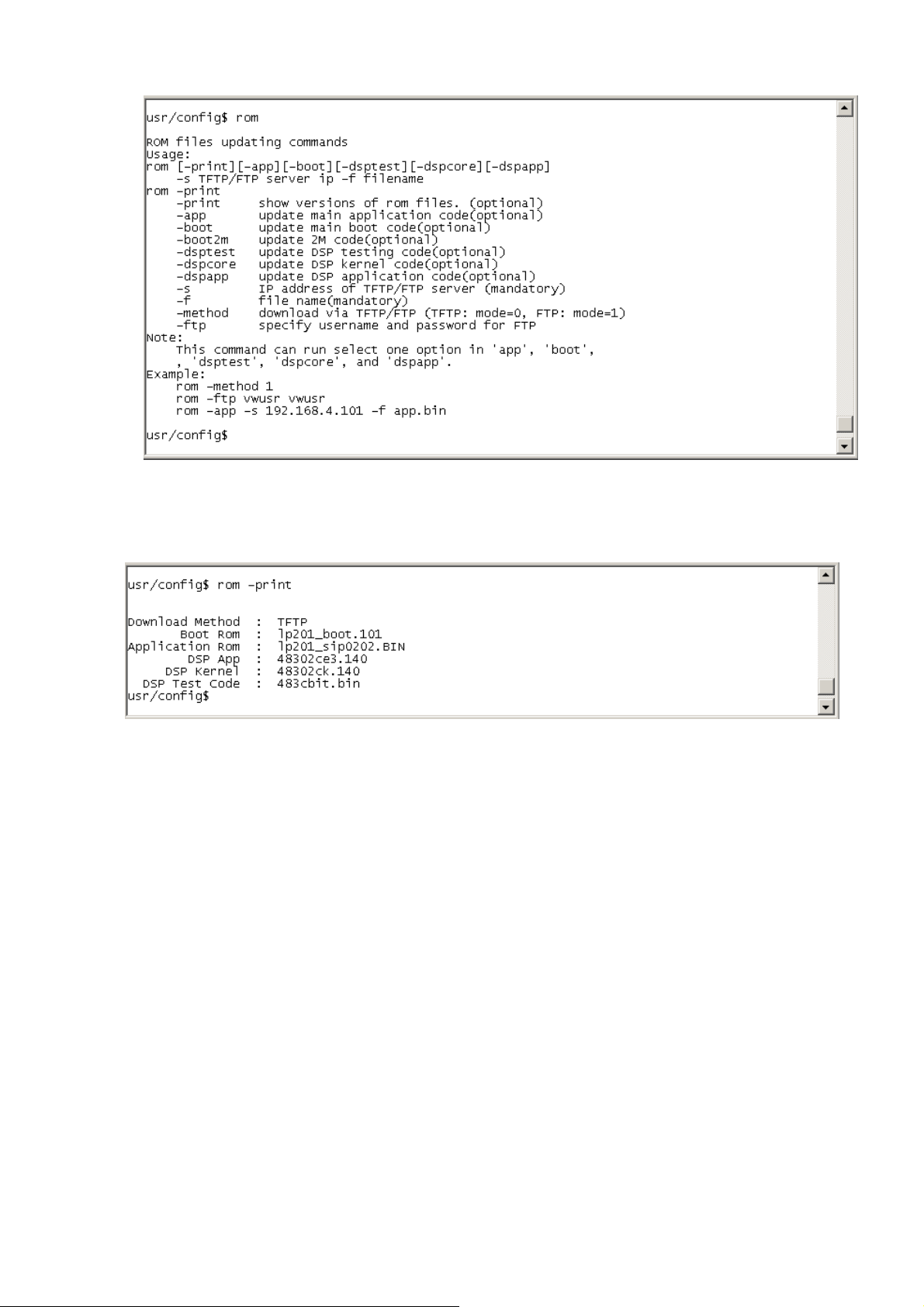

21. [rom] command _________________________________________________________ 58

22. [passwd] command ______________________________________________________ 59

Chapter 5 Upgrading Software on the SIP-Phone ______________________________________ 61

1.From LCD Phone Menu ____________________________________________________ 61

2. Web Management_________________________________________________________ 62

3. Remote Control: Telnet ____________________________________________________ 63

SIP SIP-Phone Administration Guide

First released for software

For first formal released

menu firmware

LCD interface can

upgrade new firmware

201 is under

P2P mode, it can show

Delete Session Expire

Revision History

Version Date Author Software Version

LP_SIP_100 2004/03 Sabrina For test version

only.

test version.

LP_SIP_100a 2004/04/07 Sabrina lp101/201sip.100

software.

LP_SIP_101 2004/12/1 Sabrina lp201sip.101 Modify:

1. Forward function

2. Call list function

3. LCD upgrading section.

4. Add DDNS function

5. Add VLAN function

LP_SIP_102 2005/3/10 Sabrina lp201sip.102 Modify:

1. PPPoE Echo

2. EMS

3. SIP-Info DTMF

4. 2 level access

Note

LP_SIP_103 2005/12/28

Jason lp201sip.104 Modify:

successfully.

2. When LP

SIP listen port.

3. Add secondary proxy.

function.

SIP SIP-Phone Administration Guide

Chapter 1 Overview of the SIP-Phone

SIP-Phone is a full-featured IP-based telephone set via Ethernet base communication. Over the office LAN connection, it provides IP-PBX solution such as station-to-station call, IP call and local PSTN/PBX Extension call via PSTN Gateway.

SIP-Phone provides two 10/100BaseT switch/hub RJ-45 ports allow connecting to office LAN and PC simultaneously. It is compatible with ADSL or Cable Modem provided by ITSP, ISP or Carrier Company to provide VoIP services to residential and SOHO application. SIP-Phone is also an integrated Analog Phone provides IP call or PSTN call selection. When external power is down, it can be a Plain Old Telephone set (POTs).

It provides internal high-quality speakerphone, programmable keys and feature buttons. SIP-Phone also embedded with a dot matrix of two lines 24 characters LCD, which can display date and time, calling party name, calling party number, and digits dialed and etc.

SIP SIP-Phone Administration Guide

1. Hardware Overview

1.Front View and Keypad function

♦ LCD: 2 lines, 24 character Dot Matrix display. ♦ C: Jump out current LCD menu. ♦  : Move to previous selection or clear previous data. ♦  : Move to right or next selection. ♦ OK: Press OK to confirm the modification. ♦ Direct Line (DL) Button 1 – 10: User press DL button after off-hook to do speed dial

according to phone book data from 1-10 (please refer to LCD configuration-3.Phone Book; Advanced Configurations via Telnet- 10.[pbook] command, or Web

Configuration-Phone Book chapter.

SIP SIP-Phone Administration Guide

♦ Number 1 –10, * and #: The function is the same as the general phone set.

Corresponding list of keypad and symbol:

(1) Character mode:

1 “1”

2 “A” ; “ B” ; “C” ; “2”

3 “D” ; “E” ; “F” ; “3”

4 “G” ; “H” ; “I” ; “4”

5 “J” ; “K” ; “L” ; “5”

6 “M” ; “N” ; “O” ; “6”

7 “P” ; “Q” ; “R” ; “S” ; “7”

8 “T” ; “U” ; “V” ; “8”

9 “W” ; “X” ; “Y” ; “Z” ; “9”

* “.” ; “@” ; “_” ; ”-“ ; “,” ; “!” ; “?” ; “*” ; “’” ; “+” ; “$” ; “*”

0 “Space” ; “0”

(2) Digit mode:

# “#”

1 “1”

2 “2”

3 “3”

4 “4”

5 “5”

6 “6”

7 “7”

8 “8”

9 “9”

* “.”

0 “0”

♦ MUTE: Mute the voice of MIC and let others can’t hear from user in communication. ♦ PSTN: Press PSTN to switch SIP-Phone as PSTN or IP Phone Mode. In PSTN mode,

“PSTN” characters will be displayed on LCD left bottom side, then users can dial out as if standard telephone set in PSTN; in IP Phone mode, “PROXY ” characters will be displayed on LCD left bottom side.

Note:

SIP SIP-Phone Administration Guide

Phone has both IP and

If in communication with PSTN side, user must hang up PSTN side before pick up IP

If A press TRANSFER and number, press TRANSFER again can cancel

ringing, press TRANSFER

1. When SIP-Phone is in PSTN mode, only PSTN and SPEAKER function key can work.

2. On LCD will display ”…Incoming Call... ” to inform user when SIPPSTN side incoming calls.

3. If in communication with IP side, user can press HOLD to hold IP side, then press PSTN to pick up PSTN side, after that can press HOLD again to retrieve IP side.

4. side.

♦ HOLD: To hold a call, after press HOLD button, both sides will hear hold tone. ♦ SPEED:

1. Press SPEED and number (Phone book index) after off-hook can do speed dial according to phone book data (please refer to 3.LCD configuration-6. Phone Book or Advanced Configurations via 4.Telnet- 10. [pbook] command).

2. Switch input mode between character mode or digit mode, e.g., when user wants to input phone number can press SPEED to switch input mode as digit mode; when user wants to input name can also press SPEED to switch input mode as character mode.

♦ FORWARD: Forward an incoming call to another IP device. (Please refer to LCD

configuration-Forward Type)

♦ MESSAGE and its indicated LED light: When having missed incoming calls, the

MESSAGE LED will be flashing. User can check the information of missed calls by pressing the MESSAGE button.

♦ TRANSFER:

1. Transfer a call to the third site. When A and B are in communication, A wants to

transfer this call to C, A can press TRANSFER button, now B will hear hold tone, and A will hear dial tone, then A can press phone number of C, after C picks up, A can talk with C, after A hangs up, B and C can be connected.

Note:

1. A cannot press phone number of C before hearing dial tone.

transferring and retrieve call with B.

3. If A press TRANSFER and number of C, C is

again C will return to standby mode and A can retrieve call with B.

4. Before C picks up, A cannot hangs up the phone.

2. Change characters to be capital or lowercase: when pressing TRANSFER before

SIP SIP-Phone Administration Guide

press letters can switch input type of letters.

♦ REDIAL: Redial the last outgoing call. ♦ + And -: Adjust the voice volume heard of communication. ♦ SPEAKER: Hand free mode. User can talk without picking up handset.

Note:

1. All function keys mentioned above (except dialing keypad) are effective only in IP Phone mode.

2. When SIP Phone fail to register to Proxy server under Proxy mode, when user wants to dial out, SIP Phone will play busy tone, and on LCD will display “Register Failed.”

SIP SIP-Phone Administration Guide

2.Back View

♦ DC 9V: DC 9V power input outlet ♦ LAN: RJ-45 connector, connected directly to the Hub through the straight CAT-5

cable.

♦ PC: RJ-45 connector, connected directly to the PC through the straight CAT-5 cable ♦ Line: RJ-11 connector, connected directly to the PSTN analog line.

Note: There are two LED indicated lights: LINK/ACT and 10/100 for LAN port and PC port. When network status is regular, LED of LINK/ACT will light on; when SIP-Phone is transmitting or receiving data, LED will be flashing; when transmit rate is in 10 mbps or 100mbps, LED of 10/100 will light off or light on.

3.Specification of connector

1、 Ethernet Port：

Ethernet port is for connecting SIP-Phone to network, transmit rate supports 10/100 Base-T.

Ethernet connector（LAN）

2、 RJ-11connector：

SIP SIP-Phone Administration Guide

RJ-11 connector is for connecting SIP-Phone with PSTN.

RJ11connector

SIP SIP-Phone Administration Guide

2. Software Features and Specification

Application:

 ISP/ITSP (Internet Telephony Service Provider)  IP-PBX with office telephony services  Multi-nation enterprise communication  SOHO Telephony

Calling Features

 Call Hold  Call Transfer  Call Forward  10 sets last number Redial  Ten configurable speed dials

Network Supported

 Fixed IP  Dynamic Host Configuration Protocol (DHCP)  PPPoE connection (When PPPoE disconnect, SIP-Phone can automatically

re-connect)

 Behind NAT IP Sharing Device  Support QOS by setting DSCP (Differentiated Service Code Point) parameters of VoIP

packet

 Support 802.1p1q (VLAN)

Audio Features

 G.711 a/µ-Law, G.723.1, G.729, G.729a  VAD, CNG  G.165/G.168 compliant echo cancellation  Programmable Dynamic Jitter Buffer  Bad Frame Interpolation  Gain/Attenuation Settings

SIP SIP-Phone Administration Guide

Provisioning and Configuration

 SIP (RFC3261) compliance  LCD configuration password protection  Provide Proxy Mode or Peer-to-Peer Mode (Non Proxy Server needed) selection  Ring tone, Speaker and Handset volume adjustable  Dial path selection (PSTN or IP mode)  Support DNS server inquiry

Management Features:

 Software Upgrade: TFTP/FTP download  Three easy ways for system configuration

- LCD Front Panel

- Web Browser

- TELNET

Certification

 CE, 3C

SIP SIP-Phone Administration Guide

3. Physical specification & Environment

Dimension:

 215mm(W) x 71mm(H) x 198mm(D)

Weight:

 834 grams (unit)

Power Supply:

 DC 9V output adaptor, AC 120Vac input

Operation Environment:

 Humidity: 10 to 90 % (Non-condensing)  Operational Temperature: 0 to +40 °C

Storage Environment:

 Humidity: 10 to 90 % (Non-condensing)  Storage Temperature: -10 to +50 °C

Analog Specification:

 2 wires (RJ-11) *1 (Voltage: -48V)  AC Impedance 600Ω

SIP SIP-Phone Administration Guide

in the

2.3.4.5 first, then go to

Chapter 2 Configuring the SIP-Phone through LCD Phone menus

Note:

1. After any configuration is made for the SIP-Phone, user has to do Reboot selection 7 “Reboot”.

2. We suggest user to set IP address via LCD menu 5→→→→

chapter 3 to do other detail configurations via web browser.

1. Initialize SIP-Phone

1. When power on the SIP-Phone, the LCD screen shows as below. Now SIP-Phone is running Boot sector program.

IP-Phone

Board Start Booting

2. When SIP-Phone finishes boot program initialization. User can see flashing greeting as below:

System Initializing…………..

3. Then SIP-Phone get into standby mode:

Proxy 10:10:10 AM

SIP-Phone

The main LCD screen would be shown as similar as above. “Proxy” means the SIP-Phone is in Proxy Mode, and when SIP-Phone is connected to SNTP server, on LCD will show current time captured from SNTP server.

4. When SIP-Phone is under peer-to-peer mode, on LCD will show “P2P” instead of “Proxy”.

5. After pressing the PSTN button, the “

SIP SIP-Phone Administration Guide

SIP-Phone

P2P 10:10:10 AM

Proxy” or “P2P” will be replaced by “PSTN”.

Please notice that user must plug PSTN line in RJ-11 port when SIP-Phone is in PSTN mode. SIP Phone will always stay in IP mode, after a PSTN call is finished, SIP Phone will automatically return to IP mode..

PSTN 10:10:10 AM

IP-Phone

6. Press  or  to enter configuration mode then press OK button to enter sub menus; press C can jump out current menu to previous level.

1. Call List

2. Forward Type

3. Phone Book

4. Ringer Settings

5. Network

6. Advanced Settings (protected by password)

7. Reboot

SIP SIP-Phone Administration Guide

2. LCD Menu Configuration

User can set the following configurations by LCD keypad.

Note:

1. Press TRANSFER before input data can switch characters to be capital or lowercase.

2. Press SPEED before input data can switch input mode as character mode or digit mode; for example, user wants to enter IP address, after pressing SPEED can enter digits directly.

3. When user is inputting data, press C will jump out to menu list, press  will clear previous input data.

1. Call List

If there is an unanswered IP call, it will be kept in message box. MESSAGE LED will be flashing until user press MESSAGE to check miss call and re-press MESSAGE to return to main screen.

(1) Missed Calls：：：：to see all missed calls in message box. (2) Received Calls：：：：to see all received calls in message box.

(3) Dialed Numbers: to see all dialed calls in message box.

2. Forward Type

There are 3 selections in Forward type, user must select under which condition to forward calls.

(1) Busy

When SIP-Phone is in busy status, the incoming call will be forwarded to the assigned phone number.

A. Activate

Enter a forwarded phone number to activate busy forward function.

B. Deactivate

Deactivate Busy Forward function.

(2) No Response

When SIP-Phone hasn’t been picked up for around 10 seconds, the incoming call will be forwarded to the assigned phone number.

A. Activate

Enter a forwarded phone number to activate no response forward function.

B. Deactivate

SIP SIP-Phone Administration Guide

3. Phone Book

1. List

Deactivate No Response Forward function.

(3) Unconditional

It is included the above two types. Whether the SIP-Phone is in which status, calls will be automatically forwarded to the assigned phone number.

A. Activate

Enter a forwarded phone number to activate Unconditional Forward function.

B. Deactivate

Deactivate Unconditional Forward function.

List all records of name, telephone number, and IP address in the phone address book.

2. Edit/Delete

Edit or delete a record of name, telephone number, and IP address of the phone address book.

3. New

Add a new record of name, telephone number, and IP address of the phone address book.

4. Ringer Settings

1. Volume

User can adjust ring volume by press  or  on the keypad to decrease or increase ringer volume.

2. Style There are three tone styles for SIP-Phone. Move the “>” symbol by press  or  on the keypad to select the tone style preferred, then press OK to confirm it.

5. Network

1. Information

SIP SIP-Phone Administration Guide

Phone is under DHCP mode, then change to Static mode,

the following items: IP address, Subnet Mask, Default Gateway, will

User can press  or  to check current network status:

(1) Mode: Display current network connection mode of SIP-Phone to be

Static (Fixed IP), DHCP, or PPPoE.

Note:

When SIP-

display empty, after reboot, user can see information again.

(2) IP, Mask, Gateway: display current IP information.

2. Network Mode

Set network mode of SIP-Phone to be Static (Fixed IP), DHCP, or PPPoE.

3. IP address

Set IP address of SIP-Phone.

4. Subnet Mask: Set subnet mask address of SIP-Phone.

5. Default Gateway

Set default gateway address of SIP-Phone.

6. Domain Name Server

Set IP address of Domain Name Server. Once SIP-Phone can connect to DNS server, user can set URL address for Proxy server or Phone book instead of IP address.

7. PPPoE Configuration

(1) User Name

Set PPPoE connection authentication user name.

(2) Password

Set PPPoE connection authentication password.

(3) Auto Re-connect

Choose ON or OFF to enable or disable this function. If user enables this function, after PPPoE disconnected, SIP-Phone will automatically reboot to re-connect, and after reboot, if SIP-Phone still can’t connect with server, SIP-Phone will keep trying to connect. On the other hand, if user disables this function, SIP-Phone won’t reboot and keep trying to connect.

8. SNTP Configuration (1) SNTP Mode:

User can set SNTP function to be on or off, which means SIP-Phone will

SIP SIP-Phone Administration Guide

menu directly, once

, user must input

the distributor, we will

generate a specific password according to your MAC address of

Phone via Telnet or Web browser with

default IP address: 10.1.1.3. (This only works when default IP address

capture current time from SNTP server or not.

(2) SNTP Server:

User can specify a SNTP server for SIP-Phone to capture current time.

(3) Time Zone:

User can set time zone via pressing  or  according to the location SIP-Phone is. For example, in Taiwan the time zone should be set as GMT+8:00.

9. Behind IP-Sharing

(1) If SIP-Phone is behind IP sharing or NAT device, on IP sharing must

enable “DMZ” function or set “Virtual Server” to open ports (UDP port: 5060 and 16384).

(2) User must enter public IP address of IP sharing.

6. Advanced Settings (protected by password)

 Please Enter Password:

User must key in password to enter this menu, selections under this command are all important ones, which can only be configured by advanced users.

Note:

1. Default Password is empty, user can enter this sub-

password has been set in 3.LCD Menu password password before enter this sub-menu.

2. If user forget password, please contact with

SIP-Phone.

3. User can also try to configure SIP-

hasn’t been changed.)

1. SIP Settings

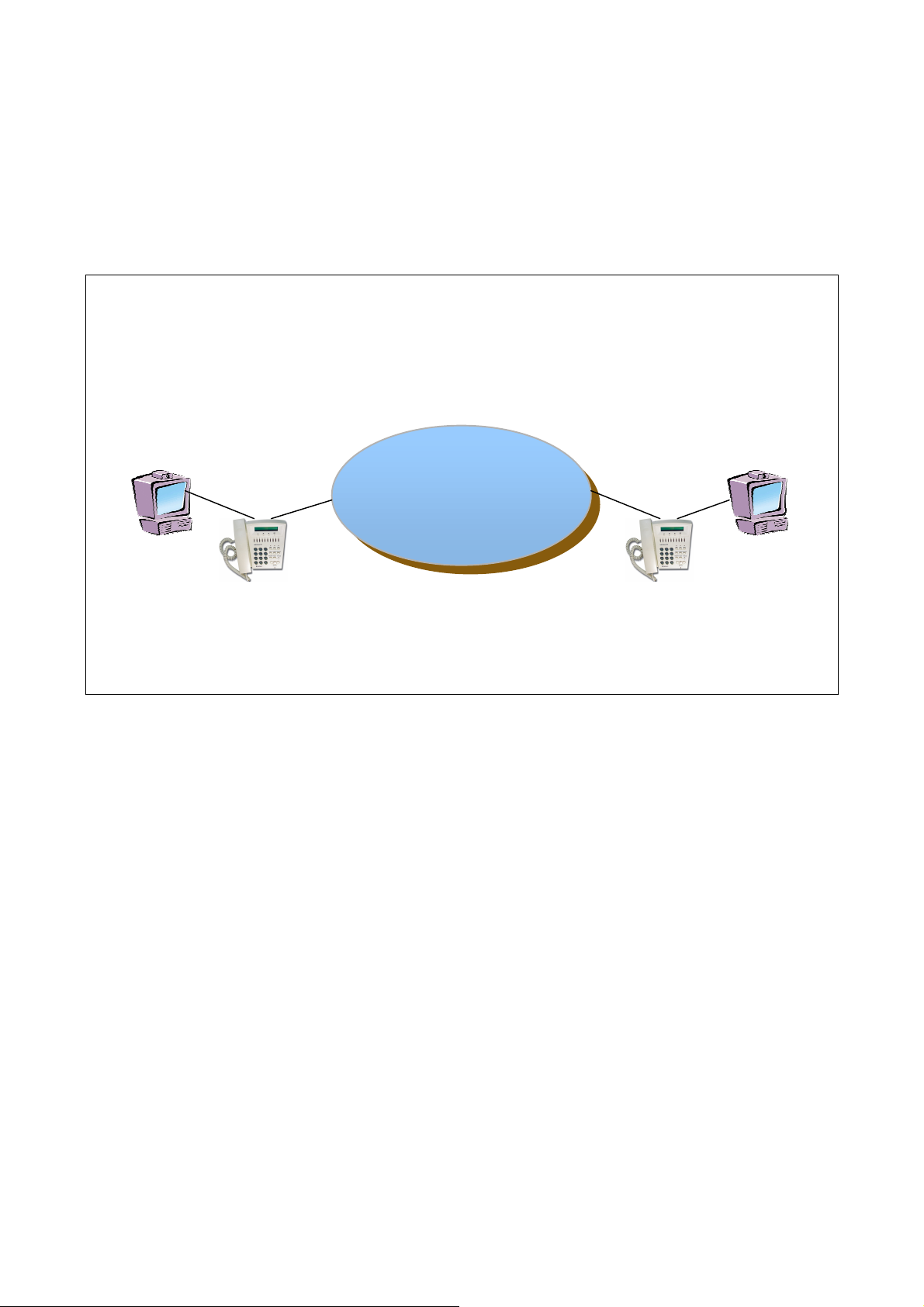

(1) Connect Mode

Select SIP connection mode to be peer-to-peer mode or Proxy mode.

(2) Proxy

A. Proxy

Set Proxy IP address or Domain Name.

B. Outbound proxy

SIP SIP-Phone Administration Guide

+ 45 hidden pages
