TANDBERG DIRECTOR D5016402, DIRECTOR User Manual

Director

User Manual

This document is not to be reproduced in whole or in part

Software Version E1/B6

Control Software Version V3.0

D5016402

without permission in writing from:

TANDBERG Director Videoconferencing System

Trademarks and copyright

COPYRIGHT © 2003, TANDBERG

1860 Michael Faraday Drive, Suite 250
Reston, Virginia, USA 20190
Tel: [phone], Fax: [phone]

All rights reserved. This document contains information that is proprietary to TANDBERG. No part of this publication may
be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, electronically, mechanically, by
photocopying, or otherwise, without the prior written permission of TANDBERG. Nationally and internationally recognized
trademarks and tradenames are the property of their respective holders and are hereby acknowledged.

Portions of this software are © 1996-2003 RADVision Ltd. All intellectual property rights in such portions of the Software
and documentation are owned by RADVision and are protected by United States copyright laws, other applicable copyright
laws and international treaty provisions. RADVision and its suppliers retain all rights not expressly granted.

SMART Board is a trademark of SMART Technologies Inc.

Disclaimer

The information in this document is furnished for informational purposes only, is subject to change without prior notice,
and should not be construed as a commitment by TANDBERG.

The information in this document is believed to be accurate and reliable, however TANDBERG assumes no responsibility or
liability for any errors or inaccuracies that may appear in this document, nor for any infringements of patents or other rights
of third parties resulting from its use. No license is granted under any patents or patent rights of TANDBERG.

This document was written by the Solutions Group of TANDBERG. We are committed to maintaining a high level of quality
in all our documentation. Towards this effort, we welcome your comments and suggestions regarding the content and
structure of this document. Please fax or mail your comments and suggestions to the attention of:

Solutions Group
1860 Michael Faraday Drive, Suite 250
Reston, Virginia, USA 20190
Tel: [phone], Fax: [phone]

Environmental Issues

Thank you for buying a product which contributes to a reduction in pollution and thereby helps save the environment.

- Our products reduce the need for travel and transport and thereby reduce pollution.

- Our products have either none or few consumable parts (chemicals, toner, gas, paper).

- Our products are low energy consuming products.

Production of products

Our factories employ the most efficient environmental methods for reducing waste and pollution and ensuring the
products are recyclable.

WARNING: TO REDUCE RISK OF ELECTRIC SHOCK, DO

NOT EXPOSE THIS PRODUCT TO WATER OR MOISTURE.

3

Important Information

Please review this manual and the REAR PROJECTION SMART BOARDTM 3000i INSTALLATION GUIDE
carefully before setting up and using the Director videoconferencing system. With proper care, your
system should provide years of trouble-free service.

WARNING: THE PROJECTOR INSIDE THE CABINET IS A HIGH-BRIGHTNESS LIGHT SOURCE. DO

STARE INTO THE BEAM OF LIGHT OR VIEW IT DIRECTLY. PREVENT CHILDREN FROM STARING

NOT
DIRECTLY INTO THE BEAM OF LIGHT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE.

WARNING FOR EUROPEAN CUSTOMERS:

THE 3000i SHOULD ONLY BE USED WITH EUROPEAN TN AND TT POWER DISTRIBUTION SYSTEMS.

TANDBERG Director Videoconferencing System

THE 3000I IS NOT SUITABLE FOR OLDER, IT-TYPE POWER DISTRIBUTION SYSTEMS FOUND IN SOME
EUROPEAN COUNTRIES. “THIS SYSTEM (IT-TYPE) IS WIDELY USED ISOLATED FROM EARTH, IN

INSTALLATIONS IN F RANCE, WITH IMPEDANCE TO EARTH, AT 230/400V, AND IN NORWAY,

SOME
WITH VOLTAGE LIMITER, NEUTRAL NOT DISTRIBUTED, AT 230V LINE-TO-LINE.” (IEC 60950:1999).

CONTACT QUALIFIED PERSONNEL IF YOU’RE UNCERTAIN OF THE TYPE OF POWER SYSTEM

AVAILABLE WHERE YOU’RE INSTALLING YOUR 3000I.

Other Warnings and Safety Precautions

For operating safety and to avoid damage to the unit, follow these instructions.

• Move the cabinet with care. Quick stops, excessive force and uneven surfaces can overturn

the cabinet.

• When you transport the Director, only ship the cabinet in the upright position and never lay the

interactive whiteboard face down. In addition, ensure that the projector is secure by tightening
the projector adjustment knob, locking bolt and two shipping straps.

• If you transport the Director over a distance, we strongly urge you to completely repackage it

using the original packaging. This packaging for the Director was designed with optimal shock
and vibration protection. If the original packaging is no longer available, pack all components
with as much padding as reasonably possible to ensure that they are not exposed to
excessive vibration or shock.

• If cabinet assembly is required, we strongly recommend that at least two people perform this

task.

• Do not touch the rear surface of the interactive whiteboard or apply isopropyl alcohol, water or

acetone. If any of these fluids come into contact with this surface, the diffusion coating on the
rear of the interactive whiteboard will be damaged, resulting in a permanent deterioration in
display quality.

4

TANDBERG Director Videoconferencing System

• If you inadvertently smudge the rear surface of the interactive whiteboard, wipe it carefully

with a soft cloth and alcohol-free glass cleaner. Do not spray the glass cleaner directly onto
the surface; spray it lightly on the cloth, and then gently dab the rear surface of the interactive
whiteboard until the marks are removed.

• The 3000i uses digital cameras that are located inside the bezel. If you allow excess glass

cleaner to flow into the crack between the bezel and the writing surface, these cameras could
be damaged.

• Avoid setting up and using the Director in an area with excessive levels of dust, humidity and

cigarette smoke.

• Lock the casters after you set up the cabinet, so it remains stationary while in use.

• Avoid exposing the Director to extreme heat or cold. The operating temperature range is from

41 °F to 85 °F (5 °C to 29 °C) with up to 80% humidity (non-condensing). The shipping and
storage range is from -4 °F to 95 °F (-20 °C to 35 °C) with up to 80% humidity (non-condensing).

• Unplug the cabinet during electrical storms or if you won’t use it for an extended period of

time.

• This product is equipped with a three-wire grounding-type plug. This plug will only fit into a

grounding-type power outlet. If you are unable to insert the plug into the outlet, have your
electrician replace the obsolete outlet. Do not circumvent the safety features of the grounding­type plug.

• Handle the power cord carefully and avoid excessive bending. Route the power cord so its

unlikely to be walked on or pinched by items placed upon or against it. Do not modify the
power cord.

• The socket outlet shall be installed near to the equipment and shall be easily accessible.

• Never do any installation of cables without first unplugging the Director’s power cord.

• Never install telephone jacks in wet locations unless the jack is specifically designed for wet

locations.

• Never touch uninstalled telephone wires or terminals unless the telephone line has been

disconnected at the network interface.

• Use caution when installing or modifying telephone lines.

• Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a

remote risk of electrical shock from lightning.

• Do not use the telephone to report a gas leak in the vicinity of the leak.

• 1TR6 network type is not approved for connection directly to the telecommunications network.

This network type is only to be used behind a PABX.

• X.21 network type is not approved for connection directly to the telecommunications network.

This network type is only to be used together with already approved equipment, and is not
meant for direct connections to the telecommunication networks.

• V.35/RS-449/RS-366 network type is not approved for connection directly to the

telecommunications network. This network type is only to be used together with already
approved equipment, and is not intended for direct connection to the telecommunication
networks.

• Allow adequate air circulation to prevent internal heat build-up. Do not block any of the

ventilation openings of the apparatus.

• Do not install the system in a location near heat sources such as radiators or air ducts, or in a

place subject to direct sunlight, excessive dust, mechanical vibration or shock.

5

Contents

Trademarks and copyright ................................................................................... 3

Disclaimer.............................................................................................................. 3

Environmental Issues ............................................................................................ 3

Production of products......................................................................................... 3

Important Information ....................................................................................................... 4

Other Warnings and Safety Precautions .................................................................... 4

Introduction....................................................................................................................... 8

Welcome to the TANDBERG Director ........................................................................ 8

At a Glance: The TANDBERG Director ...................................................................... 9

System Overview ...................................................................................................... 10

Control Interface ................................................................................................. 10

Audio and Video Sources ................................................................................... 10

Optional Equipment** .......................................................................................... 11

System Connections .......................................................................................... 12

TANDBERG Director Videoconferencing System

Installation & Setup ......................................................................................................... 15

Getting Started ............................................................................................................... 30

General use .....................................................................................................................37

TF - TANDBERG FIRST

Room Configuration ................................................................................................. 15

Installing the Guest Laptop Shelf ............................................................................. 16

Installing the Adjustable Camera Shelf..................................................................... 17

Powering on the System .......................................................................................... 21

System Setup ........................................................................................................... 21

SMART Board

Touch Panel Tools for System Configuration ..................................................... 23

Network Connections ............................................................................................... 26

Device Connections ................................................................................................. 27

PC and Laptop Computer Setup ....................................................................... 28

System startup ......................................................................................................... 30

Control Orientation.................................................................................................... 30

Touch Screen and Remote IR Controls.................................................................... 31

Codec Basics............................................................................................................ 33

General Codec Configuration ............................................................................. 34

Network and LAN Settings ................................................................................. 35

Adjusting volume ................................................................................................ 37

Microphone on/off............................................................................................... 37

Directory.............................................................................................................. 37

Projector Standby Button................................................................................... 38

MultiSite

PC SoftPresenter ................................................................................................ 41

Web-interface ...................................................................................................... 41

TM

Projector Setup and Calibration ............................................. 21

TF

(MCU)................................................................................................. 39

6

TANDBERG Director Videoconferencing System

Display Operation ........................................................................................................... 42

Local Display Operation ........................................................................................... 42

Screen Basics ..................................................................................................... 42

Source Selection ................................................................................................. 43

Device Control .................................................................................................... 43

Taskbar................................................................................................................ 44

Video Display Window ........................................................................................ 44

Videoconference Operation ...................................................................................... 45

On Screen Symbols ............................................................................................ 49

Videoconference Main Screen ............................................................................ 49

Video Window Display Control ........................................................................... 49

Videoconferencing Taskbar ................................................................................ 50

Far End Camera Control ..................................................................................... 51

DuoVideoTF Operation ......................................................................................... 52

Multipoint Operation ........................................................................................... 53

Advanced use ................................................................................................................. 54

Main menu ................................................................................................................. 54

Call quality ........................................................................................................... 55

Presentations ...................................................................................................... 57

Utilities ................................................................................................................. 58

MCU services ..................................................................................................... 60

Audio Settings .................................................................................................... 63

Video Settings ..................................................................................................... 68

Terminal Settings ................................................................................................ 72

LAN Settings ....................................................................................................... 81

Call Settings ........................................................................................................ 87

Dataport configuration ........................................................................................ 90

Language............................................................................................................. 91

Software Options ................................................................................................ 91

Diagnostics ......................................................................................................... 92

Appendices ..................................................................................................................... 95

Appendix 1: Connecting to ISDN using network adapters ..................................... 96

Appendix 2: Connecting to the Switched 56 network ............................................. 97

Appendix 3: Connecting to PRI/T1 .......................................................................... 98

Appendix 4: Environmental & operational considerations ....................................... 99

Appendix 5: Using the file system .......................................................................... 101

Appendix 6: Security............................................................................................... 102

Appendix 7: 12” Touch Panel Interface .................................................................. 104

Technical Description .................................................................................................... 110

Abbreviations................................................................................................................ 112

Index ............................................................................................................................. 113

Servicing ....................................................................................................................... 116

TF - TANDBERG FIRST

7

Introduction TANDBERG Director Videoconferencing System

Introduction

Welcome to the TANDBERG Director

The TANDBERG Director is a multimedia and videoconferencing system that is integrated into the
Rear Projection SMART BoardTM 3000i system.

The core component of the Director, the DAM (Director Applications Module) is a 19” rack
mountable unit that provides all the necessary audio, video, network, and control connections for
videoconferencing. The intuitive on-screen controls provide configuration of multiple simultaneous
displays from a variety of sources. Annotation over the PC
image is possible in a variety of colors and can be viewed by
both the local and remote participants (software provided for
annotation, see INSTALLATION AND CONFIGURATION manual).

An optional color touch panel provides desktop control of the
system. Please refer to APPENDIX 7 for touch panel information.

Design features

• 67" display with on-screen touch controls

• Integrated mobile stand with electronic annotation markers and
storage for multiple peripherals such as a PC and VCR

• W.A.V.E II (wide angle view) camera with extensive zoom, pan &
tilt

• Ability to add a laptop with auto-detect switching capability

Application features

• Join up to 4 video sites and 1 audio site with embedded
MultiSite

• Powerful live presentations through one-step PC plug-in (PC
PresenterTF) or LAN connection (PC SoftPresenterTF)

• View presentations and multiple video sites simultaneously on
one screen using DuoVideo

• Display images from PCs, DVDs, VCRs, document cameras and
other input devices

• Annotate over any PC program and display annotations to all
conference participants

Performance features

• Choice of network: IP, ISDN and other external network

• Bandwidth: up to 2 Mbps ISDN / 3 Mbps IP

• Highest level of standards-based embedded encryption

• Protection against network interruptions with automatic
Downspeeding

TF

functionality

TF

TF

SMART BoardTM 3000i

DAM

(Director Applications Module)

Touch Panel

8

At a Glance: The TANDBERG Director

Interactive touch

SMART Board

SMART
pen tray

speaker vent

(x 2)

IntroductionTANDBERG Director Videoconferencing System

WAVE II
Camera

Adjustable

Camera

platform

power

On/Off

wireless

keyboard

laptop

shelf

key lock
for door

doors to mounted speakers and components

(Director Applications Module / 6000 codec / projector)

control

panel

wireless

keyboard

holder

lockable

casters (x4)

9

Introduction TANDBERG Director Videoconferencing System

System Overview

The TANDBERG Director system is comprised of the following, as well as optional components
that can and will enhance your videoconferencing experience.

Control Interface

Director Application Module (DAM)

The Director Application Module is an integrated control, presentation, and videoconferencing
system. Using a TANDBERG 6000 codec, coupled with a video-scaling control system, allows
effective local presentations as well as videoconferencing. The module has an easy access rear I/
O panel that allows for connections to various A/V and control devices. The XGA resolution output
can be displayed on projectors, plasmas, or monitors. The 5U high, rack mountable package
allows for easy integration into classrooms, boardrooms, or podiums.

Interactive SMART Board

The Director can be used with the SMART BoardTM 3000i as the touch input device. This allows the
user to conduct a local presentation or videoconference by selecting intuitive controls displayed on
the board. Using the SMART BoardTM also allows for on-screen annotation and collaboration with
another site, as well as transmitting the session to a remote site in real-time. Refer the REAR
PROJECTION SMART BoardTM 3000i INSTALLATION GUIDE for more detailed description of features.

Touch Panel Control*

An optional 12” or 15” touch panel can be incorporated enabling a user to manage the
presentation from a podium or desktop. In some cases, this touch panel can be used as the only
control source or in conjunction with the controls on the interactive SMART BoardTM. See APPENDIX
7: 12” TOUCH PANEL INTERFACE.

Audio and Video Sources

Main Camera and AUX Camera**

The Director is capable of handling two controllable s-video sources. A TANDBERG W.A.V.E II
Camera, included with your system, or other VISCA controllable camera can be configured for use.

At present, if you intend to connect two cameras, they must be identical - you cannot have one
WAVE II camera and one Sony camera. They must both be WAVE II cameras or both be a VISCA
controllable camera of the same make and model.

TM

AudioScience Microphone**

The AudioScience Microphone is an overhead, transparent microphone that eliminates the need for
multiple tabletop microphones. Mounted on the ceiling, the microphone effectively picks up
participants within a wide range with very little distortion. Using the Automatic Gain Control (AGC)
on the codec maintains the audio signal level at a fixed value by attenuating strong signals and
amplifying weak signals.

* - OPTIONAL F EATURE.

** - OPTIONAL EQUIPMENT AVAILABLE THROUGH TANDBERG OR IS USER SUPPLIED.

10

Document Camera**

A composite video source is available for a document camera. Document cameras can be used to
show a wide variety of media, such as whitepapers, film negatives, or standard overhead projector
transparencies. Source selection, zoom, focus and lighting can all be controlled from the button
panel of the document camera.

VCR/DVD player**

Standard composite video VCR’s or DVD players can be added for playback and recording. Using
codec features such as audio “ducking” (lowering the VCR output while the presenter is talking)
allows seamless presentations and participant interaction. Use the front panel controls or the
supplied remote control specific to these devices.

Auxiliary Sources**

Any auxiliary source can be substituted for the sources above.

There are a total of 2 s-video and 2 composite inputs available on the system.

Optional Equipment**

IntroductionTANDBERG Director Videoconferencing System

Additional Monitors

An additional monitor can be added for viewing the far or local video. Typically used to view the far
side in a teaching environment, the monitor will also show the local image when giving a local
presentation.

PC and Laptop Computer

A user supplied PC and/or laptop can be connected to the system to enhance presentation.

You may choose to connect a PC placed inside the 3000i cabinet and use it as a source for
presentation. If you intend to use a PC as a presentation source only, then the PC must be, at
minimum, able to support VGA.

You may choose to connect a laptop computer to the 3000i as a source for presentation. This can
be done in conjunction with, or independently from, the PC that is integrated to the Director
system.

Refer to the REAR PROJECTION SMART BOARDTM 3000I INSTALLATION GUIDE for information on
connecting the PC and laptop as well as SMART software installation and configuration.

** - OPTIONAL EQUIPMENT AVAILABLE THROUGH TANDBERG OR IS USER SUPPLIED.

11

Introduction TANDBERG Director Videoconferencing System

System Connections

The following diagrams provides an overview of the connections that are required for the Director
system. Before handling the system’s cables and components, make sure that the main power
plug is unplugged from any power source. For simplicity the Network connections are not shown in
the diagram below. See GETTING STARTED > CODEC BASICS > NETWORK AND LAN SETTINGS for
connecting network cables to the Director.

Rear Interface Panel

1. TANDBERG 6000 Codec.

2. PC VGA IN: Personal Computer Video Input, supports VGA, SVGA, and XGA resolution (15
pin female HD D-sub connector). See TANDBERG 6000 USER’S MANUAL for more information
regarding codec I/O.

3. DISPLAY VGA OUT: System Display VGA out, XGA resolution (15 pin female HD D-sub
connector).

4. AUX CTRL 1: Bi-directional RS232 (9600,N, 8,1) (9 pin female D-sub connector).

5. AUX CTRL 2: Bi-directional RS232 (9600,N, 8,1) supports SMART BoardTM 3000i Room
Control Module (9 pin female D-sub connector).

6. AUX CTRL 3: Bi-directional RS232 (9600,N, 8,1) used for PC com port with SMART Board
Software Package (9 pin female D-sub connector).

7. PROGRAM: Bi-directional RS232 (115200,N, 8,1) used for diagnostics and loading software
to Director Module. (9 pin female D-sub connector).

8. LAN DIAGNOSTICS: Ethernet port used for upgrading and troubleshooting the control
system (RJ45 connector).

9. AC Input: Fused 120VAC (or 220VAC for Europe) Input.

10. TOUCHPANEL: Supports Optional Touch sensitive panel (25pin female D-sub connector).

11. TOUCHSCREEN/MOUSE: Supports SMART BoardTM 3000i touch overlay or Microsoft
compatible mouse (9 pin female D-sub connector).

12. CRESNET: Port reserved for future expansion of Cresnet devices (15 pin male D-sub
connector).

TM

12

Rear Interface Panel Connections

IntroductionTANDBERG Director Videoconferencing System

13

Introduction TANDBERG Director Videoconferencing System

Rear Interface Panel - A/V Plate

14

Installation & Setup

Room Configuration

The TANDBERG Director system has been designed to provide versatility for installation at any site,
whether for corporate, military or educational applications.

InstallationTANDBERG Director Videoconferencing System

Optional

Touch Panel

SMART BoardTM 3000i

Interactive Whiteboard

AudioScience Microphone

(ceiling mount)

REVIEW THE WARNINGS AND SAFETY

PRECAUTIONS

INSTALLATION AND SETUP.

ON PP 4-5 BEFORE

Touch Panel

Optional

See APPENDIX 4: ENVIRONMENTAL AND OPERATION CONSIDERATIONS for more information.

Optional Monitor and Camera

BE SURE TO LEAVE SUFFICIENT SPACE AROUND

NOTE

ENTIRE CABINET SO YOU CAN

THE
COMFORTABLY
INSTALLATION.

ACCESS IT DURING AND AFTER

15

Installation TANDBERG Director Videoconferencing System

Installing the Guest Laptop Shelf

YOU CAN INSTALL THE SHELF ON

TIP

guest laptop shelf

1. Locate the two laptop shelf keyholes and the single thumbscrew hole on the upper right (or
left) side of the cabinet. Remove the plastic hole covers.

SIDE OF THE CABINET. IF

EITHER

’RE INSTALLING THE SHELF ON

YOU

COMPUTER SIDE OF THE

THE

, INSTALL THE SHELF

CABINET

THE COMPUTER. THE

BEFORE

HOLE COVERS ARE MUCH

PLASTIC

TO REMOVE WHEN THE

EASIER
COMPUTER IS NOT INSIDE.

2 keholes

thumbscrew hole

2. Push the two protruding bolts on the edge of the shelf into the two keyholes, and then push
the shelf firmly down.

3. Push the captive thumbscrew at the bottom of the shelf into the thumbscrew hole and
tighten.

16

Installing the Adjustable Camera Shelf

installed

videoconferencing

camera shelf

To install the videoconferencing shelf

1. Choose the side on which you want to mount the shelf. Using the supplied hex-head
screwdriver, remove the three 1/4-20 x ˚” fasteners as shown. Note that one safety screw will
be removed.

YOU CAN INSTALL THE 3000I

TIP

VIDEOCONFERENCING

SIDE OF THE CABINET. THE

EITHER
MOUNTING
PROVIDES
CHANNEL
CABLING.

ARM OF THE SHELF

A CONVENIENT HIDDEN

FOR THE CAMERA

InstallationTANDBERG Director Videoconferencing System

SHELF ON

WARNING: DO NOT MOVE THE

UNTIL THE SAFETY SCREW

CABINET
IS REPLACED IN STEP 4.

17

Installation TANDBERG Director Videoconferencing System

2. Remove the four caps and plugs from the mounting arm at the location where you want to
mount the shelf. Feed the cables for the videoconferencing camera through the large hole,
down the channel and through the lower mounting point.

CABLES SHOWN MAY NOT MATCH

NOTE

REQUIRED BY YOUR

THOSE
VIDEOCONFERENCING CAMERA.

3. If you’re installing the mounting arm on the same side as the IR receiver, detach the receiver
and leave it temporarily dangling. Carefully slide the mounting arm onto the side of the cabinet,
ensuring that the cables remain in the channel and are not pinched.

18

InstallationTANDBERG Director Videoconferencing System

4. Use the three supplied 1/4-20 x ∫” fasteners in place of the 1/4-20 x ˚” fasteners (removed in
step 1) to secure the mounting arm to the cabinet. The safety screw is now replaced.

NOW THAT YOU’VE REPLACED THE

NOTE

SCREW, YOU CAN SAFELY

SAFETY
MOVE THE CABINET.

5. Hook the shelf to the keyholes in the mounting arm, tightening the thumbscrew to secure the
shelf.

19

Installation TANDBERG Director Videoconferencing System

6. Cable management along the side of the cabinet is provided by the J-hook. Clip the J-hook
onto the handle on the side of the 3000i and route the cables through that hook to the
Connection Panel at the rear of the cabinet.

7. If you detached the IR receiver in step 3, use the Velcro included in the accessory kit to
reattach it to the bottom of the mounting arm.

8. To connect the camera to the system, find the cable loom (cable #S061) that has three
corresponding connectors for the camera (the cable should be coiled and secured with a Velcro
strapon the inside of the Director system):

CAMERA S-VID OUT
CAMERA CTRL OUT
CAMERA CTRL IN

Run the cable loom up the inside of the 3000i cabinet, on whichever side you have installed
the shelf, and deposit it through the appropriate hole to connect to the camera.

Installation is complete. Follow the instructions in reverse order to uninstall.

20

Powering on the System

Once the system is installed in the
appropriate location, it is now ready for the
AC mains to be plugged in. To verify that all
components have been powered on, you
should be able to see the following LED
indicators through the smoked glass cover
of the Director Application Module.

If any of the green or red LED’s do not show
through the smoked glass, the system will
not work properly. Contact TANDBERG
Technical Service immediately.

To power on the projector, press the green

PROJECTOR STANDBY button on the front of

the 3000i cabinet. Once powered, refer to
‘SYSTEM SETUP’ for screen calibration.

YELLOW

GREEN

IT IS RECOMMENDED THAT YOU PRESS THE

NOTE

PROJECTOR STANDBY BUTTON TO

GREEN

THE SYSTEM IN STANDBY WHENEVER IT

PLACE

NOT IN USE. THIS WILL MAXIMIZE THE LIFE

IS
OF LAMP INSIDE THE PROJECTOR.

InstallationTANDBERG Director Videoconferencing System

RED

System Setup

SMART BoardTM Projector Setup and Calibration

When you press the POWER BUTTON on the 3000i
front control panel unit to activate the projector
display, it will then require approximately 40
seconds to complete the start-up routine, at
which point the TANDBERG start-up screen will
be displayed.

For SMART BoardTM software installation and
configuration, or any additional information,
please reference the ‘REAR PROJECTION SMART
BOARDTM 3000i INSTALLATION GUIDE’.

21

Installation TANDBERG Director Videoconferencing System

Touchscreen Calibration

Once the system is installed and functioning, it is recommended that the SMART BoardTM 3000i
touch screen be calibrated.

First touch and hold the top left corner of the screen for 5 seconds. This will give you a hidden
‘Tools’ setup screen. Then touch and hold the bottom right corner of the ‘Tools’ screen for another
5 seconds.

Press and
hold for 5

seconds

Press and

hold for 5

seconds

You will get the following ‘DVP-4 Tools’ setup screen:

Selecting ‘Calibrate System’ will display a series of push-points on the touch-screen device used to
calibrate the screens. Carefully touch the calibration points, and after the third point, the system will
restart and return to the opening start-up page.

In rare cases, it may not be possible to reach this page because the calibration is too far off the
screen. You can connect direct to the Director Application Module and enter a simple command:

• Connect your PC with a “straight through” RS232 cable to PROGRAM on the rear interface panel

of the Director Applications Module.

• Open a terminal program such as ’HyperTerminal’ or ’PROCOMM Plus’.

• Set the baud rate settings to 115200,N, 8,1.

• Type the command CALTOUCH and <enter>.

• Touch the crosshairs on the screen to calibrate the system.

22

Touch Panel Tools for System Configuration

Various tools may be accessed from the systems opening page. Touching the top left corner of the
touch screen and holding for 5 seconds will access a list of tools where system information, IR
functions, audio, system options, and directory information can be accessed and edited.

Press and

hold for 5

seconds

InstallationTANDBERG Director Videoconferencing System

System Information

This button gives information about
options and bandwidths available on
the codec. The Director system should
already be equipped with Security,
Natural Presenter PackageTF, and
MultiSiteTF options.

These options can be set on the codec
using the IR controls (see

TOUCHSCREEN AND R EMOTE IR
CONTROLS and ADVANCED USE >
SOFTWARE OPTIONS).

TF - TANDBERG FIRST

23

Installation TANDBERG Director Videoconferencing System

IR Functions

Selecting the IR FUNCTIONS button will display both near- and far end video outputs as well as all
the IR control buttons that correspond to the TANDBERG remote control. You can use any of these
buttons to emulate button pushes on the remote. See GETTING STARTED > TOUCHSCREEN AND
REMOTE IR CONTROLS.

Audio

Choosing the AUDIO button will display the audio inputs and outputs of the codec. Touching the +
or – for each input will raise or lower the gain of each input. Inputs may also be disabled/enabled
by touching the icon in the middle of each respective input.

24

WHEN IN THE NORMAL PRESENTATION AND VIDEOCON-

NOTE

FERENCE PAGES AND THE VCR SOURCE IS SELECTED,
THE SYSTEM WILL AUTOMATICALLY TURN ON AND OFF

AUDIO INPUT 6 CORRESPONDING TO THAT VIDEO INPUT.

InstallationTANDBERG Director Videoconferencing System

System Options

The SYSTEM OPTIONS button allows for limited modification of setup of the codec. Modification of
these setting from the default values may affect the operation of the Director system. The main
item of note is the ‘Camera Model’ setting. The system supports VISCA controlled cameras and
therefore is selectable between the W.A.V.E II and VISCA controlled cameras. VISCA cameras
would use the Aux 1 Output on the Director Rear Interface Panel.

IF CONNECTING TWO CAMERAS,

NOTE

THEY MUST BE IDENTICAL - YOU

HAVE ONE WAVE II

CANNOT
CAMERA AND ONE SONY CAMERA.

THEY MUST BOTH BE WAVE II

CAMERAS OR BOTH BE A VISCA
CONTROLLABLE CAMERA OF THE
SAME MAKE AND MODEL.

Edit Directory

Allows the user to enter and edit directory entries for the Director system. First, update the
directory by following the instructions below. Then select the ‘Add New Entry’ button to add a new
directory entry, or select an existing directory entry to edit that information. Refer to
‘VIDEOCONFERENCE OPERATION’ > ‘EDITING SPEED DIAL DIRECTORY’ for more information.

Update Directory

Click UPDATE DIRECTORY to set the initial directory placeholders that will be negotiated between
the codec and control device for the Director system. Any time the codec directory is updated with
new or modified entries through any other method than using the EDIT DIRECTORY method
discussed above (i.e. Codec Data port, Web browser, Telnet, or TMS), the control device should be
“synchronized” with the updates made in the codec by clicking UPDATE DIRECTORY on the TOOLS
screen to have the latest modifications displayed.

25

Installation TANDBERG Director Videoconferencing System

Network Connections

The network connections are located on the rear interface panel of the TANDBERG 6000 Codec.

The network cables should be connected as applicable to the site. Refer to ‘ADVANCED USE’ >
‘TERMINAL SETTINGS’ for more information concerning IP settings and other network equipment
that may be required, such as network terminating units and CSUs.

BE SURE TO WRITE DOWN THE

NOTE

NUMBERS
OF
NEED
THE SYSTEM.

ISDN BRI

Connect each ISDN cable to the ISDN BRI sockets found on the codec. Then connect the other
end of the loom to the appropriate wall sockets. If however, the wall sockets provide an ISDN U­interface, the ISDN lines from the codec must first be connected to the S/T interface of network
terminating units NT1 and NT384. Then connect the U interface of the network terminating units to
the wall sockets.

ASSOCIATED WITH EACH

THE ISDN LINES. YOU WILL

THEM LATER TO CONFIGURE

ISDN PRI/T1

Connect the PRI/T1 cable to the PRI/T1 socket labeled “1” on the codec. Connect the other end of
the cable to a Channel Service Unit (CSU). Then connect the CSU to the site’s PRI/T1 line.

Other Networks - Using the External Network Interface

If you are using other networks, please refer to ‘EXTERNAL NETWORK SETTINGS’ and ‘APPENDIX 2’.

LAN

Connect the LAN cable from the LAN connector on the rear of the codec to the site’s LAN network
connection.

It is recommended that both the codec and control system be provided with a LAN connection.
The system will function without a LAN connection if you are placing ISDN calls only, but a LAN
connection is recommended for both software upgrades and remote diagnostics. The control
system LAN information must be set locally. For information regarding the network settings on the
codec, refer to ‘ADVANCED USE’ > ‘TERMINAL SETTINGS’.

THE LAN CONNECTION ENABLES

NOTE

TO PLACE IP CALLS ONLY,

YOU
SOFTWARE UPGRADES AND

DIAGNOSTICS. ISDN

REMOTE
CALLS MUST HAVE ISDN
CONNECTIONS CONFIGURED.

26

Device Connections

Microphone

Connect the microphone cable to the XLR input of the 6000 codec. The default codec setting has
all microphone inputs enabled and the gain set to +3dB. Adjustments to the audio settings may be
done in ‘TOUCHSCREEN TOOLS’ or with the ‘IR CONTROLS’ (discussed later in this document).

Touch Panel

A 12” or 15” color video touch panel options are available for the Director system. Cables
necessary for connecting them to the system are included with the touch panel. See ‘BASIC
SYSTEM CONNECTIONS’ for details on connecting a touch panel. See APPENDIX 7: 12” TOUCH
PANEL INTERFACE.

Main Camera

The main camera source selection corresponds to the first s-video input (labeled “1”) on the codec.
This camera input used specifically with the controllable TANDBERG W.A.V.E II camera.

AUX Camera

The auxiliary camera source selection corresponds to the second s-video input (labeled “2”) on the
codec. This camera input can be a fixed room camera or can be a second controllable TANDBERG
W.A.V.E II camera. To control a second camera, control signaling must be “daisy-chained” from the
first camera. Additionally, the camera must be powered locally and the video must be run
separately back to the codec. Installation instructions for installing this are included with an extra
camera when purchased.

InstallationTANDBERG Director Videoconferencing System

IF CONNECTING TWO CAMERAS,

NOTE

THEY MUST BE IDENTICAL - YOU

HAVE ONE WAVE II

CANNOT
CAMERA AND ONE SONY CAMERA.

THEY MUST BOTH BE WAVE II

CAMERAS OR BOTH BE A VISCA
CONTROLLABLE CAMERA OF THE
SAME MAKE AND MODEL.

27

Installation TANDBERG Director Videoconferencing System

PC and Laptop Computer Setup

A user supplied PC and laptop can be connected to the system to enhance your
videoconferencing presentation. Refer the REAR PROJECTION SMART BoardTM 3000i INSTALLATION
GUIDE for details on installation and configuration for a PC and laptop.

PC

A PC can be placed inside the 3000i cabinet and used as a source for presentation. If you intend
to use a PC as a videoconferencing presentation source only, then the PC must be, at minimum,
able to support VGA.

THE STRAPS ALLOW YOU TO ROLL

If you intend to utilize SMART Tools with the PC, refer to the

NOTE

SMART Tools documentation for minimum PC requirements.

Slide the computer into place above the computer straps, and
then use them to secure it. Then locate the tie-wrapped bundle
of labeled cables dangling inside the cabinet. In addition to this
cable bundle, AC power, keyboard and mouse cables are locat­ed nearby. Make the appropriate connections to the PC.

Laptop

You may choose to connect a laptop computer to the 3000i as a source for presentation. This can
be done in conjunction with or independently from the PC that is integrated to the Director system.

CABINET FROM ROOM TO

THE

WITHOUT REMOVING THE

ROOM
COMPUTER
STRAPS
COMPUTER
CABINET
THE
COMPUTER FIRST.

. HOWEVER, THESE

WILL NOT SECURE THE

IN PLACE DURING

SHIPMENT. IF YOU SHIP

CABINET, REMOVE THE

Simply connect it to the ‘Laptop Umbilical’. Extend the laptop end of the umbilical from the rear of
the 3000i cabinet until it reaches the laptop shelf. Then make the appropriate connections to the
laptop. If you want network access, you’ll also need to connect the adapter end of the umbilical’s
network cable to a room network connection.

BECAUSE THE SYSTEM IS VIDEO

NOTE

, YOUR LAPTOP MUST

SENSING

A VIDEO SIGNAL IN ORDER

SEND

DISPLAY THE LAPTOP IMAGE

TO

THE 3000I.

ONTO

REFER TO THE LAPTOP USER

FOR SWITCHING VIDEO.

MANUAL

MOST LAPTOPS USE ‘FN+F5’ TO

SWITCH.

28

PC Calibration

It may also be necessary to calibrate the SMART BoardTM Soft­ware on your computer with the 3000i.

To calibrate the SMART Board Software, select the PC as your
video source and use the ‘Orient’ utility found in the SMART
BoardTM Software’s Control Panel.

InstallationTANDBERG Director Videoconferencing System

THE TOUCH SCREEN SHOULD BE

CALIBRATED
THE

SOFTWARE.

BEFORE CALIBRATING

SMART BOARD

TM

You can also calibrate the PC software by holding down the KEYBOARD and RIGHT MOUSE buttons
at the same time, found on the front of the 3000i.

Keyboard

Button

Right-Mouse

Button

29

Getting Started TANDBERG Director Videoconferencing System

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

Getting Started

System startup

If the TANDBERG Director System is not already
powered on, press the POWER BUTTON on the
SMART BoardTM 3000i front control panel unit to
activate the projector display. It will then require
approximately 40 seconds to complete the startup
routine, at which point the TANDBERG startup
screen will be displayed.

Control Orientation

Touch either the LEFT or RIGHT hand side of the start screen depending on your control
preference. When using a mouse to control the system right-click on the preferred side.

Selecting the left hand side will display the source selection and device control on that
left side of the screen. The taskbar controls will be configured from the left side.

Selecting the right hand side will display the source selection and device control on that
right side of the screen. The taskbar controls will be configured from the right side.

Local Video

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

Local Video

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

TANDBERG

TANDBERG

The control preference feature has been incorporated primarily for when the Director Applications
Module has been integrated within the SMART Board™ hardware. This allows the user to
manipulate the controls without standing in front of the main display or camera.

30

Touch Screen and Remote IR Controls

The Director is designed to utilize the SMART BoardTM 3000i interactive whiteboard touch screen.
Every command and operation can be executed through the 3000i touch screen interface.

The TANDBERG remote control may also be used to control the Director. While the Director system
can execute most commands from the TANDBERG infrared remote control, it is recommended that
you use the controls presented on the display or
optional touch panel as the primary source for
control. The examples in this documentation will
present the touch screen operation.

IR Functions

The system’s most commonly used functions can be accessed directly from either the touch
screen or remote IR control with single key presses. The IR controls are particularly useful for
codec configuration.

QUICK KEYS

The three colored buttons on top of the remote
control refer to the corresponding color blocks at the
bottom of the screen (green, yellow, and blue). The
text inside the blocks will change depending on
which menu is selected.

DUE TO THE ENHANCED FEATURES OF THE TOUCH

NOTE

INTERFACE USING THE TANDBERG REMOTE

SCREEN
CONTROL
THE DIRECTOR SYSTEM’S CAPABILITIES.

MAY PREVENT YOU FROM FULLY UTILIZING

Getting StartedTANDBERG Director Videoconferencing System

PRESET KEYS

Activate pre-stored
camera positions.

VIDEO SOURCE KEYS

Activate connected
video sources.

CAMERA CONTROL AND MENU NAVIGATION KEYS

Frequently used keys allowing you to control
your own camera and the far end camera,
control your volume, select and move self­view, switch your microphone off and navigate
in the menu system.

DIALING KEYS / PRESET KEYS

Used to make a call. The twelve number keys, (0-9), #, * operate in
the same way as on a modern push-button telephone. These
buttons are also used when entering a name into a text field.

31

Getting Started TANDBERG Director Videoconferencing System

6

6

6

6

6

6

6

6

6

6

The initial screen will show a large view of the local display with controls
on either side, depending on your control orientation preference.

Camera
Control

Video

Sources

Task Bar

Local Video

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

To use the on-screen IR controls:

Press the VIDEOCONFERENCE button on the TASKBAR. This will take you to the ‘Call Control’ Screen.

From the ‘Call Control’ screen, and only from the ‘Call Control’ screen, touch the TANDBERG LOGO
on the TASKBAR.

The ‘IR Controls’ will
appear in the place of
the ‘Address Book’.

Pressing the
TANDBERG LOGO
again will toggle
between the ‘Address
Book’ and ‘IR
Controls’.

Using the IR Controls
you can navigate the
codec’s menu
structure to configure
the codec.

REMEMBER TO EXIT ANY MENUS BEFORE LEAVING

NOTE

‘IR CONTROL PAGE’. FOR MORE INFORMATION

THE

THE TANDBERG REMOTE CONTROL CONSULT

ON
THE ‘TANDBERG 6000 USER’S GUIDE’.

32

Codec Basics

The TANDBERG ‘Welcome Screen’ screen will appear in the ‘Remote View’ panel. This screen
should provide you with the most important system
information. The three color-coded commands shown
correspond with the QUICK KEYS on the IR control. This means
that to make a call, you can press the green QUICK KEY on the
IR control. Before you proceed you must configure the
TANDBERG codec in order to place videoconference calls.

Menu structure

The codec’s on-screen menu structure is shown below. Press the MENU key on the IR control to
enter/leave the ‘Main Menu’.

Getting StartedTANDBERG Director Videoconferencing System

Main Menu

Call

Quality

Advanced

Settings

Presentations Utilities

Quick

Menu

Request

Floor

Release

Floor

Terminal

Names

View

Site #

End

View

Chair

Control

Inputs

Outputs

Echo

Control

AGC

Settings

Tones &
Volumes

Restore Audio

Defaults

Take

Chair

Release

Chair

Floor to

Site #

Release Floor

to Site #

Disconnect

Site #

Terminate

Meeting

MCU

Settings

Level

Settings

Level

Settings

Network

LAN

Settings

Call

Settings

Network

Profiles

Data Port 1

Data Port 2

Language

Software

Options

Auto

Settings

Whitebalance

Keyboard

Setup

Video

Settings

Focus

Brightness

Video
Name

VGA

Settings

VNC

Settings

Streaming

Settings

H.323

Settings

Adv. H.323

Settings

IP

Settings

SNMP

Terminal
Settings

ISDN-BRI

Settings

Leased E1/T1

Settings

Ext. Network

Settings

ISDN-PRI

Settings

IP

Precedence

DiffServ

Diagnostics Exit

System

Info

Channel

Status

Call

Status

Test

Subsystem

System
Selftest

View Current

Settings

Restore
Defaults

ISDN

Switch Type

Line 1

Setup

Line 2
Setup

Line 3
Setup

Line 4
Setup

Line 5
Setup

Line 6
Setup

Adv. ISDN

Settings

PRI

Switch Type

Channel
Hunting

Line

Settings

Adv. PRI
Settings

33

Getting Started TANDBERG Director Videoconferencing System

General Codec Configuration

The control system communicates with the codec through Data 1 at 9600 baud, No parity bit, 8
data bits, and 1 stop bit. The codec should be left in its default configuration with the following
exceptions. Using the IR control, the following settings should be addressed:

THESE SETTINGS ARE ESSENTIAL

NOTE

FOR OPTIMAL SYSTEM SETUP.

• Enabled but unused ISDN lines (lines not active) should be disabled.

• Select the QUICK KEY ‘System Info’ (IR control) to view line status.

• To disable unused ISDN lines, press MENU on the remote control.

• Select the menu ‘Terminal Settings’ > ‘Network’ > ‘ISDN-BRI settings’.

• Select the relevant ‘Line Setup’ menu and set ‘Enabled: Off’.

• Enter System Name to identify the system during an MCU conference.

• Select ‘Utilities’ > ‘System Name’

• Enter the name using the NUMBER KEYS (as on a mobile phone).

• Select the language you want to use in ‘Terminal Settings’ > ‘Language’.

• If you are using two monitors, set ‘Utilities’ > ‘Dual Monitor: On’.

• To activate AES Encryption, MultiSite

paperwork accompanying your system). See ‘Terminal Settings’ > ‘Software Options’.

TF

and/or Presenter, enter an option key (see

• Press CONNECT on the IR control. A dial tone should be heard if the network is active.

• Using the monitor remote control, adjust the VOLUME on the monitor to a level of your choice.

This volume will be the default volume for all calls.

It is critical that the following settings are configured:

• All network and LAN information (SPIDS, IP Addresses, etc. )

• DuoVideo Mode “Manual”

TF - TANDBERG FIRST

34

Network and LAN Settings

ISDN configuration

For each installation of the system it is necessary to configure the unit. All configuration parameters
are available via the menu system. If you are using an external IMUX or special networks, the
external equipment may also need to be configured.

• Press MENU on the IR control. Select the menu ‘TERMINAL SETTINGS’ > ‘NETWORK’.

Getting StartedTANDBERG Director Videoconferencing System

• Set ‘Current Network’ to the network you want to use.

• Specify the settings for the selected network in one of the menus.

For details, follow the instructions in ‘TERMINAL SETTINGS’ > ‘NETWORK CONFIGURATION’ in this
manual.

For further information refer to the examples in:

APPENDIX 1: CONNECTING THE SYSTEM TO ISDN USING NT1 NETWORK ADAPTERS
APPENDIX 2: CONNECTING THE SYSTEM TO THE SWITCHED 56 NETWORK

LAN configuration

• Press MENU on the remote control. Select the menu ‘Terminal Settings’ > ‘LAN Settings’.

• Specify the necessary LAN settings according to the instructions from your LAN

administrator. If there is an H.323 Gatekeeper present on your LAN, see also ‘H.323
Settings’.

For details, follow the instructions in chapter ‘LAN SETTINGS’ in this manual.

35

Getting Started TANDBERG Director Videoconferencing System

DUOVideoTF Mode

DuoVideoTF is a very useful presentation tool that enables the presenter to display live video from a
document camera or another source in addition to the live video of the preenter.

The Director system is set-up to utilize the DuoVideoTF feature, however, it requires that the far end
videoconferencing system is DuoVideoTF enabled. When DuoVideoTF operation is possible, a
DUOVIDEO button will be present on the TASKBAR next to the VEW button. Selecting the DUOVIDEO
button will change the display to a “traditional” dual screen view where the video screens will be
presented side-by-side.

See ‘VIDEOCONFERENCE OPERATION’ > ‘DUOVIDEO OPERATION’ for screen description and
operation.

TF - TANDBERG FIRST

36

General use

Adjusting volume

Use the [ + ] and [ - ] on the TASKBAR to adjust the volume level; the IR CONTROLS can be used as
well. An on-screen indicator in the TASKBAR (red meter) will show the current volume level.

Microphone on/off

To mute your microphone during a call, press MIC MUTE on the TASKBAR. An on screen indicator
will appear in the ‘remote view’ when the microphone is off, and you will see the MIC MUTE button
flash red. In a call, if audio is detected, the on-screen symbol will start to flash. Pressing MIC MUTE
one more time will activate the microphone again.

MIC MUTE WILL MUTE AUDIO

NOTE

MIC1-3 AND AUDIO4. IT

INPUTS

NOT MUTE AUDIO FROM THE

WILL

AUX AND VCR INPUTS.

General UseTANDBERG Director Videoconferencing System

Directory

The TANDBERG Director system has a DIRECTORY, similar to a local phone book, that stores up to
100 directory entries including the last number dialed. The entries are sorted alphabetically.

All directory entries and updates should be done through the touch screen interface. Although it is
possible to create and update directory entries directly via the codec, any additions or
modifications must be “synchronized” with the Director Applications Module through TOOLS >

UPDATE DIRECTORY.

It is also recommended that you synchronize the directories after any codec upgrades.

When the system receives an incoming call and the calling party’s number is found in the directory,
the calling party’s name will be displayed instead of the number on the status line.

See ‘VIDEOCONFERENCE OPERATION’ > ‘EDITING SPEED DAIL DIRECTORY’ for adding and editing
directory entries.

*OPTIONAL FEATURE

37

General Use TANDBERG Director Videoconferencing System

Projector Standby Button

Press this button to power on the projector lamp.

When finished, press it to put the projector into reversible standby mode for five minutes. The
screen appears black, but the projector lamp remains on so you can restore the image by pressing
any button on the Control Panel. After five minutes, the lamp begins to power down. After an
additional 90 seconds, full standby mode is reached.

If you prefer, you can skip the five-minute reversible period: Press and hold the P

ROJECTOR

STANDBY button for a few seconds until you see “Please Wait a Moment” appear on the bottom of

the screen. Release the button and the lamp starts powering down, reaching full standby mode in
90 seconds.

For the current status of the lamp, check the LED indicator immediately to the left of this button.
The table below correlates the behavior of this LED and the status of the projector lamp.

LED Behavior

Blinking

Remains steady green

Blinking very fast

Blinking slowly

Blinking very slowly

Projector Lamp Status

Lamp is powering up

Lamp is on

Lamp is in reversible standby mode

Lamp is powering down

Lamp is off and in full standby mode

IF THE PROJECTOR IS ON

NOTE

STANDBY
OR RECEIVED.

PRESSING THE GREEN POWER

NOTE

BUTTON
CALLS ACTIVE AT THAT TIME.

, NO CALLS CAN BE MADE

WILL DISCONNECT ANY

38

MultiSiteTF (MCU)

The system has a built-in multipoint conference unit (MCU), MultiSiteTF, which has the capability to
establish meetings with up to 4 video sites (5 if at least one site is a telephone call, ISDN/analogue/
mobile).

All video calls in a conference must be connected using the same bandwidth.

A conference can consist of any combination of ISDN/IP sites.

It is possible to have telephone meetings with up to 5 participants.

General UseTANDBERG Director Videoconferencing System

The MultiSite

TF

supports both Voice Switched and Continuous Presence mode (see ‘MCU Services’

in ‘Advanced Use’ for description of these modes).

Establishing a conference is done by first
making a call to one site. When a call is
established with the first site, the other
sites are connected one by one.

It is possible to either dial out to the sites
or the sites can dial in to the MultiSiteTF.

Both ISDN, IP and mixed ISDN/IP
conferences can be encrypted if all
systems supports encryption.

For encrypted calls, there is a maximum
bandwidth of 768 Kbps for the whole
conference. This means that a 3-site
conference will have a maximum
bandwidth of 384Kbps per connection,
while a 4-site conference will have a
maximum bandwidth of 256 Kbps per
connection.

SEE ‘UTILITIES’, ‘CONTINUOUS PRESENCE’ TO

TIP

CHANGE MODE.

MULTISITE - WHICH QUALITY CAN BE USED ON EACH SITE?

(2MBPS VERSION) +1 PHONE 1-2 PHONES 1-3 PHONES

BRI (768 KBPS) 256 KBPS 192 384 320 512
PRI-E1(1920 K) 512 512 768 768 1472
PRI-T1(1472 K) 384 384 512 512 1152
LAN (3MB) 768 768 * 1152 1152 * 1920 *

MIX ISDN/LAN EXAMPLE: IF 4 SITES ARE CONNECTED, TWO LAN SITES AND ONE ISDN SITE CAN BE CONNECTED ON 512 KBPS
(2MBPS VERSION) OR 256 KBPS (768 KBPS VERSION). NOTE - 4 SITES INDICATES YOURSELF + THREE OTHER SITES.
* - REQUIRES 1-3 ISDN CHANNELS AVAILABLE.

TF - TANDBERG FIRST

4 SITES 4 SITES 3 SITES 3 SITES+ P-TO-P +

WHEN MIXING ISDN AND LAN

NOTE

SITES, THE TOTAL BANDWIDTH
LIMITATION
THE ISDN BANDWIDTH.

IS THE SAME AS FOR

39

General Use TANDBERG Director Videoconferencing System

MultiSiteTF cascading

By connecting four MultiSiteTF systems together, it is possible to connect up to 10 video sites
(including the four MultiSiteTF sites) plus 4 audio sites (telephones), see drawing below.

The host can connect up to 3 other video systems with MultiSiteTF functionality. The host can use
Voice Switched or Continuous Presence mode.

The cascaded systems connect to two other video sites plus one audio site each. These systems
will automatically run Voice Switched mode and transmit a full screen image to the host when
calling on ISDN. When calling on IP, Voice Switched Mode must be selected manually.

MultiSite

- Cascaded

MultiSite

- Host

ALL CONNECTIONS CAN BE

NOTE

COMBINATION OF

ANY

ISDN/IP.

Establishing MultiSiteTF meetings using Directory

It is possible to pre-define meetings using Directory. All sites will then be connected automatically
instead of having to add each site individually.

• Press DIRECTORY.

• Highlight a MultiSite

See ‘VIDEOCONFERENCE OPERATION’ > ‘MAKING A M ULTISITE CALL’ section for further information.

TF - TANDBERG FIRST

40

TF

entry and press CONNECT.

PC SoftPresenter

PC SoftPresenter is used to display PC images on your system without using a VGA cable (PC
Presenter). The TANDBERG video conferencing system and your PC must be connected to a LAN. In
addition, VNC (Virtual Network Computing) server software must be installed on the PC.

To show the PC image:

General UseTANDBERG Director Videoconferencing System

• Start the VNC software on your PC.

• Press PC on your remote control. Use UP/DOWN to
activate PAGE UP/PAGE DOWN on the PC.

For setup information and details, see ‘VNC SETTINGS’ in ‘ADVANCED USE’.

Web-interface

It is possible to access and maintain the system remotely via a local area network (LAN) using a
standard Web-browser.

Connect your system from the LAN socket, found on the codec interface panel, to a local area
network. Then configure your codec:

• Press MENU, select ‘Terminal Settings’ > ‘LAN Settings’

• Specify IP-assignment ‘DHCP’ or ‘Static’. If DHCP is selected no other settings are needed.

If Static is selected, ‘IP-address’, ‘IP-subnet mask’ and ‘Gateway’ must be specified.

EXAMPLE:

IP-ASSIGNMENT:STATIC
IP-ADDRESS: 196.9.200.129
IP-SUBNET MASK: 255.255.255.0
GATEWAY: 196.9.200.21

‘PC: VNC’ MUST BE SET IN

NOTE

‘VIDEO SETTINGS’.

THE SYSTEM MUST BE RESTARTED BEFORE

NOTE

CHANGES
TAKE

RESTART QUICK KEY OPTION.

IN THE ‘LAN SETTINGS’ MENU CAN

EFFECT. NOTICE THE ON-SCREEN

See ‘ADVANCED USE’ > ‘LAN SETTINGS’ for further information.

• Start your Web-browser. In the address field type the IP-address of the codec. The Web-page

of the codec will be shown.

Text Chat / Closed Captioning

While in an ISDN or IP call to another system supporting Text Chat (T.140), select ‘Text Chat’ from
the Web-page of the codec. Enter text in the window displayed. When selecting ‘Send Text’, the
text will be displayed on the local and far-end monitor as shown below:

The local Text Chat window can be closed
manually from the Web-interface by pressing
‘Close Window’. It will also close
automatically after a few minutes without
activity.

Streaming

To view streaming, select ‘Streaming’ from the Web­page of the codec. See separate ‘Streaming’ section
in this manual for further information.

STREAMING CAN ONLY BE INITIATED ONLY IF IS

NOTE

‘ON’.

41

Display Operation TANDBERG Videoconferencing System

6

6

6

6

6

6

6

6

6

6

6

Display Operation

Local Display Operation

When the system is not in a videoconference call, the default screen is
the ‘Local Video Display’. This mode of operation utilizes the Director
system’s audio and video functionality as a room presentation tool.

Screen Basics

The controls will work either on the right or left hand side of the screen, depending on the
‘Opening Screen’ control selection. In this case where the left side of the opening screen was
selected, and the Director Module had been installed in a SMART Board™ system, the user would
be right-handed.

Local Video Display

Device Control

23456789012345

23456789012345

23456789012345

23456789012345

Camera

23456789012345

Control

23456789012345

23456789012345

23456789012345

23456789012345

Video

23456789012345

Sources

23456789012345

Task Bar

Local Video

Source Selection

Task Bar

The screen has four sections:

VIDEO DISPLAY WINDOW where the chosen video source will be displayed.

DEVICE CONTROL where controls specific the chosen video source will be displayed.

SOURCE SELECTION where the available video sources can be selected.

TASKBAR where the functions relevant to the current system operation will

42

If the device has no associated controls this area will be blank.

be displayed.

Source Selection

Press a VIDEO SOURCE button to show its image in the display window. The User can change the
source selection at any time, the selected source button changes from blue to green when active.
Any device controls associated with that source will be displayed in the Video Display Window
after its selection.

Display OperationTANDBERG Videoconferencing System

AIN

M

Sends the Main source to the video display.
If this source has either the TANDBERG WAVE or Sony EVI
camera connected it can be controlled. See DEVICE
CONTROL.

Device Control

The Main and Aux sources can be positioned manually using the camera control buttons or by
using the presets.

AUX

DOC CAM

VCR / DVD

PC

Sends the Aux source to the video display.
If this source has either the TANDBERG WAVE or Sony EVI
camera connected it can be controlled. See DEVICE
CONTROL.

Sends the Document camera to the video display.
No device control are available for this source.

Sends the VCR or DVD to the video display.
No device control are available for this source.

Sends the PC to the video display.
If the Director module is installed within the Rear
Projection SMART Board 3000i and the PC is running the
SMART Board software, annotation and PC operation will
be possible.

Left and Right arrow buttons pan (move horizontally) the
camera image.

Up and Down arrow buttons tilt (move vertically) the
camera image.

Camera controls will be available for both Main and Aux
sources

Zooms in (enlarges the view of a participant).
Zoom out (reduces the view of a participant).

Moves and zooms either the Main or Aux camera to a
predefined room view.

To Store a preset: Move the camera to the view required.

Press and hold the PRESET button you want to set until the
red “preset stored” text appears.

43

Display Operation TANDBERG Videoconferencing System

Taskbar

The grey TANDBERG TASKBAR present at the bottom of the
screen provides controls relevant to local presentation
operation. The buttons will change according to the display
status. The button border and text will illuminate red when it is
activated.

HIDE / TASKBAR

EXIT

ENLARGE / REDUCE

HIDE removes the taskbar from the screen, a single Taskbar button replaces it.

TASKBAR displays the taskbar on the bottom of the screen

EXIT from the local display operation to the Opening screen.

ENLARGE increases the size of the video display to full screen, thus covering the source
selection and device controls. The taskbar will remain available.

REDUCE returns the video display to the standard size allowing access to the source
selection and device control.

It is also possible to enlarge and reduce the video display by touching the video
window itself. This function works for all video sources except the PC source

TASKBAR REFERENCES ARE FOR

NOTE

TANDBERG INTERFACE AND

THE

PC OPERATING SYSTEM

NOT
TASKBARS

WINDOWS, MACINTOSH)

(I.E. MICROSOFT

VIDEOCONFERENCE

VOLUME

Video Display Window

Shows the currently selected VIDEO SOURCE.

It is possible to enlarge certain video display windows by touching the video window itself.

The PC source is configured for on-screen annotation, therefore the ENLARGE/REDUCE buttons
must be used in this case.

Touching the window again will return it to the previous size.

Select this function to access the VIDEOCONFERENCE CALL CONTROLS and initiate a call.

Increases or decreases the local volume level within the room by using the plus or
minus buttons. The level bar indicates the current level setting.

44

Videoconference Operation

0

0

0

0

0

0

0

0

0

0

Display OperationTANDBERG Videoconferencing System

When the Director receives/initiates a video/audio call.

When an incoming call connects the user will be automatically taken
to the Videoconference Main Screen, otherwise on the TASKBAR
select the VIDEOCONFERENCE button to access the Call Control
Screen.

Display Screens

The LEFT screen will

be the REMOTE SITE.

The RIGHT screen is

the local display of the

currently selected

VIDEO SOURCE

Address Book

Speed dials and call

controls

Remote Video

23456789

23456789

23456789

23456789

23456789

Address Book

Task Bar

You Are Sending

23456789

23456789

23456789

23456789

23456789

Taskbar

Making Calls

From the Call Control screen there are two methods that you can use to make a call: SPEED

DIALING

Speed Dialing

To call a previously set speed dial number:

and MANUAL DIALING.

1. In the ADDRESS BOOK select a speed dial site; its call details will be displayed in the white text
bar. You can use the UP/DOWN ARROWS to scroll or page through all the available speed dials.

2. If this is the site you wish to call press the green CONNECT button. The call will be established
as defined.

3. If the remote site is not answering select the red HANG UP button to disconnect the call.

4. When the call is established the Videoconference Main Screen will be displayed.

45

Manual Dialing

To manually dial a number:

1. In the ADDRESS BOOK select the MANUAL DIAL button.

TANDBERG Director Videoconferencing System

2. Enter the number of the desired site using the KEYPAD. Press DELETE to remove the last
character or CLEAR to start again.

3. Press SELECT QUALITY to change the call bandwidth from the default. Use the UP/DOWN

ARROWS to scroll through the available call bandwidths.

4. Press the green CONNECT button. The call will be established as defined.

5. If the remote site is not answering select the red HANG UP button to disconnect the call.

6. When the call is established the Videoconference Main Screen will be displayed.

On the Manual Dial screen the following controls are also available:

REDIAL will attempt to call the last manually dialed number.
CALL STATUS will display information on the currently connected calls. Press the

BACK button to exit from this screen.

DIRECTORY will bring you back to the Address Book screen.

Disconnecting a Call

An active videoconference call can be disconnected at any time.

1. On the TASKBAR select CALL CONTROL to access the Call Control screen.

2. Select the red HANG UP button.

3. You will be asked to confirm: ‘Yes, Hang up.’

46

TANDBERG Director Videoconferencing System

Editing Speed Dial Directory

From the Directory Setup it is possible to create a new speed dial site or edit an existing one.

Creating a new speed dial number

1. In the Address Book select EDIT DIRECTORY to access the directory set up.

2. Select ADD NEW ENTRY

3. Selecting the white text boxes will allow you to enter the name and phone number(s) within that
field. The currently selected field will be circled in red. The CALL QUALITY can be changed using
the ARROW buttons.

4. When complete select SAVE ENTRY.

5. The speed dial can be edited or removed by selecting it the pressing the DELETE ENTRY
button. See also EDITING AN EXISTING SPEED DIAL NUMBER.

6. Select the BACK when complete to return to the Address Book.

47

Display Operation TANDBERG Videoconferencing System

Editing an existing speed dial number

1. In the Address Book select

EDIT DIRECTORY to access the directory set up.

2. Select a speed dial site; its details (if any) will be displayed in the white text boxes below the
speed dials.

3. Pressing the white text box will allow you to edit its contents, either the name or phone
number. The CALL QUALITY can be changed using the arrow buttons.

4. Select

SAVE ENTRY to save and overwrite the existing information.

5. Selecting CANCEL, another speed dial, or leaving the directory setup will ignore any edits made
to that speed dial.

6. Select BACK when complete to return to the Address Book.

Making a MultiSiteTF Call

If the codec has the MultiSiteTF option installed it will be possible to make a MultiSiteTF call using the
codec’s built in MCU feature. Up to 3 sites can be connected with video, and an additional 4th site
can be added as an audio only site.

1. On the Main Videoconference screen select the CALL CONTROL button on the TASKBAR.

2. From the Address Book Screen follow the previously described procedure to either select a
Speed Dial.

3. Press the green CONNECT button. The call will be established as defined.

4. To manually add another site, select MANUAL DIAL and press the ADD SITE TO CONFERENCE
button:

5. If the remote site is not answering select the red HANG UP button to disconnect the call.

On Screen Symbols

The system has a number of symbols indicating different settings that will be present in the top­right corner of the remote site video window.

This symbol will be shown when the volume is turned off on the system.

This symbol will be shown when the microphone is muted/turned off. It will also start to flash if
audio is detected in the room during a call.

A double padlock symbol will be shown when AES encryption (Secure ConferenceTF) is
active.

A single padlock symbol will be shown when DES encryption (Secure ConferenceTF) is active.

An open padlock symbol is shown during the initialization phase for encryption. During this
period the call is not secure.

When the system is On Air in a MultiSiteTF conference, this symbol will be shown.

TF - TANDBERG FIRST

48

Videoconference Main Screen

6

6

6

6

6

6

6

6

6

6

6

4

Display OperationTANDBERG Videoconferencing System

When a call has been established the conference operation is run from
this screen. The fundamentals of SOURCE SELECTION and DEVICE

CONTROL

mirror that of Local Display Operation.

Confidence

Display

Main Video

Display

Device

Controls

Source

Selection

You Are Sending

23456789012345

23

23456789012345

23456789012345

23456789012345

Camera

23456789012345

Control

23456789012345

23456789012345

23456789012345

23456789012345

23456789012345

Video

23456789012345

Sources

Task Bar

Local Video

Task Bar

The screen has five sections:

MAIN VIDEO DISPLAY shows either the LOCAL VIDEO SOURCE or the REMOTE SITE(S)

CONFIDENCE DISPLAY shows either the currently selected VIDEO SOURCE or the REMOTE

DEVICE CONTROL presents controls specific the chosen video source will be displayed.

SOURCE SELECTION allows the available video sources to be selected.
TASKBAR is where the functions relevant to the current system operation will be

Video Window Display Control

Touching the smaller confidence video window will bring its image to prominence in the Main
Video Display with the main screen image moving to the Confidence display. The ‘Remote View’
and ‘You are sending’ headings will change to follow the appropriate video sources.

depending on the conference requirements

(S). This source confirms to the user that the remote is still

SITE

connected or the status of the local source selection.

If the device has no associated controls this area will be blank.

displayed.

49

Display Operation TANDBERG Videoconferencing System

Touching the main screen will enlarge the image to fill the screen. This function works for the video
sources only and not the PC source. The PC source is configured for annotation, therefore use the

ENLARGE/REDUCE button in this case.

Touching the video display again will return it to the previous size.

Videoconferencing Taskbar

The gray TASKBAR present at the bottom of the screen provides controls relevant to the
videoconference operation. The text on the button can change depending on the display status.
The button border and text will illuminate red when it is activated.

IDE / TASKBAR

H

HIDE removes the taskbar from the screen, a single Taskbar button replaces it.

TASKBAR displays the taskbar on the bottom of the screen

CALL CONTROL

VOLUME

MIC MUTE

PIP

ENLARGE / REDUCE

VIEW

Returns to Call Control screen to disconnect current call or add a MultiSiteTF Call.

Increases or decreases the local volume level within the room by using the arrow
buttons. The level bar indicates the current level setting.

Disables sound from all microphones within the room. While the mute is active the
button border and text is blinking red and an on screen, mic off icon appears. De­activate by pressing Mic Mute again.

This inserts, moves and removes the picture in picture image on the remote site
screen.

ENLARGE increases the size of the video display to full screen, thus covering the source
selection and device controls. The taskbar will remain available.

REDUCE returns the video display to the standard size allowing access to the source
selection and device control.

It is also possible to enlarge and reduce the video display by touching the video
window itself. This function works for the video sources only and not the PC source.

This changes the screen view from the default main screen and smaller confidence
screen to the more traditional dual screen view.

Default Dual

MULTIPOINT

DUOVIDEO

TF

50

Gives the user access to Multipoint control screen.

When DuoVideoTF is possible this button will be displayed. Selecting this will initiate the
DuoVideoTF connection and take the user to the DuoVideoTF control screen. See
DUOVIDEOTF OPERATION.

Far End Camera Control

When in a videoconferencing call, it is possible to assume camera control for the far end site’s
system. When the local camera controls are selected press the FAR END CONTROL button. If the far
end site is configured for far end camera control, the camera control and source selection will
change to red indicating that FAR END CONTROL is selected.

Display OperationTANDBERG Videoconferencing System

The available far end sources will also be displayed and can be controlled if the far end complies.
If the far end does not comply, or has this feature disabled, there will be a ‘Not Available’
indication displayed under the controls. To return to control of local cameras, press button NEAR END

CONTROL

.

51

Display Operation TANDBERG Videoconferencing System

0

0

0

0

0

0

0

0

0

0

6

6

DuoVideoTF Operation

When DuoVideoTF operation is possible a DuoVideoTF button will
appear on the TASKBAR beside the VIEW button. Selecting this button
will change the display to a more traditional dual screen view.

Remote Video

23456789

23456789

23456789

23456789

23456789

Task Bar

Main
Source

DUO
Source

You Are Sending (Duo Video)

23456789

2345

2345

23456789

23456789

23456789

23456789

Two groups of source selection are now displayed, the Main source selection and Duo source
selection.

The Main source selection controls the image that may be seen on the main screen of the remote
system, this image is usually the presenter (the Main or Aux camera).

The Duo source selection controls the image that will be seen on the second (local display)
monitor of the remote system, this image is usually the content being presented (the document or
PC source). The DEVICE CONTROLS that appear function for the Duo source only.

It is still possible by pressing the required video window to view one of the images as the main
video display, at which point the screen will reconfigure to the main display and confidence
display view.

To stop transmitting DuoVideoTF, select the END DUO button on the taskbar. The screen will
automatically revert back to the default main and confidence view.

TF - TANDBERG FIRST

52

Multipoint Operation

0

0

0

0

0

0

0

0

0

0

If connected to a multipoint conference by either hosting a TANDBERG MultiSiteTF conference or
connecting to a third party MCU that supports chair control, a Multipoint button will appear on the
taskbar. When selected, the following page will be displayed.

Display OperationTANDBERG Videoconferencing System

23456789

23456789

23456789

23456789

23456789

MultiSite Controls

Task Bar

23456789

23456789

23456789

23456789

23456789

REQUEST FLOOR

Requests the floor during a conference. When granted the site will be seen by
all the other participants.

VIEW SITE

TAKE CHAIR

[EXTERNAL MCU]

TRANSMIT SITE

[EXTERNAL MCU]

DROP SITE

[EXTERNAL MCU]

END VIEW

END MEETING

[EXTERNAL MCU]

VOICE SWITCHED

[MULTISITE CALL]

CONTINUOUS PRES.

[MULTISITE CALL]

TF - TANDBERG FIRST

Select this button then the site to be viewed. This effects the local site only.

Allows the user to act as Chairman for the conference. If granted the Chair has
the ability to Transmit Sites, Drop Sites, or terminate the meeting.

Select this button then the site that will be viewed by all other participants. This
function requires Chairman control.

Select this button, then the site name, and that site will be dropped from the
conference. This function requires Chairman control.

If you are the Chair, and a site has been selected to be seen by all other
participants, selecting this will return the conference back to a Voice Switched
or Continuous Presence conference.

Press and hold the button to end the current conference -- all participants will be
disconnected. This function requires Chairman control.

Set the conference to the voice activated video switching. This function is
only available at the host site.

Set the conference to be viewed in the Continuous Presence format. This
function is only available at the host site.

53

Advanced Use TANDBERG Director Videoconferencing System

Advanced use

Main menu

The menu system can be used to select available functions and utilities for the system.

To enter the menu system and the main menu, press the MENU key. You may leave the menu
system at any time by pressing the MENU key.

A MENU STRUCTURE MAP IS

TIP

PROVIDED
STRUCTURE
THIS MANUAL.

IN THE FOLLOWING MENU

NOTE

DIAGRAMS
ARE HIGHLIGHTED.

IN THE SECTION ‘MENU

’ AT THE FRONT OF

THE DEFAULT SETTINGS

Menu Password

It is possible to password protect the menus on the TANDBERG system. To activate this feature,
specify a Menu Password in the ‘Utilities’ menu. By doing this, only dialing and camera control
commands will be available. When pressing the MENU key, the user will be asked to enter the Menu
Password as can be seen below.

54

Call quality

The ‘Call Quality’ menu allows you to select the preferred quality of your call.

Audio

NOTE

AUTO Optimized audio quality depending on bandwidth.
HIGH High audio quality (G.722) regardless of bandwidth.
NORMAL Telephone quality (G.728) regardless of bandwidth.

Advanced UseTANDBERG Director Videoconferencing System

AUTO:

TIP

1-4

CHANNELS:

G722.1 IS SELECTED.

5-30 CHANNELS:
G722 IS SELECTED.

DUE TO ACTIONS OR LIMITATIONS

THE FAR END YOU MAY NOT

AT

BE ABLE TO ACHIEVE THE

ALWAYS
SELECTIONS YOU WANT.

Video

AUTO Will select ‘Motion’ or ‘Sharpness’ depending on selected video source**.
MOTION Optimized for smooth motion video for all video inputs.
SHARPNESS Optimized for sharp video for all video inputs.

Natural Video

Choose at what level Interlaced video capabilities (iCIF) will be transmitted and enabled.
When set to:

AUTO Natural VideoTF will be transmitted from 768Kbps.
OFF Interlaced capabilities will not be transmitted. This is useful if far end cannot

handle these capabilities.

VGA Resolutions

AUTO VGA capabilities (VGA/SVGA/XGA) and SIF capabilities will be transmitted and

enabled.

OFF VGA capabilities will not be transmitted. Useful if far end can not handle these

capabilities.

SIF CAPABILITIES WILL ENABLE

TIP

VIDEO QUALITY FOR

BETTER

NTSC SYSTEMS (SIF: 352X240,

ISIF: 352X480, 4SIF: 704X480).

TF - TANDBERG FIRST

55

Advanced Use TANDBERG Director Videoconferencing System

Advanced call quality

THE SELECTIONS MADE IN THIS

NOTE

Audio

AUTO The setting of ‘Audio: Auto/High/Normal’ in ‘Call Quality’ will be used.
G.722.1 Compressed high quality audio (7 kHz).
G.722 High quality audio (7 kHz).
G.728 Compressed normal quality audio (telephone quality, 3.1 kHz).
G.711 Normal quality audio (telephone quality, 3.1 kHz).
OFF No audio is transmitted.

Video

AUTO Optimized video quality depending on available bandwidth.
H.263 Bandwidth efficient video compression and decompression.
H.261 Normal video compression and decompression.
OFF No video is transmitted.

WILL OVERRIDE THE

MENU
SELECTIONS

QUALITY’ MENU. IF ‘AUTO’ IS

SELECTED

‘CALL QUALITY’ WILL BE USED.

MADE IN THE ‘CALL

, THE SETTINGS IN

Resolution

AUTO The setting of ‘Video: Auto/Motion/Sharpness’ in ‘Call Quality’ will be used,

see tip above.

4CIF Digital ClarityTF (704 x 576 pixels), only

for H.263.

iCIF Natural VideoTF (352 x 576 pixels for PAL,

352x480 pixels for NTSC), only for
H.263.

CIF High resolution video (352 x 288 pixels).

RESOLUTION, AUTO

TIP

FUNCTIONALITY

FAR END):

BY

WHEN ‘VIDEO: MOTION’ :
LOW BANDWIDTHS: CIF, SIF
HIGH BANDWIDTHS: ICIF, ISIF
WHEN ‘VIDEO: SHARPNESS’ :
CIF, 4SIF, VGA, SVGA, XGA**

QCIF Low resolution video (176 x 144 pixels).

H.331

OFF Standard two-way communication with quality negotiation between both sides.
ON Used when broadcasting a video conference from one site to many others, e.g.

via satellite, where there is no possibility to negotiate quality between the
receivers and the originator due to one-way communication.

Status Format

Provides call quality feedback on the status line.

AUTO Video off/on; Audio off/normal/high
ADVANCED Shows video/audio standards (Example: Video: H.261 CIF, Audio: G.722).

(IF SUPPORTED

TF - TANDBERG FIRST

56

Presentations

Presentation Mode

To send a snapshot immediately after pressing SNAPSHOT select ‘Presentation Mode: Normal’.

To preview the image before it is transferred as a snapshot, select ‘Presentation Mode: Preview’.
When pressing SNAPSHOT you will be allowed to view your snapshot, e.g. from the document
camera, before sending it as a snapshot by pressing SNAPSHOT again. The far end will not see the
snapshot while you are adjusting it.

Advanced UseTANDBERG Director Videoconferencing System

DuoVideo Quality

AUTO Optimized video depending on selected video source and bandwidth in use**.
MOTION DuoVideoTF is optimized for smooth motion video. This mode is ideal if the image

from two W.A.V.E II cameras should be simultaneously transmitted to the far end.

SHARPNESS DuoVideoTF is optimized for sharp video, Digital ClarityTF. This mode is ideal when

using a document camera or a PC on DuoVideoTF. If the far end does not support
4CIF live video, CIF will be selected.

DuoVideo Mode

AUTO Pressing any video source during a call will automatically open DuoVideoTF (if the

far end supports the automatic DuoVideoTF functionality).

MANUAL DuoVideoTF must be opened by pressing CONNECT during a call and selecting

‘Add Duo Video’.

DuoVideo Number

AUTO When adding DuoVideoTF in a conference, DuoVideoTF is connected automatically

if supported by the far end.

MANUAL When adding DuoVideoTF in a conference and connected towards a system with

no DuoVideoTF capabilities, enter the DuoVideoTF Number into the ‘Number’ field
in the ‘Add DuoVideo’ menu. This can be the number to another system (only
video will be transmitted to the system receiving DuoVideoTF).

TF - TANDBERG FIRST

57

Advanced Use TANDBERG Director Videoconferencing System

DuoVideo / Snapshot Source

Select which video source DuoVideoTF transmits.

If you want the document camera to be the default source when using DuoVideoTF / snapshot,
select ‘DuoVideo / Snapshot Source: DocCam’.

To use the same video source as on the first connection for DuoVideoTF / snapshot, select ‘Duo
Video / Snapshot Source: Current’.

Auto-Display Snapshot

Select On to automatically display a received snapshot. If this selection is Off, you will have to
press SELFVIEW to display a snapshot.

Snapshot Filter

Select On to remove any instability in the high quality snapshot.

Utilities

Autoanswer

ON The system will automatically answer all incoming calls.
ON+MICOFF The system will automatically answer all incoming calls and switch the

microphone off when the call is connected. Press MIC OFF to switch the
microphone on.

OFF You must manually answer all incoming calls by pressing the CONNECT key.

Far end camera control

ON The far end will be able to:

- Control your camera

- Select your video sources

- Activate your presets

- Request snapshots

OFF None of the four features above on the local system can be accessed by the far

end, however you will still be able to control the camera on the far end.

TF - TANDBERG FIRST

58

Advanced UseTANDBERG Director Videoconferencing System

Dual Monitor

ON Selfview, snapshots and DuoVideoTF will be displayed on the 2nd monitor.
OFF The 2nd monitor shows Selfview only.

Auto-PIP

ON Your selfview will automatically be displayed (as a Picture-in-picture) whenever

the camera position or video source is changed. Picking up the remote control
will also display your selfview.

Welcome Menu

The Welcome menu can be shown when the system is not in use, and when sleep-mode is not
activated.

O

N The Welcome Menu is shown when the system is not in sleep mode.

OFF The Welcome Menu is not shown.
LOGO If a logo is uploaded to the system, it will be shown when this button is selected.

See also APPENDIX 5.

Continuous Presence

ON The screen is divided into three or four

blocks, each displaying the video image of
a different participant.

OFF The active site will be displayed in full

screen during a MultiSiteTF conference. Also
called Voice Switched mode.

TO DISPLAY YOUR SITE IN FULL

TIP

WHEN ‘ON’ IS SELECTED,

SCREEN
PRESS THE QUICK KEY ‘REQUEST

FLOOR’.

MCU status line

ON The MultiSiteTF/MCU/DuoVideoTF indicators will be displayed and provide

information about the conference.

OFF The MultiSiteTF/MCU/DuoVideoTF indicators will not be displayed.
AUTO The MultiSiteTF/MCU/DuoVideoTF indicators will be displayed for a few seconds

and then timed out. When grabbing the remote control, the indicators will be
shown again.

System Name

Identifies the system:

• during an MCU conference call.

• when using the Web-interface.

• when the codec is acting as an SNMP Agent.

• towards a DHCP server.

• as an H.323 ID. Other systems can call us using this name instead of IP-number/IP-address.

Menu Password

Enter the code which should be entered to get access to the menu system on the TANDBERG
system. When pressing the MENU button on the remote control, the user will be asked to enter the
Password written here.

TF - TANDBERG FIRST

59

Advanced Use TANDBERG Director Videoconferencing System

MCU services

A Multipoint Control Unit (MCU) enables several sites to participate in the same conference.

An MCU conference can have different modes:

Voice Switched

Means that the image of the person currently speaking
will be broadcast to all the other conference
participants. This will remain the case until another
participant starts to speak.

Continuous Presence

Shows several participants on the same screen at the
same time.

Chairman Control

functionality enables one participant to control the
meeting by selecting which of the conference
participants is to be broadcast to the other participants.

The system can also control external MCUs in a very flexible
manner using the functions described below.

THIS SYSTEM HAS AS AN

NOTE

OPTIONAL

M

TO
ONE

MULTISITE SUPPORTS BOTH
VOICE SWITCHED AND
CONTINUOUS PRESENCE MODE,

SEE SECTION ‘MULTISITE’.

DURING AN MCU CONFERENCE, A

TIP

STATUS
INFORMATION
CONFERENCE
STATUS

‘MCU STATUS LINE: OFF’.

BUILT-IN MCU,

ULTISITE, WHICH SUPPORTS UP

3 VIDEO CALLS (4 SITES) AND

TELEPHONE CALL. THE

LINE WILL PROVIDE

ABOUT THE
. TO REMOVE THIS

LINE, SELECT ‘UTILITIES’,

Quick Menu

When connected to an MCU

PRESS ANY QUICK KEY WHEN IN A

TIP

MULTIPOINT
ACTIVATE THE QUICK M ENU.

This menu provides access to the most commonly used MCU functions.

If ‘Request Floor’ is selected, ‘Request Floor’ will change to ‘Release Floor’.

If ‘View Site#’ is selected, ‘View Site #’ will change to ‘End View’.

Selecting ‘Take Chair’ will send a request to take chair. If granted, the QUICK KEYS will be:

CONFERENCE TO

If ‘Floor to Site#’ is selected, ‘Floor to Site#’ will change to ‘Rel. Floor To Site’.

If ‘Release Chair’ is selected, you will return to the original ‘Quick Menu’.

60

Advanced UseTANDBERG Director Videoconferencing System

When MultiSite

TF

If ‘Voice Switched’ is selected, ‘Voice Switched’ will change to ‘Cont. Presence’. This setting can
also be changed in the ‘Utilities’ menu.

Request floor

When requesting the floor, the MCU will broadcast your video in full screen to all other participants
in the conference. If the MCU conference has a chairman, a floor request is sent to the chairman.

You will remain ‘On Air’ until either you select ‘Release Floor’ or the chairman decides to release the
floor to another participant.

Release floor

You choose ‘Release Floor’ to take you ‘Off Air’. You should do this when you wish to make the floor
available to the other participants in the conference.

Terminal Names

Allows you to see the site numbers or name (if supported) of other sites connected in the conference.

View site #

Allows you to view any participant in the conference other than the participant currently ‘On Air’.

End view

Allows you to stop viewing the site previously chosen with ‘View Site #’, and returns your view to
the site that is currently ‘On Air’.

‘VIEW SITE’ AND ‘END VIEW’

TIP

CAN BE USED BY ALL
CONFERENCE PARTICIPANTS.

TF - TANDBERG FIRST

61

Advanced Use TANDBERG Director Videoconferencing System

Chair control

IN ORDER TO MAKE USE OF CHAIR

TIP

CONTROL FEATURES THE MCU

MUST SUPPORT CHAIR CONTROL

(H.243).

You select ‘Chair Control’ and ‘Take Chair’ to assume the role of chairman of the ‘meeting’. As
chairman, you may control which site you and the other sites see.

Take chair

Allows you to request chairmanship of the conference. If no one else is currently chairman the
MCU will give you the chair.

Release chair

Allows you to relinquish the privileges of chairmanship of the conference.

Floor to site #

Allows the chairman to select which of the conference participants is to be broadcast to all other
participants.

Release Floor To Site

Allows the chairman to release the floor.

Disconnect site #

Allows the chairman to disconnect any participant in the conference.

Terminate meeting

Allows the chairman to terminate the conference altogether.

62

Audio Settings

Audio Inputs

Advanced UseTANDBERG Director Videoconferencing System

By default, all inputs are enabled. Just plug in an audio source and it is active. Audio inputs that are
‘On’ will automatically be mixed. Select ‘Off’ to prevent audio/noise from unused inputs or if you
want to disable a specific input. The activated audio sources are stored on presets.

Mic1, Mic2 and Mic3 are intended for electret type microphones. The microphone inputs are
balanced with 24V phantom power.

Audio4 is intended for connection to an external microphone amplifier or an external fixed mixer.

Audio5 is intended for connection to external playback devices or to telephone add-on hybrids.

As there is no acoustic echo canceller on this input it should not be connected to any
microphones. The audio entering this input will be heard from the local speaker.

EXTERNAL MIXER

NOTE

WHEN USING AN EXTERNAL MIXER, IT IS VERY

IMPORTANT
SMART AND OTHER TYPES OF ADAPTIVE MIXERS
MIGHT
MALFUNCTION.

THAT THIS IS A FIXED MIXER. AUTOMATIC,

CAUSE THE ECHO CANCELLER TO

Audio6 is intended for connection to a VCR. It can also be connected to other external playback
devices. As there is no acoustic echo canceller on this input it should not be connected to any
microphones. The audio entering this input will be heard from the local speaker. If ‘Auto’ is
selected, the audio from the VCR will only be heard when VCR is selected as videosource.

63

Advanced Use TANDBERG Director Videoconferencing System

Mix Mode
‘Auto’ automatically adjusts the weighting of each microphone to obtain the best possible audio

and minimizes the background noise. ‘Auto’ will also attenuate the VCR audio level when
someone talks into a microphone. ‘Fixed’ will maintain a constant weighting for all microphones.

Level Settings - Inputs

Adjust the audio input levels according to which external audio equipment is connected. The on­screen audio level indicator will make it easier to set the correct input level settings. The input
level should be adjusted so that the average level reaches the preferred level marker. The audio
inputs are adjustable in steps of 1.5 dB from 0 dB to 22.5 dB.

The default levels for Mic 1 ,2 and 3 are set for use with an Audio Technica AT871 microphone in an
average videoconferencing room. The gain can be adjusted correctly for a wide range of
microphones.

A few examples of microphone levels are:

Audio Technica AT871 +3dB (default with system)
Audio Technica AT851R +7dB
TANDBERG Audio Science +19.5dB

Audio inputs 4, 5 and 6 are set to a default level which is adhered to by most manufacturers of
audiovisual equipment and is a level at which most audiovisual equipment (CD-players, VCRs) will
work.

64

Advanced UseTANDBERG Director Videoconferencing System

Audio Outputs

Out1 is intended for connection to TANDBERG Natural Audio, televisions or audio amplifiers.

Out2 is intended for connection to audio recording equipment or to a telephone add-on hybrid. The

signal is a mix of audio from both the far end and local end (not from Audio in 5).

Out3 is intended for connection to a VCR or other
recording equipment. The signal is a mix of audio from far
end and local end (not from Audio in 6).

Audio Module: Select Natural Audio Module (NAM or NAM
II) according to the type of Audio Module installed.

If an output is ‘Off’, no audio will be sent to that output.

NEVER CONNECT AUDIO OUT 2 OR

NOTE

OUT 3 TO A LOUDSPEAKER

AUDIO

IN THE SAME ROOM AS

PLACED

MICROPHONES CONNECTED

THE

THE SYSTEM. DOING THIS WILL

TO

“HOWLING” AND POSSIBLE

CAUSE

TO THE SPEAKER

DAMAGE
SYSTEM.

Level Settings - Outputs

Adjust the audio output levels according to the parameters of the external audio equipment
connected. These levels should only be adjusted when installing new audio equipment. The default
settings are correct for most consumer electronics devices (televisions, VCRs, etc.).

The volume buttons on the IR control adjust the level of output 1 (the speaker output). The volume
control has no effect on outputs 2 and 3.

65

Advanced Use TANDBERG Director Videoconferencing System

Echo Control

Each of the 3 microphone inputs and Audio input 4 have a separate echo canceller.

One echo
canceller per input provides more sophisticated control than having one common canceller for all
microphones.

Echo control is normally set to ‘On’ to prevent the far end from
hearing their own audio. Once selected, echo cancellation is active
at all times. The echo canceller continuously adjusts itself to the
audio characteristics of the room and compensates for any
changes it detects in the audio environment. If the changes in the
audio conditions are very significant

the echo canceller may take

a second or two to readjust.

You can choose to switch off the echo canceller for the

NOTE

SWITCHED
ECHO
PLAYBACK
IS
IMPROVES
EXPERIENCED

WHEN YOU HEAR AN ECHO OF

YOUR
LIKELY
CANCELLER
MALFUNCTIONING.

‘OFF’ IF EXTERNAL

CANCELLATION OR

EQUIPMENT IS USED. IT

YOUR ECHO CANCELLER THAT

THE AUDIO QUALITY

BY THE OTHER SITE.

OWN AUDIO IT IS MOST

THE FA R END’S ECHO

THAT IS

ECHO CONTROL SHOULD BE

available audio sources.

Noise Reduction

In addition to echo cancellation, the system has built-in noise reduction (NR).

NR reduces constant background noise (e.g. noise from air-conditioning systems, cooling fans
etc.). In addition, a highpass filter (Humfilter) reduces very low frequency noise.

Choose ‘On+NR’ to activate both Echo Control and Noise Reduction.

Room Size

This setting allows optimization of the echo canceller to the acoustic size of the room. Hard walls,
many windows etc. might require higher settings than expected. Carpets, curtains etc. might
require lower settings. Adjust the setting (NOTE: on the far end) if one of the following symptoms
occur:

• There is still some echo of your own audio. Increase the setting.

• The system adapts slowly to acoustic changes in the room. Decrease the setting.

After a change, the system will need a few seconds to re-adjust.

Motion

If you experience echo caused by movements in the room, increase the value.

66

Advanced UseTANDBERG Director Videoconferencing System

Automatic Gain Control (AGC) Settings

Select ‘On’ to allow automatic adjustments (Automatic Gain Control) of audio levels. When ‘On’,
the AGC maintains the audio signal level at a fixed value by attenuating strong signals and
amplifying weak signals. Very weak signals, i.e. noise alone, will not be amplified.

EXAMPLE:

IN MOST CONFERENCES, THE PARTICIPANTS WILL SPEAK AT

DIFFERENT LEVELS, AND BE AT DIFFERENT DISTANCES FROM THE
MICROPHONES. AS A RESULT, SOME OF THE PARTICIPANTS WOULD
BE HARDER TO HEAR THAN OTHERS. THE AGC CORRECTS THIS
PROBLEM BY AUTOMATICALLY INCREASING THE MICROPHONE
LEVELS WHEN “QUIET” OR “DISTANT” PEOPLE SPEAK, AND BY
DECREASING THE MICROPHONE LEVELS WHEN “LOUDER” PEOPLE
SPEAK.

TO ENSURE CORRECT BEHAVIOR

NOTE

THE AGC, IT IS CRUCIAL THAT

OF

LEVELS ON THE INPUT

THE
CONNECTORS
CORRECTLY
INPUT
WILL NOT COMPENSATE FOR
SEVERE
INPUT LEVELS.

USING THE AUDIO

LEVEL SETTINGS. THE AGC

MISADJUSTMENT OF

ARE ADJUSTED

When applying a weak signal in the presence of strong background noise, the leveller might
amplify the background noise as well as the signal. Therefore, in noisy environments, it is advisable
to turn the leveller off.

Tips for improving the echo canceller performance:

• Place all microphones as far as possible from the loudspeaker. Minimum loudspeaker­microphone distance should be 1 meter.

• Place all microphones as close as possible to the persons speaking. By using several
microphones, the ratio distance loudspeaker-to-mic/mic-to-speaker can be increased.
Increasing this ratio improves the echo canceller performance. Avoid distances above two
meters from any participant to his/her closest microphone. If necessary, use several
microphones. Also avoid placing microphones less than one meter from any person.

• Place all microphones as far as possible from noise sources.

• Reduce the volume setting. Ensure that the loudspeaker does not distort the audio.

• The echo canceller tries to estimate the echo path from the speaker system to the
microphones. Moving objects change this path, therefore try to avoid moving objects. Be
especially aware of large objects and objects placed close to either the microphone or the
speaker system as these objects will cause severe changes to the echo path.

• Avoid putting paper sheets etc. on the microphone.

• Avoid moving the microphone or loudspeaker.

• In the event of poor echo cancelling, allow the canceller to adapt. After each change, the
echo canceller requires a few seconds to adapt. Do not change the settings without allowing
the echo canceller to adapt to the new audio environment.

• In the presence of low frequency noise, enable the noise reduction (NR).

67

Advanced Use TANDBERG Director Videoconferencing System

Alert Tones & Volume

To help distinguish between incoming video calls and ordinary telephone calls, different ringing
tones may be selected. You may also select different volume levels for the ringing tone.

Alert Speaker

The codec also has an internal, call alerting speaker.

ON The internal speaker will warn you of an incoming call even though the monitor

may not be switched on.

Restore Audio Defaults

There are many audio settings. It is easy for the user to configure the codec to be unusable.
Therefore it is possible to return all audio settings to their factory default settings by using ‘Restore
Audio Defaults’.

Video Settings

Camera Tracking Mode

Select the camera tracking mode:

SLOW The system waits a while before zooming in on a single person speaking.

NORM Should be used in regular meetings.
FAST The system quickly zooms in on a single person speaking. Suitable when close-

THE CAMERA T RACKING MODE

NOTE

WILL NOT BE AVAILABLE IF

ENTRY
NOT USING THE WAVE CAMERA.

Suitable when wide-angle images are preferred over close-up images.

ups are preferred over wide-angle images.

68

Advanced UseTANDBERG Director Videoconferencing System

Document Camera

Users of a document camera with an S-video output can configure the system to activate an S­video input when pressing DOC CAM on the remote control.

VIDEO2 Video Input 2 (S-video) will be activated when pressing DOC CAM on the remote

control.

VIDEO3 Video Input 3 (Composite) will be activated when pressing DOC CAM on the

remote control.

PC

Configure what should be activated when pressing PC.

VGA Pressing PC will activate the VGA input on the system (default).
VNC Pressing PC will use VNC to show images from your PC (see ‘VNC Settings’ for

further information).

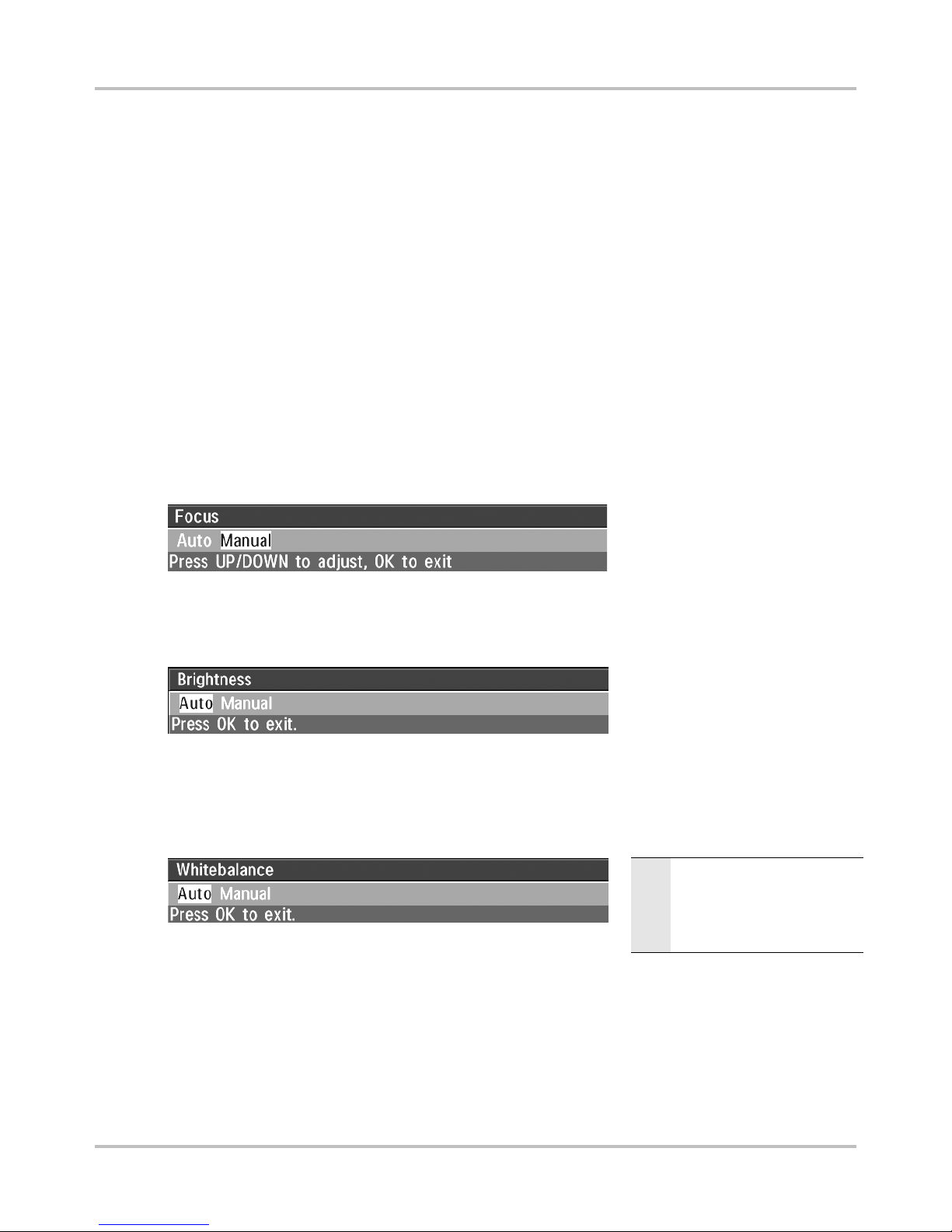

Focus

To manually adjust the focus select ‘Manual’ and use the ARROW KEYS to adjust.

Brightness

To manually adjust the brightness select ‘Manual’ and use the ARROW KEYS to adjust.

Whitebalance

In ‘Auto’ mode the whitebalance is continuously updated. To update the whitebalance manually,
select ‘Manual’ and press OK.

A WHITE OBJECT SHOULD BE HELD

TIP

FRONT OF THE CAMERA A FEW

IN
SECONDS
SELECTING
WHITEBALANCE.

BEFORE AND AFTER

MANUAL

69

Advanced Use TANDBERG Director Videoconferencing System

Video Name

Each video input defaults to the same name used on the remote control to select a video input.
