Reference guide

Codian Remote

Management API

Document version 3.0

September 2008

TANDBERG

Philip Pedersens vei 20

1366 Lysaker

Norway

Telephone: +47 67 125 125

Telefax: +47 67 125 234

Video: +47 67 117 777

E-mail:

www.tandberg.com

tandberg@tandberg.com

1 Introduction ...................................................................................................................................... 1

1.1 HTTP and HTTPS............................................................................................................................................................ 1

1.2 XML-RPC........................................................................................................................................................................... 1

2 Protocol overview............................................................................................................................. 2

2.1 Authentication............................................................................................................................................................... 2

2.2 Message flow.................................................................................................................................................................. 2

2.3 Unicode support ...........................................................................................................................................................4

2.3.1 HTTP Headers...........................................................................................................................................................4

2.3.2 XML Header ..............................................................................................................................................................4

2.4 Common message elements....................................................................................................................................4

2.4.1 Authentication.........................................................................................................................................................4

2.4.2 Participant identification parameters .............................................................................................................5

2.4.3 Enumerate functions.............................................................................................................................................5

2.4.4 Filtering ...................................................................................................................................................................... 6

3 Messages supported by multiple product types............................................................................ 8

3.1 device.query ...................................................................................................................................................................8

3.2 device.network.query..................................................................................................................................................8

3.3 device.health.query ..................................................................................................................................................... 9

3.4 device.restartlog.query...............................................................................................................................................9

3.5 gatekeeper.query........................................................................................................................................................10

3.6 sip.query.........................................................................................................................................................................10

3.7 addressBookEntry.enumerate................................................................................................................................11

3.8 gateway.enumerate...................................................................................................................................................12

4 Conference related methods ......................................................................................................... 14

4.1 conference.create.......................................................................................................................................................14

4.2 conference.modify .....................................................................................................................................................16

4.3 conference.destroy ....................................................................................................................................................17

4.4 conference.end............................................................................................................................................................17

4.5 conference.enumerate .............................................................................................................................................17

4.6 conference.streaming.query ..................................................................................................................................20

4.7 conference.streaming.modify................................................................................................................................21

4.8 conference.paneplacement.query .......................................................................................................................21

4.9 conference.paneplacement.modify.....................................................................................................................22

4.10 participant.add ............................................................................................................................................................22

4.11 participant.remove.....................................................................................................................................................24

4.12 participant.modify......................................................................................................................................................25

4.13 participant.connect....................................................................................................................................................26

4.14 participant.disconnect..............................................................................................................................................26

4.15 participant.move.........................................................................................................................................................26

4.16 participant.enumerate..............................................................................................................................................27

4.17 participant.fecc............................................................................................................................................................31

4.18 participant.message ..................................................................................................................................................31

4.19 participant.diagnostics .............................................................................................................................................32

4.20 autoAttendant.enumerate ......................................................................................................................................32

4.21 autoAttendant.destroy .............................................................................................................................................33

5 IP VCR methods............................................................................................................................... 34

5.1 recording.callout.........................................................................................................................................................34

5.2 recording.configure...................................................................................................................................................34

5.3 recording.delete..........................................................................................................................................................35

5.4 recording.enumerate ................................................................................................................................................35

5.5 recording.stop..............................................................................................................................................................36

5.6 folder.enumerate........................................................................................................................................................36

6 ISDN Gateway methods ................................................................................................................. 38

6.1 Common structures ...................................................................................................................................................38

6.2 calls.active.enumerate ..............................................................................................................................................39

6.3 calls.completed.enumerate ....................................................................................................................................39

6.4 isdn.ports.query ..........................................................................................................................................................40

7 IP Gateway methods....................................................................................................................... 42

7.1 corpdirURI.query.........................................................................................................................................................42

7.2 corpdirURI.configure .................................................................................................................................................42

8 Deprecated messages .................................................................................................................... 43

8.1 system.query ................................................................................................................................................................43

8.2 conference.query........................................................................................................................................................43

8.3 conference.participant.modify ..............................................................................................................................44

8.4 conference.participant.remove.............................................................................................................................44

8.5 conference.participant.add.....................................................................................................................................44

8.6 participant.enumerate..............................................................................................................................................44

9 Related information sources.......................................................................................................... 47

9.1 system.xml.....................................................................................................................................................................47

10 Required user privileges ................................................................................................................ 48

11 Fault codes ...................................................................................................................................... 49

12 Participant disconnect reasons ..................................................................................................... 51

13 References 52

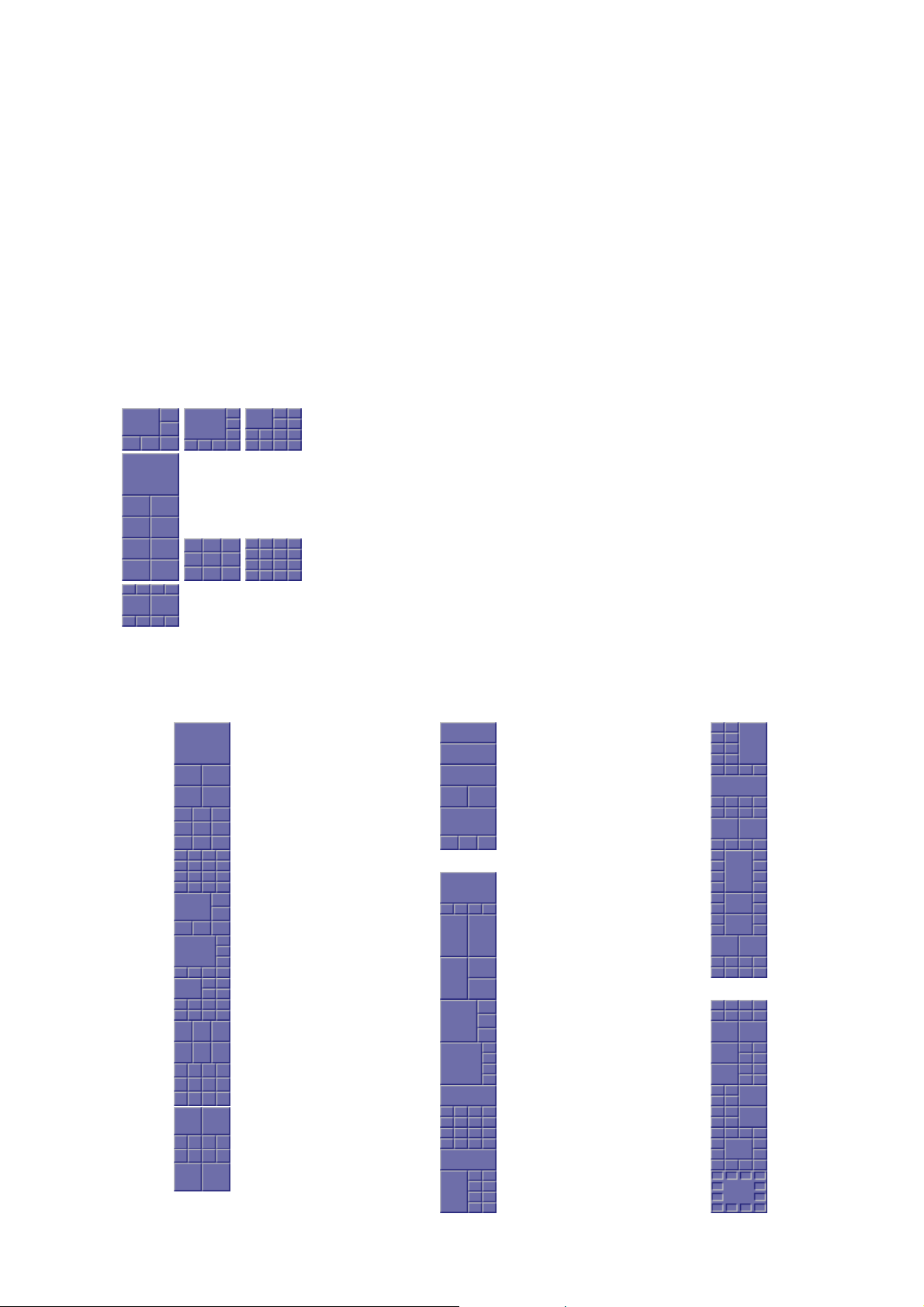

Appendix A - Conference layouts .......................................................................................................... 53

Appendix B - Linking conferences across MCUs ................................................................................... 55

B.1 Example message 1 - creating conference "linked1" on "mcu1"...............................................................55

B.2 Example message 2 - creating conference "linked2" on "mcu2"...............................................................56

B.3 Example message 3 - calling into "linked2" from "linked1".........................................................................57

B.4 Example message 4 - setting the new "linked2" participant to use a full screen view layout ........58

B.5 Message responses ....................................................................................................................................................59

Appendix C - Revision Numbers............................................................................................................. 60

C.1 Discovering record removal....................................................................................................................................60

C.2 Dead records ................................................................................................................................................................61

Appendix D - HTTP Keep-alives ............................................................................................................. 62

1 Introduction

This document contains the specification of the TANDBERG Codian Remote Management API, by which it is possible to control several Codian products. This is accomplished via messages sent using the XML-RPC protocol.

XML-RPC is a simple protocol for remote procedure calling using HTTP as the transport and XML as the encoding. It is designed to be as simple as possible, whilst allowing complex data structures to be transmitted, processed and returned. XML-RPC has no platform or software dependence and was chosen over SOAP because of its simplicity.

The interface is stateless. Currently, there is no mechanism for the Codian device to call back the controlling application and therefore the controlling application must poll the device for status, as required. A future enhancement may provide a mechanism for signaling device status changes to the controlling application.

The latest version of the Remote Management API is version 2.5, the following table shows which version of Codian products support this version.

API Version MCU 4200

MCU 4500 Media blades

2.4 2.2 2.2 1.3

2.5 2.3, and later 2.3, and later 1.4 2.0

IP VCR 2200 Recording blade

Codian ISDN Gateway 3200, 3201, MSE 8320, MSE 8321

IP Gateway 3500 Series IP Gateway MSE 8350 blade

1.1 HTTP and HTTPS

Codian devices expect to receive HTTP communication over TCP/IP connections to port 80. The HTTP messages should be “POST”s to the URL “/RPC2”.

HTTPS (a secure, encrypted version of HTTP) is supported on the following products:

• Codian MCU products, software version 2.3 and later

• Codian IP VCR products, software version 2.3 and later

• Codian ISDN GW products, software version 1.4 and later

• Codian IP GW products, software version 2.0 and later

By default, HTTPS is provided on TCP port 443, although Codian devices can be configured to receive HTTP and HTTPS connections on non-standard TCP port numbers if required.

The Codian devices implements HTTP/1.1 as defined by RFC 2616 [2].

1.2 XML-RPC

For the background and details of XML-RPC, please refer to the specification [1].

In this implementation, all parameters and return values are part of a <struct> and are all explicitly named. For example, the “device.query” method returns the current time value as a structure member named ‘currentTime’ rather than as a single value of type <dateTime.iso8601>.

2 Protocol overview

2.1 Authentication

In order to manage the device, the controlling application must authenticate itself as a user with relevant privileges. Accordingly, each message contains a user name and password; see section 2.4.1 for details of the format. It is worth noting that authentication information is sent using plain text and should only be sent over a trusted network.

2.2 Message flow

An application can create and manage conferences by sending command messages to the device. For each command sent (provided the message is correctly formatted according to the XML-RPC spec), the device responds with a message indicating success or failure. The response message may also contain any data that was requested.

Command messages are sent in XML format. For example, the following message schedules a conference on an MCU to begin at 10:45 on 18 February 2005 and last for one hour:

POST /RPC2 HTTP/1.1 User-Agent: Frontier/5.1.2 (WinNT) Host: 10.2.1.100 Content-Type: text/xml Content-length: 713

<?xml version="1.0"?> <methodCall> <methodName>conference.create</methodName> <params> <param> <value> <struct> <member> <name>authenticationUser</name> <value> <string>api_test</string> </value> </member> <member> <name>authenticationPassword</name> <value> <string>123456</string> </value> </member> <member> <name>conferenceName</name> <value> <string>Meeting 1</string> </value> </member> <member> <name>startTime</name> <value> <dateTime.iso8601>20050218T10:45:00</dateTime.iso8601> </value> </member>

<member> <name>durationSeconds</name> <value> <int>3600</int> </value> </member> </struct> </value> </param> </params> </methodCall>

If the command was successful, the MCU sends a success response. For example, in response to a successful conference.create message, the MCU returns:

HTTP/1.1 200 OK Connection: close Content-Type: text/xml Content-Length: 240

<?xml version="1.0"?> <methodResponse> <params> <param> <value> <struct> <member> <name>status</name> <value> <string>operation successful</string> </value> </member> </struct> </value> </param> </params> </methodResponse>

If the command fails, the MCU sends a fault response. For example, in response to a “conference.create” message where the conference name is not unique, the MCU returns:

HTTP/1.1 200 OK Connection: close Content-Type: text/xml Content-Length: 411

<?xml version="1.0"?> <methodResponse> <fault> <value> <struct> <member> <name>faultCode</name> <value> <int>2</int> </value>

</member> <member> <name>faultString</name> <value> <string>duplicate conference name</string> </value> </member> </struct> </value> </fault> </methodResponse>

The complete list of command messages, their required and optional parameters, and the expected responses are detailed in the sections below. The possible fault codes are listed in section 11. Appendix B - contains examples of some messages and their corresponding responses.

2.3 Unicode support

Parameters in this version of the API can be in ASCII text or unicode (UTF8). In order to distinguish between these encodings, any of several methods can be used. If no method is present, ASCII is assumed.

2.3.1 HTTP Headers

There are two different ways of specifying unicode in the HTTP headers; either using "Accept-Encoding:

utf-8" 8"

, or modifying the Content-Type header to read "Content-Type: text/xml; charset=utf-

2.3.2 XML Header

At the top of each XML file, the <?xml> tag is required. This API will accept an additional encoding parameter with value UTF-8 for this tag, i.e. <?xml version="1.0" encoding="UTF-8"?>.

2.4 Common message elements

2.4.1 Authentication

All messages must contain a user name and password as follows:

Parameter Type Comments

authenticationUser String Name of a user with sufficient privilege for the operation

being performed. The name is case sensitive.

authenticationPassword String The corresponding user’s password. This parameter is

ignored if the user has no password set - note that this differs from the web interface where a blank password must be blank.

2.4.2 Participant identification parameters

The following parameters appear in the majority of conference control messages, and identify a specific participant on which operations are to be performed. The use of “MCU” below refers to any device which acts as a videoconferencing server.

Parameter Type Description

participantName String This is an “internal” name, and therefore is not necessarily

related to any name configured on an endpoint. Within the scope of a particular conference or auto attendant, the combination of “participantType”, “participantProtocol” and “participantName” is always unique

participantProtocol String participantType String

Used in conjunction with “participantName” to uniquely identify a participant within a connection. Typically, these parameters should be treated as opaque values, but the current possibilities are:

- for “participantProtocol”:

h323 – an endpoint using the H.323 protocol vnc – a VNC connection (e.g. remote desktop) sip – an endpoint using the SIP protocol.

- for “participantType”:

ad_hoc – this participant called into the MCU or was

dialed out via the web interface and is not in the MCU’s endpoint list

by_address – fully-specified participant added through

the API

by_name – MCU-configured endpoint irrespective of

whether the endpoint dialed in or the MCU dialed out

API-created participants in scheduled conferences (i.e. those originated by “participant.add”) will be of type by_address (unless they're added explicitly as temporary ad_hoc participants.)

conferenceName String Unique conference name – the conference name space is shared

between API-generated conferences and all other ad hoc and scheduled MCU conferences.

autoAttendantUniqueId String If the participant in question is connected to an auto attendant

rather than a conference, this field contains a unique identifier for that auto attendant.

When modifying or querying parameters for a specific endpoint, participantName, participantProtocol and participantType parameters are supplied, along with either a conferenceName or an autoAttendantUniqueId. The only safe way to find these values is to use the fields returned from participant.enumerate.

2.4.3 Enumerate functions

Due to the potential for a very large number of responses, all enumerate functions return an enumerateID response. This contains a string value which should be passed to subsequent calls of the same enumerate function in order to retrieve the remainder of the values.

The use of this parameter is as follows:

1. The client computer sends an enumerate call with any necessary parameters (e.g. operationScope)

and no enumerateID parameter.

2. The device returns with an array containing the requested data, and possibly a new enumerateID.

3. If there is an enumerateID, the client should call the enumerate method again, with any parameters

that are required or desired, and an enumerateID parameter containing the ID returned by the device from the previous call. This should be repeated while the device continues to provide new enumerateID values in responses.

4. After all data is returned, the device will reply with all remaining results, but no enumerateID.

This method should only be called using enumerateID values as provided by the device.

2.4.4 Filtering

Enumerate functions contain an optional enumerateFilter parameter, which can be used to restrict the responses to the enumerate call. The valid expressions depend on the function to which they are applied, but the syntax is the same for all enumerate functions: the section in this document for each function provides a list of valid filters for that function.

To use the filters, the expression is evaluated, with any function or expression symbols evaluated for the given entity being enumerated (e.g. if enumerating conferences, the active expression will evaluate to true if the conference is active, and false otherwise). If the result of evaluating the filter is true, the entity is returned to the client. If the expression evaluates to false, the entity in question is not returned to the client and the next entity (if any) is considered. As an example, if the expression (active && scheduled) is used when enumerating conference, the returned conferences will be only those which are both active and scheduled.

Filters can consist of atomic expressions, joined together with operators, and brackets in the traditional manner. Whitespace is ignored. Functions are valid, and any parameters are in a comma separated list in brackets following the function name, for example function(expression1,expression2).

From a boolean perspective, the integer 0 is false, and all other numbers are true.

Integer values can be expressed using any string of valid digits, optionally prefixed by 0x for hexadecimal, 0t for decimal and 0z for binary. If no prefix is specified, decimal is assumed.

The following binary operators are valid, in order of priority (lowest priority first)

Operator Description

|| Boolean or && Boolean and | Bitwise or ^ Bitwise exclusive or & Bitwise and == Equality != Inequality < Less than <= Less than or equal >= Greater than or equal > Greater than << Bitwise left shift >> Bitwise right shift + Addition

- Subtraction * Multiplication / Division % Modulo

There are also the following unary operators, all of which bind tighter than any binary operator.

Operator Description

- Unary minus + Unary plus ! Logical negation ~ Bitwise negation

An example filter would be !(expression1 && expression2)

3 Messages supported by multiple product types

The methods in this section are common to many devices, including video conferencing servers, IP VCR products, ISDN GW products, and IP GW products. Not all methods are supported by all product types, and not all fields will be present in responses from all products.

3.1 device.query

There are no parameters passed with this method call. The method response returns the following:

Parameter Type Comments

currentTime dateTime.iso8601 The system’s current time (UTC). restartTime dateTime.iso8601 The date and time at which the system was last

restarted. serial String The serial number of the device. softwareVersion String The software version of the running software. buildVersion String The build version of the running software. model String The model of this device, e.g. "Codian MCU 4210". apiVersion String The version number of the API implemented by this

device. activatedFeatures array of structs Currently, only contains a string "feature" with a

short description of the feature. totalVideoPorts Integer The total number of video ports on the device. Only

present on MCU and VCR products. totalAudioOnlyPorts Integer The total number of additional audio-only ports on

the device. Only present on MCU and VCR products. portReservationMode String enabled or disabled, depending on the Media Port

Reservation configuration setting. Only present on

MCU products. maxVideoResolution String One of cif or 4cif. Only present on MCU and VCR

products. isdnPorts Integer The number of ISDN ports. Only present on ISDN

gateways.

3.2 device.network.query

This call takes no parameters. The response returns the following:

Parameter Type Comments

portA struct (see below) Contains the configuration and status for port A. portB struct (see below) Contains the configuration and status for port B.

The format for the two structures above is:

Field Type Comments

enabled Boolean true if the port is enabled, otherwise false. hostName (optional) String The host name of this port. dhcp (optional) Boolean true if configured by DHCP, otherwise false. ipAddress (optional) String a.b.c.d format. subnetMask (optional) String a.b.c.d format. defaultGateway (optional) String a.b.c.d format.

Field Type Comments

domainName (optional) String The domain name of this port. nameServer (optional) String a.b.c.d format. nameServerSecondary

String a.b.c.d format. (optional) linkStatus Boolean true if the link is up, false if the link is down. speed Integer one of 10, 100 or 1000, in Mbps. fullDuplex Boolean true if full duplex enabled, false if half. macAddress String a 12 character string, no separators. packetsSent Integer packetsReceived Integer multicastPacketsSent Integer

Stats from the web interface. It is worth noting that all these values are 32 bit signed integers, and thus may wrap.

multicastPacketsReceived Integer bytesSent Integer bytesReceived Integer queueDrops Integer collisions Integer transmitErrors Integer receiveErrors Integer bytesSent64 String bytesReceived64 String

64 bit versions of the above stats, using a string rather than an integer.

All fields above marked optional will be returned only if the interface has been enabled and has been configured.

3.3 device.health.query

Returns the current status of the MCU, such as health monitors and CPU load.

Response Type Comments

cpuLoad Integer The CPU load, as a percentage. mediaLoad Integer audioLoad Integer videoLoad Integer fanStatus String

Loads for the media processors (total, and split between audio and video) as percentage values. These are not present on ISDN gateways.

One of ok, outOfSpec and critical.

fanStatusWorst String temperatureStatus String temperatureStatusWorst String rtcBatteryStatus String rtcBatteryStatusWorst String voltagesStatus String voltagesStatusWorst String operationalStatus String One of active, shuttingDown or shutDown.

3.4 device.restartlog.query

Used to return the restart log (also known as the system log on the web interface).

Response Type Comments

log array Contains the restart log in structures as described

below.

The "log" array consists of structures which contain the following fields.

Field Type Comments

time dateTime.iso8601 The time of the last reboot. reason String The reason for the reboot (one of unknown, User

requested shutdown upgrade

or User requested

3.5 gatekeeper.query

Retrieves the gatekeeper settings and current status for an MCU or IP VCR. Takes no parameters.

Response Type Comments

gatekeeperUsage String One of disabled, enabled or required.

The following parameters are all optional and will only be present if gatekeeperUsage is not disabled.

address String The address of the gatekeeper. dnsStatus String The status of the DNS resolution: one of

inProgress, resolved or failed.

ip String If the dnsStatus is resolved, contains the IP

address of the gatekeeper. activeRegistrations Integer The number of active registration. pendingRegistrations Integer The number of registrations in progress. registrationPrefix String The registration prefix used by the device h323ID String The h323 id used by the device. mcuServicePrefix String The service prefix used by the device. scheduledConferenceIDRegistration String The value enabled or disabled; corresponds

to web interface "ID registration for

scheduled conferences" option.

This field is only present for MCU product

types, and only for MCU software versions

2.2(1.3) onwards. h323IDStatus String mcuServicePrefixStatus String

The current status of the ID/service prefix registration process. One of idle,

registering, registered, deregistering, pendingReregistration, waitingRetry, noID or idTooLong.

3.6 sip.query

Retrieves information on SIP configuration for an MCU or IP VCR. Takes no parameters.

Response Type Comments

configuredRegistrar String The currently configured SIP registrar

address. This corresponds to the “SIP registrar address” on the Settings >SIP web page, and will be an empty string value if there is no currently configured SIP registrar.

configuredProxy String The currently configured SIP proxy address.

This corresponds to the “SIP proxy address” on the Settings > SIP web page, and will be an empty string value if there is no

Response Type Comments

currently configured SIP proxy.

conferenceRegistration String This value is only present if the device being

queried is an MCU. It will be enabled if the MCU is configured to register conferences’ numeric IDs with the configured SIP registrar, and disabled if not. The enabled value corresponds to “SIP registration settings” being set to “Allow conference registration” on the Settings > SIP page.

3.7 addressBookEntry.enumerate

Enumerates configured endpoints on an MCU or IP VCR.

Parameter Type Comments

enumerateID (optional)

This method returns:

Response Type Comments

enumerateID (optional)

addressBookEntries array of structs See below for details.

The array “addressBookEntries” contains structs with the following fields:

Field Type Comments

Name String The configuration’s name. address String (< 32

protocol String One of h323, sip or vnc. gatewayName String Present for h323 endpoints which are

gatewayAddress String Present for h323 endpoints which are

useSIPRegistrar Boolean Whether this endpoint is configured to

password String The password for vnc endpoints. portNumber Integer The port number for vnc endpoints. callInParams struct See below for details. conferencingParameters struct See below for details.

The structure callInParams contains the following fields. This is used to match incoming participants to endpoint configurations. For a positive match a participant must match fields which have values. Blank fields are not considered in the comparison.

String The value returned by the last enumeration call. If it is

omitted, a new enumeration is started.

String The value that should be used in the next call to get

the next set of data. If this is omitted, no further data is available from the MCU.

The participant’s E.164 directory

chars)

number, hostname or IP address.

configured to use a gateway. This name corresponds to the name of a gateway returned via gateway.enumerate.

configured to use a gateway. This is the address of the gateway this endpoint is configured to use.

use a sip registrar when being called.

Field Type Comments

name String Endpoint name. address String IP address. e164 String E.164 number.

The structure conferencingParameters contains the following fields:

Field Type Comments

useDefaultMotionSharpness Boolean If true, this endpoint will use box-wide

default motion sharpness settings.

minFrameRateMotionSharpness Integer Only present if

useDefaultMotionSharpness is false. Specifies the minimum frame rate for this endpoint.

useDefaultVideoTransmitResolutions Boolean If true, this endpoint will use box-wide

default video transmit resolutions.

videoTransmitResolutions String One of: allowAll, 4to3Only,

4to3WidescreenOverride 16to9Only.

maxMediaTxBitRate Integer Max media transmit bit rate. maxMediaRxBitRate Integer Max media receive bit rate. defaultLayout String Refer to appendix A for a list of layouts. layoutControlDefault Boolean If true, this endpoint will use box-wide

layout control settings.

layoutControlEnabled Boolean Only present if layoutControlDefault is

false. Indicates whether the participant will have control over their layout.

h239ContributionDefault Boolean If true, this endpoint will use box-wide

h239 contribution settings.

h239ContributionEnabled Boolean Only present if h239ContributionDefault

is false. Specifies whether the endpoint will be able contribute h239.

initialAudioMuted Boolean Whether this participant would initially

have their audio muted.

initialVideoMuted Boolean Whether this participant would initially

have their video muted.

autoDisconnect Boolean When a participant disconnects from a

conference and only participants who have autoDisconnect set to true remain, all those participants are disconnected.

borderWidth Integer 0 (no border), or 1, 2, or 3 for

+1/+2/+3.

3.8 gateway.enumerate

Enumerates configured H.323 gateways on an MCU or IP VCR.

Parameter Type Comments

enumerateID (optional)

String The value returned by the last enumeration call. If it is

omitted, a new enumeration is started.

This method returns:

Response Type Comments

enumerateID (optional)

String The value which should be used in the next call to get

the next set of data. If this is omitted, no further data is available from the MCU.

gateways array of structs See below for details.

The array “gateways” contains structs with the following fields:

Field Type Comments

name String The name of the configured gateway. address String (<

32 chars)

The gateway’s E.164 directory number, hostname or IP address.

conferencingParameters struct see below

The structure conferencingParameters contains the following fields:

Field Type Comments

useDefaultMotionSharpness Boolean If true, this endpoint will use box-wide

default motion sharpness settings.

minFrameRateMotionSharpness Integer Only present if

useDefaultMotionSharpness is false. Specifies the minimum frame rate for this

endpoint. maxMediaTxBitRate Integer Max media transmit bit rate. maxMediaRxBitRate Integer Max media receive bit rate.

4 Conference related methods

Methods in this section are only implemented on products, such as the Codian MCU 4200 series, which act as a video conferencing server. Throughout this section, the term MCU refers to any such device.

4.1 conference.create

Parameter Type Comments

conferenceName String (<32

chars)

numericId (optional) String (<32

chars)

conferenceId (deprecated) String (< 32

chars)

registerWithGatekeeper (optional) Boolean Register the conference’s “numericId”

registerWithSIPRegistrar (optional) Boolean Register this conference with the SIP

startTime (optional) dateTime.iso8601 If you do not specify a time, the

durationSeconds (optional) Integer The length of each repeating conference

endTime (optional) (deprecated) dateTime.iso8601 If you do not specify an end time, then

pin (optional) String (< 32

chars)

description(optional) String (< 32

chars) multicastStreamingEnabled(optional) Boolean unicastStreamingEnabled(optional) Boolean h239Enabled(optional) Boolean private Boolean Determines the visibility of this

maximumAudioPorts (optional) Integer maximumVideoPorts (optional) Integer reservedAudioPorts (optional) Integer

Name of the conference to be created. The conference name must be unique. Numeric identifier of the conference.

Deprecated alternative for “numericId”.

with the gatekeeper.

registrar.

conference starts immediately.

instance, in seconds. If this parameter is absent, or set to “0”, the conference is permanent.

the conference will be permanent (until it is explicitly deleted).

This parameter is deprecated and present for backward compatibility reasons only. Application code should use “durationSeconds” instead.

If present, this is the string of numeric digits that people need to enter to join the conference.

conference. This parameter corresponds to the “Visibility” setting on the web UI, which can have the value Public or

Private.

These fields set the limit on the number of audio (audio only) and video (video + audio) ports for the conference. The

Parameter Type Comments

reservedVideoPorts (optional) Integar

repetition(optional) String One of: none, daily, weekly,

everyTwoWeeks or monthly.

weekDay(optional) String Must be present if repetition is monthly.

One of monday, tuesday, wednesday,

thursday, friday, saturday or sunday.

Note that if repetition is not weekly or

everyTwoWeeks, the "weekDays"

parameter should be used.

whichWeek(optional) String Must be present if repetition is monthly.

One of:

first (the first X of the month, where

X is the day specified by weekday),

second, third, fourth, or last (i.e.

last X of the month).

weekDays(optional) String Must be present if repetition is weekly

or everyTwoWeeks. A comma separated string of weekdays (i.e. any of monday,

tuesday, wednesday, thursday, friday, saturday or sunday), e.g. monday,wednesday,friday.

terminationType (optional) String One of: noTermination,

afterNRepeats or endOnGivenDate.

terminationDate (optional) dateTime.iso8601 If terminationType is endOnGivenDate,

this is the day that the conference repetition will end on.

numberOfRepeats (optional) Integer If terminationType is afterNRepeats,

this is the number of repeats to end after.

customLayoutEnabled (optional) Boolean true if the layout is enabled, false

otherwise. newParticipantsCustomLayout (optional)

Boolean true if new participants use the custom

layout, false otherwise. Only valid if

customLayoutEnabled is true. customLayout (optional) Integer A layout index, as described in appendix

Parameter Type Comments

chairControl (optional) String The chair control setting for the

conference. This can be none,

floorControlOnly or

chairAndFloorControl - these values

correspond to the web interface "Floor

and chair control" setting values of "Do

not allow floor or chair control", "Allow

floor control only" and "Allow floor and

chair control" respectively. If not

specified, the chair control setting for

the new conference will be "Allow floor

control only".

This field is only present for MCU

software versions 2.2(1.6) onwards.

Conferences created through the management API will appear in the list of conferences accessible via the web interface, and vice versa.

4.2 conference.modify

Parameter Type Comments

conferenceName String (< 32

chars)

newConferenceName (optional) String (< 32

chars)

oldConferenceName

(deprecated)

String (<32 chars)

conferenceName (deprecated) String (<32

chars)

numericId String (< 32

chars) conferenceId (deprecated) String pin String registerWithGatekeeper Boolean registerWithSIPRegistrar Boolean startTime dateTime.iso8601 durationSeconds Integer endTime (deprecated) dateTime.iso8601 Description String multicastStreamingEnabled Boolean unicastStreamingEnabled Boolean h239Enabled Boolean private Boolean reservedVideoPorts Integer reservedAudioPorts Integer maximumVideoPorts Integer maximumAudioPorts Integer repetition String weekDay String whichWeek String

Name of the conference to modify.

If present, the conference will be renamed to specified value. Deprecated conference renaming scheme – new code should use conferenceName and newConferenceName as above.

Optional fields as per “conference.create” described above. These fields can only be used for conferences which are not of type

ad_hoc.

Parameter Type Comments

weekDays String terminationType String terminationDate dateTime.iso8601 numberOfRepeats Integer h239Important Boolean Optional. Sets the h239 channel to be

important. locked Boolean Optional. Locks or unlocks the conference. customLayoutEnabled Boolean newParticipantsCustomLayout Boolean customLayout Integer chairControl String enforceMaximumAudioPorts Boolean enforceMaximumVideoPorts Boolean

Conferences created through the management API will appear in the list of conferences accessible via the web interface. Therefore, the API can be used to modify conferences scheduled via the web interface, and vice versa. Note that there is only a very limited amount of control available for ad_hoc conferences, however.

Optional fields, as for the

"conference.create" method above.

Assumed to be true if absent. These can be

set to false in order to specify no limit on

the number of audio/video ports.

4.3 conference.destroy

Parameter Type Comments

conferenceName String Name of the conference to be destroyed.

A conference can be destroyed at any time; that is, before the conference has begun, during the conference or after the conference has ended. Destroyed conferences are removed entirely from the system; this includes all future repetitions of the conference.

4.4 conference.end

Parameter Type Comments

conferenceName String Name of the conference to be ended.

A conference remains in the list of conferences even after the conference has ended — until conference.destroy is called. In particular, this can be used to end an instance of a conference without deleting all future repetitions.

4.5 conference.enumerate

The conference enumerate function is used to return some or all conferences scheduled, running or completed on the MCU.

Parameter Type Comments

enumerateID (optional) enumerateFilter String A filter expression.

String The value returned by the last enumeration call. If it is

omitted, a new enumeration is started.

Valid expressions within the enumerate filter are as follows:

Expression Type Comments

active Boolean True if the conference is active. completed Boolean True if the conference has finished. scheduled Boolean True if the conference is a scheduled conference

(regardless of if it has been completed or not).

This method returns:

Response Type Comments

enumerateID (optional)

String The value which should be used in the next call to get

the next set of data. If this is omitted, no further data is available from the MCU.

conferences array of structs See below for details.

The array “conferences” contains structs with the following fields:

Field Type Comments

conferenceName String conferenceType String One of: scheduled or ad_hoc. uniqueId Integer An id unique among all scheduled and ad hoc

conferences, each instantiation of a scheduled conference will have the same uniqueId.

conferenceActive Boolean Indicates whether conference is currently

active.

description String Extra user-specified information about the

conference pin String The security PIN. guestPin String Security pin for a guest numericId String guestNumericId String registerWithGatekeeper Boolean registerWithSIPRegistrar Boolean multicastStreamingEnabled Boolean unicastStreamingEnabled Boolean h239Enabled Boolean h239Important Boolean Whether the H.239 channel is set to be

important. locked Boolean Whether the conference is locked or

unlocked. maximumAudioPorts Integer maximumVideoPorts Integer reservedAudioPorts Integer reservedVideoPorts Integer

These fields set the limit on the number of

audio (audio only) and video (video + audio)

ports for the conference. The “reserved”

values are for port reservation mode, whereas

the “maximum” figures apply to non-reserved

mode (and will be absent if no limits have

been configured). customLayoutEnabled Boolean True if a custom layout has been enabled for

this conference. customLayout (optional) Integer The index (from appendix A) of the custom

layout. This is only present if the custom

Field Type Comments

layout is enabled. newParticipantsCustomLayout Boolean True if new participants will use the

conference custom layout. private Boolean True if this conference is a private

conference. chairControl String The chair control setting for this conference.

See the chairControl description in

conference.create for an explanation of the

values this parameter can take. The following timing fields will be present for scheduled conferences only startTime dateTime.iso8601 The time at which the conference started at or

will start at. durationSeconds Integer How long each repeating instance of the

conference should last for. If absent, the

conference is permanent. repetition(optional) String One of none, daily, weekly,

everyTwoWeeks or monthly.

weekDay(optional) String Present if repetition is monthly. One of

monday, tuesday, wednesday, thursday,

friday, saturday or sunday.

whichWeek (optional) String Present if repetition is monthly. One of:

first (the first X of the month, where X is

the day specified by weekday), second,

third, fourth, or last (i.e. last X of the

month) weekDays (optional) String A comma separated string of weekdays (i.e.

any of monday, tuesday, wednesday,

thursday, friday, saturday or sunday),

e.g. monday,wednesday,friday.

This field is present when repetition is weekly

or everyTwoWeeks. terminationType(optional) String One of: noTermination, afterNRepeats or

endOnGivenDate.

terminationDate(optional) dateTime.iso8601 If terminationType is endOnGivenDay, this is

the day that the conference repetition will end

on. The following timing values will be present for active conferences only activeStartTime dateTime.iso8601 activeEndTime dateTime.iso8601

If the conference is currently active, these

fields show the time span of the current

activation. If the conference is permanent

then “activeEndTime” will be absent. activeConferenceId string A unique ID for the active instance of this

conference; this conference will have this ID

even if, for example, the conference is

renamed while active, but each scheduled

instance of this conference will have a

different activeConferenceId.

4.6 conference.streaming.query

This returns some details on the current state of streaming viewers for a conference.

Parameter Type Comments

conferenceName String Name of the conference from which streaming

information is required.

This will return a structure with the following fields:

Response Type Comments

unicastViewers Integer The number of unicast streaming viewers. multicastViewers Integer The number of multicast streaming viewers. audioStreams (optional) Array videoStreams (optional) Array

audioRTCPReceiverReports Integer The number of RTCP receiver reports for the

audioRTCPSenderReports Integer The number of RTCP sender reports for the

audioRTCPOther Integer The number of other RTCP packets seen for the

audioRTCPPacketsSent Integer The number of RTCP packets send by the MCU. videoRTCPReceiverReports Integer videoRTCPSenderReports Integer videoRTCPOther Integer videoRTCPPacketsSent Integer currentLayout Integer

layoutSource String

focusType String

focusParticipant Struct

borderWidth Integer 0 (no border), or 1, 2, or 3 for +1/+2/+3.

The stream structures used in the audioStreams/videoStreams responses above have the following fields:

Field Type Comments

codec String The codec in use, or other for undefined codecs. count Integer The number of users of this codec. bitRate (optional) Integer The bit rate of this stream in bits/second. This is

width (optional) Integer The maximum width and height of this stream.

An array of stream structs (defined below). These are only present if there are any streams of either type currently in use.

audio streams seen by the MCU.

audio streams.

As for the audio equivalents.

The actual layout in use for the video stream being sent by the MCU to streaming viewers. The values for this are described in Appendix A. One of family<x>, conferenceCustom, or

participantCustom, and describes the reason

for the current layout. One of: participant, voiceActivated or

h239.

A participant identification structure (i.e. with conferenceName, participantName, participantProtocol and participantType members). Should only be present if focusType is participant.

only present for video streams with a defined codec.

height (optional) Integer

This method will return a fault code of "no such conference" if there is no active conference with the given name, regardless of the presence a configured but inactive conference of that name.

4.7 conference.streaming.modify

Modifies the current layout for streaming viewers for a conference.

Parameter Type Comments conferenceName String Name of the conference whose layout is to be modified. cpLayout (optional) String The current layout behavior for streaming viewers - see

Appendix A.

borderWidth (optional) Integer 0 (no border), or 1, 2, or 3 for +1/+2/+3. focusType (optional) String One of: voiceActivated, h239 or participant. focusParticipant (optional)

Struct A participant identification structure (i.e. with

conferenceName, participantName, participantProtocol and participantType members). Should only be present if focusType is participant.

4.8 conference.paneplacement.query

Queries the current pane placement configuration.

Parameter Type Comments

conferenceName String The name of the conference to be queried.

This returns a struct containing the following response fields:

Response Type Comments

enabled Boolean true if pane placement is enabled and in use; false

otherwise.

panes (optional) array of structs This is only present if enabled above is true. The struct

definition is as below.

The panes array contains structures with the following format:

Field Type Comments

type String Any one of:

default - the default behaviour blank - a blank window loudest - the current loudest speaker

rolling – shows a sequence of conference participants, changing according to the configured rolling interval

h239 - the h239 content channel participant - a participant as identified below.

index Integer The index of this pane. participantType (optional) participantProtocol (optional) participantName (optional)

String

Participant identification. Only present if this pane contains a specific participant.

4.9 conference.paneplacement.modify

Modifies the pane placement configuration of a particular conference.

Parameter Type Comments

conferenceName String Name of the conference to be queried. enabled (optional) Boolean true to enable pane placement, false to disable. panes (optional) array of structs See below for format of the structures.

The panes array contains structures which define a specific pane and its contents. If a pane index is not present in the array, then that pane will remain unchanged. Participant identification is as returned in participant.enumerate.

Field Type Comments

index Integer The index of the pane to be changed. type String Any one of:

default - the default behaviour blank - a blank window loudest - the current loudest speaker

rolling – shows a sequence of conference participants, changing according to the configured rolling interval

h239 - the h239 content channel participant - a participant as described in the three

optional fields. participantType (optional) participantProtocol (optional) participantName (optional)

Because not all panes are guaranteed to be changed, this call returns the following structure:

Response Type Comments

panesModified Integer The number of panes successfully modified. This will be

String

Participant identification. Only required if type is

participant, these identify a specific participant.

the number of elements in the panes array on complete success, and zero if there is no panes array.

4.10 participant.add

Adds a participant to a conference.

Parameter Type Comments

conferenceName String The name of the conference to which to add the

participant.

participantName String The name of the participant to be added. This must

be a unique value, i.e. not the same as any existing participant. Note that for is optional, but must be present otherwise.

participantProtocol String If present, must be h323, sip or vnc – these are

ad_hoc participants, this

Parameter Type Comments

(optional) the only protocols that the API can currently use. participantType (optional) String If present, must be by_address or ad_hoc. Note

that if this conference is an ad_hoc conference, this value should also be ad_hoc. Ad hoc participants can only be added to active conferences.

address string (< 32

chars)

gatewayAddress (optional) string (< 32

The participant’s E.164 directory number, hostname or IP address. IP address or hostname of an H.323 gateway.

chars)

useSIPRegistrar (optional) Boolean Whether to use a registrar in making this a call.

(Ignored if the protocol is not sip) transportProtocol (optional)

String One of: default, tcp, udp or tls. (Ignored if the

protocol is not sip) password (optional) String The password for vnc endpoints. deferConnection (optional)

Boolean If true, don’t call out to this participant

immediately, but wait for a “participant.connect”

command. All of the following parameters are optional, and control the conferencing behaviour of the MCU with respect to the endpoint in question; for example, the maximum resolution of the video streams used, or whether the participant is able to control their conference view layout. maxBitRateToMCU Integer The maximum bit rate to the MCU specified as

kBit/s. maxBitRateFromMCU Integer The maximum bit rate from the MCU specified as

kBit/s. motionSharpnessTradeoff String One of default (to use the global default setting),

preferMotion, preferSharpness and balanced.

displayNameOverrideStatus Boolean If true, use the specified

“displayNameOverrideValue” text as the

participant’s display name during the conference. displayNameOverrideValue string (< 32

chars)

Value to use as the participant’s display name (if

“displayNameOverrideStatus” set to true). cpLayout String This sets the initial conference view layout for the

video sent to this participant. Refer to Appendix A

for the full list of available layouts. layoutControlEnabled Boolean Controls whether this participant is able to change

the conference view layout that they see; 1 (true)

means that the participant can change the layout

using FECC or DTMF, 0 (false) means that they

cannot. audioRxMuted Boolean 1 (true) means that audio from this participant will

not be heard by other conference participants. audioRxGainMode String One of:

none – no extra gain applied

automatic – automatic gain control applied

fixed – fixed number of dBs of gain applied.

audioRxGainMillidB Integer If audio gain mode is fixed, this is the number of

decibels of gain applied, multiplied by 1000, and

can be a negative value. videoRxMuted Boolean true means that video from this participant will not

be seen by other conference participants. videoTxWidescreen Boolean If true, the video sent to this participant will be in a

Parameter Type Comments

form suitable for a widescreen (16:9) display. videoTxMaxResolution String One of: cif, 4cif or max. videoRxMaxResolution String Same as above. autoConnect Boolean If this is true and a participant whose e164, dns, or

IP address matches this participant’s address dials

into the MCU, it will be moved directly to this

conference. In order to stop the MCU dialing out

to the participant, as the conference starts, use

deferConnection. autoDisconnect Boolean When set to true, the participant will be

disconnected from the conference if another

participant disconnects and only participants

configured to be automatically disconnected remain

in the conference. borderWidth Integer 0 (no border), or 1, 2, or 3 for +1/+2/+3. suppressDtmf Boolean Whether inband DTMF tones should be suppressed

(removed) from the audio stream being received

from this participant. linkType String Currently, must be one of:

cascadeSlaveToMaster or default. (Currently

this is only taken note of if participantType is

by_address).

All participants in a conference must have a “participantName” that is unique to the conference but it need not be unique across all conferences.

Participants can be added before or during a conference. A participant which is added at any time via the API will be added to the configured list of participants, and thus will be called at the start of the conference by the MCU for any conference which has any sort of repetition; to avoid this, a participant must be removed directly using participant.remove.

Note: If a “participantName” matches the name of an endpoint in the list of configured endpoints (via the web interface, go to configured, endpoints have the “participantType” value

by_address.

Endpoints) the two are treated as unrelated. This is because in the web interface named,

by_name, whereas API participants are of type

4.11 participant.remove

This call removes a participant from the database of configured participants, and also removes this participant from any conferences. It will also remove all records of this participant's presence in a conference.

Parameter Type Comments

conferenceName String autoAttendantUniqueId String participantName String participantProtocol String participantType String

Participant identification as described above.

4.12 participant.modify

Depending on the operationScope parameter below, this call modifies the configuration of a participant (configuredState), or the active state of a participant in a conference (activeState).

For example, if the parameter layoutControlEnabled is included in a call to participant.modify, then the effect of the call will depend on operation scope as follows:

• If operationScope is activeState, the active participant’s ability to control their layout will

immediately change, but the configured value will remain unchanged, so that if they were to reconnect later, the state of layoutControlEnabled would revert back to how it is in the configuration.

• If operationScope is configuredState, the participant’s current ability to control their layout will be

unaffected, but their configuration will be changed so that in future occurrences of the conference (or when the participant is reconnected) they will have the newly configured state.

Parameter Type Comments

conferenceName String autoAttendantUniqueId String participantName String participantProtocol String participantType String operationScope String One of activeState or configuredState. This

address String gatewayAddress String useSipRegistrar Boolean transportProtocol String password String deferConnection Boolean autoConnect Boolean linkType String maxBitRateToMCU Integer maxBitRateFromMCU Integer motionSharpnessTradeoff

String One of default (if set to the global default

(optional)

displayNameOverrideStatus Boolean

displayNameOverrideValue String cpLayout String layoutControlEnabled Boolean audioRxMuted Boolean audioRxGainMode String audioRxGainMillidB Integer videoRxMuted Boolean videoTxWidescreen Boolean autoDisconnect Boolean suppressDtmf Boolean

Participant identification as described above.

parameter specifies the scope of the changes to be made, be they to the configured state of an endpoint, or to the active state of a participant in a conference. All these parameters are optional. They should not be present if operationScope is activeState. These parameters override the configured values.

setting),

balanced.

preferMotion, preferSharpness and

Optional, and valid for both configuredState and activeState scopes. All of these parameters are optional, and override / change the values provided in the “participant.add” call. Depending on the value of the operationScope parameter, these either, if

configuredState, change the stored

configuration of a participant, or, if activeState, change the active participant state, resulting in real-time changes to that participant.

Parameter Type Comments

important (optional) Boolean This setting should not be present if

operationScope is "configuredState". Specifies whether this participant is important.

audioTxMuted Boolean This setting should not be present if

operationScope is "configuredState".

borderWidth (optional) Integer 0 (no border), or 1, 2, or 3 for +1/+2/+3. focusType (optional) String One of: voiceActivated, h239 or participant. focusParticipant (optional) Struct A participant identification structure (i.e. with

conferenceName, participantName, participantProtocol and participantType members). Should only be present if focusType is participant.

If there is no operationScope parameter, the MCU will attempt to change both active and configured states. This is deprecated behaviour, and should not be relied upon.

4.13 participant.connect

This method is used primarily for API-configured participants with deferConnection set to true, but can also be used to reconnect disconnected participants.

Parameter Type Comments

conferenceName String autoAttendantUniqueId String participantName String participantProtocol String participantType String

Participant identification as described above.

4.14 participant.disconnect

Parameter Type Comments

conferenceName String autoAttendantUniqueId String participantName String participantProtocol String participantType String

This call causes the MCU to tear down its connection to the specified participant, if such a connection exists. This is different from “participant.remove” above because:

f in the case of configured participants, it does not remove the configuration (thus allowing later re-

connection with “participant.connect”)

f in the case of ad hoc participants, it does not remove the record of the previous connection

Participant identification as described above.

4.15 participant.move

This method is used to move a participant from one conference to another.

Parameter Type Comments

conferenceName String autoAttendantUniqueId String participantName String

Participant identification as described above.

Parameter Type Comments

participantProtocol String participantType String newConferenceName String The name of the conference to move the participant to.

This will only move an active participant. Even if this participant is preconfigured, the configuration is unchanged.

A fault code of "no such participant" is returned if the participant is not moved or does not exist.

4.16 participant.enumerate

This method is used to return data about participants in conferences on the MCU. Several calls may be required to receive data about all participants; see the notes on enumerateID below.

Parameter Type Comments

enumerateFilter (optional) enumerateID(optional) String The value returned by the last enumeration call. If

operationScope array of strings This should contain none, either or both of

Valid expressions within the enumerate filter are as follows:

Expression Type Comments

connected Boolean True if the participant is currently connected to a

disconnected Boolean True if the participant has been connected to a

Note that a participant that has not yet connected to a conference (e.g. they have deferred connection specified) is neither connected nor disconnected.

This method returns:

Response Type Comments

enumerateID (optional) String The value which should be used in the next call to

participants array of structs See below for contents.

and an array called “participants” of structs which contain:

Field Type Comments

participantName string participantProtocol String

String An enumerate filter string.

this parameter is omitted, a new enumeration is started.

currentState or configuredState. If currentState is present, the active configuration of

each participant is returned by the MCU in the currentState structure. If configuredState is present, the stored configuration is returned in the configuredState structure

conference.

conference, but is now disconnected.

get the next set of data. If this is not present, there is no further data available from the MCU.

Participant identification as described above.

Field Type Comments

participantType String conferenceName String autoAttendantUniqueId String connectionUniqueId Integer Corresponds to the uniqueId returned by a

conference or autoattendant.

currentState (optional) Struct The current state of the participant as used by the

MCU. Details of this struct are given below. This

is only present if requested in the operationScope configuredState (optional)

Struct The stored configuration of the participant, if any.

Details of this struct are given below. This is only

present if requested in the operationScope

If the endpoint is not configured, the configuredState structure is empty; otherwise the configuredState structure contains the following entries:

Field Type Comments

address String gatewayAddress String

The address used to connect to the remote endpoint in question. Only returned when the address is known.

useSipRegistrar Boolean Whether to use a registrar in making this a call. transportProtocol String One of: default, tcp, udp or tls. password String The password for vnc endpoints. deferConnection Boolean true if this participant's connection is being

deferred.

displayNameOverrideStatus Boolean Indicates whether the displayName value is the

result of being overridden.

maxBitRateToMCU Integer

As for “participant.add”; in kbps.

maxBitRateFromMCU Integer motionSharpnessTradeoff String One of default (if set to the global default

setting), preferMotion, preferSharpness and

balanced.

audioRxMuted Boolean audioRxGainMode String One of fixed, none or automatic. audioRxGainMillidB Integer Only returned if audioRxGainMode is fixed. videoRxMuted Boolean videoTxWidescreen Boolean layoutControlEnabled Boolean cpLayout String The configured layout behavior for this

participant - see appendix A.

autoConnect Boolean Whether or not participants matching this

address should be automatically connected to the conference.

autoDisconnect Boolean Whether or not the participant should be

automatically disconnected from the conference when all other participants disconnect.

borderWidth Integer 0 (no border), or 1, 2, or 3 for +1/+2/+3. linkType String One of: cascadeSlaveToMaster or default.

The currentState structure contains the following responses, if present.

Field Type Comments

address String gatewayAddress String

The address used to connect to the remote endpoint in question. Only returned when the address is known (i.e. the participant was or is to be called out by the MCU, or the participant is an ad_hoc participant calling in which provided an address).

ipAddress String The IP address to which the MCU is

connected for this endpoint - this will usually be the endpoint itself, but may be a gatekeeper or gateway. Only present for active participants.

displayName string The name used by the endpoint to identify

itself. This may be different to the participantName. Only available after the participant has connected.

displayNameOverrideStatus Boolean Indicates whether the displayName value is

the result of being overridden.

maxBitRateToMCU Integer

As for “participant.add”; in kbps.

maxBitRateFromMCU Integer motionSharpnessTradeoff String One of default (if set to the global default

setting), preferMotion, preferSharpness and balanced.

callState String One of: dormant, alerting, connected or

disconnected. When dormant, the

callDirection field is not returned.

connectTime dateTime.iso8601 Only returned after the participant is

connected. This value is always present if the call state is connected. It may or may not be defined for participants in the disconnected state, depending on whether they were ever connected

disconnectTime dateTime.iso8601 Only returned after the participant has

disconnected

disconnectReason String Only returned after the participant has

disconnected; this contains one of the disconnect reason strings given in section 8

connectPending Boolean true if sending a “participant.connect”

command for this participant will cause either the initial connection to that endpoint (in the event that it was configured with “deferConnection” set) or a re-connection to that endpoint (in the event that it has

disconnected) audioRxCodec String audioRxLost Integer audioRxReceived Integer audioTxCodec String audioTxReportedLost Integer audioTxSent Integer audioRxMuted Boolean audioRxGainMode String One of fixed, none or automatic.

Field Type Comments

audioRxGainMillidB Integer Only present if the audioRxGainMode is

fixed.

audioTxMuted Boolean true if audio is not being transmitted to this

participant. videoRxCodec String videoRxLost Integer videoRxReceived Integer videoTxCodec String videoTxReportedLost Integer videoTxSent Integer videoRxMuted Boolean videoTxWidescreen Boolean autoDisconnect Boolean important Boolean activeSpeaker Boolean true if this participant is currently the active

speaker in the conference. layoutControlEnabled Boolean activeConferenceId String The active conference ID of the current

conference - see conference.enumerate for

details of this field. This field is only present

if the participant is currently in an active

conference. currentLayout Integer The actual layout in use for the video stream

being sent by the MCU to this participant.

This parameter will not be present if the

participant is in an auto attendant rather than

a conference, or if the MCU is not currently

transmitting video to the participant in

question. The values for this are those

described in appendix A. layoutSource String This will be one of family<x>,

conferenceCustom, or

participantCustom, and describes the

reason for the current layout. This parameter

is only present if the currentLayout

parameter is also present, i.e. if the

participant is in an active conference. callDirection String Either incoming or outgoing. When the

callState field is ‘

dormant’, the callDirection

field is not returned. previewURL String The location of the preview image; this is not

a complete URL, and requires a prefix of

http://<hostname> (where hostname is the

hostname of this MCU) before it is used. focusType String One of: participant, voiceActivated or

h239.

focusParticipant Struct Only present if focusType is participant.

This structure contains participant

identification members (i.e.

conferenceName, participantName,

participantType and participantProtocol).

Field Type Comments

callIdentifier base64 The h323 id of this caller. borderWidth Integer 0 (no border), or 1, 2, or 3 for +1/+2/+3. autoAttendantConfiguredName String If this participant is connected to an auto

attendant, this field holds the name of that

auto attendant: the value will change as the

user navigates through an MCU’s configured

menu structure. mediaEncryption String One of the following values:

encrypted - all media channels to and from

this endpoint are encrypted

unencrypted - all media channels to and

from this endpoint are encrypted

mixed - some channels are encrypted and

some not

unknown - none of the above; this may

occur when a participant has very recently

connected and no media channels have been

established yet audioRxEnergyMillidB Integer The measured energy of a participant's audio

sent to the MCU. Typically this will be a

negative value in the range -30000 (-30dB for

very quiet) and 0 (very loud). audioRxMutedRemotely Boolean Whether this endpoint is muted remotely.

Note: This participant information is returned for all participants added to the conference using the participant.add method, even after they have disconnected. However, this information is only returned for other participants (i.e. those added via the web interface or those who dialed into the conference) whilst they are connected but not after they have disconnected.

4.17 participant.fecc

Parameter Type Comments

conferenceName String

Participant identification as described above. autoAttendantUniqueId String participantName String participantProtocol String participantType String direction String One of: up, down, left, right, zoomIn, zoomOut,

focusIn, focusOut.

4.18 participant.message

Puts a message on the display of a given participant.

Parameter Type Comments

conferenceName String autoAttendantUniqueId String participantName String participantProtocol String participantType String message String The string to send to the participant.

Participant identification as described above.

Parameter Type Comments

verticalPosition (optional)

String Specifies where to show the message: “top”, “middle”

or “bottom”. Message is always horizontally

centered, and omitting this parameter is equivalent to

choosing “middle”. durationSeconds (optional)

Integer The length of time, in seconds, to display the

message. This defaults to 30 seconds.

4.19 participant.diagnostics

Returns diagnostic information about a given participant.

Parameter Type Comments

conferenceName String autoAttendantUniqueId String participantName String participantProtocol String participantType String

The method response returns the following:

Response Type Comments

videoTxFrameRate Integer videoRxFrameRate Integer videoRxFramesReceived Integer videoTxChannelBitRate Integer videoTxSelectedBitRate Integer videoTxActualBitRate Integer videoTxLimitReason String One of: notLimited, viewedSize, quality,

videoRxChannelBitRate Integer videoRxSelectedBitRate Integer videoRxActualBitRate Integer videoRxLimitReason String One of: notLimited, viewedSize, quality,

videoTxWidth Integer videoTxHeight Integer videoTxInterlaced Boolean videoRxWidth Integer videoRxHeight Integer videoRxInterlaced Boolean

Participant identification as described above.

aggregateBandwidth, flowControl or endpointLimitation.

4.20 autoAttendant.enumerate

Parameter Type Comments

enumerateID(optional) String The value returned by the last enumeration call, if

omitted, a new enumeration is started.

This function has no valid enumerate filter expressions.

This method returns:

Response Type Comments

enumerateID(optional) String The value which should be used in the next call to get

the next set of data. If this is omitted, then no further data is available from the MCU.

autoAttendants array of structs See below for contents.

and an array called “autoAttendants” of structs which contains:

Response Type Comments

autoAttendantUniqueID String autoAttendantConfiguredName String If this participant is connected to an auto

attendant, this field holds the name of that auto attendant: the value will change as the user navigates through an MCU’s configured menu structure.

startTime dateTime.iso8601 The time at which the auto attendant was

created.

4.21 autoAttendant.destroy

Parameter Type Comments

autoAttendantUniqueID String Identifier for the auto attendant to be destroyed.

5 IP VCR methods

Methods in this section are present only where the product supports video recording and playback, such as the Codian IP VCR 2200 Series. Throughout this section, any such product is referred to as an IP VCR.

5.1 recording.callout

This replicates the call out and record functionality from the web interface.

Parameter Type Comments

recordingName (optional) String The name to be used for the recording. If no name

is specified, a default name is used.

folderId (optional) Integer The folder in which this recording is to be placed. If

not specified, the top level folder will be used.

address String The hostname, IP address or e164 number to

connect to. participantProtocol (optional) gatewayAddress (optional) String The address of an h323 gateway, if required. Only

useSIPRegistrar (optional) Boolean Only valid if protocol is sip. Defaults to false.

This may give an operation failed fault, with a reason given in the fault string, if the operation fails. In IP VCR release 2.3 and later, if this call succeeds then the success response includes the integer “recordingId” value used to uniquely identify the new recording. This value can then be used in later recording.configure or recording.stop calls, for instance.

String Either h323 or sip. The protocol to be used for this

connection. This defaults to

used if protocol is h323.

h323.

5.2 recording.configure

Configures a pre-existing recording. All configuration parameters are optional, although a "no changes requested" fault will occur if there are no optional parameters present.

Parameter Type Comments

recordingId Integer The recording ID for the recording to modify. This

should be the identifier as returned by

recording.enumerate. recordingName (optional) numericId (optional) String The numeric ID used for this recording. pin (optional) String The PIN for this recording. registerWithSIPRegistrar (optional) registerWithGatekeeper (optional) playbackEnabled (optional)

String The name for the recording.

Boolean Whether to register this recording with the sip

registrar.

Boolean Whether to register this recording with the h323

gatekeeper.

Boolean Whether this recording has playback enabled.

5.3 recording.delete

This method deletes a recording from the IP VCR.

Parameter Type Comments

recordingId Integer The recording ID for the recording to delete.

This should be the identifier as returned by recording.enumerate.

A "no such recording" fault is returned if the recording does not exist.

5.4 recording.enumerate

This function enumerates the recordings stored on the IP VCR.

Parameter Type Comments

enumerateID (optional) String An enumerateID, as specified in section 2. enumerateFilter (optional) String A filter expression.

Valid expressions within the enumerate filter are:

Expression Type Comments

recordingId Integer The unique index of this recording internal Boolean True if the recording is stored internally external Boolean True if the recording is stored externally inProgress Boolean True if the recording is in the process of being

made

This returns the following:

Response Type Comments

enumerateID (optional) String An enumerateID, as specified in section 2. recordings array of structures See below for layout of the structures.

The "recordings" array contains the following structures:

Field Type Comments

recordingName String The name of this recording. recordingId Integer A unique identifier for this recording. folderId Integer The unique identifier of the folder in which this

recording is stored.

numericId String The numeric Id registered with the SIP registrar

or h323 gatekeeper. pin String The PIN of this recording. status String The current status of the recording. This can be

any of the following:

invalid, uploading, deleting or recording.

playbackEnabled Boolean True if the recording can be played back by

users. registerWithSIPRegistrar Boolean True if the numeric ID is registered with the SIP

registrar. registerWithGatekeeper Boolean True if the numeric ID is registered with the

h323 gatekeeper.

idle, initialising,

5.5 recording.stop

This method stops a recording in progress on the IP VCR software version 2.2(1.15) and later. The connection between the IP VCR and the endpoint (or endpoints) involved in the call will be dropped.

Parameter Type Comments

recordingId Integer The recording ID for the recording to stop. This

should be the recordingId as returned by

recording.enumerate.

A "no such recording" fault is returned if the recording does not exist or is not in the process of being recorded; this method has an effect only on those recordings whose status value as returned by “recording.enumerate” is recording.

5.6 folder.enumerate

This function enumerates all subfolders of a folder.

Parameter Type Comments

enumerateID (optional) String An enumerateID, as specified in section 2.

This returns the following structure:

Response Type Comments

enumerateID (optional) String An enumerateID, as specified in section 2. folders array of structures See below for layout of the structures.

The "folders" array contains the following structures:

Field Type Comments

folderName String The name of the folder. folderId Integer A unique identifier for this folder. parentFolderId (optional) Integer The unique identifier for the parent folder of this

folder. This is not present if the folder has no

parent (i.e. is the top level folder). externalPath (optional) String The external NFS path. Only present if there is

an external path configured. exportRecordings (optional) Boolean Set to true if recordings in this folder are

exported via NFS. Only present if there is an

external path configured. registerWithGatekeeper (optional)

public Boolean Set to true if this folder is publicly accessible. pin String Contains the PIN of this folder. autoAttendantId String recordingId String recordingConsoleId String

Boolean Set to true if the recordings exported externally

in this folder are to be registered with the

gatekeeper. Only present if there is an external

path configured.

The numerical ids used to access these functions.

Note that these are not the same as other

instances of similar names, e.g. recordingId.

These must be unique across the device.

Field Type Comments

pointToPointIncomingPrefix String

The folder’s configured point to point recording

prefixes. pointToPointOutgoingPrefix String

These values are only present with IP VCR

software version 2.3 and later.

6 ISDN Gateway methods

The following methods are present on ISDN gateway products, such as the ISDN GW 3220.

6.1 Common structures

Participant records

Several functions return participant records, which have the following fields:

Field Type Comments

uniqueId Integer A unique index for this participant. protocol String Either h323 (for IP) or h320 (for ISDN). number String the E164 number, IP address or DNS name of the

participant.

Name String The name of this participant (e.g. the h323

name).

autoAttendant boolean True if this participant is an auto attendant

running on the gateway, false otherwise.

incoming boolean True if the call is incoming to the gateway, false if

the call is outgoing. videoCodec String The video codec used for this participant. audioCodec String The audio codec used for this participant. progress String The state of the connection to this participant.

One of: none, initial, proceeding, alerting,

connected or finished. Only present for

active participants. Fecc boolean True if far end camera control is established, false

otherwise. Only present for active participants. ipAddress String The IP address if the participant. Only present for

IP participants. callIdentifier base64 The h323 Call Identifier for this participant. Only

present for h323 participants. channelCount Integer The number of ISDN channels in use. Only

present for ISDN participants. channels array of integers The channels in use by this call. Only present for

ISDN participants.

It is worth pointing out that, while in the functions below, these structures are called participantOne and participantTwo, if the call was not initiated by the web interface or API (which is not currently possible), then participantOne will be the calling party, and participantTwo the called party.

6.2 calls.active.enumerate

Returns a list of all currently active calls on the ISDN gateway.

Parameter Type Comments

enumerateID (optional) String An enumerateID, as specified in section 2.

This returns the following structure:

Response Type Comments

enumerateID (optional) String An enumerateID, as specified in section 2. calls array of struct See below for layout of the structures.

The calls structure contains the following fields:

Field Type Comments

uniqueId Integer A unique identifier for this call. participantOne Struct participantTwo Struct startTime dateTime.iso8601 The start time of the call. voiceCall Boolean True if this is a voice-only call, false for a video

aggregationCall Boolean True if this is an aggregation call, false

callProgress String The state of the call. One of: initial, calling out,

encryption String Either all, some or none, depending on the

Structures containing participant information, as define in common structures, above.

call.

otherwise.

connected or dying.

current encryption state of the media channels (on the IP side of the call).

ISDN encryption String Either all, some or none, depending on the

current encryption state of the media channels on the ISDN side of the call.

maxDuration Integer The maximum duration of this call in seconds. If

there is no maximum, this value is 0.

calledNumber String The number originally called, or unknown if this

number is unknown.

6.3 calls.completed.enumerate

Returns completed call records from the gateway. This function takes no parameters.

Parameter Type Comments

enumerateID (optional) String An enumerateID, as specified in section 2.

This returns the following structure:

Response Type Comments

enumerateID (optional) String An enumerateID, as specified in section 2. calls array of struct See below for layout of the structures.

The calls structure contains the following members:

Field Type Comments

uniqueId Integer A unique identifier for this call. participantOne Struct participantTwo Struct

Participant identification structures, as defined

in common structures above. startTime dateTime.iso8601 The start time of the call endTime dateTime.iso8601 The end time of the call. voiceCall Boolean True if this is a voice-only call, false for a video

call. aggregationCall Boolean True if this is an aggregation call, false

otherwise. encryption String Either all, some or none, depending on the

current encryption state of the media channels

(on the IP side of the call). ISDN encryption String Either all, some or none, depending on the

current encryption state of the media channels

on the ISDN side of the call. maxDuration Integer The maximum duration of this call in seconds. If

there is no maximum, this value is 0. calledNumber String The number originally called, or unknown if this

number is unknown.

The calling and called party are as defined above.

6.4 isdn.ports.query

Returns the current status and the settings of an ISDN port. The device.query call gives the number of ports on the ISDN gateway.

Parameter Type Comments

port Integer The port number to query. This is zero based,

so if there are four ports, they are numbered 0

to 3.

This function returns the following structure:

Response Type Comments

port Integer The port number. type String The interface type. One of e1, j1, t1 or

unknown.

mode String The interface mode. One of terminal,

network or unknown.

layer1 Boolean True if layer 1 is up, false otherwise. layer2 Boolean True if layer 2 is up, false otherwise. enabled Boolean True if this port has been enabled. bChannels array of struct Only present if layer2 is up. See below for

definition of the structure. lowChannel Integer The index of the low channel. highChannel Integer The index of the high channel. searchHighLow Boolean True if the search order is high to low, false if

Response Type Comments

the search order is low to high. directoryNumber String The directory number of this port.

The bChannels structure has the following members:

Field Type Comments

id Integer The channel index. active Boolean True if this channel is active. voice Boolean True if this a voice call, false if a data call. Only

present if active. incoming Boolean True if this call is incoming, false if outgoing.

Only present if active. calling String Only present if active. called String Only present if active.

This function will return a "No such port" fault (24) if the port requested does not exist.

7 IP Gateway methods

The following methods are present on the IP GW 3500 Series and MSE IP GW 8350 blade.

7.1 corpdirURI.query

There are no parameters passed with this method call. The method response returns the following:

Parameter Type Comments

corpdirURI String The full path of the TMS address book.

7.2 corpdirURI.configure

Configures the path to the TMS address book.

Parameter Type Comments

corpdirURI String The full path of the TMS address book.

8 Deprecated messages

These messages were supported in version 1.0 of the MCU 4200 Series Management API, but have since been superseded.

8.1 system.query

This method is deprecated in favour of “device.query” and “conference.enumerate”.

There are no parameters passed with this method call. The method response returns the following:

Parameter Type Comments

currentTime dateTime.iso8601 The system’s current time. restartTime dateTime.iso8601 The date and time at which the system was last restarted.

The method also returns a ‘conferences’ <array> of <struct> for each conference, where each <struct> contains the following parameters:

Parameter Type Comments

conferenceName String The name of the conference numJoined Integer The number of participants that have ever joined the

conference.

numLeft Integer The number of participants that have ever left the

conference. The difference between numJoined and numLeft gives the number of current participants.

Note that until conference.destroy is called for a particular conference, the conference will remain in the list of conferences even after the conference has ended.

8.2 conference.query

This method is deprecated in favour of “conference.enumerate” and “participant.enumerate”.

Parameter Type Comments

conferenceName String The name of the conference of interest.

The method response returns the following:

Parameter Type Comments

startTime dateTime.iso8601 The time at which the conference started at or will start

at.

endTime dateTime.iso8601 The time at which the conference will end. If the

conference is permanent then this parameter is absent.

pin String The PIN.

The method also returns a ‘participants’ <array> of <struct> for each conference, where each <struct> contains the following parameters:

Response Type Comments

participantName String The participant name supplied in the participant.add

message.

Response Type Comments

displayName String The name used by the endpoint to identify itself. This

may be different to the participantName. Only returned when the participant is connected.

address String The address used to connect to the remote endpoint in

question. Only returned when the address is known.

callState String One of:

‘dormant’ ‘alerting’ ‘connected’

‘disconnected’ connectTime dateTime.iso8601 Only returned after the conference has begun. disconnectTime dateTime.iso8601 Only returned after the participant has disconnected. disconnectReason String Only returned after the participant has disconnected.

8.3 conference.participant.modify

This method has been deprecated in favour of participant.modify.

See participant.modify for details of this function.

8.4 conference.participant.remove

This method has been deprecated in favour of participant.remove.

See participant.remove for details of this function.

8.5 conference.participant.add

This method has been deprecated in favour of participant.add.

See participant.add for details of this function.

8.6 participant.enumerate

While this method is not itself deprecated, there is deprecated behaviour if there is no operationScope parameter. In this case the MCU will return a participant structure with the following members:

Response Type Comments

participantName String participantProtocol String participantType String conferenceName String autoAttendantUniqueId String address String gatewayAddress String

Participant identification as described above

The address used to connect to the remote endpoint in question. Only returned when the address is known, or if the participant is configured via the API (which requires the address to be specified when added).

Response Type Comments

deferConnection Boolean displayName string The name used by the endpoint to identify itself.

This may be different to the participantName. Only available after the participant has connected.

displayNameOverrideStatus Boolean Indicates whether the displayName value is the

result of being overridden.

maxBitRateToMCU Integer

As for “participant.add”; in kbps.

maxBitRateFromMCU Integer callState String One of: dormant, alerting, connected or

disconnected.

connectTime dateTime.iso8601 Only returned after the participant is connected.

This value is always present if the call state is

connected; it may or may not be defined for

participants in the disconnected call state, depending on whether they were ever connected.

disconnectTime dateTime.iso8601 Only returned after the participant has

disconnected.

disconnectReason String Only returned after the participant has

disconnected, one of the disconnect reason values given in section 12.

connectPending boolean true if a “participant.connect” command is

required for this participant. This parameter will cause either the initial connection to that endpoint (in the event that it was configured with deferConnection set) or a re-connection to that endpoint (in the event that it has

disconnected). audioRxCodec String audioRxLost Integer audioRxReceived Integer audioTxCodec String audioTxReportedLost Integer audioTxSent Integer audioRxMuted Boolean audioRxGainMode String audioRxGainMillidB Integer videoRxCodec String videoRxLost Integer videoRxReceived Integer videoTxCodec String videoTxReportedLost Integer videoTxSent Integer videoRxMuted Boolean videoTxWidescreen Boolean important Boolean activeSpeaker Boolean true if this participant is currently the active

speaker in the conference. layoutControlEnabled Boolean cpLayout String The configured layout behavior for this

Response Type Comments

participant - see appendix A. This parameter will

be present only for participants configured via

the API. currentLayout Integer Actual layout in use for the video stream being

sent by the MCU to this participant. This

parameter will not be present if the participant is

in an auto attendant rather than a conference,

nor if the MCU is not currently transmitting

video to the participant in question. The values

for this are those described in appendix A. callDirection String Either incoming or outgoing.

9 Related information sources

9.1 system.xml

While not strictly part of the XML-RPC API, some information can be retrieved from the system.xml file. This can be downloaded via HTTP as the file system.xml in the root of the unit, i.e. http://TestMCU/system.xml

This is only present on MCU, IP VCR and IP GW products.

An example is:

<system> <manufacturer>Codian</manufacturer> <model>MCU 4210</model> <serial>MRV1001SM0004B8</serial> <softwareVersion>1.4(1.2)</softwareVersion> <buildVersion>6.6(1.2)</buildVersion> <hostName>TestMCU</hostName> <totalVideoPorts>20</totalVideoPorts> <totalAudioOnlyPorts>20</totalAudioOnlyPorts> <portReservationMode>disabled</portReservationMode> <maxVideoResolution>cif</maxVideoResolution> <uptimeSeconds>2345</uptimeSeconds> </system>

The meaning of the fields is:

Field Comments

manufacturer The manufacturer of this MCU, i.e. Codian. model The model of this particular MCU, e.g. MCU 4210. serial The serial number of this MCU. softwareVersion The software version currently running. buildVersion The build version of the software currently running. hostName The host name of the system. uptimeSeconds The number of seconds since boot. totalVideoPorts The total number of video ports on the MCU. (Not supported on the

IP GW). totalAudioOnlyPorts (optional)

portReservationMode "enabled" or "disabled", depending on the Media Port Reservation

maxVideoResolution The maximum video resolution for the MCU; either "cif" or "max" if

The total number of additional audio only ports on the MCU. Only

present if there are any audio-only ports. (Not supported on the IP

GW).

configuration setting. (Not supported on the IP GW).

larger video is enabled. (Not supported on the IP GW).

10 Required user privileges

The following table summarises which users are permitted to perform which remote management operations.

Method Valid users

device.query Any user with administrator privileges. device.network.query Any user with administrator privileges. device.health.query Any user with administrator privileges. gatekeeper.query Any user with administrator privileges. conference.enumerate Any user with administrator privileges. participant.enumerate Any user with administrator privileges. conference.create Any user with conference creation abilities. conference.destroy conference.modify conference.end conference.streaming.query The owner of the conference, or a user with "conference creation

corpdirURI.query Any user with administrator privileges. corpdirURI.configure Any user with administrator privileges. participant.add Any user with “administrator” privilege, the owner of the

autoAttendant.enumerate autoAttendant.destroy participant.remove participant.modify participant.move participant.diagnostics participant.fecc participant.message participant.connect participant.disconnect recording.callout recording.configure recording.enumerate folder.enumerate isdn.port.query calls.active.query calls.completed.query Deprecated methods system.query Any user with administrator privileges. conference.query Any user with privilege “conference detail” or higher. conference.participant.modify As above for “participant.modify”. conference.participant.remove As above for “participant.remove”. conference.participant.add As above for “participant.add”.

The owner of the conference, or a user with “conference creation and full control” or “administrator” privilege.

and limited control" or higher privileges.

conference, or a user with “conference creation and full control” rights. Any user with administrator privileges.

If the participant is connected to an auto attendant, administrator privileges are required. If the participant is in a conference, the user must be the owner of the conference or a user with “conference creation and full control” or “administrator” privilege.

Any user with administrator privileges.

11 Fault codes

The MCU has a series of fault codes which are given when a fault occurs during the processing of an XML-RPC request. While individual method descriptions above give some indication of which faults may occur, below is a description of all possible fault codes used within this specification, and the usual interpretations.

Fault Code

1 Method not supported. This method is not supported on this device. 2 Duplicate conference name. A conference name was specified, but is already in use. 3 Duplicate participant name. A participant name was specified, but is already in use. 4 No such conference or auto attendant. The conference or auto attendant

5 No such participant. The participant identification given does not match any

6 Too many conferences. The device has reached the limit of the number of conferences

7 Too many participants. There are already too many participants configured and no

8 No conference name or auto attendant id supplied. A conference name or auto

9 No participant name supplied. A participant name is required but was not present. 10 No participant address supplied. A participant address is required but was not

11 Invalid start time specified. A conference start time is not valid. 12 Invalid end time specified. A conference end time is not valid. 13 Invalid PIN specified. A PIN specified is not a valid series of digits. 14 Unauthorised. The requested operation is not permitted on this device. 15 Insufficient privileges. The specified user id and password combination is not valid for

16 Invalid enumerateID value. An enumerate ID passed to an enumerate method

17 Port reservation failure. This is in the case that “reservedAudioPorts” or

18 Duplicate numeric ID. A numeric ID was given, but this ID is already in use. 19 Unsupported protocol. A protocol was used which does not correspond to any valid

20 Unsupported participant type. A participant type was used which does not

21 No such folder. A folder identifier was present, but does not refer to a valid folder. 22 No such recording. A recording identifier was present, but does not refer to a valid

23 No changes requested. This is given when a method for changing something correctly

24 No such port. This is returned when an ISDN port is given as a parameter which does not

101 Missing parameter. This is given when a required parameter is absent. The parameter in

102 Invalid parameter. This is given when a parameter was successfully parsed, is of the

Description

identification given does not match any conference or auto attendant.

participants.

that can be configured.

more can be created.

attendant identifier was required, but was not present.

present.

the attempted operation.

invocation was invalid. Only values returned by the device should be used in enumerate methods.

“reservedVideoPorts” value is set too high, and the device cannot support this.

protocol for this method. In particular, this is used for participant identification where an invalid protocol is specified.

correspond to any participant type known to the device.

recording.

identifies an object, but no changes to that object are specified.

exist on an ISDN gateway.

question is given in the fault string in the format "missing parameter - parameter_name".

Fault

Description

Code

correct type, but falls outside the valid values; for example an integer is too high or a string value for a protocol contains an invalid protocol. The parameter in question is given in the fault string in the format "invalid parameter - parameter_name".

103 Malformed parameter. This is given when a parameter of the correct name is present,

but cannot be read for some reason; for example the parameter is supposed to be an integer, but is given as a string. The parameter in question is given in the fault string in the format "malformed parameter - parameter_name".

201 Operation failed. This is a generic fault for when an operation does not succeed as

required.

12 Participant disconnect reasons

These are the possible values of the “disconnectReason” field in participant information responses:

Value Description

Unspecified unspecifiedError remoteTeardown localTeardown noAnswer Moved Rejected rejectedImmediately Busy Timeout gatekeeperError networkError protocolError dnsFailed destinationUnreachable gatekeeperEnded videoPortAllocationExceeded portAllocationExceeded disconnectAll incompatibleVncVersion failedToConnectToServer authenticationFailed serviceUnavailable capabilityNegotiationError messageQueueOverflow gatekeeperRequiredButAbsent noGatekeeperForDN localGatekeeperRefused remoteGatekeeperRefused remoteGatekeeperUnreachable remoteGatewayResources gatekeeperForced h225SocketError h225ProtocolError h225DecodeError h245SocketError h245ProtocolError h245DecodeError q931DecodeError q931ProtocolError

13 References

[1] XML-RPC, http://www.xmlrpc.com/ [2] RFC 2616, http://www.faqs.org/rfcs/rfc2616.html

Appendix A - Conference layouts

The participant.add and participant.modify methods allow a particular layout to be specified for video sent to that participant via the “cpLayout” parameter.

The “cpLayout” string parameter can take the following values:

• default - use the MCU’s default view family

• family<index> - use the specified layout family; see below

• layout<index> - use a specific layout; see below

• conferenceCustom - use the conference custom layout.

The “<index>” values for “family<index>” correspond to the pane arrangements shown below:

The “<index>” values for “layout<index>” correspond to the pane arrangements shown below. It is worth noting that these indices are also used for the currentLayout parameter from the participant.enumerate call.

Appendix B - Linking conferences across MCUs

For the purposes of this description, two conferences are said to be "linked" if there is a bi-directional H.323 connection between them and each MCU is sending a video channel to the other, showing the active speaker full screen. The audio communicated between the MCUs will be the usual mix of active speakers. For clarification, the linked conferences are given different names (“linked1” and “linked2”) in the explanation, but they can have the same name.

The first step is to set up the two conferences. It is important to ensure that the conferences have a numeric id set (the "conferenceID" field in "conference.create"), because, without this configured field, it is not possible to call in directly to a conference. In this example both conferences are given a numeric id, though strictly it is only necessary on the target MCU (i.e. the one that is called rather than the one calling).

In this specific example, "linked1" is set up on "mcu1" and "linked2" set up on "mcu2". The creation of "linked1" is shown in example message 1, and it is configured with numeric id "1234"; the creation of "linked2" is shown in example message 2, and this conference is given the numeric id "5678".

Next, a participant needs to be added to the "linked1" conference and connected to "linked2" on the target MCU. The most reliable way to accomplish this, which does not rely on the target MCU's gatekeeper usage, is to call from “mcu1” into the target conference using "mcu2" as a gateway and the target conference's numeric id as the remote address. The participant addition is shown in example message 3 - as well as the address and gateway. It also configures the view layout to be full screen (by setting "cpLayout" to "layout1") to make sure that just the active speaker from "linked1" is sent to "linked2".

The final step is slightly more complex — it involves modifying the new "linked2" participant on "mcu2" which was the result of the call from "mcu1". The modification required is to change the view layout setting (for the video sent from "linked2" to "linked1") to full screen so that a view of the “linked2” active speaker is sent.

The complication here is that the "linked2" participant in question is not a participant created via the API, and so the API does not know the name in advance. Therefore, it is necessary to:

f poll membership of "linked2" after the connection from "linked1" has been made f identify the participant corresponding to the call f use its name in a "participant.modify" call to set the view layout

The simplest way to identify the participant is to look for an absence of the “address” field in a “conference.query” response: for incoming, non-API, connections this will not be present. Example message 4 shows such a “participant.modify” call; in this case the participant name needed was "1_Codian MCU 4210".

B.1 Example message 1 - creating conference "linked1" on "mcu1"

<?xml version="1.0"?> <methodCall> <methodName>conference.create</methodName> <params> <param> <value> <struct> <member> <name>authenticationUser</name> <value>

<string>admin</string> </value> </member> <member> <name>conferenceName</name> <value> <string>linked1</string> </value> </member> <member> <name>conferenceID</name> <value> <string>1234</string> </value> </member> </struct> </value> </param> </params> <methodCall>

B.2 Example message 2 - creating conference "linked2" on "mcu2"

<?xml version="1.0"?> <methodCall> <methodName>conference.create</methodName> <params> <param> <value> <struct> <member> <name>authenticationUser</name> <value> <string>admin</string> </value> </member> <member> <name>conferenceName</name> <value> <string>linked2</string> </value> </member> <member> <name>conferenceID</name> <value> <string>5678</string> </value> </member> </struct> </value> </param> </params> </methodCall>

B.3 Example message 3 - calling into "linked2" from "linked1"

<?xml version="1.0"?> <methodCall> <methodName>participant.add</methodName> <params> <param> <value> <struct> <member> <name>authenticationUser</name> <value> <string>admin</string> </value> </member> <member> <name>conferenceName</name> <value> <string>linked1</string> </value> </member> <member> <name>participantName</name> <value> <string>remote_mcu</string> </value> </member> <member> <name>address</name> <value> <string>5678</string> </value> </member> <member> <name>gatewayAddress</name> <value> <string>10.2.1.27</string> </value> </member> <member> <name>cpLayout</name> <value> <string>layout1</string> </value> </member> </struct> </value> </param> </params> </methodCall>

B.4 Example message 4 - setting the new "linked2" participant to use

a full screen view layout

<?xml version="1.0"?> <methodCall> <methodName>participant.modify</methodName> <params> <param> <value> <struct> <member> <name>authenticationUser</name> <value> <string>admin</string> </value> </member> <member> <name>conferenceName</name> <value> <string>linked2</string> </value> </member> <member> <name>participantName</name> <value> <string>1_Codian MCU 4210</string> </value> </member> <member> <name>operationScope</name> <value> <string>active</string> </value> </member> <member> <name>cpLayout</name> <value> <string>layout1</string> </value> </member> </struct> </value> </param> </params> </methodCall>

B.5 Message responses

The response to each of the above method invocations should be the same normal success indication:

Appendix C - Revision Numbers

Note: This feature is available from API version 2.4 onwards. An application can determine the API version supported by a device from the apiVersion value returned in the response to a device.query request.

In order to reduce the size of responses when querying the MCU, the following methods support a “revision number” system:

f participant.enumerate f conference.enumerate f autoAttendant.enumerate

When the MCU responds to a method that supports revision numbers, it returns an extra integer field called “currentRevision”. The following is an example of such a field:

<member> <name>currentRevision</name> <value> <int>18</int> </value> </member>

The revision number is a monotonically increasing value that increases every time any query is made on the MCU via the API. In order to reduce the size of subsequent query responses, the parameter “lastRevision” may be passed in as part of a request; for example:

<member> <name>lastRevision</name> <value> <int>18</int> </value> </member>

This indicates to the MCU that only records that have changed since this revision number should be returned. For example, in participant.enumerate, if a “lastRevision” parameter is provided, then the enumeration response will only include participants that have changed since this revision.

Note that when using revision numbers with enumerate methods, the same “lastRevision” parameter should be used for each stage of the enumeration, even though a greater “currentRevision” parameter will be returned at each stage. Not doing so could result in records which have changed not being returned. Likewise having completed an enumeration, the only “currentRevision” parameter which should be stored is the one that was returned with the first stage of the enumeration. This is the revision number that should be used as the “lastRevision” parameter next time an enumeration cycle is started.

Using the same revision numbers throughout enumerations is necessary to ensure that all records that have changed are reported, but it does mean that a record may be reported more than once occasionally when there has only been one change to it.

C.1 Discovering record removal

The problem with only returning records in responses when they have changed is that if a record is removed there is no way for the client to distinguish between it being removed and just not having changed.

There are two solutions to this problem; the first is the listAll parameter and the second is described in the next section. A client may periodically include the listAll Boolean parameter set to true to indicate that the MCU should return every record available, (enumeration limits still apply so multiple calls using the standard enumeration protocol may be required). This allows a client to resynchronize to the MCU, because it can safely assume that any record not returned by this request (or series of requests, in the case of enumerations) is no longer a record on the MCU.

For example, any participants not returned by participant.enumerate when listAll is set to true can be assumed to have been removed from the MCU.

The listAll parameter can still be used in conjunction with the lastRevision parameter: doing so means that every record will be returned, but records that have not changed since the specified revision may have many members removed from their substructures. Substructures that have had members removed in this way will contain a field named “changed” instead, which will be set to false indicating that there are no changes to the data in this substructure since the specified revision number.

C.2 Dead records

The second approach to the record removal problem is the dead parameter. The MCU will maintain a cache of records that have been removed and are in no sense considered active; a “dead” record will never be returned if revision numbers are not being used or if the listAll parameter is set to true (e.g. a previous participant record is still not considered a dead record because it would be returned by a normal participant.enumerate request).

A dead record will be returned by a method supporting revision numbers if the lastRevision parameter designates a revision at which the record was not yet dead. The returned record will contain only the fields necessary for its identification and an extra field “dead”, which will be set to true to indicate that this record should no longer considered to be present on the MCU.

These dead records are only cached on the MCU for a few minutes; therefore a client should not rely on them unless it is doing very regular polling. When using less frequent polling using the listAll parameter described above is more appropriate.

Appendix D - HTTP Keep-alives

Note: This feature is available from API version 2.4 onwards.

Another method of reducing the amount of TCP traffic when polling the MCU (see Appendix C) via the API is to use HTTP keep-alives. This method can be used with other Codian products that also support the API, such as the IP VCR and ISDN GW.

Any client which supports HTTP keep-alives may include the following line in the HTTP header of an API request:

Connection: Keep-Alive

This indicates to the Codian product that the client supports HTTP keep-alives. The device then may choose to not close the TCP connection after returning its response to the request. If the connection will be closed, the device returns the following line in the HTTP header of its response:

Connection: close

The absence of this line indicates that the device will keep the TCP connection open and that the client may use the same connection for a subsequent request.

The device will not allow a connection to be kept alive if:

• the current connection has already serviced a set number of requests

• the current connection has already been open for a certain amount of time

• there are already more than a certain number of connections in a “kept alive” state

These restrictions are in place to limit the resources associated with kept-alive connections. If a connection is terminated for either of the first two reasons, the client will probably find that the connection is back in a keep-alive state following the next request.

The client should never assume a connection will be kept alive.

Also note that, even after a response not containing the “connection: close” header, the connection will still be closed if no further requests are made within one minute. If requests from the client are likely to be this far apart then there is little to be gained by using HTTP keep-alives.

TANDBERG Codian Remote Management API User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

1 Introduction

1.1 HTTP and HTTPS

1.2 XML-RPC

2 Protocol overview

2.1 Authentication

2.2 Message flow

2.3 Unicode support

2.3.1 HTTP Headers

2.3.2 XML Header

2.4 Common message elements

2.4.1 Authentication

2.4.2 Participant identification parameters

2.4.3 Enumerate functions

2.4.4 Filtering

3 Messages supported by multiple product types

3.1 device.query

3.2 device.network.query

3.3 device.health.query

3.4 device.restartlog.query

3.5 gatekeeper.query

3.6 sip.query

3.7 addressBookEntry.enumerate

3.8 gateway.enumerate

4 Conference related methods

4.1 conference.create

4.2 conference.modify

4.3 conference.destroy

4.4 conference.end

4.5 conference.enumerate

4.6 conference.streaming.query

4.7 conference.streaming.modify

4.8 conference.paneplacement.query

4.9 conference.paneplacement.modify

4.10 participant.add

4.12 participant.modify

4.13 participant.connect

4.14 participant.disconnect

4.15 participant.move

4.16 participant.enumerate

4.17 participant.fecc

4.18 participant.message

4.19 participant.diagnostics

4.20 autoAttendant.enumerate

4.21 autoAttendant.destroy

5 IP VCR methods

5.1 recording.callout

5.2 recording.configure

5.3 recording.delete

5.4 recording.enumerate

5.5 recording.stop

5.6 folder.enumerate

6 ISDN Gateway methods

6.1 Common structures

Participant records

6.2 calls.active.enumerate

6.3 calls.completed.enumerate

6.4 isdn.ports.query

7 IP Gateway methods

7.1 corpdirURI.query

7.2 corpdirURI.configure

8 Deprecated messages

8.1 system.query

8.2 conference.query

8.3 conference.participant.modify

8.4 conference.participant.remove

8.5 conference.participant.add

8.6 participant.enumerate

9 Related information sources

9.1 system.xml

10 Required user privileges

11 Fault codes

12 Participant disconnect reasons

13 References
