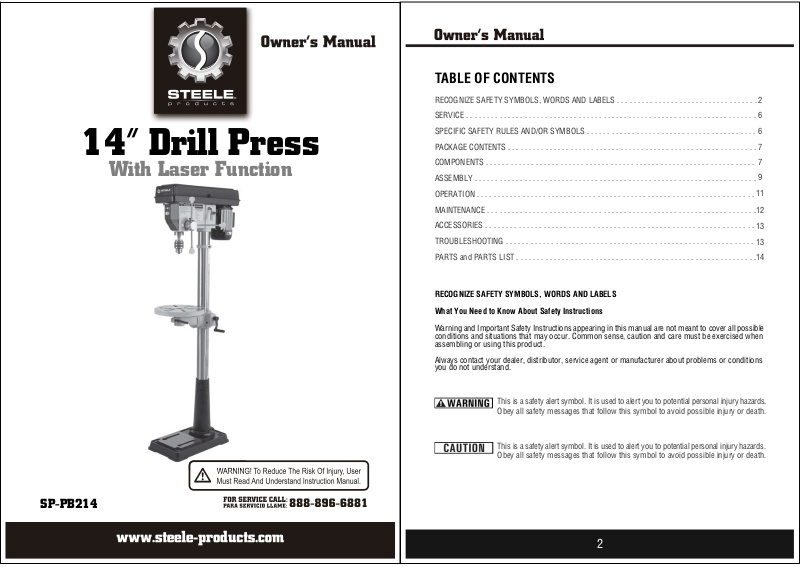

Steele Products SP-PB214 User Manual
TABLE OF CONTENTS
14” Drill Press
With Laser Function
RECOGNIZE SAFETY SYMBOLS, WORDS AND LABELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPECIFIC SAFETY RULES AND/OR SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PACKAGE CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

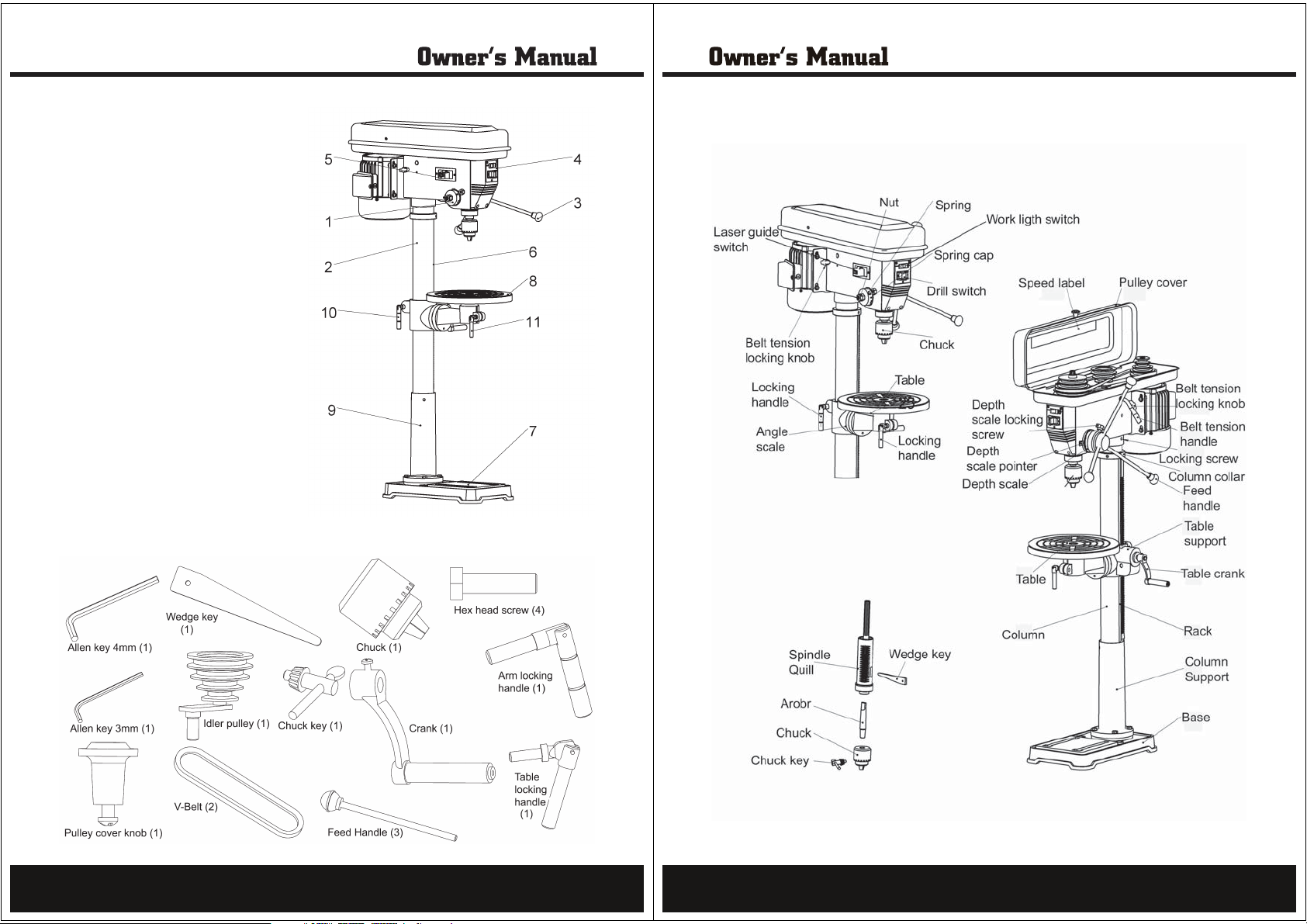

COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PARTS and PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RECOGNIZE SAFETY SYMBOLS, WORDS AND LABELS
What You Need to Know About Safety Instructions
Warning and Important Safety Instructions appearing in this manual are not meant to cover all possible
conditions and situations that may occur. Common sense, caution and care must be exercised when
assembling or using this product.
Always contact your dealer, distributor, service agent or manufacturer about problems or conditions
you do not understand.
2
6
6
7
9
11
12
13
13
14
SP-PB214
This is a safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
This is a safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
2
GENERAL PRODUCT SPECIFICATIONS
FEATURES:
Enclosed Fan Cooled Motor
Belt Drive Speed Adjustment
Rack & Pinion Table Raises And Lowers Easily
Cast Iron Table, Base And Drill Body
-3/8" Diameter Dry Round Table Tilts 90 Degrees Left & Right
SPECIFICATIONS
/=PA@ QNNAJP*-4=PP
/=PA@3KHP=CA3%V
*=T0LAA@/-*
DQ?G =L=?EPUğ
*KPKN%-
)=OAN?H=OO
KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR FUTURE REFERENCE.
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
IMPORTANT SAFETY RULES
COMMON SENSE AND CAUTION ARE FACTORS WHICH CANNOT BE BUILT INTO ANY PRODUCT.
THESE FACTORS MUST BE SUPPLIED BY THE OPERATOR.
Keep your work area clean and well lit.
Cluttered work benches and dark work areas may cause accidents or injury.
Do not operate drill in explosive areas, such as in the presence of flammable liquids, gases
or dust. The drill may create sparks which may ignite the dust or fumes.
Keep bystanders, children & visitors away while operating the drill.
Distractions can cause you to lose control.
Double insulated tools are equipped with a polarized plug (one blade is wider than the other.)
This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet.
Do not change the plug in any way. Double insulation eliminates the need for the three wire
grounded power cord and grounded power supply system.
Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is grounded.
Do not abuse the cord. Never use the cord to carry the tool or pull the plug from an outlet. Keep
the cord away from heat, oil, sharp edges, or moving parts. Replace damaged cords immediately.
Damaged cords increase the risk of electric shock.
When operating the tool outside, use an outdoor extension cord marked “WA” or “W.” These
cords are rated for outdoor use and reduce the risk of electric shock. Make sure the extension cord
being used is in good condition. If there are any cuts or nicks (no matter how deep) in the insulation,
DO NOT use that cord. Also, make sure the extension cord is heavy enough to carry the current
needed. DO NOT use small "around-the-house” lamp extension cords.
These cords can easily overheat and/or catch fire when used with power tools.
Do not force tool. Use the correct tool for your application.
The correct tool will do the job better and safer at the rate for which it is designed.
Do not use the tool if the power switch does not turn it “ON” or “OFF”.
Any tool that cannot be controlled with the switch is dangerous and must be repaired.
Disconnect the power cord plug from the power source before making any adjustments,
changing accessories or storing the tool.
Such preventive safety measures reduce the risk of starting the tool accidentally.
Store idle tools out of reach of children and other untrained persons.
Tools are dangerous in the hands of untrained users.
People with pacemakers or other electronic devices should consult with a physician before
operating this product. Interruption or failure of the pacemaker could occur when electrical
equipment is operated within close proximity of electrical devices.
Wash hands after handling the power cord. Touching the power cord could expose you to lead,
which is known in the State of California to cause cancer, birth defects and other reproductive harm.
FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE
3
All work areas should be clean and well lit.
Accidents are more likely to occur in poorly lit and cluttered areas.
4
Keep children, and other distractions at a distance while operating power tools.
Keep the power cord in good condition, and replace damaged cords immediately.
Do not use
the cord to pull the plug from the outlet. Keep the cord away from materials and surfaces that could
damage cords. The risk of electric shock increases when the power cord is damaged.
Always use the appropriate extension cord, making sure it is rated for use with drills.Always be
sure the extension cords are in good condition, free of cuts or nicks in the insulation. If using the
drill in an outside area with an extension cord, make sure the cord is rated for outdoor use.
SERVICE
Tool service must be performed only by qualified repair personnel.
Service or maintenance by unqualified personnel could result in a risk of injury.
When servicing a tool, use only identical replacement parts and follow instructions in the manual.
Use of unauthorized parts or failure to follow maintenance Instructions may create a risk of shock or
injury.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
This manual contains important information regarding safety, operation, maintenance and storage of
this product. Before use, read carefully and understand all warnings, cautions, instructions and labels.
Failure to do so could result in serious personal injury, property damage or even death.
IMPORTANT SAFETY INSTRUCTIONS
Do not make contact with a grounded surface while using this power tool.
Contact with surfaces like pipes, radiators or major appliances increases your risk of electric shock.
Use common sense while operating this drill.
Do not use this drill if you are:
Feeling tired or are under the influence of alcohol or drugs.
Wearing loose clothing or jewelry. Keep long hair pulled back and away from moving parts.
Overreaching or have improper footing. Handling the tool in this way could cause serious injury.
When using this drill always:
• Wear the proper safety equipment, such as safety goggles, dust masks, non-skid shoes, etc.
• Be sure all adjusting keys or wrenches have been removed before starting the drill.
Follow these steps to maintain safe working conditions and good working condition of power
tools.Improper care can result in electric shock or serious injury.
• Secure and support the work piece using clamps. Do not use your hands to hold the piece in place.
• Use the correct tool for the job. Using the correct tool is safer and faster.
• Make sure the power switch is in good working order. If the power switch no longer turns the
tool “ON” or “OFF”, discontinue use, and have the tool replaced or repaired.
• Remove the power cord from the power source before storage, changing accessories, or
moving the tool.
• Keep out of reach of children, or any untrained person. Store tools in a safe and dry place.
• Keep tools clean, and cutting tools sharp. Maintaining tools with proper care will increase the
life of the power tool, and reduce the risk of injury.
• Check to be sure all moving parts are free from binding and are properly aligned.
• Use only accessories that are recommended by the manufacturer for your tool model.
Safety glasses and ear protection must be worn during operation.
ALWAYS WEAR EYE PROTECTION.
A drill press can throw foreign objects into your eyes which could cause
permanent eye damage.
ALWAYS wear safety goggles (not glasses). Ordinary eyeglasses
have only impact-resistant len
ses...they ARE NOT safety goggles.
Before using this tool, you need to become familiar with its operation. If you are unsure about
the operation of the tool, or have any questions about its proper use, call the Customer Service
Department at 888-896-6881. Follow these instructions for safe handling of the tool:
Always secure and support the work piece using clamps.Do not use your hands to hold the
•
piece in place.
Be sure your work area is clean and secure before turning the power switch into the “ON”
•
position. Be sure the area is free from all foreign material, nails, staples, or any other material.
Turn the drill “OFF” and unplug from the power source before making any changes or
•
adjustments to the drill.
• Do not use solvents containing carbon tetrachloride, ammonia or acetone to clean the drill.
Never use gasoline, paint thinner, or other caustic chemicals that can damage the plastic parts of
the tool.
• Always use the appropriate safety gear when operating this drill.Including but not limited, to
goggles, dust mask or respirator. Always work in a well-ventilated area to reduce your exposure
to harmful chemicals and dust particles.
• Keep hands away from the cutting area.
• Do not reach under the work piece.
SPECIFIC SAFETY RULES AND/OR SYMBOLS
SYMBOLS
The following symbols may be used on your tool. Be familiar with and learn the symbols to operate
the tool safely.
Symbol Name Description
V Volts Voltage (Potential)
A Amperes Current
Hz Hertz Frequency (Cycles per Second)
W Watt Power
Kg Kilograms Weight
min Minutes Time
S Seconds Time
…/min
1,2,3… Ring Selector Settings Speed, Torque or Position Settings
Alternating Current Type of Current
Direct Current Type of Current
Alternating or Direct Current Type of Current
Earthing Terminal Grounding Terminal
Class II Construction Denotes Double Insulation
Diameter Size of Drill Bits, Grinding Wheels, etc.
No Load Speed No-load Rotational Speed
Revolutions per Minute Revolutions,Surface Speed, Strokes, etc. per Minute
5
6
