Silvercrest KH 6500 Operating instructions

PORTABLE DVD PLAYER

KOMPERNASS GMBH · BURGSTRASSE 21 · D-44867 BOCHUM

www.kompernass.com

ID-Nr.: KH6500-06/08-V1

KH 6500

PORTABLE DVD PLAYER

Operating instructions

ΦΟΡΗΤΟ DVD-PLAYER

Οδηγίες χρήσης

KH 6500

k j

t y u i

o a s

d f

D E

2& 2*

5* 5^

3# 3$ 3%

3^ 3&

3* 3(

4) 4!

;

2! 2@ 2# 2$ 2%

CONTENT PAGE

1. Technical Data 3

2. Applications and functions 3

3. Safety Instructions 4

4. Appliance description 6

5. Starting Up the Device 7

5.1 Unpacking..................................................................................................................................7

5.2 Check the delivered contents...................................................................................................7

5.3 Preparing the remote control....................................................................................................7

6. Connections and connection potentials 8

6.1 Mains power connection..........................................................................................................8

6.2 Rechargeable battery connection ...........................................................................................8

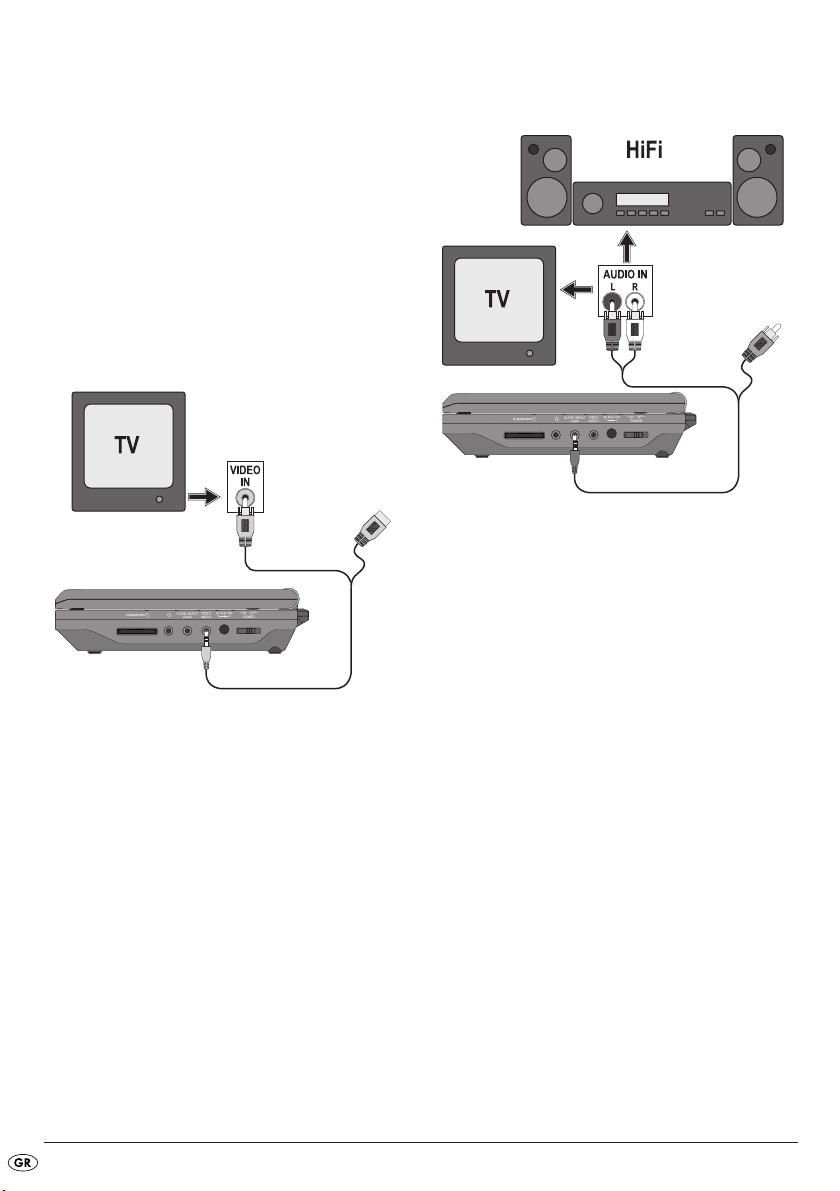

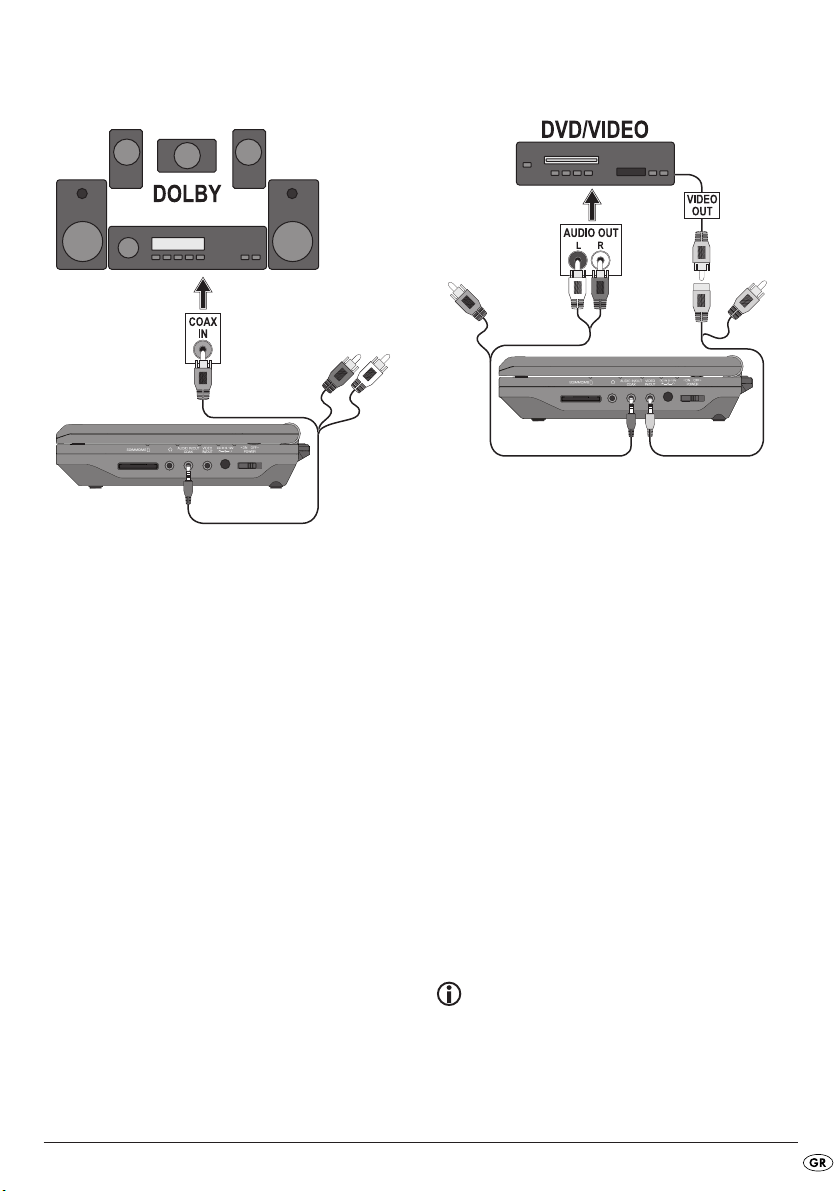

6.3 Connection to another device..................................................................................................9

6.4 Headphone connection..........................................................................................................11

6.5 Setting the viewing position...................................................................................................12

7. Use 12

8. Menu functions 12

8.1 GENERAL SETUP PAGE.........................................................................................................13

8.2 DIGITAL AUDIO SETUP PAGE..............................................................................................14

8.3 VIDEO SETUP PAGE ..............................................................................................................15

8.4 PREFERENCE PAGE................................................................................................................15

8.5 PASSWORD SETUP PAGE.....................................................................................................16

8.6 EXIT SETUP ..............................................................................................................................17

9. Sound functions 17

9.1 To control the Volume.............................................................................................................17

9.2 Mute.........................................................................................................................................17

10. Playback of DVD, SVCD, VCD and CD discs 17

10.1 Inserting the disc...................................................................................................................17

10.2 Playback functions when playing back DVDs, VCDs, S-VCDs, MPEG or Audio CDs..18

10.3 Notice functions....................................................................................................................22

10.4 Programming function..........................................................................................................24

- 1 -

11. Display of MP3/ WMA/JPEG/AVIand MPEG data 24

12. Playback of MP3/ WMA/AVI and MPEG discs 25

12.1 Repeat function with MP3/ WMA/AVI/MPEG/JPEG discs ..........................................25

12.2 Replay of JPEG discs ..........................................................................................................26

12.3 Programmed replay with MP3/WMA/AVI/MPEG/JPEG discs ....................................26

13. Playback of USB/SD/MMC data mediums 26

13.1 Compatible data mediums ..................................................................................................26

13.2 Using USB/SD/MMC data mediums................................................................................27

14. Cleaning of the DVD player 27

15. Disposal 28

16. Troubleshooting 28

17. Glossary / Key Word Index 30

17.1 What are DVDs, VCDs and S-VCDs?................................................................................30

17.2 What are Title and Chapter?..............................................................................................30

17.3 Dolby Surround ....................................................................................................................30

17.4 What are PAL and NTSC?.................................................................................................31

17.5 MP3, WMA, JPEG and MPEG .........................................................................................31

17.6 What are files? .....................................................................................................................31

18. Warranty & service 32

19. Importer 32

Read the operating instructions carefully before using the appliance for the first time and preserve this booklet for later reference. Pass the manual on to whomsoever might acquire the appliance at a later date.

- 2 -

KH 6500 MOBILE DVD PLAYER

Earphones

Model: HX206-001 Impedance: 32 Ohm Nominal power: 3 mW

1. Technical Data

Power consumption : 15 Watt TV standard: PAL/NTSC Operating temperature: +5 ~+35°C Humidity: 5 ~90 %

(No condensation)

Mains plug

Primary: AC 100-240 V~50/60 Hz

max. 0,6A Secondary: DC 12 V 1.5 A Manufacturer: Honor Electronic Co., Ltd Model: ADS-18E-121218GPG

Vehicle adapter

Type: KD627 Input: DC 12 V/max. 10 A Output: 1500 mA

Rechargeable battery

Type: Lithium iron rechargeable battery Model: KH6500

Rechargeable battery pack input: 12V Output: 7,4 V 2500 mAh

Video Output

Output level: 1 + 0.2/-0.2 Vp-p (75 Ω) Horizontal resolution: > = 500 Lines Signal-to-noise ratio: 60 dB

Audio Output

Impedance: 10 kΩ Output level: 1.8 + 0.2/-0.8 Vrms (1kHz 0 dB) Harmonic distortion:<0.01 % (JIS-A 1kHz, typical) Dynamic range: 80 dB (JIS-A 1 KHz, typical) Signal-to-noise ratio:95 dB (JIS-A 1 kHz, typical)

Headphone output

Maximum sound pressure level 85 dB(A) Wide band characteristic voltage 300 mV Maximum output voltage 60 mV

Digital audio output

Coaxial output

2. Applications and functions

The Silvercrest KH 6500 DVD player is exclusively intended ...

• as an electronic entertainment device for the playback...

- ... of DVD videos in the 12 cm (Diameter) format with the country/region code 2 or , marked with the logo .

- ...of MPEG-4/MPEG-4 ASP video formats

- ... of video CD's (VCDs) and super video CD's (S-VCDs) in the 12cm (diameter) format, marked with the logo .

- ... of audio CD's in the 12cm (diameter) format, marked with the logo .

- ... in general of the MP3 (.mp3), Windows Media Audio (.wma) and JPEG (.jpg) data formats on CD-R and CD-RW storage mediums.

• ...for stationary operation in enclosed spaces

• ...for private, non commercial use

You can connect to the portable DVD player for image outputs during playback of DVDs, VCDs, SVCDs, Audio CDs and the MP3, Windows Media Audio and JPEG data formats …

• Stereo and Mono televisions with the formats PAL or NTSC and the picture formats 4:3/16:9.

The portable DVD player can be used and/or connected to for sound and/or music outputs …

- From the speaker of one of the televisions connected to the DVD player.

- 3 -

from external audio components such as a HiFi system, receiver or surround sound system (analogue/digital).

Attention!

No liability/warranty will be assumed for damage resulting from improper use of the device!

3. Safety Instructions

• This device is not suitable for use by children or any other persons, whose physical,sensory or mental abilities, without assistance or supervision, impedes the safe operation of the device. Children should be watched-over to ensure that they do not play with the appliance.

• To avoid unintentional switching on, disconnect the power cord after use and before cleaning.

• Check the appliance and all parts for visible damage. The safety concept can work only if the appliance is in a faultless condition.

• The power plug must always be easily accessible, so that the appliance can be quickly separated from the mains in the event of an emergency.

Danger of electrical shocks

• Connect the appliance only to correctly installed and properly earthed power sockets. Ensure that the rating of the local power supply tallies completely with the details given on the rating plate of the appliance.

• Arrange for defective power plugs and/or cables to be replaced at once by qualified technicians or our Customer Service Department.

• Arrange for customer service to repair or replace connecting cables and/or appliances that are not functioning properly or have been damaged.

Never submerge the device or the power cable in water. Wipe it only with a slightly damp cloth.

• Do not expose the appliance to rain and never use it in a humid or wet environment.

• Make sure that the power cord never becomes wet during operation.

• You may not open the housing or repair the appliance yourself. Should you do so, appliance safety can no longer be assured and the warranty will become void.

• Protect the appliance against drip and spray water. Do not place any water-filled vessels (e.g. flower vases) on the appliance.

Risk of fire!

• Do not use the appliance in the vicinity of hot surfaces.

• Do not keep the appliance in places exposed to direct sunlight, otherwise it may overheat and become irreparably damaged.

• Do not leave the appliance unattended when in use.

• Never cover the ventilation slots of the appliance while it is being used.

• Do not place any open sources of fire, like candles, on the device.

Injury hazard

• Keep children away from the connecting cable and the appliance. Children frequently underestimate the dangers of electrical appliances.

• Ensure that the appliance stands with a safe and secure positioning.

• Do not operate the appliance if it has sustained a fall or is damaged. Arrange for the appliance to be checked and/or repaired by qualified technicians.

Keep batteries away from children. Children can put batteries into their mouths and swallow them.

Danger! Laser Beams!

The appliance is fitted with a „Class 1 Laser

• Never open the device.

• Never attempt to repair the device.

• There is invisible laser radiation inside the device. Do not expose yourself to the laser beam.

- 4 -

Note:

Some aggressive furniture finishes can have a destructive influence on the device's rubber feet. If necessary, place the device on a nonslip pad.

Thunderstorms!

Equipment connected to a power supply can be damaged during a thunderstorm. You should therefore always pull the power plug from the power socket when there is a storm.

Notice regarding surge voltages (FEO/ fast electrical overloads):

In a case of malfunction due to an electrical fast transient (power surge) the product must be returned to default settings in order to re-establish normal operation. It is possible that the power supply will have to be disconnected and then reconnected again. The batteries (if present) must be removed and then reinserted.

Notice regarding power disconnection

The POWER switch does not completely disconnect the appliance from the power network.Additionally, the appliance consumes electricity when in standby mode. In order to completely disconnect the device from the power the power plug must be pulled out of the power socket

Notice regarding the handling of batteries/rechargeable battery pack

The remote control is operated by batteries and the device by a rechargeable battery pack. For the handling of batteries/rechargeable battery packs please observe the following:

Risk of Explosion!

Do not throw batteries/rechargeable battery packs into a fire. Do not recharge non-rechargeable batteries.

• Only charge batteries that are specifically marked "rechargeable".

• Charge the supplied battery power pack exclusively with the portable DVD player and the supplied power supply unit. Do not use any other charging device or power supply unit.

• Never open, solder or weld batteries/rechargeable battery packs. The risk of explosions and injuries exist!

• Regularily check the batteries/rechargeable battery pack. Depleted batteries/rechargeable battery packs can damage the device

• If you do not intend to use the device for a long time then remove the batteries/rechargeable battery pack.

• Put on protective gloves when handling depleted batteries/rechargeable battery packs.

• Clean the battery compartment and the battery contacts with a dry cloth.

- 5 -

4. Appliance description

 Overview

PLAY/PAUSE button:

Start/Suspend playback

STOP button: Stop playback

DVD/USB/CARD button:

Set the DVD, USB or CARD mode

IR: Infrared sensor for the remote control

Right loudspeaker

Swivel joint

NEXT button: next Title/chapter

PREV button: previous Title/chapter

VOL+ button: Volume increase

VOL- button: Volume decrease

SETUP button: Access the Setup menu

OK button: Confirm input

Navigation buttons :

Select menu input

OPEN button: Open the disc tray

Disc tray

Left loudspeaker

POWER: Operation LED

TFT-Display

 Front panel

USB connection

;

 Right side

SD/MMC/MS Card slot

3,5 mm Headphones output

AUDIO IN/OUT COAX: Audio Input/output,

co-axial output

VIDEO IN/OUT: Video Input/output

DC IN 9-12 V: Input for power adapter

POWER switch: Device on/off switch

 Remote control

IR Sender

AV button: Select video input

DVD/USB/CARD button:

Set the DVD, USB or CARD mode Number buttons 0-9 and button 10+

TIME button: Select a determined Title/chapter or

a determined time on the disc

SETUP button: Access the Setup menu

STEP button: Individual frame playback

FUNCTION button: Access display settings

REPEAT button: Repeat function and random play-

back settings

A-B button: Repeat chapter

ZOOM button: Enlarge/reduce image size

SLOW button: Slow motion setting

 button: previous Title/chapter

 button: next Title/chapter

VOL- button: Volume decrease

VOL+ button: Volume increase

Battery compartment (on the front panel)

button: Start/Suspend playback

 button: Stop playback

 button: Search backwards

 button: Search forwards

RETURN/CLR button: One menu back/input

delete

MARK button: Place a bookmark

MENU/PBC button: Access the disc menu

TITLE button: Access the title menu

Navigation buttons :

Select menu input

ENTER button: Confirm input

ANGLE button: Set camera position

AUDIO button: Set the audio language

SUBTITLE button: Set the sub-title

DISPLAY button: Display playback information

MUTE button: Switch off sound

PROG button: Programme playback ordern

- 6 -

5. Starting Up the Device

5.1 Unpacking

1. Remove the DVD player and its accessories from the packaging

2. Remove all adhesive tapes, foils and transport restraints.

Attention!

Do not permit small children to play with plastic pakkaging. There is a risk of suffocation!

5.2 Check the delivered contents

Before puting the appliance into use, check that all items are present and free of visible damage.

• DVD player 

• Infrared remote control 

• 1 Remote control battery,

3 V, Type CR2025 (Button cell)

• Audio Cinch cable with 3 Cinch plugs 

• Video Cinch cable with Cinch plug and socket 

• Vehicle adapter cable 

• Power supply unit plug 

• 1 Rechargeable battery pack 

• Headphones 

• Carrying case and fastening strap 

• This operating manual

5.3 Preparing the remote control

Inserting the battery

For first time activation you only need to pull out the protective foil that protudes from the battery compartment in order to prepare the remote control for operation. For future battery changes proceed as follows:

1. Pull the battery compartment out of the remote control.

2. Remove the depleted battery and insert a new battery of the type CR2025 (Button cell) into the battery compartment. Make sure that the battery is inserted in accordance with its correct polarity.

3. Push the battery compartment back into the remote control.

Using the remote control

• Point the remote control to the Infrared sensor on the front panel of the device.

• You can use the remote control for distances of up to approx. 8 m from the device.

- 7 -

6. Connections and connection potentials

In order to use the device you need only to provide a power supply. You can connect it to a power sokket via the rechargeable battery or you can run it with the 12V vehicle adapter. In addition the device can be connected to other input and output devices:

• with a television set

• with a video or DVD recorder

• with a receiver, also, for example, a stereo system

• with a Dolby Digital system

Attention!

Make sure that all devices are switched off before you connect them. Do not plug the device into the mains power until all connections have been made.

6.1 Mains power connection

Connection with the power supply unit

Connection with the 12V vehicle adapter

1. Plug the device plug of the 12V vehicle adapter into the socket on the side of the device.

2. Plug the 12V vehicle adapter into a suitable socket, for example, the cigarette lighter connection in the vehicle.

Note:

- The supplied 12V vehicle adapter may only be

used on 12V supply systems.

- The DVD player may only be operated with the

supplied 12V vehicle adapter.

- Do not use the supplied 12V vehicle adapter on ot-

her devices.

- After use, remove the 12V vehicle adapter from the

DVD player and from the vehicles power socket.

1. Plug the device plug of the supplied power supply unit into the socket on the side of the device.

2. Plug the power supply unit into a power socket.

6.2 Rechargeable battery connection

The DVD player is supplied with a rechargeable battery, with which you can operate the device if no power source is available. The rechargeable battery must be charged for approx. 3.5 hours before the first use and for each full charge thereafter. A fully charged battery allows for a playback time of approx. 2 1/2 hours (depending on the type of playback, for example, the volume).

- 8 -

Installing the rechargeable battery

Removing the rechargeable battery

1. Plug the rechargeable battery connections into the connection opening on the rear panel of the device.

2. Slide the rechargeable battery slightly sideways in the direction indicated on the battery until it audibly locks into place.

Charging the battery with the power supply unit

1. Plug the device plug of the power supply unit or the 12V vehicle adapter into the socket on the side of the device.

2. Plug the power plug of the power supply unit into the power socket or the 12V vehicle adapter into the Vehicles cigarette lighter socket.

• While the battery is charging the operation light on the side of the battery is illuminated red.

• When the battery is fully charged the operation light on the side of the battery turns green.

1. Slide the locking tab on the side of the rechargeable battery in the direction of the arrow and hold in this position.

2. Pull the rechargeable battery in the opposite direction to the arrow and then pull backwards.

6.3 Connection to another device

The DVD player can be connected to televisions which operate with the PAL or NTSC standards. In this way you can transmit the display onto the television screen. If you want to use the DVD player on a television operating under the NTSC standard you may have to select the NTSC television standard in the video settings of the DVD players so called "OSD Menu" (see chapter 8.4. "Special settings: TV TYPE")

Video connection to the television

1. Switch off the DVD player and the television.

2. Insert the yellow jack plug of the video cinch cable in the

- 9 -

VIDEO IN/OUT socket of the DVD player.

3. Insert the cinch plug of the video cinch cable in the televisions corresponding video input.

Audio connection to the television or to a stereo system

1. For sound transmissions insert the red jack plug of the audio cinch cable into the

AUDIO

IN/OUT COAX socket of the DVD player.

2. Insert the white and red cinch plugs of the audio cinch cable into the corresponding audio input L/R of the television or stereo system.

In the same way you can also connect the DVD player with a video or DVD recorder in order to transmit the DVD players video and audio signals to these devices.

Connection to a Dolby Digital system

You can also playback the sound via a connected Dolby Digital system. A prerequisite however is that this system is equipped with a coaxial input.

1. For sound transmissions insert the red jack plug of the audio cinch cable into the

AUDIO IN/OUT

COAX socket of the DVD player.

2. Insert the orange coloured cinch plug of the audio cinch cable into the corresponding coaxial input of the Dolby Digital system.

3. Switch on the DVD player and the Dolby Digital system.

- 10 -

Playback of an external devices audio and video signals with the DVD player

You can playback images and sound from an external device via the DVD player.

1. For sound transmissions insert the red jack plug of the audio cinch cable into the

AUDIO IN/OUT

COAX socket of the DVD player.

2. Insert the white and red cinch plugs of the audio cinch cable into the corresponding audio output of the external device.

3. Insert the yellow jack plug of the video cinch cable in the

4. Connect the cinch socket of the video cinch cable with the corresponding video output of the external device.

5. Switch on the DVD player and the external device.

6. In order to playback the external devices audio and video signals press the mote control.

7. In order to switch back to the DVD's display, press the button

VIDEO IN/OUT socket of the DVD player.

AV button on the re-

DVD/USB/CARD.

Note:

Depending on the data carrier the display can remain black for a few seconds until the DVD players image is again displayed.

Note:

The sound of an external device connected to the DVD players audio input will also playback if the device is set to an operating mode other than AV.

6.4 Headphone connection

Attention!

Only use the supplied earphones, type HX206-001.

You can connect headphones with a 3.5 mm stereo jack plug to the DVD player. The headphone connection is located on the side of the device. When you connect the headphones the loudspeaker will be switched off and you will only hear sound from the headphones.

• Insert the jack plug of the headphones into the headphone connection.

Important!

Listening to music over long periods with full volume on headphones can lead to hearing damage

- 11 -

6.5 Setting the viewing position

TV DISPLAYTV DISPLAYTV DISPLAY ANGLE MARKANGLE MARKANGLE MARK OSD LANGUAGEOSD LANGUAGEOSD LANGUAGE CLOSED CAPTIONSCLOSED CAPTIONSCLOSED CAPTIONS SCREEN SAVERSCREEN SAVERSCREEN SAVER LAST MEMORYLAST MEMORYLAST MEMORY

WIDEWIDEWIDE OFFOFFOFF ENGENGENG OFFOFFOFF ONONON OFFOFFOFF

* * GENERAL SETUP PAGE * ** * GENERAL SETUP PAGE * ** * GENERAL SETUP PAGE * *

GOTO GENERAL SETUP PAGEGOTO GENERAL SETUP PAGEGOTO GENERAL SETUP PAGE

Your portable DVD player is equipped with a pivoting swivelling TFT display screen. In the event that you find the image quality of a DVD to be insufficient, slightly turn the device to optimize the viewing angle. The TFT display screen will turn 180° and fold down in this position thus allowing the display to operate when the device is closed up.

• With the navigation buttons  change the value.

• To exit the settings press the

FUNCTION button

again.

• To reset the settings select the input Reset and press the button

OK/ENTER.

8. Menu functions

7. Use

• Carry out the required connections as described in chapter 5 and provide a power supply.

• Lift up the TFT display screen.

Switching the DVD player on and off

• Set the POWER switch to the "ON" position to switch the DVD player on.

The TFT display screen switches on and the background image appears. If no disc is inserted into the disc tray the notice "READING" will appear briefly followed by the prompt "NO DISC".

• To switch the DVD player off set the to the position "OFF".

Buttons on the device and the remote control

Most of the functions described in this manual can be set using the buttons on the device or also the buttons on the remote control. When both buttons are possible for operation then both numbers will be specified after the button designation (for example

DVD/USB/CARD button.

Display settings

• Press the FUNCTION button to access the display settings. The settings can be accessed at any time.

• Select with the navigation buttons  one of the inputs Brightness (Bri), Contrast (Con) and Saturation (Sat).

POWER switch

Navigating in the menu

1. Press the SETUP button to access the setup menu.

The main menu appears GENERAL SETUP PAGE.

• With the navigation buttons  and the button

OK/ENTER you can carry out all settings in

the menu.

2. With the navigation buttons  you select a menu by moving the yellow highlighting under the corresponding menu symbol.

3. With the navigation buttons  you select an input in a menu by moving the yellow bar over an input.

4. With the navigation button  you change an input in the sub menu and with the navigation button  you move back to the previous menu level.

5. To confirm a selection press the button

OK/ENTER.

• All navigation possibilities in a current menu are displayed at the lower edge of the menu.

• To exit the setup menu either press the button

SETUP or select the last symbol "EXIT SETUP" and

press the button

OK/ENTER.

- 12 -

8.1 GENERAL SETUP PAGE

* * GENERAL SETUP PAGE * ** * GENERAL SETUP PAGE * ** * GENERAL SETUP PAGE * *

SET ANGLE MARKSET ANGLE MARKSET ANGLE MARK

ONONON OFFOFFOFF

WIDEWIDEWIDE OFFOFFOFF ENGENGENG OFFOFFOFF ONONON OFFOFFOFF

* * GENERAL SETUP PAGE * ** * GENERAL SETUP PAGE * ** * GENERAL SETUP PAGE * *

SET TV DISPLAY MODESET TV DISPLAY MODESET TV DISPLAY MODE

4:3 PANSCAN4:3 PANSCAN4:3 PANSCAN 4:3 LETTERBOX4:3 LETTERBOX4:3 LETTERBOX 16:916:916:9

WIDEWIDEWIDE OFFOFFOFF ENGENGENG OFFOFFOFF ONONON OFFOFFOFF

ONONON OFFOFFOFF

SCREEN SAVERSCREEN SAVERSCREEN SAVER

* * GENERAL SETUP PAGE * ** * GENERAL SETUP PAGE * ** * GENERAL SETUP PAGE * * TV DISPLAYTV DISPLAYTV DISPLAY

ANGLE MARKANGLE MARKANGLE MARK OSD LANGUAGEOSD LANGUAGEOSD LANGUAGE CLOSED CAPTIONSCLOSED CAPTIONSCLOSED CAPTIONS SCREEN SAVERSCREEN SAVERSCREEN SAVER LAST MEMORYLAST MEMORYLAST MEMORY

WIDEWIDEWIDE OFFOFFOFF ENGENGENG OFFOFFOFF ONONON OFFOFFOFF

CLOSED CAPTIONCLOSED CAPTIONCLOSED CAPTION

ONONON OFFOFFOFF

* * GENERAL SETUP PAGE * ** * GENERAL SETUP PAGE * ** * GENERAL SETUP PAGE * * TV DISPLAYTV DISPLAYTV DISPLAY

ANGLE MARKANGLE MARKANGLE MARK OSD LANGUAGEOSD LANGUAGEOSD LANGUAGE CLOSED CAPTIONSCLOSED CAPTIONSCLOSED CAPTIONS SCREEN SAVERSCREEN SAVERSCREEN SAVER LAST MEMORYLAST MEMORYLAST MEMORY

WIDEWIDEWIDE OFFOFFOFF ENGENGENG OFFOFFOFF ONONON OFFOFFOFF

CHINESECHINESECHINESE SPANISHSPANISHSPANISH GERMANGERMANGERMAN

SET OSD LANGUAGESET OSD LANGUAGESET OSD LANGUAGE

ENGLISHENGLISHENGLISH

* * GENERAL SETUP PAGE * ** * GENERAL SETUP PAGE * ** * GENERAL SETUP PAGE * * TV DISPLAYTV DISPLAYTV DISPLAY

ANGLE MARKANGLE MARKANGLE MARK OSD LANGUAGEOSD LANGUAGEOSD LANGUAGE CLOSED CAPTIONSCLOSED CAPTIONSCLOSED CAPTIONS SCREEN SAVERSCREEN SAVERSCREEN SAVER LAST MEMORYLAST MEMORYLAST MEMORY

WIDEWIDEWIDE OFFOFFOFF ENGENGENG OFFOFFOFF ONONON OFFOFFOFF

TV DISPLAY

OSD LANGUAGE

Here you set the language, in which the OSD Menu will be displayed on the television screen.

Here you can match the vertical and horizontal image display to the playback device in use. 4:3 PANSCAN: Select this setting to display bro-

adcasts in the usual 4:3 format on a 4:3 television set. Broadcasts in the 16:9 format will be dis-played in full screen without the distracting bars although the side edges of the image will be trimmed.

4:3 LETTERBOX: Display of a film in 16:9 format

on a traditional 4:3 format television. The image is displayed with black bars on the lower and upper edges of the screen.

16:9 WIDE: The output of the image on a

wide screen television in 16:9 format

ANGLE MARK

CLOSED CAPTIONS

You set this if by every playback of a DVD the subtitle (if present) is to be automatically displayed on the television screen.

• For this purpose set the function to ON.

• If you want to activate the subtitles manually set this function to OFF.

The subtitles can be set, during playback, with the

SUBTITLE button.

SCREEN SAVER

On some DVDs particular scenes are recorded from various camera positions.

• Select the input ON in order to switch to the next

camera position by pressing the

• To deactivate this function select the input OFF.

ring playback of the film.

ANGLE button du-

• To activate the screen saver set this function to ON. The screen saver will now switch on when the playback is stopped and no activity takes place for several minutes.

• To switch the screen saver off set the function to OFF.

- 13 -

LAST MEMORY

* * DIGITAL AUDIO SETUP PAGE * ** * DIGITAL AUDIO SETUP PAGE * ** * DIGITAL AUDIO SETUP PAGE * *

SETUP SPDIFSETUP SPDIFSETUP SPDIF

OFFOFFOFF RAWRAWRAW PCMPCMPCM

DIGITAL OUTPUTDIGITAL OUTPUTDIGITAL OUTPUT LPCM OUTPUTLPCM OUTPUTLPCM OUTPUT

RAWRAWRAW 48 K48 K48 K

SET LAST MEMORY STATESET LAST MEMORY STATESET LAST MEMORY STATE

ONONON OFFOFFOFF

* * GENERAL SETUP PAGE * ** * GENERAL SETUP PAGE * ** * GENERAL SETUP PAGE * * TV DISPLAYTV DISPLAYTV DISPLAY

ANGLE MARKANGLE MARKANGLE MARK OSD LANGUAGEOSD LANGUAGEOSD LANGUAGE CLOSED CAPTIONSCLOSED CAPTIONSCLOSED CAPTIONS SCREEN SAVERSCREEN SAVERSCREEN SAVER LAST MEMORYLAST MEMORYLAST MEMORY

WIDEWIDEWIDE OFFOFFOFF ENGENGENG OFFOFFOFF ONONON OFFOFFOFF

DYN. COMPR. OFFDYN. COMPR. OFFDYN. COMPR. OFF

DUAL MONODUAL MONODUAL MONO DYNAMICDYNAMICDYNAMIC

STRSTRSTR

FULL

3/4

1/2

1/4

OFF

* * DOLBY DIGITAL SETUP * ** * DOLBY DIGITAL SETUP * ** * DOLBY DIGITAL SETUP * *

MIX - MONOMIX - MONOMIX - MONO

* * DOLBY DIGITAL SETUP * ** * DOLBY DIGITAL SETUP * ** * DOLBY DIGITAL SETUP * *

DUAL MONO (1 + 1) SETUPDUAL MONO (1 + 1) SETUPDUAL MONO (1 + 1) SETUP

STEREOSTEREOSTEREO L-MONOL-MONOL-MONO R-MONOR-MONOR-MONO

DUAL MONODUAL MONODUAL MONO DYNAMICDYNAMICDYNAMIC

STRSTRSTR

* * * * * * DIGITAL AUDIO SETUP PAGEDIGITAL AUDIO SETUP PAGEDIGITAL AUDIO SETUP PAGE * * * * * *

SETUP LPCMSETUP LPCMSETUP LPCM

48 K48 K48 K 96 K96 K96 K

DIGITAL OUTPUTDIGITAL OUTPUTDIGITAL OUTPUT LPCM OUTPUTLPCM OUTPUTLPCM OUTPUT

PCMPCMPCM 48 K48 K48 K

• Select the setting ON to playback a disc from

the previous halted position after removal and re-insertion.

• with the setting OFF disc playback starts from

the beginning.

Note:

When the DVD player is switched off the saved position is not retained.

8.2 DIGITAL AUDIO SETUP PAGE

DIGITAL OUTPUT

Select the input LPCM OUTPUT to set the sampling frequency for the processing of the raw data.

48 K: Default setting. 96 K: Only for DVDs with the corre-

sponding sampling frequency.

Note:

The LPCM OUTPUT function is only available if you have set the SPDIF audio output signal to PCM.

DOLBY DIGITAL SETUP

Select the input DIGITAL OUTPUT to set the SPDIF audio output signal. OFF: Select OFF when there is to be

no digital signal output.

PCM: Select PCM (Pulse Code Modu-

lation) when a connection to a digital amplifier/receiver exists. Your DVD player transmits, through the PCM signal, the same audio formats that are rendered on the disc. In addition there will be an audio signal output via the left/right connection.

RAW: The DVD player outputs the raw

data of the Dolby Digital sound (default setting).

• Select the input DUAL MONO to set the Dolby Digital output either to STEREO, L-MONO, R-MONO or MIX-MONO .

• Select the input DYNAMIC to enable an optimal sound replay with reduced volume.

• In the setting FULL the louder passages will be surpressed and the softer passages will be played back louder.

Note:

This function is only possible when using a digital audio component.

- 14 -

DOWNMIX

* * VIDEO SETUP PAGE * ** * VIDEO SETUP PAGE * ** * VIDEO SETUP PAGE * *

VIDEO OUTPUTVIDEO OUTPUTVIDEO OUTPUT

OFFOFFOFFVIDEO OUTPUTVIDEO OUTPUTVIDEO OUTPUT OFFOFFOFF

STEREOSTEREOSTEREO

* * AUDIO SETUP PAGE * ** * AUDIO SETUP PAGE * ** * AUDIO SETUP PAGE * *

SET DOWNMIX MODESET DOWNMIX MODESET DOWNMIX MODE

L/RL/RL/R

DIGITAL AUDIODIGITAL AUDIODIGITAL AUDIO DOLBY DIGITALDOLBY DIGITALDOLBY DIGITAL DOWNMIXDOWNMIXDOWNMIX

PREFERRED SUBTITLE LANGUAGEPREFERRED SUBTITLE LANGUAGEPREFERRED SUBTITLE LANGUAGE

AutoAutoAuto ENGENGENG ENGENGENG ENGENGENG

PORTUGESEPORTUGESEPORTUGESE ITALIANITALIANITALIAN CHINESECHINESECHINESE JAPANESEJAPANESEJAPANESE KOREANKOREANKOREAN

ENGLISHENGLISHENGLISH FRENCHFRENCHFRENCH SPANISHSPANISHSPANISH

* * PREFERENCE PAGE * ** * PREFERENCE PAGE * ** * PREFERENCE PAGE * * TV TYPETV TYPETV TYPE

AUDIOAUDIOAUDIO SUBTITLESUBTITLESUBTITLE DISC MENUDISC MENUDISC MENU PARENTALPARENTALPARENTAL DEFAULTDEFAULTDEFAULT

PORTUGESEPORTUGESEPORTUGESE ITALIANITALIANITALIAN CHINESECHINESECHINESE JAPANESEJAPANESEJAPANESE KOREANKOREANKOREAN

PREFERRED AUDIO LANGUAGEPREFERRED AUDIO LANGUAGEPREFERRED AUDIO LANGUAGE

ENGLISHENGLISHENGLISH FRENCHFRENCHFRENCH SPANISHSPANISHSPANISH

AutoAutoAuto ENGENGENG ENGENGENG ENGENGENG

* * PREFERENCE PAGE * ** * PREFERENCE PAGE * ** * PREFERENCE PAGE * * TV TYPETV TYPETV TYPE

AUDIOAUDIOAUDIO SUBTITLESUBTITLESUBTITLE DISC MENUDISC MENUDISC MENU PARENTALPARENTALPARENTAL DEFAULTDEFAULTDEFAULT

* * PREFERENCE PAGE * ** * PREFERENCE PAGE * ** * PREFERENCE PAGE * *

SET TV STANDARDSET TV STANDARDSET TV STANDARD

PALPALPAL AutoAutoAuto NTSCNTSCNTSC

TV TYPETV TYPETV TYPE AUDIOAUDIOAUDIO SUBTITLESUBTITLESUBTITLE DISC MENUDISC MENUDISC MENU PARENTALPARENTALPARENTAL DEFAULTDEFAULTDEFAULT

AutoAutoAuto ENGENGENG ENGENGENG ENGENGENG

L/R: Select this setting if the film was

recorded in Pro Logic Dolby Digital and you want to hear the sound in cinema quality.

STEREO: Select this option to output the

left and right sound channels of the DVD. The output with CD playback is a traditional stereo sigtnal.

8.3 VIDEO SETUP PAGE

8.4 PREFERENCE PAGE

TV TYPE

• Set this function to PAL to output the video signal via the video output in the PAL television standard.

• Set this function to AUTO and the DVD player will automatically recognise which television standard should be used for the video output.

• Set this function to NTSC to output the video signal via the video output in the NTSC television standard.

VIDEO OUTPUT

The standard setting of this function is CVBS and can not be changed.

AUDIO

Set the audio language here, which should be used as standard when playing back the film.

SUBTITLE

Set the sub title language here, which should be used as standard when playing back the film.

- 15 -

DISK-MENU

4 PG 134 PG 134 PG 13 5 PGR5 PGR5 PGR 6 R6 R6 R 7 NC177 NC177 NC17 8 ADULT8 ADULT8 ADULT

SET PARENTALSET PARENTALSET PARENTAL

1 KID SAFE1 KID SAFE1 KID SAFE 2 G2 G2 G 3 PG3 PG3 PG

AutoAutoAuto ENGENGENG ENGENGENG ENGENGENG

* * PREFERENCE PAGE * ** * PREFERENCE PAGE * ** * PREFERENCE PAGE * * TV TYPETV TYPETV TYPE

AUDIOAUDIOAUDIO SUBTITLESUBTITLESUBTITLE DISC MENUDISC MENUDISC MENU PARENTALPARENTALPARENTAL DEFAULTDEFAULTDEFAULT

PREFERRED MENU LANGUAGEPREFERRED MENU LANGUAGEPREFERRED MENU LANGUAGE

AutoAutoAuto ENGENGENG ENGENGENG ENGENGENG

PORTUGESEPORTUGESEPORTUGESE ITALIANITALIANITALIAN CHINESECHINESECHINESE JAPANESEJAPANESEJAPANESE KOREANKOREANKOREAN

ENGLISHENGLISHENGLISH FRENCHFRENCHFRENCH SPANISHSPANISHSPANISH

* * PREFERENCE PAGE * ** * PREFERENCE PAGE * ** * PREFERENCE PAGE * * TV TYPETV TYPETV TYPE

AUDIOAUDIOAUDIO SUBTITLESUBTITLESUBTITLE DISC MENUDISC MENUDISC MENU PARENTALPARENTALPARENTAL DEFAULTDEFAULTDEFAULT

* * PASSWORD SETUP PAGE * ** * PASSWORD SETUP PAGE * ** * PASSWORD SETUP PAGE * *

ONONON

ONONON OFFOFFOFF

PASSWORD MODEPASSWORD MODEPASSWORD MODE PASSWORDPASSWORDPASSWORD

ONONON

RESETRESETRESET

LOAD DEFAULT SETTINGSLOAD DEFAULT SETTINGSLOAD DEFAULT SETTINGS

AutoAutoAuto ENGENGENG ENGENGENG ENGENGENG

* * PREFERENCE PAGE * ** * PREFERENCE PAGE * ** * PREFERENCE PAGE * * TV TYPETV TYPETV TYPE

AUDIOAUDIOAUDIO SUBTITLESUBTITLESUBTITLE DISC MENUDISC MENUDISC MENU PARENTALPARENTALPARENTAL DEFAULTDEFAULTDEFAULT

Set the disc menu language here, which should be used as standard when playing back the film.

PARENTAL

Some DVDs and CDs are encoded with an encryption signal. In this way DVDs can be divided into eight different approval classes. Select one of the following approval classes to protect the playback of this media class with a password request:

Also only parts of the DVD, that is to say certain film scenes, may be encoded with an approval class or various approval classes.

• To activate the age approval select an approval class and then enter your password with the number buttons in the password request box that follows. The factory default password is

888888.

• Confirm your entry by pressing the button

OK/ENTER.

Note:

In the PASSWORD SETUP PAGE you can change the factory default password and enter a new password for the child lock.

DEFAULT

8 ADULT: for adults only; 7 NC 17: not for teenagers under 18 years

of age;

6 R: for teenagers under 16, adult

supervision is strongly recommended;

5 PGR: for teenagers under 16, adult

supervision is recommended;

4 PG 13: adult supervision strongly recom-

mended; some scenes are not suitable for children under 12;

3 PG: adult supervision recommended; 2 G.: for all age groups; 1 KID SAFE.: also suitable for small children.

Example

If a DVD was encoded with, for example, approval class 7 or 8 and you have an approval class setting between 1 and 6 then a message follows and the password must be entered.

Here you reset the DVD player's factory default settings.

8.5 PASSWORD SETUP PAGE

PASSWORD MODE

• Set this entry to OFF to switch off the child lock setting password request.

• To reactivate the password request set this entry to ON.

- 16 -

PASSWORD

X X X XOLD PASSWORD NEW PASSWORD CONFIRM PW

* * PASSWORD SETUP PAGE * ** * PASSWORD SETUP PAGE * ** * PASSWORD SETUP PAGE * *

CHANGE PASSWORDCHANGE PASSWORDCHANGE PASSWORD

CHANGECHANGECHANGE

PASSWORD MODEPASSWORD MODEPASSWORD MODE PASSWORDPASSWORDPASSWORD

ONONON

EXIT SETUPEXIT SETUPEXIT SETUP

Here you can change the preset password (888888) and enter your own password. Only the numbers 0-9 can be used.

• To change the password select the entry

CHANGE.

8.6 EXIT SETUP

• Select the last menu in the toolbar and press the button

OK/ENTER to exit the setup menu.

9. Sound functions

9.1 To control the Volume

Press the button VOL+ o to increase the volume. Press the button

VOL- a to decrease the volume.

• Enter in the line OLD PASSWORD the valid

password with the number buttons. The tab changes to the next line NEW PASSWORD.

• Enter the new password with the number buttons.

The tab changes to the next line CONFIRM PW.

• Enter the new password with the number buttons.

The tab changes to the OK field.

• Press the button

OK/ENTER. The password has now

been changed.

Note:

In the event that you forget your password you can use the factory default password (888888).

9.2 Mute

Press the MUTE button to switch off the sound. To switch the sound on again press the once more or press one of the buttons

MUTE button

VOL+ or VOL-.

10. Playback of DVD, SVCD,

VCD and CD discs

10.1 Inserting the disc

• Open the disc tray of the DVD player by pressing the

"OPEN" will now appear in the display.

• Place a DVD/VCD/S-VCD with the inscribed/ labelled side facing up in the disc tray.

• Close the flap of the disc tray.

"LOAD" will appear in the display.

• The contents of the inserted DVD/VCD/S-VCD will now be loaded; this may take a few seconds.

• Playback of the inserted DVD/VCD/S-VCD starts automatically.

- 17 -

OPEN/CLOSE button.

Note:

DVDs, that you want to playback with the DVD player may possibly have a country code, which is printed on the DVD jacket.

The DVD player can only playback DVDs with the country code 2.

If no country code is printed on the jacket of a DVD...

• but instead the symbol then the DVD can be played back on the DVD player.

• the DVD may possibly not play back on the DVD player. You can check this by attempting to play back the DVD.

Depending on the inserted DVD/VCD/S-VCD it is possible that the contents of the DVD/VCD/s-VCD will not playback immediately, rather first a selection menu appears on the television screen. In this case select with the Navigation buttons  the menu item, which will start the playback of the film.

• To start the playback of the film...

• Press the button

OK/ENTER or press the button

PLAY/PAUSE.

10.2 Playback functions when playing

back DVDs, VCDs, S-VCDs, MPEG or Audio CDs

During the playback of a DVD/VCD/S-VCD you can use the following DVD player functions.

Pause playback

To pause the playback:

• During playback press the button;

The prompt "" appears in the display. The display shows a freeze frame of the scene you have just paused.

• To continue with playback of the film press the

button

PLAY/PAUSE.

Stop playback

To stop playback press the button STOP.

PLAY/PAUSE.

Resume function

If you stopped playback of the inserted DVD/VCD/ S-VCD by pressing the DVD player automatically saves the position, at which playback was stopped. This function is called "Resume function". The display will show TO RESU- ME: PRESS PLAY BUTTON. As soon as you press the

PLAY/PAUSE button again playback will continue

from the saved position. If you press the position, at which you stopped playback is deleted. As soon as you press the playback of the inserted DVD/VCD/S-VCD starts from the beginning.

STOP button once then the

STOP button a second time the saved

PLAY/PAUSE button again

Skip to beginning of chapter (SKIP)

Note:

This function may not be available on all DVDs/VCDs/S-VCDs! If you attempt to carry out a function that is not available the symbol will be displayed on the television screen.

• With the buttons

SKIP FORWARD and

SKIP BACKWARDS you can, during playback, skip

within the film on the inserted DVD/VCD/S-VCD to the beginning of the next chapter or skip back

to the previous chapter The respectively selected chapter will immediately playback without you having to press the button. The number of the respectively selected chapter will be displayed on the front panel of the DVD player to the left of the played back so far time.

PLAY/PAUSE

Entry of the title number via number keys

Note:

This function may not be available on all DVDs/VCDs/S-VCDs! If you attempt to carry out a function that is not available the symbol will be displayed on the television screen.

- 18 -

Instead of using the skip function you can also access

CHAPTERCHAPTERCHAPTER AUDIOAUDIOAUDIO SUBTITLESUBTITLESUBTITLE

01/0401/0401/04 10/3610/3610/36

5.1 K/ENGLISH5.1 K/ENGLISH5.1 K/ENGLISH ENGLISHENGLISHENGLISH

TITLE ELAPSED 0:45:01TITLE ELAPSED 0:45:01TITLE ELAPSED 0:45:01

BITRATEBITRATEBITRATE

252525

MENUMENUMENU TITLETITLETITLE

a title from within the film of an inserted DVD/VCD/SVCD directly by entering the title number via the number buttons

0 to 9 on the remote control.

• For entry of two digit numbers first press the button

10+ and then enter one after the other the

two digits of the number.

• Then press the button

OK/ENTER on the remote

control. Playback of the entered number title will now start automatically.

Direct chapter or time selection using the search function (Search)

Note:

This function may not be available on all DVDs/VCDs/S-VCDs! If you attempt to carry out functions that are not available the symbol will be displayed on the television screen.

Entry of the time position via the search function

DVD, VCD and S-VCD:

• During playback press the mote control. The time menu is superimposed on the television screen:

TIME button on the re-

• Press the navigation button  to select the entry

field SUBTITLE. Press the button

OK/ENTER and se-

lect with the navigation buttons a subtitle language.

• To fade out the time menu press the button

TIME

again.

Audio CD

• During playback press repeatedly the button

TIME on the remote control. One after the

other the following notifications appear, in which you can enter a time position using the number buttons

0 to 9:

DISC GOTO: Enter here a time position on the

disc from where playback should start.

TRACK GOTO: Enter here a time position for the

current playback title from where playback should start.

GOTO TRACK: Enter here a title number from

where playback should start.

MPEG CD

SELECT: Enter here a title number on the disc

from where playback should start.

GOTO: Enter here a time position for the

current playback title from where playback should start.

• The entry field TITLE is automatically selected first. Press the button ired title with the number buttons

OK/ENTER and enter the des-

0 to 9. On

DVDs title 01 is most often the main film.

• Press the navigation button to select the entry field CHAPTER. Press the button

OK/ENTER and enter the

desired chapter with the number buttons

• Press the navigation button to select the entry field AUDIO. Press the button

OK/ENTER and se-

lect with the navigation button  an au- dio language.

0 to 9.

Search forward/backwards

• Press the button SEARCH or SEARCH

during playback to start a search forwards/ bakkwards.

• Press the button

SEARCH or SEARCH repeatedly

in order to apply the following search speeds:

Note:

During the search no sound will play.

• To continue playback of the film at normal speed from the selected position, during the search press the button

- 19 -

PLAY/PAUSE.

Slow motion function (DVD, VCD, S-VCD only)

• Press the button SLOW to set playback to slow mo-

tion. Press the button the following slow motion speeds:

SLOW repeatedly to apply

Note:

During slow motion playback no sound will be played.

• To continue playback at normal speed, during slow motion playback press the button

PLAY/PAUSE.

Frame by frame playback (Step) (DVD, VCD, S-VCD only)

Image enlargement (Zoom) (DVD, VCD, S-VCD and MPEG only)

Note:

This function may not be available on all DVDs/VCDs/S-VCDs! If you attempt to carry out functions that are not available the symbol will be displayed on the television screen.

During playback of an inserted DVD/VCD/S-VCD you can enlarge and reduce the image on the television screen in three stages.

• Press repeatedly the button lowing enlargement and/or reduction:

With the navigation buttons  the section of the enlargement can be shunted.

Camera position (DVD only)

ZOOM to apply the fol-

Note:

This function may not be available on all DVDs/VCDs/S-VCDs! If you attempt to carry out functions that are not available the symbol will be displayed on the television screen.

• During playback press the button playback. The display shows a freeze frame of the scene you have just paused.

• With each additional press of the button paused image advances by one frame.

• To continue playback press the button

STEP to stop

STEP the

PLAY/PAUSE.

Note:

This function may not be available on all DVDs/VCDs/S-VCDs! If you attempt to carry out functions that are not available the symbol will be displayed on the television screen.

Many films on DVD contain chapters, which were recorded from different camera perspectives simultaneously. With films that have such chapters available you can view the same chapter from different perspectives.

• For this, during playback of the inserted DVD, press the button Each press on the button to one of the available camera perspectives.

- 20 -

ANGLE on the remote control.

ANGLE will switch

Repeat function for DVDs, VCDs, S-VCDs and Audio CDs

With the repeat function you can… ... in the case of DVDs, selectively repeat title,

chapter or the entire DVD.

... in the case of VCDs/S-VCDs individual titles

and/or the entire VCD/S-VCD repeatedly playback.

... in the case of audio CDs, playback repeatedly

a particular track and/or the entire CD.

To switch on the repeat playback …

• During playback press repeatedly the button

REPEAT.

The repeat symbol appears in the display with one of the following notifications: CHAPTER Select CHAPTER to continuously

repeat the current playback chapter until playback repeat is switched off or playback is stopped by pressing the button STOP twice.

TITLE Select TITLE to continuously repe-

at the current playback title until playback repeat is switched off or playback is stopped by pressing the button STOP twice.

ALL Select ALL to continuously repeat

all available titles on the disc, thus the entire disc, until playback repeat is switched off or playback is stopped by pressing the button STOP twice.

Display off To switch off repeat playback

press the button REPEAT repeatedly during playback until no more notifications appear in the display.

Repeat sequence (A – B)

With this function you can repeat playback of a favourite sequence within a chapter of the current playback disc. To do this …

• During playback press the button mote control as soon as the desired sequence begins to playback. On the television screen the repeat symbol appears with the notice A.

• Press the button the desired sequence has played back. Bear in mind that the beginning and end of a sequence must be located in the same chapter.

On the television screen the repeat symbol appears with the notice Repeat playback of the selected sequence begins immediately without having to press the button

A–B again as soon as the end of

AB.

A–B on the re-

PLAY/PAUSE. The sequence will continuously repeat

until you press the button function.

A–B again to switch off the

Bookmark function

During the playback of a DVD/VCD/S-VCD you can place so called bookmarks in order to watch selected passages of a film again later. You can set up to 12 bookmarks.

1. During playback of a film press the button on the remote control. In the display the following notice appears:

2. As soon as the passage, on which you want to place a bookmark, is reached press the button

MARK

OK/ENTER. The title and chapter, in which the posi-

tion is located, as well as the exact time position of this passage within the film will now be displayed in hours, minutes and seconds under bookmark 1.

3. If you want to place another bookmark then with the navigation buttons  select an unoccupied field and press once again the button

OK/ENTER as soon as the passage is reached, on

which you want to place the second bookmark.

4. Proceed in the same manner to place further bookmarks. Once you have placed all the desired bookmarks press the button out the bookmark menu from the screen.

MARK to fade

- 21 -

+ 51 hidden pages
