Silvercrest KH 2277 User Manual
w
q
e r t y
u
s a o i
d f g h j k
l
Upper Side:
Left hand side: Right hand side:
Frontside: Inside CD compartment:
Downside:

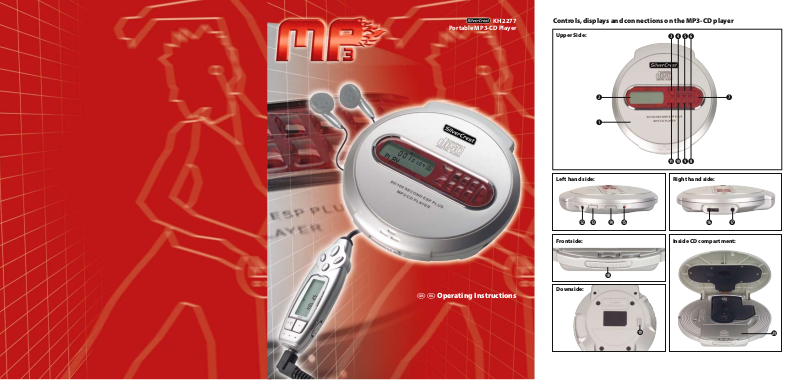

Controls, displays and connections on the MP3-CD player
;
Operating Instructions
KH 2277
Portable MP3-CD Player
2)
Controls, displays and connections on the remote control
Left hand side:
Right hand side: Backside:
Downside:
2*
Upper side:
2! 2@ 2# 2$ 2%
2& 2^
2(
3)
3# 3@ 3!
3$
Connectors and Accessories
Mains adapter
Mains adapter for in-car
cigarette lighter socket CD cassette adapter
WARRANTY
Portable MP3-CD player
KH 2277
This appliance is guaranteed for 3 years from the date of purchase. It has
been carefully produced and meticulously checked before delivery. Please
keep your receipt as proof of purchase. Contact your service centre by
telephone in case of questions pertaining to the warranty. Your goods can
be transmitted free of cost only in this manner.
The warranty covers only material or manufacturing faults, not normal wear
or damage to fragile parts such as switches or rechargeable batteries. The
appliance is intended solely for private, not commercial, use. If this product has
been subjected to improper or inappropriate handling, abuse, or interventions
not carried out by one of our authorised sales and service outlets, the warranty
will be considered void. This warranty does not affect your statutory rights.
This warranty applies only to the initial purchaser and is non-transferable.
Kompernass Service United Kingdom
Alpine House, Premier Business Park
Long Street, Walsall
West Midlands, WS2 9DY
Tel.: 08707/876177
Fax: 01922/725417
e-mail: support.uk@kompernass.com
Kompernass Service Ireland
c/o Irish Connection
41 Harbour view
Howth Co. Dublin
Tel: 087-99 62 077
Fax: 18398056
e-mail: support.ie@kompernass.com
Kompernaß Handelsgesellschaft mbH
Burgstraße 21
D-44867 Bochum
Deutschland/Germany
—
www.mysilvercrest.de
KH 2277 V 2.0
GB IRL
21-7-2005
Operating Instructions
Silvercrest KH 2277
Portable MP3-CD Player
with electronic digital anti-shock system
Operating Instructions |
Controls, displays and connections on the MP3-CD player
Upper side
q CD compartment
w LCD display
e PROG/EQ button
r STOP button
t SKIP/SEARCH backwards button
y SKIP/SEARCH forwards button
u PLAY/PAUSE button
i VOL + button
o VOL – button
a MODE button
s ALBUM/10+/ESP button
Left hand side
d DC 4,5 V socket for mains adapter
f HOLD slide
g BASS BOOST slide
h CHARGE indicator
Right hand side
j PHONES socket for earphones or remote
cable control
k LINE OUT socket for chinch cable
Frontside
l OPEN slide
Downside
; CHARGE ON/OFF slide
Inside CD compartment
2) Battery compartment
Controls, displays and connections on the remote control
Upper side
2! “Vol +” button
2@ LCD display
2# “Stop” button
2$ “Skip/Search” forwards button
2% “Play/Pause” button
2^ “Skip/Search” backwards button
2& “Vol –“ button
Left hand side
2* Socket for earphones
Right hand side
2( Cable with plug for connecting the remote
cable control to the PHONES socket on the
MP3-CD player
Backside
3) Clip
3! Prog./EQ button
3@ 10+/Album button
3# Mode button
Downside
3$ Hold slide
| Operating Instructions
1 Contents
2. Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3. Included
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4. Use
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5. Functions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
6. Technical data
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
7. Getting started
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7.1. Connecting to the power supply
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7.1.1. Mains operation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7.1.2. Battery operation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7.1.2.1. Exchanging batteries
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7.1.2.2. Charging rechargeable batteries
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
8. Conventional audio CDs
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
8.1. Playback
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
8.2. Setting the playback volume
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8.3. Switching on Bass Boost
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8.4. Stopping playback (PAUSE mode)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8.5. Ending playback
(STOP mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8.6. Selecting a track
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8.6.1. Skip forward/back to the beginning of a track
. . . . . . . . . . . . . . . . . . . . . . . . . . 17
8.6.2. Skip 10 tracks forward
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8.7. Fast search forward/back
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8.8. Programming a compilation of tracks (PROGRAM function)
. . . . . . . . . . . . . . . . . . . . 18
8.9. Intro play function
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8.10. Random playback (SHUFFLE)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8.11. Repeat functions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8.11.1. Repeat playback of a single track
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8.11.2. Repeat playback of all CD tracks
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
9. MP3-CDs
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
9.1. Playback
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
9.2. Title selection
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
9.3.
Skip 10 tracks forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
9.4. Intro play function
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
9.5. Random playback (SHUFFLE)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
9.6. Repeat functions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
9.6.1. Repeated playback of a single title
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9.6.2. Repeated playback of a directory
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9.6.3. Repeated playback of all MP3-CD titles
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9.7. Programming a compilation of titles (PROGRAM function)
. . . . . . . . . . . . . . . . . . . . . 24
9.8. Selecting tracks by their name
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
10. Equalizer function
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
11. Button lock (HOLD)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
12. Switching off the MP3-CD player
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
13. Connecting and using the accessories
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
13.1. Remote control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
13.2. Line-out cable
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
13.3. Car adapter set
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
13.3.1. Function
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
13.3.2. Use
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
13.3.3. Setting up
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
13.3.4. After use
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
14. Cleaning
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
15. Functional faults
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
16. Disposing of the MP3-CD player
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Operating Instructions |
2. Safety instructions
Place the MP3-CD player, be it for stationary use, - e.g. at home – or when en route, on a level,
smooth non-slip base so that the MP3-CD player cannot slip. This applies particularly when the
MP3-CD player is operated in a car.
To prevent damage, functional interference and the danger of an electric shock do not use
the set …
• … i
n the immediate vicinity of heat sources such as stoves, fan heaters and similar appli-
ances! Exposure to heat can cause the set to overheat and the risk of melting plastic parts,
thereby causing irreparable damage!
Do not leave the MP3-CD player at high temperatures in the car, particularly on sunny days
when the interior of the car can become very hot!
Ensure that the MP3-CD player is not exposed to direct sunlight in a car (e.g. directly behind the
windscreen).
†
Danger!
Set overheating gives rise to the danger of a fire!
• … in damp surroundings, for instance in basements or in a sauna! Moisture entering the MP3CD player can cause functional problems and irreparable damage!
• … not in the immediate vicinity of water, for instance in a bathroom or near a swimming pool.
Never place any water-filled containers, for instance a flower vase, on the MP3-CD player.
Do not place open flames (e.g. burning candles) on the MP3-CD player. This could cause a fire!
Moisture entering the MP3-CD player can result in the danger of electric shock!
ô
Please note!
No liability/warranty is accepted for damage to the player as a result of the following:
• Exposure to moisture
• Water entering the set
• Overheating
™
Warning!
The MP3-CD player and its components contain no user serviceable parts. The warranty is
voided if the casing of the MP3-CD player is opened! For repairs, please contact your nearest service partner. The addresses of our service partners are found at the end of these operating instructions.
| Operating Instructions
No liability will be taken and no guarantee will be made for damages …
• resulting from opening the casing of the MP3-CD player
• resulting from repair attempts not made by qualified experts,
• resulting from other than intended usage of the MP3-CD player
Battery acid could leak out, especially if the batteries are old. Therefore you should remove
all batteries if you do not use the MP3-CD player for long periods of time. This can protect
the MP3-CD player from damages resulting from leaked battery acid.
3. Included
1. MP3-CD player
2. Mains adapter
3. Earphones
4. Remote cable control
5. Line-out cable (chinch to 3.5 mm jack plug)
6. Two rechargeable NiMh batteries (1600 mAH)
7. Protective bag
8. Auto-adapter set:
a) CD cassette adapter
b) Mains adapter for in-car cigarette lighter socket
9. These operating instructions
4. Use
The Silvercrest KH 2277 portable MP3-CD Player is intended exclusively ...
• as an
entertainment electronics system
• to
playback audio CDs, CR-Rs and CR-RW with data in audio CD format (.cda) and MP3
format (.mp3)
• for
stationary and mobile use (e.g. in a car)
• for
private, non-commercial use
The following can be used for the output of speech or music …
• The
supplied earphones or earphones with a 3.5 mm jack plug connection
•
Loudspeakers with a 3.5 mm jack plug connection
• Other
external HiFi units (connection by way of the supplied line-OUT cable)
Operating Instructions |
5. Functions
• Playback of audio CDs, CD-Rs and CD-RWs with data in audio-CD format (.cda) and MP3
format (.mp3) up to 256 kbps.
• “ESP”
Electronic digital anti-shock system with 60 seconds (conventional audio CDs) and
100 seconds (MP3 CDs) interim storage.
•

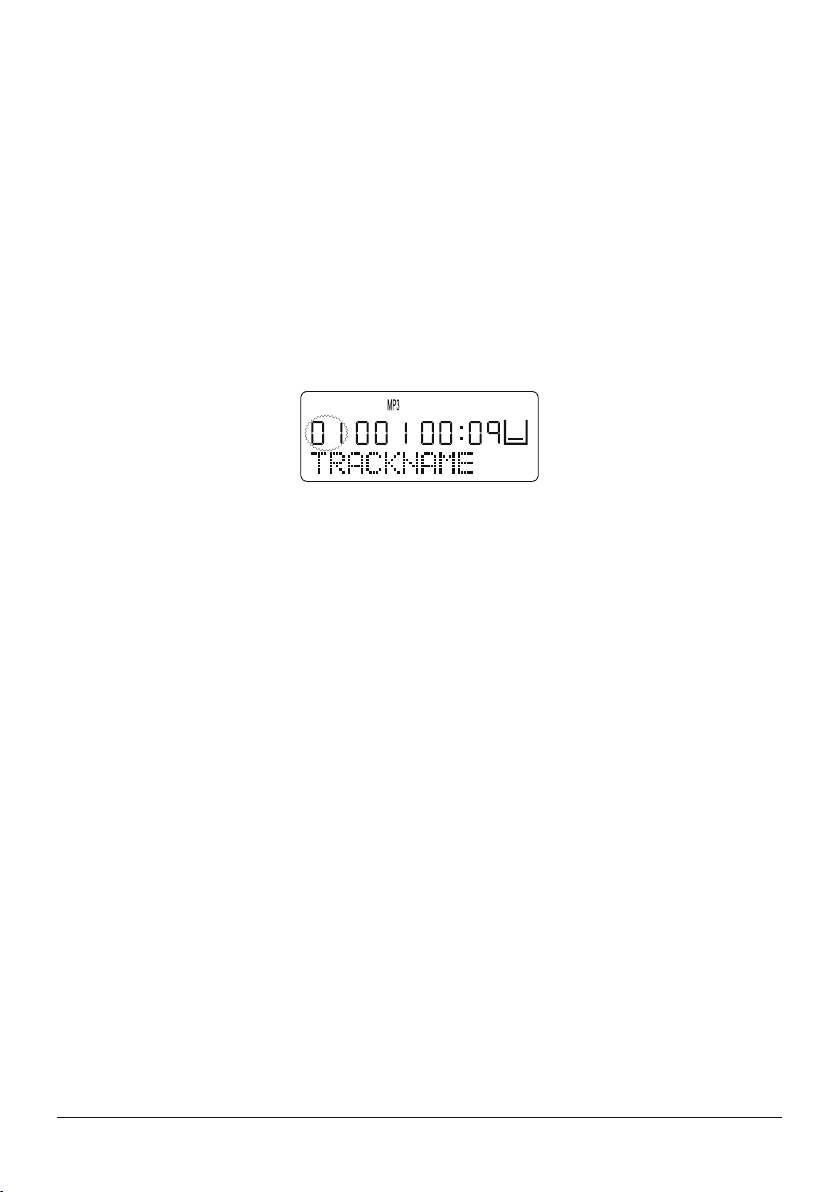

Track name display with up to 11 characters (ISO Level 1) or 31 characters (ISO Level II).
•
Automatic display of title information (“ID 3 tags”).
•
Skip and fast search function forward/back
•
Program function for individually programmed track compilations
•
Repeat functions for repeated playback of individual tracks, programmed track compilations, directories and all CD tracks.
•
Shuffle function for random playback.
•

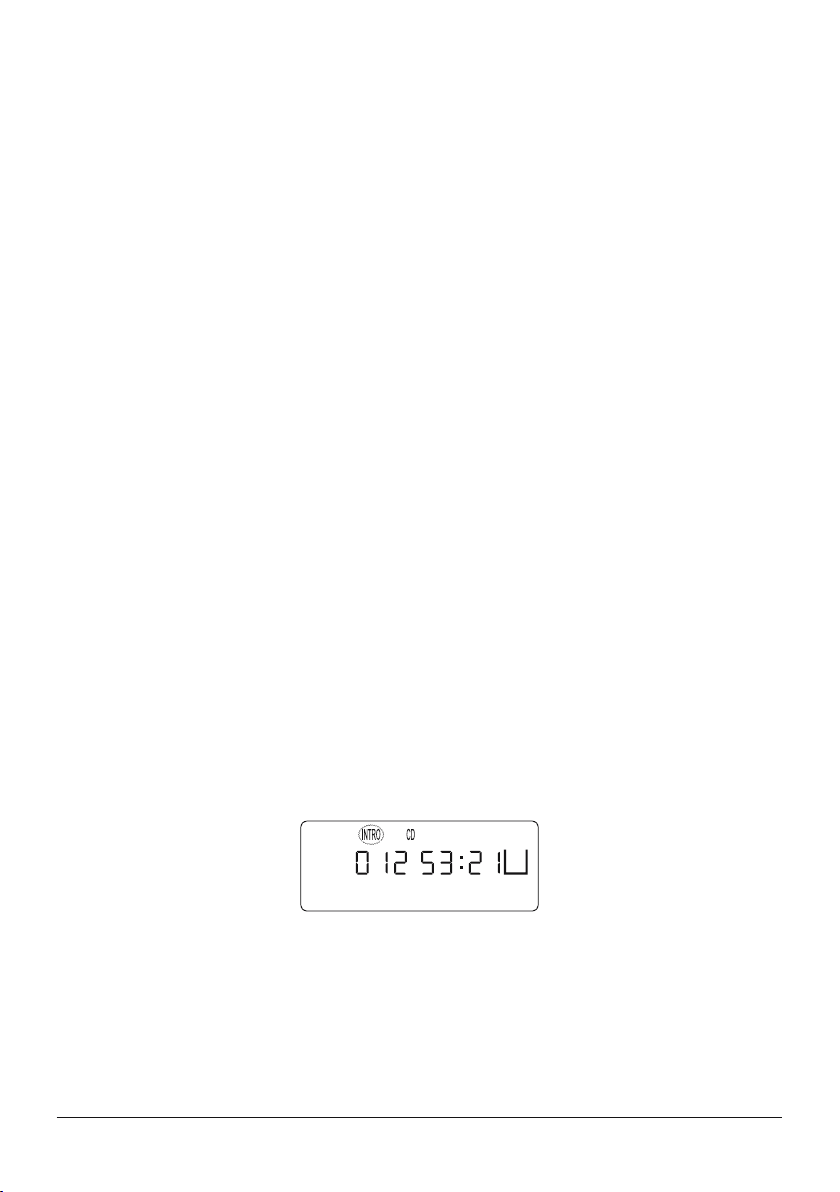

Intro Play to playback the beginning of all CD tracks
•
Bass Boost System.
•
Automatic switch-off (30 seconds).
•

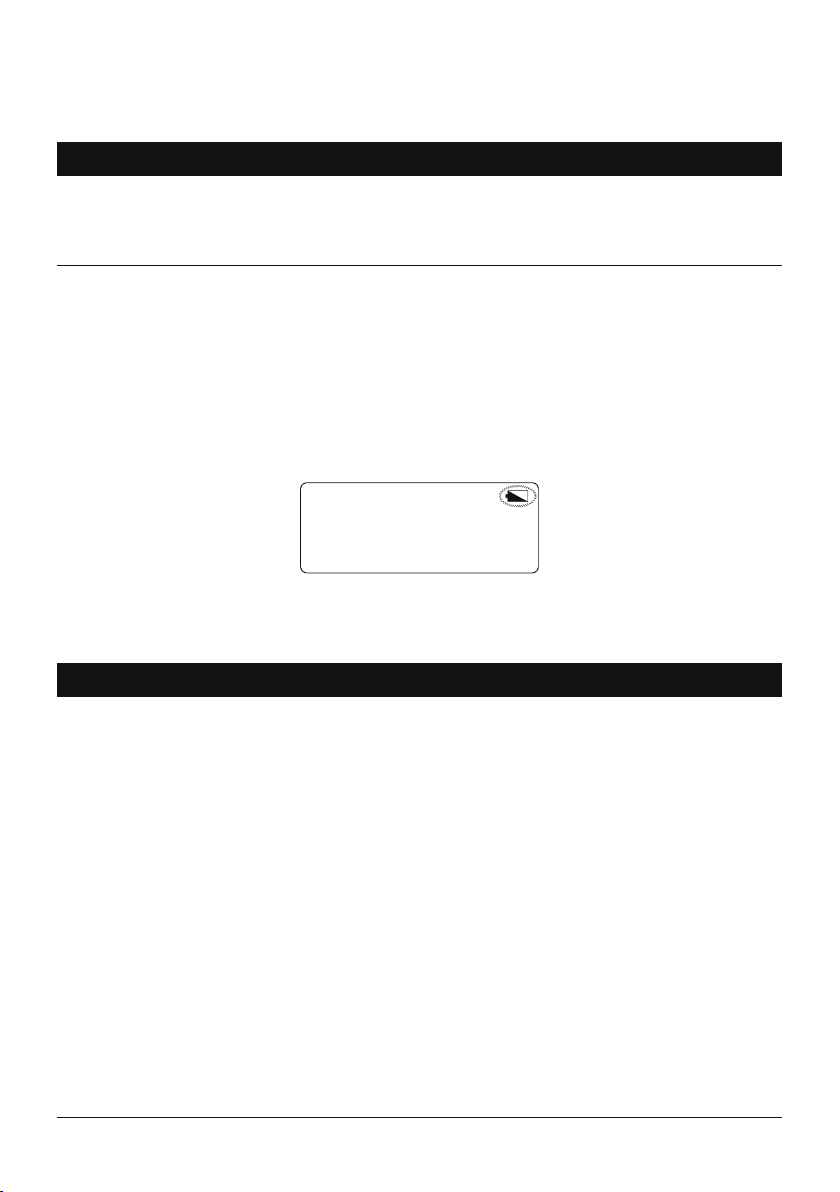

Battery change indication on the LCD display.
•
Charging suitable batteries in the unit, incl. charge indication.
• Key lock.
™
Warning!
We do not accept any liability/warranty for damage incurred as a result of incorrect use!
6. Technical data
Mains AC adapter/alternating current: 230 V ~ 50 Hz
or DC/direct current: 1.2 V – 2 x AA-type
Laser 3-beam laser
Frequency response 100 Hz to 16 kHz
Loading...
