Phonic AM5GE, AM6GE, AM8GE, AM12GE, AM14GE User Manual
...

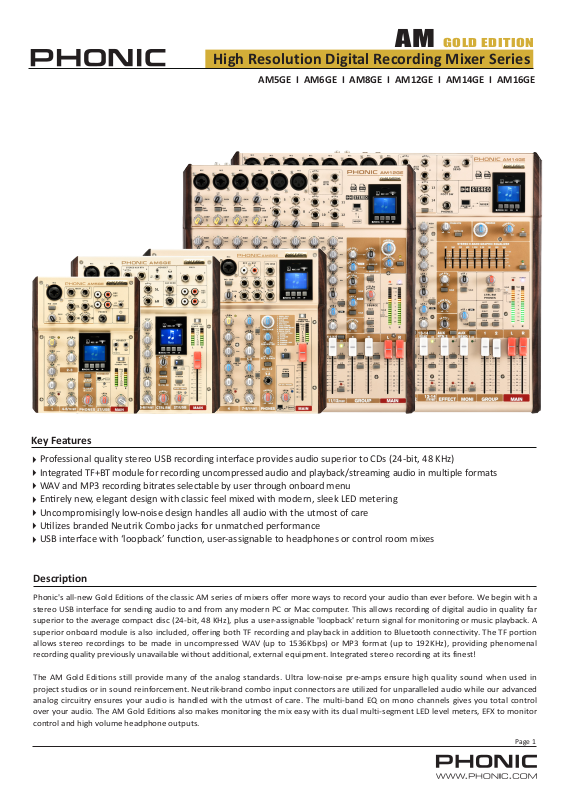

Page 1
High Resolution Digital Recording Mixer Series
AM
GOLD EDITION
AM5GE I AM6GE I AM8GE I AM12GE I AM14GE I AM16GE
Phonic's all-new Gold Editions of the classic AM series of mixers offer more ways to record your audio than ever before. We begin with a
stereo USB interface for sending audio to and from any modern PC or Mac computer. This allows recording of digital audio in quality far
superior to the average compact disc (24-bit, 48 KHz), plus a user-assignable 'loopback' return signal for monitoring or music playback. A
superior onboard module is also included, offering both TF recording and playback in addition to Bluetooth connectivity. The TF portion
allows stereo recordings to be made in uncompressed WAV (up to 1536Kbps) or MP3 format (up to 192KHz), providing phenomenal
recording quality previously unavailable without additional, external equipment. Integrated stereo recording at its finest!
The AM Gold Editions still provide many of the analog standards. Ultra low-noise pre-amps ensure high quality sound when used in
project studios or in sound reinforcement. Neutrik-brand combo input connectors are utilized for unparalleled audio while our advanced
analog circuitry ensures your audio is handled with the utmost of care. The multi-band EQ on mono channels gives you total control
over your audio. The AM Gold Editions also makes monitoring the mix easy with its dual multi-segment LED level meters, EFX to monitor
control and high volume headphone outputs.
Description
4
Professional quality stereo USB recording interface provides audio superior to CDs (24-bit, 48 KHz)
4
Integrated TF+BT module for recording uncompressed audio and playback/streaming audio in multiple formats
4
WAV and MP3 recording bitrates selectable by user through onboard menu
4
Enrely new, elegant design with classic feel mixed with modern, sleek LED metering
4
Uncompromisingly low-noise design handles all audio with the utmost of care
4
Ulizes branded Neutrik Combo jacks for unmatched performance
4
USB interface with ‘loopback’ funcon, user-assignable to headphones or control room mixes
Key Features
Page 2
High Resolution Digital Recording Mixer Series
AM
GOLD EDITION
4
Two balanced Mic/Line Neutrik "Combo" inputs with 3-band EQ and variable compressor
4
Two stereo inputs with 3-band EQs
4
Stereo USB audio interface for PC and Mac computers (24-bit, 48 KHz)
4
User assignable Loopback function for USB interface, assignable to MAIN or CTRL RM
4
Playback of MP3, WAV and FLAC files from TF media
4
Internal TF module for recording stereo audio in WAV or MP3 formats
4
2.4GHz Bluetooth connectivity for streaming digital audio directly from smartphones and tablets
4
One stereo AUX return
4
Post-fader AUX send on every input
4
Global +48V phantom power for microphone inputs
4
Peak and VU metering (10 segment)
4
Peak indicators on both mono input channels
4
Balanced master output with 60mm fader control
4
Headset mic and headphone connectors perfect for livestreaming and web conferencing
4
Powered through USB (5V - 20V DC), adapter included
4
One balanced Mic/Line Neutrik "Combo" input with compressor and 2-band EQ
4
Two stereo input channels with balance and level controls
4
Playback of MP3, WAV and FLAC files from TF media
4
Stereo USB audio interface for PC and Mac computers (24-bit, 48 KHz)
4
User assignable Loopback function for USB interface, assignable to MAIN or PHONES
4
Internal TF module for recording stereo audio in WAV or MP3 formats
4
2.4GHz Bluetooth connectivity for streaming digital audio directly from smartphones and tablets
4
+48V phantom power for mic input
4
Peak and VU metering (10 segments)
4
Peak indicators on mono input channel
4
Stereo RCA 2T Return input connectors plus mini-stereo connectors
4
Balanced master output with main rotary control
4
Headset mic and headphone connectors perfect for livestreaming and web conferencing
4
Powered through USB (5V - 20V DC), adapter included
AM6GE
2-Mic/Line 2-Stereo Input Compact Mixer with BT, TF Recorder and USB Interface
AM8GE
4-Mic/Line 2-Stereo Input Compact Mixer with DFX, plus BT, TF Recorder and USB Interface
AM5GE
1-Mic/Line 2-Stereo Input Compact Mixer with BT, TF Recorder and USB Interface
4
Four mono mic/line Neutrik "Combo" channels with user-adjustable compressors
4
Two stereo channels with EFX, balance and level controls
4
Stereo USB audio interface for PC and Mac computers (24-bit, 48 KHz)
4
Playback of MP3, WAV and FLAC files from TF media
4
Internal TF module for recording stereo audio in WAV or MP3 formats
4
2.4GHz Bluetooth connectivity for streaming digital audio directly from smartphones and tablets
4
32/40-bit digital effect processor with 16 effect programs and one main parameter control
4
EFX send control available on each channel
4
75Hz low-cut filter and 2-band EQ on each mono channel
4
Peak and VU metering (10 segment)
4
+48V phantom power for microphone inputs
4
Phones source matrix for maximum monitor flexibility
4
EFX/AUX send cue for monitoring individual channel
4
Balanced main outputs with 60mm fader
