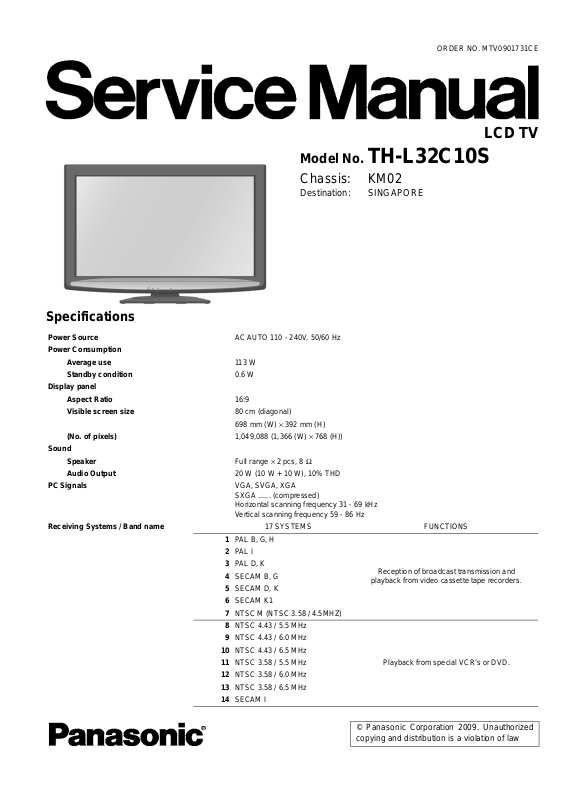

LCD TV
Chassis: KM02
Destination: SINGAPORE
Specifications
Power Source |
AC AUTO 110 - 240V, 50/60 Hz |
|
||
Power Consumption |
|
|
||
Average use |
113 W |
|
||
Standby condition |
0.6 W |
|
||
Display panel |
|
|
||
Aspect Ratio |
16:9 |
|
||
Visible screen size |
80 cm (diagonal) |
|
||
|
|
698 mm (W) × 392 mm (H) |
|
|
(No. of pixels) |
1,049,088 (1,366 (W) × 768 (H)) |
|
||
Sound |
|
|
||
Speaker |
Full range × 2 pcs, 8 Ω |
|
||
Audio Output |
20 W (10 W + 10 W), 10% THD |
|
||
PC Signals |
VGA, SVGA, XGA |
|
||
|
|
SXGA ...... (compressed) |
|
|
|
|
Horizontal scanning frequency 31 - 69 kHz |
||
|
|
Vertical scanning frequency 59 - 86 Hz |
|
|
Receiving Systems / Band name |
17 SYSTEMS |
FUNCTIONS |
||
|
|
|
|
|
1 |
PAL B, G, H |
|
||
2 |
PAL I |
|
||
3 |
PAL D, K |
Reception of broadcast transmission and |
||
4 |
SECAM B, G |
|||
playback from video cassette tape recorders. |
||||
5 |
SECAM D, K |
|||
|
||||
6 |
SECAM K1 |
|
||
7 |
NTSC M (NTSC 3.58 / 4.5MHZ) |
|
||
|
|
|
|
|
8 |
NTSC 4.43 / 5.5 MHz |
|
||
9 |
NTSC 4.43 / 6.0 MHz |
|
||
10 |
NTSC 4.43 / 6.5 MHz |
|
||
11 |
NTSC 3.58 / 5.5 MHz |
Playback from special VCR’s or DVD. |
||
12 |
NTSC 3.58 / 6.0 MHz |
|
||
13 |
NTSC 3.58 / 6.5 MHz |
|
||
14 |
SECAM I |
|
||
|
|
|
|
© Panasonic Corporation 2009. Unauthorized copying and distribution is a violation of law
TH-L32C10S
|
15 |
PAL 60 Hz / 5.5 MHz |
Playback from Special Disc Players and |
|
16 |
PAL 60 Hz / 6.0 MHz |
Special VCR’s or DVD. |
|
|
||
|
17 |
PAL 60 Hz / 6.5 MHz |
|
Receiving Channels (Regular TV) |
|
|
|
VHF BAND |
2 - 12 |
(PAL / SECAM B, K1) |
|
|
0 - 12 |
(PAL B AUST.) |
|
|
1 - 9 |
(PAL B N.Z.) |
|
|
1 - 12 |
(PAL / SECAM D) |
|
|
1 - 12 |
(NTSC M JAPAN) |
|
|
2 - 13 |
(NTSC M U.S.A.) |
|
UHF BAND |
21 - 69 |
(PAL G, H, I / SECAM G, K, K1) |
|
|
28 - 69 |
(PAL B AUST.) |
|
|
13 - 57 |
(PAL D, K) |
|
|
13 - 62 |
(NTSC M JAPAN) |
|
|
14 - 69 |
(NTSC M U.S.A.) |
|
CATV |
S1 - S20 |
(OSCAR) |
|
|
1 - 125 |
(U.S.A. CATV) |
|
|
C13 - C49 |
(JAPAN) |
|
|
S21 - S41 |
(HYPER) |
|
|
Z1 - Z37 |
(CHINA) |
|
|
5A, 9A |
(AUST.) |
|
Aerial - Rear |
|
VHF / UHF |
|
Operating Conditions |
Temperature : 0°C - 40°C |
|
|
|
|
Humidity : 20 % - 80 % RH (non-condensing) |
|
Connection Terminals |
|
|
|
AV1 Input |
AUDIO L-R |
RCA PIN Type × 2 |
0.5 V [rms] |
|
VIDEO |
RCA PIN Type × 1 |
1.0 V [p-p] (75 Ω) |
AV2 Input |
AUDIO L-R |
RCA PIN Type × 2 |
0.5 V [rms] |
|
VIDEO |
RCA PIN Type × 1 |
1.0 V [p-p] (75 Ω) |
|
COMPONENT |
Y |
1.0 V[p-p] (including synchronization) |
|
|
PB/CB, PR/CR |
± 0.35 V [p-p] |
Others |
HDMI 1 / 2 Input |
TYPE A Connectors |
• This TV supports “HDAVI Control 4” function. |
|
|
|
• HDMI2 is not available for TH-L32C12K. |
|
PC Input |
HIGH-DENSITY D-SUB 15 PIN |
R, G, B / 0.7 V[p-p] (75 Ω) |
|
|
|
HD, VD / TTL LEVEL 2.0-5.0 V[rms] (high impedance) |
|
Card Slot |
SD Card slot × 1 |
|
Monitor |
AUDIO L-R |
RCA PIN Type × 2 |
0.5 V [rms] (High impedance) |
Output |
VIDEO |
RCA PIN Type × 1 |
1.0 V [p-p] (75 Ω) |
|
|||
Dimension (W x H x D) |
798 mm × 551 mm × 217 mm (With Pedestal) |
||
|
|
798 mm × 511 mm × 87 mm (TV only) |
|
Mass |
|
13.5 kg Net (With Pedestal) |
|
|
|
11.5 kg Net (TV only) |
|
|
Design and specifications are subject to change without notice. Mass and dimensions shown are approximate. |

TABLE OF CONTENTS
|
PAGE |
|
|
PAGE |
1 Safety Precautions ----------------------------------------------- |
4 |
2 |
Prevention of Electro Static Discharge (ESD) to |
|
1.1. General Guidelines ---------------------------------------- |
4 |
|
Electrostatically Sensitive (ES) Devices |
------------------ 6 |
1.2. Touch-Current Check-------------------------------------- |
4 |
3 |
About Lead Free Solder (PbF)-------------------------------- |
7 |
1.3. KM02 Chasis Block Diagram---------------------------- |
5 |
4 |
Power LED Blinking Timing----------------------------------- |
8 |
|
|
5 |
Chassis Board----------------------------------------------------- |
9 |
2
|
|
TH-L32C10S |
|
5.1. Chassis Installation --------------------------------------- |
9 |
11.2.30. A Board - Sheet : 007 (4 / 9) --------------------- |
59 |
6 Location of Controls and Components ------------------ |
10 |
11.2.31. A Board - Sheet : 007 (5 / 9) --------------------- |
60 |
6.1. Wire Dressing --------------------------------------------- |
10 |
11.2.32. A Board - Sheet : 007 (6 / 9) --------------------- |
61 |
7 Disassembly and Assembly Instructions --------------- |
11 |
11.2.33. A Board - Sheet : 007 (7 / 9) --------------------- |
62 |
7.1. AC Cord Installation-------------------------------------- |
11 |
11.2.34. A Board - Sheet : 007 (8 / 9) --------------------- |
63 |
7.2. VESA Metal Assembly ---------------------------------- |
12 |
11.2.35. A Board - Sheet : 007 (9 / 9) --------------------- |
64 |
7.3. VESA (BC) Installation ---------------------------------- |
13 |
11.2.36. A Board - Sheet : 008 (1 / 4) --------------------- |
65 |
7.4. Pedestal Assembly--------------------------------------- |
14 |
11.2.37. A Board - Sheet : 008 (2 / 4) --------------------- |
66 |
7.5. LED Panel Installation & Fitting ----------------------- |
15 |
11.2.38. A Board - Sheet : 008 (3 / 4) --------------------- |
67 |
7.6. Control Panel Assembly -------------------------------- |
16 |
11.2.39. A Board - Sheet : 008 (4 / 4) --------------------- |
68 |
7.7. A-PB-MTG & Control Button Fixing------------------ |
17 |
11.2.40. A Board - Sheet : 009 (1 / 2) --------------------- |
69 |
7.8. Side AV Bracket Assembly----------------------------- |
18 |
11.2.41. A Board - Sheet : 009 (2 / 2) --------------------- |
70 |
7.9. Speaker Installation -------------------------------------- |
19 |
11.2.42. A Board - Sheet : 010 (1 / 5) --------------------- |
71 |
7.10. LCD Panel-------------------------------------------------- |
20 |
11.2.43. A Board - Sheet : 010 (2 / 5) --------------------- |
72 |
7.11. LCD Mouting Fixing -------------------------------------- |
21 |
11.2.44. A Board - Sheet : 010 (3 / 5) --------------------- |
73 |
7.12. LCD Panel Assembly Installation--------------------- |
22 |
11.2.45. A Board - Sheet : 010 (4 / 5) --------------------- |
74 |
7.13. EMI Spec (LVDS) ----------------------------------------- |
23 |
11.2.46. A Board - Sheet : 010 (5 / 5) --------------------- |
75 |
7.14. Back Cover Assembly (Felt Sticking)---------------- |
24 |
11.2.47. A Board - Sheet : 011 (1 / 2)---------------------- |
76 |
8 Service Mode Adjustment ------------------------------------ |
25 |
11.2.48. A Board - Sheet : 011 (2 / 2)---------------------- |
77 |
8.1. Self Check Mode ----------------------------------------- |
25 |
11.2.49. A Board - Sheet : 012 (1 / 3) --------------------- |
78 |
8.2. Hotel Mode Adjustment --------------------------------- |
25 |
11.2.50. A Board - Sheet : 012 (2 / 3) --------------------- |
79 |
8.3. Hotel Mode ------------------------------------------------- |
25 |
11.2.51. A Board - Sheet : 012 (3 / 3) --------------------- |
80 |
9 Measurements and Adjustments--------------------------- |
26 |
11.2.52. A Board - Sheet : 013 (1 / 5) --------------------- |
81 |
9.1. Voltage Chart of A Board ------------------------------- |
26 |
11.2.53. A Board - Sheet : 013 (2 / 5) --------------------- |
82 |
9.2. Voltage Chart of P Board ------------------------------- |
26 |
11.2.54. A Board - Sheet : 013 (3 / 5) --------------------- |
83 |
9.3. Target of White Balance adjustment value--------- |
26 |
11.2.55. A Board - Sheet : 013 (4 / 5) --------------------- |
84 |
10 Printed Circuit Board------------------------------------------- |
27 |
11.2.56. A Board - Sheet : 013 (5 / 5) --------------------- |
85 |
10.1. A-Board ----------------------------------------------------- |
27 |
11.2.57. A Board - Sheet : 014 (1 / 4) --------------------- |
86 |
10.2. A-Board ----------------------------------------------------- |
28 |
11.2.58. A Board - Sheet : 014 (2 / 4) --------------------- |
87 |
11 Schematic Diagram --------------------------------------------- |
29 |
11.2.59. A Board - Sheet : 014 (3 / 4) --------------------- |
88 |
11.1. Schematic Diagram Notes ----------------------------- |
29 |
11.2.60. A Board - Sheet : 014 (4 / 4) --------------------- |
89 |
11.2. A Board ----------------------------------------------------- |
30 |
11.2.61. A Board - Sheet : 015 (1 / 7) --------------------- |
90 |
11.2.1. A Board - Sheet : 001 (1 / 1) ---------------------- |
30 |
11.2.62. A Board - Sheet : 015 (2 / 7) --------------------- |
91 |
11.2.2. A Board - Sheet : 002 (1 / 8) ---------------------- |
31 |
11.2.63. A Board - Sheet : 015 (3 / 7) --------------------- |
92 |
11.2.3. A Board - Sheet : 002 (2 / 8) ---------------------- |
32 |
11.2.64. A Board - Sheet : 015 (4 / 7) --------------------- |
93 |
11.2.4. A Board - Sheet : 002 (3 / 8) ---------------------- |
33 |
11.2.65. A Board - Sheet : 015 (5 / 7) --------------------- |
94 |
11.2.5. A Board - Sheet : 002 (4 / 8) ---------------------- |
34 |
11.2.66. A Board - Sheet : 015 (6 / 7) --------------------- |
95 |
11.2.6. A Board - Sheet : 002 (5 / 8) ---------------------- |
35 |
11.2.67. A Board - Sheet : 015 (7 / 7) --------------------- |
96 |
11.2.7. A Board - Sheet : 002 (6 / 8) ---------------------- |
36 |
11.2.68. A Board - Sheet : 016 (1 / 1) --------------------- |
97 |
11.2.8. A Board - Sheet : 002 (7 / 8) ---------------------- |
37 |
11.3. K Board ----------------------------------------------------- |
98 |
11.2.9. A Board - Sheet : 002 (8 / 8) ---------------------- |
38 |
11.3.1. K Board (1 / 2) --------------------------------------- |
98 |
11.2.10. A Board - Sheet : 003 (1 / 6) ---------------------- |
39 |
11.3.2. K Board (2 / 2) --------------------------------------- |
99 |
11.2.11. A Board - Sheet : 003 (2 / 6) ---------------------- |
40 |
11.4. P Board --------------------------------------------------- |
100 |
11.2.12. A Board - Sheet : 003 (3 / 6) ---------------------- |
41 |
11.4.1. P Board (1 / 7) ------------------------------------- |
100 |
11.2.13. A Board - Sheet : 003 (4 / 6) ---------------------- |
42 |
11.4.2. P Board (2 / 7) ------------------------------------- |
101 |
11.2.14. A Board - Sheet : 003 (5 / 6) ---------------------- |
43 |
11.4.3. P Board (3 / 7) ------------------------------------- |
102 |
11.2.15. A Board - Sheet : 003 (6 / 6) ---------------------- |
44 |
11.4.4. P Board (4 / 7) ------------------------------------- |
103 |
11.2.16. A Board - Sheet : 004 (1 / 2) ---------------------- |
45 |
11.4.5. P Board (5 / 7) ------------------------------------- |
104 |
11.2.17. A Board - Sheet : 004 (2 / 2) ---------------------- |
46 |
11.4.6. P Board (6 / 7) ------------------------------------- |
105 |
11.2.18. A Board - Sheet : 005 (1 / 5) ---------------------- |
47 |
11.4.7. P Board (7 / 7) ------------------------------------- |
106 |
11.2.19. A Board - Sheet : 005 (2 / 5) ---------------------- |
48 |
11.5. V Board --------------------------------------------------- |
107 |
11.2.20. A Board - Sheet : 005 (3 / 5) ---------------------- |
49 |
11.5.1. V Board (1 / 4) ------------------------------------- |
107 |
11.2.21. A Board - Sheet : 005 (4 / 5) ---------------------- |
50 |
11.5.2. V Board (2 / 4) ------------------------------------- |
108 |
11.2.22. A Board - Sheet : 005 (5 / 5) ---------------------- |
51 |
11.5.3. V Board (3 / 4) ------------------------------------- |
109 |
11.2.23. A Board - Sheet : 006 (1 / 4) ---------------------- |
52 |
11.5.4. V Board (4 / 4) -------------------------------------- |
110 |
11.2.24. A Board - Sheet : 006 (2 / 4) ---------------------- |
53 |
12 Exploded View and Replacement Parts List ---------- |
111 |
11.2.25. A Board - Sheet : 006 (3 / 4) ---------------------- |
54 |
12.1. Exploded View and Mechanical Replacement |
|
11.2.26. A Board - Sheet : 006 (4 / 4) ---------------------- |
55 |
Parts List -------------------------------------------------- |
111 |
11.2.27. A Board - Sheet : 007 (1 / 9) ---------------------- |
56 |
12.2. Electrical Replacement Parts List------------------- |
111 |
11.2.28. A Board - Sheet : 007 (2 / 9) ---------------------- |
57 |
12.2.1. Replacement Parts List Notes ------------------ |
111 |
11.2.29. A Board - Sheet : 007 (3 / 9) ---------------------- |
58 |
12.2.2. Electrical Replacement Parts List -------------- |
112 |
3
TH-L32C10S
1.1. |
General Guidelines |
|
1. |
When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or |
|
|
damaged by the short circuit. |
|
2. |
After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly |
|
|
installed. |
|
3. |
After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards. |
|
1.2. |
Touch-Current Check |
1.Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
2.Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground such as a water pipe as shown in Figure 1.
3.Use the Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.
4.Check each exposed metallic part and measure the voltage at each point.
5.The potential at any point (touch current) expressed as voltage U1 and U2, do not exceed the following values: For AC: U1 = 35 V (peak) and U2 = 0.35 V (peak);
For DC: U1 = 1.0 V,
NOTE :
The limit value of U2 = 0.35 V (peak) for AC and U1 = 1.0 V for DC correspond to the values 0.7 mA (peak) AC and 2.0 mA DC.
The limit value U1 = 35 V (peak) for AC correspond to the value 70 mA (peak) AC for frequencies greater than 100 kHz.
6.Should a measurement be out of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer.
4
5
IP-PCB: 32” IPS ONLY (Inverter & Power)
TNP4G455
P-PCB: 37” ONLY (Power)
TNP4G454
BT |
Inspection |
FOR TNP4G455 ONLY
*Adjust the frequency to 56 ± 1kHz by using VR7851 *Check to the output : J102 or TP7871
*Check to the Over Voltage protection *Check to the Arc protection
V-PCB |
BT → Divide |
Inspection |
(LED) |
|
|
TNPA4834 |
|
|
|
LED CAT EYES,REMOCON RECEIVER |
|
|
|
|
|
|
|
K-PCB
BT → Divide (Control)
TNPA4901
In coming check
LCD PANEL
A-PCB |
|
IPK |
Point Dip |
Writing |
|
|
|
|
|||
TNP4G460 |
|
|
|
|
|
(Degital main) |
|
|
|
|
|
|
|
|
EEPROM Writing (On board) |
||
|
|
|
|
||
|
|
|
|
*GENX |
|
PEAKS NOR Flash |
|
|
• EEPROM (8k) x 1 |
||
(Writing IC) |
|
|
|||
|
|
IC1101 |
|||
256Mbit |
|
|
|||
|
|
|
|
||
IC8554 |
|
|
*PEAKS |
|
|
|
|
|
|
|
|
Sum : only effective area |
|
|
• EEPROM (16k) x 1 |
||
|
|
IC8601 |
|
||
Add : 0 ~ 1FFFFFF |
|
|
|
||
|
|
|
|
<Write Protect command> |
|
|
|
|
|||
|
|
|
|
*GENX : Protect OFF = 70,88,00 |
|
|
|
|
|
|
Protect ON = 70,88,ff |
|
|
|
|
*PEAKS : Protect OFF = 70,8B,00 |
|
|
|
|
|
|
Protect ON = 70,8B,ff |
|
|
|
|
|
|
Assembly
A
Inspection
<Visual check>
*Voltage check
* LED Check Inverter (Blue LED)
<FACT-TEST>
*ANALOG TUNE *VCXO ADJ *LOCAL OSD *AV_SW CHECK
*AV1/AV2/AV3---CVBS *AV3---S(YC) *MONITOR-OUT *AV1/AV2---Component *PC
*HDMI1
*HDMI2
*CEC_(HDMI1/HDMI2) *Backlight
*SD Card
*Software & EEPROM version check by self check (1 set only)
Diagram Block Chasis KM02 .3.1
L32C10S-TH
TH-L32C10S
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some fieldeffect transistors and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by electro static discharge (ESD).
1.Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.
2.After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminium foil to prevent electrostatic charge buildup or exposure of the assembly.
3.Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4.Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static (ESD protected)” can generate electrical charges sufficient to damage ES devices.
5.Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6.Do not remove a replacement ES device from its protective package until immediately before you are ready to install it (most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminium foil or comparable conductive material).
7.Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.
Caution:
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8.Minimize bodily motions when handling unpackaged replacement ES devices (otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).
6
TH-L32C10S
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead Solder and PbF will refer to Lead Free Solder.
The Lead Free Solder (PbF) used in our manufacturing process and discussed below is (Sn+Ag+Cu). Those are Tin (Sn), Silver (Ag) and Copper (Cu), although other types are available.
This model uses PbF in its manufacture due to environmental conservation issues. For service and repair work, we would suggest the use of PbF as well, although Pb may be used.
PCBs manufactured using lead-free will have the “PbF within a leaf Symbol” stamped on their back.
Caution
•PbF has a higher melting point than that of standard solder. Typically the melting point is 50 ~ 70°F (30~40°C) higher. Please use a high temperature soldering iron and set it to 700 ± 20°F (370 ± 10°C).
•PbF will tend to splash when heated too high (about 1100°F or 600°C).
If you must use Pb solder, please completely remove all of the PbF on the pins or solder area before applying Pb. If this is not practical, be sure to heat the PbF until it melts, before applying Pb.
•After applying PbF to double layered boards, please check the component side for excess solder which may flow onto the opposite side (see Figure 2).
Figure 2
Suggested PbF
There are several kinds of PbF available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper) and Sn+Zn+Bi (tin, zinc, bismuth) solders can also be used.
Figure 3
7
TH-L32C10S
1.Subject
Information of LED Flashing timing.
2.Contents
When an abonormality has occurred in the unit, the protection circuit operates and resets to standby mode. At this time, the defective block can be identified by the number of blinking of the Power LED on the front panel of the unit as follow:
Blinking times |
Contents |
|
|
1 |
Lamp short circuit protection |
|
Lamp open protection |
|
Arc protection |
|
|
2 |
Cooling fan SOS = incomplete connection - no function mode. |
|
|
3 |
P board 30V / 18V / 9V decreased / short circuit detection. |
|
|
4 |
DTV12V decreased / short circuit , main convertor stop detection. |
|
|
5 |
Sub 5V decreased / short circuit detection. |
|
|
6 |
Sub 5V decreased / short circuit detection. (same as 5 times LED blinking) |
|
|
7 |
Sub 3.3V decreased / short circuit detection. |
|
|
8 |
Sub 5V decreased / short circuit detection. (same as 5 times LED blinking) |
|
|
9 |
Audio amp SOS. |
|
|
10 |
HQ1 incomplete connection, no function mode. |
|
|
13 |
When peaks communication error SOS. |
|
|
8
TH-L32C10S
1.Stick FELT to SIDE AV BRACKET.
-Stick the SIDE AV INDI. SHEET on the SIDE AV BRACKET.
-Insert the SIDE AV BRACKET from the side position of the A-PCB.
9
TH-L32C10S
1.Wiring No. 1 ~ No.7
2.Remove dust of terminal of LVDS and PB connector. (by ion blow) Pos. A11
3.Insert LVDS into A11.
Wire |
|
|
|
|
|
Clamper |
|
|
|
|
|
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
||
|
No.1 A10 ~ V10
No.2 A01 ~ K01
No.3 A12 ~ SP(L)
No.4 A12 ~ SP(R)
No.5 ~ P5
No.6 ~ P6
No.7 A20 ~ P4
10
TH-L32C10S
1.Put on the AC CORD BRACKET on the CABINET.
2.Fix the AC CORD BRACKET with SCREW.
3.AC CORD BARRIER setting.
4.Insert AC CORD connector into P-PCB connector.
5.Clamp the AC CORD.
6.Insert AC CORD bushing into the AC CORD BRACKET.
11
TH-L32C10S
1.Assemble LCD TOP MTG(L,R) , VESA METAL(upper) and fix them with screw. Please use jig for vesa metal assembly preparation.
12
TH-L32C10S
1.Put VESA METAL(BC) on the BACK COVER.
2.Fix them with SCREWS.
13
TH-L32C10S
Step 1
Setting BASE PLATE and PEDESTAL COVER with SCREWS.
Step 2
1.Stick the RUBBER FOOT at bottom PEDESTAL COVER and BASE PLATE.
2.RUBBER FOOT (TBL4GG3008 - 2 pcs) stick at BASE PLATE.
3.RUBBER FOOT (TBL4GG3009 - 2 pcs) stick at bottom PEDESTAL COVER.
14
TH-L32C10S
1.Put LED SHADE RIB on CABINET.
2.Fix LED PANEL on CABINET.
3.Wire connecting. (V10)
4.Put V-PCB on CABINET.
5.Fix them with SCREW.
6.Insert the CLAMPER.
15
TH-L32C10S
1.Wire connecting. (K1)
2.Assemble POWER BUTTON to the K-PRINT.
3.Assemble K-PRINT, CONTROL BUTTON, CONTROL PANEL BRACKET.
4.Fix them with SCREWS.
5.Stick the FELT.
16
TH-L32C10S
7.7.A-PB-MTG & Control Button Fixing
1.Stick P-PCB BARRIER and put all METAL part follow to the picture. Fix all metal part with screw.
2.Put CONTROL PANEL ASSY on the CABINET. Fix the CONTROL PANEL with SCREWS.
17
TH-L32C10S
• STICK FELT TMK4G028 (7 X 240 X 0.55t) - 2 PCS.
18
TH-L32C10S
1.Stick the SPONGE. Follow the spec. below.
2.SP BRACKET slot at CABINET.
3.Insert the SP RUBBER BUSH into the SP UNIT.
4.Insert the SP UNIT to SP BRACKET.
5.Fix them with SCREWS.
19
TH-L32C10S
1.Remove dust of terminal of LVDS. (by ion blow)
2.Remove dust of terminal of T-con connector. (by ion blow)
3.Insert LVDS into T-con connector.
4.Stick the tape to fix LVDS.
5.Stick the SPONGE at left and right lcd panel.
6.Stick 1pc SPONGE between lcd panel wire.
20
TH-L32C10S
Step 1
1.LCD SIDE MTG on the CABINET.
2.LCD BTM MTG on the CABINET.
3.LCD BOTTOM CORNER MTG on the CABINET.
4.Fix them with SCREW.
Step 2
1.Assemble LCD TOP MTG (L, R), VESA METAL (upper) and fix them with SCREWS.
2.Put on the VESA METAL ASSY on the LCD PANEL.
3.Fix the VESA METAL ASSY with SCREW.
21
TH-L32C10S
1. Put LCD panel to cabinet assembly.
22
TH-L32C10S
1.When insert LVDS wire to T-con conector,make sure must center position follow bellow picture.
2.After fixing LVDS wire please bent again follow the picture.
23
TH-L32C10S
Stick the FELT.
24
TH-L32C10S
Set timer to 30min, press the “RECALL” button on the remote control and press “-” vol button on the LCD panel.
• Press button R and G for adjustment.
1.Press the “MENU” button (on the remote control ) and the “DOWN” button on the LCD panel.
2.Press ON/OFF button on the panel to Exit.
1.Press the “VOLUME DOWN” button on the TV panel and simultaneously press the AV button on the remote control 3 times to enter Hotel Mode.
2.Set Hotel mode “on/off”, then press “EXIT” to come out.
8.3.Hotel Mode
1.Purpose
Restrict a function for hotels.
2.Access command to the Hotel mode setup menu.
In order to display the Hotel mode setup menu, please enter the following command (within 2 second).
[TV] : Hold Vol [Down] + [Remote] : Press AV button 3 times.
Then, the Hotel mode setup menu is displayed.
Item |
Function |
|
|
Hotel Mode |
Select hotel mode ON/OFF |
|
|
Initial INPUT |
Select input signal modes. |
|
Set the input, when each time power is switched |
|
on. |
|
Selection : |
|
OFF/Analogue TV/Digital TV/AV1/AV2/AV3//PC/ |
|
HDMI1/HDMI2/HDMI3 |
|
• Off: give priority to a last memory. |
|
• Selectable input is depend on the model. |
|
|
Initial POS |
Select programme number. |
|
Selection : |
|
Off/0 to 100 |
|
• Off: give priority to a last memory. |
|
|
Initial VOL level |
Adjust the volume when each time power is |
|
switched on. |
|
Selection/Range : |
|
Off/0 to 100 |
|
• Off: give priority to a last memory. |
|
|
Maximum VOL |
Adjust maximum volume. |
level |
Range : |
|
0 to 100 |
|
|
Button lock |
Select local key conditions. |
|
Selection : |
|
Off/SETUP/MENU/All |
|
• Off: altogether valid. |
|
• SETUP: only F-key is invalid. |
|
(Tuning guide (menu) can not be selected.) |
|
• MENU: only F-key is invalid. |
|
(only Volume/Mute can be selected.) |
|
• ALL: altogether invalid. |
|
|
Remote lock |
Select remote control key conditions. |
|
Selection : |
|
Off/SETUP/MENU |
|
• Off: altogether valid. |
|
• SETUP: only Setup menu is invalid. |
|
• MENU: Picture/Sound/Setup menu are invalid. |
|
|
25
TH-L32C10S
Set A-Board to a dummy set and check the satisfaction with the specified voltage as following table.
Power Supply Name |
Measurement Point |
Specification (V) |
|
|
|||
TNP4G460 / TNP4G461 |
|||
|
|
||
|
|
|
|
SUB1.2V |
TP5602 |
1.22 - 1.32 |
|
|
|
|
|
SUB1.8V |
TP5601 |
1.78 - 1.91 |
|
|
|
|
|
SUB3.3V |
TP5600 |
3.21 - 3.45 |
|
|
|
|
|
SUB9V |
TP5409 |
8.76 - 9.45 |
|
|
|
|
|
SUB5V |
TP5405 |
4.82 - 5.18 |
|
|
|
|
|
BT30V |
TP5482 |
29.3 - 31.5 |
|
|
|
|
Set P-Board to a dummy set and check the satisfaction with the specified voltage as following table.
Power Supply name |
Measurement Point |
Normal condition (V) |
Standby condition (V) |
|
|
|
|
|
|
AUDIO_VCC |
TP866 |
17.0 |
± 1.7 |
< 3.0 |
|
|
|
|
|
12V |
TP865 |
12.0 |
± 0.6 |
< 1.0 |
|
|
|
|
|
5VS |
TP854 |
5.6 ± 0.3 |
5.6 ± 0.3 |
|
|
|
|
|
|
STBY_6V |
TP853 |
5.6 ± 0.3 |
5.6 ± 0.3 |
|
|
|
|
|
|
PFC Vout |
TP801 |
400 |
± 10 |
NO CARE |
|
|
|
|
|
After inspection, discharge the C7218 with 1kΩ resistor for 0.3 sec. or more.
Ambient Temp. |
Colour Balance |
|
White |
|
|
Gray |
|
|
|
|
|
|
|
|
|||
x |
y |
Y (cd/m2) |
x |
y |
Y (cd/m2) |
|||
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
Cool |
0.271 |
0.275 |
|
0.271 |
0.275 |
|
|
22.5 - 27.5 deg. |
|
|
|
>300 |
|
|
Don’t Care |
|
Normal |
0.284 |
0.297 |
0.284 |
0.297 |
||||
|
|
|
|
|
|
|
|
|
|
Warm |
0.314 |
0.324 |
|
0.314 |
0.324 |
|
|
|
|
|
|
|
|
|
|
Clearance
x, y : +/-0.005 in Cool Colour Balance, +/-0.010 in Warm/Normal Colour Balance
26
TH-L32C10S
A-Board (A Side)
TNP4G460
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
A
B
C
D
E
F
G
H
I
J
K
L
M
Parts Location
Ref. No |
Location |
|
Ref. No |
Location |
|
Ref. No |
Location |
|
Ref. No |
Location |
|
|
|
|
|
|
|
|
|
|
|
IC1100 |
K4 |
|
IC5441 |
M9 |
|
IC8404 |
J4 |
|
D3015 |
D7 |
IC1101 |
L3 |
|
IC5480 |
J5 |
|
IC8405 |
J3 |
|
D4513 |
H7 |
IC2750 |
L2 |
|
IC5600 |
B5 |
|
IC8408 |
J3 |
|
D4617 |
L8 |
IC2901 |
K10 |
|
IC5601 |
B5 |
|
IC8409 |
L2 |
|
|
|
IC2902 |
K9 |
|
IC8004 |
D4 |
|
IC8410 |
J2 |
|
|
|
IC3001 |
D8 |
|
IC8301 |
K8 |
|
IC8554 |
G3 |
|
|
|
IC4513 |
G7 |
|
IC8302 |
L8 |
|
IC8601 |
H5 |
|
|
|
IC5405 |
B4 |
|
IC8401 |
H2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
27
TH-L32C10S
A-Board (B Side)
TNP4G460
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
A
B
C
D
E
F
G
H
I
J
K
L
M
Parts Location
Ref. No |
Location |
|
Ref. No |
Location |
|
Ref. No |
Location |
|
Ref. No |
Location |
|
|
|
|
|
|
|
|
|
|
|
IC2008 |
E4 |
|
IC4512 |
G7 |
|
IC8002 |
C8 |
|
D3015 |
E5 |
IC2301 |
A4 |
|
IC5409 |
B5 |
|
IC8003 |
D9 |
|
|
|
IC4510 |
F5 |
|
IC5451 |
B9 |
|
IC8403 |
F10 |
|
|
|
IC4511 |
G7 |
|
IC8001 |
E9 |
|
IC8411 |
L9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
28
TH-L32C10S
Notes :
1.Resistor
Unit of resistance is OHM [Ω] (K = 1 000, M = 1 000 000).
2.Capacitor
Unit of capacitance is μF unless otherwise noted.
3.Coil
Unit of inductance is μF unless otherwise noted.
4.Test Point
: Test Point position
5.Earth Symbol
: Chassis Earth (Cold) |
: Line Earth (Hot) |
6.Voltage Measurement
Voltage is measured using DC voltmeter. Conditions of the measurement are the following :
Power Source....................AC AUTO 110-240 V, 50/60 Hz Receiving Signal................Colour Bar signal (RF)
All customer’s controls.......Maximum positions
7.Number in red circle indicates waveform number. (See waveform pattern table)
8.When an arrow mark ( ) is found, connection is easily found from the direction of the arrow.
9.Indicates the major signal flow: Video Audio
10.This schematic diagram is the latest at the time of printing and subject to change without notice.
Remarks :
1.The Power Circuit contains a circuit area which uses a separate power supply to isolate the earth connection. The circuit is defined by HOT and COLD indications in the schematic diagram. Take the following precautions: All circuits, except the Power Circuit are cold.
Precautions:
a.Do not touch the hot part or the hot and cold parts at the same time or you may be shocked.
b.Do not short-circuit the hot and cold circuits or a fuse may blow and parts may break.
c.Do not connect an instrument such as an oscilloscope to the hot and cold circuits simultaneously or a fuse may blow. Connect the earth of instruments to the earth connection of the circuit being measured.
d.Make sure to disconnect the power plug before removing the chassis.
29
