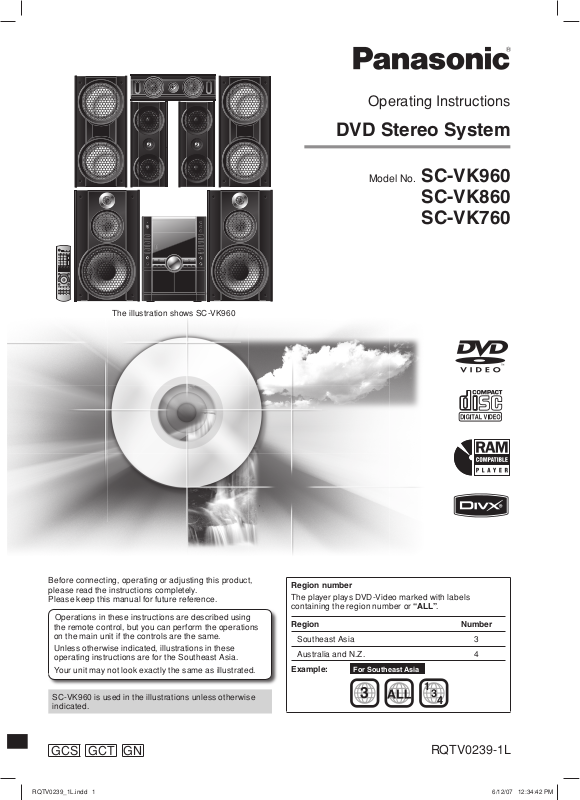

Panasonic SC-VK860, SC-VK960, SC-VK760 User Manual

The illustration shows SC-VK960

Operating Instructions

DVD Stereo System

Model No. SC-VK960

SC-VK860
SC-VK760

Before connecting, operating or adjusting this product,
please read the instructions completely.
Please keep this manual for future reference.

Operations in these instructions are described using
the remote control, but you can perform the operations
on the main unit if the controls are the same.

Unless otherwise indicated, illustrations in these
operating instructions are for the Southeast Asia.

Your unit may not look exactly the same as illustrated.

SC-VK960 is used in the illustrations unless otherwise
indicated.

GCS GCT GN

RQTV0239_1L.indd 1RQTV0239_1L.indd 1 6/12/07 12:34:42 PM6/12/07 12:34:42 PM

Region number

The player plays DVD-Video marked with labels
containing the region number or “ALL”.

Region Number

Southeast Asia 3

Australia and N.Z. 4

Example:

For Southeast Asia

3

1

3

4

RQTV0239-1L

Dear customer

Thank you for purchasing this product.
For optimum performance and safety, please read these
instructions carefully.

System SC-VK960 SC-VK860 SC-VK760

Main unit

Front speakers

Center speaker

Surround speakers

Subwoofer(s)

SA-VK960 (1 unit) SA-VK860 (1 unit) SA-VK760 (1 unit)

SB-PF960 (2 units) SB-PF860 (2 units) SB-PF760 (2 units)

SB-PC960 (1 unit) SB-PC860 (1 unit) SB-PC760 (1 unit)

SB-PS960 (2 units) SB-PS860 (2 units) SB-PS760 (2 units)

SB-WVK960 (2 units) SB-WVK860 (1 unit) SB-WVK760 (1 unit)

VK960

: indicates features applicable to SC-VK960 only

VK860

: SC-VK860 on ly

VK760

: SC-VK760 only

CAUTION!

THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PRODUCT DAMAGE,

• DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.

• USE ONLY THE RECOMMENDED ACCESSORIES.

Inside of product

For Southeast Asia

• DO NOT REMOVE THE COVER (OR BACK); THERE
ARE NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

CAUTION!

The AC voltage is different according to the area.
Be sure to set the proper voltage in your area before
use.
(For details, please refer to page 9.)

– If you see this symbol –

Information on Disposal in other Countries outside
the European Union

This symbol is only valid in the European
Union.
If you wish to discard this product, please
contact your local authorities or dealer and
ask for the correct method of disposal.

CAUTION!

• DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC
SHOCK OR FIRE HAZARD DUE TO OVERHEATING,
ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION
VENTS.

• DO NOT OBSTRUCT THE UNIT’S VENTILATION
OPENINGS WITH NEWSPAPERS, TABLECLOTHS,
CURTAINS, AND SIMILAR ITEMS.

• DO NOT PLACE SOURCES OF NAKED FLAMES,
SUCH AS LIGHTED CANDLES, ON THE UNIT.

• DISPOSE OF BATTERIES IN AN
ENVIRONMENTALLY FRIENDLY MANNER.

The socket outlet shall be installed near the equipment

For Southeast Asia

THIS UNIT IS INTENDED FOR USE IN TROPICAL
CLIMATES.

For Australia and N.Z.

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

THIS UNIT IS INTENDED FOR USE IN MODERATE
CLIMATES.

RQTV0239

and easily accessible.
The mains plug of the power supply cord shall remain
readily operable.
To completely disconnect this apparatus from the AC
Mains, disconnect the power supply cord plug from AC
receptacle.

This product may receive radio interference caused by
mobile telephones during use. If such interference is
apparent, please increase separation between the product
and the mobile telephone.

2

RQTV0239_1L.indd 2RQTV0239_1L.indd 2 6/12/07 12:35:05 PM6/12/07 12:35:05 PM

HighMAT™ and the HighMAT logo
are either trademarks or registered
trademarks of Microsoft Corporation in
the United States and/or other countries.

This product is licensed under the MPEG-4 Visual patent
portfolio license for the personal and non-commercial
use of a consumer for (i) encoding video in compliance
with the MPEG-4 Visual Standard (“MPEG-4 Video”)
and/or (ii) decoding MPEG-4 Video that was encoded by
a consumer engaged in a personal and non-commercial
activity and/or was obtained from a video provider
licensed by MPEG LA to provide MPEG-4 Video. No
license is granted or shall be implied for any other
use. Additional information including that relating to
promotional, internal and commercial uses and licensing
may be obtained from MPEG LA, LLC. See
http://www.mpegla.com.

®

Official DivX
product.

Plays all versions of DivX
video (including DivX®6) with
standard playback of DivX®
media files.

DivX, DivX Certified, and
associated logos are
trademarks of DivX, Inc. and
are used under license.

This product incorporates copyright protection technology
that is protected by method claims of certain U.S.
patents and other intellectual property rights owned by
Macrovision Corporation and other rights owners. Use of
this copyright protection technology must be authorized
by Macrovision Corporation, and is intended for home
and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.

Windows Media, and the Windows logo are trademarks,
or registered trademarks of Microsoft Corporation in the
United States and/or other countries.

This product is protected by certain intellectual property
rights of Microsoft Corporation and third parties. Use or
distribution of such technology outside of this product
is prohibited without a license from Microsoft or an
authorized Microsoft Subsidiary and third parties.

WMA is a compression format developed by Microsoft
Corporation. It achieves the same sound quality as MP3
with a file size that is smaller than that of MP3.

Certified

®

Safety precautions

Placement

Set the unit up on an even surface away from direct
sunlight, high temperatures, high humidity, and excessive
vibration. These conditions can damage the cabinet and
other components, thereby shortening the unit’s service life.

Place it at least 15 cm away from wall surfaces to avoid
distortion and unwanted acoustical effects.

Do not place heavy items on the unit.

Voltage

Do not use high voltage power sources. This can overload
the unit and cause a fire.

Do not use a DC power source. Check the source carefully
when setting the unit up on a ship or other place where DC
is used.

Power cord protection

Ensure the AC power cord is connected correctly and not
damaged. Poor connection and lead damage can cause fire
or electric shock. Do not pull, bend, or place heavy items on
the lead.

Grasp the plug firmly when unplugging the lead. Pulling the
AC power cord can cause electric shock.
Do not handle the plug with wet hands. This can cause
electric shock.

Foreign matter

Do not let metal objects fall inside the unit. This can cause
electric shock or malfunction.

Do not let liquids get into the unit. This can cause electric
shock or malfunction. If this occurs, immediately disconnect
the unit from the power supply and contact your dealer.

Do not spray insecticides onto or into the unit. They contain
flammable gases which can ignite if sprayed into the unit.

Service

Do not attempt to repair this unit by yourself. If sound is
interrupted, indicators fail to light, smoke appears, or any
other problem that is not covered in these instructions
occurs, disconnect the AC power cord and contact your
dealer or an authorized service center. Electric shock
or damage to the unit can occur if the unit is repaired,
disassembled or reconstructed by unqualified persons.

Extend operating life by disconnecting the unit from the
power source if it is not to be used for a long time.

GETTING STARTED

Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic and the double-D symbol are
trademarks of Dolby Laboratories.

“DTS” and “DTS 2.0 + Digital Out” are registered
trademarks of DTS, Inc.

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

3

RQTV0239_1L.indd 3RQTV0239_1L.indd 3 6/12/07 12:35:07 PM6/12/07 12:35:07 PM

SUPPLIED ACCESSORIES

SUPPLIED ACCESSORIES

Please check and identify the supplied accessories.

1 x AC power supply cord

For Southeast Asia

For Australia and N.Z.

Table of contents

GETTING STARTED

Safety precautions ..................................... 3

Simple setup ............................................... 5

Disc information ........................................11

QUICK SETUP ........................................... 12

Overview of controls ................................ 12

1 x Video cable 1 x AM loop antenna

1 x FM indoor antenna 2 x Remote control

1 x Remote control

For Southeast Asia

VK860

VK960

For Australia and N.Z.

VK860

VK760

(N2QAYB000168)

(N2QAYB000167)

batteries

DISC OPERATIONS

Discs — Basic play ................................... 14

Discs — Advanced play ........................... 16

Discs — Program and Random play ....... 17

Discs — Using navigation menus ........... 18

Discs — Using on-screen menus ............ 20

Discs — Changing the player settings ... 22

OTHER OPERATIONS

Using the radio ......................................... 26

Playing and recording using the

cassette tapes ....................................... 26

Enjoying karaoke ...................................... 28

Using sound effects ................................. 29

Using the timers ....................................... 31

Using other equipment ............................ 32

REFERENCE

Glossary .................................................... 34

Maintenance .............................................. 34

When moving the unit .............................. 34

Troubleshooting guide ............................. 35

Specifi cations ........................................... 38

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

4

RQTV0239_1L.indd 4RQTV0239_1L.indd 4 6/12/07 12:35:07 PM6/12/07 12:35:07 PM

Simple setup

Placement of speakers

Placement of speakers

Center speaker

Place the front, center, and surround
speakers at approximately the same
distance from the seating position.

(SB-PF960
SB-PF860)

Front speaker (left)

(SB-WVK960)

(SB-PS960
SB-PS860)

/

(SB-PF760)

Subwoofer (left)

/

(SB-PS760)

(SB-PC960
SB-PC860

Television

(not included)

30

Surround

speaker

(left)

(SB-PC760

/

)

o

30

120

o

o

Surround
speaker
(right)

)

(SB-PF760)

Front speaker (right)

Subwoofer (right)

(SB-WVK760)

(SB-PS760

)

Use only the supplied speakers

• Using other speakers can damage the unit and sound
quality will be negatively affected.

• Set the speakers up on an even surface to prevent them
from falling. Take proper precautions to prevent the
speakers from falling if you cannot set them up on an
even surface.

Positioning for best effect

How you set up your speakers can affect the bass and the
sound fi eld. Note the following points.

• Place speakers on fl at secure bases.

• Placing speakers too close to fl oors, walls, and corners
can result in excessive bass. Cover walls and windows
with a thick curtain.

If irregular coloring occurs on your television

The supplied speakers are designed to be used close to
a television, but the picture may be affected with some
televisions and setup combinations.

(SB-PF960
SB-PF860)

/

Front speakers

Speakers are designed identically so
that no left or right channel orientation is
necessary.

Center speaker

Do not place the center speaker directly on
the television as vibration may cause it to
fall or disrupt the picture.
Place it on a rack or shelf.

(SB-WVK960
SB-WVK860)

/

Surround speakers

Place on the side of or slightly behind the
seating area, higher than ear level.

Subwoofer(s)

Place on either side of the television,

(SB-PS960
SB-PS860

/

)

Note:

• Keep your speakers at least 10mm away from the system for
proper ventilation.

• You can damage your speakers and shorten their useful life if
you play sound at high levels over extended periods.

• Reduce the volume in the following cases to avoid damage.

− When playing distor ted sound.

− When the speakers emit strange noise (howling) from a

microphone or record player, noise from FM broadcasts, or
continuous signals from an oscillator, test disc, or electronic
instrument.

− When adjusting the sound quality.

− When turning the unit on or off.

Caution

•

Use the speakers only with the recommended
system. Failure to do so can damage the amplifi er
and speakers, and can cause fi re. Consult a
qualifi ed service person if damage occurs or if a
sudden change in performance is apparent.

• Do not attempt to attach these speakers to walls

using methods other than those described in this
manual.

on the fl oor or a sturdy shelf to reduce
vibration.
Leave 10 cm at the rear for ventilation.

GETTING STARTED

If this occurs, turn the television off for about 30
minutes.

The television’s demagnetizing function should correct the
problem. If it persists, move the speakers further away from
the television.

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

5

RQTV0239_1L.indd 5RQTV0239_1L.indd 5 6/12/07 12:35:09 PM6/12/07 12:35:09 PM

Simple setup (continued)

Speaker connections

Speaker connections

Connect all the speakers as illustrated.

Gray (+)

Red (+)

Blue (–)

Black (–)

VK960

Connecting center and surround speakers

Connect so cord colors match the terminal colors.

Note:

Never shor t-circuit positive
(+) and negative (–)
speaker wires. Incorrect
connection c an damage the
speakers.

VK860

Blue

L
R

Gray

Blue (–) Gray (+)

Surround speaker (left)

Surround speaker (right)

Center speaker

Connecting front speakers and subwoofers

Blue

L

R

L

R

L

R

Black

Note:

Connect the right (R) side in the same way.

Gray

Blue (–) Gray (+)

Red

Red

Black (–) Red (+)

Front speaker (left)
(High frequency)

Front speaker (left)
(Low frequency)

Connecting center and surround speakers

Subwoofer (left)

Blue

L

R

Gray

Blue (–) Gray (+)

Surround speaker (left)

Surround speaker (right)

Center speaker

Connecting front speakers and subwoofer

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

Black

L

R

RQTV0239

6

RQTV0239_1L.indd 6RQTV0239_1L.indd 6 6/12/07 12:35:22 PM6/12/07 12:35:22 PM

Red

Black (–) Red (+)

Front speaker (left)

Front speaker (right)

Subwoofer

Other speaker setup options – attaching to a wall

VK760

Connecting center and surround speakers

Gray

Blue

L
R

Blue (–) Gray (+)

Surround speaker (left)

Surround speaker (right)

Center speaker

Connecting front speakers and subwoofer

Black

L

R

Other speaker setup options – attaching to a wall

You can attach the surround and center speakers to a wall.

1 Drive a screw (not included) into the wall.

30 to 35 mm

Ø7.5 to 9.4 mm

Screw

7 to 9 mm

Ø3.0 to 4.0 mm

Red

Black (–) Red (+)

VK960

Surround speaker Center speaker

2 Fit the hole securely onto the screw(s).

Front speaker (left)

Front speaker (right)

VK860

GETTING STARTED

Subwoofer

190 mm

Screw

The wall on which the speaker is to be mounted and the
screw used for installing the speaker must be strong
enough to support a weight of at least 10 kg. Consult the
contractor in charge of the work.

*

A screw which is at least 30 mm long (\ see above)

VK760

Center and Surround speaker

is used when installing the speaker on a wooden post
or pillar. In all other cases, use a screw which is strong
enough to support a weight of at least 10 kg.

200 mm

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

7

RQTV0239_1L.indd 7RQTV0239_1L.indd 7 6/12/07 12:35:28 PM6/12/07 12:35:28 PM

Video connections

Power supply connection

Making the connections

Simple setup (continued)

Making the connections

Connect the AC power supply cord only after all other connections have been made.

Conserving power

The unit consumes power (approx. 0.9 W) even when it is turned off with [ ] (main unit: [ /I]). To save power when the unit
is not to be used for a long time, unplug it from the household AC power socket. You will need to reset some memory items
after plugging in the unit.

Video connections

• Do not connect the unit through a video cassette recorder
Due to copy guard protection, the picture may not be displayed correctly.

• Turn the television off before connecting, and refer to the television’s operating instructions.

■ Television with COMPONENT VIDEO IN terminals

Rear panel
of this unit

VIDEO

OUT

COMPONENT

VIDEO OUT

P

B

P

Y

R

COMPONENT VIDEO OUT terminals

These terminals can be used for either interlace or progressive output.
Connection using these terminals outputs the color difference signals (PB /PR) and luminance
signal (Y) separately in order to achieve high fi delity in reproducing colors.

Video cables

(not included)

COMPONENT

VIDEO IN

Y

PB

PR

Television

(not included)

The description of the component video input terminals depends on the television or monitor
(example: Y/PB/PR, Y/ B-Y/R-Y, Y/ CB /CR). Connect to terminals of the same color.

To enjoy progressive video

1. Connect to the component video input terminals on a 480p or 576p compatible television.
(Video will not be displayed correctly if connected to an incompatible television.)

2. Select “480p” or “576p” for “Video Output Mode” (Picture Menu,

page 21).

■ Television with a VIDEO IN terminal

Rear panel
of this unit

VIDEO

OUT

COMPONENT

VIDEO OUT

P

B

P

Y

R

Video cable

(included)

To household AC power socket

Power supply connection

The included AC power supply cord is for use with this
unit only. Do not use it with other equipment.

VIDEO IN

Television

(not included)

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

8

RQTV0239_1L.indd 8RQTV0239_1L.indd 8 6/12/07 12:35:30 PM6/12/07 12:35:30 PM

Set the voltage

Optional antenna connections

Antenna connections

Antenna connections

■ AM loop antenna

2

1

3

LOOP ANT
GROUND

Black

Red

White

Stand the antenna
up on its base.

Optional antenna connections

Use outdoor antenna if radio reception is poor.

Note:

Disconnect the outdoor antenna when the unit is not in use.
Do not use the outdoor antenna during a lightning storm.

FM outdoor antenna

Rear panel of

this unit

■ FM indoor antenna

Tape the antenna where reception is best.

Adhesive

tape

)

(

FM outdoor antenna
(not included)

75Ω coaxial cable
(not included)

)

(

GETTING STARTED

Set the voltage

For Southeast Asia

Before connecting the AC power supply cord,
set the voltage.

Volt ag e Sele ctor

Use a fl at-head screwdriver
to set the voltage selector
on the bac k of the main unit
to the appropriate position
for the area in which this
system is used.

• Disconnect the FM indoor antenna.

• The antenna should be installed by a competent
technician.

AM outdoor antenna

Rear panel of

AM loop
antenna
(included)

this unit

Black

Red

White

AM outdoor antenna
(not included)

5-12 m

• Run a piece of vinyl wire horizontally across a window
or other convenient location.

• Leave the loop antenna connected.

Please refer to “Connecting to other external
unit” on page 32 for more information on AUX
connection.

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

9

RQTV0239_1L.indd 9RQTV0239_1L.indd 9 6/12/07 12:35:33 PM6/12/07 12:35:33 PM

Simple setup (continued)

5

MIC VOL

MIC 1

MIC 2

OPEN

STOP FF

REW

TAPE DVD/CD

RECORDDECK 1/2DISPLAY

TUNEREXT-IN

DEMO

SUBWOOFER

MUSIC PORT

OPEN

USB

Preparing the remote control

Insert so the
poles (+ and –)
match those in the
remote control.

• Do not use
rechargeable

2,2!!

type batteries.

DEMO function

DISPLAY, -DEMO

Do not:

• mix old and new batteries.

• use different types of the batteries at the same time.

• heat or expose batteries to fl ame.

• take apart or short circuit the batteries.

• attempt to recharge alkaline or manganese batteries.

• use batteries if the covering has been peeled off.
Mishandling of batteries can cause electrolyte leakage which

can severely damage the remote control.

Remove the batteries if the remote control is not going to be
used for a long period of time. Store in a cool, dark place.

Use

Aim at the remote control signal sensor (\ page 12),
avoiding obstacles, at a maximum range of 7 m directly in
front of the unit.

When the unit is fi rst plugged in, a demonstration of its functions may be
shown on the display.
If the demo setting is off, you can show a demonstration by selecting “DEMO
ON”.

Press and hold [DISPLAY, –DEMO].

The display changes each time the button is held down.
DEMO OFF DEMO ON

While in standby mode, select “DEMO OFF” to reduce power consumption.

Note:

When the DEMO function is on, the Dimmer switches off automatically.

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

10

Language code list

Abkhazian: 6566
Afar: 6565
Afrikaans: 6570
Albanian: 8381
Ameharic: 6577
Arabic: 6582
Armenian: 7289
Assamese: 6583
Aymara: 6589
Azerbaijani: 6590
Bashkir: 6665
Basque: 6985
Bengali; Bangla: 6678
Bhutani: 6890
Bihari: 6672
Breton: 6682
Bulgarian: 6671
Burmese: 7789
Byelorussian: 6669
Cambodian: 7577
Catalan: 6765
Chinese: 9072
Corsican: 6779
Croatian: 7282
Czech: 6783

RQTV0239

Danish: 6865
Dutch: 7876
English: 6978
Esperanto: 6979
Estonian: 6984
Faroese: 7079
Fiji: 7074
Finnish: 7073
Frenc h: 7082
Frisian: 7089
Galician: 7176
Georgian: 7565
German: 6869
Greek: 6976
Greenlandic: 7576
Guarani: 7178
Gujarati: 7185
Hausa: 7265
Hebrew: 7387
Hindi: 7273
Hungarian: 7285
Icelandic: 7383
Indonesian: 7378
Interlingua: 7365
Irish: 7165

Italian: 7384
Japanese: 7465
Javanese: 7487
Kannada: 7578
Kashmiri: 7583
Kazakh: 7575
Kirghiz: 7589
Korean: 7579
Kurdish: 7585
Laotian: 7679
Latin: 7665
Latvian, Lettish: 7686
Lingala: 7678
Lithuanian: 7684
Macedonian: 7775
Malagasy: 7771
Malay: 7783
Malayalam: 7776
Maltese: 7784
Maori: 7773
Marathi: 7782
Moldavian: 7779
Mongolian: 7778
Nauru: 7865
Nepali: 7869

Norwegian: 7879
Oriya: 7982
Pashto, Pushto: 8083
Persian: 706 5
Polish: 8076
Portuguese: 8084
Punjabi: 8065
Quechua: 8185
Rhaeto-Romance: 8277
Romanian: 8279
Russian: 8285
Samoan: 8377
Sanskrit: 8365
Scots Gaelic: 7168
Serbian: 8382
Serbo-Croatian: 8372
Shona: 8378
Sindhi: 8368
Singhalese: 8373
Slovak: 8375
Slovenian: 8376
Somali: 8379
Spanish: 6983
Sundanese: 8385
Swahili: 8387

Swedish: 8386
Tag a l o g: 8 476
Taj i k : 8 471
Tam i l : 84 6 5
Tatar: 8484
Tel u g u: 8 4 69
Thai: 8472
Tibetan: 6679
Tigrinya: 8473
Ton g a : 8 47 9
Tur k i sh: 8 482
Tur k m en: 8 475
Twi : 848 7
Ukrainian: 8575
Urdu: 8582
Uzbek: 8590
Vietnamese: 8673
Vola pü k: 8 679
Welsh: 6789
Wolof: 8779
Xhosa: 8872
Yiddish: 7473
Yoruba: 8979
Zulu: 9085

RQTV0239_1L.indd 10RQTV0239_1L.indd 10 6/12/07 12:35:36 PM6/12/07 12:35:36 PM

Discs that can be played

Disc information

Discs that can be played

■ Commercial discs

Disc Logo

Indicated in

these

instructions by

Remarks

DVD-Video

Video CD

CD

High quality movie and music discs.

Music discs with video.
Including SVCD (Conforming to IEC62107).

Music discs.

■ Recorded discs (‡: Playable, —: Not playable)

Disc Logo

DVD-RAM

DVD-R/ RW

DVD-R DL

+R/+RW — —

+R DL — —

CD-R/RW

*1

———

Recorded on a DVD
video recorder, etc.

*2

‡

*4 *8

——

‡‡

*3

‡

‡

*5

(

‡)

*5

(

‡)

Recorded on a personal computer, etc.

‡‡ ‡ ‡

—

——— — — Necessary

——— — — Necessary

——— —

‡‡‡

‡‡ ‡ ‡

—Necessary

‡‡

*9

Finalizing

Not

necessary

Necessary

Necessary

• It may not be possible to play all the above-mentioned discs in some cases due to the type of disc, the condition of the

recording, the recording method, or how the fi les were created (\ page 25, Tips for making data discs).

*1

This unit can play CD-R/RW rec orded with CD-DA or Video CD format.

This unit also plays HighMAT discs.

*2

Discs recorded on DVD video recorders or DVD video cameras, etc. using Version 1.1 of the Video Recording Format (a unifi ed video

recording standard).

*3

Discs recorded on DVD video recorders or DVD video cameras using Version 1.2 of the Video Recording Format (a unifi ed video

recording standard).

*4

Discs rec orded on DVD video recorders or DVD video cameras using DVD-Video Format.

*5

Rec orded using a format dif ferent from DVD-Video Format, therefore, some functions cannot be used.

*6

A process that allows play on compatible equipment. To play a disc that is displayed as “Necessary” on this unit, the disc must fi rst be

fi nalized on the device it was recorded on.

*7

Closing the session will also work.

*8

MPEG4 data recorded with the Panasonic SD multi cameras or DVD video recorders [c onforming to SD VIDEO specifi cations (ASF

standard)/ MPEG4 (Simple Profi le) video system/ G.726 audio system] .

*9

Functions added with DivX Ultra are not suppor ted.

GETTING STARTED

*6

*7

Video systems

Note about using a DualDisc

The digital audio content side of a DualDisc does not meet the
technical specifi cations of the Compact Disc Digital Audio
(CD-DA) format so playback may not be possible.

■ Discs that cannot be played

DVD-RW version 1.0, DVD-Audio, DVD-ROM, CD-ROM,
CDV, CD-G, SACD, Photo CD, DVD-RAM that cannot be
removed from their cartridge, 2.6 GB and 5.2 GB DVD-

■

• This unit can play PAL and NTSC, but your television
must match the system used on the disc.

• PAL discs cannot be correctly viewed on an NTSC
television.

• This unit can convert NTSC signals to PAL 60 for
viewing on a PAL television (\ page 23, “NTSC Disc
Output” in “Video” tab).

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RAM, and “Chaoji VCD” available on the market including
CVD, DVCD and SVCD that do not conform to IEC62107.

RQTV0239

11

RQTV0239_1L.indd 11RQTV0239_1L.indd 11 6/12/07 12:35:40 PM6/12/07 12:35:40 PM

Main unit

QUICK SETUP

The QUICK SETUP screen assists you to make necessary settings.

Turn on the television and select the appropriate video input on the television.

1

2 3

4 5 6

(Press and hold)

Switch on the

unit.

Select “DVD/CD”. Shows the QUICK

SETUP screen.

Follow the
messages

Finish the QUICK

SETUP.

Exit.

and make the

settings.

Overview of controls

Main unit

Refer to the numbers in parentheses for page reference. Buttons such as ➊ function the same as the controls on the
remote control.

AC supply indicator [AC IN]

This indicator lights when the unit is

connected to the AC mains supply.

1 Standby/on switch [ /l]

Press to switch the unit from on

to stand by mode or vice versa.

In standby mode, the unit is still

consuming a small amount of

power.

[SURROUND ENHANCER] ( 30)

[SUPER SURROUND] (30 )

[SUPER SOUND EQ] (30)

[SOUND EQ] ( 30)

[SUBWOOFER] (30)

USB por t (33)

2 [, USB] (33)

Display

MUSIC PORT jack (32 )

Headphone jack

Avoid listening for prolonged

periods of time to prevent hearing

Plug type: Ø3.5 mm stereo

damage.

(not included)

Deck 1 [ , OPEN] (26 )

3 [EXT-IN] (32)

4 [BAND, TUNER ] (26)

[DISPLAY, –DEMO] (10)

[DECK 1/2 ] (26)

[ , RECORD] (27)

Deck 1 cassette holder

AC IN

SURROUND
ENHANCER

SUPER SURROUND

SUPER SOUND EQ

SOUND EQ

SUBWOOFER

USB

MUSIC PORT

OPEN

OPEN/CLOSE

MULTI CHANGE

SINGLE CHANGE

1

2

3

4

5

MIC VOL

MIC 1

TUNEREXT-IN

RECORDDECK 1/2DISPLAY

DEMO

TAPE DVD/CD

STOP FF

REW

MIC 2

OPEN

Remote control signal
sensor

Disc trays

, OPEN /CLOSE] (14)

[

[ , MULTI CHANGE] (15)

[ , SINGLE CHANGE] (15 )

[1 ] to [5 ]
(disc direct play) (14)

For Southeast Asia

[– MIC VOL+] (28)

5 [ , DVD /CD] (14)

For Southeast Asia

Microphone (MIC 1, MIC 2 )
jacks (28)

[ , STOP] (14)
Deck 2 [OPEN, ] (26 )
Disc skip/ search, tape

fast-forward /rewind,
tuning, time adjustment
[ , / R EW] ,
[ , / FF] (14, 26, 31)

6 [ , TAPE] (26)

7 [– VOLUME +] (28)

Deck 2 cassette holder

To select the desired display mode

Every time you press the button:

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

DISPLAY

DEMO

Normal Peak hold Refl ection

Off

Normal

Indicates strength of the sound in each tonal range

Peak hold

RQTV0239

12

RQTV0239_1L.indd 12RQTV0239_1L.indd 12 6/12/07 12:35:42 PM6/12/07 12:35:42 PM

Peak sound value of each sound range (on display for about one second after it occurs).

Refl ection

Indicates the strength of the sound in each tonal range (displayed in the opposite direction of normal
mode).

Remote control

Overview of controls (continued)

Remote control

Buttons labeled such as ➊ function in exactly the same way as the buttons on the main unit.

Tel ev isi on op e rat io ns ( 3 3)

1

[CLOCK/TIMER] (31)

˚ PLAY/REC] (31)

[

Numeric (15, 17, 20)

[DISC] (14, 16)

3

4

2

6

[PLAY MODE, – CD MODE ] (16, 17, 26)

[DIRECT NAVIGATOR, TOP MENU]

[MENU, PLAYLIST] (15, 19)

Disc skip, tape fast-forward/ rewind, preset

channel selection, time adjustment

For Southeast Asia

[V.MUTE] (29) [ , ] (29)
[ECHO] (28) [AUDIO] (28)

For Australia and N.Z.

PL II] ( 30)

[
[S.SRND] (30)
[S.SOUND EQ] (30)
[SETUP] (12)
[QUICK OSD] (16)

, / RE W], [ , / FF]

[

[SUBWOOFER] (30)

(14, 18, 19)

(15, 26, 31)

[SOUND] (30)

[SLEEP/A.OFF] (32)

GETTING STARTED

7

[] (14)

[] (14)

5

[DIMMER]

[SURROUND ENHANCER] ( 30)

[ , , , ], [ENTER] (12, 15)

[FUNCTIONS] (18, 19, 20)

For Southeast Asia

[RETURN, – SETUP] (12, 15)

For Australia and N.Z.

[RETURN] (15)

[ , , SLOW/ SEARCH] (15, 18, 26)
[FL DISPLAY] (15)

[REPEAT] (16)

[C.FOCUS] (30)

[MUTING, – CANCEL] (17)

[CH SELECT, – TEST] (30, 31)

To mute the sound.

• Press the button to
activate.

• Press the button again
or adjust the volume to
cancel.

• Muting is also canceled
when you switch the
unit to standby.

To dim the display panel.

Every time you press the button.

Setting Effect

1 Display and ambient light

dims

2 Display dims and ambient

light is turned off

3Original brightness

The display is dimmed, but brightens
when you perform some operations.

RQTV0239_1L.indd 13RQTV0239_1L.indd 13 6/12/07 12:35:46 PM6/12/07 12:35:46 PM

This auto off function allows you to turn off the
unit in disc or tape mode only after left unused
for 10 minutes.

Every time you press the button:

SLEEP 30 → SLEEP 60 → SLEEP 90 → SLEEP 120

SLEEP OFF AUTO OFF

• The setting is maintained even if the unit is
turned off.

• If you select tuner or music port as the source,
“AUTO OFF” turns off. It comes on again when
you select disc or tape.

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

13

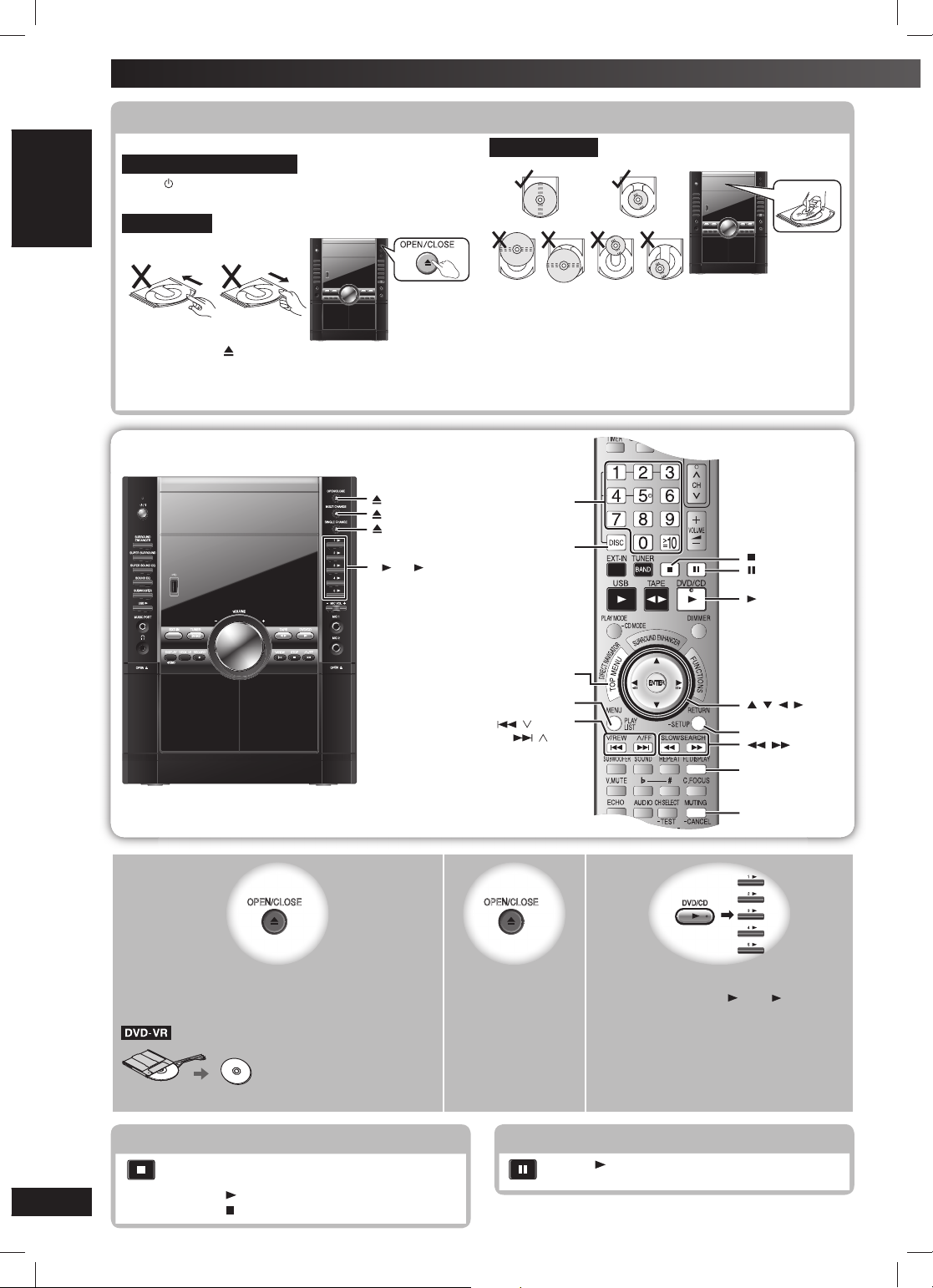

Discs — Basic play

Handling of the disc trays and discs

Handling of the disc trays and discs

Not doing the following will cause damage to the unit.

Removing the power plug

Press [ /I] to turn off the unit and then remove the power
plug only after all the displays have disappeared.

Tray caution

• Always press [ , OPEN/CLOSE] to inser t or remove a
disc.

• Do not push or pull out the tray by hand as this will
cause an accident.

Inserting a disc

• Place the disc correctly label-up as shown in the
diagram.

• Insert only one disc into each tray.

1

AC IN

SURROUND
ENHANCER

SUPER SURROUND

SUPER SOUND EQ

SOUND EQ

SUBWOOFER

USB

MUSIC PORT

OPEN

OPEN/CLOSE

MULTI CHANGE

SINGLE CHANGE

MIC VOL

TUNEREXT-IN

RECORDDECK 1/2DISPLAY

DEMO

TAPE DVD/CD

STOP FF

REW

OPEN

1

2

3

1 ~ 5

4

5

MIC 1

MIC 2

, OPEN/CLOSE
, MULTI CHANGE
, SINGLE CHANGE

Numeric

buttons

DISC

, DVD/ CD

TOP MENU,

DIRECT NAVIGATOR

MENU, PLAYLIST

, / REW,

, / FF

, , , ,

ENTER
RETURN

, ,
SLOW/SEARCH
FL DISPLAY

–CANCEL

OPEN/CLOSE

2

OPEN/CLOSE

3

DVD/CD

1

2

3

4

5

Open the tray.

The unit turns on.

Load a disc in the current tray.

Close the tray. Start play.

You can also press [1 ] ~ [ 5 ] to select
and play the other loaded discs.

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

Remove the disc from its cartridge before use.

Stop

RQTV0239

14

RQTV0239_1L.indd 14RQTV0239_1L.indd 14 6/12/07 12:35:49 PM6/12/07 12:35:49 PM

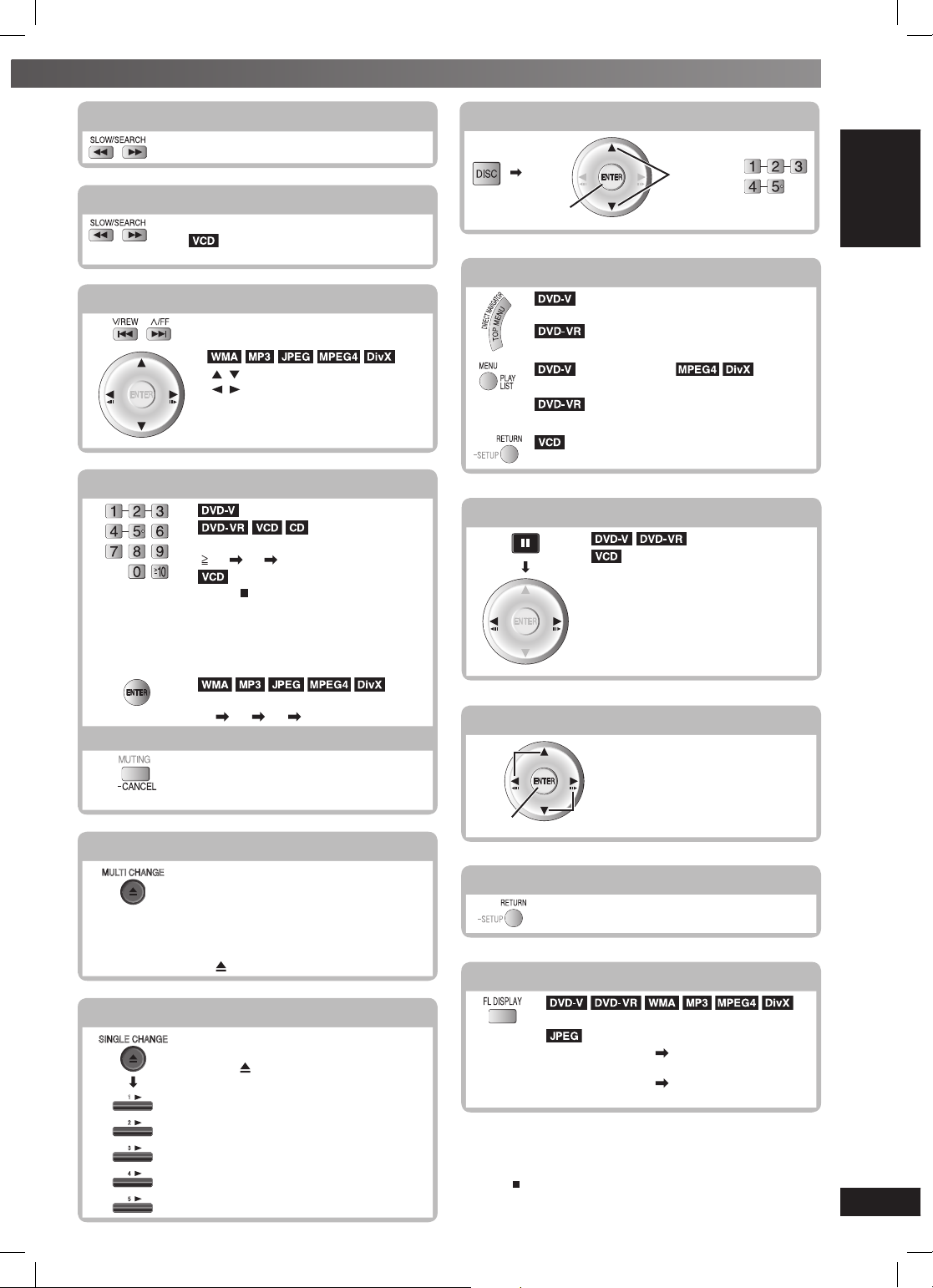

The position is memorized while “RESUME” is
on the display.

• Press [ , DVD/CD] to resume.

• Press [ ] again to clear the position.

Pause

Press [ , DVD/CD] to resume play.

Search (during play)

Play speed increases up to 5 steps.

Slow-motion play (during pause)

• Play speed increases up to 5 steps.

• Slow motion play is for forward
direction only.

Skip

[ , ]: Group skip.
[ , ]: Content skip.

This feature does not work
during program and random play
(\ page 17).

Enter numbers

(while stopped)

Example: to select 12:
[ 10] [1] [2]

with Playback control (PBC)
Press [ ] and then press the numeric
buttons to cancel the PBC functions.

Note:

The numeric but tons that can function
depend on the number of tracks on the
VCD.

Example: to select 123:
[1] [2] [3] [ENTER]

Cancel the numbers

——

Selecting a disc

Confi rm

Disc menus

(while stopped)

Shows a disc top menu.

Show the programs (\ page 19).

(while stopped)

Shows a disc menu.

Shows a playlist.

with Playback control (PBC)

Shows disc menu.

Frame by frame (during pause)

Forward direction only.

On-screen item select

Select

Select

or

DISC OPERATIONS

Press and hold

Confi rm

Select

Changing multiple discs (by main unit only)

MULTI CHANGE

Press the button repeatedly to
check and change multiple discs.

Return to previous screen

• The tray with a disc being played

will not open.

• If the player is stopped, all trays

will open. To close the remaining
trays simultaneously, press
[, OPEN/CLOSE].

Changing a single disc (by main unit only)

SINGLE CHANGE

While one disc is playing, you can
change the discs in other trays.
Press [ , SINGLE CHANGE] again to

1

2

3

4

5

RQTV0239_1L.indd 15RQTV0239_1L.indd 15 6/12/07 12:35:57 PM6/12/07 12:35:57 PM

close the tray.

If you select a disc which is being
played, play stops and the tray
opens.

Main unit display

Time display ↔ Information display

When Slideshow ( page 20) is on:
SLIDE ↔ Information display
When Slideshow ( page 20) is off:
PLAY ↔ Information display

Note:

• D ISC CONTINUES TO ROTATE WHILE MENUS ARE

DISPLAYED.

Press [ ] when you fi nish to preserve the unit’s motor and your

television screen.

• Total title number may not be displayed properly on +R/+ RW.

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

15

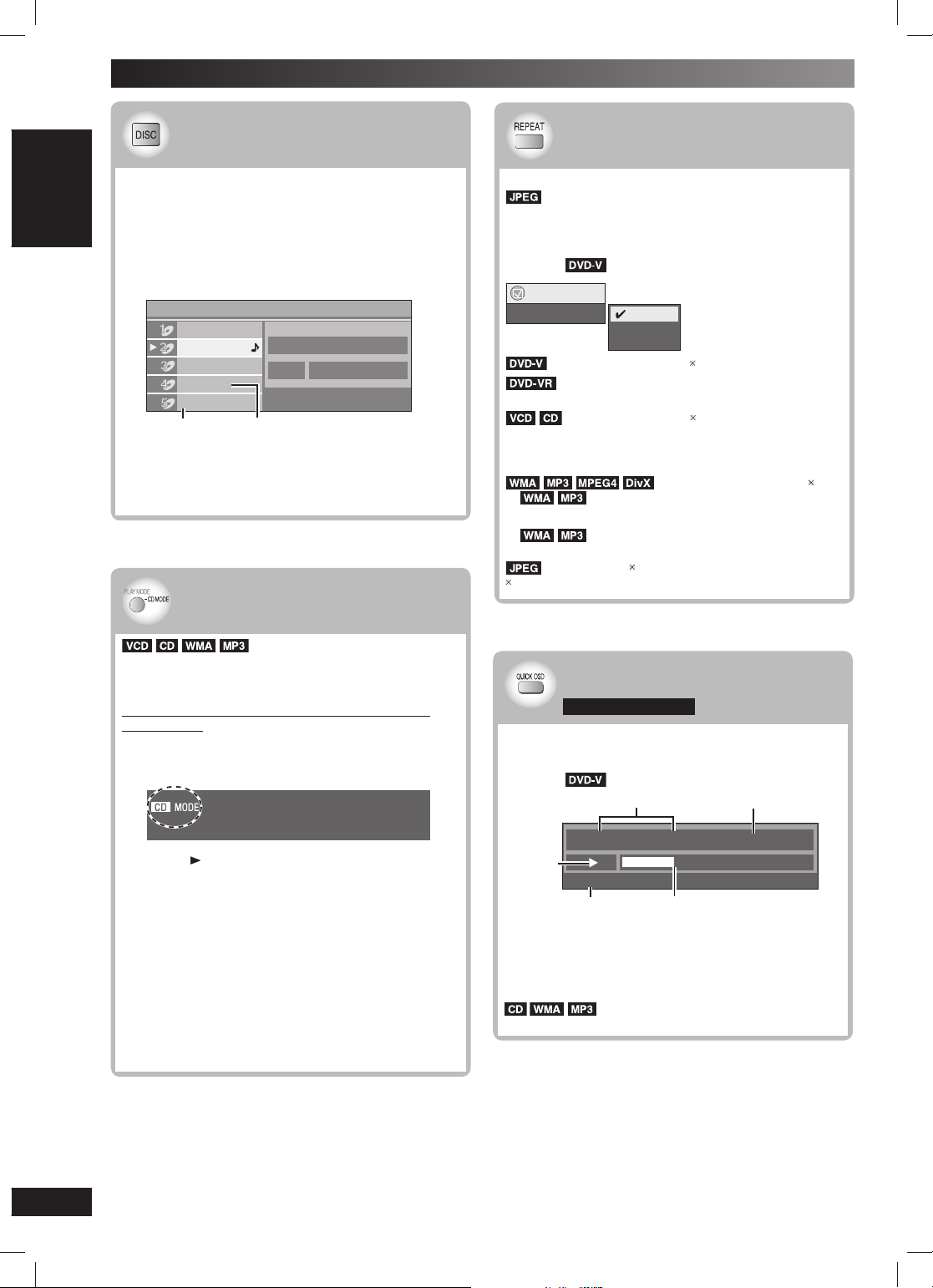

Discs — Advanced play

CD sequential play (CD MODE)

Disc information

Repeat play

Example:

Displaying current playback
condition (QUICK OSD)

Disc information

You can select the disc af ter checking the discs loaded
with the “Disc Information” screen.

You can also select the disc directly with the disc
buttons on the main unit.

Press [DISC] to show the “Disc Information”

1

screen.

Example:

Disc Information

DVD-Video

CD

DVD-VR

Unchecked

No Disc

Empty

Press the numeric buttons ([1] ~ [5]) to select

2

and play the disc.

To clear the screen

Press [DISC].

CD sequential play (CD MODE)

Track

Not yet read

10 Time 60 :1 5

Repeat play

(Only when the elapsed play time can be displayed.

: Works with all JPEG contents.)

During play

Press [REPEAT] several times to select an item to be
repeated.

Example:

Functions

Repeat Off

: Off → Chapter → Title

During playlist play: Off → Scene → Playlist

•

• When CD MODE is on, during program and random

•

•

: Off → Program → Disc

: Off → Track → Disc

When CD MODE is on:

play: Off → Trac k → All CD’s

: Off → Content → Group

When CD MODE is on:

Off →

Content → Group →

When CD MODE is on, during program

and random play: Off → Content → All CD’s

: Off → Group

“All” is displayed during program and random play.

Off

Chapter
Title

Off →

Trac k → Disc → All CD’s

All CD’s

This feature is very convenient if you want to play
several music CDs sequentially. Make sure that the
applicable disc is in the play position before playing.
DVD, JPEG, MPEG4 and DivX are skipped without
being played.

While stopped

Press and hold [–CD MODE].

1

Press [ , DVD/CD].

2

To cancel the CD mode (while stopped)

Press and hold [– CD MODE].

Note:

• If the disc in the play position is not applicable (example:
DVD), CD MODE does not work.

• HighMAT menus and Video CD playback control are
disabled.

• You cannot change the mode during play, or while in
program or random mode.

• If you want to play a DVD, press and hold [– CD MODE]
again to cancel CD MODE. (CD MODE is also c anceled
when you open the current disc tray, switch the unit to
standby or select another source.)

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

Displaying current playback
condition (QUICK OSD)

For Australia and N.Z.

The current playback condition is displayed.

Press [QUICK OSD].

Example:

Current playback number

Title

Playback
condition

Press [QUICK OSD] again to display detailed
playback conditions.

To exit the screen

Press [QUICK OSD].

automatically.

Program Playback

Play mode Current position

The QUICK OSD screen will appear

Chapter

1 0:41:23

4

Elapsed play time

Time

RQTV0239

16

RQTV0239_1L.indd 16RQTV0239_1L.indd 16 6/12/07 12:36:01 PM6/12/07 12:36:01 PM

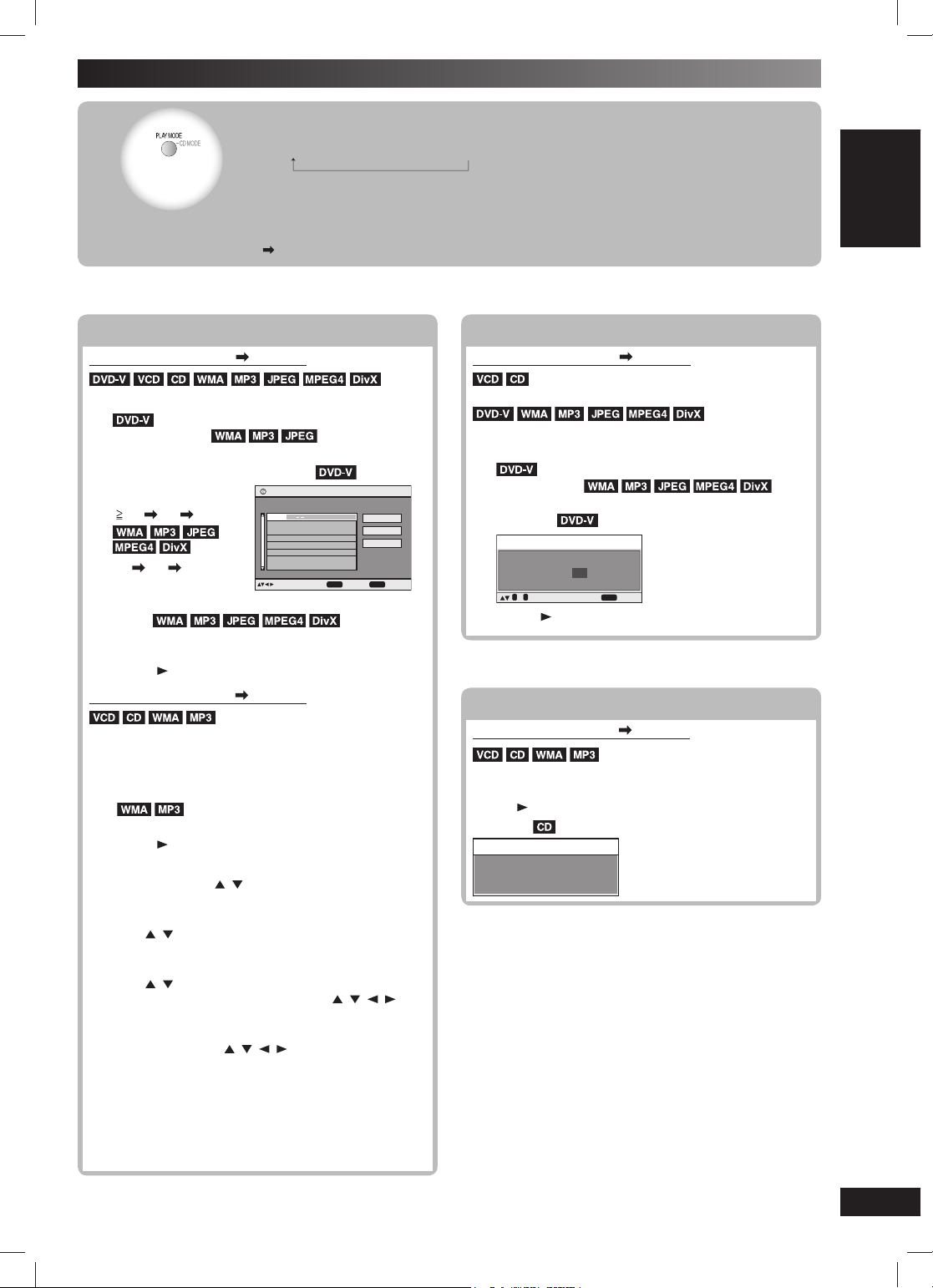

Discs — Program and Random play

Program play (up to 32 items)

Random play

ALL-DISC random play

Program and random playback screens appear sequentially.
Every time you press the button:

Program → Random → Off (Normal play)

(While stopped or in

RESUME mode)

Start program/random

Play and select the

desired mode.

To exit program or random play mode

Press [PLAY MODE] several times while stopped.

Note:

Disable HighMAT disc play to use program and random play. Selec t “Play as Data Disc” in Other Menu
( page 22).

Program play (up to 32 items)

When CD MODE is off ( page 16)

You can program all the items on a disc.

1

Press the numeric buttons to select
a group or title (
[ENTER]).

To select a 2-digit
number

Example: 25:
[ 10] [2] [5]

Example:

Program Playback

1

then press

Choose a title and chapter.

DiscNo. T/G C/ T

Play

Clear

Clear all

[2] [5] [ENTER]

ENTER

to select and press

Press the numeric buttons to select a chapter or

2

track (
[ENTER]).

PLAY

to start

then press

Repeat steps 1 and 2 to program other items.

Press [ , DVD/CD].

3

When CD MODE is on ( page 16)

You can program all the items on all the discs.

Press the numeric buttons ([1] ~ [5]) to select a

1

disc.

Press the numeric buttons to select the items

2

(

Repeat steps 1 and 2 to program other items.

Press [ , DVD/CD].

3

then press [ENTER]).

To select an item using the cursor buttons

Press [ENTER] and [ , ] to select an item, then press
[ENTER] again to confi rm the number.

To change the selected program

a. Press [ ,

] to select an item.

b. Repeat above steps 1 and 2.

To clear the selected program

a. Press [ , ] to select an item.
b. Press and hold [−CANCEL] (or press [ , , , ] to

select “Clear” and press [ENTER]).

To clear the whole program

Select “Clear all” with [ , , , ] and press [ENTER].

Note:

The program is retained in memory unless one of the
following occurs:

– The current disc tray is opened.
– Another source is selected.
– The unit is switched to standby.
– CD MODE is turned on or off.
– You manually select another disc (while CD MODE is off).

Random play

When CD MODE is off ( page 16)

You can play all the items on a disc in random order.

You can play the selected item(s) on a disc in random
order.

1

Press the numeric buttons to select a
group or title (
press [ENTER]).

Example:

Random Playback

Choose a title.

Title

1

0~ 9

to select

Press [ , DVD/CD].

2

ALL-DISC random play

When CD MODE is on ( page 16)

PLAY

to start

You can play all the items on all the discs in random
order.

Press [ , DVD/CD].

Example:

Random Playback

Press PLAY to start

then

DISC OPERATIONS

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

17

RQTV0239_1L.indd 17RQTV0239_1L.indd 17 6/12/07 12:36:05 PM6/12/07 12:36:05 PM

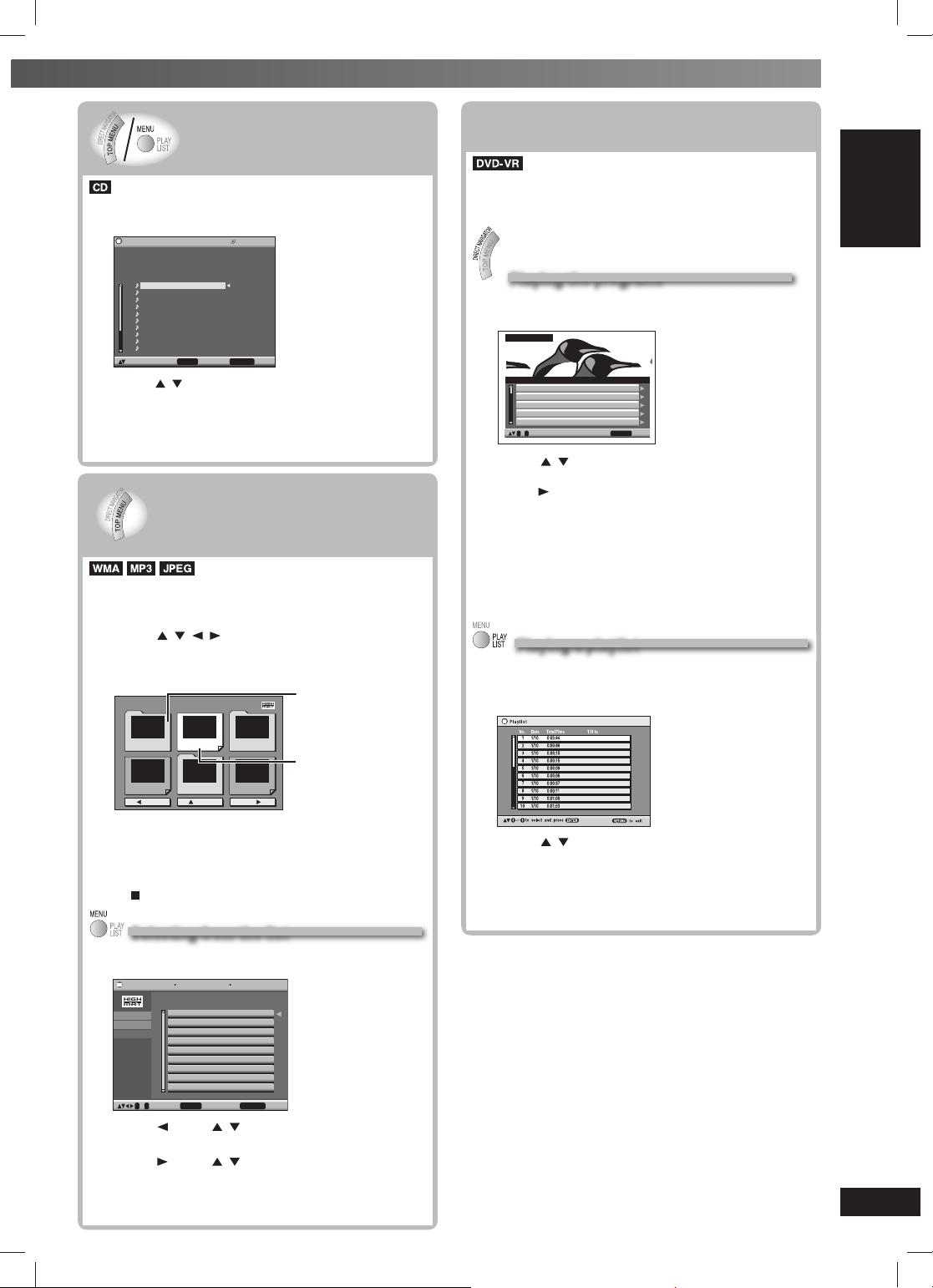

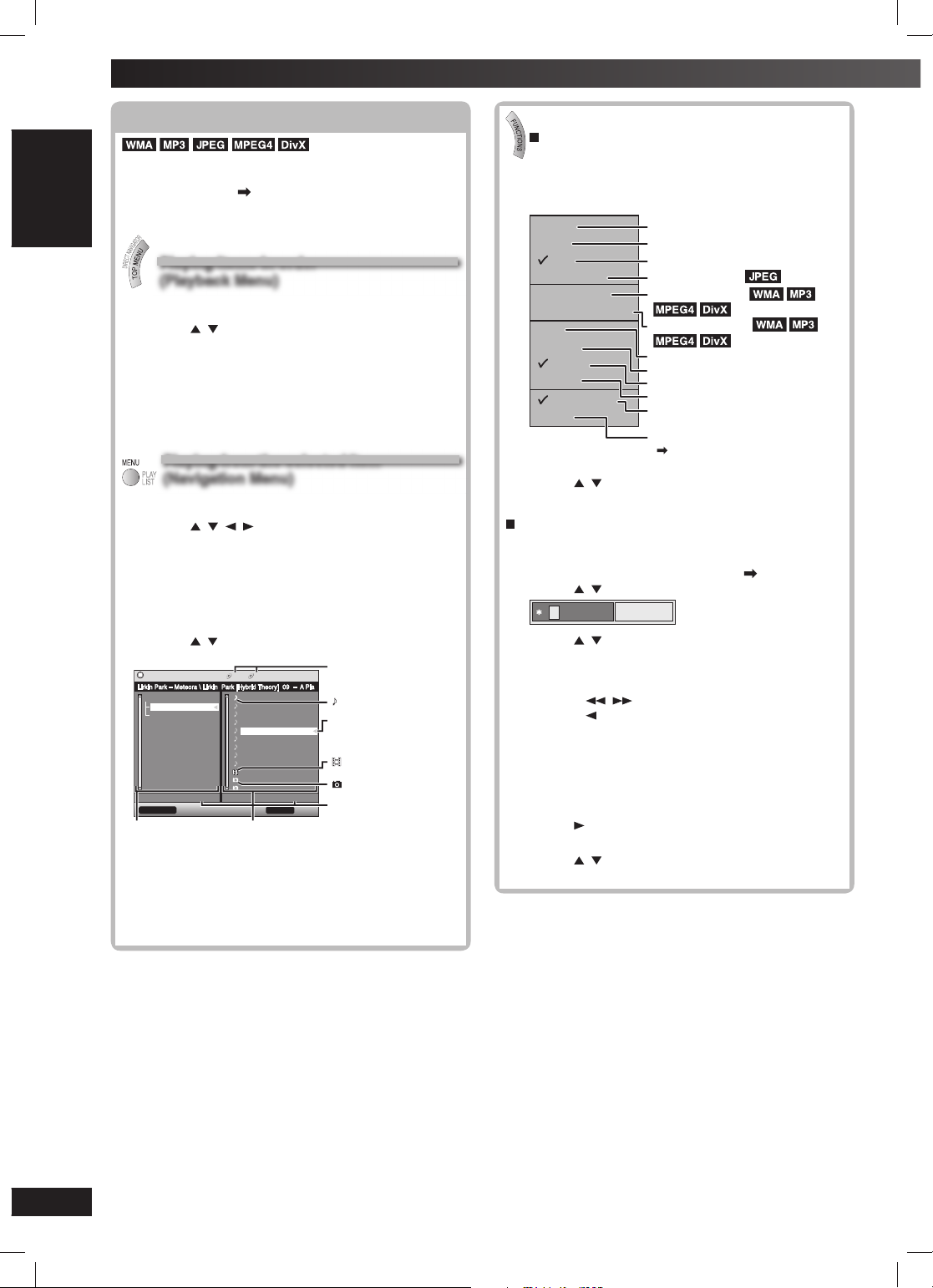

Discs — Using navigation menus

Playing data discs

Playing items in order
(Playback Menu)

Playing from the selected item
(Navigation Menu)

Playing data discs

You can play JPEG, MPEG4 and DivX video contents
on DVD-VR or play HighMAT discs without using the
HighMAT function ( page 22, “Play as Data Disc” in
Other Menu).

Playing items in order
(Playback Menu)

Press [TOP MENU].

1

Press [ , ] to select “All” (WMA/MP3/JPEG/

2

MPEG4/DivX video), “Audio” (WMA/MP3),
“Picture” (JPEG) or “Video” (MPEG4/DivX video),
and press [ENTER].

To exit the screen

Press [TOP MENU] or [RETURN].

Playing from the selected item
(Navigation Menu)

Press [MENU].

1

Press [ , , , ] to select the group or audio/

2

picture/video content and press [ENTER].

After listing all the contents in one group, the list for
the next group appears.

To play content in the group in order

3

Press [ENTER].

To start play from the selected content

Press [ , ] and then [ENTER].

Example:

C

G

C

Navigation Menu 2 5 MP3 1:54

Sep 15 2003

Lirkin Park – Meteora

Penguins

Group 002/003 Content 0005/0012

FUNCTIONS to display the sub menu

Group Content

G

Breaking The Habit
Dont_Stay

Faint

Hit_The_Floor_ _Abyss

Lirkin Park [Hyorid Theor

Lirkin Park_Cure For The
Lirkin_Park_ _Metora_
Lirkin_Park_ _Metora_
Lying_From_You

Somewhere_I_Belong
Lady Starfish
Life on Jupiter

RETURN to exit

To enjoy listening to WMA/MP3 contents while
showing a JPEG image on the screen

Select a JPEG fi le fi rst, and then select audio contents.
(The opposite order is not effective.)

To exit the screen

Press [MENU] or [RETURN ].

Group and content
number currently playing

: WMA/MP3 fi les

: indicates the group/



content currently
playing

: MPEG4 and DivX

video

: JPEG fi les

Number currently
selected

Using the sub menu

While the Navigation Menu is displayed

1

Press [FUNCTIONS].

Items shown differ depending on the type of disc.

Multi
List
T ree
Thumbnail
Next group
Previous group

All
Audio
Video

Help display
Find

Press [ , ] to select the sub menu and press

2

[ENTER].

Groups and contents are displayed.

Contents only

Groups only

Thumbnail images
To go to next group

To go to previous group

WMA/MP3, JPEG, MPEG4 and DivX video
WMA/MP3 only
JPEG only
MPEG4 only
To switch between guide messages
and the elapsed play time indicator
To search by content or group title
( see below)

Searching by content or group title

Highlight a group title to search the group, or a content
title to search its content.

While the sub menu is displayed ( see above)

1

Press [ , ] to select “Find” and press [ENTER].

A

Press [ , ] to select a character and press

2

[ENTER].

• Repeat to enter other characters.

• Lower case is also searched.

• Press [ , ] to skip between A, E, I, O, and U.

• Press [ ] to erase a character.

• Leave the asterisk (✱) when you search for the
titles including the character you enter.

• Erase the asterisk (✱) to search for the titles
starting with the character you enter. To add the
asterisk (✱) again, display the sub menu again
and select “Find”.

Press [ ] to select “Find” and press [ENTER].

3

The search results screen appears.

Press [ , ] to select the content or group and

4

press [ENTER].

Find

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

18

RQTV0239_1L.indd 18RQTV0239_1L.indd 18 6/12/07 12:36:11 PM6/12/07 12:36:11 PM

Playing from the selected

Playing from the selected

track in the CD

Playing HighMAT

TM

discs

Selecting from the list

Playing RAM and DVD-R/-RW (DVD-VR)
discs

Playing the programs

Playing a playlist

track in the CD

Titles appear with CD Text disc playback.

Press [TOP MENU] or [MENU].

1

Example: CD text

CD Text 1/14 0:53

Disc Title : Celine Dion One Heart
Disc Artist : Celine Dion
Track Title : I Drove All Night (Album Version)
Track Artist :

1.

I Drove All Night (Album Version)

2.

Love Is All We Need (Album Version)

3. FAITH

(Album Version)

4.

In His Touch (Album Version)

5.

One Heart (Album Version)

6.

Stand By Your side (Album Version)
NAKED (Album Version)

7.

8.

Sorry For Love (Album Version)

9.

Have You Ever Been In Love (Album Version)

10. Reveal

(Album Version)

Press [ , ] to select the track and press [ENTER].

2

Press [FUNCTIONS] to show the playback position

T

T

RETURN to exitto select and press ENTER

and current position.

To exit the screen

Press [TOP MENU], [MENU] or [RETURN].

Playing HighMAT

TM

discs

While stopped

Press [TOP MENU].

1

Press [ , , , ] to select the item and press

2

[ENTER].

Repeat this step if necessary.
Example:

.EW0LA

.EW0LAYLIST)TEM,ONG.AME$ISPLAY4E

-ENU

0LAYLIST

0LAYLIST

0REV

-ENU

2ETURN

0!'%

-ENU

0LAYLIST

.EXT

Menu: Takes you to

the next menu
which shows
playlists or
another menu

Playlist: Play starts

Playing RAM and DVD-R/-RW (DVD-VR)
discs

• Titles appear only if the titles are recorded on the
disc.

• You cannot edit programs, playlists and disc titles.

Playing the programs

Press [DIRECT NAVIGATOR].

1

Example:

Direct Navigator

No. Date On Title Contents

1 11/ 1(WED) 12:05 Friends of a feather

2 1/ 1(MON) 1:05 Sunny day

3 2/ 2(TUE) 2:21 Penguins habitat

4 3/ 3(WED) 3:37 Irresistible

5 4/ 10(THU) 11:05 Hot cakes

0 ~ 9 to select

Press [ , ] or the numeric buttons to select the

2

program.

RETURN to exit

Press [ ] to show the contents of the program and
the disc.

Press [ENTER].

3

To exit the screen

Press [DIRECT NAVIGATOR] or [RETURN].

Playing a playlist

(Only when the disc contains a playlist)

Press [PLAYLIST].

1

Example:

DISC OPERATIONS

To change the menu background

Press [FUNCTIONS].
The background changes to the one recorded on the disc.

To exit the screen

Press [ ].

Selecting from the list

Press [MENU].

1

Example:

Playlist
Group
Content

Playlist

All by Artist The Beatles

No. Content title

1 Love Me Do

2 From Me to You

3 She Loves You

4 I Want to Hold Your Hand

5 Canʼt Buy Me Love

Press [ , ] or the numeric buttons to select the

2

playlist.

Press [ENTER].

3

To exit the screen

Press [PLAYLIST] or [RETURN ].

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

0 ~ 9 to select ENTER to play

Press [ ] then [ , ] to switch among “Playlist”,

2

“Group” and “Content” lists.

Press [ ] then [ , ] to select an item and press

3

[ENTER].

To exit the screen

Press [MENU] or [RETURN ].

RQTV0239_1L.indd 19RQTV0239_1L.indd 19 6/12/07 12:36:14 PM6/12/07 12:36:14 PM

RETURN to exit

RQTV0239

19

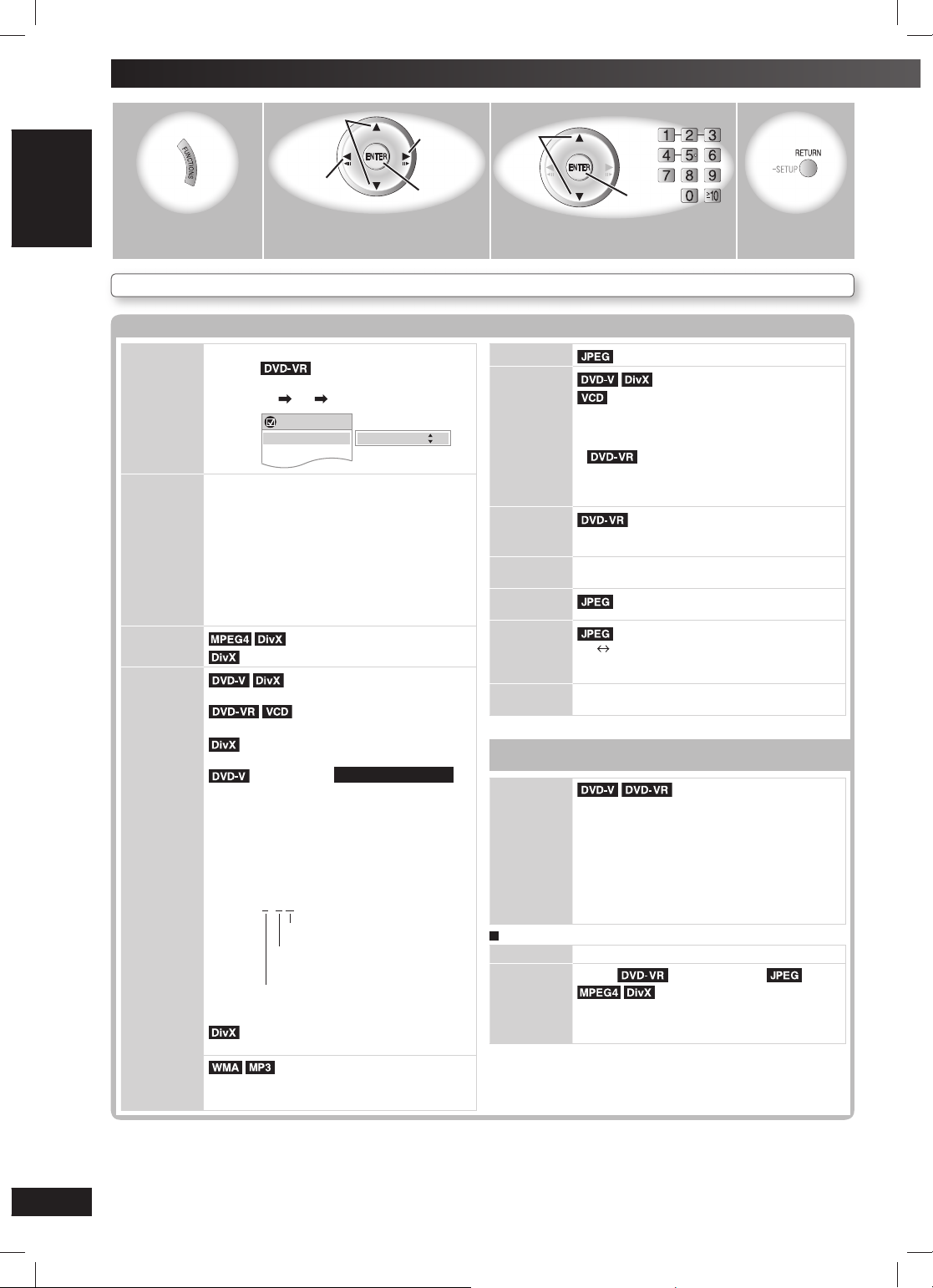

Functions Menu

Other Settings

Discs — Using on-screen menus

1 2

Displays the

“Functions” screen.

Functions Menu

Program
Group
Title
Chapter
Tra ck
Playlist
Content

Time

Video

Audio

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

Select

Return to the
previous menu

Go to the
next menu

Confi rm

3

Select

Select

Confi rm

Select the menu. Make the settings. Exit.

Items shown differ depending on the type of disc as well as the recording format.

To start from a specifi c item

Example:
Press the numeric buttons:

(Time Slip does not work with +R /+RW discs.)

To skip incrementally or decrementally
(Time slip) (during play)

1. Press [ENTER] twice to show the Time Slip

2. Press [5, ∞] to selec t the time and press [ENTER ].
To change the steps quickly, press and hold

Time Search
To start from a specifi c time.
To change the elapsed or remaining time display

To select audio soundtrack

To select “L R”, “L”, “R” or “L+ R”

“Audi o R ”

To select “On” or “Off” for vocals
To select “On”, “Off”, “V1”, “V2” or “V1+V2” for
different vocal selections

Read the disc’s instructions for details.

Signal type/data

LPCM/PPCM/
type kHz (Sampling frequency)/bit/ch (Number
of channels)

Example: 3 /2 .1ch

.

0: No surround
1: Mon o s urrou nd
2:
1: Cente r
2: Front left + Front right
3: Front left + Front right + Center

you change the audio on a DivX video disc.

To display the current bitrate or sampling
frequency

[1] [2] [ENTER]

indicator.

[5, ∞].

Fps (frame per sec ond) is also displayed.

To select “1”, “Audio L R”, “Audio L” or

(Karaoke disc)

It may take some time for play to start if

To select program 12

Functions

Time 0:34:15
Audio

To display the pixel number

(with multiple soundtracks)

Program Search 12Program

2/16

For Southeast Asia

ŸDigital /DTS/MP3/MPEG: Signal

1: Low frequency effect

(not displayed if there is no signal)

Stereo surround (left/right)

Thumbnail

Subtitle

Marker (VR)

Angle

Rotate

Slideshow

Other
Settings

Other Settings

Play Speed

Play Menu

Repeat

A-B Repeat

To show thumbnail images

(with multiple subtitles)

(SVCD only)

To select subtitle language

• On +R/+ RW, a subtitle number may be shown
for subtitles that are not displayed.

•

Video recorders

Press [5 , ∞] ] Press [ENTER ]

(with multiple angles)

To select a vid eo angle

On Off
To change the slideshow timing
1 (Fast ) to 5 (Slow)

(\ see below)

To change play sp eed

– from “x0.6” to “x1.4”

•

• Af ter you change the speed

– Audio output switches to 2-channel stereo.
– Sampling frequency of 96 kHz is converted to

• This function may not work depending on the

(\ page 16)

Except

To repeat a specifi ed section

Press [ENTER] at the starting and ending points.
Press [ENTER] again to cancel.

“On” or “Off” appears only with discs
that contain subtitle on/off information (Subtitle
on/off information cannot be recorded using
Panasonic DVD Recorders).

To recall a marker recorded on DVD-

To r ot a te pic tur e s

To turn the slideshow on /off

Press [ 3, DVD/CD] to resume normal playback.

48 kHz.

disc’s recording.

(Still picture part)

4

RQTV0239

20

RQTV0239_1L.indd 20RQTV0239_1L.indd 20 6/12/07 12:36:18 PM6/12/07 12:36:18 PM

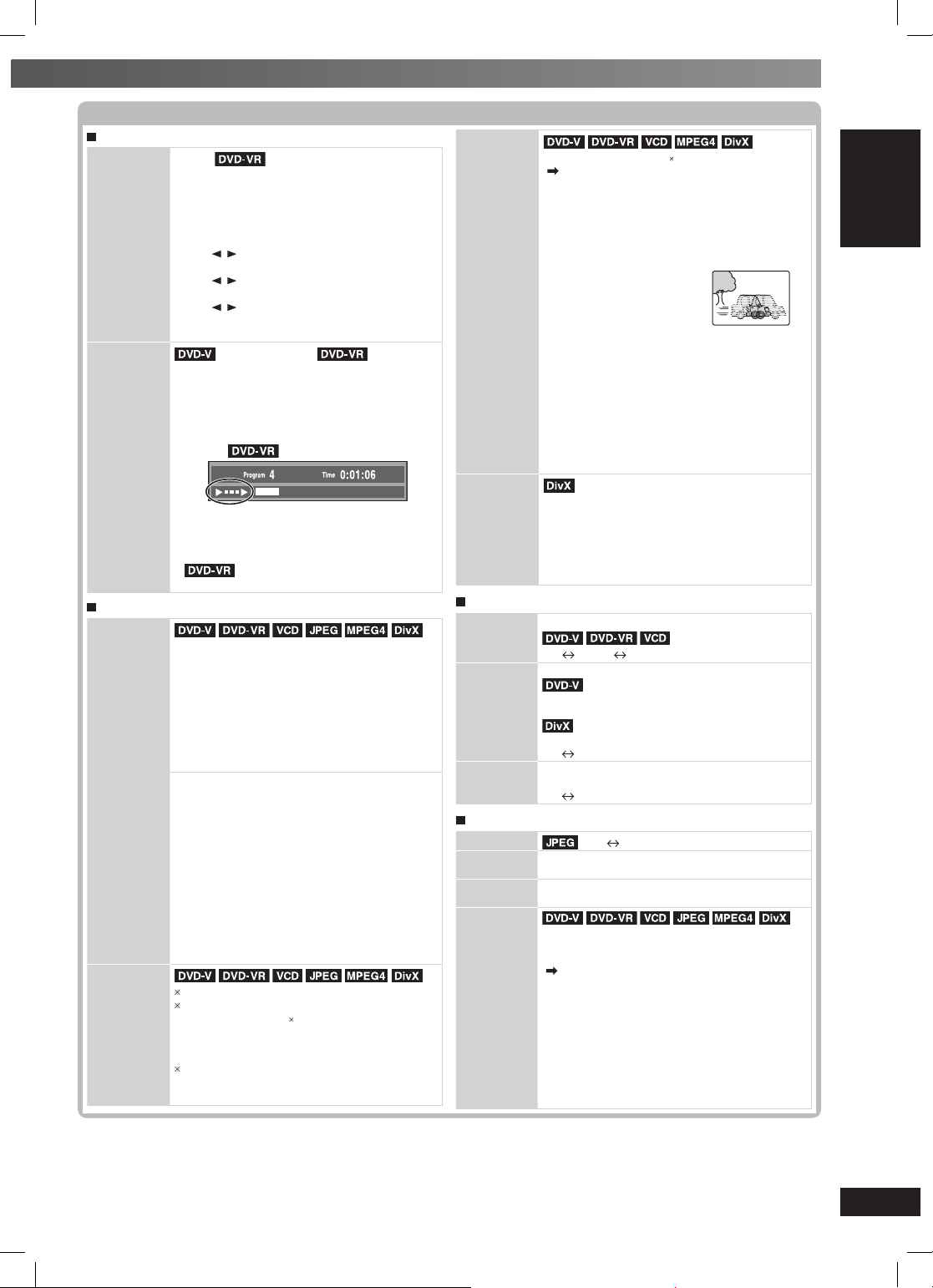

Other Settings (continued)

Other Settings (continued)

Play Menu (continued)

Marker

Advanced
Disc Review

Except

To mark up to 5 positions to play again

Press [ENTER]. (The unit is now ready to accept
markers.)
To mark a position:
Press [ENTER] at the desired point.
To mark another position:

, ] to select “✱” ] Press [ENTER]

Press [
To recall a marker:

, ] ] Press [ENTER]

Press [
To erase a marker:

, ] ] Press and hold [– CANCEL]

Press [

• This feature does not work during program and
random play.

(Except +R/+RW) (Except still
picture part)
Allows you to browse the disc contents and
start playing from the selected position. You
can select either “Intro Mode” or “Interval Mode”
in “Advanced Disc Review” in the “Disc” tab
(\ page 23).

Example:

Press [ 3, DVD/CD] when you fi nd a title or
program of your choice.

• This may not work depending on the disc and

the play position.

•

This does not work when playing a

playlist (\ page 19).

Picture Menu

Mode

Video Output
Mode

Normal : Normal images.
Cinema1 : Mellows images and enhances detail

Cinema2 : Sharpens images and enhances

Animation : Suitable for animation.
Dynamic : Enhances the contrast for powerful

User : Press [ENTER] to select “Picture

Picture Adjustment
Contrast : Increases the contrast

Brightness : Brightens the picture.
Sharpness : Adjusts the sharpness of the

Color : Adjusts the shade of the

Gamma : Adjusts the brightness of

Depth Enhancer : Reduces the rough noise

480p/576p (progressive)
480i/ 576i (interlace)

When you select “x xx
confi rmation screen appears, select “Yes” only
if connecting to a progressive output compatible
television.

The numbers displayed depend on the
geographical location and disc being played.
One of the above numbers is displayed.

in dark scenes.

detail in dark scenes.

images.

Adjustment” (\ see below).

between light and dark parts
of the picture.

edges of horizontal lines.

picture’s color.

dark parts.

in the background to give a
greater feeling of depth.

p” (progressive) and a

Tra nsfer
Mode

Source
Select

If you have chosen “xxx p” (progressive)
( see left), select the method of conversion for
progressive output to suit the type of material.
When playing PAL discs, MPEG4 or DivX video
contents

Auto : Automatic ally detects the fi lm and video

Video : Select when using Auto, and the content

Film : Select this if the edges

of the fi lm content
appear jagged or
rough when Auto
is selected.
However, if the video content is distorted

When playing NTSC discs

Auto1 : Automatically detects the fi lm and video

Auto2 : In addition to Auto1, automatically

Video : Select when using Auto1 and Auto2, and

When you select “Auto” the constructing method
of the DivX contents is automatically distinguished
and output. If the picture is distorted, select “I
(Interlace)” or “P (Progressive)“ depending on
which constructing method was used when the
contents were recorded to disc.

Auto I (Interlace) P ( Progressive )

Audio Menu

Dolby Pro
Logic II

Dialogue
Enhancer

Sound
Enhancement

(\ page 30, Using the Dolby Pro Logic II)

Off Movie Music
To make the dialog in movies easier to hear

3-channel or higher, with the dialog recorded in
the center channel)

the dialog recorded in the center channel)

On

Enhances audio output to produce a warm hall­like sound.

On

Display Menu

Information

Subtitle
Position

Subtitle
Brightness

4:3 Aspect

0 to –60

Auto, 0 to –7

To select how to show images made for 4: 3
aspect screens on a 16: 9 aspect television

The “TV Aspect” nee ds to be set to “16:9”
( page 23, “Video” tab) prior to selecting
“4: 3 A sp ect ”.

Normal : Laterally stretches images.
Auto :

Shrink :

Zoom : Expands to 4:3 aspec t ratio.

If your television has a similar feature, use it
instead for a better effect.

content, and appropriately converts it.

is distorted.

as shown in the illustration to the right,
then select Auto.

content, and appropriately converts it.

detects fi lm contents with different frame
rates and appropriately converts it.

the content is distorted.

(Dolby Digital, DTS, MPEG,

(Dolby Digital, 3-channel or higher, with

Off

Off

: On Off

Expands 4:3 letter box images to fi ll
more of the screen. Other images
appear in full in the center of the screen.
Images appear in the center of the
screen.

DISC OPERATIONS

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

21

RQTV0239_1L.indd 21RQTV0239_1L.indd 21 6/12/07 12:36:22 PM6/12/07 12:36:22 PM

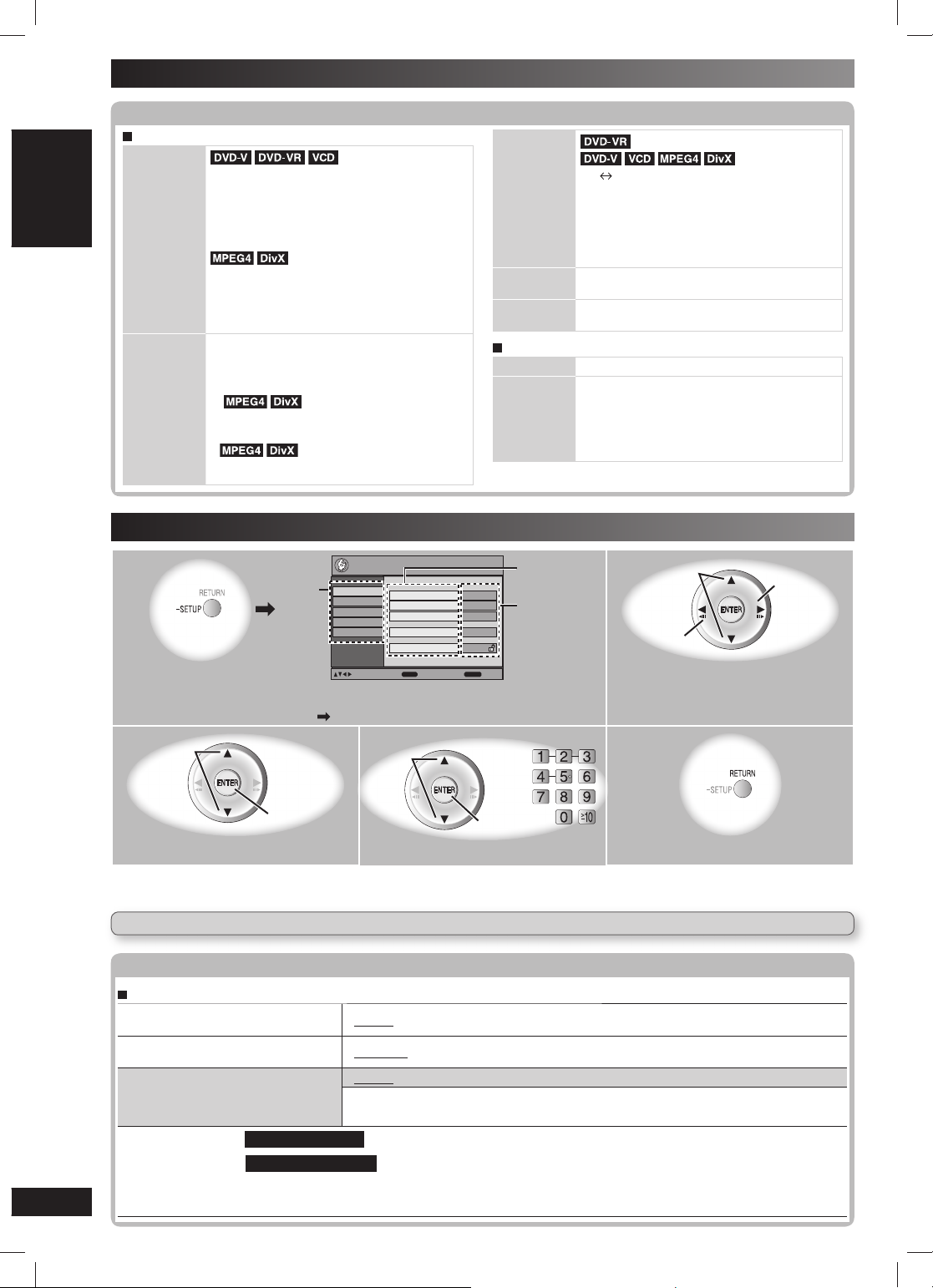

Discs — Using on-screen menus (continued)

Other Settings (continued)

Player settings

Other Settings (continued)

Display Menu (continued)

Just Fit
Zoom

To select the appropriate screen size to fi t
your television screen

Auto American Vista
4:3 Standard Cinemascope 1
European Vista Cinemascope 2
16: 9 Standard

Standard (x0.25 full-screen)
Original (actual recorded size)
Full (full-screen)

This function may not work depending on the
disc’s recording.

Manual
Zoom

To zoom in and out manually

– in 0.01-unit steps from “x1.00” to “x1.60”
– in 0.02-unit steps from “x1.60” to “x2.00”
– in 0.05-unit steps from “x2.00” to “x4.00”

(

only)

• To change the steps quickly, press and hold

[5, ∞].

•
up to “x4.00” depending up on the connected

It may not be possible to zoom

television and its settings.

Discs — Changing the player settings

Bit Rate
Display

GUI See­through

GUI
Brightness

Other Menu

Setup

Play as DVD­VR, Play as
HighMAT

or

Play as Data
Disc

(motion picture parts only)

On Off

When you select “On”:
During play : shows the bit rate (approximate

values) of the video being played

During pause : shows the data volume of

the frame and type of picture
(\ page 34, Glossary – I /P/ B)

To make the on-screen menu transparent
Off, On, Auto

To adjust the on-screen menu brightness
–3 to +3

(\ see below)

To use functions for data discs ( \ page 18)

(To play MP3, JPEG, MPEG4 or DivX video
contents on DVD-RAM, or to play a HighMAT disc
without using HighMAT function)
Select “Play as Data Disc”.

Disc
Video
Audio
Display
Others

Setup

Audio
Subtitle
Menus

Advanced Disc Review

Ratings

to select and press

ENTER

1

Tab

(Press and hold)

Display the Setup menu.

If you have not set QUICK SETUP ( page 12), the QUICK SETUP screen appears.

3

Select

Go to
setting

4

Select

Select the item. Make the setting. Exit.

• The settings remain intact even if you switch the unit to standby.

• Underlined items in the following diagram are the factory preset.

QUICK SETUP enables successive settings of the items in the shaded area.

Player settings

“Disc” tab

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

22

Audio

Choose the audio language.

Subtitle

Choose the subtitle language.

Menus

Choose the language for disc menus.
Changing the menu language in QUICK
SETUP also changes this setting.

*1

Language options :

*2

The original language designated on the disc is selected.

*3

Input a code number referring to the table (\ page 10).

*4

If the language selected for “Audio” is not available, subtitle appears in that language (if available on the disc).

For Southeast Asia

For Australia and N.Z.

• English • (Language options)

• Automatic

• English • (Language options)

• Other ✱ ✱ ✱ ✱

Chinese

French, German, Spanish, Polish, Russian, Hungarian and Czech

2

Select

Go to item

Go to item

English

Automatic

English

Intro Mode

Level 8

RETURN

Item

Setting

to exit

Select the tab.

Select

Confi rm

*1

• Original *2 • Other ✱ ✱ ✱ ✱

*4

• English • ( Language options) *1 • Other ✱ ✱ ✱ ✱

1

*

*3

5

*3

*3

RQTV0239_1L.indd 22RQTV0239_1L.indd 22 6/12/07 12:36:25 PM6/12/07 12:36:25 PM

Discs — Changing the player settings (continued)

Player settings (continued)

QUICK SETUP enables successive settings of the items in the shaded area.

Player settings (continued)

“Disc” tab (continued)

Advanced Disc Review (\ pag e 21)

Ratings

Set a ratings level to limit DVD-Video
play.

“Video” tab

TV Aspect

Choose the setting to suit your
television and preference.

TV Type

Select to suit the type of television.

Time Delay

When connected with a Plasma display,
adjust if you notice the audio is out of
sync with the video.

Still Mode

Specify the t ype of picture shown when
paused.

NTSC Disc Output

Choose PAL 60 or NTSC output when
playing NTSC discs (\ page 11, Video
systems).

Picture /Video Output

Change the video signal format to be
output for JPEG, MPEG4 and DivX
video if picture output is not smooth
during playback.

“Audio” tab

Dynamic Range Compression

Speaker Settings (\ page 24)

Set the delay time for your center and
surround speakers

“Display” tab

Menu Language

On-Screen Messages
Background during Play

Select background during JPEG,
MPEG4 and DivX video playback.

“Others” tab

DivX Registration

Displays the unit ’s registration code.

QUICK SETUP
“Re-initialize Setting” or

“Re-initialise Setting”

This returns all values in the Setup
menus to the default settings.

*4

Refer to “Frame still and fi eld still” (\ page 34, “Glossary”).

• Intro Mode: Reviews each title or program.

• Interval Mode: Reviews not only each title or program but also each 10-minute interval

Setting ratings (When level 8 is selected)

• 8 No Limit • 1 to 7 • 0 Loc k All: To prevent play of discs without rating levels.

Changing ratings (When level 0 to 7 is selected)

• Unlock Player • Change Password • Change Level • Temporary Unlock

When you select your ratings level, a password screen is shown.
Follow the on-screen instructions.

Do not forget your password.

A message screen will be shown if a DVD-Video disc exceeding the ratings level is inser ted in
the unit.
Enter your password and then follow the on-screen instructions.

• 4: 3 Pan&Scan: Regular aspect television (4:3)
The sides of the widescreen picture are cut off so it fi lls the screen (unless

prohibited by the disc).

• 4: 3 Letterbox: Regular aspec t television (4: 3)
Widescreen picture is shown in the letterbox style.

• 16: 9: Widescreen television (16:9)

• Standard (Direct View TV) • CRT Projector • LCD TV/Projector

• Projection TV • Plasma T V

• 0ms • 20ms • 40ms • 60ms • 80ms • 100ms

• Automatic

*4

• Field

• Frame

For Southeast Asia

• PAL60

• NTSC

For Southeast Asia

• NTSC/PAL60: Output will depend on “NTSC Disc Output” setting (\ see above)

• PAL

For Australia and N.Z.

• Automatic • PAL • NTSC/PAL60

• Off

• On: Adjust for clarity even when the volume is low by compressing the range of the lowest
sound level and the highest sound level. Convenient for late night viewing.

(Only works with Dolby Digital)

• Center (C) : 0.0/1.0/2.0/3.0/4.0/5.0 ms

• Surround ( LS/ RS) : 0.0/ 5.0/10.0/15.0 ms

For Southeast Asia

• English •

For Australia and N.Z.

• English • Français • Deutsch • Españ ol • Polski • Pусский • Magyar • Česky

• On • Off

• Black • Gray or Grey

You need this registration code to purchase and play DivX Video-on-Demand (VOD) content.
(\ page 24, “About DivX VOD content”)

• Yes • No

The password screen is shown if “Ratings” (\ see above) is set. Please enter the same

• Yes:

password. After “Initialized” or “Initialised” on the display disappears, turn the unit off
and on again.

• No

within a title or program.

: The picture is not blurred, but picture quality is lower.

*4

: Overall quality is high, but the picture may appear blurred.

For Australia and N.Z.

• PAL60 : When connected to a PAL television.

• NTSC : When connected to an NTSC television.

DISC OPERATIONS

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

23

RQTV0239_1L.indd 23RQTV0239_1L.indd 23 6/12/07 12:36:29 PM6/12/07 12:36:29 PM

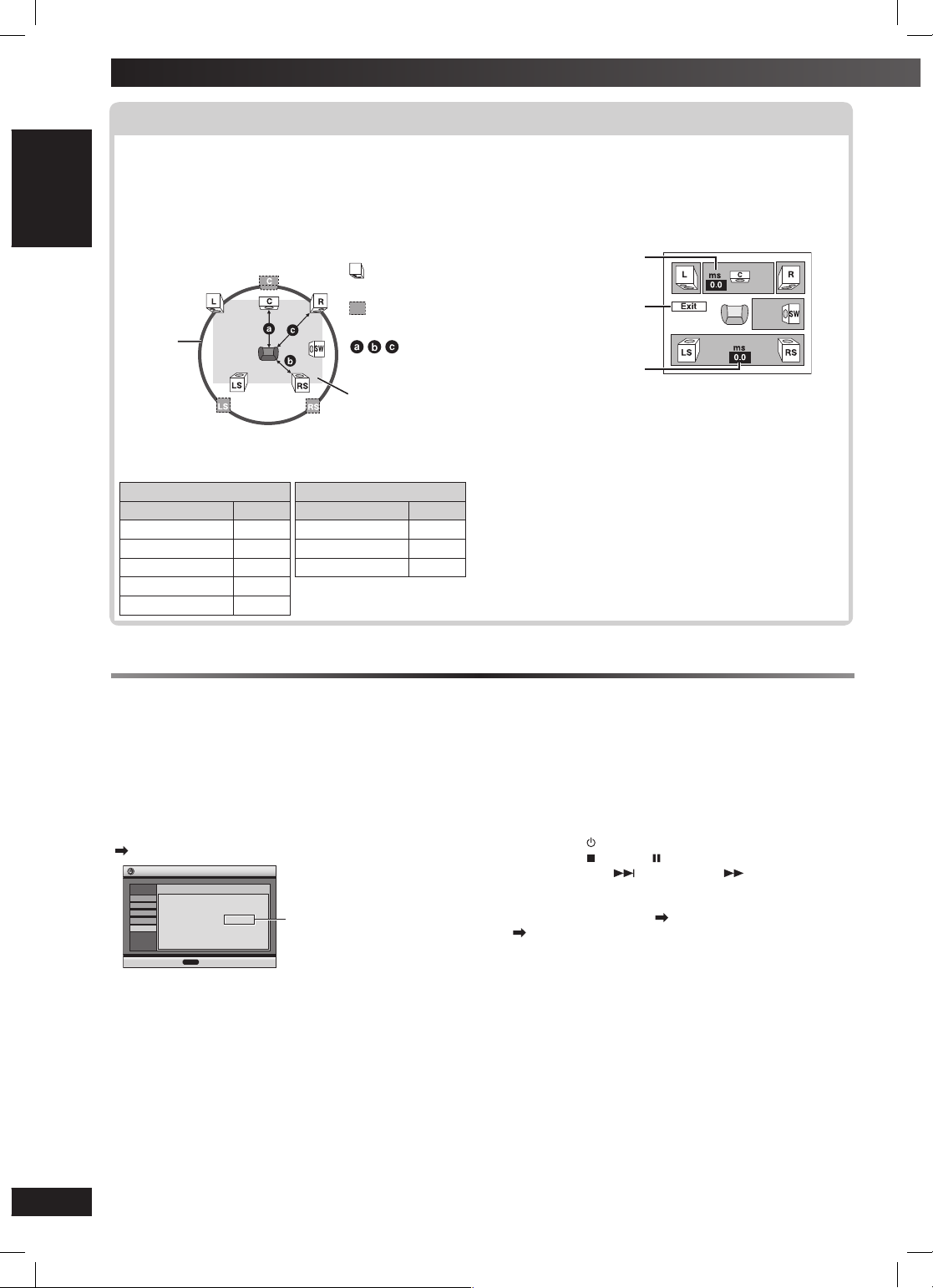

Discs — Changing the player settings (continued)

About DivX VOD content

Changing the delay time of the speakers

Changing the delay time of the speakers

Effective when playing multi-channel audio

(Center and surround speakers only)
For optimum listening with 5.1-channel sound, all the
speakers, except for the subwoofer, should be the
same distance from the seating position. If you have
to place the center or surround speakers closer to the
seating position, adjust the delay time to make up for the
difference.

: Actual speakers

position

: Ideal speakers

position

Circle of
constant

primary
listening
distance

Approximate room
dimensions

If either distance a or b is less than c, fi nd the
difference in the table and change to the recommended
setting.

a Center speaker

Difference (Approx.) Setting

30 cm 1.0 ms

60 cm 2.0 ms

90 cm 3.0 ms

120 cm 4.0 ms

150 cm 5.0 ms

b Surround speaker

Difference (Approx.) Setting

150 cm 5.0 ms

300 cm 10.0 ms

450 cm 15.0 ms

: Primary

listening
distance

■ To enter the speaker setting

1 Press [5, ∞] to select the delay time box and press

[ENTER].

2 Press [5, ∞] to adjust the delay time and press

[ENTER].

Center delay time

Exit

Surround delay time

■ To fi nish the speaker setting

Press [2] to select “Exit” and press [ENTER].

About DivX VOD content

DivX Video-on-Demand (VOD) content is encrypted for
copyright protection. In order to play DivX VOD content on
this unit, you fi rst need to register the unit.
Follow the online instructions for purchasing DivX VOD
content to enter the unit’s registration code and register the
unit. For more information about DivX VOD, visit
www.divx.com/vod.

Display the unit’s registration code

( page 23, “DivX Registration” in “Others” tab)

put

eS

csiD

oediV
oiduA

ruoY

yalpsiD

srehtO

P

• We recommend that you make a note of this code for
future reference.

• After playing DivX VOD content for the fi rst time, another
registration code is then displayed in “DivX Registration”.
Do not use this registration code to purchase DivX VOD
content. If you use this code to purchase DivX VOD
content, and then play the content on this unit, you will

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

no longer be able to play any content that you purchased
using the previous code.

• If you purchase DivX VOD content using a registration
code different from this unit’s code, you will not be able
to play this content. (“Authorization Error” is displayed.)

RQTV0239

noitartsigeR XviD

dnameD-no-oediV XviD

XXXXXXXX

edoc noitartsiger

: si

RETNE

nitnoc otsser

eu

dov/moc.xvid.www tisiv erom nrael oT

8 alphanumeric
characters

Regarding DivX content that can only be played a
set number of times

Some DivX VOD content can only be played a set number
of times. When you play this content, the remaining number
of plays is displayed. You cannot play this content when the
number of remaining plays is zero.
(“Rented Movie Expired” or “Rental Expired” is displayed.)

When playing this content

• The number of remaining plays is reduced by one if
– you press [
– you press [ ]. [Press [ ] (pause) to pause play.]
– you press [4, ] (skip) or [1, ] (search)

arrive at another content or the start of the content
being played.

• The “Resume” function ( page 14, Stop) and “Marker”
( page 21, Play Menu) functions will not work.

] or press and hold [–SETUP].

etc. and

24

RQTV0239_1L.indd 24RQTV0239_1L.indd 24 6/12/07 12:36:31 PM6/12/07 12:36:31 PM

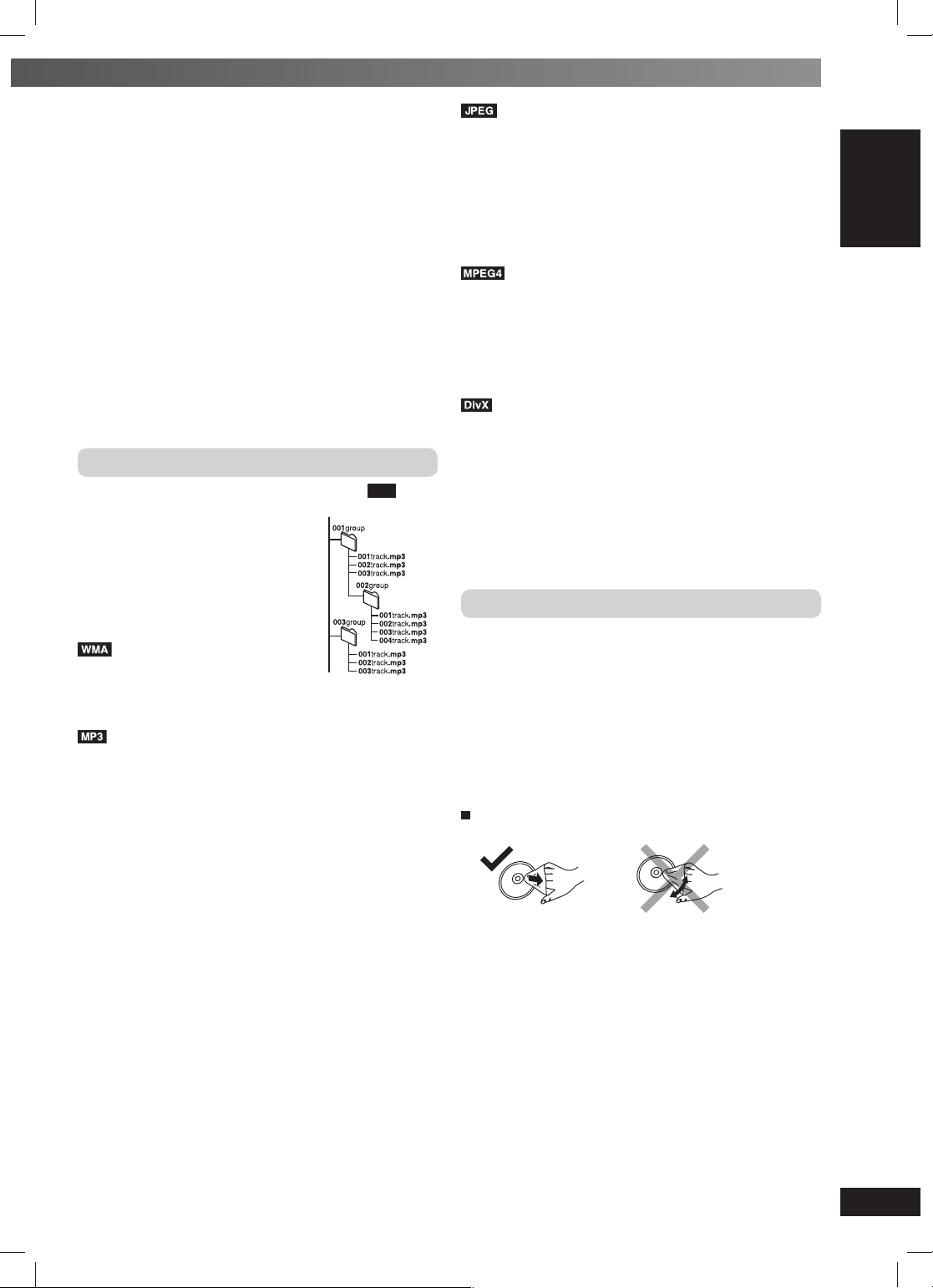

Tips for making data discs

Tips for making data discs

• When there are more than eight groups, the eighth group
onwards will be displayed on one vertical line in the
menu screen.

• There may be differences in the display order on the
menu screen and computer screen.

• This unit cannot play fi les recorded using packet write.

DVD-RAM

• Discs must conform to UDF 2.0.

DVD-R/RW

• Discs must conform to UDF bridge (UDF 1.02/ISO9660).

• This unit does not support multi-session. Only the default
session is played.

CD-R/RW

• Discs must conform to ISO9660 level 1 or 2 (except for
extended formats).

• This unit supports multi-session but if there are many
sessions it takes more time for play to star t. Keep the
number of sessions to a minimum to avoid this.

Naming folders and fi les

Files are treated as contents and
folders are treated as groups on this
unit.

At the time of recording, prefi x folder
and fi le names. This should be with
numbers that have an equal number
of digits, and should be done in the
order you want to play them (this may
not work at times). Files must have the
extension (\ see below).

(Extension: “.WMA” or “.wma”)

• Compatible compression rate:
between 48 kbps and 320 kbps.

• You cannot play WMA fi les that are copy-protected.

• This unit does not support Multiple Bit Rate (MBR).

(Extension: “.MP3” or “.mp3”)

• Compatible compression rate: between 32 kbps and
320 kbps.

• This unit does not support ID3 tags.

• Compatible sampling rates:

– DVD-RAM, DVD-R /RW: 11.02, 12, 22.05, 24, 44.1 and

48 kHz

– CD-R/RW: 8, 11.02, 12, 16, 22.05, 24, 32, 44.1 and

48 kHz

Example:

MP3

root

(Extension: “.JPG”, “.jpg”, “.JPEG” or “.jpeg”)

• JPEG fi les taken on a digital camera that conform to DCF
Standard (Design rule for Camera File system) Version

1.0 are displayed. Files that have been altered, edited or
saved with computer picture editing software may not be
displayed.

• This unit cannot display moving pictures, MOTION JPEG
and other such formats, and still pictures other than
JPEG (Example: TIFF), or play pictures with attached
audio.

(Extension: “.ASF” or “.asf”)

• You can play MPEG4 data [conforming to SD VIDEO
specifi cations (ASF standard)/MPEG4 (Simple Profi le)
video system/G.726 audio system] recorded with
Panasonic SD multi cameras or DVD video recorders
with this unit.

• The recording date may differ from that of the actual
date.

(Extension: “.DIVX”, “.div x”, “.AVI” or “. avi” )

• You can play all versions of DivX
DivX®6) [DivX video system /MP3, Dolby Digital or MPEG
audio system] with standard playback of DivX® media
fi les. Functions added with DivX Ultra are not supported.

• DivX fi les greater than 2 GB or have no index may not be
played properly on this unit.

• This unit supports all resolutions up to maximum of 720 x
480 (NTSC)/720 x 576 (PAL).

• You can select up to eight types of audio and subtitles on
this unit.

®

video (including

Disc handling precautions

• Do not attach labels or stickers to discs. This may cause
disc warping, rendering it unusable.

• Do not write on the label side with a ball-point pen or
other writing instrument.

• Do not use record cleaning sprays, benzine, thinner,
static electricity prevention liquids or any other solvent.

• Do not use scratch-proof protectors or covers.

• Do not use the following discs:
– Discs with exposed adhesive from removed stickers or

labels (rented discs, etc).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.

To clean discs

Wipe with a damp cloth and then wipe dry.

DISC OPERATIONS

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

25

RQTV0239_1L.indd 25RQTV0239_1L.indd 25 6/12/07 12:36:32 PM6/12/07 12:36:32 PM

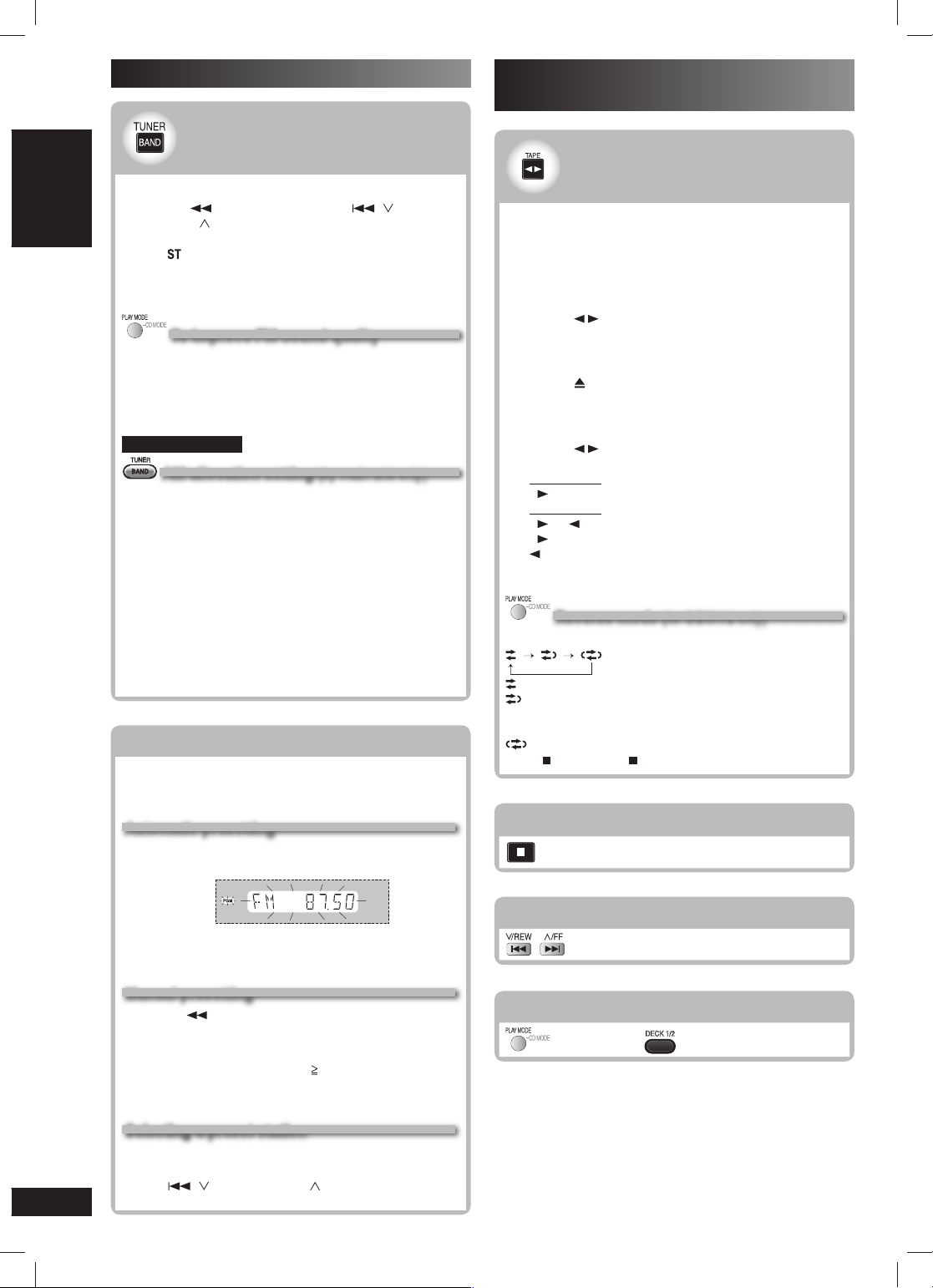

Using the radio Playing and recording using the

Manual tuning

To improve FM sound quality

AM allocation setting

(by main unit only)

Memory preset

(by remote control only)

Automatic presetting

Manual presetting

Selecting a preset station

Basic play

Reverse mode

(for DECK 2 only)

Stop

Fast forward or rewind

Select between loaded decks

cassette tapes

Manual tuning

Basic play

Press [BAND , TUNER] to select “FM” or “AM”.

1

Press [ ] or [¡] (main unit: [ , / REW]

2

or [¢ , / FF ]) to select the frequency of the
required station.

• “ ” is displayed when a stereo FM broadcast is
being received.

• “TUNED” is displayed when a radio station is
tuned.

To improve FM sound quality

Press [PLAY MODE] to display “MONO”.

Monaural sound is selected and noise reduces when
reception is weak.
Press [PLAY MODE] again to cancel the mode.
“MONO” is also canceled if the frequency is changed.

For Southeast Asia

TUNER

AM allocation setting

This system can also receive AM broadcasts allocated
in 10 kHz steps in addition to the 9 kHz steps.

To change the step from 9 kHz to 10 kHz

Select “FM”.

1

Press and hold [BAND , TUNER].

2

After a few seconds the display changes to a
fl ashing display of the current minimum frequency.

Continue to hold down [BAND , TUNER].

3

• When the minimum frequency changes, release
the button. To return to the original step, repeat
the above steps.

• After changing the setting, previously preset
frequency will be cleared.

Memory preset

20 FM and 15 AM stations can be preset.

Preparation

Press [BAND , TUNER] to select “FM” or “AM”.

Automatic presetting

Tune to the frequency where pre-setting is to begin.

1

Press and hold [ENTER] to start presetting.

2

(by remote control only)

(by main unit only)

You can use either DECK 1 or DECK 2 for tape
playback.

Use normal position tapes.
High position and metal position tapes can be
played, but the unit will not be able to identify the
characteristics of these tapes.

Press [ , TAPE].

1

The unit turns on.
If a cassette was loaded, play starts automatically
(One touch play).

Press [0, OPEN] and insert the cassette.

2

Insert with the side to be played facing towards
you and the exposed tape facing down. Close the
holder by hand.

Press [ , TAPE] to start play.

3

Every time you press the button:
For DECK 1
F
For DECK 2
F ↔ R
F : Forward side is played.

R: Reverse side is played.

Reverse mode

Every time you press and hold [PLAY MODE]:

: One side is played.

: Both sides are played.

(forward → reverse)

Play stops at the end of the reverse side.

: Both sides are played repeatedly until

[ ] (main unit: [ , STOP]) is pressed.

(for DECK 2 only)

Stop

Fast forward or rewind

The tuner presets all the stations it can receive into the
channels in ascending order. When fi nished, the last
station memorized is tuned in.

Manual presetting

Press [ ] or [ ¡] to tune to the required station.

1

Press [ENTER].

2

Press the numeric buttons to select a channel.

3

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

26

RQTV0239_1L.indd 26RQTV0239_1L.indd 26 6/12/07 12:36:34 PM6/12/07 12:36:34 PM

For channels 10 to 20 press
The station occupying a channel is erased if
another station is preset to that channel.

Selecting a preset station

Press the numeric buttons to select the channel.
OR

Press
channel.

/ REW] or [ ¢, / FF ] to select the

[ ,

[10]

, then the two digits.

Select between loaded decks

(main unit:

Note:

• Tape playback is momentarily interrupted if you open the other
deck.

• Tapes exc eeding 100 minutes are thin and can break or get
caught in the mechanism.

• Tape slack can get caught up in the mechanism and should be
taken up before the tape is played.

• Endless tapes can get caught up in the deck’s moving parts
if used incorrectly. Use tapes appropriate to this unit’s auto­reverse mechanism.

DECK 1/2

)

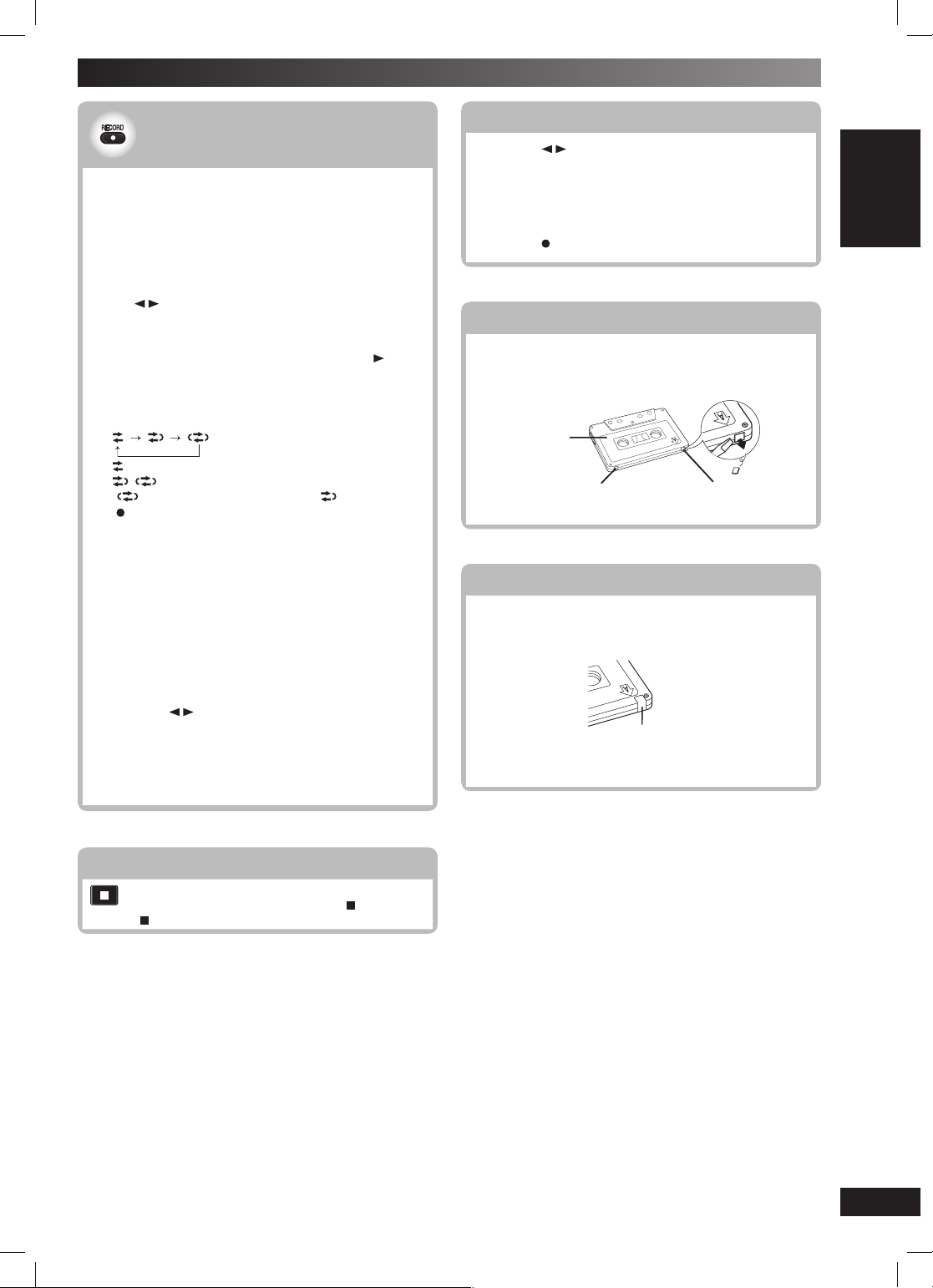

Playing and recording using the cassette tapes (continued)

Stop recording

To erase a recorded sound

Erasure prevention

To re-record on a protected cassette

Recording

To erase a recorded sound

Recording

Selection of tapes for recording

Use normal position tapes.
High position and metal position tapes can be used,
but this unit will not be able to record or erase them
correctly.

Preparation

Wind up the leader tape so recording can begin
immediately.

Press [

1

2

3

, TAPE] and then [7 ].

Press [OPEN, 0] on the main unit for DECK 2
and insert the cassette to be recorded.

The tape direction is automatically set to “F ”.
Insert with the side to be recorded facing towards
you and the exposed tape facing down.

Select the reverse mode of DECK 2.

Every time you press and hold [PLAY MODE]:

: One side only records.

, : Both sides record (forward → reverse).
“ ” is automatically changed to “ ” when
[ , RECORD] on the main unit is pressed.

Select the source to be recorded.

Radio recording:

Select the preset station (\ page 26).

Disc recording:

➀ Insert the disc(s) you want to record.

Press [ 3, DVD/CD] and then [7, STOP].

➁ Prepare the desired disc recording mode.

To record programmed items, perform steps 1

and 2, “Program play (up to 32 items)” (\ page 17).

Ensure the disc has stopped.

Tape-to-tape recording:

➀ Press [ , TAPE] and then [ 7].
➁ Press [0, OPEN] on the main unit to open

DECK 1 and insert the cassette you want to
record.

Press [¶, RECORD] on the main unit to start

4

recording.

Press [ , TAPE] and then [7 ].

1

Insert the recorded cassette into DECK 2.

2

Ensure there is no cassette in DECK 1.

Press and hold [PLAY MODE] to select the

3

reverse mode.

Press [ , RECORD] on the main unit.

4

Erasure prevention

Use a screwdriver or similar object to break out the tab.

Side A

To re-record on a protected cassette

Cover the hole with adhesive tape.

OTHER OPERATIONS

Tab for side B Tab for side A

Adhesive tape

Note:

• Multi-channel sources (3 to 5.1 channels) are automatically

Stop recording

If the tape fi nishes before the disc

The disc continues playing. Press [ ] (main unit:
[ , STOP]) to stop it.

downmixed to 2 channels during recording.

• Changes to volume and sound or fi eld quality do not af fect
recording.

• You cannot open DECK 1 while recording.

• You cannot fast-forward or rewind one deck while recording with
the other.

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

27

RQTV0239_1L.indd 27RQTV0239_1L.indd 27 6/12/07 12:36:37 PM6/12/07 12:36:37 PM

Adjusting the echo effect

Enjoying karaoke with karaoke
DVD and VCD

Enjoying karaoke

Enjoying karaoke with other
sources

Audio mode

For Southeast Asia

The buttons described for “Enjoying karaoke” are
mainly for the main unit unless indicated otherwise.

Enjoying karaoke with karaoke

MIC VOL

DVD and VCD

Firstly, lower the volume with [- MIC VOL+], then

1

connect the microphone(s) to the microphone
jack(s).

Every time you press the button:

MIC OFF ↔ MIC 1 ↔ .... ↔ MIC 7

Use a dynamic microphone.
Plug type : Ø6.3 mm monaural

Start playing the music source.

2

Adjust the volume with

3

[- MIC VOL+]

Note:

• If a strange noise (howling) is emitted during use, move
the microphone away from the speakers, or turn down the
microphone volume.

• When you are not using the microphone, disconnect it from
the microphone jack, and turn down the microphone volume
level to “MIC OFF”.

• Sound adjustments can be made using microphone mixing
but recording will not be affected.

You can also perform karaoke with discs other than
those described and also in USB mode.

Start play.

1

Refer to the pages for the source

• When singing along with discs
Inser t the desired disc (\ page 14).

• When singing along with cassette tape
Press [0, OPEN] on the main unit for DECK 1

and insert the desired cassette tape (\ page 26).

• When singing along with radio
Select your desired station (\ page 26).

• When singing along with other equipment
Connect and prepare the other equipment

(\ page 32).

Press [AUDIO] on the remote control to make the

2

selection (\ see right, Audio mode).

Only necessary if the vocals and melody are spilt

between the left and right channels.

Adjust the volume with

3

[- MIC VOL+]
Even if the vocals and melody are not split, you
may still be able to lower the volume of the vocals.
(\ page 29, Vocal mute function)

and sing along.

Enjoying karaoke with other
sources

and sing along.

[- VOLUME+]

[- VOLUME+]

and

and

Audio mode

(Karaoke discs)

Solo

Off : No vocal
On : Vocal

Duet

Off : No vocal
V1+V2 : Vocal 1 and 2
V1 : Vocal 1
V2 : Vocal 2

• Choose “Off” for karaoke.

• Choose “V1” or “V2” to duet with the player.

and other sources

Audio L R : Left channel sound is heard from the

Audio L : Only left channel sound — no vocal
Audio R : Only right channel sound — vocal
Audio L + R : Left and right channel sounds are

Select no vocal for karaoke.

•

• Vocal and no vocal may be reversed.

Lower the volume with [- MIC VOL+] then

1

connect the microphone(s) to the microphone
jack(s).

Adjust the microphone volume with [- MIC VOL+].

2

Press [ECHO] on the remote control.

3

Every time you press the button:

Note:

The effect increases with the level.

left speaker and right channel sound is
heard from the right speaker — vocal
and accompaniment

mixed and heard from both speakers

Adjusting the echo effect

ECHO 1 ECHO 2 ECHO 3

ECHO OFF (off)

ECHO 4

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

28

RQTV0239_1L.indd 28RQTV0239_1L.indd 28 6/12/07 12:36:38 PM6/12/07 12:36:38 PM

Using the Manual Equalizer
(MANUAL EQ)

(by remote control only)

Using the sound fi eld control

To record your karaoke
performance

(

Recording your voice

Changing the pitch

I

Vocal mute function

Vocal mute function

Use this function on stereo sources to block out the
vocals so you can sing along to the music.

Press [V. MUTE] on the remote control.

Every time you press the button:
V.M U TE ON

V.M U TE OF F

Using sound effects

You cannot use Surround Enhancer, Center Focus, Super
Surround and Subwoofer level if you have connected
headphones (“ERROR” appears on the display).
You may experience a reduction in sound quality when
these sound fi eld systems are used with some sources. If
this occurs, turn the sound fi eld system off.

Using the sound fi eld control

Note:

This function is not suitable for the following sources.

• Monaural recordings

• Classical music or works performed by a limited number of
instruments

• Chorus works or duets

Changing the pitch

Use this function to change the pitch level.

Press [
pitch between -6 and +6.

1

2

To record from VCD with playback control

a. Press [ 7 ] on the remote control and then press the

b. Press [¶, RECORD] to start recording..

Recording your voice

1

2

To stop recording

Press [ 7 , STOP].

Note:

When playing the recorded tape, be sure to select the “Audio
L R” mode.

] or [#] on the remote control to select the

To record your karaoke
performance

Adjust the volume with [- VOLUME+] and
[- MIC VOL+].

Press [

numeric buttons

Press [
microphone(s).

Adjust the volume with [- VOLUME+] and
[- MIC VOL+].

, RECORD

( page 15).).

, RECORD

] and sing along.

] and speak through the

Press [SOUND] (main unit: [SOUND EQ]) to select a
setting.

Every time you press [SOUND] on the remote control:

MANUAL EQ

EQ-OFF HALL LIVE DISCO

Every time you press [SOUND EQ] on the main unit:

HEAVY CLEAR SOFT DISCO

EQ-OFF HALL LIVE

HEAVY : Adds punch to rock.
CLEAR : Clarifi es higher sounds.
SOFT : For backg round music.
DISCO : Reverberates sound to make you feel

LIVE : Makes vocals more alive.
HALL : Expands sound to make you feel like you

EQ-OFF : Canceled (no effect is added).
MANUAL EQ : ( see below).

To check the current setting

Press [SOUND] (main unit: [SOUND EQ]).

Create your own sound quality effects.

Press [SOUND] to select “MANUAL EQ”.

1

Within 12 seconds or so

(

2

Change the sound quality with the cursor
buttons.

HEAVY CLEAR SOFT

like you are in a disco.

are in a hall.

Using the Manual Equalizer
(MANUAL EQ)

(by remote control only)

)

➀ Select the sound range to be adjusted with [ ]

or [ ].

BASS MID TREBLE

➁ Adjust the level with [ ] or [

(– 3 to +3)

Repeat step 2 to set the desired sound quality.
The original display is restored on the display panel in
about 3 seconds.

To cancel

Press [SOUND] to select “EQ-OFF”.
The changes you make are stored and automatically
recalled the next time you select “MANUAL EQ”.

].

OTHER OPERATIONS

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

29

RQTV0239_1L.indd 29RQTV0239_1L.indd 29 6/12/07 12:36:40 PM6/12/07 12:36:40 PM

Speaker level adjustments

Using sound effects (continued)

Using the Super Sound Equalizer

Using the Super Surround

Using the Surround Enhancer

Using the Center Focus

Using the Dolby Pro Logic

Using the subwoofer

SUPER SOUND EQ

Turning on the super sound equalizer gives you a more
powerful sound.

Press [SUPER SOUND EQ] on the main unit.

The “S.SOUND EQ” indicator lights up.

To cancel

Press [SUPER SOUND EQ] on the main unit to turn off
the indicator.

Press [SURROUND ENHANCER].

The “SRD ENH” indicator lights up.

Every time you press the button:
SURROUND SURROUND

ENHANCER ON ENHANCER OFF

SUPER SURROUND

Press [SUPER SURROUND] on the main unit.

Every time you press the button:

MUSIC

Using the Super Sound Equalizer

SURROUND
ENHANCER

Using the Surround Enhancer

Using the Super Surround

MOVIE PARTY Off

Using the Dolby Pro Logic IIII

Except
Dolby Pro Logic II is an advanced decoder that derives
5-channel surround (Left and Right Front, Center,
Left and Right Surround) from stereo sound sources,
whether or not it has been specifi cally Dolby Surround
encoded.

For Australia and N.Z.

Press [ŸPL II].

Every time you press the button:

Off : Cancel
Movie : Movie software, recorded in Dolby Surround.
Music : Stereo sources

(\ page 21, Audio Menu)

Note:

• This function is only available for DVD/CD and USB mode.

• “ŸPL II”

Press [SUBWOOFER].

Every time you press the button:
SUB W1 SUB W2 SUB W3 SUB W4

lights when there is effect.

Using the subwoofer

Music : Adds surround effects to stereo sources.
Movie : Use this mode when playing movie sof tware.
Party : Sound is in stereo regardless of the direction

Off : Cancel.

Note:

• This function is also available for USB mode.

• You can adjust the volume of the surround speakers to get

• Super Surround does not work when playing a DVD recorded

• When Super Surround is on, Dolby Pro Logic II turns off.

This applies to discs where the dialog is recorded
in the center channel.
You can make the sound of the center speaker seem
like it is coming from within the television.

Press [C. FOCUS].

The “C.F” indicator lights up.

Every time you press the button:
C FOCUS ON C FOCUS OFF

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

Note:

• This works only during 5.1 channel or when Dolby Pro Logic II

• You can adjust the volume of the surround speakers to get

you are facing.

the best surround effect (\ see right).

with 5.1 channel.

Using the Center Focus

is turned on.

the best surround effect (\ see right).

Speaker level adjustments

This is one of the ways to get appropriate surround
effects.

Preparation

Press [ 3, DVD/CD] and then [ 7 ].

While stopped and no on-screen display is

1

shown

Press and hold [–TEST] to output a test signal.

TEST L : Front Left
TEST C : Center
TEST R : Front right
TEST RS : Right surround
TEST LS : Left surround
There is no output from SW (subwoofer) channel.

Press [- VOLUME+] to set the volume level

2

normally used for listening.
Press [5] (increase) or [∞] (decrease) to adjust

3

the speaker level for each speaker.

C, RS, LS: –6 dB to +6 dB
(L, R: Only the balance is adjustable.)

• To adjust the balance of the front speakers
While outputting the test signal, press [2 , 3].

• Adjust the speaker level to the same level as

the front speakers.

To stop the test signal

Press and hold [–TEST] again or [ 7 ]
(main unit: [7, STOP]).

RQTV0239

30

RQTV0239_1L.indd 30RQTV0239_1L.indd 30 6/12/07 12:36:42 PM6/12/07 12:36:42 PM

Setting the time

Using the play or record timer

To adjust speaker level during play

To adjust speaker level during play

Effective when playing multi-channel audio or when
Dolby Pro Logic II or Super Surround is turned on.

Press [CH SELECT] to select the speaker.

1

SW: Subwoofer

• You can adjust SW only if the disc includes a
subwoofer channel.

• “SW” does not appear on the display and is not
adjustable when Dolby Pro Logic II is turned on.

• “S” appears on the display when “MUSIC”
or “MOVIE” is selected with Super Surround
(\

page 30). In this case, you can adjust both

surround speaker levels at the same time using
[5, ∞].

S : –6 dB to +6 dB

Press [5] (increase) or [∞] (decrease) to adjust

2

the speaker level for each speaker.

C, RS, LS, SW: –6 dB to +6 dB
(L, R: Only the balance is adjustable.)

To adjust the balance of the front speakers

While “L” or “R” is selected, press [2 , 3].

C R RS LS SW

L

Using the timers

Setting the time

This is a 24-hour clock.

Press [CLOCK / TIMER] to select “CLOCK”.

1

Every time you press the button:

CLOCK

(

Within 7 seconds or so

2

Press [4, / REW ] or [ ¢, / FF] to set the
time.

Press [CLOCK / TIMER] to finish setting the time.

3

Displaying the time

Press [CLOCK / TIMER] once when the unit is on or in
standby mode.
The time is displayed for a few seconds.

Note:

Reset the clock regularly to maintain accuracy.

˚ PLAY

Original display

)

˚ REC

Using the timers (continued)

Using the play or record timer

You can set the timer to come on at a certain time to
wake you up (play timer) or to record from the radio or
the external equipment (record timer).
Play timer and record timer cannot be used together.

Turn the unit on and set the clock.

• For the play timer, prepare the desired music
source; cassette (DECK 2 has the priority), disc
number (1 ~ 5), radio or external equipment, and set
the volume.

• For the record timer, check the cassette’s erasure
prevention tabs (\
DECK 2 (\ page 27) and tune to the radio station
(\ page 26) or select the external equipment
(\ page 32).

Press [CLOCK/TIMER] to select the timer function.

1

Every time you press the button:

CLOCK

˚PLAY : to set the play timer
˚REC : to set the record timer

(Proceed to the next step

(

Within 7 seconds or so

2

Press [4, / REW ] or [ ¢, / FF] to set the
“ON” time.

Press [CLOCK / TIMER] to confirm.

3

Repeat steps 2 to 3 to set the “OFF” time.

4

To activate the timer

Press [ ˚PLAY/REC] to display the timer’s

5

indicator.

Every time you press the button:

˚PLAY : to turn the play time on
˚REC : to turn the record timer on

(The indicator does not appear if the start and fi nish
times or the clock has not been set.)

Press [y] to turn off the unit.

6

The unit must be off for the timers to operate.

To change the settings

Perform steps 1 to 4 and 6 (\

To change the source or volume

When the unit is on

Press [ ˚PLAY/REC] to clear the timer indicator

1

from the display.
Make changes to the source or volume.

2

Perform steps 5 and 6 (\ see above).

3

page 27) and insert the tape in

˚ PLAY

Original display

within 7 seconds

)

˚ PLAY

(off)

see above).

˚ REC

)

˚ REC

OTHER OPERATIONS

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

31

RQTV0239_1L.indd 31RQTV0239_1L.indd 31 6/12/07 12:36:44 PM6/12/07 12:36:44 PM

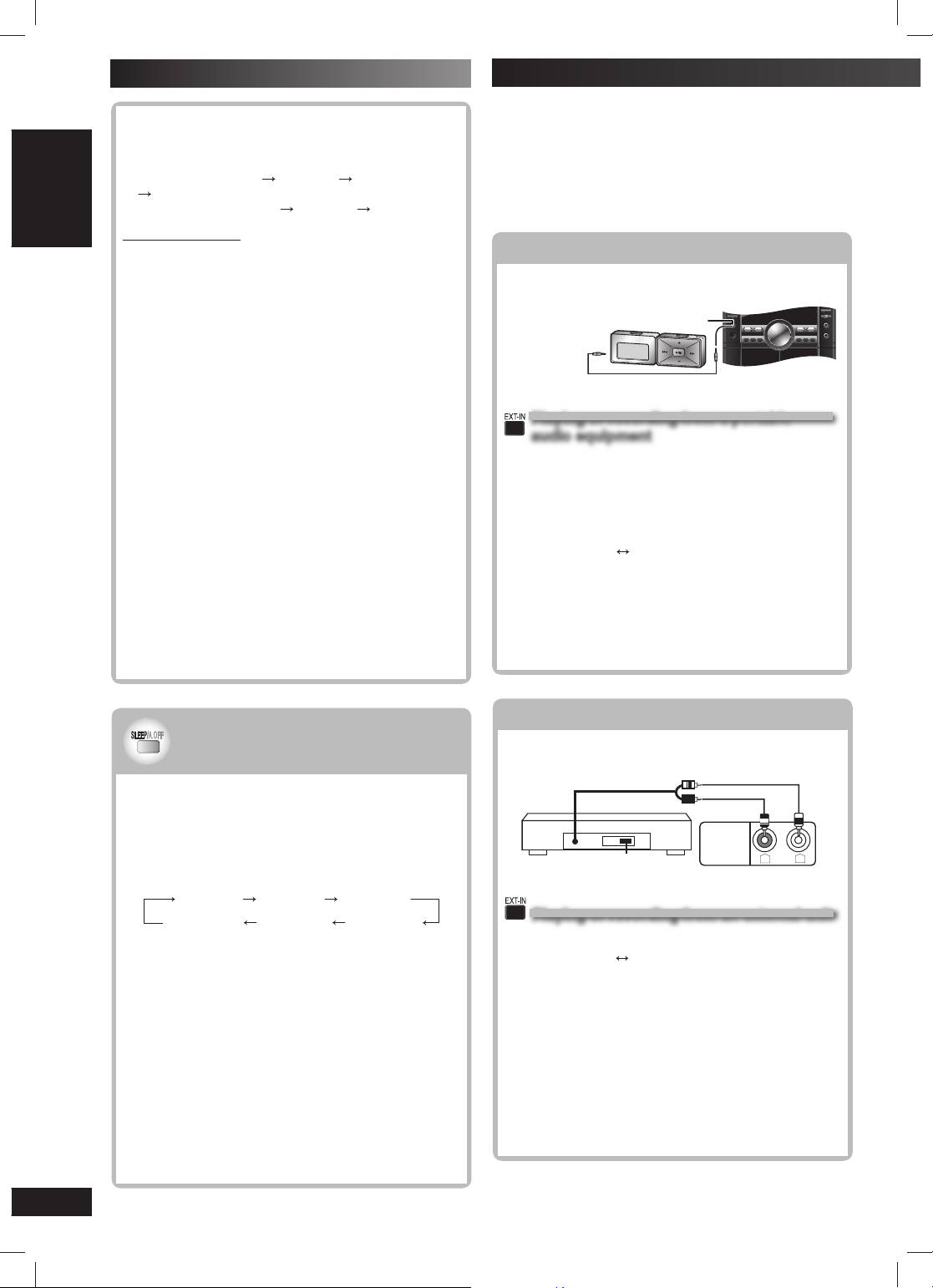

Connecting to a portable audio equipment

Playing or recording from a portable
audio equipment

Connecting to other external unit

Playing or recording from an external unit

Using the sleep timer

Using the timers (continued)

Using other equipment

To check the settings

Press [CLOCK / TIMER] while the unit is on to select
˚PLAY or ˚REC.

The setting are shown in the following order.
– Play timer: start time

volume

– Record timer: start time

When the unit is off

Press [ CLOCK / TIME R].

1

During the clock display, press [CLOCK / TIMER]

2

again.

To cancel the timer

Press [ ˚ PLAY/REC] to clear the timer indicator from
the display.
(The timer comes on at the set time everyday if the timer
is on)

If you use the unit after the timers are set

After using, check that the correct tape or disc are
loaded before turning the unit off.

Note:

• The play timer will start at the preset time with volume
increasing gradually to preset level.

• The record timer will start 30 seconds before the set time
with the volume muted.

• The timer comes on at the set time every day if the timer is
on.

• The unit must be in the standby mode for the timer to
function.

• If you turn the unit off and on again while a timer is
functioning, the fi nish time setting will not be activated.

• If MUSIC PORT is selected as the source when the timer
comes on, the system turns on and engages MUSIC PORT
as the source. If you wish to playback or record from the
portable audio equipment, just activate the equipment’s play
mode and increase the volume. (See the por table audio
equipment’s instruction manual.)

fi n i s h t i m e

fi n i s h t i m e

source

source

Before connection

• Disconnect the AC power supply cord.

• Turn off all equipment and read the appropriate operating
instructions.

• The equipment connections described are examples
only.

• Peripheral equipment and optional cables are sold
separately unless otherwise indicated.

Connecting to a portable audio equipment

This feature enables you to enjoy music from a portable
audio equipment.

MUSIC PORT jack

Audio cord

(not included)

Playing or recording from a portable
audio equipment

Switch off the equalizer function (if there is any) of
the portable audio equipment before you plug into the
MUSIC PORT jack. Other wise, sound from the speaker
may be distorted.

Plug the audio cord into the MUSIC PORT jack and

1

press [EXT-IN] to select “MUSIC PORT”.
MUSIC PORT AUX

For listening : Proceed to step 3.

2

For recording : Press [¶, RECORD] on the main

Start playback from the portable audio

3

equipment. (See the portable audio equipment’s
instruction manual.)

Portable audio equipment
(not included)

unit to start recording.

Using the sleep timer

This function enables you to turn off the unit
automatically after the set time.

While enjoying the desired source

Press

[SLEEP/A.OFF]

(minutes).

Every time you press the button:

SLEEP 30 SLEEP 60 SLEEP 90

SLEEP OFF AUTO OFF SLEEP 120

To change the settings

Press [SLEEP/A.OFF] successively to select a new
setting.

To confi rm the remaining time

Press [SLEEP/A.OFF] to show the remaining time.

To cancel the sleep timer

Press [SLEEP/A.OFF] successively to select

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

“SLEEPOFF”.

Note:

• The play and sleep timer or the record and sleep timer can
be used together.

• The sleep timer always has priorit y. Be sure not to overlap
timer settings.

• The sleep timer turns off when you per form the record
function.

RQTV0239

successively to select the time

Connecting to other external unit

You can connect to an analog player with a built-in
phone equalizer.

(L)

(R)

AUX IN

Analog player
(not included)

Playing or recording from an external unit

Press [EXT-IN] repeatedly until “AUX” is displayed.

1

MUSIC PORT AUX

For listening : Proceed to step 3.

2

For recording : Press [¶, RECORD] on the main

Start playback from the external source.

3

Note:

• For details, refer to the instruction manual of the unit which
is to be connected.

• When units other than those described above are to be
connected, please consult your audio dealer.

• Sound distortion may occur when you use an adaptor other
than the one supplied.

“LINE OUT”

position

unit to start recording.

Rear panel of this unit

L

R

32

RQTV0239_1L.indd 32RQTV0239_1L.indd 32 6/12/07 12:36:46 PM6/12/07 12:36:46 PM

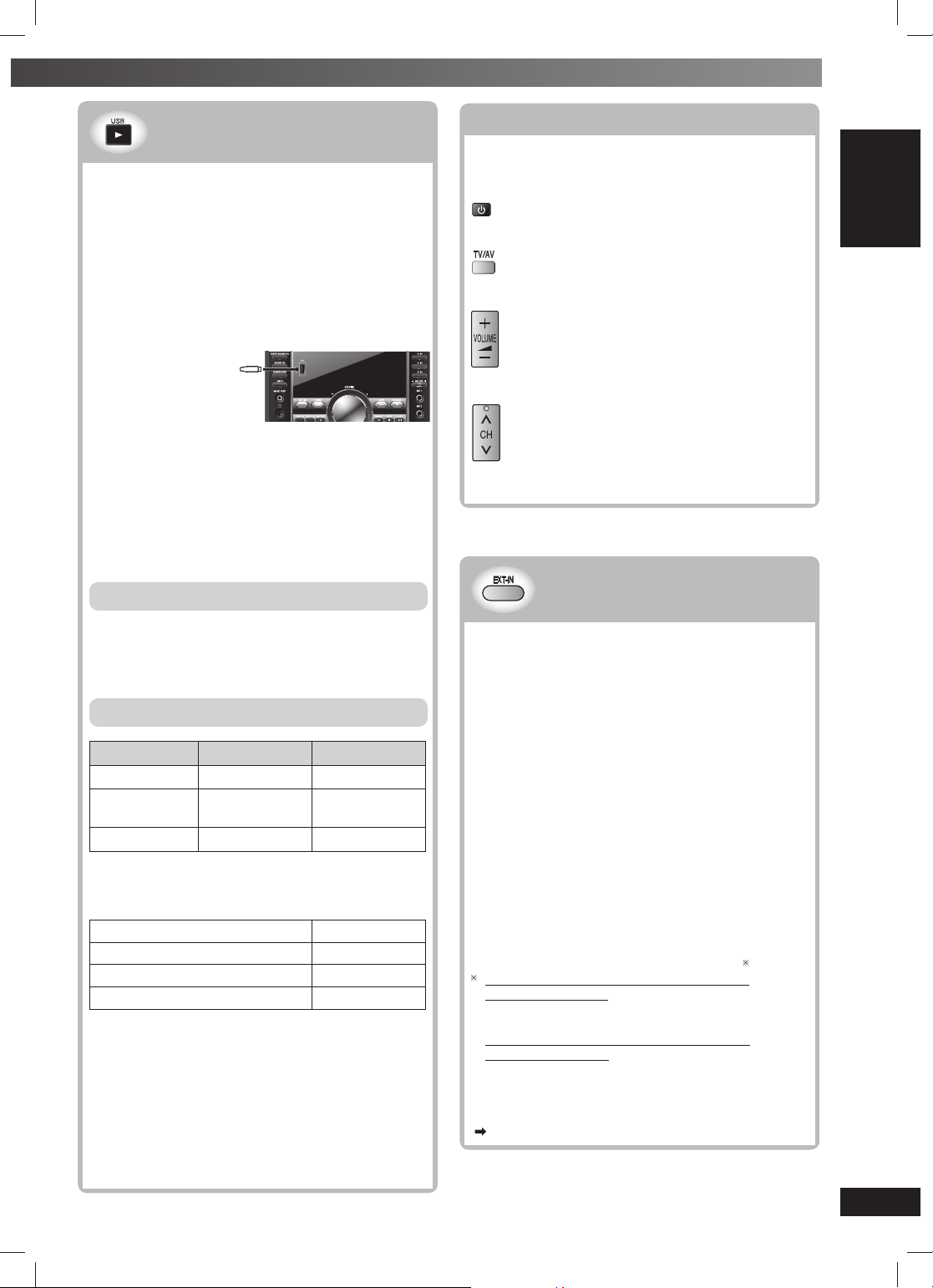

Operating a television

Changing the main unit and
remote control mode

Connecting to the USB devices

Connecting to the USB devices

The USB connectivity enables you to connect and play
tracks or fi les from USB mass storage class devices.
Typically, USB memory devices. (Bulk only transfer)

Preparation

Before connecting any USB mass storage device to
the unit, ensure that the data stored therein has been
backed up.

It is not recommended to use a USB extension cable.
The USB device is not recognised by this unit.

Connect the USB mass storage device (not

1

included).

USB enabled device

(not included)
It is not recommended to
use a USB extension cable.
The device connected via
the cable will not be recognised by this unit.

Press [3, USB] to begin playback.

2

Press [TOP MENU] or [MENU] to display the USB

3

menu.
Press [5, ∞, 2, 3] and then [ENTER] to select

4

the desired item.

SUPER SOUND EQ

SOUND EQ

SUBWOOFER

USB

MUSIC PORT

TUNEREXT-IN

RECORDDECK 1/2DISPLAY

TAPE DVD/CD

REW

STOP FF

For other operating functions, they are similar as those
described in “DISC OPERATIONS” (\ page 14 to 25).

Compatible Devices

Devices which are defi ned as USB mass storage
class:

– USB devices that support bulk only transfer.
– USB devices that support USB 2.0 full speed.

Supported Formats

File name File extension

1

WMA

*

.jpg .jpeg

.mp3
.wma

2

*

.asf

Still pictures JPG

Music MP3

Video MPEG4

*1

It may not be possible to play all the fi les due to the condition
on how they were created.

*2

For Panasonic D-Snap/DIGA

Note:

Maximum number of folders 400

Maximum number of fi les 4000

Maximum length of folder name

Maximum length of fi le name 44

CBI (Control/Bulk /Interrupt) is not suppor ted.

•

• Digital Cameras that use PTP protocol or which require
additional program installation when connected to a PC are
not supported.

• A device using NTFS fi le system is not supported.

[Only FAT 12/16/32 (File Allocation Table 12/16/32) fi le

system is suppor ted].

• Depending on the sector size, some fi les may not work.

• It will not operate with Janus enabled MTP (Media Transfer
Protocol) devices.

• Only one memory c ard will be selected when connecting a
multi-port USB card reader. Typically the fi rst memory card
inserted.

44

Operating a television

Point the remote control at the television for the
following operations.

To switch the television on or off

To switch the television’s video input mode

Adjust the volume

3

4

5

MIC VOL

MIC 1

MIC 2

Changing channels

Note:

Some models cannot be operated by this remote control.

The remote control and main unit are factory-set to
“REMOTE 1” mode.
If your remote control affects other equipment during
operation, you can switch to operate in “REMOTE 2”
mode.

To switch to “REMOTE 2” mode

While pressing and holding [EXT-IN] on the main

1

unit
Press and hold [2] until “REMOTE 2” appears on

the main unit display.

Press and hold [ENTER] and [2] for at least 2

2

seconds.

The main unit and remote control are now set to
operate in “REMOTE 2” mode.

To return to “REMOTE 1” mode

Perform steps 1 and 2 but use [1] instead of [2] for both
steps. (“REMOTE 1” appears on the main unit during
step 1.)

The remote control cannot work with the main unit if
their modes are different.

“REMOTE 1” or “REMOTE 2” appears on the main unit
display when you operate the remote control.

If “REMOTE 1” appears (The main unit is in
“REMOTE 1” mode.)

Press and hold [ENTER] and [1] on the remote

control for at least 2 seconds.

If “REMOTE 2” appears (The main unit is in

“REMOTE 2” mode.)

Press and hold [ENTER] and [2] on the remote

control for at least 2 seconds.

Note:

You can still operate a television using the remote control
( see above) even af ter switching the mode.

OTHER OPERATIONS

Changing the main unit and
remote control mode

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

33

RQTV0239_1L.indd 33RQTV0239_1L.indd 33 6/12/07 12:36:48 PM6/12/07 12:36:48 PM

Glossary

If the surfaces are dirty

For a cleaner crisper sound (cassette deck)

Decoder

A decoder restores the coded audio signals on DVDs to
normal. This is called decoding.

DivX

DivX is a popular media technology created by DivX, Inc.
DivX media fi les contain highly compressed video with high
visual quality that maintains a relatively small fi le size.

Dolby Digital

This is a method of coding digital signals developed by
Dolby Laboratories. Apart from stereo (2-channel) audio,
these signals can also be multi-channel audio. A large
amount of audio information can be recorded on one disc
using this method.

DTS (Digital Theater Systems)

This surround system is used in many movie theaters
around the world. There is good separation between the
channels, so realistic sound effects are possible.

Dynamic range

Dynamic range is the difference between the lowest level of
sound that can be heard above the noise of the equipment
and the highest level of sound before distortion occurs.

Film and video

DVD-Videos are recorded using either fi lm or video. This
unit can determine which type has been used, then uses
the most suitable method of progressive output.
For NTSC
Film is 24 or 30 frames per second, with motion picture fi lm
generally being 24 frames per second. Video is 60 fi elds
per second (two fi elds making up one frame).
For PAL
Film is 25 frames per second. Video is 50 fi elds per second
(two fi elds making up one frame).

Frame still and fi eld still

Frames are the still pictures that go together to make a
moving picture.
There are about 30 frames shown each second.
One frame is made up of two fi elds. A regular television
shows these fi elds one after the other to create frames.
A still is shown when you pause a moving picture. A frame
still is made up of two alternating fi elds, so the picture may
appear blurred, but overall quality is high.
A fi eld still is not blurred, but it has only half the information
of a frame still so picture quality is lower.

Progressive/Interlace

The PAL video signal standard has 576 interlaced (i) scan
lines, whereas progressive scanning, called 576p, uses
twice the number of scan lines. For the NTSC standard,
these are called 480i and 480p respectively.
Using progressive output, you can enjoy the high-resolution
video recorded on media such as DVD-Video.
Your television must be compatible to enjoy progressive
video.

MPEG4

A compression system for use on mobile devices or a
network, that allows highly effi cient recording at a low bit
rate.

I/P/B
I: Intra coded picture

This picture has the best quality and is the best to use

when adjusting the picture.
P: Predictive coded picture
This picture is calculated based on past I or P-pictures.
B: Bidirectionally-predictive coded picture
This picture is calculated by comparing past and future I

and P-pictures so it has the lowest volume of information.

Linear PCM (Pulse Code Modulation)

These are uncompressed digital signals, similar to those
found on CDs.

Playback control (PBC)

If a Video CD has playback control, you can select scenes
and information with menus.

Sampling frequency

Sampling is the process of converting the heights of sound
wave (analog signal) samples taken at set periods into
digits (digital encoding).
Sampling frequency is the number of samples taken per
second, so larger numbers mean more faithful reproduction
of the original sound.

Maintenance

If the surfaces are dirty

To clean this unit, wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this unit.

• Before using chemically treated cloth, read the instructions that came with the cloth carefully.

For a cleaner crisper sound (cassette deck)

Clean the heads regularly to assure good quality playback and recording. Use a cleaning tape (not included).

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

When moving the unit

Remove all discs.

1

Press [ /I ] to turn the unit off.

2

RQTV0239

Disconnect the AC power supply cord.

3

34

RQTV0239_1L.indd 34RQTV0239_1L.indd 34 6/12/07 12:36:52 PM6/12/07 12:36:52 PM

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the
remedies indicated in the chart do not solve the problem, consult your dealer for instructions.

Power Page

No power.

The unit is automatically
switched to the standby
mode.

Unresponsive or inoperable function

No response when buttons
are pressed.

No operations can be
performed with the remote
control.

Cannot play DVDs.

No picture or sound.

You have forgotten your
ratings password.

Reset all the settings to
Factory Preset.

Other products respond to
the remote control

• Insert the AC power supply cord securely. 8

• The unit was switched to standby by the sleep timer or auto-off function. 13, 32

• This unit cannot play discs other than the ones listed in these operating
instructions.

• Some operations may be prohibited by the disc.

• The unit may not be operating properly due to lightning, static electricity or
some other external factor. Turn the unit off then back to ON. Alternatively, turn
the unit off, disconnect the AC power supply cord, and then reconnect it.

• Condensation has formed: Wait 1 to 2 hours for it to evaporate.

• Check that the batteries are installed correctly.

• The batteries are depleted: replace them with new ones.

• Aim the remote control at the remote control sensor and operate.

• The remote control and main unit are in different modes.

Change the remote control mode to match the main unit mode.

• CD MODE is on. Press and hold [–CD MODE] to turn CD MODE off. 16

• Check the video or audio connection.

• Check the power or input setting of the connected equipment.

• Check that the disc has something recorded in it.

• While stopped and “DVD/CD” is the source, press and hold [
the main unit and [ 10] on the remote control until “Initialized” or “Initialised”
disappears from the television.

Turn the unit off and on again.
All settings will return to the default values.

• Change the remote control operating mode. 33

, STOP] on

11

—
—

—

10
10

10, 12

33

8, 9

—
—

—

REFERENCE

Specifi c operation undesirable or unexpected

It takes time before play
starts.

Folders deeper than the
eighth layer on a data disc
are not displayed correctly.

A menu screen appears
during skip or search.

Playback control menu
doesn’t appear.

playback control

The program and random
play functions do not work.

Programmed items are not
played.

Scenes are skipped
intermittently.

with

• Play may take time to begin when an MP3 track has still picture data. Even after
the track starts, the correct play time will not be displayed. This is normal.

• This is normal on DivX video.

• Folders deeper than the eighth layer are displayed as the eighth layer. —

• This is normal for Video CDs. —

• Press [

• These functions do not work with some DVD-Videos. —

• Some items cannot be played even if you have programmed them. —

• If you change the volume or sound fi eld/quality setting during “Advanced Disc
Review”, the function continues without the on-screen display.

Press [ , DVD/CD] to cancel “Advanced Disc Review”.

] twice and then press [ , DVD/CD]. —

Subtitle

Subtitle position is wrong.

No subtitles.

• Adjust the position. (“Subtitle Position” in the Display Menu) 21

• Display the subtitles.

• Subtitles may not be displayed depending on the disc.

—

—

21

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

20
—

RQTV0239

35

RQTV0239_1L.indd 35RQTV0239_1L.indd 35 6/12/07 12:36:53 PM6/12/07 12:36:53 PM

Troubleshooting guide (continued)

A-B repeat Page

Point B is automatically set.

Marker

Cannot add markers.

Sound

Sound distorted.

Effects do not work.

Humming heard during play.

No sound.

Menus

The SETUP menu cannot be
accessed.

Picture abnormal or un-viewable

Picture distorted.

Picture size doesn’t fi t the
screen.

The television may display
incorrectly or colors appear
faded.

Menu is not displayed
correctly.

Auto zoom function does
not work well.

• The end of an item becomes point B when it is reached. 20

• You cannot add markers with DVD-VR.

• If the disc’s elapsed play time doesn’t appear on the unit’s display, you cannot
add markers.

• Noise may occur when playing WMA. —

• Some audio effects do not work or have less effect with some discs. —

• An AC power supply cord or fl uorescent light is near the cables. Keep other
appliances and cords away from this unit’s cables.

• There may be a pause in sound when you change the play speed.

• Audio may not be output due to how fi les are created.

• Select “DVD/CD” as the source.

• Cancel program and random play.

• Some distortion is normal during SEARCH.

• Ensure that the unit is connected directly to the television, and is not connected
through a video cassette recorder.

• Change “Source Select” in Picture Menu.

• Change “TV Aspect” in the “Video” tab.

• Change the Zoom setting.

• The unit and television are using different video systems.

For Southeast Asia

–

For Australia and N.Z.

–

• The system used on the disc does not match your television.

– PAL discs cannot be correctly viewed on an NTSC television.
– This unit can convert NTSC signals to PAL 60 for viewing on a PAL television

(“NTSC Disc Output” in “Video” tab).

• Restore the zoom ratio to “x1.00”. (“Manual Zoom” in Display Menu)

• Set “Subtitle Position” in Display Menu to “0”.

• Turn off television zoom function.

• Use the other preset aspect ratios or manual adjustment.

• Zoom function may not work well, especially in dark scenes and may not work
depending on the type of disc.

Use the multi-system or NTSC television.

Use a multi-system or PAL television.

21
—

—

20
11

—
17

15

21

23
22

—

—

23

22
21

—

21, 22

—

8

Progressive video

There is ghosting when
progressive output is on.

Picture not in progressive
output.

• This problem is caused by the editing method or material used on DVD-Video,
but should be corrected if you use interlace output. Change “Video Output
Mode” in Picture Menu to “480i” or “576i”.

• Select “480p” or “576p” in “Video Output Mode” in Picture Menu.

• If the unit is connected to the television through VIDEO OUT terminal, output
will be interlace, even if “PRG” is displayed.

21

21

8

Listening to the radio

Noise is heard.
“ST” fl ickers or doesn’t
light.
Sound is distorted.

A beat sound is heard.

A low hum is heard during
AM broadcasts.

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

• Adjust the position of the FM or AM antenna.

• Use an outdoor antenna.

• Press [PLAY MODE] to select “MONO”.

• Turn the television off or separate it from the unit. —

• Separate the antenna from other cables and cords. —

26

9
9

USB

The USB drive or it’s
contents cannot be read.

RQTV0239

36

RQTV0239_1L.indd 36RQTV0239_1L.indd 36 6/12/07 12:36:54 PM6/12/07 12:36:54 PM

Slow operation of the USB
device.

• The USB drive format or it’s contents is/are not compatible with the system.

• The USB host function of this product may not work with some USB devices.

• USB devices with storage capacity of more than 32 GB may not work in some
instances.

• Large fi le size or high memory USB device takes longer time to read and
display on the TV.

33
—
—

—

Unit displays Page

Although the unit is on
standby mode, the display
lights up and changes
continuously.

The display is dark.

“NO PLAY”

“NO DISC”, “NO USB”

“OVER CURRENT ERROR”

“F61”

“DVD U11”

“ERROR”

“DVD H
“DVD F ”

stands for a number.

“REMOTE 1” or “REMOTE 2”

”

• Turn off the demo function.

• If you set the clock, demo function will be turned off automatically.

• Press [DIMMER] to brighten the display. 13

• You inserted a disc or USB device which the unit cannot play; insert one that
can.

• You inserted a blank disc or USB device.

• You inserted a disc that has not been fi nalized.

• You haven’t inserted a disc or USB device; insert one.

• You haven’t inserted the disc or USB device correctly; insert it correctly.

• The USB device is drawing too much power. Switch to DVD/CD mode, remove
the USB and turn the unit off.

• Check and correct the speaker cord connections.

If this does not fi x the problem, there is a power supply problem. Consult the

dealer.

• Disc is dirty. Wipe it clean. 25

• Incorrect operation performed. Read the instructions and try again. —

• Trouble may have occurred. The numbers following “H” and “F” depend on the
status of the unit. Turn the unit off and back to on. Alternatively, turn the unit off,
disconnect the AC power supply cord, and then reconnect it.

• If the service numbers fail to clear, note the service number and contact a
qualifi ed ser vice person.

• Match the modes on the main unit and remote control. Depending on the
number being displayed ( “1” or “2” ), press and hold [ENTER] and the
corresponding numeric button ([1] or [2]) for at least 2 seconds.

10
—

11, 3 3

—
—

—

14, 33

—

6, 7

—

—

33

Television displays

“This disc may not be
played in your region”

No on-screen display.

“”

“Cannot display group xx,
content xx”

“Check the disc”

“Authorization Error”

“Rented Movie Expired” or
“Rental Expired”

• You can only play DVD-Video if their region number is the same or includes the
same region number as the unit or if the DVD Video is marked “ALL”. Confi rm
the region number for the unit on the back of the main unit.

• Select “On” in “On-Screen Messages” in “Display” tab. 23

• The operation is prohibited by the unit or disc. —

• You are trying to display incompatible contents. —

• This disc may be dirty. 25

• You are trying to play the DivX VOD content that was purchased with a different
registration code. You cannot play the content on this unit.

• The DivX VOD content has zero remaining plays. You cannot play it.

Cover

24

24

REFERENCE

Using the cassette deck

Poor quality sound.

Recording is not possible.

• Clean the heads. 34

• If the erasure prevention tabs have been removed, cover the holes with
adhesive tape.

27

Disc trays

Disc tray(s) cannot open.
“CHGR ERR” is displayed.

• Press [ /I] to release the jammed tray(s) as the unit will switch off. Switch it on
again and the tray(s) will initialize to the previous tray(s) condition.

• If this still does not fi x the problem, please consult the dealer.

14

—

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

Memory reset (Initialization)

When the following situations occur, refer to the
instructions below to reset the memory:

• There is no response when buttons are pressed.

• You want to clear and reset the memory contents.

RQTV0239_1L.indd 37RQTV0239_1L.indd 37 6/12/07 12:36:55 PM6/12/07 12:36:55 PM

To reset memory
1 Disconnect the AC power supply cord. (Wait at least

3 minutes before proceeding to step 2)

2 While pressing and holding down [ /I] on the main

unit, reconnect the AC power supply cord.

“– – – – – – – – –” appears on the display.
3 Release [

All the settings are returned to the factory preset.
You will need to reset the memory items.

/I].

RQTV0239

37

Specifi cations

AMPLIFIER SECTION

VK960

RMS Output Power : Dolby Digital Mode

Front Ch (High Ch)

110 W per channel (3 Ω), 1 kHz, 10% THD

Front Ch (Low Ch)

55 W per channel (6 Ω), 100 Hz, 10% THD

Surround Ch

110 W per channel (3 Ω), 1 kHz, 10% THD

Center Ch

110 W per channel (3 Ω), 1 kHz, 10% THD

Subwoofer Ch

110 W per channel (3 Ω), 100 Hz, 10% THD

Total RMS Dolby Digital mode power 880 W

PMPO output power 10000 W

VK860

RMS Output Power : Dolby Digital Mode

Front Ch 110 W per channel (3 Ω), 1 kHz, 10% THD
Surround Ch 110 W per channel (3 Ω), 1 kHz, 10% THD
Center Ch 110 W per channel (3 Ω), 1 kHz, 10% THD
Subwoofer Ch

110 W per channel (3 Ω), 100 Hz, 10% THD

Total RMS Dolby Digital mode power 660 W

PMPO output power 7000 W

VK760

RMS Output Power : Dolby Digital Mode

Front Ch 95 W per channel (3 Ω), 1 kHz, 10% THD
Surround Ch 95 W per channel (3 Ω), 1 kHz, 10% THD
Center Ch 95 W per channel (3 Ω), 1 kHz, 10% THD
Subwoofer Ch

95 W per channel (3 Ω), 100 Hz, 10% THD
Total RMS Dolby Digital mode power 570 W
PMPO output power 6300 W

FM/AM TUNER, TERMINALS SECTION

Preset station FM 20 stations
AM 15 stations

Frequency Modulation (FM)

Frequency range 87.50 to 108.00 MHz (50 kHz step)
Sensitivity 4.0 µV (IHF)
S/N 26dB 2.2 µV
Antenna terminals 75 Ω (unbalanced)

Amplitude Modulation (AM)
Frequency range

For Southeast Asia

520 to 1630 kHz (10 kHz step)

For Australia and N.Z.

AM Sensitivity S/N 20dB at 999 kHz 1000 µV/m
Music Port input jack

Sensitivity 100 mV, 4.7 kΩ
Terminal Stereo, 3.5 mm jack

Phone jack

Terminal Stereo, 3.5 mm jack

For Southeast Asia

Mic jack

Sensitivity 0.7 mV, 600 Ω
Terminal Mono, 6.3 mm jack (2 system)

AUX

Sensitivity 2 V, 8 kΩ
Terminal Stereo, RCA jack

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

USB Port

USB Standard USB 2.0 full speed
Media fi le format support MP3 ( .mp3), WMA ( .wma)

USB device fi le system FAT12, FAT16, FAT32
USB port power 500 mA (Max)

RQTV0239

522 to 1629 kHz (9 kHz step)

522 to 1629 kHz (9 kHz step)

JPEG ( .jpg, .jpeg), MPEG4 (

.asf)

CASSETTE DECK SECTION

Type 1 way, Auto Reverse
Track system 4-Track, 2 Channel
Heads

Record/playback Solid permalloy head
Erasure Double gap ferrite head

Motor DC servo motor
Recording system AC bias 100 kHz
Erasing system AC erase 100 kHz
Tape speed 4.8 cm/s
Overall frequency response (+3, –6 dB) at DECK OUT

Normal 35 Hz to 14 kHz

S/N ratio 50 dB (A weighted)
Wow and fl utter 0.18% (WRMS)
Fast forward and rewind time
Approx. 120 seconds with C-60 cassette tape

VIDEO SECTION

Video system PAL625/50, PAL525/60, NTSC
Composite video output

Output level 1 Vp-p (75 Ω)
Terminal Pin jack (1 system)

Component video output

[NTSC: 480p/480i, PAL: 576p/576i]

Y output level 1 Vp-p (75 Ω)
PB output level 0.7 Vp-p (75 Ω)
PR output level 0.7 Vp-p (75 Ω)
Terminal
Pin jack (Y : green, PB : blue, PR : red) (1 system)

DISC SECTION

Disc played (8 cm or 12 cm)

(1) DVD (DVD-Video, DivX
(2) DVD-RAM (DVD-VR, JPEG

MPEG4

5, 7

, DivX 6, 7)

(3) DVD-R (DVD-Video, DVD-VR, JPEG 4,

MPEG4 5, 7, DivX 6, 7)
(4) DVD-R DL (DVD-Video, DVD-VR)
(5) DVD-RW (DVD-Video, DVD-VR, JPEG 4, 7,

MP3 2, 7, MPEG4 5, 7, DivX 6,
(6) +R/+RW (Video)
(7) +R DL (Video)
(8) CD, CD-R/RW [CD-DA, Video CD, SVCD 1,

MP3 2, 7, WMA 3, 7, JPEG 4, 7, MPEG4 5, 7,

DivX 6, 7, HighMAT Level 2 (Audio and Image)]

1

Conforming to IEC62107

2

MPEG-1 Layer 3, MPEG-2 Layer 3

3

Windows Media Audio Ver.9.0 L3

Not compatible with Multiple Bit Rate (MBR)

4

Exif Ver 2.1 JPEG Baseline fi les

Picture resolution: between 160 x 120 and 6144 x

4096 pixels (Sub sampling is 4:0:0, 4:2:0, 4:2:2 or

4:4:4). Extremely long and narrow pictures may not be

displayed.

5

MPEG4 data recorded with the Panasonic SD multi

cameras or DVD video recorders
Conforming to SD VIDEO specifi cations (ASF standard)/

MPEG4 (Simple Profi le) video system/ G.726 audio

system

6

Plays all versions of DivX® video (including DivX®6) with

standard playback of DivX® media fi les. Certifi ed to the

DivX Stereo System Profi le.

7

The total combined maximum number of recognizable

audio, picture and video contents and groups: 4000

audio, picture and video contents and 400 groups.

6, 7

)

4, 7

, MP3

7

)

2, 7

,

7

, MP3 2, 7,

38

RQTV0239_1L.indd 38RQTV0239_1L.indd 38 6/12/07 12:36:56 PM6/12/07 12:36:56 PM

Pick up
Wavelength

CD 785 nm
DVD 662 nm
Laser power
CD CLASS 1M
DVD CLASS 1

Audio output (Disc)
Number of channels (FL, FR, C, SL, SR, SW) 5.1 ch
Audio performance (measurement at: Rec Out terminal)
Frequency response (CD-Audio) 4 Hz to 20 kHz

SPEAKER SECTION

Rating with low-cut fi lter equipped amplifi er.

VK960

Front speakers SB-PF960

Type 3 way, 3 speaker system (Bass refl ex)
Speaker unit(s) Impedance High 3 Ω/Low 6 Ω

1. Super woofer 20 cm Cone type

2. Woofer 12 cm Cone type

3. Tweeter 2.5 cm Titanium Dome type

Input power (IEC) High 110 W (Max)/Low 55 W (Max)
Output sound pressure 88 dB/W (1.0 m)

Cross over frequency 160 Hz, 6 kHz
Frequency range 40 Hz to 29 kHz (–16 dB)
54 Hz to 28 kHz (–10 dB)

Dimensions (WxHxD) 250 mm x 429.5 mm x 298.5 mm
Mass 6.1 kg

VK960

Surround speakers SB-PS960

Type 2 way, 3 speaker system (Bass refl ex)
Speaker unit(s) Impedance 3 Ω

1. Full range 8 cm Cone type

2. Full range 8 cm Cone type

3. Super tweeter Piezo type

Input power (IEC) 110 W (Max)
Output sound pressure 82 dB/W (1.0 m)

Cross over frequency 10 kHz
Frequency range 100 Hz to 24 kHz (–16 dB)
110 Hz to 22 kHz (–10 dB)

Dimensions (WxHxD) 140 mm x 331 mm x 146.5 mm
Mass 1.6 kg

VK960

Center speaker SB-PC960

Type 2 way, 3 speaker system (Bass refl ex)
Speaker unit(s) Impedance 3 Ω

1. Full range 8 cm Cone type

2. Full range 8 cm Cone type

3. Super tweeter Piezo type

Input power (IEC) 110 W (Max)
Output sound pressure 82 dB/W (1.0 m)

Cross over frequency 10 kHz
Frequency range 92 Hz to 27 kHz (–16 dB)
105 Hz to 25 kHz (–10 dB)

Dimensions (WxHxD) 330 mm x 104 mm x 94.5 mm
Mass 1.4 kg

VK860

Front speakers SB-PF860

Type 3 way, 3 speaker system (Bass refl ex)
Speaker unit(s) Impedance 3 Ω

1. Super woofer 20 cm Cone type

2. Woofer 12 cm Cone type

3. Tweeter 2.5 cm Titanium Dome type

Input power (IEC) 110 W (Max)
Output sound pressure 88 dB/W (1.0 m)

Cross over frequency 200 Hz, 6 kHz
Frequency range 40 Hz to 29 kHz (–16 dB)
54 Hz to 28 kHz (–10 dB)

Dimensions (WxHxD) 250 mm x 429.5 mm x 298.5 mm
Mass 6.1 kg

VK860

Surround speakers SB-PS860

Typ e 2 way, 3 speaker system (Bass refl ex)
Speaker unit(s) Impedance 3 Ω

1. Full range 8 cm Cone type

2. Full range 8 cm Cone type

3. Super tweeter Piezo type

Input power (IEC) 110 W (Max)
Output sound pressure 82 dB/W (1.0 m)

Cross over frequency 10 kHz
Frequency range 100 Hz to 24 kHz (–16 dB)
110 Hz to 22 kHz (–10 dB)

Dimensions (WxHxD) 140 mm x 331 mm x 146.5 mm
Mass 1.6 kg

VK860

Center speaker SB-PC860

Typ e 2 way, 3 speaker system (Bass refl ex)
Speaker unit(s) Impedance 3 Ω

1. Full range 8 cm Cone type

2. Full range 8 cm Cone type

3. Super tweeter Piezo type

Input power (IEC) 110 W (Max)
Output sound pressure 82 dB/W (1.0 m)

Cross over frequency 10 kHz
Frequency range 92 Hz to 27 kHz (–16 dB)
105 Hz to 25 kHz (–10 dB)

Dimensions (WxHxD) 330 mm x 104 mm x 94.5 mm
Mass 1.4 kg

VK960

Subwoofers SB-WVK960

VK860

Subwoofer SB-WVK860

Type 1 way, 2 speaker system (Bass refl ex)
Speaker unit(s) Impedance 3 Ω

1. Woofer 16 cm Aluminum Cone type

2. Woofer 16 cm Aluminum Cone type

Input power (IEC) 110 W (Max)
Output sound pressure 86 dB/W (1.0 m)
Frequency range 26 Hz to 310 Hz (–16 dB)

30 Hz to 250 Hz (–10 dB)

Dimensions (WxHxD) 200 mm x 429.5 mm x 359 mm
Mass 6.1 kg

VK760

Front speakers SB-PF760

Type 3 way, 3 speaker system (Bass refl ex)
Speaker unit(s) Impedance 3 Ω

1. Super tweeter Piezo type

2. Tweeter 6 cm Cone type

3. Woofer 16 cm Cone type

Input power (IEC) 110 W (Max)
Output sound pressure 82 dB/W (1.0 m)

Cross over frequency 4.16 kHz, 10 kHz
Frequency range 30 Hz to 28 kHz (–16 dB)
38 Hz to 21 kHz (–10 dB)

Dimensions (WxHxD) 220 mm x 330 mm x 182 mm
Mass 2.6 kg

VK760

Surround speakers SB-PS760

Type 1 way, 1 speaker system (Bass refl ex)
Speaker unit(s) Impedance 3 Ω

1. Full range 6.5 cm Cone type
Input power (IEC) 110 W (Max)
Output sound pressure 80 dB/W (1.0 m)
Frequency range 95 Hz to 25 kHz (–16 dB)

110 Hz to 22 kHz (–10 dB)

Dimensions (WxHxD) 270 mm x 92 mm x 95.4 mm
Mass 0.9 kg

REFERENCE

LANG - 5 LANG - 4 FRANÇAIS DANSK ENGLISH

RQTV0239

39

RQTV0239_1L.indd 39RQTV0239_1L.indd 39 6/12/07 12:36:56 PM6/12/07 12:36:56 PM

Specifi cations (continued)

VK760

Center speaker SB-PC760

Type 1 way, 1 speaker system (Bass refl ex)
Speaker unit(s) Impedance 3 Ω

1. Full range 6.5 cm Cone type

2. Full range 6.5 cm Cone type

Input power (IEC) 110 W (Max)
Output sound pressure 85 dB/W (1.0 m)
Frequency range 100 Hz to 29 kHz (–16 dB)

110 Hz to 22 kHz (–10 dB)

Dimensions (WxHxD) 270 mm x 92 mm x 95.4 mm
Mass 0.9 kg

VK760

Subwoofer SB-WVK760

Type 1 way, 1 speaker system (Bass refl ex)
Speaker unit(s) Impedance 3 Ω

1. Woofer 16 cm Cone type
Input power (IEC) 110 W (Max)
Output sound pressure 80 dB/W (1.0 m)
Frequency range 28 Hz to 173 Hz (–16 dB)

33 Hz to 148 Hz (–10 dB)

Dimensions (WxHxD) 220 mm x 330 mm x 303 mm
Mass 3.7 kg

GENERAL

Power supply

For Southeast Asia

AC 110 to 127V/220 to 240V, 50/60 Hz

For Australia and N.Z.

AC 230 to 240V, 50 Hz

Power consumption

VK960

360 W

VK860

VK760

290 W

Dimensions (WxHxD) 250 mm x 330 mm x 334.6 mm
Mass 5.5 kg
Operating temperature range +5°C to +35°C
Operating humidity range

5% to 90% RH (no condensation)

Power consumption in standby mode

Note:

1. Specifi cations are subject to change without notice.
Weight and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.

0.9 W (approximate)

Matsushita Electric Industrial Co., Ltd.

En

Web Site: http://panasonic.net

RQTV0239-1L

L0507KE1067

RQTV0239_1L.indd 40RQTV0239_1L.indd 40 6/12/07 12:36:58 PM6/12/07 12:36:58 PM
