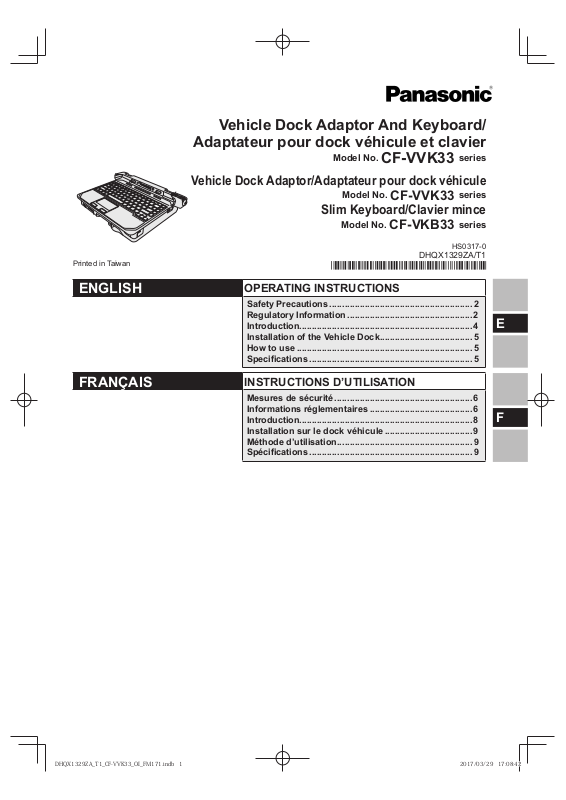

Vehicle Dock Adaptor And Keyboard/ Adaptateur pour dock véhicule et clavier
Model No. CF-VVK33 series
Vehicle Dock Adaptor/Adaptateur pour dock véhicule
Model No. CF-VVK33 series
Slim Keyboard/Clavier mince
Model No. CF-VKB33 series
HS0317-0
DHQX1329ZA/T1
Printed in Taiwan
ENGLISH |
OPERATING INSTRUCTIONS |
|
|
|
|
.........................................................Safety Precautions |
2 |
|
|
|
Regulatory Information |
2 |
|
|
|
E |
|||
|
Introduction..................................................................... |
4 |
|
|
|
Installation of the Vehicle Dock |
5 |
|
|
|
|
|||
|
How to use ...................................................................... |
5 |
|
|
|
Specifications................................................................. |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
FRANÇAIS |
INSTRUCTIONS D’UTILISATION |
|
|
|
|
.......................................................Mesures de sécurité |
6 |
|
|
|
.........................................Informations réglementaires |
6 |
|
|
|
F |
|||
|
Introduction..................................................................... |
8 |
|
|
|
...................................Installation sur le dock véhicule |
9 |
|
|
|
|
|||
|
Méthode d’utilisation...................................................... |
9 |
|
|
|
Spécifications................................................................. |
9 |
|
|
|
|
|
|
|
Safety Precautions
Do Not Place This Product on Unstable Surfaces
If balance is lost, this product may fall over or drop, resulting in an injury.
Using this product continuously in a hot environment will shorten the product life.
Avoid use in these types of environments.
When using in hot or cold environment, some peripherals may fail to work properly. Check the operation environment of the peripherals.
Regulatory Information
For U.S.A.
Federal Communications Commission Radio Frequency Interference Statement
ENote: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the Panasonic Service Center or an experienced radio/TV technician for help.
Warning
To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause undesired operation.
This device is Class B confirmed to comply with Part 15 of FCC Rules when used with Panasonic Personal Computer.
This equipment (Vehicle Dock Adaptor) has been tested and found to comply with the limits for Class A digital device pursuant to Part 15 of FCC Rules when used with Panasonic Personal Computer and Vehicle Dock.
Responsible Party: |
Panasonic Corporation of North America |
|
Two Riverfront Plaza, |
|
Newark NJ 07102 |
Support Contact: |
http://www.panasonic.com/support-computerstablets |
6-M-1
2
External Antenna
FCC RF Exposure Warning:
This equipment is provided with external antenna connector(s) for connection to optional Car Mounter or Port Replicator for mobile external mounted antenna(s). External antenna(s) must be professionally installed and cannot exceed recommended maximum antenna gain as described in individual provided supplement instructions for wireless transmitters.
The Car Mounter is provided with Radiall/Larsen WLAN whip antenna, type NMO5E2400BKTNC with 5 dBi antenna gain. The maximum allowable antenna gain for the external WWAN base whip antenna for the 700 MHz, 850 MHz, 1700 MHz and 1900 MHz bands are 6 dBi, 9 dBi at 2500 MHz and 2600 MHz bands. Also, user must maintain minimum 20 cm spacing between external antenna(s) and all person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation.
32-M-1
For Canada
Canadian ICES-003
CAN ICES-003(B) / NMB-003(B)
7-M-2
External Antenna
This device has been designed to operate with the WWAN antenna having a maximum gain of 6 dBi for the
700 MHz, 850 MHz, 1700 MHz, 1900 MHz bands and 9 dBi for the 2500 MHz bands. WWAN Antenna having E a higher gain is strictly prohibited per regulations of Industry Canada. The Required antenna impedance is 50
ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication.
For Europe
Declaration of Conformity (DoC)
“Hereby, Panasonic declares that this Vehicle Dock Adaptor And Keyboard is in compliance with the essential requirements and other relevant provisions of EU Council Directives.”
Authorised Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
18-E-0
Disposal of Old Equipment
Only for European Union and countries with recycling systems
This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment. For more information about collection and recycling, please contact your local municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
36-E-2
3
Regulatory Information
For India
Declaration of Conformity with the requirements of the e-waste (Management and Handling) Rules, 2011. (adopted by Notification S.O.1035(E) of Ministry of Environment and Forests)
The Product is in conformity with the requirements of Rule 13 of the e-waste Rules.
The content of hazardous substance with the exemption of the applications listed in SCHEDULE II of the e-waste Rules:
1.Lead (Pb) - not over 0.1% by weight;
2.Cadmium (Cd) - not over 0.01% by weight;
3.Mercury (Hg) - not over 0.1% by weight;
4.Hexavalent chromium (Cr6+) - not over 0.1% by weight;
5.Polybrominated biphenyls (PBBs) - not over 0.1% by weight;
6.Polybrominated diphenyl ethers (PBDEs) - not over 0.1% by weight.
For the purpose of recycling to facilitate effective utilization of resources, please return this product to a nearby authorized collection center, registered dismantler or recycler, or Panasonic service center when disposing of this product.
Please see the Panasonic website for further information on collection centers, etc. http://www.panasonic.com/in/corporate/sustainability/panasonic-india-i-recycle-program.html Service helpline: 1800 103 1333 or 1800 108 1333
68-M-1
E
Introduction
Thank you for purchasing this Panasonic product.
This is the Vehicle Dock Adaptor and Keyboard for the Panasonic CF-33 computer series*1. Please read these instructions carefully before using this product, and save this manual for future use.
Before using the product, read this Operating Instructions and the relevant portions of the computer’s
Operating Instructions - Read Me First carefully.
*1 Not compatible with other products.
Parts Included |
|
Vehicle Dock Adaptor ...................................................................... |
1 |
Slim Keyboard*2................................................................................. |
1 |
Operating Instructions (This book)................................................. |
1 |
*2 Not included with some models.
Trademarks
Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective own companies.
4
