E71
E71 RM-346/357/407
Service Manual Level 1&2
SERVICE MANUAL
Level 1&2
Transceiver characteristics
Band:
Quad-band GSM 850/900/1800/1900
WCDMA 900/2100 and 850/1900 and 850/2100
Display:
QVGA 2.36” landscape display,
Active area 48 x 36 mm,
320x240 resolution, 16M colours
Camera:
3.2 Mpix with flash
Operating System:
S60 with Home Screen
Connections:
Bluetooth 2.0, WLAN, Infrared, microUSB,
2.5 mm AV
Transceiver with BP-4L
Talk time Standby Note
Up to 10 h 30
min (GSM)
Up to 4 h 30
min (WCDMA)
battery pack
Up to 17 days
(GSM)
Up to 20 days
(WCDMA)
Depends on
network
parameters
and phone
settings
1 CONFIDENTIAL
Issue 2 Copyright © 2008 NOKIA. All rights reserved.
E71 RM-346/357/407
Change history ................................................................................................................................3
1.
2. Copyright ........................................................................................................................................ 4
3. Warnings and cautions .................................................................................................................... 5
3.1 Warnings .................................................................................................................................. 5
3.2 Cautions ................................................................................................................................... 5
4. ESD protection................................................................................................................................. 6
5. Care and maintenance..................................................................................................................... 7
6. Battery information......................................................................................................................... 8
7. PCI overview.................................................................................................................................... 9
8. Spare parts view............................................................................................................................ 10

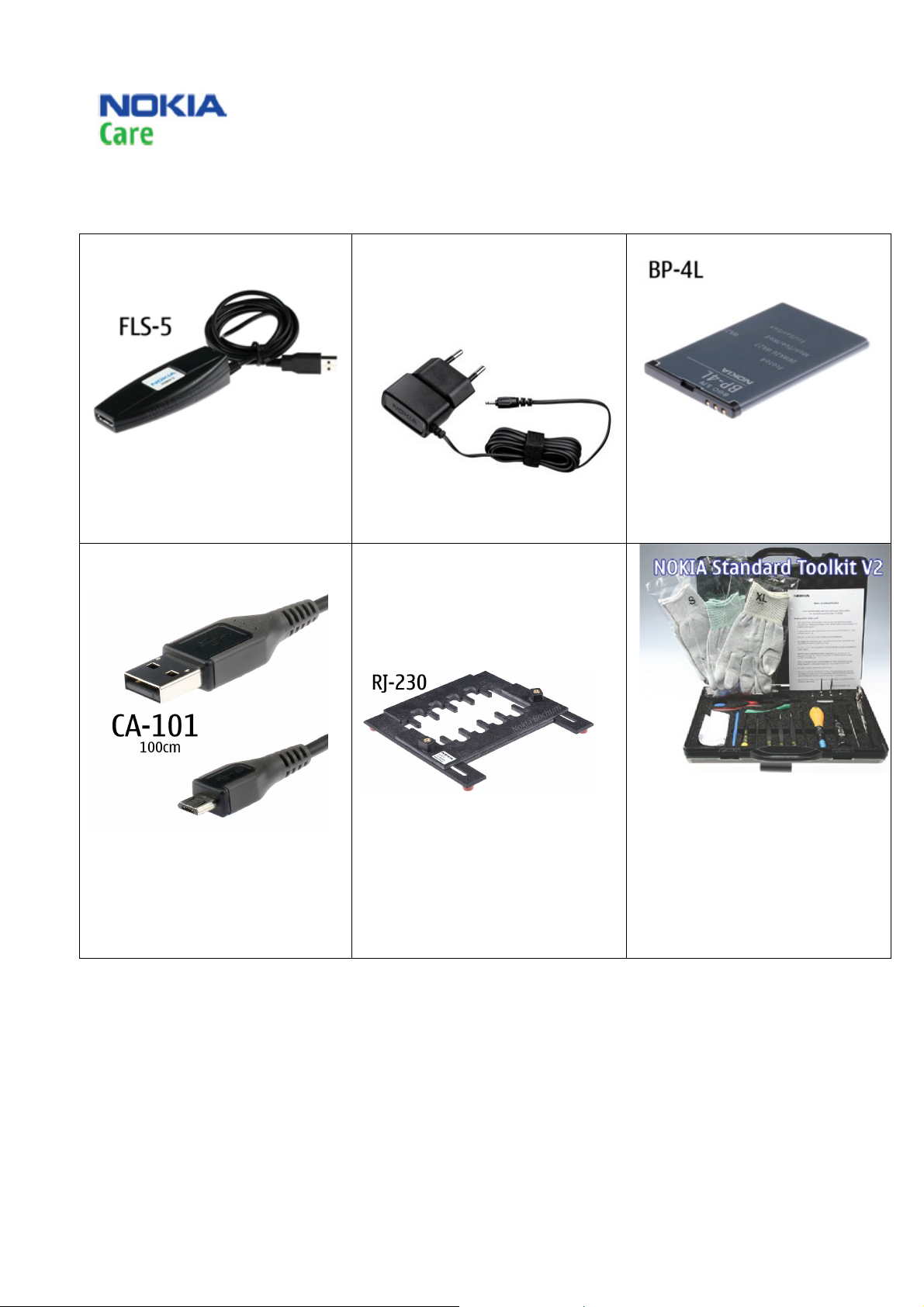

9. Service devices .............................................................................................................................. 11
10. SW-update.............................................................................................................................. 12

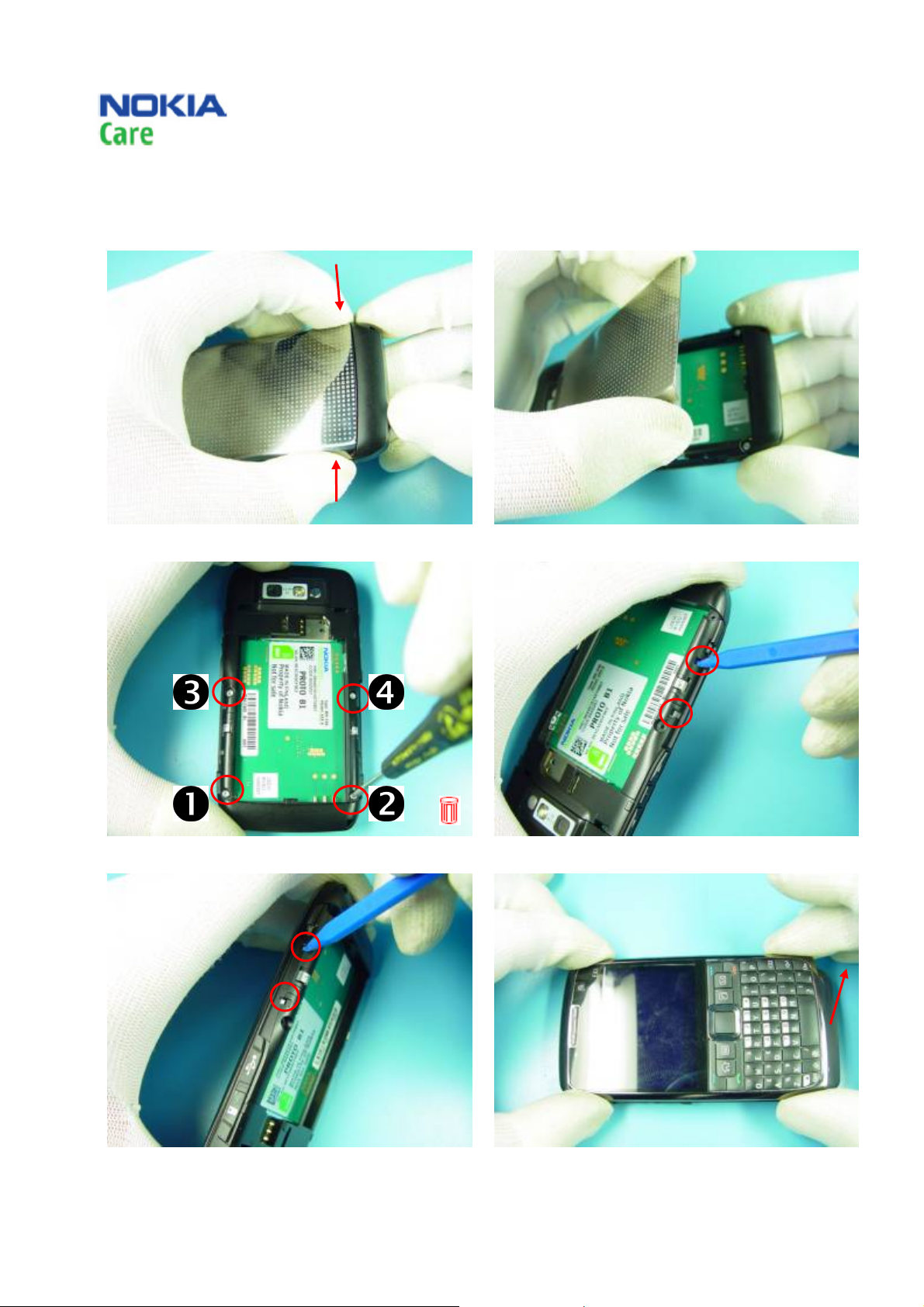

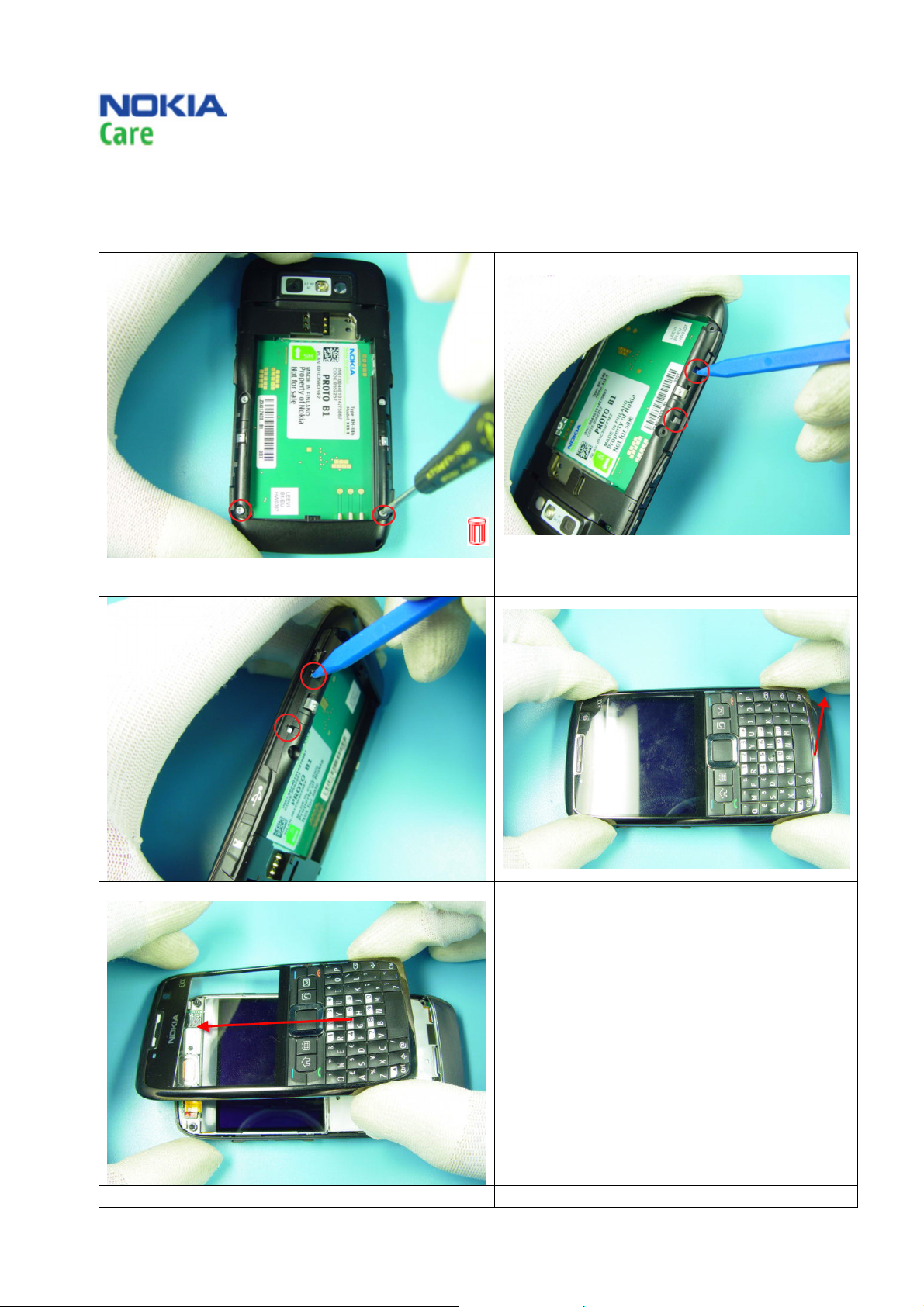

11. Disassembly instruction .......................................................................................................... 13
12. Disassembly/assembly hints.................................................................................................... 19
12.1 A cover removal .................................................................................................................. 19

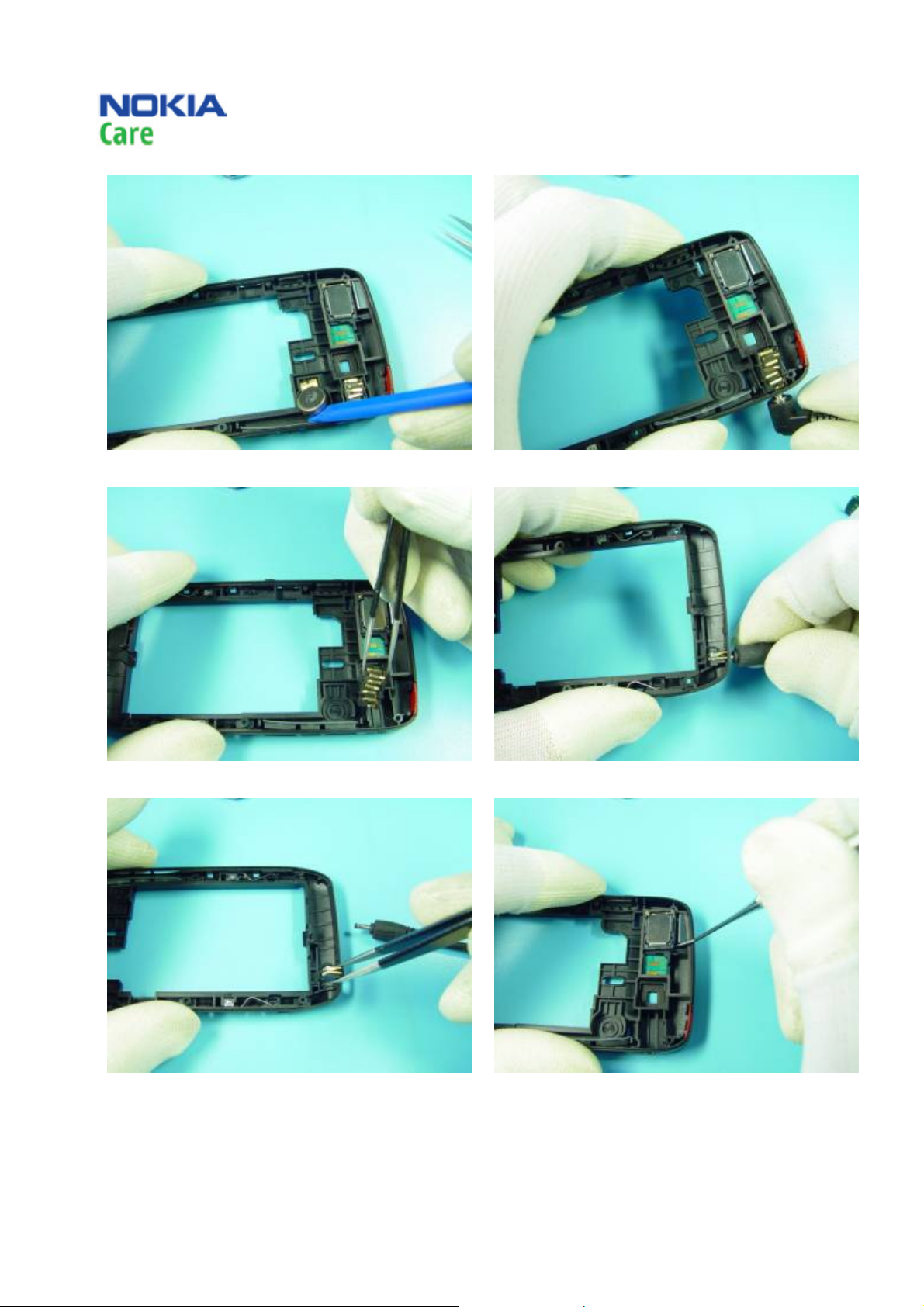

12.2 IHF speaker replacement ..................................................................................................... 20
12.3 Torque information............................................................................................................. 20
13. Solder components ................................................................................................................. 21
Service Manual Level 1&2
2 CONFIDENTIAL
Issue 2 Copyright © 2008 NOKIA. All rights reserved.
E71 RM-346/357/407
1. CHANGE HISTORY
Status Version No. Date Comments
Draft 0.1 19.06.2008 First draft
Approved 1 26.06.2008
Updated 2 07.07.2008 Spare parts view/item
The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to
carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA
service suppliers, and the content of it is confidential. Please note that NOKIA provides also
other guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly
and comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors
may exist. If you find any errors or if you have further suggestions, please notify NOKIA using
the address below:
Service Manual Level 1&2
code corrected
CMO Operation & Logistics
Training and Vendor Development
Multimedia Creation & Support
mailto:Service.Manuals@nokia.com
Please keep in mind also that this documentation is continuously being updated and modified,
so watch always out for the newest version.
3 CONFIDENTIAL
Issue 2 Copyright © 2008 NOKIA. All rights reserved.
E71 RM-346/357/407
2. COPYRIGHT
Copyright © 2008 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in
any form without the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of
Nokia Corporation. Other product and company names mentioned herein may be trademarks
or tradenames of their respective owners.
Nokia operates a policy of continuous development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any
special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
Service Manual Level 1&2
The availability of particular products may vary by region.
IMPORTANT
This document is intended for use by qualified service personnel only.
4 CONFIDENTIAL
Issue 2 Copyright © 2008 NOKIA. All rights reserved.
E71 RM-346/357/407
3. WARNINGS AND CAUTIONS
Please refer to the phone’s user guide for instructions relating to operation, care and
maintenance including important safety information. Note also the following:
3.1 Warnings
1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE
MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT
CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT
THE VEHICLE DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE
ELECTRONIC SYSTEMS TO RF ENERGY.
2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN
POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS),
BLASTING AREAS ETC.
3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES,
MAY INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL
DEVICES. CONSULT A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU
HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO
INTERFERENCE.
Service Manual Level 1&2
3.2 Cautions
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist
strap is worn.
3. Use only approved components as specified in the parts list.
4. Ensure all components, modules screws and insulators are correctly re–fitted after
servicing and alignment.
5. Ensure all cables and wires are repositioned correctly.
5 CONFIDENTIAL
Issue 2 Copyright © 2008 NOKIA. All rights reserved.
E71 RM-346/357/407
4. ESD PROTECTION
Nokia requires that service points have sufficient ESD protection (against
static electricity) when servicing the phone.
Any product of which the covers are removed must be handled with ESD
protection. The SIM card can be replaced without ESD protection if the
product is otherwise ready for use.
To replace the covers ESD protection must be applied.
All electronic parts of the product are susceptible to ESD. Resistors, too, can
be damaged by static electricity discharge.
All ESD sensitive parts must be packed in metallized protective bags during
shipping and handling outside any ESD Protected Area (EPA).
Every repair action involving opening the product or handling the product
components must be done under ESD protection.
ESD protected spare part packages MUST NOT be opened/closed out of an
ESD Protected Area.
For more information and local requirements about ESD protection and ESD
Protected Area, contact your local Nokia After Market Services representative.
Service Manual Level 1&2
6 CONFIDENTIAL
Issue 2 Copyright © 2008 NOKIA. All rights reserved.
E71 RM-346/357/407
5. CARE AND MAINTENANCE
This product is of superior design and craftsmanship and should be treated with care. The
suggestions below will help you to fulfil any warranty obligations and to enjoy this product for
many years.
• Keep the phone and all its parts and accessories out of the reach of small children.
• Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can
contain minerals that will corrode electronic circuits.
• Do not use or store the phone in dusty, dirty areas. Its moving parts can be damaged.
• Do not store the phone in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the phone in cold areas. When it warms up (to its normal temperature),
moisture can form inside, which may damage electronic circuit boards.
• Do not drop, knock or shake the phone. Rough handling can break internal circuit
boards.
Service Manual Level 1&2
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the phone.
• Do not paint the phone. Paint can clog the moving parts and prevent proper operation.
• Use only the supplied or an approved replacement antenna. Unauthorised antennas,
modifications or attachments could damage the phone and may violate regulations
governing radio devices.
All of the above suggestions apply equally to the product, battery, charger or any accessory.
7 CONFIDENTIAL
Issue 2 Copyright © 2008 NOKIA. All rights reserved.
