LG G-Pad F 8.0, V496 Instruction Manual

ENGLISH

User Guide

LG-V496

MFL69102701 (1.0)

User Guide

ENGLISH

•Some of the contents in this manual may differ from your device depending on the software version of the device, OS version or your service provider, and are subject to change without prior notice.

•Always use genuine LG accessories.The supplied items are designed only for this device and may not be compatible with other devices.

•This device is not suitable for people who have a visual impairment due to the touchscreen keyboard.

•All screen shots in this guide are simulated.

•Actual displays and the color of the device may vary.

SERVICE ACTIVATION

If you are a new T-Mobile® customer and your service has not been activated, simply call Customer Care at 1-800-937-8997 from your landline phone and a T-Mobile Activations representative will assist you.You will need the following information when activating service:

•Service Agreement and agent code on your Agreement.

•Your name, home address, home phone, and billing address.

NOTE: For business and government accounts, please provide the name of your company or government agency, address, and tax ID.

•Your Social Security number, current driver’s license number, and date of birth for credit check purposes.

•Your choice of T-Mobile rate plan and services (see www.t-mobile.com for the latest plan information).

•SIM serial number and IMEI number (located on the box bar code label).

By activating service, you acknowledge that you have read, understand, and agree to be bound by each of T-Mobile’s Terms and Conditions and your Service Agreement.

			SERVICE ACTIVATION
	2

About this user guide

Please read this user guide carefully before you use your phone and keep it handy for future reference.

Should your phone fails to operate correctly, refer to the FAQ section.

•Some features and service may vary by area, phone, carrier, plan and version of phone software.

•Screen displays and illustrations on this user manual may differ from those you see on the actual phone.

•Designs and specifications of the phone and other accessories are subject to change without any notice.

SERVICE ACTIVATION	3

Table of contents
SERVICE ACTIVATION.................................	2
About this user guide..................................	3
Important Notice.......................................	6
Getting to know your device.....................	9
Phone layout...............................................	9
Connecting cables to the ports.................	12
Installing the SIM card or microSD card....	14
Removing the memory card.....................	16
Locking and unlocking the device.............	16
Your Home screen...................................	18
Touch screen tips.....................................	18
Home screen............................................	19
Customizing the Home screen..................	20
Returning to recently-used applications...	22
Notifications panel....................................	22
On-screen keyboard.................................	25
Special Features......................................	26
Gesture shot.............................................	26
Gesture View.............................................	27
KnockON..................................................	28
Knock Code..............................................	28
Dual window.............................................	29
QuickMemo+............................................	30
QSlide.......................................................	31
QuickRemote............................................	32
Google Account Setup.............................	34

4

Connecting to Networks and Devices....	36
Wi-Fi.........................................................	36
Bluetooth..................................................	37
Wi-Fi Direct...............................................	38
SmartShare..............................................	39
QPair.........................................................	40
Transferring data between a PC and your
device.......................................................	42
Contacts...................................................	43
Searching for a contact.............................	43
Adding a new contact...............................	43
Favorites contacts.....................................	43
Creating a group.......................................	44
Email........................................................	45
Managing email accounts.........................	45
Working with account folders...................	45
Composing and sending email..................	46
Camera and Video...................................	47
Using the advanced settings.....................	48
Taking a photo..........................................	49
Once you have taken a photo...................	49
Recording a video.....................................	50
After recording a video.............................	50
Gallery......................................................	51
Multimedia...............................................	54

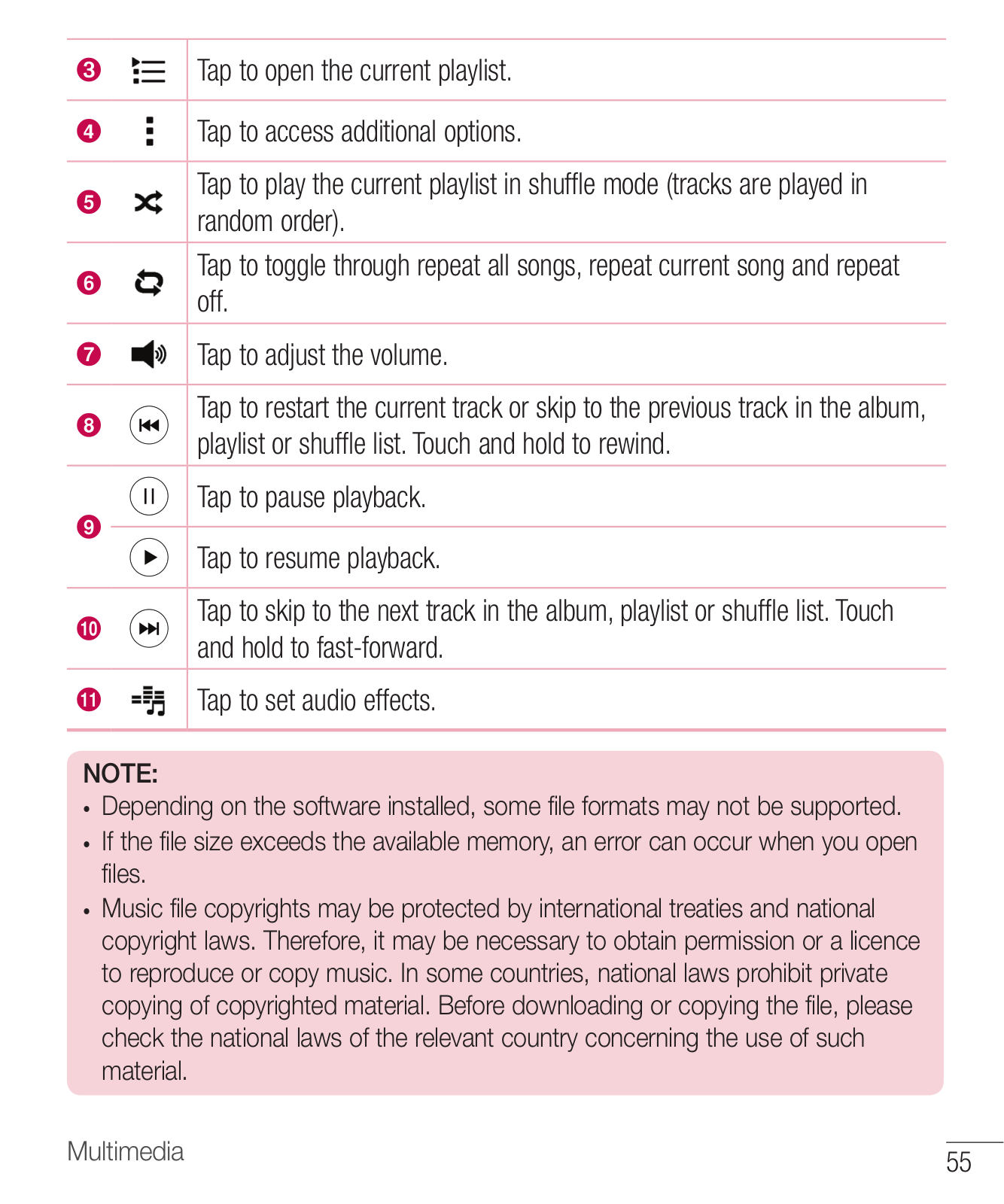

Music........................................................	54
Table of contents

Utilities.....................................................	56
Clock........................................................	56
Calculator.................................................	57
Calendar...................................................	58
Voice Search.............................................	58
Downloads................................................	59
Browsing the Web...................................	60
Chrome.....................................................	60
Settings....................................................	61
WIRELESS NETWORKS.............................	61

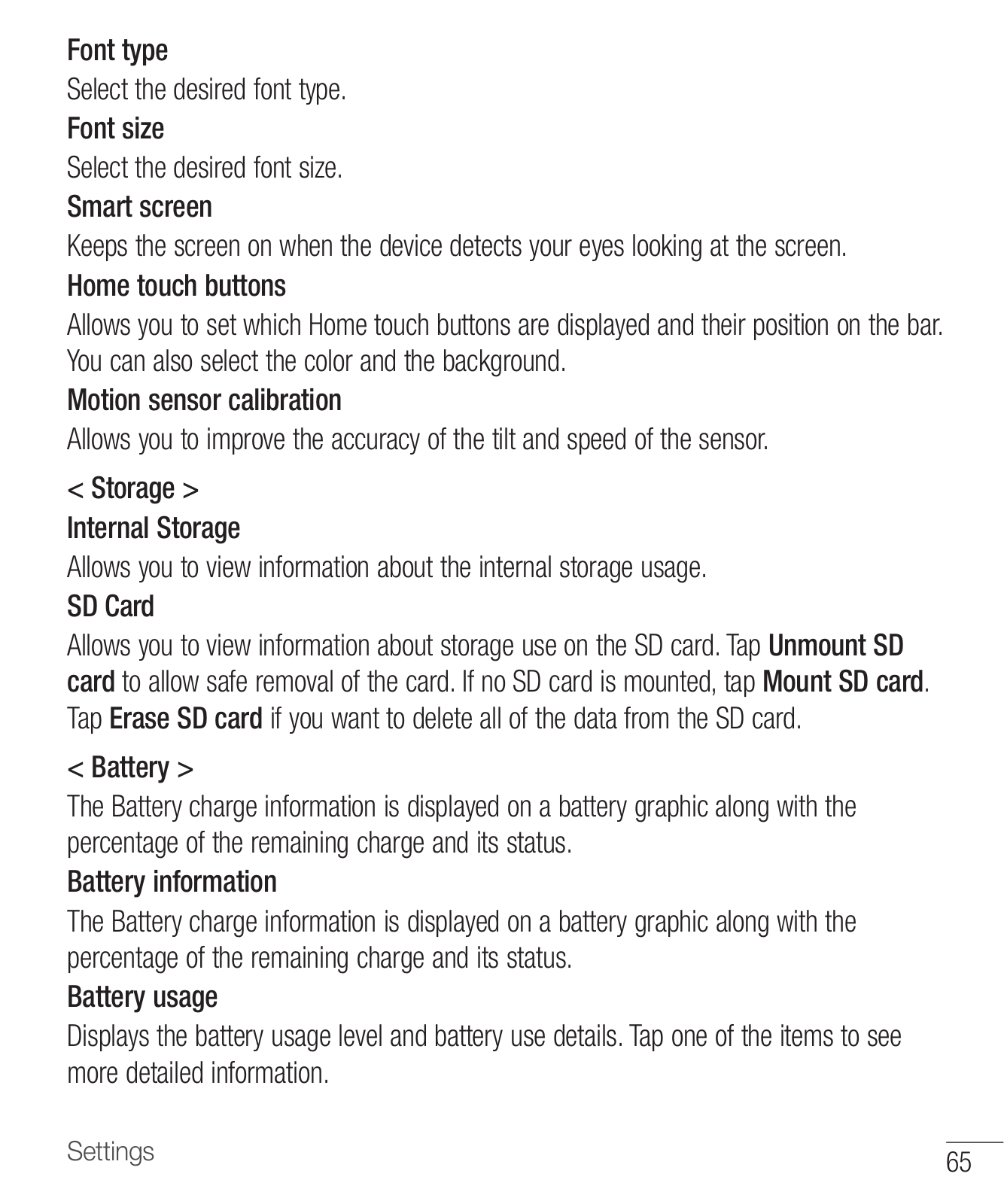

DEVICE......................................................	62
PERSONAL................................................	67

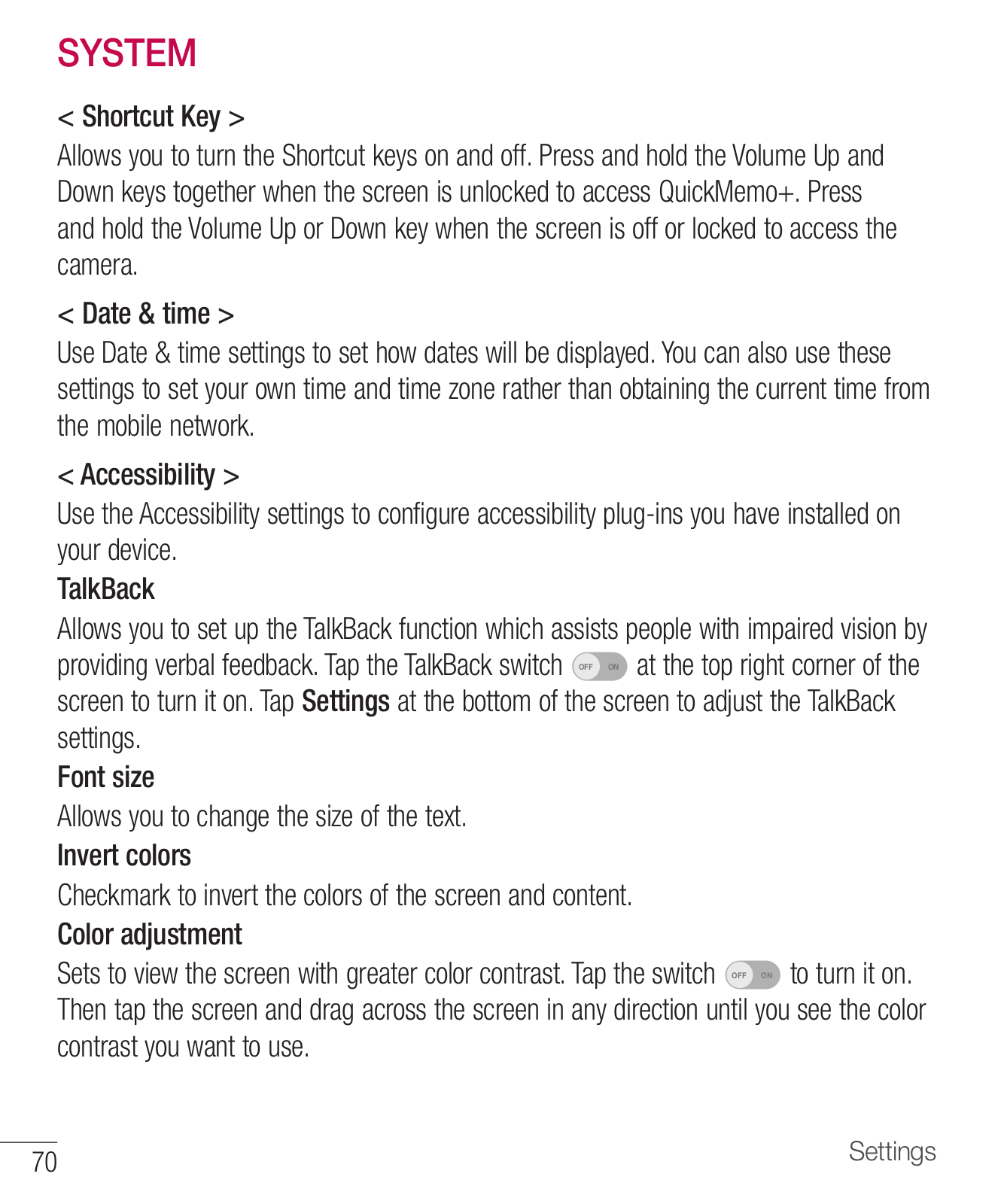

SYSTEM....................................................	70
Software Update......................................	74
Device Software Update...........................	74
LG Device Software Update via
Over-the-Air (OTA)....................................	74

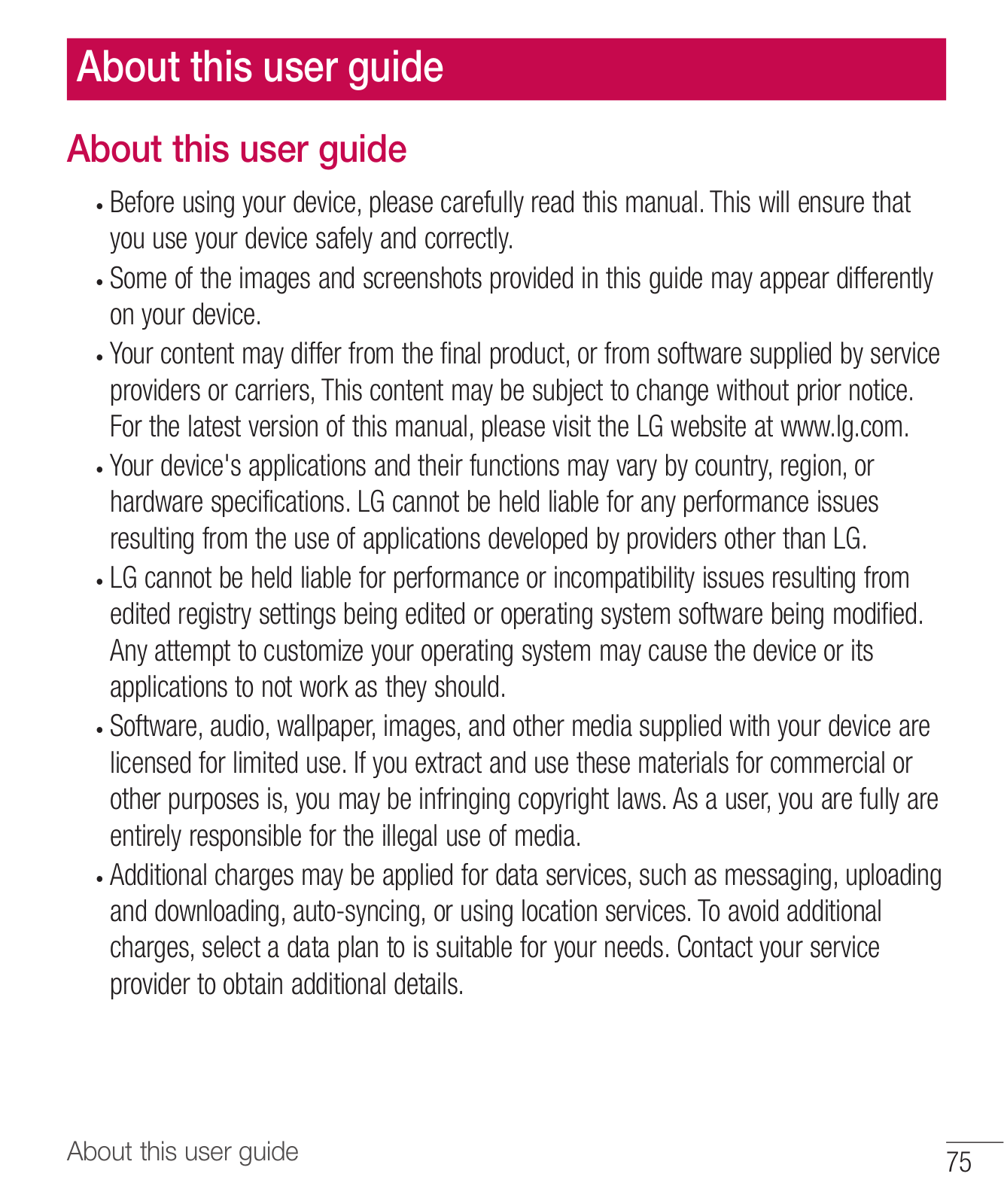

About this user guide..............................	75
About this user guide................................	75
Trademarks..............................................	76
Trademarks..............................................	76
DivX HD....................................................	76
Troubleshooting.......................................	77

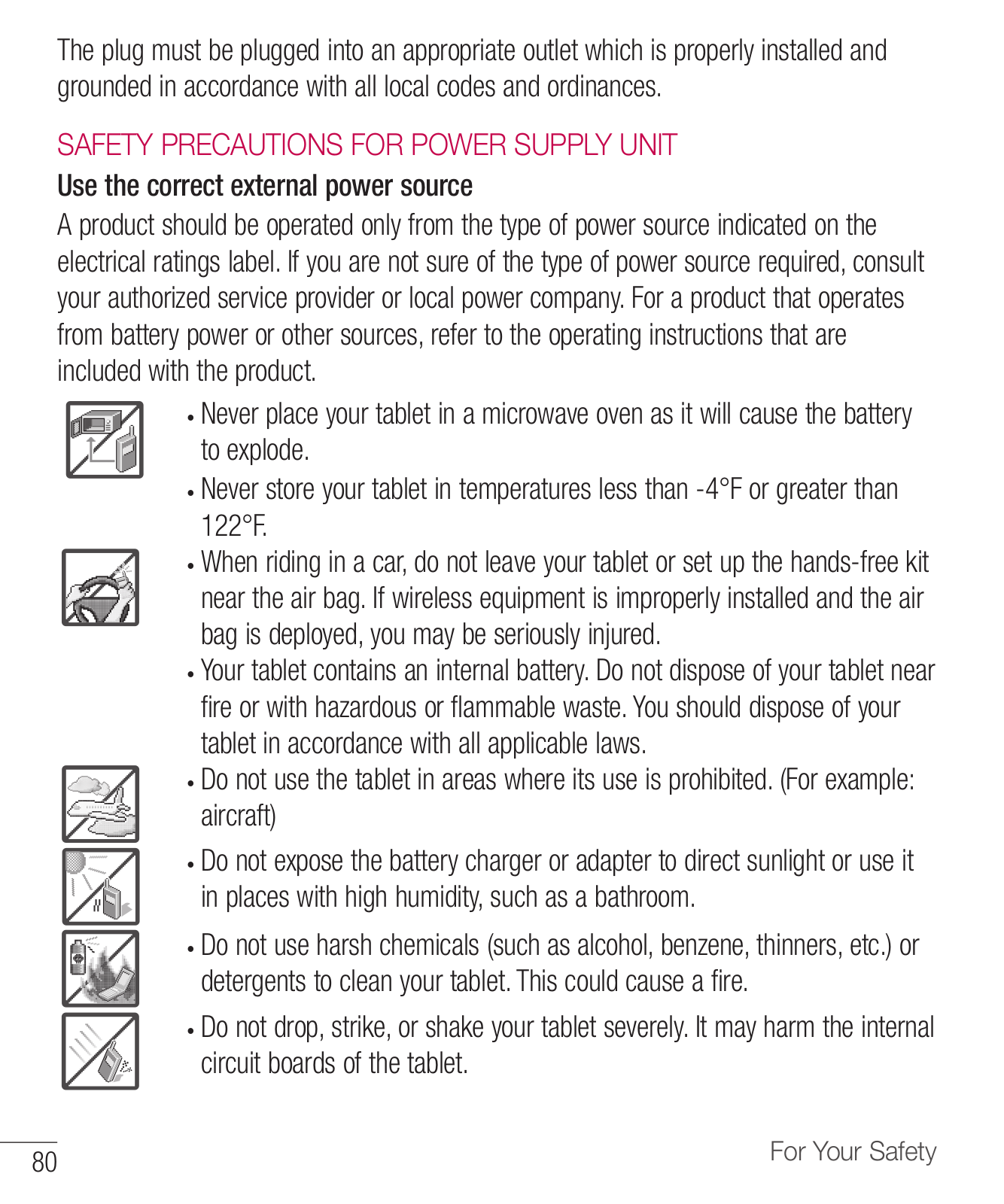

For Your Safety........................................	79
Safety Information....................................	82
Limited Warranty Statement...................	109

Table of contents	5

Important Notice

Please read this before you start using your device!

Please check to see whether any problems you encountered with your device are described in this section before taking the device in for service or calling a service representative.

1. Device memory

You may need to check your device memory and delete some data, such as applications to make more memory available.

To uninstall applications:

1Tap > > > Apps.

2Once all applications appear,scroll to and select the application you want to uninstall.

3Tap Uninstall.

2. Optimizing battery life

Extend your battery's power by turning off features that you do not need to run constantly in the background.You can monitor how applications and system resources consume battery power.

Extending your device's battery life:

•Turn off radio communications when you are not using. If you are not using Wi-Fi, Bluetooth or GPS, turn them off.

•Reduce screen brightness and set a shorter screen timeout.

•Turn off automatic syncing for Gmail, Calendar, Contacts and other applications.

•Some applications you download may consume battery power.

			Important Notice
	6

•While using downloaded applications, check the battery charge level.

3.Before installing an open source application and OS

WARNING

•If you install and use an OS other than the one provided by the manufacturer it may cause your device to malfunction. In addition, your device will no longer be covered by the warranty.

•To protect your device and personal data, only download applications from trusted sources, such as Play Store™. If there are improperly installed applications on your device, the device may not work normally or a serious error may occur. You must uninstall those applications and all associated data and settings from the device.

4. Using the Hard Reset (Factory Reset)

If your device does not restore to its original condition, use a Hard Reset (Factory Reset) to initialize it.

1Turn the power off.

2Press and hold the Power/Lock Key + Volume Down Key on the right side of the device until the LG logo is displayed.

3Briefly release only the Power/Lock Key when the LG logo is displayed.

4Immediately press and hold the Power/Lock Key again.

5Release all keys when the Factory reset screen is displayed.

6Press the Volume Keys to select Yes,and then press the Power/Lock Key to perform a Hard Reset.Perform this step twice.

Important Notice	7

WARNING

If you perform a Hard Reset, all user applications, user data and DRM licenses will be deleted. Please remember to backup any important data before performing a Hard Reset.

5. Opening and switching applications

Multitasking is easy with Android; you can keep more than one application running at the same time.There is no need to quit an application before opening another. Use and switch between several open applications.Android manages each application, stopping and starting them as needed to make sure that idle applications don't consume resources unnecessarily.

1Tap .App previews of recently used applications will be displayed.

2Tap the application you want to access.This does not stop the previous app from running in the background.Make sure to tap to back out of an app after using it.

•To close an app from the recent apps list, swipe the app preview to the left or right. To clear all apps, tap Clear all.

6. If the screen freezes

If the screen freezes or the device does not respond when you try to operate it:

Press and hold the Power/Lock Key for about 10 seconds to reset your device.To turn your device off, press and hold the Power/Lock Key for about 20 seconds. If it still does not work, please contact the service center.

			Important Notice
	8

Getting to know your device

Phone layout

	Earphone jack	Infrared (IR) LED
	Microphone	USB peripheral port
		Front-facing camera
		Power/Lock key
		Volume keys

Getting to know your device	9

Rear-facing camera

SIM card/microSD card slot

		Speaker
		Stylus Pen
		Charger / USB port
	Front-facing	Use to take pictures and record videos of yourself.You can
		also use this for video chatting. Keep it clean for optimal
	camera
		performance.

Press to lock/unlock the screen. Press and hold to turn Power/Lock key the tablet on/off, restart it, and activate/deactivate airplane

mode.

			Getting to know your device
	10

		Allow you to adjust the media volumes. Press and hold both
	Volume keys	keys at the same time to access the QuickMemo+ while
		screen is unlocked. Press and hold Down or Up to access
		the Camera while screen is off or locked.
		Allows you to plug in an optional headset for convenient,
	Earphone jack	hands-free conversations.You can also plug in headphones
		to listen to music.
	Infrared (IR) LED	Used as a sensor for the QuickRemote app.
	SIM card/MicroSD	Allows you to insert your SIM card and a microSD card.
	card slot
	Microphone	Records your voice and allows use for voice-activated functions.
	USB peripheral	Allow you to connect a USB peripheral, such as a keyboard,
		mouse, and external storage to your tablet.Also allows you
	port
		to charge another device.
		Allows you to connect the tablet and the USB cable for
	Charger / USB port	use with the charger adapter, your PC, or other compatible
		accessories.
	Rear-facing	Use to take photos and record videos. Keep it clean for
	camera	optimal performance.
	Speaker	Use to listen to the audio from the selected function (e.g.,
		music, videos, sound clips, etc.).
		Allows you to use a convenient stylus pen that you can use
	Stylus Pen	to input commands and navigate your device. It also works
		well with popular writing and drawing applications.To use
		the stylus, slide it out from the bottom of the device.

Getting to know your device	11

Connecting cables to the ports

1. Charging the battery

The Charger/USB Port is located at the bottom of the device. Insert the charger and plug it into a power outlet.

Charge the battery before using it for first time. Use the charger included with your device to charge the battery.A computer can also be used to charge the battery by connecting the device to it using the USB cable.

			Getting to know your device
	12

WARNING

Use only LG-approved chargers, batteries and cables. If you use unapproved chargers, batteries or cables, it may cause a battery charging delay or display a pop-up message regarding slow charging. This can also cause the battery to explode or damage the device, which is not covered by the warranty.

NOTE:

•Your device has an internal rechargeable battery. For your safety, do not remove the embedded battery.

•The battery must be fully charged initially to improve battery lifetime.

Your device supports up to a 128 GB microSD card. Depending on the memory card manufacturer and type, some memory cards may not be compatible with your device.

2. Connecting a USB device to your tablet

The USB peripheral port is located at the top of the device. Insert the USB port and plug it into the desired device.

Some of the USB devices supported through the USB port include a keyboard, mouse, game controller, digital camera, and storage device (including an Android smartphone acting as external storage device).As most USB keyboards, mouse and game controllers are designed for desktop computers and operation systems, some devices may not function.

Getting to know your device	13

NOTE:

•Only devices that meet the USB specs may connect to the USB peripheral port.

•If you are experiencing errors with device recognition, please use a shorter USB cable or check the USB Hub with external power supply (Self-Powered Hub).

•Only file systems such as FAT32, exFAT, and NTFS are supported for the external USB storage device.

•Transferring data through both USB devices at the same time is not supported. The first device that is connected has priority. The USB device connected second can only be charged.

WARNING

You cannot store data using USB storage when the battery level is below 15%. Please charge the battery above 15% in order to use the USB storage function.

Installing the SIM card or microSD card

Before you can start exploring your new device, you need to set it up.

Your device supports the use of microSD memory cards of up to 128 GB capacity. Multimedia contents can be saved in the microSD card.

1Open the SIM/microSD slot cover.

2Slide the SIM card into the upper slot as shown in the figure below.Make sure the gold contact area on the card is facing downward.

			Getting to know your device
	14

SIM card slot

microSD card slot

3If you want to use a memory card,insert the memory card into the lower slot.Make sure the gold contact area is facing upwards.Slide the microSD card into the slot until it“clicks”into place and then close the slot cover.

NOTE:

•Cards must be positioned as shown.

•MicroSD card is not included.

•Only microSIM cards work with this device.

•Depending on the memory card manufacturer and type, some memory cards may not be compatible with your device.

Getting to know your device	15

Removing the memory card

Before removing the memory card, first unmount it for safe removal.

1Tap > > > Storage > Unmount SD card.

2Open the card slot cover and press the memory card in to unlock it.Then pull it out of the slot.

WARNING

Do not remove the memory card while the device is transferring or accessing information. Doing so can cause data to be lost or corrupted or damage to the memory card or device. LG is not responsible for losses that result from the misuse of damaged memory cards, including the loss of data.

Locking and unlocking the device

Pressing the Power/Lock Key turns off the screen and puts the device into lock mode. The device automatically gets locked if it is not used for a specified period.This helps to prevent accidental taps and saves battery power.

To unlock the device, press the Power/Lock Key and swipe the screen in any direction.

NOTE: Double-tapping on the screen also can wake up the screen instead of the Power/Lock Key.

Changing the screen lock method

You can change the way that you lock the screen to prevent others accessing your personal information.

1Tap > > > Display > Lock screen > Select screen lock.

2Select a desired screen lock from None,Swipe,Knock Code,Pattern,PIN and Password.

			Getting to know your device
	16

NOTE: Create a Google account before setting an unlock pattern and remember the Backup PIN you created when creating your pattern lock.

Caution! If you haven't created a Google account on the device and you forgot your PIN, Password, and the backup PIN, you need to perform a hard reset. If you perform a hard reset, all user applications and user data will be deleted. Please remember to back up any important data before performing a hard reset.

TIP! Smart Lock

•You can use Smart Lock to make unlocking your device easier. You can set it to keep your device unlocked when you have a trusted Bluetooth device

connected to it, when it's in a familiar location like your home or work, or when it recognizes your face.

•Setting up Smart Lock

1 Tap > > > Display > Lock screen > Smart Lock.

2 Before you add any trusted devices, trusted places, or trusted face, you need to set up a screen lock (pattern, PIN, or password).

Getting to know your device	17

Your Home screen

Touch screen tips

Here are some tips on how to navigate on your device.

•Tap or touch – A single finger tap selects items, links, shortcuts and letters on the on-screen keyboard.

•Touch and hold – Touch and hold an item on the screen by tapping it and not lifting your finger until an action occurs.

•Drag – Touch and hold an item for a moment and then, without lifting your finger, move your finger on the screen until you reach the target position.You can drag items on the Home screen to reposition them.

•Swipe or slide – To swipe or slide, quickly move your finger across the surface of the screen, without pausing when you first tap it (so you don't drag an item instead).

•Double-tap – Double-tap to zoom on a webpage or a map.

•Pinch-to-Zoom – Use your index finger and thumb in a pinching or spreading motion to zoom in or out when using the browser, Maps, or when viewing pictures.

•Rotate the screen – From many applications and menus, the screen orientation adjusts to the device's physical orientation.

NOTE:

•Do not press too hard; the tap screen is sensitive enough to pick up a light, yet firm tap.

•Use the tip of your finger to tap the option you want. Be careful not to tap any other buttons.

			Your Home screen
	18

Home screen

The Home screen is the starting point for many applications and functions. It allows you to add items like app shortcuts and Google widgets to give you instant access to information and applications.This is the default canvas and accessible from any menu by tapping .

Status Bar

Application Icons

Location Indicator

Quick Button Area

Home Touch Buttons

Shows the device's status information, including the time, signal strength, battery status and notification icons.

Tap an icon (application, folder, etc.) to open and use it.

Indicates which Home screen canvas you are currently viewing. Provides one-touch access to the function from any Home screen canvas.

Your Home screen	19

		Back Button	Returns to the previous screen.Also closes pop-up items,
			such as menus, dialog boxes and the on-screen keyboard.
		Home Button	Return to the Home screen from any screen.Touch and hold
			to access the Google Now shortcut.
		Recent Apps	Displays recently used applications. If you touch and hold
		Button	this button, it opens a menu of available options.
		Dual Window	Tap to change to dual window mode. It allows you to
		button	manage two different apps at the same time by splitting the
			screen in two.

Extended Home screen

The operating system provides multiple Home screen canvases to provide more space for adding icons, widgets and more.

•Slide your finger left or right across the Home screen to access additional canvases.

Customizing the Home screen

You can customize your Home screen by adding apps and widgets and changing wallpapers.

Adding items on your Home screen

1Touch and hold the empty part of the Home screen.

2Tap the Widgets tab and select the item you want to add.You then see this added item on the Home screen.

3Drag it to the desired location and lift your finger.

			Your Home screen
	20

TIP! To add an application icon to the Home screen from the Apps screen, touch and hold the application you want to add.

Removing an item from the Home screen

•While on the Home screen, touch and hold the icon you want to remove then drag it to and release it.

Adding an app to the Quick Button area

•From the Apps screen or on the Home screen, touch and hold an application icon and drag it to the Quick Button area.Then release it in the desired location.

Removing an app from the Quick Button area

• Touch and hold the desired Quick Button, drag it to , and release it.

NOTE: The Apps Button cannot be removed.

Customizing app icons on the Home screen

1Touch and hold an application icon until it unlocks from its current position, then release it.The editing icon appears in the upper-right corner of the application.

2Tap the application icon again and select the desired icon design and size.

3Tap OK to save the change.

NOTE: You can also tap Add new to personalize icons with your pictures.

Your Home screen	21

Returning to recently-used applications

1Tap .App previews of recently used applications will be displayed.

2Tap an app preview to open the application.Or tap to return to your previous screen.

Notifications panel

Notifications alert you to the arrival of new messages, calendar events and alarms, as well as ongoing events, such as downloads.

When a notification arrives, its icon appears at the top of the screen. Icons for pending notifications appear on the left, and system icons, such as Wi-Fi and battery strength are shown on the right.

NOTE: The available options may vary depending on the region or service provider.

Pending	System
notifications	notifications

			Your Home screen
	22

Opening the Notifications panel

Swipe the Status bar to open the Notifications panel.To close the Notifications panel, swipe the screen upwards or tap .

Quick Settings Area

Notifications

Clear

Tap each quick setting button to toggle it on/off.Touch and hold the desired button to directly access the settings menu for the function.To see more toggle keys, swipe left or right.Tap to remove, add or rearrange quick setting buttons.

Current notifications are listed, each with a brief description.Tap a notification to view it.

Tap to clear all of the notifications.

Your Home screen	23

Indicator icons on the Status Bar

Indicator icons appear on the Status bar at the top of the screen to calendar events, device status and more.

The icons displayed at the top of the screen provide information about the status of the device.The icons listed in the table below are some of the most common ones.

Icon	Description		Icon	Description
	No SIM card inserted			A song is currently playing
	No network signal available			Vibrate mode is on
	Airplane mode is on			Battery fully charged
	Connected to a Wi-Fi network			Battery is charging
	Wired headset (with mic)			The device is connected to a
	connected			PC via a USB cable
	Bluetooth is on			Downloading data
	System warning			Uploading data
	An alarm is set			GPS is on
	VPN is active			Data is synchronizing
	Media server content sharing			Choose input method
	is on
	The mouse is connected			The keyboard is connected

			Your Home screen
	24

NOTE: The icon's location in the Status bar may differ according to the function or service.

On-screen keyboard

You can enter text using the on-screen keyboard.The on-screen keyboard appears on the screen when you tap an available text entry field.

Using the keypad and entering text

Tap once to capitalize the next letter you type. Double-tap for all caps.

Tap to go to the keyboard settings.Touch and hold to enter text by voice, handwriting, or access the clip tray.

Tap to enter a space.

Tap to create a new line.

Tap to delete the previous character.

Entering special characters

The on-screen keyboard allows you to enter special characters.

For example, to input "á", touch and hold the "a" button until the pop-up appears and displays related special characters.Without lifting the finger, drag your finger to the desired special character. Once it's highlighted, lift your finger.

NOTE: A symbol at the top right corner of a key indicates that additional characters are available for that key.

Your Home screen	25

Special Features

Gesture shot

The Gesture shot feature allows you to take a picture with a hand gesture using the front camera.

To take photo

There are two methods for using the Gesture shot feature.

•Raise your hand, with an open palm, until the front camera detects it and a box appears on the screen.Then close your hand into a fist to start the timer, allowing you time to get ready.

OR

•Raise your hand, in a clenched fist, until the front camera detects it and a box appears on the screen.Then unclench your fist to start the timer, allowing you time to get ready.

or

			Special Features
	26

Gesture View

After taking a photo with the front camera lens, you can automatically check the captured photo with this gesture.

1Tap > > .

2Take a picture with the front camera.

3After taking the picture,bring the device close to your face.The captured photo will be displayed.

Take a picture

Quick preview Return to front camera mode

NOTE:

•Depending on the speed and angle of the gesture, this feature may not work properly.

•When the angle is changed after the quick preview, the device returns to camera mode. You must access the Gallery to view the picture again.

Special Features	27

KnockON

The KnockON feature allows you to double-tap the screen to easily turn it on or off.

To turn the screen on

1Double-tap the center of the screen to turn the screen on.

2Unlock the screen or access any of the available shortcuts or widgets.

To turn the screen off

1Double-tap an empty area of the Home screen or the Status Bar.

2The screen will turn off.

NOTE: Tap on the center area of the screen. If you tap on the bottom or the top area, the recognition rate may decrease.

Knock Code

The Knock Code feature allows you to create your own unlock code using a combination of knocks on the screen.You can access the Home screen directly when the screen is off by tapping the same sequence on the screen.

NOTE:

•If you enter the wrong Knock Code 6 times, it will compulsorily take you to your google account log in/backup PIN.

•Use the fingertip instead of finger nail to tap the screen for turning it on or off.

1Tap > > > Display > Lock screen > Select screen lock > Knock Code.

2Tap the squares in a pattern to set your Knock Code.Your Knock Code pattern can be 3 to 8 taps.

			Special Features
	28

Unlocking the screen using the Knock Code

You can unlock the screen by tapping the Knock Code pattern you already set, when the screen turns off.

Dual window

This feature allows you to multi-task by splitting up the screen into two, allowing you to use two compatible applications at the same time.

1Tap > Dual window OR

tap .

2Tap or drag the app icon for the corresponding application you wish to use.

:Tap to view the Dual window menu options, or drag to resize the split screens.

:Switch the two screens.

:View the app list.

:Change the selected window to full screen.

:Close the currently selected app window.

Special Features	29
