OWNER’S MANUAL

REFRIGERATOR-FREEZER

Please read this manual carefully before operating your set and retain it for future reference.

GA-B3*9B*QA GA-B3*9B*CA GA-B3*9P*QA GA-B3*9P*CA GA-F3*9B*QA GA-B3*9U*QA GA-B3*9U*CA

P/NO : MFL42818307/1

GA-B3*9TG**

GA-F4*9B*QA

GA-B4*9B*QA

GA-B4*9P*QA

GA-B4*9U*QA

GA-B4*9U*CA

GA-B4*9TG**

www.lg.com

								Contents
Introduction			Table of the technical characteristics					4
			Registration					5
			Important Safety Instruction					5
			Identification of Parts					13
Installation			Climatic class					15
			Installation					15
Operation			Starting					15
			Display Panel for Temperature Control					16
				Refrigerator				16
				Freezer				17
			Function					18
				Super/Express Freezer				18
				Vacation				18
				Memory feature				19
				Door Alarm				19
				Child Lock				20
			Ice Making					20
			Defrosting					20
Suggestion On			Water Dispenser					21
			Storing Food					22
Food storage			Removing/Installing freezer drawers					23
Care and
			General Information					24
Maintenance			Refrigerator work features					24
			Lamp Replacement					25
			Remove/Install shelf					25
			Removing/Installing bottom drawer					26
			Cleaning					27
Trouble Shooting			Trouble Shooting					28
To Reverse			Disposal of your old appliance					29
			Precaution					30
the Doors			How to Reverse the Door					30
				The working life of this set is 7 years
	3			since the date of delivery to consumer.

4

changed be can refrigerator the of characteristics Technical ote N .Notice prior without manufacturer-ompanyС the by

Table of the technical characteristics of a Refrigerator-Freezer:

	Model	GA-B359B*QA				GA-B399B*QA
		GA-B359B*CA	GA-B359P*QA			GA-B399U*QA
		GA-B379B*QA	GA-B359P*СA		GA-F399B*QA	GA-B399U*CA	GA-B399P*QA	GA-B399TG**
Specification		GA-B379B*CA	GA-B379P*QA		GA-F409B*QA	GA-B409B*QA	GA-B409P*QA	GA-B409TG**
		GA-B379U*QA	GA-B379P*СA			GA-B409U*QA
		GA-B379U*СA				GA-B409U*CA
Rating (V~HZ)					230	~ 50
Climate сlass					N
Rated сurrent (A)					0.6
Rated input (W)					100
Defrost input (W)					170
- of sheath heater (W)					170
- of lamp, maximal (W)					20
Gross vol. total ( ℓ ), Storage / Gross		264 / 283			296 / 315		303 / 322
-Freezer compartment ( ℓ ), Storage / Gross					86 /	104
-Fresh food compartment ( ℓ ), Storage / Gross		178 / 179			210 / 211		217 / 218
Refrigerant / Weight (g)					R600a 54g
Insulation blowing agent					Cyclopentane
Dimensions :
- Height (mm), Net / Packing		1726 / 1815			1896 / 1985
- Depth (mm),	Net / Packing	651 / 744		617 / 744	651 / 744		617 / 744
- Width (mm),	Net / Packing				595 / 655
- Weigth (kg),	Net / Packing	67 / 74			73 / 80			82 / 89
Freezer class
Cooling system					No Frost
Efficient, GOST Р 51565-2000					A
Electricity consumption, kW*hr / year		352			369
Sound power level, dBA					42

Introduction

Introduction

Registration

The model and serial number are found on the outer side of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here.

Date of Purchase	:
Dealer Purchased From :
Dealer Address	:
Dealer Phone No.	:
Model No.	:
Serial No.	:

Important Safety Instruction

To avoid any risk of personal injury, material damage or incorrect use of the appliance, be sure to observe the following safety precautions.

(After reading these owner’s instructions, please keep them in a safe place for reference).

Remember to hand them over to any subsequent owner.

Indicates that a danger of death or

Warning seriousexists. injury

Indicates that

a risk of personal injury or material

Caution damage exists.

In a case of defying manual owner regulation, manufacturer do not carry warranty liability.

5

Introduction
Warning	. This fridge-freezer must be properly installed and
		located in accordance with the Installation
.		Instruction before it is used.
		Do not disassemble, repair or alter the appliance.
		It may cause fire or abnormal operations, which
.		way lead to injury.
		To reduce the risk of fire, electric shock, or injury to
		persons when using your product, basic safety
		precautions should be followed.

1. When connecting the power

The dedicated outlet should be used.

Using several devices at one outlet may cause fire.

Using several devices at one outlet may cause fire.

Water may be flown into or the plug may be damaged, which causes fire or electric shock.

Do not allow the power cord bent or pressed by the heavy object to be damaged.

It may damage the power cord to cause fire or electric shock.

NO

Do not change the power cord and do not change its length.

It causes electric shock or fire by the electric damage of the power cord or others.

NO

If the supply cord is damaged, it must be replaced by the service agent or a similarly qualified person in order to avoid a hazard.

6

Introduction

Do not pull out the cord or touch the power plug with wet hands.

It may cause electric shock or injury.

Remove water or dust from the power plug and insert it with the ends of

the pins securely connected.

Dust, water or unstable connection may fire or electric shock.

Make sure of grounding.

The incorrect grounding may cause breakdown and electric shock.

When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them.

It may cause electric shock or short circuit to make fire.

Ground

Wire

Copper More than Flat 30 inches

(80 сm)

2. When using the fridge-freezer

Do not place the heavy object or the dangerous object, flower vase, cup, cosmetics,

medicine or any container with water on the fridge-freezer.

When opening or closing the door it may be dropped to cause injury, fire or electric shock.

Do not cling to the door or the shelves of the door
or the home bar of the freezer or
the cool chamber.	NO

It may make the fridge-freezer fallen down or damage the hands. Especially, do not allow the children to do the above.

7

Introduction

Do not install the fridge-freezer in the wet place or the place which water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

NO

Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas, spray or cosmetics near orin the fridge-freezer.

It may cause explosion or fire.

NO

Do not place the lit candle within

the fridge-freezer to deodorize.

It may cause explosion or fire.

Benzene

Ether

Thinner

Do not store the medicine or the academic materials at the fridge-freezer.

When the material with the strict temperature control is stored,

it maybe deteriorated or it may make anunexpected reaction to cause anyrisk.

	NO
TheAcademic
Medicine
The	Medicine

Avoid the heating devices.

It may cause fire.

NO

Do not put any living animal in the fridge-freezer.

NO

8

Introduction

Use the submerged fridge-freezer after checking it.

It may cause electric shock or fire.

When gas is leaked, do not touch the fridge-freezer or the outlet and ventilate the room immediately.

In this fridge-freezer uses natural gas (isobutene, R600a) as the environment-

friendly refrigerant, even a small its amount (80~90g) is combustible. When the gas is leaked by the severe damage during delivering,installing or

using the fridge-freezer,any spark may cause fire or burn. For further operation, contact the service center.

Do not spray water at the outside or the inside of the fridge-freezer or do not clean it with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

Do not insert the hands into the bottom of the fridge-freezer.

The iron plate of the bottom may cause injury.

Carry the fridge-freezer with the handle bar at the bottom of

the front and the topof the rear.

Otherwise, your hands may be slipped to cause injury.

Because opening or closing the door of the fridge-freezer may cause injury to the person around it, be careful, please.

Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.

NO

NO

Thinner

9

Introduction

When any strange smell or smoke
is detected from the fridge-freezer,			Service center
disconnect the power plug immediately
and contact to the service center.
It may cause fire.

Do not allow any person except the qualified engineer to disassemble, repairor alter the fridge-freezer.

It may cause injury, electric shock or fire.

Do not use the fridge-freezer for non-domestic purpose (storing medicine or testing material,

using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

NO

NO

When disposing the fridge-freezer, remove the packing materials from the door, leave the shelves in place.

It may cause to lock out the child.

Install the fridge-freezer on the solid and level floor.

Install the fridge-freezer on a plane surface to prevent it's falling down and injury or death.

Do not insert the hands or the metal stick into the exit of coolair, the cover, the bottom of thefridge-freezer,

the heatproof grill (exhaust hole) at the backside.

It may cause electric shock or injury.

10

NO

	Introduction
Caution Violating this direction may cause injury or damage
	house or furniture. Always be careful, please.
	When you want to dispose the fridge-freezer,
	contact to the down-block office.			Down-block
	The refrigerant and insulation blowing gas			office
	used in the appliance require special
	disposal procedures. Ensure that none
	of the pipes on the back of the appliances
	are damaged prior to disposal.
	Do not touch food or containers	NO
	at the freezer with wet hands.
	It may cause frostbite.
	Wait for 5 minutes or longer when			NO
	reconnecting the plug.
	It may cause the operation of		5 minutes
			After
	the freezer to fail.

Do not put bottle in the freezer.

It may freeze the contents to break the bottle to cause injury.

Pull out the power plug not by grasping the cord but the plug of its end.

Extraction by the cord may cause electric shock or short circuit and fire.

The supply plug of the refrigerator-freezer should be placed in easy accessible position for quick disconnection in emergency.

If the appliance is not to be used for a long time, pull out the power plug.

Any deterioration in the insulation may cause fire.

Do not let children touch or play with the control panel on the front of the appliance.

11

Introduction

Danger This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

.Keep ventilation openings, in the appliance enclosure

.or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to

accelerate the defrosting process, other than those

.recommended by the manufacturer.

.Do not damage the refrigerant circuit.

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of

the type recommended by the manufacturer.

Warning As a refrigerant is R600a or R134a.

Look at the label with the technical data on the inner side of the refrigerating chamber to detect what refrigerant is used in your refrigerator.

Isobutane (R600a) is a natural gas with high environmental compatibility, but it is also combustible. When transporting and installing the appliance,

care should be taken to ensure that no parts of the refrigerating circuit are damaged.

Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 1m² in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.

Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

12

Introduction

Identification of Parts

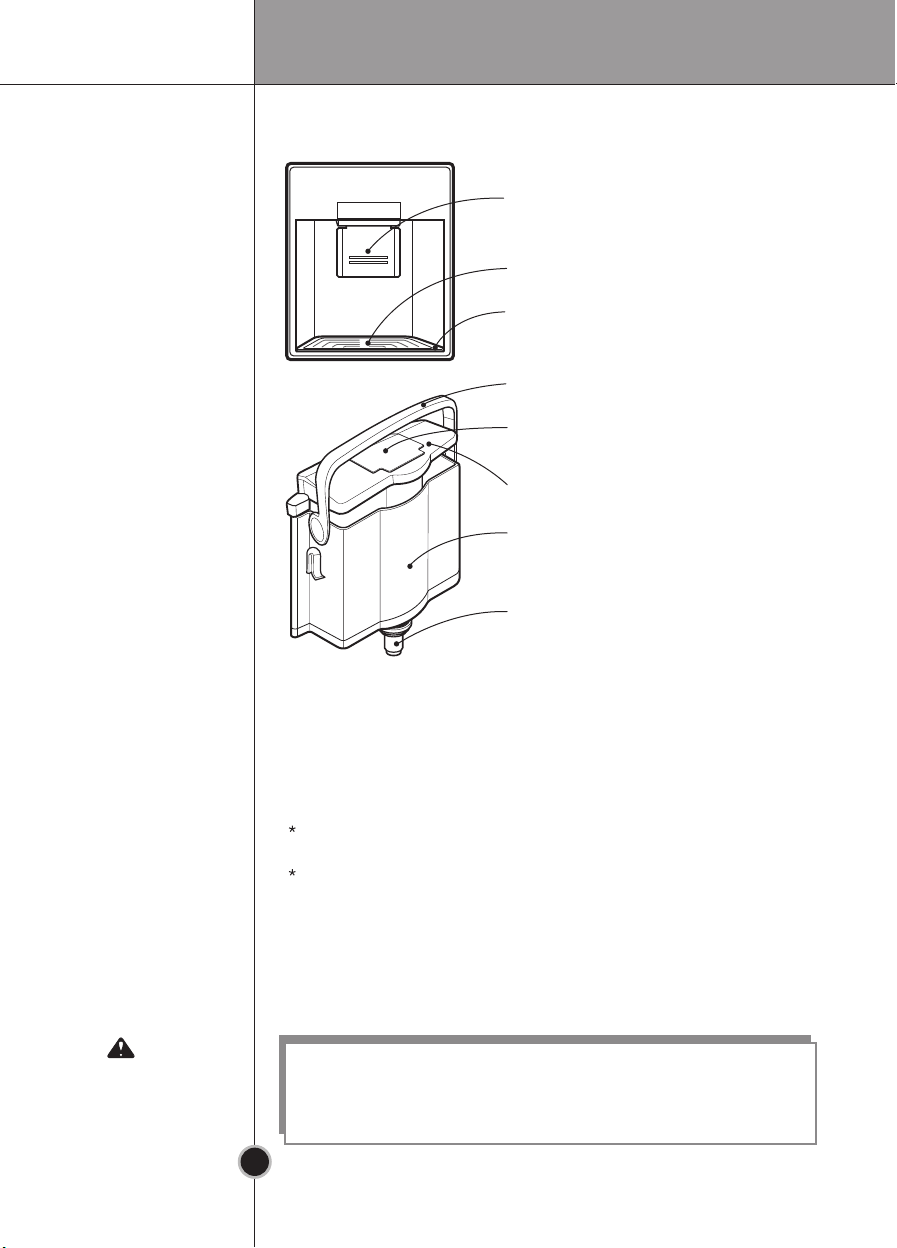

Models: with dispenser

GA-F3*9B*QA; GA-F4*9B*QA

	Dairy Corner,
	movable
	(Optional)
Removable	Door Basket
Glass Shelf
Lamp
Multi-air Flow Duct	Tray Egg
Tray Meat	(1 or 2)
(Optional)
Refrigerator	Water Tank
Temperature Control
Vegetable Drawer	Handle
	2L Bottle
Tray Ice	Door Basket
Freezer
Compartment

Removable Plinth Leveling Screw

Note

If you find some parts missing from your unit, they may be parts only used in other models.

Specification of the refrigerator can be changed by the Сompany-manufacturer without prior Notice.

13

Introduction

Identification of Parts

	Models:
	GA-B3*9B*СA; GA-B3*9TG**;
	GA-B3*9P*CA; GA-B4*9B*QA;
	GA-B3*9U*CA; GA-B4*9P*QA;
	GA-B3*9B*QA; GA-B4*9U*QA;
	GA-B3*9P*QA; GA-B4*9U*CA;
	GA-B3*9U*QA; GA-B4*9TG**	Dairy Corner,
	Display Board	movable
		(Optional)
	(Optional)	Rotatable
	Removable
		Door Basket
	Glass Shelf
	Lamp
	Multi-air Flow Duct	Tray Egg
	Tray Meat	(1 or 2)
	(Optional)
	Refrigerator
	Temperature Control
	Vegetable Drawer	Handle
		(Optional)
	Tray Ice	2L Bottle
		Door Basket
	Freezer
	Compartment
	Removable
	Plinth

Leveling Screw

Note

If you find some parts missing from your unit, they may be parts only used in other models.

Specification of the refrigerator can be changed by the Сompany-manufacturer without prior Notice.

14

				Installation
Climatic class		The appliance is designed to operate in a limited range
		of ambient temperature, depend on climatic zones. You are
		not allow to go for any lower, either from the top of the range.
		Climatic class of your appliance marked on the Label
		specification with technical description in inner side of the
		refrigeration compartment.
			Climatic class	Admissible ambient
				temperature
			SN	+10o С до 32o С
			N	+16o С до 32o С
			ST	+18o С до 38o С
			T	+18o С до 43o С
Installation		1. Select a good location.
		Place your fridge-freezer where it is easy to use.
		2. Avoid placing the unit near heat sources,
		direct sunlight or moisture.
		3. To ensure proper air circulation around the fridge -freezer,
		please maintain sufficient space on both the sides as well as
		top and maintain at least 2 inches (5 cm) from the rear wall.
		4. Please, do not remove the round stickers on the back side
		of the refrigerator. They are performing decoration functions
		by closing technological holes.
		5. To avoid vibration, the unit must be leveled. If required, adjust
		the leveling screws to compensate for the uneven floor.
		The front should be slightly higher than the rear to aid in
		door closing. Leveling screws can be turned easily by tipping
		the cabinet slightly.
		Turn the leveling screws counterclockwise (						) to raise
		forward part of a refrigerator, clockwise (					) to lower it.
		6. Before use clean your fridge-freezer thoroughly.
		7. Install accessories such as ice cube box, etc., in their
		proper places. They are packed together to prevent
		possible damage during shipment.
		8. Connect the power supply cord (or plug) to the outlet.
		Don't double up with other appliances on the same outlet.
Starting		When your fridge-freezer is installed, allow it 2-3 hours at normal
		operating temperature prior to filling it with fresh or frozen foods.
		If power plug is disconnected, allow 5 minutes delay
		before restarting.
		Your fridge-freezer is now ready for use.
	15

Operation

Temperature Control

Refrigerator Your fridge-freezer has two controls that let you regulate the temperature in the fridge and freezer compartments.

	Initially set the TEMP.CONTROL
	at «4». Then adjust the compartment	MAX	MIN
	temperature according to yourdesire.	7	1
		6
	If you want an inside temperature		2
		5
	slightly less cold or colder, turn the		3
		4
	knob towards MIN or MAX, respectively.	TEMP. CONTROL

When the surrounding temperature is low, adjust the TEMP.CONTROL «MIN».

Display Panel For Temperature Control

	GA-F3*9B*QA; GA-F4*9B*QA	GA-B3*9B*QA; GA-B3*9P*QA;GA-B3*9U*QA
		GA-B4*9B*QA; GA-B4*9P*QA;GA-B4*9U*QA
	LED (88)
		LED (BAR)
	GA-B3*9TG**; GA-B4*9TG**
		LCD
	Function
	display
	board
	EXPRESS FRZ.
	EXPRESS	3 SECS
	FRZ.
	< Exterior Type >
	Super Freezer Button	Lock Button
	Temperature adjustment button	Vacation Button
	for freezer compartment
	16

		Operation
< Interior Type >	< LED 88 Type >
Models:	FRZ. TEMP.	SUPER FRZ./VACATION
GA-B3*9B*СA; GA-B3*9U*CA;
GA-B3*9P*CA; GA-B4*9U*CA
	Temperature adjustment button	Super Freezer Button/
	for freezer compartment	Vacation Button
Freezer	• The initial Temperature of the Freezer Compartment
	is -18°C . You can now adjust the temperature of
	the compartment as you want.

< Exterior Type >

< LED 88 Type >

Models:

GA-F3*9B*QA; GA-F4*9B*QA

Models:	< LED BAR Type >
GA-B3*9B*QA; GA-B4*9B*QA;
GA-B3*9P*QA; GA-B4*9P*QA;
GA-B3*9U*QA; GA-B4*9U*QA;

< LCD Type >

Models:

GA-B3*9TG**; GA-B4*9TG**

< Interior Type >	< LED 88 Type >

Models:

GA-B3*9B*СA; GA-B3*9U*CA;

GA-B3*9P*CA; GA-B4*9U*CA

•When you press the temperature control buttons, the temperature of Freezer compartment is repeated in the following order.

LED 88 Type (Exterior and Interior Types); LCD Type Freezer Compartment :

-18°C → -19°C → -20°C → -21°C → -22°C → -23°C → -15°C → -16°C → -17°C → -18°C

LED BAR Type Freezer Compartment : -19°C → -21°C → -23°C → -15°C → -17°C

17

Operation
		Note					The actual inner temperature varies depending on
							the food status, as the indicated setting temperature
							is a target temperature, not actual temperature
							with in refrigerator.
							Refrigeration function is weak in the initial time.
							Please adjust temperature as above after using
							refrigerator for minimum 2~3 days.

	Function
Super/Express	• This function is used when you want to freeze the
Freezer	foods quickly. Press the «SUPER FRZ.» (Super Freezer),
	the «EXPRESS FRZ.» (Express Freezer) or the
	“SUPER FRZ./VACATION» (depending on model) button
	once, and then the quick freezer operation starts with
	the lamp on.

•The Super Freezer operation takes about 3 hours. When its operation ends, it automatically returns to the previous temperature setting. If you want to stop the quick freeze operation, press the «SUPER FRZ.»,

the «EXPRESS FRZ.» or the «SUPER FRZ./VACATION» button once more, the lamp goes out, and the Super Freezer operation stops and the refrigerator returns to the previous

< Exterior Type >	temperature setting.
Models:
GA-F3*9B*QA; GA-F4*9B*QA;
GA-B3*9B*QA; GA-B4*9B*QA;
GA-B3*9P*QA; GA-B4*9P*QA;
GA-B3*9U*QA; GA-B4*9U*QA;		In selecting «On»	In selecting «Off»
Models:
GA-B3*9TG**; GA-B4*9TG**	EXPRESS FRZ.	EXPRESS FRZ.	EXPRESS FRZ.
	EXPRESS FRZ.
		In selecting «On»	In selecting «Off»

Vacation This function makes the fridge-freezer work in a power saving mode which is useful for when you are away

on holiday, by reducing energy consumption as much as possible.

Pressing «VACATION» or «SUPER FRZ./VACATION» (depending on model) starts operation with lamp on and pressing it again stops the operation.

18

< Exterior Type >

Models:

GA-F3*9B*QA; GA-F4*9B*QA; GA-B3*9B*QA; GA-B4*9B*QA; GA-B3*9P*QA; GA-B4*9P*QA; GA-B3*9U*QA; GA-B4*9U*QA;

Models:

GA-B3*9TG**; GA-B4*9TG**

< Interior Type >

Models:

GA-B3*9B*СA; GA-B3*9U*CA; GA-B3*9P*CA; GA-B4*9U*CA

Operation

In selecting «On» In selecting «Off»

In selecting «On» In selecting «Off«

/

«off»

In selecting «On»

In selecting «On»

Note

< Interior Type >

Memory feature

< Interior Type >

Models:

GA-B3*9B*СA; GA-B3*9U*CA; GA-B3*9P*CA; GA-B4*9U*CA

Door Alarm

< Exterior Type >

Models:

GA-B3*9TG**; GA-B4*9TG**

19

Press the «SUPER FRZ./VACATION» button once «VACATION» and display light on means energy saving function is on.

Twice press «SUPER FRZ./VACATION» button, turns off «VACATION» function & on «SUPER FRZ.».

The super freeze operation takes about 3 hours. When its operation ends, it automatically returns to the normal state. The third time’s press of «SUPER FRZ/VACATION» button, switch off all modes, information display panel goes out.

«off» → «VACATION» → «SUPER FRZ.» → «off»

Function to save the set temperature and vacation status. When the power is turned on after the power failure, it will be restored with the set temperature and vacation status.

When the door of the fridge is left opened for a while, the alarm sounds.

Operation

Child Lock • When «CHILD LOCK» is activated, pressing the other buttons would not work.

•«Locking» or «Un-Locking» is repeated whenever pressing the «CHILD LOCK» button. (For «Locking» or

«Un-Locking» press the «CHILD LOCK» button for 2 secs.)

< Exterior Type >
Models :
GA-F3*9B*QA; GA-F4*9B*QA;
GA-B3*9B*QA; GA-B4*9B*QA;
GA-B3*9P*QA; GA-B4*9P*QA;	In selecting	In selecting
GA-B3*9U*QA; GA-B4*9U*QA;	«Child Lock On»	«Child Lock Off»
Models :
GA-B3*9TG**; GA-B4*9TG**
	In selecting	In selecting
	«Child Lock On»	«Child Lock Off»
Ice Making •	To make ice cubes, fill the ice
	tray to the water level and place
	it in the freezer.
•	If ice cubes are required fast,
	press the «SUPER FRZ.»,
	the «EXPRESS FRZ.» or
	the «SUPER FRZ./VACATION»
	(depending on model) button.

•To remove ice cubes, hold the tray at its ends and twist gently.

	Tip		To remove ice cubes easily, run water on the tray
			before twisting.

Defrosting Defrosting takes place automatically.

The defrosting water flows down to the evaporating tray and is evaporated.

20
