OWNER’S MANUAL
Mini Hi-Fi
System
Please read this manual carefully before operating your set and retain it for future reference.
MODEL
CK43 (CKS43F)
|
www.lg.com |
MFL70382740 |
Copyright © 2018 LG Electronics Inc. All Rights Reserved. |
1
Started Getting
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the product.
CAUTION: This product employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center.
Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure.
CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface.This product shall not be placed in a builtin installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s instruction has been adhered to.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.
WARNING: Do not install this equipment in a confined space such as a book case or similar unit.
CAUTION: Do not use high voltage products around this product. (ex. Electrical swatter)This product may malfunction due to electrical shock.
NOTICE: For safety marking information including product identification and supply ratings, please refer to the main label on the bottom or the other surface of the product.
|
|
Getting Started |
3 |
||
|
|
|
|
|
|
CAUTION concerning the Power Cord |
This device is equipped with a portable battery or |
|
|||
The Power Plug is the disconnecting device.In case |
accumulator. |
|
|||
|
|
|
|
||
of an emergency, the Power Plug must remain readily |
How to Safely remove the batteries or the battery |
||||
accessible. |
pack from the equipment: |
|
|||
Check the specification page of this owner’s manual |
To Remove the old batteries or battery pack, follow |
|
|||
to be certain of the current requirements. |
the assembly steps in reverse order.To prevent |
|
|||
Do not overload wall outlets. Overloaded wall outlets, |
contamination of the environment and bring on |
|
|||
possible threat to human and/or animal health, the |
|
||||
loose or damaged wall outlets, extension cords, |
|
||||
old batteries or the battery pack must be put in an |
|
||||
frayed power cords, or damaged or cracked wire |
|
||||
appropriate container at designated collection points. |
|||||
insulation are dangerous. Any of these conditions |
|||||
Do not dispose of batteries or battery pack together |
|||||
could result in electric shock or fire. Periodically |
|||||
with other waste.It is recommended that you use |
|
||||
examine the cord of your device, and if its appearance |
|
||||
local, free reimbursement systems batteries or |
|
||||
indicates damage or deterioration, unplug it, |
|
||||
battery packs, (may not be available in your area).The |
|||||
discontinue use of the device, and have the cord |
|||||
batteries or the battery pack should not be exposed |
|
||||
replaced with an exact replacement part by an |
|
||||
to excessive heat such as sunshine, fire or the like. |
|
||||
authorized service center. Protect the power cord |
|
||||
|
|
|
|
||
from physical or mechanical abuse, such as being |
CAUTION: No naked flame sources, such as lighted |
|
|||
twisted, kinked, pinched, closed in a door, or walked |
candles, should be placed on the apparatus. |
|
|||
upon. Pay particular attention to plugs, wall outlets, |
Symbols |
|
|||
and the point where the cord exits the device. |
|
||||
|
|
|
|
||
|
~ |
Refers to alternating current(AC). |
|
||
|
0 |
Refers to direct current(DC). |
|
||
|
|
Refers to classII equipment. |
|
||
|
|
|
|
||
|
1 |
Refers to stand-by. |
|
||
|
! |
Refers to “ON” (power). |
|
||
|
|
Refers to dangerous voltage. |
|
||
|
|
|
|
|
1
Started Getting
4 Table of Contents
1 |
Getting Started |
3 |
Operating |
|
|
|
|
|
|
2 |
SafetyInformation |
17 |
Basic Operations |
|
4 |
Table of Contents |
17 |
– CD/USB Operations |
|
6 |
Unique Features |
17 |
– Auto Play |
|
7 |
Playable file Requirement |
18 |
– Selecting a folder and an MP3/WMA file |
|
7 |
– Music file requirement |
19 |
– Deleting a file/folder or format |
|
7 |
– Compatible USB Devices |
19 |
– AUTO DJ |
|
7 |
– USB device requirement |
20 |
Using a BLUETOOTH® wireless technology |
|
8 |
Remote control |
20 |
– Listening to music stored on the Bluetooth |
|
10 |
Front panel |
|
|
devices |
12 |
Rear Panel |
23 |
Using the Music Flow Bluetooth App |
|
|
|
23 |
– About “Music Flow Bluetooth” App |
|
2 |
Connecting |
23 |
– Install “Music Flow Bluetooth” App onto |
|
|
|
Your Bluetooth Device |
||
|
|
|
|
|
14 |
Connecting to speakers |
24 |
– Activate Bluetooth with |
|
14 |
– Attaching the speakers to the unit |
|
|
“Music Flow Bluetooth” App |
15 |
Optional Equipment Connection |
25 |
Radio Operations |
|
15 |
– AUXIN Connection |
25 |
– Listening to the radio |
|
15 |
– Listening to music from your external device |
25 |
– Improving poor FM reception |
|
16 |
– USB Connection |
25 |
– Presetting the Radio Stations |
|
16 |
– Antenna Connection |
25 |
– Deleting all the saved stations |
Table of Contents |
5 |
|
|
|
|
4 |
Troubleshooting |
|
26 |
Sound adjustment |
36 |
Troubleshooting |
|
36 |
– General |
|||
26 |
– Setting the sound mode |
|||
|
|
|||
27 |
Advanced Operations |
|
|
|
27 |
– Recording to USB |
5 |
Appendix |
|
29 |
– JUKE BOX Playback |
|
|
|
38 |
General specifications |
|||
30 |
Other Operations |
|||
39 |
Speaker specifications |
|||
30 |
– Turn off the sound temporarily |
|||
39 |
Trademarks and Licenses |
|||
30 |
– DEMO |
|||
40 |
Maintenance |
|||
30 |
– Resume stop |
|||
40 – Notes on Discs |
||||
30 |
– Sleep Timer Setting |
|||
40 – Handling the Unit |
||||
30 |
– Dimmer |
|||
|
|
31– Auto power down
31– AUTO POWER On
32– Auto function change
33Setting the Clock
33 – Setting the Clock through “Music Flow Bluetooth” App
33– Using your player as an alarm clock
34LG Sound Sync
35WIRELESS PARTY LINK Connection
1
2
3
4
5
1
Started Getting
6 Getting Started
BLUETOOTH®
Listens to music stored on your Bluetooth device.
AUTO DJ
Blends the end of one song into the beginning of another for seamless playback.
USB Direct Recording
Records music to your USB device.
Music Flow Bluetooth
Music Flow Bluetooth is an App designed to let you take control of some of LG’s latest Audio devices.
(Page 23)
LG Sound Sync
Controls volume level of this unit by the remote control of your LGTV that is compatible with LG Sound Sync.
Getting Started |
7 |
|
|
Playable file
Requirement
MP3/WMA file compatibility with this unit is limited as follows.
yy Sampling frequency : within 32 to 48 kHz (MP3), within 32 to 48 kHz (WMA)
yy Bit rate : within 32 to 320 kbps (MP3), 40 to 192 kbps (WMA)
yy Maximum files : Data CD : 999 / USB : 2,000 yy Maximum folders : Data CD : 99 / USB : 200 yy File extensions : “.mp3”/“.wma”
yy Certain MP3/WMA files may not be played depending on the type or format of the file.
yy CD-ROM file format :ISO 9660/JOLIET
yy We recommend that you use Easy-CD Creator, which creates anISO 9660 file system.
yy A protected file by DRM (Digital rights management) cannot be played on the unit.
yy The DTS disc is not supported.
You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players.
(Mastered/Live File System : Disc format system for Windows Vista)
yy MP3 Player : Flash type MP3 player.
yy USB Flash Drive :
Devices that support USB2.0 or USB1.1.
yy The USB function of this unit does not support all
USB devices.
yy Devices which require additional program installation when you have connected it to a computer, are not supported.
yy Do not extract the USB device while in operation.
yy For a large capacity USB, it may take longer than a few minute to be searched.
yy To prevent data loss, back up all data.
yy If you use a USB extension cable or USB hub, the USB device is not recognized.
yy Using NTFS file system is not supported. (Only FAT(16/32) file system is supported.)
yy This unit recognizes up to 2,000 files.
yy External HDD, Card readers, Locked devices, or hard type USB devices are not supported.
yy USB port of the unit cannot be connected to PC. The unit cannot be used as a storage device.
yy Some USB may not work with this unit.
1
Started Getting
8 Getting Started
1
Started Getting
Replacement of battery
) |
0 |
3 |
(R03)
• • • • • • • • • • • • • •A•
1 (Standby) :Turns the power on or off.
B(Open/Close) : Opens and closes the disc tray. VOL (Volume) +/- : Adjusts speaker volume.
F (Function) : Selects the function and input source.
|
Input source / Function |
Display |
|||
|
|
|
|
|
|
|
Disc |
CD |
|||
|
|
|
|
|
|
|
USB |
USB1 / USB2 |
|||
|
|
|
|
|
|
|
AUX input |
AUX |
|||
|
|
|
|
|
|
|
Bluetooth |
BT |
|||
|
|
|
|
|
|
|
LG Sound Sync (Wireless) |
LG TV |
|||
|
|
|
|
|
|
|
Radio |
|
FM |
||
|
|
|
|
|
|
|
|
(Mute) : |
Mutes the sound. |
|
|
PRESET·FOLDER W/S : |
|
||||
-- |
Chooses a preset number for a radio station. |
||||
|
|
(Page 25) |
|
||
-- |
Searches for a folder of MP3/WMA files. When |
||||
|
|
a CD/USB containing MP3/WMA files in several |
|||
|
|
folders is being played, press PRESET·FOLDER |
|||
|
|
W/S to select the folder you want to play. |
|||
JUKEBOX/MEMORY : |
|
||||
-- |
Stores radio stations. (Page 25) |
||||
-- |
SelectsJUKE BOX mode. (Page 29) |
-- MakesJUKE BOX list.
AUTO DJ : Selects the AUTO DJ mode. (Page 19)
DELETE :
-- Deletes MP3/WMA files. (USB only) (Page 19) -- Deletes a song on theJUKE BOX list.
-- Deletes all the saved stations.
Remove the battery cover on the rear of the remote control, and insert the battery with 4 and 5 matched correctly.
|
|
|
Getting Started |
9 |
||
|
|
|
|
|||
• • • • • • • • • • • • • •B• |
• • • • • • • • • • • • • •C• |
|
||||
REPEAT : Listens to your tracks/files repeatedly or |
0 to 9 numerical buttons : Selects numbered tracks, |
|
||||
randomly. |
files, or preset number. |
|
||||
TUNING -/+ : Selects the radio stations. |
CLOCK : Sets a clock and checks a time. |
|
||||
C/V(Skip/Search) : |
ALARM : With the ALARM function you can turn on |
|||||
-- |
Skips backward or forward. |
CD, USB play and tuner reception at a desired time. |
|
|||
-- Searches for a section within a track/file. |
• • • • • • • • • • • • • •D• |
|
||||
N(Play/Pause) : |
|
|||||
SLEEP : Sets the system to turn off automatically at |
||||||
-- |
Starts or pauses playback. |
|||||
a specified time. |
|
|||||
-- |
Selects stereo/mono. |
|
||||
(Dimmer :The display window will be darkened by |
|
|||||
Z(Stop) : |
|
|||||
half.) |
|
|||||
-- |
Stops playback. |
|
||||
SET : Confirms the setting. |
|
|||||
-- |
Cancels DELETE function. |
|
||||
? :The button is not available. |
|
|||||
SOUND EFFECT : Chooses sound impressions. |
|
|||||
USB REC : |
|
|||||
REGION EQ : Chooses region equalizer. |
|
|||||
-- |
Records to USB. |
|
||||
J(Information) : |
|
|||||
-- |
To stop Recording, press and hold for 3 seconds. |
|
||||
-- |
Sees information about your music. An MP3 file |
|
||||
|
often come withID3 tag.The tag gives theTitle, |
|
|
|
|
|
|
Artist, Album orTime information. |
|
|
|
|
|
-- |
Sees Bluetooth device name of the unit in BT |
|
|
|
|
|
|
READY. |
|
|
|
|
|
-- |
Sees the name of connected all Bluetooth device |
|
|
|
|
|
|
in Bluetooth mode. |
|
|
|
|
|
-- |
When these units are successfully connected each |
|
|
|
|
|
|
other in WIRELESS PARTY LINK mode, each of |
|
|
|
|
|
|
connected device names appears in the each unit. |
|
|
|
|
1
Started Getting
1
Started Getting
10 Getting Started
A B C D
LE
K J I H G F
AUSB 1 Port
You can play sound files by connecting the USB device.
BDisplay window
C (Remote sensor)
DUSB 2 Port
You can play sound files by connecting the USB device.
EMASTER VOL. (Volume) Adjust speaker volume.
FBASS BLAST (or BASS BLAST+)
Press to select BASS (or BASS+) effect directly.
USB REC / DEMO
-- Records to USB.
-- To stop Recording, press and hold for 3 seconds.
-- In power off status, if you press
USB REC / DEMO, show DEMO mode.
3WIRELESS LINK
-- Selects MAIN or OTHER on WIRELESS PARTY LINK mode.
-- Enable or disable WIRELESS PARTY LINK mode.
GF (Function)
Selects the function and input source.
Input source / Function |
Display |
|
|
Disc |
CD |
|
|
USB |
USB1 / USB2 |
|
|
AUX input |
AUX |
|
|
Bluetooth |
BT |
|
|
LG Sound Sync (Wireless) |
LG TV |
|
|
Radio |
FM |
|
|
V(Skip/Search) -- Skips forward.
-- Searches for a section within a track/file. -- Selects the radio stations.
B(Open/Close)
Opens and closes the disc tray.
HAUTO DJ
Selects the AUTO DJ mode.
N(Play/Pause)
-- Starts or pauses playback. -- Selects stereo/mono.
I1 (Standby)
Turns the power on or off.
C(Skip/Search) -- Skips backward.
-- Searches for a section within a track/file. -- Selects the radio stations.
Z(Stop)
Stops playback or cancels DELETE function.
JDisc tray
KREGION EQ
Chooses region equalizer.
SEARCH
Moves to folder or file in selection mode.
OK
Selects a folder when searching a file.
LSOUND EFFECT / SEARCH
-- Chooses sound impressions. -- Searches a folder or a file.
Getting Started 11
1
Started Getting
12 Getting Started
1 |
|
|
|
Getting |
A |
|
|
Started |
|
|
|
|
|
|
|
|
B |
C |
D |
APower cord

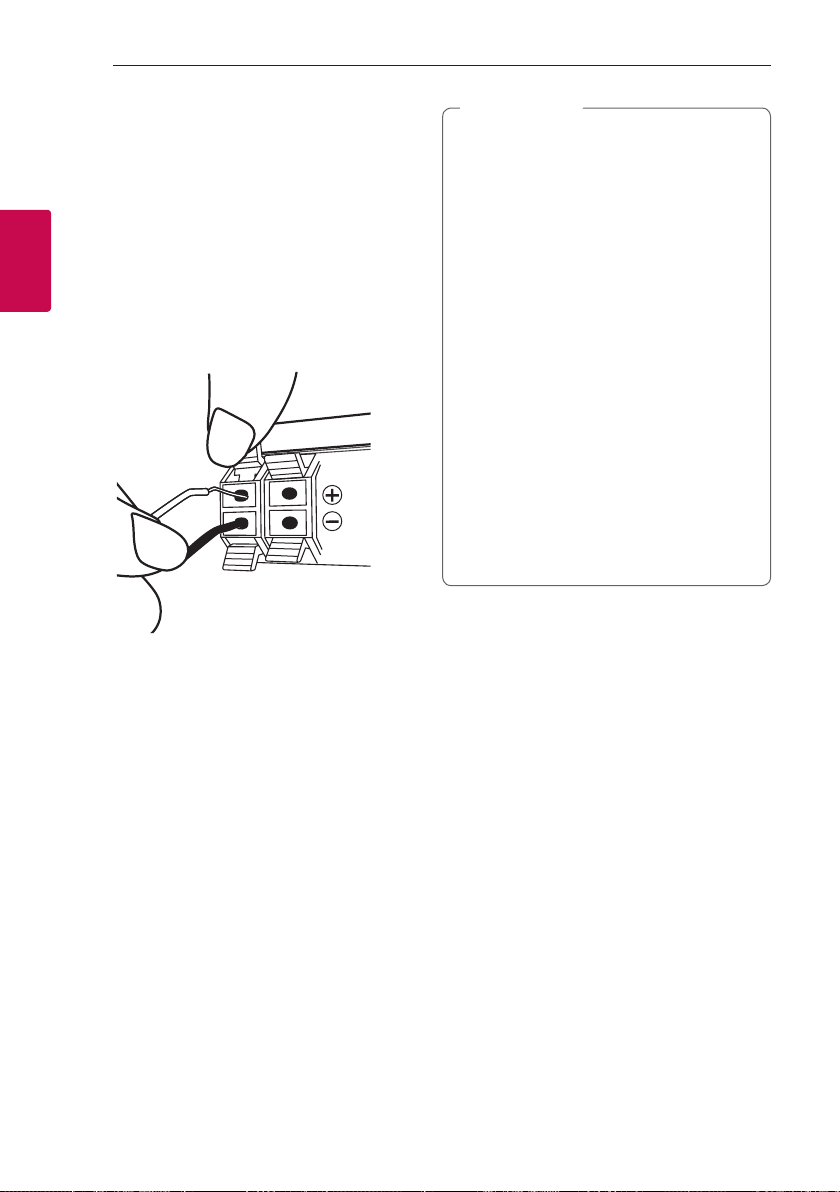

BSPEAKERS terminals
CAUX IN (L/R)
Connect an auxiliary device.
DANTENNA (FM)
|
|
|
Getting Started 13 |
|
|
|
|
|
|
Useful functions for using the unit |
|
|
|
|
|
|
|
|
|
Function |
Description |
To do |
Do this |
|
|
|
|
|
|
|
It allows you to connect a |
ON |
Press and hold Nfor 5 seconds in |
|
|
Bluetooth device only on |
BT (Bluetooth) function. |
||
|
|
|||
BT Lock On/Off |
BT (Bluetooth) and LG TV |
|
|
|
(Page 22) |
functions. |
|
|
|
|
Press and hold Nfor 5 seconds in |
|||
|
|
|||
|
Initial setting of this function was |
OFF |
||
|
set to off. |
BT (Bluetooth) function. |
||
|
|
|||
|
|
|
|
|
|
|
ON |
Turn off the unit by pressing 1on the unit |
|
|
|
for 5 seconds. |
||
Auto Power On |
It allows the unit to turn on |
|
||
|
|
|
||
(Page 31) |
automatically by input signals : |
|
|
|
|
|
|
||
BT (Bluetooth) or LGTV |
|
Turn off the unit by pressing 1on the unit |
||
|
OFF |
|||
|
|
|||
|
|
for 5 seconds. |
||
|
|
|
||
|
|
|
|
|
1
Started Getting
