ENGLISH
IPS LED MONITOR (LED LCD MONITOR)
Please read this manual carefully before operating your set and retain it for future reference.
IPS LED(LED LCD) MONITOR MODEL
19MB35D
22MB35D
24MB35D
www.lg.com
ENGLISH
2 TABLE OF CONTENTS
3 |
ASSEMBLING AND PREPAR- |
21 |
SPECIFICATIONS |
||
|
ING |
|
|
|
|
|
21 |
19MB35D |
|||
3 |
Unpacking |
||||
22 |
22MB35D |
||||
4 |
Parts and buttons |
23 |
24MB35D |
||
5 |
Setting up the Monitor set |
24 |
Preset Modes (Resolution) |
||
5 |
- Attaching the Stand Base |
24 |
Indicator |
5- Detaching the Stand Base
6 |
- Mounting on a table |
25 |
PROPER POSTURE |
|
7 |
- Using the Kensington locking device |
|||
25 |
Proper posture for using the Monitor set. |
|||
8 |
- Mounting on a wall |
9USING THE MONITOR SET
9Connecting to a PC
9- D-SUB connection
9- DVI-D connection

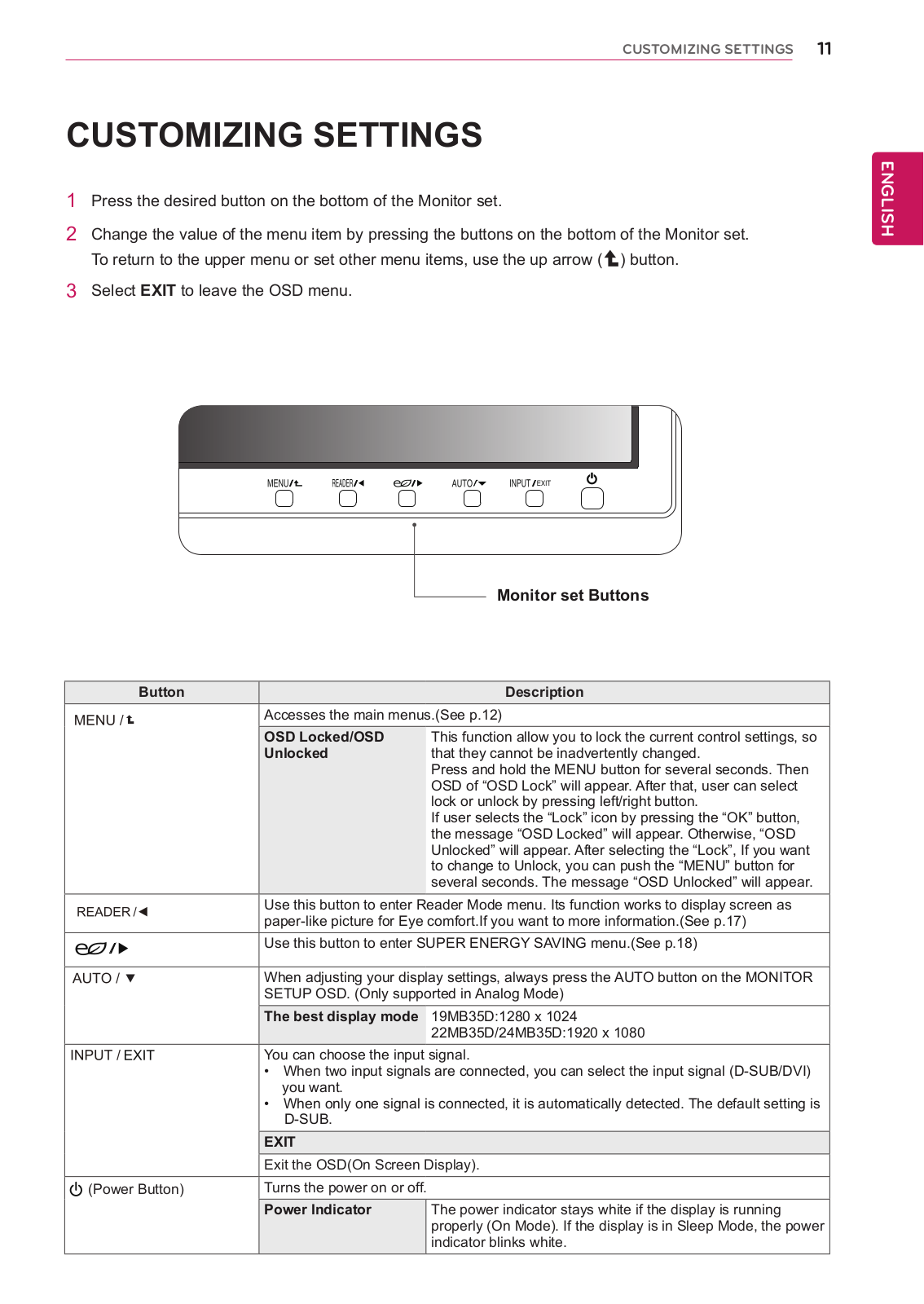

11 CUSTOMIZING SETTINGS
12Customizing Settings
12- Menu Settings
13-Picture

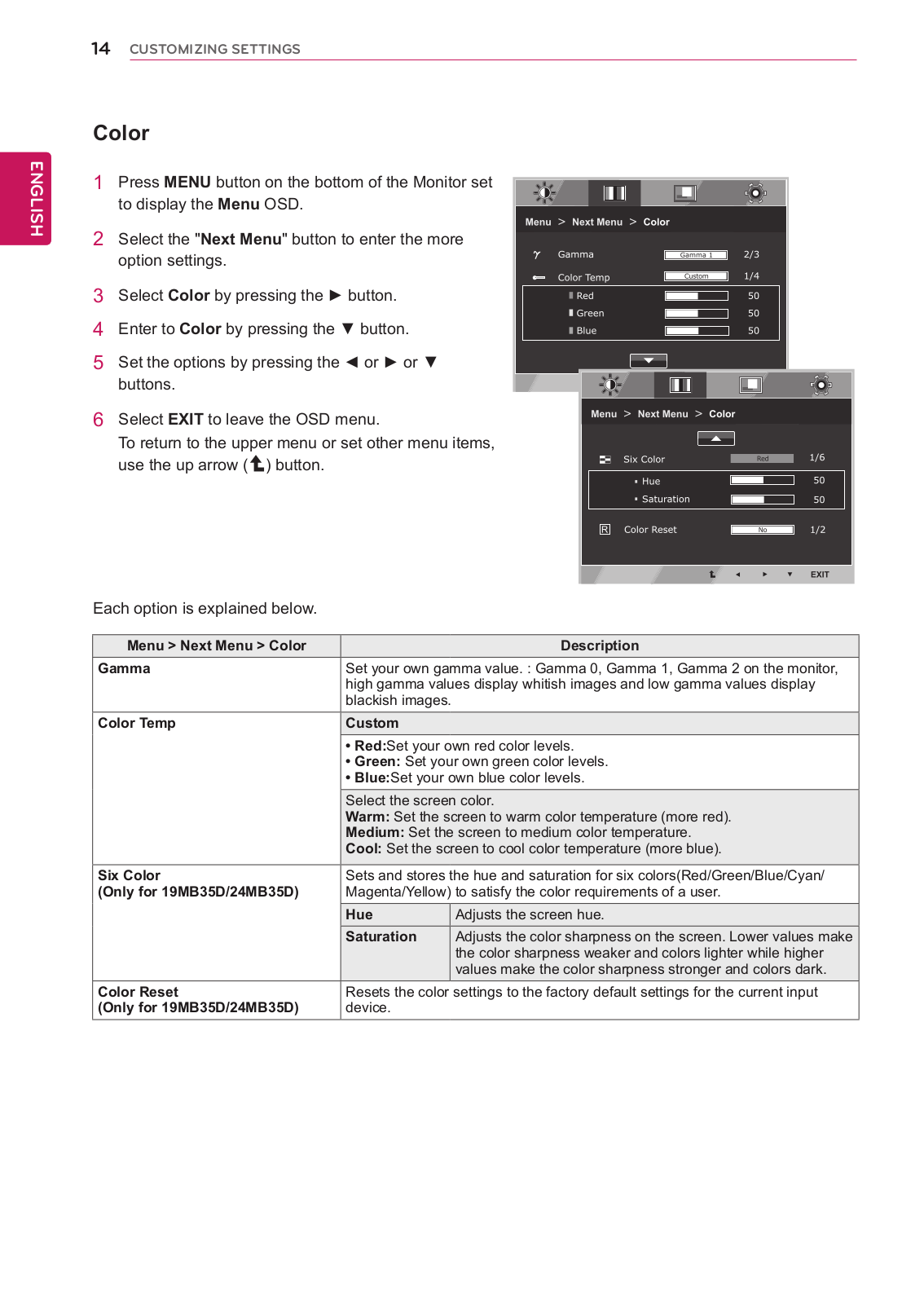

14-Color
15-Display
16-Others
17READER Setting
18SUPER ENERGY SAVING
19TROUBLESHOOTING
ASSEMBLING AND PREPARING 3
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.
ENGLISH
CD(Owner's Manual) /
Card
Power Cord
CAUTION
D-SUB Cable
(This cable is not included in all countries.)
Stand Body
DVI-D Cable
(This cable is not included in all countries.)
Stand Base
yyDo not use any unapproved accessories to ensure the safety and product life span.
yyAny damages or injuries by using unapproved accessories are not covered by the warranty.
NOTE
yyThe accessories supplied with your product may vary depending on the model.
yyProduct specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.
4 ASSEMBLING AND PREPARING
ENGLISH
Power Indicator yyLED On : Power is on yyLED Off: Power is off
(Power Button)
Front Side Buttons
Input Connectors (See p.9)
ASSEMBLING AND PREPARING 5
1Place the Monitor set with the screen side down on a flat and cushioned surface.
CAUTION
Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.
21 Attach the Stand Body to the monitor set.
2 Attach the Stand Base.
3 Tie down the base lock to perpendicularity direction.
Stand Body
Stand Base
1Place the Monitor set with the screen side down on a flat and cushioned surface.
21 Pushing the PUSH button, Take the Stand Body from the monitor set.
2Change your lock on the product as it follows and turnit in the arrow direction.
3 Pull out the Stand Base.
Stand Body
Stand Base
CAUTION
yyThis illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture.
yyDo not carry the product upside down holding only the stand base. The product may fall and get damaged or injure your foot.
CAUTION
yyIf you can't release the stand base even the locking knob is at a release position, Please push the indicated knob down and retry it.
ENGLISH
ENGLISH
6 ASSEMBLING AND PREPARING
1Lift the monitor and place it on the table in an upright position.
Install at least 10 cm away from the wall to ensure sufficient ventilation.
10 cm
10 cm
10 cm
10 cm
WARNING
When you adjust the angle, do not hold the bottom of the Monitor set frame as shown on the following illustration, as may injure your fingers.
Do not touch or press the screen when adjusting the angle of the monitor.
2Connect the Power cord to the monitor, then plug the power cord into the wall outlet.
Do not hold this set like below picture.Monitor screen can detach from stand base and injure your body.
NOTE
Tilt from +20 to -5 degrees up or down to adjust the angle of the Monitor set to suit your view.
3 Press the (Power) button on the front of the monitor to turn on the monitor.
CAUTION
yyUnplug the power cord prior to moving or installing the monitor. There is risk of electric shock.
Front Rear
The connector for the Kensington lock is located on the rear of the monitor.
For more information on installation and usage, refer to the Kensington lock user manual or visit the website at http://www.kensington.com.
Connect the monitor to the table with the Kensington lock cable.
NOTE
yyUsing the Kensington lock is optional. The accessories can be purchased at your local electronics store.
ASSEMBLING AND PREPARING 7
ENGLISH
ENGLISH
8 ASSEMBLING AND PREPARING
For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.
10 cm
10 cm
10 cm
10 cm
If you intend to mount the Monitor set to a wall, attach Wall mounting interface (optional parts) to the back of the set.
When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop.
1Please, Use the screw and wall mount interface in accordance with VESA Standards.
2If you use screw longer than standard, the monitor might be damaged internally.
3If you use improper screw, the product might be damaged and drop from mounted position. In
this case, LG Electronics is not responsible for it.
4 VESA compatible.
5 Please use VESA standard as below. yy784.8 mm (30.9 inch) and under
*Wall Mount Pad Thickness : 2.6 mm * Screw : Φ 4.0 mm x Pitch 0.7 mm x Length 10 mm
yy787.4 mm (31.0 inch) and above
*Please use VESA standard wall mount pad and screws.
Model |
19MB35D |
22MB35D |
|
|
24MB35D |
VESA (A x B) |
75 x 75 |
100 x 100 |
Standard screw |
M4 |
M4 |
Number of screws 4 |
4 |
CAUTION
yyDisconnect the power cord first, and then move or install the Monitor set. Otherwise electric shock may occur.
yyIf you install the Monitor set on a ceiling or slanted wall, it may fall and result in severe injury.
yyUse only an authorized LG wall mount and contact the local dealer or qualified personnel.
yyDo not over tighten the screws as this may cause damage to the Monitor set and void your warranty.
yyUse only screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.
NOTE
yyUse the screws that are listed on the VESA standard screw specifications.
yyThe wall mount kit will include an installation manual and necessary parts.
yyThe wall mount bracket is optional. You can obtain additional accessories from your local dealer.
yyThe length of screws may differ depending on the wall mount. Be sure to use the proper length.
yyFor more information, refer to the instructions supplied with the wall mount.
