ENGLISH

OWNER’S MANUAL

LED LCD MONITOR

Please read this manual carefully before operating your set and retain it for future reference.

LED LCD MONITOR MODEL

19EN43S 19EN43T 20EN43S 20EN43T 22EN43S 22EN43T 23EN43S 23EN43T 24EN43T

www.lg.com

ENGLISH

2TABLE OF CONTENTS

CONTENTS

	3 ASSEMBLING AND PREPAR-				24 SPECIFICATIONS
		ING
	3	Unpacking	24			19EN43S
	4	Parts and buttons	25			19EN43T
	5	Setting up the Monitor set	26			20EN43S
	5	- Attaching the Stand Base	27			20EN43T
			28			22EN43S
	5	- Detaching the Stand Base
			29			22EN43T
	6	- Mounting on a table
			30			23EN43S
	6	- Using the cable holder
			31			23EN43T
	8	- Mounting on a wall
			32			24EN43T
	9	USING THE MONITOR SET		33		Preset Modes (Resolution)
			34			Indicator
	9	Connecting to a PC			35 PROPER POSTURE
	9	- D-SUB connection
	11	CUSTOMIZING SETTINGS			35 Proper posture for using the Monitor set.

12Customizing Settings

12- Menu Settings

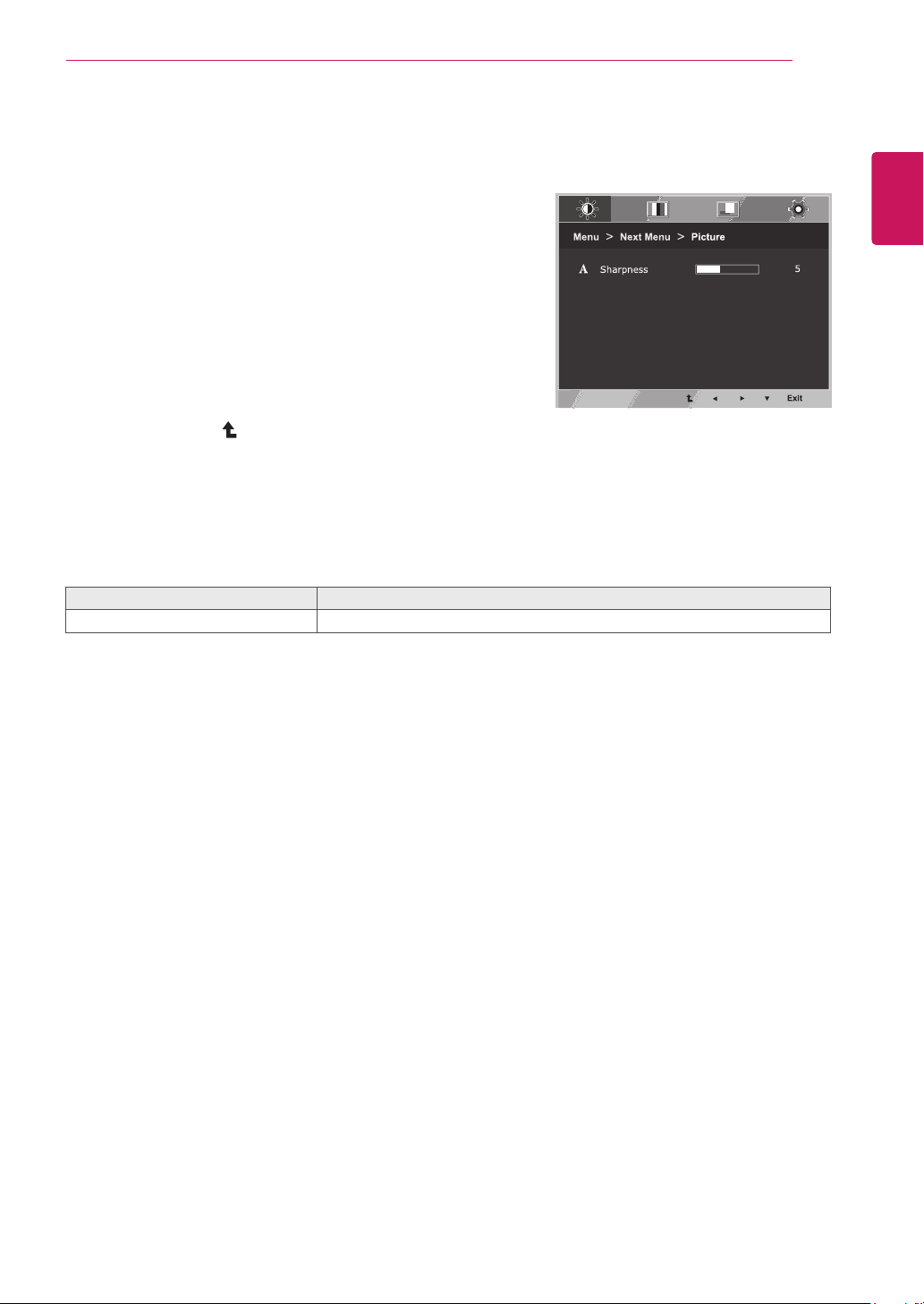

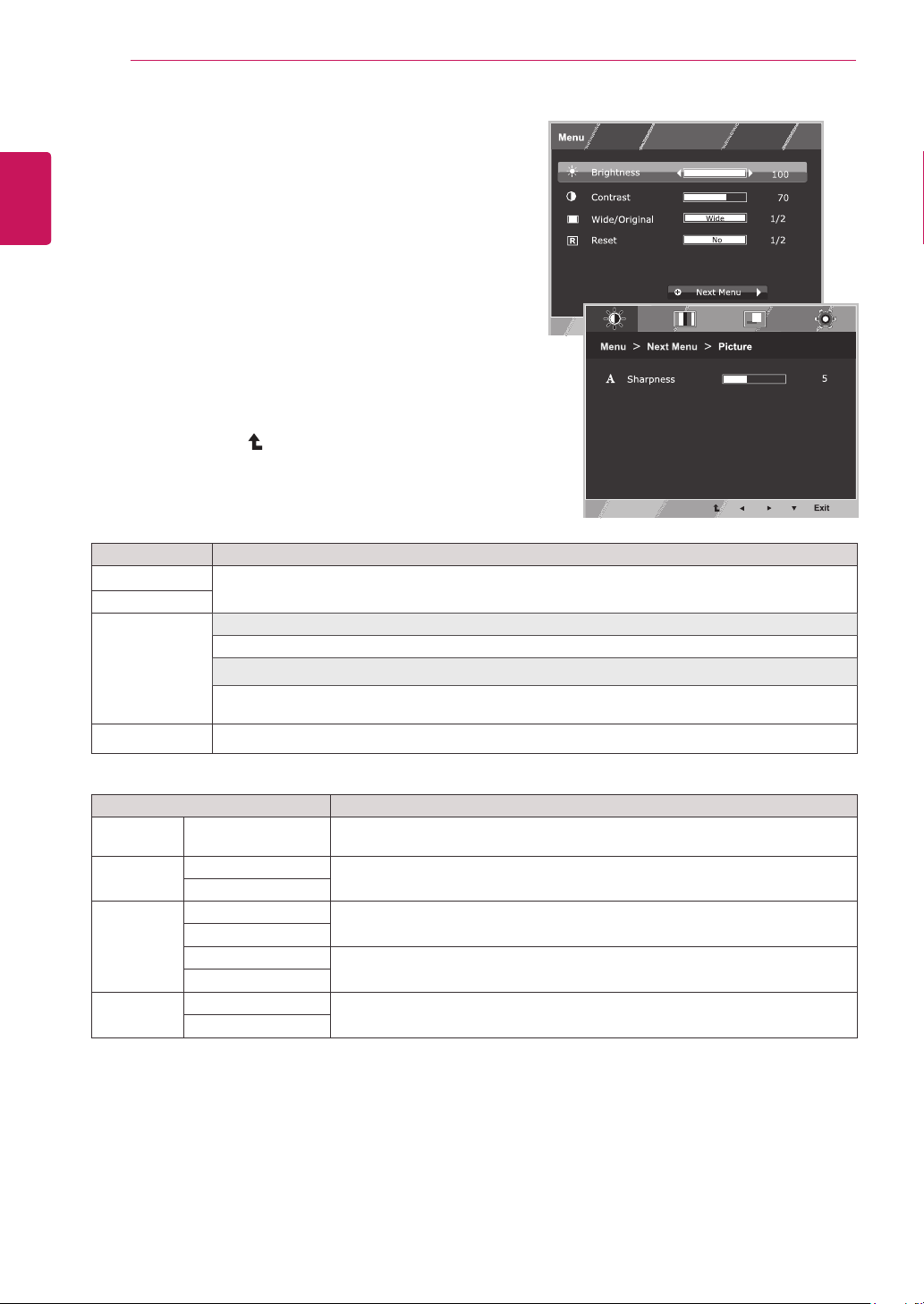

13-Picture

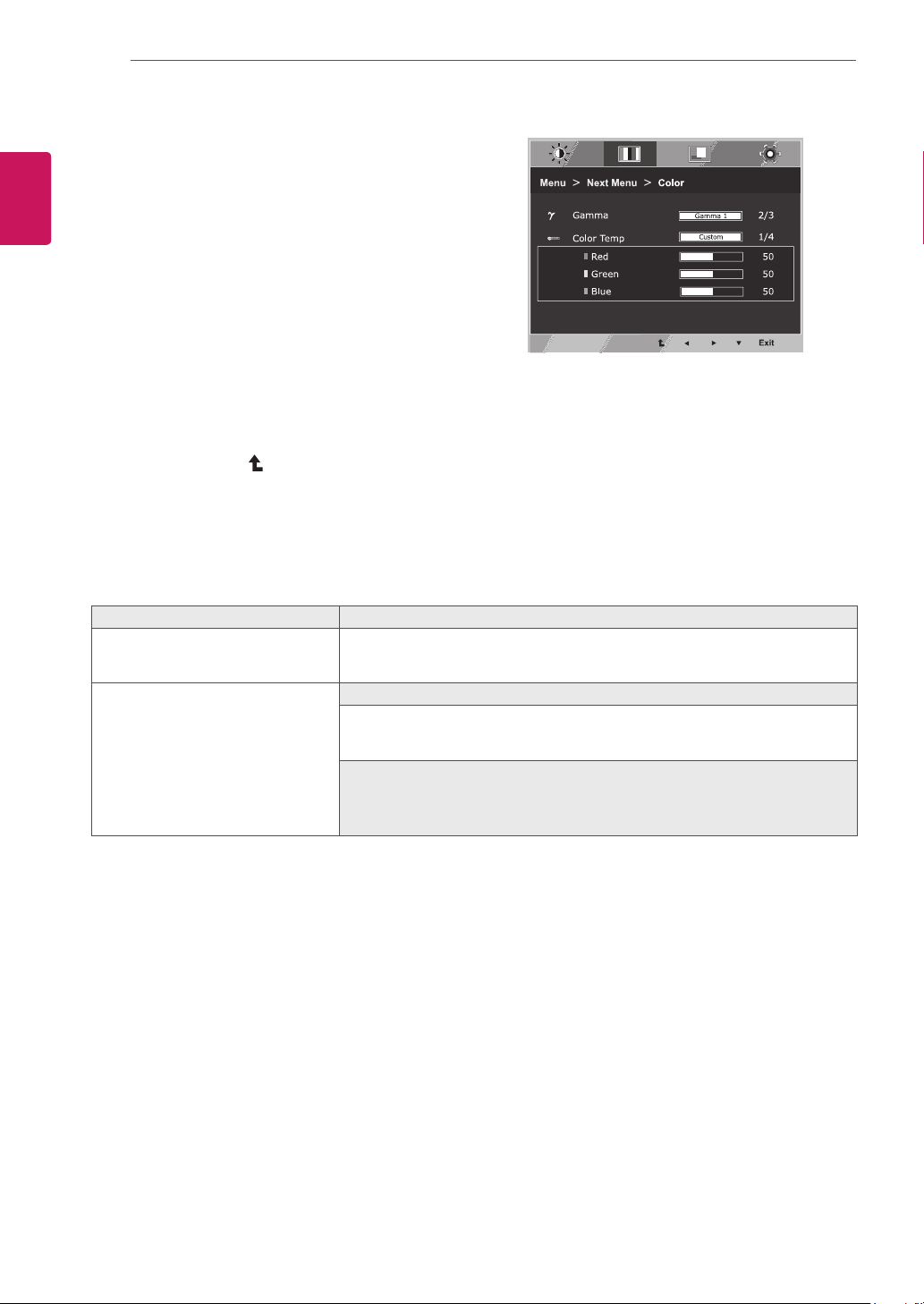

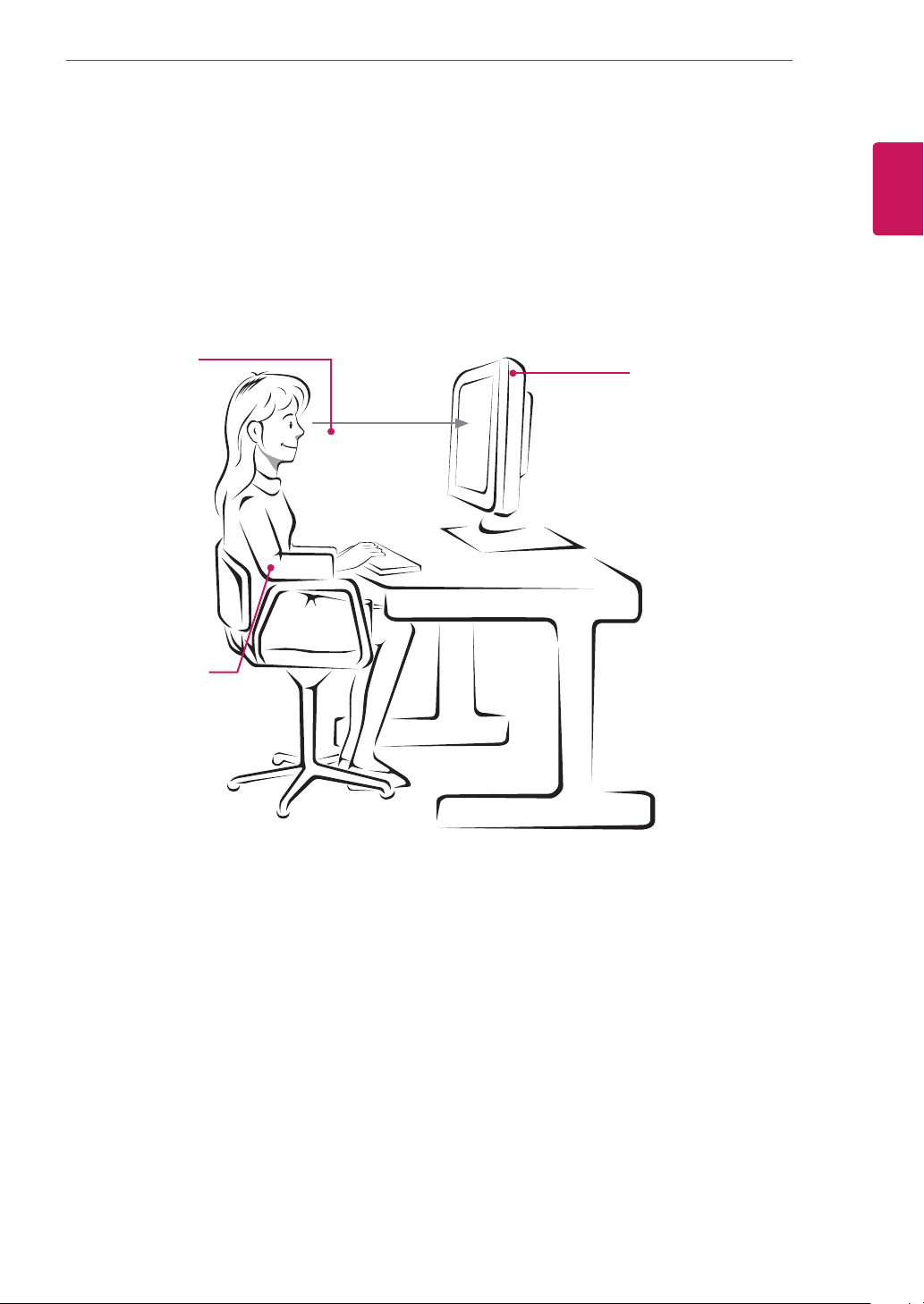

14-Color

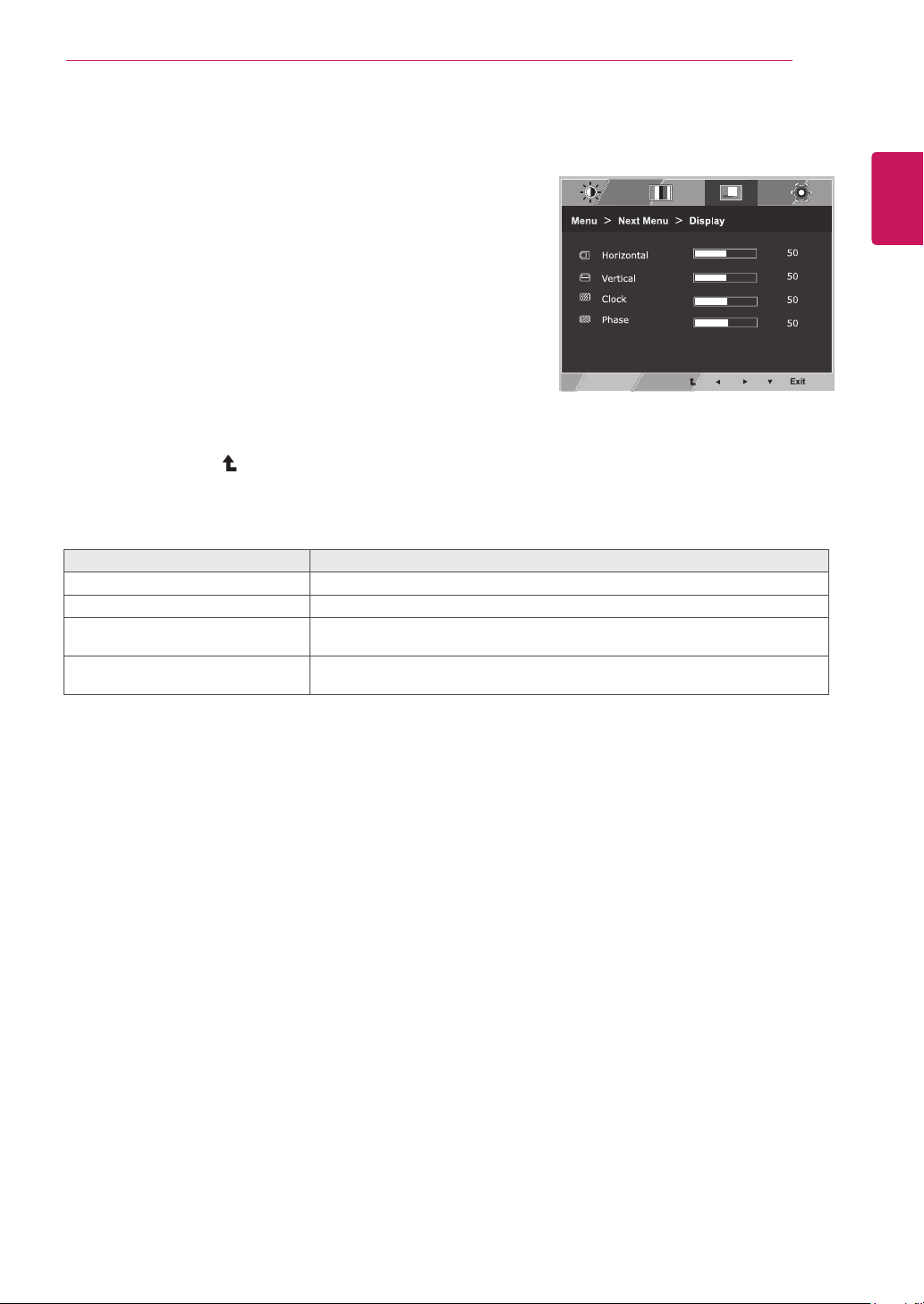

15-Display

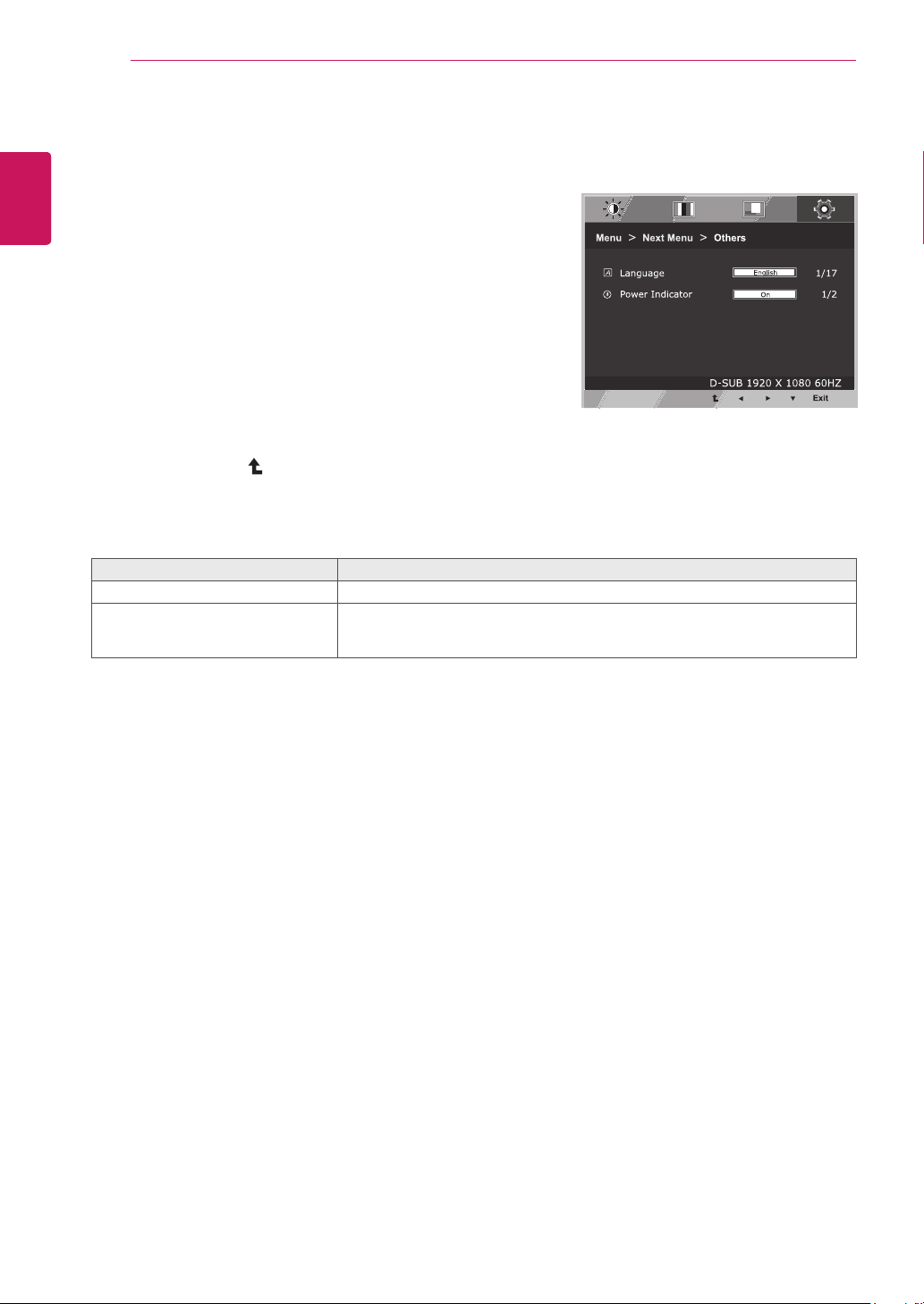

16-Others

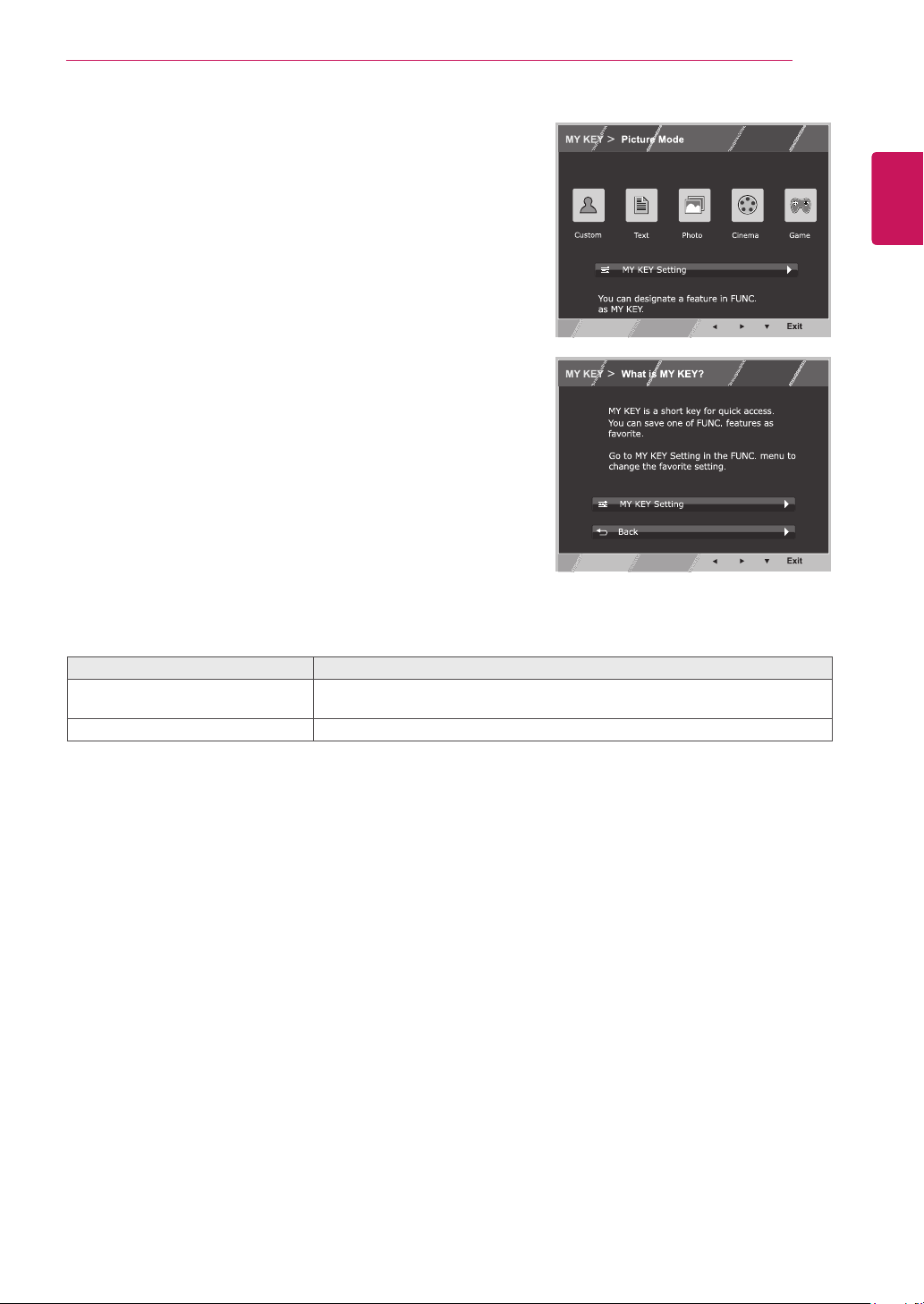

17MY KEY Setting

18FUNC. Setting

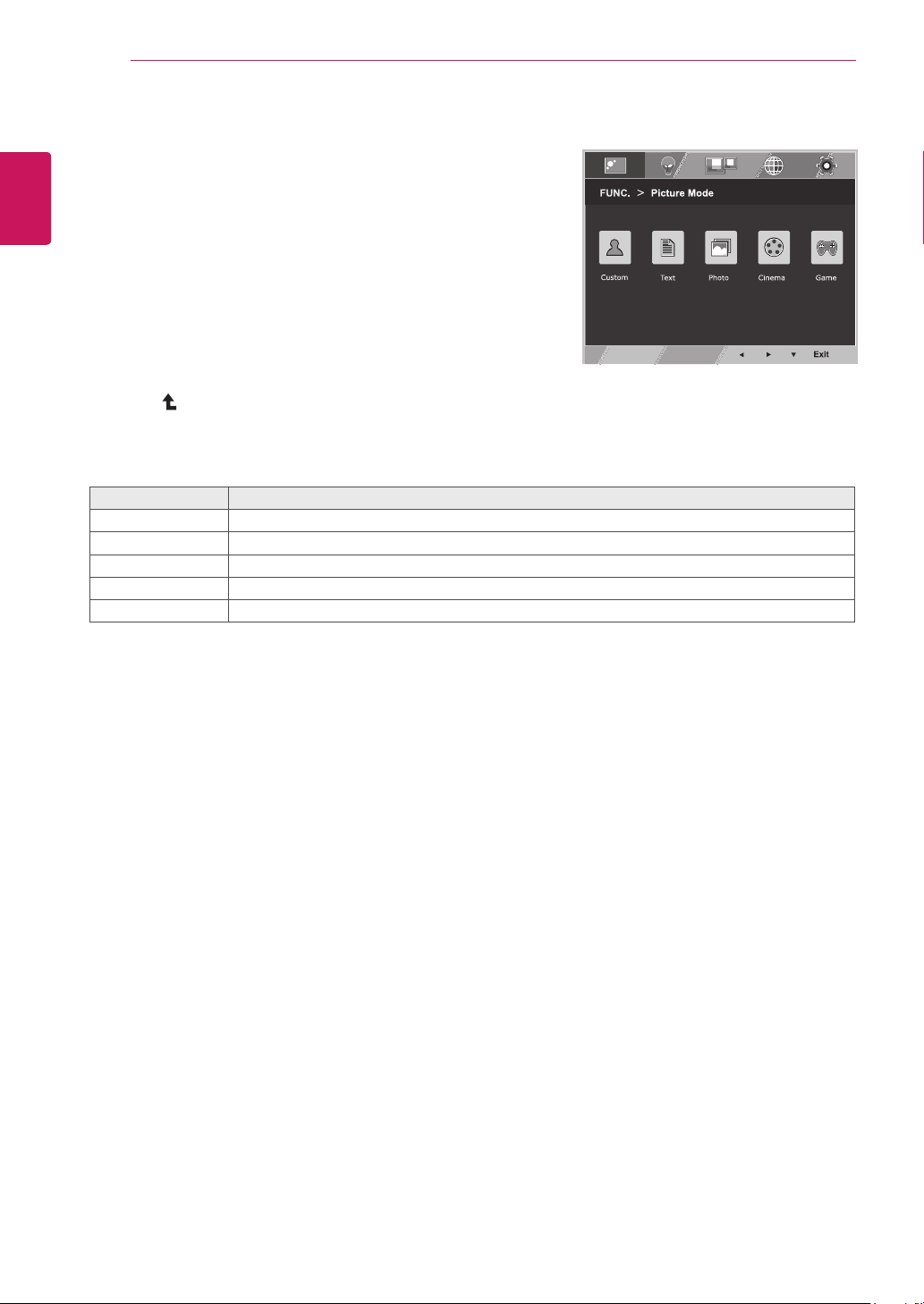

18-Picture Mode

19-SUPER ENERGY SAVING

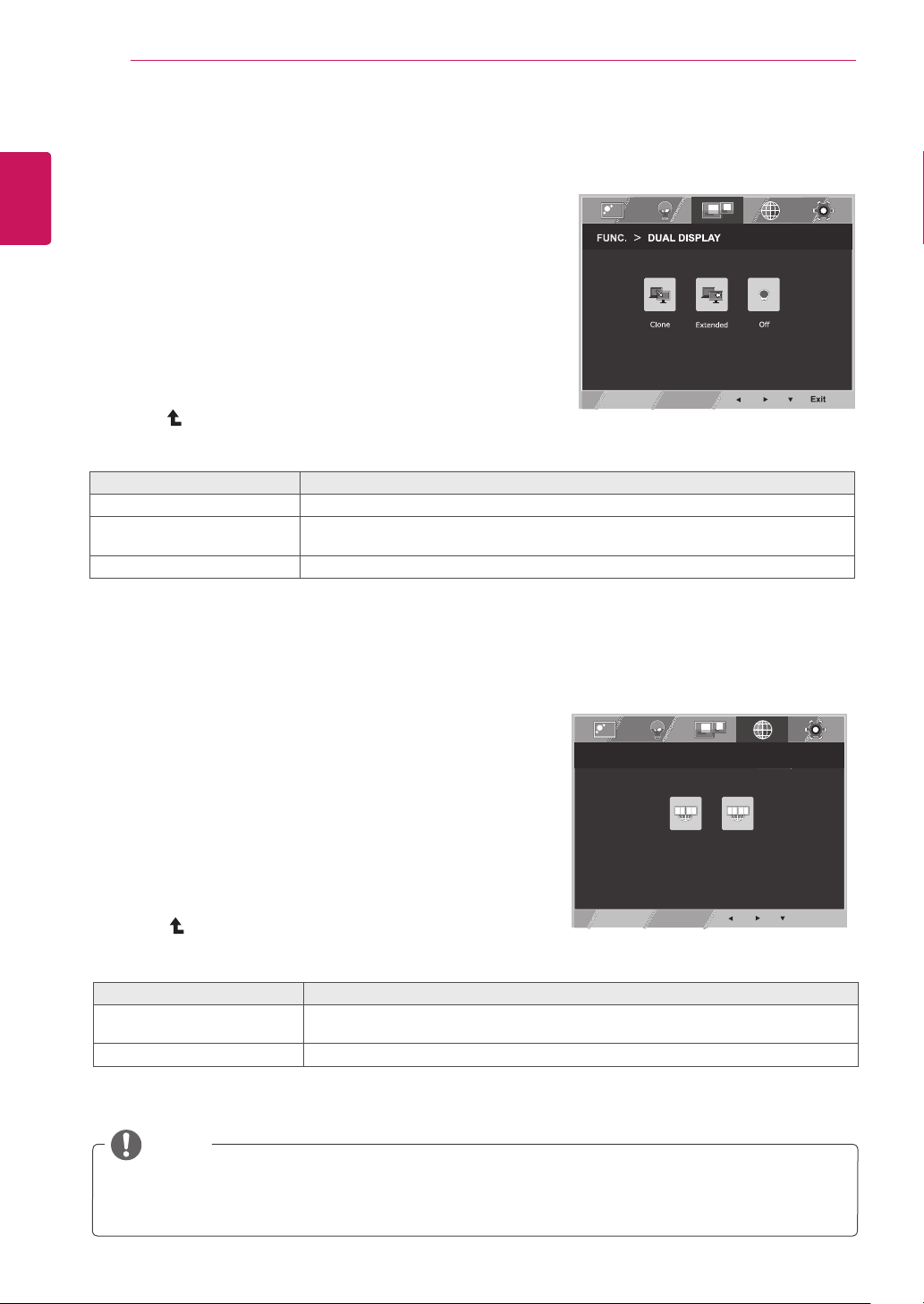

20-DUAL DISPLAY

20-DUAL WEB

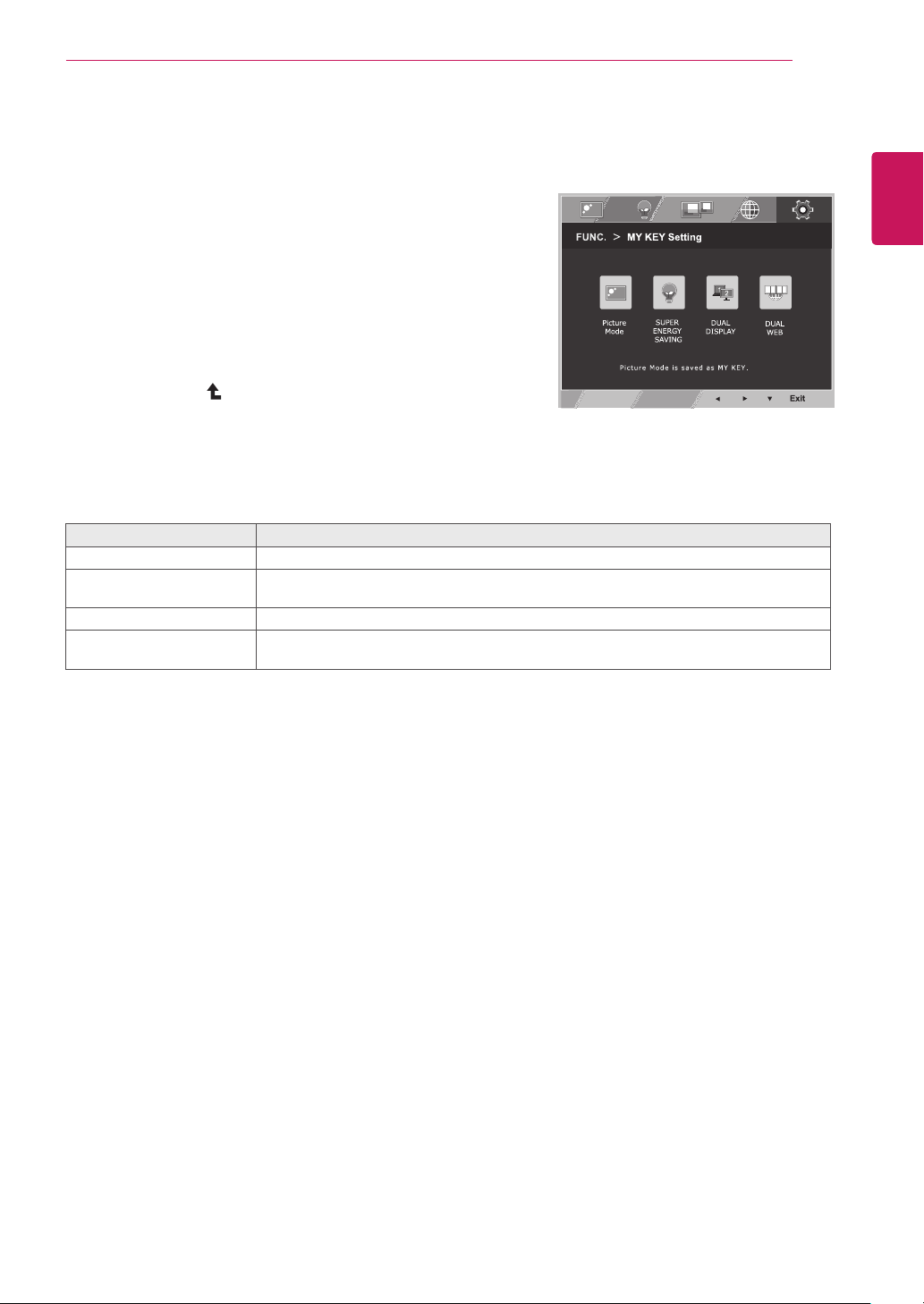

21-MY KEY Setting

22 TROUBLESHOOTING

ASSEMBLING AND PREPARING 3

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

ENGLISH

		DVI-D Cable
CD(Owner's Manual) /	D-SUB Cable	(19EN43T/22EN43T/22EN43T/
		23EN43T/24EN43T)
Card		(This cable is not included
		in all countries.)

		or
Power Cord	AC-DC Adapter	AC-DC Adapter
( Depending on the country )		( Depending on the country )

Stand Body

Stand Base

CAUTION

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

NOTE

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.

4ASSEMBLING AND PREPARING

Parts and buttons

ENGLISH

Power Indicator

Lighting On: Turned on

(Power Button)

Button (See p.11)

19EN43S

20EN43S

19EN43T

20EN43T

22EN43S

23EN43S

22EN43T

23EN43T

24EN43T

Connection panel (See p.9)

ASSEMBLING AND PREPARING 5

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side down on a flat and cushioned surface.

CAUTION

Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.

21 Attach the Stand Body to the monitor set.

2 Attach the Stand Base.

3 Tighten the screw to the right with a coin.

Stand Body

Stand Base

Detaching the Stand Base

1Place the Monitor set with the screen side down on a flat and cushioned surface.

21 Pull out the Stand Body and Stand Base

from the monitor set.

2Turn the screw to the left with a coin.

3Pull out the Stand Base.

Stand Body

Stand Base

Stand Body

Stand Base

ENGLISH

ENGLISH

6ASSEMBLING AND PREPARING

Mounting on a table

1Lift and tilt the Monitor set into its upright position on a table.

Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm

10 cm

10 cm

10 cm

3Press (Power) button on the bottom switch panel to turn the power on.

CAUTION

Unplug the power cord before moving the Monitor to another location. Otherwise electric shock may occur.

Using the cable holder

2 Connect the AC-DC Adapter and Power Cord to a wall outlet.

Cable holder

or

		ASSEMBLING AND PREPARING 7
WARNING
		Using the Kensington security system

When you adjust the angle, do not hold the bottom of the Monitor set frame as shown on the following illustration, as may injure your fingers.

Do not touch or press the screen when adjusting the angle of the monitor.

Do not hold this set like below picture.Monitor screen can detach from stand base and injure your body.

NOTE

Tilt from +20 to -5 degrees up or down to adjust the angle of the Monitor set to suit your view.

The Kensington security system connector is located at the back of the Monitor set. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the Monitor set and a table.

NOTE

The Kensington security system is optional. You can obtain it from most electronics stores.

ENGLISH

Front Rear

ENGLISH

8ASSEMBLING AND PREPARING

Mounting on a wall

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

10 cm

10 cm

10 cm

10 cm

If you intend to mount the Monitor set to a wall, attach Wall mounting interface (optional parts) to the back of the set.

When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop.

1Please, Use the screw and wall mount interface in accordance with VESA Standards.

2If you use screw longer than standard, the monitor might be damaged internally.

3If you use improper screw, the product might be damaged and drop from mounted position. In

this case, LG Electronics is not responsible for it.

4VESA compatible.

5Please use VESA standard as below.

y784.8 mm (30.9 inch) and under

*Wall Mount Pad Thickness : 2.6 mm

*Screw : ĭ 4.0 mm x Pitch 0.7 mm x Length 10 mm

y787.4 mm (31.0 inch) and above

*Please use VESA standard wall mount pad and screws.

Model		19EN43S		19EN43T
		20EN43S		20EN43T
		22EN43S		22EN43T
		23EN43S		23EN43T		24EN43T
VESA (A x B)	75 x 75					100 x 100
Standard screw	M4
Number of screws	4

CAUTION

yDisconnect the power cord first, and then move or install the Monitor set. Otherwise electric shock may occur.

yIf you install the Monitor set on a ceiling or slanted wall, it may fall and result in severe injury.

yUse only an authorized LG wall mount and contact the local dealer or qualified personnel.

yDo not over tighten the screws as this may cause damage to the Monitor set and void your warranty.

yUse only screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper

accessory are not covered by the warranty.

NOTE

yUse the screws that are listed on the VESA standard screw specifications.

yThe wall mount kit will include an installation manual and necessary parts.

yThe wall mount bracket is optional. You can obtain additional accessories from your local dealer.

yThe length of screws may differ depending on the wall mount. Be sure to use the proper length.

yFor more information, refer to the instructions supplied with the wall mount.

USING THE MONITOR SET 9

USING THE MONITOR SET

Connecting to a PC

yYour Monitor set supports Plug & Play*. *Plug & Play: A PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

D-SUB connection

Transmits analog video from your PC to the Monitor set. Connect the PC and the Monitor set with the supplied D-sub 15 pin signal cable as shown in the following illustrations.

19EN43S20EN43S 22EN43S23EN43S

NOTE

yWhen using a D-Sub signal input cable connector for Macintosh

yMac adapter

For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-SUB VGA connector on the supplied cable to a 15 pin 2 row connector.

ENGLISH

DVI-D connection

Transmits a digital video signal from your PC to the Monitor set. Connect the PC and the Monitor set with a DVI cable as shown in the following illustrations.

19EN43T20EN43T22EN43T 23EN43T24EN43T

19EN43T 20EN43T22EN43T 23EN43T24EN43T

ENGLISH

10 USING THE MONITOR SET

CAUTION

y Connect the signal input cable and tighten it by turning the screws clockwise.

yDo not press the screen with your finger for a long time as this may result in temporary distortion on the screen.

yAvoid displaying a fixed image on the screen for a long period of time to prevent image burn. Use a screensaver if possible.

Self Image Setting Function

Press the power button on the bottom panel to turn the power on. When monitor power is turned on, the "Self Image Setting" Function is executed automatically. (Only supported in Analog Mode)

NOTE

yWhen you want to use two PC in our Monitor, please connect the signal cable(D-SUB/ DVI-D) respectively in Monitor set.

yIf you turn the Monitor set on while it is cold, the screen may flicker. This is normal.

ySome red, green, or blue spots may appear on the screen. This is normal.

NOTE

y "Self Image Setting" Function.

This function provides the user with optimal display settings.When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals.(Only supported in Analog Mode)

y ‘AUTO’ Function.

When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the AUTO function button to improve resolution. (Only supported in Analog Mode)

		CUSTOMIZING SETTINGS 11
	CUSTOMIZING SETTINGS			ENGLISH
	1	Press the desired button on the bottom of the Monitor set.
	2	Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.
		To return to the upper menu or set other menu items, use the up arrow ( ) button.
	3	Select Exit to leave the OSD menu.

MENU

MY KEY

FUNC.

AUTO

INPUT EXIT

Monitor set Buttons

Button

Description

Accesses the main menus.(See p.12)

OSD Locked/OSD This function allows you to lock the current control settings, Unlocked so that they cannot be inadvertently changed.

Press and hold the MENU button for several seconds. The message "OSD LOCKED" should appear.

You can unlock the OSD controls at any time by pushing the MENU button for several seconds. The message "OSD UNLOCKED" should appear.

Use this button to enter MY KEY menu.For more information.(See p.17)

Use this button to enter Picture Mode, SUPER ENERGY SAVING, DUAL DISPLAY,

DUAL WEB,MY KEY Setting menus.(See p.18)

			When adjusting your display settings, always press the AUTO button on the MONITOR
			SETUP OSD. (Only supported in Analog Mode)
			The best display mode	1920 x 1080
			Exit
			Exit the OSD(On Screen Display).
	(Power Button)		Turns the power on or off.
			Power Indicator	The power indicator stays red if the display is running properly
				(On Mode). If the display is in Sleep Mode, the power
				indicator blinks red.
