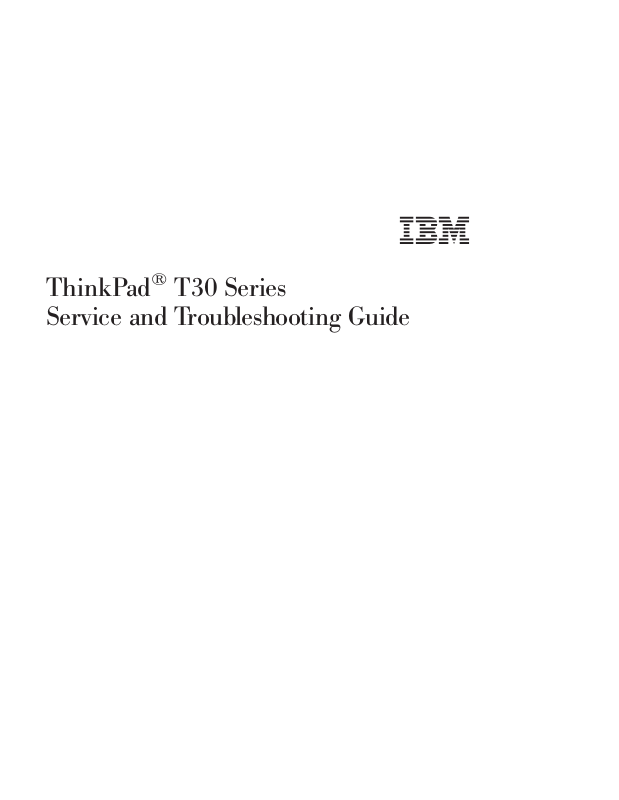

ThinkPad® T30 Series

Service and Troubleshooting Guide

ThinkPad® T30 Series

Service and Troubleshooting Guide

Note

Before using this information and the product it supports, be sure to read the general information under Appendix A, “Important safety instructions” on page 39, Appendix B, “Wireless related information” on page 45, Appendix C, “Warranty information” on page 47, and Appendix D, “Notices” on page 61.

DANGER

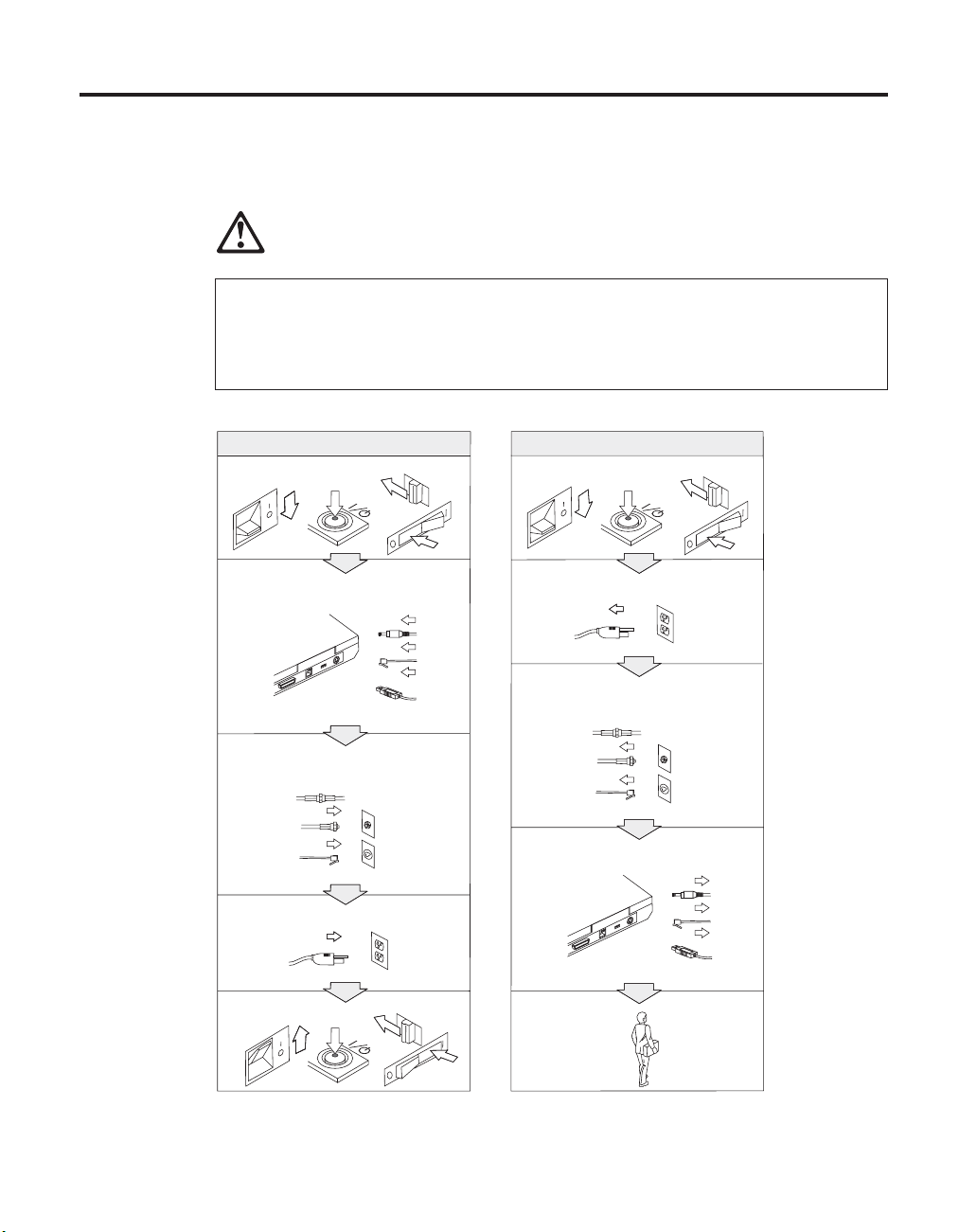

vTo avoid electric shock hazard, connect and disconnect cables appropriately when installing, moving or opening the covers of this product or attached devices. Use the power cord with a properly grounded outlet.

vDo not leave the base of your computer in contact with your lap or any part of your body for an extended period when the computer is functioning or when the battery is charging. Your computer dissipates some heat during normal operation. This heat is a function of the level of system activity and battery charge level. Extended contact with your body, even through clothing, could cause discomfort or, eventually, a skin burn.

vTo reduce the risk of electric shock, do not use your computer in or near water.

vTo avoid electric shock, do not use your computer with the telephone cable connection during an electrical storm. Do not connect the cable to or disconnect it from the telephone outlet on the wall during an electrical storm.

vStore packing materials safely out of the reach of children to prevent the risk of suffocation from plastic bags.

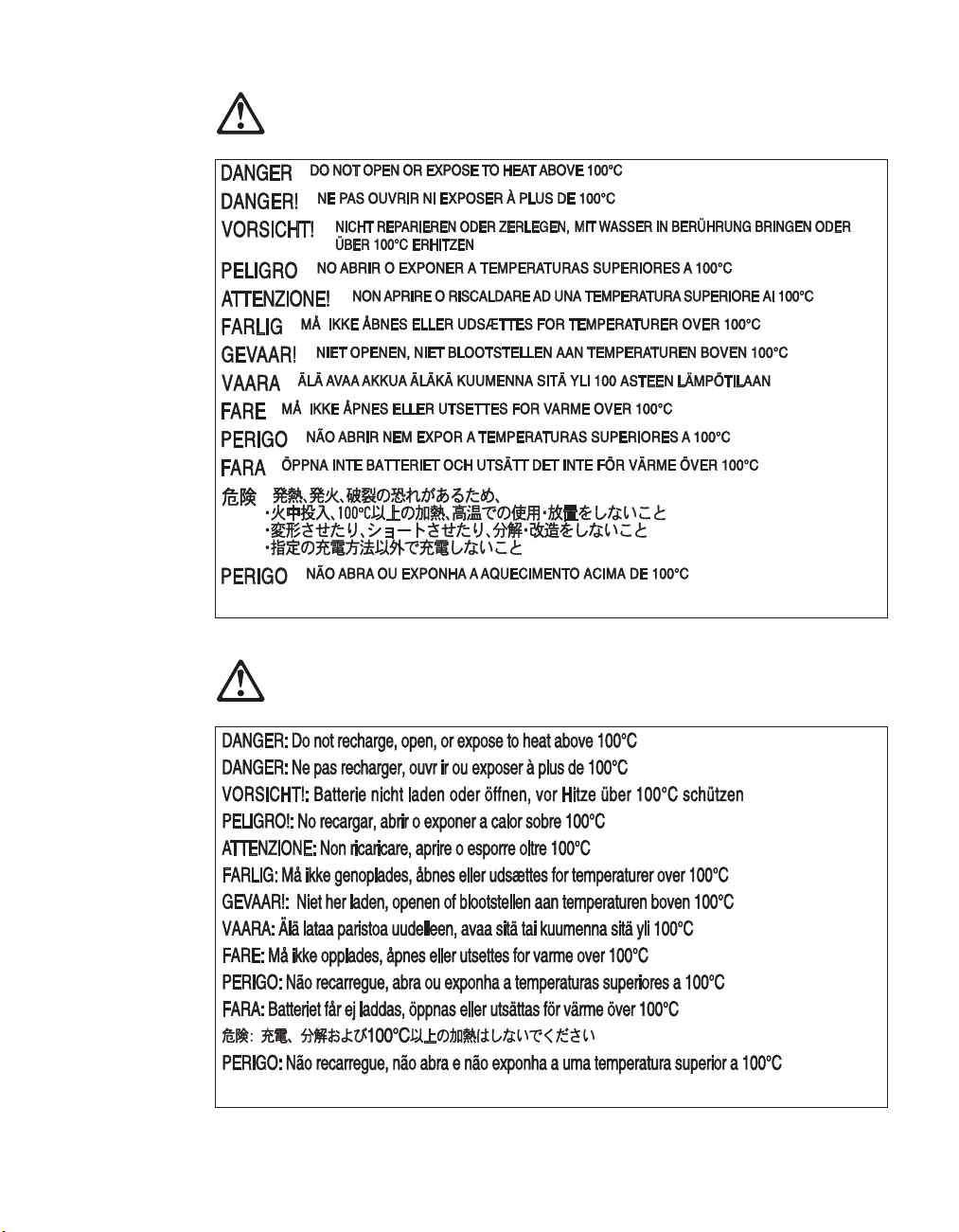

vThe battery pack contains a small amount of harmful substances. There is danger of an explosion if the battery pack is incorrectly replaced, exposed to fire or water, short-circuited or disassembled. Keep the battery pack away from children and do not put it in trash that is disposed of in landfills.

vTo reduce the risk of fire, use only No. 26 AWG or thicker telephone cable.

vThe fluorescent lamp in the LCD contains mercury. Do not put it in trash that is disposed of in landfills. Rough handling or dropping the computer can cause the LCD to break and the internal fluid to get into your eyes or on your hands. Immediately wash the affected areas with water. If symptoms persist, seek medical care.

vDo not disassemble the optical storage drive unit, as this might result in hazardous radiation exposure.

vAvoid direct eye exposure with the laser beam contained in some drives.

First Edition (June 2002)

The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law:

INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION ″AS IS″ WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.

IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.

US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.

Important Wireless Regulatory Notice for Users

The ThinkPad T30 Series computer complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. You are requested to install and use your ThinkPad computer in strict accordance with the local RF regulations. Before you use the ThinkPad T30 Series computer, please find and read “Wireless Regulatory Notice for ThinkPad T30 Series,” the notice that supplements this Service and Troubleshooting Guide. The notice is included in the package with this publication.

iii

iv ThinkPad® T30 Series Service and Troubleshooting Guide

Finding information with Access ThinkPad

Find answers to questions about your computer and view IBM Web sites by pressing the ThinkPad button to open Access ThinkPad, your on-board computer help center.

Take a tour of your ThinkPad computer and learn how to get started, customize your computer, add memory, protect data, recover applications and data files, upgrade, and solve problems.

Once you are familiar with the hardware features of your computer, click the Tools and Tips tab to get the most out of those features, like Wireless Networking, Maximizing your battery life, and even personalizing Access ThinkPad. Click Access Help to open a comprehensive help system that offers information such as how to change or upgrade the memory in your computer.

Visit these IBM Web sites to join an interactive community of ThinkPad users, download new backgrounds, purchase accessories, or get online support.

Keyword Search provides a quick way to search information in Access Help.

Click System Information to view information about your system, such as model number, serial number, and hard disk capacity.

vi ThinkPad® T30 Series Service and Troubleshooting Guide

Some of the topics in your help system contain brief video clips that show you how to perform certain tasks, such as replacing your battery, inserting a PC Card, or upgrading your memory. Use the controls shown to play, pause, and rewind the video clip.

Finding information with Access ThinkPad vii

viii ThinkPad® T30 Series Service and Troubleshooting Guide

Important Wireless Regulatory Notice for			Getting help around the world . . . . .	. 37
Users . . . . . . . . . . . . . .		iii
			Appendix A. Important safety instructions		39
Finding information with Access ThinkPad		v	Modem safety information . . . . . .	. 42
			Laser compliance statement . . . . . .	.	43
Chapter 1. Overview of your new ThinkPad
computer . . . . . . . . . . . .	.	1	Appendix B. Wireless related information		45
Your ThinkPad at a glance . . . . . .	.	2	Wireless Interoperability . . . . . . .	.	45
Features. . . . . . . . . . . . .	.	3	Usage environment and your Health . . .	.	45
Specifications . . . . . . . . . . .	.	5
Caring for your ThinkPad computer . . .	. 6		Appendix C. Warranty information . . .	. 47
Chapter 2. Solving computer problems .	. 9		Warranty Period . . . . . . . . .	.	47
Chapter 2. Solving computer problems .	. 9		Warranty service and support . . . . .	.	47
Diagnosing problems . . . . . . . .	.	10	Before you call for service . . . . .	.	48
Troubleshooting . . . . . . . . . .	.	11	Calling for service . . . . . . . .	.	48
Error messages . . . . . . . . .	. 11		IBM Statement of Limited Warranty
Errors without messages . . . . . .	.	14	Z125-4753-06 8/2000 . . . . . . . .	.	49
A password problem . . . . . . .	.	15	Part 1 - General Terms . . . . . .	.	49
A power switch problem . . . . . .	. 16		Part 2 - Country-unique Terms . . . .	. 52
Keyboard problems . . . . . . .	.	16
UltraNav™ problems . . . . . . .	.	17	Appendix D. Notices. . . . . . . .	.	61
Standby or hibernation problems . . .	.	18	Processing date data . . . . . . . .	.	61
Computer screen problems . . . . .	. 21		References to the Web site addresses . . .	. 62
Battery problems . . . . . . . .	.	23	Electronic emission notices . . . . . .	.	62
Hard disk drive problems . . . . .	.	24	Telecommunication notices . . . . . .	.	63
Other problems . . . . . . . . .	.	25	Fax Branding . . . . . . . . .	.	64
Starting BIOS Setup Utility . . . . . .	.	27	Industry Canada requirements . . . . .	.	65
Recovering pre-installed software . . . .	.	28	Notice for Australia . . . . . . . .	.	66

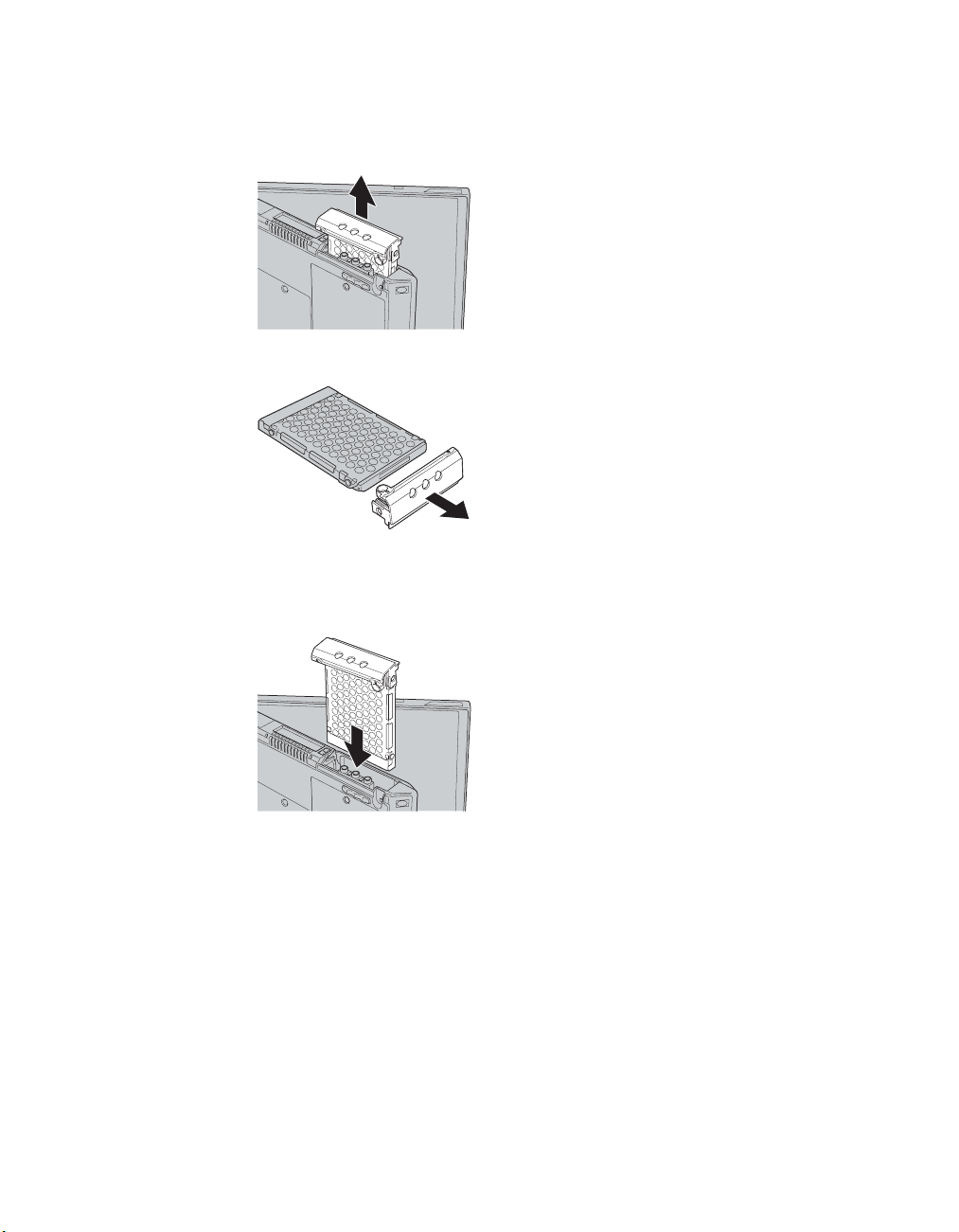

Upgrading the hard disk drive . . . . .	. 30		Notice for New Zealand . . . . . . .	.	67

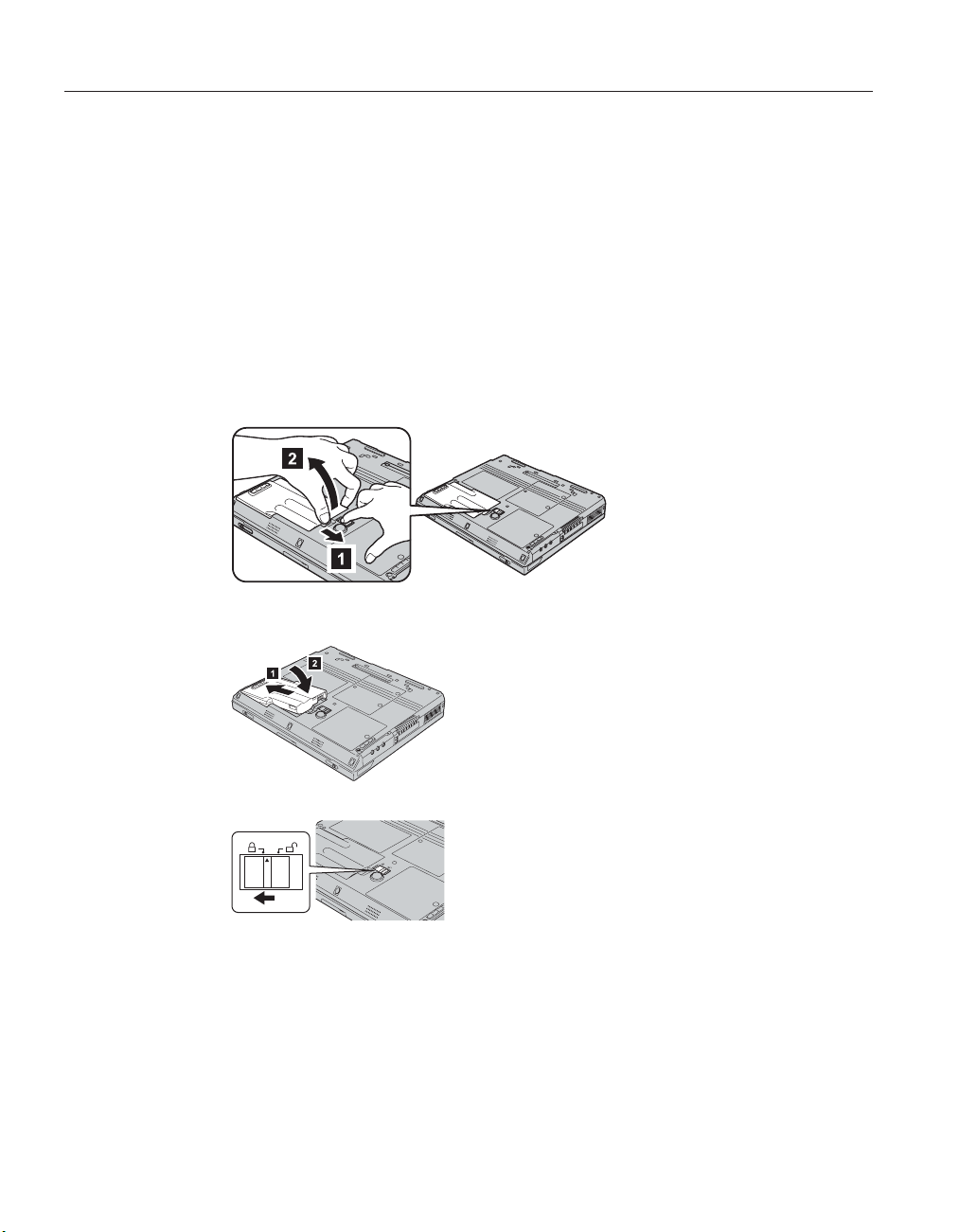

Replacing the battery . . . . . . . .	.	32	Notice for European Union countries. . .	.	69
Chapter 3. Getting help and service from			Product notice requirements . . . . .	.	70
Chapter 3. Getting help and service from			Environmental notices for Japan . . . .	.	70
IBM. . . . . . . . . . . . . .	. 33		Trademarks . . . . . . . . . . .	.	71
Getting help and service . . . . . . .	.	34
Getting help on the Web . . . . . . .	.	34	Index . . . . . . . . . . . . .	.	85
Getting help by fax . . . . . . . .	.	35
Calling IBM . . . . . . . . . . .	.	35

x ThinkPad® T30 Series Service and Troubleshooting Guide

Chapter 1. Overview of your new ThinkPad computer

Your ThinkPad at a glance	. .	.	. .	.	.	2	Specifications . . . . . . . . .	.	.	.	5
Features. . . . . . .	. .	.	. .	.	.	3	Caring for your ThinkPad computer .	.	.	.	6

Your ThinkPad at a glance

Front view

Rear view

2 ThinkPad® T30 Series Service and Troubleshooting Guide

Features

Processor

v Intel® Pentium® 4 processor-M

Memory

vBuilt-in: 128 MB or 256 MB, depending on the model

vMaximum: 1024 MB

Storage device

v 2.5-inch hard disk drive: 20 GB, 40 GB or 60 GB, depending on the model

Display

The color display uses TFT technology:

vSize: 14.1 inch

vResolution:

–LCD: Up to 1400-by-1050, depending on the model

–External monitor: Up to 2048-by-1536

vBrightness control

Keyboard

v84-key, 85-key, or 89-key

vUltraNav™ (TrackPoint® and touch pad)

Note: Some models have the TrackPoint only, without a touch pad and its buttons.

vFn key function

vThinkPad button

vVolume control buttons

vThinkLight™

Chapter 1. Overview of your new ThinkPad computer 3

Features

Diskette drive - available on selected models

To get the best performance from your diskette drives, use high-quality diskettes (such as IBM diskettes) that meet or exceed the following standards:

v1-MB, 3.5-inch, unformatted diskette:

–ANSI (American National Standards Institute) X3.137

–ISO (International Standards Organization) 8860

–ECMA (European Computer Manufacturers Association) 100

v2-MB, 3.5-inch, unformatted diskette:

–ANSI X3.171

–ISO 9529

–ECMA 125

External interface

vSerial connector (EIA-RS232D)

vParallel connector (IEEE 1284A)

vExternal-monitor connector

vPC Card slots (Type I, Type II, or Type III PC Card)

vHeadphone jack

vLine-in jack

vMicrophone jack

vVideo-out connector

v2 Universal Serial Bus (USB) connectors

vInfrared port

vRJ11 telephone connector (available if the modem feature is installed)

vRJ45 Ethernet connector

vUltrabay™ Plus

vDocking connector

vIntegrated wireless LAN (IEEE 802.11b) feature (on some models)

vIntegrated Bluetooth feature (on some models)

4 ThinkPad® T30 Series Service and Troubleshooting Guide

Specifications

Size

vWidth: 304 mm (12.0 in.)

vDepth: 250 mm (9.8 in.)

vHeight: 36.6 mm (1.4 in.)

Environment

vMaximum altitude without pressurization: 3048 m (10,000 ft)

vTemperature

–At altitudes up to 2438 m (8000 ft)

-Operating with no diskette: 5° to 35°C (41° to 95°F)

-Operating with a diskette: 10° to 35°C (50° to 95°F)

-Not operating: 5° to 43°C (41° to 110°F)

–At altitudes above 2438 m (8000 ft)

-Maximum operating temperature, 31.3°C (88° F)

Note: When you charge the battery pack, its temperature must be at least 10°C (50°F).

vRelative humidity:

–Operating with no diskette in the drive: 8% to 95%

–Operating with a diskette in the drive: 8% to 80%

Heat output

v 72 W (246 Btu/hr) maximum

Power source (ac adapter)

vSine-wave input at 50 to 60 Hz

vInput rating of the ac adapter: 100-240 V ac, 50 to 60 Hz

Battery pack

vLithium-ion (Li-Ion) battery pack

–Nominal voltage: 10.8 V dc

–Capacity: 4.4 AH

Chapter 1. Overview of your new ThinkPad computer 5

Caring for your ThinkPad computer

Though your computer is designed to function reliably in normal work environments, you need to use common sense in handling it. By following these important tips, you will get the most use and enjoyment out of your computer.

Important tips:

Be careful about where and how you work

vPlace liquids away from your computer to avoid spills, and keep your computer away from water (to avoid the danger of electrical shock).

vStore packing materials safely out of the reach of children to prevent the risk of suffocation from plastic bags.

vKeep your computer away from magnets, activated cellular phones, electrical appliances, or speakers (within 13cm/5 in).

vAvoid subjecting your computer to extreme temperatures (below 5°C/41°F or above 35°C/95°F).

Be gentle with your computer

vAvoid placing any objects (including paper) between the display and the keyboard or under the keyboard.

vDo not drop, bump, scratch, twist, hit, vibrate, push or place heavy objects on your computer, display, or external devices.

vYour computer display is designed to be opened and used at an angle slightly greater than 90 degrees. Do not open the display beyond 180 degrees, as this might damage the computer hinge.

Carry your computer properly

vBefore moving your computer, be sure to remove any media, turn off attached devices, and disconnect cords and cables.

vBe sure your computer is in standby or hibernation mode, or turned off, before moving it. This will prevent damage to the hard disk drive and data loss.

vWhen picking up your open computer, hold it by the bottom. Do not pick up or hold your computer by the display.

6 ThinkPad® T30 Series Service and Troubleshooting Guide

Caring for your ThinkPad computer

vUse a quality carrying case that provides adequate cushion and protection. Do not pack your computer in a tightly packed suitcase or bag.

Handle storage media and drives properly

vAvoid inserting diskettes at an angle and attaching multiple or loose diskette labels, as these can lodge in the drive.

vIf your computer comes with a CD, DVD, or CD-RW/DVD drive, do not touch the surface of a disc or the lens on the tray.

vWait until you hear the CD or DVD click into the center pivot of the CD, DVD, or CD-RW/DVD drive before closing the tray.

vWhen installing your hard disk, diskette, CD, DVD, or CD-RW/DVD drive, follow the instructions shipped with your hardware, and apply pressure only where needed on the device. See Access ThinkPad, your on-board help system, for information on replacing your hard disk drive (open Access ThinkPad by pressing the ThinkPad button.).

Take care in setting passwords

vRemember your passwords. If you forget a supervisor or hard disk password, IBM will not reset it, and you might have to replace your system board or hard disk drive.

Other important tips

vYour computer modem might use only an analog telephone network, or public-switched telephone network (PSTN). Do not connect the modem to a PBX (private branch exchange) or any other digital telephone extension line because this could damage your modem. Analog phone lines are often used in homes, while digital phone lines are often used in hotels or office buildings. If you are not sure which kind of phone line you are using, contact your telephone company.

vYour computer might have both an Ethernet connector and a modem connector. If so, be sure to connect your communication cable to the correct one, so your connector is not damaged. See Access ThinkPad, your on-board help system, for information on the location of these connectors (press the ThinkPad button to open Access ThinkPad).

vRegister your ThinkPad products with IBM (refer to the Web page: www.ibm.com/pc/register). This can help authorities return your computer to you if it is lost or stolen. Registering your computer also enables IBM to notify you about possible technical information and upgrades.

vOnly an authorized IBM ThinkPad repair technician should disassemble and repair your computer.

vDo not modify or tape the latches to keep the display open or closed.

vTake care not to turn your computer over while the ac adapter is plugged in. This could break the adapter plug.

Chapter 1. Overview of your new ThinkPad computer 7

Caring for your ThinkPad computer

vTurn off your computer if you are replacing a device in a device bay, or else verify that the device is warm-or hot-swappable.

vIf you exchange drives in your computer, reinstall the plastic bezel faces (if supplied).

vStore your external and removable hard disk, diskette, CD, DVD, and CD-RW/DVD drives in the appropriate containers or packaging when they are not being used.

Cleaning your computer

Occasionally clean your computer as follows:

vUse a soft cloth moistened with nonalkaline detergent to wipe the exterior of the computer.

vAvoid spraying cleaner directly on the display or the keyboard.

vGently wipe the display with a soft, dry cloth. If you see a scratchlike mark on your display, it might be a stain transferred from the keyboard or the TrackPoint pointer when the cover was pressed from the outside. Wipe or dust the stain gently with a soft, dry cloth. If the stain remains, moisten a soft, lint-free cloth with water that does not contain impurities, wring out as much of the water as you can, and then wipe the display again. Be sure to dry the display before closing it.

8 ThinkPad® T30 Series Service and Troubleshooting Guide

Chapter 2. Solving computer problems

Diagnosing problems . . . . . .	. .	.	10	Computer screen problems . . . .	.	.	21
Troubleshooting . . . . . . . .	. .	.	11	Battery problems . . . . . . .	.	.	23
Error messages . . . . . . .	. .	.	11	Hard disk drive problems . . . .	.	.	24
Errors without messages . . . .	. .	.	14	Other problems . . . . . . . .	.	.	25
A password problem . . . . .	. .	.	15	Starting BIOS Setup Utility . . . . .	.	.	27
A power switch problem . . . .	. .	.	16	Recovering pre-installed software . . .	.	.	28
Keyboard problems . . . . .	. .	.	16	Upgrading the hard disk drive . . . .	.	.	30
UltraNav™ problems . . . . .	. .	.	17	Replacing the battery . . . . . . .	.	.	32
Standby or hibernation problems .	. .	. 18

Solving computer problems

Diagnosing problems

If you have a problem with your computer, you can test it by using PC-Doctor® for Windows®. To run PC-Doctor for Windows, do as follows:

1.Click Start.

2.Move the cursor to Programs (in Windows XP, All Programs) and then to

PC-Doctor for Windows.

3.Click PC-Doctor for Windows.

4.Choose either the Run Quick Test Set or the Run Normal Test Set.

Attention

Running the Quick Test Set can take up to 10 minutes or longer. Make sure you have time to run the entire test; do not interrupt the test while it is running.

The Quick Test Set runs many tests of critical hardware components, but it does not run all of the diagnostic tests in PC-Doctor for Windows. If PC-Doctor for Windows reports that all of the tests in the Quick Test Set have been run and that it has found no problems, consider running more of the tests in PC-Doctor for Windows.

If you are preparing to contact IBM for support, be sure to print the test log so that you can rapidly provide information to the help technician.

10 ThinkPad® T30 Series Service and Troubleshooting Guide

Solving computer problems

Troubleshooting

If you do not find your problem here, refer to Access ThinkPad, your on-board help system. Open Access ThinkPad by pressing the ThinkPad button. The following section only describes problems that might prevent you from accessing this help system.

Error messages

Notes:

1.In the charts, x can be any character.

2.The version of PC-Doctor referred to here is PC-Doctor for Windows.

Message	Solution

0175: Bad CRC1, stop	The EEPROM checksum is not correct (block #6). Have the computer
POST task	serviced.

0176: System Security -	This message is displayed if you remove the Security Chip and reinstall it,
The System has been	or install a new one. To clear the error, enter the BIOS Setup Utility. If this
tampered with.	does not solve the problem, have the computer serviced.

0187: EAIA data access	The access to EEPROM is failed. Have the computer serviced.
error

0188: Invalid RFID	The EEPROM checksum is not correct (block # 0 and 1, or block # 6). The
serialization information	system board should be replaced, and the box serial number needs to be
area or bad CRC2.	reinstalled. Have the computer serviced.

0189: Invalid RFID	The EEPROM checksum is not correct (block # 4 and 5). The system board
configuration	should be replaced, and the UUID needs to be reinstalled. Have the
information area	computer serviced.

0190: Critical low-battery	The computer turned off because the battery is low. Connect the ac adapter
error	to the computer and charge the battery, or replace the battery with a fully
	charged one.

0191: System Security -	The system configuration change has failed. Confirm the operation and try
Invalid remote change	again.To clear the error, enter the BIOS Setup Utility.
requested.

0192: System Security -	The Security Chip has been replaced with a different one. Have the
IBM Embedded Security	computer serviced.
hardware tamper
detected.

0197: Invalid Remote	The remote configuration for the Security Chip has failed. Confirm the
change requested	operation and try again.

0199: System Security -	This message is displayed if you enter a wrong supervisor password more
IBM Security password	than three times. Confirm the supervisor password and try again. To clear
retry count exceeded.	the error, enter the BIOS Setup Utility.

Chapter 2. Solving computer problems 11

Solving computer problems

Message	Solution

01C8: More than one	Remove either a Modem Mini-PCI Card or a Modem Daughter Card,
modem devices are	otherwise press Esc to ignore the warning message. If it does not solve this
found. Remove one of	problem, have the computer serviced.
them. Press <Esc> to
continue.

01C9: More than one	Your ThinkPad computer has a built-in Ethernet feature, and you cannot
Ethernet devices are	add another such feature by installing an Ethernet device such as a
found. Remove one of	Mini-PCI Ethernet Card or an Ethernet Daughter Card. If this error message
them. Press <Esc> to	is displayed, remove the Ethernet device that you installed. Otherwise press
continue.	Esc to ignore the warning message. If this does not solve the problem, have
	the computer serviced.

0200: Hard disk error	The hard disk is not working. Make sure that the hard disk drive is attached
	firmly. Run the BIOS Setup Utility; then make sure the hard disk drive is
	not disabled in the Startup menu.

021x: Keyboard error	Make sure that there are no objects placed on the keyboard, or if you have
	one, the external keyboard. Turn off the computer, and turn off all attached
	devices. Turn on the computer first; then turn on the attached devices.
	If you still see the same error code, do the following:
	If an external keyboard is connected, do the following:
	v Turn off the computer and disconnect the external keyboard; then turn on
	the computer. Make sure that the built-in keyboard operates correctly. If it
	does, have the external keyboard serviced.
	v Make sure that the external keyboard is connected to the correct
	connector.
	Test the computer by using PC-Doctor.
	v If the computer stops during the test, have the computer serviced.
0230: Shadow RAM error	The shadow RAM failed. Test your computer’s memory with PC-Doctor. If
	you added a memory module just before turning the computer on, reinstall
	it. Then test the memory with PC-Doctor.

0231: System RAM error	The system RAM failed. Test your computer’s memory with PC-Doctor. If
	you added a memory module just before turning the computer on, reinstall
	it. Then test the memory with PC-Doctor.

0232: Extended RAM	The extended RAM failed. Test your computer’s memory with PC-Doctor. If
error	you have increased memory just before turning the computer on, reinstall it.
	Then test the memory with PC-Doctor.

0250: System battery	The backup battery, which is used to preserve the configuration information,
error	such as the date and time, while the computer is turned off, is depleted.
	Replace the battery and run IBM BIOS Setup Utility to verify the
	configuration. If you still have a problem, have the computer serviced.

12 ThinkPad® T30 Series Service and Troubleshooting Guide

	Solving computer problems

Message	Solution

0251: System CMOS	The system CMOS might have been corrupted by an application program.
checksum bad	The computer uses the default settings. Run IBM BIOS Setup Utility to
	reconfigure the settings. If you still see the same error code, have the
	computer serviced.

0260: System timer error	Have the computer serviced.

0270: Real time clock	Have the computer serviced.
error

0271: Date and time error	Neither the date nor the time is set in the computer. Set the date and time,
	using the IBM BIOS Setup Utility.

0280: Previous boot	Your computer was previously unable to complete the boot process.
incomplete	Turn the computer off; then turn it on to start the IBM BIOS Setup Utility.

	Verify the configuration and then restart the computer either by choosing
	the Exit Saving Changes option under the Restart item or by pressing F10.
	If you still see the same error code, have the computer serviced.

02D0: System cache error	The cache is disabled. Have the computer serviced.

02F4: EISA CMOS not	Have the computer serviced.
writable

02F5: DMA test failed	Have the computer serviced.

02F6: Software NMI	Have the computer serviced.
failed

02F7: Fail-safe timer NMI	Have the computer serviced.
failed

1802: Unauthorized	The Mini-PCI network card is not supported on this computer. Remove it.
network card is plugged
in - Power off and
remove the miniPCI
network card.

The power-on password	A power-on password or a supervisor password is set. Type the password
prompt	and press Enter to use the computer. If the power-on password is not
	accepted, a supervisor password might have been set. Type the supervisor
	password and press Enter. If you still see the same error message, have the
	computer serviced.

The hard disk password	A hard disk password is set. Type the password and press Enter to use the
prompt	computer.
	If you still see the same error message, have the computer serviced.

Chapter 2. Solving computer problems 13

Solving computer problems

	Message	Solution

	Hibernation error	The system configuration changed between the time your computer entered
		hibernation mode and the time it left this mode, and your computer cannot
		resume normal operation.
		v Restore the system configuration to what it was before your computer
		entered hibernation mode.
		v If the memory size has been changed, re-create the hibernation file.
	Operating system not	Verify the following:
	found.	v The hard disk drive is correctly installed.
		v A startable diskette is in the diskette drive
		If you still see the same error message, check the boot sequence, using the
		IBM BIOS Setup Utility.

	Fan error	The cooling fan has failed. Have the computer serviced.

	EMM386 Not Installed —	Edit C:\CONFIG.SYS and change a line from
	Unable to Set Page	device=C:\WINDOWS\EMM386.EXE RAM
	Frame Base Address.	device=C:\WINDOWS\EMM386.EXE RAM
	Frame Base Address.
		to
		device=C:\WINDOWS\EMM386.EXE NOEMS
		and save this file.

	CardBus Configuration	Press F1 to go to the IBM BIOS Setup Utility. Press F9 and then Enter to
	Error —Device Disabled	load the default setting.
		Press F10 and then Enter to restart the system.

	Thermal sensing error	The thermal sensor is not functioning correctly. Have the computer serviced.

Errors without messages

Problem: When I turn on the machine, nothing appears on the screen and the machine does not beep while starting up.

Note: If you are not sure whether you heard any beeps, turn off the computer; then turn it on again, and listen again. If you are using an external monitor, refer to“Computer screen problems” on page 21

Solution: If a power-on password is set, press any key to display the power-on password prompt, and then type the correct password and press Enter.

If the power-on password prompt does not appear, the brightness level might be set to minimum brightness. Adjust the brightness level by pressing the Fn+Home.

14 ThinkPad® T30 Series Service and Troubleshooting Guide

Solving computer problems

If the screen still remains blank, make sure that:

vThe battery is installed correctly.

vThe ac adapter is connected to the computer and the power cord is plugged into a working electrical outlet.

vThe computer power is on. (Turn on the power switch again for confirmation.)

If these items are properly set, and the screen remains blank, have the computer serviced.

Problem: When I turn on the machine, nothing appears on the screen, but I hear two or more beeps.

Solution: Make sure that the memory card is installed correctly. If it is, but the screen is still blank, and you hear five beeps, have the computer serviced.

If you hear 4 cycles of 4 beeps each, the Security Chip has a problem. Have the computer serviced.

Problem: When I turn on the machine, only a white cursor appears on a blank screen.

Solution: Reinstall your operating system, and turn on the computer. If you still see only the cursor on the screen, have the computer serviced.

Problem: My screen goes blank while the computer is on.

Solution: Your screen saver or power management may be enabled. Move the TrackPoint or press a key to exit the screen saver, or press the power switch to resume from standby or hibernation.

Problem: The DOS full-screen looks smaller.

Solution: If you use a DOS application that supports only 640x480 resolution (VGA mode), the screen image might look slightly distorted or appear smaller than the display size. This is to maintain compatibility with other DOS applications. To expand the screen image to the same size as the actual screen, start the ThinkPad Configuration Program and click LCD; then select the Screen expansion function. (The image might still look slightly distorted.)

Note: If your computer has a screen expansion function, you can use the Fn+F8 keys to expand the screen image.

A password problem

Problem: I forgot my password.

Chapter 2. Solving computer problems 15

Solving computer problems

Solution: If you forgot your power-on password, you must take your computer to an IBM reseller or marketing representative to have the password canceled.

If you forgot your hard disk password, IBM will not reset your password or recover data from the hard disk. You must take your computer to an IBM reseller or an IBM marketing representative to have the hard disk drive replaced. Proof of purchase is required, and a fee will be charged for parts and service.

If you forgot your supervisor password, IBM will not reset your password. You must take your computer to an IBM reseller or IBM marketing representative to have the system board replaced. Proof of purchase is required, and a fee will be charged for parts and service.

A power switch problem

Problem: The system does not respond, and you cannot turn off the computer.

Solution: Turn off the computer by pressing and holding the power switch for 4 seconds or more. If the computer is still not reset, remove the ac adapter and the battery.

Keyboard problems

Problem: The cursor does not move after the computer returns from one of the power management modes.

Solution: Make sure you followed the instructions correctly when you installed Windows with the Advanced Power Management (APM) option.

Note: The APM option is supported in Windows 98, and Windows NT®.

Problem: Some or all of the keys on the keyboard do not work.

Solution: If the problem occurred immediately after the computer returned from standby mode, enter the power-on password if any is set.

If an external keyboard is connected, the numeric keypad on your computer does not work. Use the numeric keypad on the external keyboard.

If an external numeric keypad or a mouse is connected:

1.Turn off the computer.

2.Remove the external numeric keypad or the mouse.

3.Turn on the computer and try using the keyboard again.

16 ThinkPad® T30 Series Service and Troubleshooting Guide

Solving computer problems

If the keyboard problem is resolved, carefully reconnect the external numeric keypad, external keyboard, or mouse, making sure that you have seated the connectors properly.

If any keys on the keyboard still do not work, have the computer serviced.

Problem: A number appears when you type a letter.

Solution: The numeric lock function is on. To disable it, press and hold Shift; then press NumLk.

Problem: Some or all of the keys on the external numeric keypad do not work.

Solution: Make sure that the external numeric keypad is correctly connected to the computer.

Problem: Some or all of the keys on the external keyboard do not work.

Solution: If you are using the docking station or the port replicator, make sure that the keyboard cable is correctly connected to the keyboard connector.

If the connection is correct, disconnect the cable and make sure that the built-in keyboard operates properly. If the built-in keyboard works, there is a problem with the external keyboard. Try using a different external keyboard.

UltraNav™ problems

Problem: The cursor drifts when the computer is turned on or after it resumes normal operation.

Solution: The cursor might drift when you are not using the TrackPoint during normal operation. This is a normal characteristic of the TrackPoint and is not a defect. Cursor drifting might occur for several seconds under the following conditions:

vWhen the computer is turned on.

vWhen the computer resumes normal operation.

vWhen the TrackPoint is pressed for a long time.

vWhen the temperature changes.

Problem: The mouse or the pointing device does not work.

Solution: Make sure that the TrackPoint and the touch pad are set to Automatic in the ThinkPad Configuration Program. Then detach the mouse or

Chapter 2. Solving computer problems 17

Solving computer problems

the pointing device, and try using the TrackPoint and the touch pad. If the TrackPoint and the touch pad work, the error might be due to the mouse or the pointing device.

Make sure that the cable for the mouse or the pointing device is securely connected to the docking station or the port replicator.

Note: For more information, see the manual supplied with the mouse.

Problem: The mouse buttons do not work.

Solution: If your ThinkPad computer has the TrackPoint only, this problem may occur.

Change the mouse driver to Standard PS/2® Port Mouse, and then reinstall IBM PS/2 TrackPoint. Drivers are provided in the C:\IBMTOOLS\DRIVERS directory on your hard disk drive. If your hard disk drive does not contain device drivers, refer to the ThinkPad Web site. For access to this Web site, open Access ThinkPad by pressing the ThinkPad button.

Standby or hibernation problems

Problem: The computer enters standby mode unexpectedly.

Solution: If the processor reaches a temperature that is too high, the computer automatically enters standby mode to allow the computer to cool and to protect the processor and other internal components. Also, check the settings for standby mode, using Battery MaxiMiser.

Problem: The computer enters standby mode immediately after Power-on self-test (POST) (the standby indicator light turns on).

Solution: Make sure that:

vThe battery is charged.

vThe operating temperature is within the acceptable range. Refer to “Specifications” on page 5.

If these items are correct, have the computer serviced.

Problem: The critical low-battery error message is displayed, and the computer immediately turns off.

Solution: The battery power is getting low. Connect the ac adapter to the computer, or replace the battery with a fully charged one.

18 ThinkPad® T30 Series Service and Troubleshooting Guide

+ 70 hidden pages

LENOVO ThinkPad T30 User Manual

Important Wireless Regulatory Notice for Users

Finding information with Access ThinkPad

Contents

Chapter 1. Overview of your new ThinkPad computer

Your ThinkPad at a glance

Features

Specifications

Caring for your ThinkPad computer

Chapter 2. Solving computer problems

Diagnosing problems

Troubleshooting

Error messages

Errors without messages

A password problem

A power switch problem

Keyboard problems

UltraNav™ problems

Standby or hibernation problems
