Operation and Safety Manual
®
Original Instructions - Keep this manual with the machine at all times.
Model - 10MSP
ANSI
P/N - 3121227
April 9, 2013
SECTION - FOREWORD
FOREWORD
This manual is a very important tool! Keep it with the machine at all times.
The purpose of this manual is to provide owners, users, operators, lessors, and lessees with the precautions and
operating procedures essential for the safe and proper machine operation for its intended purpose.
Due to continuous product improvements, JLG Industries, Inc. reserves the right to make specification changes
without prior notification. Contact JLG Industries, Inc. for updated information.
Other Publications Available:
Service Manual . . . . . . . . . . . . . . . . . . . . . . . . . . .3121228
Illustrated Parts Manual . . . . . . . . . . . . . . . . . . . .3121229
3121227 – JLG Lift – a
SECTION - SAFETY ALERT SYMBOLS AND SAFETY SIGNAL WORDS
SAFETY ALERT SYMBOLS AND SAFETY SIGNAL WORDS
This is the Safety Alert Symbol. It is used to alert you to the potential personal
injury hazards. Obey all safety messages that follow this symbol to avoid possible
injury or death
INDICATES AN IMMINENTLY HAZARDOUS SITUATION. IF NOT
AVOIDED, WILL RESULT IN SERIOUS INJURY OR DEATH. THIS DECAL
WILL HAVE A RED BACKGROUND.
INDICATES A POTENTIALITY HAZARDOUS SITUATION. IF NOT
AVOIDED, COULD
DECAL WILL HAVE AN ORANGE BACKGROUND.
RESULT IN SERIOUS INJURY OR DEATH. THIS
INDICATES A POTENTIALITY HAZARDOUS SITUATION. IF NOT
AVOIDED, MAY RESULT IN MINOR OR MODERATE INJURY. IT MAY
ALSO ALERT AGAINST UNSAFE PRACTICES. THIS DECAL WILL HAVE
A YELLOW BACKGROUND.
INDICATES INFORMATION OR A COMPANY POLICY THAT RELATES
DIRECTLY OR INDIRECTLY TO THE SAFETY OF PERSONNEL OR PROTECTION OF PROPERTY.
b – JLG Lift – 3121227
SECTION - SAFETY ALERT SYMBOLS AND SAFETY SIGNAL WORDS
THIS PRODUCT MUST COMPLY WITH ALL SAFETY RELATED BULLETINS. CONTACT JLG INDUSTRIES, INC. OR THE LOCAL AUTHORIZED
JLG REPRESENTATIVE FOR INFORMATION REGARDING SAFETY
RELATED BULLETINS WHICH MAY HAVE BEEN ISSUED FOR THIS
PRODUCT.
For :
• Accident Reporting
• Product Safety Publications
• Current Owner Updates
• Questions Regarding
Product Safety
• Standards and Regulations
Compliance Information
• Questions Regarding Special Product Applications
• Questions Regarding Product Modifications
JLG INDUSTRIES, INC. SENDS SAFETY RELATED BULLETINS TO THE
OWNER OF RECORD OF THIS MACHINE. CONTACT JLG INDUSTRIES,
INC. TO ENSURE THAT THE CURRENT OWNER RECORDS ARE
UPDATED AND ACCURATE.
JLG INDUSTRIES, INC. MUST BE NOTIFIED IMMEDIATELY IN ALL
INSTANCES WHERE JLG PRODUCTS HAVE BEEN INVOLVED IN AN
ACCIDENT INVOLVING BODILY INJURY OR DEATH OF PERSONNEL OR
WHEN SUBSTANTIAL DAMAGE HAS OCCURRED TO PERSONAL
PROPERTY OR THE JLG PRODUCT.
Contact :
Product Safety and Reliability Department
JLG Industries, Inc.
1 JLG Drive
McConnellsburg, PA 17233
or Your Local JLG Office
(See addresses on manual rear cover)
In USA:
Toll Free: 877-JLG-SAFE (877-554-7233)
Outside USA:
3121227 – JLG Lift – c
Phone: 717-485-5161
E-mail: ProductSafety@JLG.com
SECTION - REVISION LOG
REVISION LOG
Original Issue of Manual . . . . . . . . . . . . . . November 14, 2005
Manual Revised . . . . . . . . . . . . . . . . . . . . . . . . October 4, 2006
Manual Revised . . . . . . . . . . . . . . . . . . . . . . . . . . . April 2, 2007
Manual Revised . . . . . . . . . . . . . . . . . . . . . .December 22, 2009
Manual Revised . . . . . . . . . . . . . . . . . . . . . . . . February 1, 2011
Manual Revised . . . . . . . . . . . . . . . . . . . . . . . February 28, 2012
Manual Revised . . . . . . . . . . . . . . . . . . . . . . . . . . . April 9, 2013
d – JLG Lift – 3121227
TABLE OF CONTENTS
SECTION - PARAGRAPH, SUBJECT PAGE SECTION - PARAGRAPH, SUBJECT PAGE
FOREWORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A
SAFETY ALERT SYMBOLS AND
SAFETY SIGNAL WORDS . . . . . . . . . . . . . . . . . . . . . . . . B
Contact : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C
In USA: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C
Outside USA: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C
REVISION LOG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D
SECTION - 1 - SAFETY PRECAUTIONS
1.1 GENERAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.2 PRE-OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Operator Training And Knowledge. . . . . . . . . . . . . . 1-1
Workplace Inspection . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Machine Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1.3 OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Trip and Fall Hazards . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Electrocution Hazards. . . . . . . . . . . . . . . . . . . . . . . . 1-4
Tipping Hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Crushing And Collision Hazards. . . . . . . . . . . . . . . . 1-7
1.4 LIFTING, AND HAULING . . . . . . . . . . . . . . . . . . . . . . . 1-8
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
SECTION - 2 - PREPARATION AND INSPECTION
2.1 PERSONNEL TRAINING. . . . . . . . . . . . . . . . . . . . . . . . 2-1
Operator Training . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Training Supervision . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Operator Responsibility . . . . . . . . . . . . . . . . . . . . . . . 2-2
2.2 PREPARATION, INSPECTION, AND
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2.3 PRE-START INSPECTION . . . . . . . . . . . . . . . . . . . . . . 2-4
2.4 DAILY WALK-AROUND INSPECTION . . . . . . . . . . . . . 2-5
Walk-Around Inspection Components . . . . . . . . . . . 2-7
2.5 FUNCTION CHECK . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Function Check Items:. . . . . . . . . . . . . . . . . . . . . . . . 2-8
SECTION - 3 - MACHINE OPERATION
3.1 GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3.2 MACHINE DESCRIPTION. . . . . . . . . . . . . . . . . . . . . . . 3-1
3.3 MACHINE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
3.4 HOOD - (CARRY DECK). . . . . . . . . . . . . . . . . . . . . . . . 3-4
Removal: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Installation:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
3.5 BATTERY CHARGING . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Battery Low Voltage Warning Indicators . . . . . . . . . . 3-5
3121227 – JLG Lift – i
TABLE OF CONTENTS
SECTION - PARAGRAPH, SUBJECT PAGE SECTION - PARAGRAPH, SUBJECT PAGE
To Charge Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Battery Charging Status Indicators . . . . . . . . . . . . . . 3-7
3.6 GROUND CONTROL STATION - OPERATION . . . . . 3-10
Platform/Off/Ground Selector Switch . . . . . . . . . . . 3-11
Emergency Stop/Shut Down Button . . . . . . . . . . . 3-11
Brake Release Button . . . . . . . . . . . . . . . . . . . . . . . 3-12
Platform Up and Down Buttons. . . . . . . . . . . . . . . . 3-12
Machine Status LCD Display. . . . . . . . . . . . . . . . . . 3-13
Tilt Alarm Warning . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
LCD Display Fault Conditions . . . . . . . . . . . . . . . . . 3-14
3.7 PLATFORM CONTROL CONSOLE-OPERATION . . . 3-17
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18
Platform On/Off Key Switch. . . . . . . . . . . . . . . . . . . 3-18
Platform Emergency Stop/Shut Down Button . . . . 3-19
Platform Control Display Panel . . . . . . . . . . . . . . . . 3-19
Drive/Lift Mode Selector Switch . . . . . . . . . . . . . . . 3-21
Joystick Function Enable Lever . . . . . . . . . . . . . . . 3-21
Multifunction Joystick Control . . . . . . . . . . . . . . . . . 3-22
Horn Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
Drive Speed Setting Controls . . . . . . . . . . . . . . . . . 3-24
3.8 PLATFORM FUNCTION ENABLE FOOT SWITCH. . . 3-25
3.9 PLATFORM MANUAL DESCENT CONTROL
VALVE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
Activating the Manual Descent Valve . . . . . . . . . . . 3-26
3.10 PLATFORM CONFIGURATION . . . . . . . . . . . . . . . . . . 3-27
Platform Lanyard Anchorage Point . . . . . . . . . . . . 3-27
Material Handling Tray - Height Adjustment . . . . . 3-28

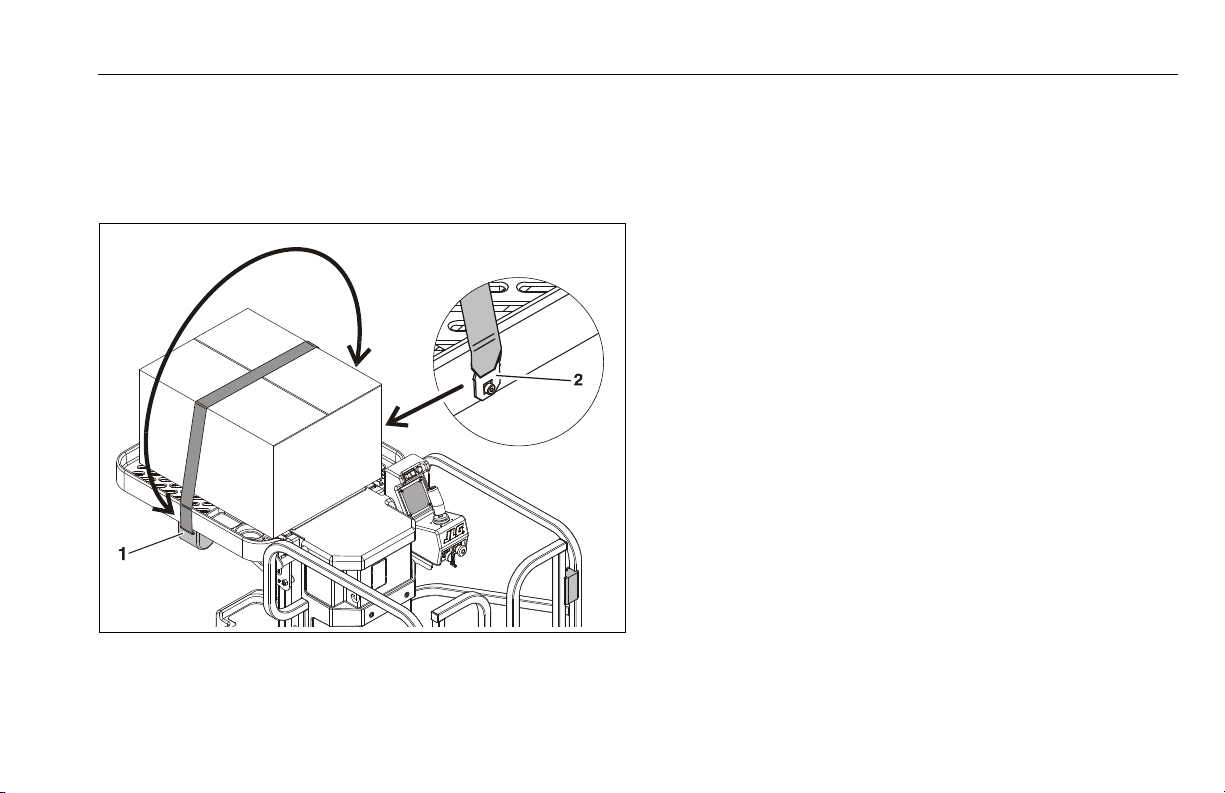

Material Handling Tray - Cargo Strap-OPTION . . . 3-29
3.11 PARKING MACHINE . . . . . . . . . . . . . . . . . . . . . . . . . .3-29
3.12 TRANSPORTING, LIFTING AND TIE-DOWN PROCE-
DURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Fork-Lift Truck Transport . . . . . . . . . . . . . . . . . . . . 3-30
Vehicle Transport - Tied-Down Using the
Tie-Down Loops . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
3.13 PROGRAMMABLE SECURITY LOCK (PSL™)
(OPTION). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-32
PSL™ Box Location . . . . . . . . . . . . . . . . . . . . . . . . 3-32
Machine - Power Up using the PSL™ . . . . . . . . . . 3-33
Machine - Power Down . . . . . . . . . . . . . . . . . . . . . 3-33
Changing the Operator’s Code . . . . . . . . . . . . . . . 3-33
3.14 PLATFORM HANGER ACCESSORY - (OPTION) . . . . 3-34
Hanger Accessory - Pre-Start Inspection . . . . . . . 3-35
Loading and Transporting an Item using the
Hanger Accessory . . . . . . . . . . . . . . . . . . . . . . . . . 3-35
3.15 RUG CARRIER ACCESSORY - (OPTION) . . . . . . . . . 3-35
Pre-Start Inspection . . . . . . . . . . . . . . . . . . . . . . . . 3-35
Hanging a Rug . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36
ii – JLG Lift – 3121227
TABLE OF CONTENTS
SECTION - PARAGRAPH, SUBJECT PAGE SECTION - PARAGRAPH, SUBJECT PAGE
Removing a Rug . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
3.16 FLOURSCENT TUBE CADDY - (OPTION). . . . . . . . . 3-40
Pre-Start Inspection . . . . . . . . . . . . . . . . . . . . . . . . 3-40
3.17 DECAL INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . 3-41
SECTION - 4 - EMERGENCY PROCEDURES
4.1 GENERAL INFORMATION. . . . . . . . . . . . . . . . . . . . . . 4-1
4.2 EMERGENCY OPERATION . . . . . . . . . . . . . . . . . . . . . 4-1
Operator Unable to Control Machine . . . . . . . . . . . . 4-1
Platform Caught Overhead . . . . . . . . . . . . . . . . . . . . 4-1
4.3 INCIDENT NOTIFICATION. . . . . . . . . . . . . . . . . . . . . . 4-1
SECTION - 5 - GENERAL SPECIFICATIONS AND OPERATOR
MAINTENANCE
5.1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
5.2 GENERAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . 5-2
Machine Specifications. . . . . . . . . . . . . . . . . . . . . . . 5-2
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . 5-3
Platform Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Machine Component Weights . . . . . . . . . . . . . . . . . 5-4

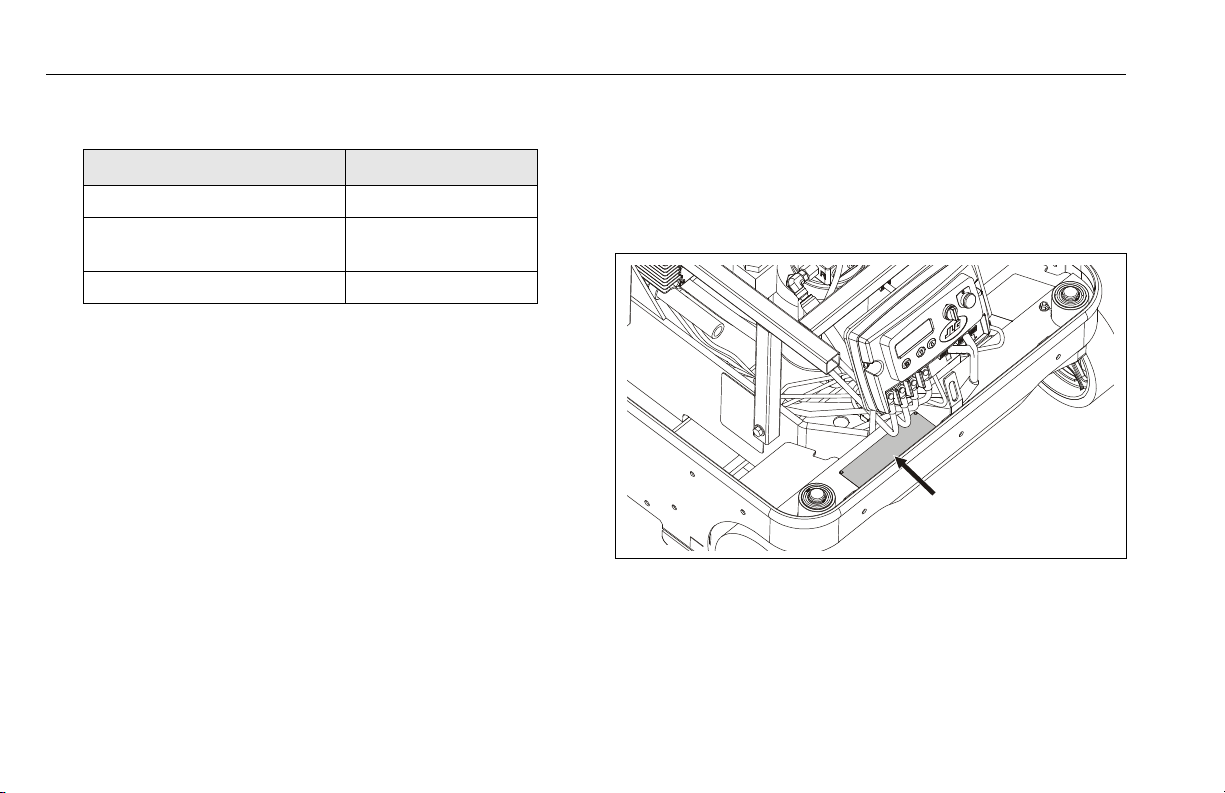

Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 5-4
5.3 OPERATOR MAINTENANCE . . . . . . . . . . . . . . . . . . . . 5-5
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
5.4 BATTERY MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . 5-8
5.5 TIRES AND WHEELS . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Tire Wear and Damage . . . . . . . . . . . . . . . . . . . . . . . 5-8
Wheel and Tire Replacement . . . . . . . . . . . . . . . . . . 5-8
Wheel Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
5.6 GROUND CONTROL STATION-PROGRAMMING . . . 5-10
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Programming Levels . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Operator Programming Mode . . . . . . . . . . . . . . . . . 5-10
Tilt Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Programming Items . . . . . . . . . . . . . . . . . . . . . . . . . 5-11
Activating Programming Mode . . . . . . . . . . . . . . . . 5-13
Entering Password . . . . . . . . . . . . . . . . . . . . . . . . . 5-14
Programming Mode Selection . . . . . . . . . . . . . . . . 5-14
Selecting Programmable Item to Adjust . . . . . . . . . 5-15
Adjusting Programmable Setting . . . . . . . . . . . . . . 5-15
5.7 DRIVE MOTOR BRUSH WEAR -
WARNING INDICATION . . . . . . . . . . . . . . . . . . . . . . . 5-16
5.8 SUPPLEMENTAL INFORMATION . . . . . . . . . . . . . . . 5-17
SECTION - 6 - INSPECTION AND REPAIR LOG
3121227 – JLG Lift – iii
TABLE OF CONTENTS
SECTION - PARAGRAPH, SUBJECT PAGE SECTION - PARAGRAPH, SUBJECT PAGE
LIST OF FIGURES
2-1. Daily Walk-Around Inspection for 10MSP
Machines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
3-1. 10MSP - Machine Operating Specifications . . . . . . 3-2
3-2. Machine Operating Component Locations. . . . . . . 3-3
3-3. Carry Deck - Hood Removal. . . . . . . . . . . . . . . . . . 3-4
3-4. Battery Charger Location (Hood Removed -
For Hood Removal, See page 3-4). . . . . . . . . . . . . 3-7
3-5. Ground Control Station. . . . . . . . . . . . . . . . . . . . . 3-10
3-6. Platform Control Console.. . . . . . . . . . . . . . . . . . . 3-17
3-7. Platform Control Display Panel. . . . . . . . . . . . . . . 3-19
3-8. Manual Descent Valve Location . . . . . . . . . . . . . . 3-26
3-9. Standard Platform (10MSP) . . . . . . . . . . . . . . . . . 3-27
3-10. Material Handling Tray Height Adjustment. . . . . . 3-28
3-11. Material Handling Tray - Cargo Strap - Option . . . 3-29
3-12. Forklift Truck Lifting Pockets. . . . . . . . . . . . . . . . . 3-30
3-13. Front and Rear Tie-Down Loop. . . . . . . . . . . . . . . 3-31
3-14. PSL™ Switch Location . . . . . . . . . . . . . . . . . . . . . 3-32
3-15. PSL™ Switch Controls & Indicators.. . . . . . . . . . . 3-32
3-16. 10MSP Decal Installation Chart -
(See Table 3-4 (ANSI) and (CE) for
Specification) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-41
3-17. 10MSP Decal Installation Chart -
(See Table 3-4 (ANSI) and (CE) for
Specification) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-42
3-18. 10MSP Decal Installation Chart -
(See Table 3-4 (ANSI) and (CE) for
Specification) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-43
5-1. Wheel Lug Nut Tightening Sequence . . . . . . . . . . .5-9
LIST OF TABLES
1-1 Minimum Approach Distances (M.A.D.) . . . . . . . . 1-5
2-1 Inspection and Maintenance Table . . . . . . . . . . . . 2-3
3-1 Battery Low Voltage Warning Indicators. . . . . . . . 3-5
3-2 LCD Display - Operating Fault Conditions . . . . . 3-15
3-3 Platform Maximum Capacity . . . . . . . . . . . . . . . . 3-27
3-4 10MSP - (ANSI and CE) Decal Installation
Chart (See Figure 3-16., Figure 3-17. and
Figure 3-18.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-44
5-1 Lubrication Specifications . . . . . . . . . . . . . . . . . . . 5-5
5-2. Lubrication Intervals for Various Components . . . 5-7
5-3 Wheel Torque Chart. . . . . . . . . . . . . . . . . . . . . . . . 5-9
5-4 Ground Control Station - Level 3 -
Programmable Settings and Factory Presets.. . . .5-12
6-1 Inspection and Repair Log. . . . . . . . . . . . . . . . . . . 6-1
iv – JLG Lift – 3121227
1.1 GENERAL
SECTION 1 - SAFETY PRECAUTIONS
SECTION 1. SAFETY PRECAUTIONS
This section outlines the necessary precautions for proper and
safe machine usage and maintenance. For proper machine use, it
is mandatory that a daily routine is established based on the content of this manual. A maintenance program, using the information
provided in this manual and the Service and Maintenance Manual,
must also be established by a qualified person and must be followed to ensure that the machine is safe to operate.
The owner/user/operator/lessor/lessee of the machine should not
accept operating responsibility until this manual has been read,
training is accomplished, and operation of the machine has been
completed under the supervision of an experienced and qualified
operator.
If there are any questions with regard to safety, training, inspection, maintenance, application, and operation, please contact JLG
Industries, Inc. (“JLG”).
FAILURE TO COMPLY WITH THE SAFETY PRECAUTIONS LISTED IN
THIS MANUAL COULD RESULT IN MACHINE DAMAGE, PROPERTY
DAMAGE, PERSONAL INJURY OR DEATH.
THE FOLLOWING INFORMATION IS PROVIDED IN ACCORDANCE WITH
THE REQUIREMENTS OF THE EUROPEAN MACHINERY DIRECTIVE
2006/42/EC AND IS ONLY APPLICABLE TO CE MACHINES:
FOR ELECTRIC POWERED MACHINES, THE EQUIVALENT CONTINUOUS
A-WEIGHTED SOUND PRESSURE LEVEL AT THE WORK PLATFORM IS
LESS THAN 70DB(A).
FOR COMBUSTION ENGINE POWERED MACHINES, GUARANTEED
SOUND POWER LEVEL (LWA) PER EUROPEAN DIRECTIVE 2000/ 14/EC
(NOISE EMISSION IN THE ENVIRONMENT BY EQUIPMENT FOR USE
OUTDOORS) BASED ON TEST METHODS IN ACCORDANCE WITH
ANNEX III, PART B, METHOD 1 AND 0 OF THE DIRECTIVE, IS 109 DB.
THE VIBRATION TOTAL VALUE TO WHICH THE HAND-ARM SYSTEM IS
SUBJECTED DOES NOT EXCEED 2,5 M/S2. THE HIGHEST ROOT MEAN
SQUARE VALUE OF WEIGHTED ACCELERATION TO WHICH THE
WHOLE BODY IS SUBJECTED DOES NOT EXCEED 0,5 M/S2.
3121227 – JLG Lift – 1-1
SECTION 1 - SAFETY PRECAUTIONS
1.2 PRE-OPERATION
Operator Training And Knowledge
• Read and understand this manual before operating the
machine.
• Do not operate this machine until complete training is performed by authorized persons.
• Only authorized and qualified personnel can operate the
machine.
• Read, understand, and obey all DANGERS, WARNINGS,
CAUTIONS, and operating instructions on the machine
and in this manual.
• Use the machine in a manner which is within the scope of
its intended application set by JLG.
• All operating personnel must be familiar with the emergency controls and emergency operation of the machine
as specified in this manual.
• Read, understand, and obey all applicable employer,
local, and governmental regulations as they pertain to
operation of the machine.
Workplace Inspection
• The operator is to take safety measures to avoid all hazards in the work area prior to machine operation.
• Do not operate or raise the platform while on trucks, trailers, railway cars, floating vessels, scaffolds or other equipment unless approved in writing by JLG.
• This machine can be operated in temperatures of 0° F to
104° F (-20° C to 40° C). Consult JLG for operation outside
this range.
Machine Inspection
• Before machine operation, perform inspections and functional checks. Refer to Section 2 of this manual for
detailed instructions.
• Do not operate this machine until it has been serviced and
maintained according to requirements specified in the
Service and Maintenance Manual.
• Ensure all safety devices are operating properly. Modification of these devices is a safety violation.
1-2 – JLG Lift – 3121227
SECTION 1 - SAFETY PRECAUTIONS
1.3 OPERATION
MODIFICATION OR ALTERATION OF AN AERIAL WORK PLATFORM
SHALL BE MADE ONLY WITH PRIOR WRITTEN PERMISSION FROM THE
MANUFACTURER
• Do not operate any machine on which the safety or
instruction placards or decals are missing or illegible.
• Avoid any build up of debris on platform floor. Keep mud,
oil, grease, and other slippery substances from footwear
and platform floor.
General
• Do not use the machine for any purpose other than positioning personnel, their tools and equipment, or for hand
stock picking.
• Never operate a machine that is not working properly. If a
malfunction occurs, shut down the machine.
• Never slam a control switch or lever through neutral to an
opposite direction. Always return switch to neutral and
stop before moving the switch to the next function. Operate controls with slow and even pressure.
• Do not allow personnel to tamper with or operate the
machine from the ground with personnel in the platform,
except in an emergency.
• Do not carry materials directly on platform railing unless
approved by JLG.
• Always ensure that power tools are properly stowed and
never left hanging by their cord from the platform work
area.
• Fully lower mast assembly and shut off all power before
leaving machine.
• No riders are permitted on machine. Operator only in
machine during operation.
3121227 – JLG Lift – 1-3
SECTION 1 - SAFETY PRECAUTIONS
• When performing welding operations at elevation, precautions must be taken to protect all machine components
from contact with weld splatter or molten metal.
• Battery fluid is highly corrosive. Avoid contact with skin
and clothing at all times.
• Charge batteries on in a well ventilated area.
Trip and Fall Hazards
• JLG Industries, Inc. recommends that the operator utilize
a fall restraint system in the platform with a maximum 30
inch (76 cm) lanyard attached to an authorized lanyard
anchorage point. For further information regarding fall
protection requirements on JLG products, contact JLG
Industries, Inc.
• Before operating the machine, make sure all railing and
gates are fastened in their proper position.
• Keep both feet firmly positioned on the platform floor at all
times. Never use ladders, boxes, steps, planks, or similar
items on platform to provide additional reach.
• Never use the mast assembly to enter or leave the platform.
• Use extreme caution when entering or leaving platform.
Ensure that the mast assembly is fully lowered. Face the
machine when entering or leaving the platform. Always
maintain “three point contact” with the machine, using two
hands and one foot or two feet and one hand at all times
during entry and exit.
1-4 – JLG Lift – 3121227
SECTION 1 - SAFETY PRECAUTIONS
Electrocution Hazards
• This machine is not insulated and does not provide protection from contact or proximity to electrical current.
• Maintain distance from electrical lines, apparatus, or any
energized (exposed or insulated) parts according to the
Minimum Approach Distance (MAD) as shown in Table 1-
1.
• Allow for machine movement and electrical line swaying.
Table 1-1. Minimum Approach Distances (M.A.D.)
Voltage Range
(Phase to Phase)
0 to 50 KV 10 (3)
Over 50KV to 200 KV 15 (5)
Over 200 KV to 350 KV 20 (6)
Over 350 KV to 500 KV 25 (8)
Over 500 KV to 750 KV 35 (11)
Over 750 KV to 1000 KV 45 (14)
NOTE: This requirement shall apply except where employer,
local or governmental regulations are more stringent.
• Maintain a clearance of at least 10 ft. (3m) between any
part of the machine and its occupants, their tools, and
their equipment from any electrical line or apparatus carrying up to 50,000 volts. One foot additional clearance is
required for every additional 30,000 volts or less.
• The minimum approach distance may be reduced if insulating barriers are installed to prevent contact, and the
barriers are rated for the voltage of the line being guarded.
These barriers shall not be part of (or attached to) the
machine. The minimum approach distance shall be
reduced to a distance within the designed working dimensions of the insulating barrier. This determination shall be
MINIMUM APPROACH DISTANCE
in Feet (Meters)
3121227 – JLG Lift – 1-5
SECTION 1 - SAFETY PRECAUTIONS
made by a qualified person in accordance with the
employer, local, or governmental requirements for work
practices near energized equipment
DO NOT MANEUVER MACHINE OR PERSONNEL INSIDE PROHIBITED
ZONE (MAD). ASSUME ALL ELECTRICAL PARTS AND WIRING ARE
ENERGIZED UNLESS KNOWN OTHERWISE.
Tipping Hazards
• The user should be familiar with the surface before driving. Do not exceed the allowable sideslope and grade
while driving.
1-6 – JLG Lift – 3121227
SECTION 1 - SAFETY PRECAUTIONS
• Do not elevate platform or drive with platform elevated
while on a slope, or on an uneven or soft surface.
• Before driving on floors, bridges, trucks, and other surfaces, check allowable capacity of the surfaces.
• Never exceed the maximum platform capacity. Distribute
loads evenly on platform floor and material tray.
• Keep the chassis of the machine a minimum of 2 ft. (0.6m)
from holes, bumps, drop-offs, obstructions, debris, concealed holes, and other potential hazards at the ground
level.
• Never attempt to use the machine as a crane. Do not tieoff machine to any adjacent structure.
• Do not increase the platform size with unauthorized deck
extensions or attachments, increasing the area exposed
to wind will decrease stability.
• If mast assembly or platform is caught so that one or more
wheels are off the ground, the operator must be removed
before attempting to free the machine. Use cranes, forklift
trucks, or other appropriate equipment to stabilize
machine and remove personnel.
Crushing And Collision Hazards
• Personal protection equipment must be worn by all operating and ground personnel.
• Check work area clearances above, on sides, and bottom
of platform while driving and lifting or lowering platform.
• During operation, keep all body parts inside platform railing.
• Always post a lookout when driving in areas where vision
is obstructed.
3121227 – JLG Lift – 1-7
SECTION 1 - SAFETY PRECAUTIONS
• Keep non-operating personnel at least 6 ft. (1.8m) away
from machine during all driving operations.
• Limit travel speed according to conditions of ground surface, congestion, visibility, slope, location of personnel,
and other factors causing hazards of collision or injury to
personnel.
• Be aware of stopping distances in all drive speeds.
• Do not drive at high speeds in restricted or close quarters
or when driving in reverse.
• Exercise extreme caution at all times to prevent obstacles
from striking or interfering with operating controls and persons in the platform.
• Ensure that operators of other overhead and floor level
machines are aware of the aerial work platform’s presence. Disconnect power to overhead cranes.
• Warn personnel not to work, stand, or walk under a raised
platform. Position barricades on floor as necessary.
1.4 LIFTING, AND HAULING
General
• Never allow personnel in platform while lifting, or hauling.
• This machine should not be towed in the event of emergency, malfunction, power failure, or loading/unloading.
Lift only with a fork lift truck using the designated fork lift
pockets in the machine’s base frame.
• Ensure platform is fully retracted and completely empty of
tools prior to lifting or hauling.
• When lifting machine with a forklift, position forks only at
designated areas of the machine. Lift with a forklift of adequate capacity.
• Refer to the Machine Operation section of this manual for
lifting information.
1-8 – JLG Lift – 3121227
SECTION 2 - PREPARATION AND INSPECTION
SECTION 2. PREPARATION AND INSPECTION
2.1 PERSONNEL TRAINING
The aerial platform is a personnel handling device; so it is necessary it be operated and maintained only by trained personnel.
Persons under the influence of drugs or alcohol or who are subject
to seizures, dizziness or loss of physical control must not operate
this machine.
Operator Training
Operator training must cover:
1. Use and limitations of the controls in the platform and at
the ground, emergency controls and safety systems.
2. Control labels, instructions, and warnings on the
machine.
3. Rules of the employer and government regulations.
4. Use of approved fall protection device.
5. Enough knowledge of the mechanical operation of the
machine to recognize a malfunction or potential malfunction.
6. The safest means to operate the machine where overhead obstructions, other moving equipment, and obstacles, depressions, holes, drop-offs are present.
7. Means to avoid the hazards of unprotected electrical
conductors.
8. Specific job requirements or machine application.
3121227 – JLG Lift – 2-1
SECTION 2 - PREPARATION AND INSPECTION
Training Supervision
Training must be done under the supervision of a qualified person
in an open area free of obstructions until the trainee has developed the ability to safely control and operate the machine.
Operator Responsibility
The operator must be instructed that he/she has the responsibility
and authority to shut down the machine in case of a malfunction or
other unsafe condition of either the machine or the job site.
NOTE: The Manufacturer or Distributor will provide qualified peo-
ple for training assistance with the first unit(s) delivered
and from that time forward as requested by the user or
his/her personnel.
2.2 PREPARATION, INSPECTION, AND MAINTENANCE
The following Table 2-1 on page 2-3, covers the periodic machine
inspections and maintenance recommended by JLG Industries,
Inc. Consult local regulations for further requirements for aerial
work platforms.
The frequency of inspections and maintenance must be increased
as necessary when the machine is used in a harsh or hostile environment, if the machine is used with increased frequency, or if the
machine is used in a severe manner.
2-2 – JLG Lift – 3121227
SECTION 2 - PREPARATION AND INSPECTION
Table 2-1. Inspection and Maintenance Table
TYPE FREQUENCY
Pre-Start Inspection Before using each day; or
whenever there’s an Operator change.
Pre-Delivery
Inspection
(See Note)
Frequent
Inspection
Annual Machine Inspection
Preventative
Maintenance
NOTE: Inspection forms are available from JLG. Use the Service and Maintenance Manual to perform inspections.
Before each sale, lease, or
rental delivery.
In service for 3 months or
150 hours, whichever
comes first; or;
Out of service for a period of
more than 3 months; or
Purchased used.
Annually, no later than 13
months from the date of prior
inspection.
At intervals as specified in
the Service and Maintenance
Manual.
User or Operator User or Operator Operator and Safety
Owner, Dealer, or User Qualified JLG Mechanic Service and Maintenance
Owner, Dealer, or User Qualified JLG Mechanic Service and Maintenance
Owner, Dealer, or User Qualified JLG Mechanic
Owner, Dealer, or User Qualified JLG Mechanic Service and Maintenance
PRIMARY
RESPONSIBILITY
(Recommended)
SERVICE
QUALIFICATION
REFERENCE
Manual
Manual and applicable JLG
inspection form
Manual and applicable JLG
inspection form
Service and Maintenance
Manual and applicable JLG
inspection form
Manual
3121227 – JLG Lift – 2-3
SECTION 2 - PREPARATION AND INSPECTION
2.3 PRE-START INSPECTION
The Pre-Start Inspection should include each of the following:
1. Cleanliness – Check all surfaces for leakage (hydraulic
oil or battery fluid) or foreign objects. Report any leakage to the proper maintenance personnel.
2. Decals and Placards – Check all for cleanliness and
legibility. Make sure no decals or placards are missing.
Make sure all illegible decals and placards are cleaned
or replaced. (Reference "Decal Installations" in Section
3).
3. Operation and Safety Manuals – Make sure a copy of
the Operator and Safety Manual, EMI Safety Manual
(ANSI/CSA Spec only), and ANSI Manual of Responsibilities (ANSI/CSA Spec only) is enclosed in the weather
resistant storage container.
4. Daily Walk-Around Inspection – (See Section 2.4 on
page 2-5)
5. Battery – Charge as required (See Section 3.5 on
page 3-5).
6. Hydraulic Oil – The hydraulic oil level in the pump reservoir can vary with oil temperature, i.e a machine that is
cold the oil level may not be up to the FULL line on the
dipstick. Cycle the mast up and down a few times to get
a more accurate reading on the dipstick. Once the
hydraulic oil is warmed check the dipstick reading, it
should be up to or close to the FULL line on the dipstick.
• DO NOT FILL PAST THE FULL LINE.
• ALWAYS ADD oil if level is at or below the ADD line.
NOTE: If hydraulic oil is to be added, CHECK THE HYDRAULIC
OIL DECAL located on the right side frame, opposite the
pump assembly, for hydraulic oil type and specification.
DO NOT OVERFILL.
The hydraulic oil level in
the reservoir located on
the hydraulic pump
assembly should read to
or close to the FULL LINE
on the Hydraulic Reservoir dip stick when
hydraulic oil is at operating temperature.
2-4 – JLG Lift – 3121227
SECTION 2 - PREPARATION AND INSPECTION
7. Function Check - Check all machine controls for operation. (See Section 2.5 on page 2-8)
If optional equipment is installed on this machine refer to Section 3
for specific Pre-Start Inspection and Operation instructions.
2.4 DAILY WALK-AROUND INSPECTION
Begin the “Walk-Around Inspection” at item one (1) as noted on
the diagram (See Figure 2-1. on page 2-6). Continue around
machine checking each item in sequence for the conditions listed
in the following check list.
TO AVOID POSSIBLE INJURY, BE SURE MACHINE POWER IS “OFF” DURING “WALK-AROUND INSPECTION”.
DO NOT OPERATE MACHINE UNTIL ALL MALFUNCTIONS HAVE BEEN CORRECTED.
DO NOT OVERLOOK VISUAL INSPECTION OF THE BASE FRAME
UNDERSIDE. CHECK THIS AREA FOR OBJECTS OR DEBRIS WHICH
COULD CAUSE EXTENSIVE MACHINE DAMAGE.
3121227 – JLG Lift – 2-5
SECTION 2 - PREPARATION AND INSPECTION
4
5
9
10
3
2
786
Figure 2-1. Daily Walk-Around Inspection for 10MSP Machines.
2-6 – JLG Lift – 3121227
SECTION 2 - PREPARATION AND INSPECTION
Walk-Around Inspection Components
Reference - Figure 2-1. on page 2-6
NOTE: On all components, make sure there are no loose or miss-
ing parts, they are securely fastened, no visible damage,
leaks or excessive wear exists in addition to any other criteria mentioned.
1. Front Caster Wheels - Check for any debris stuck to or
around wheels.
2. Base Frame - Check for loose wires or cables dangling
below the base.
3. Batteries (one each side of machine) - Not leaking; battery cables secure to posts; no corrosion.
4. Rear Drive Wheels - Check for any debris stuck to or
around wheels.
5. Mast Assembly - Mast sections; slide pads; mast
chains; sequencing cables; platform control and power
cables (on side of mast); power cables properly tensioned and seated in sheaves; cable sheaves rotating
freely.
6. Motor/Pump/Reservoir Unit - No evidence of hydraulic
leaks. Hydraulic oil level should be filled level with the
full line on the dip stick.
7. Ground Control Station - Main Power Switch (Key)
operable; placards secure and legible; emergency stop
switch operates properly.
8. Manual Descent Control Valve - See note before item-
1.
9. Platform Control Console - Platform control; placards
secure and legible; emergency stop switch reset for
operation; Control markings legible.
10. Platform Assembly and Gate - Platform railings; entry
gate in proper working order, closing properly.
3121227 – JLG Lift – 2-7
SECTION 2 - PREPARATION AND INSPECTION
2.5 FUNCTION CHECK
Once the “Walk-Around” Inspection is complete, perform a function check of all systems in an area free of overhead and ground
level obstructions. Refer to Section 3 this manual, for more specific operating instructions.
IF THE MACHINE DOES NOT OPERATE PROPERLY, TURN OFF THE
MACHINE IMMEDIATELY! REPORT THE PROBLEM TO THE PROPER MAINTENANCE PERSONNEL. DO NOT OPERATE THE MACHINE UNTIL IT IS
DECLARED SAFE FOR OPERATION.
Function Check Items:
1. From the ground controls with no load in the platform:
a. Operate ground control functions, platform lift up
and lower.
b. Ensure all machine functions are disabled when the
Emergency Stop Button is activated (pressed in).
c. Check Manual Descent Control valve is operating
properly. (Located under hood)
2. From the platform control console:
a. Ensure the control console is properly mounted and
secure.
b. Raise and lower platform 2 ft. to 3 ft. (.61m to.92 m)
several times. Check for smooth elevation and lowering of platform.
c. Operate all functions, check all limit, cut-out, and
enable switches are functioning properly:
• Machine Brakes - Drive the machine on a
grade, (do not exceed the rated gradeability),
and stop to ensure the brakes hold.
• Tilt Warning Limit - With the platform completely lowered, drive the machine onto a surface with a tilt of more than 1.5° in any direction
(do not exceed rated gradeability). The
machine will indicate a tilt condition if any
attempt is made to elevate the platform.
• Drive Speed Reduction Limit - When platform
is elevated more than 1.5 to 2 ft. (.5m) drive
speed is cut to 1/4 of platform lowered drive
speed.
• Platform Gate Open Limit - If either side platform gate is open during machine operation, the
machine will stop and will display a fault code at
the Ground Control Module and Platform Con-
2-8 – JLG Lift – 3121227
SECTION 2 - PREPARATION AND INSPECTION
sole. (Australian Spec machines also include a
platform gate lock/release lever mechanism on
top of each gate that must be pressed down to
open the platform gate. Check that the lock/
release on each gate is latching properly when
gate is closed, and releasing when the handle
lever is depressed.)
Platform Gate Lock/Release Lever
(Australian Spec Machines Only)
• Platform Joystick Enable and Footswitch
Enable - The machine will not operate (drive or
lift) unless both of these switches are pressed
and held during drive or lift operation.
d. Ensure all machine functions are disabled when the
Emergency Stop Button is activated (pressed in).
3121227 – JLG Lift – 2-9
SECTION 2 - PREPARATION AND INSPECTION
NOTES:
2-10 – JLG Lift – 3121227
SECTION 3 - MACHINE OPERATION
SECTION 3. MACHINE OPERATION
3.1 GENERAL
THE MANUFACTURER HAS NO DIRECT CONTROL OVER MACHINE
APPLICATION AND OPERATION. THE USER AND OPERATOR ARE
RESPONSIBLE FOR CONFORMING WITH GOOD SAFETY PRACTICES.
This section provides the necessary information needed to understand control function and operation.
3.2 MACHINE DESCRIPTION
The JLG 10MSP Lift is an electric powered self-propelled machine
with an aerial work platform mounted to an elevating mast mechanism. The personnel lift’s intended purpose is to provide personnel access to areas above ground level.
The primary control console is located in the platform. From the
Platform Control Console the operator can drive the machine and
raise or lower the platform.
The machine is rear wheel drive and provide steering with freewheeling front caster wheels.
The controls of the programmable Ground Control Station are to
be used during machine power-up, maintenance, function checks,
or in case of emergency, should the operator in the platform be
unable to lower the platform.
Vibrations emitted by these machines are not hazardous to an
operator working in the platform.
The continuous A-Weighted sound pressure level at the work platform is less than 70db (A).
3121227 – JLG Lift – 3-1
SECTION 3 - MACHINE OPERATION
G
R
A
D
E
A
B
I
L
I
T
Y
LEVEL
DO NOT DRIVE MACHINE ON GRADES EXCEEDING
THOSE SPECIFIED IN SECTION 5 - MACHINE SPECIFICATIONS
SIDESLOPE
3.3 MACHINE OPERATION
Getting Started
The following control conditions must be met before the machine
can be operated from either the Ground or Platform Controls:
• Batteries contain enough voltage to operate. Low Battery
warning not indicated on Ground Control Station.
• The Main Power Selector Switch on the Ground Control Station must be set for either Ground Control Mode or Platform
Control Mode.
• Platform Control Console On/Off Power Switch (Key) must
be set to ON.
• Both Emergency Stop Switches, Ground and Platform Control must be in the RESET position (out).
• The Machine Status LCD Screen on the Ground Control Station indicates normal operating conditions when machine is
powered up.
• Both platform swing-in entry gates must be closed to operate
machine.
Figure 3-1. 10MSP - Machine Operating Specifications
3-2 – JLG Lift – 3121227
SECTION 3 - MACHINE OPERATION
1
7
9
6
5
4
8
2
3
1. Ground Control Station
(Module) - (See page 3-10)
2. Platform Manual Descent Valve
(Located Under Hood)-
(See page 3-26)
3. Battery Charger AC Receptacle and
Charging Status LED Indicators - (See
page 3-5)
4. Platform Enable Foot Switch (See page 3-25)
5. Platform Entry Gate -
(See page 3-27)
6. Platform - (See page 3-27)
7. Platform Control Console -
(See page 3-17)
8. Material Handling Tray -
(See page 3-28)
9. (PSL) Programmable Security Lock
(OPTION) - (See page 3-32)
Figure 3-2. Machine Operating Component Locations.
3121227 – JLG Lift – 3-3
SECTION 3 - MACHINE OPERATION
1
3
2
3.4 HOOD - (CARRY DECK)
Removal:
1. To remove the hood, loosen the attach screw on the front of
the hood.
2. Lift the hood at the front to clear the rubber sealing gasket on
the base frame and slide the hood forward while lifting up to
completely remove it from the machine.
Installation:
1. Set hood down into the hood gasket on the top of the frame
and slide it rearward. Be certain the rear hold-down bracket
engages the hood support underneath the hood.
2. Tighten the hood attach screw at the front of the hood.
DO NOT ALLOW ANY PERSONNEL TO
RIDE ON THE CARRY DECK HOOD.
Figure 3-3. Carry Deck - Hood Removal.
1. Hood - Carry Deck
2. Attach Screw
3. Rear Hold-Down Bracket -
Located Under Hood - Slides
Under Hood Support
3-4 – JLG Lift – 3121227
SECTION 3 - MACHINE OPERATION
3.5 BATTERY CHARGING
Battery Low Voltage Warning Indicators
The 10MSP Platform Control Console and Ground Control Station indicate battery low voltage at three (3) Warning Levels.
Table 3-1. Battery Low Voltage Warning Indicators.
WARNING
LEVEL
LEVEL-1
LEVEL-2
LEVEL-3
NOTE: (a) To maximize battery life, it is recommended that the factory supplied batteries be charged continuously for a minimum of 4 hours or until 8 bars
PLATFORM CONTROL LED GROUND CONTROL LCD
are lit on the ground station LCD Display before operating the machine. When drained to Warning Level 2 or 3, batteries must be charged until 8
bars are lit on the ground station LCD display to clear the fault code.
INDICATOR LOCATION
RESULT
• 3 LEDs/BARS Flashing with an
audible beep.
• Machine will Operate - No Control Functions Locked Out.
• 2 LEDs/BARS Flashing with an
audible beep.
• Platform Lift-UP Function is
Locked Out.
• 1 LED/BAR Flashing with an
audible beep.
• Drive and Platform Lift-UP Functions Locked Out.
ACTION REQUIRED
TO CLEAR FAULT
Charge batteries to a level of four (4)
LEDs/BARS or more before operating.
Charge batteries for a minimum of four
(4) continuous hours or eight (8)
LEDs/BARS lit before operating. (a)
Charge batteries for a minimum of four
(4) continuous hours or eight (8)
LEDs/BARS lit before operating. (a)
3121227 – JLG Lift – 3-5
SECTION 3 - MACHINE OPERATION
1
2
To Charge Batteries
This machine is equipped with an AC voltage input/DC voltage
output battery charger. The charger automatically terminates
charging when the batteries reach full capacity.
NOTE: The platform drive function is disabled when the battery
charger is plugged into an AC receptacle.
LEAD ACID BATTERIES MAY GENERATE EXPLOSIVE HYDROGEN GAS
DURING NORMAL OPERATION. KEEP SPARKS, FLAMES, AND SMOKING MATERIALS AWAY FROM BATTERIES. PROVIDE ADEQUATE VENTILATION DURING CHARGING. NEVER CHARGE A FROZEN BATTERY.
STUDY ALL BATTERY MANUFACTURERS’ SPECIFIC PRECAUTIONS
SUCH AS RECOMMENDED RATES OF CHARGE AND REMOVING OR
NOT REMOVING CELL CAPS WHILE CHARGING.
1. Park machine in a well ventilated area near an AC voltage
electrical wall outlet.
NOTE: To maximize battery life, it is recommended the batteries
be charged continuously for a minimum of four (4) hours
when drained to Warning Levels 2 and 3, See Warning
Level Chart on previous page.
2. Always use a grounded AC
outlet. Connect charger to
an outlet that has been
properly installed and
grounded in accordance
with all local codes and
ordinances. A grounded
outlet is required to reduce
risk of electric shock – do
not use ground adapters or
modify plug. When using an
extension cord, avoid
excessive voltage drops by
using a grounded 3-wire 12
AWG cord.
(1) Charger AC Input
Receptacle located on the
rear bumper cover of the
machine.
(2) Battery Charger Status
LED Indicators.
3-6 – JLG Lift – 3121227
SECTION 3 - MACHINE OPERATION
1
Figure 3-4. Battery Charger Location
(Hood Removed - For Hood Removal, See page 3-4).
1. Battery Charger
Battery Charging Status Indicators
The battery charging status indicators are located just above the
Charger AC input receptacle on the center cover section at the
rear of the machine. (See Figure 3-2. on page 3-3)
1. When first plugged in, the charger will automatically turn on
and go through a short LED indicator self-test (all LED’s will
flash in an up-down sequence for two seconds), then charging will begin.
CHARGING
YELLOW(MIDDLE) LED ON
Charge Incomplete
2. The YELLOW ‘CHARGING’ LED will turn on and a trickle current will be applied until a minimum voltage is reached.
Once a minimum battery voltage of 2 volts per cell is
detected, the charger will enter the bulk charging constantcurrent stage and the YELLOW ‘CHARGING’ LED will remain
on. The length of charge time will vary by how large and how
depleted the battery pack is, the input voltage (the higher,
the better), and ambient temperatures (the lower, the better).
If the input AC voltage is low (below 104VAC), then the
charging power will be reduced to avoid high input currents.
3121227 – JLG Lift – 3-7
SECTION 3 - MACHINE OPERATION
If the ambient temperature is too high, then the charging
power will also be reduced to maintain a maximum internal
temperature.
3. When the GREEN ‘CHARGED’ LED turns on, the batteries
are completely charged.
CHARGE COMPLETE
GREEN (TOP) LED ON
100% Complete
The charger may now be unplugged from AC power (always
pull on plug and not cord to reduce risk of damage to the
cord). If left plugged in, the charger will automatically restart
a complete charge cycle if the battery pack voltage drops
below a minimum voltage or 30 days has elapsed.
4. If a fault occurred anytime during charging, a fault indication
is given by flashing the RED ‘FAULT’ LED with a code corresponding to the error.
CHARGING PROBLEM
RED (BOTTOM) LED ON
See Flash Codes following
There are several possible conditions that generate errors.
Some errors are serious and require human intervention to
first resolve the problem and then to reset the charger by
interrupting AC power for at least 10 seconds. Others may be
simply transient and will automatically recover when the fault
condition is eliminated. To indicate which error occurred, the
RED ‘FAULT’ LED will flash a number of times, pause, and
then repeat.
[1 FLASH] Battery Voltage High: auto-recover. Indicates a
high battery pack voltage.
[2 FLASH] Battery Voltage Low: auto-recover. Indicates
either a battery pack failure, battery pack is not connected to
charger, or battery volts per cell is less than 0.5 VDC. Check
the battery pack and battery pack connections.
3-8 – JLG Lift – 3121227
SECTION 3 - MACHINE OPERATION
[3 FLASH] Charge Time-out: Indicates the battery did not
charge within the allowed time. This could occur if the battery is of a larger capacity than the algorithm is intended for.
It can also occur if the battery pack is damaged, old, or in
poor condition. In unusual cases it could mean charger output is reduced due to high ambient temperature.
[4 FLASH] Check Battery: Indicates the battery pack could
not be trickle charged up to the minimum 2 volts per cell
level required for the charge to be started. This may also
indicate that one or more cells in the battery pack are
shorted or damaged.
[5 FLASH] Over-Temperature: auto-recover. Indicates charger has shutdown due to high internal temperature which
typically indicates there is not sufficient airflow for cooling –
see step 1 of Installation Instructions. Charger will restart and
charge to completion if temperature is within accepted limits.
[6 FLASH] QuiQ Fault: Indicates that the batteries will not
accept charge current, or an internal fault has been detected
in the charger. This fault will nearly always be set within the
first 30 seconds of operation. Once it has been determined
that the batteries and connections are not faulty and Fault 6
is again displayed after interrupting AC power for at least 10
seconds, the charger must be brought to a qualified service
depot.
3121227 – JLG Lift – 3-9
SECTION 3 - MACHINE OPERATION
3.6 GROUND CONTROL STATION - OPERATION
1. Platform/Off/Ground Selector Switch
2. Emergency Stop/Shut Down Button
3. Brake Release Button
4. Platform Up Button
5. Platform Down Button
6. Machine Status LCD Display
NOTE: The Ground Control Station Mod-
ule is fully programmable. For
operator level programmability
see Section 5 - Operator Maintenance.
NOTE: If equipped with optional Pro-
grammable Security Lock (PSL)
see Section 3.13 on page 3-32
for additional machine power-up
instructions.
Figure 3-5. Ground Control Station.
3-10 – JLG Lift – 3121227
SECTION 3 - MACHINE OPERATION
Platform/Off/Ground Selector Switch
POWER OFF
Turn to this position to power machine
off after use.
PLATFORM CONTROL MODE
When set to this position the machine
can be operated from the platform control console.
GROUND CONTROL MODE
When set to this position the machine
can be operated from the ground control
station.
NOTE: SLEEP MODE - During operation if no control functions
have been activated for 5 minutes (default programmable
setting), the ground control module will power the
machine down to conserve battery power. Cycle power
back on using either the main power selector switch (key)
or the emergency stop/power down button either on the
platform controller or on the ground control station.
Emergency Stop/Shut Down Button
POWER OFF
PUSH IN - To Engage
Emergency Stop
POWER ON
TURN CLOCKWISE
and RELEASE to RESET
Emergency Stop
3121227 – JLG Lift – 3-11
SECTION 3 - MACHINE OPERATION
Brake Release Button
The machine must be POWERED ON and the Ground Control Station set to the GROUND CONTROL MODE to manually release the
brakes. The brakes only DISENGAGE (electrically) when the joystick control is moved off center during driving or are manually
DISENGAGED (electrically) using the Brake Release Button on the
front of the Ground Control Station.
NOTE: If the machine’s batteries are completely depleted of
electrical charge the brakes cannot be released manually.
DO NOT MANUALLY DISENGAGE THE BRAKES UNLESS MACHINE IS
SETTING ON A LEVEL SURFACE OR MACHINE IS FULLY RESTRAINED.
PUSH and RELEASE TO DISENGAGE Brakes
PUSH and RELEASE AGAIN TO ENGAGE Brakes
Platform Up and Down Buttons
PUSH IN TO ELEVATE Platform
RELEASE TO STOP ELEVATING
PUSH IN TO LOWER Platform
RELEASE TO STOP LOWERING
3-12 – JLG Lift – 3121227
Machine Status LCD Display
3
5
412
00
00
00000.0
At power-up and during operation the LCD display on the Ground
Control Module displays the current machine operating status.
The following illustration explains the symbol indications.
SECTION 3 - MACHINE OPERATION
LCD Display Symbols
1. Battery Charge Indicator (BCI)
2. Function Display or Function Disabled Indicators
3. Hour Meter Display
4. Fault Code Indicator (Also see Table 3-2 on page 3-15)
5. Fault Text Message Display (a)
NOTE: (a) When an Fault Code is indicated the LCD screen
will alternate between the text and symbol display
modes.
3121227 – JLG Lift – 3-13
SECTION 3 - MACHINE OPERATION
In the LCD Display Symbols (previous illustration - item-2), the
Function Display or Function Disabled Indicators will vary as
shown following:
DRIVE Disabled
LIFT UP Disabled
LIFT DOWN Disabled
Both LIFT UP and LIFT DOWN Disabled
Drive Speed Cut-Back (Turtle) Mode Engaged
(When Platform is Elevated)
Battery Charger (AC) Plugged In
Tilt Alarm Warning
The Ground Control Station LCD screen flashes a fault code
and gives an audible warning. The LEDs on the platform control
console also flash during the tilt warning. See Table 3-2 on
page 3-15
THE GROUND CONTROL STATION CONTAINS A 1.5 DEGREE TILT
ALARM, IF THE TILT ALARM HAS BEEN ACTIVATED, THE PLATFORM
WILL NOT ELEVATE. ALSO IF THE TILT ALARM HAS BEEN ACTIVATED
WHEN THE PLATFORM IS ELEVATED, THE DRIVE AND LIFT UP FUNCTIONS WILL BE DISABLED UNTIL THE PLATFORM IS COMPLETELY
LOWERED AND DRIVEN OFF THE TILT CONDITION.
LCD Display Fault Conditions
Table 3-2 following shows common LCD display Fault indicators
which may occur during operation and are usually caused by
either an error in machine operation or a work area condition.
These fault conditions can usually be corrected by the operator
and do not require a qualified mechanic to repair:
AFTER A FAULT CONDITION IS CORRECTED THE MACHINE POWER
MAY NEED TO BE RECYCLED TO RESET THE GROUND CONTROL STATION.
3-14 – JLG Lift – 3121227
SECTION 3 - MACHINE OPERATION
00000.0
00000.0
00000.0
Table 3-2. LCD Display - Operating Fault Conditions
FAULT
CODE
PLATFORM
LEDs
FLASHING
LCD SYMBOL SCREEN LCD TEXT SCREEN
——
—— —
——
—3
—2
—1
43
FAULT DESCRIPTION/
MACHINE CONDITION
Brakes Released -
(DRIVE Disabled)
Charger AC Plugged In DRIVE Disabled
Programmable Security Lock
Password
Low Battery -
(Warning Level 1)
Charge Battery - (LIFT UP Disabled) (Warning Level 2)
Charge Battery - (LIFT UP/DRIVE
Disabled) (Warning Level 3)
Tilt Condition (Platform Elevated)
DRIVE and Lift UP Disabled
TO CORRECT PROBLEM
To Engage Brakes - Press Brake
Release Button on Ground Control
Station
Unplug Charger AC Power Cord
Enter Code on PSL Keypad to
Power-Up Machine
Charge Batteries to Four (4) Bars or
more on Indicator.
Charge Batteries a Minimum of
Four (4) Hours or eight (8) LEDs/
BARS lit.
Charge Batteries a Minimum of
Four (4) Hours or eight (8) LEDs/
BARS lit.
Lower the Platform and Drive off
the Tilt Condition
3121227 – JLG Lift – 3-15
SECTION 3 - MACHINE OPERATION
13
13
00000.0
17
17
00000.0
32
32
00000.0
Table 3-2. LCD Display - Operating Fault Conditions (Continued)
FAULT
CODE
PLATFORM
LEDs
FLASHING
68
13 6
17 7
32 7
34 —
35 —
LCD SYMBOL SCREEN LCD TEXT SCREEN
FAULT DESCRIPTION/
MACHINE CONDITION
Drive Motor Brush Wear Warning
(Counts down 25 hrs. of DRIVE
operation remaining to a 10 sec.
shut down mode)
Traction Module Over Temperature
(DRIVE Disabled)
Ground Control Module Over Temperature (Machine Stopped)
Pump Motor Over Current
(LIFT UP Disabled)
Aux. #1 - Platform Gate Open or
N o P r es s ur e o n t h e P l at f o rm F oo t switch
Aux. #1 - Platform Footswitch
depressed during Machine Powerup
TO CORRECT PROBLEM
Drive Motor Brushes Require S ervice Replacement -
(See Section 5.7 on page 5-16 for
further Instructions)
Allow Drive System Traction Module to Cool Before Operating
(Caused by extreme temperature)
Allow Ground Control Module to
Cool Before Operating -
(Caused by extreme temperature)
Platform Load Over Capacity
Close Platform Gate or Depress
Platform Footswitch during
machine operation
Do Not Press on Platform Footswitch during Machine Power-Up
NOTE: The fault conditions shown in this table are fault conditions which the Operator may be able to resolve. Should a fault occur which cannot be cor-
rected at the Operator’s level, the problem must be referred to a mechanic qualified to repair this model of JLG Lift. A complete table of Fault Codes
is listed in the TroubleShooting Section of the Service and Maintenance Manual.
3-16 – JLG Lift – 3121227
3.7 PLATFORM CONTROL CONSOLE - OPERATION
9
1
2
4
5
6
7
8
3
SECTION 3 - MACHINE OPERATION
1. On/Off Key Switch (See page 3-18)
2. Emergency Stop/Shut Down Switch (See page 3-19)
3. Function Enable Lever - (on front of joy-
stick) (See page 3-21)
4. Multifunction Joystick Control (See page 3-22)
5. Drive Speed Setting Selector Switch (See page 3-24)
6. Platform Control Display Panel (See page 3-19)
7. Horn Button - (See page 3-23)
8. Drive/Lift Mode Selector Switch -
(See page 3-21)
9. Console Mounting Bracket 3 Position Height Adjustment -
(on bottom of console box)
Figure 3-6. Platform Control Console.
3121227 – JLG Lift – 3-17
SECTION 3 - MACHINE OPERATION
1
2
General
NOTE: SLEEP MODE - During operation if no control functions
have been activated for 10 minutes (default programmable setting), the ground control module will power the
machine down to conserve battery power. Cycle power
back on using either the main power selector switch (key)
or the emergency stop/power down button either on the
platform controller or on the ground control station.
The following conditions must be met before the machine can be
operated from the platform control console:
• Ground Control Station - Main Power Selector Switch must
be set to PLATFORM CONTROL MODE.
• Ground Control Station - Emergency Stop/Shut Down Button
must be in the RESET position (POWER ON).
NOTE: See Section 3.6 on page 3-10 for Ground Control Station.
• On Platform - If equipped with the OPTIONAL - PSL (Programmable Security Lock) it must be set to the ON position.
NOTE: See Section 3.13 on page 3-32 for PSL instructions.
• Both platform entry gates are equipped with an interlock
switch and must be completely closed before the drive and
platform lift functions can be operated.
Platform On/Off Key Switch
At the Platform Control Console - Set the On/Off Key
Switch to the ON position (2)
to operate machine.
1. OFF Position
2. ON Position
Set the ON/OFF Key Switch to the OFF position to power machine
down.
If necessary, when machine is not in use, remove key from platform key switch to disable machine from unauthorized use.
3-18 – JLG Lift – 3121227
SECTION 3 - MACHINE OPERATION
3
142
Platform Emergency Stop/Shut Down Button
NOTE: The Platform and Ground Control Station Emergency
Stop/Shut Down Buttons must both be in the RESET position to operate machine.
POWER OFF
PUSH IN TO ENGAGE
Emergency Stop
POWER ON
TURN CLOCKWISE
and RELEASE to
RESET Emergency Stop
Platform Control Display Panel
Figure 3-7. Platform Control Display Panel.
1. Battery Charge/Flash Code LEDS
2. Drive Mode Indicator
3. Lift Mode Indicator
4. Drive Speed Setting
3121227 – JLG Lift – 3-19
SECTION 3 - MACHINE OPERATION
1. Battery Charge/Flash (Fault) Code Indicator LEDS
On normal power-up and operation this series of ten (10)
LEDs visually indicates the amount of charge remaining in
the batteries.
The number of LEDs lit will change depending on the level of
charge in the batteries.
• (+) All Three (3) GREEN LEDs lit up indicate maximum battery charge.
• Four (4) YELLOW LEDs indicate a two thirds to one third battery charge remaining.
• (–) Three (3) RED LED’s lit indicate minimum battery charge
remaining. The machine will continue to operate at this
charge level but will begin to indicate low battery voltage
warning indicators.
NOTE: For more information on Battery Warning Level Indicators
See “Battery Low Voltage Warning Indicators” on page 3-
5.
This set of ten (10) LEDs will also indicate a flash (fault) code
if other operating problems are detected by the Ground Control Station. Fault codes are also accompanied by a beeping
alert from the platform control console.
NOTE: LED Flash (Fault) Code indications that may be corrected
by the operator are shown on Table 3-2 on page 3-15 of
this manual.
2. Drive Mode Indicator
When the Drive/Lift Mode Selector Switch is set to DRIVE
MODE the round LED indicator on that portion of the display
panel will light up indicating the DRIVE Mode active. (See
page 3-21)
3. Lift Mode Indicator
When the Drive/Lift Mode Selector Switch is set to LIFT
MODE the round LED indicator on that portion of the display
panel will light up indicating the LIFT Mode active. (See
page 3-22)
4. Drive Speed Setting Indicator
The five (5) GREEN LEDs on the top of this indicator display
the drive speed setting with the TURTLE (on the left) repre-
senting the MINIMUM speed setting and the RABBIT (on the
right) representing the MAXIMUM speed setting. (See
page 3-24)
3-20 – JLG Lift – 3121227
SECTION 3 - MACHINE OPERATION
1 2
Drive/Lift Mode Selector Switch Joystick Function Enable Lever
Drive/Lift Mode Selector Switch
1. LIFT Mode
2. DRIVE Mode
PUSH the rocker
switch to select mode
of operation.
Whichever mode is
selected the appropriate LED indicator on
the display panel
below will light up
showing which mode
has been activated for
joystick operation.
IMPORTANT:
The selected mode
will only remain
active for 5 seconds if the function
is not operated.
Joystick Function Enable Lever
The joystick enable lever
on the front of the joystick control, must be
engaged and held in during any joystick operation.
Note:
The platform function
enable foot switch must
also be pressed and
held simultaneously
with the joystick enable
lever.
3121227 – JLG Lift – 3-21
SECTION 3 - MACHINE OPERATION
1
Multifunction Joystick Control
The joystick operates the following machine functions:
• Drive/Steer
•Lift Up and Down
NOTE: Use the Drive/Lift Mode Selector Switch to select which
function the joystick will operate.
The selected operating mode will only remain active for 5
seconds if the function is not operated.
Remember to press and hold both the joystick function
enable lever and platform function enable foot switch
simultaneously in order to operate any joystick functions.
SEE Figure 3-1. on page 3-2 FOR GRADE AND SIDESLOPE DRIVING
DESCRIPTION WHEN DRIVING WITH THE PLATFORM LOWERED
(STOWED).
WHEN THE PLATFORM IS ELEVATED DRIVE ONLY ON A SMOOTH,
FIRM, AND LEVEL SURFACE.
Drive Mode
1. Activate the Drive Mode
using the Drive/Lift
Mode Selector switch.
Within 5 seconds of
activation - Simultaneously ENGAGE
and HOLD both the
JOYSTICK ENABLE
LEVER and the
FOOTSWITCH
ENABLE then move
the joystick in the
desired direction of
travel. Drive power is
applied proportionally the further the
joystick is moved off
center.
3-22 – JLG Lift – 3121227
SECTION 3 - MACHINE OPERATION
2
3
Lift Mode
1. Activate the Lift Mode
using the Drive/Lift
Mode Selector switch.
2. Platform LIFT DOWN
Direction
3. Platform LIFT UP
Direction
Within 5 seconds of
activation - ENGAGE
and HOLD both the
JOYSTICK ENABLE
LEVER and the
FOOTSWITCH
ENABLE - then
move the joystick in
the direction of LIFT
(3) OR LOWER (2).
Horn Button
When the machine is
powered on, pressing
this button will sound
the Horn.
3121227 – JLG Lift – 3-23
SECTION 3 - MACHINE OPERATION
1
Drive Speed Setting Controls
NOTE: When the platform is elevated, the maximum drive speed
is automatically cut-back to 25%. The Ground Control
Module-LCD screen will display a turtle when in this
mode, See page 3-13 - Machine LCD Status Display in
this section of the manual.
Drive Speed Indicator
Drive Speed Setting
Selector Switch
1. Selector Switch (on
top of joystick)
Each PRESS on this
side of the switch will
DECREASE maximum
drive speed.
(LESS LEDs Lit up on
the Drive Speed Indicator.)
Each PRESS on this
side of the switch will
INCREASE maximum
drive speed.
(MORE LEDs Lit up on
the Drive Speed Indicator.)
3-24 – JLG Lift – 3121227
SECTION 3 - MACHINE OPERATION
1
3.8 PLATFORM FUNCTION ENABLE FOOT SWITCH
DO NOT REST FOOT ON THE ENABLE FOOT SWITCH DURING MACHINE
POWER UP, OPERATING ANY CONTROLS DURING MACHINE POWER
UP OTHER THAN THE POWER ON/OFF KEY SWITCH OR RESETTING
THE E-STOP/SHUT DOWN SWITCHES WILL CAUSE THE MACHINE TO
DISPLAY AN ERROR.
Platform Function
Enable Foot
Switch
1. Foot Switch
Place your foot on
the switch, press
down and hold
while operating any
joystick function.
Note:
The foot switch
must be pressed
and held simultaneously with the joystick enable lever in
order to operate
any joystick functions.
3121227 – JLG Lift – 3-25
SECTION 3 - MACHINE OPERATION
3.9 PLATFORM MANUAL DESCENT CONTROL VALVE
CRUSHING HAZARD - BE AWARE OF DESCENDING PLATFORM WHEN
MANUALLY LOWERING THE PLATFORM. KEEP HANDS OR FEET OFF
OF THE MAST ASSEMBLY AND FROM BENEATH PLATFORM.
The platform manual descent control valve is provided to allow
ground personnel to lower the platform in event that the platform
operator cannot lower the platform once elevated.
Figure 3-8. Manual Descent Valve Location
1. Manual Descent Valve
Activating the Manual Descent Valve
To activate the manual descent valve, remove the hood (carry
deck) from the machine, (for hood removal, See page 3-4). Locate
the valve (just below the battery charger), then operate per the following instructions;
PUSH-IN the RED BUTTON on the end of the
valve TO LOWER the
platform.
RELEASE the RED BUTTON TO STOP platform
descent when desired
level is reached.
3-26 – JLG Lift – 3121227
3.10 PLATFORM CONFIGURATION
Table 3-3. Platform Maximum Capacity
SECTION 3 - MACHINE OPERATION
SPECIFICATION
ANSI/CSA
CE
(Indoor Use Only)
Australia
(Indoor Use Only)
MAXIMUM CAPACITY
Platform
Load
350 lb.
(160kg)
Material Tray
Load
250 lb.
(115kg)
Carry
Deck
250 lb.
(115kg)
Max.
Wind
Speed
28 mph
(12 m/s)
0 m/s
0 m/s
Platform Lanyard Anchorage Point
Attach fall restraint lanyard to lanyard anchorage point on lower
platform railing. Maximum allowable lanyard length is 30 in.
(76cm).
Figure 3-9. Standard Platform (10MSP)
JLG INDUSTRIES, INC. RECOMMENDS THAT THE OPERATOR UTILIZE A
FALL RESTRAINT SYSTEM IN THE PLATFORM WITH A MAXIMUM 30
INCH (76 CM) LANYARD ATTACHED TO AN AUTHORIZED LANYARD
ANCHORAGE POINT.
1. Operators Platform
2. Platform Load (Operator)
3. Platform Swing-In Entry Gate
4. Material Handling Tray
3121227 – JLG Lift – 3-27
5. Storage Hook
6. Ext. Cord Wrap Hooks
7. Lanyard Attach Point
8. Carry Deck - Hood
SECTION 3 - MACHINE OPERATION
Material Handling Tray - Height Adjustment
The material handling tray is designed to carry up to 250 lb.
(113kg) of weight. It can be quickly raised or lowered vertically on
the front of the mast assembly using the tray handle release.
REMOVE ALL WEIGHT FROM THE MATERIAL TRAY BEFORE ENGAGING THE TRAY RELEASE BAR TO LOWER OR RAISE THE TRAY.
To Lowe r O r Rais e T he Tray:
1. In the slot opening at the top rear of the tray, grasp the tray
lifting handle to support the tray while adjusting.
2. Squeeze the tray release rod and raise the tray slightly until
the locking pins have disengaged from the detent slots.
3. Lower or raise the tray, when desired tray height is achieved
release the tray release rod, be certain the locking pins at
both ends of the release rod are engaged in the detent slots
before letting go of the tray lifting handle.
Figure 3-10. Material Handling Tray Height Adjustment.
1. Tr ay Lif ting Handl e
2. Tr ay Re lease Rod
3. Locking Pins
4. Lock Pin Detent Slots -
(Five Level Settings)
5. Tr ay St op s
3-28 – JLG Lift – 3121227
SECTION 3 - MACHINE OPERATION
Material Handling Tray - Cargo Strap - OPTION
The retractable cargo strap is designed to help secure objects
loaded onto the material handling tray while machine is in operation.
Figure 3-11. Material Handling Tray - Cargo Strap - Option
3.11 PARKING MACHINE
1. Drive machine to a well-protected and well-ventilated area.
2. Ensure the platform is fully lowered, turn the main power
selector switch on the platform to the OFF position.
3. If necessary, remove key from the platform ON/OFF power
switch to disable machine from unauthorized use.
NOTE: If required, charge batteries in preparation for next work
day. (See Section 3.5 on page 3-5).
1. Cargo Strap Assembly 2. Strap Attach Lug
3121227 – JLG Lift – 3-29
SECTION 3 - MACHINE OPERATION
1
3.12 TRANSPORTING, LIFTING AND TIE-DOWN PROCEDURES
General
The 10MSP Lift may be transported to a work site using the following methods:
• Driving the machine around on its base wheels if travel surface area permits.
• Moved with a fork-lift truck using the fork-lift pockets in the
base frame. (See Figure 3-12.)
• Loaded onto a transport vehicle and driven to the work site,
when equipped with Front and Rear Tie-Down Loop. (See
Figure 3-13.)
Fork-Lift Truck Transport
10MSP Model Lifts are equipped with fork-lift pockets running
crossways under the base frame. This allows the machine to be
either transported around a work area or lifted onto a higher level
using a standard fork-lift truck.
NOTE: Fork-lift trucks must be capable of handling the gross
weight of the machine, see the Operating Specifications
table at the beginning of this Section.
Figure 3-12. Forklift Truck Lifting Pockets.
1. Fork Lift Pockets
3-30 – JLG Lift – 3121227
SECTION 3 - MACHINE OPERATION
Vehicle Transport - Tied-Down Using the Tie-Down Loops
With the machine on the transport vehicle in position to be tied
down, and machine powered down (brakes engaged), use the following guidelines for restraining the machine during transport.
USE OF EXCESSIVE FORCE WHEN SECURING MACHINE (WHEEL
LOAD), CAN CAUSE DAMAGE TO THE MACHINES REAR DRIVE OR
FRONT CASTER WHEEL COMPONENTS.
1. Secure machine to the transport vehicle with adequate
chains or straps attached through the tie down loops located
at the front and rear of machine.
Figure 3-13. Front and Rear Tie-Down Loop.
1. Front Tie-Down Loop 2. Rear Tie-Down Loop
3121227 – JLG Lift – 3-31
SECTION 3 - MACHINE OPERATION
PSL
™
123
456
789
0
4
5
1
2
3
6
3.13 PROGRAMMABLE SECURITY LOCK (PSL™) (OPTION)
The optional keyless Programmable Security Lock switch can be
programmed with a four (4) digit Operators Code to allow only
those persons with the code to power-up and operate the
machine.
PSL™ Box Location
3-32 – JLG Lift – 3121227
Figure 3-14. PSL™ Switch Location
1. PSL Switch (Located on the mast cover in the platform).
Figure 3-15. PSL™ Switch Controls & Indicators.
1. ON (Green LED)
2. ACCEPT (Amber LED)
3. PROGRAM (Red LED)
4. Key Pad
5. OFF Switch
6. ON Switch
SECTION 3 - MACHINE OPERATION
Machine - Power Up using the PSL™
NOTE: When entering the Operators Code on the keypad, a short
beep indicates a properly depressed key, a long beep
indicates an error in depressing key. If an error occurs,
you must restart the code entry process again.
1. Enter the programmed four digit Operators Code on the PSL
key pad. The ACCEPT - AMBER LED indicator will be lit if the
code is correct.
2. Press the keypad ON button. The ON - GREEN LED indicator
will light and power will be supplied to the Ground Control
Station.
3. At the ground control station, turn the main power selector
switch from OFF to either Platform Control Mode or Ground
Control Mode. At the Platform Control Console set the key
switch to the ON position.
4. The machine will now operate normally.
Machine - Power Down
1. At the Ground Control Station set the main power selector
switch to the OFF position.
2. Press the OFF button on the PSL keypad. No LEDs on the
PSL box will be lit.
Changing the Operator’s Code
The PSL Operators Code can be changed should the need occur.
A separate Permanent Code matched to the serial number of the
PSL box is included on a sheet in the PSL user manual supplied
with the machine.
1. Enter the Permanent Code on the key pad. The PROGRAM RED LED will be lit if correct code is entered.
NOTE: ON or OFF cannot be one of the four digits of the new
Operator’s code.
2. Enter a new four (4) digit Operator’s Code on the keypad.
The ACCEPT - AMBER LED will light up if the new Operator’s
Code is accepted.
3. Press the OFF button on the keypad to activate the new
Operator’s Code.
NOTE: The new Operator’s Code will remain in the PSL even
when power is removed from the equipment, or until that
code is changed again using the Permanent Code.
3121227 – JLG Lift – 3-33
SECTION 3 - MACHINE OPERATION
1
3
4
5
6
2
3.14 PLATFORM HANGER ACCESSORY - (OPTION)
THE WEIGHT OF OBJECTS CARRIED IN A PLATFORM ACCESSORY,
ALONG WITH PERSONNEL AND EQUIPMENT PLACED IN THE PLATFORM MUST NOT EXCEED THE MAXIMUM RATED PLATFORM CAPACITY.
DO NOT USE MORE THAN ONE ACCESSORY MOUNTED ON THE SAME
SIDE OF THE PLATFORM AT ANY TIME.
NOTE: This hanger accessory is intended for use in placing or
retrieving lightweight bulky stock items such as bicycles,
ladders, etc., on racks or shelves above ground level. Use
for any other purpose is not authorized by JLG.
The hanger accessory is a pivoting arm mounted to the 10MSP
platform rail. The hanger accessory can be mounted to either side
of the platform individually, or two can be mounted, one on each
side of the platform. Each individual hanger has a maximum load
capacity of 50 lb. (23 kg).
The hanger arm can be pivoted out of the way parallel with the
platform side rails when not in use, (the stowed position). The
hanger arm is pinned into position at 90 degrees to the platform
side rails when in use, (the carry position).
1. Mounting Bracket/Capacity
Decal (a)
2. Lock Pin (Stowed Position)
4. Hanger Arm (Stowed Position)
5. Hanger Arm (Carry Position)
6. Hanger Arm Strap
3. Lock Pin (Carry Position)
NOTE: (a) Maximum load capacity of hanger is 50 lb. (23kg).
3-34 – JLG Lift – 3121227
SECTION 3 - MACHINE OPERATION
Hanger Accessory - Pre-Start Inspection
Prior to use of the hanger accessory, check the following;
• Hanger arm mounting is secure to the platform railing, no
missing or damaged fasteners.
• The hanger arm lock pin is in place and secure.
Loading and Transporting an Item using the Hanger Accessory
Use the following steps as a guide when loading and transporting
an object with the hanger accessory arm.
1. Keep the hanger arm in the stowed position when not in use.
2. When ready to use, pull the lock pin from the stowed position
hole and swing the hanger arm into the carry position. Place
pin in the carry position hole locking the hanger arm in place.
3. Load the object onto the hanger arm and use the hanger arm
strap to secure the object during transport.
4. Be aware of clearance above, below, and around the object
when driving and lifting or lowering the platform.
3.15 RUG CARRIER ACCESSORY - (OPTION)
NOTE: This rug carrier accessory is intended for use in placing
or retrieving rolled/unrolled rugs and other similar stock
stored on racks or shelves above ground level. Use for
any other purpose is not authorized by JLG.
The rug carrier accessory consists of two extendable arms
mounted on the left side of the 10MSP machine. The maximum
combined load carrying capacity for both arms is 50 lb. (23kg).
The carrier arms can be retracted out of the way when not in use.
Pre-Start Inspection
Prior to use of the carrier accessory, check the following;
• The material tray is fully raised and locked in position.
• Carrier arm mounts are secure to the machine, no missing or
damaged fasteners.
• The carrier arms lock pins are in place and secure.
3121227 – JLG Lift – 3-35
SECTION 3 - MACHINE OPERATION
1
1. Rug Carrier arms shown in the extended or carry position.
NOTE: Maximum combined carrying capacity for both arms is 50 lb.
(23kg)
Hanging a Rug
The following is a description for use of the Rug Carrier accessory
in hanging rugs on horizontal pivoting arm display racks.
1. Select the intended location in the display for mounting the
rug. Open the display rack to provide adequate space for the
lift and rug.
2. With the Rug Carrier Accessory arms stowed, drive the lift
into position prior to loading the rug.
3. Release and lock Rug Carrier Accessory arms into the carry
position.
4. Load the rolled rug with the finished side facing the platform.
As required, use an assistant to load the rug onto the Rug
Carrier Accessory arms.
5. Make sure that the rug is centered over its length on the Rug
Carrier Accessory.
6. Elevate the platform to the required height for mounting the
rug onto the display arm.
7. Properly attach the rug to the display arm. Never climb onto
the platform rails for any reason.
3-36 – JLG Lift – 3121227
8. After adequately attaching the rug to the display arm, lower
1
2
3
4
123
the platform, stow the Rug Carrier Accessory arms.
9. As required reposition and elevate the lift to completely
attach the rug.
SECTION 3 - MACHINE OPERATION
1. Front Arm in Stowed Position
2. Front Arm in Carry Position
3. Release Button to Move Arm
4. Arm Guide
1. Rear Arm in Stowed Position
2. Rear Arm in Carry Position
3. Lift Arm, Swing Out and
Lower Down to Lock in Place
3121227 – JLG Lift – 3-37
SECTION 3 - MACHINE OPERATION
1
2
Removing a Rug
This section describes the use of the Rug Carrier accessory in
removing a rug from a horizontal pivoting arm display rack.
1. Select the intended location in the display for removal of the
rug. Open the display rack to provide adequate space for the
lift and rug.
2. With the Rug Carrier Accessory arms stowed, drive the lift
into position prior to loading the rug.
3. Swing and lock the Rug Carrier Accessory arms into the
carry position.
4. Elevate the platform a few feet. Start to roll the rug onto the
Rug Carrier Accessory arms.
5. Be certain the rug is centered over its length on the Rug Carrier Accessory.
6. While elevating to the required height for removing the rug
from the display arm, continue to roll the rug until it is completely rolled up on the carrier arms.
7. Properly remove the rug from the display arm. Never climb
onto the platform rails for any reason.
8. After adequately removing the rug from the display arm,
lower the platform.
9. Remove the rug from the Rug Carrier Accessory. If required,
use an assistant to unload the rug from the Rug Carrier
Accessory Arms.
10. Replace the Rug Hanger Accessory arms to the stowed position for normal operation.
Removing Rug From Display Arm.
1. Roll Rug onto Rug Carrier while Elevating Platform
2. Rug Carrier in Carry Position
3-38 – JLG Lift – 3121227
THE RUG CARRIER ACCESSORY ARMS MUST BE LOCKED IN THE
STOWED POSITION WHEN NOT IN USE.
EXTREME CAUTION MUST BE EXERCISED AT ALL TIMES WHILE THE
RUG CARRIER ACCESSORY IS IN USE (DRIVING, RAISING AND LOWERING) TO PREVENT OBSTACLES AND PERSONNEL FROM STRIKING THE
LOAD.
WHEN DRIVING WITH A RUG WITHIN THE RUG CARRIER ACCESSORY,
THE RUG MUST BE PROPERLY SECURED TO PREVENT INADVERTENT
MOTION OR MOVEMENT OF THE RUG AND MUST NOT EXCEED THE
RATED CAPACITY OF THE RUG CARRIER ACCESSORY.
NEVER OVERLOAD THE RUG CARRIER ACCESSORY. MAXIMUM CAPACITY OF THE RUG CARRIER ACCESSORY IS 50 LBS.
THE COMBINED WEIGHT OF PERSONNEL, MATERIALS, EQUIPMENT
PLUS ANY LOAD ON THE RUG CARRIER ACCESSORY MUST NOT
EXCEED THE MAXIMUM CAPACITY OF THE PLATFORM.
NEVER USE A RUG CARRIER ACCESSORY THAT HAS DAMAGE OR
LOOSE MOUNTINGS. IMMEDIATELY REPORT ANY DAMAGE TO APPROPRIATE PERSONNEL. DISCONTINUE USE OF THE RUG CARRIER ACCESSORY UNTIL ALL DISCREPANCIES HAVE BEEN CORRECTED.
SECTION 3 - MACHINE OPERATION
3121227 – JLG Lift – 3-39
SECTION 3 - MACHINE OPERATION
3.16 FLOURSCENT TUBE CADDY - (OPTION)
NOTE: The fluorescent tube caddy accessory is intended for use
in replacing fluorescent tubes in light fixtures mounted at
ceiling level. Use for any other purpose is not authorized
by JLG. Maximum carrying capacity of caddy is 15
lb.(7kg)
The fluorescent tube caddy consists of the caddy which attaches
to the platform side rail. The caddy mount is secured to the platform rail with an attach pin. The caddy can be mounted to either
side of the platform dependent on other attachments already
mounted to the platform rail.
Pre-Start Inspection
Prior to use of the Fluorescent Tube Caddy, check the following;
• Caddy mount is centered and secure to the platform rail.
• The caddy lock pin is in place under the platform rail and
secure.
THIS MACHINE IS NOT INSULATED AND DOES NOT PROVIDE PROTECTION FROM CONTACT OR PROXIMITY TO ELECTRICAL CURRENT.
THE COMBINED WEIGHT OF PERSONNEL, MATERIALS, EQUIPMENT
PLUS ANY LOAD ON THE FLUORESCENT TUBE CADDY MUST NOT
EXCEED THE MAXIMUM LOAD CAPACITY OF THE PLATFORM.
1. Fluorescent Tube Caddy 2. Attach Pin and Retaining Wire
NOTE: Caddy maximum carrying capacity is 15 lb. (7kg)
3-40 – JLG Lift – 3121227
SECTION 3 - MACHINE OPERATION
1
2
3
4
5
6
7
3.17 DECAL INSTALLATION
Figure 3-16. 10MSP Decal Installation Chart - (See Table 3-4 (ANSI) and (CE) for Specification)
3121227 – JLG Lift – 3-41
SECTION 3 - MACHINE OPERATION
10
10
1
9
11
8
Figure 3-17. 10MSP Decal Installation Chart - (See Table 3-4 (ANSI) and (CE) for Specification)
3-42 – JLG Lift – 3121227
SECTION 3 - MACHINE OPERATION
Figure 3-18. 10MSP Decal Installation Chart - (See Table 3-4 (ANSI) and (CE) for Specification)
3121227 – JLG Lift – 3-43
SECTION 3 - MACHINE OPERATION
Item ANSI
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Table 3-4. 10MSP - (ANSI and CE) Decal Installation Chart (See Figure 3-16., Figure 3-17. and Figure 3-18.)
ANSI
(LAT)
1705930 1705930 1705930 1705930 1705930 1705930 1705930 1705930 1705930 1705930 1705930 1705930 1705930
1705624 1705624 1705624 1705624 1705624 1705624 1705624 1705624 1705624 1705624 1705624 1705624 1705624
1705929 1706085 1706089 --- 1706093 1706077 1706077 1706077 1706077 1706077 1706077 1706077 1706097
1701640 1701640 1701640 1701640 1701640 1701640 1701640 1701640 1701640 1701640 1701640 1701640 1701640
1705937 1706084 1706088 --- 1706092 --- --- --- --- --- --- --- 1706096
1705938 1706083 1706087 --- 1706091 1706078 1706078 1706078 1706078 1706078 1706078 1706078 1706095
1705939 1705939 1705939 --- 1705939 1706079 1706079 1706079 1706079 1706079 1706079 1706079 1705939
1706616 1706616 1706616 1706616 1706616 1706616 1706616 1706616 1706616 1706616 1706616 1706616 1706616
1706617 1706617 1706617 1706617 1706617 1706617 1706617 1706617 1706617 1706617 1706617 1706617 1706617
1705995 1706082 1706086 --- 1706090 1705099 1705099 1705099 1705099 1705099 1705099 1705099 1706094
1705992 1705992 1705992 1705992 1705992 1705992 1705992 1705992 1705992 1705992 1705992 1705992 1705992
1703786 1706082 1706086 --- 1706090 1705099 1705099 1705099 1705099 1705099 1705099 1705099 1706094
1706131 1706131 1706131 1706131 1706131 1706131 1706131 1706131 1706131 1706131 1706131 1706131 1706131
1700584 1700584 1700584 1700584 1700584 1700584 1700584 1700584 1700584 1700584 1700584 1700584 1700584
1702631 1702631 1702631 1702631 1702631 1702631 1702631 1702631 1702631 1702631 1702631 1702631 1702631
3252645 3252645 3252645 3252749 3252645 3252811 3252799 3252799 3252799 3252799 3252799 3252799 3252645
1704412 1704412 1704412 1704412 1704412 1704412 1704412 1704412 1704412 1704412 1704412 1704412 1704412
ANSI
(BRZ)
ANSI
(JPN)
ANSI
(CHI)CE(ENG/(AUS)CE(GER)CE(FRE)CE(SPA)
CE
(ITA)CE(DUT)CE(SWE)
CSA
(FRE)
3-44 – JLG Lift – 3121227
SECTION 4 - EMERGENCY PROCEDURES
SECTION 4. EMERGENCY PROCEDURES
4.1 GENERAL INFORMATION
This section explains the steps to be taken in case of an emergency situation during operation.
4.2 EMERGENCY OPERATION
Operator Unable to Control Machine
IF THE PLATFORM OPERATOR IS PINNED, TRAPPED OR
UNABLE TO OPERATE OR CONTROL THE MACHINE:
1. Other personnel should operate the machine from
ground controls only as required.
2. Only qualified personnel in the platform may use the
platform controls. DO NOT CONTINUE OPERATION IF
CONTROLS DO NOT FUNCTION PROPERLY.
3. Rescue equipment can be used to remove the platform
occupant. Cranes and forklifts can be used to stabilize
motion of the machine.
Platform Caught Overhead
If the platform becomes jammed or snagged in overhead structures or equipment, rescue the platform occupant prior to freeing
the machine.
4.3 INCIDENT NOTIFICATION
JLG Industries, Inc. must be notified immediately of any incident
involving a JLG product. Even if no injury or property damage is
evident, the factory should be contacted by telephone and provided with all necessary details.
USA: 877-JLG-SAFE (554-7233)
Outside USA: 717-485-5161
E-mail: productsafety@jlg.com
Failure to notify the manufacturer of an incident involving a JLG
Industries product within 48 hours of such an occurrence may
void any warranty consideration on that particular machine.
FOLLOWING ANY ACCIDENT, THOROUGHLY INSPECT THE MACHINE
AND TEST ALL FUNCTIONS FIRST FROM THE GROUND CONTROL STATION, THEN FROM THE PLATFORM CONTROL CONSOLE. DO NOT ELEVATE PLATFORM UNTIL YOU ARE SURE THAT ALL DAMAGE HAS BEEN
REPAIRED, IF REQUIRED, AND THAT ALL CONTROLS ARE OPERATING
CORRECTLY.
3121227 – JLG Lift – 4-1
SECTION 4 - EMERGENCY PROCEDURES
NOTES:
4-2 – JLG Lift – 3121227
SECTION 5 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
SECTION 5. GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
5.1 INTRODUCTION
This section of the manual provides additional necessary information to the operator for proper operation and maintenance of
this machine.
The maintenance portion of this section is intended as information to assist the machine operator to perform daily maintenance tasks only, and does not replace the more thorough
Preventive Maintenance and Inspection Schedule included in
the Service and Maintenance Manual.
Other Publications Available Specific to this Machine:
Service and Maintenance Manual
GLOBAL. . . . . . . . . . . . . . . . . . . . . . . .3121228
Illustrated Parts Manual
GLOBAL. . . . . . . . . . . . . . . . . . . . . . . .3121229
3121227 – JLG Lift – 5-1
SECTION 5 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
5.2 GENERAL SPECIFICATIONS
Machine Specifications
SPECIFICATION 10MSP
Gross Machine Weight:
(Platform Empty):
Machine Height:
(Platform Stowed):
Maximum Ground Bearing Pressure:
(per wheel) 2 x 12 VDC Batteries: 650 lb. (295 kg)
4 x 6 VDC Batteries: 710 lb. (322 kg)
Machine Ground Clearance: 1.875 in.
Machine Turning Radius:
(Circle)
Tilt Indicator Setting: 1.5°
Maximum Travel Grade (Gradeability):
(Platform STOWED ONLY)
1100 lb.
(499 kg)
57 in.
(1.44m)
(47.6mm)
65 in.
(165cm)
15% (8.5°)
SPECIFICATION 10MSP
Maximum Travel Grade (Side Slope):
(Platform STOWED ONLY)
Maximum Drive Speeds:
(Operator Variable):
Machine Base - Overall:
(Width x Length)
M ax i mu m O pe r at i ng W i nd S pe e d : ANSI/CSA: 28 mph (12.5 m/s)
(For indoor use only) - CE/AUST: 0 mph (0 m/s)
Maximum Horizontal Manual Side Force:
(Platform fully extended with Maximum load)
ANSI/CSA:
CE/AUST/JPN:
Maximum Hydraulic System Pressure:
(Recommended initial setting)
Hydraulic System Capacity: 5 qts. U.S. (4.7 L)
Hydraulic Reservoir Capacity: 1 Gallon (3.78 L)
(75 cm W x 152 cm L)
5°
0.5 - 3.4 mph
(0.8 - 5.5 kph)
29.5 in. W x 60 in. L
100 Lbs. (445 N)
200 N (45 Lbs.)
1800 PSI
(124 Bars)
5-2 – JLG Lift – 3121227
SECTION 5 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
Electrical Specifications Platform Data
SPECIFICATION 10MSP
System Voltage: 24 Volts DC
B a t te r y S p e c if i c a t i o ns : Battery Type: AGM (VRLA) (Sealed)
Vol tage : ( 2) - 1 2 Volt DC ( Stan dard )
or
(4) - 6 Volt DC (Option)
Amp Hour (AH) Rating: 12V - 100 Amp Hr. @ 20 Hr.
6V - 210 Amp Hr. @ 20 Hr.
B at t er y C ha r g er : Input: 120/240 Volts AC - 50/60 Hz -
Voltage Selectable
Output: 24 volt, 20 Amp Output -
with 2 Amp Finish
Occupants: (Persons allowed in Platform) 1
Maximum Work Load (Capacity): Platform: 350 lb.
Carry Deck Capacity: 250 lb.
Platform Entry Hei ght:
(Ground to Platform Floor)
Platform Height - Mast Fully Extended -
(Ground to Platform Floor):
P l at f o rm C y c le P e rf o r m an c e : Lift Up: 13 sec.
(in seconds) (w/max. rated load) Lift Down: 9 - 13 sec.
* Only on machines equipped with the 7 ft. platform height limit OPTION.
SPECIFICATION 10MSP
(160kg)
Material Tray: 250 lb.
(115kg)
(115kg)
13.5 in.
(34.3cm)
10 ft. (3m)
* 7 ft. (2m)
3121227 – JLG Lift – 5-3
SECTION 5 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
Machine Component Weights Serial Number Location
SPECIFICATION 10MSP
Platform Weight: 75 lb. (34 kg)
Battery: (per battery) 12V - 65.7 lb. (29.8 kg)
6V - 64 lb. (29 kg)
Front H ood: 12 lb. (5.4 kg)
For machine identification, the serial number is stamped into a
nameplate affixed to the machine. The plate is located under the
front hood cover on the frame crossbar at the front of the
machine.
5-4 – JLG Lift – 3121227
SECTION 5 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
5.3 OPERATOR MAINTENANCE
Lubrication
Hydraulic Oil (HO)
HYDRAULIC SYSTEM OPERATING
TEMPERATURE RANGE
+0° F to +180° F (-18° C to -83° C) 10W
+0° F to +210° F (-18° C to +99° C) 10W-20, 10W-30
+50° F to +210° F (+10° C to +99° C) 20W-20
Hydraulic oils must have anti-wear qualities at least to API Service Classification GL-3, and sufficient chemical stability for
mobile hydraulic system service. JLG Industries, recommends
Mobilfluid 424 hydraulic oil, which has an SAE viscosity of 10W30 and a viscosity index of 152.
For cold weather applications, i.e. when temperatures remain
consistently below +20°F (–7°C) JLG recommends using Mobil
DTE 13 hydraulic oil.
Aside from JLG recommendations, it is not advisable to mix oils
of different brands or types, as they may not contain the same
required additives or be of comparable viscosities. If use of
SAE VISCOSITYGRADE
hydraulic oil other than Mobilfluid 424 is desired, contact JLG
Industries for proper recommendations.
Table 5-1. - Lubrication Specifications
KEY SPECIFICATIONS
MPG - Multipurpose Grease having a minimum dripping point
of 350° F. Excellent water resistance and adhesive
qualities, and being of extreme pressure type. (Timken
OK 40 pounds minimum. )
EPGL - Extreme Pressure Gear Lube (oil) meeting API service
c la ss if ic a ti on GL- 5 or MI L-S pe c MI L-L- 21 0 5.
HO - Hydraulic Oil. ISO-Vg grade 32, 46.
CL - Chain Lube. Use a good quality chain lubricant.
NOTE: Refer to Lubrication Chart, Table 5-2. for specific lubrica-
tion locations on machine.
3121227 – JLG Lift – 5-5
SECTION 5 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
Lubrication Points. (See Table 5-2.)
5-6 – JLG Lift – 3121227
SECTION 5 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
Table 5-2. Lubrication Intervals for Various Components
ITEM COMPONENT
1Hydraulic Oil
2Swivel Raceways — MPG
3 Mast Chains 2 - Per Section CL - Brush or Spray
Key to Lubricants: MPG - Multipurpose Grease
HO - Hydraulic Oil - ISO-Vg grade 32, 46
GEAR OIL - Good Quality Worm Gear Oil - SAE 90 - AGMA#5 - EP Compounded
CL - Chain Lube. Use a good quality chain lubricant
Notes: (a) Be certain to lubricate like items on each side of the machine.
(b) Recommended lubricating intervals are based on normal use. If machine is subjected to severe operating conditions,
such as a high number of cycles, location, corrosive/dirty environment, etc., user must adjust lubricating requirements accordingly.
(c) Prior to checking hydraulic oil level, operate machine through one complete cycle of lift function (full up and down). Failure to do so
will result in incorrect oil level reading on the hydraulic reservoir.
NO/TYPE
LUBE POINTS
Fill To Full Line on
Dipstick - 5 Qt.
Reservoir
(a)
LUBE/METHOD
HO - Check Hyd. Oil
L e ve l
HO - Change Hyd. Oil
3
MONTHS6MONTHS1YEAR2YEARS
INTERVAL
✔
(b)
COMMENTS
Check fluid level every day.
✔
Change hydraulic oil every 2 years.
Upper: Permanently Sealed.
Lower: Repack if Serviced.
Inspect, lubricate if dry or r usting.
(c)
3121227 – JLG Lift – 5-7
SECTION 5 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
5.4 BATTERY MAINTENANCE
The OEM batteries are AGM sealed (VRLA) type so the electrolyte level cannot be checked, however the battery terminals
should be checked periodically for corrosion and tightness. The
batteries are located directly in front of the rear drive wheels
inside the base frame. To access the batteries, remove the hood
(carry deck) and the rear cover under the platform.
5.5 TIRES AND WHEELS
Tire Wear and Damage
Inspect tires periodically for wear or damage. Tires with worn
edges or distorted profiles require replacement. Tires with significant damage in the tread area or side wall, require immediate
evaluation before replacing the machine into service.
Wheel and Tire Replacement
Replacement wheels must have the same diameter and profile
as the original. Replacement tires must be the same size and
rating as the tire being replaced.
Wheel Installation
It is extremely important to apply and maintain proper wheel
mounting torque.
WHEEL LUG NUTS MUST BE INSTALLED AND MAINTAINED AT THE
PROPER TORQUE TO PREVENT LOOSE WHEELS, BROKEN LUG NUTS,
AND POSSIBLE SEPARATION OF WHEEL FROM THE AXLE. BE SURE
TO USE ONLY THE LUG NUTS MATCHED TO THE CONE ANGLE OF THE
WHEEL.
5-8 – JLG Lift – 3121227
SECTION 5 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
Tighten the lug nuts to the proper torque to prevent wheels from
coming loose. Use a torque wrench to tighten the fasteners. If
you do not have a torque wrench, tighten the fasteners with a
lug wrench, then immediately have a service garage or dealer
tighten the lug nuts to the proper torque. Over-tightening will
result in breaking the lug nuts or permanently deforming the
mounting holes in the wheels. The proper procedure for attaching wheels is as follows:
1. Start all lug nuts by hand to prevent cross threading. DO
NOT use a lubricant on threads or nuts.
2. Tighten lug nuts in the following sequence.
Figure 5-1. Wheel Lug Nut Tightening Sequence
3. The tightening of the lug nuts should be done in stages.
Following the recommended sequence, tighten lug nuts
per wheel torque.
Table 5-3. Wheel Torque Chart
TORQUE SEQUENCE
1st Stage 2nd Stage 3rd Stage
20-30 ft lb
(28 - 42 Nm)
65-80 ft lb
(91 - 112 Nm)
105 -120 ft lb
(142 - 163 Nm)
4. Wheel lug nuts should be torqued after the first 50 hours
of operation and after each wheel removal. Check
torque every 3 months or 150 hours of operation.
3121227 – JLG Lift – 5-9
SECTION 5 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
5.6 GROUND CONTROL STATION PROGRAMMING
General
The Ground Control Station on the MSP10 machine allows onboard programming of various component and control function
personality settings.
Programming may be required under circumstances such as:
• The Ground Control Station module has been replaced and
optional equipment on the machine needs to be enabled.
• Optional equipment has been added to the machine in the
field and a function must be enabled before operation.
• Customizing the machine to fit a specific application, such as
changing the LCD display language.
Programming Levels
There is one (1) password protected programming level available
to the Operator:
• Level-3: Operator’s Settings - Level-3 Password: 33271
Operator Programming Mode
In the Operator Level Programming Mode the following items are
shown on the main menu:
• Tilt Sensor
•Program
Tilt Sensor
Allows viewing current tilt sensor - individual X and Y direction
degree reading.
5-10 – JLG Lift – 3121227
SECTION 5 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
Programming Items
Allows programming of the items shown in Table 5-4 on page 512, the following is a brief explanation of each programming item.
NOTE: There are two production modules available at this time,
one for North/South American and European languages,
and one for Asian languages. All programmable items
between these modules are identical with the exception
of language selection.
• Back To Main (Menu) - When selected, will return to main
level menu.
• Set Language - Selects the language that text on the LCD
screen will be displayed.
• Set Sleep Time - Allows setting the length of time the
machine will remain powered up without control input before
powering itself down.
• Set Polarity of Keypad Code - Turns ON or OFF the Programmable Security Lock switch circuit, if equipped.
• Enable Detection of Horn Open Circuit - Enables horn
electrical circuit to be turned ON (YES) or OFF (NO) if
machine is equipped with a horn.
• Enable Detection of Beacon Open Circuit - Enables mast/
base beacon strobe electrical circuits to be turned ON (YES)
or OFF (NO) if machine is equipped with either or both beacon strobes.
• Forward Alarm Disable - When turned ON (YES) will disable
the alarm when driving forward.
3121227 – JLG Lift – 5-11
SECTION 5 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
Table 5-4. Ground Control Station - Level 3 - Programmable Settings and Factory Presets.
LEVEL PROGRAMMABLE ITEM
3 Back to Main — Return to Main Menu
Set Language
NOTE: There are two production modules available at this
3
3 Set Sleep Time 10 MINS 0 - 60 MINS
3 Set Polarity of the Keypad Code LOW HIGH/LOW
3 Enable Detection of Horn Open Circuit NO YES/NO
3 Enable Detection of Beacon Open Circuit NO YES/NO
3 For ward Alarm Disable NO YES/NO
On LCD Display: YES = HIGH =
time, one for North/South America and European
Languages, and one for Asian Languages.
FACTORY
PRESET
1
2
SETTING RANGE
1. English
2. German
3. Dutch
4. French
5. Spanish
10. English
11. Chinese
NO = L OW = ↓
6. Italian
7. Swedish
8. Brazilian
Por tuguese
9. Finnish
12. Japanese
↑
5-12 – JLG Lift – 3121227
SECTION 5 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
Activating Programming Mode
NOTE: If machine does not power up, check that both the
Ground Control Station - Emergency Stop Button, and the
Platform Control Console - Emergency Stop Button, are in
the RESET position.
Also if machine is equipped with the (PSL) Programmable
Security Lock option, see Section 3 of this Operators
Manual for additional machine power-up steps.
Activating Programming Mode
1. With machine power OFF, press and hold the Brake Release
Button (1) on the Ground Control Station.
2. While holding the Brake Release Button in, power machine up
by turning the Main Power Selector Switch (2), to either the
Ground Control or Platform Control Mode.
3. Release the Brake Release Button (1) after machine is pow-
ered up. The LCD display should now display five zeros, one
with a box around. Continue to next step Entering Password.
3121227 – JLG Lift – 5-13
SECTION 5 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
Entering Password Programming Mode Selection
Entering Password
1. The Brake Release button (1) moves the box (around digit)
from left to right to select which digit to change.
2. Platform UP button (2) increases the numerical digit.
3. Platform DOWN button (3) decreases the numerical digit.
4. Change all five digits (4) to match password level, then press
the Brake Release button (1) again.
Programming Mode Selection
1. Use Platform UP/DOWN buttons (1) to move the selection box
(2) up or down to select item to program.
2. Press the Brake Release button (3) to enter selected mode then
move on to Selecting Programmable Item to Adjust.
5-14 – JLG Lift – 3121227
SECTION 5 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
Selecting Programmable Item to Adjust Adjusting Programmable Setting
Adjusting Programmable Setting
Selecting Programmable Item to Adjust
1. Use the Platform UP/DOWN buttons (1) to scroll through the
list of programmable items available to your programming
level.
2. Once a programmable item to be adjusted is selected, press
the Brake Release button (2) to enter that settings’ adjustment
mode.
1. Adjust the programmable setting using the Platform UP/DOWN
buttons (1), see Table 5-4 for range of settings for that item.
2. Once parameter is set for the programmable item, press the
Brake Release button (2), this will enter the parameter and
return you to the Programmable Settings Menu.
TO EXIT Programming Mode after adjusting programmable settings, power machine down with either the Main Power Selector
Switch or Emergency Stop Button.
3121227 – JLG Lift – 5-15
SECTION 5 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE
5.7 DRIVE MOTOR BRUSH WEAR - WARNING INDICATION
The machines drive motors include brush wear sensors that
activate a warning indicating the drive motor brushes will require
replacement soon. This warning protects the drive motors from
damage due to extreme brush wear.
When the brush wear warning is activated the Ground Control
Station LCD screen will indicate a fault code of 6, also the hourmeter is set to countdown 25 hours of (DRIVE) operation
remaining.
The Platform Control LEDs will indicate this warning with 8 flashing LEDs and an intermittent beep.
NOTE: Only the drive function when used will affect the hour
meter count down once the warning has been activated.
The machine will operate normally until the last 10 seconds of the 25 hour countdown.
During the last 10 seconds of the 25 hour (DRIVE) countdown
the machine will only drive in creep/turtle drive mode and platform lift up will be disabled. At this point cycling power on/off will
only repeat the final 10 second mode cycle.
The machine will not operate normally until the drive motor
brushes are replaced (repositioning the brush warning sensors),
and the Ground Control Station is programmed to reset the
Brush Wear - Warning Timer per the Service and Maintenance
Manual.
5-16 – JLG Lift – 3121227
SECTION 6. INSPECTION AND REPAIR LOG
Machine Serial Number _______________________________________
Table 6-1. Inspection and Repair Log
Date Comments
SECTION 6 - INSPECTION AND REPAIR LOG
3121227 – JLG Lift – 6-1
SECTION 6 - INSPECTION AND REPAIR LOG
Table 6-1. Inspection and Repair Log
Date Comments
6-2 – JLG Lift – 3121227
TRANSFER OF OWNERSHIP
To Product Owner:
If you now own but ARE NOT the original purchaser of the product covered by this
manual, we would like to know who you are. For the purpose of receiving safety-related
bulletins, it is very important to keep JLG Industries, Inc. updated with the current
ownership of all JLG products. JLG maintains owner information for each JLG product
and uses this information in cases where owner notification is necessary.
Please use this form to provide JLG with updated information with regard to the
current ownership of JLG products. Please return completed form to the JLG Product
Safety & Reliability Department via facsimile or mail to address as specified below.
Thank You,
Product Safety & Reliability Department
JLG Industries, Inc.
13224 Fountainhead Plaza
Hagerstown, MD 21742
USA
Telephone: +1-717-485-6591
Fax: +1-301-745-3713
NOTE: Leased or rented units should not be included on this form.
Mfg. Model: _____________
__________________________________________________
Serial Number: ____________________________________________________________
Previous Owner: ___________________________________________________________
