Invacare MNS500 User Manual

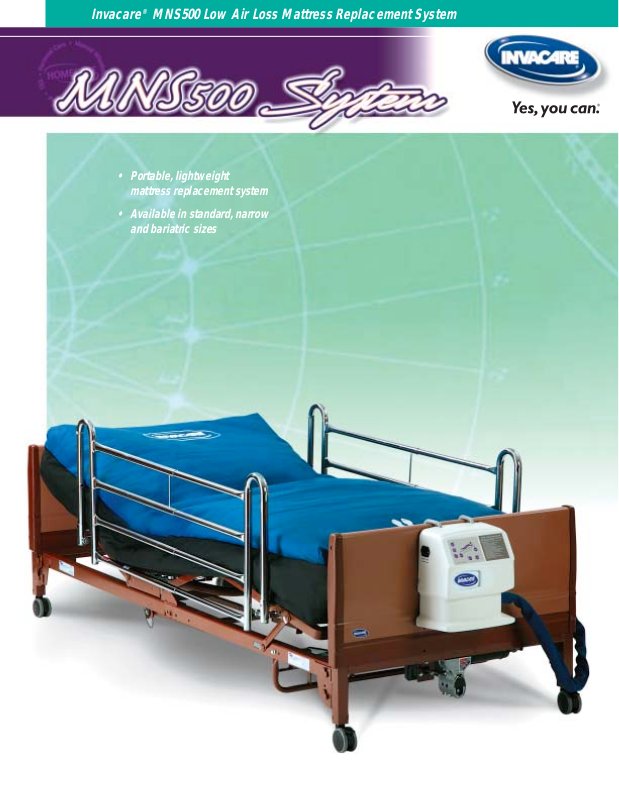

Invacare®MNS500 Low Air Loss Mattress Replacement System

• Portable, lightweight
mattress replacement system

• Available in standard, narrow
and bariatric sizes

Invacare Corporation

www.invacare.com

USA

One Invacare Way
Elyria, Ohio
44035-4190
[phone]

Canada

570 Matheson Blvd. E.
Unit 8
Mississauga, Ontario
L4Z 4G4 Canada
[phone]

Invacare, the Blue Medallion
Design and Yes, you can. are
registered trademarks of
Invacare Corporation.
Specifications are subject to
change without notification.

Manufactured for Invacare
Corporation by Genadyne
Biotechnologies, Inc.

© 2005
Invacare Corporation

Form No. 04-217
Rev. 10/05

The Invacare®MNS500 is a portable low air loss therapy mattress replacement system that provides
the therapeutic benefits of pressure relief and skin moisture management. The MNS500 also provides
the benefit of true low air loss for pressure ulcer therapy.

‘‘Invacare says
‘Yes, you can.

®

’ and I couldn’t

have said it better myself.’’

Invacare

®

MNS500 Low Air Loss Mattress Replacement System

Invacare®MNS500 Low Air Loss Mattress Replacement System

• 135 liters per minute of fresh, dry air circulates between the patient

and the support surface

• 8" air cell height for deep patient immersion

• Waterproof, vapor permeable therapy pad provides a low friction

surface

• Provides pressure relief below capillary closure

• Pulsate option - every 45 seconds, the pressure increases and

decreases in each cell

Features

• Auto-firm mode for patient transfers or nursing care

• Auto-firm mode automatically cancels after thirty minutes

• Pressure control setting for easy comfort adjustment

• Fowler button on key pad with LED

• Single connector rapid attach and CPR deflate

• Low pressure and power failure alarm

User-Friendly Controls

• MNS500 easily attaches to most medical beds

• Full depth mattress with 16 individual air cells

• Built-in lower safety mattress supports the patient

in the event of power failure

Therapeutic and Portable

Specifications

Electrical

Power 115vac, 50/60Hz, 6A
Leakage current Less than 100 microamps

Dimensions

Standard mattress 80" L x 36" W x 8.5" H
Narrow mattress 80" L x 32" W x 8.5" H

Bariatric mattress 80" L x 42" W x 8.5" H
Power unit 11" W x 12.5" H x 5.25" D
Weight

Standard mattress 22 lb.

Narrow mattress 20 lb.

Bariatric mattress 24 lb.
Power unit 9 lb.
Weight Capacity

MNS500-S 350lb.
MNS500-N 350lb.

MNS500-B 600lb.
Safety Code approval CE, UL2601, CSA, CTL
Material

Mattress cells 200 denier, polyurethane

coated nylon
CA# 117 Fire Retardency
Therapy cover Ventex Recovery 5 with a polyurethane,
breathable membrane layer. Polyester
quilted under-layer , CA# 117 Fire Retardency

Limited warranty

Power unit 1 year
Mattress 6 months

Model no. MNS500-S (Standard width)
Model no. MNS500-N (Narrow width)
Model no. MNS500-B (Bariatric width)
