Parts Catalog
Issued: Nov 9, 2006
Patriot™
Yes, you can. ™
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the bottom of the page or below specified charts.
Parts Catalog Usage Guide
To order call toll free 1-800-333-6900, or www.invacare.com
The information contained in this document is subject to change without notice. This catalog contains service parts for Form No. 99-110. If you have any questions regarding this catalog, please contact one of our Customer Service Representatives.
For Customer Service Support Call:
For Faxed In Orders Call:
1-800-678-4682 or
For Technical Service Call:
Literature Can Be Found at:
www.invacare.com or
SYMBOL DEFINITION
Examples:
A,B,C etc. NOTE: NLA
= Special Comments = General information pertaining to that specific page = No Longer Available
HARDWARE MEASUREMENTS
The measurements for the hardware will be listed as follows:
Screws, Bolts Washers Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
©2006 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., and the Medallion Design are registered trademarks and Patriot is a trademark of
Diameter X Thread Count/Pitch X Length Inside Diameter X Outside Diameter X Thickness Inside Diameter X Outside Diameter X Length
Name Phone Numbers
Invacare Corporation.
Form No.
99-110
1
TABLE of CONTENTS
Page
Number
To order call toll free 1-800-333-6900, or www.invacare.com
Form No.
99-110
Description
Accessories - Crutch and Cane Carrier .................................................................................... 90
Accessories - Cyclical Lever Drive - 7 Spoke ........................................................................... 100
Accessories - Fabric Clothing Protector ................................................................................... 99
Accessories - Heel Loops ......................................................................................................... 86
Accessories - I.V. Rod .............................................................................................................. 88
Accessories - Rear Anti-Tipper ................................................................................................ 95
Accessories - Seat/ Back Inserts, Pack/Pouch & Positioning Straps ....................................... 97
Accessories - Utility Tray .......................................................................................................... 93
Accessories - Wheel Lock Extension Handle ........................................................................... 91
Adjustable Tension Back Upholstery ........................................................................................ 18
Arms - Arm Attaching Hardware - After 6/23/99 ....................................................................... 21
Arms - Arm Attaching Hardware - Before 6/24/99 .................................................................... 19
Arms - Conventional Adjustable Height - Removable/Non-Removable ................................... 25
Arms - Conventional Fixed Height - Removable/Non-Removable ........................................... 30
Arms - Half Arm and Hardware ................................................................................................ 23
Arms - Space Saver Adjustable Height Arms - Removable/Non-Removable .......................... 27
Arms - Space Saver Fixed Height -Removable/Non-Removable ............................................. 33
Axles and Axle Mounting Plate Hardware ................................................................................ 41
Back Canes and Adjustable Angle Back Hardware ................................................................. 14
Crossbraces and Hardware ...................................................................................................... 12
Footplate and Pivot Tube Assemblies - 1651 Composite ........................................................ 76
2
TABLE of CONTENTS
Page
Number
To order call toll free 1-800-333-6900, or www.invacare.com
Form No.
99-110
Description
Footplate and Pivot Tube Assemblies - A1562 Aluminum ....................................................... 71
Footplate and Pivot Tube Assemblies - A1564 Extra Large Aluminum .................................... 74
Footplate and Pivot Tube Assemblies - AT5543 Adjustable Angle (After 9/11/03) .................. 82
Footplate and Pivot Tube Assemblies - AT5543 Adjustable Angle (Before 9/12/03) ............... 80
Forks and Headtube Hardware ................................................................................................ 35
Frame Finishes and Touch-Up Paint ........................................................................................ 5
Frames and Hardware - After 6/23/99 ...................................................................................... 10
Frames and Hardware - Before 6/24/99 ................................................................................... 8
Front Casters and Hardware .................................................................................................... 37
Front Rigging - Legrest Calf Pads and Ratchet Assemblies .................................................... 69
Front Rigging - Wedge Style Legrest Support Assembly - AT5044 (Intro. 9/21/05) ................ 63
Front Riggings - ATL4A Legrest Support Assembly ................................................................. 67
Front Riggings - Footrest Support Assemblies ......................................................................... 59
Front Riggings - Ratchet Style Legrest Support Assembly - P30E (Before 9/21/05) ............... 61
Handrims and Attaching Hardware Kits ................................................................................... 43
Packaging, Literature, and Upholstery Color Options .............................................................. 7
Upholstery -Back and Seat ....................................................................................................... 16
Wheel Lock - Conventional Arms ............................................................................................. 55
Wheel Lock - High Mount w/Hill Holder .................................................................................... 45
Wheel Lock - High Mount, Pull to Lock .................................................................................... 49
Wheel Lock - High Mount, Push to Lock .................................................................................. 47
3
TABLE of CONTENTS
Page
Number
To order call toll free 1-800-333-6900, or www.invacare.com
Form No.
99-110
Description
Wheel Lock - Hill Holder, Conventional Arms .......................................................................... 51
Wheel Lock - Hill Holder, Space Saver Arms ........................................................................... 53
Wheel Lock - Space-Saver Arms ............................................................................................. 57
Wheel, Rear 1/2" Axle (Before 6/24/99) ................................................................................... 39
Wheel, Rear 7/16" Axle (After 6/23/99) .................................................................................... 40
4
Contemporary Color Numbers Touch-Up Paint (.6 oz.) Color
Anthracite103337622P
Black Prism1133371115P
Chrome PowderN/A95P
Dark Olive with Copper107389381P
Fruit Punch with Fuschia107389482P
Electric Purple104632266P
Evergreen with Navy107389280P
Hot Red104632601P
Lavender107389684P
Midnight Blue1101326105P
Red103145533P
Royal Blue with Grape107389583P
Shocking Blue104632556P
Silver VeinN/A71P
Wet Black103145024P
White103144729P
ColorTouch-Up Paint (.6 oz.)Too Hot Color Numbers
Bubblegum Pink1133375119P
Electric Red104632161P Fruit Fusion1133374118P
Grape Madness1133376120P
Sunkissed Orange1133372116P
Sunny Yellow107416730P
Tangerine Red1133373117P
ColorTouch-Up Paint (.6 oz.)Way Cool Color Numbers
Celestial Purple1133379123P
Cosmic Blue1133378122P Electric Blue104632062P Electric Teal110131679P
Emerald Green1133381125P
Grasshopper Green1133383127P
Lolly Pop Blue1133377121P
Shamrock Green1133382126P
Vivid Violet1133380124P
Frame Finishes and Touch-Up Paint
Form No.
99-110
5
To order call toll free 1-800-333-6900, or www.invacare.com
Frame Finishes and Touch-Up Paint
Sparkle Frame Finishes
Part Number Color
Twilight Sparkle72P
Gold Sparkle73P
Green Sparkle74P
Blue Sparkle75P
Red Sparkle76P
Wet Black/Twilight Sparkle88P
Custom finishes that match color code numbers will require a quote number from the original invoice.
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
6
Packaging and Literature
Part Number Description
16" Deep Packaging Complete1081102 18" Deep Packaging Complete1081103
Oversized Packaging for chairs with Amputee Options1081104
Owner's Manual1088909
Warranty Card00077X031
When adjusting or replacing parts, refer to the Owner's Manual for assistance.
Part Number Description
Nylon -BlackU240
Nylon -Hunter GreenU246
Nylon -RubyU247
Nylon -TealU248
Nylon -Cobalt BlueU249
Sail Cloth - BlackU245
Vinyl -BlackU67
When adjusting or replacing parts, refer to the Owners Manual for assistance.
Packaging, Literature, and Upholstery Color Options
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
7
Frames and Hardware
Before 6/24/99
Form No.
99-110
8
To order call toll free 1-800-333-6900, or www.invacare.com
Frames and Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
15680X013 Anti-Rattle (1") 1 21
1037351 Seat Guide 1 12 1059251 Screw, Socket Head (1/4-28 x 1-1/2") 1 23 1038129 Arm Socket, Front 1 14 1052957 Screw, Hex Head (1/4-20 x 2") 1 15 1026907 Washer (1/4 x 1/2 x 1/16") 1 16 1054571 Kit, Sector Block - Right 1 17 B,A 1054572 Kit, Sector Block - Left 1 17 B,A
1025765 Locknut (1/4-28) 1 28 8881038582 Frame without Hardware, 16" Deep -Right 1 19 B,C 8881038583 Frame without Hardware, 16" Deep -Left 1 19 B,C 8881053371 Frame without Hardware, 16" Deep -Right 1 110 B,D 8881053372 Frame without Hardware, 16" Deep -Left 1 110 B,D 8881053336 Frame without Hardware, 18" Deep -Right 1 110 B,D 8881053337 Frame without Hardware, 18" Deep -Left 1 110 B,D
A - Includes items 5 and 6
B - Specify frame finish, see page titled "Frame Finishes and Touch-up Paint"
C - Before 6/95
D - 6/1/95 thru 6/23/99
NOTE:
Before 6/24/99
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
9
Frames and Hardware
After 6/23/99
Form No.
99-110
10
To order call toll free 1-800-333-6900, or www.invacare.com
Frames and Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1037351 Seat Guide 1 11
1055347 Screw, Hex Head (1/4-28 x 1-1/2") 1 22
1056405 H-Block with Socket Cup 1 13
1052957 Screw, Hex Head (1/4-20 x 2") 1 14
1026907 Washer (1/4 x 1/2 x 1/16") 1 15
1054571 Kit, Sector Block - Right 1 16 A,B
1054572 Kit, Sector Block - Left 1 16 A,B
1025765 Locknut (1/4-28) 1 27
1013869 Tube Cap (1") 1 18 8881086832 Frame without Hardware, 16" Deep -Right 1 19 B,C 8881086833 Frame without Hardware, 16" Deep -Left 1 19 B,C 8881086834 Frame without Hardware, 18" Deep -Right 1 19 B,C 8881086835 Frame without Hardware, 18" Deep -Left 1 19 B,C 8881127076 Frame without Hardware, 16" Deep -Right 1 110 B,D 8881127077 Frame without Hardware, 16" Deep -Left 1 110 B,D 8881127080 Frame without Hardware, 18" Deep -Right 1 110 B,D 8881127081 Frame without Hardware, 18" Deep -Left 1 110 B,D
A - Includes items 4 and 5
B - Specify frame finish, see page titled "Frame Finishes and Touch-up Paint"
C - Adjustable Back Height Frame
D - Adjustable Angle Back Frame
NOTE:
After 6/23/99
Form No.
99-110
11
To order call toll free 1-800-333-6900, or www.invacare.com
Crossbraces and Hardware
Form No.
99-110
12
To order call toll free 1-800-333-6900, or www.invacare.com
Crossbraces and Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1029501 Plug Button (1") 1 41
1055348 Screw, Hex Head Cap (1/4-28 x 1-3/4") 1 22
1046501 Pivot Link (14-15" W) 1 23 A
1012173 Pivot Link (16-18" W) 1 23 B
1018238 Pivot Link (20-22" W) 1 23 C
1025730 Locknut (5/16-24) 1 14
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 25
1016263 Spacer, Coved (3/4 x 1 x 1/2") 1 46
1016301 Washer, Nylon (5/16 x 7/8 x 1/8") 1 17
1025705 Screw, Hex Head (5/16-24 x 3-1/4") 1 18
1065362 Locknut (1/4-28) 1 89
1012172 Clamp, Saddle 1 210
1026907 Washer (1/4 x 1/2 x 1/16") 1 411
1055298 Screw, Hex Head Cap (1/4-28 x 1-5/8") 1 412
1012180 Bracket, Pivot 1 213
1055347 Screw, Hex Head (1/4-28 x 1-1/2") 1 214
See Chart Crossbraces without Hardware 1 1D
A - 14" Wide
B - 16-18" Wide
C - 20" Wide
D - Not Shown.
NOTE:
Crossbraces without Hardware
Depth 14" Wide 16" Wide 17" Wide 18" Wide 20" Wide
1038381101625110375471016250104610716" 1053347105334610533451053344N/A18"
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
13
Back Canes and Adjustable Angle Back Hardware
Form No.
99-110
14
To order call toll free 1-800-333-6900, or www.invacare.com
Back Canes and Adjustable Angle Back Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1006229 Grip, Foam (8") 1 11
1027097 Plug Button, Black (3/4") 2 12
1025195 Locknut (1/4-20) 1 13
1008432 Screw, Button Head Socket (1/4-20 x 1-1/4") 1 14
1052784 10° Back Cane w/ Hardware, 16" H 1 15 A
1052785 10° Back Cane w/ Hardware, 18" H 1 15 A
1052786 10° Back Cane w/ Hardware, 20" H 1 15 A
1042975-NLA 10° Bend Cane with Push Handle 20" 1 15 B
1044924 10° Bend Cane with Push Handle 20" 1 15 B
1011243 10° Bend Cane with Bend 1 15 C
1042370-NLA Back Cane, Straight 1 15 D
1044031 Back Cane Straight w/ Push Handle Assembly
(14-18" & 16-20" H)
1 15 C
1026295 Hardware Kit, Back Cane (1 Pair) 2 1E,F 8881063914 Bracket, Adjustable Angle Back Tube (Color) 1 26 G
60275X000 Locknut (1/4-20) 1 47 16348X009 Washer (3/16 x 9/16 x 1/16") 1 128
1127072 Plug, End 1 19
1013046 Screw, Hex Head (1/4-20 x 1-3/4") 1 210
1127078 Kit, Adjustable Angle Back Tubes with Hardware 2 111 G,H
A - Non-Adjustable Back (Before 6/95)
B - Non-Adjustable Back (After 5/95)
C - Adjustable Back Height 14-18"
D - Back Cane (1042370) is NLA. For chairs built Before 10/6/95 order (2 ea.) back cane p/n 1044031.
E - Includes items 1-4 (pair)
F - Not Shown
G - Specify frame finish when ordering. See category titled "Frame Finishes and Touch Up Paint".
H - Includes items 6-10. Contains parts for both frames.
NOTE:
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
15
Back Upholstery
Width Nylon
Vinyl
(U67)
1121439
8881121434
14"
See Note(s) A See Note(s) A
1121440
8881121435
16"
See Note(s) A See Note(s) A
1121441
8881121436
17"
See Note(s) A See Note(s) A
1121442
8881121437
18"
See Note(s) A See Note(s) A
1121443
8881121438
20"
See Note(s) A See Note(s) A
10262981026298Back Upholstery Hardware Kit
A - Specify Upholstery Color when ordering. NOTE:
Back and Seat Upholstery
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
16
Back and Seat Upholstery
Seat Upholstery
Width
16" Deep
Nylon
18" Deep
Nylon
16" Deep
Sail Cloth (U245)
18" Deep
Sail Cloth (U245)
N/A
1031717
N/A
8881057199
14"
See Note(s) A See Note(s) A
1031725
1031723
8881057215
8881057241
16"
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
1031730
1031728
8881057216
8881057202
17"
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
1031733
1031731
8881057217
8881057242
18"
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
1031741
1031739
8881057218
8881057204
20"
See Note(s) A See Note(s) A See Note(s) A See Note(s) A
1027059
Upholstery Hdwr. Kit
-Screws w/ Washers 10 ea. (#10 x 7/8")
1027057
Upholstery Hdwr. Kit
-Screws w/ Washers 8 ea. (#10 x 7/8")
1027059
Upholstery Hdwr. Kit
-Screws w/ Washers 10 ea. (#10 x 7/8")
1027057
Upholstery Hdwr. Kit
-Screws w/ Washers 8 ea. (#10 x 7/8")
Seat Upholstery
Hardware Kit
A - Specify Upholstery Color when ordering. NOTE:
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
17
Adjustable Tension Chart
Back Height Seat Width Back Anchor Back Adjuster Back Cover Back Assembly
103948710377241037736103772016" W14"-18" H 103948810377251037721103772017" W14"-18" H 103948910377261037721103772018" W14"-18" H 103949110377281037737103772020" W14"-18" H 104674210467351046732104673114" W20" H 104674310467361046732104673115" W20" H 104674410467371046732104673116" W20" H 104674510467381046733104673117" W20" H 104674610467391046733104673118" W20" H 104674710467401046734104673119" W20" H 104674810467411046734104673120" W20" H
1039470Instruction Sheet
Adjustable Tension Back Upholstery
Form No.
99-110
18
To order call toll free 1-800-333-6900, or www.invacare.com
Arm Attaching Hardware
Before 6/24/99
Form No.
99-110
19
To order call toll free 1-800-333-6900, or www.invacare.com
Arm Attaching Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1059251 Screw, Socket Head (1/4-28 x 1-1/2") 1 21 1038129 Arm Socket, Front 1 22 1025765 Locknut (1/4-28) 1 23 1068015 Support 1 24 1015856 Socket, Armrest 1 25 1015426 Spacer, Coved Cam - Right 1 16 1015427 Spacer, Coved Cam - Left 1 16 1038131 Bracket, Armrest Mounting, Outside 1 27 1038132 Bracket, Armrest Mounting, Inside 1 28 1065362 Locknut (1/4-28) 1 69 1055298 Screw, Hex Head Cap (1/4-28 x 1-5/8") 1 610 A 1028553 Spacer (1/4 x 3/8 x 3/4") 1 211 1055351 Screw, Hex Head (1/4-28 x 2-1/2") 1 212 1038197 Hardware Kit, Arm Mounting - Conventional (1 Pair) 1 113 B 1038196 Hardware Kit, Arm Mounting - Space Saver (1 Pair) 1 114 C
A - 4 ea. required for Conventional Arms.
B - Includes items 4-12
C - Includes items 4-10
NOTE:
Before 6/24/99
Form No.
99-110
20
To order call toll free 1-800-333-6900, or www.invacare.com
Arm Attaching Hardware
After 6/23/99
Form No.
99-110
21
To order call toll free 1-800-333-6900, or www.invacare.com
Arm Attaching Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1056405 H-Block with Socket Cup 1 21 1055347 Screw, Hex Head (1/4-28 x 1-1/2") 1 22 1025765 Locknut (1/4-28) 1 23 1055347 Screw, Hex Head (1/4-28 x 1-1/2") 1 24 1055298 Screw, Hex Head Cap (1/4-28 x 1-5/8") 1 65 A 1026907 Washer (1/4 x 1/2 x 1/16") 1 86 B 1087220 Screw, Hex Head Cap (1/4-28 x 2-5/8") 1 27 1056406 Cup, Socket Pivot 1 28 1089569 Label, Bracket Warning 1 29 1086663 Bracket, Armrest Mounting (Outside) 1 110 G 1087219 Spacer (1/4 x 3/8 x 1") 1 211 1086664 Bracket, Armrest Mounting (Inside) 1 112 1025765 Locknut (1/4-28) 1 813 C 1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 214 1087094 Hardware Kit, Arm Mounting - Conventional (1 Pair) 2 115 D 1127074 Bracket, Armrest Mounting (Outside) 1 216 1127073 Bracket, Armrest Mounting (Inside) 1 217 1127079 Kit, Arm Mounting Hardware - Conventional Arm 2 118 E 1087095 Kit, Arm Mounting Hardware - Space Saver Arm 2 119 F
A - 4 ea. are required for Conventional Arms.
B - 6 ea. are required for Conventional Arms w/o adj. angle back. 4 ea. are required for Conventional Arms with adj. angle
back.
C - 6 ea. are required for Conventional Arms with adj. angle back.
D - Chairs without adjustable angle back. Includes items 4-14.
E - Chairs with adjustable angle back. Includes items 5-8, 11,13,16, & 17.
F - Includes items 4-6, 8-10, 12-14.
G - When ordering this bracket, item 9 (Warning Label) must also be ordered.
NOTE:
After 6/23/99
22
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
Half Arm and Hardware
(Half Arm NLA on chairs built after 6/23/99)
Form No.
99-110
23
To order call toll free 1-800-333-6900, or www.invacare.com
Half Arm and Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881053570 Arm Pads with Screws - Desk Length 2 11 A
1032244 Grip, Foam Hand (9" Long) 1 11 1026107 Screw, Phillips Pan Head (#10-32 x 1-3/8") 1 22 1069815 Half Arm Tube -Right 1 13 1069816 Half Arm Tube -Left 1 13 1032206 Arm Socket, Rear - Right 1 14 1032207 Arm Socket, Rear - Left 1 14 1009861 Spacer, Coved (1/4 x 11/16 x 1/2") 1 25 1055348 Screw, Hex Head Cap (1/4-28 x 1-3/4") 1 36 1026907 Washer (1/4 x 1/2 x 1/16") 1 27 7930334 Locknut (1/4-28) 25 38 1026900 Washer (1/4 x 23/32 x 1/16") 1 29 1018687 Sleeve, Bearing 1 110 1027062 Kit, Half Arm Mounting Hardware 2 111
A - Specify upholstery color, see page titled, "Upholstery Color Options" when ordering.
Hal
f-Arms NLA on chairs built after 6/23/99.
NOTE:
(Half Arm NLA on chairs built after 6/23/99)
Form No.
99-110
24
To order call toll free 1-800-333-6900, or www.invacare.com
Conventional Adjustable Height Arms -
Removable/Non-Removable
Form No.
99-110
25
To order call toll free 1-800-333-6900, or www.invacare.com
Conventional Adjustable Height Arms -
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881053570 Arm Pads with Screws - Desk Length 2 11 A 8881053571 Arm Pads with Screws - Full Length 2 11 A
1027095 Plug Button, Black (7/8") 1 22 1111714 Package, Screw Phillips Head (#10-32 x 1-1/8") 2 13 1035614 Plug Button (5/8") Black 1 24 1038470 Arm Tube Assembly w/o Pad w/ Plug Buttons,
Conventional - Desk Length (Right/Left) (Black)
1 15
1068576 Arm Tube Assembly w/o Pad w/ Plug Buttons,
Conventional - Full Length (Right/Left) (Black)
1 15
1036150 Anti-Rattle 1 26
1090768 Kit, Lock Handle with Rivets 2 17 47471X074 Spring, Arm Lock 1 18 47471X068 Locking Pin 1 19
1037718 Grip, Foam 1 110
1025729 Screw, Self Tapping Pan Head (#8-32 x 3/8") 1 211
1015450 Handle, Quad Release 1 212
1018225 Spring and Button Lock 1 213
1036484 Plug, Arm Tube (3/4") 1 214
1028645 Rivet 1 615
1064129 Clothing Guard 1 116
1005834 Threaded Insert 1 117 40188X002 Release Spring 1 118
7930326 Screw, Hex Head Cap (1/4-20 x 3/4") 25 119
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 120
1036783 Arm Base Assembly, Adjustable Height
Conventional - Right
1 121 B
1036784 Arm Base Assembly, Adjustable Height
Conventional - Left
1 121 B
1040330 Arm Base Assembly, Adjustable Height Space
Saver - Right/ Left
2 121 C
A - Specify upholstery color, see page titled, "Upholstery Color Options" when ordering.
B - Removable
C - Non-Removable, Includes items 6-20
19 &
29 Style Arms have a height range of 10-14".
NOTE:
Removable/Non-Removable
Form No.
99-110
26
To order call toll free 1-800-333-6900, or www.invacare.com
Space Saver Adjustable Height Arms -
Removable/Non-Removable
77, 79, 87, and 89 Style Arms
Form No.
99-110
27
To order call toll free 1-800-333-6900, or www.invacare.com
Space Saver Adjustable Height Arms -
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881053570 Arm Pads with Screws - Desk Length 2 11 A 8881053571 Arm Pads with Screws - Full Length 2 11 A
1102585 Arm Pad, Full Length Black Urethane Waterfall 1 11
1102586 Arm Pad, Desk Length Black Urethane Waterfall 1 11
1035614 Plug Button (5/8") Black 1 32
1027095 Plug Button, Black (7/8") 1 23
1034083 Package, Screws Phillips Head (#10-32 x 1-1/8") 2 24
See Chart #5 Space Saver Arm Tube with Plug Buttons 1 15
1036150 Anti-Rattle 1 26
1090768 Kit, Lock Handle with Rivets 2 17 47471X074 Spring, Arm Lock 1 18 47471X068 Locking Pin 1 19
1037718 Grip, Foam 1 110
1025729 Screw, Self Tapping Pan Head (#8-32 x 3/8") 1 211
1015450 Handle, Quad Release 1 212
1018225 Spring and Button Lock 1 213
1036484 Plug, Arm Tube (3/4") 1 114
1020060 Arm Plug 1 114
1028645 Rivet 1 615
1064129 Clothing Guard 1 116 E
1068511 Clothing Guard 1 116 D
1005834 Threaded Insert 1 117 40188X002 Release Spring 1 118
1025708 Bolt, Hex Head Cap (1/4-20 x 3/4") 1 119
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 120
1048323 Arm Base Assembly, Adjustable Height Space
Saver - Right
1 121 B
1048324 Arm Base Assembly, Adjustable Height Space
Saver - Left
1 121 B
1040330 Arm Base Assembly, Adjustable Height Space
Saver - Right/ Left
1 121 C
1037634 Arm Base Assembly, Low Adjustable Height Space
Saver - Right
1 121 D
1037635 Arm Base Assembly, Low Adjustable Height Space
Saver - Left
1 121 D
A - Specify upholstery color, see page titled "Upholstery Color Options" when ordering
B - Removable
C - Non-Removable, Includes items 6-20
D - Low Space Saver Removable Arm
E - Removable and Non-Removable Arms
79 & 89
Style Arms have a height range of 10 to 14".
77 & 87 Style Arms have a height range of 8-1/2 to 11-1/2".
NOTE:
Removable/Non-Removable
77, 79, 87, and 89 Style Arms
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
28
Space Saver Adjustable Height Arms -
#5 Space Saver Arm Tube with Plug Buttons
Black
Arm Type Right Left
10384631038462
Space Saver Adj. Height
Desk Length
10384671038466
Space Saver Adj. Height
Full Length
10433161043315
Low Space Saver Adj. Height
Desk Length
10433201043319
Low Space Saver Adj. Height
Full Length
Removable/Non-Removable
77, 79, 87, and 89 Style Arms
Form No.
99-110
29
To order call toll free 1-800-333-6900, or www.invacare.com
Conventional Fixed Height Arms -
Removable/Non-Removable
Form No.
99-110
30
To order call toll free 1-800-333-6900, or www.invacare.com
Conventional Fixed Height Arms -
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881130823 Kit, Armrest, Full Length, Color - Right (Style 18) 1 11 A,B
Arm Pad, Full Length 1 13 Screw, Phillips Head (#10-32 x 1-1/8") 1 24 Clothing Guard, Full Length - Right 1 15 Screw, Self Tapping (#6-20 x 1/2") 1 46 Plug, Arm Tube (3/4") 1 27 Spring and Button Lock 1 28 Handle, Quad Release 1 29 Armrest Tube, Full Height Conventional - Color 1 110
8881130824 Kit, Armrest, Full Length, Color - Left (Style 18) 1 11 A,B
Arm Pad, Full Length 1 13 Screw, Phillips Head (#10-32 x 1-1/8") 1 24 Clothing Guard, Full Length - Left 1 15 Screw, Self Tapping (#6-20 x 1/2") 1 46 Plug, Arm Tube (3/4") 1 27 Spring and Button Lock 1 28 Handle, Quad Release 1 29 Armrest Tube, Full Height Conventional - Color 1 110
8881135542 Kit, Armrest, Desk Length, Color - Right (Style 28) 1 11 A,B
Arm Pad - Desk Length 1 13 Package, Screw Phillips Head (#10-32 x 1-1/8") 1 24 Clothing Guard, Desk Length -Right 1 15 Screw, Self Tapping (#6-20 x 1/2") 1 66 Plug, Arm Tube (3/4") 1 27 Spring and Button Lock 1 28 Handle, Quad Release 1 29 Armrest, Desk Length, Color - Right 1 110
8881135543 Kit, Armrest, Desk Length, Color - Left (Style 28) 1 11 A,B
Arm Pad - Desk Length 1 13 Package, Screw Phillips Head (#10-32 x 1-1/8") 1 24 Clothing Guard, Desk Length -Left 1 15 Screw, Self Tapping (#6-20 x 1/2") 1 66 Plug, Arm Tube (3/4") 1 27 Spring and Button Lock 1 28 Handle, Quad Release 1 29 Armrest, Desk Length, Color - Left 1 110
8881127509 Kit, Arm Pad w/Screws - Full Length 1 12 C
Arm Pad, Full Length 1 13 Screw, Phillips Head (#10-32 x 1-1/8") 1 24
8881127510 Kit, Arm Pad w/Screws - Desk Length 1 12 C
Arm Pad - Desk Length 1 13 Package, Screw Phillips Head (#10-32 x 1-1/8") 1 24
Removable/Non-Removable
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
31
Conventional Fixed Height Arms -
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1117365 Kit, Clothing Guards - Desk Length w/ Screws &
Decals
2 15 D
1117366 Kit, Clothing Guards - Full Length w/ Screws &
Decals
2 15 D
1040329 Kit, Non-Removable Fixed Height Arm Hardware 2 1E
A - Includes items 3-10.
B - Specify upholstery color, see page titled "Frame Finishes, Upholstery Colors, Decals, and Packaging."
C - Includes items 3 and 4.
D - Includes 2 ea. Clothing Guards (Rt./Lt.), 2 ea. Decals, and 8 ea. Screws (6-20 x 1/2").
E - Not Shown. Includes Clothing Guards (Rt./Lt.) and all hardware necessary to convert arms to Non-Removable.
NOTE:
Removable/Non-Removable
Form No.
99-110
32
To order call toll free 1-800-333-6900, or www.invacare.com
Space Saver Fixed Height Arms -
Removable/Non-Removable
Form No.
99-110
33
To order call toll free 1-800-333-6900, or www.invacare.com
Space Saver Fixed Height Arms -
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881053570 Arm Pads with Screws - Desk Length 2 11 A 8881053571 Arm Pads with Screws - Full Length 2 11 A
1034083 Package, Screws Phillips Head (#10-32 x 1-1/8") 2 22
1037719 Grip, Foam 1 13
1020022 Screw, Self Tapping (#8-20 x 3/8") 1 64
1015450 Handle, Quad Release 1 25
1018225 Spring and Button Lock 1 26
1036484 Plug, Arm Tube (3/4") 1 27
1005834 Threaded Insert 1 18 40188X002 Release Spring 1 19
1123307 Clothing Guard Kit, Space Saver - Desk Length Arm
w/ Screws & Decals (1 Pair)
2 110 B
1123308 Clothing Guard Kit, Space Saver - Full Length Arm
w/ Screws & Decals (1 Pair)
2 110 B
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 111
1025708 Bolt, Hex Head Cap (1/4-20 x 3/4") 1 112
8881044811 Arm Assembly, Space-Saver Desk Length w/o Pad -
Right
1 113 C,F
8881044812 Arm Assembly, Space-Saver Desk Length w/o Pad -
Left
1 113 C,F
8881064782 Arm Assembly, Space-Saver Full Length w/o Pad
-Right
1 114 F
8881064783 Arm Assembly, Space-Saver Full Length w/o Pad
-Left
1 114 F
8881058076 Arm Assembly, Non-Rem. Space-Saver Desk
Length w/o Pad, Color -Right
1 115 F
8881058077 Arm Assembly, Non-Rem. Space-Saver Desk
Length w/o Pad, Color -Left
1 115 F
8881058084 Arm Assembly, Non-Rem. Space-Saver Full Length
w/o Pad -Right (Color)
1 116 F
8881058085 Arm Assembly, Non-Rem. Space-Saver Full Length
w/o Pad -Left (Color)
1 116 F
1040328 Non-Removable, Space Saver Arm Hardware 2 1D,E
A - Specify upholstery color, see page titled "Upholstery Color Options" when ordering.
B - Clothing Guards not sold individually. Kit includes clothing guards, screws, and decals.
C - Due to One Piece Fabrication Process, order Right and Left Arm Assemblies in pairs, for chairs manufactured before 8-16-
01.
D - Includes items 3-12
E - Not Shown
F - Due to Clothing Guard change, it is recommend (for chairs built Before 11/25/03) when only one Arm is requested the
appropriate Clothing Guard Kit (item 10) be ordered also so that the arms will match.
78 & 88
Style Arms have a height range of 10".
NOTE:
Removable/Non-Removable
34
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
Caster Forks and Headtube Hardware
Form No.
99-110
35
To order call toll free 1-800-333-6900, or www.invacare.com
Caster Forks and Headtube Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 41
1055349 Screw, Hex Head (1/4-28 x 2") 1 42
1009861 Spacer, Coved (1/4 x 11/16 x 1/2") 1 43
1094459-NLA Headtube, Caster with Bearings -Right 1 14 A 1094460-NLA Headtube, Caster with Bearings -Left 1 14 A
1018739 Washer (1/4 x 5/8 x 3/32") 1 25
1065362 Locknut (1/4-28) 1 46
1040355 Cam, Headtube Adjustment 1 27
1001801 Bearing, Flanged (1/2") 1 48 B 40117X021 Bearing (1/2" I.D. x 1-1/8" O.D.) 1 48 C
1021508 Washer, Nylon (5/8 x 1 x 3/32") 1 29
1025737 Locknut (1/2"-20) 1 210
1038353 Cap, Caster Headtube 1 211 B
1001843 Cap, Head Tube (Black) 1 211 C
1039303 Plate, Headtube Adjustment 1 212 B,D
1065628 Kit, Fork w/ Hardware - All 6" Casters except 6 x 2" 1 113 B
1037420 Fork and Stem Assembly, Aluminum (Black) - 6"
Urethane Caster
1 113 C
1065629 Kit, Fork w/ Hardware -6 x 2" & 8" Casters 1 113 B
1056640 Fork and Stem Assembly, Aluminum (Black) - 6 x 2"
and 8" Casters
1 113 C
1113501 Screw, Eccentric (1/4-28 x 1-11/16") 1 414
1124857 Headtube, Caster with Bearings -Right 1 115
1124858 Headtube, Caster with Bearings -Left 1 115 40117X021 Bearing (1/2" I.D. x 1-1/8" O.D.) 1 416
1009861 Spacer, Coved (1/4 x 11/16 x 1/2") 1 417
1026907 Washer (1/4 x 1/2 x 1/16") 1 418
1055366 Locknut (1/4-28) 1 419
1126031 Caster Headtubes with Attaching Hardware (1 Pair) 2 120 E
1037420 Fork and Stem Assembly, Aluminum (Black) - 6"
Urethane Caster
1 121
1056640 Fork and Stem Assembly, Aluminum (Black) - 6 x 2"
and 8" Casters
1 121
A - Due to product improvement, headtubes (1094459/460) are NLA. For chairs built Before 6/11/04, order item 20 (1126031)
caster headtubes w/ hardware.
B - Chairs built Before 6/24/99. This headtube cap is flat.
C - Chairs built After 6/23/99. This headtube cap is domed (shown in image).
D - Headtube Adjustment Plate was replaced by items 5 and 7
E - Includes items 14-19 (hardware for both frames)
NOTE:
Form No.
99-110
36
To order call toll free 1-800-333-6900, or www.invacare.com
Front Casters and Hardware
Form No.
99-110
37
To order call toll free 1-800-333-6900, or www.invacare.com
Front Casters and Hardware
Item Number
1492
Composite
Pneumatic Flat
Free
(8 x 1-1/4")
Description
AT902
Composite
Dark Grey
Urethane (6x1")
6PNEU Composite Pneumatic
(6 x 1")
AT903
Composite
Urethane
(8x1-1/4")
1292 Composite Pneumatic
(8x1-1/4")
1030773
1009481
1058649
1044040
1029500
Caster
Assembly
Single No.
1
See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A
40176X04040176X04010381571044039N/ATire2
101090440176X041N/AN/AN/ATube/Insert3 10205921020592102059210261721026172Hub Spacer4
10060491006049
1006049
40117X02640117X026Bearing5
See Note(s) B
1040102
See Note(s) C
10257241025724N/A1025704N/AAxle Washer6 10257261025726102572610257641025764Axle7 10257341025734102573410257301025734Axle Locknut8
N/AN/A
1025724
N/A1026102Axle Spacer9
See Note(s) B A - Includes tire, tube/insert, bearings and spacer. B - Before 6/24/99 C - After 6/23/99
NOTE:
Form No.
99-110
38
To order call toll free 1-800-333-6900, or www.invacare.com
Wheel Style Bearing Spacer
Wheel
Type/Size
Single Wheel
Assembly
Tire Tube Insert Bearing
101575640117X022N/A1037774
1038364
Urethane
20 x 1-1/4"
U1763BK
See Note(s) A, B
101575640117X02210175201017519
1026422
Pneumatic 20 x 1-3/8"
1763BK
See Note(s) A
101575640117X02210233221017519
1026423
Pneumatic 20 x 1-3/8"
4763BK
w/Flat-Free
See Note(s) A, B
101575640117X022N/A1028250
1032116
Urethane
22 x 1-1/4"
U1764BK
See Note(s) A
101575640117X02210185451018544
1026420
Pneumatic 22 x 1-3/8"
1764BK
See Note(s) A
101575640117X02210233231018544
1026421
Pneumatic 22 x 1-3/8"
4764BK
w/Flat-Free
See Note(s) A, B
101575640117X022N/A1026904
1032118
Urethane
24 x 1-1/4"
7 Spoke
U2244BK
See Note(s) A
101575640117X02240176X06140176X0601026362
Pneumatic 24 x 1-3/8"
2244BK
101575640117X022101090640176X060
1026363
Pneumatic 24 x 1-3/8"
4244BK
w/Flat-Free
See Note(s) B
101575640117X022N/A1039304
1039320-NLA
Uretrhane 24"
9 Spoke
U2222
See Note(s) C
101575640117X022N/A1080400
1080380
Urethane 24"1/2" Axle
See Note(s) D, B A - When ordering 20" or 22" wheels, a wheel lock shoe spacer may also be required. See Wheel Locks. B - Urethane Wheel with Flat Free Inserts have a plug which caps an opening in the rim. C - Before 11/20/98 D - Between 11/20/98 to 6/23/99
NOTE:
Wheels without Handrims - 1/2" Axle
Chairs built Before 6/24/99
Form No.
99-110
39
To order call toll free 1-800-333-6900, or www.invacare.com
Wheel Style Bearing
Bearing
Spacer
Wheel Size Tire Type
Single Wheel
Assembly
Tire Tube Insert
101575640117X024N/A1037774
1038555
Urethane20x1-1/4"U1763BK
See Note(s) B, A
101575640117X02410175201017519
1034126
Pneumatic20 x 1-3/8"1763BK
See Note(s) A
101575640117X02410233221017519
1034127
Pneumatic
with
Flat Free
Inserts
20 x 1-3/8"4763BK
See Note(s) B, A
101575640117X024N/A1028250
1032115
Urethane22 x 1-1/4"U1764BK
See Note(s) A
101575640117X02410185451018544
1027149
Pneumatic22 x 1-3/8"1764BK
See Note(s) A
101575640117X02410233231018544
1027150
Pneumatic
with
Flat Free
Insert
22 x 1-3/8"4746BK
See Note(s) B, A
101575640117X024N/A10269041032117Urethane24 x 1-1/4"
U2244BK
7 Spoke
101575640117X02440176X06140176X0601025123Pneumatic24 x 1-3/8"2244BK
101575640117X024101090640176X0601025124
Pneumatic
with
Flat Free
Insert
24 x 1-3/8"4244BK
101575640117X024N/A1080400
1080378
Urethane24"
U2222
9 Spoke
See Note(s) B, E A - When ordering 20" or 22" wheels, a wheel lock shoe spacer may also be required. See Wheel Locks. B - Urethane and Wheel with Flat Free Inserts have a plug which caps an opening in the rim. E - After 6/23/99
NOTE:
Wheels without Handrims - 7/16" Axle
Chairs built After 6/23/99
40
To order call toll free 1-800-333-6900, or www.invacare.com
Form No.
99-110
Axles and Axle Mounting Plate Hardware
For Amputee Attachment, no new hardware is needed, see Owner's Manual to reconfigure Axle Bracket,
item 4.
Form No.
99-110
41
To order call toll free 1-800-333-6900, or www.invacare.com
Axles and Axle Mounting Plate Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1065362 Locknut (1/4-28) 1 41 1055348 Screw, Hex Head Cap (1/4-28 x 1-3/4") 1 42 1083141 Axle Plates with Mounting Hardware (1 Pair) 2 13 C,D,F,
A
1083142 Axle Plates with Mounting Hardware (1 Pair) 2 13 B,C,D,
F
1086807 Axle Mounting Plate - Right 1 14 1086808 Axle Mounting Plate - Left 1 14 1114099 Screw, Hex Head (1/4-28 x 2") 1 45 1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 86 1088229 Axle Plates with Mounting Hardware (1 Pair) 2 17 E,G 1026930 Axle, Quick Release (1/2 x 4-1/2") 1 28 D,A 1040361 Axle, Quick Release w/ Locknut (1/2" x 5") 1 28 B,D 1015436 Axle, Quick Release (7/16" x 4-1/2") 1 28 E,A
56000X651 Axle, Quick Release (7/16" x 5-7/16") 1 28 B,E
1049227 Screw, Hex Head (1/2-20 x 5-1/4") 1 29 D
47203X025 Bolt, Hex Head Cap (7/16-20 x 4-3/4") 1 29 E,A
1085454 Screw, Hex Head Cap (7/16-20 x 5-1/8") 1 29 B,E
1038117-NLA Bushing 1 210 D
1026101 Spacer (7/16 x 5/8 x 3/16") 1 210 E,A 1088230 Spacer (7/16 x 5/8 x 5/8") 1 210 B,E 1025737 Locknut (1/2"-20) 1 211 D 1088235 Locknut (7/16-20) 1 211 E
A - Chairs with Space-Saver Style Arms.
B - Chairs with Conventional Style Arms.
C - Axle Mounting Plate is not sold separately on chairs built Before 6/24/99. Must be replaced in pairs only.
D - Chairs built Before 6/24/99.
E - Chairs built After 6/23/99.
F - Includes items 1-3.
G - Includes items 1,4-6.
NOTE:
For Amputee Attachment, no new hardware is needed, see Owner's Manual to reconfigure Axle Bracket,
item 4.
Form No.
99-110
42
To order call toll free 1-800-333-6900, or www.invacare.com
20" Wheels
Handrim Type
Wheel Style
1763BK / 4763BK / U1763BK
Attaching Hardware
10251531019999Chrome 10263831033374Aluminum 10263841115400Black Plastic
22" Wheels
Handrim Type
Wheel Style
1764BK / 4764BK / U1764BK
Attaching Hardware
10251531020000Chrome 10263841033373Aluminum
10263831115401
Black
Plastic Coated
10263801115412
8 Vertical Proj.
Black
Handrims and Attaching Hardware Kits
Form No.
99-110
43
To order call toll free 1-800-333-6900, or www.invacare.com
Handrims and Attaching Hardware Kits
24" Wheels
Handrim Type
Wheel Style
2244BK / 4244BK /
U2244BK
7 Point Attaching
Attaching Hardware
2244BK / 4244BK /
U2244BK
Wheel Style
U2222
6 Point Attaching
Attaching Hardware
U2222
N/AN/A10251531019836Chrome N/AN/A10263841033372Aluminum
N/AN/A10263821115395
12 Vertical Proj.
Black
1044785111539910263801115394
8 Vertical Proj.
Black
1026381111539810263811115396
8 Oblique Proj.
Black
1041403111546210263831115397
Black
Plastic Coated
1065791106391910657901064036Composite 10263881048930N/AN/ABlack Wrinkle Coated
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
44

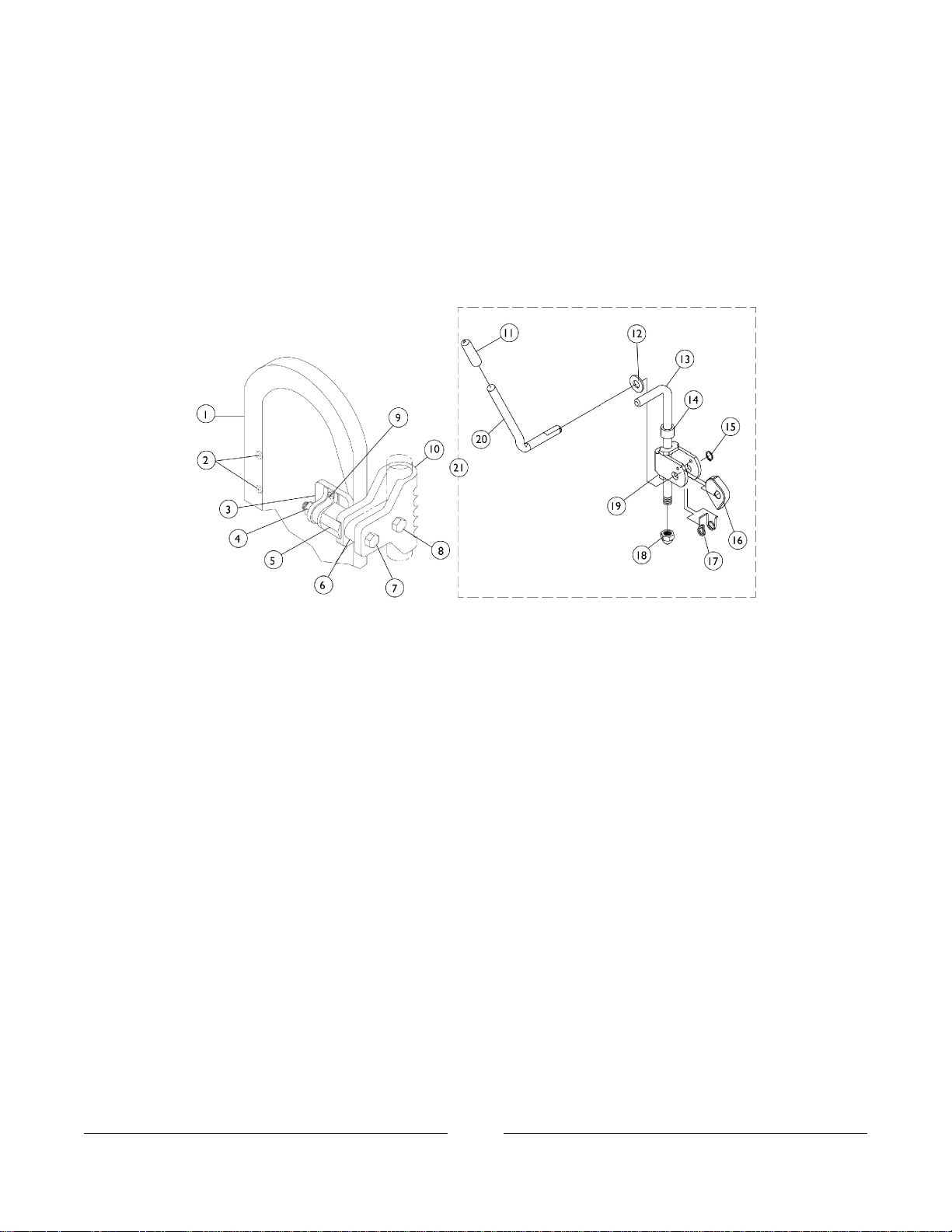

High Mount Wheel Lock
with Hill Holder (Before 6/24/99)
Form No.
99-110
45
To order call toll free 1-800-333-6900, or www.invacare.com
High Mount Wheel Lock
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
7930334 Locknut (1/4-28) 25 51 1055304 Screw, Button Head Socket (1/4-28 x 5/8") 1 22 1038344 Handle, Hill Holder - Right 1 13 1038345 Handle, Hill Holder - Left 1 13 1006490 Tip, Black 1 14 1018727 Link, Stop 1 15 1028411 Spacer (1/4 x 1/2 x 5/32") 1 16 1028399 Strap, Wheel Lock 1 17 1055306 Screw, Button Head Cap (1/4-28 x 7/8") 1 18 1059284 Screw, Button Head Socket (1/4-28 x 1-1/4") 1 19 1020363 Spacer (1/4 x 1/2 x 1/2") 1 110 1026829 Bracket - Right 1 111 1026830 Bracket - Left 1 111 1026103 Washer, Nylon (1/4 x 1/2 x 1/32") 1 612 1016650 Spring Torsion - Right 1 113 1016651 Spring Torsion - Left 1 113 1015857 Shoe 1 114 1013971 Washer, Nylon (1/4 x 7/16 x 5/64") 1 115 1039323 Hill Holder Wheel Lock Assembly -Right 1 116 1039324 Hill Holder Wheel Lock Assembly -Left 1 116 1027268 Screw, Allen Head (1/4-20 x 1") 1 217 1038113 Clamp, Wheel Lock (Threaded) (7/8") 1 118 1038114 Clamp, Wheel Lock (Non-Threaded) (7/8") 1 119 1039343 Kit, Hardware, Clamp Wheel Lock 2 120
Clamp, Wheel Lock (Non-Threaded) (7/8") 1 2 Clamp, Wheel Lock (Threaded) (7/8") 1 2 Screw, Allen Head (1/4-20 x 1") 1 4
with Hill Holder (Before 6/24/99)
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
46
High Mount Wheel Lock
Push to Lock (Before 6/24/99)
Form No.
99-110
47
To order call toll free 1-800-333-6900, or www.invacare.com
High Mount Wheel Lock
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
7930334 Locknut (1/4-28) 25 41 1026103 Washer, Nylon (1/4 x 1/2 x 1/32") 1 62 1038344 Handle, Hill Holder - Right 1 13 1038345 Handle, Hill Holder - Left 1 13
47376X024 Tip, Wheel Lock Rubber 1 14
1018733 Link 1 15 1028411 Spacer (1/4 x 1/2 x 5/32") 1 16 1028399 Strap, Wheel Lock 1 17 1055306 Screw, Button Head Cap (1/4-28 x 7/8") 1 18 1059284 Screw, Button Head Socket (1/4-28 x 1-1/4") 1 19 1020363 Spacer (1/4 x 1/2 x 1/2") 1 110 1055304 Screw, Button Head Socket (1/4-28 x 5/8") 1 211 1021405 Shoe, Wheel Lock 1 112 1029423 Wheel Lock Assembly - Right 1 113 A 1029424 Wheel Lock Assembly - Left 1 113 A 1047703 1 113 B 1047704 1 113 B 1027268 Screw, Allen Head (1/4-20 x 1") 1 214 1038114 Clamp, Wheel Lock (Non-Threaded) (7/8") 1 115 1038113 Clamp, Wheel Lock (Threaded) (7/8") 1 116 1039343 Kit, Hardware, Clamp Wheel Lock 2 117
Clamp, Wheel Lock (Non-Threaded) (7/8") 1 2 Clamp, Wheel Lock (Threaded) (7/8") 1 2 Screw, Allen Head (1/4-20 x 1") 1 4
A - Before 6/94
B - After 5/94
NOTE:
Push to Lock (Before 6/24/99)
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
48
High Mount Wheel Lock
Pull to Lock (Before 6/24/99)
Form No.
99-110
49
To order call toll free 1-800-333-6900, or www.invacare.com
High Mount Wheel Lock
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
7930334 Locknut (1/4-28) 25 41 1026103 Washer, Nylon (1/4 x 1/2 x 1/32") 1 52 1031780 Handle, Pull/Lock (Black) - Right 1 13 1031781 Handle, Pull/Lock (Black) - Left 1 13
47376X024 Tip, Wheel Lock Rubber 1 14
1018733 Link 1 15 1026907 Washer (1/4 x 1/2 x 1/16") 1 16 1028399 Strap, Wheel Lock 1 17 1055305 Screw, Button Head Socket Cap (1/4-28 x 3/4") 1 28 1059284 Screw, Button Head Socket (1/4-28 x 1-1/4") 1 19 1020363 Spacer (1/4 x 1/2 x 1/2") 1 110 1055304 Screw, Button Head Socket (1/4-28 x 5/8") 1 111 1021405 Shoe, Wheel Lock 1 112 1028411 Spacer (1/4 x 1/2 x 5/32") 1 113 1038552 Wheel Lock Assembly -Right 1 114 A 1038553 Wheel Lock Assembly -Left 1 114 A 1049539 Wheel Lock, Hi-Mount, Pull to Lock - Right 1 114 B 1049540 Wheel Lock, Hi-Mount, Pull to Lock - Left 1 114 B 1027268 Screw, Allen Head (1/4-20 x 1") 1 215 1038114 Clamp, Wheel Lock (Non-Threaded) (7/8") 1 116 1038113 Clamp, Wheel Lock (Threaded) (7/8") 1 117 1039343 Kit, Hardware, Clamp Wheel Lock 2 118
Clamp, Wheel Lock (Non-Threaded) (7/8") 1 2 Clamp, Wheel Lock (Threaded) (7/8") 1 2 Screw, Allen Head (1/4-20 x 1") 1 4
A - Before 6/94
B - After 5/94
NOTE:
Pull to Lock (Before 6/24/99)
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
50
Hill Holder Wheel Locks Conventional Arms
(For chairs built After 6/23/99)
Form No.
99-110
51
To order call toll free 1-800-333-6900, or www.invacare.com
Hill Holder Wheel Locks Conventional Arms
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
7930364 Pkg, Locknut (1/4-20) 25 21 1016037 Bracket, Mounting - Right 1 12 1016038 Bracket, Mounting - Left 1 12 7930367 Locknut (1/4-28) 25 23 7930357 Washer, Nylon (1/4 x 1/2 x 1/32") 25 74 1010398 Washer, Nylon (1/4 x 1/2 x 1/16") 1 35 1007017 Screw, Hex Head (1/4-20 x 1-1/4") 1 16
1017861 Link 1 17 60274X012 Screw, Hex Head Cap (1/4-28 x 3/4") 1 28 47376X024 Tip, Wheel Lock Rubber 1 19
1016588 Handle, Adult Push - Right 1 110 B
1016589 Handle, Adult Push - Left 1 110 B
1016590 Handle, Hemi Pull - Right 1 110 C
1016591 Handle, Hemi Pull - Left 1 110 C
7930350 Screw, Hex Head (1/4-20 x 1-1/2") 25 111
1016892 Hill Holder - Right 1 112
1016893 Hill Holder - Left 1 112
1034210 Wheel Lock Assembly, Hill Holder, Push to Lock -
Right
1 113 A,B
1034211 Wheel Lock Assembly, Hill Holder, Push to Lock -
Left
1 113 A,B
1025429 Wheel Lock Assembly, Hill Holder, Pull to Lock -
Right
1 113 A,C
1025430 Wheel Lock Assembly, Hill Holder, Pull to Lock -
Left
1 113 A,C
7930316 Pkg, Hex Flange Nut (1/4-20) 25 114
1021402 Bolt, Carriage (1/4-20 x 2") 1 115
A - Hill Holder Wheel Locks not for use with urethane tires.
B - Push to Lock
C - Pull to Lock
Push
to Lock Shown
NOTE:
(For chairs built After 6/23/99)
Form No.
52
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
Hill Holder Wheel Locks Space Saver Arms
(For chairs built After 6/23/99)
Form No.
99-110
53
To order call toll free 1-800-333-6900, or www.invacare.com
Hill Holder Wheel Locks Space Saver Arms
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
7930364 Pkg, Locknut (1/4-20) 25 11
7930367 Locknut (1/4-28) 25 32
7930357 Washer, Nylon (1/4 x 1/2 x 1/32") 25 73
1015445 Bracket, Mounting - Right 1 14
1015446 Bracket, Mounting - Left 1 14 40157X004 Spacer, Nylon (1/4 x 1/8") 1 15 60274X012 Screw, Hex Head Cap (1/4-28 x 3/4") 1 36
1017861 Link 1 17 47376X024 Tip, Wheel Lock Rubber 1 18
1016588 Handle, Adult Push - Right 1 19 B
1016589 Handle, Adult Push - Left 1 19 B
1016590 Handle, Hemi Pull - Right 1 19 C
1016591 Handle, Hemi Pull - Left 1 19 C
1010398 Washer, Nylon (1/4 x 1/2 x 1/16") 1 310
1007017 Screw, Hex Head (1/4-20 x 1-1/4") 1 111
1016892 Hill Holder - Right 1 112
1016893 Hill Holder - Left 1 112
1034212 Wheel Lock Assembly, Hill Holder, Push to Lock -
Right
1 113 A,B
1034213 Wheel Lock Assembly, Hill Holder, Push to Lock -
Left
1 113 A,B
1034214 Wheel Lock Assembly, Hill Holder, Pull to Lock -
Right
1 113 A,C
1034215 Wheel Lock Assembly, Hill Holder, Pull to Lock -
Left
1 113 A,C
7930316 Pkg, Hex Flange Nut (1/4-20) 25 114
1021402 Bolt, Carriage (1/4-20 x 2") 1 115
A - Hill Hlder Wheel Locks not for use with urethane tires.
B - Push to Lock
C - Pull to Lock
Push
to Lock Shown
NOTE:
(For chairs built After 6/23/99)
Form No.
54
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
Wheel Lock - Conventional Arms
(For chairs built After 6/23/99)
Form No.
99-110
55
To order call toll free 1-800-333-6900, or www.invacare.com
Wheel Lock - Conventional Arms
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
7930323 Pkg, Locknut (1/4-20) 25 21
1026049 Mounting Bracket -Right 1 12 A,B
1026050 Mounting Bracket -Left 1 12 A,B
7930334 Locknut (1/4-28) 25 23
1026103 Washer, Nylon (1/4 x 1/2 x 1/32") 1 74
1026033 Washer, Nylon (1/4 x 1/2 x 1/16") 1 35
1021406 Screw, Hex Head Cap (1/4-20 x 1-1/4") 1 16
1021404 Link 1 17 47376X024 Tip, Wheel Lock Rubber 1 18
1028687 Screw, Hex Head Cap (1/4-28 x 3/4") 1 29
1021408 Handle, Wheel Lock -Right 1 110 A
1021409 Handle, Wheel Lock -Left 1 110 A
1031780 Handle, Pull/Lock (Black) - Right 1 110 B
1031781 Handle, Pull/Lock (Black) - Left 1 110 B
1030949 Screw, Hex Head Cap (1/4-20 x 1-1/2") 1 111
1021405 Shoe, Wheel Lock 1 112
1031782 Wheel Lock Assembly w/o Attaching Hardware,
Adult - Right
1 113 A
1031783 Wheel Lock Assembly w/o Attaching Hardware,
Adult - Left
1 113 A
1031796 Wheel Lock Assembly w/o Attaching Hardware,
Hemi - Right
1 113 B
1031797 Wheel Lock Assembly w/o Attaching Hardware,
Hemi - Left
1 113 B
7930316 Pkg, Hex Flange Nut (1/4-20) 25 114 C
1021402 Bolt, Carriage (1/4-20 x 2") 1 115 C
7400109 Kit, Wheel Lock Shoe Spacer 2 1D,E,G,
H
Screw, Set (#8-32 x 3/16") 1 4 Spacer, Shoe Wheel Lock (2-7/16" Long) 1 2
1037422 Kit, Wheel Lock Shoe Spacer, 22" Rear Wheels 2 1D,F,G,
H
Spacer, Wheel Lock Shoe (1-45/64" Long) 1 2 Screw, Set (#8-32 x 3/16") 1 4
7930306 Screw, Set (#8-32 x 3/16") 25 2D,E
A - Push to Lock
B - Pull to lock
C - Attaching Hardware
D - These items are not included with wheel lock, they may be needed if chair has 20 or 20" rear wheels.
E - 20" Rear Wheels
F - 22" Rear Wheels
G - Assembly includes Set Screws
H - Not Shown
Pull to Lo
ck Shown
NOTE:
(For chairs built After 6/23/99)
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
56
Wheel Lock - Space-Saver Arms
(For chairs built After 6/23/99)
Form No.
99-110
57
To order call toll free 1-800-333-6900, or www.invacare.com
Wheel Lock - Space-Saver Arms
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
7930334 Locknut (1/4-28) 25 31
1026103 Washer, Nylon (1/4 x 1/2 x 1/32") 1 72
1031787 Bracket, Mounting - Right 1 13
1031788 Bracket, Mounting - Left 1 13
1028687 Screw, Hex Head Cap (1/4-28 x 3/4") 1 34
1021404 Link 1 15 47376X024 Tip, Wheel Lock Rubber 1 16
1021408 Handle, Wheel Lock -Right 1 17 A
1021409 Handle, Wheel Lock -Left 1 17 A
1031780 Handle, Pull/Lock (Black) - Right 1 17 B
1031781 Handle, Pull/Lock (Black) - Left 1 17 B
1021406 Screw, Hex Head Cap (1/4-20 x 1-1/4") 1 18
1026033 Washer, Nylon (1/4 x 1/2 x 1/16") 1 39
1026105 Spacer, Nylon (1/4 x 7/16 x 1/8") 1 110
1021405 Shoe, Wheel Lock 1 111
7930323 Pkg, Locknut (1/4-20) 25 112
1031792 Wheel Lock Assembly w/o attaching Hardware,
Adult - Right
1 113 A
1031793 Wheel Lock Assembly w/o attaching Hardware,
Adult - Left
1 113 A
1031794 Wheel Lock Assembly w/o attaching Hardware,
Hemi - Right
1 113 B
1031795 Wheel Lock Assembly w/o attaching Hardware,
Hemi - Left
1 113 B
7930316 Pkg, Hex Flange Nut (1/4-20) 25 114 C
1021402 Bolt, Carriage (1/4-20 x 2") 1 115 C
7400109 Kit, Wheel Lock Shoe Spacer 2 1D,E,F,
H
Screw, Set (#8-32 x 3/16") 1 4 Spacer, Shoe Wheel Lock (2-7/16" Long) 1 2
1037422 Kit, Wheel Lock Shoe Spacer, 22" Rear Wheels 2 1D,E,G,
H
Spacer, Wheel Lock Shoe (1-45/64" Long) 1 2 Screw, Set (#8-32 x 3/16") 1 4
7930306 Screw, Set (#8-32 x 3/16") 25 2H
A - Push to Lock
B - Pull to Lock
C - Attaching Hardware
D - These items are not included with wheel lock, they may be needed if chair has 20" or 22" rear wheels.
E - Assembly includes Set Screws (pair)
F - 20" Rear Wheels
G - 22" Rear Wheels
H - Not Shown
NOTE:
(For chairs built After 6/23/99)
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
58
Footrest Support Assemblies
Swingaway 60° and 70°
Form No.
99-110
59
To order call toll free 1-800-333-6900, or www.invacare.com
Footrest Support Assemblies
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
7930301 Pkg, Button Head Cap Screw (1/4-20 x 1-3/4") 25 11
1056328 Plug Button (1") 1 22
1026124 Anti-Rattle Collar 1 13
1025454 Latch Housing - Right 1 14
1025455 Latch Housing - Left 1 14
7930314 Screw, Slotted Hex Head (#10-32 x 1/2") 25 15
1025451 Screw, Hex Head (#10-32 x 5/8") 1 26
7930333 Locknut (1/4-20) 25 17
1017148 Plug, Pivot 1 18
8881026992 Footrest Support Assembly, 60° - Right 1 19 A 8881026993 Footrest Support Assembly, 60° - Left 1 19 A 8881026994 Footrest Support Assembly, 70° Non Tapered -
Right
1 19 A
8881026995 Footrest Support Assembly, 70° Non Tapered - Left 1 19 A 8881026996 Footrest Support Assembly, 70° Tapered - Right 1 19 A 8881026997 Footrest Support Assembly, 70° Tapered - Left 1 19 A
1026987 Impact Guard, 8" Long 1 1B
1054571 Kit, Sector Block - Right 1 1B
1054572 Kit, Sector Block - Left 1 1B
A - Specify frame color when ordering see page titled, "Frame Finishes and Touch-up Paint".
B - Not Shown
Front Rigging Supports for chairs built before 4/92 must be replaced with a pair, also, new sectors must be ordered (1054571 Right and
1054572 Left) for all model chairs built Before 4/4/95.
NOTE:
Swingaway 60° and 70°
Form No.
99-110
60
To order call toll free 1-800-333-6900, or www.invacare.com
Legrest Support Assembly - P30E
Ratchet Style (Before 9/21/05)
Specify frame color when ordering.
Form No.
99-110
61
To order call toll free 1-800-333-6900, or www.invacare.com
Legrest Support Assembly - P30E
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1025729 Screw, Self Tapping Pan Head (#8-32 x 3/8") 1 21
1017187 Cover, Top 1 12 11919X000 Screw, Truss Head (3/8-16 x 1-1/2") 1 13
8881045289 Bracket, Legrest Support - Right 1 14 8881045290 Bracket, Legrest Support - Left 1 14
40363X000 Hex Nut (3/8"-16) 1 15
1037126 Handle, Release 1 16
1040060 Tip 1 17
1025454 Latch Housing - Right 1 18
1025455 Latch Housing - Left 1 18
1025736 Locknut (1/4-20) 1 19
1017423 Screw, Hex Head (#10-32 x 1/2") 1 110
1025451 Screw, Hex Head (#10-32 x 5/8") 1 211
1017148 Plug, Pivot 1 112
1029501 Plug Button (1") 1 113
1001762 Screw, Socket Button Head (1/4-20 x 1-3/4") 1 114
1058636 Washer, Nylon (25/64 x 7/8 x 1/32") 1 215
8881048851 Tube, Elevating Support (Color) - Right 1 116 8881048852 Tube, Elevating Support (Color) - Left 1 116
1037110 Screw, Hex Head (5/16-24 x 3-1/2") 1 117
1032266 Bracket, Legrest Pad Mounting 1 118
1028514 Screw, Hex Head (5/16-24 x 1-1/2") 1 119
1025730 Locknut (5/16-24) 1 120
1107321 Nut, Low Cap (5/16"-24) 1 121
1026030 Screw, Lug (5/16-24 x 1-3/8") 1 122
1032267 Spacer, Legrest Pad Mounting 1 123
1025133 Spacer, Legrest Pad 1 124 04526X019 Plate, Legrest Pad 1 125
1025730 Locknut (5/16-24) 1 126 10261X000 Acorn Nut (5/16"-24) 1 127
1013519 Washer, Nylon (5/16 x 11/16 x 1/16") 1 128 04528X002 Bracket, Release (Chrome) 1 129
1040831 Snap Ring 1 130 42326X001 Bar, Rachet 1 131
1037485 Spring, Release 1 132
1037125 Cam, Legrest 1 133
8881045291 Legrest Support Assembly w/o Pad - Right 1 1A,B 8881045292 Legrest Support Assembly w/o Pad - Left 1 1A,B
A - Not Shown
B - Includes Items 1-33.
NOTE:
Ratchet Style (Before 9/21/05)
Specify frame color when ordering.
Form No.
99-110
62
To order call toll free 1-800-333-6900, or www.invacare.com
Legrest Support Assembly - AT5044
Wedge Style ("D" shaped tubing) Intro. 9/21/05
Specify frame finish when ordering. Legrest Support does not include Legrest Pad.
Form No.
99-110
63
To order call toll free 1-800-333-6900, or www.invacare.com
Legrest Support Assembly - AT5044
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881130740 Legrest Assembly, Elevating - Right 1 11 A,G 8881130741 Legrest Assembly, Elevating - Left 1 11 A,G 8881130755 Support Assembly, Legrest - Right 1 12 B,G
Plug Button (1") 1 23 Screw, Socket Button Head (1/4-20 x 1-3/4") 1 14 Bracket, Legrest Support - Right 1 15 Screw, Lug (5/16-24 x 1-3/8") 1 16 Plug, Insert (7/8") 1 17 Screw, Button Head Cap (10-32 x 1/4") 1 28 Washer (1/4 x 1/2 x 1/32") 1 29 Spacer (5/16 x 1/2 x 3/16") 1 110 Spacer, Threaded (10-32 x 1/4 x 5/8") 1 111 Nut, Low Cap (5/16"-24) 1 112 Latch Housing - Right 1 113 Screw, Hex Head (#10-32 x 5/8") 1 214 Locknut (1/4-20) 1 115 Screw, Hex Head (#10-32 x 1/2") 1 116 Plug, Pivot 1 117
1140823 Package, Plug Buttons (1") 10 13
8881130756 Support Assembly, Legrest - Left 1 12 B,G
Plug Button (1") 1 23 Screw, Socket Button Head (1/4-20 x 1-3/4") 1 14 Bracket, Legrest Support - Left 1 15 Screw, Lug (5/16-24 x 1-3/8") 1 16 Plug, Insert (7/8") 1 17 Screw, Button Head Cap (10-32 x 1/4") 1 28 Washer (1/4 x 1/2 x 1/32") 1 29 Spacer (5/16 x 1/2 x 3/16") 1 110 Spacer, Threaded (10-32 x 1/4 x 5/8") 1 111 Nut, Low Cap (5/16"-24) 1 112 Latch Housing - Left 1 113 Screw, Hex Head (#10-32 x 5/8") 1 214 Locknut (1/4-20) 1 115 Screw, Hex Head (#10-32 x 1/2") 1 116
Plug, Pivot 1 117 1140823 Package, Plug Buttons (1") 10 13 1130749 Pivot Rod Assembly - Right 1 118 C
Locknut (1/4-20) 1 119
Lever, Release - Right 1 120
Screw, Button Head Cap (10-32 x 1/4") 1 221
Washer (1/4 x 1/2 x 1/32") 1 222
Spacer, Threaded (10-32 x 1/4 x 5/8") 1 123
Wedge Style ("D" shaped tubing) Intro. 9/21/05
Specify frame finish when ordering. Legrest Support does not include Legrest Pad.
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
64
Legrest Support Assembly - AT5044
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
Rod, Pivot 1 124
Screw, Button Head (1/4-20 x 1-1/4") 1 125
Guide, Pivot Rod 1 126
Rivnut (10-32 x 1") 1 127
Screw, Pan Head (#10-24 x 3/8") 1 128
Pin, Roller 1 129
Spring, Torsion 1 130
Tip, Plastic 1 131 1130584 Package, Tips 10 131 1130750 Pivot Rod Assembly - Left 1 118 C
Locknut (1/4-20) 1 119
Lever, Release - Left 1 120
Screw, Button Head Cap (10-32 x 1/4") 1 221
Washer (1/4 x 1/2 x 1/32") 1 222
Spacer, Threaded (10-32 x 1/4 x 5/8") 1 123
Rod, Pivot 1 124
Screw, Button Head (1/4-20 x 1-1/4") 1 125
Guide, Pivot Rod 1 126
Rivnut (10-32 x 1") 1 127
Screw, Pan Head (#10-24 x 3/8") 1 128
Pin, Roller 1 129
Spring, Torsion 1 130
Tip, Plastic 1 131 1130584 Package, Tips 10 131
8881130751 Kit, Elevating Support Tube - Right 1 132 D,G
Nut, Low Cap (5/16"-24) 1 133
Spacer (5/16 x 1/2 x 3/16") 1 134
Screw, Lug (5/16-24 x 1-3/8") 1 135
Tube, Elevating Legrest Support - Right 1 136
Rivnut (10-32 x 1") 1 137
Screw, Pan Head (#10-24 x 3/8") 1 138
Screw, Lug (5/16-24 x 1-3/8") 1 139
Washer (11/32 x 13/16 x 1/8") 1 140
Nut, Low Cap (5/16"-24) 1 141
8881130752 Kit, Elevating Support Tube - Left 1 132 D,G
Nut, Low Cap (5/16"-24) 1 133
Spacer (5/16 x 1/2 x 3/16") 1 134
Screw, Lug (5/16-24 x 1-3/8") 1 135
Tube, Elevating Support - Left 1 136
Rivnut (10-32 x 1") 1 137
Screw, Pan Head (#10-24 x 3/8") 1 138
Screw, Lug (5/16-24 x 1-3/8") 1 139
Wedge Style ("D" shaped tubing) Intro. 9/21/05
Specify frame finish when ordering. Legrest Support does not include Legrest Pad.
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
65
Legrest Support Assembly - AT5044
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
Washer (11/32 x 13/16 x 1/8") 1 140
Nut, Low Cap (5/16"-24) 1 141 1130753 Kit, Pivot Slide Tube Attaching Hardware 1 142 E
Screw, Lug (5/16-24 x 1-3/8") 1 139
Washer (11/32 x 13/16 x 1/8") 1 140
Nut, Low Cap (5/16"-24) 1 141 1130754 Kit, Legrest Pad Hardware 1 143 F
T-Nut (1/4-20) 1 144
Plate, Legrest Pad 1 145
Locknut (5/16-18) 1 146
Spacer, Legrest Pad 1 147
Bracket, Adjustable Legrest Pad 1 148
Washer (1/4 x 1/2 x 1/16") 1 149
Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 150
Screw, "C" Sunk Socket Head (5/16-18 x 2-1/4") 1 151
A - Includes items 2,18,32, & 43
B - Includes items 3-17
C - Includes items 19-31
D - Includes items 33-41
E - Includes items 39-41
F - Includes items 44-51
G - Specify frame finish when ordering
NOTE:
Wedge Style ("D" shaped tubing) Intro. 9/21/05
Specify frame finish when ordering. Legrest Support does not include Legrest Pad.
Form No.
99-110
66
To order call toll free 1-800-333-6900, or www.invacare.com
ATL4A Legrest Support Assembly
Form No.
99-110
67
To order call toll free 1-800-333-6900, or www.invacare.com
ATL4A Legrest Support Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1022877 Tube Support and Drive Link - Right 1 11 1022878 Tube Support and Drive Link - Left 1 11 1024911 Decal, Smartleg 1 12 1014807 Screw, Hex Head (5/16-24 x 3-1/4") 1 13
47330X003 Spacer (5/16 x 1/2 x 3/8") 1 14
7930363 Pkg, Locknut (5/16"-24) 25 25 1027377 Washer (#20) 1 16
11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 17
1025454 Latch Housing - Right 1 18 1025455 Latch Housing - Left 1 18 1025451 Screw, Hex Head (#10-32 x 5/8") 1 29 7930314 Screw, Slotted Hex Head (#10-32 x 1/2") 25 110 7930333 Locknut (1/4-20) 25 111 1029501 Plug Button (1") 1 112 1027097 Plug Button, Black (3/4") 1 113 1082538 Articulating Legrest Support - Right 1 114 1082539 Articulating Legrest Support - Left 1 114 1022854 Screw, Slotted Head Shoulder (1/2 x 1-1/8") 1 115
40363X000 Hex Nut (3/8"-16) 1 316
1025104 Bracket, Legrest (Chrome) 1 117
04526X019 Plate, Legrest Pad 1 118
1022848 Slide Tube, Articulating (Chrome) - Right 1 119 1022849 Slide Tube, Articulating (Chrome) - Left 1 119 1022866 Screw, Socket Button Head (3/8-16 x 3/4") 1 220 1049527 Washer, Nylon (3/8 x 3/4 x 1/16") 1 221 1025133 Spacer, Legrest Pad 1 122 1022846 Bar, Link 1 123
47328X003 Bushing, Pivot (5/16 x 7/16 x 7/8") 1 124 48823X008 Spring 1 125
1017148 Plug, Pivot 1 126 7930301 Pkg, Button Head Cap Screw (1/4-20 x 1-3/4") 25 127 1082540 Articulating Legrest Support Assembly - Right 1 128 A 1082541 Articulating Legrest Support Assembly - Left 1 128 A
A - Includes items 1-27 and Ratchet Assembly
NOTE:
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
68
Legrest Calf Pads and Ratchet Assemblies
Form No.
99-110
69
To order call toll free 1-800-333-6900, or www.invacare.com
Legrest Calf Pads and Ratchet Assemblies
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
88804529X003 Pad, Legrest Vinyl - Right 1 11 B,A 88804529X004 Pad, Legrest Vinyl - Left 1 11 B,A
8881091764 Pad, Legrest Vinyl - Right/Left 1 11 C,A
40163X006 Screw, Phillips Head (#10-14 x 1/16") 1 12 04526X019 Plate, Legrest Pad 1 13
1025730 Locknut (5/16-24) 1 14 1025133 Spacer, Legrest Pad 1 15 1032267 Spacer, Legrest Pad Mounting 1 16 1037110 Screw, Hex Head (5/16-24 x 3-1/2") 1 17 1028514 Screw, Hex Head (5/16-24 x 1-1/2") 1 18 1066591 Screws, Phillips Head (#10-32 x 11/16") 2 19 1032266 Bracket, Legrest Pad Mounting 1 110 1040060 Tip 1 211 1013519 Washer, Nylon (5/16 x 11/16 x 1/16") 1 212
42326X004 Bar, Ratchet - Right/Left 1 213 D
1023811 Bar, Ratchet - Right 1 213 E 1023812 Bar, Ratchet - Left 1 213 E
47330X003 Spacer (5/16 x 1/2 x 3/8") 1 214 D
1025413 Bushing (11/32 x 7/16 x 1") 1 214 E 1040831 Snap Ring 1 215 1037125 Cam, Legrest 1 216 1037485 Spring, Release 1 217
10261X000 Acorn Nut (5/16"-24) 1 218 04528X002 Bracket, Release (Chrome) 1 219
1037126 Handle, Release 1 220 1046329 Kit, Elevating Legrest Ratchet Hardware 2 121 D,F 1046331 Kit, Articulating Legrest Ratchet Hardware 2 121 E,F 1042798 Instruction Sheet, Ratchet Kit 1 1G
A - Specify upholstery color U67 Black when ordering.
B - 14-15" wide
C - 16-22" wide
D - Used only on Ratchet Style AT5044 Elevating Legrest
E - Used on Articulating Legrest
F - Includes items 11-20 plus instruction sheet
G - Not Shown
NOTE:
Form No.
99-110
70
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - A1562 Aluminum
Form No.
99-110
71
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - A1562 Aluminum
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Aluminum Footplate w/ Pivot Tube Assembly 1 11 A
1120330 Pivot Slide Tube with Plug 1 12 1025729 Screw, Self Tapping Pan Head (#8-32 x 3/8") 1 23
44200X059 Footplate, Aluminum - Small (6-3/4" W x 6" L) 1 14 44200X027 Footplate, Aluminum - Medium (7-3/4" W x 6" L) 1 14
1130582 Package, Plug Buttons (7/8") 10 15 1006981 Spring 1 16 1134426 Package, Plug Buttons (3/4") 10 17 1074568 Package, Push Plugs 2 1B
See Chart #8 Aluminum Footplate w/ Pivot Tube Assembly 1 18 C
1134427 Package, Plug Buttons "D" Shaped (3/4") 10 19 1134431 Pivot Slide Tube Assembly w/ Plug Button 10 110 1025729 Screw, Self Tapping Pan Head (#8-32 x 3/8") 1 211
44200X059 Footplate, Aluminum - Small (6-3/4" W x 6" L) 1 112 44200X027 Footplate, Aluminum - Medium (7-3/4" W x 6" L) 1 112
1130582 Package, Plug Buttons (7/8") 10 113 1006981 Spring 1 114
A - Includes items 2-7
B - Not Shown
C - Includes items 9-14
NOTE:
Form No.
99-110
72
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - A1562 Aluminum
#1 Aluminum Footplate w/ Pivot Tube Assembly
All Front Riggings except Wedge Style AT5044 Elevating Legrests
Description
Footplate
Size
Chair Width Right Left
1120336112033514"Small
All Footrests
Except 70° Tapered
1120338112033716-20"Medium
All Footrests
Except 70° Tapered
1120336112033516"Small
70° Tapered
Footrests
1120338112033717-20"Medium
70° Tapered
Footrests
1120336112033514"Small
Elevating Legrest
(Ratchet Style)
1120338112033716-20"Medium
Elevating Legrest
(Ratchet Style)
1023906102390516"SmallArticulating Legrest 1023908102390717-20"MediumArticulating Legrest
Includes items 2-7
#8 Aluminum Footplate w/ Pivot Tube Assembly
Wedge Style AT5044 Elevating Legrests
Footplate
Size
Chair Width Right Left
1132114113211314"Small 1132074113207316-20"Medium
Includes items 9-14
Form No.
99-110
73
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - A1564 Extra Large
Aluminum
Form No.
99-110
74
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - A1564 Extra Large
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1120339 Footplate w/ Pivot Tube, Extra Large Aluminum -
Right
1 11 A,C
1120340 Footplate w/ Pivot Tube, Extra Large Aluminum -
Left
1 11 A,C
1035456 Footplate w/ Pivot Tube, Extra Large Aluminum -
Right
1 11 B,C
1035457 Footplate w/ Pivot Tube, Extra Large Aluminum -
Left
1 11 B,C
1120330 Pivot Slide Tube with Plug 1 12 A 1041526 Pivot/Slide Tube with Plug Button (Aluminum) 1 12 B
44200X025 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)
- Right
1 13
44200X026 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)
- Left
1 13
1130582 Package, Plug Buttons (7/8") 10 14 1036123 Spring 1 15
40120X001 Screw, Phillips Pan Head (#8-32 x 3/8") 1 26
1134426 Package, Plug Buttons (3/4") 10 17 1134434 Package, Plug Buttons (5/8") 10 18 1132084 Pivot Slide Tube with Extra Large Footplate
Assembly - Right
1 19 D,E
1132085 Pivot Slide Tube with Extra Large Footplate
Assembly - Left
1 19 D,E
1134427 Package, Plug Buttons "D" Shaped (3/4") 10 110 1134431 Pivot Slide Tube Assembly w/ Plug Button 1 111 1025729 Screw, Self Tapping Pan Head (#8-32 x 3/8") 1 212
44200X025 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)
- Right
1 113
44200X026 Footplate, Aluminum - Extra Large (8" W x 8-1/2" L)
- Left
1 113
1130582 Package, Plug Buttons (7/8") 10 114 1036123 Spring 1 115
A - Used on all Footrests and P30E Legrests.
B - Used on ATL4A Articulating Legrests.
C - Includes items 2-8
D - Includes items 10-15
E - Used on Wedge Style AT5044 Legrests
NOTE:
Aluminum
Form No.
99-110
75
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - 1651 Composite
Form No.
99-110
76
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - 1651 Composite
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
See Chart #1 60° Footrest (13-19") 1 11 See Chart #1 70° Non Tapered Footrest (14-19") 1 11 See Chart #1 70° Tapered Footrest (14-1/2-19-1/2") 1 11 See Chart #1 P30E Elevating Legrest - Ratchet Style (16-20") 1 11 See Chart #8 AT5044 Elevating Legrest - Wedge Style
(16-20")
1 11
1120382 Pivot Slide Tube, Curved End - Long (9-7/8" Long) 1 12 A 1120386 Pivot Slide Tube, Curved - 2" Longer (11-7/8" Long) 1 12 A 1120384 Pivot Slide Tube, Straight - Alum. (9-7/8" Long) 1 12 B 1120385 Pivot Slide Tube, Straight - 2" Longer (11-7/8" Long) 1 12 B 1134426 Package, Plug Buttons (3/4") 10 13 1026879 Footplate, Composite - Small (6" W x 6" L) 1 14 1026880 Footplate, Composite - Medium (7" W x 6" L) 1 14 1026881 Footplate, Composite - Large (8" W x 6" L) 1 14 1025195 Locknut (1/4-20) 1 15
60285X006 Screw, Socket Head Cap (1/4-20 x 2-1/4") 1 16
1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 27
See Chart #8 AT5044 Elevating Legrest - Wedge Style
(16-20")
1 18 E
1134427 Package, Plug Buttons "D" Shaped (3/4") 10 19 1134428 Pivot Slide Tube Assembly w/ Plug Button 1 110 C 1134429 Pivot Slide Tube Assembly, 2" Longer w/ Plug
Button
1 110 C
1026879 Footplate, Composite - Small (6" W x 6" L) 1 111 1026880 Footplate, Composite - Medium (7" W x 6" L) 1 111 1026881 Footplate, Composite - Large (8" W x 6" L) 1 111 1025195 Locknut (1/4-20) 1 112
60285X006 Screw, Socket Head Cap (1/4-20 x 2-1/4") 1 113
1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 214
A - 60° Footrests, and P30E Ratchet Style Legrests
B - 70° Footrests
C - AT5044 Wedge Style Legrests
E - Includes items 9-14
NOTE:
#1 60° Footrest
13-19"
Curved End
Right/Left
Large
2" Longer
17-20" wide
Small
Long
14" wide
Small
2" Longer
14" wide
Medium
Long
16" wide
Medium
2" Longer
16" wide
Large
Long
17-20" wide
103262310283831032625102838710326271028391Right 103262410283841032626102838810326281028392Left
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
77
Footplate and Pivot Tube Assemblies - 1651 Composite
#1 70° Non Tapered Footrest
14-19"
Straight
Right/Left
Large
2" Longer
17-20" wide
Small Short
14" wide
Small
2" Longer
14" wide
Medium
Short
16" wide
Medium
2" Longer
16" wide
Large
Short
17-20" wide
104279410427881042792104278610427901042784Right 104279510427891042793104278710427911042785Left
#1 70° Tapered Footrest
14-1/2 - 19-1/2"
Straight
Right/Left
Large
2" Longer
20" wide
Small Short
16" wide
Small
2" Longer
16" wide
Medium
Short
17-18" wide
Medium
2" Longer
17-18" wide
Large
Short
20" wide
104279410427881042792104278610427901042784Right 104279510427891042793104278710427911042785Left
#1 P30E Elevating Legrest - Ratchet Style
16-20"
Curved End
Right/Left
Large
2" Longer
17-20" wide
Small
Long
14" wide
Small
2" Longer
14" wide
Medium
Long
16" wide
Medium
2" Longer
16" wide
Large
Long
17-20" wide
104279410283831042792102838710326271028391Right 104279510283841042793102838810326281028392Left
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
78
Footplate and Pivot Tube Assemblies - 1651 Composite
#8 AT5044 Elevating Legrest - Wedge Style
16-20"
Curved End
Right/Left
Large
2" Longer
17-20" wide
Small
Long
14" wide
Small
2" Longer
14" wide
Medium
Long
16" wide
Medium
2" Longer
16" wide
Large
Long
17-20" wide
113211111320821132109113208011321071132078Right 113211211320831132110113208111321081132079Left
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
79
Adjustable Angle Footplates - AT5543
Before 9/12/03
Form No.
99-110
80
To order call toll free 1-800-333-6900, or www.invacare.com
Adjustable Angle Footplates - AT5543
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1060426 Footplate, Adjustable Angle - Medium
(4-1/4" W x 8" L)
1 11
1060427 Footplate, Adjustable Angle - Large
(5-1/4" W x 8" L)
1 11
1062569 Footplate, Adjustable Angle - X-Large
(6-1/4" W x 8" L)
1 11
1029545 Screw, Socket Head Cap (1/4-20 x 3/4") 1 22 A 1048816 Screw, Nylon Adjustment (1/2-13 x 7/8") 1 13 1052102 Hinge, Footplate - Right 1 14 1052103 Hinge, Footplate - Left 1 14 1120384 Pivot Slide Tube, Straight - Alum. (9-7/8" Long) 1 15 1120385 Pivot Slide Tube, Straight - 2" Longer (11-7/8" Long) 1 15 1091745 Pivot/Slide Tube, Straight (13-7/8" Long - Steel) 1 15 7930321 Screw, Socket Button Head (1/4-20 x 1-7/8") 25 16 1026900 Washer (1/4 x 23/32 x 1/16") 1 17 7930313 Washer, Nylon (5/16 x 7/8 x 1/8") 25 18 7930333 Locknut (1/4-20) 25 19 1026907 Washer (1/4 x 1/2 x 1/16") 1 110 1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 111 1082686 Nut, Hex Head (1/4-20 x 11/16") 1 212 A 1058517 Clamp, Footplate 1 113 A
See Chart #14 - Adjustable Angle Footplates with Pivot Tube 1 114
A - Items 2, 12 and 13 must be ordered together for chairs manufactured before 8/10/99 due to a hardware change.
NOTE:
#14 - Adjustable Angle Footplates with Pivot Tube
60°, 70° Non-Tapered and Elevating Legrest
Chair Width & Footplate Right Left
Straight Slide Tube (9-7/8")Straight Slide Tube (9-7/8")
1060433106043214"-15" (5-1/4" Footplate) 1062573106257216"-20" Wide (6-1/4" Footplate)
ALPT Straight Slide Tube
(11-7/8")(Alum.)
ALPT Straight Slide Tube
(11-7/8")(Alum.)
1060441106044014"-15" Wide (5-1/4" Footplate) 1062579106257816"-20" Wide (6-1/4" Footplate)
ALPT Straight Slide Tube
(11-7/8")(Steel)
ALPT Straight Slide Tube
(11-7/8")(Steel)
1062759106275814"-15" Wide (5-1/4" Footplate) 1062761106276016"-20" Wide (6-1/4" Footplate)
Before 9/12/03
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
81
Footplate and Pivot Tube Assemblies - AT5543 Adjustable
Angle
After 9/11/03
Form No.
99-110
82
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - AT5543 Adjustable
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
See Chart #1 60°, 70° Non Tapered Footrests and P30E
Legrest
1 11 D
See Chart #1 70° Tapered Footrests 1 11 D See Chart #1 ATL4A Articulating Legrests 1 11 D
1113578 Screw, Socket Head C' Sunk (1/4-28 x 3/4") 1 22 1113572 Footplate, Medium (4-1/4" Wide x 8" Long) 1 13 1113573 Footplate, Large (5-1/4" Wide x 8" Long) 1 13 1113574 Footplate, X-Large (6-1/4" Wide x 8" Long) 1 13 1113528 Bracket, Adjustable Angle Footplate 1 14 1025765 Locknut (1/4-28) 1 25 1021343 Screw, Socket Head Cap (5/16-18 x 1-1/4") 1 16 1113530 Hinge Attachment 1 17 1096810 Screw, Socket Head (1/4-28 x 1-3/4") 1 18 1113529 Hinge, Adjustable Angle Footrest 1 19 1065362 Locknut (1/4-28) 1 110 1114688 Spacer, Hinge 1 111 1114699 Pivot Slide Tube, Straight (10-1/4") 1 112 A 1114700 Pivot Slide Tube, Straight 2" Longer ALPT (12-1/4") 1 112 B 1114707 Pivot Slide Tube, Straight (11-7/8") 1 112 C
See Chart #13 Wedge Style AT5044 Elevating Legrests 1 113 E
1134427 Package, Plug Buttons "D" Shaped (3/4") 10 114 1134433 Pivot Slide Tube Assembly w/ Plug Button 1 115 F 1134432 Pivot Slide Tube Assembly, 2" Longer w/ Plug
Button
1 115 F
1113578 Screw, Socket Head C' Sunk (1/4-28 x 3/4") 1 216 1113573 Footplate, Large (5-1/4" Wide x 8" Long) 1 117 1113574 Footplate, X-Large (6-1/4" Wide x 8" Long) 1 117 1113575 Footplate, XX-Large (7-1/4" Wide x 8" Long) 1 117 1113528 Bracket, Adjustable Angle Footplate 1 118 1025765 Locknut (1/4-28) 1 219 1021343 Screw, Socket Head Cap (5/16-18 x 1-1/4") 1 120 1096810 Screw, Socket Head (1/4-28 x 1-3/4") 1 121 1113529 Hinge, Adjustable Angle Footrest 1 122 1113530 Hinge Attachment 1 123 1065362 Locknut (1/4-28) 1 124 1114688 Spacer, Hinge 1 125
A - 60°, 70° Non Tapered Footrests and P30E Legrest
B - ALPT 2" Longer
C - ATL4A Articulating Legrests
D - Includes items 2-12
E - Includes items 14-25
F - Wedge Style AT5044 Legrest
NOTE:
Angle
After 9/11/03
Form No.
99-110
83
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - AT5543 Adjustable
#1 Adjustable Angle Footplates w/ Pivot Tubes
60°, 70° Non Tapered Footrests and P30E Legrest
Straight
Slide Tube
(10-1/4")
Right Left
1114643111464214" Wide (5-1/4" Footplate) 1114645111464416-17" Wide (6-1/4" Footplate) 1114647111464618-20" Wide (7-1/4" Footplate)
LeftRight
ALPT Straight
Slide Tube (12-1/4")
1114653111465214" Wide (5-1/4" Footplate) 1114655111465416-17" Wide (6-1/4" Footplate) 1114657111465618-20" Wide (7-1/4" Footplate)
#1 Adjustable Angle Footplates w/ Pivot Tubes
70° Tapered Footrests
Straight
Slide Tube
(10-1/4")
Right Left
1114641111464016" Wide (4-1/4" Footplate) 1114643111464217-18" Wide (5-1/4" Footplate) 1114645111464420" Wide (6-1/4" Footplate)
LeftRight
ALPT Straight
Slide Tube (12-1/4")
1114651111465016" Wide (4-1/4" Footplate) 1114653111465217-18" Wide (5-1/4" Footplate) 1114655111465420" Wide (6-1/4" Footplate)
Angle
After 9/11/03
Form No.
99-110
84
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - AT5543 Adjustable
#1 Adjustable Angle Footplates w/ Pivot Tubes
ATL4A Articulating Legrests
Straight
Slide Tube
(10-1/4")
Right Left
1114709111470814" Wide (5-1/4" Footplate) 1114711111471016-17" Wide (6-1/4" Footplate) 1114713111471218-20" Wide (7-1/4" Footplate)
#13 Adjustable Angle Footplates w/ Pivot Tubes
Wedge Style AT5044 Elevating Legrests
Straight
Slide Tube
(10-1/4")
Right Left
1132062113206114" Wide (5-1/4" Footplate) 1132064113206316-17" Wide (6-1/4" Footplate) 1132066113206518-20" Wide (7-1/4" Footplate)
LeftRight
ALPT Straight
Slide Tube (12-1/4")
1132090113208914" Wide (5-1/4" Footplate) 1132092113209116-17" Wide (6-1/4" Footplate) 1132094113209318-20" Wide (7-1/4" Footplate)
Angle
After 9/11/03
Form No.
99-110
85
To order call toll free 1-800-333-6900, or www.invacare.com
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1035931 Kit, Heel Loop Attaching Hardware 2 11 A 1021421 Screw, Pan Head (1/4-20 x 2-1/4") 1 12 1006477 Spacer (1/4 x 11/32 x 1-3/4") 1 13 7930323 Pkg, Locknut (1/4-20) 25 14
See Chart Heel Loops 1 1B
A - Includes items 2-4
B - Not Shown.
NOTE:
Heel Loops
Form No.
99-110
86
To order call toll free 1-800-333-6900, or www.invacare.com
Heel Loops
Heel loops & Hardware
Description Heel Loop Single Number Heel Loop Pair Number
Attaching Hardware Pair
Number
60° / 70° / Elevating60° / 70° / Elevating60° / 70° / Elevating1651 Composite Footplates
10359311053315101762114" Wide Chairs 10359311035917101762116" Wide Chairs 10359311035929102700017-20" Wide Chairs
70° Tapered70° Tapered70° Tapered
10359311053315101762116-17" Wide Chairs 10359311035917101762117-18" Wide Chairs 10359311035929102700020" Wide Chairs
60° / 70° / Elevating60° / 70° / Elevating60° / 70° / ElevatingA1562 Aluminum Footplates
10359311035917101762114" Wide Chairs 10359311035929102700016-20" Wide Chairs
70° Tapered70° Tapered70° Tapered
10359311035929102700016-20" Wide Chairs
60° / 70° / Elevating60° / 70° / Elevating60° / 70° / Elevating
A1564 Extra Large
Footplates
10359311035929102700016-20" Wide Chairs
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
87
I.V. Rod
Form No.
99-110
88
To order call toll free 1-800-333-6900, or www.invacare.com
I.V. Rod
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1027095 Plug Button, Black (7/8") 1 11
04701X028 I.V. Rod 1 12 12592X000 Lock Adjustment 1 13 16718X000 Screw, Phillips Pan Head (#10-32 x 7/8") 1 14
1020082 Bracket, Mounting 1 15 7930365 Locknut (#10-32) 25 16 1017623 I.V. Socket 1 17
21243X000 Screw, Pan Head (#6-20 x 3/8") 1 18 11239X001 Screw, Hex Head Cap (5/16-24 x 1-1/2") 1 19
1102577 Spacer, Black (5/16 x 11/16 x 15/16") 1 110 7930363 Pkg, Locknut (5/16"-24) 25 111 1036820 I.V. Rod 1 112 A 1083233 Instruction Sheet 1 1B
A - Includes items 1-11
B - Not Shown
NOTE:
Form No.
99-110
89
To order call toll free 1-800-333-6900, or www.invacare.com
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1032222 Strap 1 11
04563X001 Carrier Base 1 12
1017471 Clamp, 1" 1 13
60290X002 Locknut (5/16-18) 1 14
Crutch and Cane Carrier
Form No.
99-110
90
To order call toll free 1-800-333-6900, or www.invacare.com
Wheel Lock Extension Handle
Form No.
99-110
91
To order call toll free 1-800-333-6900, or www.invacare.com
Wheel Lock Extension Handle
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1007317 Tip, Plastic 1 11 A 1013218 Washer (#10 Flat) 1 12 1038597 Extension Handle (6") 1 13 1038662 Elastic Cord 1 14 1038599 Wheel Lock Extensions (6") (1 Pair) 2 15 B 1039644 Instruction Sheet, Wheel Lock Extensions 1 1C
A - After 8/02
B - Includes items 1-4 and Instruction Sheet
C - Not Shown.
NOTE:
Form No.
99-110
92
To order call toll free 1-800-333-6900, or www.invacare.com
Utility Tray
Form No.
99-110
93
To order call toll free 1-800-333-6900, or www.invacare.com
Utility Tray
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
11008X001 Screw, Pan Head (#10-32 x 1-3/8") 1 21 04570X002 Slide Tube Support 1 12 04570X009 Slide Lock Tube, Full Length Arm - Right 1 13 04570X010 Slide Lock Tube, Full Length Arm - Left 1 13 04570X011 Slide Lock Tube, Desk Length Arm - Right 1 13 04570X012 Slide Lock Tube, Desk Length Arm - Left 1 13 47469X006 Tray 1 14 10123X006 Bolt, Carriage (1/4-20 x 3/4") 1 45
1009341 Tray Bracket 1 26 1010922 Support Tube 1 27
20148X004 Wing Nut (1/4-20) 1 48 60284X001 Screw, Socket Head Cap (1/4-20 x 1/2") 1 29
1035965 Utility Tray, Full Length Arm 1 110 A 1035966 Utility Tray, Desk Length Arm 1 110 A 1011234 Allen Wrench (3/16") 1 1B 1023704 Instruction Sheet 1 1B
A - Includes instruction sheet
B - Not Shown
NOTE:
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
94
Rear Anti-Tipper
Standard seat angle is set at 3°, when changing to 6°, Anti-Tippers MUST be ordered. To determine chair
config. degree for Anti-Tippers, dealer should look in Service Manual #1088234. All notations of STF
heights are listed in book according to Wheel and Caster size.
Form No.
99-110
95
To order call toll free 1-800-333-6900, or www.invacare.com
Rear Anti-Tipper
Patriot with 0 deg. or 3 deg. Seat Angle (Before 6/24/99)
Kit Number
Seat to Floor
Height
Anti-Tipper Length Anti-Tipper Height
On Chair Model
Number
Caster Size
8"P1580A3-1/2"13-3/4"16-1/2, 17-1/2, 20"1050644
6" (SHE)
P1580SHE2-7/8"12-3/4"15-3/4"
1050641
See Note(s) A See Note(s) B
A - Anti-Rattle Collar not included on chairs built before 6/24/99 (use 1" Collar). B - SHE stands for Super Hemi wheelchairs with 16-3/4" seat-to-floor height on chairs built before 6/24/99, and 15-1/2" seat-to-floor height on chairs built after 6/23/99.
NOTE:
Standard seat angle is set at 3 deg., when changing the seat angle to 6 deg., Anti-Tippers MUST be ordered. To determine chair configuration degree for Anti-Tippers, dealer should look in Service Manual number 1088234. All notations of STF heights are listed in book according to Wheel and Caster size.
Patriot with 0 deg. or 3 deg. Seat Angle (After 6/23/99)
Kit Number
Seat to Floor
Height
Anti-Tipper Length Anti-Tipper Height
On Chair Model
Number
Caster Size
8"P15804-1/2"14"
17-1/2, 18-1/2,
19-1/2"
1090113
6"P1580A3-1/2"13-3/4"16-1/2, 17-1/2"1050644
6" (SHE)
P1580SH2-7/8"12-3/4"15-1/2"1050641
See Note(s) B B - SHE stands for Super Hemi wheelchairs with 16-3/4" seat-to-floor height on chairs built before 6/24/99, and 15-1/2" seat-to-floor height on chairs built after 6/23/99.
NOTE:
Standard seat angle is set at 3 deg., when changing the seat angle to 6 deg., Anti-Tippers MUST be ordered. To determine chair configuration degree for Anti-Tippers, dealer should look in Service Manual number 1088234. All notations of STF heights are listed in book according to Wheel and Caster size.
Patriot with 6 deg. Seat Angle (After 6/23/99)
Kit Number
Seat to Floor
Height
Anti-Tipper Length Anti-Tipper Height
On Chair Model
Number
Caster Size
8"N/A3-1/4"14-1/4"
17-1/2, 18-1/2,
19-1/2"
1090114
6"N/A2-1/4"12-3/4"16-1/2, 17-1/2"1090115
6" (SHE)
N/A1-3/4"10"15-1/2"1090116
See Note(s) A A - SHE stands for Super Hemi wheelchairs with 16-3/4" seat-to-floor height on chairs built before 6/24/99, and 15-1/2" seat-to-floor height on chairs built after 6/23/99.
NOTE:
Standard seat angle is set at 3 deg., when changing the seat angle to 6 deg., Anti-Tippers MUST be ordered. To determine chair configuration degree for Anti-Tippers, dealer should look in Service Manual number 1088234. All notations of STF heights are listed in book according to Wheel and Caster size.
Standard seat angle is set at 3°, when changing to 6°, Anti-Tippers MUST be ordered. To determine chair
config. degree for Anti-Tippers, dealer should look in Service Manual #1088234. All notations of STF
heights are listed in book according to Wheel and Caster size.
Form No.
99-110
96
To order call toll free 1-800-333-6900, or www.invacare.com
Solid Back Insert
Chair Width 16" Depth 18" Depth
8881052672888105267114" 8881052672888105267516" 8881052678888105267717" 8881052680888105267918" 8881052684888105268320"
Solid Seat Insert
Chair Width 16" Depth 18" Depth
N/A888105255714" 8881052565888105256316" 8881052568888105256617" 8881052571888105256918" 8881052577888105257520"
Seat/ Back Accessories
Form No.
99-110
97
To order call toll free 1-800-333-6900, or www.invacare.com
Seat/ Back Accessories
Back Pack/Seat Pouch
Chair Width Back Pack Seat Pouch
N/A
1109322
Back Pack, Small
11" W x 13" H x 4" D
14" Wide
1109324
Seat Pouch
8-1/2" W x 7" H x 4" D
N/A14-20" Wide
N/A
1109323
Back Pack, Large
14" W x 12" H x 4" D
16-20" Wide
Seat/Chest Positioning Straps
Part Number Description Quantity Per Assembly
1
Auto Style Buckle - Seat
(14-18" W Chairs)
1004310
1
Auto Style Buckle - Chest
(20" W Chairs)
1034625
1
Hook & Loop Style - Seat
(14-18" W Chairs)
1034744
1
Hook & Loop Style - Chest
(20" W Chairs)
1034745
Form No.
99-110
To order call toll free 1-800-333-6900, or www.invacare.com
98
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1057388 Fabric Clothing Protector (Pair) 2 21 1029407 "D" Ring 1 22 1141633 Cord, Nylon (6-1/2') 1 13 1029412 Cord Lock 1 14 1054770 Clothing Protector Hardware Kit 1 1A,B
A - Not Shown
B - Includes items 2-4
NOTE:
Fabric Clothing Protector
Form No.
99-110
99
To order call toll free 1-800-333-6900, or www.invacare.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
