Owner’s Operator and Maintenance Manual

Lightweight, Standard and

Heavy Duty Wheelchairs

DEALER: This manual MUST be given to the user of the product.

USER:

manual and save for future reference.

BEFORE using this product, read this

For more information regarding

Invacare products, parts, and services,

please visit www.invacare.com

 WARNING

A QUALIFIED TECHNICIAN MUST PERFORM THE INITIAL SET UP OF THIS WHEELCHAIR. ALSO, A QUALIFIED TECHNICIAN MUST PERFORM ALL PROCEDURES SPECIFICALLY INDICATED IN THE MANUAL.

WHEELCHAIR USERS: DO NOT SERVICE OR OPERATE THIS EQUIPMENT WITHOUT FIRST READING AND UNDERSTANDING (1) THE OWNER’S OPERATOR AND MAINTENANCE MANUAL AND (2) THE SEATING SYSTEM’S MANUAL (IF APPLICABLE). IF YOU ARE UNABLE TO UNDERSTAND THE WARNINGS, CAUTIONS, AND INSTRUCTIONS, CONTACT INVACARE TECHNICAL SUPPORT BEFORE ATTEMPTING TO SERVICE OR OPERATE THIS EQUIPMENT - OTHERWISE INJURY OR DAMAGE MAY RESULT.

DEALERS AND QUALIFIED TECHNICIANS: DO NOT SERVICE OR OPERATE THIS EQUIPMENT WITHOUT FIRST READING AND UNDERSTANDING (1) THE OWNER’S OPERATOR AND MAINTENANCE MANUAL, (2) THE SERVICE MANUAL (IF APPLICABLE) AND (3) THE SEATING SYSTEM’S MANUAL (IF APPLICABLE). IF YOU ARE UNABLE TO UNDERSTAND THE WARNINGS, CAUTIONS AND INSTRUCTIONS, CONTACT INVACARE TECHNICAL SUPPORT BEFORE ATTEMPTING TO SERVICE OR OPERATE THIS EQUIPMENT - OTHERWISE, INJURY OR DAMAGE MAY RESULT.

NOTE: Updated versions of this manual are available on www.invacare.com.

Lightweight, Standard and Heavy Duty Wheelchairs 2 Part No. 1114811

TABLE OF CONTENTS

SPECIAL NOTES ................................................................................ 9

LABEL LOCATION .......................................................................... 11

TYPICAL PRODUCT PARAMETERS .................................................. 12

SECTION 1—GENERAL GUIDELINES ................................................. 14

Stability - All Models ................................................................................................................................14

Anti-Tippers...............................................................................................................................................14

Operating Information.............................................................................................................................15

Tire Pressure .............................................................................................................................................16

Weight Training ........................................................................................................................................17

Weight Limitation.....................................................................................................................................17

SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS ......................... 18

Safety/Handling of Wheelchairs.............................................................................................................18

Stability and Balance.................................................................................................................................18

Coping With Everyday Obstacles.........................................................................................................19

A Note to Wheelchair Assistants ........................................................................................................19

Reaching, Leaning and Bending Forward.............................................................................................20

Reaching and Leaning Backwards..........................................................................................................20

Tipping.........................................................................................................................................................20

Method 1 - Wheelchair With Step Tubes......................................................................................21

Method 2 - Wheelchair Without Step Tubes ...............................................................................21

Stairways.....................................................................................................................................................22

Escalators....................................................................................................................................................23

Transferring To and From Other Seats ..............................................................................................23

Unfolding and Folding Wheelchair .......................................................................................................24

Unfolding................................................................................................................................................24

Folding Wheelchair..............................................................................................................................25

SECTION 3—SAFETY INSPECTION/TROUBLESHOOTING .................... 26

Safety Inspection Checklist.....................................................................................................................26

Inspect/Adjust Initially ...................................................................................................................26

Inspect/Adjust Weekly ..................................................................................................................27

Inspect/Adjust Monthly .................................................................................................................27

Inspect/Adjust Periodically ...........................................................................................................28

Troubleshooting........................................................................................................................................28

Maintenance...............................................................................................................................................29

Maintenance Safety Precautions .......................................................................................................29

Suggested Maintenance Procedures ................................................................................................29

Part No. 1114811 3 Lightweight, Standard and Heavy Duty Wheelchairs

TABLE OF CONTENTS

SECTION 4—FRONT RIGGINGS ........................................................ 31

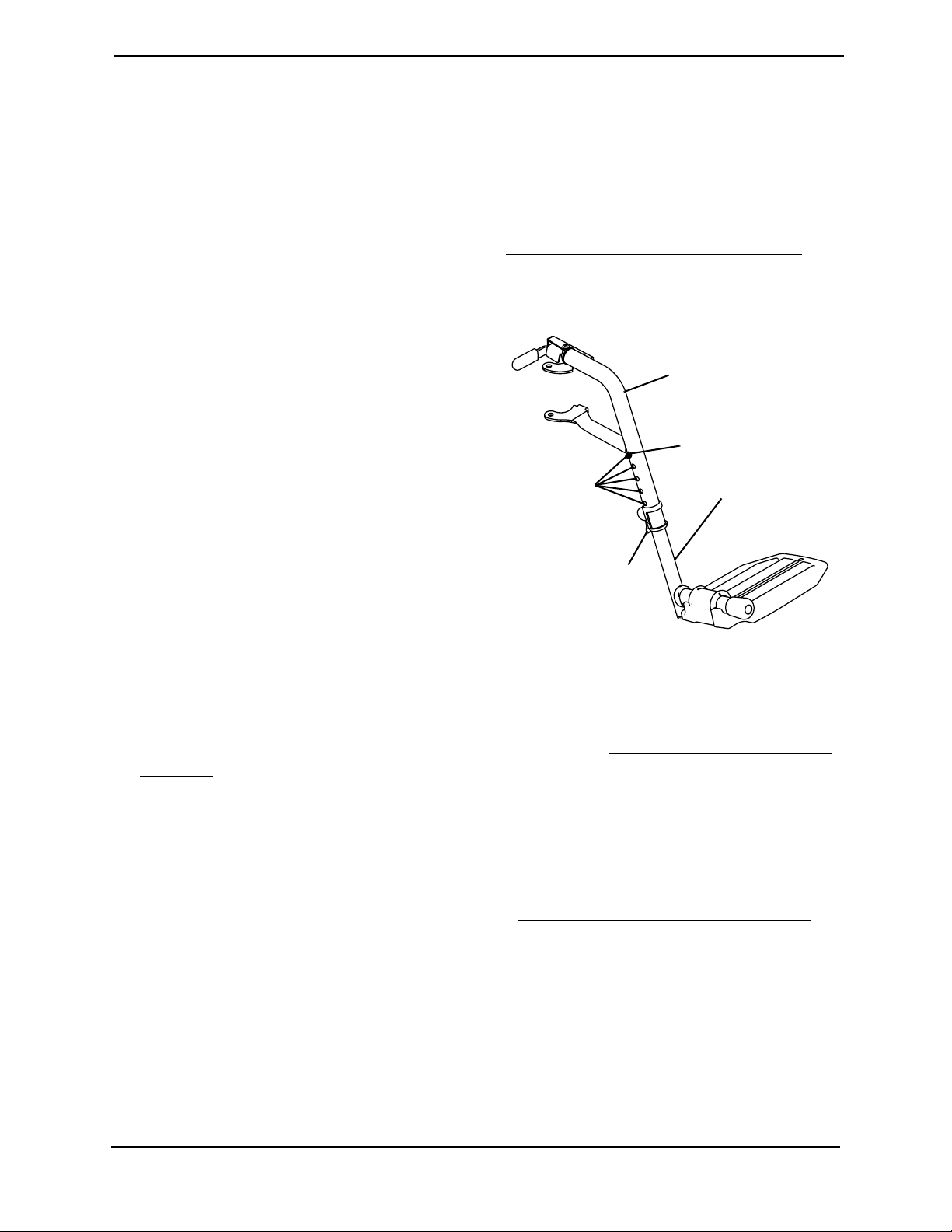

Installing/Removing Front Riggings .......................................................................................................31

Installing..................................................................................................................................................31

Removing ...............................................................................................................................................31

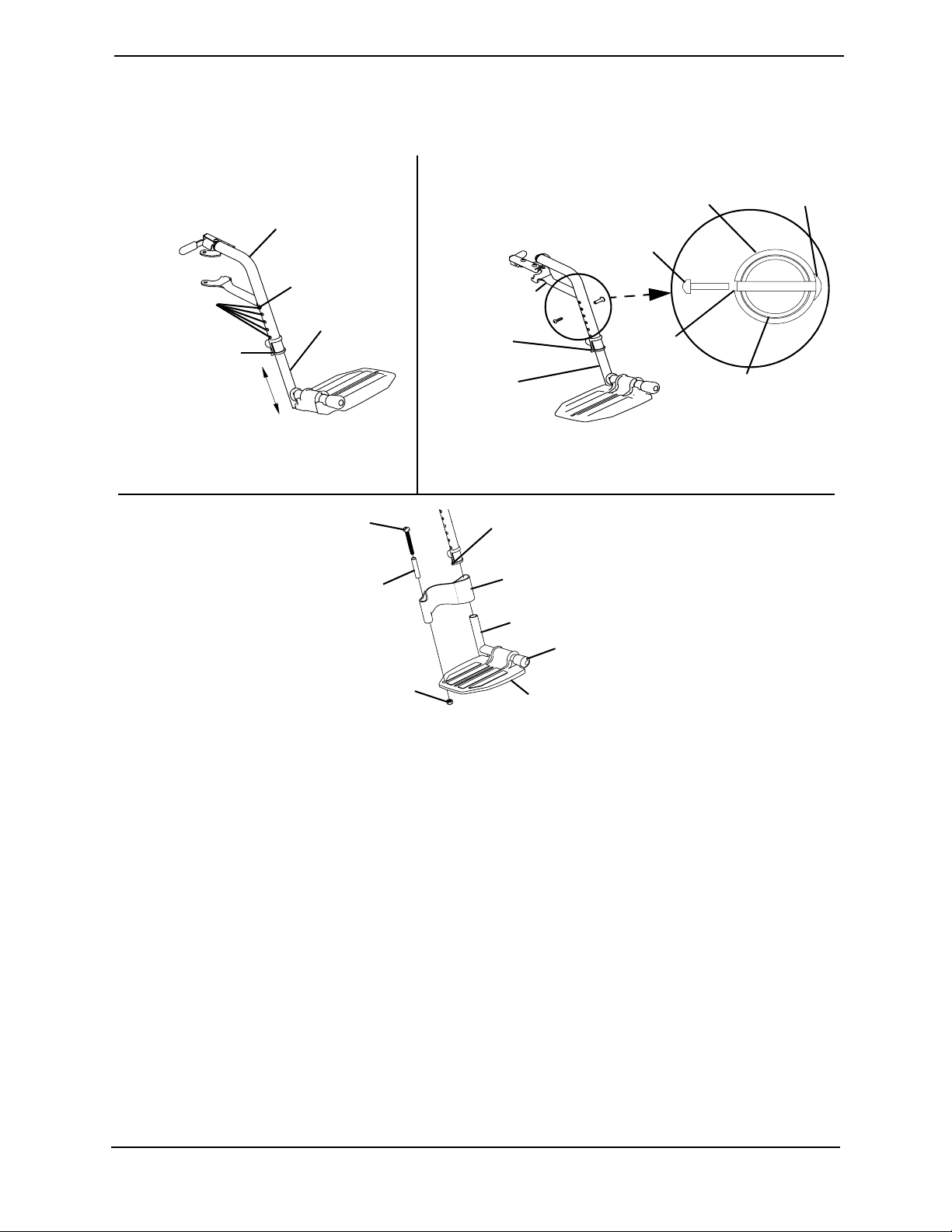

Adjusting Footplate Height.....................................................................................................................32

Spring Button Height...........................................................................................................................32

Bolt-In-Place Height.............................................................................................................................32

Fixed Frame...........................................................................................................................................33

Raising/Lowering Elevating Legrest Assembly....................................................................................34

Installing Impact Guards/Calf Strap ......................................................................................................34

Replacing Heel Loop................................................................................................................................35

SECTION 5—ARMS ......................................................................... 37

Using or Replacing Flip-Back Armrest (Lightweight Wheelchairs Only).....................................37

Using .......................................................................................................................................................37

Replacing ................................................................................................................................................38

Removing/Installing Armrests ................................................................................................................38

Removing Armrest...............................................................................................................................39

Installing Armrest.................................................................................................................................39

SECTION 6—SEAT AND BACK ......................................................... 40

Installing Back Canes (Lightweight Wheelchair Only) .....................................................................40

Replacing Back Upholstery.....................................................................................................................41

Replacing Seat Upholstery......................................................................................................................41

Adjusting Seat Width...............................................................................................................................41

Lightweight and Standard Wheelchairs with Swingaway Front Riggings.................................41

Standard Wheelchair with Fixed Frame .........................................................................................44

Removing Lower Mounting Hardware ......................................................................................44

Removing Upper Mounting Hardware ......................................................................................44

Heavy Duty Wheelchairs ...................................................................................................................44

SECTION 7—REAR WHEELS ............................................................. 47

Removing/Installing Rear Wheels .........................................................................................................47

Replacing Rear Wheel Handrim............................................................................................................48

Replacing/Repairing Rear Wheel Tire..................................................................................................48

SECTION 8—FRONT CASTERS ......................................................... 49

Installing/Replacing/Adjusting Front Casters and Forks...................................................................49

Installing/Replacing Front Casters and Forks.................................................................................49

Adjusting Forks.....................................................................................................................................50

Replacing Front Casters..........................................................................................................................50

Replacing/Repairing Front Caster Tire/Tube .....................................................................................51

Lightweight, Standard and Heavy Duty Wheelchairs 4 Part No. 1114811

TABLE OF CONTENTS

SECTION 9—ANTI-TIPPERS/WHEEL LOCKS ....................................... 52

Installing/Adjusting Anti-tippers ............................................................................................................52

Installing Anti-Tippers .........................................................................................................................52

Adjusting the Anti-Tippers.................................................................................................................53

Using/Adjusting Disk Wheel Locks ......................................................................................................54

Using Patient Operated Disk Wheel Locks...................................................................................54

Adjusting Patient-Operated Wheel Locks .....................................................................................55

Installing Wheel Lock Shoe Extensions...............................................................................................56

SECTION 10—SEAT TO FLOOR ......................................................... 57

Changing Seat-to-Floor Height..............................................................................................................57

SECTION 11—OPTIONS ................................................................... 59

Installing the Seat Positioning Strap......................................................................................................59

Standard and Heavy Duty/Extra Wide Wheelchairs ...................................................................59

Lightweight Wheelchairs....................................................................................................................60

LIMITED WARRANTY ..................................................................... 63

Part No. 1114811 5 Lightweight, Standard and Heavy Duty Wheelchairs

REGISTER YOUR PRODUCT

The benefits of registering:

1. Safeguard your investment.

2. Ensure long term maintenance and servicing of your purchase.

3. Receive updates with product information, maintenance tips, and industry news.

4. Invacare can contact you or your provider, if servicing is needed on your product.

5. It will enable Invacare to improve product designs based on your input and needs.

- or -

Complete and mail the form on the next page

Any registration information you submit will be used by Invacare Corporation only, and

protected as required by applicable laws and regulations.

Lightweight, Standard and Heavy Duty Wheelchairs 6 Part No. 1114811

PRODUCT REGISTRATION FORM

Complete and mail this form

Name _______________________________________________________________

Address _____________________________________________________________

City ___________________State/Province __________

Zip/Postal Code ________

Email ___________________________________ Phone No. _________________

Invacare Model No. ______________________ Serial No. __________________

Purchased From _________________________Date of Purchase: ___________

1. Method of purchase: (check all that apply) ❏ Medicare ❏ Insurance ❏ Medicaid ❏ Other __________________________

2. This product was purchased for use by: (check one) ❏ Self ❏ Parent ❏ Spouse ❏ Other

3. Product was purchased for use at: ❏ Home ❏ Facility ❏ Other

4. I purchased an Invacare product because:

Cut Along Line

❏ Price ❏ Features (list features) _________________________________________

5. Who referred you to Invacare products? (check all that apply)

❏ Doctor ❏ Therapist ❏ Friend ❏ Relative ❏ Dealer/Provider ❏ Other_________ ❏ Advertisement (circle one): TV, Radio, Magazine, Newspaper ❏ No Referral_____

6. What additional features, if any, would you like to see on this product?

7. Would you like information sent to you about Invacare products that may be available for a

__________________________________________________________________________

particular medical condition? ❏ Yes ❏ No If yes, please list any condition(s) here and we will send you information by email and/or mail about any available Invacare products that may help treat, care for or manage such condition(s):

__________________________________________________________________________

Fold here

8. Would you like to receive updated information via email or regular mail about the Invacare home medical products sold by Invacare's dealers? ❏ Yes ❏ No

9. What would you like to see on the Invacare website?

__________________________________________________________________________

10. Would you like to be part of future online surveys for Invacare products? ❏ Yes ❏ No

11. User's Year of birth: ______________________________________________________

If at any time you wish not to receive future mailings from us, please contact us at Invacare Corporation, CRM Department, 39400 Taylor Parkway, Elyria, OH 44035, or fax to 877-619-7996 and we will remove you from our mailing list.

To find more information about our products, visit www.invacare.com.

Part No. 1114811 7 Lightweight, Standard and Heavy Duty Wheelchairs

Fold

here

Fold

here

Cut Along Line

Invacare Product Registration Form

Please Seal with

Tape Before Mailing

Lightweight, Standard and Heavy Duty Wheelchairs 8 Part No. 1114811

SPECIAL NOTES

Signal words are used in this manual and apply to hazards or unsafe practices which could result in personal injury or property damage. Refer to the following table for definitions of the signal words.

SIGNAL WORD MEANING

DANGER Danger indicates an imminently hazardous situation which, if not avoided, will result in

death or serious injury.

WARNING Warning indicates a potentially hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION Caution indicates a potentially hazardous situation which, if not avoided, may result in

property damage.

NOTICE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.

WHEELCHAIR USER

As a manufacturer of wheelchairs, Invacare endeavors to supply a wide variety of wheelchairs to meet many needs of the end user. However, final selection of the type of wheelchair to be used by an individual rests solely with the user and his/her healthcare professional capable of making such a selection.

WHEELCHAIR TIE-DOWN RESTRAINTS AND SEAT RESTRAINTS

Wheelchair users should NOT be transported in vehicles of any kind while in wheelchairs. As of this date, the Department of Transportation has not approved any tie-down systems for transportation of a user while in a wheelchair, in a moving vehicle of any type.

It is Invacare’s position that users of wheelchairs should be transferred into appropriate seating in vehicles for transportation and use be made of the restraints made available by the auto industry. Invacare cannot and does not recommend any wheelchair transportation systems.

SEAT POSITIONING STRAP

ALWAYS wear your seat positioning strap. Inasmuch as the seat positioning strap is an option on this wheelchair (you may order with or without the seat positioning strap), Invacare strongly recommends ordering the seat positioning strap as an additional safeguard for the wheelchair user. The seat positioning strap is a positioning belt only. It is not designed for use as a safety device withstanding high stress loads such as auto or aircraft safety belts. If signs of wear appear, belt MUST be replaced immediately.

As regards restraints - seat positioning straps - it is the obligation of the DME dealer, therapists and other healthcare professionals to determine if a seating restraint is required to ensure the safe operation of this equipment by the user. Serious injury can occur in the event of a fall from a wheelchair.

Part No. 1114811 9 Lightweight, Standard and Heavy Duty Wheelchairs

SPECIAL NOTES

 WARNING

Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories. Accessories designed by other manufacturers have not been tested by Invacare and are not recommended for use with Invacare products.

Lightweight, Standard and Heavy Duty Wheelchairs 10 Part No. 1114811

LABEL LOCATION

IMPORTANT NOTICE

The wheel locks on this wheelchair have been pre-set at the factory to comply with the Veterans Administration functional Standard

8320.01 of the Federal Register, paragraph

3.2.4.5.3. If these wheel locks do not meet your needs, follow instructions below.

CAUTION

Any wheel lock adjustments should embed wheel lock shoe at least 1/8" into tire when locked (3/16" on pneumatic tires).

INSTRUCTIONS FOR WHEEL

LOCK ADJUSTMENTS

1. Loosen wheel lock mounting fastener, which runs through mounting bracket and frame.

2. Slide clamp toward rear wheel until wheel lock shoe is embedded into tire material at least 1/8" when handle is engaged to the lock position (3/16" for pneumatic tires).

3. Tighten mounting fastener to secure mounting bracket in desired location and recheck lock shoe embedding.

4. Inspect for correct locking action BEFORE actual use.

00078X021-0394

Standard and

Lightweight

Wheelchairs Only

NOTE: On all adjustable anti-tippers

WARNING

Refer to Owner's Manual for proper anti-tipper setting.

1085379

LABEL LOCATION

Crossmember

Lower Frame

Tube

Heavy Duty

Wheelchairs Only

WARNING

DO NOT OPERATE WITHOUT

THE ANTI-TIP TUBES

REV. 5/98

Part No. 1114811 11 Lightweight, Standard and Heavy Duty Wheelchairs

INSTALLED.

P/N 60106X144

TYPICAL PRODUCT PARAMETERS

LIGHTWEIGHT

OVERALL WIDTH 24½, 26½, and 28½ inches

OVERALL DEPTH

(WITHOUT FRONT RIGGINGS)

SEAT WIDTH 16 or 18 inches and 20 inches

SEAT DEPTH 16 inches

SEAT-TO-FLOOR**

(WITH 24-INCH WHEELS) ADULT: HEMI:

BACK STYLE Sectional

BACK HEIGHT 16 or 18 inches

ARM STYLES Fixed Height; Desk or Full Length; Flip Back

FRONT RIGGINGS Swingaway Footrests, Elevating Legrests

REAR AXLE Permanent

REAR WHEELS 24*-inch Composite* Urethane*, Pneumatic or Pneumatic Flat Free Insert

HANDRIMS Composite*, Black Painted Aluminum

31-7/8-inches

19½ inches 17½ inches

WHEEL LOCKS Push to Lock (Adult), Pull to Lock (Hemi)

CASTER SIZE 8x1-inch Solid Rubber* and 8x1¼ inch Pneumatic or Pneumatic Flat Free

Insert

UPHOLSTERY Black Nylon

WEIGHT*** 33¾ pounds

SHIPPING WEIGHT*** (APPROX.) 43½ pounds

WEIGHT LIMIT 250 lbs (114 kg)

*NOTE: These options are standard for this model.

**NOTE: The seat-to-floor heights are based on urethane tires. If wheelchair is equipped with pneumatic (properly inflated) or solid rubber tires, add ¼ inch to the measurements listed above. These heights can vary ±¼ inch due to tire wear and manufacturing tolerances.

***NOTE: Weights based on 18x16 inch wheelchair without front riggings. Weights will vary depending on how wheelchair is equipped.

STANDARD HEAVY DUTY

OVERALL WIDTH

PERMANENT ARM: REMOVABLE ARM:

OVERALL DEPTH

(WITHOUT FRONT RIGGINGS)

23¼, 25¼, 27¼ inches 24½, 26½, 28½ inches

31-7/8-inches 33½ inches

N/A 28¼, 30¼, 32¼ inches

SEAT WIDTH 16, 18 and 20 inches 20, 22 and 24 inches

Lightweight, Standard and Heavy Duty Wheelchairs 12 Part No. 1114811

TYPICAL PRODUCT PARAMETERS

STANDARD HEAVY DUTY

SEAT DEPTH

SA FRAME: FF FRAME:

SEAT-TO-FLOOR**

(WITH 24-INCH WHEELS) ADULT:

HEMI:

BACK STYLE Fixed

BACK HEIGHT 16 inches

16 inches 16 inches

19½ inches (SA Frame) 21 inches (FF Frame) 17½ inches (N/A on FF)

18 inches N/A

19½ inches (SA Frame)

17½ inches

ARM STYLES Fixed Height; Desk or Full Length;

Permanent or Removable

FRONT RIGGINGS Swingaway Footrests, Elevating Legrests, (N/A on FF)

REAR AXLE Permanent

REAR WHEELS 24*-inch Composite* Urethane*,

Pneumatic or Pneumatic-Flat Free Insert

HANDRIMS Composite*, Chrome Plated Steel Chrome Plated Steel

WHEEL LOCKS Push to Lock* (Adult*), Pull to Lock (Hemi*)

CASTER SIZE 8x1 inch Solid Rubber*

8x1¼ inch Pneumatic or Pneumatic Flat Free Insert

UPHOLSTERY Vinyl - Midnight Blue*, Ruby, or Black

FRAME COLORS Chrome* and colors

WEIGHT*** (APPROX.) SA FRAME

PERMANENT ARM: REMOVABLE ARM:

FF FRAME

SHIPPING WEIGHT*** (APPROX.) SA FRAME

PERMANENT ARM: REMOVABLE ARM:

FF FRAME

36 pounds 36 pounds 37 pounds

45½ pounds 45½ pounds 46½ pounds

Fixed Height; Desk or Full Length; Removable

24 inch Composite Corded Urethane

8x1¼inch Urethane

N/A 42 pounds N/A

N/A 52 pounds N/A

WEIGHT LIMIT 250 lbs (114 kg) 350 pounds (159 kg)

*NOTE: These options are standard for this model.

***NOTE: Weights based on 18 inch wide standard wheelchair and 20 inch wide Heavy Duty wheelchair without front riggings. Weights will vary depending on how wheelchair is equipped.

Part No. 1114811 13 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 1—GENERAL GUIDELINES

 WARNING

SECTION 1 - GENERAL GUIDELINES contains important information for the safe operation and use of this product. DO NOT use this product or any available optional equipment without first completely reading and understanding these instructions and any additional instructional material such as owner’s manuals, service manuals or instruction sheets supplied with this product or optional equipment. If you are unable to understand the Warnings, Cautions or Instructions, contact a healthcare professional, dealer or technical personnel before attempting to use this equipment. Otherwise, injury or damage may occur.

Stability - All Models

The seat depth, size/position of the front casters, size/position of the rear wheels, anti-tipper model, as well as the user condition directly relate to the stability of the wheelchair. Any change to one or any combination of the seven may cause the wheelchair to decrease in stability. These adjustments MUST be performed by a qualified technician.

NOTE: When changes to the left hand column occur, follow across the chart and refer to the procedure that is checked to maintain the proper stability, safety and handling of the wheelchair.

SEAT DEPTH

CASTER SIZE

CASTER POSITION

WHEEL SIZE

WHEEL POSITION

USER CONDITION

SEAT DEPTH

CASTER SIZE

• X X X X N/A X

N/A • X X X X X

N/A X • X X X X

N/AXX • XXX

N/AXXX • XX

XXXXXX •

CASTER POSITION

WHEEL SIZE

WHEEL POSITION

ANTI-TIPPERS

USER CONDITION

The various seat-to-floor heights require specific settings depending on rear wheel size, rear wheel position, and front caster size/position. These adjustments MUST be performed by a qualified technician.

Anti-Tippers

Anti-tippers are specific to the different seat-to-floor heights. Refer to the charts in Installing/Adjusting Anti-tippers requirements cannot be achieved, DO NOT use the wheelchair. Contact a qualified technician.

Lightweight, Standard and Heavy Duty Wheelchairs 14 Part No. 1114811

on page 52 for correct usage and adjustment. If these

SECTION 1—GENERAL GUIDELINES

If changing the seat-to-floor height, the correct anti-tippers MUST be used to maintain a 1½ to 2-inch ground clearance.

Anti-tippers MUST be attached at all times. Inasmuch as the anti-tippers are an option for this wheelchair (you may order with or without the anti-tippers), Invacare strongly recommends ordering the anti-tippers as a safeguard for the wheelchair user.

Anti-tippers MUST be fully engaged. Ensure that the release button of the anti-tipper fully protrudes out of the hole on the bottom of the wheelchair frame. Ensure both anti-tippers are adjusted to the same height.

ALWAYS use anti-tippers. When outdoors on wet, soft ground or on gravel surfaces, anti tippers may not provide the same level of protection against tipover. Extra caution must be observed when traversing such surfaces.

Operating Information

After ANY adjustments, repair or service and BEFORE use, make sure all attaching hardware is tightened securely - otherwise injury or damage may result.

Unless otherwise noted, all service and adjustment should be performed while the wheelchair is unoccupied.

To determine and establish your particular safety limits, practice bending, reaching and transferring activities in several combinations in the presence of a qualified healthcare professional before attempting active use of the wheelchair.

When cleaning rear cane or hand grip areas use only a clean towel lightly dampened with cool water. Verify that grips are dry prior to use. Use of soap or ammonia based cleaning solutions will result in the hand grips sliding off the cane assembly. Failure to observe this warning may result in injury to the user or bystanders.

If the wheelchair is exposed to extreme temperature (above 100°F or below 32°F), high humidity and/or becomes wet, prior to use, ensure that the handgrips do not twist on the handle. Otherwise, damage or injury may occur.

Avoid storing or using the wheelchair near open flame or combustible products. Serious injury or damage to property may result.

ALWAYS keep hands and fingers clear of moving parts to avoid injury.

DO NOT traverse, climb or go down ramps or slopes greater than 9°.

DO NOT attempt to move up or down an incline with a water, ice or oil film.

NEVER leave an unoccupied wheelchair on an incline.

DO NOT operate on roads, streets or highways.

DO NOT attempt to ride over curbs or obstacles. Doing so may cause your wheelchair to tip over and cause bodily harm to you or damage to the wheelchair.

DO NOT attempt to reach objects if you have to move forward in the seat.

DO NOT attempt to reach objects if you have to pick them up from the floor by reaching down between your knees.

Part No. 1114811 15 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 1—GENERAL GUIDELINES

DO NOT lean over the top of the back upholstery to reach objects behind you, as this may cause the wheelchair to tip over.

DO NOT shift your weight or sitting position toward direction you are reaching as the wheelchair may tip over.

DO NOT attempt to stop a moving wheelchair with wheel locks. Wheel locks are not brakes.

DO NOT tip the wheelchair without assistance.

DO NOT use an escalator to move a wheelchair between floors. Serious bodily injury may occur.

Before attempting to transfer in or out of the wheelchair, every precaution should be taken to reduce the gap distance. Turn both casters parallel to the object you are transferring onto. When transferring to and from the wheelchair, ALWAYS engage both wheel locks.

DO NOT attempt to lift the wheelchair by any removable (detachable) parts. Lifting by means of any removable (detachable) parts of the wheelchair may result in injury to the user or damage to the wheelchair.

DO NOT stand on the frame of the wheelchair.

DO NOT stand on the footplates. When getting in or out of the wheelchair, make sure that the footplates are in the upward position or swing the footrests toward the outside of the wheelchair.

ALWAYS use the handrims for self-propulsion. Inasmuch as the handrims are an option on this wheelchair (you may order with or without the handrims), Invacare strongly recommends ordering the handrims as an additional safeguard for the wheelchair user.

Tire Pressure

DO NOT use your wheelchair unless it has the proper tire pressure (p.s.i.). DO NOT overinflate the tires. Failure to follow these instructions may cause the tire to explode and cause bodily harm. The recommended tire pressure is listed on the side wall of the tire. Replacement of a pneumatic tire or tube MUST be performed by a qualified technician.

Lightweight, Standard and Heavy Duty Wheelchairs 16 Part No. 1114811

SECTION 1—GENERAL GUIDELINES

Weight Training

Invacare does not recommend the use of its wheelchairs as a weight training apparatus. Invacare wheelchairs have not been designed or tested as a seat for any kind of weight training. If occupant uses said wheelchair as a weight training apparatus, Invacare shall not be liable for bodily injury or damage to the wheelchair and the warranty is void.

Weight Limitation

The Standard and Lightweight wheelchairs have a weight limitation of 250 lbs (114 kgs). The Heavy Duty wheelchair has a weight limitation of 350 lbs (159 kgs).

Part No. 1114811 17 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS

Safety/Handling of Wheelchairs

Safety and handling of the wheelchair require the close attention of the wheelchair user as well as the assistant. This manual points out the most common procedures and techniques involved in the safe operation and maintenance of the wheelchair. It is important to practice and master these safe techniques until you are comfortable in maneuvering around the frequently encountered architectural barriers.

Use this information only as a basic guide. The techniques that are discussed on the following pages have been used successfully by many.

Individual wheelchair users often develop skills to deal with daily living activities that may differ from those described in this manual. Invacare recognizes and encourages each individual to try what works best for him/her in overcoming architectural obstacles that they may encounter. However, all warnings and cautions given in this manual MUST be heeded. Techniques in this manual are a starting point for the new wheelchair user and assistant with safety as the most important consideration for all.

Stability and Balance

 WARNING

To assure stability and proper operation of your wheelchair, you MUST maintain proper balance at all times. Your wheelchair has been designed to remain upright and stable during normal daily activities as long as you do not move beyond the center of gravity.

Virtually all activities which involve movement in the wheelchair have an effect on the center of gravity. Invacare recommends using seat/chest positioning straps for additional safety while involved in activities that shift your weight.

DO NOT lean forward out of the wheelchair any further than the length of the armrests. Make sure the casters are pointing in the forward position whenever you lean forward. This can be achieved by advancing the wheelchair and then reversing it in a straight line.

Lightweight, Standard and Heavy Duty Wheelchairs 18 Part No. 1114811

SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS

Coping With Everyday Obstacles

Coping with the irritation of everyday obstacles can be alleviated somewhat by learning how to manage your wheelchair. Keep in mind your center of gravity to maintain stability and balance.

A Note to Wheelchair Assistants

When assistance to the wheelchair user is required, remember to use good body mechanics. Keep your back straight and bend your knees whenever tipping the wheelchair or traversing curbs, or other impediments.

ALWAYS check hand grips for looseness before using the wheelchair. If loose and/or worn, replace immediately. If the wheelchair is exposed to extreme temperature (above 100°F or below 32°F), high humidity and/or becomes wet, prior to use, ensure handgrips do not twist on the wheelchair’s handle - otherwise damage or injury may occur.

Also, be aware of detachable parts such as armrests or legrests. These must NEVER be used to move the wheelchair or as lifting supports, as they may be inadvertently released, resulting in possible injury to the user and/or assistant(s).

When learning a new assistance technique, have an experienced assistant help you before attempting it alone.

 WARNING

DO NOT attempt to reach objects if you have to move forward in the seat or pick them up from the floor by reaching down between your knees.

Many activities require the wheelchair owner to reach, bend and transfer in and out of the wheelchair. These movements will cause a change to the normal balance, the center of gravity, and the weight distribution of the wheelchair. To determine and establish your particular safety limits, practice bending, reaching and transferring activities in several combinations in the presence of a qualified healthcare professional before attempting active use of the wheelchair.

Proper positioning is essential for your safety. When reaching, leaning, or bending forward, it is important to use the front casters as a tool to maintain stability and balance.

Part No. 1114811 19 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS

Reaching, Leaning and Bending Forward

 WARNING

DO NOT attempt to reach objects if you have to move forward in the seat or pick them up from the floor by reaching down between your knees.

NOTE: For this procedure, refer to FIGURE 2.1.

Position the front casters so that they are extended as far forward as possible and engage wheel locks.

FIGURE 2.1 Reaching, Leaning and Bending

Forward

Reaching and Leaning Backwards

 WARNING

DO NOT lean over the top of the back upholstery to reach objects behind you, as this may cause the wheelchair to tip over.

NOTE: For this procedure, refer to FIGURE 2.2.

Position wheelchair as close as possible to the desired object. Point front casters forward to create the longest possible wheelbase. Reach back only as far as your arm will extend without changing your sitting position.

FIGURE 2.2 Reaching and Leaning

Tipping

Backwards

 WARNING

DO NOT tip the wheelchair without assistance.

When tipping the wheelchair, an assistant should grasp the back of the wheelchair on a non-removable (non-detachable) part. Inform the wheelchair occupant before tipping the wheelchair and remind him/her to lean back. Be sure the occupant’s feet and hands are clear of all wheels and/or pinch points.

Lightweight, Standard and Heavy Duty Wheelchairs 20 Part No. 1114811

SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS

After mastering the techniques of tipping the wheelchair, use one of the following methods to tackle curbs, short stairs, etc.

Method 1 - Wheelchair With Step Tubes

NOTE: For this procedure, refer to FIGURE 2.3.

Place foot on the step tube and begin to tilt the wheelchair toward you. Apply a continuous downward motion until the balance point is achieved and the front casters clear the curb. At this point, the assistant will feel a difference in the weight distribution.

 WARNING

When lowering the front casters of the wheelchair, DO NOT let the wheelchair drop the last few inches to the ground. This could result in injury to the occupant and/or damage to the wheelchair.

Roll the wheelchair forward and slowly lower the front of the wheelchair in one continuous movement onto the sidewalk. Push the wheelchair forward until the rear wheels roll up and over the curb.

FIGURE 2.3 Method 1 - Wheelchair With

Step Tube

Step Tubes

Method 2 - Wheelchair Without Step Tubes

 WARNING

ALWAYS check hand grips for looseness before using the wheelchair. If loose and/or worn, replace immediately.

NOTE: For this procedure, refer to FIGURE 2.4.

This method requires two assistants. The second assistant should be positioned at the front of the wheelchair lifting upward on a non-removable (non-detachable) part of the wheelchair frame when lifting the wheelchair and stabilizing the wheelchair when the wheelchair is being lowered to the ground.

FIGURE 2.4 Method 2 - Wheelchair

Without Step Tubes

Part No. 1114811 21 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS

The first assistant should stand on the sidewalk and turn the wheelchair so that the rear wheels are against the curb. Turn the anti-tippers so the anti-tip wheels are pointing up. The wheelchair should be tilted back to the balance point and, in one continuous upward movement, the rear wheels should be pulled up and over the curb. DO NOT return the front casters to the ground until the wheelchair has been pulled backward far enough for the front casters to clear the edge of the curb.

 WARNING

When lowering the front casters of the wheelchair, DO NOT let the wheelchair drop the last few inches to the ground. This could result in injury to the occupant and/or damage to the wheelchair.

Roll the wheelchair backward and slowly lower the wheelchair in one continuous movement. Turn the anti-tippers so the anti-tip wheels are facing down.

Stairways

 WARNING

DO NOT attempt to lift a wheelchair by lifting on any removable (detachable) parts. Lifting by means of any removable (detachable) parts of the wheelchair may result in injury to the user or damage to the wheelchair.

ALWAYS check hand grips for looseness before using the wheelchair. If loose and/or worn, replace immediately.

Extreme caution is advised when it is necessary to move an occupied wheelchair up or down the stairs. Invacare recommends that, if possible, the user be removed from the wheelchair prior to moving. Invacare recommends using two assistants and making thorough preparations. Make sure to use only secure, non-detachable parts for hand-held supports.

NOTE: For this procedure, refer to FIGURE 2.5 on page 23.

Lightweight, Standard and Heavy Duty Wheelchairs 22 Part No. 1114811

SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS

Follow this procedure for moving the wheelchair between floors when an elevator is not available:

1. If necessary, rotate the anti-tippers so the wheels are facing up.

2. After the wheelchair has been tilted back to the balance point, one assistant (in the rear) backs the wheelchair up against the first step, while securely grasping a non-removable (non-detachable) part of the wheelchair for leverage.

3. The second assistant, with a firm hold on a non-detachable part of the framework, lifts the wheelchair up and over the stair and steadies the wheelchair as the first assistant places one foot on the next stair and repeats STEP 1.

4. The wheelchair should not be lowered until the last stair has been negotiated and the wheelchair has been rolled away from the stairway.

FIGURE 2.5 Stairways

5. If necessary, rotate the anti-tippers so the wheels are facing down.

Escalators

 WARNING

DO NOT use an escalator to move a wheelchair between floors. Serious bodily injury may occur.

Transferring To and From Other Seats

 WARNING

Before attempting to transfer in or out of the wheelchair, every precaution should be taken to reduce the gap distance. Turn both casters parallel to the object you are transferring onto. Also be certain the wheel locks are engaged to help prevent the wheels from moving.

CAUTION

When transferring, position yourself as far back as possible in the seat. This will help prevent damaged upholstery and the possibility of the wheelchair tipping forward.

Part No. 1114811 23 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS

NOTE: For this procedure, refer to FIGURE 2.6.

NOTE: This activity may be performed independently provided you have adequate mobility and upper body strength.

Position the wheelchair as close as possible alongside the seat to which you are transferring, with the front casters pointing parallel to it. Remove or flip up the armrest. Engage wheel locks. Swing away or remove front rigging. Shift body weight into seat with transfer.

During independent transfer, little or no seat platform will be beneath you. Use a transfer board if at all possible.

FIGURE 2.6 Transferring To and From

Other Seats

Unfolding and Folding Wheelchair

 WARNING

ALWAYS keep hands and fingers clear of moving parts to avoid injury.

DO NOT place hand or fingers on the underside of the seat frame rail when opening or closing the wheelchair.

DO NOT sit or transfer into the wheelchair unless it is fully open and the seat frame rails are fully seated into the side frame H-blocks.

Invacare recommends that a non-folding device be installed to keep the wheelchair from being folded when left unoccupied in a public place.

Unfolding

NOTE: For this procedure, refer to FIGURE 2.7 on page 25.

1. Tilt the wheelchair toward you (raising the opposite wheel and caster off the ground/floor).

2. Place your hand on the top of the seat rail closest to you where the seat upholstery is attached.

3. Point your fingers and thumb to the inside of the wheelchair.

4. Press downward on the top of the seat rail until the wheelchair is fully open and the seat rails are fully seated in the H-blocks.

5. Engage both wheel locks, open the footrest/legrest for clearance and transfer into the wheelchair. Refer to Transferring To and From Other Seats

Lightweight, Standard and Heavy Duty Wheelchairs 24 Part No. 1114811

on page 23.

Seat Rail

H-Blocks

SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS

NOTE: DO NOT wrap thumb or fingers under the seat rail. Point fingers and thumb to the inside of the wheelchair.

FIGURE 2.7 Unfolding

Folding Wheelchair

NOTE: For this procedure, refer to FIGURE 2.8.

1. Swing footrest/legrest in locked position to the front of the wheelchair.

2. Pivot footplates upward to vertical position.

3. With both hands, grasp the middle of the seat upholstery at the front and back edge and lift up.

CAUTION

DO NOT allow upholstery to hang between the cross braces.

NOTE: Press down on the seat rail and the seat upholstery with the entire hand. DO NOT place any part of the hand under the seat rail.

4. Place excess seat upholstery over the armrest.

Part No. 1114811 25 Lightweight, Standard and Heavy Duty Wheelchairs

FIGURE 2.8 Folding Wheelchair

SECTION 3—SAFETY INSPECTION/TROUBLESHOOTING

NOTE: Every six months or as necessary, take your wheelchair to a qualified technician for a thorough inspection and servicing. Regular cleaning will reveal loose or worn parts and enhance the smooth operation of your wheelchair. To operate properly and safely, your wheelchair must be cared for just like any other vehicle. Routine maintenance will extend the life and efficiency of your wheelchair.

Safety Inspection Checklist

Initial adjustments should be made to suit your personal body structure and preference. Thereafter follow these maintenance procedures:

Inspect/Adjust Initially

❑ Ensure that the wheelchair rolls straight (no excessive drag or pull to one side).

❑ Inspect for loose/missing/broken hardware in all locations.

❑ Inspect for bent frame or crossbraces.

❑ Check that the wheel locks do not interfere with tires when rolling.

❑ Check that the wheel lock pivot points are free of wear and looseness.

❑ Check that the wheel locks are easy to engage.

❑ Ensure that the wheel locks prevent the wheelchair from moving when engaged.

❑ Inspect the seat and back for rips and sagging.

❑ Inspect the seat and back for loose or broken hardware.

❑ Inspect the back cane hand grips for wear/looseness/deterioration.

❑ Inspect seat positioning strap for any signs of wear. Ensure buckle latches. Verify

hardware that attaches strap to frame is secure and undamaged. Replace if necessary.

❑ Inspect tires for flat spots and wear.

❑ Check pneumatic tires for proper inflation.

CAUTION

As with any vehicle, check the wheels and tires periodically for cracks and wear. Replace if damaged.

❑ Check that there is no excessive side movement or binding in the rear wheels when

lifted and spun.

❑ Inspect rear wheels for cracks and wear (hub and rim).

❑ Inspect rear wheels for cracked, bent or broken spokes.

Lightweight, Standard and Heavy Duty Wheelchairs 26 Part No. 1114811

SECTION 3—SAFETY INSPECTION/TROUBLESHOOTING

❑ Ensure all spokes are uniformly tight.

❑ Inspect handrims for signs of rough edges or peeling.

❑ Inspect axle assembly for proper tension by spinning caster. Caster should come to a

gradual stop.

❑ Adjust front casters/forks bearing system if wheel wobbles noticeably or binds to a

stop.

❑ Ensure wheel bearings are clean and free of moisture.

❑ Check headtube locknuts for tightness.

❑ Inspect casters for cracks and wear (hub and rim).

❑ Inspect front casters for cracked, bent or broken spokes.

❑ Clean upholstery and armrests.

❑ Check front riggings for rough/sharp edges and wear.

❑ Check that all labels are present and legible. Replace if necessary.

Inspect/Adjust Weekly

❑ Ensure that the wheel locks prevent the wheelchair from moving when engaged.

❑ Inspect tires for flat spots and wear.

❑ Check pneumatic tires for proper inflation.

❑ Inspect rear wheels for cracked, bent or broken spokes.

❑ Ensure all spokes are uniformly tight.

❑ Inspect axle assembly for proper tension by spinning caster. Caster should come to a

gradual stop.

❑ Inspect front caster for cracked, bent or broken spokes.

Inspect/Adjust Monthly

❑ Check that the wheel locks do not interfere with tires when rolling.

❑ Check that the wheel lock pivot points are free of wear and looseness.

❑ Inspect seat and back for loose or broken hardware.

❑ Inspect seat positioning strap for any signs of wear. Ensure buckle latches. Verify

hardware that attaches strap to frame is secure and undamaged. Replace if necessary.

❑ Inspect back cane hand grips for wear/looseness/deterioration.

❑ Adjust front casters/forks bearing system if wheel wobbles noticeably or binds to a

stop.

❑ Ensure wheel bearings are clean and free of moisture.

❑ Check headtube locknuts for tightness.

Part No. 1114811 27 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 3—SAFETY INSPECTION/TROUBLESHOOTING

Inspect/Adjust Periodically

❑ Ensure that the wheelchair rolls straight (no excessive drag or pull to one side).

❑ Inspect for loose/missing/broken hardware in all locations.

❑ Inspect frame and crossbraces for loose or missing hardware.

❑ Inspect for bent frame or crossbraces.

❑ Check that wheel locks are easy to engage.

❑ Inspect seat and backs for rips and sagging.

❑ Check that there is no excessive side movement or binding in the rear wheels when

lifted and spun.

❑ Inspect rear wheels for cracks and wear (hub and rim).

❑ Inspect rear wheels for cracked, bent or broken spokes.

❑ Inspect handrims for signs of rough edges or peeling.

❑ Adjust front casters/forks bearing system if wheel wobbles noticeably or binds to a

stop.

❑ Ensure wheel bearings are clean and free of moisture.

❑ Inspect casters for cracks and wear (hub and rim).

❑ Ensure that casters are free of debris.

❑ Clean upholstery and armrests.

❑ Check front riggings for rough/sharp edges and wear.

❑ Check that all labels are present and legible. Replace if necessary.

Troubleshooting

Chair Veers Right/ Left

XX X X

Chair 3 Wheels

Sluggish Turn or Performance

Casters Flutter

Squeaks and Rattles

Looseness in Chair

Solutions

If pneumatic, check

tires for correct and

equal pressure

Check for loose stem

XXXXX

Lightweight, Standard and Heavy Duty Wheelchairs 28 Part No. 1114811

nuts and bolts.

SECTION 3—SAFETY INSPECTION/TROUBLESHOOTING

Maintenance

Maintenance Safety Precautions

 WARNING

After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely. Otherwise injury or damage may result.

CAUTION

DO NOT overtighten hardware attaching to the frame. This could cause damage to the frame tubing.

Suggested Maintenance Procedures

1. Before using your wheelchair, make sure all nuts and bolts are tight. Check all parts for damage or wear and replace. Check all parts for proper adjustment.

 WARNING

DO NOT use the wheelchair unless it has the proper tire pressure (p.s.i.). DO NOT overinflate the tires. Failure to follow these instructions may cause the tire to explode and cause bodily harm.

2. If tires are pneumatic, recommended tire pressure is listed on the sidewall of the tire.

CAUTION

As with any vehicle, the rear wheels, casters and tires should be checked periodically for cracks and wear, and should be replaced.

3. The rear wheels, casters and tires should be checked periodically for cracks and wear, and should be replaced by a qualified technician.

4. Periodically check handrims to ensure they are secured to the rear wheels. If loose, have them tightened by a qualified technician.

5. Periodically adjust wheel locks as tires wear. Refer to Using/Adjusting Disk Wheel Locks on page 54.

6. Periodically check caster and rear wheel bearings to make sure they are clean and free from moisture. Use a Teflon

® lubricant if necessary.

Part No. 1114811 29 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 3—SAFETY INSPECTION/TROUBLESHOOTING

 WARNING

7. Hand grips should be checked monthly for wear/looseness. Clean if desired.

8. Check upholstery for sagging, rips or tears.

Lightweight, Standard and Heavy Duty Wheelchairs 30 Part No. 1114811

SECTION 4—FRONT RIGGINGS

 WARNING

After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely. Otherwise injury or damage may occur.

Installing/Removing Front Riggings

NOTE: For this procedure, refer to FIGURE 4.1.

Installing

1. Turn the front rigging assembly to the side (open front rigging is perpendicular to wheelchair).

Front Rigging

Release Lever

2. Install the hinge plates on the front rigging assembly onto the hinge pins on the wheelchair frame.

3. Push the front rigging assembly towards the inside of the wheelchair until it locks into place.

NOTE: The footplate will be on the inside of the wheelchair when locked in place.

4. Repeat this procedure for the other front rigging assembly.

5. To release the front rigging, push the front rigging release lever inward, rotate front rigging outward.

Hinge

Pins

NOTE: Swingaway footrest shown.

FIGURE 4.1 Installing/Removing Front

Removing

1. Push the front rigging release lever inward

2. Rotate swingaway front rigging assembly outward.

Front Rigging

Assembly

Footplate

Hinge Plates

Riggings

3. Lift the swingaway front rigging assembly off the hinge pins.

Part No. 1114811 31 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 4—FRONT RIGGINGS

Adjusting Footplate Height

Spring Button Height

NOTE: For this procedure, refer to FIGURE 4.2.

NOTE: This procedure applies to the swingaway front riggings and swingaway elevating legrest.

1. Remove the front rigging assembly. Refer to Installing/Removing Front Riggings on page 31.

NOTE: Lay the front rigging assembly on a flat surface to simplify this procedure.

2. Pull the cam lock lever up to unlocked position.

NOTE: The elevating legrest has two sets of release buttons, one set above the other. Each set will be visible one at a time allowing finer footplate height adjustment.

Front Rigging Support

Release Button

3. Push in the release buttons and reposition the footplate assembly to the

Adjustment

Holes

Footplate Assembly

desired height.

4. Ensure that the release buttons fully protrude from holes on both sides of

Cam Lock Lever

the front rigging support.

5. Rotate cam lock lever down to locked

NOTE: Swingaway footrest shown.

position.

FIGURE 4.2 Spring Button Height

6. Repeat this procedure for the other footplate, if necessary.

7. Reinstall the swingaway front rigging assembly. Refer to Installing/Removing Front Riggings on page 31.

Bolt-In-Place Height

NOTE: For this procedure, refer to FIGURE 4.3 on page 33.

NOTE: This procedure applies to the swingaway footrests and swingaway elevating legrest.

1. Remove the swingaway front rigging. Refer to Installing/Removing Front Riggings on page 31.

NOTE: Lay the front rigging assembly on a flat surface to simplify this procedure.

2. Pull the cam lock lever up to the unlocked position.

3. Using a screw driver to hold the threaded rivet in position, remove the button head screw from the threaded rivet.

4. Remove the threaded rivet and button head screw securing the footplate assembly to the front rigging support.

Lightweight, Standard and Heavy Duty Wheelchairs 32 Part No. 1114811

SECTION 4—FRONT RIGGINGS

5. Adjust the footplate assembly height by aligning the desired adjustment holes in the upper front rigging support and lower footplate assembly.

6. From the outside of the swingaway front rigging, insert the threaded rivet through both the front rigging support and the footplate assembly.

7. From the inside of the swingaway front rigging, insert the button head screw through the appropriate adjustment hole and thread into the threaded rivet.

8. Using a screwdriver to hold the threaded rivet in position, securely tighten the button head screw. Torque to 32 in-lbs.

9. Rotate cam lock lever down to locked position.

10. Repeat STEPS 1-9 to adjust the remaining footrest.

Front Rigging

Support

Button Head

Screw

Button Head

Screw

Adjustment

Hole

Cam Lock

Lever

Inside of

Swingaway

Front Rigging

Threaded Rivet

Footplate Assembly

Outside of

Swingaway

Front Rigging

FIGURE 4.3 Bolt-In-Place Height

Fixed Frame

NOTE: For this procedure, refer to FIGURE 4.4

Front Rigging

Support

Adjustment

Hole

Threaded

Rivet

Footplate Assembly

NOTE: Swingaway footrest shown.

1. Remove impact guards and/or calf strap, if necessary.

2. Loosen, but do not remove the bolt and locknut that secure the lower footrest assembly to the upper footrest support.

Wheelchair

Frame

3. Reposition the lower footrest assembly to the desired height.

Footplate Assembly

4. Securely tighten the bolt and locknut.

5. Repeat this procedure for the other footrest, if necessary.

Bolt and

Locknut

6. Replace impact guards and/or calf strap, if necessary.

FIGURE 4.4 Fixed Frame

Part No. 1114811 33 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 4—FRONT RIGGINGS

Raising/Lowering Elevating Legrest Assembly

 WARNING

Ensure hands and fingers are clear of elevating legrest mechanism before pushing release lever to lower the elevating legrest. Otherwise injury may occur due to pinch points.

The wheelchair user’s leg MUST be supported by an assistant before attempting to lower legrest.

NOTE: For this procedure, refer to FIGURE 4.5.

1. To raise the elevating legrest, the assistant should hold the support tube and raise the elevating legrest until the desired height is obtained.

2. To lower the elevating legrest, perform the following:

Release Lever

A. Support user leg with one hand.

B. Push release lever downward with

other hand.

C. Gently, lower user leg down and

rest against the legrest.

Support Tube

FIGURE 4.5 Raising/Lowering Elevating

Legrest Assembly

Installing Impact Guards/Calf Strap

NOTE: For this procedure, refer to FIGURE 4.6.

1. Remove impact guard/calf strap from packaged container if not already secured to the footrest.

2. Secure one impact guard to each footrest.

NOTE: Ensure the upper portion of the impact guard is between the two horizontal supports of the footrest.

3. Secure one side of the calf strap around each footrest (with the impact guards attached, if present).

Lightweight, Standard and Heavy Duty Wheelchairs 34 Part No. 1114811

SECTION 4—FRONT RIGGINGS

Horizontal

Support

Calf Strap

Footrest

Upper Portion of

Impact Guard

Horizontal

Support

FIGURE 4.6 Installing Impact Guards/Calf Strap

Replacing Heel Loop

NOTE: For this procedure, refer to FIGURE 4.7 on page 36.

1. Pull the cam lock lever up to unlocked position.

2. Perform one of the following as shown in Detail ʺAʺ.

• Footplates with Spring Buttons: Push in the release buttons and remove the

footplate assembly from the front rigging support.

• Bolt-In-Place Footplates:

Notch

Impact

Guard

i. Using a screw driver to hold the threaded rivet in position, remove the button

head screw from the threaded rivet.

ii. Remove the threaded rivet and button head screw securing the footplate

assembly to the front rigging support.

3. Remove the mounting screw, spacer and locknut that secure the heel loop to the footplate.

4. Remove existing heel loop from slide tube.

5. Install new heel loop onto slide tube.

6. Install the mounting screw, spacer and locknut to secure the heel loop to the footplate. Tighten until the spacer is secure.

7. Insert the lower footrest assembly into the upper footrest assembly to desired height.

8. Perform one of the following as shown in Detail ʺAʺ:

• Footplates With Spring Buttons: Ensure that the release buttons fully protrude

from holes on both sides of the upper footrest support.

• Bolt-In-Place Footplates:

i. From the outside of the swingaway front rigging, insert the threaded rivet

through both the front rigging support and the footplate assembly.

ii. From the inside of the swingaway front rigging, insert the button head screw

through the appropriate adjustment hole and thread into the threaded rivet.

iii. Using a screwdriver to hold the threaded rivet in position, securely tighten the

button head screw. Torque to 32 in-lbs.

Part No. 1114811 35 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 4—FRONT RIGGINGS

9. Rotate cam lock lever down to locked position.

DETAIL “A”

Footplates with

Spring Buttons

Front Rigging

Support

Release Button

Adjustment

Holes

Cam Lock

Footplate Assembly

Lever

NOTE: Swingaway footrest shown.

Mounting

Screw

Spacer

Bolt-in-Place

Footplates

Front Rigging

Support

Cam Lock

Lever Footplate Assembly

Inside of

Swingaway

Front Rigging

Cam Lock

Lever

Heel Loop

Front Rigging

Support

Button Head

Screw

Adjustment

Hole

NOTE: Swingaway footrest shown.

Threaded

Rivet

Footplate Assembly

Outside of

Swingaway

Front Rigging

Slide Tube

Footplate Assembly

Locknut

Footplate

FIGURE 4.7 Replacing Heel Loop

Lightweight, Standard and Heavy Duty Wheelchairs 36 Part No. 1114811

SECTION 5—ARMS

 WARNING

After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely. Otherwise injury or damage may occur.

Using or Replacing Flip-Back Armrest (Lightweight Wheelchairs Only)

 WARNING

DO NOT operate or replace flip-back armrest when wheelchair is folded otherwise injury or damage may result.

Ensure armrest is securely locked into arm socket and armrest release button locks into place before using.

NOTE: For this procedure, refer to FIGURE 5.1.

Using

1. Push down on front of armrest to ensure it is fully seated in front socket.

NOTE: STEP 1 is needed to prevent the release button from hanging up on the socket.

2. Press in armrest release button located on armrest front tube.

3. Rotate front of armrest up and out of arm socket.

NOTE: Armrest can rotate back approximately 90°.

4. To prepare armrest for use, rotate armrest downward, making sure front tube of armrest inserts into arm socket.

5. Push armrest down until release button snaps into arm socket.

6. Ensure armrest is securely locked into arm socket and armrest release button locks into place before using.

Armrest

Rear Tube

Armrest

Front Tube

Armrest Mounting Bracket

Armrest

Rear Tube

Nut

Spacer

FIGURE 5.1 Using or Replacing Flip-Back

Armrest (Lightweight Wheelchairs Only)

Armrest

Release Button

(Front or Back

of Armrest

Front Tube)

Arm Socket

Hex Screw

Inside of

Chair

Part No. 1114811 37 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 5—ARMS

Replacing

1. Push down on front of armrest to ensure it is fully seated in front socket.

2. Press in armrest release button located on armrest front tube.

3. Remove hex screw, spacer and locknut securing the existing armrest and insert to the wheelchair frame.

4. Remove the existing armrest from frame.

5. Inspect rear tube of new armrest to ensure insert is properly installed with mounting holes aligned.

6. If not properly aligned, rotate the insert using a flat screwdriver to align the mounting holes.

7. Insert the hex screw through the armrest mounting bracket, spacer and armrest rear tube with insert.

NOTE: Ensure the spacer sits flush against the armrest.

8. Install nut onto hex head screw. Torque to 20-30 in./lbs.

9. Rotate armrest down and into the arm socket.

10. Ensure armrest is securely locked into arm socket and armrest release button locks into place before using.

Removing/Installing Armrests

 WARNING

Make sure the armrest release lever is in the locked position before using the wheelchair.

HEAVY DUTY WHEELCHAIR: ONLY use heavy duty, fixed height armrests on heavy duty wheelchairs - otherwise injury or damage may occur.

Heavy duty, fixed height armrests are identified by a circular mark on the rear arm post above or below the armrest release handle.

Rear Arm Post

NOTE: Identifying circular

Armrest Release

Handle

mark located on rear arm post above or below armrest release lever.

NOTE: For this procedure, refer to FIGURE 5.2 on page 39.

Lightweight, Standard and Heavy Duty Wheelchairs 38 Part No. 1114811

SECTION 5—ARMS

Removing Armrest

1. Push down on armrest to ensure it is fully seated in front and rear sockets.

NOTE: STEP 1 prevents the release buttons from hanging up on the sockets during removal.

2. Unlock the rear armrest by rotating the armrest release lever towards the inside of the wheelchair.

3. Press in the armrest release button at the front of the armrest.

4. While pressing in the armrest release button, remove the armrest from the arm sockets by pulling straight up.

Installing Armrest

NOTE: Rear armrest release lever must be in the unlocked position when installing the armrest.

1. Position the armrest just above the front and rear arm sockets.

2. Push arm down evenly at the front and rear until the front armrest release button snaps into the front arm socket.

3. Lock rear armrest by turning the armrest release lever towards the outside of the wheelchair.

4. Ensure armrest is locked securely in the arm sockets by gently lifting up. If not locked, repeat STEPS 1-3.

Armrest

Armrest Release Handle

REAR Arm

Socket

Armrest

Release Button

FRONT

Arm Socket

FIGURE 5.2 Removing/Installing Armrests

Part No. 1114811 39 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 6—SEAT AND BACK

 WARNING

After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely. Otherwise injury or damage may occur.

Installing Back Canes (Lightweight Wheelchair Only)

NOTE: For this procedure, refer to FIGURE 6.1.

1. Remove the hex screw and locknut from the bottom of one back cane.

Outside of

2. Position threaded insert into the bottom of each back cane with nut facing the outside of the wheelchair and aligned with the mounting hole in the bottom of the back cane.

3. Insert the back cane into the a mounting hole in the wheelchair frame.

4. Position the hex screw through the wheelchair frame, back cane, and threaded insert.

NOTE: The hex screw should be inserted from the inside of the wheelchair frame.

5. Torque the hex screw to 60-80-inch-pounds.

6. Install the locknut onto the hex screw.

7. Secure the hex screw to prevent it from backing out.

Wheelchair

Locknut

Wheelchair

Frame

FIGURE 6.1 Installing Back Canes

(Lightweight Wheelchair Only)

Nut

Back Cane

Inside of

Wheelchair

Threaded

Insert

Hex Screw

8. Torque the locknut to 60-80-inch-pounds.

Lightweight, Standard and Heavy Duty Wheelchairs 40 Part No. 1114811

Replacing Back Upholstery

NOTE: For this procedure, refer to FIGURE 6.2.

SECTION 6—SEAT AND BACK

1. Remove the eight mounting screws and washers that secure the existing back upholstery to the back canes.

2. Remove existing back upholstery from the back canes.

3. Securely tighten the new back upholstery to the back canes with the phillips screws and washers.

Replacing Seat Upholstery

NOTE: For this procedure, refer to FIGURE 6.3.

1. Perform one of the following:

• Lightweight/Standard wheelchairs:

Remove the eight mounting screws and washers that secure the existing seat upholstery to the crossbraces.

• Heavy Duty Wheelchair: Remove

the ten mounting screws and washers that secure the existing seat upholstery to the crossbraces.

Washers

Mounting

Screws

FIGURE 6.2 Replacing Back Upholstery

Mounting Screws

Washers

Back Upholstery

Washers

Seat

Upholstery

Wheelchair

Frame

2. Remove the existing seat upholstery from the crossbraces.

3. Ensure positioning of seat positioning strap (if used). Refer to Installing the Seat Positioning Strap on page 59.

4. Install new seat upholstery by reversing STEPS 1-2.

NOTE: Lightweight/Standard wheelchair shown.

FIGURE 6.3 Replacing Seat Upholstery

Adjusting Seat Width

Lightweight and Standard Wheelchairs with Swingaway Front Riggings

NOTE: For this procedure, refer to FIGURE 6.4 on page 42 and FIGURE 6.5 on page 43.

NOTE: When adjusting the seat width of the wheelchair, the back and seat upholstery MUST be changed. If applicable, the headrest pillow and headrest upholstery MUST be changed as well.

1. Remove the existing back and seat upholstery from the wheelchair. Refer to Replacing Back Upholstery on page 41 and Replacing Seat Upholstery on page 41.

Part No. 1114811 41 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 6—SEAT AND BACK

2. Remove the four button screws and locknuts that secure the two pivot links to the wheelchair frame and crossbraces.

3. Remove the two button screws, locknuts and crossbrace saddle that secure the bottom of the crossbrace to the wheelchair frame. Repeat for other crossbrace.

4. Remove the hex screw, coved washers, washers and locknut that secure the two crossbraces together. Refer to Detail “B” of FIGURE 6.5.

5. Assemble the two new crossbraces together with the existing hex screw, coved washers, washers and locknut. Securely tighten. Refer to Detail “B” of FIGURE 6.5.

6. Determine the correct pivot link and mounting hole to use with the desired seat width. Refer to Detail “B” of FIGURE 6.4.

7. Secure the pivot links to the crossbraces and wheelchair frame with the four button screws and locknuts. Securely tighten.

NOTE: Position crossbrace saddle on wheelchair frame using the washer on the underside of the wheelchair frame as a reference. See Detail “A” of FIGURE 6.5 for proper positioning of the crossbrace saddle.

8. Reinstall the two button screws, locknuts and crossbrace saddle that secure the bottom of the new crossbrace to the wheelchair frame. Refer to Detail “B” of FIGURE 6.5 for hardware orientation. Repeat for opposite crossbrace. Securely tighten.

9. Install the new back and seat upholstery onto the wheelchair. Refer to Replacing Back Upholstery on page 41 and Replacing Seat Upholstery on page 41.

SEAT WIDTH PIVOT LINK

16 - INCH 18 - INCH

20 - INCH

16-inch

DO NOT USE

20-inch

DO NOT USE

18-inch

FIGURE 6.4 Lightweight and Standard Wheelchairs with Swingaway Front Riggings

Lightweight, Standard and Heavy Duty Wheelchairs 42 Part No. 1114811

SECTION 6—SEAT AND BACK

Button Screw

(STEPS 2,7)

Crossbrace

(STEPS 4,5)

Locknut

(STEPS 2,7)

Pivot Lock

(STEPS 2,7)

Locknut

Button Screw

(STEPS 2,7)

Button Screw

(STEPS 2,7)

Locknut

(STEPS 3,8)

Locknut

Button

Screw

(STEPS 3,8)

Crossbrace

Saddle

(STEPS 3,8)

DETAIL “A”

Wheelchair

Frame

Crossbrace

Saddle

(STEPS 3,8)

Wheelchair

Frame

Locknut

Washer

Washers

Washer

Crossbraces

Coved

Washers

DETAIL “B” - CROSSBRACE

HARDWARE (STEPS 4,5)

Coved

Washer

Hex Screw

Crossbrace

Saddle

FIGURE 6.5 Lightweight and Standard Wheelchairs with Swingaway Front Riggings

Part No. 1114811 43 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 6—SEAT AND BACK

Standard Wheelchair with Fixed Frame

NOTE: For this procedure, refer to FIGURE 6.6.

Removing Lower Mounting Hardware

1. Remove the existing back and seat upholstery from the wheelchair. Refer to Replacing Back Upholstery on page 41 and Replacing Seat Upholstery on page 41.

NOTE: If adjusting the seat width of the wheelchair, back and seat upholstery as well as the crossbraces MUST be replaced.

2. Remove the four screws and locknuts that secure the insert tube to the lower wheelchair frame (Detail “A”).

3. Remove the inserts from the rear of the wheelchair.

4. Remove the hex screw and locknut that secure the two existing crossbraces together.

Removing Upper Mounting Hardware

1. While pushing down on the rear seat guide, pull up the front seat guide until the front seat guide releases from the wheelchair frame (Detail “B”).

2. Pull the crossbrace away from the rear seat guide.

3. Repeat STEPS 1-2 for opposite crossbrace.

4. Reverse STEPS 1-3 to assemble the upper mounting hardware.

5. Reverse STEPS 1-4 in Removing Lower Mounting Hardware

DETAIL “B” -

REMOVING UPPER

MOUNTING

HARDWARE

Rear Seat Guide

Front Seat Guide

DETAIL “A” - REMOVING LOWER

MOUNTING HARDWARE

Insert Tube

Crossbrace

Screw

on page 44.

Locknut

FIGURE 6.6 Standard Wheelchair with Fixed Frame

Crossbrace

Hex Screw

Wheelchair

Frame

Heavy Duty Wheelchairs

NOTE: For this procedure, refer to FIGURE 6.7 and FIGURE 6.8 on page 46.

NOTE: When adjusting the seat width of the wheelchair, the back and seat upholstery MUST be changed. If applicable, the headrest pillow and headrest upholstery MUST be changed as well.

Lightweight, Standard and Heavy Duty Wheelchairs 44 Part No. 1114811

SECTION 6—SEAT AND BACK

1. Remove the existing back and seat upholstery from the wheelchair. Refer to Replacing Back Upholstery on page 41 and Replacing Seat Upholstery on page 41.

2. Remove the two button screws and locknuts that secure the two pivot links to the crossbraces.

3. Remove the four button screws, locknuts and two crossbrace saddles that secure the bottom of the crossbrace to the wheelchair frame.

4. Repeat STEPS 2-3 for other crossbrace.

5. Remove the two hex screws and locknuts that secure the two crossbraces together.

NOTE: Note the orientation of the two hex screws and locknuts for assembling the new crossbraces.

6. Assemble the two new crossbraces together with the existing two hex screws and locknuts (FIGURE 6.8 on page 46). Securely tighten.

7. Determine the correct pivot link mounting hole to use with the desired seat width (FIGURE 6.7).

SEAT WIDTH PIVOT LINK

18 - INCH 20 - INCH 22 - INCH 24 - INCH

18-Inch

20-Inch

22-Inch

24-Inch

FIGURE 6.7 Heavy Duty Wheelchairs

8. Secure the pivot links to the crossbraces with the two button screws and locknuts. Securely tighten.

NOTE: Position the rear crossbrace saddles on wheelchair frame using the washer on the underside of the wheelchair frame as a reference. Refer to FIGURE 6.8 on page 46 for proper positioning of the crossbrace saddle.

9. Reinstall the four button screws, locknuts and two crossbrace saddles that secure the bottom of the new crossbrace to the wheelchair frame. Securely tighten.

10. Repeat STEP 9 for the opposite crossbrace.

11. Install the new back and seat upholstery onto the wheelchair. Refer to Replacing Back Upholstery on page 41 and Replacing Seat Upholstery on page 41.

Part No. 1114811 45 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 6—SEAT AND BACK

Wheelchair

Frame

Crossbrace

Saddles

Locknut

Locknut (For

Pivot Link)

Button Screws

Pivot Link

Hex Screws

Locknuts

Button Screw

FIGURE 6.8 Heavy Duty Wheelchairs

Locknut

Crossbrace

(Bottom)

Lightweight, Standard and Heavy Duty Wheelchairs 46 Part No. 1114811

SECTION 7—REAR WHEELS

 WARNING

After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely. Otherwise injury or damage may occur.

Removing/Installing Rear Wheels

 WARNING

Only a qualified technician may change the size of the rear wheel or the seat-to-floor height.

Make sure both rear wheels are the same size and are installed into the same respective mounting hole before using the wheelchair. Otherwise injury may occur.

NOTE: For this procedure, refer to FIGURE 7.1.

NOTE: If replacing the same size rear wheel, note the mounting position on the wheelchair frame for proper reinstallation of the new rear wheel.

1. Remove the dust cap (7/16 inch axles only), hex screw, washer (7/16 inch axles only), spacer (if installed) and locknut that secure the rear wheel to the wheelchair frame.

NOTE: The spacer is used on wheelchairs with removable arms only.

2. Repeat STEP 1 for the opposite rear wheel if desired.

3. To reinstall the rear wheel(s) onto the wheelchair, reverse STEPS 1-2 and torque locknut to 40 ft.-lbs.

4. Adjust wheel locks. Refer to Using/Adjusting Disk Wheel Locks on page 54.

Rear Wheel

Washer

(7/16 Inch Axles only)

Dust Cap

(7/16 Inch Axles only)

Axle Mounting Axle

Spacer (Wheelchairs with

Removable Arms only)

Hex Screw

Locknut

Wheelchair

Frame

FIGURE 7.1 Removing/Installing Rear Wheels

Part No. 1114811 47 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 7—REAR WHEELS

Replacing Rear Wheel Handrim

 WARNING

DO NOT use composite handrims on the Heavy Duty wheelchair. Otherwise, injury or damage may occur.

This procedure MUST be performed by a qualified technician.

NOTE: For this procedure, refer to FIGURE 7.2.

1. Remove the rear wheel from the wheelchair. Refer to Removing/Installing Rear Wheels page 47.

2. Remove the mounting screws that secure the handrim to the rear wheel.

3. Remove the existing handrim.

4. Install the new handrim by reversing STEPS 2-3.

5. Reinstall rear wheel to the wheelchair. Refer to Removing/Installing Rear Wheels on page 47.

6. Repeat STEPS 1-5 for the opposite rear wheel if necessary.

Rear

Wheel

Handrim

FIGURE 7.2 Replacing Rear Wheel

Replacing/Repairing Rear Wheel Tire

Mounting

Screw

Handrim

 WARNING

Replacement of rear wheel tire MUST be performed by a qualified technician.

CAUTION

As with any vehicle, the wheels and tires should be checked periodically for cracks and wear, and should be replaced if damaged.

Lightweight, Standard and Heavy Duty Wheelchairs 48 Part No. 1114811

SECTION 8—FRONT CASTERS

 WARNING

After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely. Otherwise injury or damage may occur.

Installing/Replacing/Adjusting Front Casters and Forks

 WARNING

Make sure both fork/caster assemblies are the same size before using the wheelchair, otherwise injury may occur.

NOTE: For this procedure, refer to FIGURE 8.1.

Installing/Replacing Front Casters and Forks

1. Remove the dust cover.

2. Remove the locknut and nylon washer that secure the fork to the caster headtube.

3. Drop the fork assembly out of the caster headtube.

4. Heavy Duty Wheelchair only:

A. Remove the existing fork stem washer from the existing fork assembly.

B. Install the existing fork stem washer onto the new fork assembly.

NOTE: If caster replacement is desired, refer to Replacing/Repairing Front Caster Tire/Tube on page 51.

5. Slide the new fork assembly into the caster headtube.

6. Reassemble by reversing STEPS 1-2.

7. Repeat STEPS 1-6 for the opposite fork assembly.

8. Adjust the forks. Refer to Adjusting Forks on page 50.

Fork Stem

Washer

(Heavy Duty

Wheelchair

only)

Height

Mounting

Positions

FIGURE 8.1 Installing/Replacing/Adjusting

Front Casters and Forks

Dust

Cover

Locknut

Nylon

Washer

Caster

Headtube

Fork

Assembly

Part No. 1114811 49 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 8—FRONT CASTERS

Adjusting Forks

1. To properly tighten caster journal system and guard against flutter, perform the following check:

A. Tip back of wheelchair to floor.

B. Simultaneously pivot both forks and casters to the top of their arc.

C. Let casters drop to bottom of arc (wheels should swing once to one-side, then

immediately rest in a straight downward position).

D. Adjust locknuts according to freedom of caster swing.

E. Repeat STEPS C-D until wheels swing once to one-side, then immediately rest in a

downward position.

2. Test wheelchair for maneuverability.

3. Readjust locknuts if necessary, and repeat STEPS 1-2 until correct.

4. Snap dust cover over the locknut and stem.

Replacing Front Casters

NOTE: For this procedure, refer to FIGURE 8.2.

 WARNING

If replacement casters are not installed in the original mounting position of the fork assembly, the seat-to-floor height and stability of the wheelchair will be affected. A qualified technician MUST perform these adjustments.

Make sure both front casters are the same size and are installed into the same respective mounting hole before using the wheelchair, otherwise injury may occur.

NOTE: Note the mounting position on the fork assembly for proper reinstallation of the new front caster.

1. Remove the hex screw, washers and locknut that secure the front caster to the fork.

NOTE: Washers are used only with 8-inch casters with precision bearings.

2. To reinstall the new front caster onto the fork, reverse STEP 1.

Lightweight, Standard and Heavy Duty Wheelchairs 50 Part No. 1114811

SECTION 8—FRONT CASTERS

8-Inch Fork

Hex Screw

Washer (if applicable)

FIGURE 8.2 Replacing Front Casters

Locknut

Washer (if applicable)

Front Caster

Replacing/Repairing Front Caster Tire/Tube

 WARNING

Replacement of front caster tire or tube MUST be performed by a qualified technician.

CAUTION

As with any vehicle, the wheels and tires should be checked periodically for cracks and wear, and should be replaced when necessary.

Part No. 1114811 51 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 9—ANTI-TIPPERS/WHEEL LOCKS

 WARNING

After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely. Otherwise injury or damage may occur.

Installing/Adjusting Anti-tippers

 WARNING

Anti-tippers are specific to the different seat-to-floor angles and/or seat-to-floor heights. Refer to the chart in this section of the manual for correct usage and adjustment. If these requirements cannot be achieved, DO NOT use the wheelchair. Contact a qualified technician. If changing the seat-to-floor height with or without a change to seat-to-floor angle, the correct anti-tippers must be used to maintain a 1½ to 2-inch ground clearance.

If so equipped, anti-tippers MUST be attached at all times. Inasmuch as the anti-tippers are an option on this wheelchair (you may order with or without the anti-tippers), Invacare strongly recommends ordering the anti-tippers as a safeguard for the wheelchair user.

Anti-tippers MUST be fully engaged and release buttons fully protruding out of adjustment holes.

Ensure both anti-tippers are adjusted to the same mounting hole.

NOTE: For this procedure, refer to FIGURE 9.1 and FIGURE 9.2.

Installing Anti-Tippers

NOTE: To ensure the correct model anti-tipper is used refer to FIGURE 9.1. Measurements for anti-tippers are approximate and are taken with extension tube in bottom hole position.

WHEELCHAIR

MODEL

SEAT-TO-FLOOR

HEIGHT IN INCHES

ANTI-TIPPER (MEASUREMENTS IN INCHES)

LENGTH HEIGHT MODEL PART NO.

SWINGAWAY 17-1/2 to 19-1/2 13-1/2 3-1/4 1360 1058836

FIXED 21 12 2-3/4 9758 1086190

Lightweight, Standard and Heavy Duty Wheelchairs 52 Part No. 1114811

SECTION 9—ANTI-TIPPERS/WHEEL LOCKS

Anti-Tipper Height

Flat Surface

Anti-Tipper Length

Bottom Position

FIGURE 9.1 Installing/Adjusting Anti-tippers - Anti-Tipper Length

1. Press the release buttons and insert the anti-tippers with the anti-tipper wheels pointing toward the ground/floor into the wheelchair frame tubing as shown in FIGURE 9.2.

2. Ensure that the release button of the anti-tipper fully protrudes out of the hole in the bottom of the wheelchair frame tubing.

3. Place the wheelchair on a flat surface.

4. Measure the distance between the bottom of the anti-tipper wheels and the ground/floor.

NOTE: A 1½ to 2-inch clearance between the bottom of the anti-tipper wheels and the ground/floor MUST be maintained at all times.

Anti-Tipper

Wheels

Anti-Rattle

5. If the distance between the bottom of anti-tipper wheels and the ground/floor is not 1½ to 2-inches, adjust anti-tippers. Refer to Adjusting the Anti-Tippers on page 53.

Anti-Tipper

Release Buttons

Rear Frame

Tubing

FIGURE 9.2 Installing Anti-Tippers

Adjusting the Anti-Tippers

NOTE: For this procedure, refer to FIGURE 9.3 on page 54.

NOTE: A 1½ to 2-inch clearance between the bottom of the anti-tipper wheels and the ground/floor MUST be maintained at all times.

1. Place the wheelchair on a flat surface.

NOTE: If adjusting anti-tippers on recliner models, ensure back canes are in the upright position before making adjustments.

2. Press the release buttons on the wheeled portion of the anti-tipper and slide it up or down to the desired adjustment hole.

3. Check to make sure that the release buttons are fully engaged in adjustment holes.

4. Ensure both anti-tippers are adjusted to the same height.

5. Measure the distance between the bottom of the anti-tipper wheels and the ground/floor.

Part No. 1114811 53 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 9—ANTI-TIPPERS/WHEEL LOCKS

6. If the distance between the bottom of anti-tipper wheels and the ground/floor is not 1½ to 2-inches, repeat STEPS 2-5 until the distance is 1½ to 2-inches.

7. If the 1½ to 2-inch distance cannot be achieved with the anti-tippers, a different model may be required. Contact an Invacare dealer or qualified technician.

Release Buttons

1½ to 2-inch Clearance

FIGURE 9.3 Adjusting the Anti-Tippers

Using/Adjusting Disk Wheel Locks

Using Patient Operated Disk Wheel Locks

 WARNING

DO NOT attempt to stop a moving wheelchair with wheel locks. Wheel locks are not brakes.

NOTE: For this procedure, refer to FIGURE 9.4.

NOTE: Position wheelchair on a flat, level surface to perform this procedure.

1. Ensure the wheelchair is not moving before engaging the wheel locks.

2. Perform one of the following:

• Push-to-Lock - To engage, push the wheel lock handle forward.

• Pull-to-Lock - To engage, pull the wheel lock handle backward.

3. Disengage the wheel locks by reversing STEP 2.

Push-To-Lock Pull-To-Lock

Wheel

Lock

Unlocked

Position

Locked

Position

Wheel

Lock

Locked

Position

Unlocked

Position

FIGURE 9.4 Using Patient Operated Disk Wheel Locks

Lightweight, Standard and Heavy Duty Wheelchairs 54 Part No. 1114811

SECTION 9—ANTI-TIPPERS/WHEEL LOCKS

Adjusting Patient-Operated Wheel Locks

 WARNING

DO NOT attempt to stop a moving wheelchair with the wheel locks. Wheel locks are not brakes.

NOTE: For this procedure, refer to FIGURE 9.5. NOTE: If wheels are pneumatic, before adjusting the wheel lock assemblies, ensure that the tires

are inflated to the recommended psi on the side wall of tire.

1. Ensure the wheel lock is in the open (unlocked position).

2. Loosen the bolt and locknut that secure the wheel lock assembly to the wheelchair frame.

3. Reposition the wheel lock so that when engaged, the wheel lock shoe embeds the tire 1/8-inch (3/16-inch for pneumatic tires) and holds the wheelchair.

4. Securely tighten the bolt and locknut securing the wheel lock to the wheelchair frame.

5. Engage the wheel lock.

6. Measure the distance the wheel lock is embedded into the tire as shown in Detail “A” of FIGURE 9.5.

NOTE: Any wheel lock adjustment should embed the wheel lock shoe at least 1/8-inch (3/16-inch for pneumatic tires) into the tire when engaged.

7. Repeat STEPS 1-6 until the wheel lock shoe embeds the tire 1/8-inch (3/16-inch for pneumatic tires) and holds the wheelchair.

8. If the measurement of 1/8-inch (3/16-inch for pneumatic tires) cannot be achieved, remove the bolt and locknut that secure the wheel lock to the wheelchair frame and mount the wheel lock in the remaining mounting position.

9. Repeat STEPS 1-7.

10. If the wheel lock is unable to properly engage the wheel, it may be necessary to install wheel lock shoe extensions.

Bolt-On

Wheel Locks

DETAIL “A”

Mounting

Wheel

Lock

Positions

Bolt and Locknut

1/8-inch (3/16-inch pneumatic

tires)

Wheel Lock

Shoe

Tire

Wheel Lock

Handle

Refer to Installing Wheel Lock Shoe Extensions on page 56.

11. Repeat STEPs 1-7.

12. Repeat STEPS 1-9 for the opposite wheel lock.

Rear

Wheel

Lock

Shoe

13. Engage both wheel locks and ensure the occupied wheelchair is held in place when pushed.

Part No. 1114811 55 Lightweight, Standard and Heavy Duty Wheelchairs

FIGURE 9.5 Adjusting Patient-Operated

Wheel Locks

SECTION 9—ANTI-TIPPERS/WHEEL LOCKS

 WARNING

If wheel locks do not hold the occupied wheelchair in place, contact a qualified technician; otherwise injury or damage may occur.

Installing Wheel Lock Shoe Extensions

NOTE: For this procedure, refer to FIGURE 9.6.

1. Loosen the two set screws on the wheel lock shoe extension until the set screws do not protrude into the slot.

2. Insert the disk wheel lock shoe into the slot in the shoe extension.

NOTE: Ensure the pointed end of the wheel lock shoe extension is facing toward the rear wheel.

3. Position the wheel lock shoe extension so the outside edge is flush with the end of the wheel lock shoe.

4. Securely tighten the two set screws to secure the wheel lock shoe extension to the wheel lock shoes.

Wheel Lock Shoe

Extension

Pointed End of Wheel Lock

Shoe Extension

FIGURE 9.6 Installing Wheel Lock Shoe Extensions

Set Screws

Slot

Lightweight, Standard and Heavy Duty Wheelchairs 56 Part No. 1114811

SECTION 10—SEAT TO FLOOR

 WARNING

After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely. Otherwise injury or damage may occur.

NOTE: Seat-to-floor height is not adjustable for wheelchairs with the fixed frame option (FF).

Changing Seat-to-Floor Height

 WARNING

The size/position of the front casters, size/position of the rear wheels, use of anti-tipper model, as well as the user condition directly relate to the stability of the wheelchair. Any change to one or any combination of the six may cause the wheelchair to decrease in stability. These adjustments MUST be performed by a qualified technician.

Seat-to-floor heights have specific positions depending on rear wheel size, rear wheel position, front caster size and front caster position. These adjustments MUST be performed by a qualified technician.

If changing the seat-to-floor height the correct anti-tippers MUST be ordered to maintain a 1½ to 2-inch ground clearance.

NOTE: For this procedure, refer to FIGURE 10.1.

1. Refer to the chart in FIGURE 10.1 to determine mounting positions for front casters/forks and rear wheels for the desired obtainable seat-to-floor height.

2. Remove the rear wheels from the wheelchair. Refer to Removing/Installing Rear Wheels on page 47.

3. If necessary, replace the front casters and forks with the casters and forks indicated in the chart. Refer to Replacing Front Casters Installing/Replacing/Adjusting Front Casters and Forks

4. Reinstall the rear wheels onto the wheelchair in the mounting position indicated in the chart. Refer to Removing/Installing Rear Wheels on page 47.

5. Adjust anti-tippers according to new seat-to-floor height. Refer to Installing/Adjusting Anti-tippers on page 52.

on page 50 and

on page 49.

Part No. 1114811 57 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 10—SEAT TO FLOOR

8-INCH FRONT CASTERS

SEAT-TO-FLOOR

HEIGHT

(IN INCHES)

17½ Top 24-inch Top

19½ Bottom 24-inch Bottom

DETAIL “A” - REAR

WHEEL MOUNTING

POSITIONS-ADULT/HE

MI FRAME STYLE

Top

Bottom

FRONT CASTER

MOUNTING POSITION

REAR

WHEEL

MOUNTING POSITION

SIZE

DETAIL “B” - 8-INCH

FORK MOUNTING

POSITIONS

REAR WHEEL

Top

Middle

Bottom

NOTE: Seat-to-Floor Height is not Adjustable for Wheelchairs with Fixed Frame Option (FF).

FIGURE 10.1 Changing Seat-to-Floor Height

Lightweight, Standard and Heavy Duty Wheelchairs 58 Part No. 1114811

SECTION 11—OPTIONS

 WARNING

After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely. Otherwise injury or damage may occur.

Installing the Seat Positioning Strap

 WARNING

ALWAYS wear your positioning strap. Inasmuch as the seat positioning strap is an option on this wheelchair (you may order with or without the seat restraint), Invacare strongly recommends ordering the seat positioning strap as an additional safeguard for the wheelchair user. The seat positioning strap is a positioning belt only. It is not designed for use as a safety device withstanding high stress loads such as auto or aircraft safety belts. If signs of wear appear, belt MUST be replaced immediately.

Standard and Heavy Duty/Extra Wide Wheelchairs

NOTE: For this procedure, refer to FIGURE 11.1.

1. Remove the bottom back upholstery screw from the wheelchair.

2. Position the seat positioning strap half between the back cane and back upholstery.

3. Secure the back upholstery and seat positioning strap half to the wheelchair with the existing back upholstery screw.

4. Repeat STEPS 1-3 for the opposite side of the wheelchair.

Back Cane

Back Upholstery

Screw

Seat Positioning

Strap Half

FIGURE 11.1 Installing the Seat Positioning Strap - Standard and Heavy Duty/Extra Wide

Wheelchairs

Back Upholstery

Part No. 1114811 59 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 11—OPTIONS

Lightweight Wheelchairs

NOTE: For this procedure, refer to FIGURE 11.2.

1. Remove the rear seat upholstery screw from the wheelchair.

2. Position one seat positioning strap half between the seat rail and seat upholstery.

3. Secure the seat upholstery and seat positioning strap to the wheelchair with the existing seat upholstery screw.

4. Repeat STEPS 1-3 for the opposite side of the wheelchair.

Seat

Upholstery

Screw

Seat Positioning

Strap Half (Under

Seat Upholstery)

Seat Upholstery

Seat Rail

FIGURE 11.2 Installing the Seat Positioning Strap - Lightweight Wheelchairs

Lightweight, Standard and Heavy Duty Wheelchairs 60 Part No. 1114811

NOTES

SECTION 11—OPTIONS

Part No. 1114811 61 Lightweight, Standard and Heavy Duty Wheelchairs

SECTION 11—OPTIONS

NOTES

Lightweight, Standard and Heavy Duty Wheelchairs 62 Part No. 1114811

LIMITED WARRANTY

PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW APPLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.

This warranty is extended only to the original purchaser who purchases this product when new and unused from Invacare or a dealer. This warranty is not extended to any other person or entity and is not transferable or assignable to any subsequent purchaser or owner. Coverage under this warranty will end upon any such subsequent sale or other transfer of title to any other person.

This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.

Invacare warrants the side frames and cross members of this product when purchased new and unused to be free from defects in materials and workmanship for a period of five years from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. Invacare warrants the upholstered materials (seat, back and armrests of the arm assembly) and remaining components of this product when purchased new and unused to be free from defects in materials and workmanship for a period of thirteen months from date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. If within such warranty periods any such product shall be proven to be defective, such product shall be repaired or replaced, at Invacare’s option. This warranty does not include any labor or shipping charges incurred in replacement part installation or repair of any such product. Invacare’s sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or replacement.

For warranty service, please contact the dealer from whom you purchased your Invacare product. In the event you do not receive satisfactory warranty service, please write directly to Invacare at the address at the bottom of this page. Provide dealer’s name, address, the product model number, date of purchase, indicate nature of the defect and, if the product is serialized, indicate the serial number. Do not return products to our factory without our prior consent.

LIMITATIONS AND EXCLUSIONS: THE FOREGOING WARRANTY SHALL NOT APPLY TO SERIAL NUMBERED PRODUCTS IF THE SERIAL NUMBER HAS BEEN REMOVED OR DEFACED, PRODUCTS SUBJECTED TO NEGLIGENCE, ACCIDENT, IMPROPER OPERATION, MAINTENANCE OR STORAGE, PRODUCTS MODIFIED WITHOUT INVACARE’S EXPRESS WRITTEN CONSENT INCLUDING, BUT NOT LIMITED TO, MODIFICATION THROUGH THE USE OF UNAUTHORIZED PARTS OR ATTACHMENTS; PRODUCTS DAMAGED BY REASON OF REPAIRS MADE TO ANY COMPONENT WITHOUT THE SPECIFIC CONSENT OF INVACARE, OR TO A PRODUCT DAMAGED BY CIRCUMSTANCES BEYOND INVACARE’S CONTROL, AND SUCH EVALUATION WILL BE SOLELY DETERMINED BY INVACARE. THE WARRANTY SHALL NOT APPLY TO NORMAL WEAR AND TEAR OR FAILURE TO ADHERE TO THE PRODUCT INSTRUCTIONS.

THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES WHATSOEVER, WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND THE SOLE REMEDY FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGE, OR LIMITATION OF HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION AND LIMITATION MAY NOT BE APPLICABLE.

THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.

Part No. 1114811 63 Lightweight, Standard and Heavy Duty Wheelchairs

Invacare Corporation

USA

One Invacare Way Elyria, Ohio USA 44036-2125 800-333-6900

MADE IN MEXICO

www.invacare.com

Canada

570 Matheson Blvd E Unit 8 Mississauga Ontario L4Z 4G4 Canada 800-668-5324

Invacare, the Medallion Design, and Yes, you can. are registered trademarks of Invacare Corporation. Teflon is a registered trademark of E.I. Du Pont De Nemours and Company.

Part No. 1114811

Rev C - 4/14/06
