Parts Catalog
Issued: Dec 16, 2008
Pronto® M6
Powered Wheelchair
Yes, you can. ™
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
Parts Catalog Usage Guide
To order call toll free 1-800-333-6900, or www.invacare.com
The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 00-60. If you have any questions regarding this catalog, please contact one of
our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Examples:
A,B,C etc.
NOTE:
NLA
= Special Comments
= General information pertaining to that specific page
= No Longer Available
HARDWARE MEASUREMENTS
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
©2008 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., the Medallion Design, and Pronto are registered trademarks of Invacare Corporation.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
Form No. 00-60
1
TABLE of CONTENTS
Page
Number
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60
Description
Accessories .............................................................................................................................. 31
Accessories - Power Wheelchair Tool Kit ................................................................................ 34
Arm Assembly .......................................................................................................................... 10
Battery Harness, Cables and Charger ..................................................................................... 15
Drive Wheels and Casters ........................................................................................................ 12
Electronics - Joystick, Controller and Cables ........................................................................... 17
Frame Assembly, Front and Rear ............................................................................................ 4
Front Rigging - Attachment Kit (FRKTM6) ............................................................................... 20
Front Rigging - Footboard Assembly - After 11/05/01 .............................................................. 19
Front Rigging - Footboard Assembly - Before 11/06/01 ........................................................... 18
Front Rigging - Footrest - PW93 .............................................................................................. 21
Front Rigging - Legrest - T94AA/C ........................................................................................... 23
Front Rigging - Legrest, Articulating - PAL4A .......................................................................... 26
Front Rigging - Pivot Slide Tube and Footplates - T94AA/C and PAL4A ................................ 29
Motor and Gearbox Assembly .................................................................................................. 13
Packaging and Literature ......................................................................................................... 3
Seat Assembly and Mounting Hardware .................................................................................. 8
Shroud Covers ......................................................................................................................... 6
2
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1099761 Kit, Packaging
Includes: Carton, Inserts and Foam.
1 1A
1098184-NLA Owner's Manual, Pronto M6 1 1A
1102705 Paint, Touch-Up, Candy Red 1 1A
1101326 Paint, Touch-Up, 105P Midnight Blue 1 1A
A - Not Shown
Whe
n adjusting or replacing parts, please refer to your Owner's Manual for assistance.
NOTE:
Packaging and Literature
Note: When adjusting or replacing parts, please refer to your Owner's Manual for assistance.
Form No. 00-60
To order call toll free 1-800-333-6900, or www.invacare.com
3
Frame Assembly, Front and Rear
Form No. 00-60
4
To order call toll free 1-800-333-6900, or www.invacare.com
Frame Assembly, Front and Rear
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1099721 Strut, Housing and Hardware
Includes:
4 ea. Strut Housing
4 ea. O-Ring, Rubber
4 ea. Snap Ring
4 41
1099717 Axle Assembly (Rear)
Includes:
1 ea. Axle, Rear
1 ea. Bolt, Square Head (M12 x 1.25 x 68)
1 ea. Spacer (M12 x 20 x 4.5)
1 ea. Locknut (M12 x 1.25 x 19)
2 ea. Shroud Cover, Rear Axle
2 ea. Screw, Phillips Pan Head (M4 x 12)
1 12
1099724 Hardware, Connecting Pin
Includes:
4 ea. Connecting Pin, Frame
4 ea. Screw, Phillips Self Tap (M2 x 10)
4 43
1099722 Hardware, Adjustable Stop Rear Frame
Includes:
1 ea. Washer, Spring (M8 x 13)
1 ea. Nut (M8 x 1.25 x 13)
1 ea. Screw, Set (M8 x 1.25 x 35)
1 ea. Fastener, Hook Adhesive Back
1 14
1099716-NLA Axle Assembly (Front)
Includes:
1 ea. Axle, Front
1 ea. Bolt, Square Head (M12 x 1.25 x 68)
1 ea. Spacer (12 x 20 x 4.5)
1 ea. Locknut (M12 x 1.25 x 19)
1 ea. Shroud Cover, Front Axle - Right
1 ea. Shroud Cover, Front Axle - Left
2 ea. Screw, Phillips Pan Head (M4 x 15)
1 15
Form No. 00-60
To order call toll free 1-800-333-6900, or www.invacare.com
5
Shroud Covers
Form No. 00-60
6
To order call toll free 1-800-333-6900, or www.invacare.com
Shroud Covers
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1099743 Shroud Cover Assembly with Decals, Red 1 11
1099745 Shroud Decal Assembly with Decals, Blue 1 11
1099774 Decal, Model - Pronto M6 1 22
1095489 Decal, Invacare 3-D Logo (2-1/2" L) 1 23
1099738 Shrouds with Screws, Front/ Rear Axle
Includes:
1 ea. Shroud Cover, Front Axle - Right
1 ea. Shroud Cover, Front Axle - Left
2 ea. Shroud Cover, Rear Axle - Right/Left
4 ea. Screw, Phillips Pan Head (M4 x 12)
4 44
Form No. 00-60
To order call toll free 1-800-333-6900, or www.invacare.com
7
Seat Assembly and Mounting Hardware
Form No. 00-60
8
To order call toll free 1-800-333-6900, or www.invacare.com
Seat Assembly and Mounting Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1099755-NLA Seat with Headrest Pillow, Gray Cloth - Before
3/01/01
1 11 A
1106210 Seat with Headrest Pillow, Gray Vinyl - After 2/28/01 1 11
1099756 Pillow, Headrest - Gray Cloth Before 3/01/01 1 12
1106211-NLA Headrest, Vinyl (Gray) - Lynx LX3/ LX3 Plus and
Panther LX4/ MX4
1 12
1088768 Knob, Lower Arm Tightening 1 23
P715 Strap, Seat Positioning - All Models 1 14
1099737 Hardware, Seat Adjusting Collar
Includes:
4 ea. Collar, Seat Adjusting
4 ea. Screw, Phillips Pan Head (M6 x 1.0 x 40)
4 ea. Locknut (M6 x 1.0 x 1.0)
4 45
1099758 Hardware, Seat Stand Mounting
Includes:
4 ea. Washer (M8 x 22 x 2)
4 ea. Washer, Spring (M8 x 13)
4 ea. Screw, Hex Head Cap (M8 x 1.25 x 25)
4 46
1099763-NLA Connecting Pin Hardware, Seat 4 47
1099740 Strut, Seat with Hardware
Includes:
4 ea. Strut, Seat
4 ea. Washer, Spring (M8 x 13)
4 ea. Screw, Socket Head (M8 x 1.25 x 20)
4 48
1099757 Stand, Seat 1 19
A - Cloth seats are NLA. As a replacement, order the vinyl seat with headrest pillow part number 1106210.
NOTE:
Form No. 00-60
To order call toll free 1-800-333-6900, or www.invacare.com
9
Arm Assembly
Form No. 00-60
10
To order call toll free 1-800-333-6900, or www.invacare.com
Arm Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1099748-NLA Pad, Arm with Arm Tube Sleeve and Retractable
Joystick Mount - Right
1 11
1099749 Pad, Arm with Arm Tube Sleeve and Retractable
Joystick Mount - Left
1 11
1099747 Pad, Arm with Arm Tube Sleeve - Right/ Left 1 11
1099751 Arm Assembly without Arm Pad - Right 1 12
1099750-NLA Arm Assembly without Arm Pad - Left 1 12
1099746 Arm Hardware Package (Pair)
Includes:
4 ea. Screw, Nylok Socket (M8 x 1.25 x 8)
2 ea. Screw, Phillips Head (M8 x 1.25 x 40)
4 ea. Locknut (M8 x 1.25 x 13)
2 ea. Screw, Phillips Head (M8 x 1.25 x 32)
2 ea. Washer, Spring (M8 x 13)
2 ea. Nut (M8 x 1.25 x 13)
2 ea. Screw, Hex Head Cap (M8 x 1.25 x 35)
2 23
1088768 Knob, Lower Arm Tightening 1 14 A
1088769 Knob, Upper Arm Tightening 1 15 B
1099769-NLA Hardware, Connecting Pin Retractable Joystick
Mount
Includes:
5 ea. Connecting Pin
5 ea. Chain
5 ea. Cable Tie
5 56
A - Width adjustment.
B - Depth adjustment.
NOTE:
Form No. 00-60
To order call toll free 1-800-333-6900, or www.invacare.com
11
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1099771-NLA Wheel Assembly, Rear (10 x 3.50) - Black Rim 1 11
1088720 Tire w/ Foam Fill Insert, Rear, Grey (8" x 2") 1 12
1099739-NLA Hardware, Rear Wheel Mounting
Includes:
1 ea. Key
1 ea. Washer (M8 x 45 x 3)
1 ea. Washer, Locking Tab
2 ea. Washer, Spring (M6 x 10)
2 ea. Screw, Phillips Pan Head (M6 x 1.0 x 16)
1 ea. Screw, Hex Head Cap (M8 x 1.25 x 20)
1 13
1115709-NLA Caster with Nut, Rear (5") 1 14 A
1115777-NLA Caster with Nut, Rear (5") 2 14 A
1115710-NLA Caster with Nut, Front (6") 1 15 A
1115778-NLA Caster with Nut, Front (6") 2 15 A
A - Casters are covered under warranty for a period of 1 year.
NOTE:
Drive Wheels and Casters
Form No. 00-60
To order call toll free 1-800-333-6900, or www.invacare.com
12
Motor and Gearbox Assembly
Form No. 00-60
13
To order call toll free 1-800-333-6900, or www.invacare.com
Motor and Gearbox Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1099727-NLA Gearbox - Right 1 11
1099726-NLA Gearbox - Left 1 11
1099728-NLA Hardware, Gearbox Mounting
Includes:
8 ea. Washer, Spring (M8 x 13)
8 ea. Screw, Socket Head (M8 x 1.25 x 20)
8 82
1099733 Switch Assembly with Hardware
Includes:
1 ea. Switch
1 ea. Paper, Switch
2 ea. Washer (2.2 x 5 x 0.5)
2 ea. Washer, Spring (2.1 x 4.3 x 0.7)
2 ea Nut (M2 x 0.4 x 6)
1 13
1099732 Handle, Free Wheel, Right 1 14
1099731 Handle, Free Wheel, Left 1 14
1099730 Brake, Motor with Axle 1 15
1099725-NLA Package, Hardware, Motor/ Gearbox
Includes:
1 ea. Plate, Motor Cable Tie Down
4 ea. Screw, Socket Head (M8 x 1.25 x 20)
1 ea. Plate, Bushing
1 ea. Bushing
1 ea. Driving Axle, Disc Brake with Set Screw
1 16
1099741 Motor/ Brake Assembly - Right 1 17
1099729 Motor/ Brake Assembly - Left 1 17
1099735-NLA Motor/ Gearbox Assembly, Right 1 18
1099734-NLA Motor/ Gearbox Assembly, Left 1 18
1099736-NLA Brush, Motor (Pair) 2 29
Form No. 00-60
14
To order call toll free 1-800-333-6900, or www.invacare.com
Battery Harness, Cables and Charger
Form No. 00-60
15
To order call toll free 1-800-333-6900, or www.invacare.com

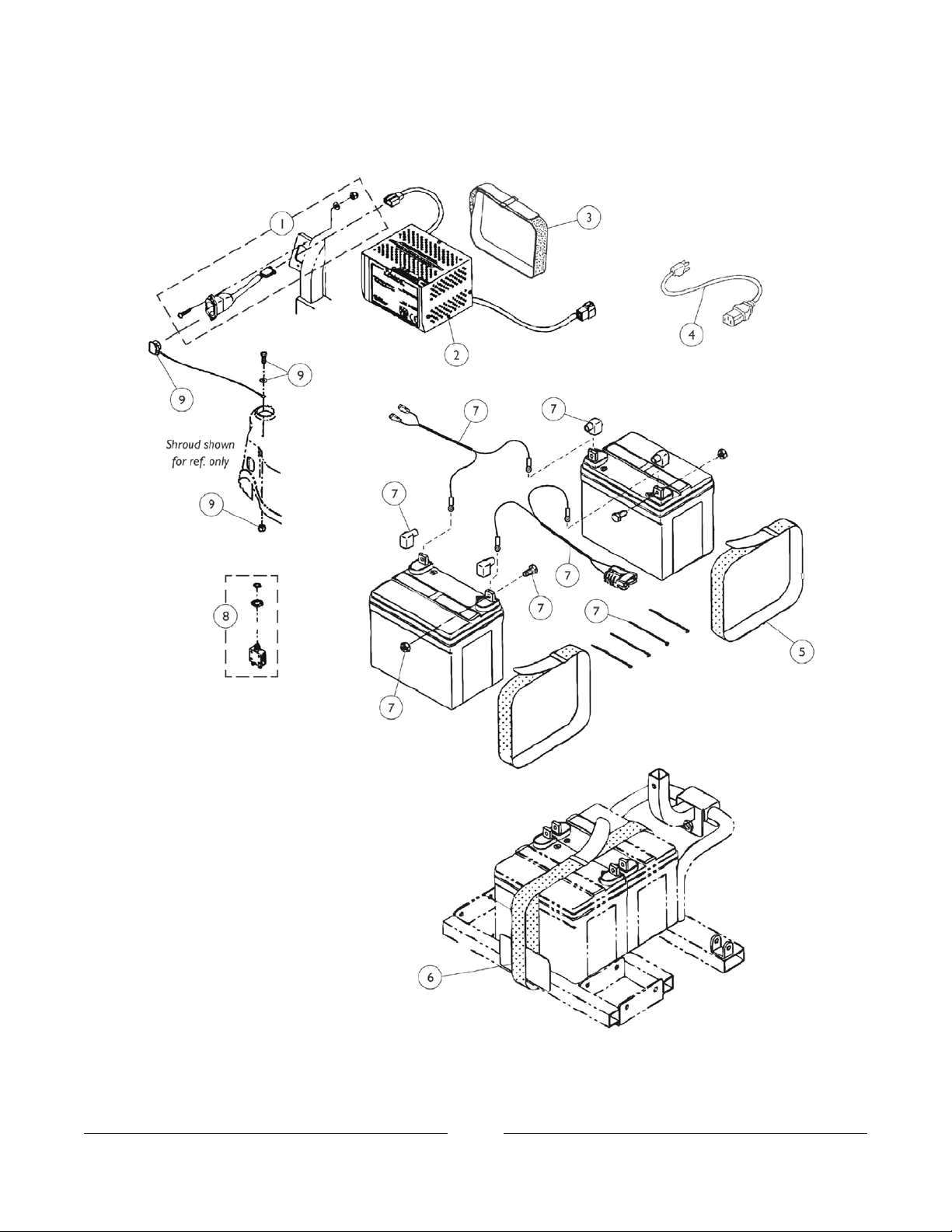

Battery Harness, Cables and Charger
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1099754 Charging Cable, On Board with Hardware (Lynx
SX3/ LX3/ LX3 Plus and Panther MX4)
Includes: (1) Charging Cable, (2) Screw, Phillips
Pan Head (M3 x 0.5 x 16)
2 ea. Washer (3.2 x 10 x 0.8)
2 ea. Locknut (M3 x 0.5 x 6)
2 ea. Cable Tie
1 ea. Tube, PVC (19 x 20 x 260L)
1 11
1099753-NLA Charger, Battery, On-Board 1 12 A
1053161 Charger, Battery, 8 Amp, 115vac, Off Board
Dual Mode Round Plug, Lester
1 12
1099744 Strap, Fastening - On-Board Charger 1 13
1088745 Cord, Charger, AC 1 14
1088742 Strap, Carrying, Battery 1 25
1099760 Strap, Fastening - Battery 1 16
1099752-NLA Harness, Power Connector, Circuit Breaker Cables
and Hardware
Includes:
1 ea. Harness Power Connector
2 ea. Cover, Battery Terminal (Red)
2 ea. Cover, Battery Terminal (Black)
1 ea. Cable, Circuit Breaker (Red)
1 ea. Cable, Circuit Breaker (Black)
1 ea. Tube, Snake (10 x 110L)
1 ea. Tube, Snake (10 x 95L)
4 ea. Screw, Hex Head Cap (M6 x 1.0 x 12)
4 ea. Hexnut (M6 x 1.0 x 10)
4 ea. Cable Tie
1 17
1088748 Circuit Breaker (30 AMP) - Lynx SX3P/ SX3/ LX3/
LX3 Plus, Panther LX4 and Zoom-3
1 18
1099772 Charger Cable Cover Assembly
Includes:
1 ea. Cover, Charger Cable
1 ea. Screw, Phillips Pan Head (M4 x 0.7 x 12)
1 ea. Washer (M4 x 9 x 1)
1 ea. Locknut (M4 x 0.7 x 7)
1 19
A - (On-Board) Battery Charger #1099753 is no longer available. Use the (Off Board) Charger part #1053161 as a
replacement.
NOTE:
Form No. 00-60
To order call toll free 1-800-333-6900, or www.invacare.com
16
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1099767 Screw, Phillips Pan Head (#10-32 x 1/2") 10 21

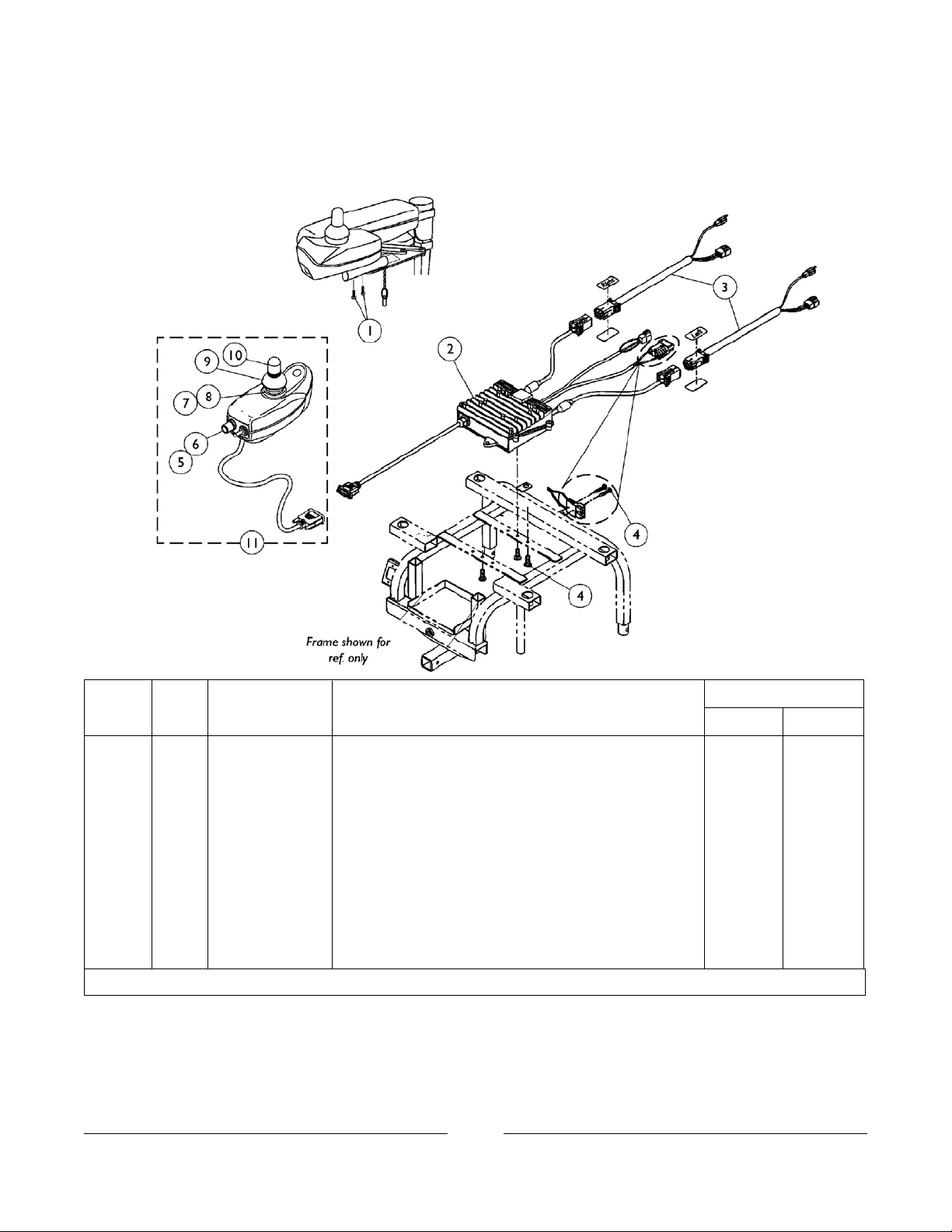

1098644-NLA Controller, MKIV 1 12
1099742-NLA Cable, Motor/ Brake w/ Right and Left Decals (Pair) 2 23
1099768 Controller Mounting Hardware 1 14 B
1040225 Potentiometer, Speed 1 15
1025516 Knob, Speed Control 1 16
50000X364 Boot, Joystick 1 17
1036764-NLA Inductive, Joystick 1 18
1040218 Skirt, Joystick 1 19
1040217 Knob, Joystick 1 110
1092610 Joystick, RII 1 111 A
A - To mount joystick on left side, see arm assembly page item 1.
B - Includes: (3) Screw, Phillips Pan Head (#8-36 x 1/2"), (2) Screw, Phillips Pan Head (1/8 x 3/4").
NOTE:
Electronics
Form No. 00-60
17
To order call toll free 1-800-333-6900, or www.invacare.com
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1099770 Footboard Hardware
Includes:
4 ea. Screw, Phillips Head w/Patch
(M6 x 1.0 x 20)
4 ea. Washer (8.2 x 15.8 x 3)
1 ea. Bolt, Hex Head Cap (M8 x 1.25 x 85)
1 ea. Locknut (M8 x 1.25 x 35)
2 ea. Washer, Spring (M8 x 13)
2 ea. Nut (M8 x 1.25 x 13)
2 ea. Screw, Hex Head Cap (M8 x 1.25 x 35)
2 ea. Plug Button, Square (3/4 x 3/4")
2 ea. Plug Button, Square (5/8 x 5/8")
1 11
1099715-NLA Pin, Safety 4 12
1110986-NLA Footboard Assembly 1 13

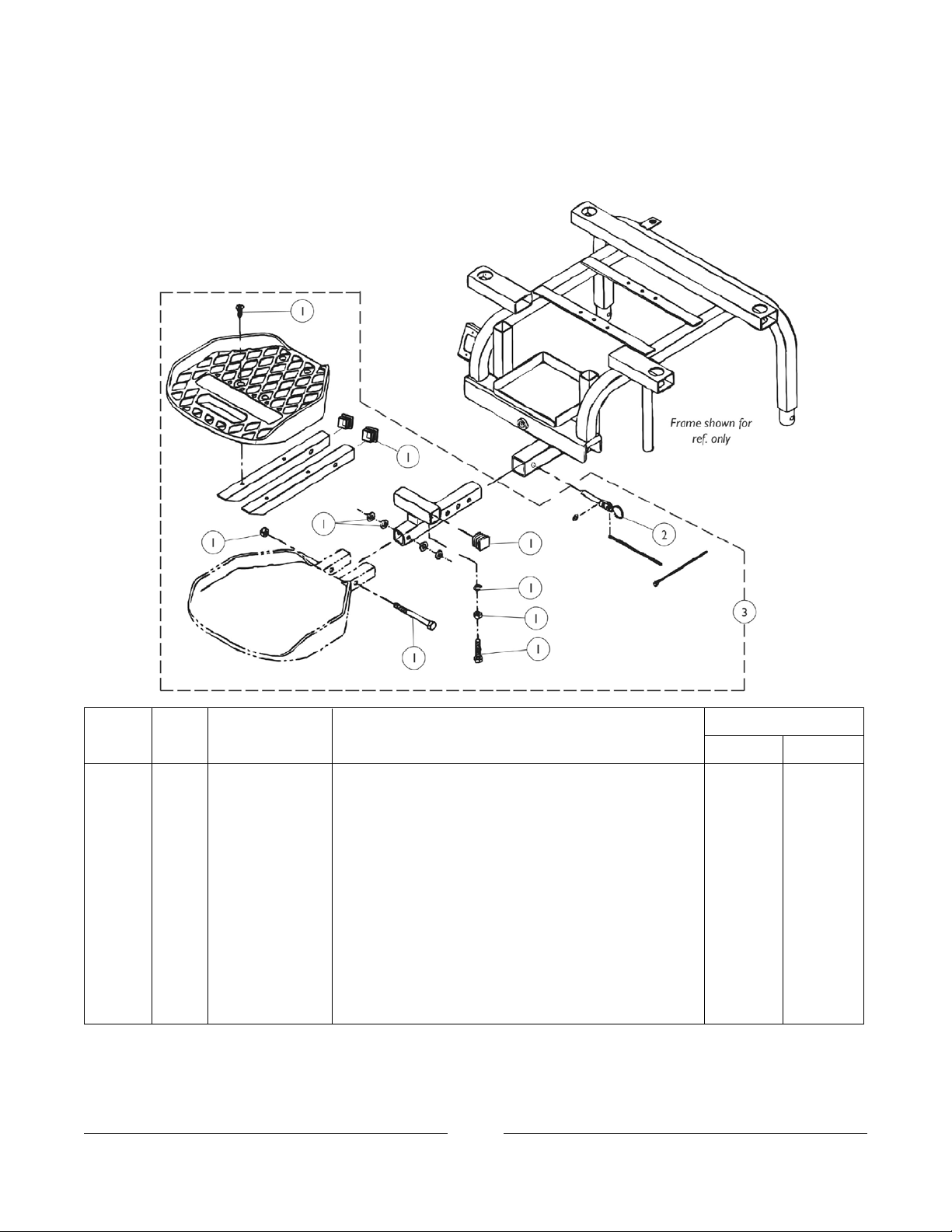

Footboard Assembly
Before 11/06/01
Form No. 00-60
To order call toll free 1-800-333-6900, or www.invacare.com
18
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly

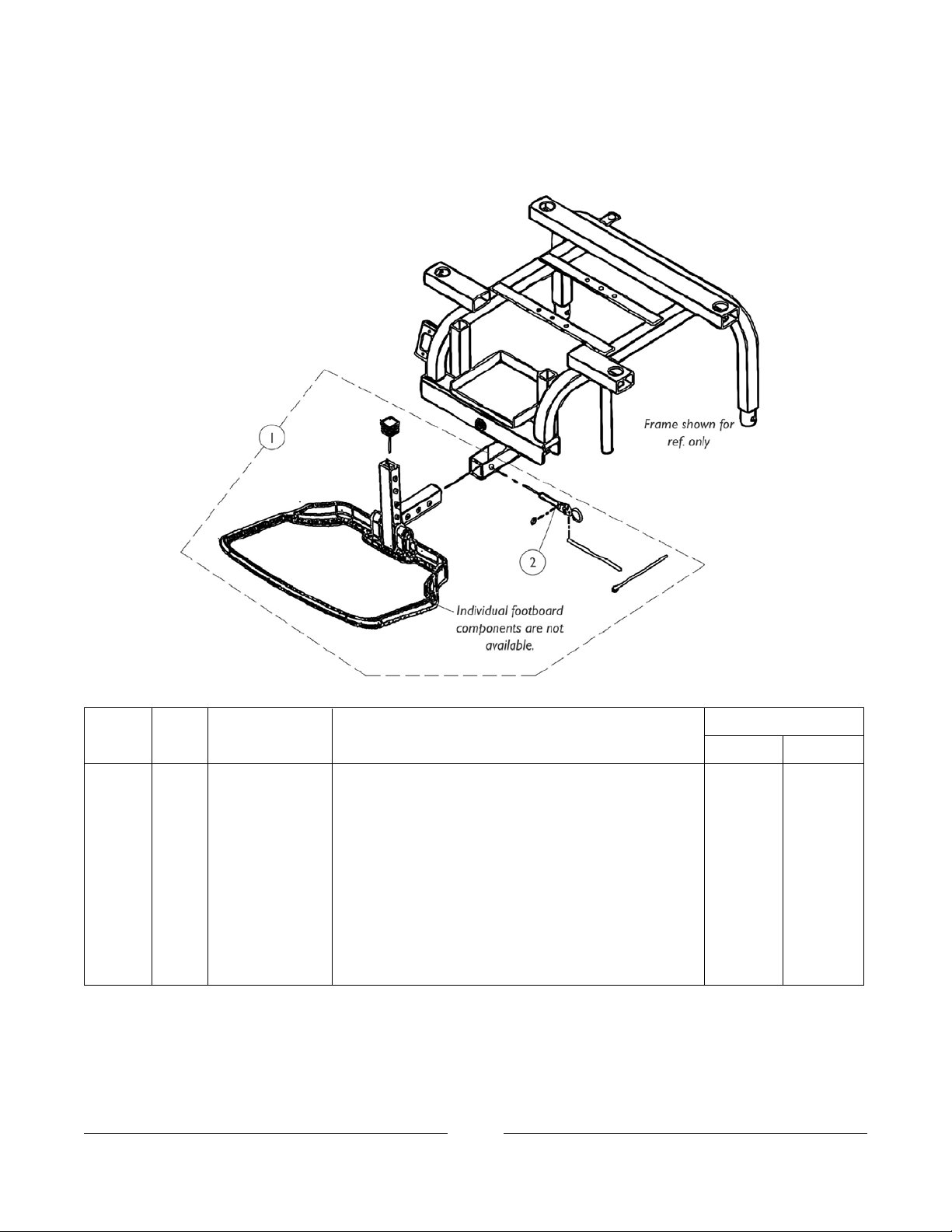

1099714 Footboard Assembly
Includes:
1 ea. Footboard with Rubber Pad
1 ea. Adjustment Tube, Footboard
2 ea. Washer (8.2 x 15.8 x 3)
1 ea. Safety Pin
1 ea. Cable Tie
1 ea. Nut (M8 x 1.25 x 13)
1 ea. Screw, Hex Head Cap (M8 x 1.25 x 25)
2 ea. Plug Buttons, Ball
1 ea. Screw, Hex Head Cap (M8 x 1.25 x 60)
1 11
1099715-NLA Pin, Safety 4 12
Footboard Assembly
After 11/05/01
Form No. 00-60
To order call toll free 1-800-333-6900, or www.invacare.com
19

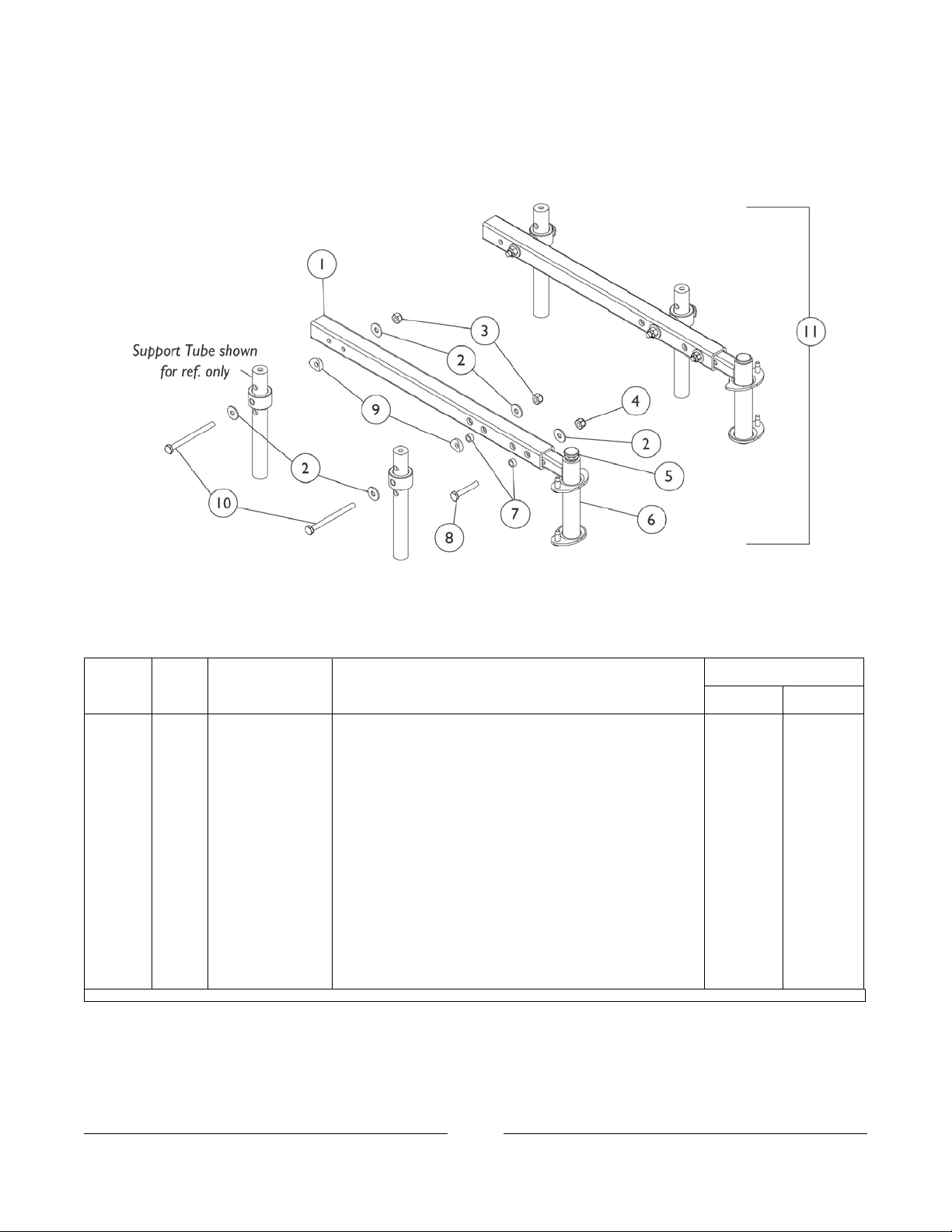

Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1107807 Tube, Support, Front Rigging, Black 1 21
1026900 Washer (1/4 x 23/32 x 1/16") 1 102
7930345 Locknut (1/4-28) 25 43
7930333 Locknut (1/4-20) 25 24
1027097 Plug Button, Black (3/4") 1 25
1078020 Hanger, Front Rigging, Pin Style, Black - Right 1 16
1078021 Hanger, Front Rigging, Pin Style, Black - Left 1 16
1047449 Spacer (1/4 x 3/8 x 3/16") 1 47
1030949 Screw, Hex Head (1/4-20 x 1-1/2") 1 28
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 49
1059374 Screw, Hex Head (1/4-28 x 3") 1 410
1107808-NLA Kit, Front Rigging Attachment with Instruction Sheet 1 111
1106633 Instruction Sheet, Front Rigging Attachment Kit 2 1A
A - Not Shown
NOTE:
Front Riggngs Attachment Kit (FRKTM6)
Form No. 00-60
20
To order call toll free 1-800-333-6900, or www.invacare.com
PW93 Footrest
Heel loops are not included. See accessories page.
Form No. 00-60
21
To order call toll free 1-800-333-6900, or www.invacare.com

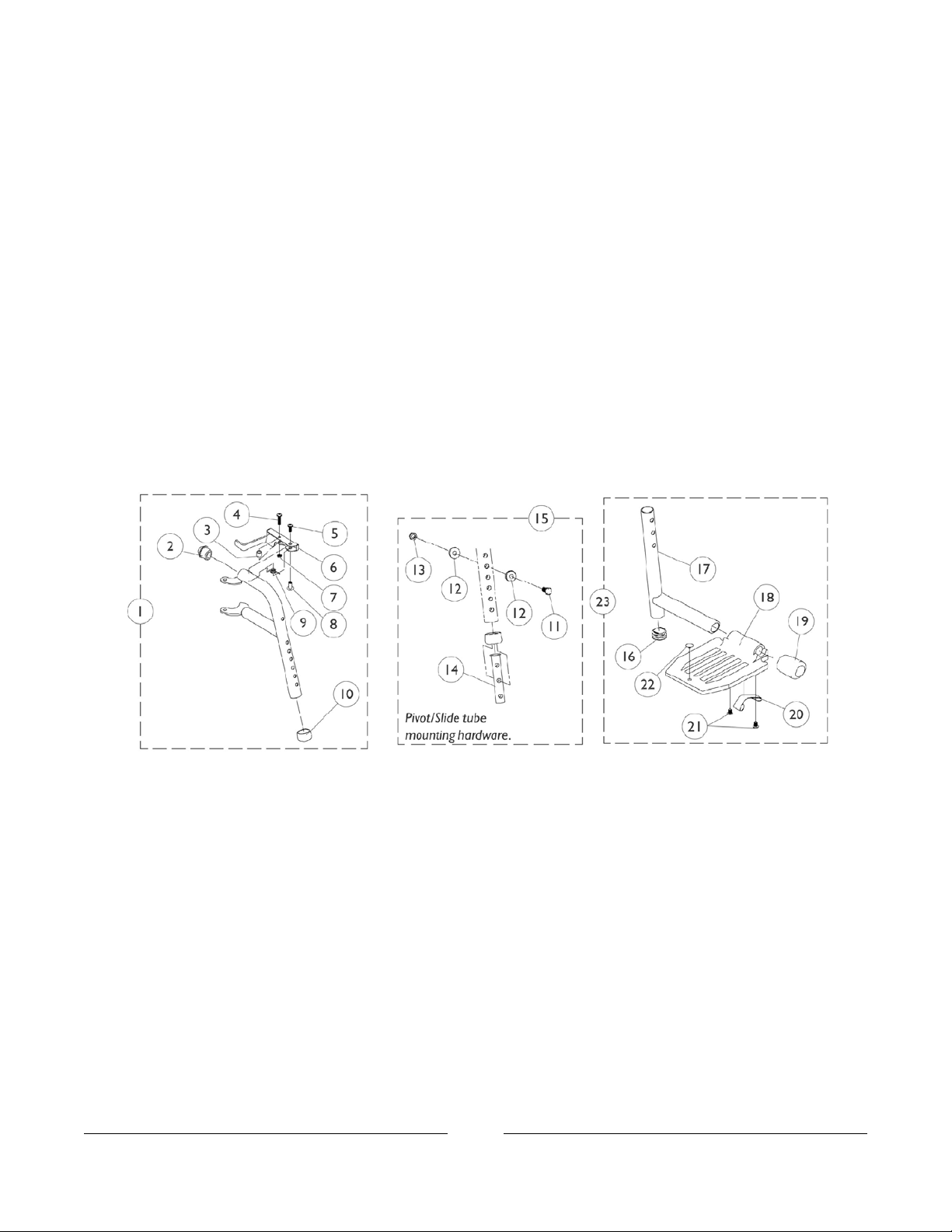

PW93 Footrest
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881070776 Footrest Support Assembly, Adult, Color - Right 1 11 A
8881070777 Footrest Support Assembly, Adult, Color - Left 1 11 A
1020719 Anti-Rattle, Black 1 12
47565X057 Bushing (7/32 x 3/8 x 11/32") 1 13
7930328 Screw, Phillips Pan Head (#10-32 x 11/16") 25 14
7930335 Screw, Phillips Pan Head (#10-32 x 1/2") 25 15
1035539 Handle, Release, Black - Right 1 16
1035540 Handle, Release, Black - Left 1 16
7930332 Locknut, High Profile (#10-32) 25 17
1028846 Rivnut (#10-32) 1 18
1028707 Spring, Release - Right 1 19
1028708 Spring, Release - Left 1 19
15680X012 Collar, Anti-Rattle (7/8") 1 110
1070759 Screw, Hex Head (1/4-20 x 1-1/2") 1 111
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 212
7930338 Nut, Acorn (1/4-20) 25 113
1020534 Insert, Threaded 1 114
1074143 Kit, Slide Tube Mounting Hardware 1 115
1027097 Plug Button, Black (3/4") 1 116
1048834 Pivot/Slide Tube w/ Plug Button Assembly, Black 1 117
44200X027 Footplate, Aluminum, Medium, Black (7-3/4" W x 6"
L)
1 118
1016346 Cap, End, Tube, Black (7/8") 1 119
1006981 Spring, Leaf 1 220
7930354 Package, Phillips Head Screw (#8-32 x 3/8") 25 121
1070168 Plug, Push, Footplate 1 122
1074149 Pivot/Slide Tube Assembly w/ Aluminum Footplate,
Black - Right
1 123
1074150 Pivot/Slide Tube Assembly w/ Aluminum Footplate,
Black - Left
1 123
A - Specify 24P black frame color when ordering.
NOTE:
Heel loops are not included. See accessories page.
Form No. 00-60
To order call toll free 1-800-333-6900, or www.invacare.com
22
T94AA/C Legrest
Form No. 00-60
23
To order call toll free 1-800-333-6900, or www.invacare.com

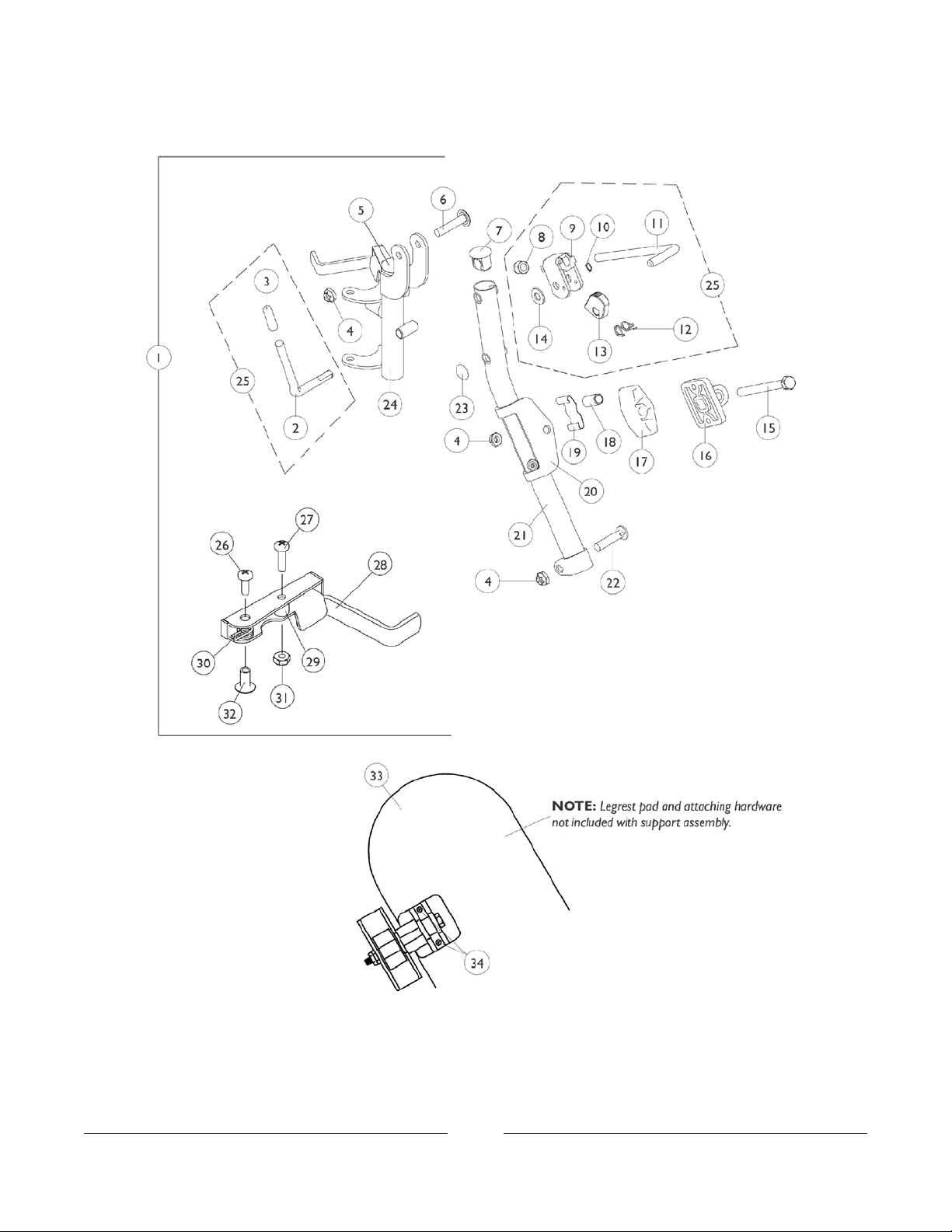

T94AA/C Legrest
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1031579 Legrest Support Assembly, Adult, Silver Vein -
Right
1 11 C,G
1031580 Legrest Support Assembly, Adult, Chrome - Left 1 11 C,G
1037126 Handle, Release 1 12
1040060 Tip, Plastic, Black 1 13
7930363 Package, Locknut (5/16"-24) 25 34
1027095 Plug Button, Black (7/8") 1 15
1030948 Screw, Truss Head (5/16-24 x 1-1/2") 1 16
1095433 Plug Button, Black (7/8") 1 17
7930336 Nut, Acorn (5/16-24) 25 18
04528X002 Bracket, Release, Chrome 1 19
1040831 Ring, Snap 1 110
42326X001 Bar, Ratchet 1 111
1037485 Spring, Release 1 112
1037125 Cam, Legrest 1 113
7930310 Washer, Nylon (5/16 x 11/16 x 1/16") 25 114
1014807 Screw, Hex Head (5/16-24 x 3-1/4") 1 115
04526X019 Plate, Legrest Pad 1 116
1091220 Spacer 1 117
47328X003 Bushing, Pivot (5/16 x 7/16 x 7/8") 1 118
48823X008 Spring, Leaf 1 119
1025104 Bracket, Legrest, Chrome 1 120
1031358 Tube, Support Legrest, Elevating, Chrome - Right 1 121 A,E
1031359 Tube, Support Legrest, Elevating, Chrome - Left 1 121 A,E
1149473 Tube, Support Legrest, Elevating, Silver Vein - Right 1 121 F
1149474 Tube, Support Legrest, Elevating, Silver Vein - Left 1 121 F
11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 122
1096773 Nut, Push Dome (5/16") 1 123
1031581 Legrest Support Tube Assembly, Adult, Chrome -
Right
1 124
1031582 Legrest Support Tube Assembly, Adult, Chrome -
Left
1 124
1046328 Kit, Ratchet 2 125 D
1025716 Screw, Phillips Pan Head (#10-32 x 11/16") 1 226
1026114 Screw, Phillips Pan Head (#10-32 x 1/2") 1 127
1035539 Handle, Release, Black - Right 1 128
1035540 Handle, Release, Black - Left 1 128
47565X057 Bushing (7/32 x 3/8 x 11/32") 1 129
1028707 Spring, Release - Right 1 130
1028708 Spring, Release - Left 1 130
1025735 Locknut (#10-32) 1 131
1028846 Rivnut (#10-32) 1 132
8881091700 Pad, Legrest 1 133 B
1066591 Screws, Phillips Head (#10-32 x 11/16") 2 134
Form No. 00-60
24
To order call toll free 1-800-333-6900, or www.invacare.com
T94AA/C Legrest
A - Due to product improvement, item 5 must also be ordered.
B - Specify U05 black light weight vinyl upholstery when ordering.
C - Includes items 2-24.
D - Includes items 2, 3 and 8-14.
E - Before 7/6/07
F - After 7/5/07
G - After 7/5/07 Color changed from chrome to silver vein. It is recommended to order in pairs to match
NOTE:
25
Form No. 00-60
To order call toll free 1-800-333-6900, or www.invacare.com
PAL4A Articulating Legrest
Form No. 00-60
26
To order call toll free 1-800-333-6900, or www.invacare.com
PAL4A Articulating Legrest
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1058482 Legrest Support Assembly, Articulating, Adult,
Chrome - Right
1 11
1058483 Legrest Support Assembly, Articulating, Adult,
Chrome - Left
1 11
1025716 Screw, Phillips Pan Head (#10-32 x 11/16") 1 12
1026114 Screw, Phillips Pan Head (#10-32 x 1/2") 1 13
1035539 Handle, Release, Black - Right 1 14
1035540 Handle, Release, Black - Left 1 14
47565X057 Bushing (7/32 x 3/8 x 11/32") 1 15
1028707 Spring, Release - Right 1 16
1028708 Spring, Release - Left 1 16
1025735 Locknut (#10-32) 1 17
1028846 Rivnut (#10-32) 1 18
1058478 Tube, Legrest Support - Right 1 19
1058479 Tube, Legrest Support - Left 1 19
1027097 Plug Button, Black (3/4") 1 110
40363X000 Hex Nut (3/8"-16) 1 311
1022854 Screw, Slotted Head Shoulder (1/2 x 1-1/8") 1 112
1022877 Tube, Support and Drive Link, Chrome - Right 1 113
1022878 Tube, Support and Drive Link, Chrome - Left 1 113
8881091764 Pad, Legrest Vinyl - Right/Left 1 114 A
1022848 Tube, Slide, Articulating, Chrome - Right 1 115
1022849 Tube, Slide, Articulating, Chrome - Left 1 115
1027377 Washer (#20) 1 116
60264X001 Locknut (5/16-24) 1 117
11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 118
1022866 Screw, Socket Button Head (3/8-16 x 3/4") 1 219
1049527 Washer, Nylon (3/8 x 3/4 x 1/16") 1 220
1025104 Bracket, Legrest, Chrome 1 121
1022846 Bar, Link, Chrome 1 122
1023811 Bar, Ratchet - Right 1 123
1023812 Bar, Ratchet - Left 1 123
10261X000 Nut, Acorn (5/16"-24) 1 124
1040060 Tip, Plastic, Black 1 125
04528X002 Bracket, Release, Chrome 1 126
1037125 Cam, Legrest 1 127
1037485 Spring, Release 1 128
1037126 Handle, Release 1 129
1013519 Washer, Nylon (5/16 x 11/16 x 1/16") 1 130
1040831 Ring, Snap 1 131
48823X008 Spring, Leaf 1 132
1046331 Kit, Articulating Legrest Ratchet Hardware (Pair) 2 138
1025133 Spacer, Legrest Pad 1 133
04526X019 Plate, Legrest Pad 1 134
1014807 Screw, Hex Head (5/16-24 x 3-1/4") 1 135
Form No. 00-60
27
To order call toll free 1-800-333-6900, or www.invacare.com
PAL4A Articulating Legrest
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1066591 Screws, Phillips Head (#10-32 x 11/16") 2 136
47330X003 Spacer (5/16 x 1/2 x 3/8") 1 237
1046331 Kit, Articulating Legrest Ratchet Hardware (Pair) 2 138
A - Specify U67 black vinyl uphostery when ordering.
NOTE:
Form No. 00-60
To order call toll free 1-800-333-6900, or www.invacare.com
28
Pivot Slide Tube and Footplates
T94AA/C and PAL4A
Heel loops are not included. See accessories page.
Form No. 00-60
29
To order call toll free 1-800-333-6900, or www.invacare.com
Pivot Slide Tube and Footplates
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1027097 Plug Button, Black (3/4") 1 21
7500085-NLA Pivot/Slide Tube w/ Plug Button, Chrome 1 12 A
1041526 Pivot/Slide Tube w/ Plug Button Assembly, Steel,
Chrome
1 12 D
44200X027 Footplate, Aluminum, Medium, Black (7-3/4" W x 6"
L)
1 13
1015178 Footplate, Composite, Black (6" W x 7-53/64" L) 1 13 C
1016346 Cap, End, Tube, Black (7/8") 1 14
1006981 Spring, Leaf 1 15
7930354 Package, Phillips Head Screw (#8-32 x 3/8") 25 16
1070168 Plug, Push, Footplate 1 17
1017237 Pivot/Slide Tube with Aluminium Footplate
Assembly, Chrome - Right
1 18 B
1017238 Pivot/Slide Tube w/ Aluminium Footplate Assembly,
Chrome - Left
1 18 B
1017233 Pivot/Slide Tube w/ Composite Footplate Assembly,
Chrome - Right
1 18 C
1017234 Pivot/Slide Tube w/ Composite Footplate Assembly,
Chrome - Left
1 18 C
1023907 Pivot/Slide Tube Assembly w/ Aluminum Footplate,
Chrome - Right
1 18 D
1023908 Pivot/Slide Tube Assembly w/Aluminum Footplate,
Chrome - Left
1 18 D
A - For T934A/C
B - For T934A
C - For T934C
D - For PAL4A
NOTE:
T94AA/C and PAL4A
Heel loops are not included. See accessories page.
Form No. 00-60
To order call toll free 1-800-333-6900, or www.invacare.com
30
Accessories
Form No. 00-60
31
To order call toll free 1-800-333-6900, or www.invacare.com
Accessories

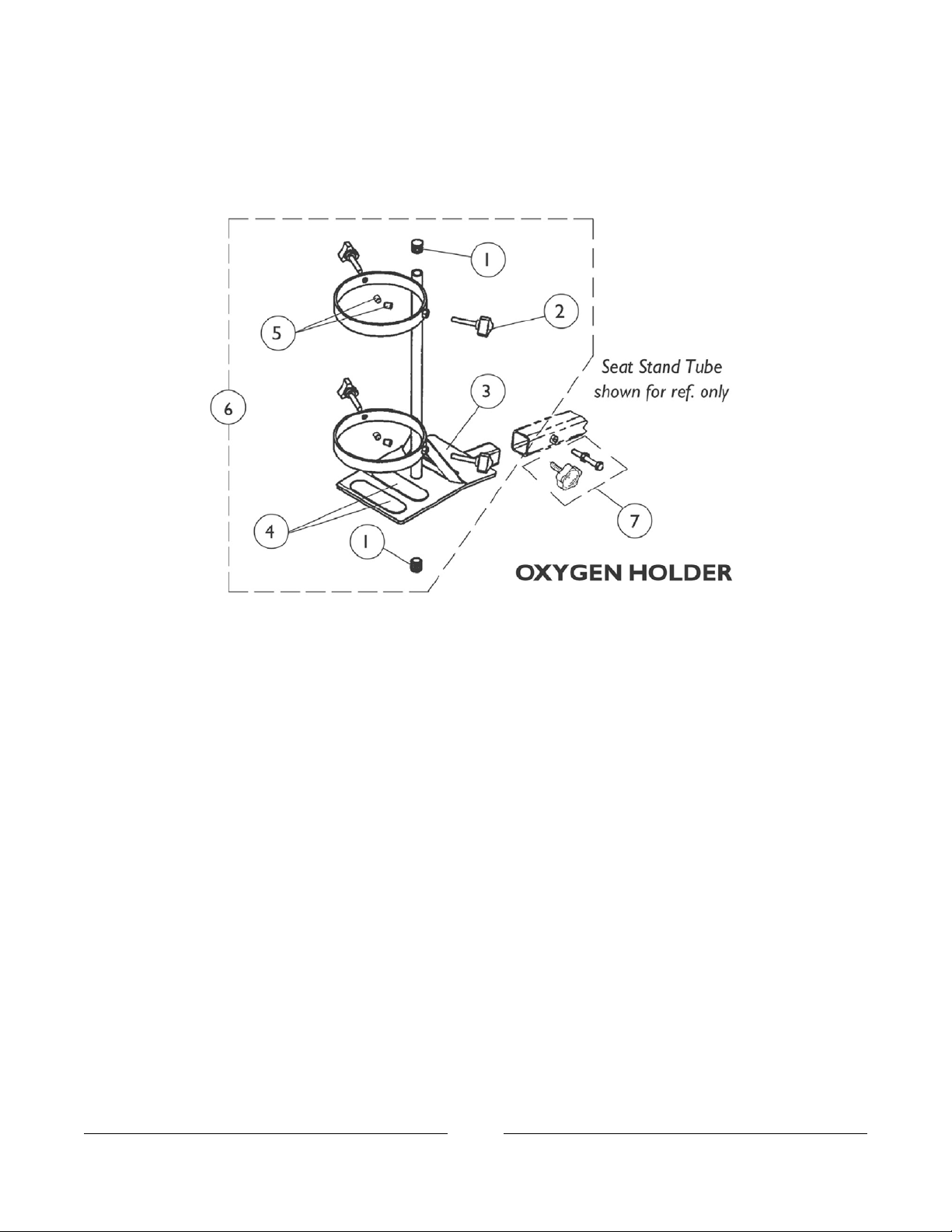

Oxygen Holder
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1035614 Plug Button, Black (5/8") 1 21
1027684 Knob, Clamping, Black 1 42
1080866 Decal, Oxygen Warning - English 1 13
1090093 Decal, Oxygen Warning - French Canadian 1 1
1092793 Decal, Oxygen Warning - Domestic Spanish 1 1
1072004 Pad, Non-Skid Adhesive Back 1 24
1086780 Package, Protective Caps 10 45 A
P750 Oxygen Holder Assembly - Deluxe Seats
(Includes Items 1-3, 5-6)
1 16 B
1088765 Fastener Hardware, Accessory Tube
Includes:
1 ea. Tighten Knob
1 ea. Screw, Hex Cap (M10 x 25)
1 ea. Nut (M10 x 1.25 x 17)
1 17
2000454 Bag, Poly (39" L x 33" W) 1 1
1091305-NLA Instruction Sheet, Oxygen Holder 1 1
1083052 Carton, Shipper 1 1
A - Four protective caps are included with the oxygen holder assembly, replacement caps are sold in packages of 10.
B - Fastener hardware part number 1088765 is not included with the oxygen holder assembly.
NOTE:
Form No. 00-60
32
To order call toll free 1-800-333-6900, or www.invacare.com
Accessories
Accessories - Miscellaneous
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
U1Gel-2 Batteries, 12 Volt Gel, 31 Amp. Hour 2 2A,B
P785 Basket, Rear - Lynx SX3P/ SX3 and LX3 Plus with
Deluxe Seat
1 1A
P725 Holder, Crutch/Cane 1 1A
P710 Flag, Safety 1 1A
1035917 Heel Loop (Pair) 2 1A
1017621 Heel Loop - Right/Left 1 1A
1035907 Kit, Heel Loop Attaching Hardware 2 1A
A - Not Shown
B - Batteries are an equipment item and are shown for reference only.
NOTE:
Form No. 00-60
To order call toll free 1-800-333-6900, or www.invacare.com
33
Power Wheelchair Tool Kit
Form No. 00-60
34
To order call toll free 1-800-333-6900, or www.invacare.com
Power Wheelchair Tool Kit
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly

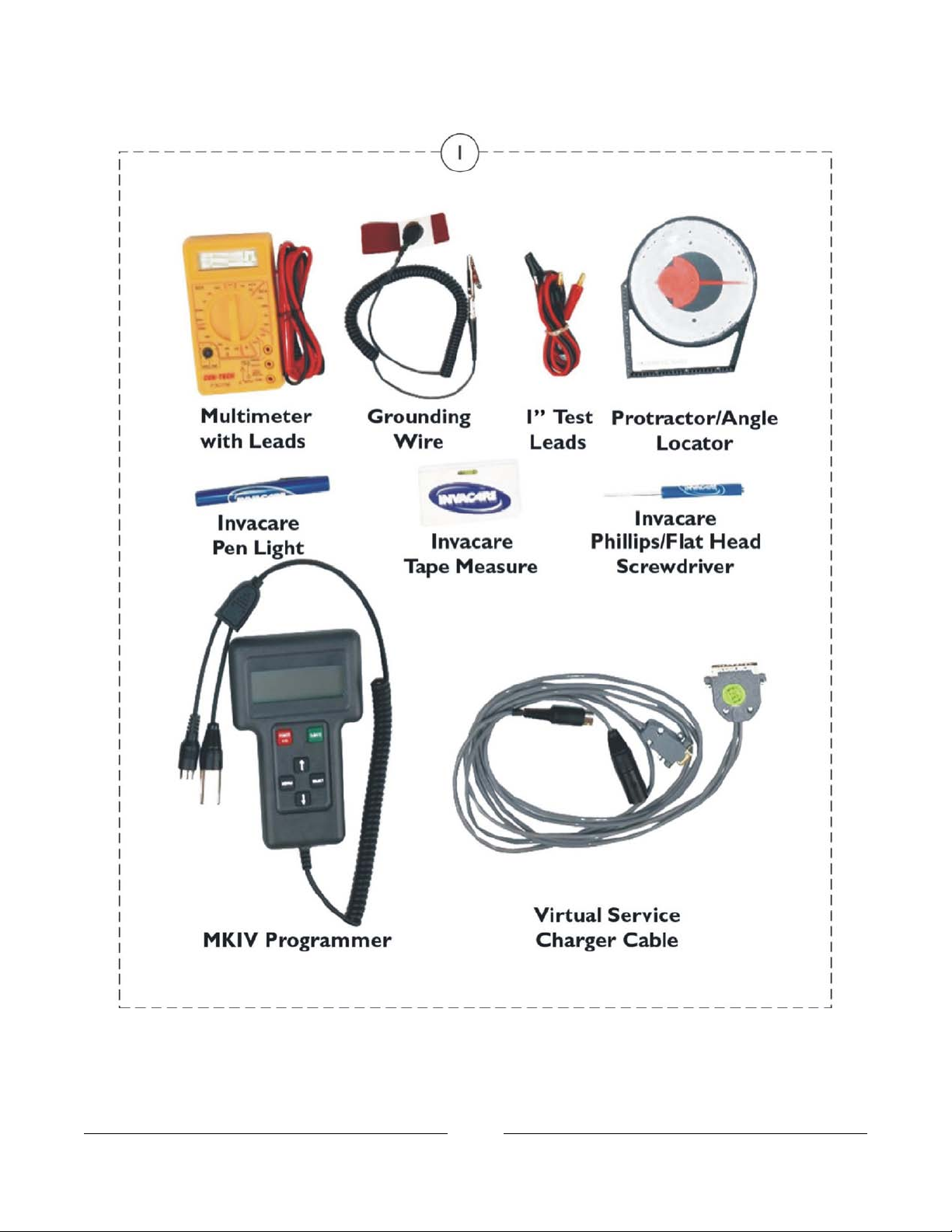

1125222 Kit, Power Wheelchair Tool
Includes:
1 ea. Multimeter with Leads
1 ea. Locator, Protractor/Angle Magnetic Base
1 ea. Instructions, MKIV Programmer
1 ea. Wire, Grounding with Hand Strap and Clip
1 ea. Leads, 1" Test
1 ea. Light, Pen with Invacare Logo
1 ea. Tape Measure, Compact with Invacare Logo
1 ea. Screwdriver, Pen-Size Phillips/Flat Head
1 ea. Cable, Virtual Service Charger/Modem
1 11
Form No. 00-60
To order call toll free 1-800-333-6900, or www.invacare.com
35
Invacare Corporation
00-60
©2008 Invacare Corporation. Elyria, Ohio.
All rights reserved. Trademarks are
identified be the symbols ™ and ®. All
trademarks are owned by or licensed to
Invacare Corporation unless otherwise
noted. (Revised 12/16/08)
www.invacare.com
Yes, you can. ™
One Invacare Way
Elyria, Oh USA
44036-2125
800-333-6900
Technical Support
800-832-4707
Customer Service
800-333-6900
Customer Service
800-333-6900
Form No.
Loading...
