Parts Catalog
Issued: Oct 13, 2006
Orbit™
Yes, you can. ™
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
Parts Catalog Usage Guide
To order call toll free 1-800-333-6900, or www.invacare.com
The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 97-190. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Examples:
A,B,C etc.
NOTE:
NLA
= Special Comments
= General information pertaining to that specific page
= No Longer Available
HARDWARE MEASUREMENTS
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
©2006 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., and the Medallion Design are registered trademarks and Orbit is a trademark of Invacare
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
Corporation.
Form No.
97-190
1
TABLE of CONTENTS
Page
Number
To order call toll free 1-800-333-6900, or www.invacare.com
Form No.
97-190
Description
Arms - "T" Arm ........................................................................................................................ 24
Arms - Cantilever ...................................................................................................................... 22
Base Frames and Hardware .................................................................................................... 13
Bilateral Contracture Footrest ................................................................................................. 64

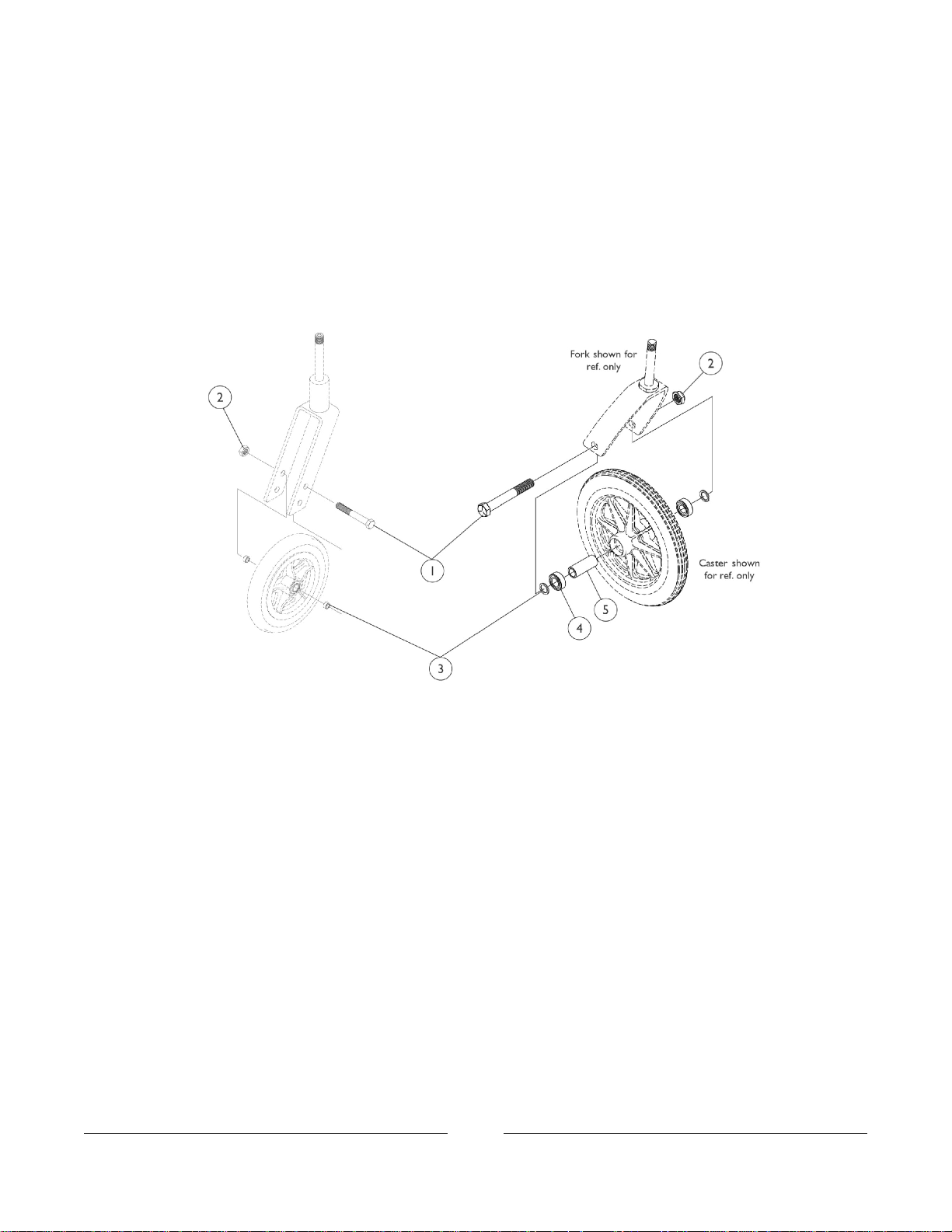

Casters and Hardware ............................................................................................................. 31

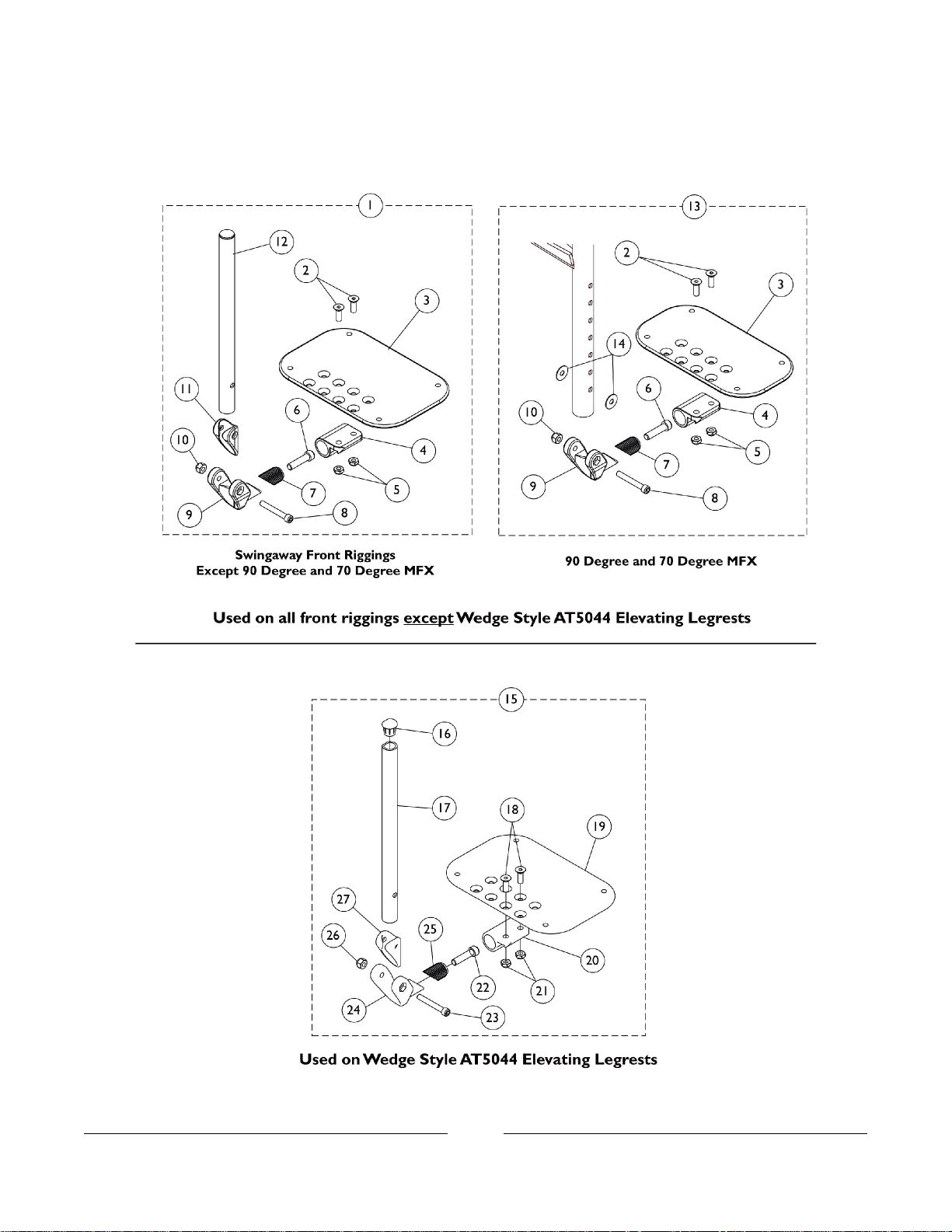

Footplate and Pivot Tube Assemblies - 1651 Composite ........................................................ 52
Footplate and Pivot Tube Assemblies - AT5543 Adjustable Angle (After 5/31/03) .................. 60
Footplate with Pivot Tube Assemblies - AT5543 Adjustable Angle (Before 6/1/03) ................. 56
Forks and Hardware ................................................................................................................. 29
Frame Finishes and Touch Up Paint ........................................................................................ 4
Front Rigging - Articulating Legrest Support - ATL4A .............................................................. 41

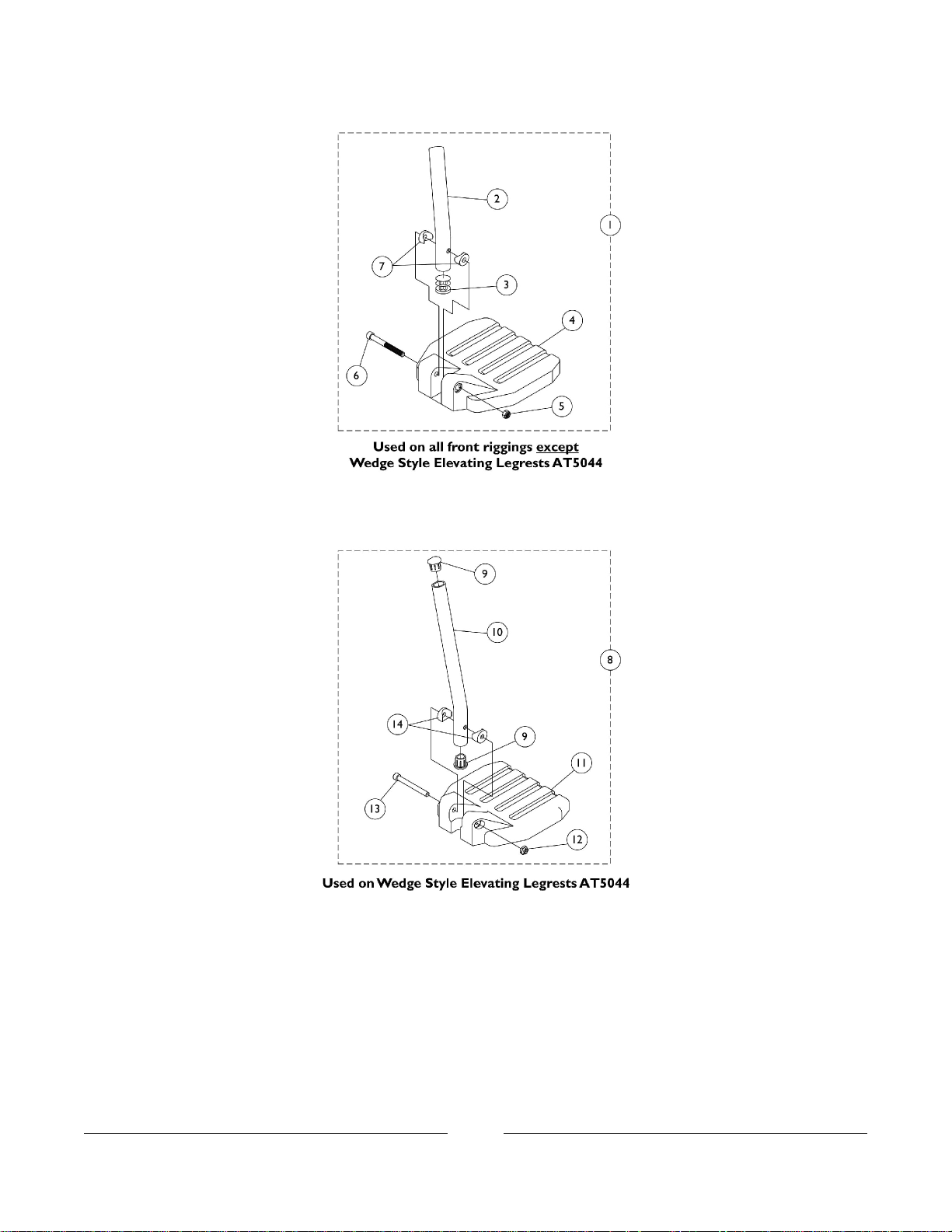

Front Rigging - Footrest Support Assemblies .......................................................................... 39
Front Rigging - Legrest Calf Pads and Ratchet Assemblies .................................................... 50
Front Rigging - Ratchet Style Legrest Support - AT5044 (Before 9/21/05) .............................. 43
Front Rigging - Wedge Style Legrest Support Assembly - AT5044 (Intro. 9/21/05) ................ 46
Handrims and Attaching Hardware .......................................................................................... 34
Headtube and Axle Mounting Plate Attaching Hardware ......................................................... 27
Miscellaneous Accessories ...................................................................................................... 68
Packaging, Literature, and Decals ........................................................................................... 6
Rear Wheels - Composite ........................................................................................................ 33
Recliner Back Assembly ........................................................................................................... 19
2
TABLE of CONTENTS
Page
Number
To order call toll free 1-800-333-6900, or www.invacare.com
Form No.
97-190
Description
Recliner Upholstery and Reclining Back Kits ........................................................................... 21
Seat Frame Assembly and Back Canes ................................................................................... 8
Seat Pans ................................................................................................................................. 11
Seat Pivot and Lower Seat Plate Assembly ............................................................................. 15
Stroller Handles - 1483 ............................................................................................................. 71

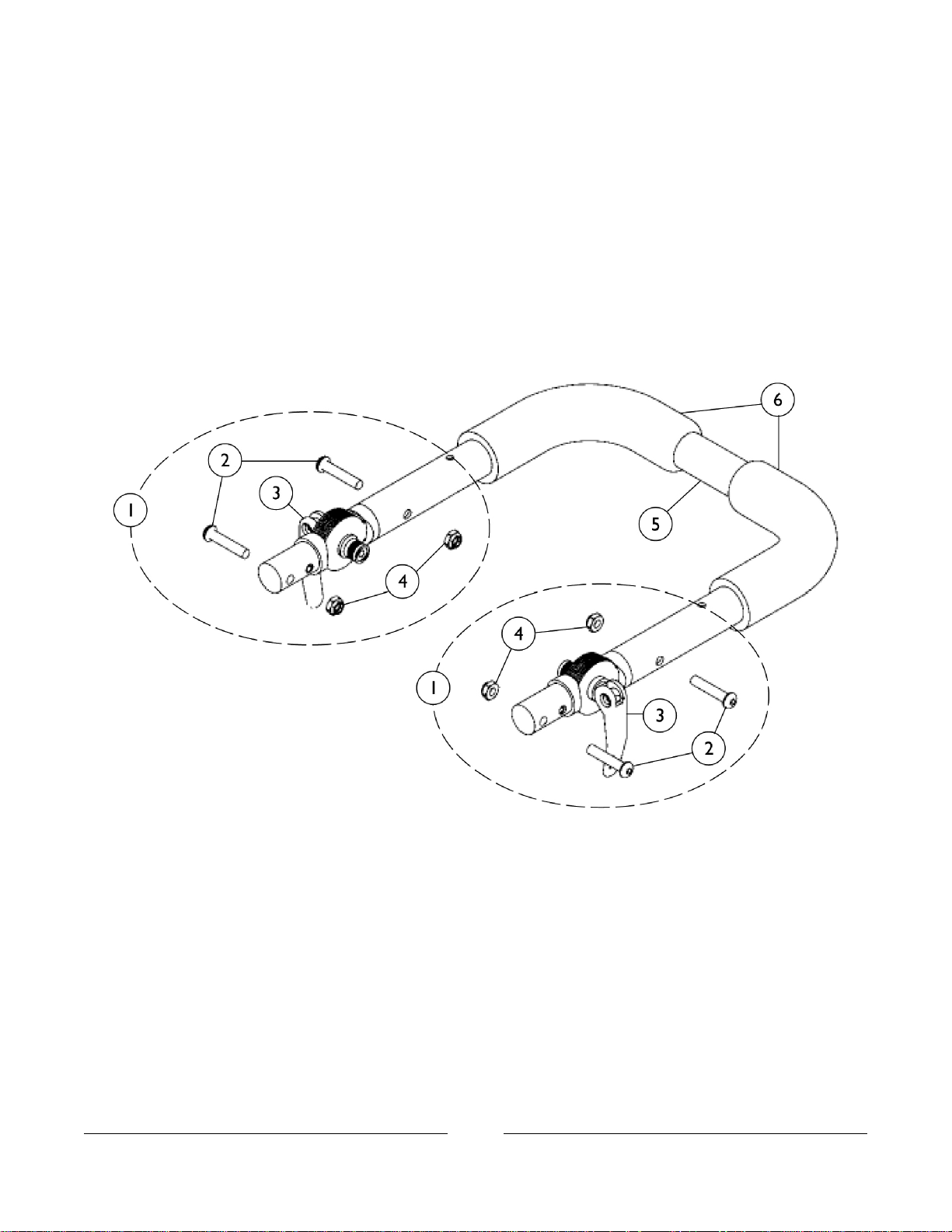

Stroller Handles - Adjustable .................................................................................................... 69
Tilt Mechanism ......................................................................................................................... 17
Vent Tray Assembly ................................................................................................................. 66
Wheel Locks - Attendant Operated .......................................................................................... 35
Wheel Locks - High Mount ....................................................................................................... 37
3
Contemporary Color Numbers Touch-Up Paint (.6 oz.) Color
Anthracite103337622P
Black Prism1133371115P
Denim Blue1101327102P
Electric Purple104632266P
Evergreen with Navy107389280P
Jeweled Green1101325101P
Lavender107389684P
Midnight Blue1101326105P
Mocha Frost1101324103P
Red103145533P
Royal Blue with Grape107389583P
Silver Metallic110131860P
Wet Black103145024P
White103144729P
ColorTouch-Up Paint (.6 oz.)Too Hot Color Numbers
Bubblegum Pink1133375119P
Electric Red104632161P
Fruit Fusion1133374118P
Grape Madness1133376120P
Sunkissed Orange1133372116P
Sunny Yellow107416730P
Tangerine Red1133373117P
ColorTouch-Up Paint (.6 oz.)Way Cool Color Numbers
Celestial Purple1133379123P
Cosmic Blue1133378122P
Electric Blue104632062P
Electric Teal110131679P
Emerald Green1133381125P
Grasshopper Green1133383127P
Lolly Pop Blue1133377121P
Shamrock Green1133382126P
Vivid Violet1133380124P
Frame Finishes and Touch Up Paint
Form No.
97-190
4
To order call toll free 1-800-333-6900, or www.invacare.com
Frame Finishes and Touch Up Paint
Sparkle Frame Finishes
Part
Number
Color
Black w/Twilight Sparkle72P
Black w/Gold Sparkle73P
Black w/Green Sparkle74P
Black w/Blue Sparkle75P
Black w/Red Sparkle76P
Wet Black w/Twilight Sparkle88P
Form No.
97-190
5
To order call toll free 1-800-333-6900, or www.invacare.com
Packaging, Literature, and Decals
Form No.
97-190
6
To order call toll free 1-800-333-6900, or www.invacare.com
Packaging, Literature, and Decals
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1045583 Carton, Shipper 1 11
1049222 Insert, Bottom Pad 1 12
1015592 Bag, Poly (72" L x 35" W x 19" D) 1 13
1026111 Bag, Poly 1 24 A
1021866 Bag, Poly (15" Wide x 26" Long) 1 15 B
40131X011 Carton, Front Riggings 1 26
1073955 Owner's Manual 1 1C
1073845 Decal, Orbit (Black) 1 1C
1074077 Decal, Orbit (White) 1 1C
1095497 Decal, Invacare Logo 1 1C
1120033 Decal, Warning 1 1C
1035900 Decal, Transportation 1 1C
See Chart Packaging, Literature, and Decals 1 1C
A - 20", 22", and 24" Rear Wheels
B - 12" Rear Wheels
C - Not Shown
NOTE:
When adjusting or replacing parts please refer to your Owner's Manual for assistance.
7
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com

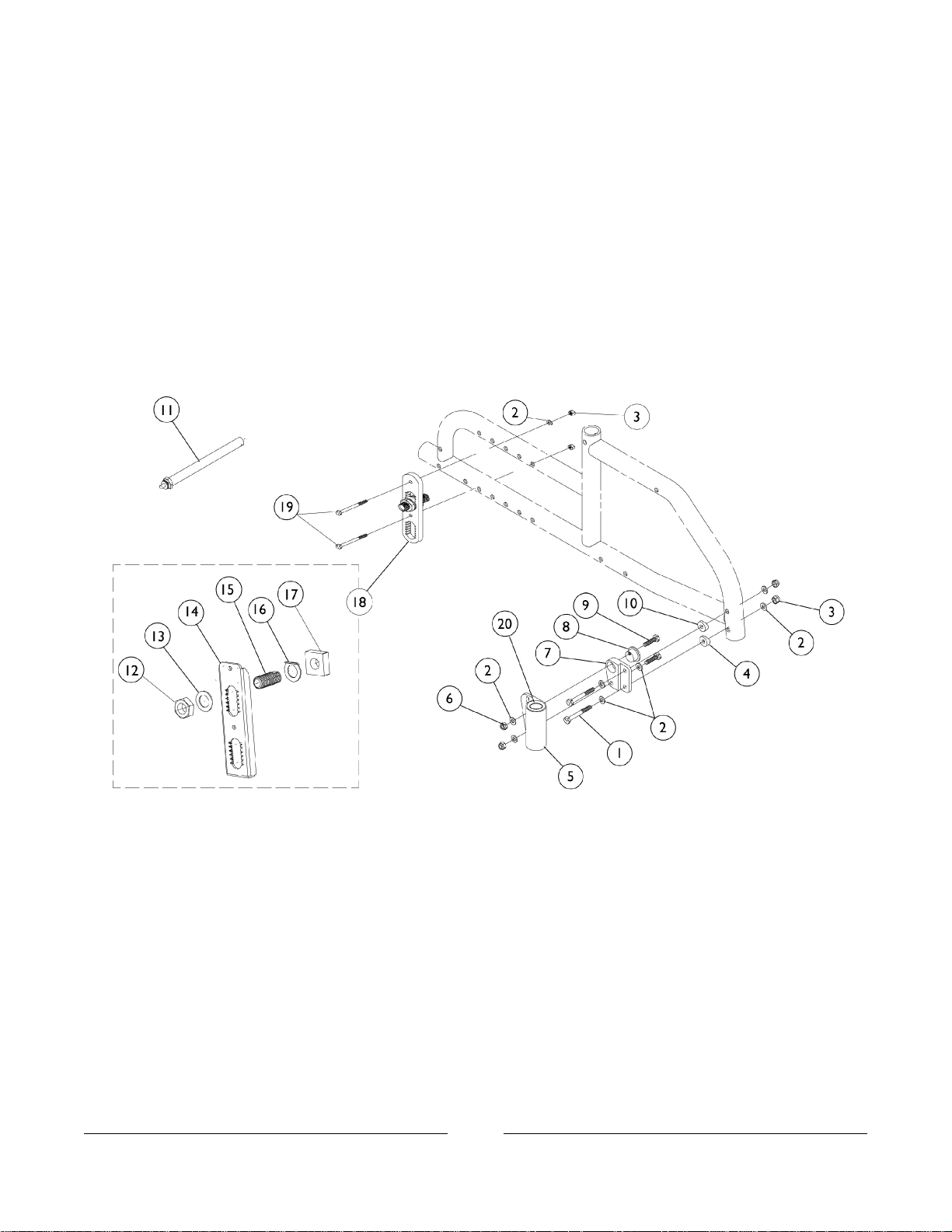

Seat Frame Assembly and Back Canes
Form No.
97-190
8
To order call toll free 1-800-333-6900, or www.invacare.com
Seat Frame Assembly and Back Canes
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1059249 Back Cane, Fixed Height 1 21
1059271 Tip, Protective (Black) 1 22
1058545 Lever, Actuator 1 23
40157X020 Spacer, Coved (1/4 x 1 x 9/16") 1 64
1065362 Locknut (1/4-28) 1 25
1011511 Spring, Compression (1") 1 26
1058232 Plug, Latch 1 27
1026907 Washer (1/4 x 1/2 x 1/16") 1 88
See Chart #9 Crossmember 1 19
1082508 Seat Rail -Right (Black) 1 110
1082509 Seat Rail -Left 1 110
1074640 Screw, Allen Head (1/4-28 x 1-1/4") 1 211
1025765 Locknut (1/4-28) 1 212
1052957 Screw, Hex Head (1/4-20 x 2") 1 213
1086389 Support Tube, Front Rigging -Right 1 214
1086390 Support Tube, Front Rigging -Left 1 214
1054571 Kit, Sector Block - Right 1 115
1054572 Kit, Sector Block - Left 1 115
1073711 Seat Plate, Upper 1 116
1055310 Screw, Hex Head (1/4-28 x 1-1/4") 1 417
1071982 L-Bracket 1 418
1074191 Screw, Socket C'Sunk Head Cap (1/4-28 x 1/2") 1 419
1055348 Screw, Hex Head Cap (1/4-28 x 1-3/4") 1 420
1059127 Pin, Locking 1 221
1055349 Screw, Hex Head (1/4-28 x 2") 1 622
1027095 Plug Button, Black (7/8") 1 223
1045495 Screw, Socket Head (1/4-20 x 1/4") 1 224
See Chart #25 Spreader Bar 1 125
1059109 Mounting Plate, Backrest 1 226
1061484 Grip, Foam (Black) (5") 1 227
Form No.
97-190
9
To order call toll free 1-800-333-6900, or www.invacare.com
Seat Frame Assembly and Back Canes
#9 Crossmember
10"
Wide
16"
Wide
11"
Wide
12"
Wide
13"
Wide
14"
Wide
15"
Wide
1058335105833410583331058332105833110583301058329
#25 Spreader Bar
10"
Wide
16"
Wide
11"
Wide
12"
Wide
13"
Wide
14"
Wide
15"
Wide
1042512104251110425101042509104250810425071042506
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
10
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1008495 Screw, Button Head Cap (1/4-20 x 1-1/2") 1 41
1025195 Locknut (1/4-20) 1 4A
See Chart #2 Seat Pans 1 12
A - Not Shown
NOTE:
#2 Seat Pans
Seat Pans
Form No.
97-190
11
To order call toll free 1-800-333-6900, or www.invacare.com
Seat Pans
#2 Seat Pans
Seat
Depth
15"
Wide
16"
Wide
10"
Wide
11"
Wide
12"
Wide
13"
Wide
14"
Wide
107359310735921073591107359010735891071199107119810-13"
107360010735991073598107359710735961073595107359414-16"
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
12
Base Frames and Hardware
Form No.
97-190
13
To order call toll free 1-800-333-6900, or www.invacare.com
Base Frames and Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881069533 Frame, Standard (24" Long) -Right 1 11 A
8881069534 Frame, Standard (24" Long) -Left 1 11 A
8881069535 Frame, Large (28" Long) -Right 1 11 A
8881069536 Frame, Large (28" Long) -Left 1 11 A
1055348 Screw, Hex Head Cap (1/4-28 x 1-3/4") 1 62
1026907 Washer (1/4 x 1/2 x 1/16") 1 83
1025765 Locknut (1/4-28) 1 24
1071841 Bracket, Cylinder Mount 1 25
1055347 Screw, Hex Head (1/4-28 x 1-1/2") 1 46
See Chart #7 Crossmember 1 17
See Chart #8 Crossmember 1 18
See Chart Growth Kits 1 1B
A - Specify frame color when ordering.
B - Includes items 2, 3, 7 and 8.
NOTE:
#7 Crossmember
10"
Wide
16"
Wide
11"
Wide
12"
Wide
13"
Wide
14"
Wide
15"
Wide
1071189107118810711871071186107118510711841071183
#8 Crossmember
10"
Wide
16"
Wide
11"
Wide
12"
Wide
13"
Wide
14"
Wide
15"
Wide
1058335105833410583331058332105833110583301058329
Growth Kits
Desired Chair Width Shown - Growth kits contain items 2,3,7,8 along with the required Seat Pivot
Crossmember and Hardware. A Spreader Bar, Stroller Handles, Footplates, and Wheel Lock Extensions
may also be needed.
10"
Wide
16"
Wide
11"
Wide
12"
Wide
13"
Wide
14"
Wide
15"
Wide
1076273107627210762711076270107626910762681076267
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
14
Seat Pivot and Lower Seat Plate Assembly
Form No.
97-190
15
To order call toll free 1-800-333-6900, or www.invacare.com
Seat Pivot and Lower Seat Plate Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1073713 Seat Plate, Lower 1 11 A
1060097 Screw, Hex Head Cap (1/4-28 x 1-1/2") 1 22
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 23
See Chart #4 Pivot Crossmember 1 14
1071166 Bushing, Pivot 1 25
1071162 Pivot, Seat Frame 1 26
1055310 Screw, Hex Head (1/4-28 x 1-1/4") 1 27
1002104 Washer, Flat (1/4 x 1/2 x 1/16") 1 38
1065362 Locknut (1/4-28) 1 29
1080085 Pin, Spring Loaded Plunger 1 210
1073708 Nut, Hex Jam (1/2-13) 1 211
1026903 Tie Down Tab 1 112
1045470 Pin, Quick Release with Lanyard 1 113
16348X000 Rivet (3/16 x 7/16") 1 114
A - Includes Items 10 and 11
NOTE:
#4 Pivot Crossmember
10"
Wide
16"
Wide
11"
Wide
12"
Wide
13"
Wide
14"
Wide
15"
Wide
1073578107357710735761073575107357410735731073572
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
16

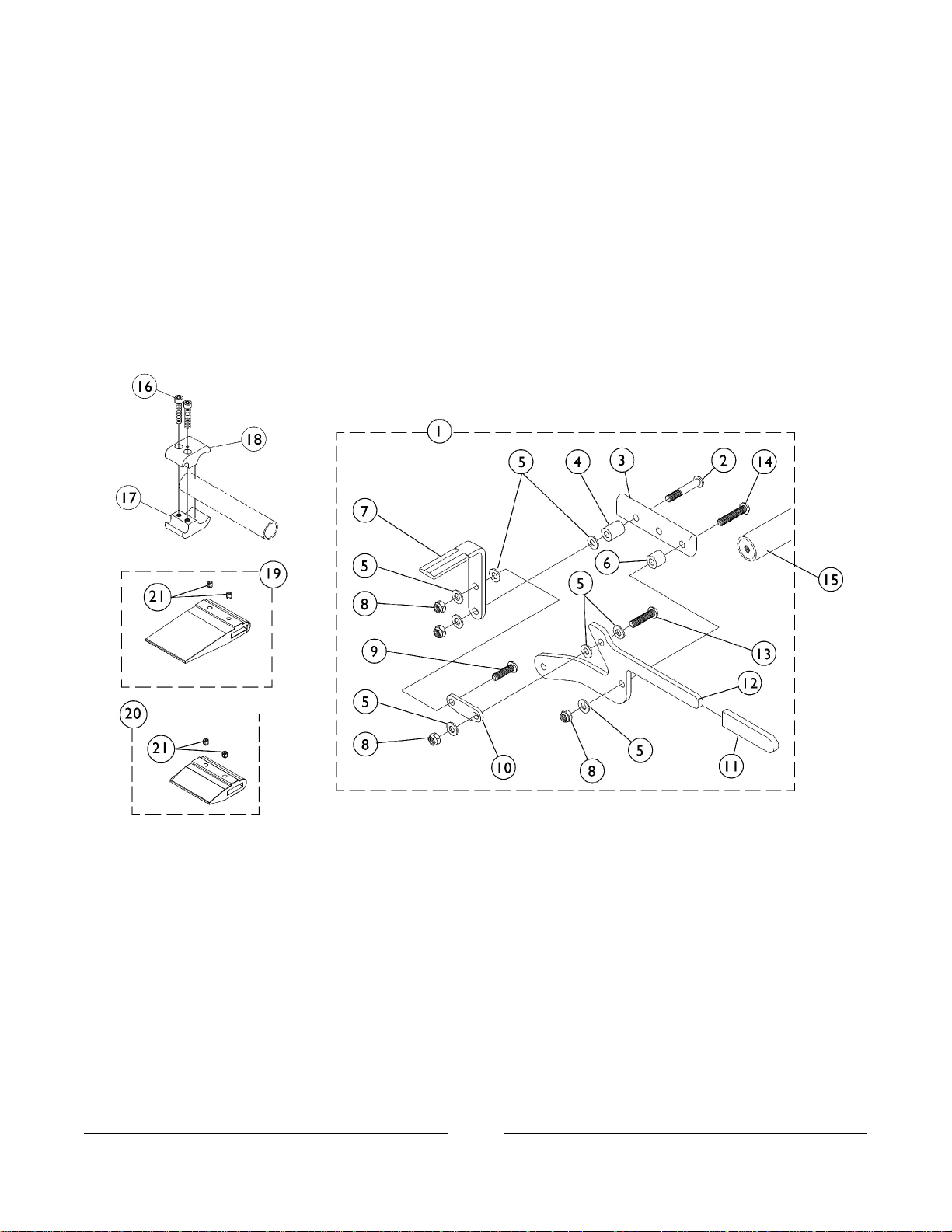

Tilt Mechanism
Form No.
97-190
17
To order call toll free 1-800-333-6900, or www.invacare.com

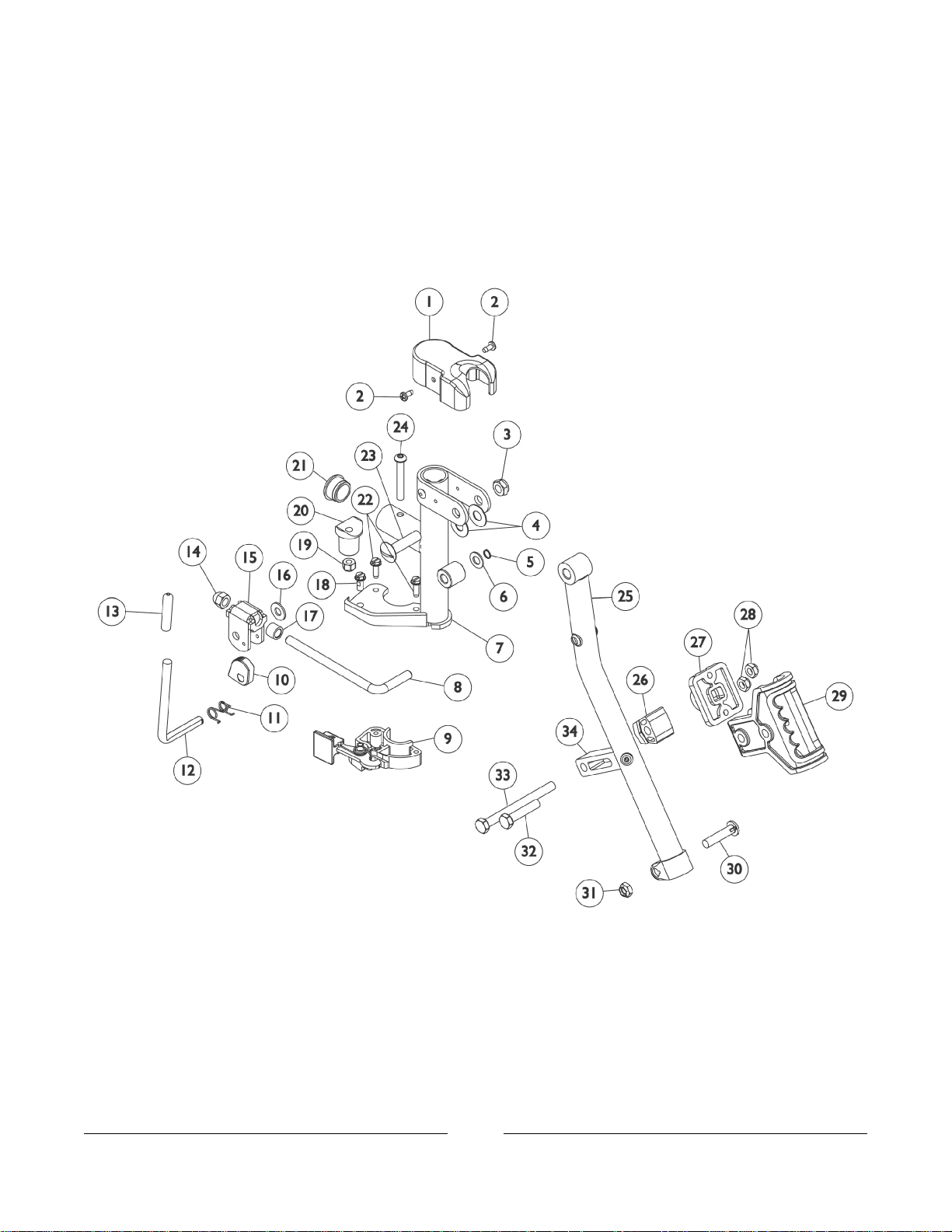

Tilt Mechanism
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1071165 Screw, Hex Head (1/4-28 x 3-3/4") 1 11
1002104 Washer, Flat (1/4 x 1/2 x 1/16") 1 12
1065362 Locknut (1/4-28) 1 23 A
1071842 Bracket, Cylinder Mounting -Single Cylinder 1 24
1044939 Screw, Hex Head (5/16-18 x 1-3/4") 1 25
1028769 Locknut (5/16-18) 1 26 B
1073897 Spacer (1/4 x 3/8 x 9/16") 1 27
1073707 Clamp, Cylinder with Screws 1 48 B
1037658 Cylinder, Lock - Left 1 29 B
1073709 Single Cylinder Tilt Assembly 1 110 C
1071979 Kit, Cylinder Mounting Bracket Hardware - Dual
Cylinder
1 111 G
1073710 Dual Cylinder Tilt Assembly 1 112 D
1073876 Cable, Tilt Release 1 113 E
1073837 Pin, Locking 1 214
1072026 Plate, Mounting 1 115
1026103 Washer, Nylon (1/4 x 1/2 x 1/32") 1 416
1076398 Lock, Foot Lever 1 117
1072027 Bracket, Foot Pedal 1 118
1074778 Bolt, Cable (Front) 1 119
1072025 Foot Pedal 1 120
1082617 Bolt, Cable (Rear) 1 121
1025765 Locknut (1/4-28) 1 622
1055305 Screw, Button Head Socket Cap (1/4-28 x 3/4") 1 223
1071169 Tilt Foot Lever Assembly 1 124 F
A - 1 ea. required for items 10 and 12. 2 ea. required for item 24.
B - Quantity per assembly figures shown are for the Dual Cylinder configuration. Refer to image for quantities on Single
Cylinder configuration.
C - Includes items 1-9. Does not include item 13.
D - Includes items 1,3,5,6,8,9, and 11. Does not include item 13.
E - Not included with items 10 or 12.
F - Includes items 3, 14-23.
G - Includes 2 ea. Screws (1/4-28 x 1-1/2"), 2 ea. Cylinder Brackets, 2 ea. Washers, and 2 ea. Locknuts (1/4-28).
NOTE:
18
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com

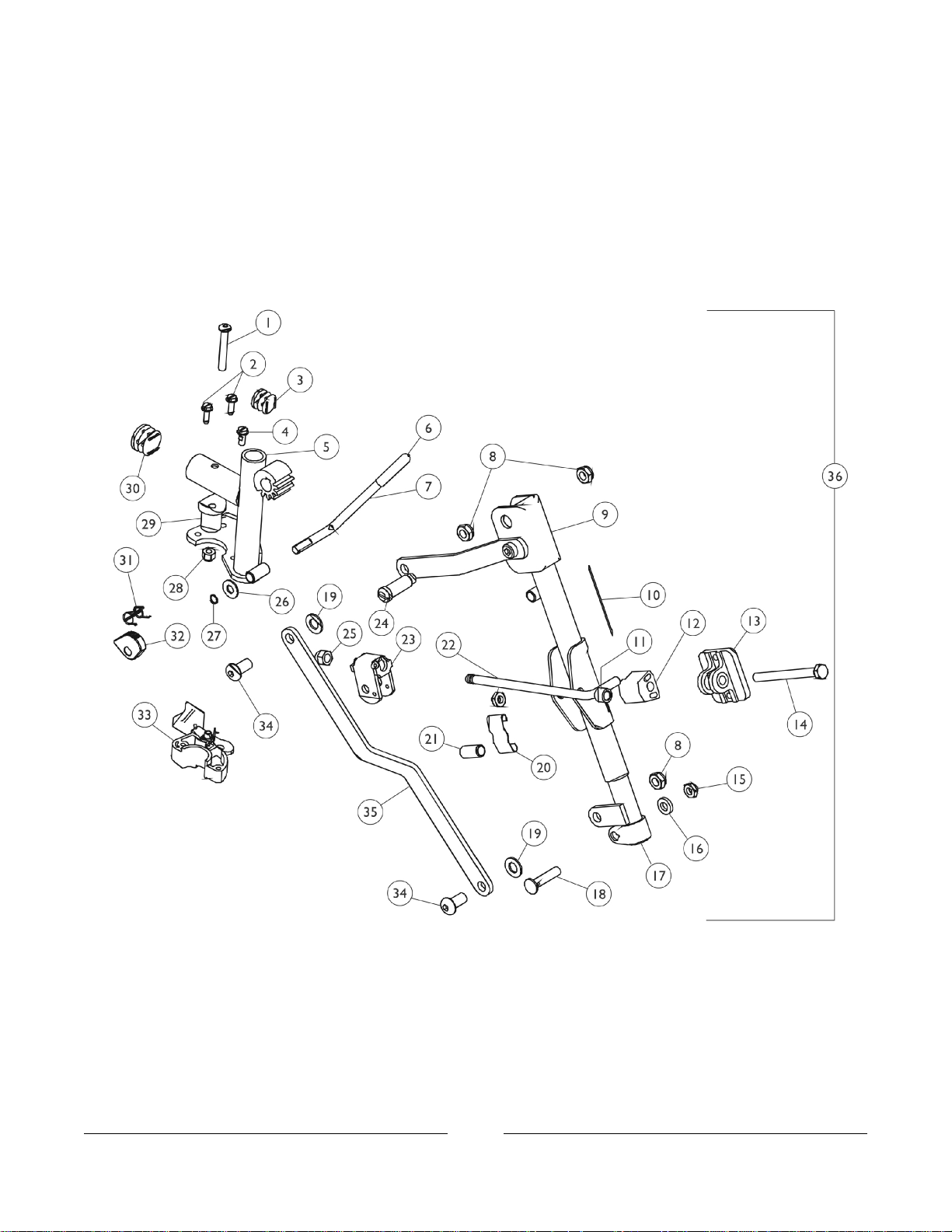

Recliner Back Assembly
Form No.
97-190
19
To order call toll free 1-800-333-6900, or www.invacare.com

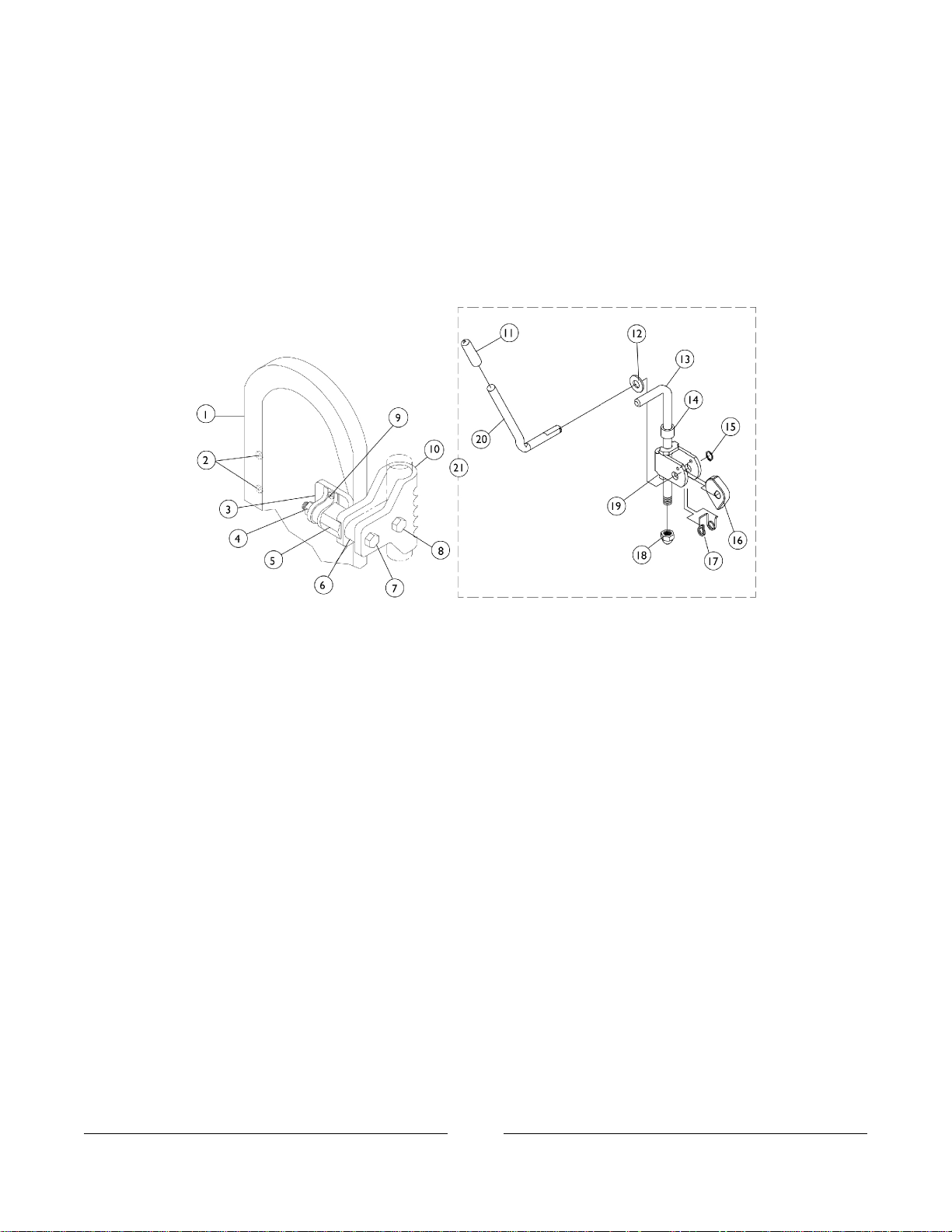

Recliner Back Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1070998 Tube, Headrest Extension w/ Plug Button & Spring
Button - Right
1 11
1070999 Tube, Headrest Extension w/ Plug Button & Spring
Button - Left
1 11
1027095 Plug Button, Black (7/8") 1 22
1024713 Spring Button Lock 1 23
1076527 Back Cane, Recliner -Right 1 14
1076528 Back Cane, Recliner -Left 1 14
1025736 Locknut (1/4-20) 1 45
1026907 Washer (1/4 x 1/2 x 1/16") 1 46
1071729 Spacer, Coved (3/8 x 1 x 9/16") 1 47
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 128
1026158 Locknut (5/16"-18) 1 29
1065362 Locknut (1/4-28) 1 410
1071739 Bracket, Recliner 1 411
1055349 Screw, Hex Head (1/4-28 x 2") 1 412
1071737 Screw, Socket Head Shoulder (3/8 x 1-5/8") 1 213
1071736 Screw, Socket Head Shoulder (5/16 x 1-5/8") 1 214
1069736 Bushing (3/8") 1 415
1076526 Cylinder, Recliner 1 216
1021260 Cable Tie (5-5/8" Long) 1 417
1050153 Screw, Socket Head Shoulder (5/16 x 7/8") 1 218
1025735 Locknut (#10-32) 1 219
1071735 Lever, Cylinder Release 1 220
1071718 Bracket, Cylinder Release 1 221
1055309 Screw, Button Head (1/4-28 x 1-1/4") 1 722
1078318 Handle, Cable Release 1 223
1025765 Locknut (1/4-28) 1 624
1029501 Plug Button (1") 1 225
1026107 Screw, Phillips Pan Head (#10-32 x 1-3/8") 1 226
40157X020 Spacer, Coved (1/4 x 1 x 9/16") 1 827
1081265 Plug 1 228
1083926 Clamp 1 129
1083905 Bushing 1 130
1055347 Screw, Hex Head (1/4-28 x 1-1/2") 1 131
1083906 Stop Ring 1 132
1083928 Tube, Upper 1 133
1082635 T-Tube, Lower 1 134
1114690 Stroller Handle Hinge Hardware 2 135 A
1082638 Cable Release Assembly 1 236
A - Includes items 22 and 24.
NOTE:
Form No.
97-190
20
To order call toll free 1-800-333-6900, or www.invacare.com
Stroller Handles
10"
Wide
16"
Wide
11"
Wide
12"
Wide
13"
Wide
14"
Wide
15"
Wide
1082624108262310826221082621108262010826191082618
Back Upholstery
10" W x 18" H 16" W x 18" H11" W x 18" H 12" W x 18" H 13" W x 18" H 14" W x 18" H 15" W x 18" H
1071053107171710717141070993107099010826331082630
Headrests
10"
Wide
16"
Wide
11"
Wide
12"
Wide
13"
Wide
14"
Wide
15"
Wide
1071061107106010710141071013107101210826371082636
Headrest Pillows
10-11"
Wide
12-13"
Wide
14-15"
Wide
16"
Wide
1071058107101110710101083914
Orbit Reclining Back Kits
Back Kits contain the following items: Back Upholstery (U240 Black), Headrest Extensions, Headrest
Uph., Pillow, Back Canes, Cable Release, and Attaching Hardware.
10"
Wide
16"
Wide
11"
Wide
12"
Wide
13"
Wide
14"
Wide
15"
Wide
1085208108520710852061085205108520410852031085202
Chairs using cantalever arms must be converted to T-arms before adding the recliner back kit.
Back Canes and Headrest Extensions are painted Black (34P). Back and Headrest Upholstery is Black Nylon (U240).
Recliner Upholstery and Reclining Back Kits
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
21
Cantilever Arms
Form No.
97-190
22
To order call toll free 1-800-333-6900, or www.invacare.com
Cantilever Arms
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1065362 Locknut (1/4-28) 1 31
1026907 Washer (1/4 x 1/2 x 1/16") 1 22
8881053578 Arm Pads, Vinyl, Desk Length with Screws (9" L x
2" W)
2 13 A
8881053577 Arm Pads, Vinyl, Full Length with Screws (14" L x 2"
W)
2 13 A
1042598 Tube, Arm Extension 1 14
1056328 Plug Button (1") 1 15
1026107 Screw, Phillips Pan Head (#10-32 x 1-3/8") 1 26
1068600 Slide Tube, Cantilever Arm 1 17
1059271 Tip, Protective (Black) 1 18
1026103 Washer, Nylon (1/4 x 1/2 x 1/32") 1 19
1058545 Lever, Actuator 1 110
1059374 Screw, Hex Head Cap (1/4-28 x 3") 1 111
1068588 Arm Tube 1 112
1011511 Spring, Compression (1") 1 113
40157X020 Spacer, Coved (1/4 x 1 x 9/16") 1 114
1055348 Screw, Hex Head Cap (1/4-28 x 1-3/4") 1 115
1012371 Washer, Nylon (3/8 x 7/8 x 1/16") 1 116
1058232 Plug, Latch 1 117
1058231 Pin, Locking 1 118
1058542 Bracket, Armrest Mounting 1 119
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 220
1027268 Screw, Allen Head (1/4-20 x 1") 1 221
1043711 Clamp, Non-Threaded 1 122
1043712 Clamp, Threaded 1 123
1055346 Screw, Hex Head Cap (1/4-28 x 3/4") 1 124
1055349 Screw, Hex Head (1/4-28 x 2") 1 125
1062787 Arm Support, Clamp On 1 126
1068654 Kit, Cantilever Arm, Bolt On - Right 1 127 B
1068655 Kit, Cantilever Arm, Bolt On - Left 1 127 B
1068656 Cantilever Arm, Clamp On -Right 1 128 B
1068657 Cantilever Arm, Clamp On -Left 1 128 B
A - Specify upholstery color U67 Black when ordering.
B - Arms do not include Arm Pads, they must be ordered separately.
NOTE:
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
23

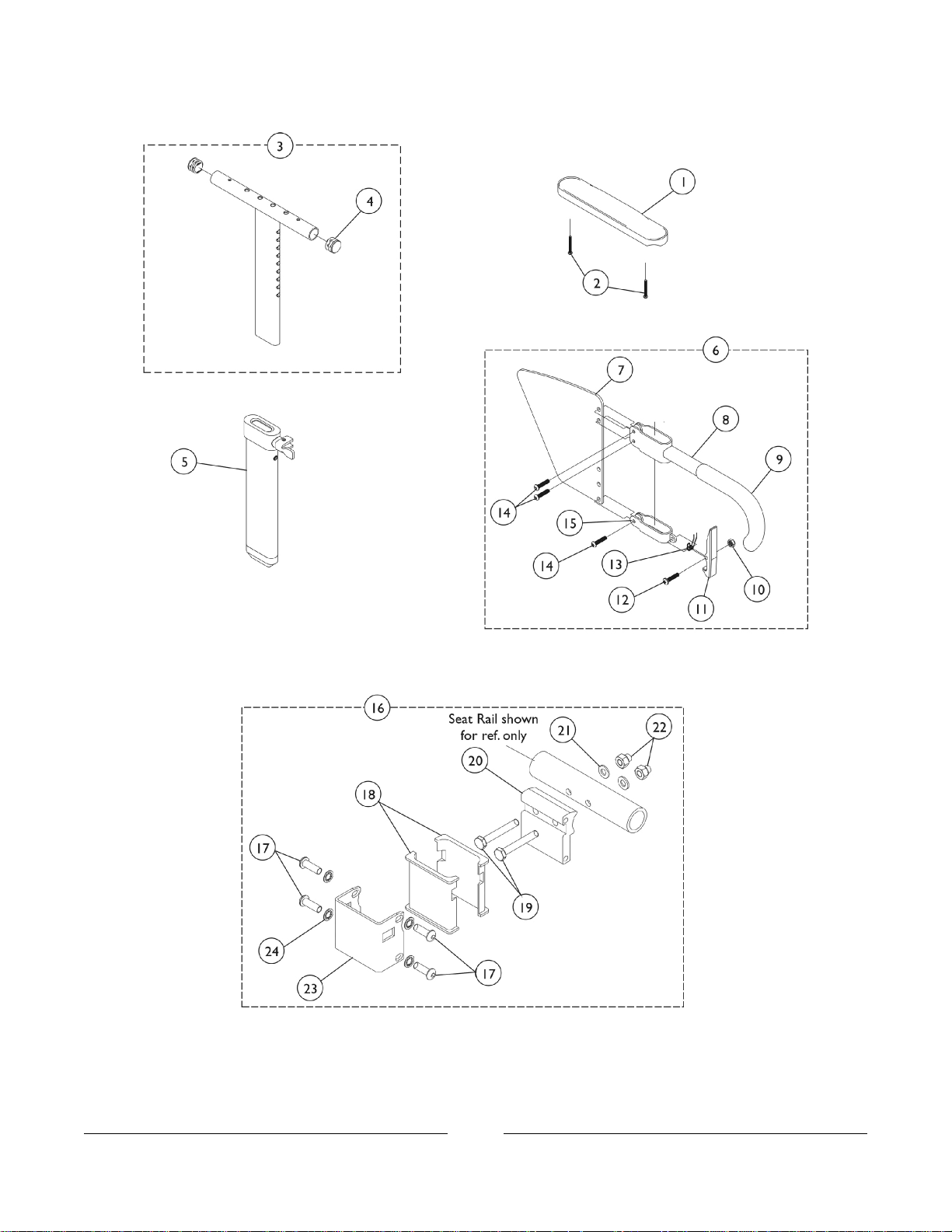

"T" Arms and Hardware
Form No.
97-190
24
To order call toll free 1-800-333-6900, or www.invacare.com
"T" Arms and Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881053570 Arm Pads with Screws - Desk Length 2 11 A
8881053571 Arm Pads with Screws - Full Length 2 11 A
1026107 Screw, Phillips Pan Head (#10-32 x 1-3/8") 1 22
1069639 "T" Arm w/ Plug Buttons, Desk Length - Low Range 1 13
1069641 "T" Arm w/ Plug Buttons, Desk Length - High Range 1 13
1069643 "T" Arm w/ Plug Buttons, Full Length - Low Range 1 13
1069645 "T" Arm w/ Plug Buttons, Full Length - High Range 1 13
1027095 Plug Button, Black (7/8") 1 24
1069635 Arm Post, Low Range 1 15
1069637 Arm Post, High Range 1 15
1073424 Kit, Clothing Guard, Low Range - Right 1 16
1073425 Kit, Clothing Guard, Low Range - Left 1 16
1073422 Kit, Clothing Guard, High Range - Right 1 16
1073423 Kit, Clothing Guard, High Range - Left 1 16
1069652 Clothing Guard, Low Range 1 17
1069651 Clothing Guard, High Range 1 17
1069634 Support Tube, Low Range - Right 1 18
1073247 Support Tube, Low Range - Left 1 18
1069650 Support Tube, High Range - Right 1 18
1073246 Support Tube, High Range - Left 1 18
1028427 Grip, Foam 1 19
1025731 Locknut (#10-32) 1 110
1073235 Lock Lever 1 111
1025716 Screw, Phillips Head (#10-32 x 11/16") 1 112
1073196 Spring 1 113
1006773 Screw, Socket Head (1/4-20 x 1/2") 1 314
1075069 Clamp, Clothing Guard - Right 1 115
1075070 Clamp, Clothing Guard - Left 1 115
1069632 Kit, Arm Post Attaching Hardware, Bolt On 1 116
1055305 Screw, Button Head Socket Cap (1/4-28 x 3/4") 1 417
1069609 Insert, Arm Socket 1 218
1055348 Screw, Hex Head Cap (1/4-28 x 1-3/4") 1 219
1069629 Bracket, T-Arm Socket (Threaded) 1 120
1026907 Washer (1/4 x 1/2 x 1/16") 1 221
1085111 Hex Nut (1/4-28) 1 322
1069620 Bracket, Socket 1 123
1026108 Lockwasher (1/4 x 15/32 x 1/64") 1 424
See Chart "T" Arm Kits 1 1B
A - Specify upholstery color U67 Black when ordering.
B - Includes items 1-3 and 5-6.
NOTE:
"T" Arm Kits
Kits Include Items 1-3,5-6
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
25
"T" Arms and Hardware
"T" Arm Kits
Kits Include Items 1-3,5-6
Part Number Arm Style
Desk Length, Low Range (1 Pair)8881074078
Desk Length, High Range (1 Pair)8881074079
Full Length, Low Range (1 Pair)8881074080
Full Length, High Range (1 Pair)8881074081
Specify U67 upholstery color when ordering.
Form No.
97-190
26
To order call toll free 1-800-333-6900, or www.invacare.com
Headtube and Axle Mounting Plate Attaching Hardware
Form No.
97-190
27
To order call toll free 1-800-333-6900, or www.invacare.com
Headtube and Axle Mounting Plate Attaching Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1055347 Screw, Hex Head (1/4-28 x 1-1/2") 1 21
1026907 Washer (1/4 x 1/2 x 1/16") 1 82
1065362 Locknut (1/4-28) 1 43
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 14
1076369 Headtube, Caster -Right 1 25
1076370 Headtube, Caster -Left 1 25
1055366 Locknut (1/4-28) 1 26
1040773 Bracket, Headtube Adjustment -Right 1 17
1040774 Bracket, Headtube Adjustment -Left 1 17
1040766 Cam, Headtube Adjustment 1 18
1055296 Screw, Hex Head Socket (1/4-28 x 1") 1 29
1009861 Spacer, Coved (1/4 x 11/16 x 1/2") 1 110
1026930 Axle, Quick Release (1/2 x 4-1/2") 1 111
1044945 Nut, Hex (3/4-16) 1 212
1025701 Washer (3/4 x 1-1/4 x 1/16") 1 113
1079983 Axle Mounting Plate, Slotted 1 114 A
1069009 Bushing, Axle 1 115
1062289 Washer, Axle Positioning 1 116
1079981 Nut, Square 1 117
1079982 Axle Mounting Plate Assembly 1 118 B
1055348 Screw, Hex Head Cap (1/4-28 x 1-3/4") 1 219
40117X021 Bearing (1/2" I.D. x 1-1/8" O.D.) 1 220
A - Includes items 2,3, and 19
B - Includes items 12-17
NOTE:
Form No.
97-190
28
To order call toll free 1-800-333-6900, or www.invacare.com
Forks and Hardware
Form No.
97-190
29
To order call toll free 1-800-333-6900, or www.invacare.com

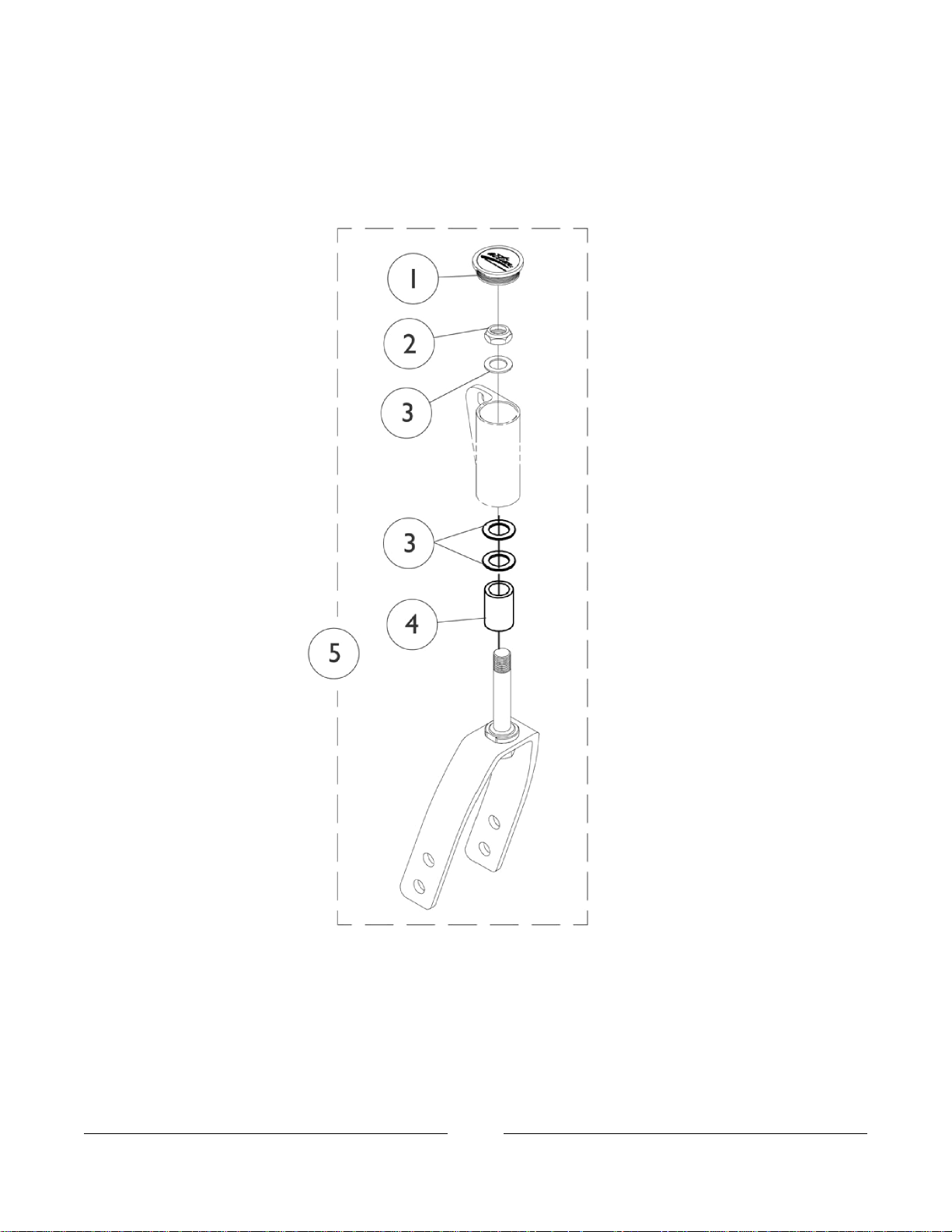

Forks and Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1038353 Cap, Caster Headtube 1 11
1025737 Locknut (1/2"-20) 1 42
1026174 Washer (1/2 x 7/8 x 3/64") 1 13
1046495 Spacer (1/2 x 3/4 x 1") 1 24
1065623 Kit, Fork with Hardware - 3" Caster 1 25
1065624 Kit, Fork with Hardware and 1" Spacer - 3"/5" Caster 1 25
1065626 Kit, Fork with Hardware - 5" Caster 1 25
1065627 Kit, Fork with Hardware and 1" Spacer - 5"/6" Caster 1 25
1065629 Kit, Fork w/ Hardware -6 x 2" & 8" Casters 1 25
Form No.
97-190
30
To order call toll free 1-800-333-6900, or www.invacare.com
Casters and Hardware
Form No.
97-190
31
To order call toll free 1-800-333-6900, or www.invacare.com
Casters and Hardware
Caster Wheel Hardware
Wheel
Style
#4
Bearing
#5
Spacer
Wheel
Size
Tire
Type
#1
Axle
#2
Locknut
#3
Washer
N/AN/A10261021025730
1025764
Screw, Hex
Head Cap
(5/16-24 x
2-1/4")
Urethane5"5ALUM
N/AN/A10261021025730
1025764
Screw, Hex
Head Cap
(5/16-24 x
2-1/4")
Urethane5"AT901
N/AN/A102610210257301025764Urethane6 x 1"AT902
N/AN/A102610210257301025764Urethane6 x 1"6SKYWAY
N/AN/A102610210257301025764Pneumatic6 x 2"6PNEU
10205921006049102610110257341025726Urethane8 x 1"AT903
10205921006049102572410257341025726Pneumatic8 x 1-1/4"AT1292
10205921006049102572410257341025726
Pneumatic
w/ Flat Free
8 x 1-1/4"AT1292FF
Caster Wheels
Wheel
Style
Wheel
Size
Tire
Type
Caster
w/ Bearings
Tire
Tube/
Insert
N/AN/A1026952Urethane5"5ALUM
N/AN/A1029496Urethane5"AT901
N/AN/A1029500Urethane6 x 1"AT902
N/AN/A1026956Urethane6 x 1"6SKYWAY
102601110260101044040Pneumatic6 x 2"6PNEU
N/A10381571038161Urethane8 x 1"AT903
40176X04140176X0401009481Pneumatic8 x 1-1/4"AT1292
101090440176X0401030773
Pneumatic
w/ Flat Free
8 x 1-1/4"AT1292FF
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
32
Wheel
Style
Bearing
Hub
Spacer
Wheel
Size
Tire
Type
Wheel
w/o Handrim
Tire
Tube/
Insert
N/A40117X022101152510115241049138Pneumatic12 x 2-1/4"12COM
N/A40117X022102717610115241049139
Pneumatic
w/ Flat Free
12 x 2-1/4"12COM
101575640117X022N/A10377741038364Urethane20 x 1-1/4"20COM
101575640117X022101752010175191026422Pneumatic20 x 1-3/8"20COM
101575640117X022102332210175191026423
Pneumatic
w/ Flat Free
20 x 1-3/8"20COM
101575640117X022N/A10282501032116Urethane22 x 1-14"22COM
101575640117X022101854510185441026420Pneumatic22 x 1-3/8"22COM
101575640117X022102332310185441026421
Pneumatic
w/ Flat Free
22 x 1-3/8"22COM
101575640117X022N/A10269041032118Urethane24 X 1-1/4"24COM
101575640117X02240176X06140176X0601026362Pneumatic24 X 1-3/8"24COM
101575640117X022101090640176X0601026363
Pneumatic
w/ Flat Free
24 X 1-3/8"24COM
Composite Rear Wheels
without Handrims
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
33
Wheel
Type
Handrim
Type
Handrim
Attaching
Points
Attaching
Hardware
102638471033374Aluminum20" Composite
10263837
1020019-NLA
Plastic Coated
(Grey)
20" Composite
See Note(s) A
102638371115400
Plastic Coated
(Black)
20" Composite
102638471033373Aluminum22" Composite
10263837
1026419-NLA
Plastic Coated
(Grey)
22" Composite
See Note(s) A
102638371115401
Plastic Coated
(Black)
22" Composite
102638471033372Aluminum24" Composite
10263837
1015784-NLA
Plastic Coated
(Grey)
24" Composite
See Note(s) A
102638371115397
Plastic Coated
(Black)
24" Composite
10627697
1015434-NLA
8 Oblique
Projections (Grey)
24" Composite
See Note(s) A
106276971115396
8 Oblique
Projections (Black)
24" Composite
10627707
1015433-NLA
12 Vertical
Projections (Grey)
24" Composite
See Note(s) A
106277071115395
12 Vertical
Projections (Black)
24" Composite
A - Grey plastic coated handrim is no longer available; if a replacement is needed, order the black plastic coated as replacement in
pairs so the handrims on both sides of the chair match.
NOTE:
Handrims and Attaching Hardware
Form No.
97-190
34
To order call toll free 1-800-333-6900, or www.invacare.com
Attendant Operated Wheel Lock
12" Rear Wheels Only
Form No.
97-190
35
To order call toll free 1-800-333-6900, or www.invacare.com
Attendant Operated Wheel Lock
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1073842 Wheel Lock Assembly - Right 1 11 A
1073873 Wheel Lock Assembly - Left 1 11 A
1059284 Screw, Button Head Socket (1/4-28 x 1-1/4") 1 12
1028399 Strap, Wheel Lock 1 13
1020363 Spacer (1/4 x 1/2 x 1/2") 1 14
1026103 Washer, Nylon (1/4 x 1/2 x 1/32") 1 85
1028411 Spacer (1/4 x 1/2 x 5/32") 1 16
1021405 Shoe, Wheel Lock 1 17
1025765 Locknut (1/4-28) 1 48
1055304 Screw, Button Head Socket (1/4-28 x 5/8") 1 19
1018733 Link 1 110
1075507 Tip, Black 1 111
1073674 Lever, Wheel Lock 1 112
1055305 Screw, Button Head Socket Cap (1/4-28 x 3/4") 1 113
1055307 Screw, Allen Head (1/4-28 x 1") 1 114
See Chart #15 Wheel Lock Crossmember 1 115
1027268 Screw, Allen Head (1/4-20 x 1") 1 216
1026096 Clamp, Wheel Lock, Threaded (1") 1 117
1026097 Clamp, Wheel Lock, Non-Threaded (1") 1 118
1037421 Kit, Wheel Lock Shoe Spacer, 20" Rear Wheels 2 119 B
Spacer, Wheel Lock Shoe (2-63/64" Long) 1 2
Screw, Set (#8-32 x 3/16") 1 4
1037422 Kit, Wheel Lock Shoe Spacer, 22" Rear Wheels 2 120 C
Spacer, Wheel Lock Shoe (1-45/64" Long) 1 2
Screw, Set (#8-32 x 3/16") 1 4
1008438 Screw, Set (#8-32 x 3/16") 1 221
A - Includes items 2-14
B - 20" Rear Wheels
C - 22" Rear Wheels
NOTE:
#15 Wheel Lock Crossmember
10" Wide 16 Wide11" Wide 12" Wide 13" Wide 14" Wide 15" Wide
1071161107116010711591071158107115710711561071155
12" Rear Wheels Only
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
36

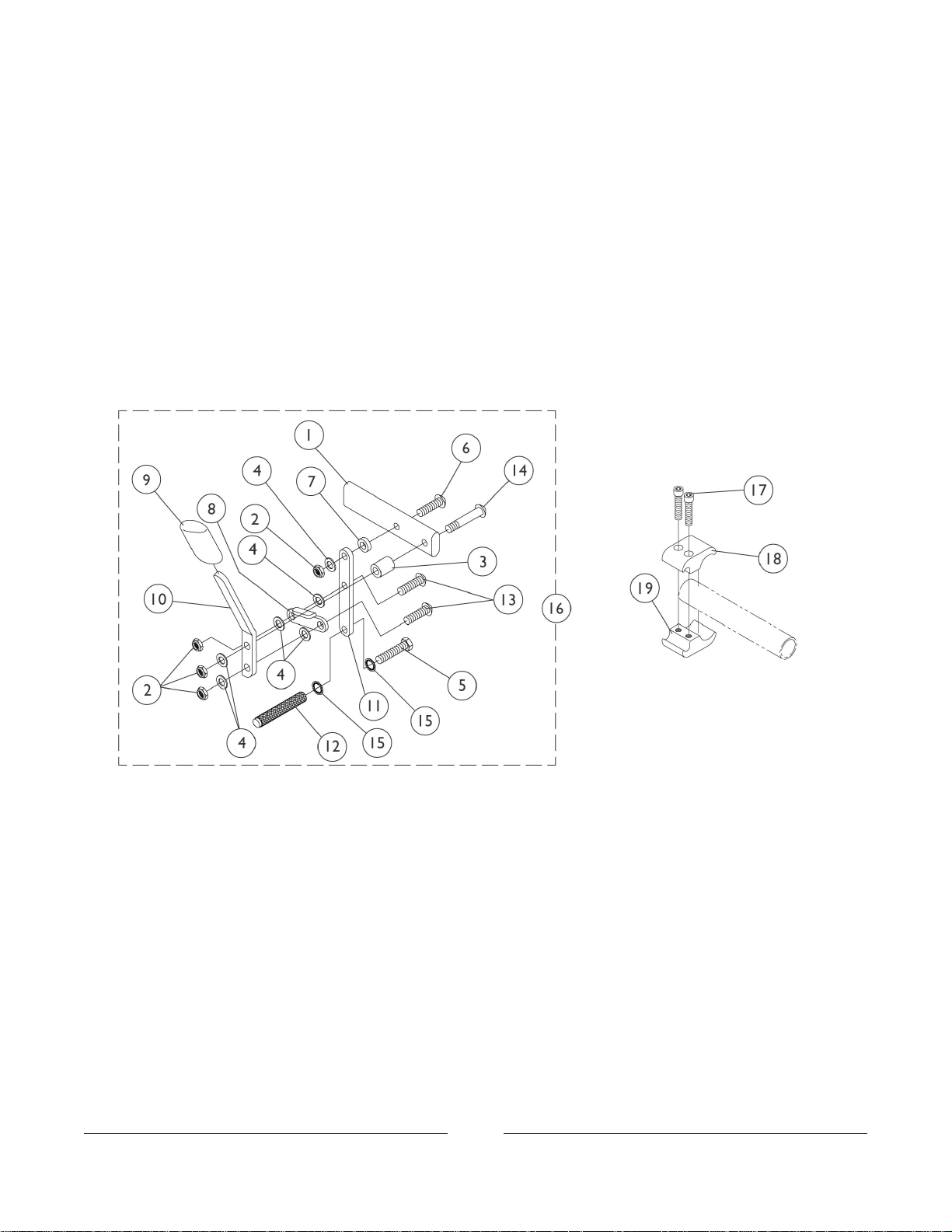

High Mount Wheel Locks
Form No.
97-190
37
To order call toll free 1-800-333-6900, or www.invacare.com
High Mount Wheel Locks
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1028399 Strap, Wheel Lock 1 11
1025765 Locknut (1/4-28) 1 42
1020363 Spacer (1/4 x 1/2 x 1/2") 1 13
1026103 Washer, Nylon (1/4 x 1/2 x 1/32") 1 64
1055346 Screw, Hex Head Cap (1/4-28 x 3/4") 1 15
1055306 Screw, Button Head Cap (1/4-28 x 7/8") 1 16
1028411 Spacer (1/4 x 1/2 x 5/32") 1 17
1018733 Link 1 18
1006490 Tip, Black 1 19
1038344 Handle, Hill Holder - Right 1 110
1038345 Handle, Hill Holder - Left 1 110
1028416 Link, Wheel Lock 1 111
1029420 Shoe, Wheel Lock 1 112
1055304 Screw, Button Head Socket (1/4-28 x 5/8") 1 213
1059284 Screw, Button Head Socket (1/4-28 x 1-1/4") 1 114
1026108 Lockwasher (1/4 x 15/32 x 1/64") 1 115
1029423 Wheel Lock Assembly - Right 1 116
1029424 Wheel Lock Assembly - Left 1 116
1027268 Screw, Allen Head (1/4-20 x 1") 1 217
1026097 Clamp, Wheel Lock, Non-Threaded (1") 1 118
1026096 Clamp, Wheel Lock, Threaded (1") 1 119
Form No.
97-190
38
To order call toll free 1-800-333-6900, or www.invacare.com

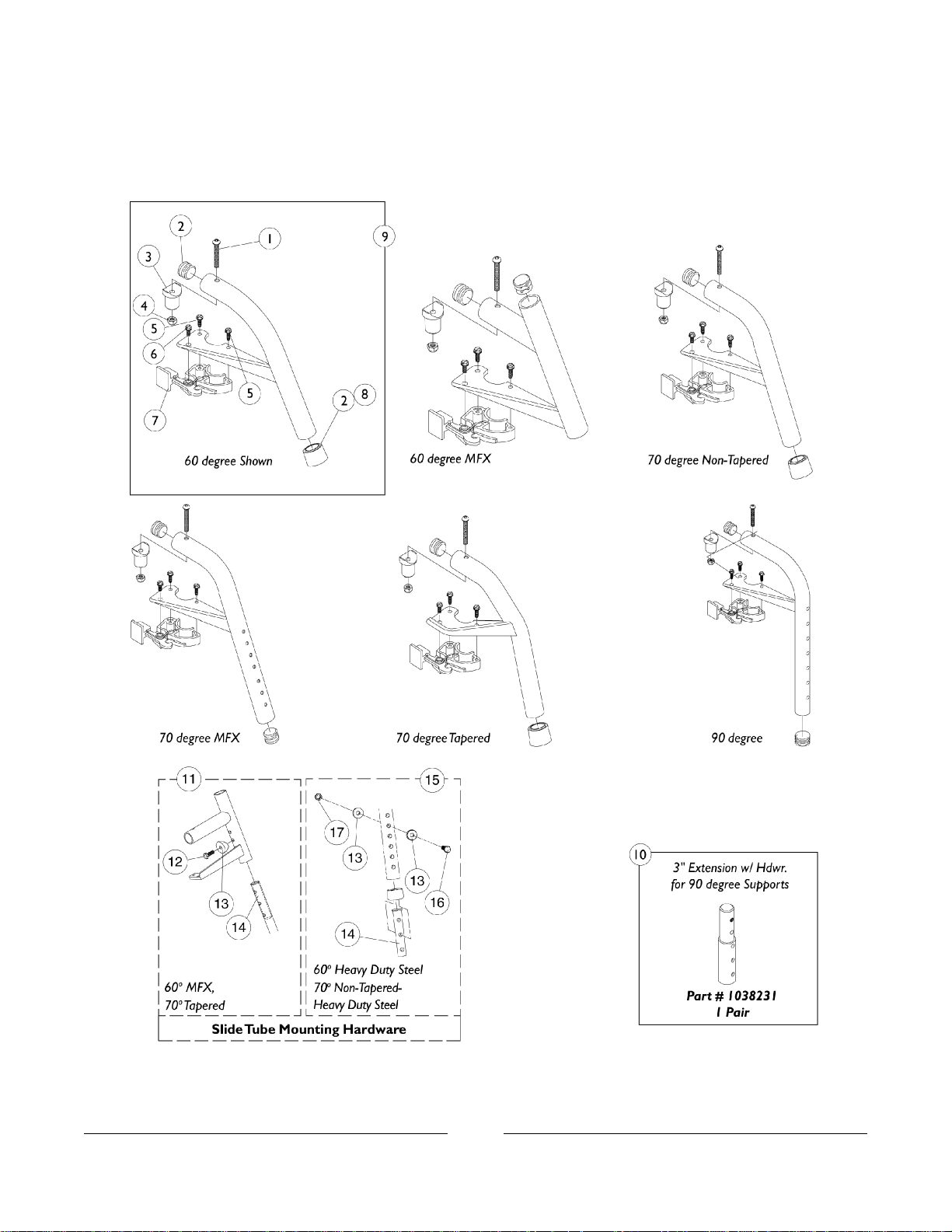

Footrest Support Assemblies
Swingaway 60 Degree, 70 Degree, and 90 Degree
Form No.
97-190
39
To order call toll free 1-800-333-6900, or www.invacare.com
Footrest Support Assemblies
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1022831 Screw, Button Head (1/4-20 x 1-7/8") 1 11
1029501 Plug Button (1") 1 12
1017148 Plug, Pivot 1 13
1025736 Locknut (1/4-20) 1 14
1025451 Screw, Hex Head (#10-32 x 5/8") 1 25
1017423 Screw, Hex Head (#10-32 x 1/2") 1 16
1025454 Latch Housing - Right 1 17
1025455 Latch Housing - Left 1 17
1026124 Anti-Rattle Collar 1 18
8881026992 Footrest Support Assembly, 60° - Right 1 19 A
8881026993 Footrest Support Assembly, 60° - Left 1 19 A
8881026998 Footrest Support Assembly, 60° MFX - Right 1 19 A
8881026999 Footrest Support Assembly, 60° MFX - Left 1 19 A
8881053158 Footrest Support Assembly, 60° Heavy Duty - Right 1 19 A
8881053157 Footrest Support Assembly, 60° Heavy Duty - Left 1 19 A
8881026994 Footrest Support Assembly, 70° Non Tapered -
Right
1 19 A
8881026995 Footrest Support Assembly, 70° Non Tapered - Left 1 19 A
8881026996 Footrest Support Assembly, 70° Tapered - Right 1 19 A
8881026997 Footrest Support Assembly, 70° Tapered - Left 1 19 A
8881047481 Footrest Support Assembly, 70° MFX - Right 1 19 A
8881047480 Footrest Support Assembly, 70° MFX - Left 1 19 A
8881053149 Footrest Support Assembly, 70° Non-Tapered,
Heavy Duty - Right
1 19 A
8881053148 Footrest Support Assembly, 70° Non-Tapered
Heavy Duty - Left
1 19 A
8881062596 Footrest Support Assembly, 90° - Right 1 19 A
8881062597 Footrest Support Assembly, 90° - Left 1 19 A
8881038231 Kit, 3" Extension w/ Hardware 2 110 A
1026703 Kit, Pivot/Slide Tube Mounting Hardware 2 111
1045267 Screw, Hex Head (1/4-20 x 3/4") 1 112
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 113 B
1020534 Insert, Threaded 1 114
1074143 Kit, Slide Tube Mounting Hardware 1 115
1070759 Screw, Hex Head Cap (1/4-20 x 1-1/2") 1 116
1044214 Nut, Hex with Nylon Cap (1/4-20) 1 117
A - Specify frame color when ordering.
B - Item 15 requires 4 ea.
NOTE:
Swingaway 60 Degree, 70 Degree, and 90 Degree
Form No.
97-190
40
To order call toll free 1-800-333-6900, or www.invacare.com
Articulating Legrest Support - ATL4A
Articulating Legrests are available with Pull to Lock Wheel Locks only.
Form No.
97-190
41
To order call toll free 1-800-333-6900, or www.invacare.com
Articulating Legrest Support - ATL4A
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1001762 Screw, Socket Button Head (1/4-20 x 1-3/4") 1 11
1025451 Screw, Hex Head (#10-32 x 5/8") 1 22
1027097 Plug Button, Black (3/4") 1 13
1017423 Screw, Hex Head (#10-32 x 1/2") 1 14
1082539 Articulating Legrest Support - Left 1 15
1082538 Articulating Legrest Support - Right 1 15
1040060 Tip 1 16
1037126 Handle, Release 1 17
40363X000 Hex Nut (3/8"-16) 1 38
1022878 Tube Support and Drive Link - Left 1 19
1022877 Tube Support and Drive Link - Right 1 19
1024911 Decal, Smartleg 1 110
47330X003 Spacer (5/16 x 1/2 x 3/8") 1 111
1025133 Spacer, Legrest Pad 1 112
04526X019 Plate, Legrest Pad 1 113
1014807 Screw, Hex Head (5/16-24 x 3-1/4") 1 114
60264X001 Locknut (5/16-24) 1 215
1027377 Washer (#20) 1 116
1022848 Slide Tube, Articulating (Chrome) - Right 1 117
1022849 Slide Tube, Articulating (Chrome) - Left 1 117
11232X009 Screw, Lug (5/16-24 x 1-3/8") 1 118
1049527 Washer, Nylon (3/8 x 3/4 x 1/16") 1 219
48823X008 Spring 1 120
47328X003 Bushing, Pivot (5/16 x 7/16 x 7/8") 1 121
42326X004 Bar, Ratchet - Right/Left 1 122
04528X002 Bracket, Release (Chrome) 1 123
1022854 Screw, Slotted Head Shoulder (1/2 x 1-1/8") 1 124
1026114 Screw, Phillips Pan Head (#10-32 x 1/2") 1 125
1013519 Washer, Nylon (5/16 x 11/16 x 1/16") 1 126
1037485 Spring, Release 1 127
1025195 Locknut (1/4-20) 1 128
1017148 Plug, Pivot 1 129
1029501 Plug Button (1") 1 130
1037125 Cam, Legrest 1 132
1025454 Latch Housing - Right 1 133
1025455 Latch Housing - Left 1 133
1022866 Screw, Socket Button Head (3/8-16 x 3/4") 1 234
1022846 Bar, Link 1 135
1082540 Articulating Legrest Support Assembly - Right 1 136 A
1082541 Articulating Legrest Support Assembly - Left 1 136 A
A - Includes items 1-35
NOTE:
Articulating Legrests are available with Pull to Lock Wheel Locks only.
Form No.
97-190
42
To order call toll free 1-800-333-6900, or www.invacare.com
Legrest Support - AT5044
Ratchet Style (Before 9/21/05)
Form No.
97-190
43
To order call toll free 1-800-333-6900, or www.invacare.com
Legrest Support - AT5044
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1017187 Cover, Top 1 11
1025729 Screw, Self Tapping Pan Head (#8-32 x 3/8") 1 22
40363X000 Hex Nut (3/8"-16) 1 13
1058636 Washer, Nylon (25/64 x 7/8 x 1/32") 1 24
1040831 Snap Ring 1 15
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 16
8881065812 Bracket, Legrest Support - Right 1 17 F
8881065813 Bracket, Legrest Support - Left 1 17 F
1113030 Bar, Ratchet 1 18
1025454 Latch Housing - Right 1 19
1025455 Latch Housing - Left 1 19
1037125 Cam, Legrest 1 110
1037485 Spring, Release 1 111
1065802 Handle, Release 1 112
1040060 Tip 1 113
10261X000 Acorn Nut (5/16"-24) 1 114
04528X002 Bracket, Release (Chrome) 1 115
1013519 Washer, Nylon (5/16 x 11/16 x 1/16") 1 116
47330X003 Spacer (5/16 x 1/2 x 3/8") 1 117
1017423 Screw, Hex Head (#10-32 x 1/2") 1 118
1025736 Locknut (1/4-20) 1 119
1017148 Plug, Pivot 1 120
1056328 Plug Button (1") 1 121
1025451 Screw, Hex Head (#10-32 x 5/8") 1 222
11919X000 Screw, Truss Head (3/8-16 x 1-1/2") 1 123
1001762 Screw, Socket Button Head (1/4-20 x 1-3/4") 1 124
1043556 Tube, Elevating Support (Black) - Right 1 125 C
1043557 Tube, Elevating Support (Black) - Left 1 125 C
1025133 Spacer, Legrest Pad 1 126
04526X019 Plate, Legrest Pad 1 127
1025730 Locknut (5/16-24) 1 328
1032266 Bracket, Legrest Pad Mounting 1 129
1026030 Screw, Lug (5/16-24 x 1-3/8") 1 130
1028514 Screw, Hex Head (5/16-24 x 1-1/2") 1 132
1037110 Screw, Hex Head (5/16-24 x 3-1/2") 1 133
1032267 Spacer, Legrest Pad Mounting 1 134
8881065806 Legrest Support Assembly - Right 1 1B,D,E
8881065807 Legrest Support Assembly - Left 1 1B,D,E
8881065804 Legrest Support Assembly - Right 1 1A,C,E
8881065805 Legrest Support Assembly - Left 1 1A,C,E
Ratchet Style (Before 9/21/05)
Form No.
97-190
44
To order call toll free 1-800-333-6900, or www.invacare.com
Legrest Support - AT5044
A - Includes Items 1-34 with Calf Pad.
B - 12-20" Wide Chairs
C - 22" Wide Chairs
D - Includes items 1-16 and 18-34.
E - Not Shown.
F - Specify frame finish when ordering
See Calf
Pad and Ratchet Assembly sections for their prospective part numbers.
NOTE:
Ratchet Style (Before 9/21/05)
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
45

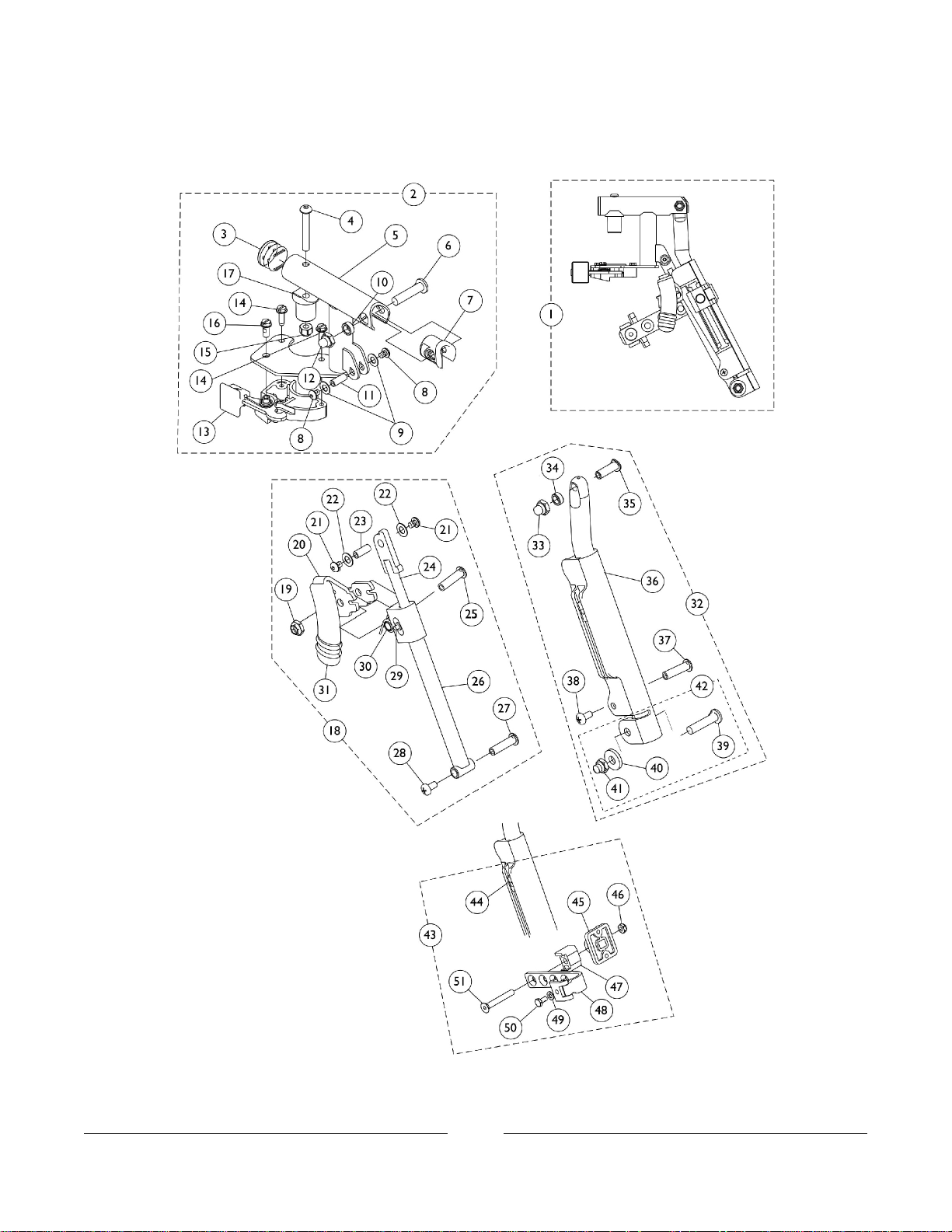

Legrest Support Assembly - AT5044
Wedge Style ("D" shaped tubing) Intro. 9/21/05
Specify frame finish when ordering. Legrest Support does not include Legrest Pad.
Form No.
97-190
46
To order call toll free 1-800-333-6900, or www.invacare.com
Legrest Support Assembly - AT5044
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881128698 Legrest Assembly, Elevating - Right 1 11 A,G
8881128699 Legrest Assembly, Elevating - Left 1 11 A,G
8881130747 Support Assembly, Legrest - Right 1 12 B,G
Plug Button (1") 1 13
Screw, Socket Button Head (1/4-20 x 1-3/4") 1 14
Bracket, Legrest Support - Right 1 15
Screw, Lug (5/16-24 x 1-3/8") 1 16
Plug, Insert (7/8") 1 17
Screw, Button Head Cap (10-32 x 1/4") 1 28
Washer (1/4 x 1/2 x 1/32") 1 29
Spacer (5/16 x 1/2 x 3/16") 1 110
Spacer, Threaded (10-32 x 1/4 x 5/8") 1 111
Nut, Low Cap (5/16"-24) 1 112
Latch Housing - Right 1 113
Screw, Hex Head (#10-32 x 5/8") 1 214
Locknut (1/4-20) 1 115
Screw, Hex Head (#10-32 x 1/2") 1 116
Plug, Pivot 1 117
1140823 Package, Plug Buttons (1") 10 13
8881130748 Support Assembly, Legrest - Left 1 12 B,G
Plug Button (1") 1 13
Screw, Socket Button Head (1/4-20 x 1-3/4") 1 14
Bracket, Legrest Support - Left 1 15
Screw, Lug (5/16-24 x 1-3/8") 1 16
Plug, Insert (7/8") 1 17
Screw, Button Head Cap (10-32 x 1/4") 1 28
Washer (1/4 x 1/2 x 1/32") 1 29
Spacer (5/16 x 1/2 x 3/16") 1 110
Spacer, Threaded (10-32 x 1/4 x 5/8") 1 111
Nut, Low Cap (5/16"-24) 1 112
Latch Housing - Left 1 113
Screw, Hex Head (#10-32 x 5/8") 1 214
Locknut (1/4-20) 1 115
Screw, Hex Head (#10-32 x 1/2") 1 116
Plug, Pivot 1 117
1140823 Package, Plug Buttons (1") 10 13
1130749 Pivot Rod Assembly - Right 1 118 C
Locknut (1/4-20) 1 119
Lever, Release - Right 1 120
Screw, Button Head Cap (10-32 x 1/4") 1 221
Washer (1/4 x 1/2 x 1/32") 1 222
Spacer, Threaded (10-32 x 1/4 x 5/8") 1 123
Wedge Style ("D" shaped tubing) Intro. 9/21/05
Specify frame finish when ordering. Legrest Support does not include Legrest Pad.
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
47
Legrest Support Assembly - AT5044
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
Rod, Pivot 1 124
Screw, Button Head (1/4-20 x 1-1/4") 1 125
Guide, Pivot Rod 1 126
Rivnut (10-32 x 1") 1 127
Screw, Pan Head (#10-24 x 3/8") 1 128
Pin, Roller 1 129
Spring, Torsion 1 130
Tip, Plastic 1 131
1130584 Package, Tips 10 131
1130750 Pivot Rod Assembly - Left 1 118 C
Locknut (1/4-20) 1 119
Lever, Release - Left 1 120
Screw, Button Head Cap (10-32 x 1/4") 1 221
Washer (1/4 x 1/2 x 1/32") 1 222
Spacer, Threaded (10-32 x 1/4 x 5/8") 1 123
Rod, Pivot 1 124
Screw, Button Head (1/4-20 x 1-1/4") 1 125
Guide, Pivot Rod 1 126
Rivnut (10-32 x 1") 1 127
Screw, Pan Head (#10-24 x 3/8") 1 128
Pin, Roller 1 129
Spring, Torsion 1 130
Tip, Plastic 1 131
1130584 Package, Tips 10 131
8881130751 Kit, Elevating Support Tube - Right 1 132 D,G
Nut, Low Cap (5/16"-24) 1 133
Spacer (5/16 x 1/2 x 3/16") 1 134
Screw, Lug (5/16-24 x 1-3/8") 1 135
Tube, Elevating Legrest Support - Right 1 136
Rivnut (10-32 x 1") 1 137
Screw, Pan Head (#10-24 x 3/8") 1 138
Screw, Lug (5/16-24 x 1-3/8") 1 139
Washer (11/32 x 13/16 x 1/8") 1 140
Nut, Low Cap (5/16"-24) 1 141
8881130752 Kit, Elevating Support Tube - Left 1 132 D,G
Nut, Low Cap (5/16"-24) 1 133
Spacer (5/16 x 1/2 x 3/16") 1 134
Screw, Lug (5/16-24 x 1-3/8") 1 135
Tube, Elevating Support - Left 1 136
Rivnut (10-32 x 1") 1 137
Screw, Pan Head (#10-24 x 3/8") 1 138
Screw, Lug (5/16-24 x 1-3/8") 1 139
Wedge Style ("D" shaped tubing) Intro. 9/21/05
Specify frame finish when ordering. Legrest Support does not include Legrest Pad.
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
48
Legrest Support Assembly - AT5044
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
Washer (11/32 x 13/16 x 1/8") 1 140
Nut, Low Cap (5/16"-24) 1 141
1130753 Kit, Pivot Slide Tube Attaching Hardware 1 142 E
Screw, Lug (5/16-24 x 1-3/8") 1 139
Washer (11/32 x 13/16 x 1/8") 1 140
Nut, Low Cap (5/16"-24) 1 141
1130754 Kit, Legrest Pad Hardware 1 143 F
T-Nut (1/4-20) 1 144
Plate, Legrest Pad 1 145
Locknut (5/16-18) 1 146
Spacer, Legrest Pad 1 147
Bracket, Adjustable Legrest Pad 1 148
Washer (1/4 x 1/2 x 1/16") 1 149
Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 150
Screw, "C" Sunk Socket Head (5/16-18 x 2-1/4") 1 151
A - Includes items 2,18,32, & 43
B - Includes items 3-17
C - Includes items 19-31
D - Includes items 33-41
E - Includes items 39-41
F - Includes items 44-51
G - Specify frame finish when ordering
NOTE:
Wedge Style ("D" shaped tubing) Intro. 9/21/05
Specify frame finish when ordering. Legrest Support does not include Legrest Pad.
Form No.
97-190
49
To order call toll free 1-800-333-6900, or www.invacare.com
Legrest Calf Pads and Ratchet Assemblies
Form No.
97-190
50
To order call toll free 1-800-333-6900, or www.invacare.com
Legrest Calf Pads and Ratchet Assemblies
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
88804529X003 Pad, Legrest Vinyl - Right 1 11 B,A
88804529X004 Pad, Legrest Vinyl - Left 1 11 B,A
8881091764 Pad, Legrest Vinyl - Right/Left 1 11 C,A
40163X006 Screw, Phillips Head (#10-14 x 1/16") 1 12
04526X019 Plate, Legrest Pad 1 13
1025730 Locknut (5/16-24) 1 14
1025133 Spacer, Legrest Pad 1 15
1032267 Spacer, Legrest Pad Mounting 1 16
1037110 Screw, Hex Head (5/16-24 x 3-1/2") 1 17
1028514 Screw, Hex Head (5/16-24 x 1-1/2") 1 18
1066591 Screws, Phillips Head (#10-32 x 11/16") 2 19
1032266 Bracket, Legrest Pad Mounting 1 110
1040060 Tip 1 211
1013519 Washer, Nylon (5/16 x 11/16 x 1/16") 1 212
42326X004 Bar, Ratchet - Right/Left 1 213 D
47330X003 Spacer (5/16 x 1/2 x 3/8") 1 214 D
1040831 Snap Ring 1 215
1037125 Cam, Legrest 1 216
1037485 Spring, Release 1 217
10261X000 Acorn Nut (5/16"-24) 1 218
04528X002 Bracket, Release (Chrome) 1 219
1037126 Handle, Release 1 220
1046329 Kit, Elevating Legrest Ratchet Hardware 2 121 D,E
1042798 Instruction Sheet, Ratchet Kit 1 1F
A - Specify upholstery color U67 Black when ordering.
B - 14-15" wide
C - 16" wide
D - Used only on Ratchet Style AT5044 Elevating Legrest
E - Includes items 11-20 plus instruction sheet
F - Not Shown
NOTE:
Form No.
97-190
51
To order call toll free 1-800-333-6900, or www.invacare.com

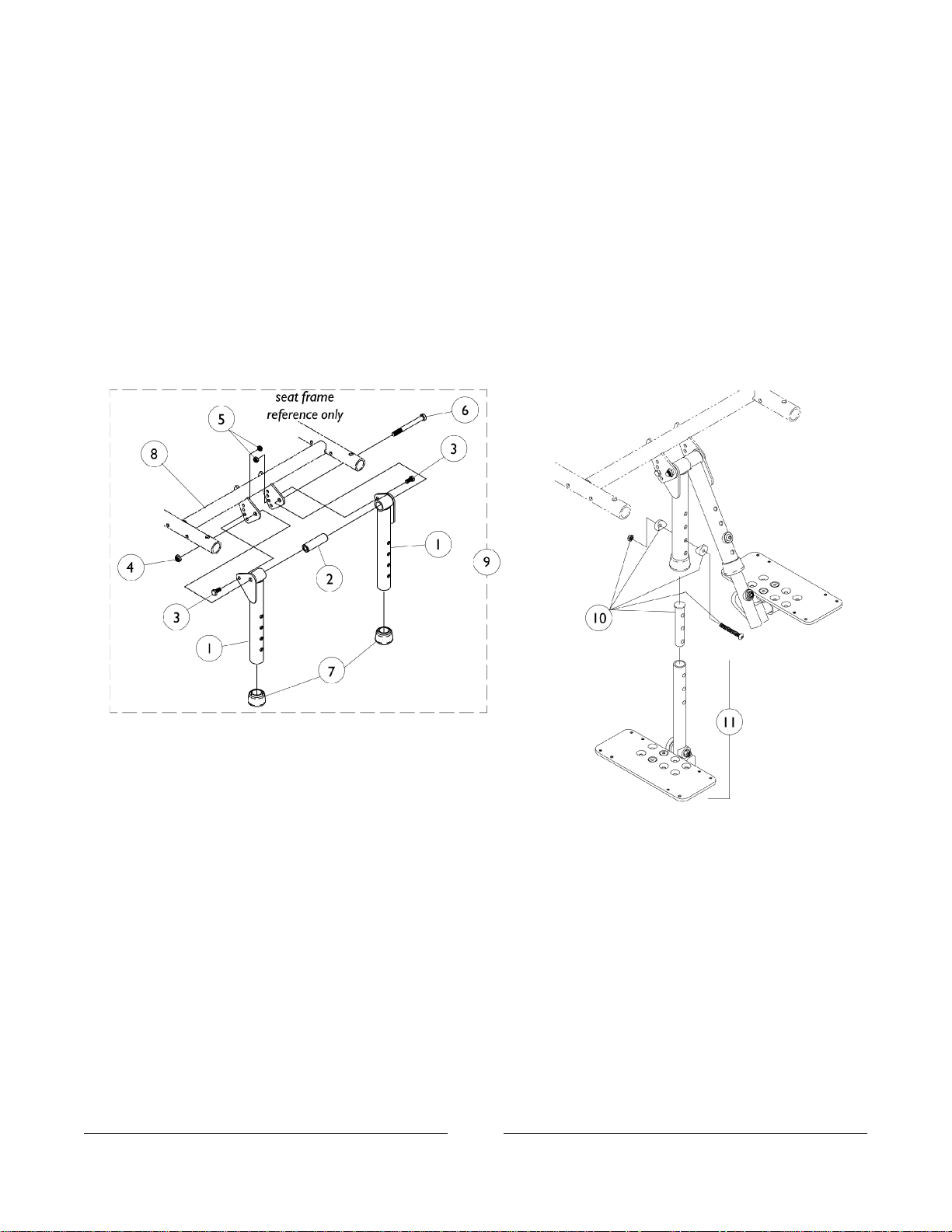

Footplate and Pivot Tube Assemblies - 1651 Composite
Form No.
97-190
52
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - 1651 Composite
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
See Chart #1 60° Footrest (13-19") 1 11 E
See Chart #1 60° MFX Footrest (9-3/4-14") 1 11 E
See Chart #1 70° Non Tapered Footrest (14-19") 1 11 E
See Chart #1 AT5044 Elevating Legrest - Ratchet Style
(16-20")
1 11 E
1120383 Pivot Slide Tube, Curved End - Short (8-1/4" Long) 1 12 A
1120382 Pivot Slide Tube, Curved End - Long (9-7/8" Long) 1 12 B
1120384 Pivot Slide Tube, Straight - Alum. (9-7/8" Long) 1 12 C
1134426 Package, Plug Buttons (3/4") 10 13
1026879 Footplate, Composite - Small (6" W x 6" L) 1 14
1026880 Footplate, Composite - Medium (7" W x 6" L) 1 14
1026881 Footplate, Composite - Large (8" W x 6" L) 1 14
1025195 Locknut (1/4-20) 1 15
60285X006 Screw, Socket Head Cap (1/4-20 x 2-1/4") 1 16
1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 27
See Chart #8 AT5044 Elevating Legrest - Wedge Style
(16-20")
1 18 F
1134427 Package, Plug Buttons "D" Shaped (3/4") 10 19
1134428 Pivot Slide Tube Assembly w/ Plug Button 1 110 D
1134429 Pivot Slide Tube Assembly, 2" Longer w/ Plug
Button
1 110 D
1026879 Footplate, Composite - Small (6" W x 6" L) 1 111
1026880 Footplate, Composite - Medium (7" W x 6" L) 1 111
1026881 Footplate, Composite - Large (8" W x 6" L) 1 111
1025195 Locknut (1/4-20) 1 112
60285X006 Screw, Socket Head Cap (1/4-20 x 2-1/4") 1 113
1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 214
A - 60° MFX Footrests
B - 60° Footrests, and AT5044 Ratchet Style Legrests
C - 70° Footrests
D - AT5044 Wedge Style Legrests
E - Includes items 2-7
F - Includes items 9-14
NOTE:
#1 60° Footrest
13-19"
Curved End
Right/Left
Small
Long
14" wide
Medium
Long
15-16" wide
10283871028391Right
10283881028392Left
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
53
Footplate and Pivot Tube Assemblies - 1651 Composite
#1 60° MFX Footrest
9-3/4 - 14"
Curved End
Right/Left
Small
Short
14" wide
Medium
Short
15-16" wide
10283851028389Right
10283861028390Left
#1 70° Non Tapered
14-19"
Straight
Right/Left
Small
Short
13-14" wide
Medium
Short
15-16" wide
10427861042784Right
10427871042785Left
#1 AT5044 Elevating Legrest - Ratchet Style
16-20"
Curved End
Right/Left
Large
2" Longer
17-22" wide
Small
Long
14" wide
Small
2" Longer
14" wide
Medium
Long
15-16" wide
Medium
2" Longer
15-16" wide
Large
Long
17-22" wide
112042010283831120418102838711204161028391Right
112042110283841120419102838811204171028392Left
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
54
Footplate and Pivot Tube Assemblies - 1651 Composite
#8 AT5044 Elevating Legrest - Wedge Style
16-20"
Curved End
Right/Left
Small
Long
14" wide
Medium
Long
15-16" wide
11320801132078Right
11320811132079Left
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
55

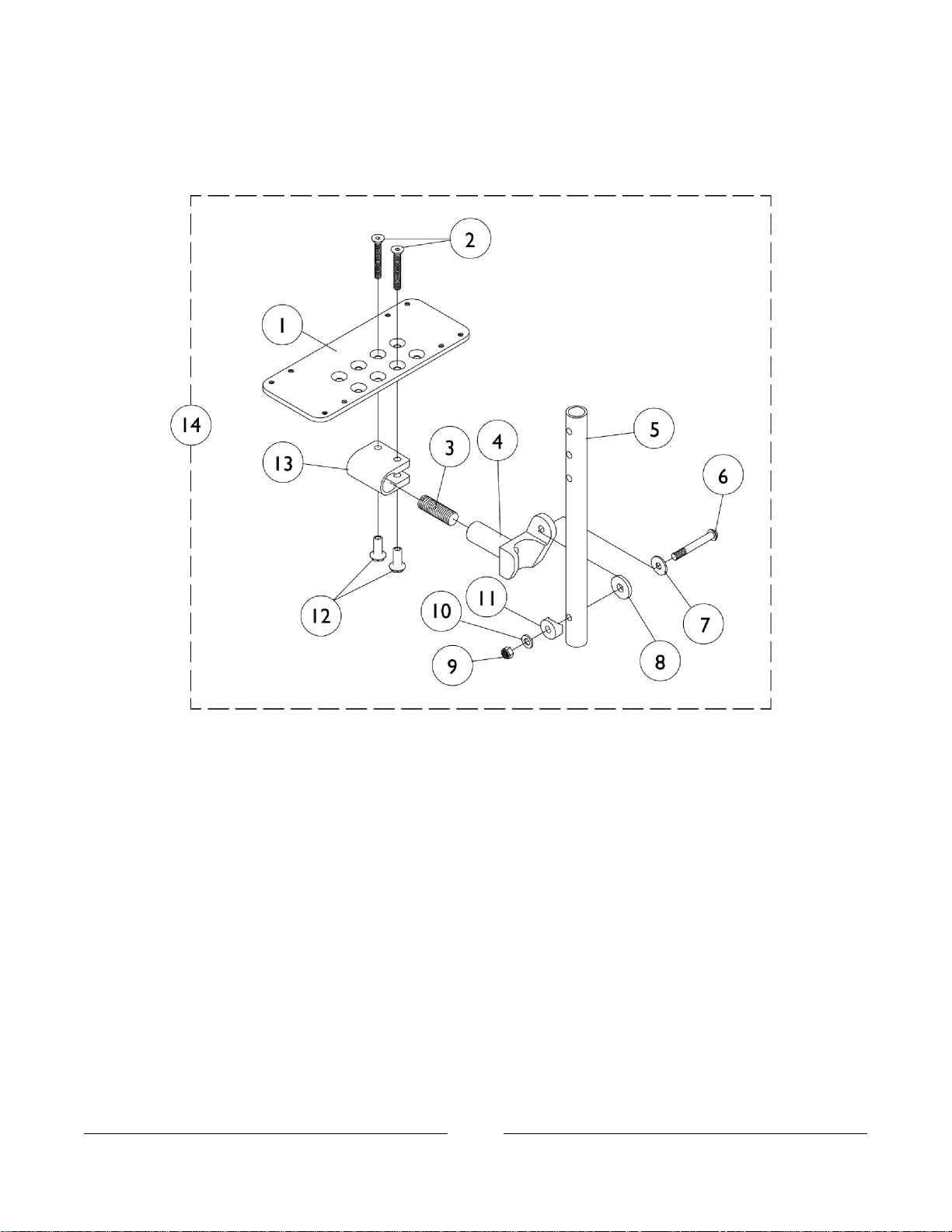

Adjustable Angle Footplate with Pivot Tube - AT5543
Before 6/1/03
Form No.
97-190
56
To order call toll free 1-800-333-6900, or www.invacare.com
Adjustable Angle Footplate with Pivot Tube - AT5543
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1060425 Footplate, Adjustable Angle - Small
(3-1/4" Wide x 8" Long)
1 11
1060426 Footplate, Adjustable Angle - Medium
(4-1/4" W x 8" L)
1 11
1060427 Footplate, Adjustable Angle - Large
(5-1/4" W x 8" L)
1 11
1062569 Footplate, Adjustable Angle - X-Large
(6-1/4" W x 8" L)
1 11
1029545 Screw, Socket Head Cap (1/4-20 x 3/4") 1 22 A
1048816 Screw, Nylon Adjustment (1/2-13 x 7/8") 1 13
1052102 Hinge, Footplate - Right 1 14
1052103 Hinge, Footplate - Left 1 14
1120384 Pivot Slide Tube, Straight - Alum. (9-7/8" Long) 1 15
1120385 Pivot Slide Tube, Straight - 2" Longer (11-7/8" Long) 1 15
7930321 Screw, Socket Button Head (1/4-20 x 1-7/8") 25 16
1026900 Washer (1/4 x 23/32 x 1/16") 1 17
7930313 Washer, Nylon (5/16 x 7/8 x 1/8") 25 18
7930333 Locknut (1/4-20) 25 19
1026907 Washer (1/4 x 1/2 x 1/16") 1 110
1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 111
1082686 Nut, Hex Head (1/4-20 x 11/16") 1 212 A
1058517 Clamp, Footplate 1 113 A
See Chart #14 90 Degree and 70 Degree MFX 1 114
See Chart #14 70 Degree Tapered 1 114
See Chart #14 60 Degree, 60 Degree MFX, 70 Degree
Non-Tapered, & ELR's
1 114
A - Due to a hardware change, for chairs built Before 8/99 items 2, 12, and 13 must be ordered together.
NOTE:
Item #14 Adjustable Angle Footplate w/ Pivot Tube
60 Degree, 60 Degree MFX, 70 Degree Non-Tapered, & ELR's
Straight Slide Tube
(9-7/8")
Right Left
1060429106042810-11" Wide (3-1/4" Footplate)
1060431106043012-13" Wide (4-1/4" Footplate)
1060433106043214-15" Wide (5-1/4" Footplate)
1062573106257216" Wide (6-1/4" Footplate)
LeftRight
ALPT Straight SlideTube
(11-7/8") Aluminum
1062575106257410-11" Wide (3-1/4" Footplate)
1062577106257612-13" Wide (4-1/4" Footplate)
1060441106044014-15" Wide (5-1/4" Footplate)
1062579106257816" Wide (6-1/4" Footplate)
Before 6/1/03
Form No.
97-190
57
To order call toll free 1-800-333-6900, or www.invacare.com
Adjustable Angle Footplate with Pivot Tube - AT5543
Before 6/1/03
Form No.
97-190
58
To order call toll free 1-800-333-6900, or www.invacare.com
Adjustable Angle Footplate with Pivot Tube - AT5543
Item #14 Adustable Angle Footplate w/ Pivot Tube
70 Degree Tapered
Straight Pivot Tube
(9-7/8")
Right Left
1060431106043016" Wide (4-1/4" Footplate)
LeftRight
ALPT Straight Pivot Tube
(11-7/8")
1062577106257616" Wide (4-1/4" Footplate)
Item #14 Adjustable Angle Footplate w/ Pivot Tube
90 Degree and 70 Degree MFX
No Pivot Tube
Bolts Through Support
Right Left
1060435106043410-11" Wide (3-1/4" Footplate)
1060437106043612-13" Wide (4-1/4" Footplate)
1060439106043814-15" Wide (5-1/4" Footplate)
1062571106257016" Wide (6-1/4" Footplate)
Before 6/1/03
Form No.
97-190
59
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - AT5543 Adjustable
Angle
After 5/31/03
Form No.
97-190
60
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - AT5543 Adjustable
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
See Chart #1 60°, 60° MFX, 70° Non Tapered, & Ratchet
Style AT5044 Front Riggings
1 11 C
See Chart #1 70° Tapered Footrests 1 11 C
1113578 Screw, Socket Head C' Sunk (1/4-28 x 3/4") 1 22
1113571 Footplate, Small (3-1/4" Wide x 8" Long) 1 13
1113572 Footplate, Medium (4-1/4" Wide x 8" Long) 1 13
1113573 Footplate, Large (5-1/4" Wide x 8" Long) 1 13
1113574 Footplate, X-Large (6-1/4" Wide x 8" Long) 1 13
1113528 Bracket, Adjustable Angle Footplate 1 14
1025765 Locknut (1/4-28) 1 25
1021343 Screw, Socket Head Cap (5/16-18 x 1-1/4") 1 16
1113530 Hinge Attachment 1 17
1096810 Screw, Socket Head (1/4-28 x 1-3/4") 1 18
1113529 Hinge, Adjustable Angle Footrest 1 19
1065362 Locknut (1/4-28) 1 110
1114688 Spacer, Hinge 1 111
1114699 Pivot Slide Tube, Straight (10-1/4") 1 112 A
1114700 Pivot Slide Tube, Straight 2" Longer ALPT (12-1/4") 1 112 B
See Chart #13 70°/90° MFX Footrests 1 113 D
1025456 Washer (3/4 x 1/4 x 1/32") 1 214
See Chart #15 Wedge Style AT5044 Elevating Legrests 1 115 E
1134427 Package, Plug Buttons "D" Shaped (3/4") 10 116
1134433 Pivot Slide Tube Assembly w/ Plug Button 1 117 F
1134432 Pivot Slide Tube Assembly, 2" Longer w/ Plug
Button
1 117 F
1113578 Screw, Socket Head C' Sunk (1/4-28 x 3/4") 1 218
1113573 Footplate, Large (5-1/4" Wide x 8" Long) 1 119
1113574 Footplate, X-Large (6-1/4" Wide x 8" Long) 1 119
1113528 Bracket, Adjustable Angle Footplate 1 120
1025765 Locknut (1/4-28) 1 221
1021343 Screw, Socket Head Cap (5/16-18 x 1-1/4") 1 122
1096810 Screw, Socket Head (1/4-28 x 1-3/4") 1 123
1113529 Hinge, Adjustable Angle Footrest 1 124
1113530 Hinge Attachment 1 125
1065362 Locknut (1/4-28) 1 126
1114688 Spacer, Hinge 1 127
A - 60°, 60° MFX, 70° Tapered, 70° Non Tapered Footrests, and Ratchet Style AT5044 Legrest.
B - ALPT 2" Longer
C - Includes items 2-12
D - Includes items 2-10 & 14
E - Includes items 16-27
F - Wedge Style AT5044 Legrest
NOTE:
Angle
After 5/31/03
Form No.
97-190
61
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - AT5543 Adjustable
#1 Adjustable Angle Footplates w/ Pivot Tubes
60°, 60° MFX, 70° Non Tapered, & Ratchet Style AT5044 Front Riggings
Straight
Slide Tube
(10-1/4")
Right Left
1114639111463810-11" Wide (3-1/4" Footplate)
1114641111464012-13" Wide (4-1/4" Footplate)
1114643111464214-15" Wide (5-1/4" Footplate)
1114645111464416" Wide (6-1/4" Footplate)
LeftRight
ALPT Straight
Slide Tube (12-1/4")
1114649111464810-11" Wide (3-1/4" Footplate)
1114651111465012-13" Wide (4-1/4" Footplate)
1114653111465214-15" Wide (5-1/4" Footplate)
1114655111465416" Wide (6-1/4" Footplate)
#1 Adjustable Angle Footplates w/ Pivot Tubes
70° Tapered Footrests
Straight
Slide Tube
(10-1/4")
Right Left
1114641111464016" Wide (4-1/4" Footplate)
LeftRight
ALPT Straight
Slide Tube (12-1/4")
1114651111465016" Wide (4-1/4" Footplate)
Angle
After 5/31/03
Form No.
97-190
62
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - AT5543 Adjustable
#13 Adjustable Angle Footplates w/ Pivot Tubes
70°/90° MFX Footrests
No Slide Tube -
Bolts Through
Support
Right Left
1114629111462810-11" Wide (3-1/4" Footplate)
1114631111463012-13" Wide (4-1/4" Footplate)
1114633111463214-15" Wide (5-1/4" Footplate)
1114635111463416" Wide (6-1/4" Footplate)
#15 Adjustable Angle Footplates w/ Pivot Tubes
Wedge Style AT5044 Elevating Legrests
Straight
Slide Tube
(10-1/4")
Right Left
1132062113206114-15" Wide (5-1/4" Footplate)
1132064113206316" Wide (6-1/4" Footplate)
LeftRight
ALPT Straight
Slide Tube (12-1/4")
1132090113208914-15" Wide (5-1/4" Footplate)
1132092113209116" Wide (6-1/4" Footplate)
Angle
After 5/31/03
Form No.
97-190
63
To order call toll free 1-800-333-6900, or www.invacare.com
Bilateral Contracture Footrest
Form No.
97-190
64
To order call toll free 1-800-333-6900, or www.invacare.com
Bilateral Contracture Footrest
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1066573 Footrest Support -Right 1 11
1066574 Footrest Support -Left 1 11
1066571 Spacer (5/16 x 2 x 5/8") 1 12
1025752 Screw, Hex Head (1/4-20 x 1-1/2") 1 23
1025730 Locknut (5/16-24) 1 14
1025195 Locknut (1/4-20) 1 25
1028600 Screw, Hex Head Cap (5/16-24 x 3") 1 16
1026124 Anti-Rattle Collar 1 27
1069520 Crossmember 1 18 A
1069521 Crossmember 1 18 B
1069522 Crossmember 1 18 C
1066575 Bilateral Contracture Platform Hardware (1 Pair) 2 19
1057846 Kit, Pivot/Slide Tube Mounting Hardware 2 110
1060428 Adjustable Angle Footplate Assembly (3-1/4" Wide)
-Right
1 111
1060429 Adjustable Angle Footplate Assembly (3-1/4" Wide)
-Left
1 111
1060432 Adjustable Angle Footplate Assembly (5-1/4" Wide)
-Right
1 111
1060433 Adjustable Angle Footplate Assembly (5-1/4" Wide)
-Left
1 111
A - 14" Wide
B - 15" Wide
C - 16" Wide
NOTE:
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
65

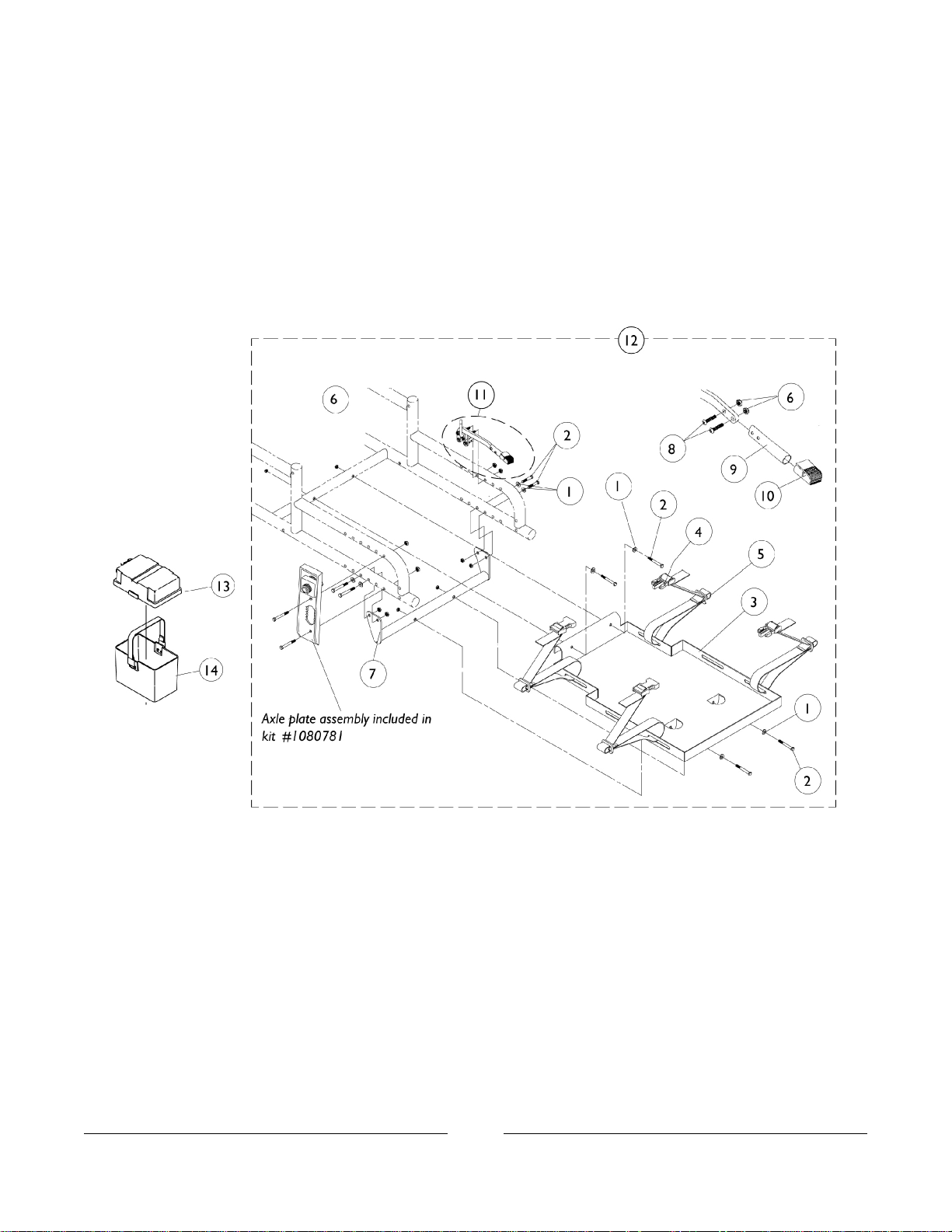

Vent Tray Assembly
Form No.
97-190
66
To order call toll free 1-800-333-6900, or www.invacare.com
Vent Tray Assembly
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1026907 Washer (1/4 x 1/2 x 1/16") 1 81
1055348 Screw, Hex Head Cap (1/4-28 x 1-3/4") 1 82
1076841 Vent Tray 1 13
1052426 Buckle, Slide Release 1 24
1052424 Strap with Slide Release Buckle (22" Long) 1 25
1065362 Locknut (1/4-28) 1 46
1078966 Crossmember 1 17
1055305 Screw, Button Head Socket Cap (1/4-28 x 3/4") 1 28
1080162 Pedal, Foot Extended 1 19
1053304 End Cap 1 110
1080161 Tilt Foot Lever (For Use with Vent Tray Chair) 1 111
1080785 Instruction Sheet 1 1A
1080782 Vent Tray Assembly 1 112 B,C
1080781 Vent Tray Assembly 1 112 B,D
1095747 Battery Box Top 1 113
1057944 Battery Box Bottom with Strap 1 114
A - Not Shown
B - Includes Items 1-11 and Instruction Sheet.
C - Before 7/1/98
D - After 6/30/98
NOTE:
Form No.
97-190
67
To order call toll free 1-800-333-6900, or www.invacare.com
Part Number Description Package Quantity
2Anti-Tipper (1 Pair)1050641
1
Calf Strap - 14-15" Wide
(26" Long)
1027644
1
Calf Strap - 16" Wide
(36" Long)
1032243
1Clamp with Hardware, 3/4" to 1"1068210
1"H" Heel Strap1032216
1
Positioning Strap
Airline Style Buckle
1034751
1
Positioning Strap
Auto Syle
1004310
1
Positioning Strap
Hook & Loop
1034744
1Tire Pump40176X010
2Wheel Lock Extensions, 6" (1 Pair)1038599
Miscellaneous Accessories
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
68
Adjustable Stroller Handles
Form No.
97-190
69
To order call toll free 1-800-333-6900, or www.invacare.com
Adjustable Stroller Handles
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1114689 Stroller Handle Hinge Hardware (1 Pair) 2 11 A
1055309 Screw, Button Head (1/4-28 x 1-1/4") 1 42
1112539 Folding Hinge Assembly 1 23
1025765 Locknut (1/4-28) 1 44
See Chart #5 Adjustable Stroller Handles 1 15
1032245 Grip, Foam Hand (6-7/8" Long) 1 26 C
1133698 Grip, Foam Hand (9" Long) 1 26 B
A - Includes items 2-4.
B - 12-16" Wide Chairs
C - 10-11" Wide Chairs
NOTE:
Item #5 Push Handle with Grip
10"
Wide
16"
Wide
11"
Wide
12"
Wide
13"
Wide
14"
Wide
15"
Wide
1082624108262310826221082621108262010826191082618
Form No.
97-190
To order call toll free 1-800-333-6900, or www.invacare.com
70

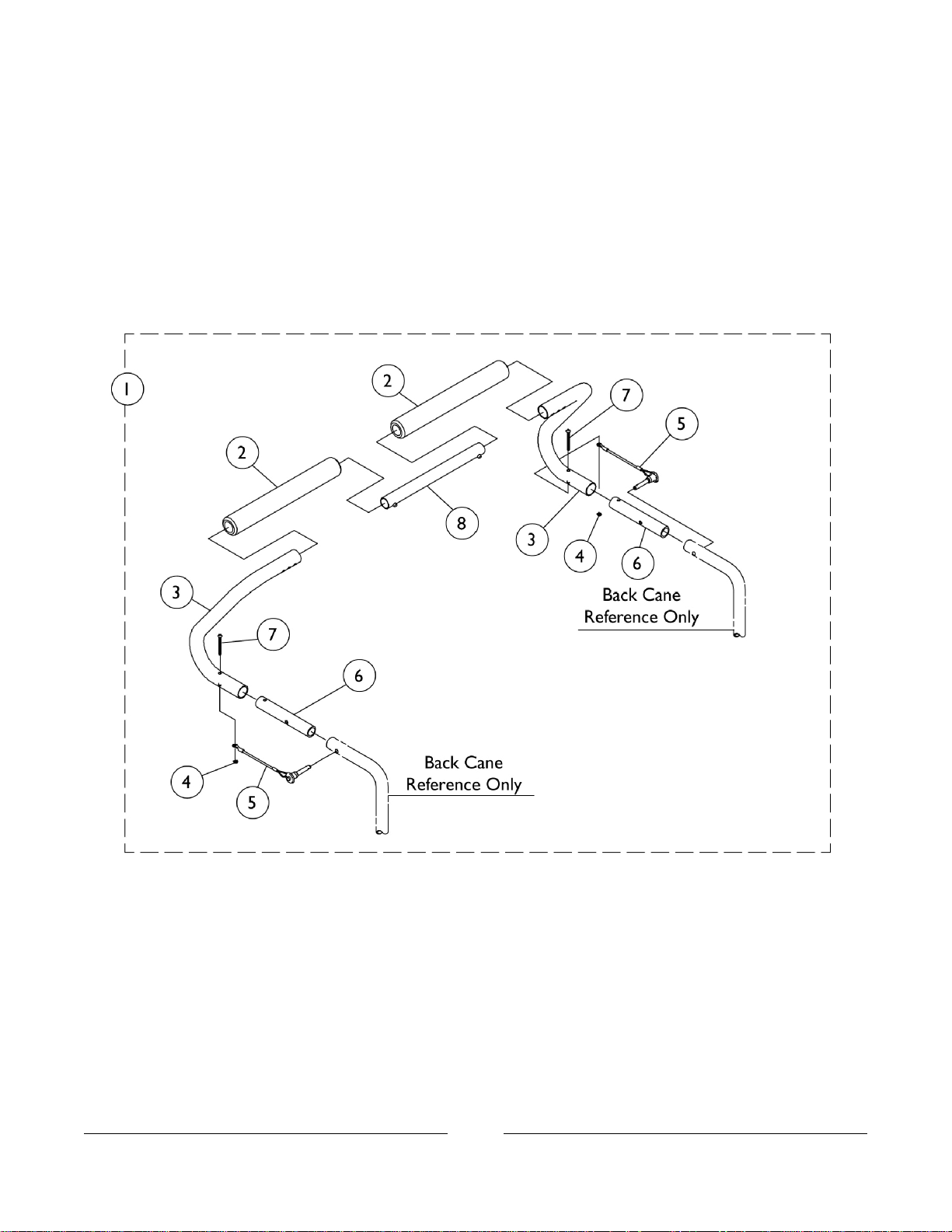

Stroller Handles - 1483
Form No.
97-190
71
To order call toll free 1-800-333-6900, or www.invacare.com
Stroller Handles - 1483
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1071194 Stroller Handle Assembly 1 11 A
1071193 Stroller Handle Assembly 1 11 B
1075082 Stroller Handle Assembly 1 11 C
1133698 Grip, Foam Hand (9" Long) 1 22
1075091 Stroller Handle -Right 1 13
1075092 Stroller Handle -Left 1 13
1025735 Locknut (#10-32) 1 24
1045470 Pin, Quick Release with Lanyard 1 25
1061993 Tube, Insert 1 26
1107155 Screw, Phillips Pan Head Tap (#10-32 x 1-1/4") 1 27
1071175 Link Assembly, Stroller Handle 1 18 A
1071174 Link Assembly, Stroller Handle 1 18 B
1075083 Link Assembly, Stroller Handle 1 18 C
A - 10-12" Wide Chairs
B - 13-15" Wide Chairs
C - 16" Wide Chairs
NOTE:
Form No.
97-190
72
To order call toll free 1-800-333-6900, or www.invacare.com
Invacare Corporation
97-190
©2006 Invacare Corporation. Elyria, Ohio.
Invacare, Yes, you can., and the Medallion
Design are registered trademarks and Orbit
is a trademark of Invacare Corporation.
(Revised 10/13/06)
www.invacare.com
Yes, you can. ™
One Invacare Way
Elyria, Oh USA
44036-2125
800-333-6900
Technical Support
800-832-4707
Customer Service
800-333-6900
Customer Service
800-333-6900
Form No.
Loading...
