Invacare Neck Support User Manual

NECK SUPPORT
Assembly, Installation, and Operating Instructions
SAFETY SUMMARY
WARNING
DO NOT install this equipment without first read­ing and understanding this instruction sheet. If you are unable to understand the se instructions, con­tact a healthcare professional, dealer, technical personnel if applicable before attempting to in­stall this equipment - otherwise, injury or damage may occur.

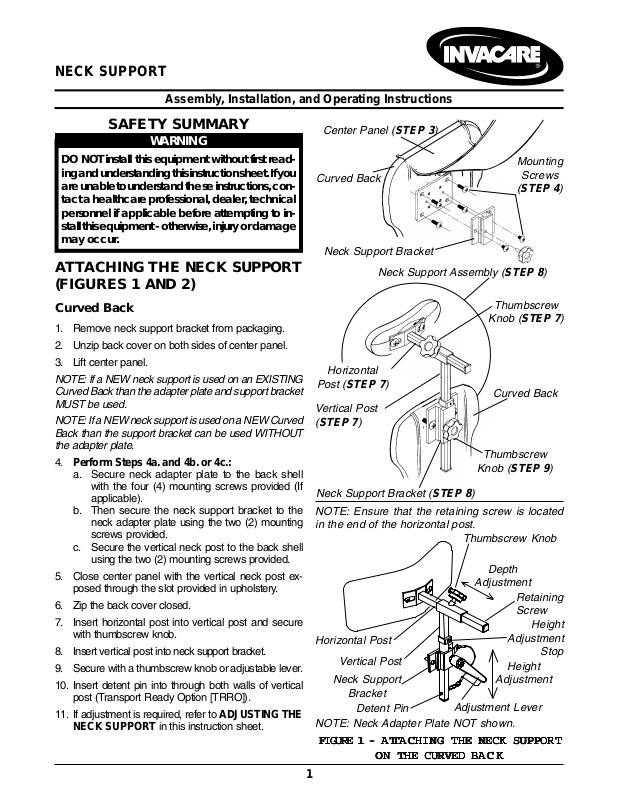

ATTACHING THE NECK SUPPORT (FIGURES 1 AND 2)
Curved Back
1. Remove neck support bracket from packaging.
2. Unzip back cover on both sides of center panel.
3. Lift center panel.
NOTE: If a NEW neck support is used on an EXISTING Curved Back than the adapter plate and support bracket MUST be used.
NOTE: If a NEW neck support is used on a NEW Curved Back than the support bracket can be used WITHOUT the adapter plate.
4. Perform Steps 4a. and 4b. or 4c.:
a. Secure neck adapter plate to the back shell
with the four (4) mounting screws provided (If applicable).
b. Then secure the neck support bracket to the
neck adapter plate using the two (2) mounting screws provided.
c. Secure the vertical neck post to the back shell
using the two (2) mounting screws provided.
5. Close center panel with the vertical neck post ex­posed through the slot provided in upholstery.
6. Zip the back cover closed.
7. Insert horizontal post into vertical post and secure with thumbscrew knob.
8. Insert vertical post into neck support bracket.
9. Secure with a thumbscrew knob or adjustable lever.
10. Insert detent pin into through both walls of vertical post (Transport Ready Option [TRRO]).
11. If adjustment is required, refer to ADJUSTING THE NECK SUPPORT in this instruction sheet.
Center Panel (STEP 3)
Mounting
Curved Back
Neck Support Bracket
Neck Support Assembly (STEP 8)
Knob (STEP 7)
Horizontal
Post (STEP 7)
Vertical Post (STEP 7)
Thumbscrew
Knob (STEP 9)
Neck Support Bracket (STEP 8)
NOTE: Ensure that the retaining screw is located in the end of the horizontal post.
Thumbscrew Knob
Depth
Adjustment
Horizontal Post
Vertical Post
Neck Support
Bracket
Detent Pin
NOTE: Neck Adapter Plate NOT shown.
FIGURE 1 - FIGURE 1 -
FIGURE 1 -
FIGURE 1 - FIGURE 1 -
AA
TTTT
A
AA
TTTT
ON ON
ON
ON ON
AA
CHING CHING
A
CHING
AA
CHING CHING
THE CURTHE CUR
THE CUR
THE CURTHE CUR
Adjustment Lever
THE NECK SUPPORTHE NECK SUPPOR
THE NECK SUPPOR
THE NECK SUPPORTHE NECK SUPPOR
VED BVED B
VED B
VED BVED B
AA
A
AA
CKCK
CK
CKCK
Screws
(STEP 4)
Thumbscrew
Curved Back
Retaining Screw
Height
Adjustment
Stop
Height
Adjustment
TT
T
TT
1
Ulti-Mate Air Back
NOTE: The standard attachment points are where the eyelets are located in the upholstery.
1. If there are no eyelets, pierce a hole pattern in the fabric, that resembles the pattern found on the neck support bracket. Ensure the pattern is aligned with the T-nutted holes found on the back shell.
5. If adjustment is required, refer to ADJUSTING THE NECK SUPPORT in this instruction sheet.
ADJUSTING THE NECK SUPPORT (FIGURE 2)
Curved Back and Ulti-Mate Air Back
NOTE: The cover may need to be removed to get a more precise location of the T-nutted holes before pierc­ing the hole pattern in the fabric.
NOTE: There is an extra set of T-nutted holes found on the back shell for optional height adjustment. To make these holes accessable, pierce a hole in the fabric aligned with the T-nutted hole in the back shell. Repeat for oppo­site hole.
NOTE: If a NEW neck support is used on an EXISTING Curved Back than the adapter plate and support bracket MUST be used.
NOTE: If a NEW neck support is used on a NEW Curved Back than the support bracket can be used WITHOUT the adapter plate.
2. Secure neck adapter plate to the back shell with the four (4) long mounting screws provided.
3. Attach neck support bracket to the adapter plate using the two (2) short mounting screws provided.
4. Insert horizontal post into vertical post and secure with thumbscrew.
1. Height Adjustment - Loosen the thumbscrew knob
or adjustment lever on the neck support bracket. Loosen the height adjustment stop setscrew. Adjust the neck support to the desired height and retighten the thumbscrew knob or adjustment lever. Slide height adjustment stop to the top of the support bracket and retighten setscrew.
Insert detent pin into through both walls of ver­tical post (Transport Ready Option [TRRO]).
NOTE: The height adjustment stop allows the neck sup­port to be removed for transfers, then reinstalled back to the exact height set by the location of the height adjust­ment stop.
2. Depth Adjustment - Loosen the thumbscrew knob
on the horizontal post, adjust the neck support to the desired depth and retighten the thumbscrew knob.
NOTE: On the Ulti-Mate Air Back further adjustment can be obtained by utilizing the extra set of T-nutted holes in the back shell. Refer to A TT ACHING THE NECK SUP- PORT in this instruction sheet.
Depth
Adjustment
Horizontal
Post
Vertical Post
Thumbscrew
Knob
NOTE: Only the curved back is shown for clarity. The neck support on the Ulti-mate Air Back adjusts in the same manner.
Thumbscrew
Knob
Height
Adjustment
Stop
Neck Support
Bracket
NOTE: Ensure that the retaining screw is located in the end of the horizontal post.
Thumbscrew Knob
Depth
Adjustment
Retaining Screw
Height
Horizontal Post
Vertical Post
Neck Support
Bracket
Detent Pin
Adjustment Lever
NOTE: Neck Adapter Plate NOT shown.
Adjustment
Stop
Height
Adjustment
FIGURE 2 -AFIGURE 2 -A
FIGURE 2 -A
FIGURE 2 -AFIGURE 2 -A
TTTT
AA
CHING/ADJUSTING CHING/ADJUSTING
A
CHING/ADJUSTING
TTTT
AA
CHING/ADJUSTING CHING/ADJUSTING
THE NECK SUPPORTHE NECK SUPPOR
THE NECK SUPPOR
THE NECK SUPPORTHE NECK SUPPOR
2
T BRAT BRA
T BRA
T BRAT BRA
CKET CKET
CKET
CKET CKET
TO ULTO UL
TO UL
TO ULTO UL
TI-MATI-MA
TI-MA
TI-MATI-MA
TE TE
TE
TE TE
AIR BAIR B
AIR B
AIR BAIR B
AA
A
AA
CKCK
CK
CKCK
LIMITED WARRANTY
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW APPLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to the original purchaser/user of our products. This warranty gives you specific legal rights and you may also have other legal rights which vary from
state to state. Invacare warrants its product to be free from defects in materials and workmanship for the
period of two (2) years on the Neck Support and 90 days on the cover from date of purchase. If within such warranty period any such product shall be proven to be defective, such product shall be re­paired or replaced, at Invacare's option. This warranty does not include any labor or shipping charges incurred in replacement part installation or repair of any such product. Invacare's sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare product. In the event you do not receive satisfactory warranty service, please write directly to Invacare at the address on the next page. Provide dealer's name, address, model number, date of purchase, indicate nature of the defect and, if the product is serialized, indicate the serial number.
Invacare Corporation will issue a return authorization. The defective unit or parts must be returned for warranty inspection using the serial number, when applicable, as identification within thirty (30) days of return authorization date. DO NOT return products to our factory without our prior consent. C.O.D. shipments will be refused; please prepay shipping charges.
LIMITATIONS AND EXCLUSIONS: THE WARRANTY SHALL NOT APPLY TO PROBLEMS ARISING FROM NOR- MAL WEAR OR FAILURE TO ADHERE TO THE ENCLOSED INSTRUCTIONS. IN ADDITION, THE FOREGOING WARRANTY SHALL NOT APPLY TO SERIAL NUMBERED PRODUCTS IF THE SERIAL NUMBER HAS BEEN RE­MOVED OR DEF ACED; PRODUCTS SUBJECTED TO NEGLIGENCE, ACCIDENT, IMPROPER OPERATION, MAIN­TENANCE OR STORAGE; OR PRODUCTS MODIFIED WITHOUT INVACARE'S EXPRESS WRITTEN CONSENT INCLUDING, BUT NOT LIMITED TO: MODIFICATION THROUGH THE USE OF UNAUTHORIZED PARTS OR AT­T ACHMENTS: PRODUCTS DAMAGED BY REASON OF REPAIRS MADE TO ANY COMPONENT WITHOUT THE SPECIFIC CONSENT OF INVACARE; PRODUCTS DAMAGED BY CIRCUMSTANCES BEYOND INVACARE'S CONTROL; PRODUCTS REPAIRED BY ANYONE OTHER THAN ANAUTHORIZED INVACARE DEALER, SUCH EVALUATION SHALL BE SOLELY DETERMINED BY INVACARE.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, IF ANY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IT SHALL NOT EXTEND BEYOND THE DURA TION OF THE EXPRESSED W ARRANTY PROVIDED HEREIN AND THE REMEDY FOR VIOLATIONS OF ANY IMPLIED WARRANTY SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.
3
INVINV
AA
CC
INV
INVINV
ARE CORPORAARE CORPORA
A
C
ARE CORPORA
AA
CC
ARE CORPORAARE CORPORA
INVACARE CANADA
TION TION
TION l
TION TION
Phone (905) 890-8300, 1-800-668-5324, Fax (905)-890-5244
ONE INVONE INV
ONE INV
ONE INVONE INV
l 5970 Chedworth Way l Mississauga, Ontario Canada L5R 3T9
AA
CC
ARE ARE
WW
AA
Y Y
PP
.O.O
..
A
C
ARE
W
A
AA
CC
ARE ARE
Phone 1-(800)-333-6900Phone 1-(800)-333-6900
Phone 1-(800)-333-6900
Phone 1-(800)-333-6900Phone 1-(800)-333-6900
Y l
WW
AA
Y Y
Bo Bo
P
.O
.
Bo
PP
.O.O
..
Bo Bo
x 4028 x 4028
x 4028 l
x 4028 x 4028
ElyrElyr
ia,ia,
Ohio 44036-2125 Ohio 44036-2125
Elyr
ia,
Ohio 44036-2125 l
ElyrElyr
ia,ia,
Ohio 44036-2125 Ohio 44036-2125
l
Form No. 96-326 Part No. 1068859 Rev. C (1) - 7/99 Printed in U.S.A.
