HP LaserJet 9000 User Manual

hp multifunction finisher

use

The user of this accessory is granted a license to: a) print hard copies of this use guide for PERSONAL, INTERNAL, or COMPANY use subject to the restriction not to sell, resell, or otherwise distribute the hard copies; and b) place an electronic copy of this use guide on a network server, provided that access to the electronic copy is limited to PERSONAL, INTERNAL users of this accessory.

Warranty

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with respect to this information.

HEWLETT-PACKARD SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Hewlett-Packard shall not be liable for any direct, indirect, incidental, consequential, or other damage alleged in connection with the furnishing or use of this information.

Trademark Credits

Microsoft® and Windows® are U. S. registered trademarks of Microsoft Corporation.

PostScript® is a trademark of Adobe Systems Incorporated.

Hewlett-Packard Company 11311 Chinden Boulevard Boise, Idaho 83714 U.S.A.

1 Finisher basics

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Features and benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Paper-handling features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Interpreting light patterns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

2 Finisher tasks

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Configuring control panel settings. . . . . . . . . . . . . . . . . . . . . . . . .10

Making booklets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Using the stapler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Selecting the stapler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Loading the stapler cartridge . . . . . . . . . . . . . . . . . . . . . . . . .31

Choosing the output bin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Identifying the output bins. . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Selecting the output location. . . . . . . . . . . . . . . . . . . . . . . . . .34

3 Problem solving

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Resolving common problems . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Interpreting control-panel messages . . . . . . . . . . . . . . . . . . . . . .38

Clearing jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Appendix A Specifications

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Physical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Environmental specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Power requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Circuit capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Operating environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Supported media types . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Supported media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Appendix B Regulatory and warranty information

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Canadian DOC Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Warranty information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Index

ENWW 3

4 ENWW

Finisher basics

Overview

z Features and benefits z Interpreting light patte rns

ENWW Overview 5

Features and benefits

The HP Multifunction Finisher offers multiple custom-finishing options in an easy-to-use device. You can produce complete, professionallooking documents in-house in a single step, eliminating the time an d expense involved in sending documents out to professional finishing services.

Paper-handling features

You can use the device to stack, staple, saddle stitch, and fold large quantities of documents on demand. The HP Multifunction Finisher has the following features:

z It supports up to 50 pages per minute (ppm). z It offers a choice of staple positions:

• one or two staples (at the top left, for portrait and landscape orientation)

• two side staples (on the trailing edge of the media)

z It staples up to 50 sheets of A4- and letter-size paper per

document.

z It staples up to 25 sheets of A3- and ledger-size paper per

document.

z It folds single pages. z It saddle stitches and f olds booklets com posed of up to 10 sheets

of paper (40 pages).

z It provides high-capacity stacking for up to 1,000 sheets of A4-

and letter-size paper or up to 500 sheets of A3- and ledger-size paper.

z It provides stacking for transparencies, envelopes, labels, and

prepunched and cut-sheet paper.

z It stacks up to 40 booklets composed of up to 5 sheets (20

finished pages) of A3- and ledger-size paper.

z It allows selection of cover stock up to 199 g/m z It arranges documents using time-saving job offsets.

(53 lb) in weight.

6 1 Finisher basics ENWW

Interpreting light patterns

Figure 1. Location of LED light

The user LED light, located on the front of the device, indicates a general error status. Use the following table to interpret device status using the LED light.

User LED light patterns

Light status Interpretation

Green solid The device is operating normally.

Green blinking The device is in Service Mode.

Amber blinking The device has a paper jam, a staple jam, or an operation error.

Or, the device is detached from the printer.

Amber solid The device has a malfunction.

Off The device is off.

ENWW Interpreting light patterns 7

Note The service LED lights, located on the back of the device , give specific

error information for customer support and service agents. If the red service LED light is on, consult a service professional.

8 1 Finisher basics ENWW

Finisher tasks

Overview

z Configuring control-panel settings z Making booklets z Using the stapler z Choosing the output bins z Using the stacker z Using other features in the printer driver

ENWW Overview 9

Configuring control panel settings

The device attaches to the left side of the HP printer. You can change the default job offset and default stapler actions through the printer control panel in the CONFIGURATION OF MULTIFUNCTION FINISHER menu.

Note The system administrator can limit access to the job-offset and def ault

stapler actions.

Offset actions

Offset Action: No

Offset Action: Yes

When the separation.

When the OFFSET mode is on, the device automatically separates complete jobs or mopies (multiple original prints of a single job). Each job or mopy is separated by setting the jobs apart from each other (for unstapled jobs).

OFFSET mode is off , all of th e jo bs ar e sta cked with no

Note The offset function is available only in the stacker bin (bin 1) and only

for jobs that are not stapled. Y ou can select t he available stapler a ction through the printer driver (for

example, use of one staple or two staples).

10 2 Finisher tasks ENWW

Default stapler actions for bin 1 (stacker bin)

No Staple

Corner Staple

Two Staples

If the default action is set to

If the default action is set to the top left corner of the document. If you are printing in landscape format, the staple location is automatically adjusted for placement in the top left corner of the landscape layout.

If the default action is set to TWO STAPLES, two staples are used with one job or with mopies. Both staples are placed parallel to the edge closest to the printer (the trailing edge).

NO STAPLE, the job is not stapled.

ONE STAPLE, the staple is placed in

ENWW Configuring control panel settings 11

Fold-line settings f or bin 2

Note Use the MULTIFUNC. FINISHER ADJUSTMENTS setting to gain access to

the fold-line adjustments.

FOLD LINE ADJUST: LTR-R and A4-R

FOLD LINE ADJUST: LEGAL and JISB4

FOLD LINE ADJUST: 11 by 17 and A3

LTR-R & A4-R to adjust the fold line for 8.5-by-11-inch or

Select

8.26-by-11-inch sheets.

Select LEGAL & JISB4 to adjust the fold line for 8.5-by-14-inch or JIS B4 sheets.

Select

11x17 & A3 to adjust the fold line for 11-by-17-inch or A3

sheets.

Adjust the fold-line positi on depending on the sheet size . Adjustments are in +/- .15 mm (0.006 inch) increments, with a maximum range of +/- 2.1 mm (0.082 inch).

Note If the fold line and the stitch position do not match, call for service.

12 2 Finisher tasks ENWW

Making booklets

You can use some programs, such as de sktop publishing programs, to help you prepare y our booklet. Refer to the use guide that came with your program for information about making booklets.

If you are using a progr am that doe s not support booklet-making, y ou can create booklets using your HP printer drivers.

Note HP recommends that you use th e program to prepare and pre view your

document for printing, and then use y our HP driver to print and saddle stitch your booklet.

These are the three main steps that create a boo klet f r om your driver:

z Preparing your booklet: Arrange the pages on a sheet (booklet

imposition) to create a booklet. You can impose your document from your program or use the booklet-printing feature in your HP driver. (See "To activate booklet printing".)

z Adding a cover: Add a cover to your booklet by selecting a

different first page using a different paper type. You can also add a cover of the same paper type as your booklet. Booklet covers must be the same size as the rest of the sheets. However, the covers can be a weig ht diff ere nt from the rest of the b ooklet. (See

"To select a booklet cover".)

z Saddle stitching: Staple the center of your booklet and th en fold

the pages. If your booklet is only one sheet of paper, the device will fold the sheet but not staple it. If the booklet consists of more than one sheet of paper, the device staples and then folds up to 10 sheets per booklet. (See "To saddle stitch a booklet".)

The booklet-printing feature of the device allows you to fold and saddle stitch booklets composed of the following paper sizes: A3, A4, letter, legal, ledger, and B4-JIS.

Note Before printing booklets on Letter and A4 media, see your input tray

paper-loading instructions for rotated media (LTR-R and A4-R).

ENWW Making booklets 13

To activate booklet printing

Note Your printer might support this function through Mac OS X.

Microsoft® Windows® 1 Click File, click Print, and then click Properties.

14 2 Finisher tasks ENWW

2 Follow the instructions for your driver type:

• If you are using a PCL driver, click the Finishing tab. On the Document Options menu, select Print on Both Sides. On

the Booklet Printing drop-down menu, select a size from the list.

• If you are using a PostScript® (PS) driver, see the program Help files for information on activating booklet printing.

ENWW Making booklets 15

Macintosh 1 Click File and then click Print. 2 On the drop-down menu, select Layout, and then select Print on

Both Sides.

3 Select Plug-In Preferences.

4 Select Print Time Filters, select Booklet, and then click Save

Settings.

16 2 Finisher tasks ENWW

5 Select Booklet Printing.

6 Select Format output as booklet, and on the drop-down menu

select Paper for booklet. Select a size from the list or type a custom size.

ENWW Making booklets 17

To select a booklet cover

Note Your printer might support this function through Mac OS X.

Windows 1 Click File, click Print, and then click Properties. 2 Follow the instructions for your driver type:

• If you are using a PCL driver, click the Paper tab. Click the First Page tab and select the Use different paper for fi rst page box. On the Size is, Source is, and Type is menus,

select the settings that correspond to the medi a you are using.

18 2 Finisher tasks ENWW

To saddle stitch a booklet

Note Your printer might support this function through Mac OS X.

Windows 1 Click File, click Print, and then click Properties. 2 Follow the instructions for your driver type:

• If you are using a PCL driver, click the Finishing tab and select the Fold/Saddle Stitch box. Selecting Fold/Saddle Stitch ensures that the document is folded.

ENWW Making booklets 19

• If you are using a PS driver for Windows 95 or Windows 98, click File, click Print, and then click Properties.

• Click the Paper tab and click More Options.

20 2 Finisher tasks ENWW

• Select None, and on the drop-down menu select Booklet Bin.

ENWW Making booklets 21

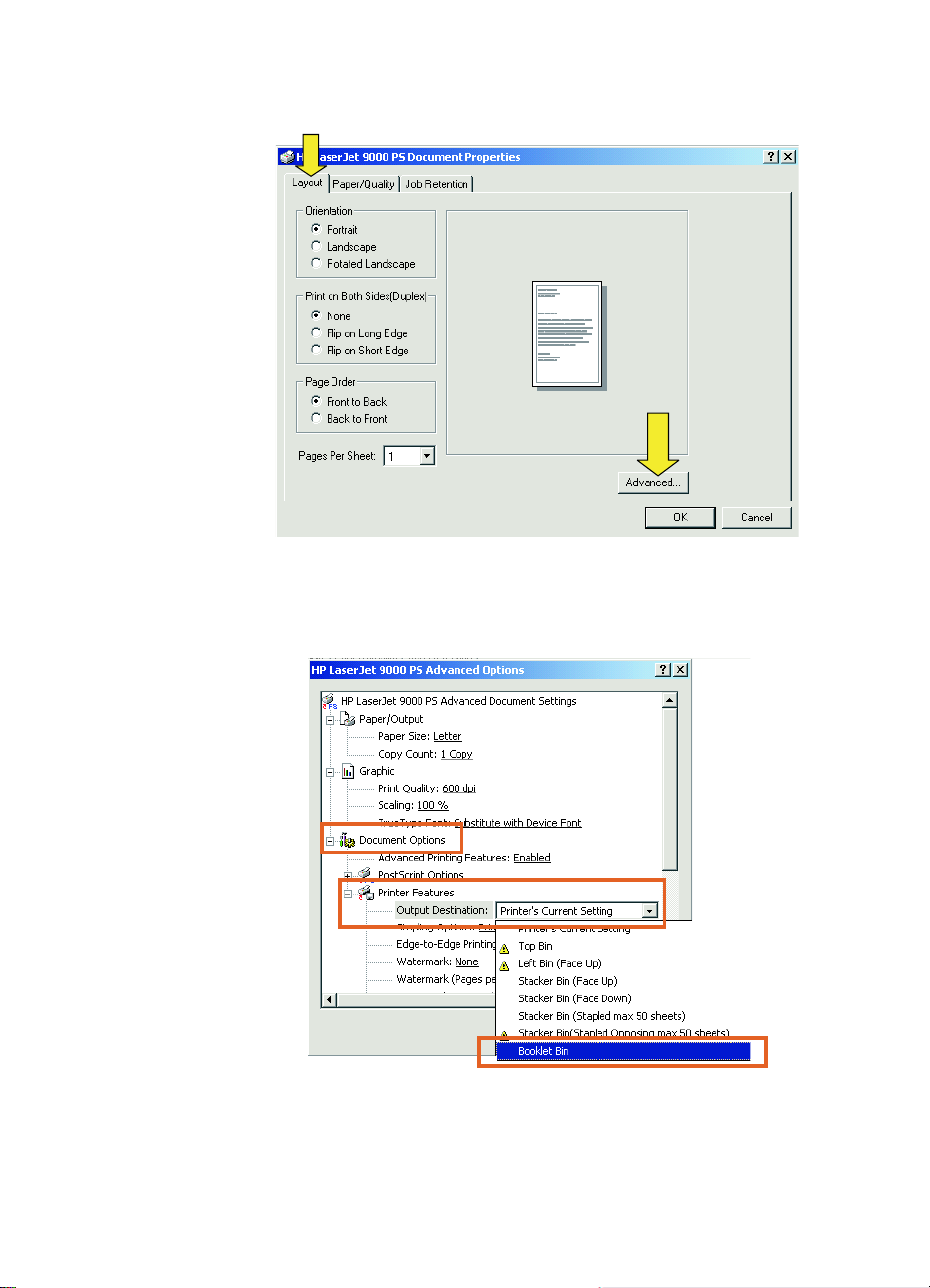

• If you are using a PS driver for Windows NT® or Windows 2000, click the Layout tab and then click Advanced.

• Select the appropriate settings for Document Options, Printer Features, Output Destination, and Saddle Stitch.

Also, the saddle-stitch option is automatically selected if you select Booklet Bin in the Output Destination tab.

22 2 Finisher tasks ENWW

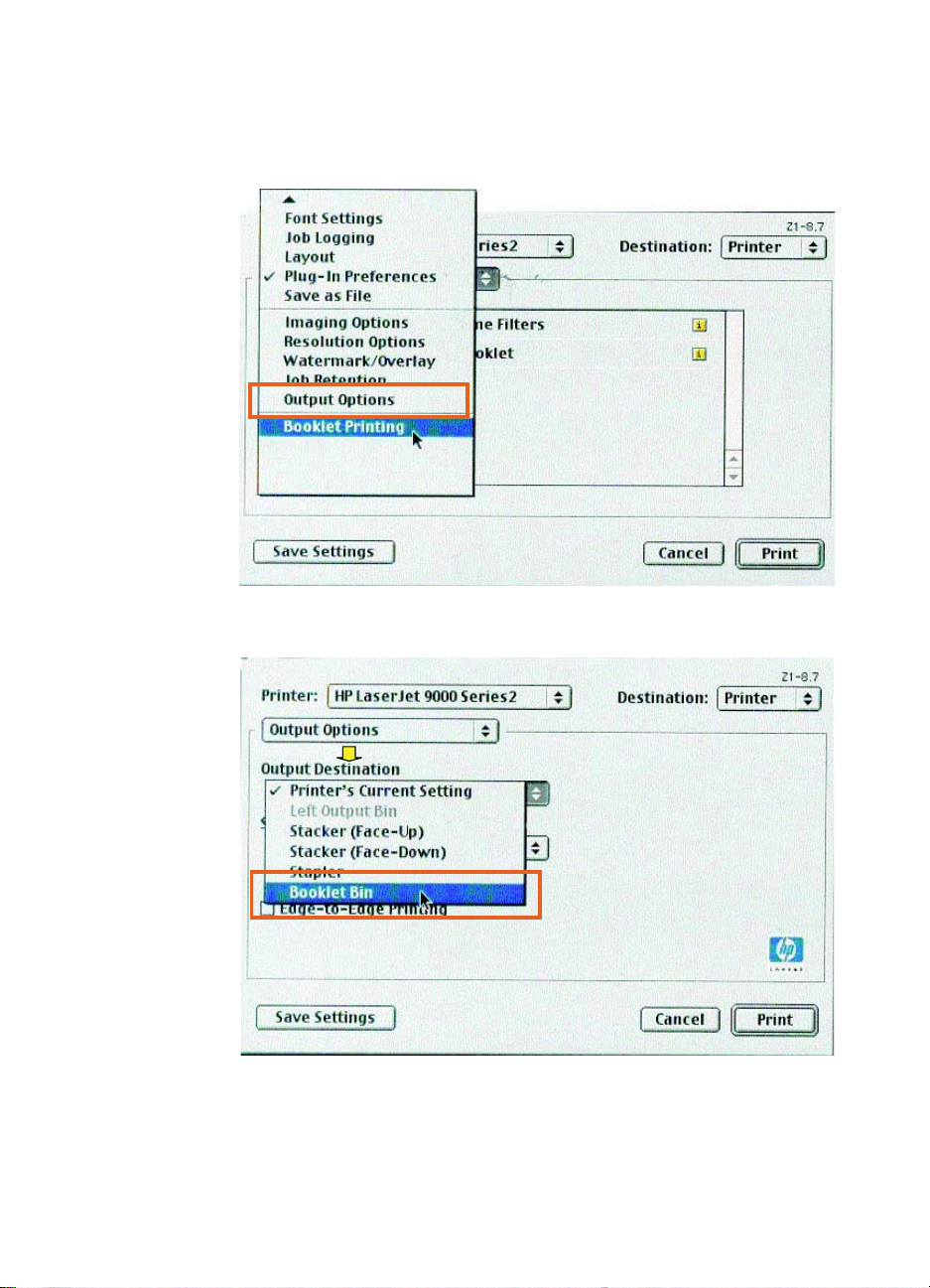

Macintosh 1 Click File and then click Print. 2 On the drop-down menu, select Output Options.

3 On the drop-down menu, select Booklet Bin.

ENWW Making booklets 23

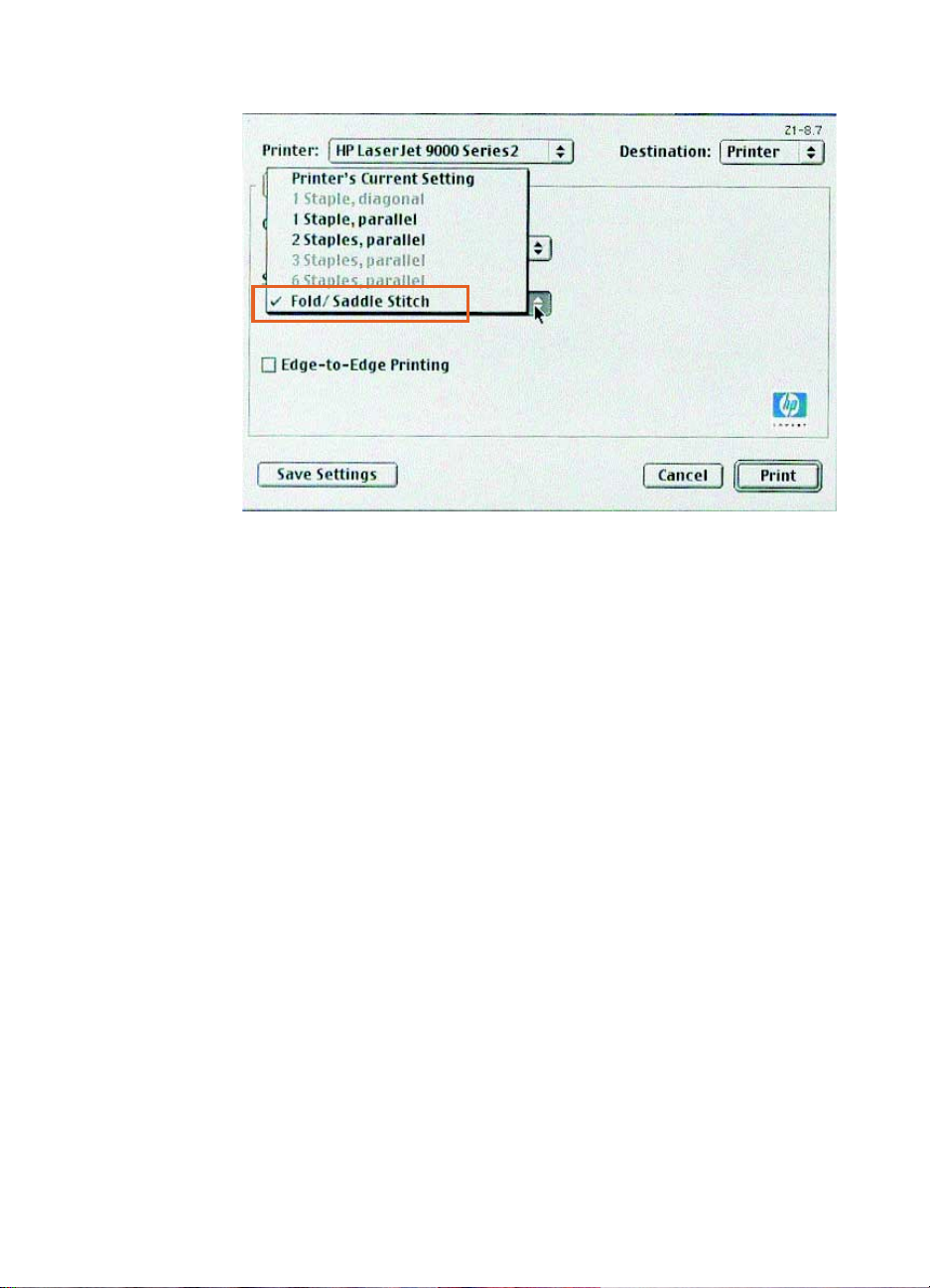

4 Select Fold/Saddle Stitch.

24 2 Finisher tasks ENWW

Using the stapler

The device can staple documents consisting of a minimum of two pages and a maximum of 50 pages of 75-g/m

(20-lb) Letter or A4

paper (a maximum of 25 pages for Ledger or A3 paper). The pages

must be 64 to 199 g/m

(17 to 53 lb) in weight for any paper size the

product supports. Consider these additional points:

z The stacker bin can hold up to 1,000 sheets stacked (without

staples).

z Heavier media might have a stapling limit of fewer than 50 pages. z If the job you want t o hav e stapled consists of only one sheet, or if

it consists of more than 50 sheets, the device delivers the job to the bin without staples.

Selecting the stapler

You usually can select the stapler through your program or driver, although some options might be available only through the driver.

Where and how you make selections depends on your program or driver. If you cannot select the stapler from the program or driver, select the stapler from the product control panel.

To select the stapler from the HP LaserJet 9000 control panel

1 Press to enter the menus. 2 Use and to scroll to CONFIGURE DEVICE and press . 3 Use and to scroll to MULTIFUNC. FINISHER and press . 4 Use and to scroll to STAPLES and press . 5 Use and to scroll to the desired stapling option and press

Your stapling options are None, One, or Two staples.

ENWW Using the stapler 25

To select the stapler from the HP LaserJet 9000mfp control panel

1 Touch Copy Settings. 2 At the Staple menu, touch Corner or Edge, depending on where

you want the documents stapled, and then touch OK. If you selected Booklet from the Copies per Page menu, yo ur stapling options are None, One, Two, and Saddle Stitch.

Note The page icon on the right side of the touch screen shows the p osition

of the staple.

26 2 Finisher tasks ENWW

To staple documents

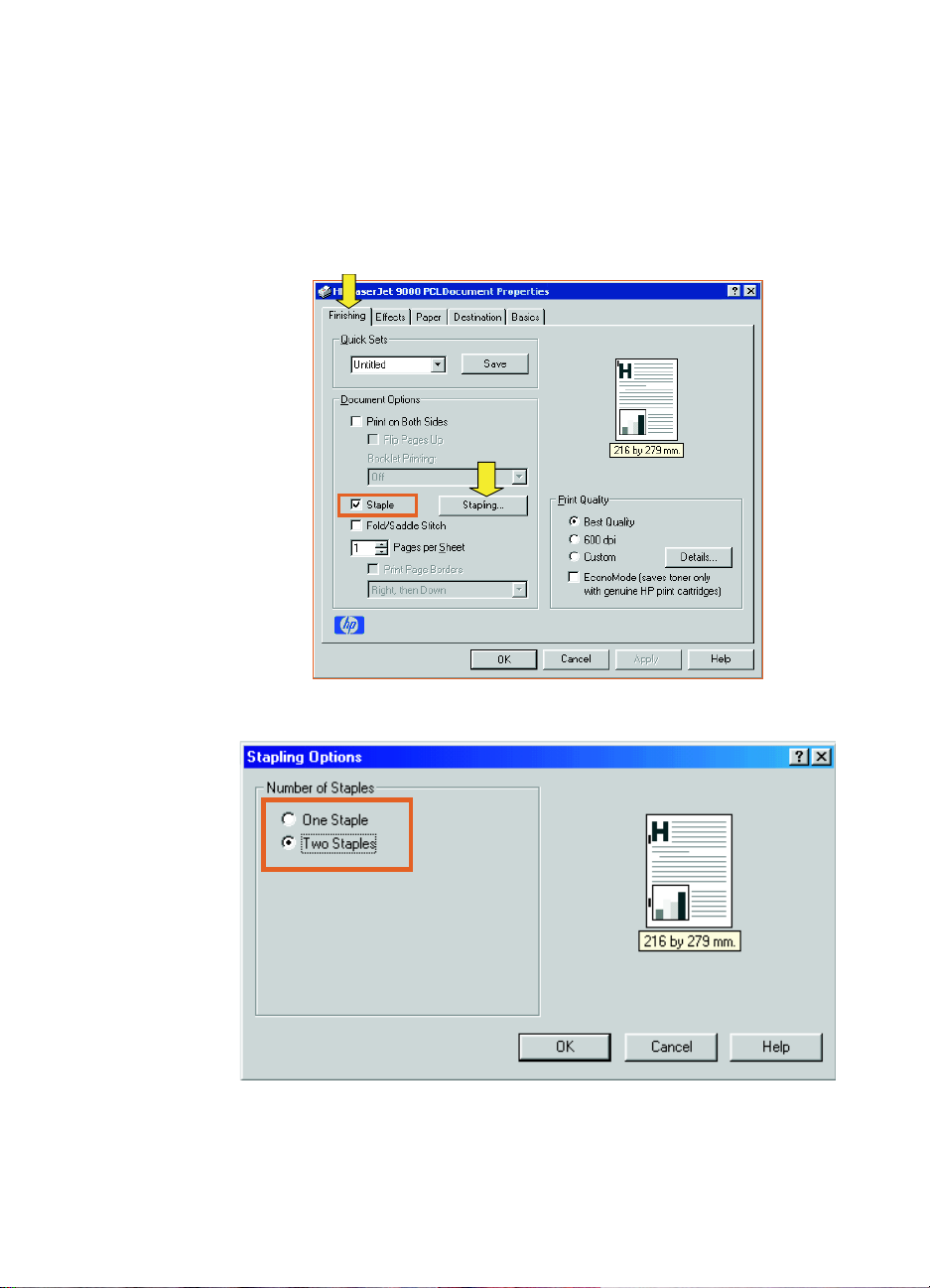

Windows 1 Click File, click Print, and then click Properties. 2 Follow the instructions for your driver type:

• If you are using a PCL driver, click the Finishing tab and select the Staple box. Click Stapling.

• Select the desired number of staples.

ENWW Using the stapler 27

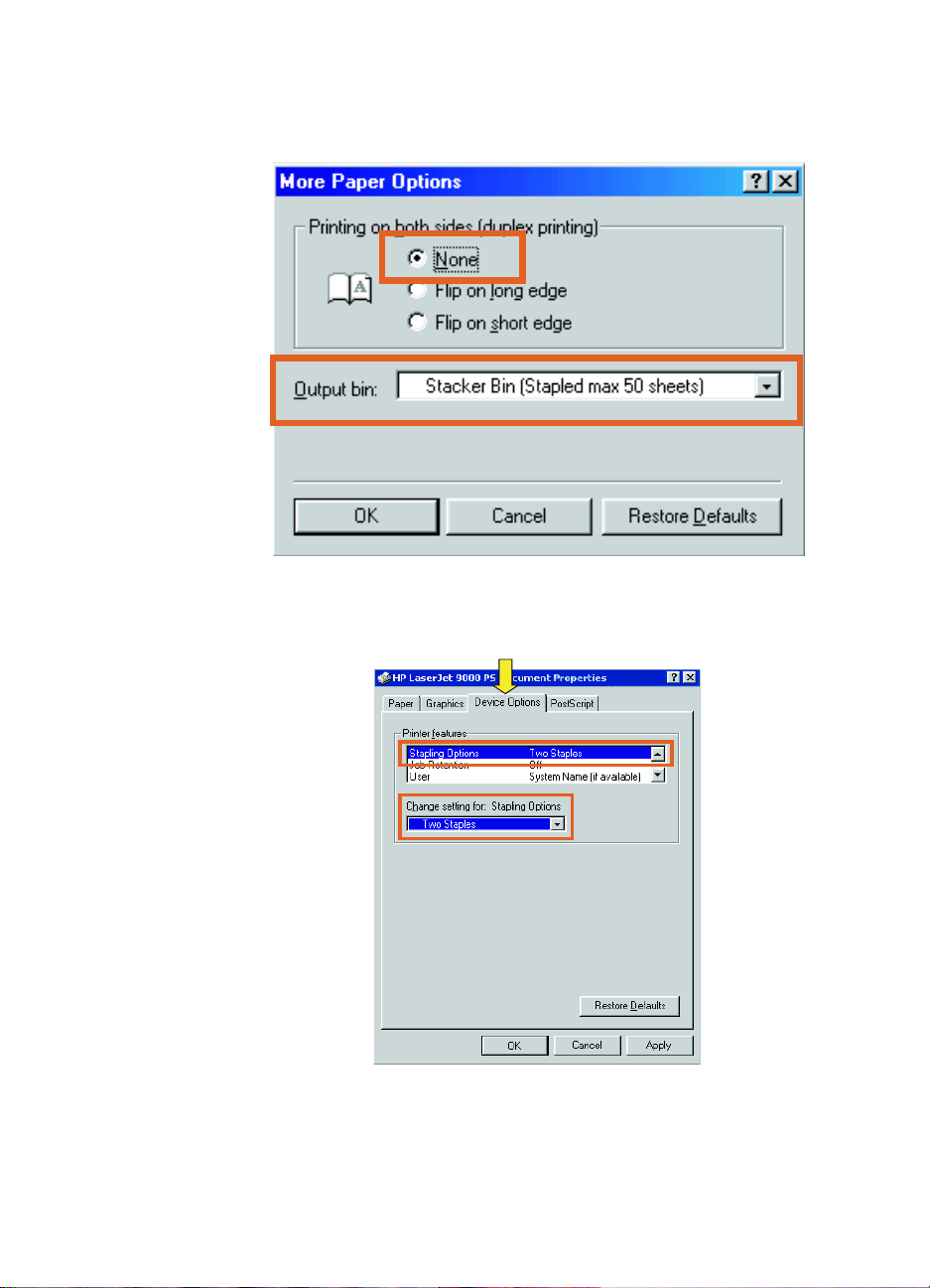

• If you are using a PS driver f or Windo ws 95 or Windows 98, on the drop-down menu select Stacker Bin (Stapled max 50 sheets).

• Click the Device Options tab . On the drop-down menu, select Stapling Options Two Staples. On the drop-down menu, select Two Staples.

28 2 Finisher tasks ENWW

• If you are using a PS driv er for Windows NT or Windows 2000, select the appropriate settings for Document Options, Printer Features, Output De stinat ion, and Stapler. Also, the stapler option is automatically selected if you select Stacker Bin (Stapled max 50 sheets) in the Output Dest in at io n tab.

ENWW Using the stapler 29

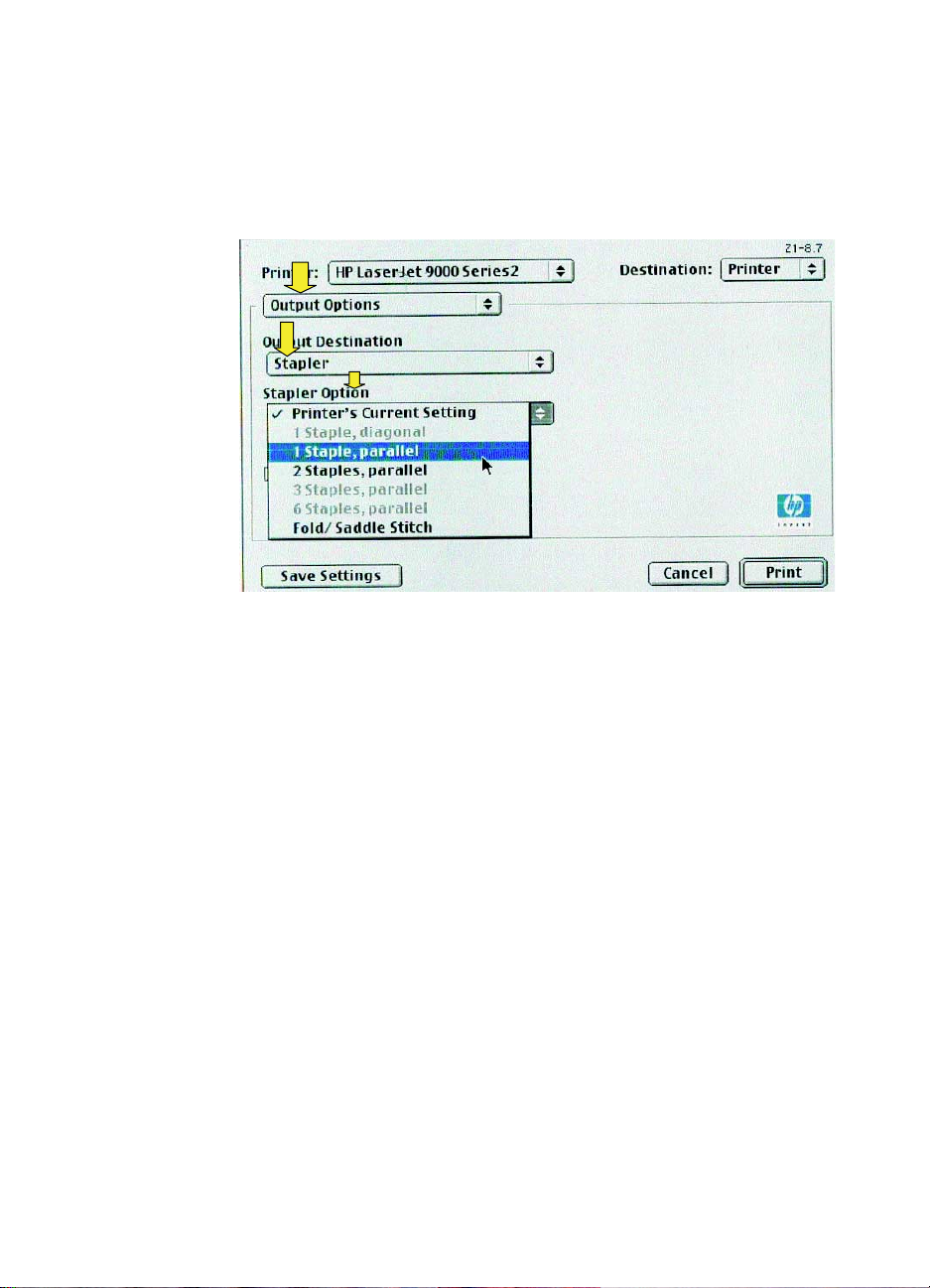

Macintosh 1 Click File and then click Print. 2 In the pop-up menu, select Output Options. 3 On the drop-down menu, select Stapler Option.

Mac OS X 1 Click File and then click Print. 2 On the pop-up menu, select Finishing. On the drop-down menu,

select the Stapler Option.

30 2 Finisher tasks ENWW

Loading the stapler cartridge

The message STAPLER LOW ON STAPLES appears on the printer control panel if the stapler cartridge has 20 to 50 staples remaining. The message STAPLER OUT OF STAPLES appears on the printer

control panel if the stapler cartridge contains no more staples.

To load the stapler cartridge

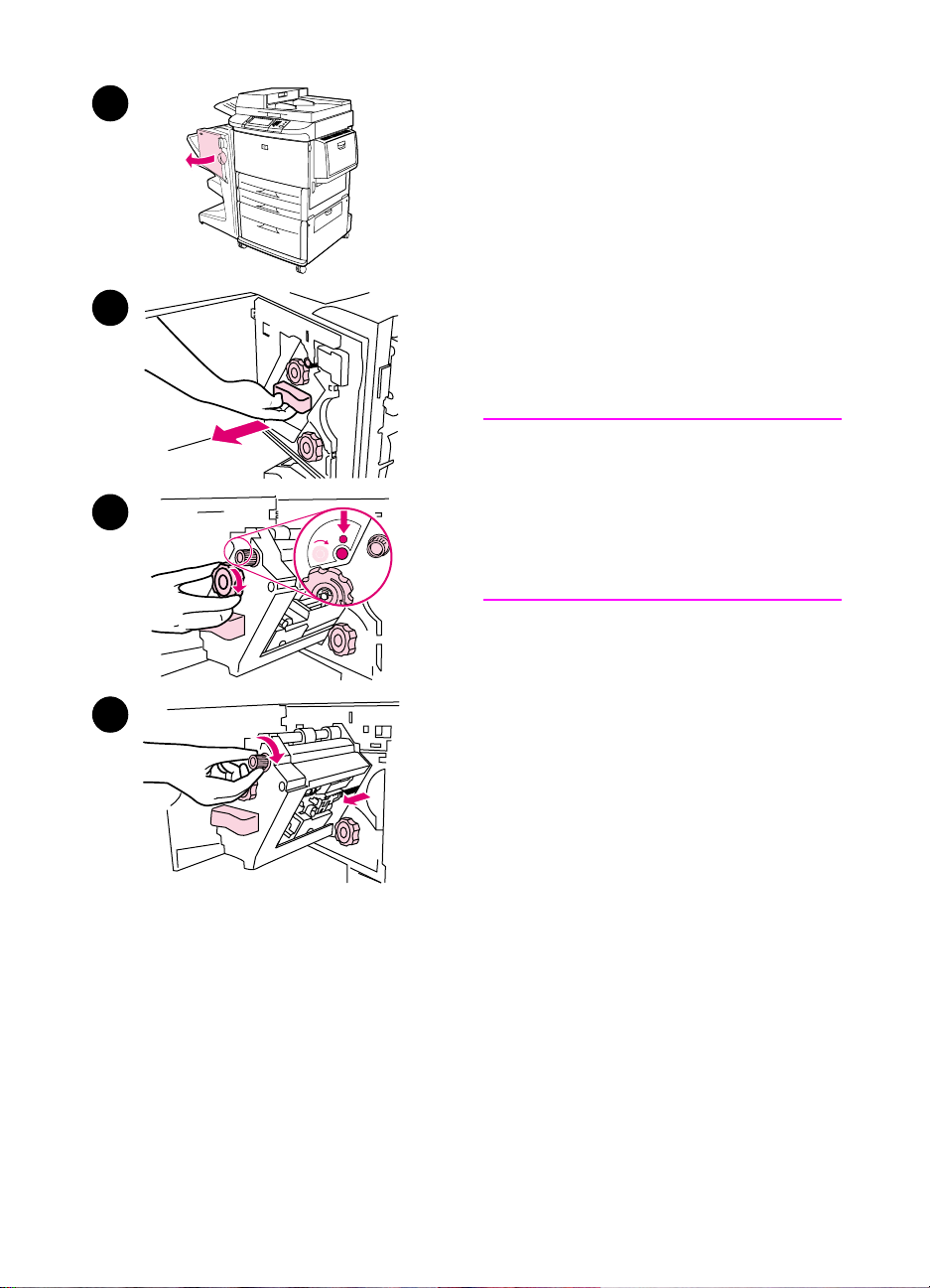

1 Open the stapler-unit door. 2 Slide the stapler unit toward you. 3 Turn the large green knob until you

see the blue dot (this indicates that the stapler is fully open).

4 Turn the small green knob at the top

of the stapler unit clockwise until the staple cartridge moves to the left of the stapler unit.

CAUTION

ENWW Using the stapler 31

The blue dot must appear in the window of the stapler unit bef o re you remove the staple cartridge. If you try to remove the staple cartridge before the blue dot appears in the window, you could damage the device.

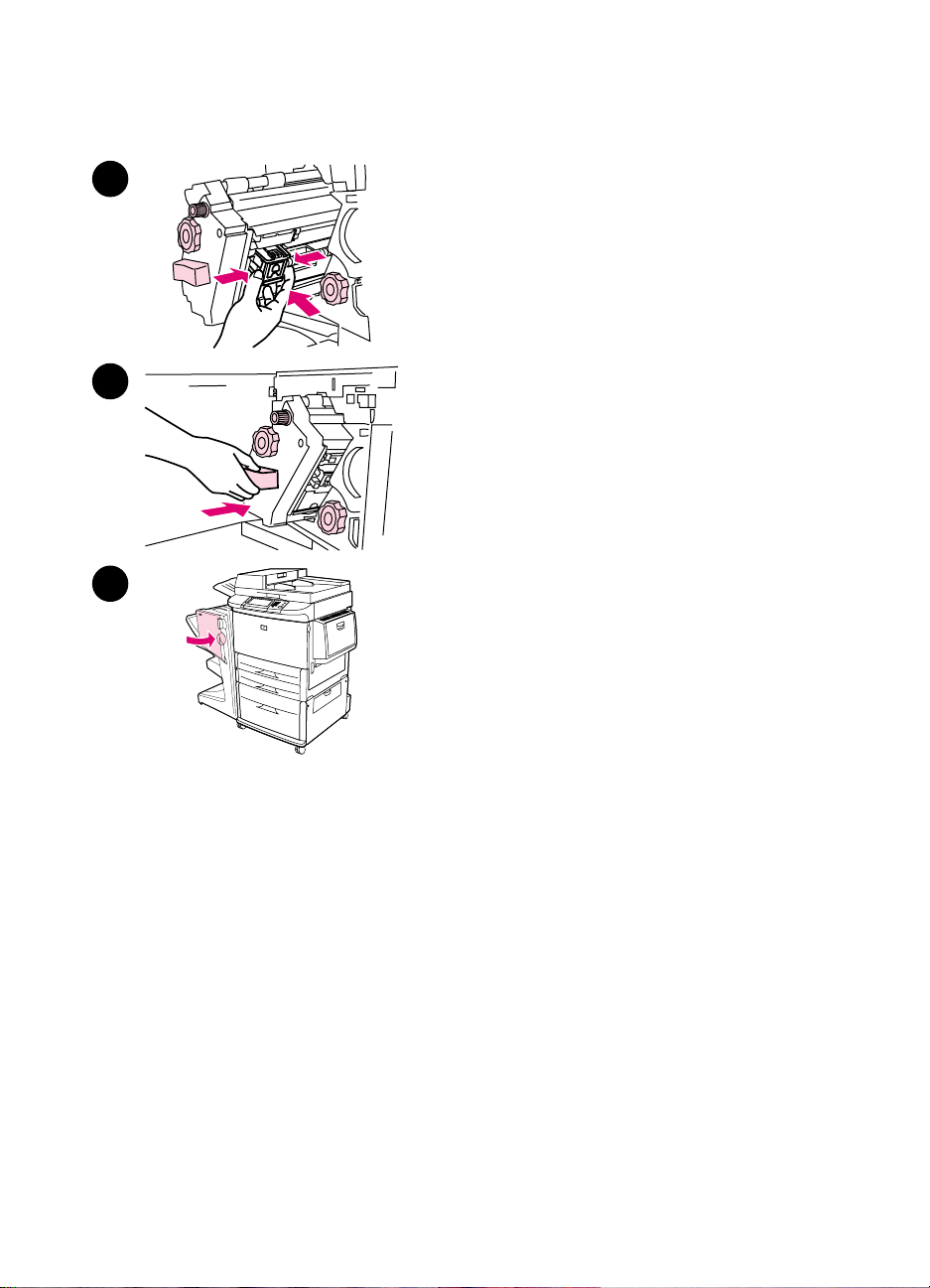

5 On the empty staple cartridge,

squeeze the tabs together and pull the empty cartridge out.

6 Insert the new staple cartridge so

that it locks into place.

7 Slide the stapler unit into the device. 8 Close the stapler-unit door.

32 2 Finisher tasks ENWW

Choosing the output bin

Identifying the output bins

The device has two output locatio ns: the stacker bin and the booklet bin.

Stacke r b in (bin 1)

Booklet bin (bin 2)

The default stacker bin (bin 1) provides 1,000 sheets of stacking capacity and delivers docu ments face up or face down, depending on which option is selected in the driver.

The booklet bin (bin 2) provides folding and saddle stitching for 40 booklets composed of up to 5 sheets (20 finished pages) of paper. A stacking guide automatically adjusts to accommodate the size of the booklet in production.

The stapler serves both bins, and staples as many as 50 sheets of paper per document or 10 pages per saddle-stitched document.

A sensor causes the printer to stop when the device bins are full. Operation continues when you remove all media from the bin.

Note Transparencies, envelopes, labels, prepunched paper and cut-sheet

paper are supported in the stacker bin (bin 1).

Note If you print env elope s, remo v e all en v elopes f rom t he bin once the job

is complete to maintain stacking quality.

ENWW Choosing the output bin 33

Selecting the output location

You can select an output location (bin) through the software application or through your printer driver. (Where and how you make selections depends on your program or driver .) If you cannot select an output location from the program or the driver, set the def ault output location from the printer control panel.

To select an output location from the control panel

On the touch screen of the graphical display:

1 Touch MENU. 2 Touch CONFIGURE DEVICE. 3 Touch PRINTING. 4 Touch PAPER DESTINATION. 5 Scroll to the output bin or device you want, and then touch OK.

Your network administrator might have changed the name of the device. An asterisk (*) appears next to your selection.

On the non-touch screen:

1 Use or to scroll to CONFIGURE DEVICE and press . 2 Use or to scroll to PRINTING and press . 3 Use or to scroll to PAPER DESTINATION and press . 4 Use or to scroll to the output bin or device you want and

press . Your network administrator might have changed the name of the device . An asterisk (*) appears next to your selection.

34 2 Finisher tasks ENWW

Problem solving

Overview

z Resolving common problems z Interpreting control-panel messages z Clearing paper jams z Clearing stapler jams

ENWW Overview 35

Resolving common problems

Common device problems

Situation Possible Reason

The device does not turn on.

The printer does not recognize the device or the user LED on the device is off.

The job was not stapled.

z Make sure that the power cord is firmly plugged into the

2,000-sheet input tray.

z Turn the printer off, check all the cable connections, and turn

the printer on.

z Check the device pow er cord. z Make sure that the device has been configured in the printer

driver.

z Check the HP Jet-Link connector. z Print a configuration page to see if the device is operating

normally.

z If the printer still does not recognize the device, contact your

local authorized HP service provider. (See “Service and

support” on page 61.)

z The stapler is out of staples and AUTO CONTINUE is set to ON. z A single-page job was sent to the stapler; one-page jobs are

not stapled.

z The wrong size or type of paper was used for the job. z More than 50 sheets of 75-g/m

(20-lb) media were sent to

the stapler, exceeding its capacity.

Note

Transparencies, envelopes, labels, and cut-sheet paper are supported in the stacker bin. The stapler can staple jobs of 2 to

50 sheets of 75-g/m the job is ejected unstapled. The stacker bin can hold a maximum of 1,000 sheets, depending on the paper size and weight.

(20-lb) media. If the job is thicker than this,

z The stapler has bent or broken staples in the stapler head. z A staple jam exists, or a staple jam was recently cleared (up

to two sequential jobs might not be stapled).

z The job was sent to a bin other than the stapler bin because

the wrong size or type of paper was used for the job.

z The interface cable to the stapler unit might be defective or is

not connected properly.

36 3 Problem solving ENWW

Common device problems

Situation Possible Reason

The job went to a different output location than expected.

The print media jams.

You are experiencing general repeated stapler jam problems.

z The paper does not meet the specifications for the output bin.

(See "Specifications" on page 47, or go to http://www.hp.com/ cposupport/.)

z Make sure that the correct output bin is selected in the printer

driver. For more information about changing printer driver settings, see your printer user guide.

z Make sure that you are using the supported media weights

and sizes. (See “Supported media types” on page 53.)

Note

Using paper outside HP specifications might cause problems that require repair. This repair is not covered by the Hewlett-P ackard warranty or service agreements. (See “Supported media types”

on page 53.)

z Check the cables and connectors between the printer and the

device.

z Repeated jams that occur when print media travels between

the printer and the device might mean that the printer and device are set up on an uneven floor. Level the device. See the device installation guide for instructions about leveling the device.

z Check to see that the job to be stapled is less than 50 sheets

thick.

z The stapler might have some trapped staple wires obstructing

the cartridge. Remove loose staples and paper dust from the inside of the stapler. (See “To clear a staple jam from the

device” on page 42.)

ENWW Resolving common problems 37

Interpreting control-panel messages

The following table explains device messages that might appear on the printer control panel. Messages are listed in alphabetical ord er.

Control panel messages

Message Description Recommended action

CLOSE FRONT DOOR ON LEFT ACCESSORY

CLOSE TOP COVER ON LEFT ACCESSORY

DIFFERENT PAPER SIZES IN JOB

INSTALL BOOKLET BIN

INSTALL STAPLER UNIT

OPTIONAL BIN 01 FULL

OPTIONAL BIN 02 FULL

The stapler door is open or is not closed properly.

The door is open or is not properly closed. Close the top door.

Different paper sizes are used for a single job.

The booklet bin is not properly installed. Verify that the booklet bin is

The stapler unit is not properly installed. V e rify that the stapler unit is

The stacker bin is full. Remove all media from the

The booklet bin is full. Remove all paper from the

Close the stapler door properly .

V erify that all pages in the job are configured for the same size of paper.

properly installed.

stacker bin.

booklet bin.

OUTPUT PAPER PATH OPEN

The accessory on the left side is not properly attached.

Verify that the accessory is properly attached.

38 3 Problem solving ENWW

Control panel messages

Message Description Recommended action

STAPLE AREA SAFETY PROTECTION ACTIVATED

STAPLER LOW ON STAPLES

STAPLER OUT OF STAPLES

TOO MANY PAGES IN JOB TO STAPLE

TOO MANY PAGES TO MAKE BOOKLET

13.12.11 JAM IN STAPLER

A staple safety alert has occurred. Remove any obstruction from

the stacker bin ejection area.

The stapler cartridge ha s 20 to 50 staples remaining.

The stapler cartridge contains no more staples.

The job height is greater than the stapler capacity. The height of the job to be stapled should not exceed 50 sheets of 20-lb bond.

The page content is too large to be saddle stitched.

A staple jam has occurred. Check for a jammed staple in

Replace the staple cartridge if you want to saddle stitch more than 10 sets in a job.

Replace the stapler cartridge.

See “Loading the stapler cartridge” on page 31.

Verify that the job is within specifications to be stapled.

See “Supported media types” on page 53.

Verify that the job is within specifications to be saddle stitched.

the staple cartridge.

13.12.21

13.12.22

13.12.23 JAM IN LEFT

A paper jam exists in the flipper assembly. Check for jammed media in

the output area of the printer or the input area of the device.

ACCESSORY

13.12.31

13.12.32

13.12.33

13.12.34

A paper jam exists in the paper-path area. Check for jammed media in

the output area of the printer or the input area of the device.

JAM IN LEFT ACCESSORY

ENWW Interpreting control-panel messages 39

Control panel messages

Message Description Recommended action

13.12.41

13.12.42

13.12.43 JAM IN LEFT ACCESSORY

13.12.51

13.12.52

13.12.53 JAM IN LEFT ACCESSORY

66.12.zz OUTPUT DEVICE FAILURE

A paper jam exists in the folding area. Check for jammed media in

the input area and the folding area of the device.

A paper jam exists in the booklet bin area. Che ck for jammed paper in

the booklet bin area and in the folding mechanism.

A failure has occurred with the device. Check cables and turn the

product off and on again. If an error message reappears, record the message and call for support.

40 3 Problem solving ENWW

Clearing jams

The message JAM IN LEFT ACCESSORY appears on the control panel.

1 Move the device away from the printer. 2 Remove media from any of the areas where jams can occur. 3 Reattach the device. Wait for the solid-green status light to

appear on the user LED.

Note When clearing jams, be very careful not to tear the media. If even a

small piece of media is left in the device, it can cause additional jams.

Jam locations

Paper-path area

Stapler unit

Folding area

Booklet bin (bin 2)

Flipper assembly

ENWW Clearing jams 41

To clear a staple jam from the device

1 Open the stapler-unit door. 2 Slide the stapler unit toward you. 3 Turn the large green knob until you

see the blue dot (this indicates that the stapler is fully open).

4 Turn the small green knob at the top

of the stapler unit clockwise until the staple cartridge moves to the left of the stapler unit.

CAUTION

42 3 Problem solving ENWW

5 Remove the staple cartridge. 6 Pull up on the lever labeled with a

green dot.

7 Remove the damaged staple. 8 Press down on the lev er labeled with

a green dot.

ENWW Clearing jams 43

9 Reinstall the staple cartridge. 10 Slide the stapler unit into the device. 11 Close the stapler-unit door.

44 3 Problem solving ENWW

To clear a jam in the upper half of the stapler head

1 Follow steps 1 through 4 of the

procedure to clear a staple jam.

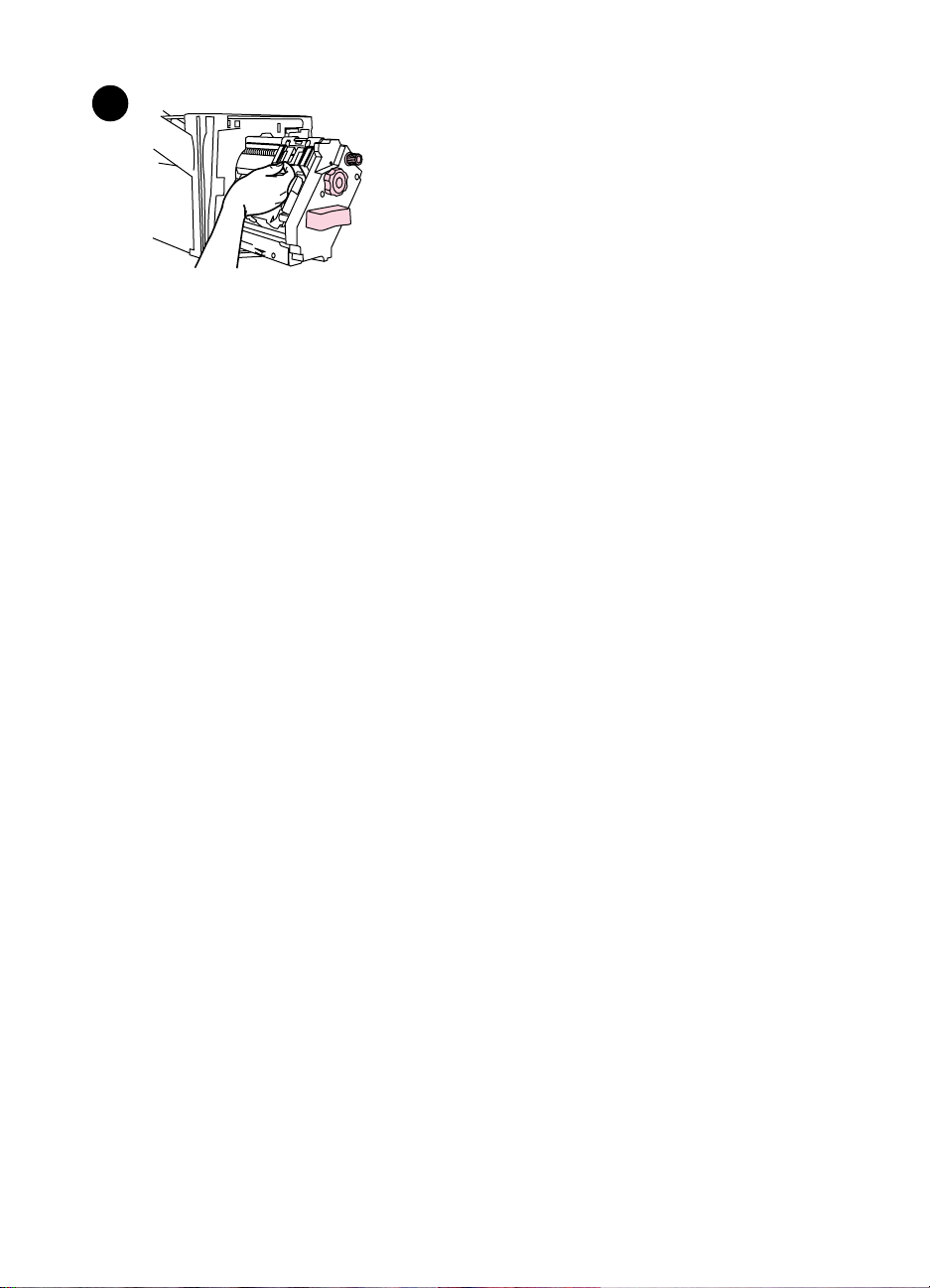

2 Locate the damaged staple at the

back of the stapler head, and remove the staple.

3 Follow steps 10 through 11 of the

procedure to clear a staple jam.

ENWW Clearing jams 45

46 3 Problem solving ENWW

Specifications

Overview

z Physical specifications z Environmental specifications z Media specifications

ENWW Overview 47

Physical specifications

Device size

Prepare a location for the device that allows for the following physical and environmental requirements, in addition to the requirements for your p rin ter.

Note The drawings shown are not to scale.

1,000 mm

(39.4 inches)

985 mm

(38.8 inches)

357 mm (14.0 inches)

298 mm (11.7 in)

233 mm (9.2 inches)

310 mm (12.2 inches)

647 mm (25.5 inches)

35 mm

(1.4 inches)

647 mm (25.5 inches)

904 mm

(35.6 inches)

603 mm (23.7 inches)

HP Multifunction Finisher (side and top views)

48 A Specifications ENWW

Location requirements for the printer:

z A level area on the floor

z Adequate power supply (15 A,

110 V, or 220 V circuit located

z Space allowance around the

near the printer)

printer

z A stable environmen t—no

z A well-ventilated room

abrupt temperature or humid ity changes

z No exposure to direct sunlight

or chemicals, including ammonia-based cleaning

z Relative humidity of 10 percent

to 80 percent

solutions

z Room temperature of 10° C to

32.5° C (50° F to 91° F)

Device weight of the HP Multifunction Finisher: 44.4 kg (98 lb)

ENWW Physical specifications 49

Environmental specifications

Power consumption

Power consumption (average, in

Product state

Printing (110 to 127 V units) (220 to 240 V units)

Standby (110 to 127 V units) (220 to 240 V units)

watts)

1,075 watts 1,075 watts

440 watts 440 watts

Power consumption with typical output device

1,130 watts 1,130 watts

485 watts 485 watts

PowerSave 1 (Fan is on) (110 to 127 V units) (220 to 240 V units)

Low power (100 to 127 V units) (220 to 240 V units)

Off (110 to 127 V units) (220 to 240 V units)

50 A Specifications ENWW

70 watts 70 watts

230 watts 230 watts

0.5 watts

1.3 watts

115 watts 115 watts

275 watts 275 watts

0.5 watts

1.3 watts

Power

Power consumption with typical output device

1,185 watts 1,185 watts

Product state

ADF copying/ printing (110 to 127 V units) (220 to 240 V units)

consumption (average, in watts)

1,130 watts 1,130 watts

Power requirements

Power requirements (acceptable line voltage)

110 to 127 V (+/- 10%) 50 to 60 Hz (+/- 2 Hz)

220 to 240 V (+/- 10%) 50 Hz (+/- 2 Hz)

220 V (+/- 10%) 60 Hz (+/- 2 Hz)

ENWW Environmental specifications 51

Circuit capacity

Minimum recommended circuit capacity

110 to 127 V 15.0 amps

220 to 240 V 6.5 amps

Operating environment

Operating temperature 10° C to 32.5° C (50° F to 91° F)

Operating humidity 10 to 80 percent relative humidity

Storage temperature 0° C to 35° C (32° F to 95 ° F)

Storage humidity 10 to 95 percent relative humidity

Speed 50 ppm

Protecting the environment

Hewlett-P a ckard Company is committed to providing quality products in an environmentally sound manner.

The HP Multifunction Finisher has been designed with several attributes that minimize impacts on the environment.

52 A Specifications ENWW

Supported media types

The following types of media are supported for the multifunction finisher:

z plain paper z preprinted paper z letterhead (except raised letterhead and low-temperature inks) z transparencies z prepunched paper z labels z bond z recycled paper z color paper z card stock z rough paper z glossy paper z envelopes z cut-sheet paper z user-defined paper (five types)

ENWW Environmental specifications 53

Supported media

Supported media specifications

Note Transparencies, envelopes, prepunched, cut-sheet paper, and labels

are only supported in bin 1.

Note Custom paper sizes are not supported for booklet making.

Output bin

Capacity Media Weight

and Stapler

Stacker bin (bin 1)

Booklet bin (bin 2)

Stapler Maximum of 50

Up to 1,000 sheets, stacked, of Letter/ A4

Up to 500 sheets, stacked, of Ledger/ A3

Up to 40 booklets composed of 5 sheets

sheets of Letter/A4

z Standard paper sizes:

letter, legal, executive, ISO A3, ISO A4, ISO A5, JIS B4, JIS B5, ledger

z Custom paper sizes:

Minimum: 98 by 191 mm (3.9 by 7.5 inches) Maximum: 312 by 470 mm (12.2 by 18.4 inches)

z Custom types: envelopes,

labels, transparencies, heavy paper

z Face-up bin only: envelopes,

labels, heavy paper up to 216

(58 lb bond)

g/m

z Standard paper sizes:

letter, legal, ISO A3, ISO A4, JIS B4, ledger

z Letter, ISO A4, legal, ledger,

A3, JIS B4

64 to 216 g/m (17 to 58 lb bond)

64 to 199 g/m (17 to 53 lb bond)

Maximum of 25 sheets of Ledger/A3

Note

Stapling capacity varies depending on paper thickness.

For more information about media guidelines, see the user guide supplied with your printer. Also see the HP LaserJet Media Specification Guide at http://www.hp.com.

54 A Specifications ENWW

Table 1. Number of sheets that can be stapled, listed by media weight

Media weight Letter/A4 Ledger/A3 and Legal/B4

64 g/m2 (17 lb) *50 *25

75 g/m 80 g/m 90 g/m 105 g/m 163 g/m 199 g/m

(20 lb) *50 *25

(21 lb) *50 *25

(24 lb) *44 *22

(28 lb) *28 *14

(43 lb) *18 *9

(53 lb) *12 *6

*Denotes approximate numbers

Table 2. Number of sheets that can be stapled a nd folded, listed by media weight

Media weight Letter/A4, Ledger/A3 and Legal/B4

64 g/m2 (17 lb) to

80 g/m 90 g/m

(21 lb)

(24 lb) to

Maximum of 10 sheets

Maximum of 5 sheets

105 g/m2 (28 lb)

Note When making booklets using media weight of 64 g/m

(21 lb), one cover sheet up to 199 g/m2 (53 lb) can be combined with the 10 sheets. Other combinations are not supported.

(17 lb) to 80 g/m2

ENWW Environmental specifications 55

56 A Specifications ENWW

Regulatory and

warranty information

Overview

z Declaration of conformity z Canadian DOC Regulations z Warranty information

ENWW Overview 57

Declaration of Conformity

according to ISO/IEC Guide 22 and CEN/CENELEC EN 45014

Manufacturer’s Name: Hewlett-Packard Company

Manufacturer’s Address:

Montemorelos 299, Guadalajara Jalisco, 45060 Mexico

declares, that the product

Product Name: HP Multifunction Finisher

Model Numbers: C8088A Product Options: N/A

conforms to the following Product Specifications:

SAFETY: IEC 950:1991+A1+A2+A3+A4 / EN 60950:1992+A1+A2+A3+A4+A11

IEC 825-1:1993/EN60825-1:1994 Class 1 (Laser/LED) UL1950, Third Edition

EMC: CISPR 22:1997 / EN 55022:1998 Class A

EN 55024:1998 IEC 61000-3-2:1998/EN 61000-3-2:1995 IEC 61000-3-3:1994/EN 61000-3-3:1995

FCC Title 47 CFR, Part 15 Class A AS / NZS 3548:1992/CISPR 22:1993 Class A

/ ICES-003, Issue 3

Additional Information:

The product herewith complies with the requirements of the EMC Directive 89/336/EEC and the Low Voltage Directive 73/23/EEC, and carries the CE-Marking accordingly.

1) The product was tested in a typical configuration with Hewlett-Pac kard Personal Computer Systems .

2) This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two Conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Hewlett-Packard Company Guadalajara, Jalisco, MEXICO May 8, 2001

Australia Contact: Product Regulations Manager, Hewlett-Packard Australia Ltd., 31-41 Joseph Street, Blackburn, Victoria 3130, Australia

European Contact: Your Local Hewlett-Packard Sales and Service Office or Hewlett-Packard Gmbh, Department HQTRE / Standards Europe, Herrenberger Straße110-140, D-71034 Böblingen (FAX: +49-7031-14-3143)

USA Contact: Product Regulations Manager , Hewlett-P ackard Company, PO Box 15, Mail Stop 160, Boise, Idaho 837070015 (Phone: 208-396-6000)

58 B Regulatory and warranty information ENWW

Canadian DOC Regulations

Complies with Canadian EMC Class A requirements. <<Conforme á la classe A des normes canadiennes de compatibilité électromagnétiques. << CEM>>.>>

VCCI Statement (Japan)

Korean EMI Statement

ENWW Canadian DOC Regulations 59

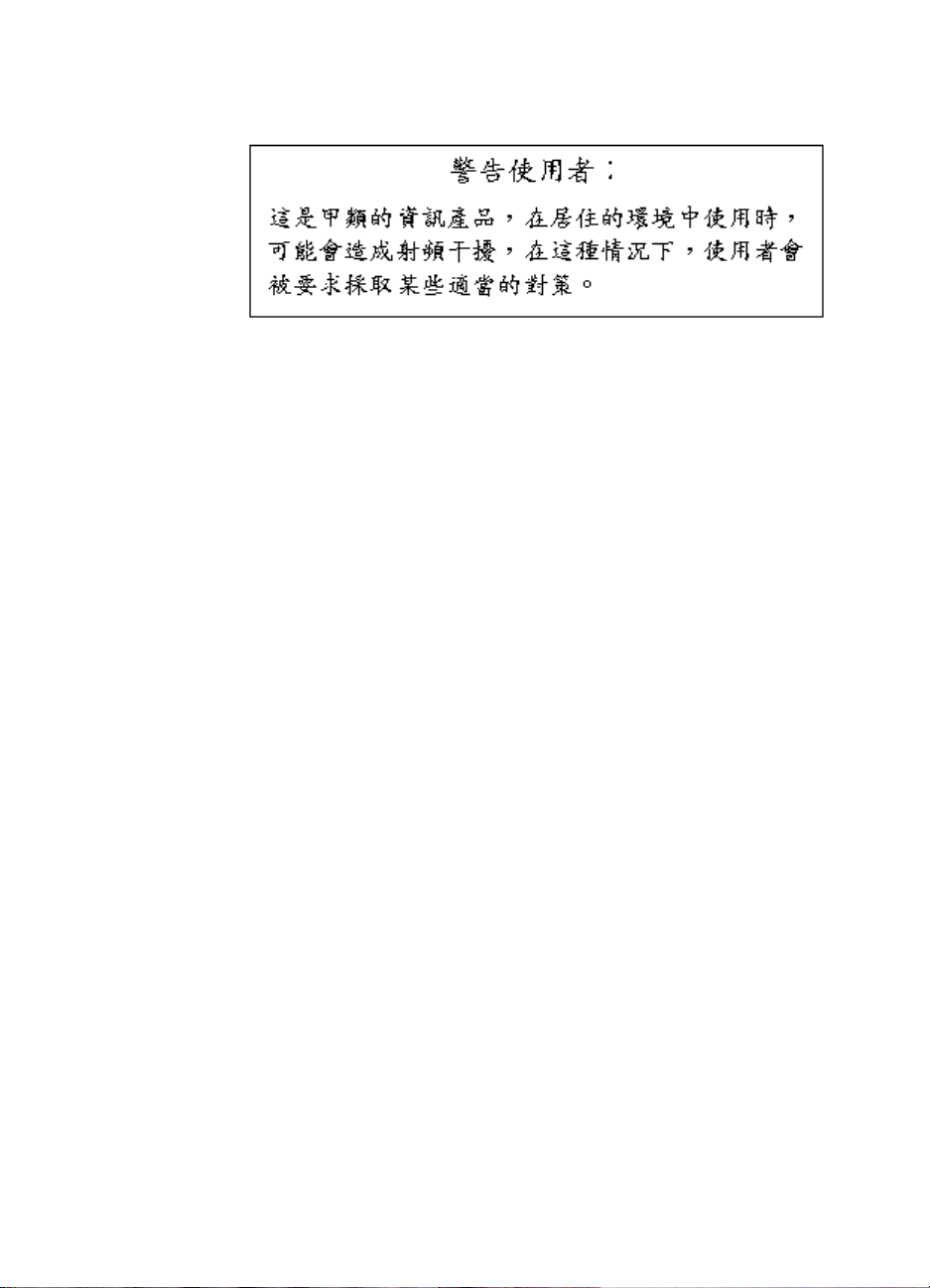

Taiwan

60 B Regulatory and warranty information ENWW

Warranty information

See the start guide that came with your product for warranty information.

ENWW Warranty information 61

62 B Regulatory and warranty information ENWW

Index

A3 paper

stapling capability by weight 55 stapling capability by weight, booklets

A4 paper

stapling capability by weight 55

accessories

control panel messages 38 adhesive labels 33 adjusting fold line 12 amber light

interpreting 7

troubleshooting 36

benefits of product 6 bent staples in stapler head 36 bins

description 33

error messages 38

fold-line settings 12

location 33

media supported 5 4

selecting 34

troubleshooting 37 blinking lights

interpreting 7

troubleshooting 36 booklet bin

description 33

error messages 38

location 33

media supported 5 4

selecting 33

troubleshooting 37

booklets

error messages 39 features 6 fold-line settings 12 making 13 media supported 54 printing 14 selecting output bin 33 stacking 6 stapling capability by media weight 55

broken staples in stapler head 36

Canadian DOC regulations 59 cardstock

booklet covers 13, 18 stapling 25 supported sizes 54

cartridge, stapler

error messages 39

troubleshooting 37 circuit capacity 52 clearing jams

media 41

stapler head 45 consumption of power 50 control panel

default settings 10

selecting output location 34

staple options 26

troubleshooting messages 38 Corner Staple option 11 covers for booklets

adding 13

media supported 13

printing 18 custom media sizes supported 54 customer support

warranty 61 cut-sheet paper 33

ENWW Index 63

Declaration of Conformity (DOC)

U.S. 58 default settings 10 destinations

error messages 38

media supported 5 4

selecting 34

troubleshooting 37 device not recognized 36 DOC (Declaration of Conformity)

U.S. 58 drivers

PostScript 15

using to make booklets 13

using to print and saddle-stitch

booklets 13 using to select stapler 25 using to select stapling functions 10

electrical specifications

circuit capacity 52 power requirements 51

energy consumption 50 energy specifications 50 envelopes 33 environmental specifications 49, 50 error messages 38

features of HP Multifunction Finisher 6 folding

features 6 settings 12

frequent

media jams 37 stapler jams 37

green light

interpreting 7 troubleshooting 36

heavy media

booklet covers 13, 18 stapling 25 supported sizes 54 supported types 53

humidity specifications 49, 52

imposing booklets 13 indicator lights

interpreting 7 troubleshooting 36

jams

clearing for media 41 clearing for stapler head 45

troubleshooting 37 Japanese VCCI statement 59 jobs

offset mode 10

stacking with or without separation 10

Korean EMI statement 59

labels 33 ledger paper

stapling capability by weight 55

stapling capability by weight, booklets

LEDs

interpreting 7

troubleshooting 36 letter paper

stapling capability by weight 55 lights

interpreting 7

troubleshooting 36 line voltage requirements 51

64 Index ENWW

location

booklet and stacker bins 33 lights 7 placement of staples 11 saddle stitch positions 12 selecting for output 34 site requirements 49

mailing labels 33 media

error messages 38 HP LaserJet Media Specification

Guide 54 jams, clearing 41 jams. troubleshooting 37 stapling 25 stapling capability by weight 55 stapling capability by weight, booklets

55 supported sizes 54 supported types 53

messages, control panel 38

No Staple option 11

offset mode

description 10 limiting access 10

One Staple option 11 operating environment 49 operating environment specifications 52 options

booklet making 13 default 10 stapler 11, 25

output bins

description 33 error messages 38 fold-line settings 12 media supported 5 4 selecting 34 troubleshooting 37

overhead transparencies 33

pages per minute (ppm) 6 paper

error messages 38 HP LaserJet Media Specification

Guide 54 jams, clearing 41 jams, troubleshooting 37 stapling 25 stapling capability by weight 55 stapling capability by weight, booklets

55 supported sizes 54 supported types 53

paper-handling features 6 PostScript drivers 15 power

circuit capacity 52 consumption 50 requirements 51 troubleshooting 36

PowerSave specifications 50 ppm (pages per minute) 6 prepunched paper 33 print media

error messages 38 HP LaserJet Media Specification

Guide 54 jams, clearing 41 jams, troubleshooting 37 stapling 25 supported sizes 54 supported types 53

printer drivers

PostScript 15 using to make booklets 13 using to print and saddle-stitch

booklets 13 using to select stapler 25 using to select stapling functions 10

problems, resolving common 36

recognize device, printer does not 36 red service LED light on 8

ENWW Index 65

regulations

U.S. DOC 58 regulatory information 57 relative humidity specifications 49, 52 repeated

media jams 37

stapler jams 37 room temperature specifications 49

saddle stitching

description 13

features 6

performing 19

positions 12 separating jobs 10 service LED lights 8 settings

booklet making 13

default 10

stapler 11, 25 size specifications

HP Multifunction Finisher 48

media supported 5 4 space requirements 49 specifications

environmental 50

location 49

media 53, 54

physical 48

speed 6 speed specifications 6 stacker bin

description 33

location 33

media supported 5 4

selecting 33

troubleshooting 37 stacking

booklets 6

features 6

with no separation 10 standby power consumption 50 stapler

media supported 5 4

selecting 25

stapler cartridge

error messages 39 troubleshooting 37

stapler head

bent or broker staples 36 clearing jams 45

stapling

booklets 13, 19 capability for booklets by media weight

55 default settings 11 documents 25 error messages 39 features 6 limiting access 10 number of sheets by media weight 55 output bin, selecting 33 performing 27 positions 6 selecting functions through printer

driver 10

troubleshooting 36, 37

status lights

interpreting 7 troubleshooting 36

stitching. See saddle stitching storage specifications 52 support

warranty 61

Taiwan regulatory statement 60 temperature specifications 49, 52 transparencies 33 trapped staples 37 troubleshooting

common problems 36 control panel messages 38 jams 37 lights 7, 36 output bins 37 power 36 stapling 36

turning on, troubleshooting 36 Two Staples option 11

66 Index ENWW

unrecognized device 36

voltage requirements 51

warranty 61 weight

stapling capability by media 55

weight specifications

HP Multifunction Finisher 49 media 54

ENWW Index 67

68 Index ENWW

HP LaserJet 9000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Finisher basics

Overview

Features and benefits

Paper-handling features

Interpreting light patterns

Finisher tasks

Overview

Configuring control panel settings

Making booklets

Using the stapler

Selecting the stapler

Choosing the output bin

Identifying the output bins

Selecting the output location

Problem solving

Overview

Resolving common problems

Interpreting control-panel messages

Clearing jams

Specifications

Overview

Physical specifications

Environmental specifications

Power consumption

Power requirements

Circuit capacity

Operating environment

Supported media types

Supported media

Overview

Declaration of Conformity

Canadian DOC Regulations

Warranty information

Index
